USER MANUAL iSnug 2 Joie

Child height 40cm-75cm/ Child weight≤13kg; ECE R129/03 i-Snug 2 enhanced child restraint

Please make sure there are no missing parts. Please contact the retailer if anything is missing.

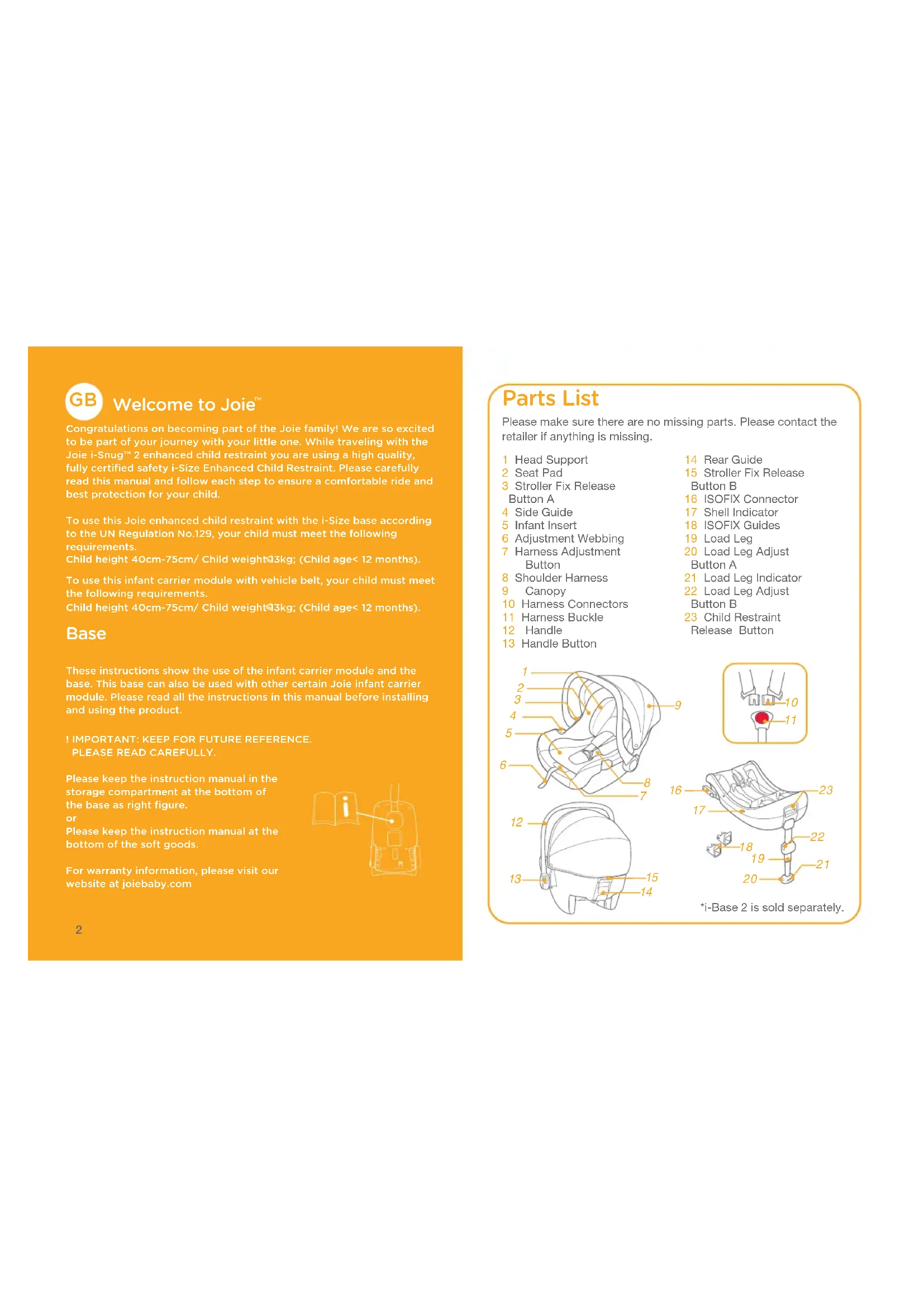

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Joie i-Snug™ 2 enhanced child restraint you are using a high quality, fully certified safety i-Size Enhanced Child Restraint. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.To use this Joie enhanced child restraint with the i-Size base according to the UN Regulation No.129, your child must meet the following requirements.Child height 40cm-75cm/ Child weight 13kg; (Child age< 12 months).To use this infant carrier module with vehicle belt, your child must meet the following requirements. Child height 40cm-75cm/ Child weight 13kg; (Child age< 12 months). Base These instructions show the use of the infant carrier module and the base. This base can also be used with other certain Joie infant carrier module. Please read all the instructions in this manual before installing and using the product.! IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.Please keep the instruction manual in the storage compartment at the bottom of the base as right figure. Please keep the instruction manual at thebottom of the soft goods.For warranty information, please visit our website at joiebaby.com *i-Base 2 is sold separately.3 4 WARNING ! BE cautious that the rigid items and plastic parts of the enhanced child restraint system shall be so located and installed that they are not liable to become trapped by a movable seat or in the door of the vehicle. ! DO NOT use the rearward facing enhanced child restraint systems in seating positions where there is an active frontal airbag installed. ! To use this enhanced child restraint with base according to the UN Regulation No.129, your child must meet the following requirements. Child height 40cm-75cm/ Child weight ≤13kg (Child age ≤12months). ! To use this infant carrier module with vehicle belt, your child must meet the following requirements. Child height 40cm-75cm/ Child weight ≤13kg (Child age ≤12months). ! The enhanced child restraint may not fit in all approved vehicles. Please refer to the fitting list included for more details. ! Any straps holding the enhanced child restraint to the vehicle should be tight. that any support-legshould be in contact with the vehicle floor, that any straps or impact shields restraining the child should be adjusted to the child’s body, and that straps should not be twisted. ! DO NOT use any load bearing contact points other than those described in the instructions and marked on the enhanced child restraint. ! After your child is placed in this enhanced child restraint, the safety belt must be used correctly. ! This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. An accident can cause damage to it that you cannot see. ! Consider the danger of making any alterations or additions to the device without approval of the adequate authority, and the danger of not following closely to the installation instructions provided by the enhanced child restraint manufacturer. ! Please keep this enhanced child restraint away from sunlight, other- wise it may be too hot for child’s skin. Always touch the enhanced child restraint before placing child in it. ! DO NOT leave your child unattended in the enhanced child restraint system. WARNING ! Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured. ! The enhanced child restraint system shall NOT BE USED without the soft goods. ! The soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods consti- tutes an integral part of the restraint performance. ! Please check if this enhanced child restraint can be installed prop- erly in your vehicle before you purchase it. ! NO enhanced child restraint can guarantee full protection from injury in an accident. However, proper use of this enhanced child restraint will reduce the risk of serious injury or death to your child. ! DO NOT install this enhanced child restraint without following the instructions in this manual or you may put your child at serious risk of injury or death. ! DO NOT use this enhanced child restraint if it has damaged or miss- ing parts. ! The instructions can be retained on the child restraint for its life period. ! For an “i-Size Enhanced Child Restraint System”, the user shall also be referred to the vehicle manufacturer’s handbook.5 6 Figure for Installation Child height 40cm-75cm/ Child weight≤13kg (Child age≤12 months) Child height 40cm-75cm/ Child weight≤13kg (Child age≤12 months) Suitable for Child height 40cm-75cm/ Child weight≤13kg Child age≤12 months Emergency In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately. Product Information DO NOT use the rearward facing enhanced child restraint systems in seating positions where there is an active frontal airbag installed. i-Snug™ 2 infant carrier module is compatible with i-Base 2, i-Base lx 2, i-Base Advance, i-Base Encore

1. This is an “i-Size” Enhanced Child Restraint System. It is approved

according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users’ manual.

2. If in doubt, consult either the Enhanced Child Restraint System

manufacturer or the retailer. i-Snug™ 2 infant carrier module is compatible with ClickFit R129, i-Base 2 with vehicle belt installation

1. This is Specific vehicle Belted Enhanced Child Restraint System.

2. If in doubt, consult either the Enhanced Child Restraint System

manufacturer or the retailer. i-Snug™ 2 infant carrier module can be used separately

1. This is Universal Belted Enhanced Child Restraint System. It is

approved according to UN Regulation No.129, for use primarily in “Universal seating positions” as indicated by vehicle manufacturers in the vehicle user’s manual.

2. If in doubt, consult either the Enhanced Child Restraint System

manufacturer or the retailer. Materials Plastics, metal, fabrics Patent No. Patents pending Choose the Installation Mode7 8 Concerns on Installation see images

Handle Adjustment see images

The handle of the infant carrier module can be adjusted to 3 positions.

Position 1- Position for car, hand or stroller transportation. To adjust the handle, squeeze the handle buttons on both sides to release it

-1, and then rotate the handle until it clicks into any of the 3 positions.

1. Unfold the load leg from storage compartment.

2. Fit the ISOFIX guides with the ISOFIX anchor points.

The ISOFIX guides can protect the surface of the vehicle seat from being torn. They can also guide the ISOFIX connectors.

3. Rotate the ISOFIX connectors 180 degrees until they are pointing in

4. Line up the ISOFIX connectors with the ISOFIX guides, and then

click both ISOFIX connectors into the ISOFIX anchor points.

Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. There should be two audible clicks and the colors of the indicators on the both ISOFIX connectors should be completely green.

Check to make sure the base is securely installed by pulling on the both ISOFIX connectors. Installation with base see images

5. After placing the base on the vehicle seat, extend the load leg to

, When the load leg indicator shows green means it is installed correctly, red means it is installed incorrectly.

The load leg has multiple positions. When the load leg indicator shows red this means the load leg is in the wrong position.

Make sure the load leg is in full contact with the vehicle floor pan.

Squeeze the load leg releasing button, then shorten the load leg upwards. The completely assembled base is shown as

The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points.

The load leg must be installed correctly with green indicator.

Please install the enhanced child restraint on the rear vehicle seat and then put the child in the enhanced child restraint.

6. Push the infant carrier module down into the base

, if the enhanced child restraint is secure, the enhanced child restraint indicator shows green.

Pull up on the infant carrier module to be sure it is securely latched into the base.

7. To release the infant carrier module, pull the infant carrier up

while squeezing the child restraint release button.

-1 first and then the button

-2 on the ISOFIX connectors before removing the base from the vehicle seat.

Head Support and Shoulder Harnesses see images

1. The head support can be adjusted according to the baby's height.

2. Check that shoulder harness straps are set at the proper height.

No matter where the head support is, the bottom of head support must be level with the highest point of child’s shoulder, it is shown

If the shoulder harness straps are not at proper height, the child might be ejected from the enhanced child restraint if there is a crash.1. Infant insert is for children's protection. Children whose height is under 60cm are suitable to use the infant insert.2. Before using the insert, please add the foam wedge.

Note Remove the body portion of the infant insert whenthe infant’s shoulders no longer fit comfortably. Securing Child in the Enhanced Child Restraint see images

1. While pressing the harness adjustment button, pull completely the two shoulder harnesses of the enhanced child restraint.

2. Unlock the buckle of the harnesses by pressing the red button.

3. Place child into the infant carrier module and lock the buckle.

4. Tighten the shoulder harnesses by pulling adjustment webbing.

To re-assemble the soft goods, reverse the aforementioned steps. Detaching Canopy and Seat Pad see images

Installation without base

DO NOT install this infant carrier module on vehicle seats with Lap Belts.

This infant carrier module is suitable for vehicle seats with a 3-point Retractor Safety Belt only. 1. Place the infant carrier module onto the vehicle seat where you wish to put it. Pull the vehicle safety belt out and lock it into the vehicle buckle, sliding the vehicle lap belt into the side guides of the infant carrier module.

The infant carrier module can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the infant carrier module securely.

2. Slide diagonal belt into the rear guide.

3. Pull the vehicle shoulder belt to fasten the infant carrier module tightly and securely.

4. Level line on infant carrier module must be level to the ground when the infant carrier module is installed.

Tension the vehicle safety belt as much as possible, checking that it is not loose or twisted. see images

After installing the infant carrier module, always check that the vehicle belts are routed correctly and securely fastened into the vehicle buckle. see images

Your infant carrier module is designed to attach to certain Joie stroller models featuring a special tray, armbar or calf support. Please make sure your stroller can fit the infant carrier module before purchasing it. Never allow more than one baby in the travel system at one time. Please brake your stroller before assembling the infant carrier module. Check that the parts used to fix the infant carrier module are securely fastened on the stroller. Recline the stroller seat back to the lowest position. Use with Joie Strollers To assemble the infant carrier module on Joie strollers, please follow these steps:1. Place infant carrier module into stroller so notches in rockers fit over edge of armbar, tray or calf support. The infant carrier module will then automatically click into place.

! If armbar has fabric cover, please detach the Velcro on armbar cover first.

! For the stroller with a special calf support, please adjust the calf support to the vertical position, detach the Velcro, and then lift the fabric cover.

2. Use the straps on both sides of stroller to fix the child restraint.

! Try pulling the child restraint upwards to check that it is fitted correctly.To remove the infant carrier module, release the straps from the infant carrier module, pull up the stroller release handle to release the infant carrier module from tray, armbar or calf support, and then lift infant carrier module out of stroller. Please refer to

After removing the foam wedge of insert, please store it somewhere that the child cannot access it.

Please wash the seat cover and inner padding with cold water under 30°C.Please refer to the care label for instructions on cleaning the fabric parts of the infant carrier.

Do not iron the soft goods.

Do not bleach or dry clean the soft goods.

Do not use undiluted detergents, gasoline or other organic solvent to wash the infant carrier module or base. It may cause damage to the enhanced child restraint.

Do not twist the seat cover and inner padding in an attempt to dry. It may leave the seat cover and inner padding with wrinkles.

Please hang dry the seat cover and inner padding in the shade.

Please remove the infant carrier module and base from the vehicle seat if not in use for a long period of time. Put the enhanced child restraint in a cool, dry place and somewhere your child cannot access it. Care and Maintenance13 14

Remove the body portion of the infant insert when the infant’s shoulders no longer fit comfortably.
