iTrillo - Car seat Joie - Free user manual and instructions

Brand	Joie
Model	iTrillo
Product type	High-back booster car seat (i-Size)
Safety standard	ECE R129/03
Use	Forward facing (direction of travel)
Child height	100 cm to 150 cm (approx. 3.5 to 12 years)
Materials	Plastic, metal, fabric
Approximate weight	5 kg
Headrest adjustment	10 positions, lever operated
Side protection	Removable side impact protector
Cup holder	Yes, built-in
Cover	Removable and washable
Cover care	Wash in warm water (<30°C), no bleach, no dry clean, dry in shade
General care	Clean with a damp cloth, no solvents
Safety	Use with vehicle's 3-point seat belt
Safety instructions	Read the manual carefully, do not use if damaged, secure the child even for short trips
Country of manufacture	China (according to the Joie brand)

Frequently Asked Questions - iTrillo Joie

What type of car seat is this?

It is a high-back booster approved i-Size according to standard ECE R129/03.

What is the recommended height and age range?

The seat is designed for children from 100 cm to 150 cm, approximately 3.5 to 12 years.

Which direction should I install the seat?

The seat must be installed forward-facing (in the direction of vehicle travel).

How to adjust the headrest height?

Operate the adjustment lever at the back of the headrest and slide up or down until it clicks. There are 10 positions. The bottom of the headrest should be at the same height as the child's shoulders.

Can I wash the seat cover?

Yes, the cover is removable. Wash it in warm water (below 30°C), without bleach or dry cleaning. Do not iron and let it dry in the shade.

How to correctly install the seat in the car?

Place the booster against the vehicle seat back, then thread the 3-point seat belt through the green guides. The belt under the armrests and the shoulder belt in the shoulder guide. Pull tight to remove any slack.

Is the seat compatible with all vehicles?

The seat is i-Size universal, but it may not be suitable for all vehicles for children from 135 cm to 150 cm. Consult the list of compatible vehicles provided by the manufacturer.

What to do in case of an accident?

The seat must be replaced after an accident, even if no visible damage. It may have undergone significant stress.

Can I use this seat without the side protection?

Yes, the side protection is removable. You can choose to install it or not depending on the space available in your vehicle. However, it is recommended to use it for optimal protection.

How to store the instruction manual?

Store the manual in the storage compartment located under the seat of the booster. Keep it for future reference.

USER MANUAL iTrillo Joie

Icon depicting a person sitting on a chair next to an icon with a lowercase 'i' (no text or symbols)

ECE R129/03: i-Size

Line drawing of a car seat with front and back panels, no text or symbols present

GB

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the i-Trillo™ series high back booster you are using a high quality, fully certified safety enhanced child restraint. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

To use this Joie booster according to ECE R129/03, your child must meet the following requirements.

Child height 100cm-150cm (Reference age 3.5-12 years).

Booster

Please read all the instructions in this manual before installing and using the product.

! IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.

Please keep the instruction manual in the storage compartment at the bottom of the booster as right figure.

For warranty information, please visit our website at joiebaby.com

Illustration of an open book with a pointer and a stylized train inside, set against a solid orange background (no text or symbols)

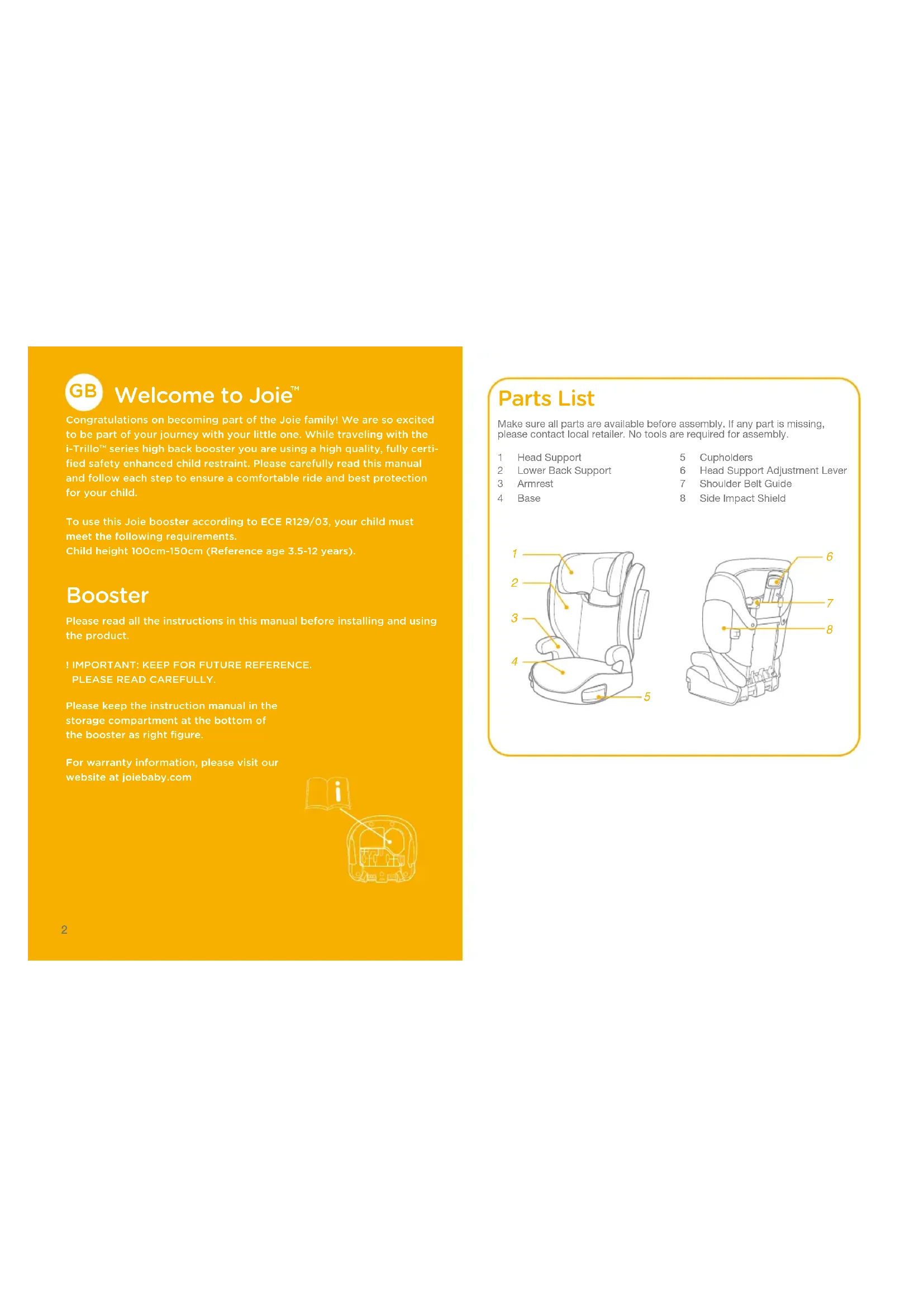

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Head Support
2 Lower Back Support
3 Armrest
4 Base

5 Cupholders
6 Head Support Adjustment Lever
7 Shoulder Belt Guide
8 Side Impact Shield

WARNING

! NO booster can guarantee full protection from injury in an accident. However proper use of this booster will reduce the risk of serious injury or death to your child.
! Always take care to follow the installation instructions correctly, this will ensure the booster performs at an optimum safety level.
! Do take care so that the rigid items and plastic parts of an booster shall be so located and installed that they are not liable to become trapped by a move-able seat or in a door of the vehicle.
! To use this booster seat according to the ECE R129/03, your child must meet the following requirements.
Child height 100cm-150cm (reference age: 3.5-12 years). Forward facing only (in vehicle travel direction)
! The booster may not fit to all vehicles for the usage from 135cm-150cm.
! Any straps holding the booster to the vehicle should be tight and the straps should not be twisted.
! The booster seat should be replaced if it has been subjected to heavy loads in the event of an accident or if it has been dropped.

WARNING

! This booster seat is only intended to be used in the car.
! Do not make any alterations or additions to the booster seat without approval from the type approval authority. DO NOT remove any of the white EPP/EPS foams. Failure to do so may result in serious safety issues.
! DO NOT use the seat if the surfaces are too hot from sunlight.
! Never leave the child unattended in the booster seat or vehicle, not even for a few minutes.
! Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
! The booster shall not be used without the soft goods.
! The booster soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance.
! Always secure child in booster, even on short trips, as this is when most accidents occur.
! DO NOT leave this booster, or other items unbelted or unsecured in your vehicle. Remove the booster seat from the car if not regular used and store in a dry, sun-protected surrounding.

WARNING

! It's recommended not to use a second-hand booster seat whose history is not known. It may have invisible structural damages or defects due to incorrect usage/storage.
! DO NOT use any load bearing contact points other than those described in the instructions and marked on the booster.
! DO NOT install this booster under the following conditions:
1. Vehicle seats facing sideways or rearward with respect to the vehicle's direction of travel.
2. Vehicle seats movable during installation.
! Consult the retailer for issues concerning maintenance repair and part replacement.
! To avoid burns, never put hot liquids in your booster's cupholders.

Emergency

In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

1. This is an Enhanced Child Restraint System, intended to use as a Non-integral Universal Enhanced Child Restraint System (i-Size booster seat) from 100-150cm.
2. It is approved to the latest UN Regulation R129/03.

Product Booster seat

Materials Plastics, Metal, Fabrics

Patent No. Patents pending

Suitable for Child height 100cm-150cm (Reference age 3.5-12 years).

Installation Forward facing (in vehicle travel direction)

Booster Assembly

see images 1 - 7

1. Squeeze the head support adjustment lever first and then slide in lower back support under the fabric cover to connect them together.
   ! CHECK to make sure two pieces are securely snapped together by pulling on them.

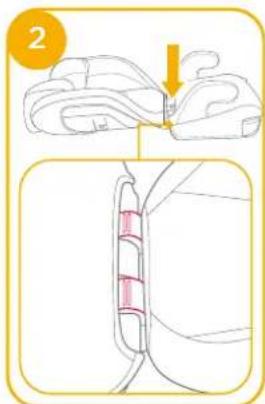

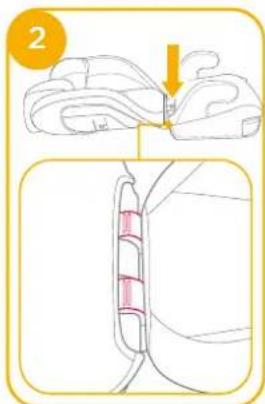

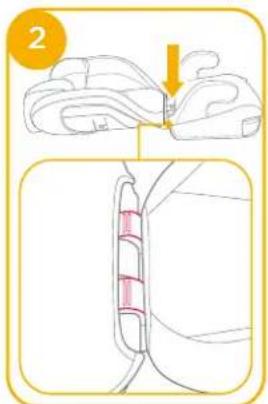

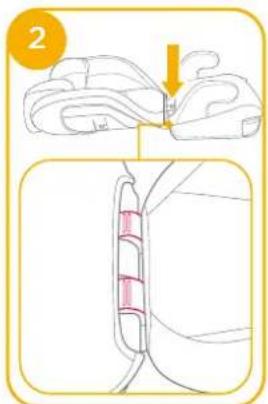

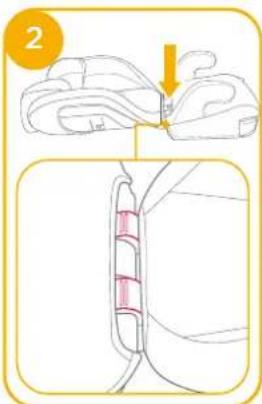

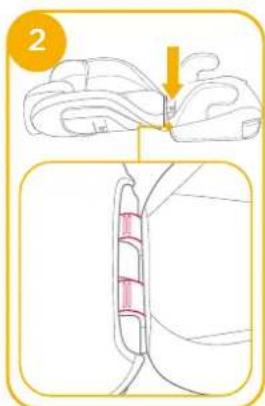

2. To attach the lower back support to the base, hook the lower back support over the seat bar hinge on the base.
3. Rotate the lower back support up while holding the booster seat until it clicks into an upright position.

Illustration of a person's head and shoulders with a yellow arrow indicating a specific anatomical feature (no text or symbols present)

Line drawing of a seat with a highlighted section and arrow indicating rotation (no text or symbols)

1. Align the side impact shield with the slot of lower back support plastics mounts, and then insert to lock. 4 5
   ! Please choose whether to install the side impact shield according to the size of the car.
2. Remove side impact protection. Please refer to 6 7

Illustration of a hand pressing down on a baby's face with a red arrow indicating pressure (no text or symbols)

Height Adjustment - for Head Support

see images B

Squeeze the head support adjustment lever while pulling up or down on the head support until it snaps into one of the 10 positions.

Illustration of a hand adjusting a seatbelt device (no text or symbols)

Concerns on Installation

see images 9 - 11

Interior view of a vehicle seat with a door and window, no visible text or symbols

Illustration of a car seatbelt with a numbered badge (10) and a checkmark (no text or symbols on the suit)

11

2

Check provided car fitting list if used as 135-150cm

Installation with 3-point-belt

see images 12 - 18

Line drawing of a car seat with a yellow circle labeled '12' and a checkmark (no text or symbols on the diagram itself)

Simple line drawing of a tray with a handle and a cross mark, no text or symbols present

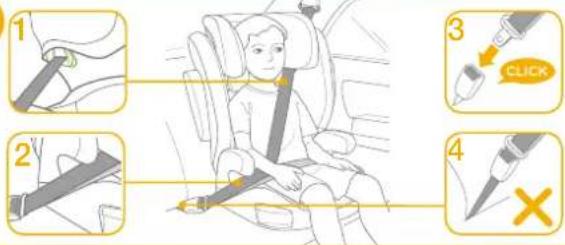

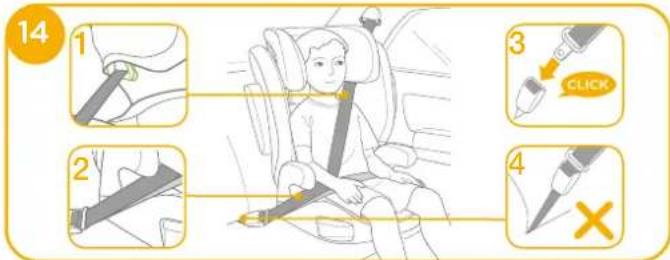

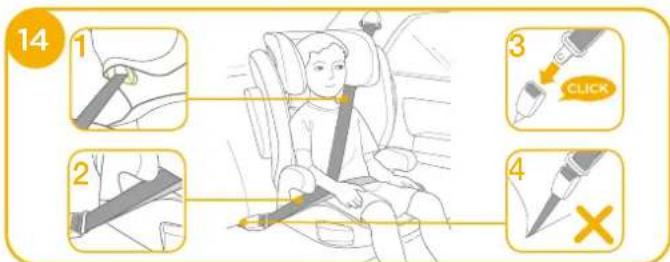

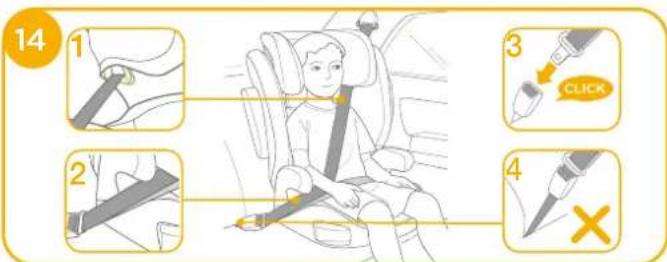

! Pull the vehicle safety belt and pass through the belt path 14, and then buckle it up. 14-3

! Position shoulder belt through the shoulder belt guide shown in 14-1
! DO NOT position vehicle belt over top of the armrests. It must pass underneath the armrests. 14 -2
! The booster can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the booster securely. 14 -4
! After your child is placed in this booster, the safety belt must be used correctly, and ensure that any lap strap is worn low down, so that the pelvis is firmly engaged. 14
! To ensure the correct head support height is obtained, the bottom of the headrest MUST be even with the top of child's shoulders as shown in 15 and the shoulder belt must be positioned in the green zone as shown in 16
! Place a booster firmly against the back of a forward-facing vehicle seat equipped with a lap/shoulder belt.

Illustration of a child wearing a seatbelt, with a hand adjusting the seatbelt (no text or symbols present)

! Make sure, that the shoulder belt portion of the vehicle belt goes straight through the shoulder belt guide as shown in 17
! Tighten the vehicle belt by pulling the shoulder strap until all belt slack is removed.
! I f the belt lays across child neck, head or face, readjust head support height.
! Any straps holding the booster to the vehicle should be tight and the straps should not be twisted.

Use Cupholders

see images 18

Line drawing of a car seat with arrows indicating motion (no text or symbols)

Detach Soft Goods

see images 20

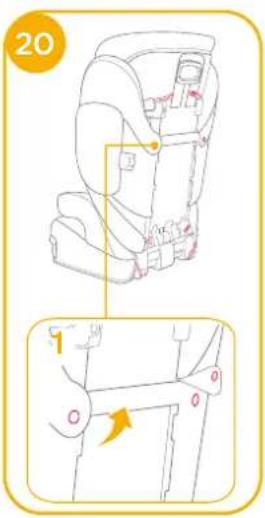

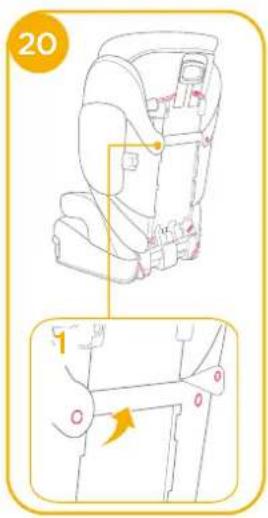

Open 2 pairs of buttons and 6 pairs of elastics on the back of soft goods to remove it. 20 To refit the seat pad simply reverse the steps above.

Care and Maintenance

! Please wash the soft goods and inner padding with cold water under 30°C.
! Do not iron the soft goods.
! Do not bleach or dry clean the soft goods.
! Do not use undiluted neutral detergent gasoline or other organic solvent to wash the booster. It may cause damage to the booster.
! Do not twist the soft goods and inner padding to dry with great force. It may leave the soft goods and inner padding with wrinkles.
! Please hang dry the soft goods and inner padding in the shade.
! Please remove the booster from the vehicle seat if not in use for a long period of time. Put the booster in a cool, dry place and somewhere your child cannot access it.

Illustration of an open book and a stylized computer monitor with a pointer, set against a solid orange background (no text or symbols)
