USER MANUAL iSpin XL Joie

enhanced child restraint

GB Instruction Manual
FR Manuel d'instructions
DE Anleitung
NL Instructiehandleiding
IT Manuale di istruzioni
ES Manual de instrucciones
PT Manual de instruções
PL Instrukcja obstugi
CZ Návod k obsluze
SK Návod na použitie
SL Navodila za uporabo
RU Руководство по эксплуатации
DA Brugervejledning
HU Használati utasítás
RO Manual de instruciuni
EL Εγχειρίδιο οδηγιών χρήσης
TR Kullanım Kılavuzu
AR دليل التعليمات
HR Upute za uporabu
SE Bruksanvisning
NO Instruksjonsbok
F1 Käyttöopas

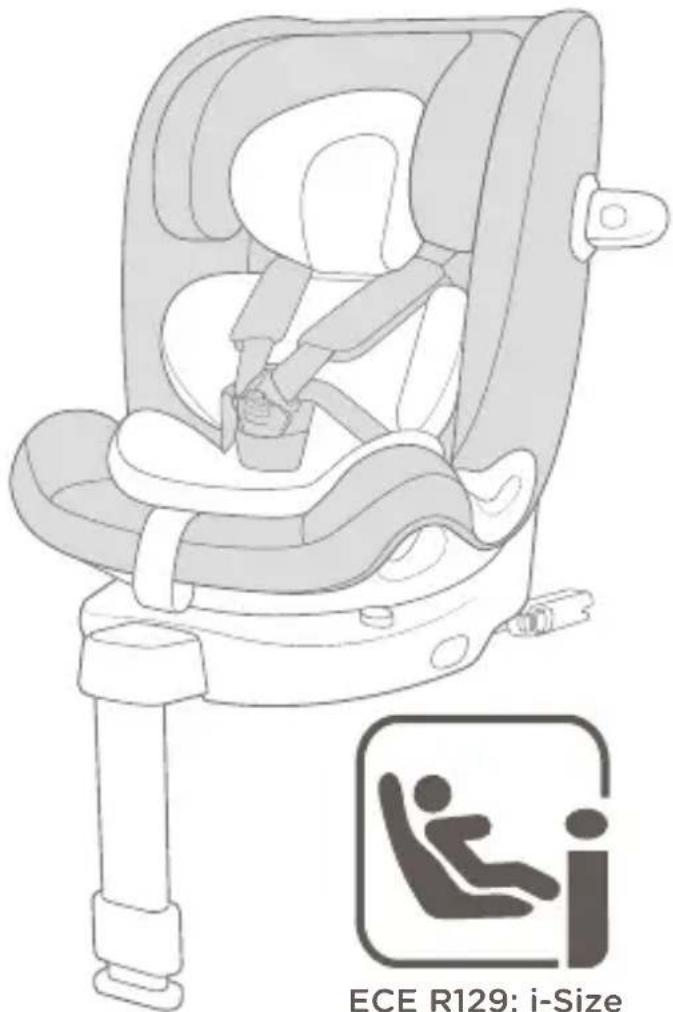

Line drawing of a baby car seat assembly with no text or symbols on the diagram itself

1 CLICK

2 2 1

Diagram of a human head with an upward arrow indicating motion or force (no text or symbols)

Illustration of a hand pressing down on a baby seat with an arrow indicating motion (no text or symbols)

Simple line drawing of a baby with a red bandage attached to the ear, no text or symbols present.

Illustration of a person viewed from behind holding a long pole, with a red band indicating the shoulder (no text or symbols)

Illustration of a baby car seat with two steps showing side and front views (no text or symbols)

10

Line drawing of a person sitting in a chair with head down, no text or symbols present

Illustration of a hand pressing a small pink object on a white surface, with an arrow indicating motion (no text or symbols)

Illustration of a hand adjusting a helmet with a lock icon (no text or symbols)

Line drawing of a backpack with a red arrow indicating force or movement (no text or symbols)

13 2 1↑

14 CLICK 1 ✓ ✗ 2 3 ↑

Line drawing of a baby car seat with a highlighted arrow indicating direction (no text or symbols)

19 2 1

15 2 1

Rear Facing Mode (40cm-105cm) 17

20

16 2 1

Line drawing of a car seat assembly with directional arrows indicating movement (no text or symbols)

23

Forward Facing Mode (76cm-105cm)

24 CLICK

Anatomical illustration of a joint with a highlighted area and arrow, no text or symbols present.

27 2 1

Line drawing of a baby car seat with an arrow indicating the seat area (no text or symbols)

28

Line drawing of a baby seat with a yellow arrow indicating rotation (no text or symbols)

31 2 1 ✓ X

Booster Mode (100cm-150cm)

33 2 1

Illustration of a person seated in a car seat with a belt adjusting the seat (no text or symbols)

32 11 12 CLICK

Line drawing of a mechanical device with a lever and arrow indicating motion (no text or symbols)

35

36

40 2 1

Line drawing of a car seat with seatbelt and seat, no text or symbols present

Diagram of a seatbelt seat with an upward arrow indicating motion (no text or symbols)

38

42 1

43

39 1 3 2 3

Line drawing of a car seatbelt with an upward arrow indicating motion (no text or symbols)

Line drawing of a car seat with two seats and a highlighted seat area, no text or symbols present

Simple line drawing of a mechanical component with an arrow indicating motion (no text or symbols)

Line drawing of a baby car seat with a yellow arrow indicating motion (no text or symbols)

Line drawing of a car seat with an orange arrow indicating upward motion (no text or symbols)

Line drawing of a car seatbelt with a yellow arrow indicating compression or lifting (no text or symbols)

Line drawing of a mechanical component with a yellow arrow indicating a force or motion (no text or symbols)

Line drawing of a car's seat and dashboard with a red belt and arrow indicating direction (no text or symbols)

Line drawing of a car seat with a highlighted seat area and arrow indicating motion (no text or symbols)

GB

Welcome to Joie™

You have purchased a high quality, fully certified child safety child restraint. This product is suitable for the use of children with height and weight up to 150cm and 36kg.

Carefully read this Instruction Manual and follow the installing steps because this is the ONLY way to protect your child from serious injury or death in case of an accident, and to provide comfort to your child while using this product.

Keep this instruction manual for future reference.

Please confirm

To use this Joie enhanced child restraint with the i-Size ISOFIX connections according to the UN Regulation No.129, your child must meet the following requirements.

Rear Facing: Child height 40cm-105cm/ Child weight≤18kg;

Forward Facing: Child age ≥ 15m/ Child height 76cm-105cm/ Child weight ≤ 18kg;

Booster: Child height 100cm-150cm/ Child weight ≤ 36kg;

Please read all the instructions in this manual before installing and using the product.

! IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.

Please keep the instruction manual in the storage compartment at the back of the seat as right figure.

For warranty information, please visit our website at joiebaby.com

Simple line drawing of a person reading a book with a pointer (no text or symbols)

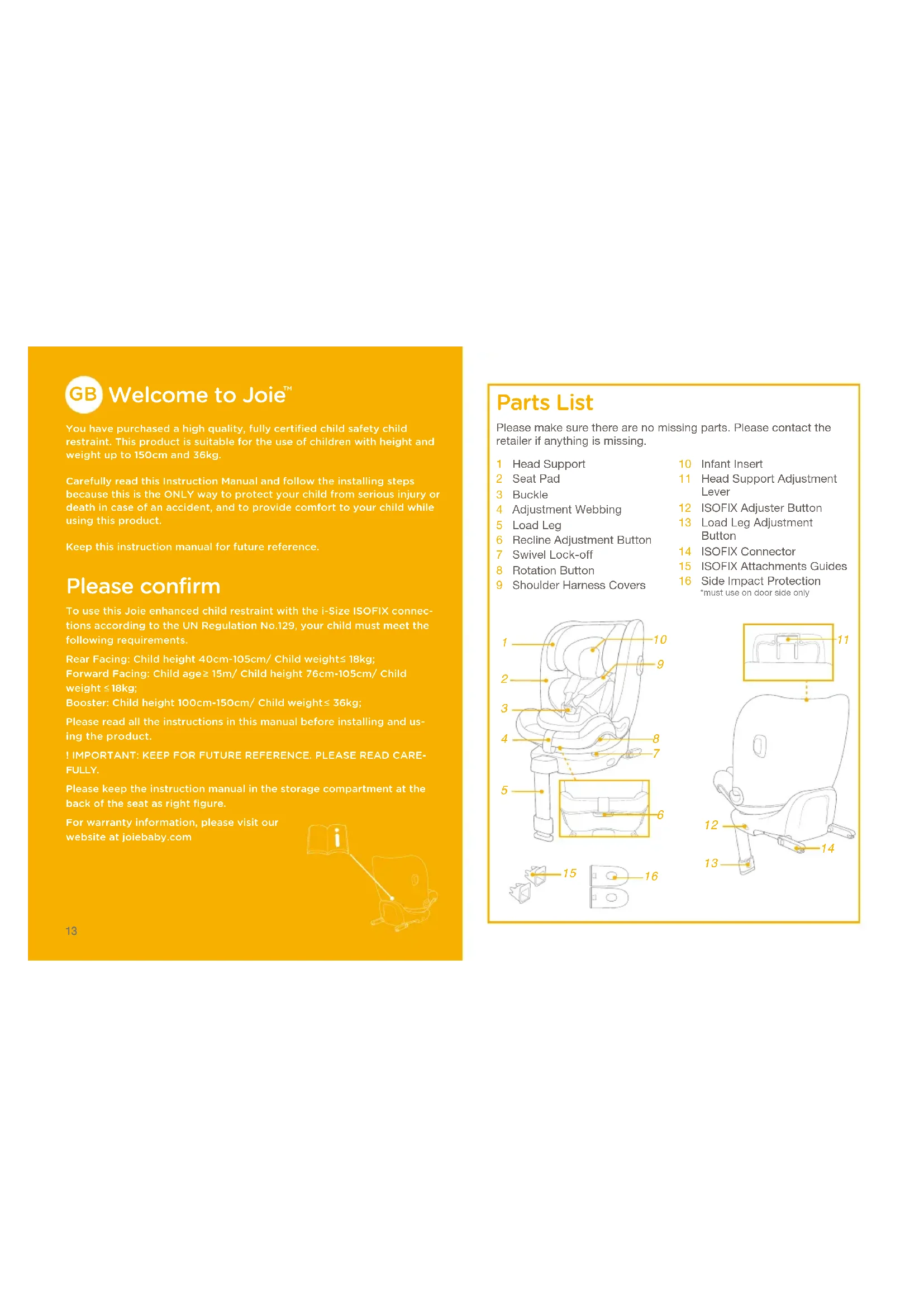

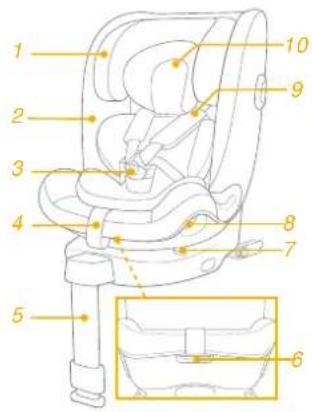

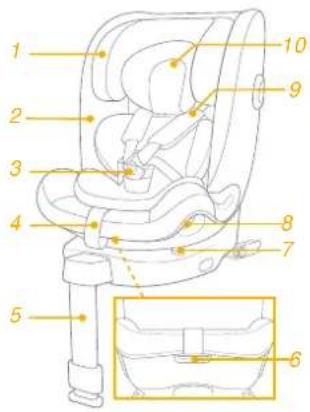

Parts List

Please make sure there are no missing parts. Please contact the retailer if anything is missing.

1 Head Support
2 Seat Pad
3 Buckle
4 Adjustment Webbing
5 Load Leg
6 Recline Adjustment Button
7 Swivel Lock-off
8 Rotation Button
9 Shoulder Harness Covers

10 Infant Insert
11 Head Support Adjustment Lever
12 ISOFIX Adjuster Button
13 Load Leg Adjustment Button
14 ISOFIX Connector
15 ISOFIX Attachments Guides
16 Side Impact Protection *must use on door side only

Technical diagram of a car safety seat with numbered components and a zoomed-in inset view

11 12 13 14

WARNING

! BE informed that the rigid items and plastic parts of an enhanced child restraint system shall be located and installed so that they are not liable to become trapped by a movable seat or in a door of the vehicle during everyday use of the vehicle.
! DO NOT use the rearward facing enhanced child restraint systems in seating positions where there is an active frontal airbag installed.
! To use this enhanced child restraint according to the UN Regulation No.129, your child must meet the following requirements.
! Rear Facing Mode: Child height 40cm-105cm/ max. 18kg;
Forward Facing Mode: Child height 76cm-105cm/max. 18kg;
Booster Mode: Child height 100cm-150cm/ max. 36kg;
IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS (Refer to instructions).
! The enhanced child restraint may not fit in all approved vehicles.
Any straps holding the enhanced child restraint to the vehicle should be tight, that any support-leg should be in contact with the vehicle floor, that any straps restraining the child should be adjusted to the child's body, and that straps should not be twisted.

WARNING

After your child is placed in this enhanced child restraint, the safety belt must be used correctly. Ensure that any lap strap is worn low down, so that the pelvis is firmly engaged, shall be stressed.
This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. An accident can cause damage to it that you cannot see.
! Consider the danger of making any alterations or additions to the device without approval of the adequate authority, and the danger of not following closely to the installation instructions provided by the enhanced child restraint manufacturer.
! Please keep this enhanced child restraint away from sunlight, otherwise it may be too hot for child's skin. Always touch the enhanced child restraint before placing child in it.
! DO NOT leave your child unattended in the enhanced child restraint system.
Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
The enhanced child restraint system shall NOT BE USED without the soft goods.
The soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance.

WARNING

! Please check if this enhanced child restraint can be installed properly in your vehicle before you purchase it.
NO enhanced child restraint can guarantee full protection from injury in an accident. However, proper use of this enhanced child restraint will reduce the risk of serious injury or death to your child.
! DO NOT install this enhanced child restraint without following the instructions in this manual or you may put your child at serious risk of injury or death.
! DO NOT use this enhanced child restraint if it has damaged or missing parts.
! DO NOT have your child in large/oversized clothes because this may prevent your child from being, properly and securely fastened by the shoulder harness straps and the crotch strap between the legs.

Emergency

In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

For installation with ISOFIX system

1. This is an “i-Size” Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users’ manual.

2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

For installation with 3-point belt

For installation with 3-point belt + ISOFIX system

1. This is an i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use primarily in "i-Size seating positions" as indicated by vehicle manufacturers in the vehicle user's manual.

2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

Materials Plastics, metal, fabrics

Patent No. Patents pending

Choose Your Installation Installa

ECE R129	Child's Size	Installation Mode	Figure for Installation	Reference Age	Seat Position
	40cm-105cm/ ≤ 18kg	Rear Facing		Approx 4 years	Position 1-5
	76cm-105cm/ ≤ 18kg	Forward Facing		15 months to approx 4 years	Position 1-5
	100cm-150cm/ ≤ 36kg	Booster		3.5 years to 12 years	Position 1-5

Concerns

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Use Side Impact Protection

see images 1 - 2

1. The enhanced child restraint is delivered with removable side impact protection. This side impact protection MUST be used on the door side of the vehicle. Installation shown in ①.
2. Press the release button to remove side impact protection.
3. Please keep it properly when not in use.

Height Adjustment for Head Support and Shoulder Harnesses

see images 3 - 7

Please adjust the head support and check if the shoulder harnesses are at the correct height according to 3 & 4 & 5 & 6 & 7

When used in rear facing mode, the shoulder harness height must be even with or just below the top of child's shoulders.

When used in forward facing mode, the shoulder harness height must be even with or just above the top of child's shoulders.

When used in booster mode, the shoulder belt guides must be even with child's shoulders.

To adjust the headrest heights, press the adjustment lever first then pull or push down the head support until it clicks into one of the 14 positions.

The shoulder space expands as the head support height is adjusted to the positions from 11th to 14th.

Recline Adjustment

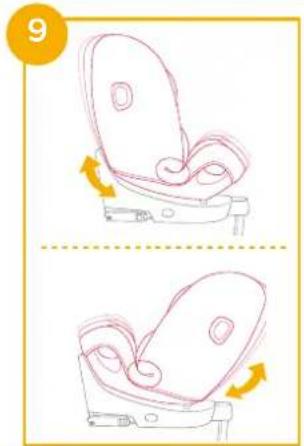

see images 8 - 9

Press the recline adjustment button to adjust the enhanced child restraint to the desired position. 8 & 9

There are 5 recline positions that can be used for rear facing, forward facing, and booster modes.

Base Installation

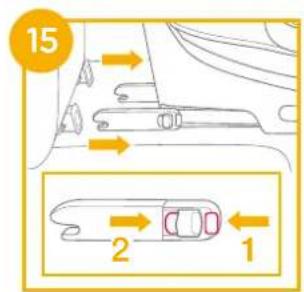

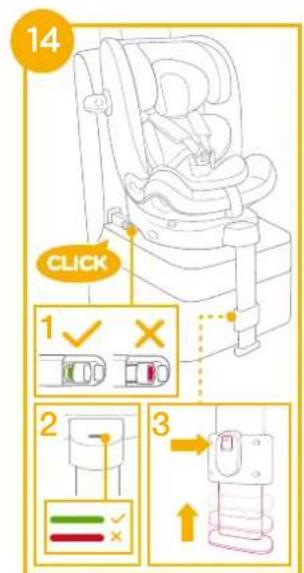

see images 10 - 16

1. Insert ISOFIX guides to assist with installation. 10

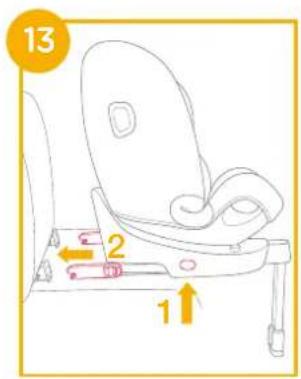

2. Press the ISOFIX adjuster button to extend the ISOFIX. 13-1 13-2

3. Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. The colors of the indicators on both ISOFIX connectors should be completely green. 14-1

! Press the ISOFIX adjustment buttons again while pushing the seat back until it comes in contact with the vehicle seat backrest.

1. After attaching the ISOFIX, pull the load leg downward to floor. When the load leg indicator shows green, the load leg is installed correctly. ^14 -2

2. Squeeze the load leg releasing button, then adjust the load leg length. 14-3

! Always make sure the support leg has direct contact with the floor and is in locked position even when the child is not in it.

Removing the seat

1. To remove from the vehicle press the ISOFIX adjuster button and pull the base back from the seat. Then press and release the connectors from the vehicle's ISOFIX. 15-1 15-2
2. To prevent damage during transit, press the ISOFIX adjuster button 16 -1 and fold the connector completely. 16 -2

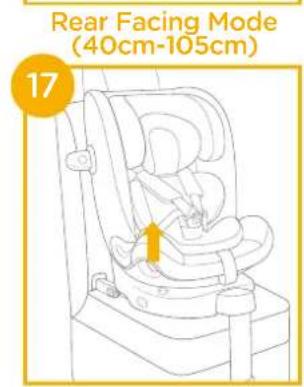

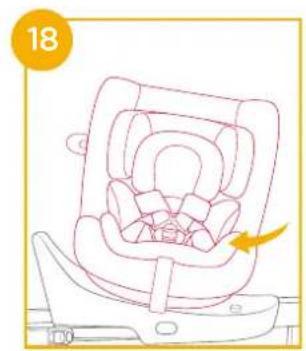

Using in the Rear Facing Mode (Child height 40cm-105cm/Child weight ≤18kg/infant - 4 years old)

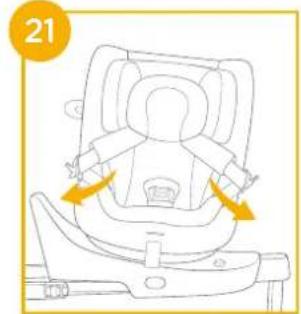

see images 17 - 24

! Install the enhanced child restraint on the rear vehicle seat and then put the child in the enhanced child restraint. Press the rotating button to rotate for easier side loading/unloading of the child, then rotate the seat to the rear facing position. ^17,3,18

! Press the rotating button on either side to rotate the enhanced child restraint.

Securing Child

1. To lengthen the shoulder harness belts, press the harness adjustment button while pulling out the shoulder harnesses to loosen. 19
2. Unlock the buckle of the harnesses by pressing the red button. ^20
3. Place the buckle tongues against the magnetic area on the outer side of the enhanced child restraint so that the tongues are held in place. 21

Use Infant Insert

We recommend using the full infant insert while the baby is under 60cm and can be used until they outgrow the infant insert. The infant insert increases side impact protection.

1. Place the child into the enhanced child restraint and pass both arms through the harnesses.

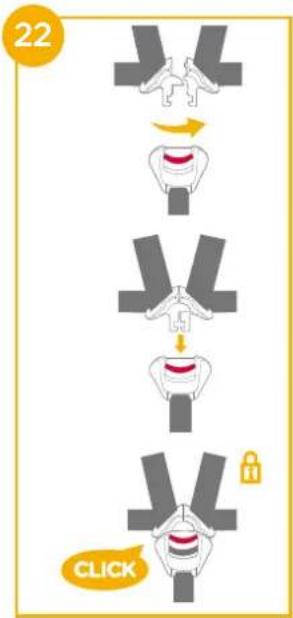

2. Engage the buckle. Please refer to 22
3. Pull down the adjustment webbing and adjust it to the proper length to make sure your child is properly secured.
   ! Always keep child secured in harness and properly tightened by removing any slack.
   ! Make sure the space between the child and the shoulder harness straps is about the thickness of one hand.
   ! When the seat is rotated in place and properly engaged, rotation button will show green; otherwise it will show red. 24
   ! Always make sure the seat is in locked position (rearward facing / forward facing) even when the child is not in it.

Using in the forward facing mode (Child height 76cm-105cm/Child weight <18kg/15 months - 4 years old)

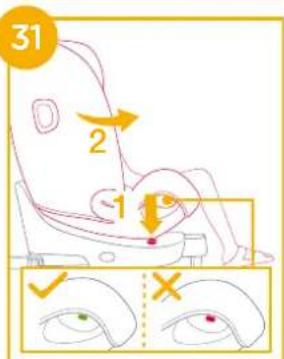

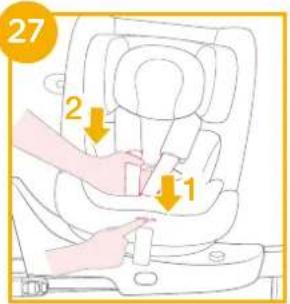

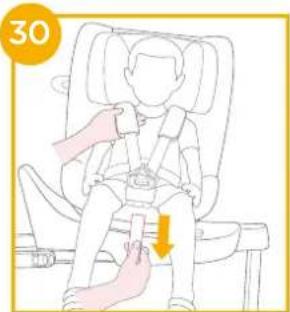

see images 25 - 32

! Install the enhanced child restraint on the rear vehicle seat, and then place the child in the enhanced child restraint.

Press the rotation button to rotate for easier side loading/unloading of the child, then rotate the seat to the forward facing position. 25 & 26

! Press the rotation button on either side to rotate the enhanced child restraint.

Securing Child

1. To lengthen the shoulder harness belts, press the harness adjustment button while pulling out the shoulder harnesses to loosen.
2. Unlock the buckle of the harnesses by pressing the red button.

Remove the infant insert when in forward facing mode. 29

1. Place the buckle tongues against the magnetic area on the outer side of the enhanced child restraint so that the tongues are held in place.
2. Place the child into the enhanced child restraint and pass both arms through the harnesses.
3. Engage the buckle.
4. Pull down the adjustment webbing and adjust it to the proper length to make sure your child is properly secured.
5. Press the swivel lock off button ⓣ1-1 while you rotate the seat to the forward facing mode. ⓣ2

When the seat is rotated in place and properly engaged, rotation button will show green, otherwise it will show red.
! Always make sure the seat is in locked position (rearward facing / forward facing) even when the child is not in it.

! The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. 32-1
! The load leg must be installed correctly with green indicator. ^32 -2
! Always keep child secured in harness and properly tightened by removing any slack.
! DO NOT use forward facing mode until your child's height is at least 76cm AND 15 months old.

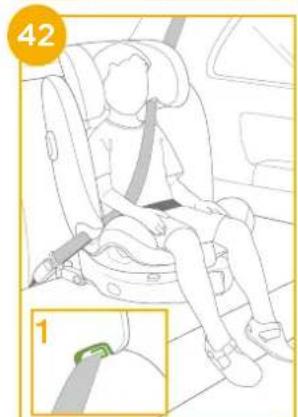

Using in the booster mode (Child height 100cm-150cm/Child weight ≤ 36kg/3.5 - 12 years old)

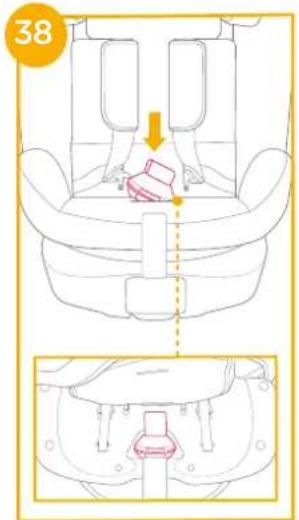

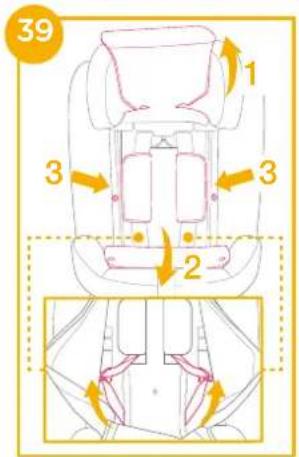

see images 33 - 42

! Install the enhanced child restraint on the rear vehicle seat, and then place the child in the enhanced child restraint.
! Remove the infant insert when booster mode.
! Fold the load leg into the compartment underneath the base; slide the lock button to ensure the load leg stays in place. 34 & 35

Securing Child

1. Unlock the buckle of the harnesses by pressing the red button. 36
2. Remove the crotch belt cover and keep it properly. 37
3. Tuck the crotch strap, shoulder strap with covers away in the compartments. 38 & 39 & 40
4. Adjust the headrest so the bottom of the headrest is level with the child's shoulders.
5. Buckle up with the vehicle belt.
   ! Shoulder belt must pass through shoulder belt guide. 42-1
   ! The colors of the indicators on both ISOFIX attachments connectors should be completely green.

! The installation with ISOFIX connectors in booster mode is optional. If ISOFIX connectors are used, make sure the indicator colors on both connectors are completely green when attached to the anchor points. ^42
! The enhanced child restraint can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the enhanced child restraint securely. ^42-2

Detach Soft Goods

see images 43 - 52

Press the red button to disengage the buckle. 43

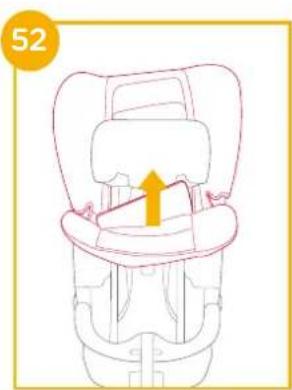

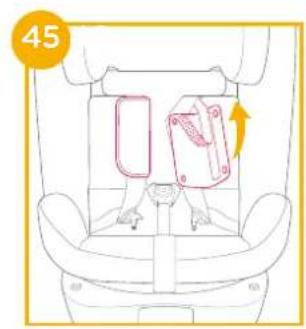

Follow steps 44 - 52 to detach soft goods.

To re-attach the soft goods please repeat the above steps in the reverse order.

Care and Maintenance

! Please store the infant insert somewhere out of the child's reach.
! Please wash the soft goods with cold water under 30^ C.
! Do not iron the soft goods.
! Do not bleach or dry clean the soft goods.
Do not use undiluted detergents gasoline or other organic solvent to wash the enhanced child restraint or base. It may cause damage to the enhanced child restraint.
! Do not twist the soft goods to dry with great force. It may leave the soft goods with wrinkles.
! Please hang dry the soft goods in the shade.
! Please remove the enhanced child restraint from the vehicle seat if it will not be in use for a long period of time.

FR

Simple line drawing of a person sitting in a chair with a book icon on the phone (no text or symbols)

Liste des pièces

Technical diagram of a car comfort seat with numbered labels pointing to different compartments

Technical diagram of a car seat with numbered labels pointing to specific components

AVERTISSEMENT

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing interior compartments and seat (no text or symbols)

Simple line drawing of a person reading a book with a pointer (no text or symbols)

Teileliste

Technical diagram of a car seat with numbered labels pointing to different components

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Side view line drawing of a car showing passenger seat, seatbelt, and dashboard (no text or symbols)

Simple line drawing of a person reading a book with a bookmark (no text or symbols)

Onderdelenlijst

Technical diagram of a car seat with numbered labels pointing to different components

Interior view of a car seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Side view line drawing of a car with two people seated inside, showing seatbelt and dashboard (no text or symbols)

Simple line drawing of a person reading a book with a pointer, on an orange background (no text or symbols)

Elenco parti

Technical diagram of a car cab with numbered parts for identification and assembly reference

Technical diagram of a car seat with numbered components and a highlighted section labeled 11

AVVERTENZA

Interior view of a car seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Side view line drawing of a car with two seats and seatbelt (no text or symbols)

Simple line drawing of a person reading a book with a long bookmark (no text or symbols)

Lista de piezas

Technical diagram of a car safety seat with numbered components and an inset view of the seat assembly.

Technical diagram of a car seat with numbered components and an inset detail labeled 11

ADVERTENCIA

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing interior compartments and seat (no text or symbols)

Simple line drawing of a person reading a book with a bookmark (no text or symbols)

Lista de componentes

Technical diagram of a car cab with numbered parts for identification and assembly reference

Technical diagram of a car seat with numbered labels pointing to specific components

AVISO

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing interior compartments and seat (no text or symbols)

Simple line drawing of a person reading a book with a bookmark (no text or symbols)

Lista części

Technical diagram of a car seat with numbered labels pointing to different components

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing interior compartments and seat (no text or symbols)

Simple line drawing of a person sitting in a chair with a book icon on the phone (no text or symbols)

Seznam dílů

Technical diagram of a car safety seat with numbered components and a zoomed-in inset view

Technical diagram of a car seat with numbered labels pointing to specific components

VAROVÁNÍ

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing interior compartments and seat (no text or symbols)

Simple line drawing of a person reading a book with a bookmark (no text or symbols)

Technical diagram of a car seat with numbered labels pointing to different components

Technical diagram of a car seat with numbered labels pointing to specific components

VÝSTRAHA

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Illustration of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Simple line drawing of a person reading a book with a bookmark (no text or symbols)

Seznam delov

Prepričajte se, da noben del ne manjka. Če kar koli manjka, se obrnite na prodajalca.

1 Opora za glavo
2 Sedežna blazina
3 Sponka
4 Prilagoditveni trak
5 Podporna noga
6 Gumb za nastavitev naklona
7 Vrtljivi zaklepni gumb
8 Gumb za obračanje
9 Prevleki za ramenska pasova

Diagram of car seat components with numbered labels pointing to different parts

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing interior compartments and seat (no text or symbols)

Simple line drawing of a person reading a book with a bookmark (no text or symbols)

Technical diagram of a car cab with numbered parts and an inset view of the seat assembly

Interior view of a car seat with two red buttons on the seat, no text or symbols present

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Side view line drawing of a car with two people seated inside the window (no text or symbols)

Simple line drawing of a person reading a book with a pointer (no text or symbols)

Liste over dele

Kontroller, at der ikke mangler nogen dele. Kontakt venligst din forhandler, hvis noget mangler.

Technical diagram of a car safety seat with numbered components and a zoomed-in inset showing internal structure.

11 12 13 14

ADVARSEL

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Brug sideskærmen

Se billederne 1 - 2

Simple line drawing of a person sitting in a chair with a book icon on the phone (no text or symbols)

Alkatrészek listája

Diagram of car seat components with numbered labels pointing to different parts

11 12 13 14

FIGYELEM

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Side view line drawing of a car with two people seated inside, showing seatbelt and dashboard (no text or symbols)

Simple line drawing of a person reading a book with a bookmark (no text or symbols)

Lista componentelor

Diagram of car seat components with numbered labels pointing to different parts

11 12 13 14

AVERTISMENT

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Simple line drawing of a person reading a book with a computer, set against an orange background (no text or symbols)

Technical diagram of a car safety seat with numbered components and a zoomed-in inset view

Technical diagram of a car seat assembly with numbered components and a highlighted section labeled 11

ΠΡΟΕΙΔΟΠΟΙΗΣΗ

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Side view line drawing of a car with two seats and seatbelt (no text or symbols)

Simple line drawing of a person reading a book with a pointer (no text or symbols)

Parça Listesi

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Technical diagram of a car seat assembly with labeled components and a zoomed-in inset view

Technical diagram of a car seat with labeled parts and directional arrows indicating movement or positioning.

Simple line drawing of a device with a scroll and two books on top, no text or symbols present.

تحذیر

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a vehicle seat with red markers and a yellow checkmark on the side (no text or symbols)

Side-view line drawing of a car showing the interior and exterior view of the dashboard (no text or symbols)

Simple line drawing of a person reading a book with a bookmark (no text or symbols)

Popis dijelova

Technical diagram of a car comfort seat with numbered labels pointing to different seat positions

10 Umetak za bebu
11 Ručkica za podešavanje naslona za glavu
12 Gumb za podešavanje ISOFIX priključka
13 Gumb za podešavanje potpornog nogara
14 ISOFIX priključak
15 Vodilice ISOFIX priključka
16 Zaštita od bočnog udarca *mora se koristiti samo na strani bočnih vrata

Technical diagram of a car seat assembly with numbered components and a highlighted section view

UPOZORENJE

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Upotreba zaštite od bočnog udarca

Simple line drawing of a person reading a book with a bookmark (no text or symbols)

Lista över delar

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing interior compartments and seat (no text or symbols)

Simple line drawing of a person reading a book with a pointer (no text or symbols)

Deleliste

Technical diagram of a car seat with numbered labels pointing to different components

11 12 13 14

ADVARSEL

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Simple line drawing of a person sitting on a chair with a book and pointer (no text or symbols)

Osaluettelo

Diagram of car seat components with numbered labels pointing to different parts

11 12 13 14

VAROITUS

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Side view line drawing of a car with two people seated inside, showing seatbelt and dashboard (no text or symbols)

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V. Van der Valk Bourmanweg 178 C, 2352 JD Leiderdorp, The Netherlands
