USER MANUAL MS15046E SCHEPPACH
scheppach
Made in P.R.C.
MS150-46E
GB Petrol lawnmower | Translation of the original operating instructions 27
1
3
3b
1c
1d
1f
1e
4
4a
4b
4e
4c
4d
21
20
16
15a
12a
4b
4d
4c
4a
4c
4d
1
4
1
1d
1c
1f
1e
1f
1c
3
2a
1
2
1
1
4
9
17
9
11
11
5a
5
20a
20
20b
20
20a
3
16
16
15
16
12
1a
2
20
3a
3
2
17
7
18d
18
18b
18c
5
19
6a
9
OHV
9a
Inhaltsverzeichnis
Günzburger Straße 69
D-89335 Ichenhausen
Verehrter Kunde
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Garantiebedingungen
Revisionsdatum 26.11.2021
scheppach

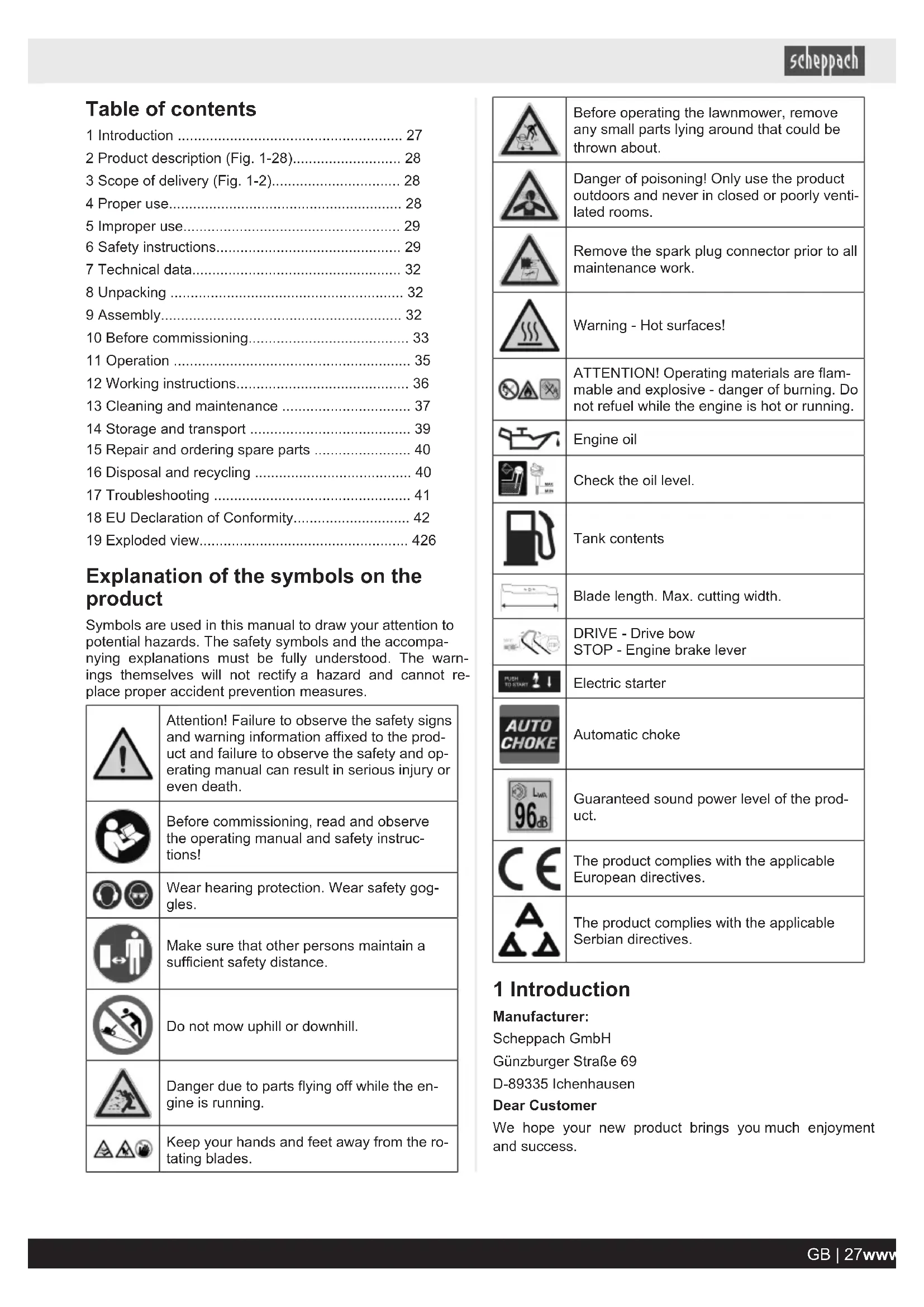

1 Introduction ...... 27
2 Product description (Fig. 1-28).... 28
3 Scope of delivery (Fig. 1-2).... 28
4 Proper use.... 28
5 Improper use.... 29
6 Safety instructions.... 29
7 Technical data.... 32
8 Unpacking 32
9 Assembly.... 32
10 Before commissioning.... 33
11 Operation 35
12 Working instructions.... 36
13 Cleaning and maintenance 37
14 Storage and transport 39
15 Repair and ordering spare parts 40
16 Disposal and recycling 40
17 Troubleshooting 41
18 EU Declaration of Conformity.... 42
19 Exploded view.... 426
Explanation of the symbols on the product
Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.
| Attention! Failure to observe the safety signs and warning information affixed to the product and failure to observe the safety and operating manual can result in serious injury or even death. |
| Before commissioning, read and observe the operating manual and safety instructions! |
| Wear hearing protection. Wear safety goggles. |
| Make sure that other persons maintain a sufficient safety distance. |
| Do not mow uphill or downhill. |
| Danger due to parts flying off while the engine is running. |
| Keep your hands and feet away from the rotating blades. |
| Before operating the lawnmower, remove any small parts lying around that could be thrown about. |
| Danger of poisoning! Only use the product outdoors and never in closed or poorly ventilated rooms. |
| Remove the spark plug connector prior to all maintenance work. |
| Warning - Hot surfaces! |
| ATTENTION! Operating materials are flammable and explosive - danger of burning. Do not refuel while the engine is hot or running. |
| Engine oil |
| Check the oil level. |
| Tank contents |
| Blade length. Max. cutting width. |
| DRIVE - Drive bowSTOP - Engine brake lever |
| Electric starter |
| Automatic choke |
| Guaranteed sound power level of the product. |
| The product complies with the applicable European directives. |
| The product complies with the applicable Serbian directives. |
1 Introduction
Manufacturer:
Scheppach GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear Customer
We hope your new product brings you much enjoyment and success.
Note:
In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:
- Improper handling
- Failure to comply with the operating manual
• Repairs carried out by third parties, unauthorised specialists
• Installing and replacing non-original spare parts
- Improper use
- Failures of the electrical system due to failure to observe the national electrical requirements and regulations.
Note:
The operating manual is part of this product.
It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.
Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.
2 Product description (Fig. 1-28)
- Upper push bar
1a. Drive (bow)
1b. Bowden cable
1c. Quick clamp lever
1d. Washer
1e. Washer
1f. Plastic star grip nut

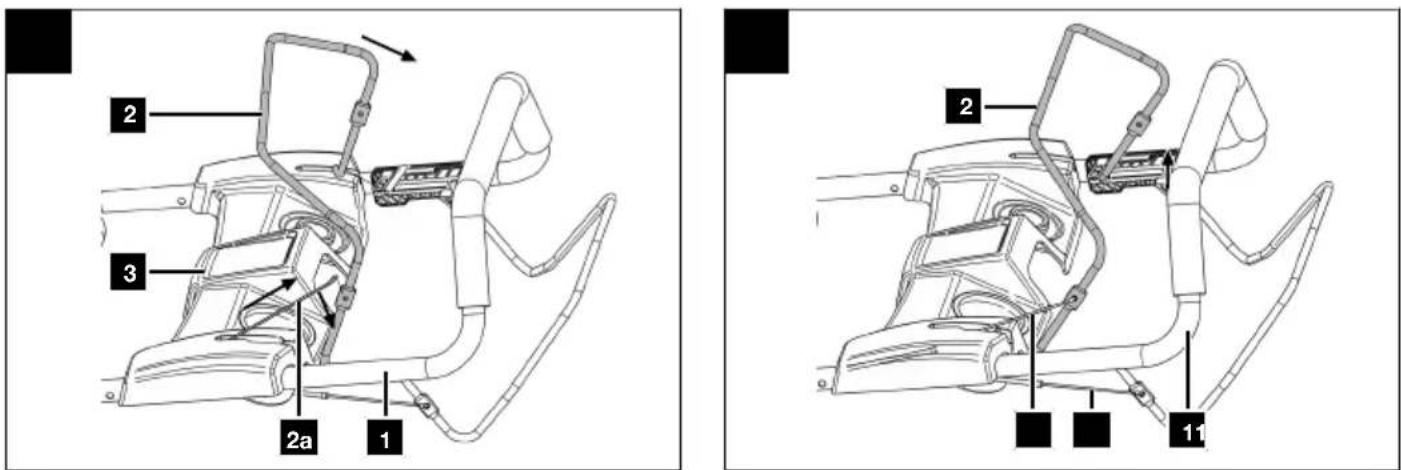

- Engine brake lever
2a. Accelerator cable
- Electric starter unit
3a. Electric starter
3b. Screw
- Lower push bar
4a. Plastic star grip nut
4b. Spacer
4c. Guide
4d. Screw
4e. Cable clip

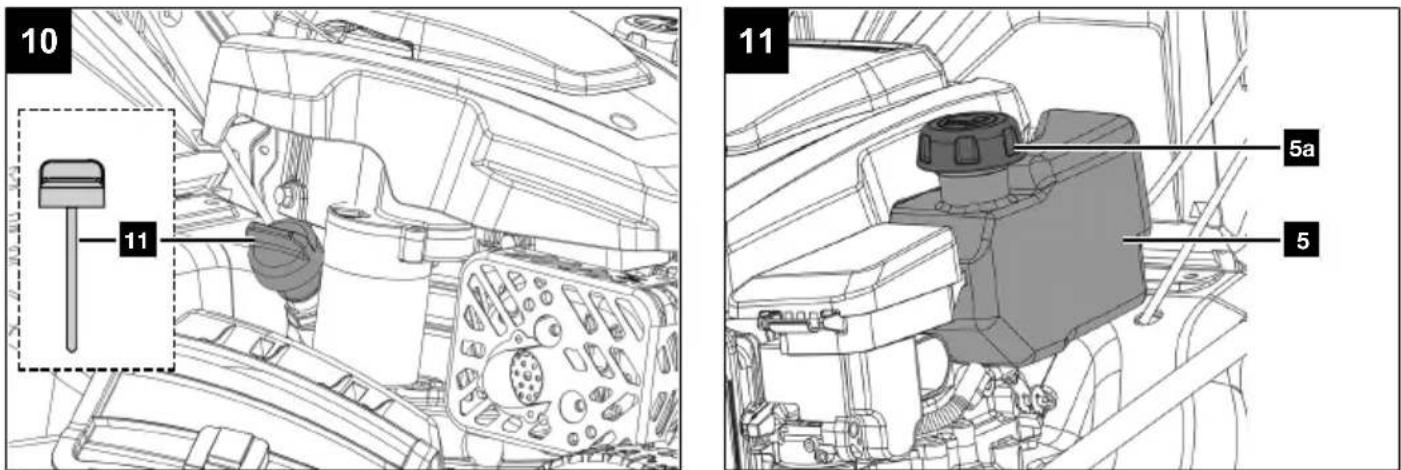

- Fuel tank
5a. Fuel filler cap

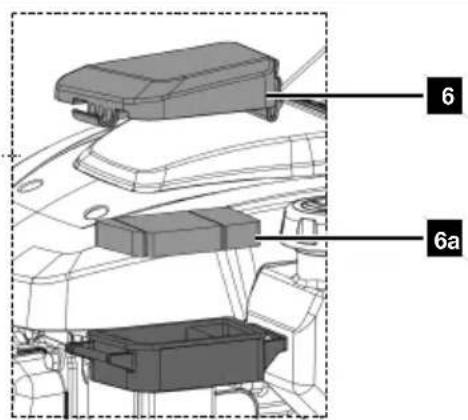

- Air filter cover
6a. Air filter

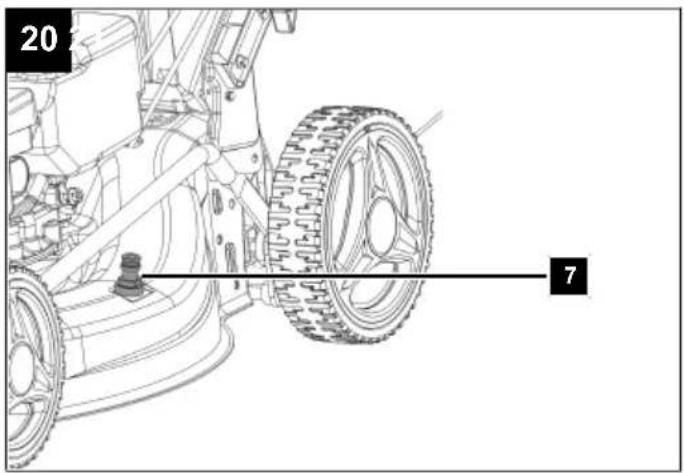

- Water connection
- Idler
- Spark plug connector
9a. Spark plug
- Exhaust pipe
- Oil dipstick
- Side discharge flap
12a. Side discharge
- Drive wheel
-
Cutting height adjustment
-
Discharge flap
15a. Mulching insert

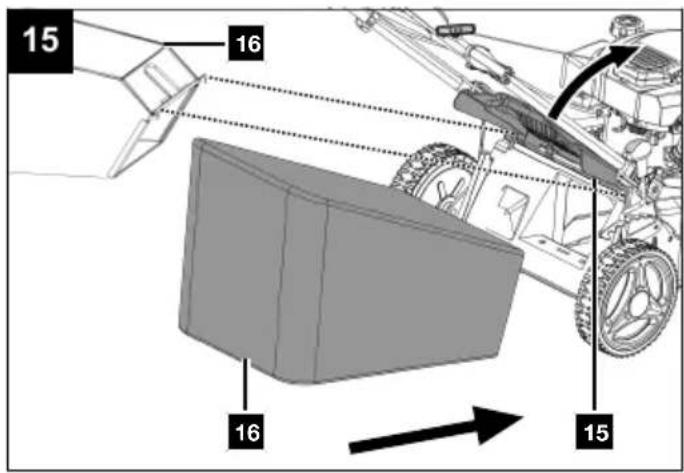

- Grass collection basket
- Pull starter
17a. Rope hook
17b. Wing nut
- Blade
18a. Blade screw
18b. Washer
18c. Engine spindle
18d. V-belt
- Carburettor screw
- Battery
20a. Release button
20b. Charge status indicator
- Battery charger

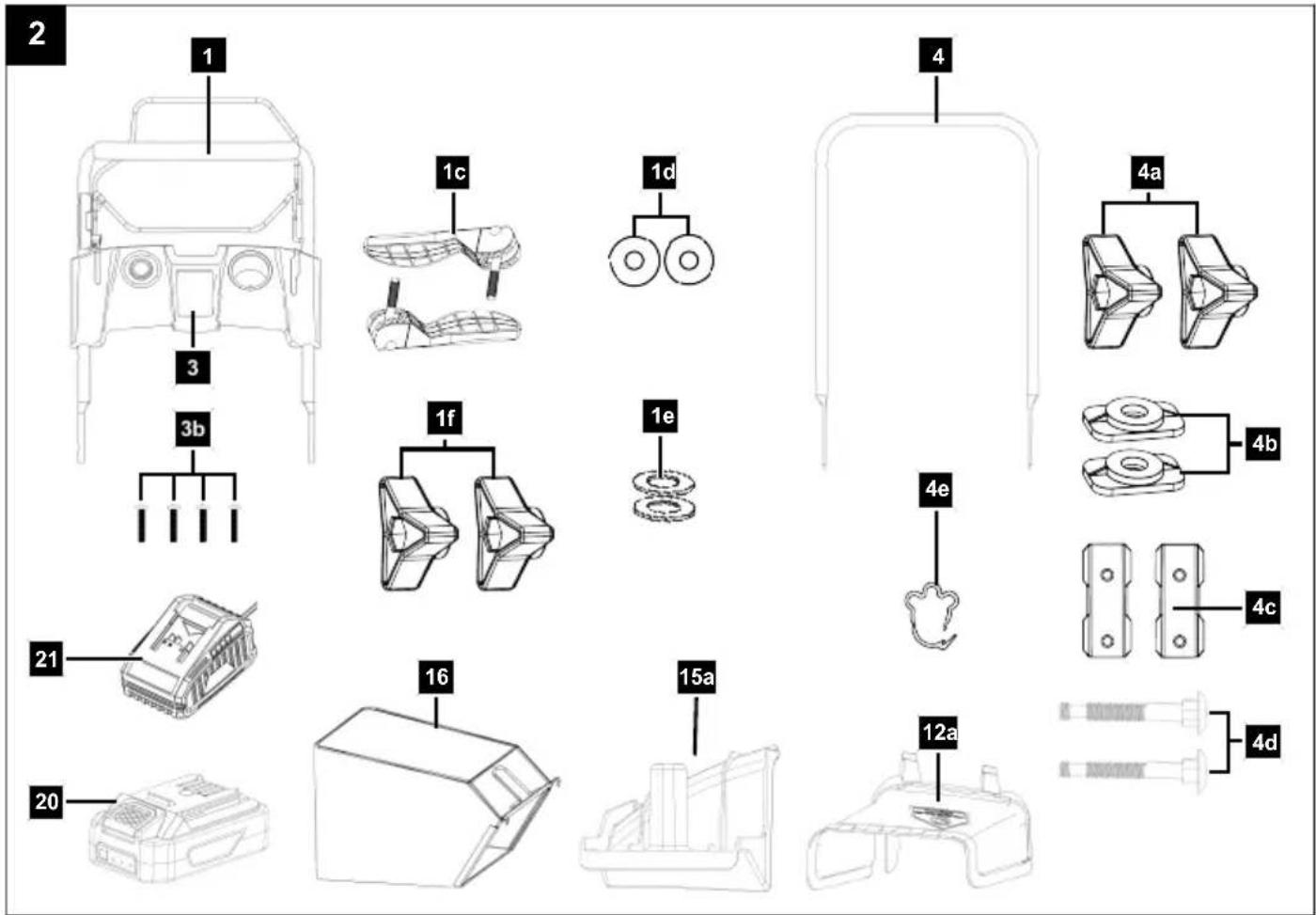

3 Scope of delivery (Fig. 1-2)
Item QuantityDesignation
- 1 x Upper push bar
1c. 2 x Quick clamp lever
1d. 2 x Washer
1e. 2 x Washer
1f. 2 x Plastic star grip nut
- 1 x Lower push bar
4a. 2 x Plastic star grip nut
4b. 2 x Spacer
4c. 2 x Guide
4d. 2 x Screw
4e. 1 x Cable clip
12a. 1 x Side discharge
15a. 1 x Mulching insert
-
1 x Grass collection basket
-
1 x Battery
-
1 x Battery charger
1 x Petrol lawnmower
2 x Operating instructions
(lawnmower, battery + battery charger)
4 Proper use
The petrol lawnmower is intended for private use i.e. for use in home and gardening environments. Private use of the lawnmower refers an annual operating time generally not exceeding that of 50 hours, during which time the machine is primarily used to maintain small-scale, residential lawns and home/hobby gardens. Public facilities, sporting halls, and agricultural/forestry applications are excluded.
The product may only be used in the intended manner. Any use beyond this is improper. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.
An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.
Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.
The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.
The product may only be operated with original parts and original accessories from the manufacturer.
The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.
WARNING
For your own safety, please thoroughly read this manual and the general safety instructions before turning the product on. If you give the product to third parties, always include these operating instructions.
The product is part of the 20V IXES series and may only be operated with batteries of this series. Batteries may only be charged with battery chargers of this series. Observe the manufacturer's instructions.
5 Improper use
Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.
WARNING
Due to physical danger to the user, the lawnmower must not be used for the following work (incomplete list):
– for trimming bushes, hedges and shrubs,
– for cutting climbing plants,
- for lawn care on roof plantings and in balcony boxes,
- for chipping and shredding tree and hedge cuttings,
– for cleaning pavements (vacuuming, blowing away),
– for levelling ground elevations, such as molehills,
- for transporting cuttings, except in the grass collection basket provided.
Explanation of the signal words in the operating manual
DANGER
Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.
ATTENTION
Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.
6 Safety instructions
Keep all safety information and instructions for future reference!
WARNING
Read all safety warnings, instructions, illustrations and specifications provided with this product.
Failure to observe the following instructions can result in serious injuries.
WARNING
Before you start working with the product, familiarise yourself well with all the control parts.
– Practice using the product and have an experienced user or specialist explain its function, how it works and the techniques involved.
- Ensure that the product can be stopped immediately in the event of an emergency.
- Improper use may cause severe injuries.
- In the event of an accident or a fault during operation, switch the product off immediately. Treat injuries properly or consult a doctor.
Who is not permitted to use the product:
- Children and other people who do are not familiar with the usage instructions (local stipulations may specify a minimum age for users).
• People under the influence of alcohol, drugs and medication, as well as those who are tired or ill.
6.1 Safety instructions for hand-operated lawnmowers
- Read the usage instructions with due care. Familiarise yourself with the settings and proper operation of the product.
- Never allow children or other persons who are unfamiliar with the usage instructions to use the lawnmower. Contact your local governmental agency for information regarding minimum age requirements for operating the lawnmower.
- Never mow while people, especially children or animals are nearby. Always keep in mind that the operator is responsible for accidents involving other persons and/or their property.
- Only mow when visibility is good. It is necessary to keep third parties away.
- If you hand the product over to another person, please hand over this operating manual as well.
• Always wear sturdy, non-slip footwear and long trousers when mowing. Never mow barefoot or in sandals.
- Check the terrain on which the product will be used and remove all objects that could be caught up and violently flung out of the chute (like stones, toys, sticks and wires etc.).
- Switch off the engine, wait for it to stop and disconnect the spark plug connector if
- you are leaving the product.
- You are removing blockages or obstructions.
– the product has been in contact with foreign objects.
– malfunctions and unusual vibrations occur on the product.
WARNING
Fuel is highly flammable:
- Only store fuel in containers (canisters) designed for this purpose.
- Refuel outdoors only and do not smoke while refueling.
- Fuel must be filled before starting the engine. While the engine is running or immediately after switching off the product, do not open the fuel filler cap or add fuel.
- If fuel overflows, no attempts should be made to start the engine. Instead, the product must be removed from the area contaminated with fuel. Do not try to start the engine until the fuel vapours have evaporated.
- For safety reasons, the fuel tanks and other fuel caps must be replaced if damaged.
- Never store fuel near a source of sparks. Always use a tested canister. Keep fuel away from children.
- Replace defective silencers.
- Prior to use. always perform a visual inspection to check whether the blade and fastening bolts are worn out or damaged. To prevent an imbalance, worn out or damaged blades and bolts may only be replaced in sets.
6.2 Electrical safety
- The connection plug of the electric tool must fit into the socket. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
WARNING
Follow the safety instructions and the notes regarding charging and correct use, as specified in the operating manual for your battery and battery charger. A detailed description of the charging process and further information are provided in this separate manual.
Incorrect use of the battery or battery charger can cause electric shock or fire.
6.3 Handling
Handling:
- Make sure that all nuts, bolts and screws are securely tightened so that the product is kept in a safe working condition.
- Never store the product with fuel in the tank inside a building in which fuel vapours may come into contact with naked flames or sparks.
- Allow the engine to cool down before parking the product in enclosed spaces.
- In order to avoid fire hazards, keep the engine, exhaust pipe and the area around the fuel tank free of grass, leaves and leaking grease (oil).
- Regularly check the catch basket for signs of wear and loss of functionality.
- For safety reasons, replace worn or damaged parts.
- If the fuel tank has to be drained, you must do this outdoors.
- Do not run the combustion engine in closed rooms in which hazardous carbon monoxide can collect.
- Only mow in daylight or with good artificial lighting.
- Avoid using the product on wet grass as far as possible.
- Do not use the product in a thunderstorm - Danger of lightning strike!
• Always maintain good footing on inclines.
- Only guide the product at walking pace.
- The following applies to wheeled products: Always mow across hills i.e. never straight up or straight down. Take particular care when changing direction on a slope.
- Do not mow on excessively steep slopes and nearby rubbish tips, ditches and dykes. Take particular care when reversing the product or pulling it towards you.
WARNING
Special care must be taken when working and changing direction on embankments and slopes:
- Ensure you have a secure footing.
- Wear shoes with non-slip, grippy soles and appropriate clothing.
– Always mow across slopes.
- For safety reasons, slopes with an inclination of more than 15 degrees must not be driven over with the product.
- Exercise particular caution when moving backwards and pulling the product. Risk of tripping!
- Stop the blade when the lawnmower has to be tilted, when transporting over areas other than grass and when moving the lawnmower to and from the area to be mowed.
CAUTION
The lawnmower must not be used without either the full grass catcher or the self-closing separating guard for the ejection opening in place.
- Never use the lawnmower if the blade or safety grilles are damaged, or without the attached guards, e.g. deflectors and/or grass catching devices.
- Do not adjust and overclock the engine speed settings.
- Release the engine brake and disengage all cutting tools and drives before starting the engine.
- Start the engine with care, in accordance with the manufacturers instructions. Ensure that your feet are far enough away from the blade.
- Do not tip the lawnmower when you start the engine unless the lawnmower must be raised off of the ground a little in order to start it. In this case, only tilt as far as absolutely required and only lift the side away from the operator.
- Do not start the engine if you are standing in front of the ejector chute.
- Never put hands and feet on or under rotating parts. Always keep clear of the ejection opening.
- Never lift or carry a lawnmower while the engine is running.
- Stop the engine and make sure that all moving parts have come to a standstill and that the ignition key, if present, is removed:
- Before you dislodge any blockages or clogs in the ejector chute.
- Before checking or cleaning the product, or performing work on it.
- If it came into contact with a foreign object. Inspect the product for damage and perform the required repairs before starting again and working with the product. If the product begins to experience exceptionally strong vibrations, switch it off immediately and check it.
– Any time you leave the product.
- Before you refuel.
- When the engine runs out, close the throttle valve. If the engine has a petrol shut-off valve, close it after use.
- Operating the product at excessive speed can increase the risk of accidents.
- Be careful when adjusting the product and avoid trapping fingers between the moving blade and rigid parts of the device.
- Be particularly careful when mowing on yielding ground, nearby rubbish tips, ditches and dykes.
- Avoid mowing in places where the wheels have trouble gripping or mowing is unsafe in any other way.
- Watch out for traffic near a road.
DANGER
Risk of tripping!
Exercise particular caution when moving backwards and pulling the product.
Before reversing, make sure there are no small children behind you.
- The user must be adequately trained in the use, adjustment and operation of the machine (including prohibited operations).
- Check the product regularly and make sure that all start locks and push buttons are working properly before each use.
- Please note that improper maintenance, the use of non-compliant spare parts, or the removal or modification of safety devices can result in damage to the product and serious injury to the person working with it.
- Please note that the product's safety systems or equipment must not be tampered with or deactivated. Never remove any safety-related parts.
- Please note that the user must not change or manipulate any sealed engine speed control settings.
- Use only blades and accessories recommended by the manufacturer. Use of other insert tools and accessories may result in injury to the user.
• Always keep the product in good operating condition.
- It is necessary to take enough breaks to reduce noise and vibration exposure.
6.4 Residual risks and protective measures
Neglect of ergonomic principles
Negligent use of personal protective equipment (PPE)
Careless use or omission of personal protective equipment may result in serious injury.
- Wear prescribed protective equipment.
Human behaviour, misconduct
• Always concentrate fully on all work.
Residual danger
- Can never be ruled out
Danger from noise
Hearing damage
Prolonged unprotected work with the product may cause hearing damage.
• Always wear hearing protection as a matter of principle.
Behaviour in an emergency
In the event of an accident, initiate the necessary first aid measures and seek medical assistance as quickly as possible.
Residual risks
The product has been built according to state-of-the-art and the recognised technical safety rules.
However, individual residual risks can arise during operation.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
- Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
- Prevent the product being unintentionally started up.
- Keep your hands away from the working area when the product is in operation.
- Unintentional starting up of the product.
- Comply with the stipulated maintenance and safety instructions in the operating instructions.
WARNING
In case of extended working periods, the operating personnel may suffer circulatory disturbances in their hands (vibration white finger) due to vibrations.
Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating products can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics).
If you notice unusual adverse effects, stop working immediately and seek medical advice.
7 Technical data
| Type of engine 4-Stroke engine / air cooled |
| Displacement 150 cm3 |
| Rotation speed 2800 rpm |
| Engine output 2,6 kW/3,5 PS |
| Fuel Regular petrol / lead-free max. 10% bioethanol |
| Tank contents 0.8 l |
| Engine oil SAE 10W-30/SAE 10W-40 |
| Oil tank capacity 0.4 l |
| Cutting height adjustment 25-75 mm/8 stages |
| Cut heights 25 (1) / 35 (2) / 45 (3) / 50(4) / 55 (5) / 65 (6) / 70 (7)75 (8) (+ / - 5) mm |
| Grass collection basket ca-pacity | 55 l |
| Cutting width | 46 cm |
| CO2 output | 1033 g/kWh |
| Weight (with empty tank and fully assembled) | 28.5 kg |
Subject to technical changes!
Noise and vibration
WARNING
Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for you and persons in the vicinity.
Noise data
| Sound pressure level L_pA | 74.6 dB |
| Measurement uncertainty K_pA | 1.81 dB |
| Guaranteed sound power level L_wA | 96 dB |
| Measured sound power level L_wA | 94.6 dB |
| Measurement uncertainty K_wA | 1.81 dB |
If necessary, adhere to rest periods and limit the duration of work to the bare minimum.
Vibration parameters (hand/arm vibration)
| Vibration ahv | 5.7 m/s2 |
| Measurement uncertainty Kh | 2.3 m/s2 |
Keep the noise level and vibration to a minimum!
- Only use faultless products.
- Maintain and clean the product at regular intervals.
- Adapt your working methods to the product.
- Do not overload the product.
• Have the product checked if necessary.
- Switch the product off if it is not in use.
- Wear gloves.
Observe the following information to reduce hazards:
- Keep your body and especially your hands warm in cold weather.
• Take regular breaks and move your hands to promote circulation.
- Ensure as little vibration as possible of the product via regular maintenance and stable parts on the product.
8 Unpacking
WARNING
The product and the packaging material are not children's toys!
Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!
- Open the packaging and carefully remove the product.
- Remove the packaging material, as well as the packaging and transport safety devices (if present).
- Check whether the scope of delivery is complete.
- Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
- If possible, keep the packaging until the expiry of the warranty period.
- Familiarise yourself with the product by means of the operating manual before using for the first time.
- With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
- When ordering please provide our article number as well as type and year of manufacture for the product.
9 Assembly
CAUTION
Danger of injury due to rotating blade. Only work on the product when the blade is switched off and stationary!
ATTENTION
Ensure that the throttle cable is not squeezed when mounting the push bars.
Place the product on a level, even surface.
Tool required:
- Phillips screwdriver*
* = may not be included in the scope of delivery!
9.1 Installation of the lower push bar (4) (Fig. 3)
- Detach the component from the screw (4d), spacer (4b) and plastic star nut (4a).
- Push one guide (4c) each onto the bolt on the lower push bar (4).
- Place the lower push bar (4) on the guides (4c). Ensure that the lower push bar (4) is seated in the bolt and that the fastening holes match.
- Insert one screw (4d) through each of the fastening holes of the lower push bar (4).
- Place a spacer (4b) on each screw (4d) and secure each with a plastic star nut (4a).
9.2 Installation of the upper push bar (1) (Fig. 4)
- Align the upper push bar (1) with the corresponding attachment points of the lower push bar (4).
- Place a washer (1d) on the quick clamp lever (1c) and insert it through the fastening holes of the upper and lower push bar (1/4).
- Place a washer (1e) on each quick clamp lever (1c).
- Secure the quick clamp lever (1c) with one plastic star nut (1f) respectively.
Ensure that the throttle cable and Bowden cable, which will later be attached with a cable clip (4e), are not in the way.
9.3 Fitting the electric starter unit (3) (Fig. 1, 5-9)
- Press the right-hand side of the engine brake lever (2) out of the plastic holder on the upper push bar (1).
- Move the engine brake lever (2) forward to release it from the plastic holder.
- Place the electric start unit (3) on the upper push bar (1).
- Secure the electric starter unit (3) with the screws (3b).
Ensure that the throttle cable (2a) and Bowden cable (1b), which will later be attached with a cable clip (4e), are not in the way.
- Use a Phillips screwdriver to tighten the screws (3b).
- Pull the throttle cable (2a) through the electric starter unit (3) as shown in Fig. 6.
- Insert the throttle cable (2a) into the engine brake lever (2) and press the right-hand side of the engine brake lever (2) back into the plastic holder on the upper push bar (1).
- Fix the throttle cable (2a) and Bowden cable (1b) to the lower push bar (4) using the cable clip (4e) provided.
- Hook the handle for the pull starter (17) into the cable hook (17a).
To do so, loosen the wing nut (17b) if necessary.
10 Before commissioning
ATTENTION
Always make sure the product is fully assembled before commissioning!
WARNING
Health hazard!
Inhalation of fuel / lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.
- Do not breathe fuel / lubricating oil vapours and exhaust gases.
- Operate the product outdoors only.
ATTENTION
Product damage!
Using the product without or with too little engine and gear oil can result in engine damage.
- Fill with fuel and oil before commissioning. The product is supplied without engine and gearbox oil.
ATTENTION
Environmental damage!
Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.
- Fill/empty oil only on level, paved surfaces.
- Use a filling nozzle or funnel.
– Collect drained oil in a suitable container.
- Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.
– Dispose of oil as per local regulations.
ATTENTION
Risk of damage!
If incorrectly stored or undrained fuel is used, the carburettor may become clogged or engine operation may be affected.
- Put unused fuel in an airtight vessel and store it in a dark, cool room.
ATTENTION
Some noise pollution from this product is unavoidable. Postpone noisy work to approved and designated times. If necessary, adhere to rest periods and limit the duration of work to the bare minimum.
For your personal protection and the protection of nearby persons, wear suitable hearing protection.
Place the product on a level, even surface.
Tool required:
- 1 litre measuring beaker (oil / petrol-proof)*
- Funnel*
- Rag/cloth*
* = may not be included in the scope of delivery!
10.1 Filling up with engine oil (Fig. 10)
ATTENTION
The product is delivered without engine oil. Therefore, ensure that you add oil before starting it up. Use multigrade oil (SAE 10W-30 or 10W-40) for this.
Check the oil level regularly before commissioning. An oil level that is too low can damage the motor.
- Unscrew the oil dipstick (11) by turning it anticlockwise.
- Fill the tank with engine oil using a funnel. Do not exceed the maximum filling level (see Technical Data). Carefully fill the oil up to the lower edge of the filling port.
- Wipe the oil dipstick (11) with a clean, lint-free cloth.
- Reinsert the oil dipstick (11) without screwing the oil dipstick (11) back in.
- Pull out the oil dipstick (11) and read off the oil level in a horizontal position.
The oil level must be between the max. and min. level on the oil dipstick (11).
- If the oil level is too low, add the recommended amount of oil (see Technical Data).
- Then screw the oil dipstick (11) in again.
10.2 Filling up with fuel (Fig. 11)
DANGER
Risk of fire and explosion!
When filling, fuel may ignite and even explode. This can lead to severe burns or death.
- Switch off the engine and let it cool down.
- Keep heat, flames and sparks away.
- Only fill up with fuel outdoors.
- Wear protective gloves.
- Avoid contact with skin and eyes.
- Start the product at a distance of at least 3 m from the fuel filling point.
- Watch out for leaks. If fuel is leaking, do not start the engine.
ATTENTION
The product is delivered without fuel. It is therefore essential to fill with fuel before commissioning. Use Super E10 petrol for this.
- Clean the area surrounding the filling area. Impurities in the fuel tank (5) lead to operational faults.
-
Carefully open the tank cover (5a) so that any possible overpressure can be relieved.
-
Fill the fuel tank (5) with petrol using a funnel. Do not exceed the maximum filling level (see Technical Data). Carefully fill the fuel up to the lower edge of the filling port.
- Close the fuel filler cap (5a) again. Ensure that the fuel filler cap (5a) is tightly sealed.
- Clean the tank cover (5a) and the surroundings.
10.3 Charge status of the battery (20) (Fig. 1, 2, 12)
The lawn mower is equipped with an electric starter (3a). A lithium ion battery (20) is used as the starter battery. Using the battery (20) and the battery charger (21) is described in the user manual supplied.
- To check the charge status, press the charge status indicator button (20b) on the battery (20). The battery charge status indicator (20b) indicates the charge status of the battery (20).
- The battery (20) may only be charged using the battery charger (21) supplied. The battery (20) is not recharged when operating the lawnmower.
10.4 Setting the cutting height (Fig. 13)
ATTENTION
Adjust the cutting height only when the engine is switched off and the plug boot has been pulled.
- In dense, tall grass, set the highest cutting level and mow more slowly. A high cutting height should be selected for the first cut of the season. Adjust the cutting height so that the product is not overloaded.
- Set the cutting height depending on the actual length of the lawn.
- Carry out several passes so that a maximum of 4 cm of lawn is removed at a time.
- The correct cutting height for
- ornamental grass is about 30 ~mm - 45 ~mm - utility turf about 40 ~mm - 65 ~mm .
The cutting height is adjusted via the cutting height adjustment lever (14). Different cutting heights can be set.
- Pull the cutting height adjustment lever (14) outwards.
- Slide the cutting height adjustment lever (14) to the desired cut height position.
- Release the cutting height adjustment lever (14) again. The lever locks into the desired position.
10.5 Inserting/removing the battery (20) (Fig. 14)
- To remove the battery (20) from the product, press the battery unlocking lever (20a) on the battery (20) and pull the battery (20) out.
- To insert the battery (20), push the battery (20) along the guide rail into the electric starter unit (3). It clicks into place audibly.
10.6 Blade-stop device (Fig. 1, 21)
Before each use, you must check the blade stop device. Start the engine as described in 11.4.
- Release the engine brake lever (2). The engine switches off and the blade (18) is braked.
- The blade (18) must stop within 7 seconds.
11 Operation
The lawn mower is powered by a powerful, air-cooled 4-stroke engine.
The product can be started with or without an electric starter unit and is equipped with a 7-position cutting height adjustment, a grass collection basket and a foldable push bar.
Please refer to the following descriptions for the function of the control elements.
Check before operation
- Check all sides of the engine for oil or fuel leaks.
- Check the engine oil level.
- Check the fuel level – the fuel tank should be at least half-full.
- Check the condition of the air filter.
- Check the condition of the fuel lines.
- Make sure that the spark plug connector is attached to the spark plug.
- Look for signs of damage.
- Check that all protective covers are in place and all screws, nuts and bolts are tightened.
11.1 Mowing with the grass collection basket
ATTENTION
Do not operate the product without the grass collection basket fully attached or without a mulching insert.
ATTENTION
Only remove or attach the grass collection basket when the engine is switched off and the blade is stationary.
11.1.1 Inserting the grass collection basket (16) (Fig. 15)
- Lift the rear discharge flap (15).
- Hold the grass collection basket (16) by the carrying handle.
- Hang the grass collection basket (16) in the grass collection basket suspension provided at the rear of the product.
- Put down the rear discharge flap (15), it holds the grass collection basket (16) in position.
11.1.2 Emptying the grass collection basket (16) (Fig. 1, 15)
WARNING
Before removing the grass collection basket, switch off the engine and wait for the blade to stop.
ATTENTION
Danger of injury!
Remove the grass collection basket only when the engine is switched off and the blade is stationary.
The grass collection basket must be emptied as soon as grass cuttings are left lying behind on the ground during mowing.
- To remove the grass collection basket (16), lift the rear discharge flap (15).
- Take out the grass collection basket (16) by the carrying handle. In accordance with the safety regulations, the discharge flap (15) closes when the grass collection basket (16) is unhooked and closes the rear ejection opening.
If grass cuttings remain in the opening, it is advisable to pull the lawnmower back about 1m to make it easier to start the engine.
ATTENTION
Do not remove cuttings in the mower housing and on the working tool by hand or with your feet, but with suitable aids, e.g. brush or hand brush.
To ensure good collection, the grass collection basket (16) and in particular the air filter (6a) must be cleaned from the inside after use.
11.2 Mowing with the mulching insert
When mulching, the cuttings are shredded in the closed mower housing and then dispersed on the lawn. Grass collection and disposal are not required. The fine green waste falls back into the grass root as a natural fertiliser, adds moisture to the lawn and supplies it with important nutrients.
ATTENTION
Mulching is only possible on relatively short lawns.
11.2.1 Inserting the mulching insert (15a) (Fig. 16)
- Lift the rear discharge flap (15).
- Remove the grass collection basket (16) (if used) by the carrying handle.
- Lift the discharge flap (15) and insert the mulching insert (15a).
- Adjust the cut height (see. 10.4).
Tips for mulching and mowing:
- Cut the grass back by 2 cm if the grass is 4-6 cm high.
11.3 Mowing with side discharge
The side discharge (12a) enables you to even manage high and wild grass that is only mown rarely.
11.3.1 Inserting the side discharge (12a) (Fig. 17)
- First remove the grass collection basket (16) and insert the mulching insert (15a) (see 11.2).
- Activate the locking mechanism of the side discharge flap (12), fold it upwards and hold it firmly.
-
Insert the side discharge (12a).
-
Close the side discharge flap (12) slowly. The side discharge flap (12) secures the side discharge (12a) to prevent it falling out.
11.3.2 Removing the side discharge (12a) (Fig. 17)
- Activate the locking mechanism of the side discharge flap (12), fold it upwards and hold it firmly.
- Remove the side discharge (12a) and close the side discharge flap (12).
11.4 Starting the engine
NOTE
The blade rotates when the engine is started.
Do not start the product if the ejector chute is covered by one of the following parts:
- Grass collection basket
- Mulching insert
11.4.1 Using the electric starter to start the engine (Fig. 1, 2, 18)
- Check the charge status of the battery (20) (see 10.3) and charge it if required.
- Check the fuel and engine oil levels before each start (see sections 10.1 and 10.2). Make sure that the spark plug connector (9) is connected to the spark plug (9a).
- Slide the charged battery (20) along the guide rail into the product. The battery (20) clicks into place audibly.
- Stand behind the lawnmower.
- Press the engine brake lever (2) to the steering and hold it.
- Press the electric starter (3a) on the electric starter unit (3) and hold it.
- The engine will start.
- Once the engine has started, let go of the electric starter (3a).
11.4.2 Starting the engine without the electric starter (Fig. 1, 19)
- Check the fuel and engine oil levels before each start (see sections 10.1 and 10.2). Make sure that the spark plug connector (9) is connected to the spark plug (9a).
- Stand behind the lawnmower. One hand pushes the engine brake lever (2) to the steering, the other pulls the pull starter (17).
- Start the engine with the pull starter (17). To do this, pull the handle out approx. 10-15 cm (until resistance is felt). Then pull hard with a jerk. If the engine does not start, pull on the pull starter (17) again.
- Due to protective coating on the engine, a small amount of smoke may be present during the initial use of the product and should be considered normal. This is a normal process.
ATTENTION
- Do not let the pull starter whip back in. This can result in damage.
– In case of cool weather, it may be necessary to repeat the starting process numerous times.
11.5 Shut off engine
WARNING
Danger of injury!
After switching the engine off, the blade continues to run for a few seconds. If you touch the rotating parts, you may cut yourself.
- Wait until the blade comes to a standstill.
- Do not stop the blade with your hand.
- Wear protective gloves.
- Remove the spark plug connector from the spark plug to prevent unintentional starting of the engine when switching off or parking the product.
-
Keep the blade away from your feet.
-
In order to shut the engine down, first release the drive bow (1a) and then the engine brake lever (2). Wait until the blade (18) stops.
-
Remove the battery (20) (see section 10.5).
11.6 Driving mode (Fig. 1)
The lawnmower is equipped with a rear-wheel drive.
11.6.1 Switching the drive on
- Start the lawnmower (see 11.4).
- Pull and hold the drive bow (1a) to the steering.
- The drive is switched on (the drive wheel (13) moves) and the lawnmower starts to move forwards.
ATTENTION
Avoid damage to the product! Avoid damage to the product! Always operate the drive bow completely (until it reaches the stop) to avoid consequential damage to the transmission.
11.6.2 Switching off the drive (1a)
-
Release the drive bow (1a). The drive (1a) is switched off and the lawnmower stops.
-
The engine continues to run.
12 Working instructions
- Only cut with sharp, flawless mowing blades so that the blades of grass do not fray and the lawn does not turn yellow.
- To achieve a clean cut, guide the lawnmower in the straightest possible paths. These strips should always overlap by a few centimetres so that no patches remain.
- Keep the underside of the mower housing clean and be sure to remove grass debris. Deposits make the starting process more difficult, impair cutting quality and grass discharge.
- On slopes, the cutting path should be made perpendicular to the slope. It is possible to prevent the lawn-mower from slipping by lifting it upwards at an angle.
WARNING
It is necessary to keep third parties away.
12.1 After mowing
- Always allow the engine to cool down before parking the lawnmower in an enclosed space. Remove grass, leaves, grease, and oil before storage. Do not store other objects on the lawnmower.
- Check all screws and nuts before the next use. Tighten up loose screws.
• Empty the grass collection basket before the next use.
- Please also observe the chapter "Storage".
13 Cleaning and maintenance
WARNING
Have maintenance and repair tasks that are not described in this operating manual, carried out by a specialist workshop. Use only original spare parts.
WARNING
Improper maintenance or cleaning work can cause injuries!
WARNING
The product may start unexpectedly and cause injuries and burns during cleaning, repair and maintenance work.
- Switch the product off.
- Disconnect the spark plug connector from the spark plug.
- Remove the battery.
- Allow the product to cool.
WARNING
Carry out a visual and functional check/maintenance regularly/daily and before commissioning to ensure that the product is in good operating condition.
- Incorrect maintenance, use of non-conforming replacement parts, or removal or modification of safety equipment may lead to severe property or personal damages.
- If this work cannot be carried out by the user themselves, see a specialist dealer.
13.1 Cleaning
13.1.1 Cleaning the lawnmower (Fig. 1)
- Cleaning with a garden hose is only recommended at low pressure. A high-pressure cleaner is not suitable for cleaning the product.
- Unhook the grass collection basket and brush it out with a hand brush. You can also roughly clean the housing of the lawnmower with the sweeper.
- For larger soiling, you can wipe the product with a damp Cloths.
ATTENTION
Before tilting the lawnmower, empty the fuel tank fully using a fuel extraction pump (not included in the scope of delivery).
Do not tilt the lawnmower beyond 90 degrees.
- It is best to tilt the lawnmower backwards. Make sure that the spark plug (9a) is pointing upwards. If the spark plug (9a) points downwards, oil can leak out and cause major damage to the engine and carburet-tor.
- Alternatively, you can tilt the product on its side, but you must make sure that the air filter cover (6) is on the upper side.
- Clean the underside of the lawnmower with a spatula and hand brush. The spatula helps to remove coarse and larger plant debris from the area of the blade (18). Cleaning the underbody is easier and more thorough immediately after use. Then dirt and plant residues are still fresh and can be loosened more easily.
- If necessary and if the dirt is difficult to remove, you can also use a special cleaner. Do not use aggressive cleaning products such as cold cleaners or white spirit.
- Check that the grass ejection is clear of grass residues and remove these if necessary.
13.1.2 Cleaning the lawnmower via the water connection (7) (Fig. 1, 20)
NOTE
Push the spark plug connector onto the spark plug properly again.
- First remove the mulching insert (15a) or the grass collection basket (16).
- For cleaning, connect a garden hose to the water connection (7) via the built-in plug-in coupling.
- Turn on the water and start the lawnmower (see11.4).
- The rotating blade (18) swirls the water.
- After a few minutes, the lawnmower is free of all adhering dirt and grass residues.
- Allow the lawnmower to run for a short time without water to remove most of the moisture through the circulating air of the blade (18).
13.1.3 Cleaning the V-belt (18d) (Fig. 21)
- Tilt the lawnmower backwards.
- Use a hand brush or compressed air to clean the V-belt (18d) after each use.
13.2 Maintenance
- Regular, careful servicing is required to guarantee the safety level and performance of the product.
- Ensure that all nuts, pins and screws are securely tightened so that the product is in a safe working condition.
- Check the grass collection basket regularly for signs of wear and loss of functionality.
- For safety reasons, replace worn or damaged parts.
- Check that the front and rear wheels are secured.
• To ensure smooth running of the wheels, we recommend cleaning the wheel axles and wheel hubs at least once per season.
- Any work not described in this operating manual must be performed by an authorised specialist workshop only.
- Place the product on a level, even surface.
- Installation spanner*
- Fuel extraction pump*
- Rag/cloth*
- Open-ended spanner/socket spanner, size 17 mm*
- Open-ended spanner/socket spanner, size 10 mm*
- Oil pump*
- Oil collecting tray, flat (for oil change)*
- Collection bucket*
• Copper wire brush*
* = may not be included in the scope of delivery!
13.2.1 Changing the blade (18) (Fig. 1, 22)
! WARNING
There is a risk of injury if you work with a damaged blade.
- Wear protective gloves!
- For safety reasons you should only ever have your blade sharpened and balanced by an authorised specialist workshop. For optimum results it is recommended that the blade should be inspected once a year.
-
When changing the blade, only use original spare parts.
-
Empty the fuel tank (5) with a fuel extraction pump before removing the cutting edge. Never tilt the lawn mower to the side or forward with a full fuel or oil tank! This will damage the engine and void the warranty.
-
Hold the blade (18) tightly with one hand.
-
Using an open-end spanner AF17, turn the blade screw (18a) anticlockwise from the engine spindle (18c). Remove the washer (18b).
-
Re-install the new blade (18) in reverse order. Fasten the blade screw (18a) properly. Make sure that the blade (18) is correctly positioned and flush against the engine spindle (18c).
-
The tightening torque of the blade screw (18a) is 45 Nm. Also replace the blade screw (18a) when replacing the blade (18).
13.2.1.1 Damaged blades (18)
Should the blade (18) come into contact with an obstruction, shut down the engine immediately and remove the spark plug connector (9).
- Check the blade (18) for damage.
- Damaged or bent blades (18) must be replaced.
- Never attempt to bend a bent blade (18) back to straight again.
- Never mow the lawn with a bent or heavily worn blade (18) as this will cause vibrations and can lead to further damage to the lawnmower.
13.2.2 Checking the oil level (Fig. 10)
WARNING
Health hazard!
Inhalation of fuel / lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.
- Do not breathe fuel / lubricating oil vapours and exhaust gases.
- Operate the product outdoors only.
ATTENTION
Product damage!
Using the product without or with too little engine and gear oil can result in engine damage.
- Fill with fuel and oil before commissioning. The product is supplied without engine and gearbox oil.
- Only use SAE 10W-30 or SAE 10W-40 engine oil.
ATTENTION
Environmental damage!
Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.
- Fill/empty oil only on level, paved surfaces.
- Use a filling nozzle or funnel.
- Collect drained oil in a suitable container.
-
Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.
– Dispose of oil as per local regulations.
-
Turn the oil dipstick (11) anticlockwise to unscrew it and wipe it with a clean, lint-free cloth.
- Reinsert the oil dipstick (11) and check the oil level without screwing the oil dipstick (11) tight again.
- Pull out the oil dipstick (11) and read off the oil level. The oil level must be between the max. and min. level on the oil dipstick (11).
- Then screw the oil dipstick (11) in again.
13.2.3 Oil change (Fig. 10)
The engine oil change should be completed annually before the start of the season while the engine is at operating temperature and shut off.
Only use engine oil (SAE 10W-30/SAE 10W-40).
- Unscrew the oil dipstick (11) by turning it anticlockwise.
- Suck out the engine oil through the filler neck using an oil pump (with hose).
- Fill up with fresh engine oil and check the oil level (see 10.1).
- Hold a collection bucket under the hose on the fuel extraction pump.
- Unscrew and remove the fuel filler cap (5a).
- Push the hose of the fuel extraction pump into the fuel tank (5) and drain out the fuel tank completely using the fuel extraction pump.
- Retighten the fuel filler cap (5a).
- To ensure that no fuel remains in the carburettor, the remaining fuel must be drained out of the carburettor. To do this, place a collection bucket under the carburettor and open the carburettor screw (19) with the aid of an open-end wrench AF10.
13.2.5 Maintenance of the air filter (6a) (Fig. 24)
DANGER
Risk of fire and explosion!
If not cleaned correctly, fuel may ignite and even explode. This can lead to severe burns or death.
- Only clean the air filter by knocking it out.
- Never clean the air filter with petrol or flammable solvents.
ATTENTION
Risk of damage!
Operating the engine without a filter element or with a damaged filter element can cause engine damage.
- Never run the engine without the air filter element or with a damaged filter element. This would allow dirt into the engine, which would result in severe damage to the engine.
Fouled air filters (6a) diminish the engine output due to reduced air supply to the carburettor. Regular inspection is therefore essential.
The air filter (6a) should be checked every 25 operating hours and cleaned as required. The air filter (6a) must be checked more often in case of very dusty air.
- Open the clip lock and fold open the air filter cover (6).
- Remove the air filter (6a).
- Clean the air filter (6a) only by knocking it out.
- Replace a defective air filter (6a) with a new one.
- Insert the air filter (6a) and close the air filter cover (6). Ensure that the clip lock clicks into place.
13.2.6 Maintaining the spark plug (9a) (Fig. 25, 26)
Check the spark plug (9a) for contamination for the first time after 10 operating hours and clean it with a copper wire brush if necessary. Then maintain the spark plug (9a) every 50 operating hours.
- Pull off the spark plug connector (9) with a twisting motion.
- Remove the spark plug (9a) with a spark plug wrench.
- Use a feeler gauge to set the gap to 0.75 mm(0.030"). Refit the spark plug (9a) and take care not to overtighten it.
14 Storage and transport
WARNING
Danger of injury and burning!
The product can start unexpectedly and cause injuries.
- Switch off the motor before carrying out any cleaning or maintenance work.
- Allow the motor to cool down.
- Disconnect the spark plug connector from the spark plug.
- Remove the battery.
• Empty the product completely.
- Clean and check the product for damage.
14.1 Storage
ATTENTION
Clean and maintain the product before storage.
ATTENTION
Do not store the product with the grass collection basket full. In hot weather, the grass begins to ferment under heat. There is a risk of fire!
Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.
The optimum storage temperature is between 5°C and 30°C.
Store the product in its original packaging.
Cover the product to protect it from dust or moisture. Store the operating manual with the product.
- Never store the product with fuel in the tank inside a building in which fuel vapours may come into contact with naked flames or sparks.
- Allow the engine to cool down before parking the product in enclosed spaces.
- In the event of prolonged storage, empty the fuel tank with a fuel extraction pump (not included in the scope of delivery).
- In order to avoid fire hazards, keep the engine, exhaust pipe and the area around the fuel tank free of grass, leaves and leaking grease (oil).
14.1.1 Preparing the lawnmower for long-term storage (Fig. 1)
WARNING
Do not remove the fuel in enclosed spaces, near fire or when smoking. Petrol fumes can cause explosions and fire.
- Empty the fuel tank (5) (see 13.2.4).
- Carry out an oil change (see 13.2.3).
- Pull the spark plug connector (9) off the spark plug (9a).
Remove the spark plug (9a) using the installation spanner provided (see 13.2.6).
- Fill the cylinder with approx. 0.2 l of oil from an oil can.
- Pull the pull starter (17) slowly so that the oil protects the inside of the cylinder.
- Screw the spark plug (9a) back in.
- Clean the cooling fins of the cylinder and the housing (see 13.1.1).
- Be sure to clean the entire product to protect the paint.
- Store the product in a well-ventilated place or area.
14.1.2 Battery (20) and battery charger (21)
Follow the safety and charging instructions and correct usage given in the instruction manual of your 20V IXES series battery (20) and battery charger (21). A detailed description of the charging process and further information are provided in this separate operating manual.
14.1.3 Fold the upper push bar (1) together (Fig. 1)
WARNING
Risk of jamming!
Always hold the push bar with one hand at the highest point.
- Never place fingers between the upper push bar and the lower push bar.
For space-saving storage, the upper push bar (1) is foldable.
- Remove the grass collection basket (16).
- Unhook the pull starter (17) from the cable hook (17a).
- Open the quick clamp levers (1c) on the lower push bar (4).
- Turn the quick clamp levers (1c) at a right angle to the push bar. To do this, you must move the quick clamp levers (1c) away from the lower push bar (4) slightly.
- Move the upper push bar (4) down. The cables must not be pinched in the process.
15 Repair and ordering spare parts
After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.
ATTENTION
According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.
Such work should be performed by a customer service centre or an authorised specialists. The same applies to accessory parts.
Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.
Connections and repairs
Connections and repair work on the electrical equipment may only be carried out by electricians.
15.1 Ordering spare parts
Please provide the following information when ordering spare parts:
- Model designation
- Item number
- Type plate data
Spare parts / accessories
| Blade information: | |
| Manufacturer: DJ = CHONG | QING DAJI-ANG POWER EQUIP-MENT CO.,LTD., China |
| Blade code: 602081 | |
| Blade - Article no.: 79112006 | 26 |
| Blade screw - Article no.: 59 | 1124001 |
| Air filter - Article no.: | 5911246022 |
| Engine oil - Article no.: | 7850000025 |
With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.
Wearing parts*: Spark plug, air filter, blade, V-belt
* = not included in the scope of delivery!
16 Disposal and recycling
Notes for packaging
The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.
Notes on the disposal of electrical and electronic equipment
Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!
- Used batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
- Owners or users of electrical and electronic devices are legally obliged to return them after use.
- The end user is responsible for deleting their personal data from the old device being disposed of!
- The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
- Waste electrical and electronic equipment can be handed in free of charge at the following places:
– Public disposal or collection points (e.g. municipal works yards)
- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.
- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
– Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.
- If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.
• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.
Notes on lithium-ion batteries
Remove the battery before disposing of the device!
- Do not dispose of batteries in household waste, in a fire (risk of explosion) or in water. Damaged batteries can harm the environment and your health if toxic vapours or liquids escape.
- Defective or used batteries must be recycled in accordance with Regulation (EU) 2023/1542.
- Hand in the battery and the battery charger at a recycling centre. The plastic and metal parts used can be separated by type and thus recycled.
- Dispose of batteries when discharged. We recommend covering the poles with an adhesive strip to protect against a short circuit. Do not open the battery.
- Dispose of batteries in accordance with local regulations. Return batteries to a used battery collection point where they can be recycled in an environmentally friendly manner. Ask your local waste disposal company about this.
You can find out how to dispose of the disused device from your local authority or city administration.
Fuels and oils
- Before disposing of the product, the fuel tank and the engine oil tank must be emptied!
- Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!
- Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.
17 Troubleshooting
| Fault Possible cause Remedy | | |
| Product runs unsteadily and vibrates heavily. | Screws are loose. Check screws. | |
| Blade fasteners are loose. Check blade | fasteners. |
| Blade is unbalanced. Replace blade. | |
| Engine does not run. Engine brake lever | not pressed. Press engine brake lever. |
| Throttle in wrong position. | Check setting. |
| Spark plug defective. | Replace spark plug. |
| Fuel tank is empty. | Fill with fuel. |
| Contaminated fuel. | Empty the fuel tank and fill with clean fuel. |
| Motor defective. | Contact authorised customer service. |
| Engine runs unsteadily. | Air filter dirty. | Clean the air filter. |
| Spark plug dirty. Clean the spark plug. | |
| Lawn turns yellow, uneven mowing results. | Air filter dirty. | Clean the air filter. |
| Spark plug dirty. Clean the spark plug. | |
| The discharge of grass clippings is un-clean. | Cutting height is too low. | Adjusting the cutting height |
| Blade is worn. | Replace blades. |
| Grass collection basket blocked. | Empty the grass collection basket or remove the blockage. |
Translation of the original Declaration of Conformity
Manufacturer:
Scheppach GmbH
Günzburger Straße 69
D-89335 Ichenhausen
We declare under our sole responsibility that the product described here complies with the applicable directives and standards.
Brand: SCHEPPACH
Art. designation: Petrol lawnmower - MS150-46E
Art. no. 5911244903, 5911244917,
5911250917, 59112104904,
591121049942, 59112519969
Series no. 0162-01001 - 0162-06041
EU directives:
2014/30/EU, 2006/42/EG, 2000/14/EG_2005/88/EG, 2016/1628/EU, 2011/65/EU*,
* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
Applied standards:
EN ISO 5395-1:2013/A1:2018;
EN ISO 5395-2:2013/A2:2017; EN 14982:2009
Conformity assessment procedure:
2000/14/EG_2005/88/EC - Appendix: VI
Guaranteed 96 dB
sound power level ( L_WA ):
Measured 94.6 dB
sound power level ( L_WA ):
Notified body: TÜV SÜD
Documentation authorised representative:
Stefan Hartinger
Günzburger Str. 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Sommaire
Günzburger Straße 69
D-89335 Ichenhausen
Cher client,
3 Fournitures (fig. 1-2)
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Indice
Günzburger Straße 69
D-89335 Ichenhausen, Germania
Egregio cliente,
Günzburger Straße 69
D-89335 Ichenhausen
2000/14/EG\_2005/88/CE – Allegato: VI
Division Manager Product Center
Head of Project Management
Inhoudsopgave
Günzburger Straße 69
D-89335 Ichenhausen
Geachte klant,
3 Meegeleverd (afb. 1-2)
13.2.3 Olieverversing (afb. 10)
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Índice
Günzburger Straße 69
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Head of Project Management
Índice
1 Introdução 113
Günzburger Straße 69
1 x Corta-relva a gasolina
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Head of Project Management
Obsah
Günzburger Straße 69
D-89335 Ichenhausen
Vážený zákazníku,
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
V. Osten
Andreas Pecher
Head of Project Management
Obsah
Günzburger Straße 69
D-89335 Ichenhausen
Vážený zákazník,
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Tartalomjegyzék
1 Bevezetés 163
Günzburger Straße 69
D-89335 Ichenhausen
Tisztelt Ügyfelünk!
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Spis treści
Günzburger Straße 69
D-89335 Ichenhausen
Szanowny Kliencie
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Popis sadržaja
1 Uvod.... 198
2 Opis proizvoda (sl. 1-28).... 199
3 Opseg isporuke (sl. 1-2).... 199
4 Namjenska uporaba.... 199
5 Nenamjenska uporaba.... 200
6 Sigurnosne napomene....200
7 Tehnički podatci 203
8 Raspakiravanje 203
9 Montaža 203
10 Prije stavljanja u pogon.... 204
11 Rad....206
12 Napomene za rad.... 207
13 Čišćenje i održavanje.... 208
14 Skladištenje i transport.... 210
15 Popravak i naručivanje rezervnih dijelova...... 211
16 Zbrinjavanje i recikliranje.... 211
17 Otklanjanje neispravnosti.... 212
18 EU izjava o sukladnosti.... 213
19 Povećani crtež.... 426
Günzburger Straße 69
D-89335 Ichenhausen
Poštovani kupče
Želimo vam mnogo zadovoljstva i uspjeha prilikom rada s novim proizvodom.
Napomena:
Prema važećem njemačkom Zakonu o odgovornosti za proizvode, proizvođač ovog proizvoda ne odgovara za štete koje nastanu na ovom proizvodu ili koje ovaj proizvod uzrokuje u slučaju:
- neispravnog rukovanja
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Kazalo
1 Uvod....214
2 Opis izdelka (sl. 1–28)...... 215
3 Obseg dostave (sl. 1–2)...... 215
4 Namenska uporaba.... 215
5 Nenamenska uporaba.... 216
6 Varnostni napotki 216
7 Tehnični podatki.... 219
8 Razpakiranje 219
9 Montaža 219
10 Pred zagonom.... 220
11 Delovanje 222
12 Delovna navodila.... 223
13 Čiščenje in vzdrževanje 224
14 Skladiščenje in transport.... 226
15 Popravila in naročanje rezervnih delov ..... 227
16 Odlaganje med odpadke in reciklaža.... 227
17 Pomoč pri motnjah 228
18 EU izjava o skladnosti.... 229
19 Eksplozijska risba.... 426
Razlaga simbolov na izdelku
Günzburger Straße 69
D-89335 Ichenhausen
Spoštovani kupec,
Želimo vam veliko veselja in uspeha pri delu z vašim novim izdelkom.
Napotek:
Proizvajalec tega izdelka skladno z veljavnim zakonom o odgovornosti za izdelke ne jamči za poškodbe na tem izdelku ali poškodbe s tem izdelkom, do katerih pride pri:
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Sisukord
Günzburger Straße 69
D-89335 Ichenhausen
Austatud klient!
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Turinys
Günzburger Straße 69
D-89335 Ichenhausen
Gerbiamas kliente,
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Satura rādītājs
Günzburger Straße 69
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Günzburger Straße 69
D-89335 Ichenhausen
Bästa Kund!
Günzburger Straße 69
Division Manager Product Center
Andreas Pecher
Head of Project Management
Sisällysluettelo
Günzburger Straße 69
D-89335 Ichenhausen
Arvoisa asiakas
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Indholdsfortegnelse
Günzburger Straße 69
D-89335 Ichenhausen, Tyskland
Kære kunde
Günzburger Straße 69
D-89335 Ichenhausen, Tyskland
Division Manager Product Center
Head of Project Management
Innholdsfortegnelse
Günzburger Straße 69
D-89335 Ichenhausen
Kjære kunde
Günzburger Straße 69
D-89335 Ichenhausen
Prosedyrer for samsvarsvurdering:
2000/14/EF\_2005/88/EF - Vedlegg: VI
Garantert 96 dB
lydeffektnivå (LWA):
Målt 94,6 dB
lydeffektnivå (LWA):
Oppnevnt instans: TÜV SÜD
Division Manager Product Center
Andreas Pecher
Head of Project Management
Съдържание
Günzburger Straße 69
D-89335 Ichenhausen, Германия
Уважаеми клиенти,
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
V. Anderson
Andreas Pecher
Head of Project Management
Günzburger Straße 69
D-89335 Ichenhausen
Αξιότιμε πελάτη
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Cuprins
Günzburger Straße 69
D-89335 Ichenhausen
Stimate client
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
W. Anderson
Andreas Pecher
Head of Project Management
Sadržaj
1 Uvod.... 394
2 Opis proizvoda (sl. 1-28).... 395
3 Opseg isporuke (sl. 1-2).... 395
4 Namenska upotreba.... 395
5 Nenamenska upotreba.... 396
6 Sigurnosne napomene.... 396
7 Tehnički podaci 399
8 Raspakivanje.... 399
9 Montaža 400
10 Pre stavljanja u pogon.... 400
11 Rad....402
12 Radna uputstva.... 404
13 Čišćenje i održavanje.... 404
14 Skladištenje i transport.... 407
15 Popravka i naručivanje rezervnih delova ..... 407
16 Odlaganje na otpad i reciklaža.... 408
17 Pomoć za otklanjanje smetnji.... 409
18 EU izjava o usaglašenosti.... 409
19 Znak eksplozije 426
Günzburger Straße 69
D-89335 Ichenhausen
Poštovani kupče
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
İçindekiler
Günzburger Straße 69
D-89335 Ichenhausen
İthalatçı:
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Garantie DE
Obvious defects must be reported within 8 days after receipt of the goods, otherwise the purchaser loses all claims due to such defects. We guarantee our machines, if handled correctly, for the duration of the statutory warranty period from handover in such a way that we will replace free of charge any machine part that demonstrably becomes unusable within this period as a result of material or manufacturing defects. For parts that we do not manufacture ourselves, we only provide a warranty to the extent that we are entitled to warranty claims against the upstream suppliers. The purchaser shall bear the costs of fitting the new parts. Claims for conversion and reduction and other claims for damages are excluded.
Garantie FR
