PH1420E - Multitools EGO - Free user manual and instructions

Product type	Brush cutter accessory
Brand	EGO
Model	PH1420E
Cutting width	30 cm
Idle speed	5 000 - 6 000 min⁻¹
Weight	1.82 kg
Recommended operating temperature	0 °C to 40 °C
Recommended storage temperature	-20 °C to 70 °C
Measured sound power level (LWA)	93.2 dB(A) (K=0.35 dB(A))
Sound pressure level (LPA)	83.9 dB(A) (K=3 dB(A))
Guaranteed sound power level	98 dB(A)
Vibration (front handle)	4.14 m/s² (K=1.5 m/s²)
Vibration (rear handle)	1.88 m/s² (K=1.5 m/s²)
Power source	Battery (cordless)
Compatible batteries	See EGO chargers listed in the manual
Recommended blade	Brush cutter blade ABB1203
Package contents	Accessory, blade set and blade guard, protective cover, additional cover, hex key, multifunction wrench, user manual
Applications	Cutting tangled grass, weeds, undergrowth and young shrubs up to 2 cm in diameter
Protection and safety	Protective cover, blade guard, safety stop, blade kickback, safety distance 15 m, PPE required
Maintenance	Cleaning after use, sharpening or replacing blade, lubricating gears every 50 h
Warranty	See egopowerplus.eu

Frequently Asked Questions - PH1420E EGO

How to assemble the blade on the EGO PH1420E brush cutter?

Remove the battery. Align the groove of the inner flange with the locking hole and insert the supplied hex key to lock. Loosen the nut with the multifunction wrench, place the blade on the spindle, then tighten the nut counterclockwise. Consult the manual for more details.

What safety precautions should be taken before using the tool?

Read the manual. Always wear eye and hearing protection, thick gloves, safety shoes, and long trousers. Ensure no people or animals are within 15 meters. Inspect the blade and protective cover before each use.

What is the maximum cutting width?

The maximum cutting width is 30 cm.

How to avoid blade kickback?

Use the left side of the blade to cut shrubs. Approach vegetation from right to left. Never cut materials with a diameter larger than 2 cm. Keep the blade sharp and inspect it regularly.

How to clean and maintain the accessory?

Remove the battery. Remove debris with a soft brush. Wipe with a damp cloth and mild soap. Clean the ventilation slots. Lubricate the gears every 50 hours of use with appropriate grease.

What to do if the brush cutter does not start?

Check that the battery is properly inserted and charged. Ensure the unlock lever and trigger switch are pressed. Check the electrical contacts. If the problem persists, contact an authorized repairer.

Which battery to use with the PH1420E?

This accessory is designed to be used with EGO power heads PH1400E, PH1420E and PHX1600. Use only the EGO batteries and chargers listed in the user manual.

How often to lubricate the gears?

Check the grease level every 50 hours of use by removing the sealing screw. If necessary, inject grease up to 3/4 of the housing. Do not fill completely.

Can the tool be used in the rain?

No, do not use the machine in rain or wet conditions. This increases the risk of electric shock and malfunction.

How to store the tool after use?

Remove the battery. Wear thick gloves to clean the tool. Put the blade guard back in place. Remove the accessory from the power head and store it in a dry, ventilated place out of reach of children.

USER MANUAL PH1420E EGO

Line drawing of a manual mop with handle and base mount (no text or symbols)

BCA1200

BRUSH CUTTER

ATTACHMENT

FOR USE ONLY WITH THE 56V LITHIUM-ION POWER HEAD PH1400E/PH1420E/PHX1600

EN Brush cutter attachment 5

1 2 8 9 10 7 11 12 13 BA1400, BA1400T, BA2240T, BA2242T, BA2800, BA2800T, BA3360T, BA4200, BA4200T, BA5600T, BA6720T CH2100E, CH5500E, CH3200E, CH7000E, CH7000E-T

B

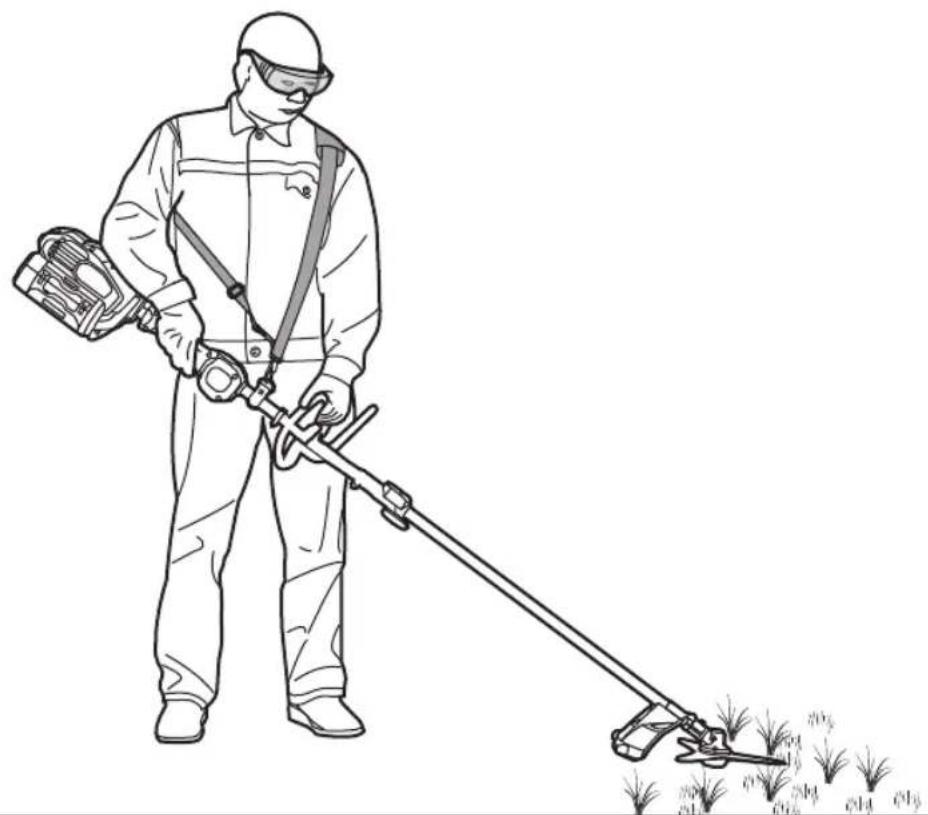

Line drawing of a person in protective gear using a long-handled tool to spray or brush a plant (no text or symbols present)

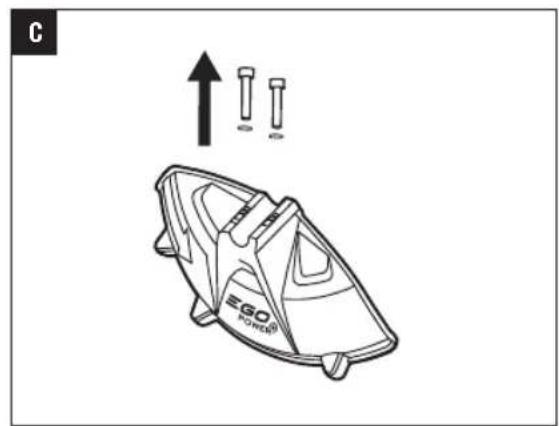

C ZEGO POWER

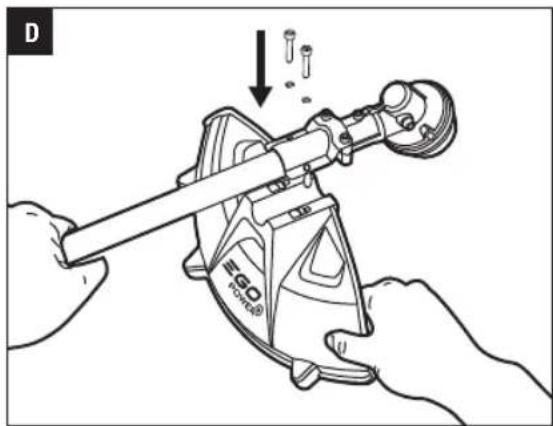

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

E E-2 E-1

F F-1 F-2 F-3

G G-1

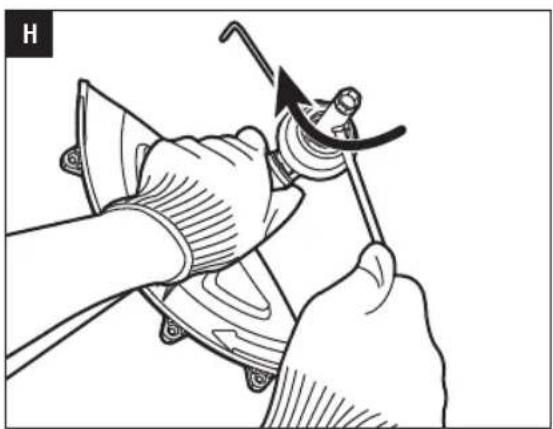

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

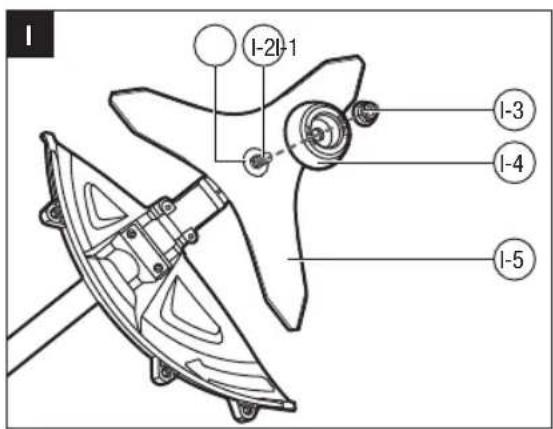

I I-2I-1 I-3 I-4 I-5

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a satellite dish antenna with a mounted camera and base mount (no text or symbols)

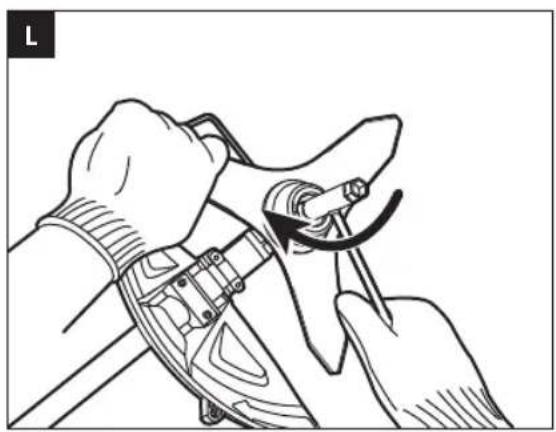

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

M M-1 M-2 M-3 M-4 M-7 M-6 M-5

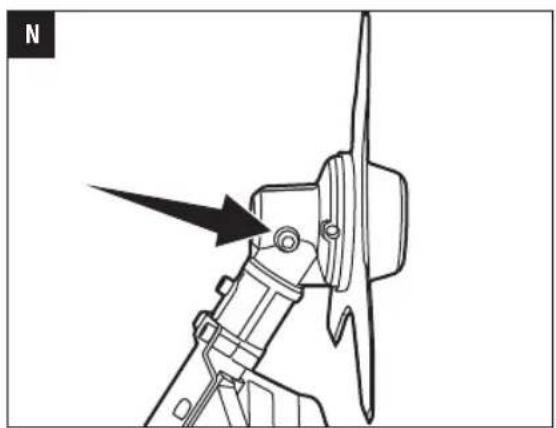

Technical line drawing of a mechanical device with an arrow pointing to a component (no text or symbols present)

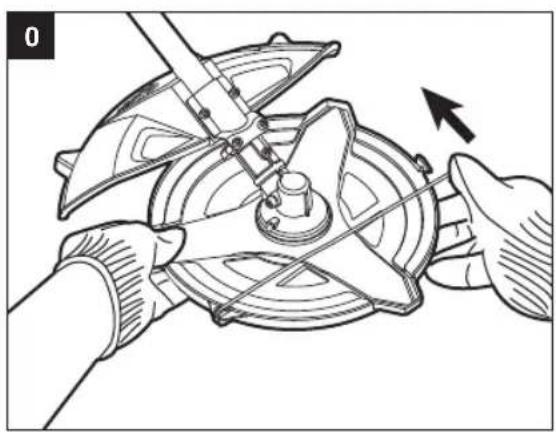

Illustration of hands operating a mechanical device with a tool, showing no text or symbols

READ ALL INSTRUCTIONS!

READ OPERATOR'S MANUAL

WARNING: To ensure safety and reliability, all repairs and replacements should be performed by a qualified service technician.

SAFETY SYMBOLS

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

WARNING: Be sure to read and understand all safety instructions in this Operator's Manual, including all safety alert symbols such as "DANGER," "WARNING," and "CAUTION" before using this tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

SYMBOL MEANING

SAFETY ALERT SYMBOL: Indicates DANGER,

WARNING, OR CAUTION. May be used in conjunction with other symbols or pictographs.

WARNING: The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.

SAFETY INSTRUCTIONS

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate it.

	Safety Alert	Indicates a potential personal injury hazard.
	Read Operator's Manual	To reduce the risk of injury, user must read the operator's manual.
	Wear Eye Protection	Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product.
	Wear Ear Protection	Always wear sound barriers (ear plugs or ear mufflers) to protect your hearing.
	Wear Head Protection	Wear an approved safety hard hat to protect your head.
	Wear Protective Gloves	Protect your hands with gloves when handling saw and saw chain. Heavy-duty, nonslip gloves improve your grip and protect your hands.
	Wear Safety Footwear	Wear non-slip safety footwear when using this equipment.
	Cutting Width	The Max. cutting width of brush cutter
	Beware of blade thrust	Warn the operator of the danger of blade thrust.
	Keep Bystanders Away	The distance between the machine and bystanders shall be at least 15 m.
	Beware of thrown objects	Thrown objects can ricochet and result in personal injury or property damage.
	Disconnect battery before maintenance.	Disconnect the battery pack from the line trimmer before carrying out maintenance or cleaning work.
	CE	This product is in accordance with applicable EC directives.
	UKCA	This product is in accordance with applicable UK legislation.

EN

	WEEE	Waste electrical products should not be disposed of with household waste. Take to an authorized recycler.
	Noise	Guaranteed sound power level. Noise emission to the environ-ment according to the European community's Directive.
V Volt Voltage
mm Millimeter Length or size
cm Centimeter Length or size
kg Kilogram Weight
n_0	No Load Speed	Rotational speed, at no load
min ^-1	Per Minute Revolutions per minute

GENERAL MACHINE SAFETY WARNINGS

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this machine. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

The term “machine” in the warnings refers to your mains-operated (corded) machine or battery-operated (cordless) machine.

WORK AREA SAFETY

- Keep work area clean and well lit. Cluttered or dark areas invite accidents.

- Do not operate machines in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Machines create sparks which may ignite the dust or fumes.

- Keep children and bystanders away while operating a machine. Distractions can cause you to lose control.

ELECTRICAL SAFETY

■ Machine plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) machines. Unmodified plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not operate the machine in rain or wet conditions. Water entering the machine may increase the risk of electric shock or malfunction that could result in personal injury.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the machine. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a machine outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
  ■ If operating a machine in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a machine. Do not use a machine while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating machines may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
  ■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the machine. Carrying machines with your finger on the switch or energizing machines that have the switch on invites accidents.
  ■ Remove any adjusting key or wrench before turning the machine on. A wrench or a key left attached to a rotating part of the machine may result in personal injury.
  ■ Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations.
  ■ Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

- If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

- Do not let familiarity gained from frequent use of machines allow you to become complacent and ignore machine safety principles. A careless action can cause severe injury within a fraction of a second.

MACHINE USE AND CARE

- Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed.

- Do not use the machine if the switch does not turn it on and off. Any machine that cannot be controlled with the switch is dangerous and must be repaired.

- Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the machine before making any adjustments, changing accessories, or storing machines. Such preventive safety measures reduce the risk of starting the machine accidentally.

■ Store idle machines out of the reach of children and do not allow persons unfamiliar with the machine or these instructions to operate the machine. Machines are dangerous in the hands of untrained users.

- Maintain machines and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the machine's operation. If damaged, have the machine repaired before use. Many accidents are caused by poorly maintained machines.

- Keep cutting machines sharp and clean. Properly maintained cutting machines with sharp cutting edges are less likely to bind and are easier to control.

■ Use the machine, accessories and machine bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the machine for operations different from those intended could result in a hazardous situation.

- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the machine in unexpected situations.

BATTERY MACHINE USE AND CARE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

■ Use machines only with specifically designated

battery packs. Use of any other battery packs may create a risk of injury and fire.

- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

- Do not use a battery pack or machine that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

■ Do not expose a battery pack or machine to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.

■ Follow all charging instructions and do not charge the battery pack or machine outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

⚠ WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Save all warnings and instructions for future reference.

TRAINING

- Read the instructions carefully. Be familiar with the controls and the proper use of the machine.

■ Never allow people unfamiliar or children with these instructions to use the appliance. Local regulations can restrict the age of the operator.

- Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

PREPARATION

■ Never operate the machine while people, especially children, or pets are nearby.

■ Wear eye protection and stout shoes at all times while operating the machine.

EN

■ The distance between the machine and bystanders shall be at least 15m.
■ Never operate the machine while the operator is tried, ill or under the influence of alcohol or other drugs.

OPERATION

■ Use the machine only in daylight or good artificial light.
■ Never operate the machine with damaged guards or shields or without guards or shields in place.
■ Switch on the motor only when the hands and feet are away from the cutting means.
■ Always disconnect the machine from the power supply (i.e. remove the battery pack).
■ whenever leaving the machine unattended;
■ before clearing a blockage;
■ before checking, cleaning or working on the machine.
■ after striking a foreign object;
■ whenever the machine starts vibrating abnormally.
■ Take care against injury to feet and hands from the cutting means.
■ Always ensure that the ventilation openings are kept clear of debris.

MAINTENACE AND STORAGE

■ Disconnect the machine from the power supply (i.e. remove the battery pack) before carrying out maintenance or cleaning work.
- Use only the manufacturer's recommended replacement parts and accessories.
- Inspect and maintain the machine regularly. Have the machine repaired only by an authorized repairer.
■ When not in use, store the machine out of the reach of children.

OTHER SAFETY WARNINGS

- Avoid Dangerous Environments – Don't use appliances on damp or wet slope.

• Keep guards in place and in working order.
• Keep hands and feet away from the cutting area.

■ To reduce the risk of injury, never work on a ladder or on any other insecure support. Never hold the cutting unit above waist height.

- Check the cutting unit at regular short intervals during operation, or immediately if there is a noticeable change in cutting behavior.

■ For best results, your battery should be charged in a location where the temperature is greater than 5°C

and less than 40° C. Do not store it outside or in vehicles.

■ If you are approached, stop the motor and cutting unit.

■ Warn the operator of the danger of blade thrust (only using with 3-teeth blade).

■ Blade thrust may occur when the spinning blade contacts an object that it does not immediately cut.
■ Blade thrust can be violent enough to cause the unit and/or operator to be propelled in any direction, and possibly lose control of the unit.
■ Blade thrust can occur without warning if the blade snags, stalls or binds.
■ Blade thrust is more likely to occur in areas where it is difficult to see the material being cut.

- Do not attach any blade to a unit without proper installation of all required parts. Failure to use the proper parts can cause the blade to fly off and seriously injure the operator and/or bystanders. Discard blades that are bent, warped, cracked, broken, or damaged in any way. Use a sharp blade A dull blade is more likely to snag and thrust (only using with 3-teeth blade).

- A coasting blade/line can cause injury while it continues to spin after the motor is stopped or trigger is released. Maintain proper control until the blade/line has completely stopped rotating.

- Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards even when the tool is not operating. Take care when performing maintenance or service.

■ Do not wash with a hose; avoid getting water in motor and electrical connections.

■ If situations occur that are not covered in this manual, use care and good judgment. Contact the EGO Customer Service Center for assistance.

- Use only with EGO's battery packs and chargers listed in fig.A.

SAVE THESE INSTRUCTIONS!

SPECIFICATIONS

Cutting Width 30 cm
No-Load Speed 5000/6000 min		-1
Weight 1.82 kg
Recommended Operating Temperature 0°C		-40°C
Recommended Storage Temperature -20°C		-70°C
Measured sound power level L_WA		96.5 dB(A)K=1.88 dB(A)(PH1400E)
		93.2 dB(A)K=0.35 dB(A)(PH1420E)
		91 dB(A)K=1.1 dB(A)(PHX1600)
Sound pressure level at operator's ear L_PA		84.5 dB(A)K=3 dB(A)(PH1400E)
		83.9 dB(A)K=3 dB(A)(PH1420E)
		83 dB(A)K=3 dB(A)(PHX1600)
Guaranteed sound power level L_WA (measured according to 2000/14/EC)		98 dB(A)
Valuation of vibration a_h :	Front-assist handle	2.8 m/s2K=1.6 m/s2(PH1400E)
		4.14 m/s2K=1.5 m/s2(PH1420E)
		6.64 m/s2K=1.5 m/s2(PHX1600)
	Rear handle	3.1 m/s2K=1.6 m/s2(PH1400E)
		1.88 m/s2K=1.5 m/s2(PH1420E)
		2.61 m/s2K=1.5 m/s2(PHX1600)

■ The above parameters are tested and measured equipped with power head PH1400E/PH1420E/PHX1600;
■ The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;
■ The declared vibration total value may also be used in a preliminary assessment of exposure.

NOTICE: The vibration emission during actual use of the power tool can differ from the declared value in which the tool is used; In order to protect the operator, user should wear gloves and ear protectors in the actual conditions of use.

Recommended Blade

PART NAME MODEL NUMBER
Brush Butter Blade ABB1203

PACKING LIST

PART NAME QUANTITY
Brush Cutter Attachment 1
Blade and Blade Sheath Set 1
Guard 1
Guard Accessory (For use with trimmer head ONLY)	1
Hex Wrench 1
Multi-Function Wrench 1
Operator's Manual 1

DESCRIPTION

KNOW YOUR BRUSH CUTTER ATTACHMENT (Fig. A)

1. End Cap
2. Brush Cutter Shaft
3. Guard
4. Blade
5. Blade Sheath
6. Clamp Wire
7. Sealing Screw
8. Gear Case
9. Shaft-locking Hole
10. Outer Flange
11. Multi-Function Wrench
12. Hex Wrench
13. Guard Accessory (For use with trimmer head ONLY)

⚠ WARNING: Never operate the tool without the guard firmly in place. The guard must always be on the tool to protect the user.

WARNING: When the tool is used as a line trimmer, equipped with a trimmer head, the guard accessory should be mounted onto the guard. Failure to comply could result in an overly long cutting line and motor overload.

EN ASSEMBLY

WARNING: If any parts are damaged or missing, do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.
WARNING: Do not attempt to modify this product or create accessories not recommended for use with this brush cutter. Any such alteration or modification is misuse and could result in a hazardous condition leading to possibly serious personal injury.
WARNING: To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the machine when assembling parts.
WARNING: When the machine is equipped with brush cutter head, the safety barrier bar shall be mounted.

MOUNTING THE GUARD

WARNING: Always wear gloves when mounting or replacing the guard. Take care of the blade on the guard and protect your hand from cutting.
WARNING: Never operate the machine without the guard firmly in place. The guard must always be on the machine to protect the user! When the guard is fixed, never attempt to remove or adjust the guard, if a replacement is needed, it should be performed by a qualified service technician!

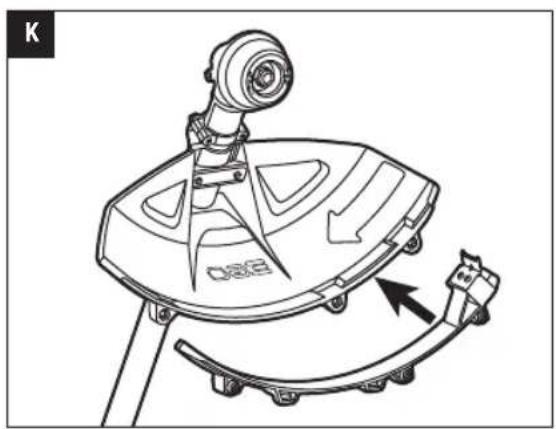

Loosen and remove the two screws from the guard (Fig. C), align the guard mounting holes with the assembly holes and then lock the guard onto the shaft base with the two screws, together with two spring washers (Fig. D).

Make sure the guard is fixed according to Fig. C & D, any reverse fixing will cause great danger!

MOUNTING THE BLADE

1. The blade is shipped with a sheath. Before mounting the blade onto the brush cutter, the sheath should be removed by undoing the clamp wire from the hook on the sheath (Fig. E).

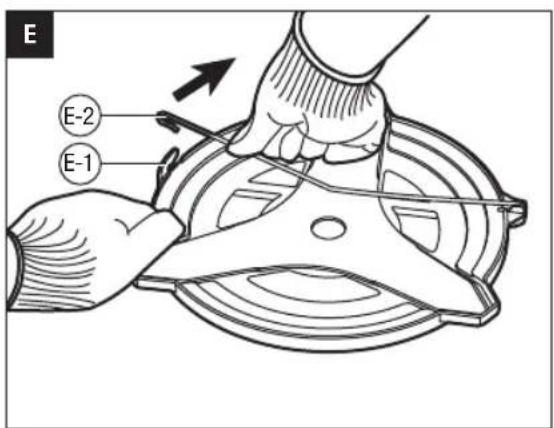

Fig. E parts description see below:

E-1 Hook

E-2 Clamp Wire

1. Rotate the outer flange to align the slot in the inner flange with the shaft-locking hole in the gear case (Fig. F).

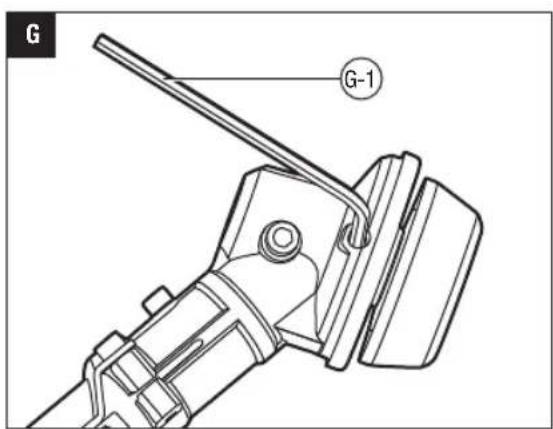

2. Insert the hex wrench provided into the aligned holes to act as a stabilizer (Fig. G).

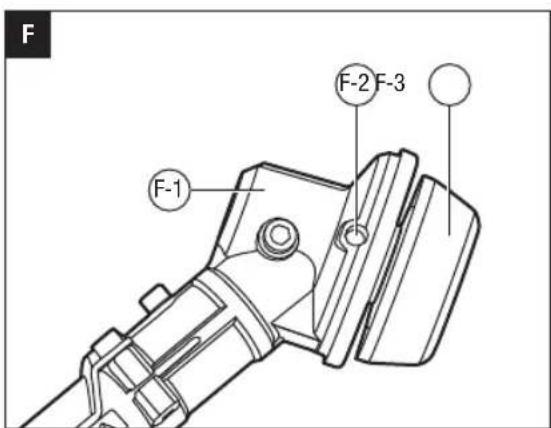

Fig. F & G parts description see below:

F-1 Gear Case F-3 Outer Flange
F-2 Aligned Shaft-locking Holes	G-1 Stabilizer

1. Position the brush cutter head against a solid surface for support. With one hand grasping the brush cutter shaft and use the other hand to grasp the multifunction wrench provided to loosen the nut in the direction of the arrow marked on the outer flange and remove the nut and the outer flange. Save them for reassembly (Fig. H).
2. Mount the blade onto the motor shaft, ensuring that the surface of the blade is flush with the surface of the inner flange bulge. Go on mounting the outer flange and the nut (Fig. I). Pre-tighten the nut in COUNTERCLOCKWISE by hand.

Fig. I parts description see below:

I-1 Inner Flange Bulge I-4 Outer Flange
I-2 Motor Shaft I-5 Blade
I-3 Nut

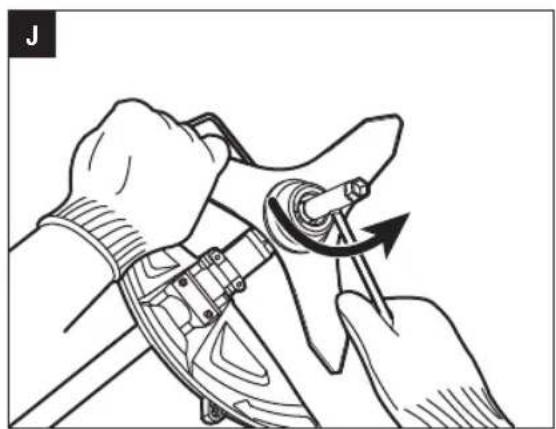

1. Rotate the outer flange to align the slot in the inner flange with the shaft-locking hole in the gear case and insert the hex wrench provided into the aligned holes to act as a stabilizer as previous step 2 & 3 shown.
2. Position the brush cutter head against a solid surface for support. With one hand grasping the blade and use the other hand to grasp the multi-function wrench provided to tighten the nut opposite the direction of the arrow marked on the outer flange (Fig. J).

Use of Guard Accessory

NOTICE: When the tool is used as a line trimmer equipped with a trimmer head, the guard accessory must be mounted onto the guard (Fig. K).

Secure the guard accessory onto the guard by tightening the three screws with the hex wrench provided. Failure to comply could result in an overly long cutting line and motor overload.

CONNECTING THE BRUSH CUTTER ATTACHMENT TO THE POWER HEAD

This brush cutter attachment is designed for use with EGO Power Head PH1400E/PH1420E/PHX1600.

See "INSTALLING AN ATTACHMENT TO THE POWER HEAD" section in the power head PH1400E/PH1420E/PHX1600 operator's manual.

OPERATION

WARNING: Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.
WARNING: Always wear eye protection, along with hearing protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.

APPLICATIONS

You may use this product for the purpose listed below:

■ Cutting malted grass, weeds, wild growth and scrub, thinning young stands with a maximum stem diameter of 2cm.

NOTICE: The tool is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse.

USING THE BRUSH CUTTER WITH POWER HEAD

WARNING: Dress properly to reduce the risk of injury when operating this tool. Do not wear loose clothing or jewelry. Wear eye and ear/hearing protection. Wear heavy, long pants, boots and gloves. Do not wear short pants or sandals or go barefoot.

For safe and better operation, put on the shoulder strap across the shoulder. Adjust the shoulder strap in a comfortable operating position. Hold the brush cutter with one hand on the rear handle and the other hand on the front-assist handle. Keep a firm grip with both hands while in operation. The brush cutter should be held at a comfortable position with the rear handle about hip height. Maintain your grip and balance on both feet. Position yourself so that you will not be drawn off balance by the kickback reaction of the cutting blade (Fig. B).

WARNING: The shoulder strap is also a quick release mechanism in hazardous situation. When emergency occurs, take it off from your shoulder immediately, no matter what way the strap is in.

To cut wild growth and scrub, lower the rotating blade down onto the growth to achieve a chopping effect. Use the brush cutter like a scythe (sweep it to the right and left) at ground level. Do not use the cutting attachment above waist height.

WARNING: The higher the cutting attachment is off the ground, the greater the risk of injury from cuttings being thrown sideways.

WARNING: When cutting young stands or other woody materials up to 2cm in diameter, use the left side of the blade to avoid blade thrust situations. Do not attempt to cut woody material with a larger diameter, since the blade may catch or jerk the brush cutter forward. This may cause damage to the blade or the brush cutter or loss of control of the brush cutter, resulting personal injury.

WARNING: Improper use of a brush cutter blade may cause it to crack, chip, or shatter.

Thrown parts may seriously injure the operator or bystander. To reduce the risk of personal injury, it is essential to take the following precautions:

■ Avoid contact with hard or solid foreign objects such as stones, rocks or pieces of metal.
■ Never cut wood or shrubs with a stem diameter of more than 2cm.
■ Inspect the blade at a regular short intervals for signs of damage. Do not continue working with a damaged blade.
■ Resharpen the blade regularly (when it has dulled noticeably) and have it balanced if necessary (performed by a qualified service technician).

BLADE THRUST

Exercise extreme caution when using the blade with this unit. Blade thrust is the reaction that may occur when the spinning blade contacts anything it cannot cut. This contact may cause the blade to stop for an instant and suddenly "thrust" the unit away from the object that was hit. This re action can be violent enough to cause the operator to lose control of the unit. Blade thrust can occur without warning if the blade snags, stalls, or binds. This is more likely to occur in areas where it is difficult to see the material being cut. For cutting ease and safety, approach the weeds being cut with the brush cutter from the right to the left. In the event an unexpected object or woody stock is encountered, this practice could minimize the blade thrust reaction.

Before each use check for damaged/worn parts

Check the blade, guard and front-assist handle and replace any parts that are cracked, warped, bent, or damaged in any away.

The edge of the blade can dull over time. It is recommended that you turn over the blade to extend the life of the blade and periodically sharpen it (performed by a qualified service technician) or replace it with a new blade when necessary.

Clean the brush cutter after each use

EN

See the MAINTENANCE section for cleaning instructions.

WARNING: Ensure the blade has come to a complete stop before cleaning or servicing the brush cutter. Failure to comply could result in possible serious personal injury.

TO START/STOP THE TOOL

See "STARTING/STOPPING THE POWER HEAD" section in the power head PH1400E/PH1420E/PHX1600 operator's manual.

MAINTENANCE

WARNING: Before inspecting, cleaning or servicing the unit, stop the motor, wait for all moving parts to stop, and remove the battery pack. Failure to follow these instructions can result in serious personal injury or property damage.

WARNING: When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. To ensure safety and reliability, all repairs should be performed by a qualified service technician.

WARNING: Always wear heavy gloves when installing or removing the blade or performing any maintenance on the blade. Be careful of the blade and protect your hands from being injured by the blade.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

CLEAN THE UNIT

■ Remove the battery
■ After each use, clean the debris, clogged soils or grass on the blade and guard with a soft brush.
■ Wipe the tool surface with a clean cloth moistened with a mild soap solution.
■ Use a small brush or a small vacuum cleaner to clean the air vents on the rear housing.
- Keep the air vents free of obstructions.
The transmission gears in the gear case need be lubricated periodically with gear grease. Check the gear base grease level about every 50 hours of operation by removing the sealing screw on the side of the case.
If no grease can be seen on the flanks of the gear, follow the steps below to fill with gear grease up to 3/4 capacity. Do not completely fill the transmission gears.

When the blade becomes dull, both of the edges of the blade are dull, please sharpen it performed by a qualified service technician or replace with a new blade as necessary.

REPLACING THE BLADE

WARNING: A worn, cracked, or damaged blade can break and pieces of the damaged blade can become dangerous projectiles. Thrown objects can cause serious injury. Inspect the blade regularly and do not operate the brush cutter with a worn or damaged blade.
WARNING: Use proper eye protection while removing, sharpening, and installing the blade.

To remove the blade

1. Remove the battery.

2. Rotate the outer flange to align the slot in the inner flange with the shaft-locking hole in the gear case and insert the hex wrench provided into the aligned holes to act as a stabilizer as steps 2 & 3 shown in "MOUNTING THE BLADE" section.

3. Position the brush cutter head against a solid surface for support. With one hand grasping the blade and use the other hand to grasp the multi-function wrench provided to loosen the nut in the direction of the arrow marked on the outer flange and remove the nut, the outer flange and the worn blade (Fig. L).

4. Check and replace the inner flange and the flange cover if they are worn (Fig. M).

Fig. M parts description see below:

M-1	Motor Shaft M-5 Outer Flange
M-2	Inner Flange M-6 Nut
M-3	Flange Cover M-7 Slot in the Flange
M-4	Blade

1. Install the new blade onto the motor shaft as sequence shown in Fig. M. Details follow the steps instructed in step 5, 6 & 7 in "MOUNTING THE BLADE" section.

1. Hold the brush cutter making the sealing screw is facing upwards (Fig. N).

2. Use the multi-function wrench provided to loosen and remove the sealing screw.

3. Use a grease syringe (not included) to inject some grease into the screw hole.

4. Tighten the sealing screw after injection.

STORING THE UNIT

■ Remove the battery pack from the tool.
■ Wear heavy gloves to clean the tool thoroughly.
■ Mount the blade sheath onto the blade for safe saving (Fig. 0).
■ Remove the brush cutter attachment from the power head and cover the end cap onto the attachment shaft terminal, if necessary.
■ Store the unit in a dry, well-ventilated area, locked-up or up high, out of the reach of children. Do not store the unit on or adjacent to fertilizers, gasoline, or other chemicals.

Protecting the environment

Do not dispose of electrical equipment, used battery and charger into household waste! Take this product to an authorized recycler and make it available for separate collection. Electric machines must be returned to an environmentally compatible recycling facility.

EN

EN TROUBLESHOOTING

PROBLEM	CAUSE SOLUTION
Brush cutter fails to start.	The battery pack is not attached to the power head.No electrical contact between the power head and the battery pack.The battery pack is depleted.The lock-off lever and trigger are not depressed simultaneously.	Attach the battery pack to the power head.Remove battery, check contacts and reinstall the battery pack until it snaps into place.Charge the battery pack with EGO chargers listed in this manual.Press down the lock-off lever and hold it, then depress the trigger to turn on the brush cutter.
Brush cutter stops while cutting.	The motor is overloaded.The battery pack or the power head is too hot.The battery pack is disconnected from the tool.The battery pack is depleted.	The motor will recover when the load is removed. For continuous working, decrease the load on the power head.Allow the battery pack or the power head to cool until the temperature drops below 67°C.Re-install the battery pack.Charge the battery pack with EGO chargers listed in this manual.

WARRANTY

EGO WARRANTY POLICY

Please visit the website egopowerplus.eu for full terms and conditions of the EGO Warranty policy.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Protecting the environment

⚠ WAARSCHUWING: Lees alle

ANDERE VEILIGHEIDSWAARSCHUWINGEN

DE BESCHERMING MONTEREN

HET APPARAAT SCHOONMAKEN

HET APPARAAT OPBERGEN

RENG∅RING AF APPARATET

UDSKIFTNING AF KNIVEN

OPBEVARING AF APPARATET

SIKKERHET PÅ ARBEIDSOMRÅDET

VEDLIKEHOLD OG LAGRING

GENERELT VEDLIKEHOLD

BEZPIECZEŃSTWO W MIEJSCU PRACY

POLITYKA GWARANCYJNA EGO

CITIȚI MANUALUL DE INSTRUCTIUNI

UPORABA IN NEGA STROJA

LUGEGE KASUTUSJUHENDIT

ÜLDISED MASINA OHUTUSHOIATUSED

Puhastamise juhised leiate jaotisest HOOLDUS.

OSTALA SIGURNOSNA UPOZORENJA

OSTALA SIGURNOSNA UPOZORENJA

OSTALA SIGURNOSNA UPOZORENJA

			M-1	#
			M-2	#
			M-3	#
			M-4	#

■ IX O'YITI O'YAN O'Y

Line drawing of a manual mop with handle and base mount (no text or symbols)

BCA1200

תַעְרָה בְּרָה

HE

ملحق قاطع الأغصان

AR

FR NOTICE BAC DE TRI
