PPCX1000 - Multitools EGO - Free user manual and instructions

Product type	Cordless telescopic hedge trimmer
Brand	EGO
Model	PPCX1000
Rated voltage	56 V
Weight	3.9 kg
Operating temperature	-10 °C to 40 °C
Storage temperature	-20 °C to 70 °C
Telescopic tube length	Up to 960 mm (fully extended)
Protection rating	IPX5 (water jet resistant)
Use in rain	Yes
Power supply	56 V lithium-ion battery (not included)
Variable speed	Yes, variable speed trigger
Safety system	Dual activation system (lock-off button + trigger)
Shoulder strap	Included, with quick-release mechanism
Compatible attachments	PTX5100 (hedge trimmer attachment), PSX2500 (pole pruner attachment)
Package contents	Telescopic hedge trimmer, shoulder strap, combination key
Maintenance and cleaning	Clean with a damp cloth and mild detergent; do not use solvents
Spare parts and repairability	Repairs by a qualified repairer; identical replacement parts
Warranty	Visit egopowerplus.eu for full terms

Frequently Asked Questions - PPCX1000 EGO

What type of battery should I use with the EGO PPCX1000 hedge trimmer?

Use exclusively a compatible 56 V EGO lithium-ion battery. Never use any other battery, as this could cause injury or fire.

How do I install the battery on the PPCX1000?

Align the battery edges with the assembly grooves, then push it down until you hear a click. To remove it, press the battery release button.

Can I use the hedge trimmer in the rain?

Yes, the PPCX1000 is rated IPX5 and can be used in the rain. However, ensure you follow all safety instructions.

How do I attach an attachment to the telescopic hedge trimmer?

Make sure the motor is off and the battery is removed. Loosen the locking collar, align the arrow on the attachment shaft with the alignment indicator, then push until it clicks. Tighten the locking collar.

Which attachments are compatible with the PPCX1000?

The authorized attachments are the PTX5100 hedge trimmer and the PSX2500 pole pruner. Using other attachments may be dangerous.

How do I adjust the telescopic tube length?

Loosen the clamping collar, pull the tube to the desired length (up to 960 mm), then retighten the collar. Do not exceed the maximum limit indicated.

How do I start and stop the hedge trimmer?

To start, push the lock-off button forward while pressing the variable speed trigger. To stop, release the trigger and the lock-off button.

What regular maintenance is required?

Before each use, inspect the parts (screws, nuts, etc.). Clean the tool with a damp cloth and mild detergent. Do not use solvents on plastic parts.

How do I store the telescopic hedge trimmer?

Remove the battery, clean off debris, and store it in a dry place, out of reach of children and away from corrosive products (garden chemicals, de-icing salts).

Where can I find spare parts or get the tool repaired?

All repairs must be carried out by a qualified repairer using identical replacement parts. Visit egopowerplus.eu to find an authorized center.

USER MANUAL PPCX1000 EGO

Line drawing of a mechanical tool with a long shaft and hexagonal base (no text or symbols)

PPX1000

56-VOLT LITHIUM-ION

TELESCOPIC POWER POLE

EN 56-Volt telescopic power pole 4

C D D-1 D-2

E E-1 E-2

F ① ②

Illustration of a hand holding a rifle with a string being inserted (no text or symbols)

Line drawing of a person using a long-handled shrubler to spray grass (no text or symbols)

Line drawing of a person holding a sword, with no visible text or symbols

Technical line drawing of a mechanical component or tool assembly (no text or symbols visible)

Line drawing of a person installing or adjusting a vertical pole outdoors (no text or symbols)

Line drawing of a person operating a utility pole in a field (no text or symbols)

EN

READ ALL INSTRUCTIONS!

READ OPERATOR'S MANUAL

WARNING: To ensure safety and reliability, all repairs and replacements should be performed by a qualified service technician.

SAFETY SYMBOLS

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

WARNING: Be sure to read and understand all safety instructions in this Operator's Manual, including all safety alert symbols such as "DANGER," "WARNING," and "CAUTION" before using this tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

SYMBOL MEANING

WARNING: The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.

SAFETY INSTRUCTIONS

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate it.

	Safety Alert	Indicates a potential personal injury hazard.
	Read operator's manual	To reduce the risk of injury,user must read and Understand operator's manual before using this product.
	Wear Eye Protection	Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product.
	CE	This product is in accordance with applicable EC directives.
	UKCA	This product is in accordance with applicable UK legislation.
	WEEE	Waste electrical products should not be disposed of with household waste. Take to an authorized recycler.
	Symbol Protection	against water jets
	Voltage
	llimeter Length or size
	ntimeter Length or size
	gram Weight
	Direct Current Type or a characteristic of current

WARNING: Read all safety warnings designated by the symbol and all instructions.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

General Power Tool Safety Warnings – Working area safety.

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, petrol or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

General Power Tool Safety Warnings – Electrical safety.

■ Power tool plugs must match the outlet. Never modify the plug in anyway. Do not use any adaptor plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
- If operating a power tool in a damp location is unavoidable, use a Ground-fault circuit interrupter protected supply. Use of GFCI reduces the risk of electric shock.

General Power Tool Safety Warnings – Personal Safety.

■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
■ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust

mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

EN

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
  ■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
  ■ Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust devices can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

General Power Tool Safety Warnings –Power Tool Use And Care.

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
  ■ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

EN

- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

- Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

This 56V telescopic power pole PPX1000 may be used with only the following EGO attachments or subsequently introduced by EGO for use with this telescopic power pole:

ATTACHMENT TYPE MODEL NUMBER
Hedge Trimmer Attachment PTX5100
Pole Saw Attachment PSX2500

General Power Tool Safety Warnings –Battery Tool Use And Care.

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
  ■ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

General Power Tool Safety Warnings –Services.

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
  ■ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
  ■ If situations occur that are not covered in this manual, use care and good judgment. Contact the EGO Service Center for assistance.

SAVE THESE INSTRUCTIONS

ADDITIONAL SPECIFIC SAFETY RULES CAN BE FOUND IN THE APPLICABLE ATTACHMENT'S OPERATOR'S MANUAL

SPECIFICATIONS

Voltage	56 V ---
Recommended Operating Temperature: -1	0°C-40°C
Recommended Storage Temperature -20°C	C-70°C
Weight 3.9 kg

DESCRIPTION

KNOW YOUR TELESCOPIC POWER POLE (Fig. A)

1. Rear Handle
2. Locking Tongue
3. Carrying Eyelet
4. Front Handle
5. Clamping Knob
6. Shaft-release Button
7. Locking Knob
8. Coupler
9. Telescopic Tube

10. Variable Speed Trigger

11. Tool Support

12. Shoulder Strap
13. Ejection Mechanism
14. Latch
15. Battery Release Button
16. Wrench Holder
17. Combi Wrench

PACKING LIST (FIG. A)

ASSEMBLY

WARNING: If any parts are damaged or missing, do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.
WARNING: Always remove the battery pack from the product when you are assembling parts, making adjustments, cleaning, or when the product is not in use.

ATTACHING AN ATTACHMENT TO THE TELESCOPIC POWER POLE

WARNING: Read and understand entire Operator's Manual for each optional attachment used on this telescopic power pole and follow all warnings and instructions. Failure to follow all instructions could result in electric shock, fire and/or serious personal injury.
WARNING: This 56V telescopic power pole PPX1000 is designed to be used only with the EGO attachment models that are specified in this Operator's Manual or subsequently introduced by EGO for use with this telescopic power pole. Use of other, unauthorized attachments could cause serious personal injuries or property damage.
WARNING: Never install, remove, or adjust any attachment while the telescopic power pole is running or with the battery installed. Failure to stop the motor and remove the battery can cause serious personal injury.

The attachment connects to the telescopic power pole by means of a coupler device.

1. Stop the motor and remove the battery pack.
2. Loosen the locking knob.
3. Align the arrow on the attachment shaft with the aligning indicator on the coupler and push the attachment shaft into the coupler until you hear a clear "click" sound, the coupler should be positioned all the way to the reference line on the shaft that the attachment shaft is properly mounted into place. (Fig.B).

B-1	Shaft-release Button B-4	Reference Line
B-2	Aligning Indicator B-5	Locking Knob
B-3	Arrow Mark

1. Pull the shaft of the attachment to verify that it is securely locked into the coupler. If not, push the attachment shaft in the coupler until it snaps into place.
2. Tighten the locking knob securely.

WARNING: Be certain that the locking knob is fully tightened before operating equipment; check it periodically for tightness during use to avoid serious personal injury.

REMOVING THE ATTACHMENT FROM THE TELESCOPIC POWER POLE

1. Stop the motor and remove the battery pack.
2. Loosen the locking knob.
3. Press the shaft-release button, with the button depressed, pull the attachment shift out of the coupler.

MOUNTING THE SHOULDER STRAP (Fig. C)

Depress the strap hook to open it and attach it onto the carrying eyelet.

EXTENDING TELESCOPIC TUBE

The tool is equipped with a telescopic tube that will extend to 960 mm (fully extended).

The clamping knob is used to hold the telescopic tube in position at any extended length.

1. To extend the telescopic tube, loosen the clamping knob by following its unlock icon. The telescopic will slide freely (Fig. D)

D-1

Clamping Knob

D-2

Indication for Maximum limit

1. Pull the telescopic tube out to desired length of extension.
2. To locking the telescopic tube in position, tighten the clamping knob by following its lock icon.

WARNING: In case of pinching your hand or fingers, please cautiously watch out in every step

EN OPERATION

WARNING: Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.
WARNING: Always wear eye protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.
WARNING: Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury. The product may be used in rain.

INSTALLING/REMOVING THE BATTERY PACK

NOTE: Fully charge the battery pack before first use.

To Install

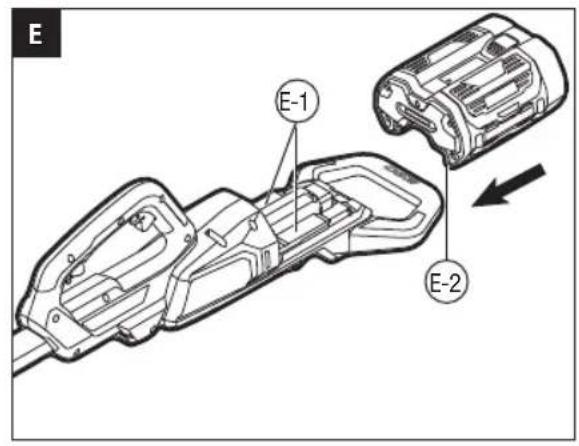

Align the battery ribs with the mounting slots and press the battery pack down until you hear a "click" (Fig. E).

E-1

Mounting Slot

E-2

Rib

To Remove

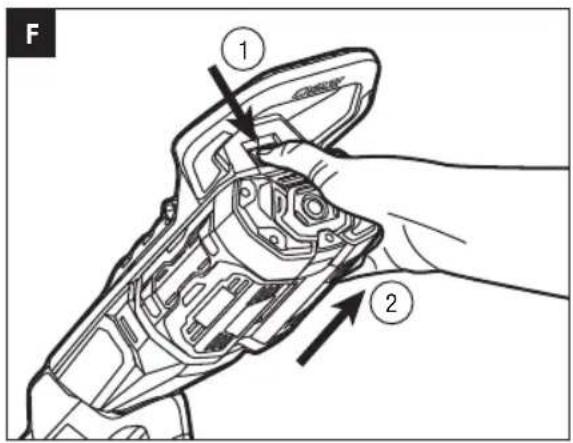

Depress the battery-release button and pull the battery pack out (Fig. F).

WARNING: To avoid serious personal injury, always remove the battery pack and keep hands clear of the locking tongue and trigger when carrying or transporting the tool.

SHOULDER STRAP

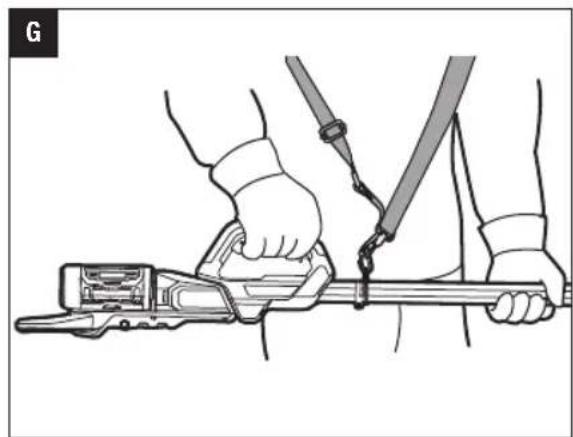

For safe and better operation, put on the shoulder strap across the shoulder as Fig. G to relieve the weight on the operator's arms. Adjust the shoulder strap in a comfortable operating position.

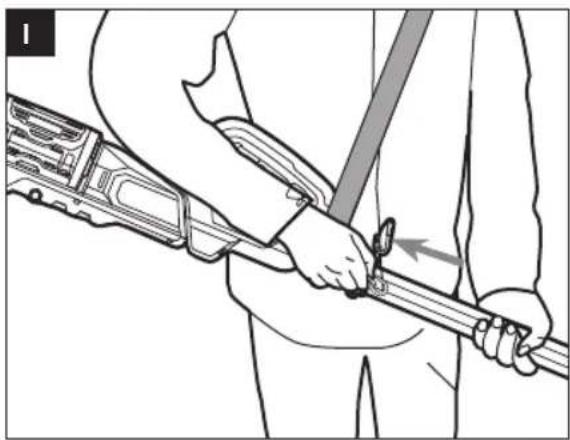

There are two ways to release the strap. Take it away from your shoulder directly (Fig. H) or press the hook of the strap and take it apart from the carrying eyelet fixed on the shaft (Fig. I)

WARNING: The shoulder strap is also a quick release mechanism in a hazardous situation. When an emergency occurs, take it off from your shoulder immediately, no matter what way the strap is in.

HOLDING THE TELESCOPIC POWER POLE

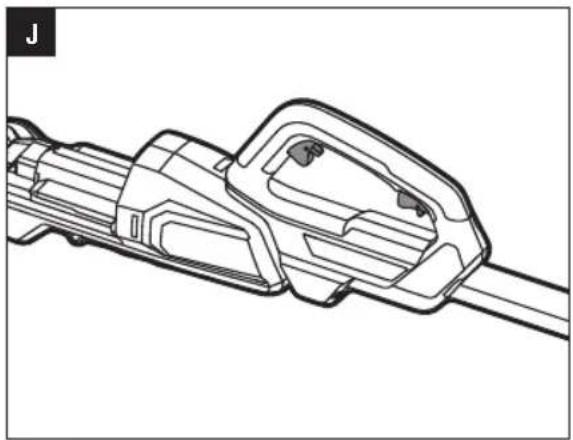

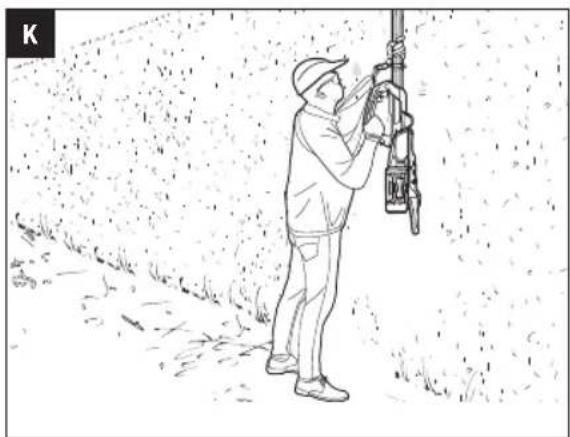

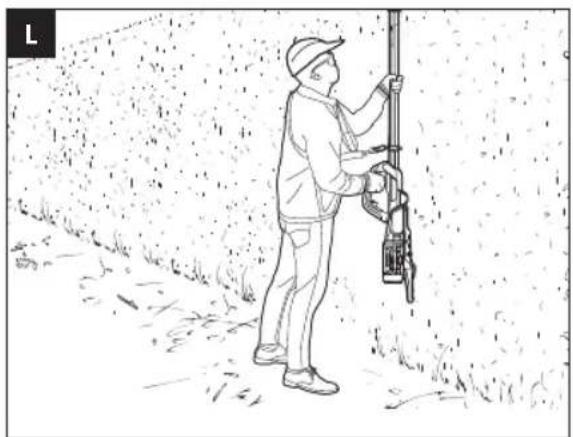

The telescopic power pole is equipped with an advanced dual trigger system (Fig. J). Each trigger system can independently to switch on or off the tool. This innovated dual-control method gives most ergonomic operation in daily tough job. (Fig. K&L)

STARTING/STOPPING THE TELESCOPIC POWER POLE

To start the telescopic power pole

Move the locking tongue forward and depress the variable speed trigger to switch on the telescopic power pole. The more pressure applied on the variable speed trigger, the higher speed of the head attachment is

To Stop

Release the variable speed trigger and locking tongue.

MAINTENANCE

WARNING: When servicing, use only identical replacement parts. Inspect and maintain the machine regularly. To ensure safety and reliability, all repairs should be performed by a qualified service technician.
WARNING: Before inspecting, cleaning or servicing the unit, stop the motor, wait for all moving parts to stop, and remove the battery pack. Failure to follow these instructions can result in serious personal injury or property damage.
NOTICE: Before each use, inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced. Please contact customer service or a qualified service technician.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

CLEANING THE TELESCOPIC POWER POLE

1. Stop the motor and remove the battery pack.
2. Clean dirt and debris from the telescopic power pole using a damp cloth with a mild detergent.

NOTICE: Do not use any strong detergents on the plastic housing or the handle. They can be damaged by certain aromatic oils such as pine and lemon.

STORING THE TELESCOPIC POWER POLE

1. Remove the battery pack from the telescopic power pole before storing.
2. Clean all foreign material from the telescopic power pole.
3. Store it in a place that is inaccessible to children.
4. Keep away from corrosive agents such as garden chemicals and de-icing salts.

Protecting the environment

Do not dispose of electrical equipment, battery charger and batteries/rechargeable batteries into household waste!

TROUBLESHOOTING

See the applicable attachment's operator's manual.

EN

WARRANTY

EGO WARRANTY POLICY

Please visit the website egopowerplus.eu for full terms and conditions of the EGO Warranty policy.

LISTA DE PEÇAS (IMAGEM A)

MONTAGEM

⚠ WAARSCHUWING: Controleer of de

GENERELT VEDLIKEHOLD

POLITYKA GWARANCYJNA EGO

USCHOVEJTE SI TYTO POKYNY

DALŠÍ SPECIFICKÉ BEZPEČNOSTNÍ PRAVIDLA LZE NALÉZT V PŘÍRUČCE PŘÍSLUŠNÉHO NÁSTAVCE

TECHNICKÉ ÚDAJE

A CSOMAG TARTALMA (A ÁBRA)

ÖSSZESZERELÉS

CITIȚI MANUALUL DE INSTRUCTIUNI

LUGEGE KASUTUSJUHENDIT

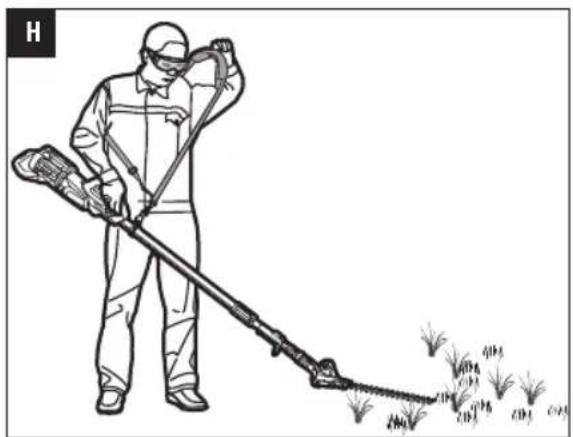

_3g_0o_1 g_bu_bo_1m_6o_2s_6u_6d_0u_5: 3_6g_5z_6o_1 m_6u_6o_1m_6o_2 b_6u_6d_0u_5 (bsb. H) sb _3g_5f_0h_0m_6b_6m_6o_2_3g_0o_1_6u_6f_0 _3 m_6u_6f_0o_1m_6o_2 b_6u_6u_5f_0m_6_6b_6 _3s_6g_5f_0h_0m_6b_6m_6o_2 b_6u_6u_5f_0m_6_6b_6 (bsb. I)

ΦΥΛΥΣΜΟΥΟ ΥΥΛΥΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΟΥΑ

1. Asshghgngn dmghmno qss dmblgboo s3yduqngnsghmno.
2. Assidobogon Ongyuzm3gng gngd6gng

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה:2

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה:2

הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה�ּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוֱרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּר‘	הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּשִׁים
הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּלְבָרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּר’	הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּיַעֹתְעֹתְעֹתְעֹתְעֹתְעֹתְעֹתְעֹתְעֹתְעֹתְעֹתְעֹתְעֹתְעֹתְעֹתְעֹתְעֹתְעֹדּשִׁים
הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה:הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּר‘	הֵלְאֶתְאֶתְאֶתְאֶתְאֶתְאֶתְאֶתְאֶתְאֶתְאֶתְאֶתְאֶתְאֶתְאֶתְאֶתְאֶתְאֶתְא'
הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּר‘	CE
הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּר‘	UKCA
הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּר‘	WEEE
	IP 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000	IPX5
	V
	TIN 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
	TIN 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Line drawing of a mechanical tool with a long shaft and hexagonal base (no text or symbols)

PPX1000
