USER MANUAL GS 7.2 Li AL-KO

1.2 Legends and signal words ................. 17

3.3 Safety instructions for rechargeable

battery-operated grass cutters ........... 21

3.4 Safety information regarding the re-

chargeable battery ............................. 23

3.5 Safety information regarding the

4.2 Charging the rechargeable battery

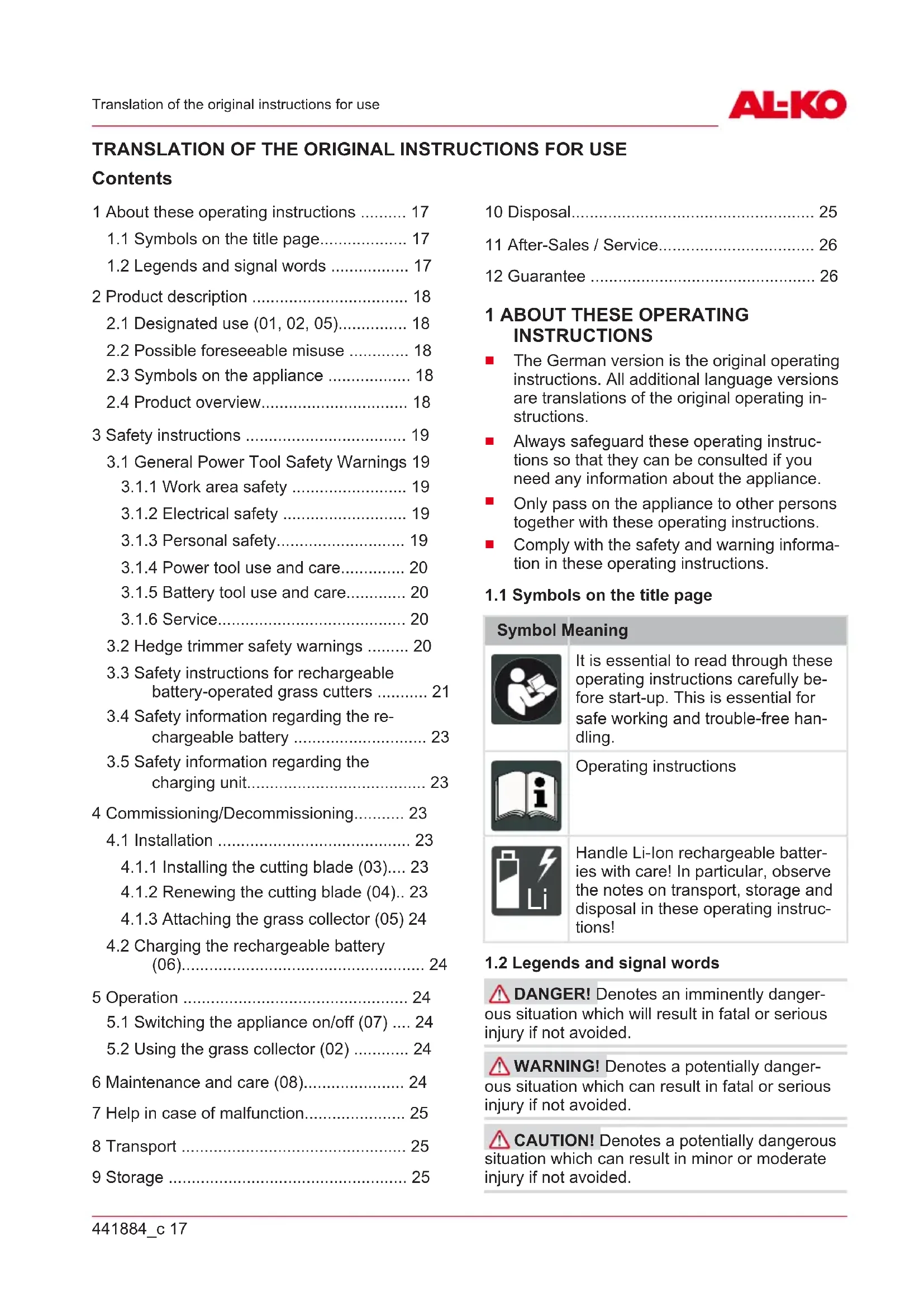

1 ABOUT THESE OPERATING

The German version is the original operating instructions. All additional language versions are translations of the original operating in- structions.

Always safeguard these operating instruc- tions so that they can be consulted if you need any information about the appliance.

Only pass on the appliance to other persons together with these operating instructions.

Comply with the safety and warning informa- tion in these operating instructions.

1.1 Symbols on the title page

Symbol Meaning It is essential to read through these operating instructions carefully be- fore start-up. This is essential for safe working and trouble-free han- dling. Operating instructions

Handle Li-Ion rechargeable batter- ies with care! In particular, observe the notes on transport, storage and disposal in these operating instruc- tions!

1.2 Legends and signal words

DANGER! Denotes an imminently danger- ous situation which will result in fatal or serious injury if not avoided. WARNING! Denotes a potentially danger- ous situation which can result in fatal or serious injury if not avoided. CAUTION! Denotes a potentially dangerous situation which can result in minor or moderate injury if not avoided.GB 18 GS 7,2 Li Product description IMPORTANT! Denotes a situation which can result in material damage if not avoided. NOTE Special instructions for ease of un- derstanding and handling. 2 PRODUCT DESCRIPTION

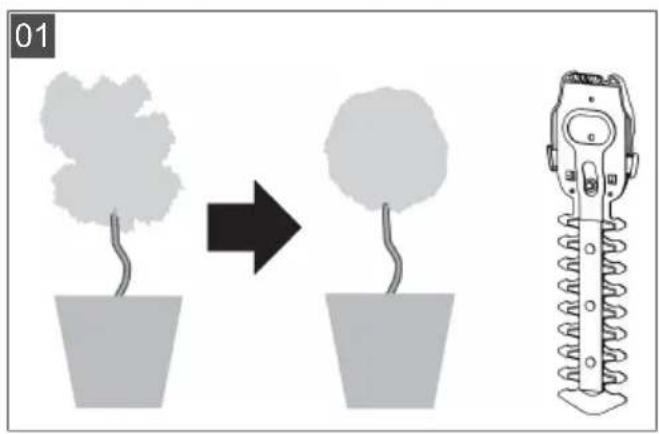

2.1 Designated use (01, 02, 05)

This appliance has two cutting blades: a shrub blade (hedge trimmer attachment) and a grass blade (cutting head with shearing blades).

The shrub blade is only intended for the trim- ming and cutting of ornamental shrubs and bushes of minimum thickness (01).

If the grass blade is mounted, the appliance can be used as a grass cutter (02). The grass collector provided can be mounted on the grass blade (05) if necessary. This appliance is intended solely for use in non- commercial applications. Any other use (as well as unauthorised conversions or add-ons) are re- garded as contrary to the intended use and will result in exclusion of the warranty as well as loss of conformity (CE mark); the manufacturer will thus decline any responsibility for damage and/or injury suffered by the user or third parties.

2.2 Possible foreseeable misuse

The tool is designed neither for commercial use in public parks and sports facilities, nor for use in farming and forestry. No safety devices that are present must be re- moved or bypassed, e.g. by fixing the unlocking knob in place.

2.3 Symbols on the appliance

Symbol Meaning Pay special attention when handling this product. Read the operating instructions be- fore starting operation. Keep other people out of the danger area. Symbol Meaning Maintain a safety distance. Blade running on! Protect the machine against mois- ture.

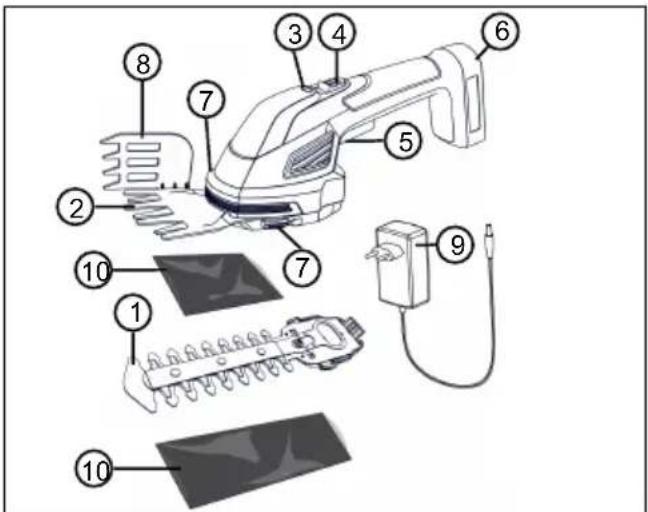

No. Component 1 Shrub blade 2 Grass blade 3 LED display 4 Unlocking knob for the On/Off switch 5 On/Off switch 6 Charging socket 7 Unlocking knobs, on both the right and the left of the cutting blades 8 Grass collector 9 Charging unit 10 Blade guard LED display

During charging441884_c 19 Safety instructions LED Displays Flashes green The rechargeable battery is be- ing charged. Lights up green Rechargeable battery is fully charged, i.e. to 100 %.

During operation LED Displays Lights up green The appliance is in operation, the rechargeable battery is charged. Lights up red The rechargeable battery is dis- charging. The rechargeable bat- tery is now only charged to ap- prox. 25 %. Flashes red The rechargeable battery must be charged. The rechargeable battery is now only charged to ≤ 10 %. 3 SAFETY INSTRUCTIONS

3.1 General Power Tool Safety Warnings

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or bat- tery-operated (cordless) power tool.

3.1.1 Work area safety

Keep work area clean and well lit. Clut- tered and dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

3.1.2 Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of elec- tric shock.

Avoid body contact with earthed or grounded surfaces such as pipes, radia- tors, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for out- door use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

If operating a power tools in a damp loca- tion is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3.1.3 Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

Use personal protective equipment. Al- ways wear eye protection. Protective equip- ment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce person- al injuries.

Prevent unintentional starting. Ensure the switch is in the off-position before con- necting to power source and/or battery pack, picking up or carrying the tool. Car- rying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

Remove any adjusting key or wrench be- fore turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times. This enables bet-GB 20 GS 7,2 Li Safety instructions ter control of the power tool in unexpected situations.

Dress properly. Do not wear loose cloth- ing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust- related hazards.

3.1.4 Power tool use and care

Do not force the power tool. Use the cor- rect power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust- ments, changing accessories, or storing power tools. Such preventive safety mea- sures reduce the risk of starting the power tool accidentally.

Store idle power tools out of the reach of children and do not allow persons unfa- miliar with the power tool or these instruc- tions to operate the power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools. Check for misalign- ment or binding of moving parts, break- age of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

Keep cutting tools sharp and clean. Prop- erly maintained cutting tools with sharp cut- ting edges are less likely to bind and are eas- ier to control.

Use the power tool, accessories and tool bits etc. in accordance with these instruc- tions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazard- ous situation.

3.1.5 Battery tool use and care

Recharge only with the charger specified by the manufacturer. A charter that is suit- able for one type of battery pack may create a risk of fire when used with another battery pack.

Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

When battery pack is not in use, keep it away from other metal objects, lie paper- clips, coins, keys, nails, screws or other small metal objects, that can make a con- nection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected form the battery may cause irritation or burns.

Have your power tool serviced by a quali- fied repair person using only identical re- placement parts. This will ensure that the safety of the power tool is maintained.

Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of in- attention while operating the hedge trimmer may result in serious personal injury.

Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.

Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring. Cutter blades contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.441884_c 21 Safety instructions

3.3 Safety instructions for

rechargeable battery- operated grass cutters Training Carefully read the safety instruc- tions:

Familiarise yourself with the op- erating and adjustment ele- ments and the intended use of the appliance.

This appliance can be used by children of 8 years and older and by persons with reduced physical, sensory or mental ca- pabilities, or those lacking expe- rience and knowledge, if they are supervised or have been in- structed with regard to the safe use of the appliance and the en- suing risks. Children must not be allowed to play with the ap- pliance. Cleaning and mainte- nance must not be carried out by children without supervision.

People with very strong and complex restrictions may have needs that exceed the instruc- tions described here.

National regulations may limit the age of the operator.

Do not operate the appliance if you are under the influence of alcohol, drugs or medication.

The user is responsible for acci- dents involving other people and their property. Preparation

Before use, check the mains ca- ble for signs of damage or age- ing. Do not use the appliance if the mains cable is damaged or worn. Unplug the mains cable immedi- ately if it becomes damaged during operation. Never touch the mains cable while it is still connected to the mains power supply!

Before operation, always check that protective devices and cov- ers are undamaged, present or correctly fitted. Damaged pro- tective devices and covers must be replaced, missing protective devices and covers must be correctly fitted.

Never put the appliance into op- eration while people, especially children or pets, are in the im- mediate vicinity.

Before working, remove any dangerous objects from the working area, e.g. branches, glass or metal pieces, stones. operation

Always wear safety glasses and sturdy shoes when working with the appliance.

Do not work with the appliance in bad weather conditions, es- pecially when thunderstorms are approaching.

Only use the appliance in day- light or good artificial light.

Never use the appliance if pro- tective devices and covers are damaged or not present.

Do not open, dismantle or crush the appliance. There is a dan- ger of electric shock and short- circuit.

Do not turn on the appliance un- til hands and feet are out of reach of the cutting blades.

Always disconnect the appli- ance from the power supply (e.g. disconnect mains plug, ac- tivate switch-on lock, remove rechargeable batteries or non- rechargeable batteries):

before leaving the appliance unattended

before removing blockages on the cutting blades

before checking, cleaning or working on the appliance

after collision with a foreign body

whenever the appliance starts to vibrate in an unusual way

if the mains cable is dam- aged during operation

Protect yourself against injury to your feet and hands by the cut- ting blades.

Always make sure that the ven- tilation openings on the appli- ance are free of foreign objects.

After contact with dangerous objects and foreign bodies, check the appliance for dam- age. Have the appliance re- paired if it has been damaged.

Secure the appliance between working steps by putting on the blade guard. Maintenance and storage

Before carrying out mainte- nance or cleaning work, discon- nect the appliance from the power supply (e.g. disconnect mains plug, activate switch-on lock, remove rechargeable bat- teries or non-rechargeable bat- teries).

Always wear protective gloves during maintenance, care and cleaning work.

Only use the spare parts and accessories recommended by the manufacturer.441884_c 23 Commissioning/Decommissioning

Regularly check and maintain the appliance. The appliance may only be repaired by an AL- KO service centre.

Keep the appliance out of the reach of children when not in use.

3.4 Safety information regarding the

rechargeable battery This section mentions all the basic safety instruc- tions to be heeded when using the rechargeable battery. Read these instructions.

Fully charge the rechargeable battery before using it for the first time and always use the specified charging unit. Comply with the de- tails given in these instructions for use for charging the rechargeable battery.

Do not use the rechargeable battery in envi- ronments where there is a potential risk of explosion and/or fire.

Do not expose the rechargeable battery to moisture and humidity when in use with the appliance.

Protect the rechargeable battery from heat, oil and fire to prevent it being damaged so no vapours and electrolyte liquids can escape. There is a danger of explosion!

Do not open, dismantle or crush the re- chargeable battery. There is a danger of electric shock and short-circuit.

An improperly used and damaged recharge- able battery can cause vapours and electro- lyte liquid to escape. Vent the room ade- quately and in the case of any disorders, con- sult a doctor. If accidental contact with electrolyte liquid oc- curs, flush with water and thoroughly rinse the eyes immediately. Then consult a doctor.

3.5 Safety information regarding the

charging unit This section mentions all the basic safety and warning information to be heeded when using the charging unit. Read these instructions.

Only use the charging unit as designated, i.e. for charging the intended rechargeable bat- teries. Only charge original rechargeable bat- teries from AL-KO in the charging unit.

Only use the charging unit when it is in prop- er working order.

Do not use the charging unit in environments where there is a potential risk of explosion and/or fire.

Only operate the charging unit indoors and do not expose it to moisture and humidity.

Do not open the charging unit. There is a danger of electric shock and short-circuit.

For your own safety, only have the charging unit repaired by qualified specialist personnel using genuine spare parts. 4 COMMISSIONING/ DECOMMISSIONING CAUTION! Risk of injury. Sharp-edged and moving appliance parts can lead to injury.

Always wear protective gloves during installa- tion.

Before the installation steps, always put the respective blade guard on the cutting blade.

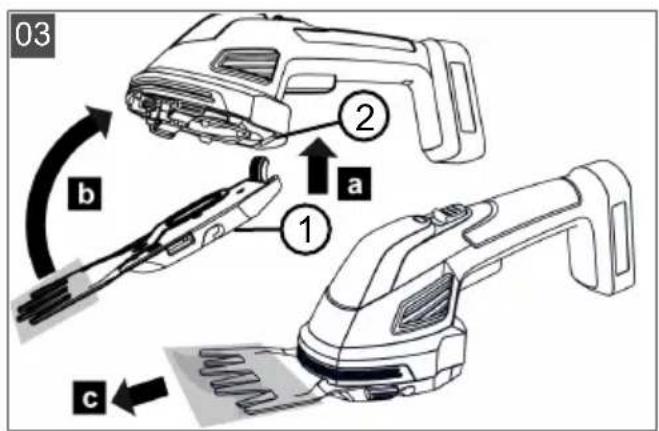

1. First insert the cutting blade in the support

(03/2) as shown in the example of the grass blade (03/1) (03/a).

2. Let the front part of the grass blade engage

in the appliance (03/b) with light pressure. The engaging must be clearly audible.

3. Remove the blade guard (03/c).

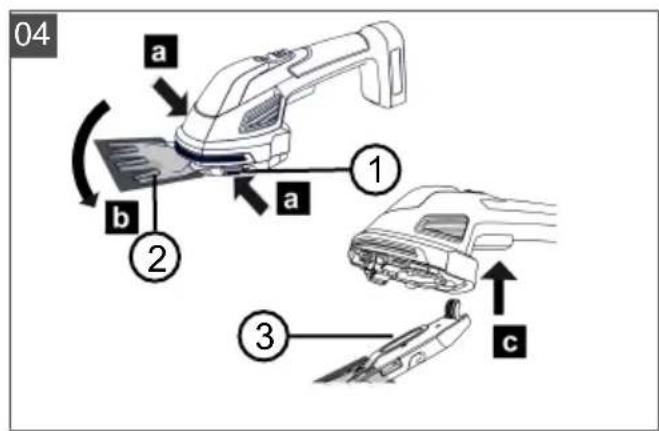

4.1.2 Renewing the cutting blade (04)

WARNING! Danger of lacerations. The cutting blades continue to run after switching off the engine.

Never reach directly into moving appliance parts after switching off the appliance.

Wait until the cutting blade come to a stand- still before changing it or cleaning the appli- ance of cuttings.

2. Firmly press both unlocking knobs (04/1) (04/

a), and take the cutting blade (04/2) out of the appliance (04/b).

3. Insert the other cutting blade (04/3) into the

support (04/c).GB 24 GS 7,2 Li Operation

4. Let the unlocking knobs (04/1) engage. The

engaging of the cutting blade must be clearly audible.

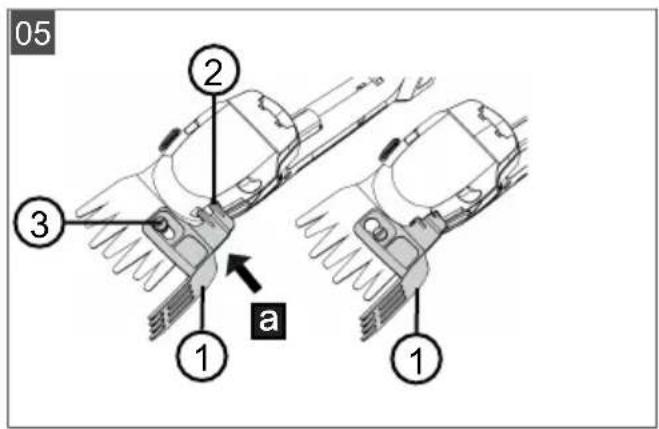

4.1.3 Attaching the grass collector (05)

For using the grass cutter on the edge of a gar- den bed, the grass collector can be attached to the grass blade. It straightens up the grass and prevents the cut-off grass from falling into the bed.

1. Put the grass collector (05/1) on the under-

side of the grass blade so that the two pins (05/2) point towards the openings and the screw lies in the slotted hole (05/3).

2. Push the grass collector (05/1) into the two

openings (05/a) with low pressure.

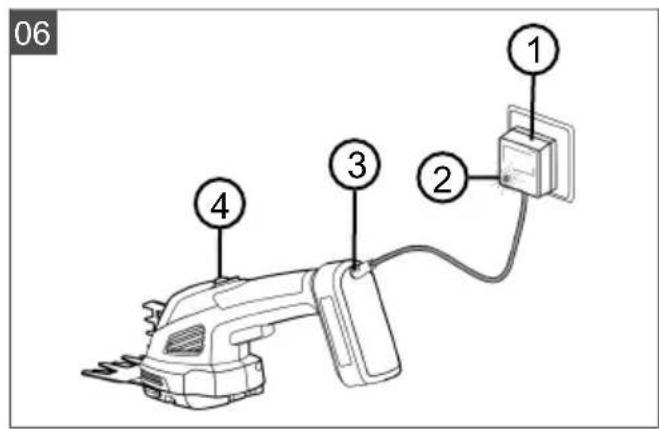

4.2 Charging the rechargeable battery (06)

Fully charge the rechargeable battery before us- ing it for the first time. The rechargeable battery can be charged in any charge state. Interrupting charging does not damage the rechargeable bat- tery.

The handle of the appliance can become hot during the charging process. This is normal.

Do not use the appliance during the charging process.

1. Insert the mains plug (06/1) into the power

2. Insert the charge plug in the charging socket

of the rechargeable battery grass and shrub cutter (06/3). The charging process begins with the constant lighting of the green LED display (06/2) on the mains plug. The LED in- dicates that current is flowing. The charging process is indicated by the LED on the appli- ance (06/4): The rechargeable battery is fully charged when the LED on the appliance (06/4) lights constantly.

3. Unplug the mains plug (06/1) from the power

socket and from the charging socket (06/3). 5 OPERATION

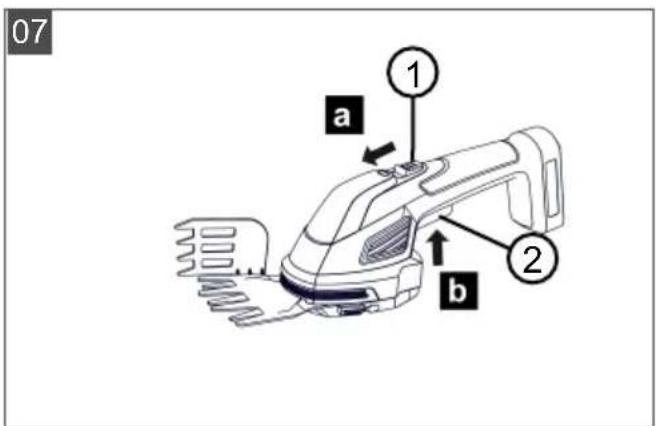

5.1 Switching the appliance on/off (07)

Switching on the appliance

1. Push the unlocking knob (07/1) forwards (07/

2. Press the On/Off switch (07/2) at the same

while pressing and holding the On/Off switch (07/b). Switching off the appliance WARNING! Danger of lacerations. The cutting blades continue to run after switching off the engine.

Never reach directly into moving appliance parts after switching off the appliance.

Wait until the cutting blade come to a stand- still before changing it or cleaning the appli- ance of cuttings.

2. Put the appropriate blade guard on the re-

spective cutting blade.

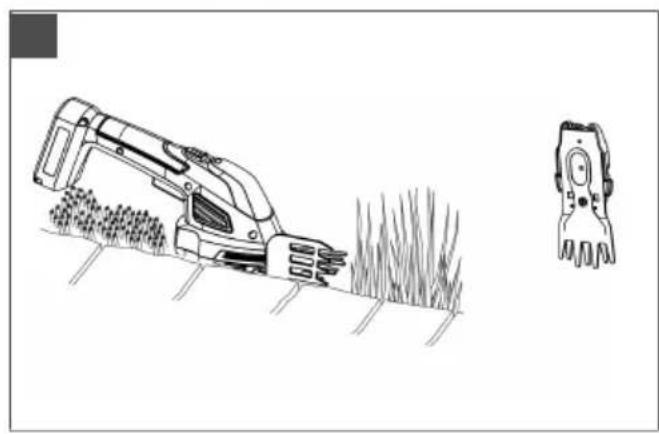

5.2 Using the grass collector (02)

If you would like to use the grass cutter on the edge of a bed or on a stone edge, it is recom- mended to attach the grass collector (see see

chapter 4.1.3 "Attaching the grass collector (05)",

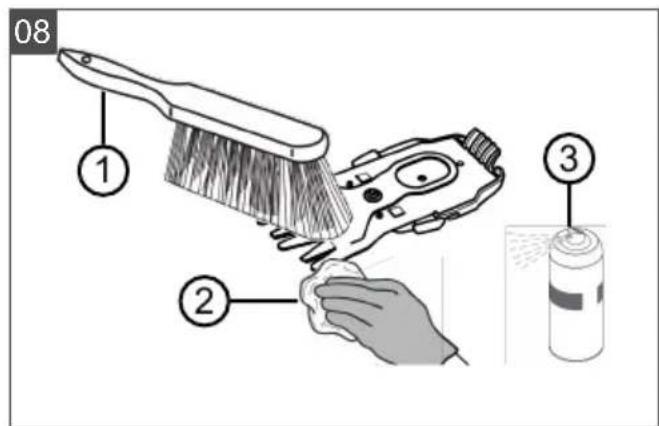

page24). 6 MAINTENANCE AND CARE (08) CAUTION! Risk of injury. Sharp-edged and moving appliance parts can lead to injury.

Always wear protective gloves during mainte- nance, care and cleaning work.

After cutting work, thoroughly clean the appli- ance and the cutting blades with a hand brush (08/1) or cloth (08/2).

Remove any soiling from the gear housing.

Treat the cutting blades with oil or care spray (08/3) after every use. For better distribution of the oil, switch on the appliance briefly.

Check the screw at the bottom of the grass blade is firmly seated at regular intervals.

Do not spray the machine with water. Pene- trating water can damage the switch as well as the rechargeable battery and the electric motor.

Check the cutting blade regularly for damage. Replace blunt or damaged cutting blades be- fore using the appliance the next time.

Lubricate the gear housing regularly with grease.

Professional inspection is required:

if there is a blockage of the motor

if the cutting blade is bent or damaged

if the rechargeable battery is damaged or leaking441884_c 25 Help in case of malfunction

7 HELP IN CASE OF MALFUNCTION

CAUTION! Risk of injury. Sharp-edged and moving appliance parts can lead to injury.

Always wear protective gloves during mainte- nance, care and cleaning work.

Switch the appliance off. For malfunctions that are not listed in this table or that you cannot resolve yourself, please contact our customer service. Malfunction Cause Remedy Motor is losing power. Cutting blade is blunt. Replace blunt cutting blades. Only use genuine accessories from the manufac- turer. Battery defective. Contact an AL-KO service centre. Rechargeable battery can- not be charged. The rechargeable battery or charger is faulty. Order the spare part acc. to the spare parts card. Battery grass and shrub cutter has fallen. Rechargeable battery may have been damaged. Contact an AL-KO service centre. 8 TRANSPORT Transporting the appliance between two working areas

Always switch off the appliance and carry it by the handle.

Always re-fit the blade guard to avoid injury to persons or animals. Transporting the appliance over long distances. The li-ion rechargeable battery contained in the appliance is subject to the hazardous goods law, but can be transported under simplified condi- tions:

The undamaged rechargeable battery can be transported on public roads by the private us- er without further conditions provided it is packaged for retail sale and the transport serves personal purposes.

If damage to the battery (e.g. due to the ap- pliance falling) is suspected, transport is not permissible.

Commercial users who carry out the trans- port in connection with their main activity (e.g. delivery from and to building sites, or demonstrations) can also take advantage of this simplification. In both cases, it is essential to take the mandato- ry precautions mentioned above to prevent any leakage of the contents. In other cases, it is es- sential to comply with the regulations of the haz- ardous goods law. In the case of non-compli- ance, severe penalties can be imposed on the sender and possibly the transporter. Additional notes on transport and shipment We recommend involving a hazardous goods specialist in the preparation of the shipment. Please heed any other national regulations. 9 STORAGE

Only store the appliance with the blade guard fitted.

Keep the appliance out of reach of children.

Only store a fully-charged appliance. Re- charge the battery for approx. 2 hours after 6 months in storage. 10 DISPOSAL Information on the German Electrical and Electronic Equipment Act (ElectroG)

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.

Owners or users of electrical and electronic appliances are obliged by law to return them after use. The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish.GB 26 GS 7,2 Li After-Sales / Service Electrical and electronic appliances can be hand- ed in at the following places at no charge:

Public service disposal or collection points (e.g. municipal building yards)

Points of sale of electrical appliances (sta- tionary and online) provided traders are obliged to take them back or offer this volun- tarily. These statements only apply to appliances that are installed and sold in the countries of the Eu- ropean Union and are subject to European Direc- tive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appli- ances in countries outside the European Union. 11 AFTER-SALES / SERVICE In the event of questions of warranty, repair or spare parts, please contact your nearest AL- KOService Centre. These can be found on the Internet at: www.al-ko.com/service-contacts 12 GUARANTEE We will resolve any material or manufacturing faults on the appliance during the legal warranty period for claims relating to faults, in accordance with our choice either to repair or replace. The legal warran- ty period is determined by the legislation of the country in which the appliance was purchased. Our warranty promise applies only if:

These operating instructions are heeded

The appliance is handled correctly

Original spare parts have been used The warranty becomes void in the case of:

Unauthorised repair attempts

Unauthorised technical modifications

Non-intended use The guarantee excludes:

Paint damage that can be attributed to normal wear and tear

Wear parts that are marked with a frame xxxxxx (x) on the spare parts card The guarantee period commences with purchase by the first end user. The date on the proof of pur- chase is decisive. In the event of a guarantee claim, please take this guarantee declaration and the original proof of purchase, and contact your dealer or the nearest authorised customer service centre. This statement does not affect the purchaser's statutory claims for defects against the vendor.441884_c 27 Vertaling van de originele gebruikershandleiding
