GTA 4030 - Grass trimmer AL-KO - Free user manual and instructions
Find the device manual for free GTA 4030 AL-KO in PDF.
| Product type | Trimmer Accessory |
| Brand | AL-KO |
| Model | GTA 4030 |
| Main usage | Cutting soft grass and similar vegetation in areas inaccessible to the lawnmower |
| Compatibility | Multitool MT 40 base unit |
| Power supply | Via the base unit's lithium-ion battery (not included with the accessory) |
| Cutting line type | Non-metallic cutting line (replacement spool ref. 113349) |
| Line feed | Automatic by pressing the cutting head on the grass |
| Safety devices | Protection guard, protective bracket, line cutter |
| Handle | Adjustable (mounted on the base unit) |
| Maintenance | Clean after use, replace the spool if worn |
| Wear parts | Line spool (ref. 113349, sold in packs of 2) |
| Storage | Dry, closed place, out of reach of children |
| Warranty | Legal warranty against manufacturing defects (see base unit manual) |
| Use | Domestic use only |
| Accessory weight | Approximately 0.5 kg (estimate) |
| Cutting line length | Adjustable via automatic feed (maximum length determined by the line cutter) |
Frequently Asked Questions - GTA 4030 AL-KO
User questions about GTA 4030 AL-KO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Grass trimmer in PDF format for free! Find your manual GTA 4030 - AL-KO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GTA 4030 by AL-KO.
USER MANUAL GTA 4030 AL-KO
DE
GB
FR
IT
PL
CZ
HU
DK
SE
Inhaltsverzeichnis
Deutsch 6
English....18
Français....30
Italiano 42
Polski....54
Česky 66
Magyarul....77
Dansk 89
Svensk....100
© 2017
AL-KO KOBER GROUP Kötz, Germany
This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without the express permission of the AL-KO KOBER GROUP.
01


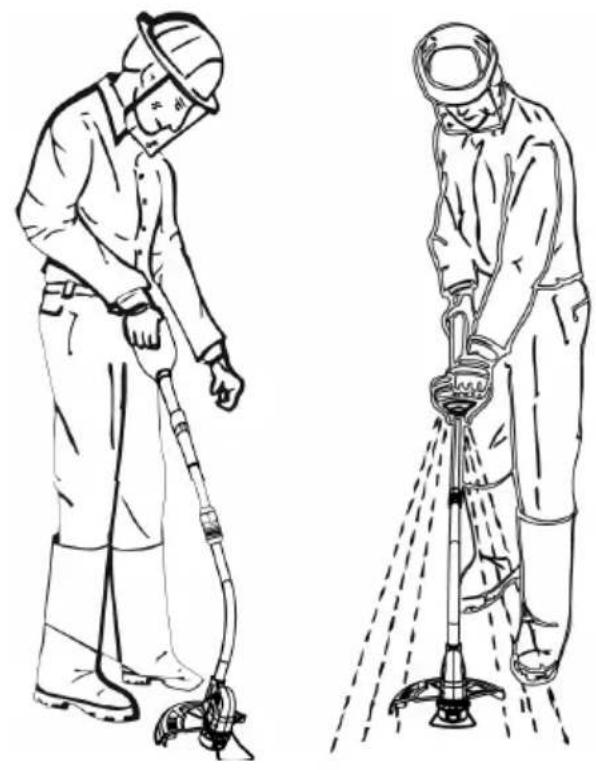

Two technical illustrations of workers using a handheld tool, one in safety gear and the other in protective gear (no text or symbols)
03
04
05
06
Nr. Bauteil
1 About these operating instructions .... 19
1.1 Legends and signal words.... 19
2 Product description 19
2.1 Designated use (01).... 19
2.2 Possible foreseeable misuse.... 19
2.3 Residual dangers 19
2.4 Symbols on the appliance 20
2.5 Safety and protective devices 20
2.6 Product overview 20
3 Safety instructions 20
3.1 Operator 20
3.2 Personal protective equipment.... 21
3.3 Safety in the workplace 21
3.4 Safety of persons and animals 21
3.5 Appliance safety 21
3.6 Electrical safety 22
3.7 Safety instructions for the lawn trimmer 22
3.7.1 Work instructions.... 22
3.7.2 Vibration load 23
3.7.3 Noise pollution 24
4 Installation and start-up 24
4.1 Installing the guard plate (02) 24
4.2 Installing the hand grip 24
4.3 Putting the attachment on the basic appliance.... 24
5 Operation....24
5.1 Fold down the protective bracket (03).... 24
5.2 Switching the appliance on and off 24
5.3 Prolonging the cutting line during operation (04).... 24
6 Working behaviour and working technique (05 - 08) 25
7 Maintenance and care 25

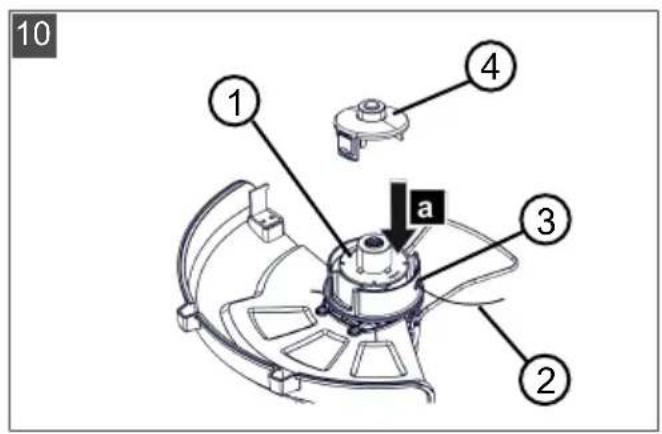

7.1 Changing the spool (09, 10)....26
8 Storage 26
9 Help in case of malfunction.... 26
10 Transport 27
11 Disposal 27
12 Guarantee.... 29
13 EU declaration of conformity.... 29

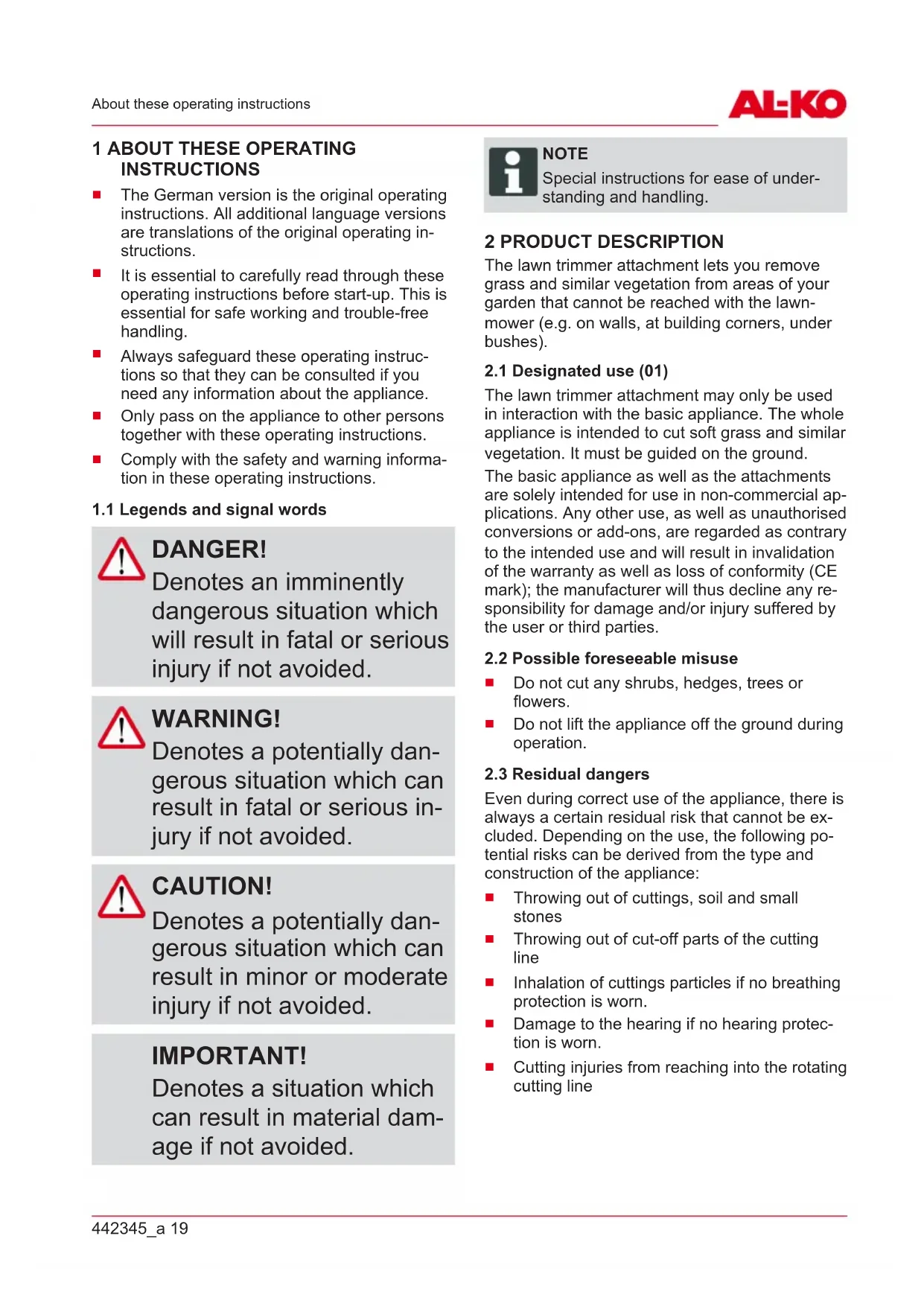

1 ABOUT THESE OPERATING INSTRUCTIONS
The German version is the original operating instructions. All additional language versions are translations of the original operating instructions.
It is essential to carefully read through these operating instructions before start-up. This is essential for safe working and trouble-free handling.
■ Always safeguard these operating instructions so that they can be consulted if you need any information about the appliance.
■ Only pass on the appliance to other persons together with these operating instructions.
■ Comply with the safety and warning information in these operating instructions.
1.1 Legends and signal words
DANGER!
Denotes an imminently dangerous situation which will result in fatal or serious injury if not avoided.
WARNING!
Denotes a potentially dangerous situation which can result in fatal or serious injury if not avoided.
CAUTION!
Denotes a potentially dangerous situation which can result in minor or moderate injury if not avoided.
IMPORTANT!
Denotes a situation which can result in material damage if not avoided.
NOTE
Special instructions for ease of understanding and handling.
2 PRODUCT DESCRIPTION
The lawn trimmer attachment lets you remove grass and similar vegetation from areas of your garden that cannot be reached with the lawnmower (e.g. on walls, at building corners, under bushes).
2.1 Designated use (01)
The lawn trimmer attachment may only be used in interaction with the basic appliance. The whole appliance is intended to cut soft grass and similar vegetation. It must be guided on the ground.
The basic appliance as well as the attachments are solely intended for use in non-commercial applications. Any other use, as well as unauthorised conversions or add-ons, are regarded as contrary to the intended use and will result in invalidation of the warranty as well as loss of conformity (CE mark); the manufacturer will thus decline any responsibility for damage and/or injury suffered by the user or third parties.
2.2 Possible foreseeable misuse
- Do not cut any shrubs, hedges, trees or flowers.
- Do not lift the appliance off the ground during operation.
2.3 Residual dangers
Even during correct use of the appliance, there is always a certain residual risk that cannot be excluded. Depending on the use, the following potential risks can be derived from the type and construction of the appliance:
■ Throwing out of cuttings, soil and small stones
■ Throwing out of cut-off parts of the cutting line
■ Inhalation of cuttings particles if no breathing protection is worn.
■ Damage to the hearing if no hearing protection is worn.
■ Cutting injuries from reaching into the rotating cutting line
2.4 Symbols on the appliance
Symbol Meaning
Pay special attention when handling this product.
Read the operating instructions before starting operation.
Maintain a safety distance.
Keep other people out of the danger area.
Wear hearing protection and protective eyewear.
The distance between the appliance and persons not involved in the work must be at least 15 m in the entire area around the user.
Do not use in the rain! Protect against moisture!
2.5 Safety and protective devices
Guard plate
Protects the operator from the rotating cutting line and objects flying out.
Protective bracket
Protects plants and persons from the rotating cutting line. Also the cutting line is protected against excessive wear on walls during trimming.

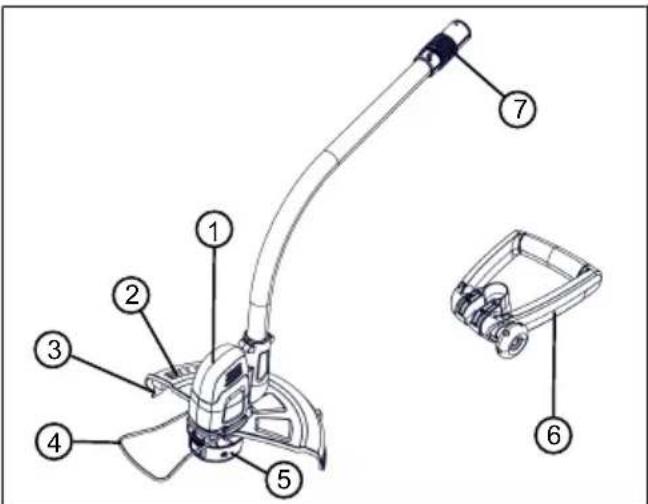

2.6 Product overview
No. Component
1 Cutter head with motor
2 Guard plate
3 Line cutter
4 Protective bracket
5 Spool head with spool
6 Hand grip, adjustable
7 Coupling for basic appliance
3 SAFETY INSTRUCTIONS
3.1 Operator
■ Young people under 16 years of age and people who do not know the instructions for use are not allowed to use the appliance. Heed any country-specific safety regulations concerning the minimum age of the user.
■ Do not operate the appliance if you are under the influence of alcohol, drugs or medication.
3.2 Personal protective equipment
■ Wear clothing and protective equipment in accordance with the regulations in order to avoid injuries to the head and limbs, as well as to avoid hearing impairment.
■ The personal protective equipment comprises:
■ Protective helmet, safety goggles and breathing protection
■ Long trousers and solid shoes
■ During maintenance and care: Protective gloves
3.3 Safety in the workplace
■ Only work during daylight or under very bright artificial light.
■ Before working, remove any dangerous objects from the working area, e.g. branches, glass or metal pieces, stones.
■ Make sure you are standing safely.
3.4 Safety of persons and animals
■ Only use the appliance for the purposes for which it is intended. Any non-intended use can lead to injury and property damage.
■ Only switch on the appliance when there are no persons and/or animals in the working area.
- Keep hands, feet and other parts of the body away from moving appliance parts (e.g. saw chain, blade system).
■ Appliance parts, such as engine covers and cutting tools, can heat up considerably during operation. Do not touch them. After switching off, wait until the appliance has cooled.
3.5 Appliance safety
■ Only use the appliance under the following conditions:
■ The appliance is not soiled.
■ The appliance show no signs of damage.
■ All controls function properly.
- Keep all appliance handles dry and clean.
- Do not overload the appliance. It is intended for light work in the private sector. Overload can lead to damage to the appliance.
■ Never operate the appliance with worn or defective parts. Always replace defective parts with original spare parts from the manufacturer. If the appliance is operated with
worn or defective parts, guarantee claims against the manufacturer are excluded.
3.6 Electrical safety
■ To avoid short-circuits and destroying electrical components:
■ Protect the appliance against humidity and do not use it in the rain.
- Do not spray the appliance with water.
- Do not open the appliance.
NOTE
Heed the safety instructions for the rechargeable battery and for the charging unit in the separate operating instructions.
3.7 Safety instructions for the lawn trimmer
3.7.1 Work instructions
■ Always operate the machine with two hands.
■ Always keep hand and feet away from the cutting device, above all when switching on the motor.
■ Wait for the cutting device to come to a standstill after the motor has been switched off.
■ Only remove cuttings when the motor and cutting device are at a standstill.
■ Because of danger of cutting injuries, do not touch the line cutter with unprotected hands.
■ After pulling out a new line, always bring the appliance into its normal working position before switching it on.
■ Do not use a metallic cutting line.
■ Always keep the guard plate, spool head and motor clear of mowing residues.
■ People who are not familiar with the appliance should practice handling it while the motor is turned off.
■ When working on a slope:
■ Never work on a smooth and slippery slope.
■ Always mow across the slope, never down or up.
■ Always stand below the cutting device.
■ After contact with a foreign object:
■ Switch off the motor.
- Check the machine for damage.
3.7.2 Vibration load
WARNING!
Danger due to vibration
The actual magnitude of the vibration emissions during the use of the appliance may deviate from that stated by the manufacturer. Observe the following influencing factors before or during use:
■ Is the appliance being used as intended?
■ Is the material being cut or processed in the proper manner?
■ Is the appliance in a proper condition of use?
Is the cutting tool properly sharpened or is the correct cutting tool installed?
■ Are the handle grips and any optional vibration grips mounted, and are they firmly attached to the appliance?
■ Only operate the appliance at the motor speed required for the respective work. Avoid using the maximum speed in order to reduce noise and vibrations.
■ The noise and vibrations of the appliance can increase due to improper use and maintenance. This leads to damage of the health. In this case, immediately switch off the appliance and have it repaired by an authorised service workshop.
The degree of stress due to vibration depends on the work to be performed or on the use that the appliance is put to. Estimate the stress and plan appropriate work breaks. This considerably reduces stress due to vibration over the entire working time.
■ Extensive use of the appliance exposes the operator to vibrations, which can lead to circulatory issues ("white fingers"). To avoid this risk, wear gloves and keep your hands warm. If any symptoms of "white fingers" occur, immediately consult a physician. These symptoms include: Numbness, loss of feeling, tingling, itching, pain, reduced muscular strength, changes in the colour or condition of the skin. Normally these conditions affect the fingers, hands or pulse. The risk increases at low temperatures.
■ Take long breaks during your working day so you can recover from the noise and the vibrations. Plan your work in such a way that the use of appliances that generate strong vibrations is spread over several days.
If you notice an unpleasant sensation or discolouration of the skin on your hands when using the appliance, stop work immediately. Take sufficient work breaks. Without sufficient breaks, a hand/arm vibration syndrome can occur.
- Minimise your risk of being exposed to vibrations. Maintain the appliance according to the instructions in the operating instructions.
If the appliance is used frequently, contact your dealer to purchase anti-vibration accessories (e.g. handles).
- Avoid working with the appliance at temperatures below 10 °C. Define how the vibration load can be limited in a work plan.
3.7.3 Noise pollution
A certain level of noise exposure from this appliance is inevitable. Carry out noisy work at approved and specified time periods. Observe rest periods as necessary and restrict the duration of the work to a minimum. For your personal protection and protection of persons in the vicinity, appropriate hearing protection must be worn.
4 INSTALLATION AND START-UP

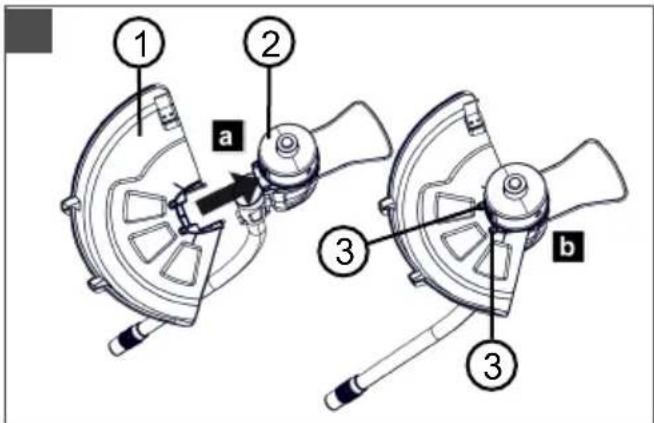

4.1 Installing the guard plate (02)
- Insert the guard plate (02/01) onto the cutter head (02/02) (02/a).
- Screw in the fastening screws (02/03) to secure the guard plate against falling down (02/b).
4.2 Installing the hand grip
See "Multitool MT 40 – basic appliance" operating instructions.
4.3 Putting the attachment on the basic appliance
See "Multitool MT 40 – basic appliance" operating instructions.
5 OPERATION
Switch on the machine before approaching the grass to be cut. Thus, the cutting line reaches the maximum speed of rotation.

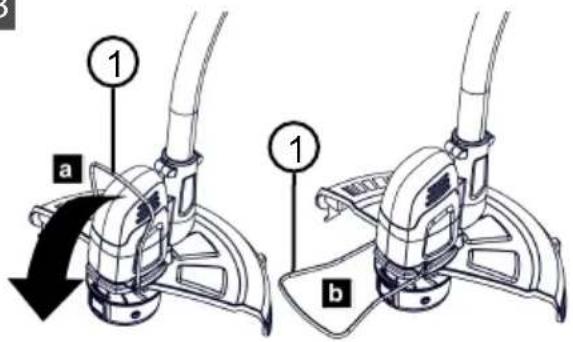

5.1 Fold down the protective bracket (03)
- Tilt the protective bracket (03/1) downwards by hand (03/a) until it engages in the horizontal position (03/b).
5.2 Switching the appliance on and off
See "Multitool MT 40 – basic appliance" operating instructions.

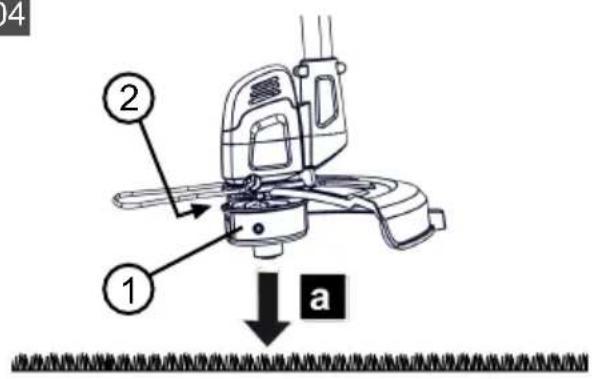

5.3 Prolonging the cutting line during operation (04)
The cutting line shortens during operation and frays out.
- Tap (04/a) the spool head (04/1) on the ground from time to time. This unwinds a piece of new cutting line from the spool and cuts off the used line end of the line cutter (04/2).
6 WORKING BEHAVIOUR AND WORKING TECHNIQUE (05 – 08)

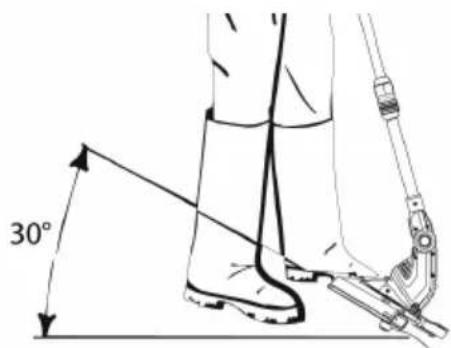

■ Slightly tip the appliance forwards (approx. 30°) to mow with the tip of the cutting line. Walk forwards slowly (05).

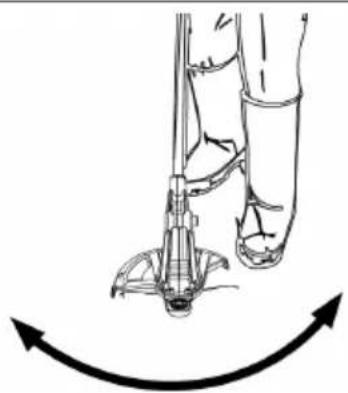

■ When mowing, swivel the appliance evenly to the right and left (06).

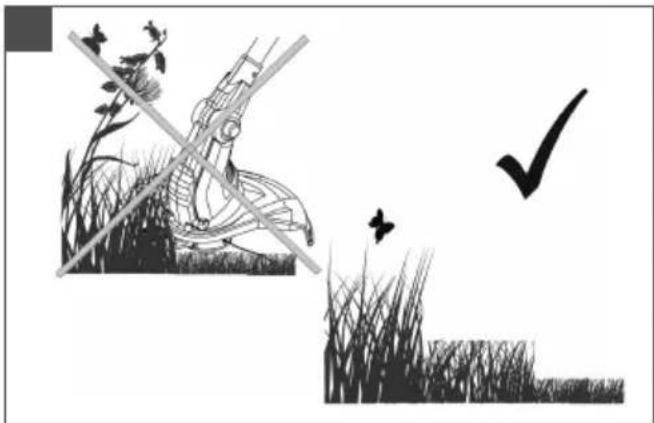

■ Long grass must be mown in several passes. Always proceed from top to bottom (07).
The appliance cuts best at very high speed. Therefore, do not overload the appliance by cutting long grass.
If the appliance is overloaded in long grass, the line will be blocked. Immediately lift the appliance so it releases. Otherwise, the motor could be permanently damaged.

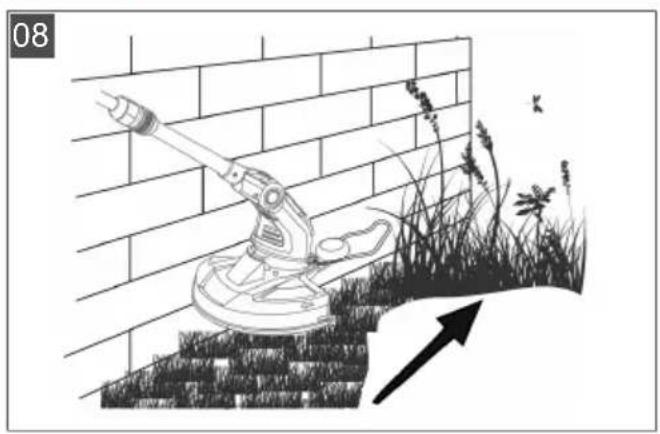

- Do not move the appliance directly against hard obstacles (e.g. walls), but mow sideways. This protects the cutting line (08).
- Keep the appliance away from sensitive plants. Fold the protective bracket into the horizontal position.
7 MAINTENANCE AND CARE
WARNING!
Danger of cutting injuries
Danger of cutting injuries when reaching into sharp-edged, moving appliance parts and into cutting tools.
■ Before maintenance, care and cleaning work, always switch off the appliance. Remove the rechargeable battery.
■ Always wear protective gloves during maintenance, care and cleaning work.
7.1 Changing the spool (09, 10)
Replacement spool: Art. no. 113349, set of 2.
Precondition: The appliance must be switched off and the rechargeable battery must be removed from the basic appliance.
Inserting and pulling out the spool
- Press (09/a) the two unlocking buttons (09/1) at the same time and remove (09/b) the cover (09/2).
- Pull out (09/c) the empty spool (09/3).
- Insert (10/a) the new spool (10/1). At the same time, make sure that the spring is re-inserted.
- Thread the cutting line (10/2) through the openings (10/3) of the spool head towards the outside.
- Put on the cover (10/4) and press on until it engages.
- Insert the rechargeable battery in the basic appliance.
Bring the cutting line to the required length
- Switch on the appliance.
- Tap (04/a) the spool head (04/1) on the ground from time to time. This unwinds a piece of new cutting line from the spool.
- Switch off the appliance and wait until the cutter head has come to a standstill.
- Check the line length.
- Repeat the previous steps until the cutting line has the required length.
8 STORAGE
Thoroughly clean the appliance after each use and – if present – attach all covers. Store the appliance in a dry, lockable place out of the reach of children.
Carry out the following jobs before intervals in work lasting for longer than 30 days:
■ Thoroughly clean the appliance and store it in a dry place.
9 HELP IN CASE OF MALFUNCTION
CAUTION!
Risk of injury
Sharp-edged and moving appliance parts can lead to injury.
■ Always wear protective gloves during maintenance, care and cleaning work.
| Malfunction | Cause Remedy | |
| Additional cutting line is not supplied. | Spool is empty. | Change the spool. |
| Re-chargeable battery operating time is significantly shorter. | Grass is too long or too wet. | ■ Cut the grass at a greater height.■ Let the grass dry. |
| Cutting height is too low. | Cut the grass at a greater height. | |
| Motor running, but the spool does not turn. | Appliance faults | Contact an AL-KO service centre. |
| Appliance vibrates unusually. | Spool is contaminated. | Clean the spool, renew it if necessary. |
| Appliance faults | Contact an AL-KO service centre. | |
| Other faults See "Multitool MT 40 – basic appliance" operating instructions. | ||
NOTE
If you encounter any malfunctions that are not listed in this table or that you cannot rectify yourself, please contact our customer service.
10 TRANSPORT
Before transporting, carry out the following measures:
- Switch off the appliance:
- Remove the rechargeable battery from the basic appliance.
- Separate the basic appliance and attachment.
NOTE
The nominal energy of the rechargeable battery is more than 100 Wh. Therefore, observe the following transport instructions.
The li-ion rechargeable battery contained in the appliance is subject to the hazardous goods law, but can be transported under simplified conditions:
The rechargeable battery can be transported on public roads by the private user without further conditions provided it is packaged for retail sale and the transport serves personal purposes.
■ Commercial users who carry out the transport in connection with their main activity (e.g. delivery from and to building sites, or demonstrations) can also take advantage of this simplification.
In both cases, it is essential to take the mandatory precautions mentioned above to prevent any leakage of the contents. In other cases, it is essential to comply with the regulations of the hazardous goods law. In the case of non-compliance, severe penalties can be imposed on the sender and possibly the transporter.
Additional notes on transport and shipment
■ Only transport or send the li-ion rechargeable battery in an undamaged condition.
For transporting the rechargeable battery, only use the original cardboard box or a suitable hazardous goods cardboard box (not required for rechargeable batteries with a nominal energy less than 100 Wh).
■ Tape off exposed rechargeable battery contacts to avoid a short circuit.
- Secure the rechargeable battery against shifting in the packaging to avoid damage to the rechargeable battery.
■ Ensure the correct marking and documentation of the shipment for transport or shipping (e.g. by parcel service or freight forwarding).
- Check in advance that transport with the selected service provider is possible and indicate the shipment.
We recommend involving a hazardous goods specialist in preparation of the shipment. Also heed any further national regulations.
11 DISPOSAL
Information on the German Electrical and Electronic Equipment Act (ElectroG)
■ Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.
■ Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed before disposal. Their disposal is regulated by the battery law.
- Owners or users of electrical and electronic appliances are obliged by law to return them after use.
■ The end user bears personal responsibility for deleting his personal data from the old appliance to be disposed of.
The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish.
Electrical and electronic appliances can be handed in at no charge at the following places:
■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of electrical appliances (stationary and online) provided traders are obliged to take them back or offer this voluntarily.
These statements only apply to appliances that are installed and sold in the countries of the European Union and are subject to European Directive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union.
Information on German Battery Act (BattG)
■ Used batteries and rechargeable batteries do not belong in household waste, but should be collected and disposed of separately.
For safe removal of batteries or rechargeable batteries from the electrical appliance and for information on their type or chemical system, follow the further information within the operating or installation instructions.
- Owners or users of batteries and rechargeable batteries are obliged by law to return them after use. The return is limited to the handover of customary household quantities.
Used batteries can contain harmful substances or heavy metals that can cause damage to the environment and human health. Reuse of the used batteries and use of the resources contained therein contributes to the protection of these two essential commodities.
The symbol of the crossed-through rubbish bin means that batteries and rechargeable batteries may not be disposed of in household rubbish.
In addition, if the symbol Hg, Cd or Pb appears under the rubbish bin, this stands for the following:
■ Hg: Battery contains more than 0.0005 % mercury
Cd: Battery contains more than 0.002 % cadmium
■ Pb: Battery contains more than 0.004 % lead
Rechargeable batteries and batteries can be handed in at the following places at no charge:
■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of batteries and rechargeable batteries
■ Disposal points of the common take-back system for the used batteries of appliances
■ Disposal point of the manufacturer (if not a member of the common take-back system)
These statements apply only to rechargeable batteries and batteries that are sold in the countries of the European Union and that are subject to European Directive 2006/66/EU. Different provisions can apply to the disposal of rechargeable batteries and batteries in countries outside the European Union.
12 GUARANTEE
We will resolve any material or manufacturing faults on the appliance during the legal warranty period for claims relating to faults, in accordance with our choice either to repair or replace. The legal warranty period is determined by the legislation of the country in which the appliance was purchased.
Our warranty promise applies only if:
■ These operating instructions are heeded
■ The appliance is handled correctly
■ Original spare parts have been used
The warranty becomes void in the case of:
■ Unauthorised repair attempts
■ Unauthorised technical modifications
Non-intended use
The guarantee excludes:
■ Paint damage that can be attributed to normal wear and tear
■ Wear parts that are marked with a frame xxxxxx (x) on the spare parts card
The guarantee period commences with purchase by the first end user. The date on the proof of purchase is decisive. In the event of a guarantee claim, please take this guarantee declaration and the original proof of purchase, and contact your dealer or the nearest authorised customer service centre.
This statement does not affect the purchaser's statutory claims for defects against the vendor.
13 EU DECLARATION OF CONFORMITY
See "Multitool MT 40 – basic appliance" operating instructions.
TRADUCTION DE LA NOTICE D'UTILISATION ORIGINALE
Table des matières
N° Pièce
13 DÉCLARATION DE CONFORMITÉ CE
N. Componente
Nr Element
