MIX140 - Cement mixer SCHEPPACH - Free user manual and instructions

Product Type	Cement mixer (concrete mixer)
Brand	Scheppach
Model	MIX140
Drum capacity	140 liters
Drum opening diameter	385 mm
Motor power	0.55 kW (550 W)
Power supply	230 V ~ / 50 Hz
Max. motor speed	2750 min⁻¹
Max. drum speed	26.6 min⁻¹
Operating mode	S6 30% (30% load, 70% no load)
Protection class	II (double insulation)
Protection rating	IP45D
Guaranteed sound power level (LWA)	95 dB
Dimensions (L x W x H)	1200 x 710 x 1400 mm
Weight	47 kg
Drum material	Steel
Transport wheels	Yes (2 wheels + 1 swivel wheel)
Parking stand	Yes (folding)
Intended use	Mixing concrete and mortar for domestic use
Cleaning	Brush, scraper; do not immerse or use high-pressure cleaner
Wear parts	V-belt (ref. 5908403061)
Warranty	Statutory (defective parts replaced free of charge)

Frequently Asked Questions - MIX140 SCHEPPACH

What is the maximum drum capacity of the Scheppach MIX140?

The drum capacity is 140 liters (125 liters for model MIX125). Do not overfill the drum to avoid blockages.

How to correctly assemble the concrete mixer?

Assembly must be carried out by two people. Follow the steps in order: mount the wheels, the stand, the lower drum part, the mixing mechanism, then the upper part. Use the included bags (A to I) and the indicated tools (open-end wrenches, Allen key, pliers). Refer to the manual for detailed diagrams.

What safety precautions should I take before using the MIX140?

Always wear safety shoes, gloves, safety goggles and a dust mask. Check that the power cable is not damaged. Ensure the machine is on a flat and stable surface. Never let children or unauthorized persons approach. Unplug the plug before any cleaning or maintenance.

How to adjust the drum tilt for mixing?

Pull the swivel wheel (7) towards you to unlock the locking washer. Tilt the drum to the desired position: concrete position (fig. 13b) or mortar position (fig. 13a). Release the wheel to engage the notch. Always hold the wheel firmly during adjustment.

What to do if the motor does not start?

First check the mains voltage and fuses. If the cable is damaged, have it replaced by an electrician. In case of overload, wait for the motor to cool down (about 15 min) before restarting. If the problem persists, contact a specialist.

How to empty the drum after mixing?

Place a container (e.g. mortar tub) under the drum. Pull the swivel wheel to unlock, then slowly tilt the drum downwards to empty. Be careful not to spill the mixture on the ground.

What regular maintenance is required?

After each use, clean the inside and outside of the drum with water and a brush or scraper. Regularly check the belt tension: it should deflect about 5 mm under finger pressure. If the belt is worn, replace it with an original belt (ref. 5908403061).

Can I use the concrete mixer for materials other than concrete and mortar?

No, the concrete mixer is exclusively designed for mixing concrete and mortar in a domestic setting. Any other use is considered non-compliant and voids the warranty. Do not mix aggressive chemicals or abrasive materials not intended.

How to transport the concrete mixer safely?

Stop the motor and unplug. For vehicle transport, tilt the drum downwards, fold the stand and secure with a strap. Do not lift with a crane. For a short move, tilt the unit slightly and roll on the transport wheels.

Where to find spare parts and how to order?

Spare parts (especially the belt ref. 5908403061) are available from Scheppach after-sales service. To order, provide the model name (MIX140), the article number and the data on the rating plate. Scan the QR code on the homepage to access the catalog.

USER MANUAL MIX140 SCHEPPACH

Black-and-white photo of a modern concrete mixer with wheels and control panel (no visible text or symbols)

https://www.scheppach.com/sde/service scheppach

Made in P.R.C.

MIX125 / MIX140

DE	BetonmischerOriginalbetriebsanleitung	10
GB	Concrete mixerTranslation of original instruction manual	25
FR	BétonnièreTraduction des instructions d'origine	37
IT	BetonieraLa traduzione dal manuale di istruzioni originale	50
NL	BetonmixerVertaling van de originele gebruikshandleiding	63
ES	HormigoneraTraducción del manual de instrucciones original	76
PT	BetoneiraTradução do manual de operação original	89
CZ	Míchač betonové směsiPřeklad originálního návodu k obsluze	102
SK	Miešačka betónuPreklad originálneho návodu na obsluhu	114
HU	BetonkeverőEredeti használati utasítás fordítása	126
PL	BetoniarkaTłumaczenie oryginalnej instrukcji obsługi	139
HR	Betonska miješalicaPrijevod originalnog priručnika za uporabu	152
SI	Mešalnik za betonPrevod originalnih navodil za uporabo	164

EE	BetoonisegurOriginaalkäitusjuhendi tõlge	176
LT	Betono maišyklėOriginalios naudojimo instrukcijos vertimas	188
LV	Betona maisītājsOriginālās lietošanas instrukcijas tulkojums	200
SE	BetongblandareÖversättning av original-bruksanvisning	213
FI	BetonisekoitinKäännös alkuperäisestä käyttöohjeesta	225
DK	BetonblanderOversættelse fra den oprindelige betjeningsvejledning	237
NO	BetongblanderOversettelse av den originale brukerveiledningen	249
BG	БетоносмесителПревод на оригиналното ръководство за експлоатация	261
GR	Αναμεικτήρας σκυροδέματοςΜετάφραση του πρωτοτύπου των οδηγιών χρήσης	275
RO	BetonierăTraducere din manualul de exploatare original	289
RS	Mešalica za betonPrevod originalnog uputstva za upotrebu	302
TR	Beton karıştırıcıOrijinal kullanım talimati çevirisi	314

1 2 3 4 5 6 7

2 8 4 9 10 11 2 5 13 14 A D G B E H C F I

3

× 4 A M8 × 70 × 2 B M8 × 70 × 2 C M8 × 65 × 2 D Ø42 × 1 E M8 × 20 × 2 F M8 × 16 × 6 M8 × 20 × 2 G M8 × 25 × 2 H M10 × 65 × 1 I M8 × 4

4 5

6 11 8 12 5

5 11 8 B

7 10 11 8 5 12

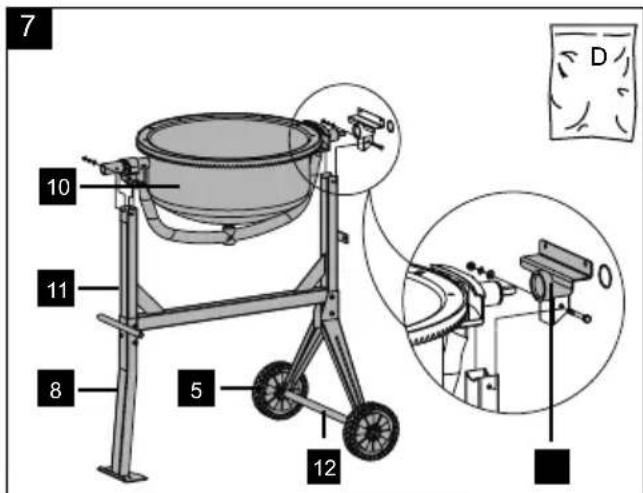

8 2 10 E

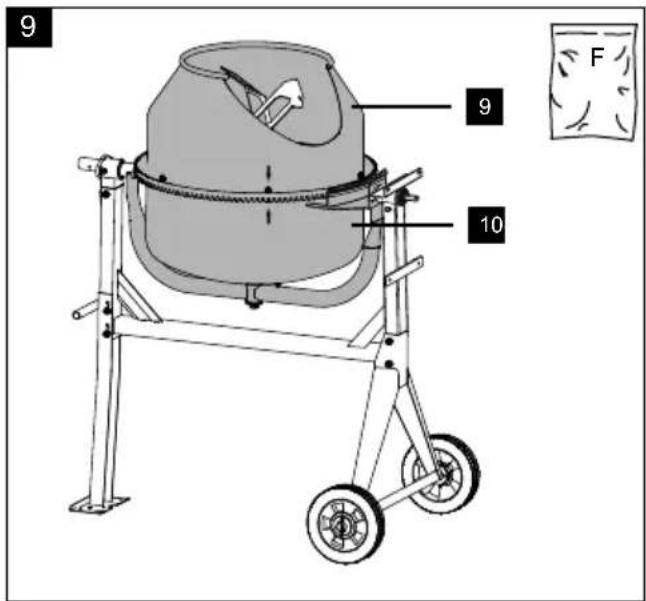

9 9 10 F

10 G 13a 13

11 ① ② 7 H

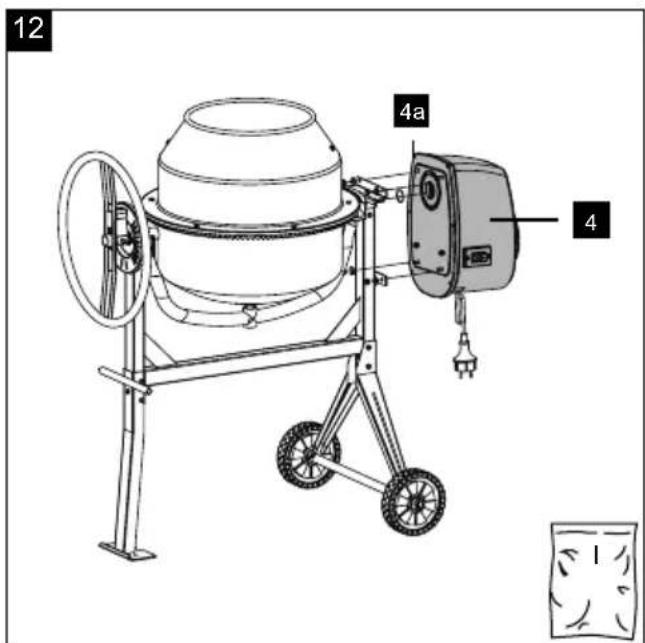

12 4a 4

12.1

Befüllposition

Filling position

Circular mechanical component with radial slots and two protruding blades (no text or symbols)

Technical line drawing of a mechanical device with tripod base and circular components (no text or symbols)

Technical line drawing of a mechanical device with tripod base (no text or symbols)

Simple circular diagram with radial slots and two triangular blades (no text or symbols)

Technical line drawing of a mechanical device with tripod base and circular components (no text or symbols)

Technical line drawing of a mechanical device with tripod base and circular components (no text or symbols)

12.2

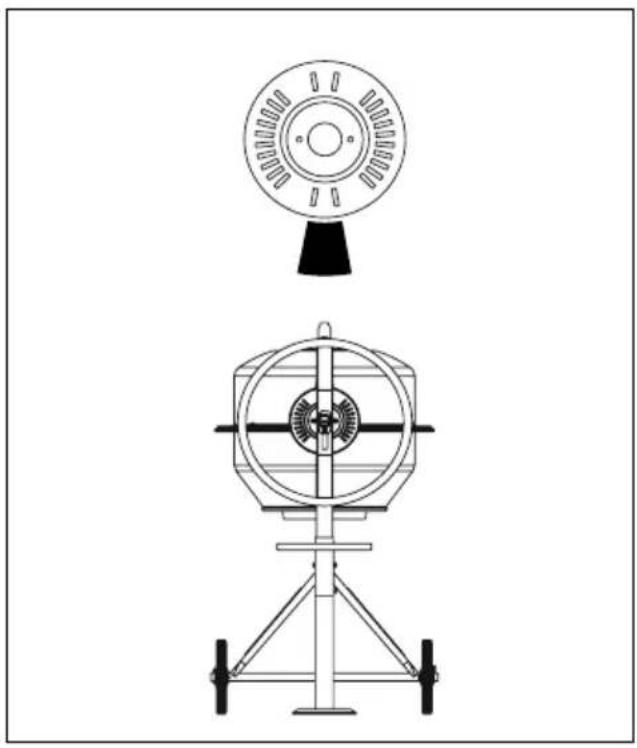

Entleerungsposition

Emptying position

Position de vidage

Technical line drawing of two mechanical fan assemblies with mounting legs (no text or symbols)

Technical line drawing of a mechanical device with top and side views (no text or symbols)

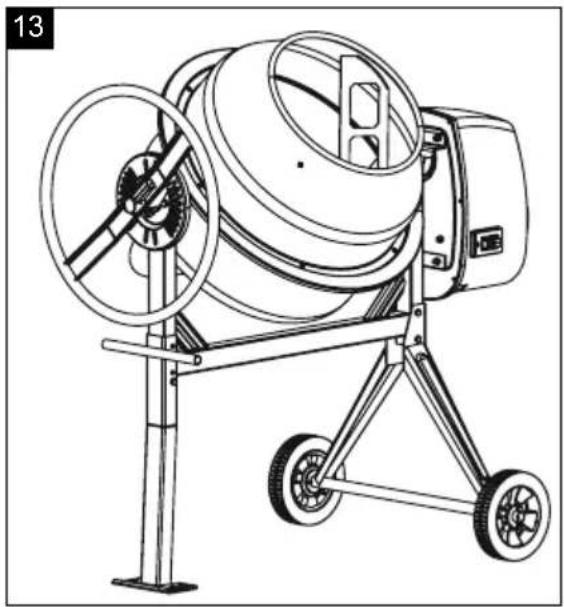

Line drawing of a concrete mixer with wheels and control panel (no text or symbols)

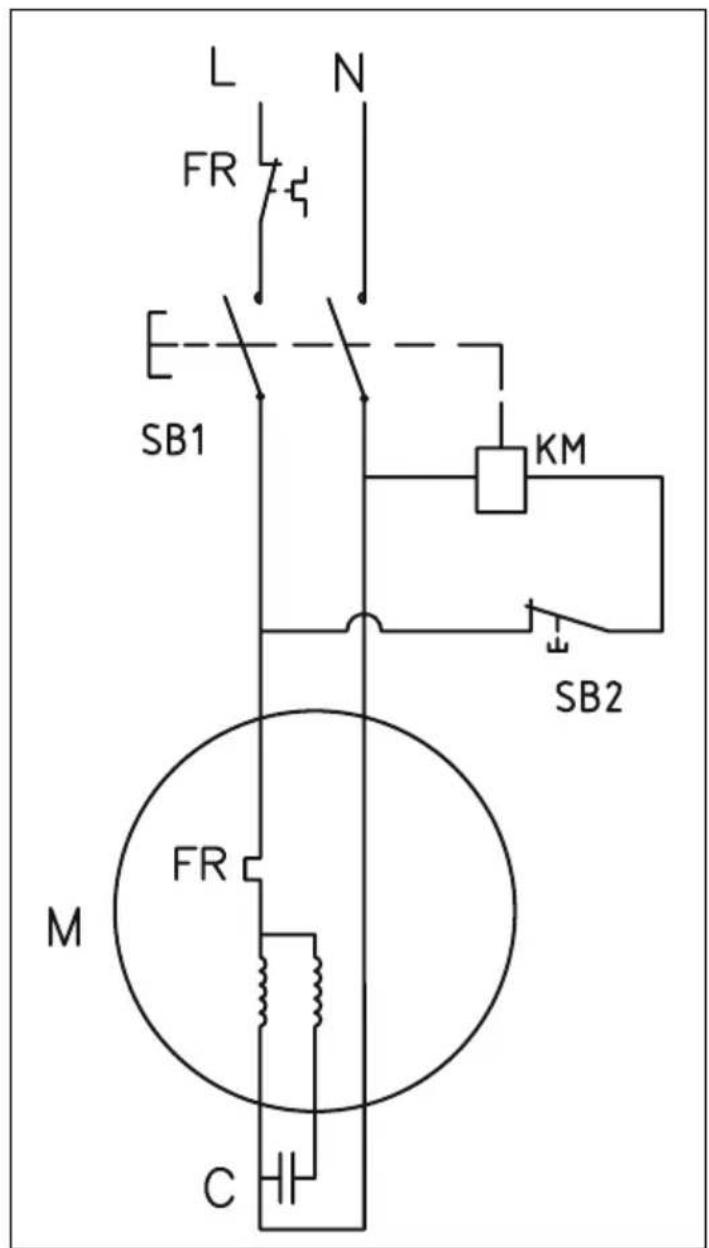

L N FR SB1 KM SB2 M FR C

13a

Technical line drawing of a mechanical device with tripod base and circular components (no text or symbols)

Technical line drawing of a mechanical device with rotating components and support legs (no text or symbols)

13b

Technical line drawing of a mechanical device with a circular component mounted on a tripod (no text or symbols)

Technical line drawing of a mechanical device with tripod base and circular components (no text or symbols)

13c

Technical line drawing of a mechanical instrument with tripod base (no text or symbols)

Technical line drawing of a mechanical device with tripod base (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Homepage: https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the product

	Read the operating manual before first use!
	Wear safety shoes!
	Wear protective gloves!
	Wear safety goggles!
	Wear dust protection mask!
	Wear hearing protection!
	Place the concrete mixer horizontally on level and firm floor!
	Concrete mixer must not be moved during operation!
	Concrete mixer may only be operated with the guard fully closed!
	Do not reach into the drum when it is moving!
	Caution! Danger of crushing on the sprocket in the locking disc.
	Do not start the motor until the drum has been fully loaded.
	Protect the environment! Take the leftover material to an authorized collection point. Make sure that it will not enter the sewage system, the ground or the water.
	Keep unauthorised persons and children away from the device!
	The device has protective insulation! Attention! The protection class is only maintained if original insulating materials are used during servicing and the insulation distances are not changed.
	Pull out the mains plug before cleaning or maintenance!
	Assembly aid! See: Assembly, Fitting the drum upper section.
	Specification of the sound power level in dB
	Protection class II
	The product complies with the applicable European directives.
	The product complies with the applicable Serbian directives.

Table of contents: Page:

1. Introduction....28
2. Product description (Fig. 1 - 13d)....28
3. Scope of delivery (Fig. 2 + 3)....28
4. Proper use 28
5. Safety instructions 29
6. Technical data.... 30
7. Unpacking....31
8. Assembly / Before commissioning 31
9. Start-up 32
10. Electrical connection 34
11. Cleaning 34
12. Transport....34
13. Storage 35
14. Maintenance 35
15. Repair & ordering spare parts 35
16. Disposal and recycling.... 36
17. Troubleshooting 36
18. Declaration of conformity 328

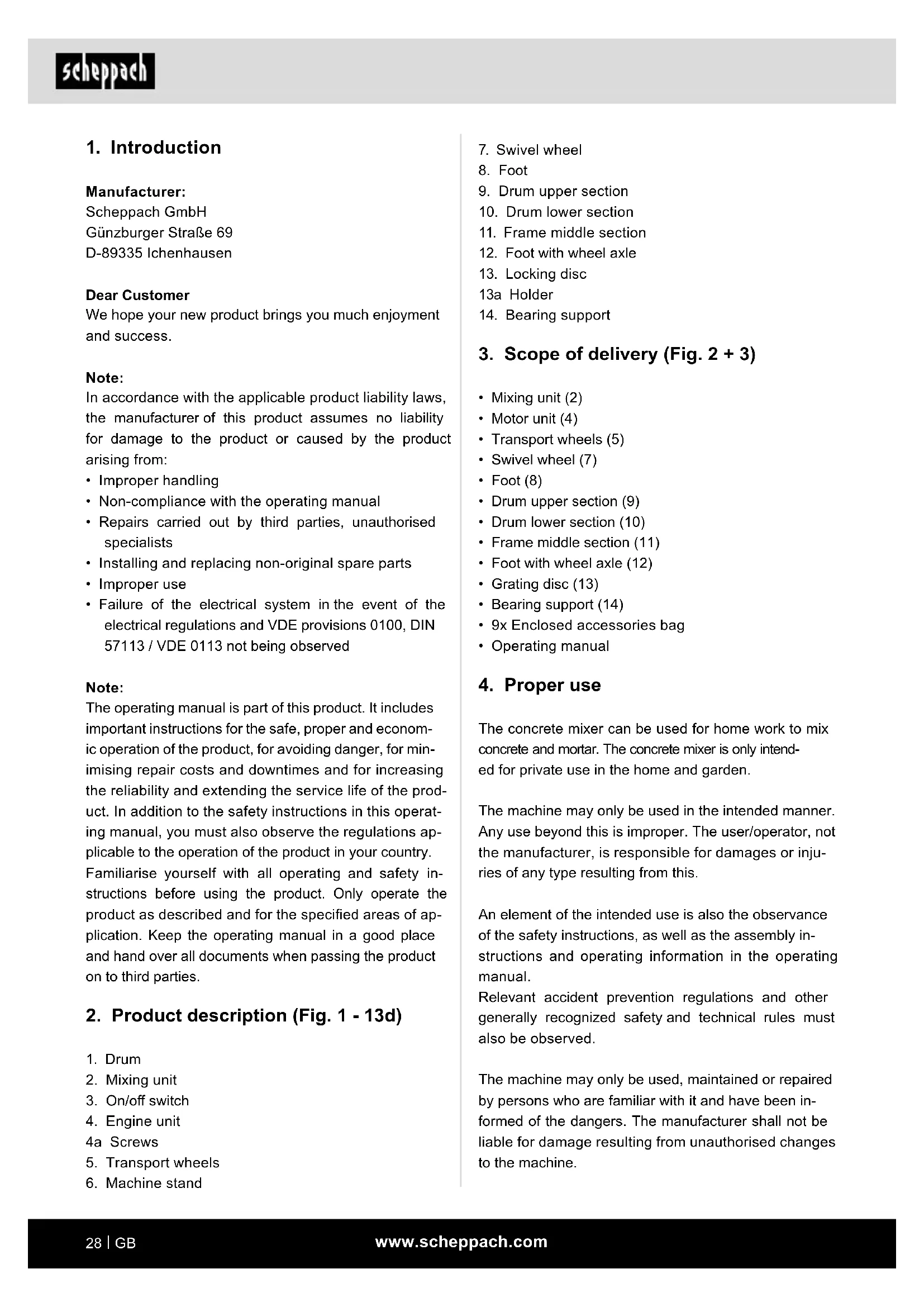

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed

Note:

The operating manual is part of this product. It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

2. Product description (Fig. 1 - 13d)

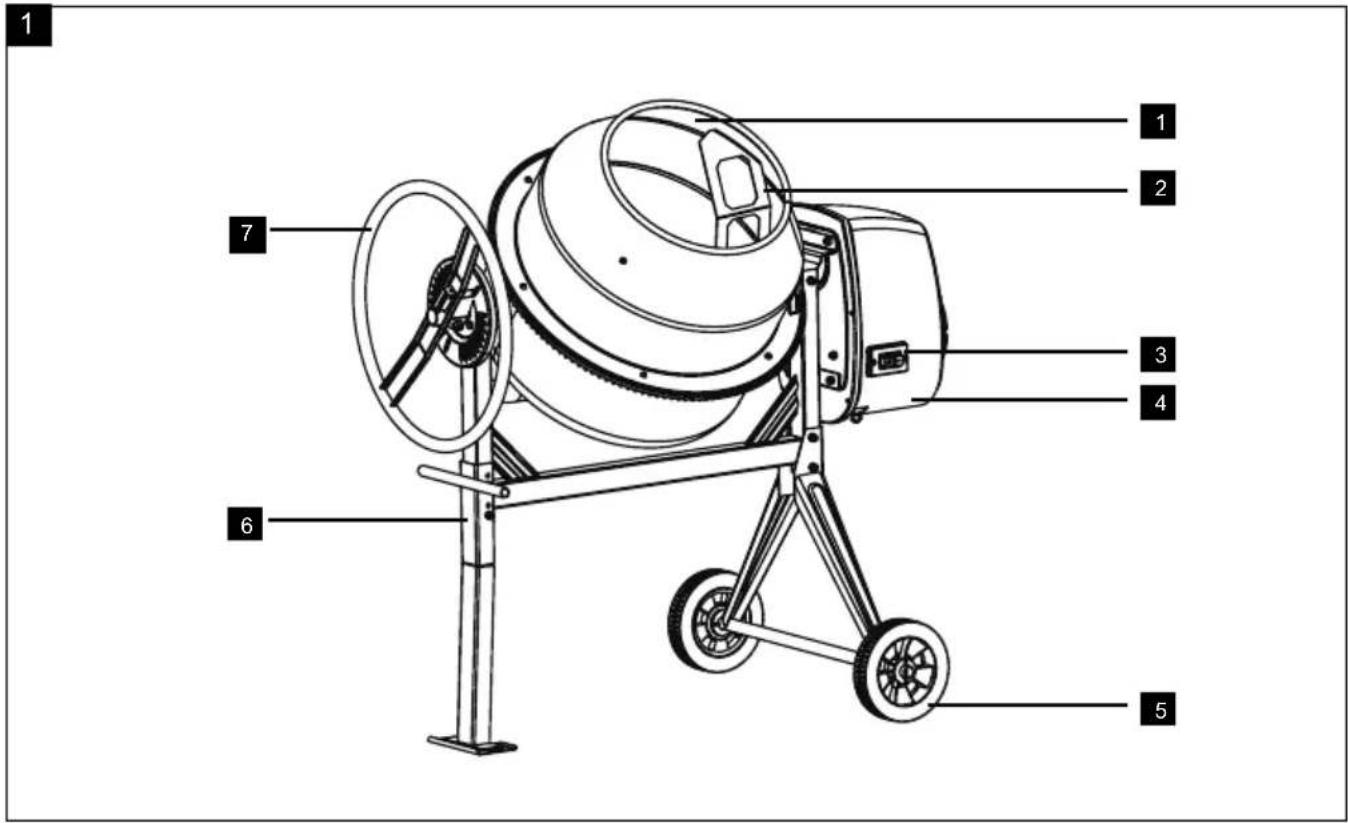

1. Drum
2. Mixing unit
3. On/off switch
4. Engine unit
   4a Screws
5. Transport wheels

6. Machine stand

7. Swivel wheel

8. Foot
9. Drum upper section
10. Drum lower section
11. Frame middle section
12. Foot with wheel axle
13. Locking disc
    13a Holder
14. Bearing support

3. Scope of delivery (Fig. 2 + 3)

• Mixing unit (2)
• Motor unit (4)
  • Transport wheels (5)
• Swivel wheel (7)
• Foot (8)
• Drum upper section (9)
• Drum lower section (10)
  • Frame middle section (11)
• Foot with wheel axle (12)
• Grating disc (13)
• Bearing support (14)
  • 9x Enclosed accessories bag
• Operating manual

4. Proper use

The concrete mixer can be used for home work to mix concrete and mortar. The concrete mixer is only intended for private use in the home and garden.

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Relevant accident prevention regulations and other generally recognized safety and technical rules must also be observed.

The machine may only be used, maintained or repaired by persons who are familiar with it and have been informed of the dangers. The manufacturer shall not be liable for damage resulting from unauthorised changes to the machine.

The machine may only be operated with original parts and original accessories from the manufacturer. The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work.

Explanation of the signal words in the operating manual

Warning

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

5. Safety instructions

General safety instructions

WARNING: When using power tools, the basic safety precautions below must be followed in order to reduce the risk of fire, electric shock, and personal injury.

Please read all instructions before working with this device.

- Observe all safety information and danger notices on the machine.

- Ensure that all of the safety and danger notices on the machine are complete and in legible condition.

- The safety equipment on the machine must not be disassembled or made unusable.

- Check the mains connection cables. Do not use defective connection cables.

- Check for correct function of the device before first use.

- Keep unauthorised persons and children away from the concrete mixer.

- Persons under the influence of alcohol, drugs or medication are not permitted to use the equipment.

- The operator is obligated to wear their personal protective equipment (PPE).

- Caution when working: Danger of injury due to rotating parts.

- Only carry out cleaning and maintenance work and rectify faults when the motor is switched off. Pull out the mains plug!

• Installation, repairs and maintenance work on the electrical equipment may only be carried out by electricians.

- All protective and safety equipment must be reassembled immediately after repair, maintenance is completed.

- Switch off the motor and pull out the mains plug before leaving the work area!

- Ensure adequate lighting. Poor lighting can significantly increase the danger of injury!

- In case of danger, switch the machine off and pull out the mains plug!

- Never place your hands on moving parts of the machine when it is switched on. There is a danger of entanglement due to the rotating drum and rotating mixing tools.

- The machine must not be operated while being moved to another location!

- The machine may only be positioned on a level surface!

- There is a danger of breathing in toxic vapours and dusts.

Additional safety instructions

- The concrete mixer may only be put into operation fully assembled.

- Check the connection cables for damage before commissioning.

- Wear safety shoes, gloves, safety goggles and a breathing mask.

• Keep hands and feet away from the moving parts.
• Do not reach into the mixing drum while it is running.
• Do not put any objects into the mixing drum while it is running, e.g. shovel or similar.
• Danger of injury when the mixing drum is rotating.
• The concrete mixer may only be operated with original spare parts.
• Repairs to the concrete mixer may only be carried out by authorised specialist companies.
• Do not leave ready-to-use concrete mixer unattended.
• Switch off the machine and pull out the mains plug when leaving the workstation.

Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Danger of injury due to rotating parts.
- Health hazard due to electrical power, with the use of improper electrical connection cables.
- Before performing setting or maintenance work, switch the motor off and unplug the mains plug.
- Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
- Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
- Avoid accidental start-ups of the machine: Make sure that the ON/OFF switch is set to "0" before inserting the plug into the socket.
- Use the tool that is recommended in this operating manual. This is how to ensure that your machine provides optimum performance.
- Keep your hands away from the working area when the machine is in operation.

Warning! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances.

In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

6. Technical data

	MIX125 MIX140
Motor 230 V~ / 50 Hz		230 V~ / 50 Hz
Engine output 0.55 kW 0.55 kW
Max. speed: 2750 rpm 2750 rpm
Max. drum speed: 26.6 rpm 26.6 rpm
Capacity 125 l 140 l
Diameter of drum opening	385 mm 385 mm
Insulation class:	IP45D	IP45D
Dimensions	1200 x 710 x 1400 mm	1200 x 710 x 1400 mm
Operating mode: S6 30% S6		30%
Protection class	II	II
Weight	45 kg	47 kg

Subject to technical changes!

*S6 30 %: Continuous duty with intermittent loading (operating time 10 min.)

In order to avoid impermissible overheating of the motor, the motor should be driven for only 30% of the operating time with the stipulated nominal power and must then continue to run with no load for the remaining 70% of the operating time.

Information about noise development

Warning: Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection.

Noise data

The noise levels have been determined in accordance with EN ISO 3744:2010.

Sound pressure level L_pA	72.21 dB
Uncertainty K_pA	3.33 dB
Sound power level L_WA	92.21 dB
Uncertainty K_WA	3.33 dB
Guaranteed sound power level L_WA	95 dB

7. Unpacking

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, keep the packaging until the expiry of the warranty period.

⚠ WARNING!

The device and the packaging are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

8. Assembly / Before commissioning

Attention!

Always make sure the device is fully assembled before commissioning!

In order to make assembly easier, assembly must be carried out by two persons.

The enclosed accessory bags (A to I) contain all the small parts required for assembly (see Fig. 3).

Tools required for assembly (not included in the scope of delivery):

• 2x Open-ended spanner, size 13
• 2x Open-ended spanner, size 16
• 1x Allen key, size 8
• 1x Combination pliers
• 1x Phillips screwdriver

Fitting the transport wheels (5) (Fig.4) (enclosed accessory bag A)

1. Insert a split pin through the inner hole of the wheel axle on both sides.
2. Now push a washer onto the wheel axle on both sides.
3. Then place the transport wheels (5) on both sides of the stand with wheel axle (12).
4. Then push another washer onto the wheel axle on both sides.
5. Insert a split pin through the outer hole of the wheel axle on both sides.
6. Secure the transport wheels (5) by bending the split pins apart with suitable combination pliers (not included).

Installing the foot (8) on the frame middle section (11) (enclosed accessories bag B) (Fig. 5)

1. Hold the foot (8) to the frame middle section (11) as shown. Select the holes such that the foot (8) is in the lower position.
2. Push the two M8x70 hexagonal screws through the holes.
3. Fix the screws with a washer, a spring washer and an M8 nut each.
4. Tighten all screws using two open-ended spanners (size 13) (not included in the scope of delivery).

Installing the foot with wheel axle (12) and transport wheels (5) on the frame middle section (11) (enclosed accessories bag C) (Fig. 6)

1. Hold the foot with wheel axle (12) to the frame middle section (11).
2. Push the two M8x70 hexagonal screws through the holes.
3. Fix the screws with a washer, a spring washer and an M8 nut each.
4. Tighten all screws using two open-ended spanners (size 13) (not included in the scope of delivery).

Fitting drum lower section (10) (enclosed accessories bag D) (Fig. 7)

1. Fit the bearing support (14) onto the drum lower section (10) at the intended location.
2. At the same time, insert the bearing of the drum lower section (10) with the premounted bearing support (14) into the opening of the machine stand (6). Make sure that the bearing support (14) is above the foot with wheel axle (12).
3. Pay attention to the position of the holes.
4. Push the two M8x65 hexagonal screws through the holes
5. Fix the screws with a washer, a spring washer and an M8 nut each.
6. Then tighten all screws using one or two open-ended spanners (size 13) (not included in the scope of delivery).
7. Fix the lower part of the drum (10) with the securing ring (see illustration).

Fitting mixing unit (2) (enclosed accessories bag E) (Fig. 8)

1. Insert an M8x20 Phillips screw from the outside through the lower part of the drum (10).

2. Push one rubber washer each onto the Phillips-head screws just inserted in the lower drum part (10).

3. Now place the mixing unit (2) on the mounted cross-head screws and fix it with one washer, one spring washer and one M8 nut each.

4. The mixing unit (2) is not tightened until the upper part of the drum (9) has been mounted.

Note: In order to make correct installation of the mixing unit (2) easier, two arrows are attached to the upper and lower drum. If you are not sure whether the mixing unit has been installed correctly, you can test this. To do this, place the upper part of the drum (9) on the lower part of the drum (10) and turn them until the two arrows point towards each other.

Fitting drum upper section (9) (enclosed accessories bag F) (Fig. 9)

1. Put the upper part of the drum (9) on the lower part of the drum (10). Make sure that the fixing holes of the upper and lower drum align with each other.
   Attention! The glued-on arrows mark the exact alignment of the drum lower section (10) and drum upper section (9).
2. Fix the upper part of the drum (9) by inserting the six M8x16 screws, the spring washers and washers.
3. Then tighten the screws crosswise using a Phillips screwdriver (not included in the scope of delivery).
4. Insert one M8x20 Phillips screw each through the upper part of the drum (9) from the outside.
5. Push one rubber washer each onto the Phillips-head screws just inserted in the upper part of the drum (9).
6. Attach the upper end of the mixing unit (2) by placing it on the Phillips screws just inserted. Fix it with one washer, one spring washer and one nut M8 on each.
7. Finally, tighten all four screws in the lower drum section (10) and upper drum section (9) using a Phillips screwdriver and a size 13 open-end span-ner (not included in the scope of delivery).

Installing the locking disc (13) (enclosed accessories bag G) (Fig. 10)

1. Push the locking disc (13) onto the holder (13a).
2. Fix them with the two hexagonal screws M8x25 and one washer, one spring washer and one nut M8 each.
3. Then tighten all screws using one or two open-ended spanners (size 13) (not included in the scope of delivery).

Installing the swivel wheel (7) (enclosed accessories bag H) (Fig. 11)

1. Insert the washer and then the spring from below into the tube of the swivel wheel (7).
2. Hold the spring in place with a finger.
3. Place the swivel wheel (7) above the shaft of the drum lower section (10) so that the spring lies on the shaft.
4. Push the swivel wheel (7) down until the holes in the shaft of the drum lower section (10) align with the holes in the swivel wheel (7).
5. Fix the swivel wheel (7) with the M10x65 hexagon head screw, two washers and a stop nut.
6. Then tighten the screw using two open-ended spanners size 16 (not included in the scope of delivery) until the swivel wheel (7) can still be tilted easily.
7. Turn the cylinder screw of the tube clockwise using an 8 mm Allen key (not included in the scope of delivery) to adjust the spring tension.

Note: The swivel wheel (7) must be able to tilt when mounted on the shaft. It must be able to grip easily into the recesses of the locking disc (13).

Installing the motor unit (4) (enclosed accessories bag I) (Fig. 12)

1. Position the motor unit (4) such that the threaded bolts match the holes.
2. Now push the motor unit (4) completely onto the shaft.
3. Then fix the motor unit (4) with the four washers and the four M8 stop nuts. Use an open-ended spanner (size 13) for this (not included in the scope of delivery).

9. Start-up

Attention!

Always make sure the device is fully assembled before commissioning!

Only operate the concrete mixer if no parts are missing or faulty and if the connection cable is not damaged.

9.1 Setting up

1. Set up the concrete mixer horizontally on a level, non-tilting and firm surface. Prevent the machine from sinking into the ground.

2. Do not set up the concrete mixer on the connection cable!

3. Lay the connection cable so that it cannot be kinked, crushed or damaged in any other way.

Note:

The drum (1) must be able to swivel to the right and left. Make sure that a sufficient container (e.g. a mortar bucket) is beneath the drum (1) for emptying the drum (1). When setting up the machine, make sure that the mixing drum can be emptied freely.

9.2 Switching on/off (Fig. 1)

ATTENTION!

Danger of injury!

A rotating mixing drum can lead to injuries.

• Do not reach into the mixing drum while it is running.

• Do not put any objects into the mixing drum while it is running (e.g. shovel or similar).

• Connect a suitable extension cable to the connection cable of the concrete mixer.

• Plug the extension cable into the socket.
• Press the on/off switch (3) "I" (green button) to start the device.
• Press the on/off switch (3) "0" (red button) to switch off the device.

9.2.1 Thermal protection

With overloading or overheating, the protective shut-down integrated in the device switches off for safety reasons.

1. Wait approx. 15 minutes until the motor has cooled down.

2. Restart the device by pressing the on/off switch (5) "I" (green button).

9.3 Adjusting the drum (1) (Fig. 1, Fig. 13a/13b)

The concrete mixer must be engaged in a certain mixing position for concrete and mortar production. Only the correct mixing position ensures the best mixing ratio and guarantees a trouble-free working process.

1. Always hold the swivel wheel (7) firmly to adjust the drum (1).

2. Release the swivel device by pulling the swivel wheel (7) towards you. The latch is released from the locking disc (13).

3. Swivel the drum (1) to suit the consistency that corresponds with your mix.

- Fig. 13a: Drum position for the production of mortar - Fig. 13b: Drum position for the production of concrete

1. When the drum (1) is in the desired position, engage the pivoting wheel (7) into the locking disc (13) again.

9.4 Filling (Fig. 13a + 13b)

ATTENTION!

Health risk and danger of injury!

Breathing in dust can cause damage to health. Do not touch the cement or admixtures without protective gloves.

• Wear a breathing mask.
• Wear protective gloves and never reach into the mixing drum while it is running.

WARNING!

Tipping hazard!

Pay attention to the stability of the concrete mixer before filling.

• Only operate the concrete mixer on a firm, level (non-tilting) surface.

• Do not change the location of the concrete mixer when filling or when the drum is running.

• Press the on/off switch (3) "I" (green button) to start the device.

• Check the mixing position on the locking disc (13):

• Fig. 13a: Drum position for the production of mortar
- Fig. 13b: Drum position for the production of concrete

1. Fill the mix while the drum is running (1). Do not overfill the drum (1). Caution! Danger from moving parts!
2. Do not throw material into the drum (1) with great momentum in order to prevent it sticking to the underside of the drum (1). Feed in the material in small portions.
3. Before filling, make sure that the opening of the drum (1) is aligned so that no mix can fall out of the drum (1).

Note: Ask a specialist for advice about the composition and quality of the mix.

9.5 Emptying (Fig. 13c)

1. Place a sufficient container (e.g. a mortar bucket) beneath the drum (1). Make sure that no mix can get onto the floor.

2. Unlock the swivelling device by pulling the pivoting handle (1) towards you. The latch is released from the locking disc (14).

3. Now swivel the drum (1) downwards slowly to empty it.

10. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

10.1 Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fixed or routed.
• Places where the connection cables have been cut due to being driven over.
  • Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the designation H07RN.

The printing of the type designation on the connection cable is mandatory.

For single-phase AC motors, we recommend a fuse rating of C 16A or K 16A for machines with a high starting current (from 3000 watts)!

11. Cleaning

WARNING!

Danger of injury!

The product can start unexpectedly and cause injuries.

- Switch off the motor before carrying out any cleaning or maintenance work.

- Disconnect the mains plug before carrying out any cleaning work.

NOTE!

Risk of damage!

Damage to the motor can occur if water penetrates into the motor unit. Do not tap on the mixing drum with hard objects (hammer, shovel, etc.). A dented mixing drum impairs the mixing process and can be more difficult to clean.

- Clean the product with a brush or a scraper.

- Do not immerse the product in water or other liquids and do not spray the motor unit with a high-pressure cleaner.

We recommend that you thoroughly clean the inside and outside of the device directly after every use. Never remove dirt with a hammer, shovel or the like.

After each use of the concrete mixer:

1. Clean the drum (1) with water and remove cement and mortar crusts with a brush or a scraper.

2. To clean the inside of the drum, circulate a few shovels of gravel with water.

12. Transport

WARNING!

Danger of injury!

The product can start unexpectedly and cause injuries.

- Switch the motor off before transporting.

- Pull out the mains plug.

12.1 Vehicle transport (Fig. 13d)

1. Release the swivel device by pulling the swivel wheel (7) towards you. The latch is released from the locking disc (13).
2. Now place the drum (1) with the filling opening facing downwards.
3. Remove the screws from the foot (8) and from the foot with wheel axle (12).

4. Fold up the foot (8) and the foot with wheel axle (12).

5. Secure the concrete mixer from sliding with a tension strap.

6. Do not lift the concrete mixer with a crane.

12.2 Transport at the workplace (Fig. 13d)

1. Release the swivelling device by pulling the pivoting handle (1) towards you. The latch is released from the locking disc (13).
2. Now place the drum (1) with the filling opening facing downwards.
3. For a brief transport, tilt the concrete mixer gently and transport it on the transport wheels (5).

13. Storage

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C.

Cover the concrete mixer to protect it from dust and moisture.

Store the operating manual with the power tool.

14. Maintenance

WARNING!

Danger of injury!

The product can start unexpectedly and cause injuries.

• Switch the motor off before performing any maintenance work.
• Disconnect the mains plug before carrying out any maintenance work.

14.1 Checking the belt tension (Fig. 12)

The belt tension is adjusted correctly in the factory. The belt tension cannot be readjusted.

1. Remove the cover of the motor unit (4) by loosening the screws (4a) on the motor unit (4). Use a Phillips screwdriver for this (not included in the scope of delivery)
2. Check the belt tension. By pressing on the belt with your finger, the belt should give approx. 5 mm.
3. Put the cover of the motor unit (4) back on and tighten the screws (4a). Use a Phillips screwdriver for this (not included in the scope of delivery) Ensure that the seal is correctly inserted in the cover during installation.

14.2 Replacing belts

Belts are wearing parts that have to be replaced after a certain time.

1. Remove the cover of the motor unit (4) by loosening the screws (4a) on the motor unit (4).
2. Pull off the motor cover.
3. The ribbed side of the new V-belt should face outwards when inserted. Make sure the lower part of the V-belt is installed first.
4. Check the belt tension. By pressing on the belt with your finger, the belt should give approx. 5 mm. It is not possible to retention the belt.
5. Put the cover of the motor unit (4) back on and tighten the screws (4a). Ensure that the seal is correctly inserted in the cover during installation.

15. Repair & ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

Attention: According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any queries:

• Type of current for the motor
• Machine data - type plate
- Motor data - type plate

15.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

Spare parts / accessories

Belt - Article no.:

5908403061

15.2 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Belt

* may not be included in the scope of delivery!

16. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act (ElektroG)

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.

• The end user is responsible for deleting their personal data from the old device being disposed of!

• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places:

- Public disposal or collection points (e.g. municipal works yards)

- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

• If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.
• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

17. Troubleshooting

Fault Possible cause Remedy
Engine does not start	No mains voltage Check the safeguard
	Connection cable defective Have checked or replaced by an electrician
Engine switches off	Engine overloaded Let the engine cool down
	Supply and exhaust air openings on the motor unit are contaminated	Clean supply and exhaust air openings
Engine runs, drum stands still	V-belt slipping Replace V-belt

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

Günzburger Straße 69

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Tisztelt Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče

Želimo vam mnogo zadovoljstva i uspjeha prilikom rada s novim proizvodom.

Napomena:

Prema važećem njemačkom Zakonu o odgovornosti za proizvode, proizvođač ovog proizvoda ne odgovara za štete koje nastanu na ovom proizvodu ili koje ovaj proizvod uzrokuje u slučaju:

• neispravnog rukovanja
• nepridržavanja priručnika za uporabu
• popravaka koje obave drugi, neovlašteni stručnjaci
  • montaže i zamjene neoriginalnih rezervnih dijelova
• nenamjenske uporabe
• kvarova električnog sustava zbog nepoštivanja električnih propisa i VDE propisa 0100, DIN 57113 / VDE 0113

Günzburger Straße 69

D-89335 Ichenhausen

Spoštovani kupec,

Želimo vam veliko veselja in uspeha pri delu z vašim novim izdelkom.

Napotek:

Proizvajalec tega izdelka skladno z veljavnim zakonom o odgovornosti za izdelke ne jamči za poškodbe na tem izdelku ali poškodbe s tem izdelkom, do katerih pride pri:

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Bästa Kund!

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde

Günzburger Straße 69

D-89335 Ichenhausen

Kjære kunde

Günzburger Straße 69

D-89335 Ichenhausen, Германия

Уважаеми клиенти,

Günzburger Straße 69

D-89335 Ichenhausen

Αξιότιμε πελάτη

Günzburger Straße 69

D-89335 Ichenhausen

Stimate client

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče

Günzburger Straße 69

D-89335 Ichenhausen

İthalatçı:

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

EU Declaration of Conformity

X 2000/14/EG_2005/88/EG
	Noise: measured LWA=92,21 dB; guaranteed LWA=95 dB
	Annex V
	Annex VI

	2016/1628/EU
	Emission. No:

Standard references:

EN ISO 12100:2010; EN 60204-1:2018; EN 12151:2007; EN IEC 55014-1:2021; EN IEC 55014-2:2021;

EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Niko Vraschek

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

X 2000/14/EG_2005/88/EG Noise: measured LWA = 92,21 dB; guaranteed LWA = 95 dB Annex V Annex VI

X	2006/42/EG
		Annex IV Notified Body: Notified Body No.: Certificate No.:

2016/1628/EU Emission. No:

Standard references:

EN ISO 12100:2010; EN 60204-1:2018; EN 12151:2007; EN IEC 55014-1:2021; EN IEC 55014-2:2021;

EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Niko Vraschek

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

Standard references:

EN ISO 12100:2010; EN 60204-1:2018; EN 12151:2007; EN IEC 55014-1:2021; EN IEC 55014-2:2021;

EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Niko Vraschek

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

AB uygunluk beyanı

CE

Scheppach GmbH, Günzburger Str. 69, D-89335 Ichenhausen

DE	erklärt folgende Konformität gemäß EU-Richtlinien und Normen für den Artikel	RO	declară următoarea conformitate corespunzător directivelor și normelor UE pentru articolul
GB	hereby declares the following conformity under the EU Directive and standards for the following article	GR	δηλώνει την ακόλουθη συμμόρφωση σύμφωνα με την Οδηγία ΕΕ και τα πρότυπα για το προϊόν
BG	декларира съответното съответствие съгласно Дирек-тива на ЕС и норми за артикул	TR	Burada açıklanan ürünün geçerli yönetmeliklere ve standartlara uygun olduğunu tamamen kendi sorumluluğumuz altında beyan ediyoruz.
RS	potvrđuje sledeću usklađenost prema smernicama EZ i normama za artikal

X 2000/14/EG_2005/88/EG Noise: measured LWA = 92,21 dB; guaranteed LWA = 95 dB Annex V Annex VI

	2016/1628/EU
	Emission. No:

Standard references:

EN ISO 12100:2010; EN 60204-1:2018; EN 12151:2007; EN IEC 55014-1:2021; EN IEC 55014-2:2021;

EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Niko Vraschek

Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer loses its rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Záruka CZ

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer is rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantii EE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

гаранция BG
