PM1400 - Cement mixer SCHEPPACH - Free user manual and instructions

Name: PM1400
Brand: SCHEPPACH
Rating: 8.5 (231 reviews)

Find the device manual for free PM1400 SCHEPPACH in PDF.

📄 272 pages

EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs

View the manual :

Pick your language and provide your email: we'll send you a specifically translated version.

This manual is not available in your language

Desired language Your email address

Product type	Cement mixer
Brand	Scheppach
Model	PM1400
Power consumption	1400 W
Rated voltage	230 V ~ 50 Hz
No-load speed (2 speeds)	0-570 min⁻¹ / 0-760 min⁻¹
Agitator tool mounting	M14
Protection class	II (double insulation)
Weight	4.9 kg
Sound pressure level	89 dB (K=3 dB)
Sound power level	100 dB (K=3 dB)
Vibration emission value	5.673 m/s² (K=1.5 m/s²)
Suitable materials	Paints, mortars, adhesives, plaster, lime, cement, concrete, coatings
Agitator types supplied	Left rotation (fluids), right rotation (viscous)
Transmission	2 mechanical speeds
Speed control	Continuously variable electronic
Safety switch	Yes (lock-off)
Wear parts	Carbon brushes, agitators
Maintenance	Clean ventilation slots, replace worn carbon brushes
Storage	Dry place, protected from weather, out of reach of children
Compliance	EU directives, VDE, DIN

Frequently Asked Questions - PM1400 SCHEPPACH

How to start the Scheppach PM1400 mixer?

Press and hold the On/Off switch safety lock (8), then press the On/Off switch (7) to start. Release the safety lock once the appliance is running.

How to change the speed on the PM1400?

Turn the speed selector (4) 180°. If the selector does not engage, lightly rotate the agitator. Speed 1: 0-570 min⁻¹, speed 2: 0-760 min⁻¹.

What materials can be mixed with this mixer?

It is suitable for liquid and powdery construction materials: paints, varnishes, adhesives, mortars, plaster, lime, cement, concrete, coatings. Do not mix food products.

How to clean the mixer after use?

Unplug the appliance and wait for it to stop completely. Clean the agitators with a cloth or soft brush. Do not use water or solvents. Keep the ventilation slots clean.

When should the carbon brushes be replaced?

Carbon brushes wear out with use. Have them replaced by the after-sales service when worn. Spare brushes are supplied (ref. 3907801002).

What are the essential safety measures?

Wear safety goggles, hearing protection, and a dust mask. Hold the appliance with both hands. Never put your hands in the container while it is running. Unplug before any adjustments.

How to store the PM1400?

Clean the machine and store it in a dry and safe place, out of reach of children. Avoid extreme temperatures and humidity. Do not store it in plastic bags.

What accessories are included with the mixer?

Supplied with: one mixing rod, two agitator tools (K3 and K4), two spare carbon brushes, two open-end wrenches (19 and 22 mm), and the instruction manual.

What to do if the motor does not start?

Check the mains voltage and fuses. Inspect the power cord: if damaged, replace it. If the problem persists, contact the manufacturer or a qualified electrician.

Is this mixer suitable for professional use?

The PM1400 is designed for domestic and hobby use. The manufacturer declines any liability for commercial, craft, or industrial use.

User questions about PM1400 SCHEPPACH

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Cement mixer in PDF format for free! Find your manual PM1400 - SCHEPPACH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PM1400 by SCHEPPACH.

USER MANUAL PM1400 SCHEPPACH

SCHEPPACH PM1400 - 1

Made in P.R.C.

DE	Elektro-Farb- und MörtelrührwerkOriginalbetriebsanleitung	5
GB	Electric paint and mortar stirrerTranslation of original instruction manual	18
FR	Malaxeur électriqueTraduction des instructions d'origine	28
IT	Agitatore per vernici e malte elettronicoLa traduzione dal manuale di istruzioni originale	39
NL	Elektrische verf- en mortelmengerVertaling van de originele gebruikshandleiding	49
ES	Mezclador de pintura y mortero de bateríaTraducción del manual de instrucciones original	59
PT	Agitador de argamassa e tinta elétricoTradução do manual de operação original	70
CZ	Elektrické míchací zařízení barev a maltyPřeklad originálního návodu k obsluze	80
SK	Elektrické miešadlo farieb a maltyPreklad originálneho návodu na obsluhu	90
HU	Elektromos festék- és habarcskeverőEredeti használati utasítás fordítása	100
PL	Elektryczne mieszadło do farb i zaprawTłumaczenie oryginalnej instrukcji obsługi	110
HR	Električna miješalica lakova i mortaPrijevod originalnog priručnika za uporabu	121
SI	Električni mešalnik za barvo in maltoPrevod originalnih navodil za uporabo	131

EE	Elektriline värvi- ja mõrdisegamismehhanismOriginaalkäitusjuhendi tõlge	141
LT	Elektrinis dažu ir skiedinio maišytuvasOriginalios naudojimo instrukcijos vertimas	151
LV	Elektriskais krāsas un javas maisītājsOriginalās lietošanas instrukcijas tulkojums	161
SE	Eldriven färg- och murbruksblandareÖversättning av original-bruksanvisning	171
FI	Sähkötoiminen maalin ja laastin sekoittajaKäännös alkuperäisestä käyttöohjeesta	180
DK	Eldrevet maling- og mørtelrøreværkOversættelse fra den oprindelige betjeningsvejledning	190
NO	Elektrisk malings- og mørtelrøreverkOversettelse av den originale brukerveiledningen	200
BG	Електрическа бъркачка за боя и хоросанПревод на оригиналното ръководство за експлоатация	210
GR	Нлектрікоç аваđеутήраç ковиаμάτων και χρωμάτωνΜετάφραση του πρωτοτύπου των οδηγιών χρήσης	221
RO	Amestecător electric de vopsea şi mortarTraducere din manualul de exploatare original	232
RS	Električna mešalica za boju i malterPrevod originalnog uputstva za upotrebu	242
TR	Elektrikli boya ve harç karıştırma cihazıOrijinal kullanım talimatı çevirisi	252

1
SCHEPPACH PM1400 - 2

SCHEPPACH PM1400 - 3

2
SCHEPPACH PM1400 - 4

SCHEPPACH PM1400 - 5

3
SCHEPPACH PM1400 - 6

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Homepage: https://www.scheppach.com/de/service

Explanation of the symbols on the device

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Read the operating and safety instructions before start-up and follow them!
	Wear hearing protection.
[PHY4]	Wear respiratory protection if dust is produced.
	Wear eye protection.
	Protection class II
	The product complies with the applicable European directives.
	The product complies with the applicable Serbian directives.

Table of contents: Page:

Introduction....20
Device description (fig. 1)....20
Scope of delivery 20
Proper use 20
General safety information 21
Technical data....23
Unpacking 23
Assembling (fig. 2 - 4)....24
Commissioning 24
Maintenance and care 24
Electrical connection 25
Storage 26
Disposal and recycling....26
Troubleshooting 27
Declaration of conformity 264

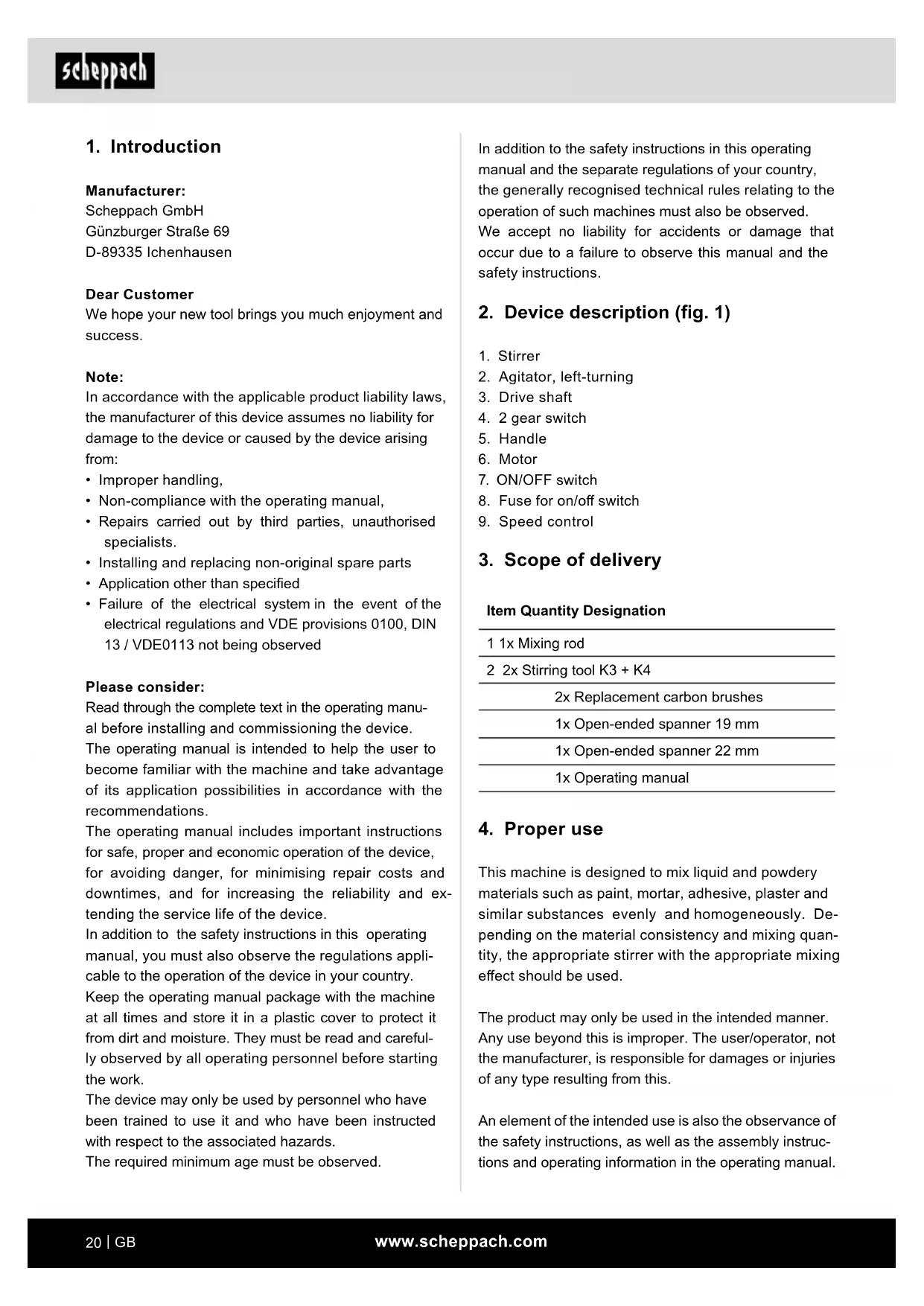

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new tool brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

Improper handling,
• Non-compliance with the operating manual,
• Repairs carried out by third parties, unauthorised specialists.
• Installing and replacing non-original spare parts
• Application other than specified
Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 13 / VDE0113 not being observed

Please consider:

Read through the complete text in the operating manual before installing and commissioning the device.

The operating manual is intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country.

Keep the operating manual package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards.

The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

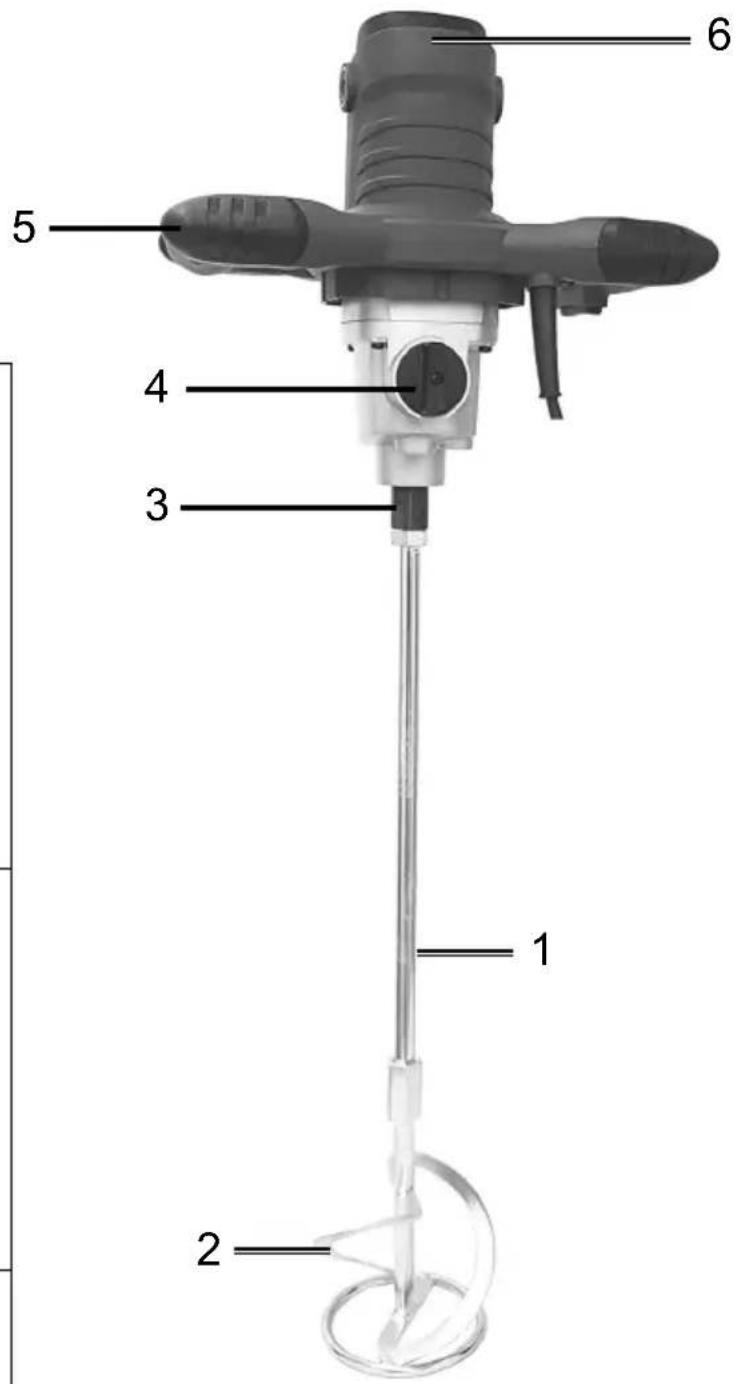

2. Device description (fig. 1)

Stirrer
Agitator, left-turning
Drive shaft
2 gear switch
Handle
Motor
ON/OFF switch
Fuse for on/off switch
Speed control

3. Scope of delivery

Item Quantity Designation

1 1x Mixing rod

2 2x Stirring tool K3 + K4

2x Replacement carbon brushes

1x Open-ended spanner 19 mm

1x Open-ended spanner 22 mm

1x Operating manual

4. Proper use

This machine is designed to mix liquid and powdery materials such as paint, mortar, adhesive, plaster and similar substances evenly and homogeneously. Depending on the material consistency and mixing quantity, the appropriate stirrer with the appropriate mixing effect should be used.

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product. The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

5. General safety information

General power tool safety warnings

⚠ WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

ATTENTION!

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the machine.

Mixer safety instructions

a) Always hold the power tool with both hands on the intended handles. Loss of control can cause personal injury.

b) Ensure sufficient ventilation when mixing flammable materials to avoid a hazardous atmosphere. Developing vapour may be inhaled or be ignited by the sparks the power tool produces.

c) Do not mix food. Power tools and their accessories are not designed for processing food.

d) Keep the cord away from the working area. The cord may be entangled by the stirrer.

e) Ensure that the mixing container is placed in a firm and secure position. A container that is not properly secured may move unexpectedly.

f) Ensure that no liquid splashes against the housing of the power tool. Liquid that has penetrated the power tool can cause damage and lead to electric shock.

g) Follow the instructions and warnings for the material to be mixed. Material to be mixed may be harmful.

h) If the power tool falls into the material to be mixed, unplug the power tool immediately and have the power tool checked by a qualified repair person. Reaching into the mixing container with the power tool still plugged in can lead to electric shock.
i) Do not reach into the mixing container with your hands or insert any other objects into it while mixing. Contact with the stirrer may lead to serious personal injury.
j) Start up and run down the power tool in the mixing container only. The stirrer may bend or spin in an uncontrolled manner.

Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

Danger of injury for fingers and hands due to the rotating stirrer.
Hazard due to electrical power with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
Residual risks can be minimised if the "Safety instructions" and "Intended use" are observed along with the complete operating instructions.

6. Technical data

Rated voltage	230 V~ 50 Hz
Power consumption	1400 W
Idle speed	0-570 min ^-1 / 0-760 min ^-1
Stirrer receptacle	M14
Protection class	II
Weight	4.9 kg

Subject to technical modifications!

Noise and vibration

The noise and vibration levels have been determined in accordance with EN 60745.

Sound pressure level L_pA	89 dB
Uncertainty K_pA	3 dB
Sound power level L_WA	100 dB
Uncertainty K_WA	3 dB

Wear hearing protection.

Excessive noise can result in a loss of hearing.

Total vibration emission values (vector sum of three directions) determined according to EN 60745.

Vibration emissions value a_h = 5,673 m/s ^2

Uncertainty K = 1,5 m/s ^2

Additional information for electric tools Warning!

The specified vibration emission value has been measured according to a standardised testing procedure and can be used for comparison of one power tool with another; and may change depending on the way in which the power tool is used and in exceptional cases may be higher than the specified value.

The specified vibration emission value can be used to compare one power tool with another.

The specified vibration emission value can also be used for an initial estimation of the impair.

Keep the noise level and vibration to a minimum!

Only use devices which are free of defects.
Maintain and clean the device at regular intervals.
Adapt your working methods to the device.
Do not overload the device.
Have the device checked if necessary.
Switch the device off if it is not in use.
Wear gloves.

7. Unpacking

Open the packaging and carefully remove the product.
Remove the packaging material, as well as the packaging and transport safety devices (if present).
Check whether the scope of delivery is complete.
Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
If possible, keep the packaging until the expiry of the warranty period.
Familiarise yourself with the product by means of the operating manual before using for the first time.
With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
When ordering please provide our article number as well as type and year of manufacture for the product.

WARNING!

The product and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

8. Assembling (fig. 2 - 4)

⚠ Attention!

Always make sure the product is fully assembled before commissioning!

1) Turn the mixing rod (1) clockwise into the mixing element (2). (Fig. 2)
2) Then screw the assembled mixing rod into the drive shaft (3). (Fig. 3)

DANGER!

Only use a mixing rod that is suitable and designed for the material to be mixed. An incorrect mixing rod can damage the device due to overloading and cause accidents!

To remove, turn the mixing rod counterclockwise out of the drive shaft. The rod can be very tight in this mount. In this case, the holder must be secured against turning with a key. (Fig. 4)

9. Commissioning

Switch on and off

Switching on (fig. 1)

Press and hold the on/off switch fuse (8); now you can press the on/off switch (7) to start the hand mixer. As soon as the device is working, you can release the safety device for the on/off switch (8).

Switching off (fig. 1)

Release the on/off switch (7). The fuse for the on/off switch (8) switches off automatically as well.

Speed control (fig. 1)

The speed of the device can be set in stages with the speed controller (9). The type of material being mixed will determine what speed is required. The best way to learn the optimum speed is through practice.

2-speed gearbox (fig. 1)

The device is equipped with an 2-speed gearbox. If the gear switch cannot be locked, turn the stirrer slightly.

• To select a gear, turn the switch (4) 180°.
1. Gear:0 min until 570 min ^-1
2. Gear:0 min until 760 min ^-1

Actuate the gear switch only when at a standstill.

Working with the paint and mortar stirrer

When changing the stirrer, the mains plug must be pulled out.
When dipping into the mix or removing it from the mix, work at a reduced speed. After complete immersion, increase speed to maximum to ensure adequate motor cooling.
Guide the machine through the mixing vessel during the mixing process. Mix until the entire mixture has been completely worked through.
• After completing the mixing work, clean the stirrer

Area of application of the agitators (Fig. 1)

The left-turning agitator (2a) is used for low-viscosity substances such as: Different types of paints, varnishes, glazes, wallpaper paste, sealing compounds, bitumen, chemicals, red lead, cement slurries
The right-turning agitator (2b) is used for high-viscosity substances such as: Adhesive and ready-mixed mortars, adhesive binders, gypsum, lime, cement plaster, screed, concrete, tile adhesive, glue, putty, pastes, granulate

10. Maintenance and care

Before any maintenance and cleaning work:

Switching off the device
Wait for the device to stop
• Pull out the mains plug

Only use original parts. Other parts can lead to unpredictable damage and injuries.

Repair work beyond this may only be carried out by the manufacturer or customer service.

Store the device out of the reach of children.

Note the following to maintain the functionality of the device:

Keep ventilation slots free and clean
Remove dust and dirt with a cloth or a soft brush
Do not clean the machine with running water or high-pressure cleaners.
Do not use any solvents (petrol, alcohol, etc.) on the plastic parts as they can damage the plastic parts.
Clean the stirrers.
The mixer is equipped with carbon brushes. If they are worn, have the carbon brushes replaced by customer service.

For your own safety, check the mixer regularly for damage. Replace a damaged mixer immediately.

Check the stirrer regularly. A stirrer with a defective stirrer shaft must no longer be used. Have the device serviced if necessary.

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*:Mixing rod, carbon brushes

* may not be included in the scope of supply!

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

Spare parts / accessories

Carbon brushes - Article no.: 3907801002

Mixer rod right-turning - Article no.: 5907800702

Mixer rod left-turning - Article no.: 5907800701

Mixer attachment - Article no.: 3907801009

11. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

- The product fulfils the requirements of EN 61000-3-11 and is subject to special connection requirements. This means that use at any freely selectable connection points is not permitted.

The product can cause temporary voltage fluctuations in unfavourable mains conditions.
The product is only intended for use at connection points that
a) do not exceed a maximum permissible mains impedance "Z" (Zmax. = 0.25 Ω), or b) have a mains constant current carrying capacity of at least 100 A per phase.
As the user, you are required to ensure that the connection point at which you wish to operate the product fulfils one of the requirements mentioned, a) or b). If necessary, consult with your energy supplier in this regard.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

Pressure points, where connection cables are passed through windows or doors.
Kinks where the connection cable has been improperly fastened or routed.
Places where the connection cables have been cut due to being driven over.
• Insulation damage due to being ripped out of the wall outlet.
Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with designation H05VV-F.

The printing of the type designation on the connection cable is mandatory.

AC motor

• The mains voltage must be 220 - 240 V\~.
- Extension cables up to 25 m long must have a cross-section of 1.5 square millimetres.

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Data of machine type plate
- Motor data - type plate

Connection type X

If the mains connection cable of this product is damaged, it must be replaced by a specially prepared mains connection cable which can be obtained from the manufacturer or its service department.

12. Storage

The entire device and accessories must be cleaned thoroughly.
• Always store the device out of the reach of children. Place in a stable position in a dry and safe place where extremely high or extremely low temperatures cannot occur.
Protect the stored device from sunlight, if possible place it in darkened areas.
Do not wrap the device in bags or tarpaulins made of nylon or plastic, as moisture can form in these.

13. Disposal and recycling

Notes for packaging

SCHEPPACH PM1400 - Notes for packaging - 1

SCHEPPACH PM1400 - Notes for packaging - 2

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

SCHEPPACH PM1400 - Notes on the electrical and electronic equipment act [ElektroG] - 1

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.
Owners or users of electrical and electronic devices are legally obliged to return them after use.
The end user is responsible for deleting their personal data from the old device being disposed of!
The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

- Waste electrical and electronic equipment can be handed in free of charge at the following places:

Public disposal or collection points (e.g. municipal works yards)
Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.

- These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

14. Troubleshooting

Fault Possible cause Remedy
Motor does not start	No mains voltage (power failure) Check fuse
	Connection cable defective	Replace cable or have cable checked (electrician) no longer use defective cables
	Motor or switch faulty	to solve the problem, contact the manufacturer or a company named by him
Unusual vibrations	Damaged mixer Replace mixer
	Mixing shaft damaged	to solve the problem, contact the manufacturer or a company named by him
	Wrong mixing material	Wrong processing Observe the manufacturer's processing instructions
The device starts up, but blocks when the load is low and may switch off automatically.	Extension cable too long or cross-section too small.	Extension cable must be at least 1.5 mm2 with a maximum length of 25 m.
	Socket too far from the main connection and too small cross-section of the connection cable.	For longer cables, cross-section must be at least 2.5 mm2.

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

2-stupňová prevodovka (obr. 1)

Günzburger Straße 69

D-89335 Ichenhausen

Kedves Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie,

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupci,

Regulator brzine (sl. 1)

Regulatorom brzine (9) može se kontinuirano namjestiti brzina vrtnje uređaja. Vrsta miješanog materijala određuje potrebnu brzinu. Optimalnu brzinu najbolje se odrediti u praksi.

Günzburger Straße 69

D-89335 Ichenhausen


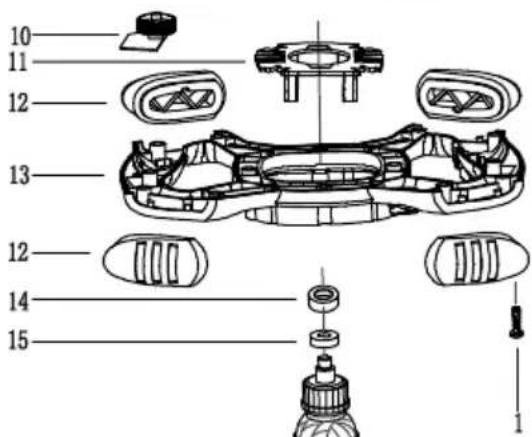

SCHEPPACH PM1400 - İthalatçı: - 2

SCHEPPACH PM1400 - İthalatçı: - 3

SCHEPPACH PM1400 - İthalatçı: - 4

EU Declaration of Conformity

2000/14/EG_2005/88/EG
	Noise: measured Lv/A = xx dB; guaranteed Lv/A = xx dB
	Annex V
	Annex VI

SCHEPPACH PM1400 - EU Declaration of Conformity - 1

	2016/1628/EU
	Emission. No:

AB uygunluk beyanı

Scheppach GmbH, Günzburger Str. 69, D-89335 Ichenhausen

DE	erklärt folgende Konformität gemäß EU-Richtlinien und Normen für den Artikel	RO	declară următoarea conformitate corespunzător directivelor și normelor UE pentru articolul
GB	hereby declares the following conformity under the EU Directive and standards for the following article	GR	đenlăvlei tnu akolouh Σuμρόφωση σύμφωνα με tnu Oδηγία EE kai ta πρότιπα για to προϊόν
BG	декларира съответното съответствие съгласно Дирек-тива на EC и норми за артикул	TR	Burada açıklanan ürünün geleçli yönetmeliklere ve standartlara uygun oldugunu tamamen kendi sorumluluğumuz altinda beyan ediyoruz.
RS	potvrđuje sledeću usklađenost prema smernicama EZ i normama za artikal	TR

Standard references:

EN 62841-1:2015/A11:2022; EN 62841-2-10:2017; EN 55014-1:2017/A11:2020; EN IEC 55014-1:2021;

EN55014-2:2015; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019; EN IEC 61000-3-2:2019/A1:2021

EN IEC 61000-3-11:2019

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Subject to change without notice

Documents registrar: Niko Vraschek

Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.
