Product Type	Cement mixer
Brand	Scheppach
Model	MIX180
Power supply	230 V / 50 Hz
Motor power	0.8 kW
Full load current	3.62 A
Max. drum speed	29.5 min⁻¹
Drum capacity	180 liters
Drum opening diameter	390 mm
Protection rating	IP45D
Operating mode	S6 30% (continuous operation with intermittent load)
Protection class	II
Dimensions (L x W x H)	1260 x 850 x 1400 mm
Weight	56.5 kg
Sound pressure level LpA	67.98 dB(A)
Sound power level LWA	87.98 dB(A)
Guaranteed sound power level LWA	93 dB(A)
Mobility	Transport wheels and swivel wheel
Thermal protection	Integrated safety shutdown in case of overload
Wear parts	V-belt
Cleaning	Brush or scraper; do not immerse or use high-pressure cleaner
Intended use	Mixing concrete and mortar for private domestic use
Warranty	Defective parts replaced free of charge during the legal period (excluding labor)

Frequently Asked Questions - MIX180 SCHEPPACH

How to assemble the MIX180 cement mixer?

Assembly must be carried out by two people. Follow the steps in order: mounting of the transport wheels, the stand leg, the lower part of the drum, the mixing mechanism, the upper part of the drum, the swivel wheel, and finally the motor unit. Use the included bags (A to H) and recommended tools: open-end wrenches SW10, SW13, SW16, universal pliers, and a Phillips screwdriver.

What is the maximum capacity of the cement mixer?

The drum capacity is 180 liters. Do not overfill the drum: pour the mixture in small quantities to avoid blockages and ensure a homogeneous mix.

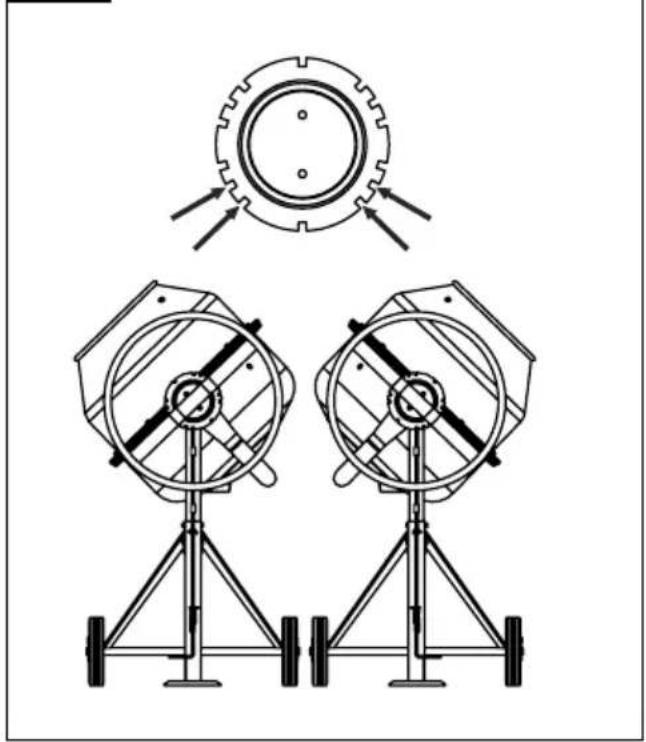

How to adjust the drum position for mixing?

Use the actuating rod (16) with your foot to loosen the swivel device. Pivot the drum to the desired position: for mortar, see fig. 12a; for concrete, fig. 12b. Then engage the rod into the lock washer.

What to do if the motor does not start?

First check the mains voltage and the fuse. If the connection cable is damaged, have it checked or replaced by a qualified electrician. Make sure the On/Off switch is in the 'I' position.

How to clean the cement mixer after use?

Stop the motor and unplug the plug. Clean the inside and outside of the drum with a brush or scraper. For the inside, pour a few shovels of gravel with water. Never immerse the motor unit and do not use a high-pressure cleaner.

Is it possible to transport the cement mixer on the job site?

Yes, for short transport, place the drum with the opening facing down, tilt the cement mixer slightly and move it on the transport wheels. For transport by vehicle, retract the stand leg and secure the device with a strap.

What safety precautions must be observed?

Wear personal protective equipment (shoes, gloves, goggles, mask). Never put your hands into the moving drum. Unplug the plug before any cleaning or maintenance. Use the cement mixer only on a flat and stable surface.

How to store the cement mixer in winter?

Store it in a dark, dry, frost-free place at a temperature between 5 and 30°C. Cover it to protect from dust and moisture. Keep the user manual nearby.

What to do if the motor stops during use?

This may be due to overload: let the motor cool down for about 15 minutes. Also check that the air intake and exhaust openings are not clogged; clean them if necessary.

Where to find spare parts for the MIX180?

Spare parts and accessories are available from the Scheppach service center. Scan the QR code on the home page of the manual. Use only original parts to ensure safety and compliance.

USER MANUAL MIX180 SCHEPPACH

Exterior view of a concrete mixer on a wheeled stand (no text or symbols visible)

https://www.scheppach.com/da/service scheppach

Made in P.R.C.

MIX160 / MIX180

DE	BetonmischerOriginalBetriebsanleitung	7
GB	Concrete mixerTranslation of original instruction manual	21
FR	BétonnièreTraduction des instructions d'origine	32
IT	BetonieraLa traduzione dal manuale di istruzioni originale	44
NL	BetonmixerVertaling van de originele gebruikshandleiding	56
ES	HormigoneraTraducción del manual de instrucciones original	67
PT	BetoneiraTradução do manual de operação original	79
CZ	Míchač betonové směsiPřeklad originálního návodu k obsluze	91
SK	Miešačka betónuPreklad originálneho návodu na obsluhu	102
HU	BetonkeverőEredeti használati utasítás fordítása	113
PL	BetoniarkaTłumaczenie oryginalnej instrukcji obsługi	124
HR	Betonska miješalicaPrijevod originalnog priručnika za uporabu	136
SI	Mešalnik za betonPrevod originalnih navodil za uporabo	147

EE	BetoonisegurOriginaalkäitusjuhendi tõlge	158
LT	Betono maišyklėOriginalios naudojimo instrukcijos vertimas	169
LV	Betona maisītājsOriginālās lietošanas instrukcijas tulkojums	180
SE	BetongblandareÖversättning av original-bruksanvisning	191
FI	BetonisekoitinKäännös alkuperäisestä käyttöohjeesta	202
DK	BetonblanderOversættelse fra den oprindelige betjeningsvejledning	213
NO	BetongblanderOversettelse av den originale brukerveiledningen	224
BG	БетоносмесителПревод на оригиналното ръководство за експлоатация	235
GR	Αναμεικτήρας σκυροδέματοςΜετάφραση του πρωτοτύπου των οδηγιών χρήσης	247
RO	BetonierăTraducere din manualul de exploatare original	259
RS	Mešalica za betonPrevod originalnog uputstva za upotrebu	270
TR	Beton karıştırıcıOrijinal kullanım talimatı çevirisi	281

1

Technical diagram of a concrete mixer with numbered parts labeled for identification.

2

4 9 10 13 168117 17 5 12 15 14 19 2 2 18

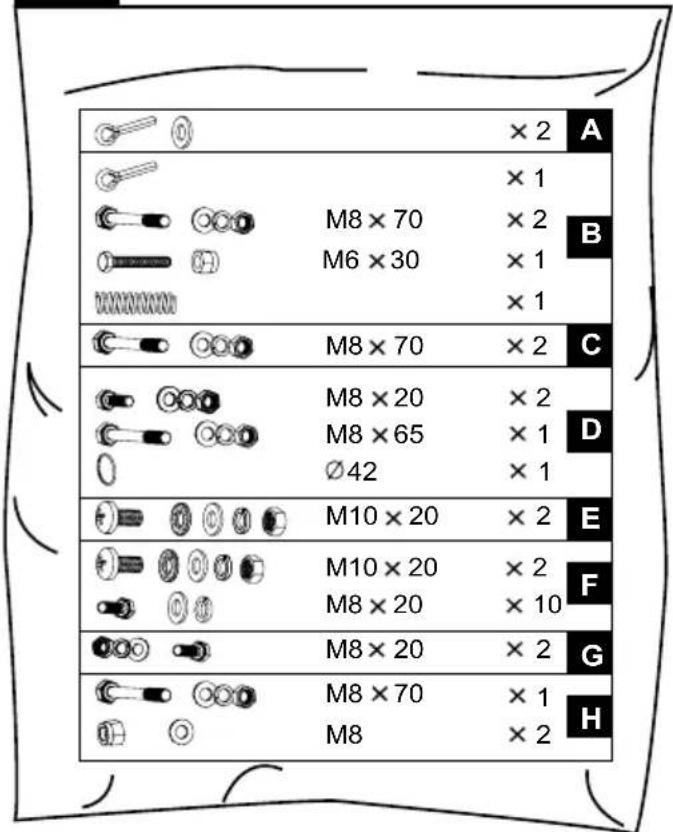

3

× 2 A × 1 M8 × 70 × 2 B M6 × 30 × 1 × 1 M8 × 70 × 2 C M8 × 20 × 2 D M8 × 65 × 1 Ø42 × 1 M10 × 20 × 2 E M10 × 20 × 2 F M8 × 20 × 10 G M8 × 20 × 2 H M8 × 70 × 1 M8 × 2

5 17 11 16 8 B × 1 M8 × 70 × 2 M6 × 30 1 × × 1

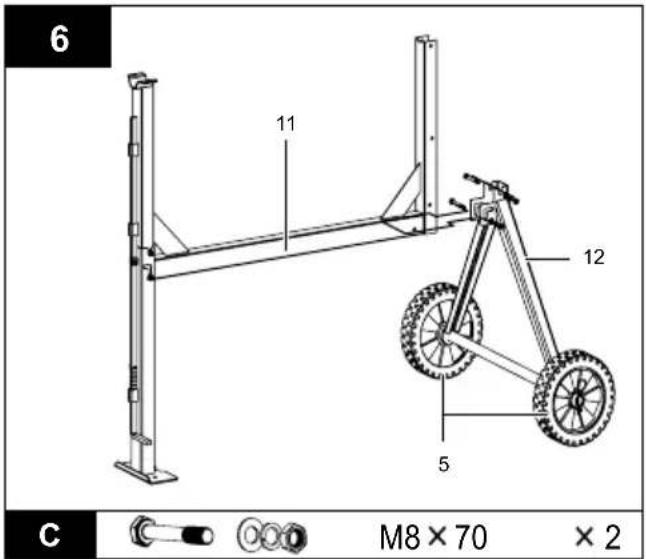

6 11 12 5 C M8 × 70 × 2

7 15 10 11 8 12 14 D M8 × 20 × 2 M8 × 65 × 1 Ø42 × 1

4

5 12 5

A

8

2 2 10 11

E

M10×20

× 2

9

Technical diagram of a concrete mixer with numbered components and labeled parts

F

M10×20

× 2

M8 × 20

×10

10

7 13 13a

G

M8×202

×

11

Technical diagram of a concrete mixer with labeled parts 1 and 4

H

M8×70

× 1

M8

× 2

12a

Technical line drawing of two mechanical components with gear and support structures (no text or symbols)

12b

Pure mechanical gear diagram without any text, numbers, or symbols

Technical line drawing of a mechanical device with tripod base and circular components (no text or symbols)

Technical line drawing of a mechanical device with rotating components and support legs (no text or symbols)

Pure mechanical diagram showing a gear-like component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with tripod base and circular components (no text or symbols)

Technical line drawing of a mechanical device with tripod base and circular components (no text or symbols)

12

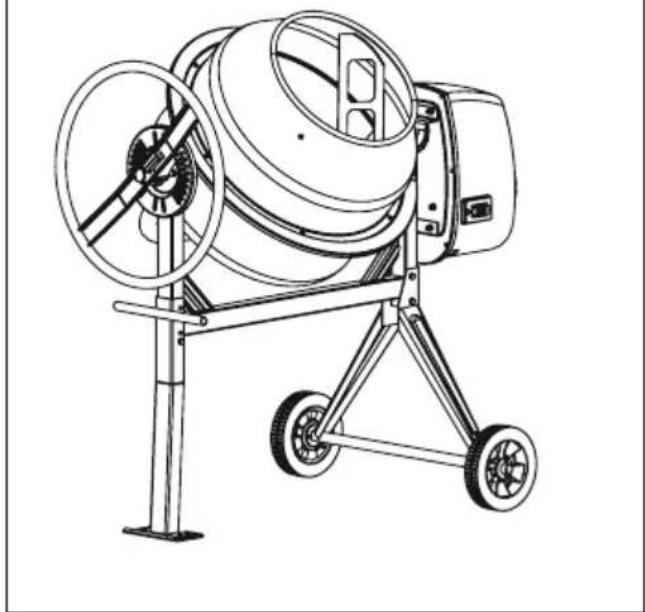

Line drawing of a mechanical mixing press with wheels and a central fan (no text or symbols)

L N FR SB1 KM SB2 M FR C

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Homepage: https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the device

	Before commissioning, read and observe the operating manual and safety instructions!
	Place the concrete mixer horizontally on level and firm floor!
	Concrete mixer must not be moved during operation!
	Keep unauthorised persons and children away from the device!
	The device has protective insulation!Attention! The protection class is only maintained if original insulating materials are used during servicing and the insulation distances are not changed.
	Pull out the mains plug before cleaning or maintenance!
	Concrete mixer may only be operated with the guard fully closed!
	Wear protective clothing!
	Do not reach into the drum when it is moving!
	Caution!Danger of crushing on the sprocket!

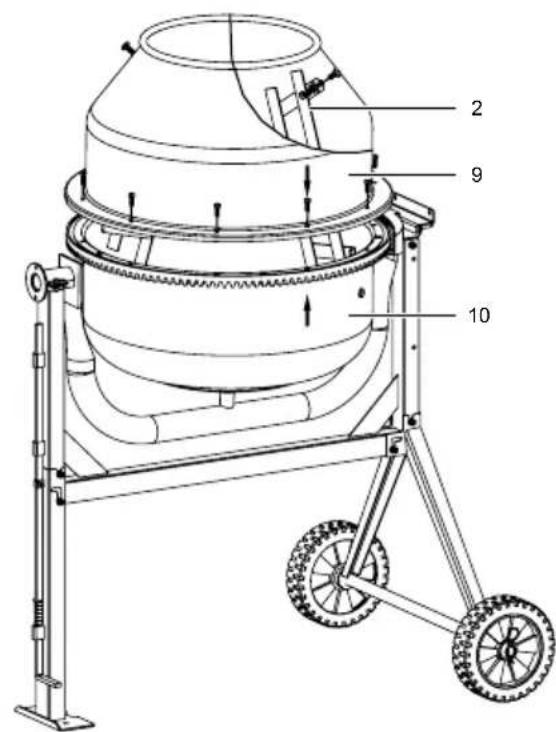

	Assembly aid!See: Assembly, Fitting the drum upper section (Fig.6)
	The product complies with the applicable European directives.
	The product complies with the applicable Serbian directives.

Table of contents: Page:

1. Introduction....23
2. Product description.... 23
3. Scope of delivery 23
4. Proper use 23
5. Safety instructions 24
6. Residual risks 25
7. Technical data....25
8. Unpacking 26
9. Assembly / Before commissioning 26
10. Start-up 27
11. Electrical connection 29
12. Cleaning 29
13. Transport....29
14. Storage 30
15. Maintenance 30
16. Disposal and recycling....30
17. Troubleshooting 31
18. Declaration of conformity 293

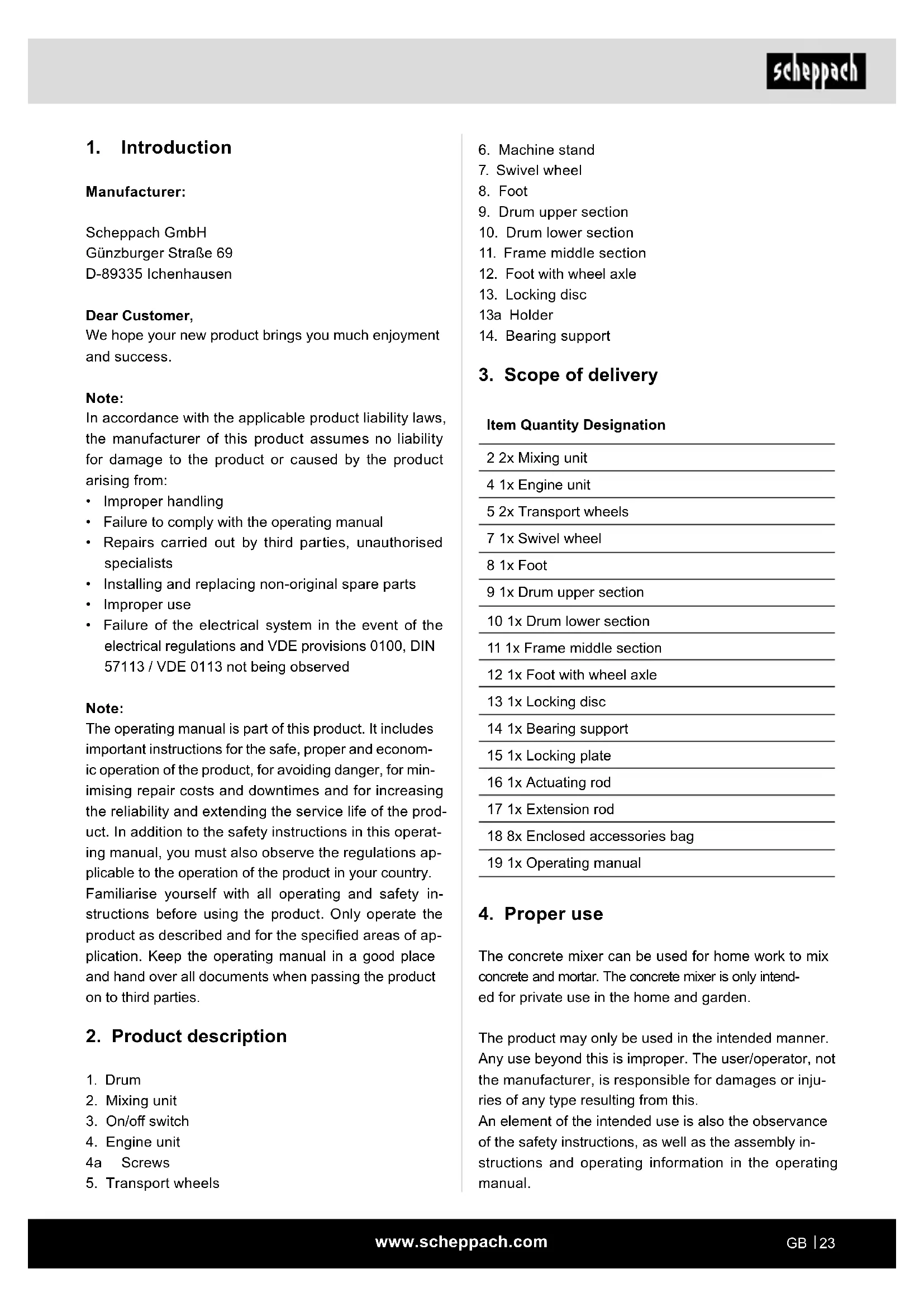

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
• Failure to comply with the operating manual
• Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed

Note:

The operating manual is part of this product. It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country. Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

2. Product description

1. Drum
2. Mixing unit
3. On/off switch
4. Engine unit
   4a Screws

5. Transport wheels

6. Machine stand

7. Swivel wheel
8. Foot
9. Drum upper section
10. Drum lower section
11. Frame middle section
12. Foot with wheel axle
13. Locking disc
    13a Holder
14. Bearing support

3. Scope of delivery

Item Quantity Designation

2 2x Mixing unit

4 1x Engine unit

5 2x Transport wheels

7 1x Swivel wheel

8 1x Foot

9 1x Drum upper section

10 1x Drum lower section

11 1x Frame middle section

12 1x Foot with wheel axle

13 1x Locking disc

14 1x Bearing support

15 1x Locking plate

16 1x Actuating rod

17 1x Extension rod

18 8x Enclosed accessories bag

19 1x Operating manual

4. Proper use

The concrete mixer can be used for home work to mix concrete and mortar. The concrete mixer is only intended for private use in the home and garden.

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

The manufacturer is not liable for damage caused by improper use or incorrect operation.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

5. Safety instructions

General safety instructions

⚠ WARNING: When using power tools, the basic safety precautions below must be followed in order to reduce the risk of fire, electric shock, and personal injury.

Please read all instructions before working with this device.

- Observe all safety information and danger notices on the device.

- Ensure that all of the safety and danger notices on the product are complete and in legible condition.

- The safety equipment on the product must not be disassembled or made unusable.

- Check the mains connection cables. Do not use defective connection cables.

- Check for correct function of the device before first use.

- Keep unauthorised persons and children away from the concrete mixer.

- Persons under the influence of alcohol, drugs or medication are not permitted to use the equipment.

- The operator is obligated to wear their personal protective equipment (PPE).

- Caution when working: Danger of injury due to rotating parts.

- Only carry out cleaning and maintenance work and rectify faults when the motor is switched off. Pull out the mains plug!

• Installation, repairs and maintenance work on the electrical equipment may only be carried out by electricians.

- All protective and safety equipment must be reassembled immediately after repair, maintenance is completed.

- Switch off the motor and pull out the mains plug before leaving the work area!

- Ensure adequate lighting. Poor lighting can significantly increase the danger of injury!

- In an emergency, switch the device off and pull out the mains plug!

- Never place your hands on moving parts of the machine when it is switched on. There is a danger of entanglement due to the rotating drum and rotating mixing tools.

- The device must not be operated while being moved to another location!

- The device may only be positioned on a level surface!

- There is a danger of breathing in toxic vapours and dusts.

Additional safety instructions for concrete mixer

- The concrete mixer may only be put into operation fully assembled.

- Check the connection cables for damage before commissioning.

• Wear safety shoes, gloves, safety goggles and a breathing mask.
• Keep hands and feet away from the moving parts.
• Do not reach into the mixing drum while it is running.
• Do not put any objects into the mixing drum while it is running, e.g. shovel or similar.
  • Danger of injury when the mixing drum is rotating.
• The concrete mixer may only be operated with original spare parts.
  • Repairs to the concrete mixer may only be carried out by authorised specialist companies.
• Do not leave ready-to-use concrete mixer unattended.
• Switch off the machine and pull out the mains plug when leaving the workstation.

6. Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Danger of injury due to rotating parts.
• Health hazard due to electrical power, with the use of improper electrical connection cables.
- Before performing setting or maintenance work, switch the motor off and unplug the mains plug.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
- Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
- Avoid accidental start-ups of the machine: Make sure that the ON/OFF switch is set to "0" before inserting the plug into the socket.
- Use the tool that is recommended in this operating manual. This is how to ensure that your machine provides optimum performance.
- Keep your hands away from the working area when the product is in operation.

⚠ Warning! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances.

In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

7. Technical data

MIX160 MIX180
Engine 230 V / 50 Hz	230 V / 50 Hz
Engine output 0.65 kW	0.8 kW
Max. drum speed 29.5 rpm	29.5 rpm
Full load current 2.94 A	3.62 A
Capacity 160 l 180 l
Diameter of drum opening	390 mm	390 mm
Protection category	IP45D	IP45D
Operating mode*	S6 30%	S6 30%
Protection class	II	II
Dimensions	1260 x 850 x 1350 mm	1260 x 850 x 1400 mm
Weight	53.8 kg	56.5 kg

Subject to technical changes!

*S6 30 %: Continuous duty with intermittent loading (operating time 10 min.)

In order to avoid impermissible overheating of the motor, the motor should be driven for only 30% of the operating time with the stipulated nominal power and must then continue to run with no load for the remaining 70% of the operating time.

Noise and vibration

⚠ Warning:

Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection.

Noise data

The noise levels have been determined in accordance with 2005/88/EC.

	MIX160	MIX180
Sound pressure level L_pA	69.75 dB	67.98 dB
Uncertainty K_pA	2.77 dB	5.14 dB
Sound power level L_WA	90.74 dB	91.78 dB
Uncertainty K_WA	1.20 dB	1.40 dB
Guaranteed sound power level L_WA	92 dB	93 dB

8. Unpacking

• Remove the concrete mixer from the box with two people.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
  • Familiarise yourself with the product by means of the operating instructions before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

⚠️ DANGER!

The device and the packaging are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

9. Assembly / Before commissioning

Attention!

Always make sure the device is fully assembled before commissioning!

In order to make assembly easier, assembly must be carried out by two persons.

The enclosed accessory bags (A to H) contain all the small parts required for assembly (see Fig. 3).

Tools required for assembly (not included in the scope of delivery):

• 2x Open-ended spanner, AF10
• 2x Open-ended spanner, AF13
• 1x Open-ended spanner, AF16
• 1x Combination pliers
• 1x Phillips screwdriver

9.1 Fitting the transport wheels (5) (enclosed accessory bag A) (Fig.4)

1. Place the transport wheels (5) on both sides of the foot with wheel axle (12).

2. Then push a washer onto the wheel axle on both sides.

3. Insert a split pin through the outer hole of the wheel axle on both sides.

4. Secure the transport wheels (5) by bending the split pins apart with suitable combination pliers (not included in scope of delivery).

9.2 Installing the foot (8), actuating rod (16) and extension rod (17) on the frame middle section (11) (enclosed accessories bag B) (Fig. 5)

1. Hold the foot (8) to the frame middle section (11) as shown. Select the holes such that the foot (8) is in the lower position.
2. Push the two M8x70 hexagonal screws through the holes.
3. Fix the screws with a washer, a spring washer and an M8 nut each.
4. Tighten all screws using two open-ended spanners (AF13) (not included in the scope of delivery).
5. Guide the actuating rod (16) from below through the mounting bracket provided.
6. Insert the spring from above over the actuating rod (16) and hold it in position by inserting the split pin into the lower hole.
7. Connect the actuating rod (16) to the extension rod (17) using the M6x30 hexagon bolt. Fix it with an M6 nut.
8. Tighten the screw using two open-ended spanners (AF10) (not included in the scope of delivery).

9.3 Installing the foot with wheel axle (12) and transport wheels (5) on the frame middle section (11) (enclosed accessories bag C) (Fig. 6)

1. Hold the foot with wheel axle (12) to the frame middle section (11).
2. Push the two M8x70 hexagonal screws through the holes.
3. Fix the screws with a washer, a spring washer and an M8 nut each.
4. Tighten all screws using two open-ended spanners (AF13) (not included in the scope of delivery).

9.4 Fitting drum lower section (10) (enclosed accessories bag D) (Fig. 7)

1. Fit the bearing support (14) onto the drum lower section (10) at the intended location as illustrated.
2. Fix the lower part of the drum (10) with the securing ring (see illustration).
3. At the same time, insert the bearing of the drum lower section (10) with the premounted bearing support (14) into the opening of the machine stand.

Make sure that the bearing support (14) is above the foot with wheel axle (12).

1. Pay attention to the position of the hole.
2. Push the M8x65 hexagonal screw through the hole.
3. Fix the screw with a washer, a spring washer and an M8 nut.
4. Secure the opposite side using the locking plate (15) and the two M8x20 hexagon bolts.
5. Fix the screws with a washer, a spring washer and an M8 nut each.
6. Tighten all screws using two open-ended spanners (AF13) (not included in the scope of delivery).

9.5 Fitting mixing unit (2) (enclosed accessories bag E) (Fig. 8)

1. Insert an M10x20 Phillips screw from the outside through the lower part of the drum (10).
2. Push one rubber washer each onto the Phillips-head screws just inserted in the lower drum part (10).
3. Now place the mixing unit (2) on the mounted cross-head screws and fix it with one washer, one spring washer and one M10 nut each.
4. The mixing unit (2) is not tightened until the upper part of the drum (9) has been mounted.

9.6 Fitting drum upper section (9) (enclosed accessories bag F) (Fig. 9)

1. Put the upper part of the drum (9) on the lower part of the drum (10). Make sure that the fixing holes of the upper and lower drum align with each other.
2. Attention! The glued-on arrows mark the exact alignment of the drum lower section (10) and drum upper section (9).
3. Fix the upper part of the drum (9) by inserting the ten M8x20 screws, the spring washers and washers.
4. Then tighten the screws crosswise using an open-ended spanner AF13 (not included in the scope of delivery).
5. Insert one M10x20 Phillips screw each through the upper part of the drum (9) from the outside.
6. Push one rubber washer each onto the Phillips-head screws just inserted in the upper part of the drum (9).

7. Attach the upper end of the mixing unit (2) by placing it on the Phillips screws just inserted. Fix it with one washer, one spring washer and one nut M10 on each.

8. Finally, tighten all four screws in the lower drum section (10) and upper drum section (9) using a Phillips screwdriver and an open-end spanner AF16 (not included in the scope of delivery).

9.7 Installing the swivel wheel (7) with locking disc (13) (enclosed accessories bag G) (Fig. 10)

1. Push the swivel wheel (7) with the pre-assembled locking disc (13) onto the outer flange.
2. Fix this to the mounting bracket (13a) with the two hexagonal screws M8x20 and one washer, one spring washer and one nut M8 each. Make sure that the screws are inserted from the inside to the outside
3. Then tighten the screws using one or two open-ended spanners (AF13) (not included in the scope of delivery).

9.8 Installing the motor unit (4) (enclosed accessories bag H) (fig. 11)

1. Position the motor unit (4) such that the threaded bolts match the holes.
2. Now push the motor unit (4) completely onto the shaft.
3. Then secure the motor unit (4) to the threaded bolts using two washers and two M8 lock nuts.
4. Push the hexagon bolt M8x70 through the mounting bracket on the motor unit (4) and the hole in the frame centre section (11).
5. Fix the screw with a washer, a spring washer and an M8 nut.
6. Tighten all screws and nuts using two open-ended spanners (AF13) (not included in the scope of delivery).

10. Start-up

⚠ Attention!

Always make sure the device is fully assembled before commissioning!

Only operate the concrete mixer if no parts (e.g. protective covers) are missing or faulty and if the connection cable is not damaged.

10.1 Setting up

• Set up the concrete mixer horizontally on level, firm ground. Prevent the machine from sinking.
• Do not set up the concrete mixer on the connection cable!
• Lay the connection cable so that it cannot be kinked, crushed or damaged in any other way.

Note:

The drum must be able to swivel to the right and left. Make sure that a sufficient container (e.g. a mortar bucket) is beneath the drum for emptying the drum. When setting up the machine, make sure that the mixing drum can be emptied freely.

10.2 Switching on/off (Fig.1)

ATTENTION!

Danger of injury!

A rotating mixing drum can lead to injuries.

• Do not reach into the mixing drum while it is running.

• Do not put any objects into the mixing drum while it is running (e.g. shovel or similar).

• Connect a suitable extension cable to the connection cable of the concrete mixer.

• Plug the extension cable into the socket.
• Press the on/off switch (3) "I" (green button) to start the device.
• Press the on/off switch (3) "0" (red button) to switch off the device.

10.2.1 Thermal protection

With overloading or overheating, the protective shut-down integrated in the device switches off for safety reasons.

1. Wait approx. 15 minutes until the motor has cooled down.

2. Restart the device by pressing the on/off switch (5) "l" (green button).

10.3 Adjusting the drum (1) (Fig. 1, Fig. 12a/12b)

The concrete mixer must be engaged in a certain mixing position for concrete and mortar production. Only the correct mixing position ensures the best mixing ratio and guarantees a trouble-free working process.

1. Always hold the swivel wheel (7) firmly to adjust the drum (1).
2. Release the swivel mechanism by pressing the actuating rod (16) downwards with your foot. The latch is released from the locking disc (13).
3. Swivel the drum (1) to the position that corresponds with your mix.

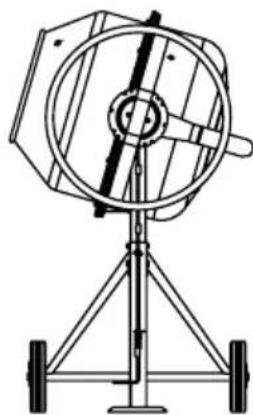

4. Fig. 12a: Drum position for the production of mortar.

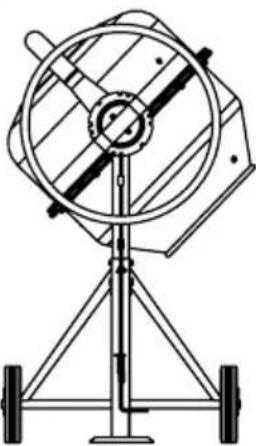

5. Fig. 12b: Drum position for the production of concrete.
6. When the drum (1) is in the desired position, engage the actuating rod (16) into the locking disc (13) again.

10.4 Filling (Fig. 12a + 12b)

ATTENTION!

Health risk and danger of injury!

Breathing in dust can cause damage to health. Do not touch the cement or admixtures without protective gloves.

• Wear a breathing mask.
• Wear protective gloves and never reach into the mixing drum while it is running.

⚠ WARNING!

Tipping hazard!

Pay attention to the stability of the concrete mixer before filling.

• Only operate the concrete mixer on a firm, level (non-tilting) surface.
• Do not change the location of the concrete mixer when filling or when the drum is running.

• Only operate the concrete mixer on a firm, level (non-tilting) surface.

• Press the on/off switch (3) "I" (green button) to start the device.

• Check the mixing position on the locking disc (13).
• Fig. 12a: Drum position for the production of mortar.
• Fig. 12b: Drum position for the production of concrete.
• Fill the mix while the drum is running (1). Do not overfill the drum (1). Caution! Danger from moving parts!
• Do not throw material into the drum (1) with great momentum in order to prevent it sticking to the underside of the drum (1). Feed in the material in small portions.
• Before filling, make sure that the opening of the drum (1) is aligned so that no mix can fall out of the drum (1).

Note: Ask a specialist for advice about the composition and quality of the mix.

10.5 Emptying (Fig. 12c)

1. Place a sufficient container (e.g. a mortar bucket) beneath the drum (1). Make sure that no mix can get onto the floor.
2. Unlock the swivelling device by pulling the pivoting handle (1) towards you. The latch is released from the locking disc (14).
3. Now swivel the drum (1) downwards slowly to empty it.

11. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

11.1 Damaged electrical connection cables

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fixed or routed.
• Places where the connection cables have been cut due to being driven over.
  • Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the designation H07RN.

The printing of the type designation on the connection cable is mandatory.

For single-phase AC motors, we recommend a fuse rating of C 16A or K 16A for machines with a high starting current (from 3000 watts)!

12. Cleaning

⚠ WARNING!

Danger of injury!

The product can start unexpectedly and cause injuries.

- Switch off the motor before carrying out any cleaning or maintenance work.

- Disconnect the mains plug before carrying out any cleaning work.

NOTE!

Risk of damage!

Damage to the motor can occur if water penetrates into the motor unit. Do not tap on the mixing drum with hard objects (hammer, shovel, etc.). A dented mixing drum impairs the mixing process and can be more difficult to clean.

• Clean the product with a brush or a scraper.
• Do not immerse the product in water or other liquids and do not spray the motor unit with a high-pressure cleaner.

We recommend that you thoroughly clean the inside and outside of the device directly after every use. Never remove dirt with a hammer, shovel or the like.

After each use of the concrete mixer:

1. Clean the drum (1) with water and remove cement and mortar crusts with a brush or a scraper.
2. To clean the inside of the drum, circulate a few shovels of gravel with water.

13. Transport

⚠ WARNING!

Danger of injury!

The product can start unexpectedly and cause injuries.

• Switch the motor off before transporting.
• Pull out the mains plug.

13.1 Vehicle transport (Fig. 13d)

1. Release the swivel mechanism by pressing the actuating rod (16) downwards with your foot. The latch is released from the locking disc (13).
2. Now place the drum (1) with the filling opening facing downwards.
3. Remove the screws from the foot (8) and from the foot with wheel axle (12).
4. Fold up the foot (8) and the foot with wheel axle (12).
5. Secure the concrete mixer from sliding with a tension strap.
6. Do not lift the concrete mixer with a crane.

13.2 Transport at the workplace (Fig. 13d)

1. Release the swivel mechanism by pressing the actuating rod (16) downwards with your foot. The latch is released from the locking disc (13).
2. Now place the drum (1) with the filling opening facing downwards.
3. For a brief transport, tilt the concrete mixer gently and transport it on the transport wheels (5).

14. Storage

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C.

Cover the concrete mixer to protect it from dust and moisture.

Store the operating instructions with the power tool.

15. Maintenance

⚠ WARNING!

Danger of injury!

The product can start unexpectedly and cause injuries.

- Switch the motor off before performing any maintenance work.

- Disconnect the mains plug before carrying out any maintenance work.

15.1 Checking belt tension (Fig. 11a)

The belt tension is adjusted correctly in the factory. The belt tension cannot be readjusted.

1. Remove the cover of the motor unit (4) by loosening the screws (4a) on the motor unit (4). Use a Phillips screwdriver for this (not included in the scope of delivery)
2. Check the belt tension. By pressing on the belt with your finger, the belt should give approx. 5 mm.
3. Put the cover of the motor unit (4) back on and tighten the screws (4a). Use a Phillips screwdriver for this (not included in the scope of delivery)

15.2 Replacing belts

Belts are wearing parts that have to be replaced after a certain time.

1. Remove the cover of the motor unit (4) by loosening the screws (4a) on the motor unit (4).
2. Pull off the motor cover.
3. The ribbed side of the new V-belt should face outwards when inserted. Make sure the lower part of the V-belt is installed first.
4. Check the belt tension. By pressing on the belt with your finger, the belt should give approx. 5 mm. It is not possible to retension the belt.
5. Put the cover of the motor unit (4) back on and tighten the screws (4a).

15.3 Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate

15.4 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Belt

* may not be included in the scope of delivery!

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

16. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act (ElektroG)

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
- Owners or users of electrical and electronic devices are legally obliged to return them after use.
- The end user is responsible for deleting their personal data from the old device being disposed of!
- The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
- Waste electrical and electronic equipment can be handed in free of charge at the following places:
- Public disposal or collection points (e.g. municipal works yards).
- Points of sale of electrical devices (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

17. Troubleshooting

Fault	Possible	Remedy
Engine does not start	No mains voltage Check the safeguard
	Connection cable defective	Have checked or replaced by an electrician
Engine switches off	Engine overloaded Let the engine cool down
	Supply and exhaust air openings on the motor unit are contaminated	Clean supply and exhaust air openings
Engine runs, drum stands still V-belt slipping	Replace V-belt

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

Günzburger Straße 69

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Kedves Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie,

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupci,

želimo vam mnogo zadovoljstva i uspjeha pri radu s novim proizvodom.

Napomena:

Prema važećem njemačkom Zakonu o odgovornosti za proizvode, proizvođač ovog proizvoda ne odgovara za štete koje nastanu na ovom proizvodu ili koje ovaj proizvod uzrokuje u slučaju:

• neispravnog rukovanja
• Nepridržavanje priručnika za uporabu
  • popravaka koje obave drugi, neovlašteni stručnjaci
  • montaže i zamjene neoriginalnih rezervnih dijelova
• nenamjenske uporabe
• kvarova električnog sustava zbog nepoštivanja električnih propisa i VDE propisa 0100, DIN 57113 / VDE 0113

Günzburger Straße 69

D-89335 Ichenhausen

Spoštovani kupec,

želimo vam veliko veselja in uspeha pri delu z vašim novim izdelkom.

Napotek:

Proizvajalec tega izdelka skladno z veljavnim zakonom o odgovornosti za izdelke ne jamči za poškodbe na tem izdelku ali poškodbe s tem izdelkom, do katerih pride pri:

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Bästa kund!

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas,

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde

Günzburger Straße 69

D-89335 Ichenhausen

Kjære kunde,

Günzburger Straße 69

D-89335 Ichenhausen, Германия

Уважаеми клиенти,

Günzburger Straße 69

D-89335 Ichenhausen

Αξιότιμε πελάτη,

Günzburger Straße 69

D-89335 Ichenhausen

Stimate client,

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče,

Günzburger Straße 69

D-89335 Ichenhausen

İthalatçı:

Technical schematic diagram of a mechanical device with numbered components and exploded views

EU Declaration of Conformity

Standard references:

EN ISO 12100:2010; EN 60204-1:2018; EN 12151:2007; EN IEC 55014-1:2021; EN IEC 55014-2:2021;

EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Niko Vraschek

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

Standard references:

EN ISO 12100:2010; EN 60204-1:2018; EN 12151:2007; EN IEC 55014-1:2021; EN IEC 55014-2: 2021; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Signature/Andreas Pecher/Head of Project Management

First CE: 2016

Subject to change without notice

Documents registrar: Niko Vraschek

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

Standard references:

EN ISO 12100:2010; EN 60204-1:2018; EN 12151:2007; EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Niko Vraschek

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

AB uygunluk beyanı

CE

Scheppach GmbH, Günzburger Str. 69, D-89335 Ichenhausen

DE	erklärt folgende Konformität gemäß EU-Richtlinien und Normen für den Artikel
GB	hereby declares the following conformity under the EU Directive and standards for the following article
BG	декларира съответното съответствие съгласно Дирек-тива на ЕС и норми за артикул
RS	potvrđuje sledeću usklađenost prema smernicama EZ i normama za artikal

RO	declară următoarea conformitate corespunzător directivelor și normelor UE pentru articolul
GR	δηλώνει την ακόλουθη συμμόρφωση σύμφωνα με την Οδηγία EE και τα πρότυπα για το προϊόν
TR	Burada açıklanan ürünün geçerli yönetmeliklere ve standartlara uygun olduğunu tamamen kendi sorumluluğumuz altında beyan ediyoruz.

2016/1628/EU

Emission. No:

Standard references:

EN ISO 12100:2010; EN 60204-1:2018; EN 12151:2007; EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021

Die alleinige Verantwortung für die Ausstellung dieser Konformitätserklärung trägt der Hersteller. This declaration of conformity is issued under the sole responsibility of the manufacturer. Bu uygunluk beyanının düzenlenmesinden yalnızca üretici sorumludur.

Subject to change without notice

Documents registrar: Niko Vraschek Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer loses its rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Záruka CZ

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantii EE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

гаранция BG
