Product Type	Petrol Chainsaw
Brand	RYOBI
Model	RCS5133CB
Power Source	Unleaded petrol (octane rating 91 or higher) mixed with 2-stroke oil (ratio 50:1)
Engine Type	Air-cooled 2-stroke engine
Guide Bar Length	Not specified in the manual (estimated: approx. 33 cm, based on model)
Guaranteed Sound Power	114 dB(A)
Main Functions	Cutting branches, logs, firewood, and wooden beams
Safety	Chain brake, felling spike, chain catcher, low-kickback chain, front hand guard
Maintenance	Clean air filter every 5 hours, check and adjust chain tension before each use, regularly lubricate bar and chain
Spare Parts and Repairability	Guide bar, chain, spark plug, air filter, fuel filter; repairs by RYOBI authorized service center
Warranty	24 months for private use, possible extension via online registration
General Information	Compliant with European directives 2006/42/EC, 2014/30/EU, 2000/14/EC; CE certificate number 12SHW2226-01

Frequently Asked Questions - RCS5133CB RYOBI

What type of fuel should be used for the RYOBI RCS5133CB?

Use a mixture of unleaded petrol (octane rating 91 or higher) and 2-stroke oil for air-cooled engines, in a ratio of 50:1 (2% oil). Mix in an approved container and do not prepare more than one month's supply.

How to start the RCS5133CB chainsaw when cold?

Set the switch to ON, engage the chain brake, pump the primer bulb 10 times, pull the choke to full throttle position, then pull the starter cord until the engine coughs (max 3 pulls above 10°C, 5 pulls below). Push the choke in, pull until it starts, then press and release the throttle trigger to return to idle. Let it warm up for 15-30 seconds before use.

How to adjust the chain tension?

Stop the engine and disconnect the spark plug. Loosen the bar mounting nuts by hand. Turn the tensioning screw clockwise to increase tension, counterclockwise to decrease. Tension is correct when the clearance between the chain tooth and the bar is 3 to 4 mm at the middle of the bar. Then tighten the nuts firmly.

What oil to use for chain lubrication?

Use Ryobi brand chain oil (available from after-sales service). Never operate the chainsaw without oil, as this damages the chain and bar. The oil tank provides approximately 20 to 40 minutes of use.

How to clean the air filter?

Stop the engine and disconnect the spark plug. Remove the air filter cover by pressing and turning the knob. Take out the filter and clean it by tapping or with warm soapy water. Let it dry completely before reassembling. Replace the filter every 25 operating hours.

What personal protective equipment is recommended?

Wear a safety helmet (EN 397), hearing protection (EN 352-1), eye/face protection (EN 166 or EN 1731), gloves (EN 381-7), leg protection (EN 381-5), safety boots (EN ISO 20345:2004 with chainsaw pictogram) and a protective jacket (EN 381-11) if necessary.

How to test the chain brake?

Before each use, check that the chain brake stops the chain immediately when activated (push the lever forward). Make sure it remains in the brake position without assistance. If it does not work properly, take the chainsaw to an authorized service center.

What if the chain does not rotate at idle?

If the chain rotates at idle, this indicates a clutch problem. Immediately stop using and take the chainsaw to an authorized repairer. A rotating chain at idle is dangerous.

How to store the chainsaw after use?

Empty the fuel tank into an approved container, run the engine until it stops to empty the carburettor. Empty the chain oil. Clean the device, put the guide bar cover on, and store in a cool, dry, ventilated place, out of reach of children. Do not store near chemicals.

What is the warranty for the RYOBI RCS5133CB?

The warranty is 24 months for private use from the date of purchase, with proof of purchase. It can be extended free of charge by registering the product online (www.ryobitools.eu) within 30 days. The warranty covers manufacturing and material defects, but not normal wear, damage from misuse, or consumable parts.

USER MANUAL RCS5133CB RYOBI

Important! It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.

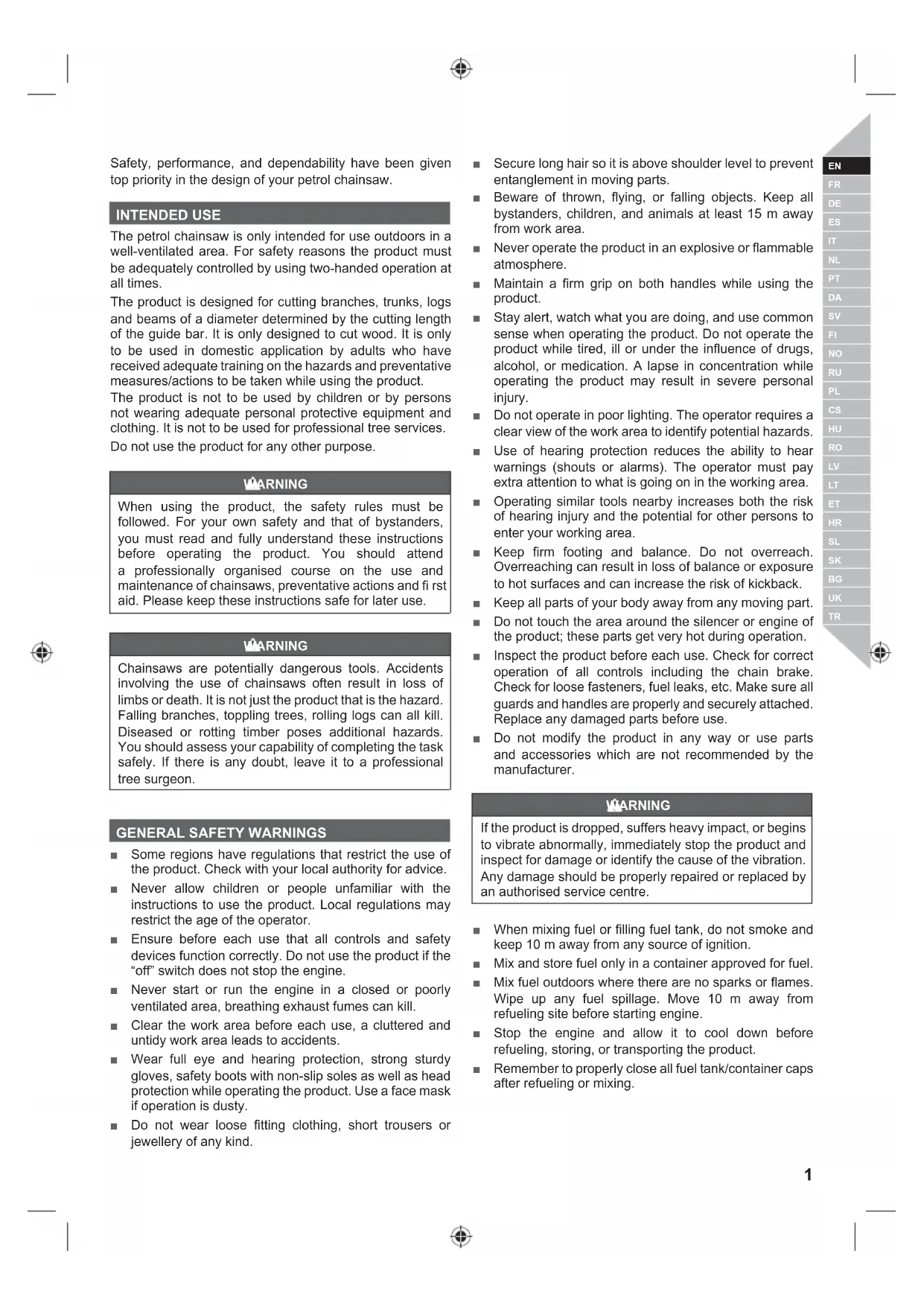

Safety, performance, and dependability have been given top priority in the design of your petrol chainsaw.

INTENDED USE

The petrol chainsaw is only intended for use outdoors in a well-ventilated area. For safety reasons the product must be adequately controlled by using two-handed operation at all times.

The product is designed for cutting branches, trunks, logs and beams of a diameter determined by the cutting length of the guide bar. It is only designed to cut wood. It is only to be used in domestic application by adults who have received adequate training on the hazards and preventative measures/actions to be taken while using the product.

The product is not to be used by children or by persons not wearing adequate personal protective equipment and clothing. It is not to be used for professional tree services.

Do not use the product for any other purpose.

WARNING

When using the product, the safety rules must be followed. For your own safety and that of bystanders, you must read and fully understand these instructions before operating the product. You should attend a professionally organised course on the use and maintenance of chainsaws, preventative actions and first aid. Please keep these instructions safe for later use.

WARNING

Chainsaws are potentially dangerous tools. Accidents involving the use of chainsaws often result in loss of limbs or death. It is not just the product that is the hazard. Falling branches, toppling trees, rolling logs can all kill. Diseased or rotting timber poses additional hazards. You should assess your capability of completing the task safely. If there is any doubt, leave it to a professional tree surgeon.

GENERAL SAFETY WARNINGS

Some regions have regulations that restrict the use of the product. Check with your local authority for advice.
- Never allow children or people unfamiliar with the instructions to use the product. Local regulations may restrict the age of the operator.
- Ensure before each use that all controls and safety devices function correctly. Do not use the product if the "off" switch does not stop the engine.
- Never start or run the engine in a closed or poorly ventilated area, breathing exhaust fumes can kill.
- Clear the work area before each use, a cluttered and untidy work area leads to accidents.
- Wear full eye and hearing protection, strong sturdy gloves, safety boots with non-slip soles as well as head protection while operating the product. Use a face mask if operation is dusty.
- Do not wear loose fitting clothing, short trousers or jewellery of any kind.

• Secure long hair so it is above shoulder level to prevent entanglement in moving parts.
• Beware of thrown, flying, or falling objects. Keep all bystanders, children, and animals at least 15m away from work area.
• Never operate the product in an explosive or flammable atmosphere.
• Maintain a firm grip on both handles while using the product.
• Stay alert, watch what you are doing, and use common sense when operating the product. Do not operate the product while tired, ill or under the influence of drugs, alcohol, or medication. A lapse in concentration while operating the product may result in severe personal injury.
• Do not operate in poor lighting. The operator requires a clear view of the work area to identify potential hazards.
  Use of hearing protection reduces the ability to hear warnings (shouts or alarms). The operator must pay extra attention to what is going on in the working area.
• Operating similar tools nearby increases both the risk of hearing injury and the potential for other persons to enter your working area.
• Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance or exposure to hot surfaces and can increase the risk of kickback.
• Keep all parts of your body away from any moving part.
• Do not touch the area around the silencer or engine of the product; these parts get very hot during operation.
  Inspect the product before each use. Check for correct operation of all controls including the chain brake. Check for loose fasteners, fuel leaks, etc. Make sure all guards and handles are properly and securely attached. Replace any damaged parts before use.
• Do not modify the product in any way or use parts and accessories which are not recommended by the manufacturer.

WARNING

If the product is dropped, suffers heavy impact, or begins to vibrate abnormally, immediately stop the product and inspect for damage or identify the cause of the vibration. Any damage should be properly repaired or replaced by an authorised service centre.

• When mixing fuel or filling fuel tank, do not smoke and keep 10m away from any source of ignition.
  Mix and store fuel only in a container approved for fuel.
• Mix fuel outdoors where there are no sparks or flames. Wipe up any fuel spillage. Move 10m away from refueling site before starting engine.
• Stop the engine and allow it to cool down before refueling, storing, or transporting the product.
  Remember to properly close all fuel tank/container caps after refueling or mixing.

CHAINSAW SAFETY WARNINGS

Always fit the guide bar cover when the product is not in use or being carried or transported. This will help reduce the risk of accidental contact with the sharp blades on the chain. Carry the product by the top handle with the guide bar facing away from your body.
- You should get used to your new product by making simple cuts on securely supported wood. Do this whenever you have not operated the product for some time.
It is recommended to cut logs on a saw horse or cradle when operating the product for the first time.
Ensure all the guards, handles, and spiked bumper are properly fitted and are in good condition.
- Persons using the product should be in good health. The product is a heavy unit so the operator requires to be physically fit. The operator should be alert, have good vision, mobility, balance and manual dexterity. If there is any doubt, do not operate the product.
- Do not stand on any unstable surface while using the product. This could include, but is not limited, to ladders, scaffolds, and trees. Keep both hands on the handles of the product at all times.
- Do not start using the product until you have a clear work area, secure footing, and a planned retreat path away from the falling tree.
Use extreme caution when cutting small-size branches and sapling because slender material may catch the saw chain and be whipped toward you or pull you off balance.
- When cutting a limb under tension, be alert for spring back so that you will not be struck when the tension in the wood fibres is released.
Beware of the emission of exhaust gases, lubricant mist, and saw dust. Wear mask or respirator if required.
- Do not cut vines and small undergrowth (less than 75 mm in diameter).
Always hold the product with both hands when operating it. Use a firm grip with thumbs and fingers encircling the handles of the product. Right hand must be on the rear handle and left hand on the front handle.
Before starting the engine, make sure the saw chain is not contacting any object. Always start the product with the chain brake applied (pushed fully forward).
- Do not modify the product in any way or use it to power any attachments or devices not recommended by the manufacturer of the product.
There should be a first-aid kit containing large wound dressings and a means to summon attention (e.g., whistle) close to the operator. A larger more comprehensive kit should be reasonably nearby.
The operator may be tempted to remove the helmet if there is no danger of falling objects in the work area, but the helmet, particularly with the mesh visor, can help reduce the potential for injury to the face and head if kickback occurs.
Wear a helmet at all times when operating the product. A helmet, equipped with mesh visor, can help reduce the risk of injury to the face and the head if kickback occurs.

An incorrectly tensioned chain can jump off the guide bar and could result in serious injury or fatality. The length of chain depends on the temperature of the chain and chain wear. Check the tension frequently.
- Keep handles dry, clean, and free from oil and grease. Greasy and oily handles are slippery, causing loss of control.
To reduce the risk of injury associated with contacting moving parts, always stop the engine, apply chain brake, and remove the spark plug wire. Make sure all moving parts have been come to a stop:

• before leaving the product unattended

• before cleaning or clearing a blockage

• before installing or removing attachments

• before checking, conducting maintenance, or working on the product

The size of the work area depends on the job being performed as well as the size of the tree or work piece involved. For example, felling a tree requires a larger work area than making other cuts, i.e., bucking cuts. The operator needs to be aware and in control of everything happening in this work area.
- Do not cut with your body in line with the guide bar and chain. If you do experience kickback, this will help prevent the chain from coming into contact with your head or body.
- Do not use a back-and-forward sawing motion; let the chain do the work. Keep the chain sharp, and do not try to push the chain through the cut.
- Do not put pressure on the saw at the end of the cut. Be ready to take on the weight of the saw as it cuts free from the wood. Failure to do so could result in possible serious personal injury.
- Do not stop the saw in the middle of a cutting operation. Keep the saw running until it is already removed from the cut.

Personal protective equipment

Good quality, personal protective equipment as used by professionals will help to reduce the risk of injury to the operator. The following items should be used when operating the product:

Safety helmet

• should comply with EN 397 and be CE marked

Hearing protection

• should comply with EN 352-1 and be CE marked

Eye and face protection

• should be CE marked and comply with EN 166 (for safety glasses) or EN 1731 (for mesh visors)

Gloves

• should comply with EN381-7 and be CE marked

Leg protection (chaps)

• should comply with EN381-5, be CE marked and provide all-round protection.

Chainsaw safety boots

• should comply with EN ISO 20345:2004 and be marked with a shield depicting a chainsaw to show compliance with EN 381-3. (Occasional users may use steel toe-cap safety boots with protective

2 | English

gaiters which conform to EN 381-9 if the ground is even and there is little risk of tripping or catching on undergrowth)

Chainsaw jackets for upper body protection

• should comply with EN 381-11 and be CE marked

ASSEMBLY

WARNING

If any parts are damaged or missing do not operate the product until the parts are replaced. Failure to heed this warning could result in serious personal injury.

ASSEMBLING THE SAW CHAIN AND GUIDE BAR

See page 317 - 319.

1. Wear protective gloves.
2. Disengage the chain brake.
3. Remove the bar mounting nuts using the combination wrench provided.
4. Remove the chain cover.
5. Remove the bar from the product.
6. Put the chain in the correct direction onto the bar and make sure that the drive links are aligned in the bar groove.
7. Attach the bar to the chain saw and loop the chain around the drive sprocket.
8. Replace the chain cover and bar mounting nuts.
9. Finger-tighten the bar mounting nuts. The bar must be free to move for chain tension adjustment.
10. Adjust the chain tension. Refer to the "Adjusting chain tension" section.
11. Hold the tip of the guide bar up and tighten the bar mounting nuts securely.

ADJUSTING THE CHAIN TENSION

See page 331.

1. Turn the ignition switch to the "off" position.
2. Make sure the bar mounting nuts are loosened to finger-tight.
3. To increase the chain tension, turn the chain tensioning screw clockwise and check the chain tension frequently. To reduce the chain tension, turn the chain tensioning screw counterclockwise and check the chain tension frequently.

4. The chain tension is correct when the gap between the cutter in the chain and the bar is about 3 - 4mm . Pull the chain in the middle of the lower side of the bar downwards (away from the bar) and measure the distance between the bar and the chain cutters.

5. Tighten the bar mounting nuts by turning it clockwise.

NOTE: The temperature of the chain increases during normal operation causing the chain to stretch. Check the chain tension frequently and adjust as required. A chain tensioned while warm may be too tight upon cooling. Make sure that the chain tension is correctly adjusted as specified in these instructions.

OPERATION

FUEL AND REFUELLING

Handling the fuel safely

WARNING

Always shut off engine before fuelling. Never add fuel to a machine with a running or hot engine. Move at least 10 metres from refuelling site before starting the engine. Do not smoke! Failure to heed this warning can result in possible personal injury.

WARNING

Check for fuel leaks. If any are found, correct them before using the product to prevent fire or burn injury.

Always handle fuel with care; it is highly flammable.
Always refuel outdoors away from potential sources of ignition, do not inhale fuel vapours.
- Do not let petrol or lubricant come in contact with skin. If contact does occur wash immediately with soap and plenty of water.
- Keep petrol and lubricant away from the eyes. If petrol or lubricant comes in contact with the eyes, wash them immediately with clean water. If irritation is still present, see a physician immediately.

Mixing the fuel

The product is powered by a 2-cycle engine and requires pre-mixing petrol and 2-cycle lubricant. Premix unleaded petrol and 2-cycle engine lubricant in a clean container approved for petrol.
This engine is certified to operate on unleaded petrol intended for automotive use with an octane rating of 91 or higher.
- Do not use any type of pre-mixed petrol/lubricant from fuel service stations; this includes the pre-mixed petrol/ lubricant intended for use in mopeds and motorcycles.
Use a high quality 2-cycle self-mixing lubricant for air-cooled engines. Do not use automotive lubricant or 2-cycle outboard lubricant.
Mix 2% lubricant into the petrol. This is a 50:1 ratio.
Mix the fuel thoroughly and each time before fuelling.
- Mix in small quantities. Do not mix quantities larger than usable in a 30-day period. A 2-cycle lubricant containing a fuel stabiliser is recommended.

NOTE: Fuel system damage or performance problems resulting from the use of an oxygenated fuel containing more than the percentages of oxygenates stated previously are not covered under warranty.

Filling the fuel tank

See page 319

Clean the surface around the fuel cap to prevent contamination.
Loosen the fuel cap slowly.

• Carefully pour the fuel mixture into the tank. Avoid spillage.
  Prior to replacing the fuel cap, clean and inspect the gasket.
• Immediately replace the fuel cap and hand tighten it. Wipe away any fuel spillage.

NOTE: It is normal for the engine to emit smoke during and after the first use.

ADDING CHAIN LUBRICATING OIL

See page 319.

WARNING

Never work without chain lubricant. If the saw chain is running without lubricant, guide bar and saw chain can be damaged. It is therefore essential to check the oil level frequently and every time before starting to use the product.

1. Clear surface around the oil cap to prevent contamination.
2. Unscrew and remove the cap from the oil tank.
3. Pour the oil into the oil tank and monitor the oil level gauge. Ensure that no dirt enters the oil tank while filling.
4. Put the oil cap back on and tighten. Wipe away any spillage.
5. One full oil tank will enable you to use the product for 20-40 min.

NOTE: A properly functioning chain and bar lubricating system will normally discharge oil from the chain during use. To check the functionality of the chain and bar lubricating system, point the tip of the chain at a light coloured surface, such as a newspaper. A distinct line of oil splatter should be observed after a short time.

Recommended chain lubricating oil

The manufacturer recommends you use only Ryobi chainsaw lubricating oil. (Available from your authorised service centre)

STARTING THE PRODUCT

Starting the product differs depending on whether the engine is cold or warm.

WARNING

Keep your body to the left of the chain line. Never straddle the saw or chain, or lean over past the chain line.

• Place the product on level ground and ensure that no objects or obstructions are in the immediate vicinity that could come in contact with the bar and chain.
  Hold the front handle firmly with your left hand and put your right foot onto the base of the rear handle.

To start a cold engine:

See page 317-319.

1. Turn ignition switch to the "on" position.

2. Make sure the chain brake is in the brake position by pushing forward on the lever/hand guard.

3. Fully press and release the primer bulb at least 10 times.
4. Pull the choke lever all the way out to the full-choke position.
5. When the temperature is above 10^ , pull the starter grip until the engine attempts to start, but no more than 3 times. When the temperature is below 10^ , pull the starter grip until the engine attempts to start, but no more than 5 times.
6. Push the choke lever all the way in.
7. Pull starter grip until engine starts.
8. Depress the trigger release and squeeze the throttle trigger, then release the throttle trigger to return the engine to idle.
9. Allow the product to run idle for 15 - 30 seconds.
10. Before accelerating the engine or cutting wood, make sure the chain brake is in the "run" position by pulling back on the brake lever/hand guard.

CAUTION

Failure to fully release the throttle when chain brake lever is in the brake position will result in serious damage to the product. Never squeeze and hold the throttle trigger while the chain brake is in the brake position.

To start a warm engine:

See page 327.

1. Turn the ignition switch to the "on" position.
2. Make sure the chain brake is in the brake position by pushing forward on the lever/hand guard.
3. Pull the choke lever all the way out to the full-choke position and then push it all the way in.
4. Pull starter grip until engine runs, but no more than 5 times. Depress the trigger release and squeeze the throttle trigger, then release the throttle trigger to return the engine to idle. If engine does not start after 5 pulls, use cold engine starting procedure.
5. Before accelerating the engine or cutting wood, make sure the chain brake is in the "run" position by pulling back on the brake lever/hand guard.

STOPPING THE ENGINE

Release the throttle trigger and let the engine return to idle. To stop the engine, move the ignition switch to the stop (0) position. Do not put the product on the ground when the chain is still moving. For additional safety, set the chain brake when the product is not in use.

In the event that the ignition switch will not stop the product, pull the choke lever out to the fully extended position (Full Choke) and engage the chain brake to stop the engine. If the ignition switch will not stop the product when set to the stop position, have the ignition switch repaired before using the product again to prevent unsafe conditions or serious injury.

NOTE: When you are finished using the product, always relieve tank pressure by loosening, then retightening, the chain lubricant and fuel caps. Allow the engine to cool down before storing.

4 | English

HOLDING THE PRODUCT

See page 319.

Always hold the product with your right hand at the rear handle and your left hand at the front handle. Grip both handles with the thumbs and fingers encircling the handles. Ensure that your left hand is holding the front handle so that your thumb is underneath.

1. Engage the chain brake by rotating your left hand around the front handle. Allow the back of your hand to push the chain brake lever/hand guard toward the bar while the chain is rotating rapidly. Be sure to maintain both hands on the handles of the product at all times.
2. Reset the chain brake back into the Run position by grasping the top of the chain brake lever/hand guard and pulling toward the front handle until you hear a click.

WARNING

If the chain brake does not stop the chain immediately, or if the chain brake will not stay in the run position without assistance, bring the product to an authorised service centre for repair prior to use.

WARNING

When the throttle trigger is released and the engine is running at idle speed, the saw chain must not move. If it does continue to move there is risk of severe injury to the operator. Do not use the product, bring the product to an authorised service centre for professional adjustment.

CHECKING THE CLUTCH

1. Disengage the chain brake by pulling the chain brake lever/hand guard towards the front handle until a click is heard.
2. Allow the engine to run idle. Ensure that the saw chain is not rotating. If the saw chain rotates while running at idle speed, the clutch may be damaged. Do not use the product. Bring the product to an authorised service centre for professional adjustment.
3. Depress the throttle trigger half-way and run the product at mid speed. The saw chain should rotate smoothly if the clutch is in good working condition.

RESTARTING AFTER EXTENDED PERIODS OF HEAVY USE

After using the chain saw for extended periods of time, please let the product run in idle, with the chain brake engaged for 3 to 5 minutes, allowing accumulated heat of the engine to dissipate through the forced-air cooling system.

This helps prevent a potential heat soak and thus potential high stress of certain engine components (i.e. ignition system and carburettor).

After complete shut-off of the engine, you may experience diffi culties restarting the chainsaw due to this condition, which is completely normal. Thus, please allow the product to cool down before restarting.

Causes and operator prevention of kickback:

Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.

Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.

Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.

Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chainsaw user, you should take several steps to keep your cutting jobs free from accident or injury.

Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

• Maintain a firm grip, with thumbs and fingers encircling the chainsaw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chainsaw.
• Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chainsaw in unexpected situations.
  Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains may cause chain breakage and/or kickback.
  Follow the manufacturer's maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

INSTRUCTIONS CONCERNING THE PROPER TECHNIQUES FOR BASIC FELLING, LIMBING, AND CROSS-CUTTING

Understanding the forces within the wood

When you understand the directional pressures and stresses inside the wood you can reduce the "pinches" or at least expect them during your cutting. Tension in the wood means the fi bers are being pulled apart and if you cut in this area the "kerf" or cut will tend to open as the product goes through. If a log is being supported on a saw horse and the end is hanging unsupported over the end then tension is created on the upper surface due to the weight of the overhanging log stretching the fi bers. Likewise, the underside of the log will be in compression and the fi bers are being pushed together. If a cut is made in this area the kerf will have the tendency to close up during the cut. This would pinch the blade.

Felling a tree

See page 323-324.

When bucking and felling operations are being performed by two or more persons at the same time, the felling operations should be separated from the bucking operation by a distance of at least twice the height of the tree being felled. Trees should not be felled in a manner that would endanger any person, strike any utility line or cause any

property damage. If the tree does make contact with any utility line, the company should be notified immediately.

The chain saw operator should keep on the uphill side of the terrain as the tree is likely to roll or slide downhill after it is felled.

An escape path should be planned and cleared as necessary before cuts are started. The escape path should extend back and diagonally to the rear of the expected line of fall.

Before felling is started, consider the natural lean of the tree, the location of larger branches and the wind direction to judge which way the tree will fall.

Remove dirt, stones, loose bark, nails, staples and wire from the tree.

Do not attempt to fell trees which are rotten or have been damaged by wind, fire, lightning, etc. This is extremely dangerous and should only be completed by professional tree surgeons.

Notching undercut See page 323-324.

Make the notch 1/3 the diameter of the tree, perpendicular to the direction of falls. Make the lower horizontal notching cut first. This will help to avoid pinching either the saw chain or the guide bar when the second notch is being made.

Felling back cut See page 323-324.

Make the felling back cut at least 50~mm / 2 in higher than the horizontal notching cut. Keep the felling back cut parallel to the horizontal notching cut. Make the felling back cut so enough wood is left to act as a hinge. The hinge wood keeps the tree from twisting and falling in the wrong direction. Do not cut through the hinge.

As the felling gets close to the hinge, the tree should begin to fall. If there is any chance that the tree may not fall in desired direction or it may rock back and bind the saw chain, stop cutting before the felling back cut is complete and use wedges of wood, plastic or aluminium to open the cut and drop the tree along the desired line of fall.

When the tree begins to fall remove the product from the cut, stop the engine, put the product down, and then use the retreat path planned. Be alert for overhead limbs falling and watch your footing.

Removing buttress roots

See page 324.

A buttress root is a large root extending from the trunk of the tree above the ground. Remove large buttress roots prior to felling. Make the horizontal cut into the buttress first, followed by the vertical cut. Remove the resulting loose section from the work area. Follow the correct tree felling procedure after you have removed the large buttress roots.

Push and pull

See page 325.

The reaction force is always opposite to the direction the chain is moving. Thus, the operator must be ready to control the tendency for the product to pull away (forward motion) when cutting on the bottom edge of the bar. Engage always

firmly the bumper spike to avoid such movement. The product can be pushed backwards (towards the operator) when cutting along the top edge. To avoid this, make sure the chain is not jammed when cutting along the top edge.

Saw jammed in the cut

Stop the product and make it safe. Do not try to force the chain and bar out of the cut as this is likely to break the chain which may swing back and strike the operator. This situation normally occurs because the wood is incorrectly supported and forcing the cut to close under compression thereby pinching the blade. If adjusting the support does not release the bar and chain, use wooden wedges or a lever to open the cut and release the product. Never try to start the product when the guide bar is already in a cut or kerf.

Bucking a log

See page 325.

Bucking is cutting a log into lengths. It is important to make sure your footing is firm and your weight is evenly distributed on both feet. When possible, the log should be raised and supported by the use of limbs, logs or chocks. Follow the simple directions for easy cutting. When the log is supported along its entire length, it is cut from the top (overbuck).

When the log is supported on one end, cut 1/3 the diameter from the underside (underbuck). Then make the finished cut by overbucking to meet the first cut.

When the log is supported on both ends, cut 1/3 the diameter from the top (overbuck). Then make the finished cut by underbucking the lower 2/3 to meet the first cut.

When bucking on a slope always stand on the uphill side of the log. When "cutting through", to maintain complete control release the cutting pressure near the end of the cut without relaxing your grip on the handles of the product. Don't let the chain contact the ground. After completing the cut, wait for the saw chain to stop before you move the product. Always stop the engine before moving from tree to tree.

Limbing a tree

See page 326.

Limbing is removing the branches from a fallen tree. When limbing leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut. Branches under tension should be cut from the bottom up to avoid binding the product.

Springpoles

See page 326.

A springpole is any log, branch, rooted stump, or sapling which is bent under tension by other wood so that it springs back if the wood holding it is cut or removed.

On a fallen tree, a rooted stump has a high potential of springing back to the upright position during the bucking cut to separate the log from the stump. Watch out for springpoles—they are dangerous. Do not attempt to cut bent branches or stumps which are under tension unless you are professionally trained and competent to do so.

TRANSPORTATION AND STORAGE

• Stop the engine, engage the chain brake, and disconnect the spark plug wire from the spark plug. Allow the product to cool down before storing or transporting.
  Clean all foreign material from the product.
• Drain all fuel from tank into a container approved for petrol. Remember to properly replace and tighten the fuel mix cap.
• Run the engine until it stops. This will remove all fuel-lubricant mix that could become stale and leave varnish and gum in the fuel system.
  Drain all bar and chain lubricant from tank into a container approved for lubricant. Remember to properly replace and tighten the chain lubricant cap.
  Always fit guide bar cover before storing the product, or during transportation.
  Store the product in a cool dry and well-ventilated place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts. Do not store outdoors.
• When carrying the product for short distance (from one working area to the next), always apply the chain brake so that the saw chain is restricted from movement.
• When transporting the product, secure it against movement or falling to prevent injury to persons or damage to the product.
• Never carry or transport the product while the engine is running.

Abide by all government and local regulations for the safe storage and handling of petrol. Excess fuel should be used in other 2-cycle engine powered equipment.

MAINTENANCE

Always keep the product in good working condition.

WARNING

Use only original manufacturer's replacement parts, accessories and attachments. Failure to do so can cause possible injury, poor performance and may void your warranty.

WARNING

Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For servicing and repairs, bring the product to an authorised service centre. When servicing, use only original replacement parts.

WARNING

Before inspecting, cleaning, or servicing the product, stop the engine, engage the chain brake, and disconnect the spark plug wire from the spark plug. Failure to follow these instructions can result in serious personal injury or property damage.

• You may only make adjustments or repairs described in this manual. For other repairs, contact the authorised service centre.
  Consequences of improper maintenance may cause the chain brake and other safety features to not function correctly, thus increasing the potential for serious injury. Keep the product professionally maintained and safe.
• Sharpening the chain safely is a skilled task. Therefore the manufacturer strongly recommends that a worn or dull chain is replaced with a new one, available from your authorised service centre. The part number is available in the product specification table in this manual.
• Follow instructions for lubricating and chain tension checking and adjustment.
  After each use, clean the product with a soft dry cloth.
• Check all nuts, bolts and screws at frequent intervals for security to ensure the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorised service centre.

REPLACING GUIDE BAR AND SAW CHAIN

See page 329 - 330.

1. Stop the product. Wear protective gloves.
2. Disengage the chain brake.
3. Remove the bar mounting nuts using the combination wrench provided.
4. Remove the chain cover.
5. Remove the bar and saw chain from the product.
6. Put the new chain in the correct direction onto the bar and make sure that the drive links are aligned in the bar groove.
7. Attach the bar to the chain saw and loop the chain around the drive sprocket.
8. Replace the chain cover and bar mounting nuts.
9. Finger-tighten the bar mounting nuts. The bar must be free to move for chain tension adjustment.
10. Adjust the chain tension. Refer to the "Adjusting chain tension" section.
11. Hold the tip of the guide bar up and tighten the bar mounting nuts securely.

CLEANING THE AIR FILTER

See page 333-334.

1. Push down on the knob on the top of the air filter cover and turn it counterclockwise to unlock. Lift the air filter cover straight up to remove; set aside.
2. Blow or brush as much loose dirt and sawdust from around the carburettor and chamber as possible.

NOTE: Ensure the choke lever is in the full-choke position to keep the carburettor from being contaminated.

1. Using the combination wrench provided or a flathead screwdriver, remove the screw securing the air filter.

2. Position a flathead screw driver between the tabs and twist to remove the air filter.

3. Lift the air filter off the air filter base. Choose one of the following cleaning options:

4. To lightly clean, tap the filter against a smooth, flat surface to dislodge most of the saw dust and dirt particles.

5. For a more thorough cleaning, clean in warm soapy water. Rinse and let dry completely.

6. Replace with a new air filter after every 25 hours of use.

NOTE: An alternative method is to clean the air filter with compressed air (always wear eye protection to avoid eye injury).

1. Reinstall the air filter, making sure that the tabs on the air filter are properly aligned and positioned.
2. Reinstall the air filter cover. Push down on the knob and rotate clockwise to secure.
3. Clean the pre-filter every 25 tanks of fuel or sooner, if required. Remove the engine cover, starter assembly, and fan housing baffle for access to the pre-filter in the engine housing. (See page 335 - 337.)

NOTE: If you use an air hose for drying, blow through both sides of the fi filter.

WARNING

Never run the engine without the air fiiter. Make sure the air filter is correctly placed in the air filter cover before reassembly.

INSPECTING AND CLEANING THE CHAIN BRAKE

See page 332.

Always keep the chain brake mechanism clean by lightly brushing the linkage free from dirt.
Always test the chain brake performance after cleaning.
Refer to "Operation - Checking and Operating Chain Brake" section in this manual for additional information.

ENGINE SPEED AND CARBURETTOR ADJUSTMENT

WARNING

Incorrect carburettor adjustment may increase the risk of injuries, fatal accidents, or product damage. For carburettor adjustment, bring the product to an authorised service centre.

MAINTENANCE SCHEDULE

Daily check
Fuel mixture Before each use
Bar lubrication Before each use
Chain tension Before each use and frequently
Clutch engagement (no chain movement at idling speed)	Before each use
Chain sharpness Before each use, visual check
For damaged parts Before each use
For loose fasteners Before each use

For loose parts	Before each use
Chain brake function	Before each use
For fuel leaks	Before each use

INSPECT AND CLEAN:

Bar	Before each use
Complete saw	After each use
Air filter	Every 5 hours*
Chain brake	Every 5 hours*
Replace spark plug Yearly
Replace fuel filter	Yearly

• Hours of Operation

RESIDUAL RISK

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise in use and the operator should pay special attention to avoid the following:

• Injury caused by vibration. Always use the right tool for the job, use designated handles and restrict working time and exposure.
  Exposure to noise can cause hearing injury. Wear ear protection and limit exposure.
• Contact with exposed saw teeth of the chain (cutting hazards).
  Unforeseen, abrupt movement or kickback of the guide bar (cutting hazards).
  Parts ejected from the saw chain (cutting/injection hazards).
• Thrown out pieces of the work piece (wood chips, splinters).
  Inhalation of saw dust and particles or emission from the petrol engine.
  Skin contact with petrol/oil.

RISK REDUCTION

It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

• Keep your body warm in cold weather. When operating the product wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome.
  After each period of operation, exercise to increase blood circulation.
  Take frequent work breaks. Limit the amount of exposure per day.

• Protective gloves available from professional chainsaw retailers are designed specifically for chainsaw use and give protection and good grip. Gloves also reduce the effect of handle vibration. These gloves should comply with EN381-7 and must be CE marked.

If you experience any of the symptoms of this condition, immediately discontinue use and see your physician.

WARNING

Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

KNOW YOUR PRODUCT

See page 316.

PARTS

1. Front hand guard/Chain brake
2. Front handle
3. Engine cover
4. Air filter cover
5. Air filter
6. Primer bulb
7. Choke lever
8. Chain
9. Starter grip
10. Guide bar
11. Trigger release
12. Chain lubricant cap
13. Silencer
14. Carburettor adjustment
15. Rear handle
16. Throttle trigger
17. Fuel mix cap
18. On/Off switch
19. Starter assembly
20. Spiked bumper
21. Chain catcher
22. Pre-filter
23. Fan housing baffle

SAFETY DEVICES

A low-kickback saw chain helps to reduce the possibility of a kickback event.

The rakers (depth gauges) ahead of each cutter can minimize the force of a kickback reaction by preventing the cutters from digging in too deeply. Only use replacement guide bar and chain combinations recommended by the manufacturer.

As saw chains are sharpened, they lose some the low kickback qualities and extra caution is required. For your safety, replace saw chains when cutting performance decreases.

SPIKED BUMPER

The integral bumper spike may be used as a pivot when making a cut. It helps to keep the body of the product steady

while cutting. When cutting, push the product forward until the spikes dig into the edge of the wood, then by moving the rear handle up or down in the direction of the cutting line it can help ease the physical strain of cutting.

GUIDEBARS

Generally, guide bars with small radius tips have somewhat lower potential for kickback. Only use replacement guide bar and chain combinations recommended by the manufacturer. The use of unrecommended guide bars increase the risk of loss of control during sawing. Regularly check the chain tension. When cutting smaller branches (less than the full length of the guide bar) the chain is more likely to be thrown off if the tension is not correct.

CHAIN BRAKE

Chain brakes are designed to quickly stop the chain rotation. When the chain brake lever/hand guard is pushed towards the bar, the chain should stop immediately. A Chain brake does not prevent kickback. It only lowers the risk of injury should the chain bar contact the operators body during a kickback event. The chain brake should be tested before each use for correct operation in both the run and brake positions.

CHAIN CATCHER

A chain catcher prevents the saw chain from being thrown back towards the operator if the saw chain comes loose or breaks.

SYMBOLS ON THE PRODUCT

Safety alert

To reduce the risk of injury, user must read and understand operator's manual before using this product.

Wear eye, hearing and head protection when operating this equipment.

Wear non-slip, heavy-duty protective gloves when handling the chainsaw.

Wear non-slip safety footwear when using the product.

Hold and operate the saw properly with both hands.

Do not operate the saw using only one hand.

Danger! Beware of kickback.

Use unleaded petrol intended for motor vehicle use with an octane rating of 91 ([ + ] / 2) or higher.

Use 2-stroke oil for air cooled engines.

Mix the fuel mix thoroughly and also each time before refueling.

Add bar and chain oil every time you add fuel to the chainsaw.

CE conformity

EurAsian Conformity Mark

Ukrainian mark of conformity

Guaranteed sound power level is 114 dB.

Set the chain brake to the "run" position.

Set the chain brake to the "brake" position.

Turn the ignition switch to the "on" position.

Fully press and release the primer bulb at least 10 times.

Pull the choke lever all the way out the full-choke position.

Pull the starter rope until the first firing of the engine is heard (no more than five pulls).

Push the choke lever all the way in.

Pull starter grip until the engine starts.

Depress the trigger release and squeeze the throttle trigger, then release the throttle trigger to return the engine to idle.

Allow the product to run idle for 15 - 30 seconds.

Fuel and oil

Bar and chain lubricant

Rotate to adjust chain tension

• = Tighten the chain

• = Loosen the chain

Moving direction of the chain

H = High speed adjustment needle

L = Low speed adjustment needle

T = Idle adjustment screw

Lock the fi lter access cover.

Unlock the fi iter access cover.

Set the ignition switch to the "stop" position.

SYMBOLS IN THIS MANUAL

Mix fuel outdoors where there are no sparks or flames.

Do not smoke when mixing fuel or filling fuel tank.

Parts or accessories sold separately

Note

Warning

Wear eye and face protection.

Wear upper body protection.

Wear leg protection.

Stop the product.

Lock the fi iter access cover.

Unlock the fi iter access cover.

The following signal words and meanings are intended to explain the levels of risk associated with the product.

DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

Without safety alert symbol Indicates a situation that may result in property damage.

TROUBLESHOOTING

Problem Possible cause Solution
Engine will not start (Make sure the ignition switch is in the "on" position).	No spark. The spark plug could be flooded engine. With the ignition switch off, remove spark plug.	cracked or damaged.Replace the old spark plug with a new one and try to start again. If engine will still not start, return the product to an authorised service centre for further checking.
	Flooded engine. With the ignition switch off, remove spark plug.	Move choke lever to run position (pushed in completely) and pull starter grip 15 to 20 times.This will clear excess fuel from engine. Clean and reinstall spark plug.Set ignition switch to "on" position. Push and fully release primer bulb 10 times. Pull starter grip three times with the choke lever all the way in. If engine does not start, move choke lever to full-choke position and repeat normal starting procedure. If engine still fails to start, repeat procedure with a new spark plug.
Engine starts but will not accelerate properly.	Carburettor requires "L" (Low jet) adjustment.	Contact an authorised service centre for carburettor adjustment.
Engine starts but will not run properly at high speed.	Carburettor requires "H" (High jet) adjustment.	Contact an authorised service centre for carburettor adjustment.
Engine does not reach full speed and/or emits excessive smoke.	Check lubricant fuel mixture. Use fresh fuel and the correct 2-stroke lubricant mix ratio.	Clean the air filter.
	Air filter dirty.
	Spark arrester screen dirty. Contact	an authorised service centre for service or replacement.
	Carburettor requires "H" (High jet) adjustment.	Contact an authorised service centre for carburettor adjustment.
Engine starts, runs, and accelerates but will not idle.	Carburettor requires adjustment.	Contact an authorised service centre for carburettor adjustment.
Engine starts and runs, but chain is not rotating.	Chain lubricant tank empty.	Lubricant tank should be filled every time.
	Check chain tension for overtight condition.	Tension the chain.
	Check for lubricating function. Run	at half throttle 30 to 45 seconds. Stop saw and check for lubricant dripping from guide bar. If lubricant is present, the chain may be dull or bar may be damaged. If no lubricant is on the guide bar, contact an authorised service centre.
Bar and chain running hot and smoking.	Chain brake engaged. Release the chain brake.	chain brake.
	Chain tension too tight. Tension the chain.	chain.
	Check guide bar and chain for damage.	Inspect the guide bar and chain for damage.

DÉMARRAGE DU PRODUIT

SYMBOLES APLIQUES SUR LE PRODUIT

Avertissement

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

SieheSeite316.

TEILE

SYMBOLE AUF DEM PRODUKT

Sicherheitswannung

COMBUSTIBLE Y REPOSTAJE

PROGRAMMADIMANUTENZIONE

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN

VEILIGHEIDSWAARSCHUWINGEN KETTINGZAAG

Beenbeschemers (chaps)

EurAsian-symbol van overeenstemming.

BRANDSTOF OG OPTANKING

FASTHOLDNING AF PRODUKTET

Se side 319.

• = Stram kaeden
• = Løsn kaeden"

ALLMÄNNSA KERHETSFORESKRIFTER

TRANSPORT OCH FÖRVARING

SYMBOLER PÅ PRODUKTEN

Päminnelse

"H = Justeringsnal for hog hastighet

L = Justeringsnal for lag hastighet

Beinbeskytelse (chaps)

HOLDING AV PRODUKTET

Se side 319.

SLIK STARTES PRODUKTET P A NYTT ETTER PERIOD DER HVOR DET HAR BLITT MYE BRUKT

KJENN PRODUKTET DITT

Se side 316.

DELER

1. Handvern/kjedebrems
2. Fremre handtak
3. Sylinderdeksel
4. Luftfilterdeksel
5. Luftfilter
6. Pumpeblase
7. Chokehendel
8. Kjede
9. Starthandtak
10. Sverd
11. Utløser for gasshandtak
12. Lokk for oljetank
13. Lyddemper
14. Forgasserjustering
15. Bakre handtak
16. Gasshendel
17. Lokk for brennstofftank
18. Av/PA-bryter
    19.Motorstartdeler
19. Fenderlist
20. Kjedefanger
21. Grovfilter
22. Viftehus

SIKKERHETSANORDNINGER

SAGKJEDE MED LAV RISIKO FOR TILBAKESLAG

SYMBOLER PÅ PRODUKTET

Forsiktighetsregel

B OCHOBE KOHCTpykun BaIeI 6eH3nHOBOU CEHNHOIJIbI Jexat npHHcunbl 6e3OnaCHOCTN, IpOdyKTNBHOCTN IHaDeXHOCTN.

HA3HAUEHNE

BENHOBa CEHnA nnla npedHa3HaueHa nIg NcNOb3OBAHnA TOIbKO B XoPoWo BeHTnNpyEmo 3OHe BHe NOMEeHn. I3 COo6paKeHn 6eOnacHOCTn BCerda HeoXoDnMo 3KcPnyaTnpoBaTb INHCTpyMeHT, ynpabJra IM DByMa pyKaMn.

DAnHbI INHCTpymeT npEHa3HaueH dIpa pacmna Betok, CTBONOB,6peBeHn 6pyca,DnAmETp KOtOpbx ONpeDenraTc DnHHO pe3AHn NINbHO WnHb.IpeHa3HaueHO TOJbKO dIpa pacnna DepeBa. IHCTpymeT npEHa3HaueH TOJbKO dIpbTOBOrnpImHeHn B3PocMbIMn, ppoWdHMN COOTBetCTByOoee obyehne Ha npEdmET nTeHuaJIbHOI onaCHOCTn, npOtnJaKTnuecknx Mep I DeCTBn, npEppnHMAembIX pni EKnIyataun.

KNCNOLb3OBaHnO yCTpOINCTBOM He DOnJXHbI DOnyCKaTbCnDeTN NnNnla 6e3 COOTBeTCTBYIOUX CpeDCTB 3aUNtbln OdExkbl. OH He PpeHa3HaHe nIg NcNOLb3OBaHnnpoepceccnoHaNbHbIMn Cnykbam OeJeHeHHa.

He nCnoB3yIte yCTPOIcTBO dIa KaKx-JIb6o INbIX cJeIe.

CTOPOXHO

Ipn nCnOJb3OBaHn ycTpoiCTBa Heo6xOdmo cobJIOdaTb npabIna TexHNK 6e30NaChOCTN. B ueJax BaWei 6e30NaChOCTn 6e30NaChOCTn OKpykaIOuNX Heo6XoDIMO npOHTaB IN POJIHOCTbIO YrCHNTb HAcTOAUIne IHCTpyKUINpeed EKcnPyatauNe IyCTPOICTBa.Bam Heo6xOdmo npOITn npOceccnoHaJIbHO opraHn3OBaHbIe KypcbI NO 6e30NaChOCTN 3KcPnyatauIN, pOoHnAOKueckIM DeJeCTBnAM, nepBOI NOMOUI texHnueCKOMy O6cIyKnBaHnIO ceHbIX IN. CoXpaHnTe daHbIe IHCTpyKUIN dJa NocPeJeUoJero NcNOJIb3OBaHnI.

CTOPOXHO

CenHbIe NnblbYBnIOTcNtOHcuaJIbHO OAnchbIMNHCTpyMeHTAM.HecactHbIe CnyaI，CB3aHHbIe CNCNtB3OBaHmEeNbHIXNII，O6bIHCIOpINBOyT KNOBpeJHnM KOHeHOCTeN JETaJIbHOMy NCxOyHO He TOJIbKO Cama cENHAR Nnla MoKet 6bITb NCTOCHKOMONACHOCTNI.PaIauUe BETB，CBANBAIOuNEcAdepeBbYkATbBAIOUeCE6PbeBaMOrYT y6NTbYeIOBeKa. NOBpeXDeHHa IIN CRHNbAraDpeBecHa npEdctabnre DoONHInTehHyo ONaCHOCTb.BblDOJKNbIOeHHTCB0HO CNOCO6HOCTb BblONHRTbNOCTABNeHHbIE 3aDaun6e3OnaCHO.EcnyBacEcTB COMHeHn，DOBepbTe 3Ty paBoTy npOceccNoHaNbHOMycneuaNNCTy no peKe DepeBa.

OBUINE IPNABUNBAE3ONACHOCTN

B HeKOTopbIX perHOHcx cyueCTbyOT npaBnla, orpaHnUBAHOUIne NcNoJIb3OBAHne 3TOro npOdyKaT. PpOKOHcyIbTHpyIeTcB C MeCThblIMn OpraHAMn BnactN.
He donyckaTe K pa6oTe C daHHbIM ycTpoiCTBOM Deten HnU, He3HaKOMbIX C nHCTpykLJrMaM N

HcnoIb3OBAHnIO n3dEJIa. MeCThIe HNcTpkyKuIN MOryT OpRaHnHTb B03pact onepaTopa.

Y6eINTEcb Npeed KaKdbIM NcNoIb3OBAHHeM, yTO BCE 3JEMeHTbI ynpaBHeHn I npedeoxpaHntbHbIe YCTPOIcTBA fYHKUONHpyIOT npabInbHO. He INcNoIb3yIte YCTPOIcTBO, ecJIH NEBO3MOXHO OCTAHOBNTb DBrATeJIb BbIKIOHaTeJIeM.
HnKOrda He 3aNyckaIte Hne NcNoJIb3yIte pa6oTaIOUm INBnraTeNb B 3akpbITOM ININ NINOxo npOBeTpNBaEMOM MeCTe; BDbIXaHHe BbIXIONHbIX Ra3OB MOKeT pINBeCTN K IeTaIbHOMy IcXOy.
OuIaTe pa6oyU 30Hy kaJdbIM nCIOb3oBaHHeM, B 3amycopeHHou m 3axnAmJIeHHo pa6Oey 3OHe Bblue pNCK IOnyUeHn TpaMbbl.
IcnoB3yute HaedxHbIe npncocO6nHnA n3aunTbI rna3 n opraHOB cnyxa, npouHbIe nepuATKn, 3auHTHyIO HeCKoJb3kyo 06yBb, a TAKKe CpeDCTBa 3auNTbI roNoBbl npn pa6ote c H3dEInem. IcnoB3oBaTb Macky Iua, ecN DeiCTBne NblbHO.
He donyckaetc HooHne cnnuKoM CBO6oHoi Odekbl, KopoTknx 6pIok, IOBeJIupHbIX n3deJIn.
Cobepnte nnHHbIe BOIOcBi Bblue npe, TTo6bl npedOTBpATNTb INX NnanaHne B DnKxuieceYacTN.
OcteperaItecb OTJIetaOuixn nnn naaioxnpedmetob.He donyckaaiTe npoxoxux, deTei IDOMaHIX XINBOTHBIX 6nXe Yem Ha 15 M ot pa6ooy 3OHbl.
Hukorda He nCOnb3yIte n3dJeNBE BO B3pbIBOONaCHO nnOrHeonacHO aTmocpepe.
Bo Bpempa6oTbI KpeNko depKnTe n3deJne oBeMn pyKaMn.
CneJyET c6bIIOdaTb octopoKHOCTb, CNEIITb 3a CBOIMN DeIcTBnMn I pyKOBOcTBOBaTbCRA 3DpaBBIM CMBICNOM npn pa6ote C yCTPOINCBOM. He pa6oTaNTe C DaHHbIM ycTPOINCTBOM B CNYae yCTaIOCTN, BOJIe3HeHHO CoCTOARHn IIN NOD BO3DEcTBnEM anKORON, HApKOTIKOB INI MEdNKAMENTOB. HeIOCTaTOUHABHMATEJIbHOCTb BO Bpemr pa6tbl C yCTPOINCTBOM MOXET PnIBECTN K NOJYHeHIO cepbe3HO TpaBMbl.
He pa6oTaIe npn HeIOCTaTOUHOM OcBeueHIN. Oepatop IOnJxeh YETKO BNDetb pa6OuyIO 30Hy B cIeJx BbIBBHeHNAJIbHbIX ONaCHOCTeN.
IcnoB3ObaHne cpeCTB 3aunTbI opraHOB CnyxachnkaeT cnoc6hOCTb ycblwaTb npdeynpeXdHnna (Kpkn nnCnHaNbi). Pa6oTaouni yJeJrTb NOBbIeHHoe BHIMAHNE K npoCXoJaUeMy B 30He pa6oTbI.
3Kcnnyataunna ananorunhix yctpoinCTB 6bnnpa6ooye 30hbl NOBbIaet pNCK NOBpeKdHnCnlyxaN onaCHOCTb NOBbIeHn NocTOPOHHNX IIN B Bauepa6ooye 30He.
Дерхаь устонун onopy n 6baIaHc. He nepeHapraTb. Ппeнанряжен MOKET Bbl3BaTb NOTepu paBHOBecn INI npIKOCHOBHne K ropayen NOBepxHOCTN yBeINuHTb ONaCHOCTb BO3HNKHOBEHnOTCKOKa.
He donyckaIte nona daHna yacte Tena B DnBxkyuece TaII.

He npkacaTecb K NOBepxHocT B 0bJactn IpyuHTeI N DBIrataTeN HnCTpyMeHTa, TAK KaK 3TN DeTAN HarpeBaIOTC BO BpEMpa6oTbI.
IpoBepnTe yctpoNCTBO nepeKKaKdbIM nCnoJb3OBAHnEM. IpOBepTe npabnblHypaboTy BCex 3neMeHTOB ynpaBHeHn, BkInoua TOpMO3 nIbHOI cenn. IpOBepTe HAdExHocTb KpenHeHn, HAnuHne yTeKN ToPnIBa n T. D. IpOBepTe npabnblHoCTb yctaHOBKn HaDeXHocTb KpenHeHn BCex 3aunTHbIX yCTPOINCTB n pyueK. NepeD nCnoJb3OBAHnEM 3ameHnTE NOBpeKeHHhle deTaJI.
3aPepaaetcKaKIM-Ni6o 06pa3OM n3MeHrTB KOHCTpyKUHO yCTPOINCTBA INN NcONJb3OBaHNn DeTaN IN PpHaADJIeXHoCTn, He peKOMeHDoBaHHbIe npOn3BOIDNTeEM.

CTOPOXHO

EcIn yctpoiCTBO ypOHIN, OHO n3daet rPOMKn CTyK INn HauHnaeT Upe3MepHo Bn6pnpoBaTb, HEmdIeHHO OCTaHOBNTe Ero n IPOBepbTe Ha HAIuNue NOBpeXDeHN INn BBIAChNTe PnUHy Bn6paun. JIO6bIe IOBpeXDeHHbI DeTaN DoJKNbI 6bITb HaJIeXaUM OBpa3OM OTpeMOHTnpoBaHbI INn 3aMeHeHbIB ABTOPn3OBAHHom CepBCHOM ceHTpe.

Bo BpemcmeuBaHnToJIbA u 3anpaBKn TOnJIbHOrO 6aka 3anpeuaetc Kypntb n np6JnxKtbcr K NCTOCHKAM BOCPnAmHeHn 6JnxKe, cem Ha 10 m.
XpaHnTe n CMeuBaIe ToJIINBO B CneuaNbHbIX KaHnCTpax dIa 6eH3nHa.
CmeunBaIte n nepenBaiTe TOnnBO Ha BO3dyxe, BdaIOT NcKp IOrH. BbITnpaIte pa3NWBueecra roIpOee. OToiDHTe Ha 10 M OT MeCTa 3anpaBKn TOINBOM nepeD 3anyCKOM DBIRatEJI.
OCTaHOBInTe DnBaTeIb N DaIte EMy OcTbITb Nepe3aIpaBko, XpaHeHEm TpaHCnOpTpOBoKo yctpoiCTBa.
HaJIeXaIIMM O6pa3OM 3akpoTe KpbIuKy TOnnIBHO6bKa/KoHTeHepa nocNe 3anpABKn IIN CMeUWBaHna.

PNEOCTEPEXEHN OTHOCHTeNbHO B3ONACHOIOJIb3OBAHNUEHNOIIN

Bcerda yctaHaBnBaIe KpbIbKy Ha nIbHyO uNHy, KOrda n3dene He nCnOJb3yETc N6o nepeHocITcnn TpaHCnpOpTpyETc. 3TO NOMOXET yMeHbUnTB pNCK cnyaHoro KOHTaKTA C OCTpbIM Ne3BmM Ha ceN. IpeHocTe n3dene 3a BepxHIO pyky, npn 3TOM nIbHa aONKa HcDOnkHa CMOTpeTB CTOPOHY OT TeNa.
Heo6xOJIMO npBbIKHyT b HOBOIeHoiIJIe,JeIaI npocTbe npOnIIbHa HAdexKHO NOIepTOM DepeBe. BbIOHNTE 3TN DEICTBIA, ECIN BbI He IcNOJIb3OBaII N3DeJIne B TeueHHe KEOtOPORO BPemEH.
Pn pa6ote C nHcTpymeHTOM B nepBbI pa3 peKoMeHdyETcR nnNTb 6peBHa Ha Ko3Jax nn Ha onopax.
Y6eIInTeCbBTOM,TOBCEyCTpoiCTBa3aunTbpyKIN 3y6aTbynopDOnKhbIMObpa30m yCTaHOBJIHbI

HAXOJTCB XPOWEM COCTOHIN.

Iina,3KcnpnyatpyuOme daHnoe n3dene,doNkHbI haxoNTbcB XopoWem 3n3nueckOM COCTOHN. H3dene IMeET DOCTaTOHOb60nbouBec,noTOMy onepatop DOnJKeH 6bTB XopoWey 3n3nueckOf opMe. Oepatop DOnJKeH 6bTB OCTOPOXHBIM, mEsbXopoOee 3peHne,obnaTaNbOBxHOCTbIO, yBCTBOM paBHOBecn I NOBKOCTbO pyK. PnHaINuN KaKnx- Nn6o COMHeH He 3KnpyaTpyte n3dene.
He ctaHOBntecb Ha HeCyToHbIe NObepxHocTn BO BpemrNCIOJIb3OBAHnN3dEINr.3TO MOKET BKIOUaTb, HO He OPrAHuYNBaCb 3TNM,JeCTHnCbl,CTPONTeNBhIE IeCa n DepeBbI. POCToRnHO depXnTe nIy oBeIMn pykAmn 3a pyKOaTKn.
He haHnHaTe nCNoB3OBAHne HNCTpyMeHTa, Noka He pacuHSeHa pa6oay 30Ha, He oBeCneUeHa onopa Hne noDrotOBnE hnyb OTXoA ot naDaHOJero DepeBa.
BybTe KpaHHe OCTOpOxHbI npn OTpe3aHm MeJKNX CyHKOB IN BETOK: OHMOrT 3actpTaB INMbHOJ CENN BBIneTeB HAnpaBJeHN pa6oeryo.
PnO OTNINIBAHH HATYbIX BETOK 6yDbTe rTOBBI 6bICTPO yKJIOHNbC, YTObI He nonactb NOD yDap, KOrda BOJOKHa 6yDyT nepenHeHbl.
OcteperaIeTcB BixIOHbIX Ra3OB, IcnapeHm Macna n OINIOK. Pn HEO6XoIMOCTH HaDeBaITe Macky nn peCnpaTOP.
He donyckaetca nneHne BbIOxxCpaCTeHHn HmMOJIOrO NOIeCKa (DnaMeTpOM Meee 75 MM).
B npoecce pa60tby yedeKbAte n3dene I 6eHmny pykam. Kpenko depKnte 6eH30nny, oxbaTbN pyKoRTn naIbcaMn. PpaBoi pyKoHyxHo depKaTb 3aHIOpyKoTky, a neBoi pyKo -peepHO pyKoRTky.
Ipeep3anyckomMOTopa y6eHntecb,yTO nHbHaueBnHyero He kacaetc.Bcerda 3anyckaTeN3deJeNE CO BKNHOeHHbIM TOPMO3OM nJIbHOJ cENn（HaxkAT NONHOCTbIO BnepeD).
3aIpeaaetcKaKIM-Jn6o 06pa3OM n3MeHrTb KOHCTpyKUIO N3dEINNA INN NCIOB3OBA Tb HacaIKN UyCTPOJCTBa, He peKOMeHOBOAHbIe IpON3BOJNTeEM BaWero N3dEIN.
Praom c onepaTopoM doJHKHa HaxOuTbcra anTeUka nepBoN NOMOu, COepeXauaK KpyHbIe nepeB30UHbe MaTePnAbI u CnHbHbIe CpEaCTBa (HanpImep, CBnCTOK). B npedeJax DoCRAemocTu DOJKeH HAXOHTBCr 6oJIbWo, Boone NOnHbIK KOMnNEKT.
OnepatopMOKETCHTbJHEm,ecnHETONACHOCTN PAneHnPpeDMetOBBpa6oey3OHe,HoDOnJKeH NOMHHTbOTOM，YTOUJEM,OOCeHHOCETHaTBIM KO3bpKOM，CHNKAeT ONACHOCTb TpaBMnpOBAHN JIua HrONOBIpNOrOTCKOKe.
B npocce pa6oTb c n3dennem nCnoJb3yIte IeM. IeM, ochaueHHb ciTuTbIM uNTKOM, CHN3NT pCK TpaMbI Nua ngOBoI npn OTDAye.
HenpaBnIbHO HATaHyTaue Bo MoKcT BbICCKHTb 3 NINbHOI uHHeCTu TAgKne TeLeChIbe NOBpeXdEHn, BIIOTb DO CMePTeHbHOrO nCXoJa. DInHa ceN 3aBNCIT OT TeMNEpAtpByu N3HOca ceHN. PeryIpaHNo npOBepaTe HaTKeHne.

Copejxnte pyKn B cyxom n uCTOM Bnde, oynuaiTe Nx ot macna n cma3kn. Ecnn ha pykni nonano cma3ka n Macno, OHn CTaHOBArTcR CKoJIb3KIMN, Bbl3bIBaR NOTePIO KOHTPOJr.
TTO6bI CHN3NTb pNCK NOJUyehn TpaBMbl OT KOHTaKTa C NODBHXHBIMN DeTaJIaMn, BblKlIOHNTe DBINrAteJIb, AKTNBUPyIte cENHOI TOPMO3 INOTCOEHNHTe npOBoD CBeyn 3axirAHm. Y6eINTecb BNOIHONCTOaHOBKe BCEx DBNXkyuNXcI dTeanei:

• pepeTem, KaK OCTaBnTB INHCTpyMeHT 6e3 npncMOTpa
  -пенисточиюустраншимзаваня
  -пенисторуноки сягшем нараздOK
  -пегд npOBepKo, TeXObcnyKBaHHeM 3KcPlyatauNeYyCTpoiCTBa

Pa3mepb pa6oey 30Hb 3aBnCt OT BnDa pa6oT npa3mepobpeBa.HanpImep, BaIka depeBa Tpe6yET 60nbwe pa6oey 30Hb,yem dpyrne BnDb nIneHn -packpKaEBA u T.D. OnpaTop DoJKeH 3HaTb N KOHTPOJIuPoBaTb BCE, YTO npOxCoDnB B 3ToB pa6oey 30He.
He pacnonarai Te Bawe TeNo Ha OndHn HnHn C nHbHou uHou u cHbU. Ecnn dNCTBNTbHO npOn3oJETOTCKOK,TO 3TO NOMOKeT PpeDToBpaTb TcOpNKOCHOBEHne CEHN C rONOBOu nn TEOM.
He nepemeaaiTe nny Bnpeed-Ha3a, daTe cenn CBO6oJHO pa60TaB. POndepKnaTe cenb HatoeHHo. He nbTainTeCb npotoiKnHyTB cenb uepe3 nponnn.
He haxmame Ha 6eH30nny B KOHc pacnnIOBKn. BybTe rTOBbl pInHrTb BEc Nlbl, KOrda nIeHne B dpeBecnHe 3aKOHHTcR. HeBbINOJIHeHne daHHoro Tpe6oBaHn MOKeT npBeCTN K NOJyHeHIO cepbe3HO TpaBMbl.
He octaHaBnBaIe nIy B npocce nIneHna. He BbIKNoaYte nIy, noka OHa He BbIeT nI npOnnla.

HnBnDyanbHbIe cpeCDtBa 3aunTbI

BbICOKKaueCTBeHHbIe HINDbNdyaIbHbIe CpeDCTBa 3aunTbI, INcNoIb3yEmbIe npOpeccnHOHaAMn, CHNXaOT onaChocTb NOLyHeHn ONEpaTopOM TeLeChbIX NOBpeXdEHNI. PnI EKcPnyatauMn CEHNOI NINbl DOJXHbI NCNoIb3OBaTbCra CneDuOnne CpeDCTBa:

Kacka

PnHbOTCKOKOB Mepbl3aunltb onepatopaOT Hx

EcHn HOCK uHHbHaTOJKNHeTc Ha npenrTCTBne nn nIbHa cEnb 3axMeTc B depeBe BO Bpempa60tbl, 6eH3OIINa MoKET OTCKOHTb.

KoTakCT C BepuHOB H KeKToPbIX CnyaX MoKeT Bbi3BaTbBHe3aHHy OToDAhy, KOTopaa OTbpaCbIbaeT NIIbHyO UHHByBBePx H3aD B HnPaBneHn OnpaTopa.

3aknHnBaHne 9eHNOI NJIb I B BepxHe YacTN HapabJIOUe MoKeT PnBecTu KOTCKOKy B HapabJIeHNOnepaTopa.

H B NepBOM N BO BTOPOM Cnyuae MOXHO NOTepaTb KOHTPOJIb 3a6eH3OINIOI N NOyUHTB TRAKeJIbe TpaBMbl. He HadeInTeCb ToJbKO Ha cpeDCTBa 6e3OnaCHOCTN

camoB6eH30nIbI.Bo n36exkaHHe HeecyacthIx Cnyaeb H TpaBM, Heo6xOdmo npHHMaTb pa3NJuHbIe Mepbl IpedeocTopoKHOCTN.

OTCKOK ABNIEcra pe3yIbTaTOM HnnpabunbHoro NCNOB3OBAHIN IHCTpyMeHTa N/NNn HApyuHen npabuN nnn yCIOBn erO 3KnnyataaUN. 3TORo cNeNyET n36eratb, CO6NJODA YkazAHhie Hnke MeplpeoctopoxKHOCTN.

I OndepxnbAte HAdexHb3axBaTak, YTO6bl 6oBnne nalbci (c Ondho CTOPHO) N octaNbHbIe nalbci (c Dpyro CTOPHO) KpenKO oxBaTBaJIpyKoRTKn cENHO nnbl, dpeXnte nnny oBeMN pykam, pacnoIaraiTe Teno npykn Takm 06pa3OM, YTO6bl IpOTNBOCToRb ycNlNO OTCKOka. Oepatop MOket cnpabITbcra C yCNIIeM OTCKOka, ecnn npedpnhrbl HAdnxKaune MepbI npedocTopoXHoctn. He BbInyckaIte nnny n3 pyk.
He nepehanpraaTecb Hne nnnnte Bblwe ypoBn nnuey.3To nOMOxET N6ExKaTb HnpeHnAmepenHoro KacAHnI Nnbln I No3BOJNT LyUWe ynpabTb cENHO nnIOB HnpeDnDEHHbIX CNTyaUNX.
Icnoj3ynte 3anachbIe uHHbI u cenn, TOnbkyka3aHHbI npOn3BODnTeJem. HeadneKuine 3anachbIe uHHbI u cenn MOrY npInBeCTN K O6pbBy Ucenn n/nn OTCKOKy.
CleyuTe HnctpyKunrnn PpOn3BODnteNo noTexHueckomy 06cIyXKBaHHo NnIbHOu cEN. YMeHbWeHne BbICtBi ORpaHUnTeN NoaM MoKet npINBeCTN KYBEJINeHNO OTaHn.

HNCHTPYKUNIIO NIPABNJbHbIMCNOCOBAM OCHOBHOBAJKN,OBPE3AHNA CYbEB I NOIPEUHORO NIIJEHNA

Onncahne cnn, deneTByouux BdpBeCnHe

Korda Bbl npedctabnarete cebe HappaBneHne daBneHn H anpajxehn B DpeBecnHe, MOXHO yCTpaHnTB Bo3HNKHOBeHne 3aueemJeHn NIN, NO KpaHne Mepe, OxuaTbN B npocece nneneHn. HataxeHne B dpeBecnHe npNBODNT K TOMy, YTO cNON pactraHBaOTcN, ECIN NNJNTb 3Ty oblaactb, To npONn 6ydet cTpeMntcbra pacxoNDtbcra No Mepe npoxOkeHn nnbl. EcnN 6peBHO Jeknt Ha KO3naX DnI nnIKn DPOB, a KOHeC CBnCAeT 6e3 OnOpbl, To HappaeHne Co3daetcHa BEpxHe nobepxHOCTN IN3-3a Beca CBnCaIOUeRO KOHcA 6peBHa, pactraNBaOuEro CNON dpeBecnbl. AhAnOrNUHO, HNXHra CTopoHa 6peBHa 6yDet NOD DaBHeHem, n CNON dpeBecnbl CkImaOTcR. EcnN npONn 6ydet DeNaTbCBA TOI ObNAcTN, TO OH 6yDet cTpeMntbcra 3AMKHyTbCBA BO BpEma nneneHn. 3To npNBODNT K 3aueMeHNEIO 3y6beB NNbl.

Banka depeBbeB

CM.Ctp.323-324.

Ecn npoBtI no packpKBe K n BAlKe BbINOJIHIOITc HecOKlbKIMn NlCaMn OndHOBpeMeHHO, pa60Tb I NO BaJIke DOnKhbI 6blb YdaJeHbI OT pa60 Tno pacpKBe K ha pacCToAHHe He Mehee Yem DBe BBICOTb BAImoro DepeBa. BaJka DepeBbeB He DonJHa npOn3BOIDtCBr CnOCOBm, PpeCTabJIaQUIM OnaCHOCTb DnA JIOBORo Nla, a TaKKe BbIBaHOUM NOBpExdHHe LInnN 3NeKTpopepau nn HaHOCAU MMATEPNAJBHbY uep6.Ecn npOn3oJET KOHTKT DepeBa C KaKo-NIbO LnHne3NEKTpopepau, CneNyET HEmeDNEHNO 3BECTNTb 06

3TOM COOTBETCTBYUO 3HEpreTNUeCKyO KOMnAHIO.

PnBaNKe Ha Kocorope cToIe BCerda BbIe DepeBa, T.K. NocJe NaDeHnO OHO MoKET NOKaTITbcR BHN3.

Tyb OTxOda DoJxhen 6blb npDymaH n, npn Heo6xoDMOCTN, paChuueH do HauJa nnHeHn. Tyb OTXoDA DOJxhen HNTn Ha3aN B6OK OTHOCTeBHO OKndaemoro HanpaBNeHn naDeHn.

IpeepHaayanom BaIKn ONpeJeNTe ECTeBHeHbN HaKIOH DepeBa, paCNOJoxKeHne KpyHbIX BETBe N HappaBHeHne BeTpa, YTO6bO uCeHtB npEtnoXkntbHbN nyTb NaedHn DapeBa.

YdaIInTe C depeBa rpa3b, KaMHN,OTCTaBwyIO Kopy, IBO3n, cKo6bl npoBoda.

He nbTaIteCb CnJIInb TnIIbe Nn NOBpeKdHbIe BeTpOM,OrHEM,MOJIHneu T.I. DepeBBy. TaKa pa6oTa Ype3BbUaH ONaCHA n DOJXHa BblONHrTbCRe cTeuaNtCTOM no 06pe3Ke DepeBBeB.

BaoHb npoHn

CM.Ctp.323-324.

CdaaTe TAK Ha3bIbAembl 0bpaTHbI npoHnHa 1/3 ot DnaMeTpa DepeBa nepneHdkyIapnK HappBeHIO naeHnI nTo JKe CTOpOHbI. Chayana CdaaTe HxNKn ropn3OHTaJIbHbI oBpaTHbI npoHnI. 3TO NOMOXET npedOTbPaTtB 3aUeMHeHne NnIbHOI cENI IIN IIN HbI pN BbINOJIHHeHH BTOPOr OpONNa.

BaNochbI npoNn

CM.Ctp.323-324.

CdeNaTe BaOnHb npOnn BblIe rOp3oHTaNbHO 0bpaTHO npOnnMa MNmym Ha 50 MM. PndepXNBaiTe BaOnHb npOnn npapAnenbHbIM rOp3oHTaBHomy 0bpaTHMy npOnnY. CdeNaTe BaOnHb npOnn TaKIM Obpa3OM, YTo6bl OctaIOcb DoCTaTOHO dpBeCnHb DnI nepeMbUKN. PepeMbUka Ha Depebe npedotBpauaet BpaueHne depeBa n ObecneuBaET naDeHne B HxHOM HanpabNeHN. He nepenNJBaTe nepeMbUky.

Kak TOnbKO BAnOCHbI npONJIo DoiJeT Do nepeMbIcN, DepeBO DoJIxHOb Haatb NaadTb. EcIn cyUeCTByET BO3MOXHOCTb TORO, YTO DepeBO He yNaTeB HHyKHOM HanpaBJIeHNn INn OTKIOHHTCn HA3aN 3axMeT INNbHyO Uenb, NpeKpATnTE nIIeHne Do 3abepWeHnBaIOnHOro npONJa n IcNOJB3yIte DepeBraHHbIe, PnAcTKOBbI INn aIOMNHHeBBie KJIINbY, YTo6bl pa3KaTb npONJn HaKIOHHTb DepeBO B HyxHyO CTOpOHy naDeHnR.

Korda DepeBo NaHHeTnaDaTb, BbHbTe ZenHyIO NnIy n3 npOnIIa, OCTaHOBNTe DnIRATEJB, OTIOXNIte ZENHYIO NnIy, a 3aTEM BOCNOJIb3yITecb NOJROTOBNEHHbIM nyTEM OTxOJa. OCTeperaITcB naDEHnBaTBBe CBepxN CneINTE 3a CBOe ONopoI.

06pe3aHne HecyuxKopHei

CM. cTp. 324.

Hecyune Kopn - 3TO Kpynhble Kopn, OTXODaune OCTBona K 3emne. Obpeaute 3TN Kopn nepeb BankoJdepeBa.Cdelaute cchaana ropn30HaBbHpa3pe3 (A) B Kophe, 3aTeM BeptnKaIbHbB (B). YdaInTe BbIpe3aHHyoactb (C) n3 pa6Oey 3OHbl. YdaInB Hecyuine Kopn, npictynaiTe K BANke DepeBa.

Bo3BpaTHo-noCTynatEnbHnra T

CM. ctp. 325.

Pa6o7a TaRa Bcerda npotnboNIOxHa HnpaBneHIO DBXKeHnna NlIbHO nceH. TaKIM o6pa3OM, OnePapO DOnJKeH 6bIb roTOB KOHTpOIpOBaTb TeHDeHUNIO n3dennr K Haany DBXKeHnna (noCTynatEnbHOe DBXKeHne) npi pe3Ke HNXHe KpOMKO uINbI. Bcerda Ka cNeyET 3aKpeHnnte ynp CEHNHO nNtBo N36EkaHne TAKORO DBXKeHnna. N3dennne MoKet CDBHyTbCra Ha3ad (no HnpaBLeHnIO K onepaTopy) npi pe3Ke BepXHe KpOMKO. YTo6bl 3TO npEpoTbPaTb, He dOnyckaIte 3actpeBaHnna ceHn npi pe3Ke BepXHe KpOMKO.

Nny 3aknnnno B nponne

OctahOBInTe ueHny niny u obecneYte ee 6e3onacnoe coCToHnHe. He nbTaIaTeCb n3nnuHm ycHnem BbHytbe n HnHy n3 npOnnla, TaK KaN npN 3OM eNb MoKET nopBaTcBcR, OTJeTb Ha3ad n ydapntb OepatopA. TaKa nCtyaunr OB3nkaet n3-3a TORO, YTO depeBO HnPaBnBHO NOndepXnBAeTCn CdaBnBaet npOnnL 3actabnra erO 3akpytbcR, TAKM Obpa3om 3aueMnra 3y6b nnbl. Ecn peYnpOBKn noDnnpbl He ydaetcR OCBo6oNDtb WnHy n ceb, NcNoJb3yTe dJa pacWnpeHn npOnnla n OCbo60KeHn nnbl DepeBnHbE Klnhber nPi pbur. HnkOrDa He 3anyckaTe ceHny nny, ecnn nnlbHa WnHa haxoNTcB n npOnnle.

PacKpXeBka 6peBEN

CM. cTp. 325.

PacpKBeKa - 3to pacnIOBka 6peBna no dInHe. Heo6xoDIMO obecneuTb yCTOuHByU onOpny npabHOmepeHoe pacnpedeJeHne Beca Ha oBe HOr. No BO3MOxHOCtN, 6peBHO HyKHO NOHrTb N IOdpeTe b c NOMOJIbTO BeTBei, 6peBEN IIN DepeBraHHbIX UypOK. Co6IIOaTe npocTbe IpaBUNa dJa OBnerueHn IIJIeHn. EcIn 6peBHO nOdnepto No Bcei dInHe, OHO IIINITcBcEpxy (HaDNIJ).

Ecn 6peBHO noDnepTo c ODHoro KOHua, npOnNJnte 1/3 dNaMeTpa CHN3y (noDnJI). 3aTeM 3aBePunTe NInHeNe, CdeJaB HaDnJl Do BCTpeuC nepBbIM npOnNIOM.

Ecn6peBHO NOdepKINBaETcC 06oN KOnUOB, nponnnte 1/3 dnaMeTpa Cbepxy (HaDnn). 3aTeM 3aBepnTe nIeHne, cDenab noDnHa 2/3 Chn3y do BCTpeu C nepBbIM nponnOM.

EcnnpackpkrkEBKa BbINOHNrETCHa CkIOHe, cneJyET Bcerda HaxODNTbcg Ha BepxHcN No CKNOHy CTOpOHe 6peBHa. PnCKBO3Hom npONINBAHN, YTO6bl COXPAHtB NOHbIKoHTPONb DO KOHua, Ocna6bTe DaBNeHne Ha NnIpy PnPn6bnKeHN K KOUY npONnA, He Ocna6bnra 3aXBat pyKoTOK cENHO nINbI. He DONYCKaIte KOHTAKTa cenn C 3emNe. Iocne 3aBepeHnna NIneHnna NODOKdnte, Noka cENb NINbI OCTAHOBNTC, npExe Yem nepemeuatab cenHyIO NnIy. Bcerda OCTaHabNBAaTe DBIrataJIb, npexde Yem nepeiTu OT DepeBa K DepeBy.

CyuKOBaHne DepeBa

CM. cTp. 326.

Cyckobahnne - 3TO ydaJIeHne cybBeB C NOBaIeHHoro DepeBa. Ppi cyckobAHn, He 6pe3aIte NepBbIMKpynhhe HxKHe BETB, OTo6bO OHN NOdEpxNBAn DEpeBO HAD 3emNe. Cpe3aIte He6oJbUWe BcTK 3a OIN

npoxoHnpanxehhble BetbN cneyET nnnntb cn3y BBepx,BO n36exahne 3aklnHBaHnae CENHOIbl.

PpyxHnHae cTe6n

CM. ctp. 326.

XnbCT(A)-3TO BETKa,BbIKOpueBaHHbIK KopeHb INN KYCT, HATrybIN NOD DaBHeHEm DpyTm DepeBOM. XnbCT MOKeT pe3KO BbIPnMnTBcR,ecnOTpe3aTb DEpKaUee erO depeBO.

NobaneHoro DepeBa qacto BO3BpaaaetcB BepTKaIbHoe NOJoxKeHne, KOrDa CTBON OTpe3aOT OT Hero do KOHua. BybTe octopoxHb! XlbictbOnachb. He nbTaitec Cpe3aTb N30rHyTbe BETKn NnPiH, KOTOpBe HaxOaTcNoHapJxKeHMe, ECJN BbHe HmeeTe npocceccnoHaBHOn NoIrotOBKn HaBbIKOB.

TPAHCIOPTNPOBKA IN XPAHEHNE

BbIKHNoHTe DnuratEnb, AKTNBpyuTe cENHOI TopMO3 nOTcoeHNHTe npoBOO dOT CBeU 3axKraHna. DaIte yCTPOcTBy OCTbITb NpeD NOCTAHOBKOHa XpaHeHne Hnn TpaHCnOpTnpOBkoN.
OuHCTnTe yCTPOHCTBO OT BCEx NOCTOPOHNX MaTePnaJIOB.
CneIe BCE TOONIBO 36aKa B KaHnCTpy dJa 6eH3nHa. He 3a6bBAite TuaTeJIbHO 3aKpbBaTb KpbIuKy TOINNBHO 6aka.
JaTe MOTopy npa6oTaB, noka OH cam He octahOBnTc. 3TO N03BOJnE T NOHOCbIO BByHaTb OCTaBHeecr TOONIBO, YTObI OHO HE OCTaBNIO JNINKORO OCAkA B CNTeMe.
CneIe BCE MacNo DNn HInbI n cenn B KaHnCTpy dna Macna. Hndnxaunm opa3om yctahOBnte n 3aTnHTe KpbuKy MacnHoro 6aka cenn.
Ipeed XpaHHeHnEM nIN TpaHCnpOpTIpOBKo Nnbl HaDeHbTe Ha NnBHyU 0nHy KpbIuKy.
XpaHnTe ero B npoxnaHOM, cyxom, xopoOIO npoBeTpnuBaEMOM HEDocTyNHOM dIa DeTeMecTe. He depKnTe 6eH30nHy pRdOM c Koppo3nHbIMN BeueCTBaMn, TAKIMN KaK caOBbIe XmNKaTbI Nn pa3MopaxnBaioiag coJIb. He xpaHnTe Ha oTKpblOM BO3dyxe.
PnpeHocke H3dEHa KaKOpTKe paCCToHnH (OT OHOH pa6Oey 30hB KdpYrO) BcERda BKnUoayTe TOpMO3 cENn TaK, YTObbl NINbHaer cENb He MoIa nepemeuaTbc.
ДлгТранспорповкизakpeniteуctpoиCTBOТК,TO6bI OHO He MOrNo NepeMeuTaBcR NIN yNactBoNO36ExKaHne TpaBMnpoBaHnR nepcoHaJa NIN NOBpeXdHnryyCTpoiCTBa.
He nepenocHTe HcOcyecTBnIe TpaHcnOpTnpOBky INCTpyMeNTa np pa6oTaUcem DBrataTeJe.

Co6nOdaTe rocydapCTBHeHbIe n MeCTHbIE HOpMbIXpaHEHnTOnNtBA.CNTIOE TOONBO MOXHO NcONb3OBaTBB DpyTHNX IHCTpyMeHTax C DBYXTAKTHbIM MOTOPOM.

TEXHUNCHECKOE OBCJNYKUBAHVE

Iopdepxnbate HnctpymEnB xopoewem pa6ooyem COCTOHN.

OCTOPOXHO

IcnoJb3yTe TOnbKO OpunHaJIbHbIe 3aNactn, akceccyapbl HacaDN OT npOn3BODnteJIa. HeBbInOpHeHne 3TOro Tpe6OBAHn MoKET npINBeCTn K TpaBMe, K CHNXEHNIO npOn3BODNTeJIbHOCTn K aHHyIpOBaHnIO rapaHTn.

A OCTOPOXHO

06cnykBaHnne Tpe6yet 4pe3BbUaHNoi 3a6OtBi n 3HaHHn I DOxKHO 6bITb BInONHeHO TOIbKO KBAINuCnUPOBAHbIM TEXHNKOM 06cnykBaHnra. O6paTntecb B ABTopN3oBaHHbI cepBnCHbI ueHTp dJIr TexO6cnykBaHnra.Ipn BBInONHeHn TEXHNueCKOrO 06cnykBaHnra INcONb3yIe ToIbKO opRnHaNbHbIe 3aIyactn OT npOn3BOJNTeI.

A OCTOPOXHO

Ipeed OcMOTpOM, OChCTKoN nn N6cbJyXnBaHHeM n3JeNn BbIKIOUHTe DBIRaTeNb, aKTINBUPyIe TcENHOI TopMO3 IN OTCOEHNHTe PPOBOD OT CBeHn 3axKnaHn. HecobIoJeHne HactOrauNn npabn TeXhkn Be3onacHOCTn BeET K TjXeJIbIM TpaBMam N KpyNHOMy MATEpNaIbHOMy yuepe6y.

BbMOKeTe BbIOINHrTa paOToI no peryInpoBKe n 06cIyKINBAHHO, KOtOpBie ONICAHbl B DaHHOM pyKOBOIDCTBE. IIO BONpOcy peMoHTa ObaaTecb B aBTOpN3uPOBaHHbI cepBnCHbI ueHTp.
CleIcTBnEM HnpaBnIbHoro TexNueckoro 6cbnyKINBaHH MoKET 6bITb HeBepHa pa6oTa TOpMo3a NIIbHOI cENI IN DpyrIX CpeCTB 6e3ONaCHOCTN, YTO NOBbIaET OnaCHOCTb PnUHHeHH T8KKX TeNEChbIX NOBpeXJDeHNI. IOndepKINBaHTe CEHNyIO NJIY B 6e3ONaCHOM COCTOAHm N BblONHJIte npocceccnHOHaIBHOE TEX06cNynBaHne.
Be30anach aOTTOyKa cENI - 3aDaYa, Tpe6yUOaHabbka. TaKIM O6pa3OM, npOn3BODInTeNb CTPoro peKoMeHdyET npOn3BODInTB 3aMeHy N3HOseHHHO IN TyIOI cENI Ha HOByIO, KOToPyIO MOXHO NOLyHTB B ABTopu3OBaHHOM cepBnCHOM ueHTpe. HOpem DeTaN DOCTyNeH Ta5Nlue CneuФnKaunN 3dEINBApyKOBODCTBE.
CobIoudaIte HNCTpyKUIN NO CMA3Ke, npOBepKe HaTJKeHn CEEN n peryInpOBeK.
IocneKaJdOrOHCnONb3OBaHnnpTpaTteN3deJIe MrkKoCyXoTKaHbHO.
IpoBepntb BCE 6oNTbl,3aDbNkKn,N BnHTbl,pepe3 KOpOTKne INTEPBAJbl,Ha HAdNExKaUyIO NIOTHOCTB, YTO6bblcra,TO O6OpYIOBaHne HAXOINTCB B 6e3OnacHom,pabOeM COCToHm.B clyuae NOBpeXdHn KaKo-Jnbo DeTaN Heo6xOIMo 6paTntbcraB ABTOpN3OBaHHb CEPBNCbH ueHTp DnB BInONHeHn HaNEXKaUero peMOtA UIN 3aMeHbl.

3AMEHA ININbHOI UINHbI UENI

CM.Ctp.329-330

1. OctaHOBnTe yCTpoIcTBo. HadeBaIte 3aunTHbIe nepuATKn.

2. OTKIIOHTe TOPMO3 NINbHOH cENH
   3.ИЗВЕКЛТЕ RAДК KРЕПЕнHA 施HbIC NOMOULTOKOMБИНРОВАHHORO RAeHORO KINHOVA B KOMNJIeKTe.

3. CHIMNTE KOKxUcENI.
4. CHIMMTE WINHy u cenb c yctpoNCTBa.
5. IomeCTnte HOByo Zenb Ha WnHy B npaBnIbHOM HappaBHeHH N yOcTOBepbTEcB B TOM, YTO npINBOHbIE 3BeHbpaCNOJIOKeHbI B KaHaBKe WnHbI.
6. PnKpEnIte uHy K cENHO n HaeHbTe cenb Ha BeDyUHO 3Bc3OHy.
7. YcTaHOBnTe KOxUx CenN rAaKN KpePHeHna 1uHbHa MeCTO.
8. 3aTaNHe TaKn KpennEnHna WnHb BpyHyU. SinHa DOJXHa NMeTb BO3MOxHOCtB nepemeuaTbcra npN peryIuPObKe HATRKeHnueHn.
9. PerynnpobKa HataKeHna Cen. Cp3dE N «PerynpobKa HataKeHna cenn
10. Pnpndepkmba HOCOK WnHb, Kpenko 3aTaNHe ee raKn.

YICTKA BO3DyUHOrO FJIbTPA

CM. ctp. 333-334.

1.ДЯ pa36noknpOBKn HAKMITE Ha pyky, pacnoJIOxKeHHyO CBepxy Ha KpbIuKe BO3dyuHoroФЛьТра,N NOBepHITe ee npOTNB YacOBoi CTpeJIKN.IoHNMTe KpbIuKy BO3dyuHoroФЛьТpa BEPTKakJIbHO;OTLOXHTe ee BCTOPOHY.
2. YdaIte MaKcMaJIbHoe KOINueCTBO rpy3n n OINIOK c NOBepxHOCTN BOKpyr Kap6oPaTopa N KamepbI.

IIPMMEAHHE: 86eintecb B TOM, yTO pbyar dpoceHnpoBaHn HaxoINTcB 3aKpbTOM NIOXHeHn DJI 3aunTbI Kap6opatopaOT 3arp3HeHn.

3.C NOMOUBIO KOMBHNPOBAHHORO raeHORO KJIIOUa INIINIeBOI OTBePTKNI OTKpyTIne BnHT,ΦNKcPuyUuIN BO3DyHbI ΦNtBp.
4. TTo6bl n3BJIeYb BO3dUyHbI ΦnIbTp, NOMecNTe WNIuCEByHO OTBePkY MEKdy METOK INPOBepHnte.
5.CHIMNTe BO3DyUHbI ΦnIbTp. OuNCTnTE BO3DyUHbI ΦnIbTp

ДяобшeyчNTKN，NOCYHTeФINbTpOMOBPOBHyIO NIOCKyIO NOBepxHOCTb，YTObI BbITpACTn3HERO rpa3bNpbJIb.
Дяболг TeaTeBHOO ONUCTK INCNoB3yTe TENbIMMbIbHbIpaTbOp.PpOMoTe n daTe NOHOCTBbBOBICOXHYt.
3aMeHy fHnIbTp aCneDyET npOn3BODntb uepe3 KaXdIe 25 yacob pa60Tb.

IPIMMEAHNE: AJIbTePHaTINBHyI cNooc OChcKn -IpoDyBk CxAaTbIM BO3dYxOM (BO n36ExHne TpaBMbl NCIOB3yIte CpeCDBa 3aunTbI rna3).

1. YctaHOBnTE BO3dyuHbI ΦnIbTp Ha MeCTO, COBmecTNB METKHaΦnIbTpE.
2. YctaHOBnTe KpbIuKy Bo3dyuHoro fIbItpa. HAcMnTe Ha pyuKy n NOBepHnTe No yacOBo CTpenke.
3. OuNCTKa QnIbTpapnpedBapnteHOBOnOuNCTKn DOnKHa BblONHrTBCrNoCne Otpa6OtKn 25 BaKOB TOnNBA nn Yaupe No Heo6xOJIMOCtN.CHMnTe KpbIiKy DBIrataTena, bNOc CTApTepa N KOxy X BeHTnIaTopa, YTO6bI NOyUHTb DoCTyn K QnIbTpY npEbnPteJIbHO OHNCTKN B Kopnyce DBIrataTena (CM. cTp. 335 - 337).

IPNMEAHNE: Pn nCNoIb3OBAHn BO3duHoro ⅢnaHra dIy cyuKn cIeMyET npOdyTb OnbTp B o6ex CTOpOH.

WARNING

3anyck Dniratela 6e3 BO3dyuHoro fNbtpa He donyckaetc. PpeXde yem yctaHaBnBaTb Ha MeTo BCE Detann, npOBepbTe, T06bl BO3dyuHbI FNbTp 6bl npabunbHO yCTaHOBnEH HA CBOEM MeTe.

OCMOTP IN OUHCTKA TOPMO3A INJHBHOI CEIN

CM. cTp. 332.

Bcerda coedepxte B uHCTOTE MexaHn3M TopMo3a nIbHoN cEN, bepexHo OUnuA coeINHeHnO T rpa3n 1eTKoI.
Iocne oucctkn Bcerda npobepaTa pa6Oy TOpMo3a nnbHou cenn.
IOnonHnTeJIbHyIO INHOpMaunIO MoXHO HauTIN B pa3dene “Kcnnyataun. IpoBepka u nCnoNb3OBaHne UenHoro TOpMo3a" HactoJero pyKOBOcCTBa.

PERYIINPOBKA YNCSIA OOBOTOB DBNIGATEJI KAPSEKOPATOPA

OCTOPOXHO

HenpaBnIbHa peryu npOBKa Kap6oPataOp MoKet yBeIuHTb PCK TpaBM, HechacThbIX CnyaEB nIN NOpeJxHn yCTpOcTBA. O6paNTecb B abTOPn3OBaHHb CEpBnCHbI cEHTp dIpyeYnpOBKn Kap6oPataOp.

CINCOK OBCJYXNBAHN

COOTBETCTBNE Tpe6oBaHnM CE

3HaK EBya3nckoro COOTBETCTBnA CeTnФnKaT CoOTBETCTBnA Nc TC RU C-DE.AE11.B.04151

Cpok DeiCTBnB CeptnФnkata CoOTBeTCTBnI No 10.08.2020 HeKOMMepuecka opraHn3auin

UypeKdHHe cepTnФmkaCm n 3KcpeTp3bI «CepTaKc» 109044 PΦ, ropoD MockBa, 3- KpyTuqkn

nepeyloK, dom 11

YkpanHckn 3HaK CTaHdpTn3aun

TapaHTnpyembI ypoBeHb 3BykoBOI MOUHOCTN COCTABJRE114D.

YCTAHOBITE TOPMO3 NINbHOI CEIN B NOJIOKeHNE PABOTA.

YCTaHOBtE TOPMO3 NINbHOI CEIN B NOJIOKeHNE TOPMO3.

IpebeDnte BbIKNoateJIb 3aKunraHnB NIOJIOKeHne "BKl".

PnokanaTe nooc 10 pa3.

BbITHnTe pbyar dpoccenipobAHnI nnnoHHOrO 3aKpbTINrDPOCCeJI.

Dieprate 3a pyky 3anycka (He 60onee nTn pa3), noka MOTOp He 3abeetc.

Bdabnte pbuar npocceipobAHn DO KOHua.

DepraTe 3a pyky cTapTepa, noka DBuratJIb He 3anyCTNTcR.

OTnyCTNE cnyckobyIO KHONky Hnaxmnte Ha DpocceIbHbI peryIaTOp, nocne yero OTnyCTNE dpoceIbHbI peryIaTOp, 4TO6bl nepeiTu HA xONoCTOn XoD.

JaTe H3dennOp npa6oTaTb Ha xOIOCTOM xOy15-30cekyH.

TOnJIbBO mACnO

Cma3ka nIbHOH uHbI uEIN

"ПовернITE дя рулровки натяжени + = 3атунite сени - = Oсалбte сени"

HanpaBHeHne nepemEeHnraenn

"H = BbICOKOcKOpocTHa
perynipobOHa nIra
L = Hn3KoCkOpocTHa perynipOBouHaNrla
T = BnHT perynipOBKn xOnocToRo xOda"

3anpnte kpbikky doctyna K cnibtpy.

OTonpnte KpbIuKy DocTyna KФиЛьтpy.

IpebeDnte nepeKluoyateIb 3axnraHnB NOLOXKeHne "CTON".

UCIOBHBIE OBO3HAUHENBAHHOM PYKOBOIDCTBE

CmeuBaIe n nepeJIuBaIe ToTnIOB HbO3dyX, BdaIIN OT NCKP INORH.

He kypnte npnpnroTOBneHn TOnJIbHOcmecnn3anpaBKe TOnJIbHO 6aka.

TeaHn npHaJnxKHO npno6peTaembe OTeJIbHO

Uwaga

Uwaga

HaedeBaTe CpeDCTBa 3aunTbI rna3 nIuca.

HaedeBaIte 3aunTHyO OeJdy DnBepxHeu Yactn Tena.

HaTeBaIte 3aunTHyO 06yBb.

OctahOBtyeyctpOietBO.

3anpnte kpbilky doctyna K cnbltpy.

OTonpnte KpbIuKy DoCTyna KФиЛьтpy.

CneIyUoHne CnHaNbHbIe CNoBa I 3HaueHna npEHa3HaueHbI, YTo6bl O6bAcHHTb yPoBHN pNcKa, CBraHHOrO cTtM N3dennm.

ONACHO

Yka3bIbAeT NOTeHnuaJIbHO ONaChyIO CUYaUIO, KOtOpAra, ecn He n36ExKaTb, MoKcET KOHcTaBcA CMePteNbHbIM INN cepBe3HbIM yUeep6OM.

UWAGA

Yka3bIbaet NOTeHuaJIbHO ONaChyIO CHTyaIIO, KOTOpAra,ecnHe N36ExKaTb,MOKeT KOHaTaBcR CMePTeNbHbIM INI cepBe3HbIM yuepe6om.

UWAGA

Yka3bIbaet NOTeHuaJIbHO ONaChyIO CITyaUIO, KOTOPa,ecnHe n36eKaTb,MOKeT KOHaTbCMAlbIM INJyMeHbWeHHbIM yUep6om.

UWAGA

YnoTpe6nraTe 6e3 npdynpeKdaUoero 3HaKa Yka3bIaet Ha cHTyaCuIO, KOtopa MoKeT npNBecT K IOBpeXdeHIO IMyueCTBa.

ПОИСК HENСРABHOCТЕN

Поблесma Bo3MOЖьыпрочины Peшени
МOTOP He 3anyskaetcya (Установпг кinglyзядоганя в пооженце "on"(ВКЛ.)).	HET nckpbI.	С党支部 заIGNIGANIA может 6ыт Trpechуда пли поврахдана.ЗаменITE сбechу заIGNIGANIA на Новую и польтаимь садусь 3ankutь bNOBb.Есни дBRIGATENB 此ся He 3anyskaetcra,образитeь в rapантунhoe obSclnyЖьане дядалыншейnpobерки.
	MOTOP "3axle6Hynca".	Поставы Te bIKLIOUATEь B noLOXENHIE "О" И ВьBERPHTe cBevy. Пореведite рычагДрocseллрOBANIA в рбочee NOLOXENHIE (нжмitedo Концa)И по�пite рунho CTapTeR 15 - 20 pa3.ЭTO OSBOODIT MOTOP OT ПИшero TOPINBA.ПочICE Tte cBevy u ySTAHOBITE ee Ha MeCTO. Пореведite поеклIOUATEь 3azIGNATANIA B noLOXENHIE "ON".ПОДKAUALTE NOCDOC 10 pa3.ПOTЯнITE рунho CTapTe rTn pa3a c pbYarom dpoocelnlpOBAHNA BNYTPn.Eсни DBIRATENBE He 3anyskaetcra,пореведite рычагДрocseллрOBANIA B noINCHSTBUO 3akpy ToZyCKAIOPE NOLOXENHIE IN nobTOPITE pOPOEDUPy 3anyska DBIRATEN.Есни и посLE 3tORO MOTOP He 3abENCRA, nobTOPITE BCE 3TN ONEPAUIM C HOBO CBewo.
MOTOP 3abODITcno Ho He pa3roHЯETc.	BINT "L"(MaIbe obOporToI) Tpe6byET perynipovOKn.	ПочITE PERYNIPOBKU cSteuAniNCTU n3 ΚeHTpa texNHueCKOrO obSClykWBANIA.
MOTOP 3abODITcno Ho pINOxo pa6botaet Na polnoHoi skocopstn.	BINT "H"(6olbshne obOporToI) Tpe6byET perynipovOKn.	ПочITE PERYNIPOBKU cSteuAniNCTU n3 ΚeHTpa texNHueCKOrO obSClykWBANIA.
MOTOP He pa3roHЯETcdo pIoHNoI skocopstn, ИиЗ Hero Indet MHOrO dlBaMa.	Поверъte kauchetBo TOpIIINHoi cmecn.	ИспolyБуТe HOBуO cMeCb c npABINbHoi npOONPUE MaCnДЯДБYXTaKTbIX DBrIGaTeNeI.
	Bo3duShnI phInbTp zacopinncsE.	ЧИSTТВ BO3duShnI phInbTp.
	Cetka nckpootpaxatelna 3acopinncsE.	Для BvIOnHENHЯ ремOTa ИпЗamENbI obpaTITeCB ByNOHNOMOChHb CErbVcNb ζeHTP.
	BINT "H"(6olbshne obOporToI) Tpe6byET perynipovOKn.	ПочITE PERYNIPOBKU cSteuAniNCTU n3 ΚeHTpa texNHueCKOrO obSClykWBANIA.
MOTOP 3abODITcno I pa3roHЯETc, Ho He DeprKNT peKIM mAlbIX obOporToB.	Heobxodimo OTrpeylnipOBaTB Kap6uporatop.	ПочITE PERYNIPOBKU cSteuAniNCTU n3 ΚeHTpa texNHueCKOrO obSClykWBANIA.
MOTOP 3abODITcno I pa6botaet Na polbIX obOporTox, Ho ZeBb He bpa7aetcra.	MaconHybIb 6ak Ддя сeNi nuCT.	З苹равлйte macIaNbIb 6ak OndHOBpeMeHNo c TOpIIINBbIM.
	ZeIb cStIbKOM cNilbHo HataHyta.	Натянite сeNB.
	Поверъte pa6bOtу macIeHKN.	ДаITE MOTOPU nop6bOTaB Na cpeDneH cSkOpcStn 30 - 45 cekyHd. OctahOBHITe pIiyu InpoBepbTe cTeKaHne MacIa c ShInbI. EsIHy na Hei ecTh MaCNo, cSeIb MochET 3aTyIITbcR, a ShIna nobPeDITbcR. EsIHy na ShIne HeT MacIa, obpaTITeCB LcHTP texNHueCKOrO obSClykWBANIA Ryobi. B cnyae otCytCTBnC mAz3kn Na habrabJIoueoi obpaTITeCB b ABTopIN3OBaHbI cERBcNchI ζeHTP.
Topm03 ceNi 3abOkinpoban.	OTnyuctte Topm03 ceNi.	OTnyuctte ceNHOI TOPm03.
	ZeIb cStIbKOM cNilbHo HataHyta.	HaTAYHITe cSeNb.
	Поверъte pa6bote coSTOJHne ShInbIи cSeN.	Поверъte pa6bOye coSTOJHne ShInbIи cSeN.

EN

FR

DE

ES

IT

NL

PT

DA

SV

FI

NO

RU

PL

CS

HU

RO

LV

LT

ET

HR

SL

SK

BG

UK

TR

TpaHcNtOpTnOBKa:

Kateropueeckn He donyckaetc naedHne n IIObIe MexaHueeckne BO3dienCTBna Ha ynaKOBky npN TpaHCnpTIpOBKe.

Pn pa3rpy3ke/Norpy3ke He donyckaetc nCNoB3OBAHne JIObO BnDa TexHnKn,paOtaUoSeI no npHHuNy 3aXnMa ynaKOBKn.

Xpahne:

HeoXoJIMO XpaHHTb B cyXOM MecTe.

HeoXoDIMO XpaHnTB BdaJIN OT NCTOCHNKOB NOBblJeHHbIX TEMnepaTpN BO3DeiCTBnC OJIHeuHbIX JnyeN.

Ppi xpaHeHn Heo6xoDmO n36eRaTb pe3kOro nepenada Tempepatyp.

XpaHHeHbe3 ynaKOBKn He dOnyckaetc.

Cpok cnkyk6bln3dennr:

Cpok cnjxkbni3dennncoCTabJrE 5 net.

He pekomehnyetc K 3KcnIyataunn no nCTeuehen 5 let XpaHEnn C daTbI N3rTOBNeHn 6e3 npedBaPntelbHO npOBepKn.

Data n3rotOBJHn (KoD DaTbI) OTUaMNoBaH HnOBepxHOCTN KOpnyca N3dEJIIN.

Ppimep:

W17 Y2015, rnde Y2015-rod n3rotoblenn

W17-HeJeIu3rOToBJIeHnIa

OnpeDenItb Mecu H3ROTOBHeHMOxHO corlaCHO npBeHHOH Hxke TabInue, Ha npimepe 2015 roa.

06paTHe BHMaHHe! KOnuYecTBo HeJeB Mecrue pa3nuaeTcA T Oda B rO.

ZAPOZNAJ SIE ZE SWOIM PRODUKTEM

Patrz str. 316.

CZEŚCI

Rezani korenovych nabehu

Viz strana 324.

A TENGELYKAPCSOLO ELLENORZÉSE

SPLOsNA VARNOSTNA OPOZORILA

He ro n3non3BaIte 3a HnKakBn DpyrU cJIeN.

REDYIPTPEXJEHME

Pn n3non3BaHe Na npOdykTa Tpr6Ba Da ce Cna3BaT npabnata 3a 6e30nacHocCT. 3a ocNpyraBe Ha BaWata 6e30nacHocT N Ta3n Ha CTpaHnUHnTe HabJIOdaTeNN Tpr6Ba Da npOyete Te3n INHCTpyKcnn, Ppeu Da paBOTnte C npOdykTa. Tpr6Ba Da NOcETnTe npopecnoHaHNO opraHn3npan Kypc No 6e30nacHocT OTHO Cho n3NoI3BaHTo, NpeBAHTNBHnTE DeNCTBnO, OKa3BaHeTO Ha NpBpA NOMou N NOdPbXkata npn pa6ota C BepnKn TpOnH. CxbpaHnBaIte pkoBODCTBOTo 3a ekCnloaTaun Ha CNrpyHO MxCTO, 3a da MoKTe Da rO NO3BaTe N NO-KbCHO.

EDYUPEXDEHME

BepnKHNTe TpnoHn ca notEHuaJHo onachn HNCTpyMeHTn. IHUdEHTnte, CbBp3aHn C nIIOJ3BaHeTo Ha BepnKHN TpnoHn, YecTO 3aBbPWBat CbC 3aY6ba Ha KpaHnU ININ CMBPT. OnaCHOCTTa He IJBA cAmO OT CAMn BEpIXeH TpnoH. PadaUHTte KNOH, NOBaJIeHNTe DbpBETA N TbpKaIIaUHTte Ce IbHepn CbIoo MORaT da y6uBAt. He3dpabNt ININ rHHeU dBpBeH MaTePnAn Cb3daba DObnHNTeJIHn ONaCHOCTN. Tpr6Ba BHIMATENo DA npeueHRAte Bb3MOXHOCTnte CN 3a 6e3oNaCHO cnpABHe CbC cbOTBeTHata DeHOC.T Ako IMate HkaKBN CBMHeHNA OCTabe TaHa npocceNoHaen necoBvD.

OBUNPENUYNPEXKDEHNA B3E3ONACHOCT

B HЯkon pernoHn DeiCTBaT Hape6n, KOnTo orpaHcyBaT yNoTpe6bata Ha npOdykTa. 3a cBBeTN ce 06pbuaTe KbM MeCTHIne BJaCTN.
He no3BolraBaIte Ha deca iJIn Ha Iina, He3aNo3HaTn C nHCTpyKUInTe da n3NON3Bat npOdykTa. MeCTHnTE Hape6b MoRat da HanaRat OrpaHueHn 3a Bb3pactTa

Ha onepaTopa.

■IpeiBcKa ynoTpe6a npOBepBaTe daJIb BCNUK KOHTpOIN uYCTpoiCTBa 3a 6e3oNaChocf yHKUHOHPaT npABUNHO. He n3nON3BaTe npOyKta, aKO npEBKnIOuBaTeJrT “OFF” (N3KlOvBaHe) He cnIPA MOTopa.
Hukora He cTapTnpaIte DnIraTeIe B 3aTbOpeHo nn Cna6o npOBeTpINBO npocTpaHCTBO; BnIWBaHETo Ha n3ropeIInTe ra3OBe MOKe da e CMBpTOHOCHO.
IpeiBcra ynoTpe6a noocTBaiTe pa6oTHata 30Ha -HenoDpeDeHaTa n pa3xBbpnaHa pa6oTHa 30Ha e npednocTabka 3a 3lononykn.
Hocete nblHa 3aunTHa ekinnupOBKa 3a 3peHneTo n cnyxa, 3dpabn npedna3HN pbkabuN, npedna3Hn obyBn C Hennb3raun Ce NODMETK N 3aunTHn cpeDCTBa 3a rIabata, Korato pa6OTte C npOdykTa. Ako npu KoceHeTo ce otJe npax, Hocete u MaCKa 3a nnue.
He HocTe WnpOKn DpexN, WOpTN Nn KaKBnTo n Da 6nlo 6nkyTa.
IbIgata Koca Tpr6Ba Da 6bJe np6paHa Ha HnBO Ha pameHete,3a Da ce n36BerHe HeiHOTo 3aJIInTaHe B DnIXeUHTe Ce qactn.
BHHMaaBaiTe 3a OTXbpKHaHn, Netau nnnaa npedmetn. DpXkTe BcNqKn CTpaHnHn Ha6JIOdaTeJn, Deca n DomauHN XINBOTHn Ha pa3ToHne nohe 15 MeTpa oT pa6OHTa 30Ha.
Hnkora He pa6oTeTe c npOdykTa B eKcnNo3nBn nn 3anaJIMN ycNoBna.
IpoIbPkaIte 3npab XBaT n Ha DBeTe pBkoXBaTKn, DOKaTO mNoI3BaTe npOdykTa.
Бьдete 6dnteJIHn，BHMaBaIte KaKBO npabnte n npoRbBaIte 6laRopa3ymne，Korato 6opabnte c ypeHa. He n3noN3BaIte TOni npOdyKT, aKO cTe ymopeHn，60JHn NnN NOBnHHeTO Ha anKoxoJ, HapKOTuN nJlekapCTBa.MrHEBHMaHne npi pa6ota C MaunHaTa MoKe da DoBeDe Do cepNo3Ho fU3NuEcko HapaHbaHe.
He n3no3BaIte Ta3n MaunHa npn Cna6o OcbTeHneHne. OepaToptbT Tp8Ba Da HMa YnCTa BnIMOCT Bbpxy pa60THOTnpocTpaHCTBO, 3a Da NDeHTnФnUnpa NOTEHuaJIHOnaCHOCTN.
Pn n3noJ3BaHe Ha aHTnfoHn Ie Ce HamaJIcNoC6HoCTTa Da YyBaTe npdUnpeXJeHnra (NoDvBkBAHnna anapMn). OepaTopbT Tp8Ba da e Oco6eHO BHNMaTeIeH 3a TOBa, KOEtO Ce CnyuBa Bpa6oTHata 30Ha.
Ako H6n30 ce pa6oTn C noo6Hnypei, TOBa yBeJIu4a KaKTo pUcKa OT yBpeJdaHe Ha cnYxa, Taka n BepoTHocTTa dpyrN xopa da HABJra3at BbB BaWeto pa6oTHO npocTpaHCTBO.
3aemaiTe ctaBnHa no3nua n na3eTe 6anac. He ce npotraIte, 3a da pa6OTne Ha Tpydno DocTKHM Mecta. IpekomepHTo npotraHe MOKe Da DOBeDe Io 3aryBa Ha paBHOBecne INN HEBONEN KOHTAKT C ropeun IOBbPxHOCTn, a cbIo TAka MOKe Da yBeINuOn OAnCHOCCTTa OT Bb3HNKBAHe Ha OTkAT.
IpybXTe DnBxKeuHte ce yactn Ha pa3ctoHne OT TAnoto CN.

He DOKOCBaIte O6JIaCTTa OKOIO 3aJTyUHTeJIY IINI DnIraTeJI Ha ypeJa, Te3N YactN Ce HArOpEuaBAt MHOrO NO BpeMe Ha pa6ota.
■ PpeBn BcKa ynoTpeBa npOBepBAaTe MaunHaTa 3a Heu3npabHocTN. PpOBepTe daNn BCnKu qacTN no ynpabHeHTo fHKUHOHPaT npABnHo, BKIOHTeHbEpyXnHATA cnpauka. PpOBepBAaTe 3a paXnaBeHN CBpb3Kn, TeOBE Ha rOpBO n dp. YBepTe Ce, Ye BCnuKN ppeNa3nteIN n dpBXKn ca npabUNHO Cta6nHNo npNKpeHEn. 3aMeHnTe NOBpeDeHnTE qactn PpeDynoTpeBa.
He MoDnΦuIpaIte MaunHaTn HmKaBb HaunH n He n3noJ3BaIte Yactn npHaJnxKHOCTN, KOITo He ca npenopbuaHn OT npOn3BOIDTeJI.

TREYNTPEJKEHNE

Ako npodykTB6bde n3nychaT, npeTpbn CnEn ydap nn 3anoue He BA Bnpupa HeeCTeBHeO, He3a6abHO n3KnHouTe npdykTa n npOBepe 3a nobpeu nn Ce onntaTe da NDeHTnФnUpaTe npunHata 3a BnpupaHTo. Noppakte N 3aMeHnte Ha qactn npn NobpeDa TprBa Da ce n3BbPWBat OT Otopn3npaH cepBn3EH cHTbp.

Pn CmecBaHe Ha rOpBIO nIIN PbJHHe He pa3epBoap a 3a rOpBIO He nyWeTe n CToiTe Ha 10 M pa3ctOHa e OT N3TOUHcNTe Ha 3anaJIbaHe.
CmeCbaiTe n cbxpaHraBaiTe roPbTO B cbD, npedBndeH 3a 6eH3nH.
CmecBaIte n CnBaiTe roPbOTo Ha otKpNTo, daJeU OT NcKpn I nnambK. Cb6epete pa3cnHaoT OropBO. OTterJne Ce Ha noHe 10 M oT MaCToTo Ha 3apeXdaHe C rOpBIO, npEn Da cTapTupate Dbratela.
Cnpete Dniratela n ro n3yakaTe da ce oxnaDn, npedn da npes3apeDnte c ropnBO,cknaDnpaTe nn TpaHcnpTnpaTe ypeDa.
He 3a6paBraIte da 3aTBOpuTe BCnUKN KaNaUKN Ha rOpNBHnpe3epBoAp/koHTeHepa, CneK KaTO npEapEnTe nn Cmecnte rOpNBOTo.

IPDEUYPPEXJENH3ABE3OJNACHAPABOTACBEPNXHTRPOH

BnHarnnoCTaBnTe npedna3nHa Kanak Ha Bodeuata
ShnHa, Korato He n3NoI3BaTe npOyKta,a cbIo
N Korato ro Hocnte n TpaHcnpTupate. Toba ue
HamannPcKa OT HenpeHaMepeh KOHTaKT C OCTpnte
pb6oBe Ha Bepurata. Hocete npOdykTA 3a rOpHaTa
pbkoxBatka, KaTo BoDeuata ShnHa Tpr6Ba da e
HaCooyeHa B npOTNBONIOJXHa NOCOKa HA TAnOTO BN.
3a da CBVKHeTe Da 3nON3BaTe CBOH HOB BepNXeH TpNOH, 3ANOCHete C npocTN pa3pe3n Ha DbPBeHN MaTePNAni, KOINTO ca 3dpabo 3actOnopeHN. N3BbPbBaIte TOBA BNHaN, KORAto He CTe N3NOJ3BaN ypeDa OT N3BecTHO BpeMe.
Ako paobotte c npdykta 3a nbpbn nBt n pejkeTe bHepn, e npenopbHTeNoDa rN noCTaBTE Bbpxy CTehn "Marape" 3a p3aHe Ha DbpBa.
YBepTe Ce, Ye BCNUKn Ipea3nteIN, pBkoXBaTKn 6yepHn WIOBE Ca NOCTABEHN Ha MRCTOI MM N Ca

B IN3npaBHOCT.

■Iinuata,pa6oTeun C npOdykTa, Tpr6Ba Da ca B Do6po 3dpabocnoBHO cbCToHHe. PpOdyKbT e TeKbK INHCTpyMeHT,3aTOBa OnepatOpBT Tpr6Ba Da e fN3nueckn 3dpaB. OpeatopBT Tpr6Ba Da e 6DnTeJeH, Da NMa D6po 3peHne, NOBnKHOCT, BaJAnC N NOBKOCT B pBuTe. Ako NMaTe KaKBnTo n Da ca CbMHeHn, He N3PON3BaIte npOdykTa.
He cToIe Bbpyx HectaBnHn NOBbpxHOCTN,doKaTO n3non3BaTe npOyKta.ToBa MoKe Da BKIOUBya (Ho He camo) CtbIb, CKeJeTa n DbpBETA. No BCaKO BpeMe dpbXte npOyKTA c DBe pBu 3a pbkoXBATKNTe.
He 3anoybaIte pa6oTa c npOdykTa, npEi Da e ocInypeHa YnCTa pa6oTHa 30Ha, CTabHnHa onopa n PbT 3a OTterJhe npn panaio DbPBO.
BbTe N3KIOHTENHO BHIMATEJHNI, KORATOpeKeTe MaIKN KIOHcyTa, Tb KaTO TbHKNTe IpeDMETMORAT Da Ce 3axBaHaT O Bepurata N da 6bDat OTXBpNeHN KbM Bac INI Da Hapuyat paBHOBeCneTo BN.
Korato pexkete KIOH, KOTo e noD onbH, 6bTe roTOBn Da otCKOHTe 6bp3o Ha3aI, 3a da He BN ydapn, Korato DbPBeCHHTe HnIKn ce OTnychat.
BnMabaiTe 3a n3XbPJIHe Ha oTpa6oTeHn ra3OBe, napn ot MacNo n CTbProTInn. Ppr Heo6xoDmocT HocTe MaCKa nn peCnnpaTop.
He pexeTe acMn n/nn MaJKn xpactanaun (C dnaMeTbp no7 75 MM).
Korato paobnte c ypea, BNHa rno dpbxte c DBeTe pue. Dpbxte 3dpaBO TpnoHa, KaTO npbctnTE Bn Tp6Ba da 06XbaaAT dpkxtne. JChata BN pka Tp6Ba da e Ha 3aHaTa pbkoXBaTKa, a JBAta pbKa Ha npedHATA pbKOXBaTKa.
Ipei Da nychete Dniratena, ybepe ce, Ye BepiraTa He e B KOHTaKT C HNKaKBb PpeMTe. BuHaTn CTaptnpaTne npOdykTa C AKTNIBpHaBepNXHa cnnpaKa (n36yTaHa DoKpaHnpei).
He MoiΦuIpaIte npOyKTA no HnKaKbB HaunH He ro n3non3BaIte 3a 3axpaHbAne nn 3aDbNKBaHe Ha npICTabKn yCtpoIcTba, KOnto He ca npenopbuaHn OT npOn3BOIDTeHa BaIina npOyKT.
HaIInue Tpr6Ba Da e anTeUka 3a NpBpa NmOu C npEeBp30uHn MaTePnAun 3a rOnEmn paHn, KaKTo n CpeDCTBO 3a npINbMuaHe Ha BHMmaHneTO Ha onepaTopa, Korato cTe 6n3o Do Hero (Hanp. CBnpka). B o6o3pMa 6n3ocT Tpr6Ba Da ce HAMnpaBeH KOMIINeKT C NOBEe MaTePnAun 3a OKa3BaHe Ha NmOuI.
AkoBpa6oTHaTa 3OHa HMa OnachocT OT nadaun PpeMetn, OepaTopbT MoKe Da Ce N3KyuN Da CBAn KACKATA CN, HO ToH He 6nBa Da 3a6pABy, Ye KACKATA (OCo6eHO Ako E ChabdeHa C MPexEeCT BN3bOp) HAmJRABa PNCKAOT HapaHBAHe Ha JInuTe O IraBaT Pn B3HNKBaHe HA OTKaT.
Korato pa60nte c ypea, BuHaH HoCeTe Kacka. Kacka c MpeXeCT npedna3nTe MoKe Da cnOMOrHe 3a HamaIraBaHe Ha pCKa OT TpaBMa Ha JInuTo n IJNaBaTa npi Bb3HNkBaHe Ha OTKaT.
HenpaBnHNo 6oTerHaTata Bepra MoKe da otckOuOT BOeUaT a WInHa, KOEt OMOKe da IOBeDe DOcepno3HO HapaHbAhe Nm CmbpT. DblJxHnataHa BepraTa 3aBnCH OT HeHATA TempepaTyPA

CTeENHa H3HocBaHe. IepnoDnHOpNoPpOBepeBaIte ObTERHaTOCTTa Ha Bepurata.

I OndbpxkaTe pBkoXBaTKte cyxN, uCTn HEOmacneH. OmacneHnte pBkoXBaTK ca xlb3raBu N MORat Da DOBeDat Do 3ary6a Ha KOHTpon.
3a Da HamaInTe PnCKa OT TpaBMa, npuHHeHa OT KOHTAKTa C DBNKeUe CE qACTn, BUNHar CNpauTe DBNrAteJIa, 3aDeIcTBaIe CnpauKaTaN Bepurata NOTCTpaHraBaIe IPOBODnka Ha 3anaNTEnHaTa CBeU. YBepTe Ce, Ye BCNUKn DBNKeUe CE qACTn Ca Cnpen HAnbJHo:
- npeiOCTaBHeHaH3dEIneTo6e3HaI3Op
IpeiIOuCTBaHe IINOTcTaHraHe Ha 3anywbaHn
- Ppei MOHTnpaHe HJI N DeMOHTpaHe Ha DOnbHnTeJHn PnCTabKn
- npedu npobepka, nodpbxxka nn pa6ota no npodykta
Плоцт ha pa6OTHЯ уacTBk 3abnCn OT pa6OTATA, KOrTO ue CE n3BbPwBa, KaKTo n OT Ha nDbPBTO INN OT CTBOJa, KOrTO ue CE o6pa6OTBa. HanpImep NOBAnHeTo Ha nBpBO n3NCkBa no-roJMa pa6OTHa 3OHa OT npYn BnOBe p3aHe, KATO HanpImep 6uYeHe Ha Tpyn n Dp. OnpaTOpBt Tpr6Ba Da BnIMaba n da KOHTPOInpa BCnKo, KoTo ce cnUyBa B pa6OTHa 3OHa.
Iokato pexkete, TnOTo BN He Tp6Ba da 6bde Ha eHa IHHN C BOeUaT a U HNA n Bepurata. Ako cna3BaTe TOBA, npu eBHeTyAneH OTKaT Bepurata Hma Da BJe3e B KOHTAKT C BAwata Tnaba Nn TnNo.
He n3BbPwBaItepeKeuINDbWKeHnHaPeI-Ha3aD c npOyKTA; octabete Beprata Da CbPun pa6oTaT. POnDbPkaIte Beprata HatoeHa I He ce OInTBAIte da a 6yTaTe cbc cnna npE3 npope3a.
He ynpaxHbAte HaTnck Bbpxy TpnoHa B kpaHa p3aHTo. BbTe ToTOBn Da Noemete TeXeCTTa Ha BepnKHN TpNO, KOrato ToI npopExe P3aHTo DbpBO n Ce OcBo6OOn. HecbOpBa3BaHTo C TOBa npedynpeXdEHe Me MoKe Da DoBeDe Do cepNo3H KOHTy3N.
He cnnpaTe TpnoHa no cpeData Ha pra3aHeto. OctabeTe TpnoHa da pa6oTu,doKaTo He ce ocbo6oOn ot npope3a.

JnUHn npedna3HcpeDCTBa

BnCOKOKaueCTBeHIne NmHN npedna3HN cpeCTBa, n3no3BaHHOTnpocepnoHaHIne pa60THuN, HamaJIraBAt onachOCTTA OT hapaHbAHe Ha onepato. CneHIne 3aunTHn CpeCTBa Tp6Ba Da ce n3non3Bat npn pa6oTa C BepnKHN TPOOH:

Ппебаэка

Tpy6Ba Da e B CbOTBETCTBnE c EN 397 n da nma CE MapKnIpOBka

ANTnfoHN

• Tp6Ba Da e B cbOTbETCTBnE c EN 352-1 n da nMa CE MapKnipOBka

PpeNa3Hn CpeCTBa 3a OHTe N IuTeTo

• Tp6Ba Da Imat CE MapKnpOBka n da ca B cbOTBeTCTBne c EN 166 (3a 3auTHn OuHa) nn c EN 1731 (3a MPexeun Bu3bOpn)

PbKaBnCn

• Tp6Ba Da e B cBoTBeTcTBnE c EN381-7 n da mA CE MapKnpoBka

3aunTHn cpeCTBa 3a kpaKaTa (ramaun)

• Tp6Ba Da ca B cBoTBcTbne c EN381-5, da mMat CE MapKnpoBka N da npedocTabr UJIOCTHa 3aunTa.

IpeNa3H6Otuu 3a pa6oTa c BepxHH TpnoH

Tpr6Ba da ca b cbOTBeTCTBne c EN ISO 20345:2004 I da ca MapKnpaHn C uNT, I3o6pa3raBaU BepNXeH TpnoH, KOJTo e 3NaK 3a CbOTBeTCTBne c EN 381-3. (Notpe6nteJIte, KOJTo pRAnO pa6oTc ypeDa, MOrat Da n3NoN3BAT npEdna3HN 6OtUHn CbC CTOMaHeHa 06uINBkA Ha npbCTIne N cbC 3aUnTHn MaHsOnH. Te3n 6OtUHn Ca B CbOTBeTCTBne c EN 381-9 I Morat Da 6bDat n3NoN3BaHn, ako pa6oTHata 3oHa e paBHn cBsqctByBa MNHMajEH PnCK OT CnBbAHe INI 3aJIHTaHe B Ha3EMHATA pACTtTeJIHOCT)

JaKeTa 3a 3auNTa Ha roPHTa Yact Ha TAnOTo npn pa6Ota C BepKHN TpNOH

Tpr6Ba dae BcBtBETCTBne c EN 381-11 n da mca CE mapknpoBka

CTTIO6BAHE

A PEPENPPEKDEHNE

Ako mma JnncBaun nnnoBpeHn qactn, He n3non3BaIte To3n npOdyKT, npEa Te Da 6bDat 3ameHHe. Hecbo6pa3raBaHeTO cT0Ba npDynpExJHne MoKe da IOBeDe Do cepNo3HN pN3Nueckn HapaHbaHna.

CTIO6BAHE HA PEXEATA BEPNA IN BODEUATA

Bx.ctp.317-319
1.Hocete3aunTHnpbkabu.
2.OcbobodeBepnHnata cnnpaKa.
3. OTeTaPaHete MOHTaXHnTE raKn Ha uHaTc NOMOuTa HnpeoCTaBeHnKOMbHnHp aReH eKnIOU.
4. Otrtpahe Kanaka Ha Bepurata.
5. Cbaene twnHaTa oT npOdykTa.
6. NocTabete Bepnata B npabunHata nocoka Bbpxy uHaTa n ce yBepTe, ye 3aDbNkBaunTe Bpb3Kn Ca noDpaBHeH B KJle6a Ha uHaTata.
7. 3akpenete uHHata KbM BepnKHNr TpnoH IN npemETe Bepurata OKONO 3b6HOTO KOJIENO.
8. Bbphete Kanaka Ha Bepurata MoHTaXHnTe raKN Ha
9. 3aterheTe c npbCTM MOHTaXHnTe raKn Ha shHaTa.
山Hata Tp86Ba da moKe da ce dBnx, 3a da ce perynpa o7raHTo Ha Bepurata.
10. PerynnpaTe 6oTerHaTocTt Ha Bepurata. BnKte pa3dena ,PerynnpaHe Ha 6oTerHaTocTt Ha Bepurata".
11.ДрьжTe края Ha WInHaTaN 3ДпавО 3aTeHETe HHTOBete Ha WInHata.

PERJAX HA OBJRAHETO HA BEPNIATA

Bx. cTpaHua 331.

1. NocTabete cTaptnpaun KnHb B no3nua

(N3KNIOUeHO).

1. Поберете дал мотатхнite raин ha shinha ta ca pa3xna6eHn Taka, Ye da MORaT da ce 3abbpTaT c npbctn.
2. 3a da yBelenuHte HaTaraHeTo Ha Bepurata, 3aBbptTeBnHTa 3a peryunipaHe Ha HataRaHeTo Ha BepurataNo Nocoka Ha YacOBHNKOBaTa CTpeNka N YecTo npOBepraBaTe HaTaraHeTo Ha Bepurata. 3a Da HamaJIte Ha TeraHaTe Ho Bepurata, 3aBbptTeBnHTa 3a peryUnpaHe Ha HataRaHeTo Ha Bepurata No Nocoka ObaTHo Ha YacOBHNKOBaTa CTpeNka N YecTo npOBepraBaTe HaTaraHeTo Ha Bepurata.
3. Bepurata e onTImaHNo oBTerHata, KOrato pa3ctoHHeTo MEXdy pe3uTe Ha Bepurata N uHHata e ot 3 MM do 4 MM. Han-dO6pe e da npHeTe Bepurata B cpeDATA Ha uHATA OTKbM HeHHa DOneH KpaN (OT uHHata HaBbH) n da n3Mepe na3CToHHeTo MEXdy uHHata n pe3uTe Ha Bepurata.
4. 3aterheTe MOHTaXHnTe raIKn Ha uHHata, KaTo m3abbpTnTe No NocOKa Ha yacOBHnKBoTa CTpeJIka.

3A6EJIEXKKA:Bepurata NOBnBaBa CBOrTa TEMpePaTpaNo Bpeme Ha HopMaHa paBoTa C npOdykTA, KOeTO BOn DoHeHHTo pa3TgAre. IpoBepBaIte peOBHO oBtRaHTo Ha Bepurata n 3aTgAraTe, Korato e HeobxOdmo. Korato 3aTgAte Bepurata, DOKATO e TOnla, KORAto ce OxJaN, MoKe Da ce Okaxe NpeKaJeHo ObTERHaT. YBepete Ce, Ye obTgAraHTo Ha Bepurata e npabInHO perylnpaho CnopeD ONiCAHOTOB HAcTOruNTe INHCTpyKUn.

PABOTA

TOPINBOI 3APEXKAHE HA PE3EPBOAPA

Be30nacha pa6oTa c ropuBoto

REUYIPTPEXJEHME

BnHa n3KnIOBaIte DnRaTeJI npeIN 3apeKdaHe c rOpInBO.HNKora He 3apeKdaIte MaunHata,aKO DnRaTeJIeT e OSe B DnXKeHne INN aKO He n3CTnHa. OtdpbHHeTe Ce noHE Ha 9 m OT MxCTOTO, KbDeTo CTe nbJHnJPe3epBoapa C rOpINo, PpeIN da Nychete DnRaTeJIa. He nyWeTe! Ppi Hecna37BaHe Ha Ta3n IHCTpyKmra MoKe Da ce npuHrT TeKKn TeneCHn NOBpeIN.

ENYUNPEXDEHME

YBepete ce, ye OT INHCTpyMeHTa He n3Tnua rOpINBO.AKO OTKpneTe TAKINBA, nonpaBeTe rnpen Da n3noN3BaTe npOyKTA, 3a da npedOTbpatNTe NOXap Nnn N3rapHn.

BnHaBn BnMaBaIe npa pa6Ota C rOpINBO; To e cnHIO 3anaJIMO.
BnHa n npesapekdaIte ropnbOT Ha oKpntu Mecta N daJeue ot eBeHTyaJIHn 3aJaanMn H3TOHnC; He BnBaTe ropNBHnTe n3npaEHn.
BHHMaBaIe NOKKaTa BN Da He NOnaIHe 6eH3nH nIM MacNo. PpN KOHTaKT He3a6abHO n3MmTe cbc CanyH n O6nH0 KOJIueCTBO BOda.
BbTe Oco6eHO BnMaTeJIHn B OuHTe BN Da He

nonaHne 6eH3nH nIIMacNo. Ako B OChTE BN nonaHne 6eH3nH nIIMacNo, He3a6abHO rN n3IIakHeTe C uNCTa BOda. Ako dpa3HeHneTo He npemHne, He3a6abHO ce o6bphete KbM Iekap.

CMEcBaHe Ha TOpNBOTO

MaunHata Bn pa60n C DBytaKTo DBnIaTeJ, npn KOnTO Tp6Ba Da ce Cmecr 6eH3nH nCInTeNtUHO MacNo 3a DBytaKToDBnIaTeJ (B CbOTHoWeHne 2%). Cmecete 6e3oIOBeH 6eH3nH c MacNo 3a DBytaKTo DBnIaTeJ B uNCT cbD, PpeDbIeH 3a CbXpaHeHne Ha 6eH3nH.
Дигагелг работи c 6e3oNoBEN 6eH3n 3a abTOMObIIN C OKTaHOBO YncIIO 91 ([R + M]/2) nIn noBnCOKO.
He n3noJ3BaIte roTOBn rOpNBH cMecn 6eH3n/H MacNo OT 6eH3NHOCTAHUNTe; TOBA BKIOUBya npedHa3HaueHInTe 3a MOTOJEIN, MOTOLIKJIETN I.T.H.
13no3BaIte BnCOKKaueCTBeHn Macna 3a camOpbHcMecBaHe 3a DByTaKToBn DBrarTeN C Bb3DyUHO oxJaDaHe. He n3no3BaIte ABtOMoBnHo Macno nn MacNo 3a N3BbH6OpDobN DByTaKToBn DBrarTeN.
Cmecete 2 % macno c 6eH3nHa. CboTHoUeHneTo e 50 :1.
Bcekn nT npedn 3apejdahe cmeceTe xy6aBO ropNBOTO.
CmecBaTe roPbTO B MaIKN KOJIueCTBa. He nprirotBte Cmec 3a NOBce O T Meceu Hanpei. IpenopbHnteJHo e N3IOJ3BaHeTo Ha 2-TaKTOBO macno,cbdbpkaio roPbEN CTa6NJn3aTOp.

3A6ENEKKA:「apauHnraHe NOKPnBa UeTn no rOpNBHATA CNTema HIN npoBnEMn BpaBoTa, npuHHeHOT nIIOJI3BaHTo Ha OKNCHeHO rOpNBO, cIbPkaUO nOrJAM IpOcHT OkCNITeJN OT NOCouHeHte Rope.

Пьлесно на roрвнгpe3epBoap

Bx. cTpaHua 319.

IpoHCTepe3epBoapaOKoJIOKanayKaTa,3aJaHece 3ambpn rOpnbTO.
BabHO OTBpTeTe KaanKaTa 3a RopBOTo.
BHHMaTeJHNO H3CnneTe rOpNBHaTc CmEc Bpe3epBoapa, KaTO BHIMAbaTe Da He Ra pa3CnneTe. PpeN OTHOBo Da 3aBnTe KanaQKaTaNouNCTe
yIbTHHeHnTo n npOBepTe daH e B do6po CbCTOaHne.
IocTabete BeHara Kanaykata n xy6abo 3aterheTe. Cb6epete pa3cnnaHoto ropBO.

3A6EJIEXK4: IIO BpeMe Ha n CneI nbpBaTa ynoTpe6a e HopMaJIHO OT DnRrAteJla N3JIIN3a DM.

IOEBAIRE HA CMA3OHO MACIO 3A BEPIRATA

Bx. cTpaHua 319.

TRENDYUNPEXDEHME

Hnkora He pa6oTe 6e3 Cma3OuHO MaCIO 3a Bepnata. Ako Bepnata pa6oN 6e3 Cma3OuHO MacNO, HneHInTe pe3zI n Tc Camata MORat Da 6bDat NOBpeDeHN. 3aTOba e BaxHo YecTo Da npOBepBaTe HNBOTO Ha MacNoTO u BCEKN PbT, PpeDi Da 3anOuHeTe Da n3nON3BaTe ypeDa.

1. Nocntete NOBbpxHOCCTTa OKOJ KanaKaTa Ha MacNOTO,3a da npedna3HTe MacNOTO OT 3aMbpocrBahe.
2. OTBnHTeTe n OTCpaHete KaNaYKaTa Ha pe3epBoapa 3a MACNOTO.
3. HanbJIHeTe MacNo B pe3epBoapa, KaTo CBOeBpeMeHNO CneJeTe MapKepa 3a paBnIeTo Ha MacNoTo. YBepeTe Ce, Ye DOKaTO HAnIBate MacNo, He BIn3aT HnKaKBn MPbCOTn B pe3epBoapa.
4. NocTabete O6paTHo KanaUkata Ha pe3epBoapa 3a MacnToI I aTeHHeTe. 3a6bpeTe, aKO nMa pa3nTto MacNo.
5. EIN nIbIeH pe3epBoap C MacNo ige Bn 6bJe DOCTaTbueH Da N3NOJ3BaTe ypeDa B npOdbJIkeHne Ha 20-40 MNHTN.

3A6ELEKKA: Ako cncTeMaTa 3a Cma3BaHe Ha Bepurata u HnHaTpaPobToDObpe,OBNKHOBeHo npu yNtpe6a Ue NMa MacNo NO Bepurata.3a da npOBepnte FyHKUHOHaHocCTTa HA cncTemata 3a Cma3BaHe Ha Bepurata u HnHaT, HacOte Bbpxa Ha Bepurata KbM npEdMet Cbc CBETna NOBbpxHOCr, HapnpMeR BcTHNK.CJeI KpATKO Bpeme 6n Tpr6BaNo Da 3a6eKeXnte TbHkA npbcka MaCNO.

PpenopbTuTeHNO Cma3OuHO MacNo 3a Bepurata

Pon3BODNTeJr npenopbYBa da n3non3BaTe cAmo Cma3OuHO MacNo 3a Bepura C MapkaTa Ha Ryobi. (HaHnHO BB BaWna OTOpn3npaH cepBn3eH ueHTbp)

CTAPTIPAHE HA IPODyKTA

MeToTbHa CTapTnpaHe ce pa3nUHaba B 3aBcMocT OT TOBa daJI N DBnIraTeJIe T cTyDeH nn TOnbl.

EDYNYPEXJEHME

CTOITe BIABO OT WINHATA. HNkORA He npekpaBaiTe TpnoHa NIN Bepurata; He ce HaDbEcBaIte HAD JINHnraTa HA DnIXKeHHe HA Bepurata.

IocTabete npodykTa Ha paBHa nobbpxHocT, cnei KOETO ce yBepete, Ye B HenocpeDCTBeHa 6n3oCT HMa npedMeTN nn pueKn, KOnTO 6nxMa mOrn da Bn3aT B KOHTaKT C uHaTaN Bepurata.
XbaHete 3dpabo npedHaTApbKcCnBaTa cnPbKa nCTbIeTe CdeChnKpaK Bbpxy OCHOBaTa Ha 3aHaTa dpbKka.

3a da cTaptnapeCTyDen DnurateJ:

Bx.ctp.317-319

1. 3aBbptete KIOUHa 3aIaIbAHeTo Do nO3uIN ON.
2. HatncheTe Hnpei NocTa Ha cnipaKaTApneIpa3nteIa pKaTAta Da Cte CNrpyH, cnpaKaTaeBno3uBRAKE.
3. HatncheTe DOKpaN OcBO6ODeTe NODKaUBaUaTa NOMNa noHe 10 nbTn.
   4.ИЗдьрай Te DOKраи ДрoceнгЯ loct B no3nua Ha IIbIHO 6IokupaHe.
4. Korato Temnepaotypata e nao 10^ , n3dbpnaitepbkoxBatkata Ha cTapTepa,dokaTo dBuratejrtce cTaptnpa, Ho He nobuee ot Tpr nbtn. Korato Temnepaotypata e noD 10^ ,n3dbpnaite pbkoxBatkataHa cTaptepa,dokaTo ce dBuratenT cTaptnpa,Ho HneoboeOT net nbtn.
5. Hatnchete npocenHna loct do dony.

7.ИЗдьрnaite рькoxbaTkata Ha cTapTepa,dokaTo DBuratEnrT ce cTapTnpa.
8.OcbobodeTeΦnKcatopaHa cnycbKa, cneI Koeto CTnCHETe n OTnyCHete DPOCEJIHHa CNyCbK, 3a Da BbpHETe DBNATeJI B PekIM Ha npaeh XOD.
9.OctaBeTe npOdyKaTa Da paOToHa npa3eH XoD B npOdbJxKeHHe Ha 15-30 cekyHn.
10.прдду yckopbaTe DBuratelny nIи da pekeTe DbpeH MaTePnAn, TprBa Da ce yBepnte, Ye BepnxHaTc CnnpaKa e Ha no3uNra „run" (paboTn), KaTO 3a ZeTTa N3dbpnaTe Ha3aD cnnpaHnI loCT/ npednaHTeJ 3a pbTe.

IMAHNE

Ako He ocboodne Tdkpain Dpocena, Korato loctbT Ha cnnpaKaTa Ha Bepnatae B no3nue ,brake (cnnpaKa), TOBa ige do Boede Do cepno3Ha nobpeDa Ha ypeDa. Hnkora He 3aIbpxaKe Te IocTa npBknOyeHa cnnpaKa.

3a da cTApTpape TOnbI DnBraTeI:

Bx. cTpaHua 327.

1. 3aBbPteTe KJIIOHa Ha 3aIaIbAHeTo Do nO3nua ON.
2. HatncheTe HanpeI NocTa Ha cnipauKaTAppeNa3nteJI 3a pbkata, 3a Da cTe cnrypHn, YecnipauKaTaeBno3uNBA BRAKE.
   3.ИЗдьрай Te DOKрай ДрoceнгЯ NOCT B NOSTIЯ Hапьлно 6нokupahe n cneT OToBa rHATNCHETe Do dOly.
   4.ИЗдрпайтЕ ДьжКаТа Ha CTapTeРа,ДOKATO DBURATeTЯ 3apa60Tu, Ho He NOBueYe ot 5 nbTu. OcBo6OdeteФИKCatopa Ha CnycbKa, CNeI KOETO CTNCHTe N OTnyChTe DpOceJIHnR CnYCbK, 3a Da BbpHete DBURATeJRA B PekIM HA npa3eH xoI. Ako DBURATeJrT He CTapTnpa CneI 5 ИЗдрNBaHnR, INON3BaIte MeToJa 3a CTAPTpApHe Ha CTyDeH DBURAten.
3. Ipei Da yckopbaTe Dnuratne nn da pekete NbpeH MaepnAn, TpaBa da ce yBepnte, Ye Bepxknata CnpaKa e Ha no3uNra „run“(paboT), Kato 3a ceta N3bpnaTe Ha3ad CnpaHnI loct/ IpeiNaTeJIa 3a pbte.

CINPAHE HA DBNIGATEJIAR

OtnycheTe NoCTa 3a ckopoCTTa n OCTabete DnIraTeNa da pa6To Ha npa3eH XoJ. DnIraTeJrT ce N3KJIIOUBya, KATO NOCTaBITE ppeBKnIOuBaTeNHa "O" B NOIOXeHNe 3a CnIPAHE . He noCTaBJe TpnoHa Bbpxy 3emrTa, DOKaTO Bepurata Ce BbptN. 3a no-ronMa 6e3OnaCHOCT, BKNIOUeTe CNIPAcKaTt H Bepurata, KORATO HE N3NOIN3BaTe TpnoHa.

Ako npBknIOyBaTeJIr He Cnnpa TpnoHa, n3dbpnaIte NoCTa Ha CTapTepa DOKpai (MaKcIMMaHNO N3BaXdaHe) IN BkIIOUHTe CnnpaYkATA Ha Bepurata, 3a Da Cnpete DBnIRATEJ. Ako npBknIOyBaTeJIr He Cnnpa TpnoHa, KOrato rO NOCTaBntE B NOIOKeHne 3a CnnpaHE "O", Tpr6Ba Da 6bDe peMOHTupAH, PpeDn Da n3NON3BaTe TpnoHa OTHOBO, 3a Da He pa6OTNE B ONACHN YcNoBnI N da He CE HapaHNTe TeKko.

3A6EJEXKA: CneI npKIOUbaHe Ha pa6oTa c npOdykTa BnHaHn OCbo6oxJaBaIte HAnraHTo B pe3epBoapnte, KaTO 3a CEnta Tp86Ba Da pa3Xna6Bte I NocTe OTHOB Da 3aTeHrHeTe KanaayKeTc 3a RopINBOu BepNXHO MacNo. PpeiN

da nphepeTe TpnoHa, octabete Dniratela da ce oxna.

PABNJHO bPXAHE HA PPOyKTA

Bx. cTpaHua 319.

BnHaN dpbXTe BepnHnra TpnoC daChata pka 3a 3aHaTApkoXBaTKa n C JBaTa pka 3a npedHaT a pbKoXBaTKa. Oxbaauane Do6pe pbKoXBaTKne, KaTO CKIOUbaTe naIuNTe N octaHaJIte CN npbCTn PnTHO OKONO Tx. JBaTa pka Tpr6Ba da oxbauna npedHaT a pbKoXBaTKa Taka, Ye naneucbT da e OTDOJy.

Hnckootkathnte pexkeu BepuHaMaJIaBaT BepoTHOCTTa OT Bb3NkBaHe Ha OTKaT.

OrpaHnHTeHnTe Ha BnCOHHaTa, pa3noJoxHeN B npHaTcAact Ha BceKn 3b6, Morat Da HamaJIr eFekTa OT OKATA, KATO CE npEDOTbPaTN HABIN3aHETo BdbIoOHNb 30HaTt Ha OKtata. IV3non3BaIte Camo KOMBnHaUN OT pe3epBN BOeUe UHN IN PEXeUe BEpRn, NOCOHeH NT

PON3BOIDTEJI.

Бьдete Довино-BHIMATEJIHn CneД 3aTOUbaHe Ha Bepurata Ha TpnoHa, TbI KaTO TORaba Bepurata CTaba NO- noTaTnBa HA OTKaT. 3a Ba7a 6e3onacHOCT NOmehrTe Bepurata BHHaN Korato HeHATA CNOCOHOCT 3a pr3aHe HAMJABA.

БУФЕРЕншИN

HeDennMna 6ypepeH nn MoKe da ce n3noN3Ba KaTo onOpHa ToKa npn pR3aHe. Toba nomara 3a noctabuHnTO 6opabe He CBepKnHr TpNO HO BpeMe Ha pR3aHe. Pn pr3aHe n3bTyAte HnCTpyMeHa Hanpei, DOKaTO uHOBeTe Ce 3aBnT B pb6a Ha IbpBOTo, a CneD TOBa Ype3 IpemecBaHe Ha 3aHaT a PbKOxBAtKa Harope nn HADONY NO NOCOKa HA npope3HaTa JINHm MOKeTe Da HAMaNITE PhN3UeCKOTo HAToBapBaHe, CbnpOBoXdAio npocca Ha pR3aHe.

LIMHA

O6nKHOBeHo n3nON3BaHeTo Ha BOeUHn C noMaIbKa paIynyc npn BbpxA HAMANRAB BepoAHTOCCTa OT Bb3NkBAHe Ha OKat. N3NOJ3BaTe cAmO KOM6nHaUmN Ope3epBHN BOeUHn HPEeUHn, NocOeHn OT npOn3BOJNTeR. N3NOJ3BaHTo Ha BOeUHn, KOtO He ca npenOpbuaHn OT npOn3BOJNTeR, yBeJIuHbApaNcKaOT 3ary6a Ha KOHTPOI NO Bpme Ha p3aHe. PeoBHO npOBepraBe To OBTeHrHaTOCTTa Ha Bepurata. Korato Pexkete MaIK KIOHn (No-KbcN OT nbIHATA DblKinHa Ha BOeUaTAtuHa), IMA NO-ROJMA BepoAHTOCT Bepurata Da naDHe mIN OTXBPbKHe, Ako TRe He e ObTeHata KaKTo Tpr6Ba.

CINPAUKA HA BEPNIATA

CnnpaKaTHaBeprataepa3pa6oTeHa cIeJa Cnnpa 6b30 BbPTAaTaCeBepra.Bepurata Tp8Ba He3a6abHo Da Cnp, Korato HATNCHe NoCTa Ha CnpaKaTApneDnAsHTenHAnpe.DnPaayKaHaBepurata He orpanuHya efeKtaOT OKATA.Ta camo HamanBa PnCKa OT HapnABHHB, BcnyaYe BepnXHaTa WnHa CeOnpe Do TANOTO Ha ONepaTopa npn Bb3HNkBaHe Ha OTKat. N3npabNocTTa Ha BepnXHaTcnpaKa Tp8Ba Da 6bJe TectBaHa npdN BcRAO N3IOJ3BaHe Ha npOdyKa-Ta KaKTo B paBoTea, Taka N B Cnpna N03uNHa Bepurata.

OPAHINHTEJI HA BEPNITATA

PpeNaTe 3a Beprata He No3BOJBA Ha BeprataHa TpnoHa da 6bDe OTXBbPNeHa KbM onepaTopa, ako ce pa3xna6n nn cynn.

CIMBOJIN HA IPODYKTA

BHHMaHHe

3a da ce HamaJIN onacHocCTTa OT HapaHraBaHnI,Notpe6ntenT Tp6Ba Da npOye I da pa36epe pKoBOcTBOT 3a onepaTopa, npEi Da n3noJ3Ba To3n npOdyKT.

Korato pa6oTne Tc Ta3n MaunHa, HocTe IpeDna3Hn CpeDCTBa 3a OHnte n ywnte, KaKTo N KacKa.

IbpeHa paOta C TpnoHa HocTe NtBTHn paOTHn PbKaBnU, KOnTO He ce Xlb3raT.

Korato n3noJ3BaTe npOdykTa, HocTe HnJIb3raUe Ce npedna3Hn o6yBkn.

IpbxTe npaboteTe c TpnoHa C DBeTe cn pue.

He npbXTe TpnoHa c eDHa pbKa.

Onachoct! Na3eTe Ce Ot OTKaT.

N3no3BaIte 6e3oNoBEN 6eH3nH 3a ABTOMO6uIN, C OKTaHOBO YNCNO 91 ([R + M] / 2) nI IN NO-BUCOKO.

N3noJI3BaIteMaCIO 3a2-TaKTOBn DBnraTeNN C Bb3dyuH0 OxJaKaDaHe.

Pa36bpkBaIe cIapaTeHNO rOpNBOTo BCEKn pT npEi npEaepKaDaHe

DobabTeMacno3aunHataBepurataPnBCaKOdoabHeHaTropBO BbB BepKHHr TpNOH.

EC CbOTBETCTBNE

EurAsian 3nak 3a CbotBetCTBNE.

YKpaHHCKn 3HaK 3a CbOTBcTCTBnE

TapaHTnpaHTo HnBO Ha Wm e 114 dB.

IocTabete cnpaKaTa Ha BepnraTaB no3uR RUN.

IocTabeTe cnnpaKaTa Ha BepnraTa B no3uBRAKE.

IocTaBete KInOHa 3a CTapTnpaHe B IO3nuaOna (BKIOHcHoHO).

HaTnCHete n OTnyCHeTe 10 nbTu nyckobata nomna.

N3dbpnaTe DOKpaJ DPOcenHnA NOCT B No3nHa NbIHO 6nKnpaHe.

Дрнete рькata Ha CTapTepa (Ho He NOBue OI NT Nt),doKato yyeTe KAK DBuratEnT TpbBa.

HaTnchTe DpOceJIHnI NOCT Do DOny.

N3dbpnaTe pbkoXBkTaHa cTApTepa,doKaToDbnraTeIaT ce CTApTupa.

HaTnCHTe MexaHn3Ma 3a OCBO6OxDaBaHe Ha cnYcbKa n CTnCHTe CnYcbKa Ha ra3Ta, cNei KoETO rO ocBO6oJeTe, 3a Da BbPHeTe DnurateJI B pExm Ha npa3eH XoJ.

OctaBeI npOdyKtBt da pa60TnHa npa3eH xoJ 3a 15-30 cekyHnn.

TOpNBo m MacNo

BepnKHO macNo

"3aBpTe, 3a da perynnpate onbHa Ha Bepurata
+ = O6TerhHe BepnraTa
- = OTxnaabe oTe terHaToctTa Ha Bepurata"

Iocoka Ha dBIXeHHe Ha Bepirata

"H = IVra 3a perynupahe KbM BncoKa ckopocT
L = Vrna 3a perynnpaHe KbM Hncka CKOPOCT
T = BnHT 3a perynpahe B peKm Ha npa3eH xoD"
3aKnHouTeKaNaKa 3aФnITbpa.
OTKnHoyeKa naka 3a qnITbpa.
IocTabeTe KInOHa 3a CTapTnpaHe B no3nur,stop" (cton).

CHMBONB HACTOJTO PbKOBOCTBO

CmecBaIte n CnBaiTe rOpNBOTo Ha OTKpNTO, daJIeOT NCKPN INaMbK.

He npwete,doKaTo CmecBaTe rOpBO nnPi bHnIte pe3epBoapa.

Yactnte nn npnHaIeXHocTe ce npoabaT OTeNo

BHMAMHne

BHHMaHHe

Hocete 3aunTHn cpeCTBa 3a OHnte n JIeTO.

Hocete 3aunTHn cpeDCTBa 3a rohpata qact Ha TAnOTO.

HocTe 3aunTHn CpeCDTb 3a KpaKaTa.

Cnpete ypeia.

3aKnHoyeteKaNaKa 3aΦnITbpa.

OKnIOUoye KaIaKa 3aФnITbpa.

CneHnTE CnHaHn N yMn N 3HaueHnTa NM Ca npedHa3HaueHn Da oBcHr T Hbata Ha OnaCHOCT, Cbbp3aHn CTo3n npOdyKT.

ONACHOCT

Yka3Ba NoteHuaJHO ONaCHA CNTyaIaIa, KOrTo aKO He 6bJe n36erHaT, MoKe Da IOBeDe Do cepno3Hn HapaHraBaHna IIN CMbPt.

BHUMAHNE

Yka3Ba NoteHuaJHO ONaCHA CnTuaJRA, KOrTo aKo He 6bJe N36erHaTAt, MoXe Da DOBeDe Do cepNo3Hn HapaHraBaHnI IN CMbPt.

BHIMAHNE

Yka3Ba NoteHuaJHo OnaCha CnTuayu, KOrTo aKo He 6bJe N36erHaT, MoKe Da DoBeDe Do cepNo3Hn HapaHraBaHna nn CmBpT.

BHIMAHNE

IpoDyKT He npn3HaueHn DnB BnKOpNCtAHn DITbMn a6o oc6aMn, kI He MaIOTh BiINOBiDNHX 3acO6IB iNDbIyAynBOHorO 3axNCTy Ta OJrHy. He NOBHHO BnKOpNCTOByBaTnCnIPOeCiHOro CnNIOBaHHn DepeB.

He BnKOpncTObyIe Ia 6dy-b-kynx iHxuX cinei.

TnepeDxKeHn

PnBnBnKOpNCTaHHI npOdykTy,notpi6HNO dtpMByBaTncn
npabnn 63neKn. DnBaWoi BnaChoi 63neKn Ta
63neKn nepexoxnx, BN NOBHNI npoynTaN i NobHicTTO
3po3ymntu ci nctpykui neped ekcnnyataueio
BnOBNHI byTN npCytHMn Ha npopeciHo
opraH3OBAHNX Kypcax 3 BnKOpNCTaHHN Ta
0bCnryobvbanHn 6eHcONn, npoPinaKTnuHnx 3axOdaX
Ta HadaHHn nepwo donomorn. ByNb naCa, 36peEckItb
ihCTpykui 3 63neKn dnn noDaNbWoR OBNOpNCTaHHN.

TnepeJxehn

naHIOROBa nIIa noTeHcuiHo He63neuHn IHCTpyMeHT. HeaChi BnIaKn, NOB'ra3aHI 3 BNKOpNCtAHnAM NaHIOROBX NIN qACTO pN3BOyTb DO BTPaN KINIBOK a6o Cmepti. LHe He npocTo npOdyKT, 00 e He6e3neHm. PaiaOHi rIKn, NobaneH ipeBa, KOIoN, 00 KOTaTBcA MoKyTB BCI B6NTN. Xbopa a60 rHIOUa DepeBnHa CTBOPHe oDaTkOBi pn3kN. Bu nobHH OciHN T BAài MoKInBocTi 63neHoro 3aBepSeHn 3abDaHn. KaIO E cyMHIBn, 3aJIuWte ue B npOpeciHOMy dpeBopby6y.

3AΓΑJBH I 3AXODI BE3ΠΕΚN

Y DeKnx periohax icHyOt b npaBnla, 10o o6MeKyoTb BnKOpncTahHna npOdykTy dny DeKnx onepaui. IpeBipTe 3 Baunm MicueBn m opraHom BJaDn dny KOHCyIbTaui
Hikon He Do3BONYTe dtam a6o JIOyM, He 3HaIOMM 3 cIMN IHCTpyKlJRM, BIKOPNCTOByBatn npOdyKT. Miccebe 3aKOHOaBCTBO MOKe O6mExkyBatn BIK onepaTopa.
Ipeed KOxHMM BnKOpNCtAHHm nepekoHaTecr, C0Bc eIeMeHTN KepyBaHHn i 6e3neKn FynHKIOHyOTb npaBnIbHo. He BnKOpNCToByTe MaunHy, kUO BnMkaq "BMk" He 3ynHRe MaunHy.

HikoJn He 3anyckaIte DBNyH ycepeDnHi 3akpntnx, a6o noraHO npOBiTphOBaHNx npMIMeHHb; BdxHaHHBnxONHnx ra3iB MOKe B6TuN.
OuHCTiBpo6oy30HypeepKoXHM BUKOpNCtAHnM, MeTyUHz i HeoxaHaPiOna po6OTn PpN3BOIDTb Do HeuaCHNX BUNaKDIB.
Hocitb NOBHH 3axnCT Oeyi Cnyxy, CnIbHI MiHi pykabuKn, 6e3neuHi yObotn 3 HeKOB3HOo NiDoWBOHO, a TAKOX 3axnCT rONOB N npoueci EKcnNyataaII npodykTy. BHKOpNCTOByTE MACKy, kkuo onepaiznNlha.
He hociiB biIbHnOdIg, KopoTki uTaHn a6o npKpacu 6yDb-koRo poLy.
3aφikcyte DoBRE BONOCB Bnue piBnIpeya, 0o6 3anobirtn 3aPnyTbAHHBO Bydb-RAKnx pyxomnx yactinax.
OctepiraTecra BiDKNHyTNx,JeTaOHux a6o naDaOHux npedmetiB. TpMaIe BCix nepexoxnx, dTei, i DOMaHIX TBapnH, OHaMehwe Ha 15 M BiD po6o03 OHN.
He BnKOpNCToByTe Bnpi6 y Bn6yXoHe6e3neuHni atmocpepi.
MiUHO TpMaIte oBnDbI pyuKn npN BnKOpNCtAHHi npOdykTy.
Bybte yBaXHi, DnBItbcra, 10 Bu po6nte, i BnKOpncToByTe 3dopOBn rIy3 npn EKcNpyataaBnPo6y. He npaOioTe 3 Bnpo6om, KOIN Bu BTOMneH abo 3haxoDInTeCb nD dieHO HApKOTnIB, ANKORIO aBO meNKamentTIB. B TpTa KOHcHTpaui nD vac po6tBu np6y MoKe npn3BeCTn Do cepno3HoT TaBMn.
He BnKOpNCTOByTe npn noraHomy ocbitJeHHI. Oepatop notpi6he qTkn ornnp o6ooyi obnacti, 06Bn3HaHTn noTeHuiHi He6e3neKn.
BukopncTaHH 3axncty orpraHIB cnyx 3nKye 3daTHicTb yTu nonepeJkeHH (kPkn a6o ciHaNt TpBOrn).Onepatop noBHeH 3BepHytn oO6nBy yBarry Ha Te, lio BiD6yBaetbcra B p60uyi 30HI.
Onepaui 3 aHaIorHnMn iHCTpyMeHTAMn Henoanik 36ilbWye pn3NK TpaBMn Cnyx y i MOKJIINBicTB notpannnHnH iHnx ocioy p06oy 3ohy.
TpmaTeMiCy onopyipbIBHOBary.He TargHtbcra. IpeBaHTaxKeHHMOKe np3BecTu Do BtpaTpiBHOBarn a6o BnJInBy rapAUX NOBepxOHB i MOKe 36ilbwnPi3NK BiDaqi.
TpMaTe Bci YactHnBaWoTOro TIna noJani BiD pyXOMoi YACTHH.
He TopkaItec oIbnaCTI HABKOIO BNXNONHIX ra3iB, rnyuHnka a6o 6nOy DnryHa; ci qactHnH neperpibaotbcn iD vac po60tN.
OrnhaTe Bpi6 nepei KOxHIM BkOpNCTaHHM. NpeBipTe npabInbHicTb po60tn BCix npncTpoY npabnHH, BKIOUcaOuY raIbMa NaHcIora. NpekoHaTeCe y BiCyTHoCti npotikAHnnaNb a6o nocA6neHnx KpINHeh Toio. NpekoHaTeCe, 0c Bci 3axNCHI oropoxi, DePleKToPi pyKn npabInbHo i HadiHo 3akpInnHi. Y pa3i BnBNeHH NoWKoJKeHH XactIH 3amHItb ix Do noCuAtky po60tn.
He 3miHouTe MaunHy 6yDb-RAKIM YINOM Ta He BnKOpNCTOByte Detani Ta npInaIJa, He peKoMeHDoBaHi BnPo6HkOM.

TnepeDxKHeHH

Kpo npOdyKT Bnab, NOCTpaxdAB BiD BaXKOTo BnNBy a6o nouHaEc Bi6pyBaTn, HeraHIO 3ynHITb O6NaIHaHHa Ta nepeBipTe Ha HaeBHicThb NOxKoDxKeHb a6o BN3HaUte npuHy Bi6paui. Byb-jaKe NooKoDxKeHHa Mae 6ytn npAunbHo BiIDpemOHTObaHO a60 3amHeHO ABTOPIN3OBAHOMy cepBichOMy ueHTpi.

Pn 3miuBaHHi naHb a6o 3anOBHOBaHHI naHNBorO 6aky, He Kypitb i TpMaTecra 10 M BID DKepeNa 3aMaHHa.
3MiWae i 36epiraaTe nAnBO y 3aTBepKeHOMy KOHTeHepi Dnna naNBA.
3miuyte naIINBO Ha BiIKPITOMy NOBITpi, De HEmac XODHIX icKOp a6o nonym'a. IpOTpiB 6yd-ayn BNTIK naINBa. BiIDiITb Ha 10 M BiD cicza 3anpaBkn, nepeD 3anyCKOM DBIVHa.
3yHnHtB DnRHyN i daTe Nomy oxoNoHyTn nepeD 3anpaBkoIO, 36epiraHHaM a6o TpaHCnOpTyBaHHaM npnaIy.
He 3a6ydbTe npabunbHo 3akpnB Bci KpnsuKn nannBHorO 6aky / KOHTeHepy nicra 3anpaBkn a6o 3muaHH.

TEXHIKA BE3NEKIN JAHUROBOI NINJN

3aBxN 3aΦikCyIe KpIuKHy HApMHOI uTahRn, KOJI npOdyKT He BnKOpNCTOByEcBcA a6o nepeHocntbcra, a6o TpaHCnopTyEcBc. Lc eoONOMOKe 3HN3NTn pINIK BUNaIDKOBOrO KOHTaKty 3 rOCTpIMN Ne3aMn Ha NaHOrAMn. HocItb npOdyKT 3a BepXHIO pyKy 3 HApRMHOIO PnAHHOIO, 3BepHeHOIO nOdani BiD BaWorO TiNa.
Bn noBNHHI 3BNKHyTNO BaWOro HOBOro npOdyKty, BnKOpNCTOByOHi npocTi po3piHa HadiHOnPiTpmyEMomy DepeBi.3p06Itb ue, KOJI NHe npaHOBaNn npOyKTOM pOToRGM DeKoro YAcV.
PekomeHnyEcpo3nHOBaTH KOONHa niconnHOMy Ko3ni a6o pami, KOnn BnKOpNCTOByeTe npOdykTVBneu pa3.
IpekeKaHTeCra, 10 Bci 3axnCTn, pyKu i uINOBaHm 6amnp npabNbHO BCTaHOBneHi i 3hAXOJrTbcR B IO6pOMy CTahi.
Oc6n, kI BnKOpNCToBvOt IpoDyKT NOBHHi 6yTN B Do6pOMy 3dOpOB!. IpoDyKT E BaXkIM npCtPoEM TaKIM YHOM, ONEpATOP 3o6OB'3aHN 6yTN cI3NuHO TpeHOBM. ONEpATOP NOBHeH 6yTN HAnorOTBI, MATx XopoWNI 3ip, pyXnIBictb, pIBHOBy i CnpTHICTb. RaIOBMaTe Aki-He6yDb CymHiB, He BnKOpNCToBvYTe IpoDyKT.
He cToIte Ha HeToKax npn BnKOpncTaHHi npOdykTy. Lc MoKe BKnIOuATn, aJe He O6MeXyETbcra, CXoJamn, nicib i peB. TpMaIte 6bndpykn Ha pykKaX npOdykTv VBeCb Yac.
He nouHaIe BnKOpNCtOByBaTn npOdyKT Do Tnx nip, nOKn Bn He MaTe YnCTy po6oy 3oHy, CTiKe nonOxHHe, i 3aIIaHOBHaHn IJX BIDCTyn DaNeKO Bid nadaOchoro DepeBa.
Bybte kpaHbo o6epeKhi npn po3pi3aHHI manora6apuTHnx IOKi depeBueB, 6o ctpvHKi MaTePian

MOKe 3NOBHTN NINJbHOrO NaHcIora, BdapHTn a6o Do BAC TgHyTn Bac 3 pIBHOBar.

Ppi pi3aHHKINHOBK,IO nID HAnpyroHO,6yNbTe HAnorotobi BiDnpyxehn,IOB Bn He 6ydeTe Bpaxeh HAnpyroO DEpeBNHX BOJOKOH pni 3BInbHeHi.
OctepiraTecra BKNy D BNNONHX ra3iB, MaCTnA TymaHy i TnpCy. HociMbacky a6o pecnipatop, kio notpi6Ho.
HkOnHe 3pZaIe I03n I HeBEnKn NiDnicok (MeHue 75 MM B diaMeTQi).
3aBxIg TpmaTe Bnip6 o6oma pykamnpo60ti. BnkopncOByte TBepde 3yennHnaIbCmN 6bxonBwnpykn npodykTy. PpaBa pyka nobHHa 6ytn Ha 3aHni pykoTui niba pyka Ha nepeHni pyu
Ipeed 3anyckom DbnyHa nepekoHaTeec, 0o naHucn He TopKaetc Ta He KOHTaKTy6yB-8KnO6'KT. 3abXdn BkNoaHe npOdyKT 3 BInOeHm raNbMOM NaHUPora (NOBHCTIO NOBHyTNMBpeepd).
He MoiNphiKyBaTn Bnpi6 y 6yNb-Km YHOM a6o HEBNKOpNCTOByte NOra JINBNEHHa 6yDb- RkNx BKnaDeHb a6o npncTroIO, He peKOMeHDoBaHi Bnpo6HnKOM nla BaWOrO npOvKTV.
Bn3bKO do onepaTopa nobHHI 6ytn anTeUka, 0o MicTntb BENIKIOB'r3kn i 3acO6n, 0o6 BnKlnKaTu yBary (HapnKnad, CBnCTOK), BiNbSi, BCEocxHn KOMNKeT NOBHeH 6ytn DoCt Henoanik.
Y onepatopa MoKe BnHnKHyTN CnOKyCa 3HrTn 10JOM, RaIIO HeMaE HeBe3NeKn NaIDHHa PpeMETiB y po6oHi 30HI, aJIe 10JONOM, 3OKeMa, 3 CItKOIO KOsIPKOM, MOKe IOnOMOTn 3MeHUnTN NOTeHcIJI NOIKoDKeHHa 6bNCH Ta rONOBV BnAaNDyBidiNaI.
Hocitb wonom noctiHo nid yac ecknnyatau npnaNy. 10nom, ochauehen ciTaytM KO3npkOM, MOXe DOnOMOTN 3MeHNr PN3NK TpaBM N6nuy Ta rONOB B p3i 3BOPOTbFOyADV.
HenpaBnIbHO HATrHyTNI NaHcIg MoKe 3icKoHTN 3 HApBaJIIOOHTIIaHKnIMOKe npns3BecTNO cepno3Hnx TpaBM a60 Cmepti. DOBxHa IaHcIora 3aJeKuTB BiD TEMpepatypn IaHcIora i 3Hocy IaHcIora. PepeBipTe HATR HACTO
TpMaTe pyKn cyXmN, uCTnM, i BInbHMn BiD Macna i mactna. KInpHi i MacnHi pyKn cIn3bKi, BKNKIAHOBT BTPATy KOHTPOJIO.
3MeHUNPN3NKOTPMAHN TpaBM uepe3 KOHTAKT i3 pyXOMMNUACTINHAM, 3aBXDN BIKOHYTe HAcTyNHI DII: 3ynHnITb DBNHy, 3aCTOCyIe raNBMO NaHcIora Ta BiD'edHaIte npOBiCbiK 3anaIOBaHH. PepeKoHaTEcA, 10 BCIpyXOMiYactHN3vHNmnc

DO TORO,AK 3aJIuWHTn npOdyKT 6e3 HArJyDy
- nepeД чишеним a6o nepeД усунени 3a6ивань.
- NpeD BCTAHOBHnEM a6o 3HRTTm npnna
- nepei nepeBipko, npoBeeHHm TexHCHoro 06cnyrobybaHHa 3npoTOJ 3 npOyKTOM

Po3Mip po6o0oi 6nacti 3aJenKtB BiD po60tn, 10 BnKOHcybC, a TAKoX BiD po3mipy DepeBa abo 3arotOBKn, 10 6epyTB yuaCTb. Hanpknad, Bnpy6ka DepeBa BImarae 6bnSy po6oy 3OHy, HIX npinHHTT IHHx po3pi3IB, To6To, noPi6HeHH. Oepatop

NoBHHen 6yTN B kypci, i KOHTponHOBatn BCE, 0o BiD6yBaETbcra B pObooi 30HI.

Hikon He nnilnre, kon Bawe TINO Ha NiHH 3axnchoro koxya afo naunora. Kaio Bu BIDyBaTe BiDauCy, ce DonomOKe 3anobirn Naunor BiB BCTyn B KOHTAKT 3 Baoo roNoBOo afo TINOM.
He BnKOpncToBnyTe pyxu Ha3aD i Bnpeed npn po3nnIIOBaHHi; Hexai NaHcIor po6ntb CBOIO p60Ty. TpMaTe naHcIr roCTpM, i He np6yTe nIdTuBXHyTu naHcIr Yepe3 po3pi3.
He TnchItb Ha Nnky B KInci pi3aHna. ByIbTe roTobi B3rTu Ha Ce6e Bary NnN, KOIN BOHa po3piKe DepeBnHy. HeBnKoHaHHN iiei Bka3iBKn MoKe npnbectu Do cepno3HoT TaPBMn a60 NoWKoDnT npncTpI.
He 3yinnHnIte nNkY ha cepeHni onepaui pi3aHHa. 36epiraiTe nNkY npauiooHIO, noKn He 6ynde BuaaneHa 3 po3piy.

3acobnIHINBIDyIaIbHOro 3axnty

Xopo0oio kocti, 3acobn iHdNbiyaIbHoro 3axncty, Rki BnKOpNCTOBYIOBc npOpeciOnaHaAMn DOnOMoxytb 3HN3NTn PN3NK OTpMaHHe TpaBMn OepaTopOM. HactynHi NHyKTHN NOBHHI 6yTN BnKOpNCtahi npi poBoTI 3 npOdyKTOM:

Jolom6e3neK

• noBHHI BiIDnoBIaTn EN 397 i MaTn MapKyBaHHa CE

3axnctopranibcnyx

• noBHHI BiINOBiDaTN EN 352-1 i MaTN MapkyBaHHA CE

3acobn 3axncty opraHIB cnyx

3axnCT 6bnuYra Ta oueHOBHHi MaTH MapkyBaHHa CE i BiINOBiJaIOb CTAndapTy EN 166 (nn 3axnCHnx OkyIparib) a60 EN 1731 (nna ciTcaCTnx KO3npkIB)

PykaBn4Kn

• NOBHHI BiINOBiDaTN EN 381-7 i MaTN MapKyBaHHY CE

3axnCT Hr (wKipHn wTaHn)

• noBHHI BiIDnoBiTaN EN381-5, MaTn MapkyBaHHA CE i 3a6e3neuHT Nce6iHm 3axnCT.

3axnchi yo60tn dnnpo60tn 3 naHcIroBOIO nIIIO

• noBHHi BiDnOBiDaTn EN ISO 20345:2004 i BiD3NaHcAaTncIuNTOM i3 3O6paXeHHM NaHcUroBOoi nnn, uo6 Nokaatn BiDnOBiHicTb Do EN 381-3. (IHODi KOpNCtByaui MoxyTb BkOpNCtOByBaTu YepeBnKn 3i CTaJIbHM HOCOM 3 3axNCHMN reTpAmn, kki BiDnOBiDaHOb EN 381-9, kkuo e HeBeNikn pN3NK naDiHHa6o 3aNNTyBaHHy y nnicok)

KypTKa nnaanuoBoi nnn dnn 3axncty BepxHboi qactnn tina

• noBHHi BiDnOBiDaTN EN 381-11 imaTN MapKyBaHHA CE

MOHTAX

A Noppe,dxkeHHa

KUOBOH-He6ydb3amHei a6o nowkoJKeHi, He BnKOpNCbOByTe daHnn Bnpi6, nOK BOH 3de6ijbWoHO He 6dyTb 3aMHeHi. HeBnKOHaHHaiei Bka3iBKn MoKe npBectn do cepno3HoI TpaBMn a6o noWkoDHTn npncptpi.

3BIPKA INJIJIbHOrO JAHUOrA I HANPABJIOHOI UTAHNI

DnB. cTOp. 317-319

1. Hocitb 3axnchi pykabuyn.
2. BmKHiB ralbmo IaHcIora.
3. BiDkpyTb raiKn KpInneHHa THaHn 3a DOnOMorHO KO6iHOBaHOrO raiKOBOrO KInOHa.
4. 3Himitb Kpniuky NaHuciora.
5. 3HIMITbBaN3 npnCTpoIO.
6. Nomicitb IaHIOB B npabINbHOMy HAnpMky Ha naHeJI i nepekoHaIteca, 0npoBIDH IaHKn BnpiBHy y na3ax BaNy.
7. PnKpinitb 1aTHy do naHcy nIkn i oBropHtB naHcHr HABKOLO naHcHOrOBoro KOleca npBody.
8. 3amihitb kpiuky nahucra Ta raikn KpinnneHHaTaHn.
9. 3akpyitb raikn kpinneHHH Wtahn BpyHy. Wtahra NOBHHa MaTH MoKInBicTh BilbHO nepemiuatncd nperyIIOBAHH HaTAY naHcIora.
10. BidperynoTe Hata rnaHcra. 3BepHiTbcr do po3diny "PerynIOBaHHaTary naHcIora".
11. Utpmyu HakoheHnK HanpymHOI TaHnBropy, HadiHo 3aTgHtB raKn KpinneHnTaHn.

PERYNIIOBAHHH HATIYYIAHILIOFA

ДиВITбСТОПИКу 331.

1. BcTaHOBbIb nepemKau 3anaJIIOBaHHa B noIOXeHHa "O"(BMK).
2. IpekoHaTeCra, 0o raiKn KpiInneHHaTahnOcna6IeHdBIDkpyyBaHHBaPyHy.
   3.ДЯ 36iJIbWeHnHaTaryIaHcUOraNoBepHITbRbHT HATrAry NaHcUOra 3a RoDHHNKOBoO CTpiKoIO Ta nepioDnUHO nepeBipTe HATrHHeHHNaHcUOra. 3MeHUnTI HaTg LaHcUOra, NoBepHiTB RbHT HATrAry NaHcUOra npOTn RoDHHKOBoCI CTpiIK Ta nepioDnUHO nepeBipTe HATrHHeHHNaHcUOra.
3. HataiHaHcIora npabnBHH, KOJI pO3PbMIX pIaKaMn IaHcIora iTaHroMix 3 MM - 4 MM. NotarHtB IaHcIor BcepeHHi HxKbOI YactHN HStAHn BHN3 (BiD tHaHn) i BmIpAraTe BiDcTahb MIX tHaHROIO i pIzmaM NaHcIora.
4. 3aTnHtB rain KpInneHHn taHn, noBepTaOHn ix 3a roDHHNKOBHO CTPIKIO.

PIMITKA: Temnepatypa lahiora 36iNbWyecbcr npn HopmaIbHIpo60ti IBKNIkae po3rHHeHHra NaHOra. Ipebeipte HataR naHOra qacto i npn HeobxHocTi BiDpyrIIOue. LaHOR hATrHyta, KOIN TENNI MOKe 6yTN 3aHaTTO XOpCTKNM npn OxONODXeHHi. PepeKaHTeC8, 1O HAar naHOra npabNlbo BIDpyrIbOBaHn, k3a3HaueHo B ci nHCTpykui.

ФУHKUIOHYBAHнЯ

TANIBO TA 3APPABKA

Be3neuHa po6oTa 3 naJBnBOM

TnepeDxKeHnHa

3aBxJn 3yInHnIte DnRyn Nepeq 3anpaBkoH. HikoJI He DoaBaTe NaINBO Do MaunH N 3 npauOuHM a6o rapaum DnRynHi. BiuiuTb No KpainHe Mpe Ha 10 MetpiB BID Micu3anpaBkn, nepw HIX 3anyckatn DnRynH. He naHT! HeNkoHaHH uei Bka3IBKN MoKe npuecTu Do cepno3HOI TpaBMn a6o NowKOUnTI npncpti.

TnepeDxKeHHa

Ipekehatae y BiCyTHoCTi Bntokib naHbA. KaTaki 6ydyTB 3aHdeHi Notpe6Ho ix y6paTn, nepu HIX BnKOpNCToBbATn npOyKT, 0o6 3ano6irtn noxekj a6o onikam.

IIOBOITec3 nannBOM 3 o6epexHicTIO; ue Ierko 3anaHIOETbcR.
3aBxDn 3anpaBnIe Ha BIDKpntomy nobitpi daNEKO BiD nOTEHuiHnx dKepeJ 3aMHaHH, He BdNxAte napn naNBA.
He Do3B0JnTe 6eH3nHy a6o Macny BCTynatn B KOHTAKT 3i WkipoTo. JKIO KOHTAKT BCE X Bi6yBaetbcra HeraHNO pOMnTe 3 MNOM I BENIKO KJIbKicTHO BOHN.
TpmaTe 6e3nH i MacNo nOaI BiD ouen. Kao 6e3nH a6o MaCNO BCTynae B KOHTAKT 3OuMa, HeraHOn npomnte ix uNcTOHO BDOIO. Kaio NoDpa3HeHH 36epiraTbCra, HeraHNo 3BepHITbCdo Jikapra.

3MiUyBaHHn naHnBa

Ley npodykt po3paxoBaHH Ha KINBJIeHH BID 2 TaKTHORO DnRyHa i Bmarae nonepedHboro 3MiUyBaHH 6eH3nHy i 2-TaKTHORO MaCTnna. 3MiuaTe HeETInNoBaHH 6eH3nH i 2-TaKTHe MOTOpHe MaCTnIO B Yncti emHOCTi, 3aTBePdKeHOi dNra 6eH3nHy.
Lcien DnBryH ceptnfoikobAHn dIpa oboTu Ha HeeTINbOBAHOMy 6eH3nHi, npu3HaueHOMy dIra BnKOpNCtAHHb BAETOMo6iJx 3 OKTaHOBM YnCJOM 91 a6o BnIe.
He BnKOpNCToBnyTe 6yDb-RAkTN nnonepaHbO 3MiuaHnx 6eH3nHy / MaCTuNa 3 naNBO3anpaBnX CTAHui; ue BKIOUac B ce6e nonepaHbO 3MiuaHn 6eH3nH / MaCTuNo, npu3HaueHi dJa BnKOpNCtAHnB MoneDax i MOToUNKJax.
BnKOpNCToByTe BnCOKoKicHe 2-UNIOBe camO3MIyBaUoyecb MaCTnIO DnIgDnHyHIB 3 nobITpyHM OxJIOJKeHHaM. He BnKOpNCToByTe abTomO6InbHe MaCTnIO a60 2-TaKTHe 3OBHiuHe MaCTnIO.
3MiWaiTe 2% MaCTInIO i3 6eH3nHOM. Ic cyMiU 50:1.
3miuatapeTne npaIbHO,aTaKoK KOxHOro pa3y nepez3anpaBkoIO.
3miwaute B HebeNkx KjIbKoCTx. He 3miuyTe 6JIbwe, HIX Ha 30-DeHHn TepmH. CInHTeUHHN

2-TaKTTHM MaCTnIbHm MaTepian, 0o MICTNb naJIbHN CTa6iJI3aTOp peKOMeHdyETbcra.

PIMITKA: PAnBHa CnCTema NoWKoJKeHa a60 np6IeMn, kki BnHKnI B pe3yIbTaTi BnKOpNCTaHH B HacuHeoi KNCHEm PAnBa, 0o MICTb 6JIbH HIX BIDcOTkax KNCHeBMichnx 3aBnB 0o paHlSe He NOKpBaHObCra pArHtio.

3aONOBHeHH naJIbHoro 6aka

Dunbitbcra ctopiHky 319.

OuHCTIb NOBepxHIO HABKOJO NaINBHOI KPNiKNI, 3a06 3anobirn 3a6pydneHHIO.
Iocna6ntu kpiuky naibHoro 6aka nobilbHO.
ObepeXHo 3aIINTe nIINBHy cyMiU B pe3epByap. YnkaIte po3nBy.
Ipeen3amio nainBHOi Kpuiu, oucnitb i ornnaTe npoknaiky.
Bippa3y 3amHHTn KPNKny nannBHO 6aka i 3aTnHtbykoIO. IpOtpiB 6yNb-aykn Bntik naNBA.

PIMITKA: HopmaIbHO nIg IaBnryHa dNmitn iIac i nicra nepworo BnKOpncTahH.

IDOABAHNMACTNJIAJAHUORA

Dubitbcra ctopiHky 319.

TnepeJxKeHHa

Hikon He npaiothe 6e3 3maueHHn NaHIOra. KaIO naHIOr nnKn npauoe 6e3 3maueHHn, HnpabNyaOa Wtaha i IanHIOr nnKn MoKyb 6ytn NowkoDkeHi. Tomy Baxnbo nepeBipInn pBeHb Macna qacto i npn nepwOMy BIKOPNCyBAHHI npOdykTy.

1. OuHCTIb NOBepxHHO HABKOHO MacnHaHO KPNK, 3o6 3a06iTn 3a6pydHeHHIO.
2. BiDkpyTITb i3HIMITb KpNlKy 3 MacnHOro pe3epByapy.
3. HanInTe MacNo B MacJHn pe3epByap i KOHTpOnIOHe DaTcN pIBHa Macna. IpeKoHaIteC, 106pyd He NotpanPnE B MacJHn 6ak nD qac 3aONBHeHH.
4. NocTabe KpUkky Ha Micue i 3aTgHiTb. BuTpIb BCE po3nTe.
5. OdINH IOBHH 6aK Macna DO3BOJNTb Bam BnKOpNCToByBaTu npOdyKT 20 - 40 XB.

PIMITKA:HaIarOJKeHa CnCTema MaCTIna NaHcUOrTa 1 TaHrN, kI npabNIO, BnKOpNCtOByE MaTINo 3 NaHcUOr a NiacBnKOpNCtAHH. 06 nepeBipTN fYHKcIooHaNbHiCtB MaCTInbHnx CnCTeM NaHcIpy I TaHrN, HapBaTe Kpaeyok NaHcUOr Ha CBiTny NobepxHIO, Taky, kR razeta. P3HI 6pN3Kn MaCTIna NoBHHi DORJIaTncra NICn KaPOTKoro Yacy.

PekomeHdoBaHe MaCTnlo NaHcIora

Bupo6nK peKomeHdye BnKOpNCTOByBaTu TjIbKn MaCTnna Ryobi nJaHaUorOBoi nn. (DocTynHO y BaWoRo aTOpN3oBaHOro cepBicHOro ceHTpy)

3ANYCKIPOJyKTY

3anyck npodykty BiDpi3HaeTbC8 B 3aIeXHoCTi BiD toro xOIOHN a60 TeNIIIN DnHyH.

TnepeDxKHeHHa

TpmaIte tino 3niba BiD nyHKtnpHoi IiHII. HikoN He TopkaTecra nIikn a6o naHcIora, a6o haxnIaTEcra nob3 liHII naHcIora.

BctaHOBIOIte Bnpi6 Ha pibHi noBepxHi i nepeKoHaTeC, 10 HiaKi npEpmTu a6o nepeWkoN B 6e3nocepeHHi 6n3bKOcTi, kI MORn 6 yBiTu B KOHTAKT 3 NJIbHOU WnHOU I NaHOrOM.
TpMaIe pyKy TBepDo NpeEdHbOIO JIBoHO pyKOIO iNoCTaBnTp npaby Hory Ha 6a3i 3aHbOoi pyKoTKn.

Uo63aynctntxOIOHN ABnHy:

ДиВ.Стор.317-319.

1. BctaHObitb nepemikay 3anaIOBaHHB NOIOXeHH "I" (BKl).
2. IpekoHaeTcra, 0raIbMo JaHcIgra 3haxOHTbcB nIOXeHHI rIbMyBaHHHaTNCHyBn BnepeD BaXeB /pyHm 3axnCT.
3. NobHicTIO HaTNCiTB i BiDnyCITb 3aJIuBHHn HAcOC, npHaMHi B 10 pa3iB.
4. NOBepHb Baxinb nobitpHoi 3acnIHKn Do ynopy B nOIOXeHHN IOBHOro NiDCocy.
5. KONI TEMNepaTpa Bnue 10° C, notarHITb pyky CTapTepa, noKn DBnHy Hne NOUHe 3anyckatncra, ane He 6Inbwe HIX 3 pa3n. Ppi TEMnepaTpyi HnKHe 10° C, notarHITb pyKy CTapTepa, noKn DBnHy Hne HaMaracTbcr 3anyckatncra, ane He 6Inbwe, HIX y 5 pa3ib.
6. Hatncihb Ha Baxinb niDcocy do ynpy.
   7.Повернitsьpyку cTapTepa,nOKn DBuRyH He 3anyCTNTbCra.
7. HatnchItb Ha rauok i cTnCHtB Baxkijb rasy, notIM BiDnyctItb BaxkInb rasy, uO6 nobepHytn DnBryH ha xoIOCTn xiJ.
   9.ДаTe npOdyKTu nonpaUOBaTu Ha XoIoCTOMy XoDy npOTraR 15-30 cekyHd.
8. Ipeep npucckopenham DnBryha a6o pi3aHH depeBHN, nepekoHaHTecra, 0raIbmo IaHcUra 3hAxOHTbcra B noNoXeHH "pobota", notarhyBwn Ha3ad BaKInb raIbma /pyHy oxopoHy.

VAT

He3aTHiCtB NOBHO MipoO 3BiNbHnTn DPOceNB, KOIN Baxinb ralbm NaHcIora 3hAxODntbcra B raIbMIBHOMy nIOXeHHI np3BeDe Do cepno3HOro N0WKoDxHRe npOkyr. HikOn He BdABNIOBaIte i yTpmyTe KypOK ra3y B ToI Yac k RaIbMo NaHcIora 3hAxODntbcra B noIOXeHHI raJIbMa.

Длэзунску tenloro DBurhya:

DnBiTbcr CTOpHky 327.

1. BctaHOBITb NepemKau 3anaJIIOBaHHB NOIOXeHHa "I" (BKJ).
2. NpekoHaTecra, 0r ralMo naHOra 3haxOHTbCBA NOIOXeHHI ralMbYBaHHa HATNCHyBn BnepeD BaXeB/pyuHn 3axnCT.

3. Повернithь вадиь поитразиол do ynopy в пооженя пов Horo nicocу, a noTIM haTnCHiHb Ha Hboro do ynopy.

4. Nopephtb pyky cTApTepa, nOKn DBInyH He 3a npauoe, ane He 6inbwe, HIX 5 pa3iB. Hatnciht Ha rayok i CTNCHTb Baxinb ra3y, Notim BiDnycttb Baxinb ra3y, 0o6 nobepHytn DInRyH Ha xOnocTm xiD. Raio DBInyH He 3anyckaetcb niCn 5 TgHeH, BNOpNCTOBuyte npOeDpy 3anycky XOnoDHoro DBInryHa.
   5.пелдпснckорнядИгун a60 pi3aHH DepeBnH, nepekoHaTecra, lo raIbmo NaHcUora 3HaxOuTbcB B noIOxehHi "pobota",notarHyBwn Ha3ad BaXkInb raIbMa /pyHy oxopoHy.

3YINHKA DBNIyHA

BiDnyctIb kpyok ra3y i hexa DnBryH NOBepHeTbc DO xOJocToTO XoNy. 0o5 3ynHHn DnBryH, nepeBeiTb nepemkay 3anaHOBaHHa Do (0) no3uui octahOBKn. He cTaBte Bnp6 Ha 3emNIO, KOJI naHucr npOobKxye pyxaetcbra. Ina DODaTKOBoi Be3neKn, BCTAHOBITb NaHcuroBE rAblMO, KOJI npOdyKT He BnKOpNCOTByTcR.

YBnnaKy, kIIO KJIou 3anaJIOBaHH He 3ynHRe npOdyK, NotarHtB BaxJIb NOBITpHOi 3acNIHK y NobHcTIO BNCHyTe NIOXKeHH (NOBHm DOpCceB) i 3aIyauTn IaHIOROBE raIbMO, 3o6 3ynHHTn DBrHy. BIMNKa3aIaNBOHaHH He 3ynHRe npOdyKT, BCTaHOBJEH y NIOXKeHH 3ynHKn, BxE BIMNKa3aIaNIOBaHH BiPemOHyBaTN NepeD BkOPncTaHHM npOdyKT 3HOBy, 3o6 3anobirn Hebe3neuHM yMOaM a6o cepNo3HM NoIKoDKHeHHM.

PIMITKA: KOnn Bn 3aKiHnTe 3 BnKOpNCTaHHM npOdykTy, 3aBKnDn CknHbTe Tnck 6aka, nocJa6nBwn, a Notim 3aTgHyBwn KpnuKy MaCtUna NaHcUra i naNba. DaIte DnryHy OxonoHytn nepe 36epiraHHM.

TPIMAHHIIPOODYKT

DnBItbcr cTopiHky 319.

3aBxJn TpImaIe Bnip6 npaBOIO pyKOIO Ha 3aHIO pyKy i IIBOIO pyKOIO 3a nepeDHIo pyKy. Bi3bMItbc8 3a 0bNDBi pyKn 3 naIbIaMn 0bxONINBIMMpyKn. PepeKoHaITecra, 10Ba7a IIBa pyKa TpImae nepeDHO pyKy TaKM YHOM, 106 BeJIkNn PanaeCb 3hAxODINBC8 3HN3Y.

NEPEBIPKA TA EKCNIYATAUJAHIOROBOI RAJIbMA

1. YbIMKHTb naHcIorOBe raIbMo, NOBepTaOHn IiBy pykny HABKOIO nepeDhBoI pyKoRTKn. Do3BOIbTe 3aHiy qactHI pykn HaTNCHTN BaxJIb rAInMa naHcIora / 3axINCHI uTOK pyKn DO wTAHN, KOIN NaHcIHor WbNDKO o6ePTAc7bc. ByIbTe BNEBHeH, Uo6 36ePeITN ObuNDbip ykn Ha pyKax npOdykTy y BeCb qac.
2. NpeBcTahOBTe rIbMa IaHcIora Ha3aD B noNoXeHHa P6oTa, B3raBmCb 3a BePxHIO uactHy BaxKeIraMbMa IaHcIOra /pyHy OxopOHy iNotrHyBUn B 6iK nepeDhBoi pyKoRTKn Do TnX nip, NOkHe NoUyEe KnaCaHHa.

Tepexdxehn

Rkto raIbMo IaHOra He BiDpa3y 3ynHRe IaHOr, a6o RkTo raIbMo IaHOra He 3aJIuWneTbC8 B P06OOMy NIOJXeHHi 6e3 CTOpOHbOi DOnOMn, BiHeciTb TOBAP y ABTOIN3OBAHn CepBicn NcHTp DnpeMOHTy Do BVKOPNCtAHN.

TnepeDxKHeHH

KoH Kypok Dpocen i DvBryn npaue Ho XoIOCTOMy XOy, NaHOr NnKn He NobHHe pyxatncr. KaO BOHa npoobkye pyxatncr icHy e pn3NK BaxkoIT TpaBMn onepatopa. He BnKOpNCBOByte npOdyKT, NOBepHt b Ioro B ABTopn3OBaHm cepBichn ceHTp dNra npopeciHOI hAcTpoKN.

NEPEBIPKA 3yENJIeHHJ

1. BmKHiB raIbMo IaHcIora, NotraHyBwN 3a BaXiNb raIbMa IaHcIora / 3axnCHn uTOK Do nepeHboi pyKn, nokn He nouyeTe KnaUaHHa.
   2.ДaIte DnRyHy nonpaObATn B peKIMOuyKaYBaHH. IpekoHaTecra, lo NaHOr nNkHe oepTaetbcr. RaIO NaHOr nNkn OeptaeTcprnpo60ri Ha xOIOCTOMY XOy,3eHNHeMOKe 6yTu NOUKOKeHm. He BnKOpNCTOByTe npOdyKT.BiDheCtB npuaddo ABTopu3OBaHOrcpBicHOreHTpy dna npOpeciHoro 06CNYTOvBAHH.
2. Hatachitb Ha Kypok dpoceJIHa noIobHy i 3aNyctItb npOdyKT B cepeHHi XoHy. NaHcior nnNIOBHeH o6epTaTnCra PnaBHO, KaHcO 3eHNHeHH 3hAxOHTbcB DIO6POMy pOboOMy CTahi.

NEPE3ANYCTITb NICJIa TPNBALNX NEPIOIDIB INTEHCNBHO BNKOPUCTAHH

Pnic BnKOpNCTaHnaHcIorOBoi nnn npOTarom TpBAnNX nepioDIB yacy, 6yNb Iacka 3MycbTe npNCptpi npauOBATn B pexmimi xonocTOxOdy, 3 TaIbMOM Ianuora, zo BKlupeHH BiD 3 do5 XbnH, 10 Do3BOJare HAKONUHeHOMy TeNny DnBryHa po3ciTn Ypee3 CNTEmy OXoNoDKeHH 3 npMycBOHO NOaueo NObitpr.

LcDonomarae 3anobirn notehuiHien TENNOBHTPMUci i TAKNI BUCOKNI NOTEHJAN HAnpyrN NEBHNX KOMNOHEHTIB DBNYHa (TO6To, CNTeMn 3anaJIIOBAHHI KAPbOpaTopa).

Pnicna NobHoro BiKlnOeHHa DnryHa, Bn MoXe Te BiHyTu Tpydnoi npn nepezanycky nnKn npn ciie yMObi, kae a6conIOHO HopmaJIbHO. TaKIM YNHOM, 6yNb IaCKa, Do3BOIbTe iI OxJOHOHT Nepe NOBTOPHM 3anyckOM.

PpHnH i npoipinaKTnKa onepaTOpOM BiDaayi:

BiiDnay MoKe BnHnKHyTn KOJI Hic a6o KInyHK HanpaBnIaOoi IINHn DoTOPKHeTBcra Do 06'ekTy, a6o KOni DepeBO 3MnKaCTbC Ta 3axmAc nIIbHn NaHcIOr.

Kontakt 3 KINUKOM B Deeknx BnnaKax MOKe BnknKaTpanTOby 3BOPOTHy peakio, ToBXHyBwn HappnyouyttaHry Bropy i Ha3aD do onepaTopa.

3aTnCHeHHn nIJIbHoro NaHcIora y BepxHiyactnHi HAnpaBnIOoI uHH MoKe NiDiTuBXHyTN HAnpaBnIOuY uHHy uBnKO y HAnpMyKny OepaTopa.

Byb-ka 3 qux peakui MoKe npusBecTn Do BtpaTH KOHTPOHn HnNkoH, 10 MoKc npnsBecTn Do cepno3Hx TpaBM. He noknaadtecBnKnIOUHO Ha 3anobixhi npicTpoi, B6ydoBaH i nnI. Jk KopncTyBaH naHcuroBoi nn, BN NOBnHi 3pObTu KInbKa KpOKIB, 0o6 36peRtn CBOI pOboHi Micu dnyPi3aHH BInbHMn BiD He uaccho BnnaDky afo TpaBMn.

Bidya e pe3yltatom HenpabnHoro BIKOPnCTaHHIhCTpymEnTy / a6o HnpabnBnHex diOnepaTopa Ta yMOB

BnKOpNCTaHH, cIbOro MoXHa yHnKHyTN 3a DonOMorO 3anobixKnHex 3axoDIB, 10 3a3NaueHo HxKHe:

MiHc HpMaTe, 6xONNBn nabzamnyuKbH30nn, 3 0oIMN pykAm Ha nuii i 3 noJoxeHHm Tina i pyk, 10 do3BOnrB Bam npOTnCToTn BiDau. Cnna BIDnai MoKe KepyBaTncra 3a donomoro onepatopa, kuo BNKoHaTn BiNobDiH3anobixhhi 3axOnd He BiNyckaIte NaHOrOby nny.
He nepeBnuyte Ta He pixTe Bnue ypOBn nneey. Lc eoNOMarae 3anobirn HeHabmchomy KOHTaKty HakoHeuHnka i Do3BOJRe KpaJe KOHTPOJIIOBaTn NaHcHorOBy Nny y HeoYiKaBaHN CnTuayix.
BukopncToByte TinbKn 3anachi uHHn Ta naHcIOM 3a3HaueHi Bnpo6HkOM. HenpaBunbHI 3anachi Wtahn i NaHcIOrn MoKyTb npInBeCTn Do nONOMKn NaHcIora i / a60 BiJaayi.
IotpmyTecb ihctpyku3 3TexHCHO 06cnyroByBaHH Bnpo6nka NnJbHO rnaHOra.3MeHHeHHrN6HHBnCOTomipa MoKe np3BecnDo 3iNbWeHHBidayi.

HCTPYKUII, UO CTOCYOTbCRA PPABINbHNX METODIB IJRA OCHOBHOI PYEKN, OBPI3KN CYUKIB, IPO3-ITNIIOBAHH

Po3ymiHHcNJ B DepeBnHi

KoNn Bn po3yMiTe cnpMaOBaHm Tnck i HanpyXeHb DEpeBnHi, MoxHo 3MeHUnTn "uinKn" a60, npHaMHi, oukyBaTn ix niD yac pi3aHHa. Hanpyra B DEpeBnHi O3Haue pO3TaryBaHH BONOKOH, a RaKIO PO3NnIaTH N CIJ OBlaCTi "npOnJa" po3pi, kN npabIno, BiDKPc, uO6 npOdyKT npoxOINHBACpIb. KaKo KOnoda NiTpmyEbCra Ha Ko3NI dNnIyHHa i KHeCb 3Bncae HEnIITprMaHIM, ce CTBOpIO Hanyr Ha BepxHi qACTHI uePe3 HabCaOuy Bary i Po3TaryBaHH BONOKOH. DEpeBnHi. AhAnorIHUM YNHOM, HIXHry qactnHa DepeBnHi 6yde po3p3aHa a BONOKHa 3iUToBXHyTI pa3OM. RaKIO HApri3 po3pi npOniY bYe mat N TeHdEhciio 36ilbSyBaTnc nI dyac pi3aHH. Lc MoKe 3aTnCHTu ne30.

Banka DepeBa

DINB.CTOP.323-324

KoTIOn OePAQIi PO3KpJyBAAHNI BIVpy6Kn BVKOHOITbC3a
DOnOMOrOIO DBox a60 bInbSe oc6 oDHouacHO onepaJI
Bvpy6Kn NOBHNI 6yTN BiOKPemNHe BIOnepaJI
NoDiPi6HeHHHa BIdCTAHn PnIHmHI B DaBa PA3N BNCOTn
Bvpy6Emo DEpeBa. DepeBa He NobHHI 6yTN 3pybAHI
Uo6 NoCTABNTn Ni3 3arpo3y 6yNb-ky OC6y, NooKDHTN
KOMyHAnBI Hi ABO HAHeCTN 6yNb-aki 3bNTKN. RaKIO
DepeBO Po6NTb KOHTAKT 3 6yNb-koHO FyHKUHOHAJBHO
LIHIEO, KOMNAHIA NOBHNa 6yTN HeraHNOBIDOMNeHa.

OnepaTop IaHcIgOrBOi IIINIOBnHEH TpIMaTH Ha BepxHi CTOpOHi MicceBOcTI, TOMy 10 DepeBO, WBNJUe 3a BCE 6ynde KOTNTnC A6O KOB3aTN BHN3 NO CXNlY nicn Joro BAHKI.

IbDcTyny NOBHeH NpAHyBaTnci OuyuataNc npw, HIX NoUHaTN NpJAHn. IyX BxOdy NOBHeH noOpuBaTnci Ha3a i no DiarOHaNi Do 3aHbOi YactHHo OikyBaHoI NiHII naIHn.

Ipeep noaTkom py6kn,po3rJnHbTe npnpOHN HaxnI DepeBa,po3TaWyBaHHB eNiknx rIOki Hanpam Bitpy，06

cynTN, kIM mJxom DepeBo 6yne naatn.

Budanitb 6pyd, kamehi, kopy, cBaxn, ckobn Ta npotn 3 depeBa.

3a6b0pOHeNo nnnnt DepeBa, 10 TpyXnI BiTpor, noWKoDkeHi B HacniDOK noKexi a6o ydApy 6bnckabKn Ta iHne. Lc dyKe He6e3neHo Ta MoKe 6ytN BIKOHaHO Jnue npoceciHMM caiBHKamn.

HaPi3 MtKn

INB.CTOP.323-324

3po6itb BnIMky 1/3 iAmetpa Depeba, nepneHnkyIpyHO HAnpymky naHH. 3po6t b HxNHO roPn3oHTaIbHy HacIyB nepuW yepry. Lc DonomOKe yHKnHyTN 3aueMJIeHH, a60 nIIyIbHoro NaHOra a60 HanpaBIAIOI WTAHN, KOIN dpyra Hacicka po6ntbcra.

HaciuKa dIa 3aIhboI naIHHn IINB. cTOp. 323-324.

3p06iTb 3aHIO Bnpy6ky npHaMHI 50 MM / 2 Bnue roPn3OHTaIbHoro po3pi3y HaciKKn. 3p06iTb 3aHIO HaciuKy, BnpiaHoi napaneIbHo rOp1oHTaIbHOMy pi3aHHIO. 3p06iTb 3aHIO 3ap6ky DoCTaTHBOHO, 06 3aJIuWHTN B JKOci NiDbickN. PiNbicka DepeBa 36epirae DepeBo BiD cKpyUbaHH i naIHnB HenpaBnBHomy Hanpamky . He npopiaaTe niDbicky.

KoJI NaIINHn Ha6NnKaεTbCn Do nIaBickn, DepeBO NOBHHNO NaATn Naatn. RaKIO E KNIc b IaHC, 0o DepeBO He MoXe Bnactn B Notpi6Homy HaprMky, aBO BOHO MoXe NoxHTyNCn Ha3ad i 3B'ra3atn nnJIbHn IaHcIg, 3ynHITb NIIaHHn DO 3aHbOi HaciuKn IBNKOpncTOByte KInHn 3 DepeBa, PnaCTNk y afo aniomHIO, 06 BiDKpNTn PO3pi i DepeBO Bnano y3doBx BaxaHOI liHII naIHn.

KoJIepeBo nouHae naaTn Buaanitb npOyKT 3
po3pi3y, 3ynHITb DnHyN, nocTaBTe npOyKT Bn3, a
notIM BnKOpNCOTobyte 7Jnx 3aIIaHOBAHO BIDCTyny.
EyIbTe nnblHi CTOCOBHO naiHH BucOKnx napocTe i
nnlbHyTe CBOO ONopy.

Budanitb onophe kopiHHa

DnBItbcr CTOpiHky 324.

OnopHn KopiH, ue BeJnkN KopiH, 10 npocTgAeTbCBAid cTob6ypa DepeBa Hnd 3emJeu. BnuDanitb BeNki onopHi KopiHH do py6Kn. 3pObiB rOpntaIbHn po3pi3 3nepy B onopHn KopiH, a noTIM no BepTNkani piaHHa. Y6epiB oTpMaHn BiBn Hpo3dIn 3 po6ooi 3OHn. DToPmUyTEcb npabJIbHOi npoueDpyn Bnpy6Kn depeB nicra BnuDanenHn BENIKOrO onOpHoro KopiHH.

Hattchitb i notarHtB

DnBtbcr CTOpHky 325.

Cnna peakui 3aBXdn npOTnHexHa HnprMky pyxu naHOra.Takim YINOM, onepatop NOBHeH 6ytn roTOBNI KOHTPOIbATn HnprMOK pyxy npOdykTy, 0o6 BiDCTOPOHNTcR (pyx Bnepe) npi pi3aHHi Ha NHXHi KpOMU NaHEni. 3aBXdNn HadiH O fikcyte ynp O nauHOrBOoi nn, 0o6 yHNKHyTN Takoro pyxy. PpOdyKT MoKe 6ytn BnTobXHyTN Ha3aD (y HnprMky Do onepaTopa) npi pi3aHHI B3doBxBepxHbOro kpaIO. 0o6 yHNKHyTN cboRo, npn po3piAHHI B3doBx BepxHbOro kpaIO, nepeKohaiTeC, 0o NaHcIg He 3aKnHInIO.

Пиа з actraya B po3pi3i.

3ynnHtB npodykt i 3po6iB noro 6e3neHm. He HamaraTecra npmyuByaTn naHcUor i wTaHry uepe3 po3pi3, ce MoKe po3ipBaTu naHcUor, kNIM MOKe BiDxNTHyTnc Ha3aI i BdapNTn onepatopa. Lc ciTyauci 3a3Buay BinHkae uepe3 HnPaBnBHy niTpMkU depeBHH i npmyuHeHHI 3akPntTPO3p3y npi CTncHEHH, Tm Camm 3aTnCKaOHy ne3o. Pn peryNIOBaHHi NiTpMkn, ce He 3BiNbHre uHy i NaHcUg, BIKOpNCTOByte DepeB'Hi KInHn aBo Baxinb, u06 BiKpnTPO3pi i BNyCTnTnpOdyKT. HikOnn He HamaraTecra 3anyCTnTnpOdyKT, KOIN HAnpMaHHa TTAHra Bke B po3pii a6o nponni.

IiTpMka Kono

DnBtbcr cToPiHy 325.

HaciKa po3pi3ae KOJOny Ha noTpi6Hy DOBXHNy. Baxnbo nepekoHaTncs, 0o Ba7a onopa TBepda i Ba7a Bara pIBHomipHo po3noJinraeTbcra Ha o6nDi Horn. KoNtce MoKInBO, KOJOna NOBHeHna 6ytN niDnTa i NiTpmyBatnc 3a DonomorOIO cykIB, KOJOnd a6o Uypok. DToPmYTeCb npocTx INCTpyKciI dny 3pyHoro po3nnIOBaHH. KOni KOJOna NiITpMByEcBcra No Bci II DOBXHNi, II po3piAOTb 3Bepxu (HaKD O3nAmn).

KoN KONoa NiTpmyEtc3 0dHorO KINr, CnNITb 1/3 diametpa 3 H3y (NiD Ko3NaMn). NOTIM 3po6Ib oCTaTOHn po3pi HAD Ko3NaMn, Uo6 3ycTpiN nepuN po3pi3.

KoN KOIOna NiITprMByeTbC3 06ox KInuB, po3nni1b 1/3 diametpa 3Bepxy (HaD Ko3nAmn). Notim 3pObiTb ocTaToHn pO3pi3 NiD Ko3nAmn HnXhBoi2/3, 0o6 3yctpiTn nepun pO3pi3.

Pn pO3nnIOBAHHi Ha cxNJI 3aBxJi CTIe Ha BepXbOMy
6oCi KOJOn. KOn "pO3nnIOeTe", 0o6 36epeTn NOBHN
KoHTpoB BnBiNbHeHHItb TnCK Pi3aHnHa 6bnKc De
KInCu PO3piy 6e3 PO3Cna5NaBHeHH XBaTKn Ha pykax
npOdykTy. He Do3BOJnIte NaHcIpyo KOnTaKtYBaTn 3
3emJeIO. Nicra 3aBepWeHHn PO3nnIOBaHH, NOeKaIte
3ynHKn nnIyIbHorO NaHcIora, nepw HIX pyXaTI npOdyKT.
PepW HIX nepeITn BiD DepeBa Do DepeBa, 3aBXdN
3ynHnIte DnIRyH.

06pi3aHH cykIB depeBa

Dunibtbcra ctopiKy 326.

O6pi3aHH cyKIB ue BndaeneHH rINOK 3 DepeBa, 10o BnaNo. Pn o6pi3aHH cyKIB, 3aNNuTe 6InbWi HnKHi KInCBKn dNn iNTPmKn KOIoN Ha3emJeO. 3p3aIte dpi6Hi rIKKn 3a OOnn npoxid. IINKn nID HanpyroIO NobHH 6yTu cKOpoeH 3HN3y BROPy, 5oo yHnKHyTu 3B'3yBaHH NPOdyKTy.

Pnykhi wtaHn

He BnKOpncTOByIte nIIky, BnKOpncTOByIOH TIlbKn OHy pyKy.

He6e3neka!OctepiraTece 3BOPoTHbOrOydpy.

BnKOpNCToByTe HeeTINOBaHn
6eH3nH, pIn3NaueHn dIy
BnKOpNCtAHnY aBTOMoBiaJx 3
OKTaHOBm YncnO m 91 ([R+M]/2) a6o
BnIe.

BnKOpncToByTe 2-TaKTHe MacNo dIa IbNHyHIB 3 NOBITpRHM OXOIOxKeHHM.

3MiWaiTe cmyi nnHbpeTbHo, a TAKoK KOxHoro pa3y nepe3anpaBkoHO

OdaIte MaCTnIO wTaHr n I NaHcIORY KOKHO rpa3y, KOIN Bn DoaTe MaCTnIO B npOdykTI.

BIDNOBIDHCTbCE

Ecba3iibcka 3nak BiNobiHocTi.

UkpaHcbKm3HaB KbiNObiHocti

TapaHTOBaHn pIBeHb 3ByKOBOI notyXHOCTI 114 d5.

PomictiBraIbMIBHnJaHOry no3uioRUN.

PomictiBraIbMIBHn IaHIOY no3uio BRAKE.

BcTaHOBITb BUMKau 3anaIOBaHHB NOJOKeHH "BKIOHeO".

NobHCTIO HATNCHTb i BIDNyCTITb 3aINBHH HAcOC, npHaAMHI B 10 pa3IB.

NobepHb Baxijnb nobitpna3acnIHKn doynopyBnonoxeHHnoBHORo nioccy.

NotHHTb MOTy3ky CTapTepa, nOKn nepuB BnAn DnByHa He CyTHO (He 6Inbwe n'ATn HataTHeHb).

HaTnCHiB Ha Baxin b niDcocy do ynopy.

Pobephitb pyky cnaptera, nokn DnHyH He 3anyctntbcra.

HaTnCHiB Ha raQok i CTnCHiTb Baxijb r3y,notim BiDnycttB Baxijb r3y，0o6 nobepHyTN DnRyH Ha XOnocTn XiD.

ДаиTe npOdyKry nonpaIIOBaTn Ha xOIOCTOMy xOdy npOTraGM 15-30 cEkyHd.

Panboimactno

Mactnno 7tAnrTa JanaHcIora

"Поверпь, сбб BiDperyIIOBAtи HATЯланцORA

+=3aTnHytnnaHcH
- =PiocNa6nTuHaHcH

Bikpnite Kpnsky doctyno do jntpy.

BctaHObit nepeMnka 3anaIOBaHHB NOJoxeHH "CTON".

CUMBOJN B LcBOMY KEPIBHNIJTBI

3miuyte naHBO Ha BIDKpntomy nobitpi, de Hemaec KODHx ickop a60 nonym.

He naHn npn 3miuYbaHHi naHb a60 3anOBHeHHi naINBHO 6aky.

3anuactnHaakcecyapn,0 npdaioTbca OKpmo

PnmuMtka

PonepeckenHn

Hocitb3axnct ouey Ta o6nny.

Hocitb 3axnct BepxHboi YactnHnTina.

HocItb 3axnCT Hr.

3yinnka npodykta

BnokyBaHHKpnuKN DoCTyny do
phiNbTpY.

BikpniTe KpiuKy Doctyno do pInbtpy.

Hactynhi cnrhaIbHi cnoBa i 3MiCTn npu3HaueHi dna noraHeHH pIBHB pu3Nky, NOB'ra3aHnx 3 npOdyKTOM.

HEE3NEKA

Bka3ye Ha HEmnHyue He6e3neuHy cnTyauqio, kka, kkuo II He yHnKHyTu, MoKe npn3BecTu Do CmepTi a60 cepno3Hnx TpaBM.

NONEPENXEHNA

Bka3ye Ha notehuiH Nohe3neuHy cnTuayio, kka, kku II He yHnKHTN, MoKe np3BecTn Do Cmepti a6o cepno3hX TpaBM.

NONEPENXEHNA

Bka3ye Ha noTeHuiHo Hebe3neuHy cnTuayio, jka, kkuo II He yHnKHTN, MoKe npu3BeCTn Do NerkoI a6o cepeHboI TpaBM.

NONEPEDXEHH

Be3 nopejkyuoyx CMBJIB

Bka3ye Ha cnTuayiIO, kA moKe npn3BecTN Do NOwKOJKeHHa MaHa.

NOWYK I YCYHEHHA HECNPABHOCTEI

Поблеса Можливп рішени	Рішени
Дыгун He залуckaætbcя (П配电онайся, сцп поемпачзн дь в паложени "on").	Вidсуtnя icckpa.	Можимьо, trichnyа abso пошкожена CBiCka 3anaplOBANHЯ.Зamihitc STAPy CBiCky 3anaplenenHa n HOBу ta cnpobuyte 3HOB zanycHTn DBiRHy.ЯкsoDBiRHy He 3anuyscaetbcя, поевпicitb IncTpymeHTdo ABtopn3OBaHOrO ceBicHORO ueHTpy dlya noДalbwoi nepebiprk.
	Залитя Дыгун.	Вимкнть поемпач залanenHЯ, ВIMmltb CBiCky 3anaplenHЯ. ПретмсгNTь Baxiklb 3acvBkn b roboye poloxhenry (noBHCTU BTHCHUTI) ta 15-20 pa3ib NOTaHITb Ha cebe pykoTky CTAPTePra.Тakim chinHom 3 DBiRHy BaDaiNtbcя habniSOK naLINA.ПрочstITb Ta nepebctahOBiB cbiCkY 3anaplOBAHnB. BCTaHOBITb pepeMKAch 3anaplOBAHnB noLOXeHnner "on".HATINCHITb i nobHICSTU BIDnyctITb npaimer - nobTOpITb 10 pa3ib. NotaHITb pykoTky CTAPTe Ptrp p3i 3 baxenem nobitrayo 3acnIHKn BkInoueHm Do ynopy.Якso DBiRHy He 3anuyscaetbcя, BCTaHOBITb Baxiklb 3acnIHKn B noLOxeHnner nobHORO niDCocy i nobTOpITb 3BvHaiHy npOeDpy 3anuCk.ЯksO DBiRHy BCE oJNO He 3anuyscaetbcя, nobTOpITb BIVsHeABeDeHi KPOK, BCTaHOBIBWn HOB y CBiCkY 3anALenHn.
Дыгун 3anuyscaetbcя,ale He naBipac DocTaTHBoinotyxHocti.	HeobxdiNo BvdperynlOBATnPapameTp "L"(Husbki npiBENb BnopScyBaHNHa) na Kapboporati.	3berhItcsd do abtorup3OBaHOrO ceBicHORO ueHTpy dlya BIDperynlOBAHnKap6bOpatopy.
Дыгун 3anuyscaetbcя,ale Na BVCOKi shvdkocti HeФуншiohye NaLeexHnMчHOM.	HeobxdiNo BvdperynlOBATnPapameTp "H"(BVCOKi pBEBb BnopScyBaHNHa) na Kapboporati.	3berhItcsd do abtorup3OBaHOrO ceBicHORO ueHTpy dlya BIDperynlOBAHnKap6bOpatopy.
Дыгун He ppaioe Ha nobHix obopotax ta/чни СИльно DmIMMb.	PepebiPte NaIbHnMaTINbHu cymi.	BvKopncStobuyte cbiKe NaIbHe 3 npabInbHou npopopciEIO 2-TaKTHORO macna.
	3abpdunHeno nobitpranynФiNbtp.	ПрочstITb nobitpranynФiNbtp.
	3abpdunHeno ekpan icckporaschnika.	3berhItcsd do abtorup3OBaHOrO ceBicHORO ueHTpy dlya OvniuchnHa abo 3amHn.
	HeobxdiNo BvdperynlOBATnPapameTp "H"(BVCOKi pBEBb BnopScyBaHNHa) na Kapboporati.	3berhItcsd do abtorup3OBaHOrO ceBicHORO ueHTpy dlya BIDperynlOBAHnKap6bOpatopy.
Дыгун 3anuyscaetbcя,працюн Ha nobHix obepotax,ale He nepexodmitb Ha xolostn xiД.	HeobxdiNo BvdperynlOBATnPapoboporati.	3berhItcsd do abtorup3OBaHOrO ceBicHORO ueHTpy dlya BIDperynlOBAHnKap6bOpatopy.
	MacIaHnB 6ak dlya loanZgora - npokhni.	MacIaHnB 6ak HeobxdiNo 3anpabInTn KOxHORO pa3y pri n 3anpabzi naLINA.
	PepebiPte,чи He 3aHaIaTO nataqur.	HataRhtb NaIaHOr.
	PepebiPte,як phyHKzioHye cIstema 3maUyBaHNHa.	Hexay DBiRHy nonpaioe Ha noonobHHnno obopotax npotarom 35-40 cekynd. 3yvnHitb NiIpy Ta nepebipteпilbHy shInHy Ha npotikahnmaactnla.Якso BvIaBneho BHTiKaHnMaCTnla,MOxNIBo,3atynBcya NaHucor a6o noShkOdzkeHo shInHy.ЯksO MaCTnlo He npotikac Ha shInHy,3berhItcSdo ABtopn3OBaHOrO ceBicHORO ueHTpy.
Пильнашина та панцю сильно нарiviaю tcя та Диемлгь.	Актуковано панцю政府采购 галомо.	Виимknічь галъmo панцюг. Натяngічь панцю. Огл Anyte пььнушиу та панцю на наравпICTь поскожен.
	Задто натыгуно панцю.
	пеговipte пььнушиу Та панцю на наравпICTь поскожен.

Benzinli testerenin tasariminda guvenlik, performans ve guvenilirige en yuksek oncelik verilmistir.

KULLANIM AMACI

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.

3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

4. any damage to the product that is the result of improper or lack of maintenance
   any product that has been altered or modified

5. any product where original identification (trade mark, serial number) markings have been defaced, altered or removed

-any damage caused by non-observance of the instruction manual

any product not displaying the CE approval mark on the rating plate

• any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries
• any product connected to improper power supply (amps, voltage, frequency)
• any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture)
• any damage caused by external influences (water, chemical, physical, shocks) or foreign substances

normal wear and tear spare parts
-inappropriate use,overloading of the tool
-use of non-approved accessories or parts

• Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc.

Any periodic adjustments to or maintenance cleaning of carburettors
- Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

To find an authorised service centre near you, visit http://en.ryobotools.eu/ header/service-and-support/service-agents.

FR RYOBI CONDITIONS D'APPLICATION DE LA GARANTIE

UCIOBNA BANIDHOCT HA TAPAHYRAHA RYOBE

B DOnbHHeHnKbM 3aKHOyCTaHOBeHHTe npBa, pOsn3Tuauu OT NOKynKaT, T03n npOdyKT e o6XbaHAT OT rapaHnA, KaKTo e n3JNOKeHo No-dOly.

1. RapaHnOHHNt cpoK e 24 Mececa 3a KIneHTn 3aNooBa da TeHe OT DeHa 3aKnyIbAne Ha npOdykTa. Ta3n DaTpaBda Na cdoKaKe c FakTypa HnnpDyro kOka3aTeNCTBa 3a NoKpykJa. PnpOkyKTBe nIpa6BoTe H npEhHa3NaueH Cama 3a Notpe6IbTeNcKa HnPyHa yNoTp6Ba.CnepoBateHo He Ce Daba rapAunCn B CnyHai Ha nIOnn3BaHe OT npOpecoHaJIncTn HnC TbPobCKa Uen.

2.CbIeCTByBa B3MOXHOCT 3a YdBnKABaHae Ha rapaHIOHHN CPOK 3a
yact Ot DnAHA Ho rapaHNHTa Ha rpaINHCK INHCTPymeNT (AC/ DC) cnei nITNaHETo HOnCAHIN TYkype3 enpctnATNA Ha ye6 caTAA
www.ryobiltools.eu.B maraHInTE NmHn HA onakOBkATA NnBtpe B
DOKyMeHTAaHra HA pOdyKTa e NOKa3HO RCHO DAJIIN HNCTPymeHTOTROBAPHa yCNOBnTA 3a TAKOBaYbNLKABaHE Ha raPAHIOHHN CPOK.
KpaHInrNot Pte6BnTe TPR6Ba Da pernCTPnpa CB0NE HOBNpNDoBnTH
NHCTPymeNT OHnAHBn B pAMKITE Ha 30 DnH ot dATA Na OKynKa.
KpaHInr Not Pte6BnTe MoBe Da ce PERCTPnpa 3a YbNkHe RApaHua
B Dp6xabata CN Ha np6BnBAbeA, Ako E noocOHe BBb FOPMyIIPA 3a OHnAHn PEncTPaUN KaTO MRCTo, KbDETo Ta3n ONUe E BAINDA.
OCBEH TOBA KpaHInrNot Pte6BnTEh Tp6Ba DA daJat CBnNAcTeo Cn 3a CBxPAHEne HnDAHNTE, KOITO CA 3aDbNLKIIENTN 3a NOBnBAHnE OHnAH,
n Tp8Ba Da pnemAt O6bnHTe YcONBn. NonyeHOTo NOTBpKDeHne 3a
pernCTPaUN, INpateHo NO eJeKtpoHna NoA, InOpINHAnHATA fKaKTypa,
NOKa3BaAs DaTATA Ha NOKynKa, Ie CnykAT KATO DOKA3aTeNCTBO 3a
ydbNKeHATA rapaHN.

1. RapaHnIyra Tn NOKPbBA BcNkN DepeKTH Na npOdykTa No BpeMe Ha rapaHnIOOHnCpOK, KOtTO Ce bJbKAT Ha npO6neMn B n3pAbOTkata mIM MaTePnAJIte KbM MOMeHTa H aNOyIKATA. RaPaHnIyra e OpaHnHeHa DpoEMOT HmJI 3aMaHn He BKNIOBb ApyrT 3aBbJKeHn, BKNIOHTENHO HO He cAmO, CnyaHn HmKocBeHn UeH. RaPaHnIyra e HeBaHnIHn, Ako npOdykTB e INON3BaHn HEnpabINHO MIn B npOTbOpene C pKOBODCTBO C hNcTpkyu, KaKTo N Ako e Cbbp3AH HenpabINHO. Ta3i RapaHnIy He BAckn 3a:

-TeTn no npodykTa B pe3yntat Ha HenpabuHa npoAaKTnKa

EC DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Herewith we declare that the product

Petrol Chainsaw

Brand: Ryobi

Model number: RCS5133CB/RCS5140B/RCS5145B

Serial number range:

RCS5133CB 46232501000001-46232501999999

RCS5140B 46232601000001-46232601999999

RCS5145B 46232701000001 - 46232701999999

is in conformity with the following European Directives and harmonised standards

2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 97/68/EC, as last

amended 2012/46/EU, EN ISO 11681-1:2011, EN ISO 14982:2009.

EN ISO 3744:2010

Measured sound power level: 110.6 dB(A)

Guaranteed sound power level: 114 dB(A)

Conformity assessment method to Annex V Directive 2000/14/EC amended by 2005/88/EC

Leinfelden-Echterdingen has carried out EC type approval, and the certificate No. is. 12SHW2226-01.

Floyd Jeffrey Nesom (BSME)

Senior Director of Engineering

Winnenden, Mar. 01, 2017

Authorised to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION DE CONFORMITE EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 01, 2017

Max-Eyth-Straße 10, 71364 Winnenden, Germany

C

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 01, 2017

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 01, 2017

Autorizzato para elaborar la ficha的技术ica:

Alexander Krug, Director general

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 97/68/EC, come

da ultima modifica 2012/46/EU, EN ISO 11681-1:2011, EN ISO

14982:2009, EN ISO 3744:2010

Winnenden, Mar. 01, 2017

Max-Eyth-Straße 10, 71364 Winnenden, Germany

NL EC CONFORMITEITSVERKLARING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 01, 2017

Max-Eyth-Straße 10, 71364 Winnenden, Germany

C

PT DECLARACAO EC DE CONFORMIDADE

Techronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Pelo presente declares que os produits

Serra de corrente com motor a gasolina

Marca: Ryobi

Numero do Modelo: RCS5133CB/RCS5140B/RCS5145B

Intervalo do numero de series:

RCS5133CB 46232501000001 - 46232501999999

RCS5140B 46232601000001 - 46232601999999

RCS5145B 46232701000001-46232701999999

Winnenden, Mar. 01, 2017

Alexander Krug, Director Executivo

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DA EC OVERENSSTEMMELSESERKLAERING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 01, 2017

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC-DEKLARATION ANGÄENDE ÖVERENSSTÄMMIGHET

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Senior Director of Engineering

Winnenden, Mar. 01, 2017

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC-SAANNOSTEN NOUDATTAMINEN

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 01, 2017

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC-ERKLÄERING OM PRODUKTOVERENSSTEMMELSE

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Herved erklaerer vi atprodukter

Motordrevet kjedesag

Merke: Ryobi

Modellnummer: RCS5133CB/RCS5140B/RCS5145B

Serienummerserie:

RCS5133CB 46232501000001 - 46232501999999

RCS5140B 46232601000001-46232601999999

RCS5145B 46232701000001-46232701999999

Winnenden, Mar. 01, 2017

Max-Eyth-Straße 10, 71364 Winnenden, Germany

3AABJIEHNE O COOTBETCTBUN TPEBOAHNIM EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

HaTcToaM Mbl3aBbAe, TTO daHbI npOdyKT

Uenha6eH30nna

Mapka: Ryobi

Homep moen: RCS5133CB/RCS5140B/RCS5145B

Dnana3OH 3aBOIDCKNX HOMePOB:

RCS5133CB 46232501000001-46232501999999

RCS5140B 46232601000001 - 46232601999999

RCS5145B 46232701000001-46232701999999

COOTBETCTBYET Tpe6oBAHnM CNeIyUOuX DInpeKTHB EC n corlaocBaHHbIX CTAHdAPTOB

2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 97/68/EC, B

nocneHnepeaKun 2012/46/EU,EN ISO 11681-1:2011,EN ISO

14982:2009, EN ISO 3744:2010

I3MepeHHbI yPoBeHb 3ByKOBoM OuHocTn:110.6 dB(A)

TapaHTnpyembI ypoBeHb 3BykoBO MOuHocn:114 dB(A)

NoTBePKeHHe COOTBeTcTBnCOrNaCHO MeToy, yKa3aHHOMY B

PpnoKHeH N V DnpeKtNBb2 2000/14/EC,3aMeHeHHoD NpuKeTnBOI

2005/88/EC.

Ceptnfikat COOTBETCTBNA Tpe60aHnM EC BbIaH yNONHOmeHHbIM

Winnenden, Mar. 01, 2017

JIHIO,OTBETCTBEHHoe 3a NOIROTOBky TeXHNueckOJ DOKYMHeTALIN

Alexander Krug, Ynpabnoum dupekTop

Techtronic Industries GmbH

Max-Eyth-StraBe 10,71364 Winnenden, Germany

DEKLARACJA ZGODNOSCI EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 01, 2017

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PROHLÁSENI O SHODE EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 01, 2017

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC IZJAVA O USKLADENOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 01, 2017

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATIE DE CONFORMITATE EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Numar series: RCS5133CB/RCS5140B/RCS5145B

Gamă număr série.

RCS5133CB 46232501000001-46232501999999

RCS5140B 46232601000001-46232601999999

RCS5145B 46232701000001 - 46232701999999

Winnenden, Mar. 01, 2017

Autorizat sá completeness fisa tehnica:

Alexander Krug, Director executiv

Technonic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC ATBILSTIBAS PAZINOJUMS

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Ar so pazinojam, ka produkti

Motorz gis

Zimols; Ryobi

Modej a numurs: RCS5133CB/RCS5140B/RCS5145B

Winnenden, Mar. 01, 2017

Pilvarots sastadit tehnisko failu:

Alexander Krug, Rikotajdirektors

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC VASTAVUSDEKLARATSIOON

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Kinnitame, et see toode

Bensiiniga tootav kettsaag

Mark: Ryobi

Mudeli number: RCS5133CB/RCS5140B/RCS5145B

Winnenden, Mar. 01, 2017

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC ATITIKTIES DEKLARACJA

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 01, 2017

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC IZJAVA O USKLADENOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 97/68/EC, prema

posljednjoi izmjeni 2012/46/EU, EN ISO 11681-1:2011, EN ISO

14982:2009, EN ISO 3744:2010

Izmjerena razina zvučne snage: 110.6 dB(A)

Jamcena razina zvuene snage: 114 dB(A)

Metoda procjene usklaenosti prema dodatku V Direcivi 2000/14/EC po

2005/88/EC.

Nadzorno tijelo, 0905 Intertek Deutschland GmbH, Stangenstraße 1, 70771

Leinfelden-Echterdingen, izvršilo je odobrenje EC tipa i CE identifikacijski broj je 12SHW2226-01.

Floyd Jeffrey Nesom (BSME)

Visi direktor inzenjeringa

Winnenden, Mar. 01, 2017

Ovlasten da sastavi tehnicku datoteku:

Alexander Krug, Izvršni direktor

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

IZJAVA EC O SKLADNOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Izjavlamo, da je izdelek

Motorna verižna Žaga u

Znamka: Ryobi

Stevila modela: RCS5133CB/RCS5140B/RCS5145B

Winnenden, Mar. 01, 2017

Pooblascena oseba za sestavo tehnicne dokumentaciie:

Alexander Krug, Generalni direktor

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PREHLASENIE O ZHODE EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 01, 2017

Max-Eyth-Straße 10, 71364 Winnenden, Germany

C

EC DEKJIAPAUHA 3A CbOTBETCTBNE

Пожибовпел: Techronic Industries GmbH

Apec: Max-Eyth-Straße 10, 71364 Winnenden, Germany

C HactoIeTo DeKnapnpe, Ye npOdyKTInTe

BepnKTH TPOHO C 6eH3NHOB DNBraTeI

Mapka: Ryobi

Homep Ha Moena: RCS5133CB/RCS5140B/RCS5145B

06xbat Ha cepnHn Hmepa:

RCS5133CB 46232501000001-46232501999999

RCS5140B 46232601000001-46232601999999

RCS5145B 46232701000001 - 46232701999999

OTROBAPHa CnEHNHe DnpeKTHBn Ha EC XxapMOHn3npAH CTaHdApTn

2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 97/68/EC, KaKTo

nocJeHno e n3MeHeHa 2012/46/EU, EN ISO 11681-1:2011, EN ISO

14982:2009, EN ISO 3744:2010

I3MepeHO HnBO Ha Wym: 110.6 dB(A)

TapaHTIpaHO HbO Ha Wm 114 dB(A)

Meto 3a oueHka Ha cboTBeCTBneTo C PnpnoKeHne V KbM DnpeKtnBa

2000/14/EC, n3MeHeHa ot 2005/88/EC

Winnenden, Mar. 01, 2017

YnbHOMOeHO Nue 3a CbCTABRe H aTexHueckn qai:

Alexander Krug, YnpabnBbau dapekTop

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC DEKNAPAUI IPO BIDNOIBHICTb

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Pn ybmy Mm 3aBbmeo, 0 npoykt

BcH3nHOBa NaHcIOrOBA Nnla

Mapka: Ryobi

HomepoJei:RCS5133CB/RCS5140B/RCS5145B

Diana3OH cepiHoro Homepy:

RCS5133CB 46232501000001 - 46232501999999

RCS5140B 46232601000001-46232601999999

RCS5145B 46232701000001-46232701999999

y BiNobiDHOCTI 3 HAcTyNHMM EbponecBKMn DpupeKTHBaMn Ta

rappMOHIOBAHNMI CTAHdapTaM

2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 97/68/EC

BocTahHni peaKuII 2012/46/EU, EN ISO 11681-1:2011, EN ISO

14982:2009, EN ISO 3744:2010

BmipraHHPiBeHb3BykoBoiNotyXHOCTi:110.6dB(A)

IapaHTOBaHmpiBeH3ByKOBoi nOTyKHOCTi:114dB(A)

MeToD ouiHK BIDIOBIDHOCTI Annex V Directive 2000/14/EC 3 nonpaBkamn

BHeceHHMM 2005/88/EC.

Winnenden, Mar. 01, 2017

D03BIN HA cKaJadHnRE TxHnHOro faHa

Alexander Krug, Kepyiou MdpekTop

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC UYGUNLUK BEYANI

Techronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Mar. 01, 2017

Alexander Krug, Idari Mudur

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RYOBI.

Techtronic Industries GmbH

Max-Eyth-StraBe 10,

71364 Winnenden, Germany
