BG200AL - Grinder SCHEPPACH - Free user manual and instructions

Product type	Bench grinder (grinding machine)
Brand	Scheppach
Model	BG200AL
Dimensions (L x W x H)	400 x 200 x 390 mm
Weight	16.5 kg
Power supply	230-240 V~ / 50 Hz, 550 W
No-load speed	2980 rpm
Wheel diameter	200 mm (left and right)
Wheel bore	15.88 mm
Wheel width	Left: 25 mm, Right: 40 mm
Wheel grit	Left: 60, Right: 100
Duty cycle	S2 30 min (short-time operation)
Sound pressure level	79 dB(A) (uncertainty 3 dB)
Sound power level	92 dB(A) (uncertainty 3 dB)
Main functions	Grinding and polishing of metals, plastics, and other materials
Safety equipment	Protective shields, spark guards, adjustable tool rest, cooling water reservoir
Maintenance and cleaning	Clean after each use with a damp cloth and mild soap; do not use solvents; check wheel wear
Wear parts	Abrasives, carbon brushes, grinding wheels, V-belts
Repairability	Repairs by qualified specialist only; use original parts
Warranty	Legal duration; defective parts replaced free of charge under conditions

Frequently Asked Questions - BG200AL SCHEPPACH

What is the power of the Scheppach BG200AL bench grinder?

The motor has a power consumption of 550 W at 230-240 V~ / 50 Hz.

Which grinding wheels are supplied with the BG200AL?

Two grinding wheels of 200 mm diameter: one on the left with grit 60 (coarse) and one on the right with grit 100 (fine).

How to adjust the gap between the tool rest and the grinding wheel?

The gap must not exceed 2 mm. Tighten the tool rest on the wheel guard with 2 hex screws and 2 washers.

What is the maximum continuous operation time?

The duty cycle is S2 30 minutes: after 30 minutes of full-load operation, stop the machine to allow it to cool down.

Can I use the grinder for grinding wood or plastic?

The intended use is grinding and polishing of metals, plastics, and other suitable materials. Do not use materials containing asbestos or flammable materials.

How to replace a worn grinding wheel?

1. Unplug the machine. 2. Loosen the spark guard and protective shield. 3. Remove screw and end plate. 4. Remove the outer flange and old wheel. 5. Install new wheel (keep the cardboard washers). 6. Reassemble in reverse order. Do not overtighten the nut.

What protective equipment should be worn?

Always wear safety glasses, hearing protection, a dust mask, and gloves. Sparks and debris are dangerous.

How to clean the bench grinder?

Unplug before cleaning. Use a damp cloth with a little mild soap. Do not use solvents or aggressive products. Ensure that water does not enter the machine.

What to do if the motor does not start?

Check the fuses, power cord, and socket. If the problem persists, have the machine checked by a specialist. Never repair the motor yourself.

Is it possible to mount the grinder on a workbench?

Yes, the machine has mounting holes for workbench mounting (fig. 1, item 6). Screw it securely before use to ensure stability.

USER MANUAL BG200AL SCHEPPACH

Exterior view of a modern industrial grinding machine with dual levers and a circular head (no visible text or symbols)

https://www.scheppach.com/dalservice scheppach

Made in P.R.C.

BG200AL

DE	DoppelschleiferOriginalbetriebsanleitung	3
GB	Bench grinderTranslation of original instruction manual	17
FR	Touret à meulerTraduction des instructions d'origine	28
IT	Levigatrice doppiaLa traduzione dal manuale di istruzioni originale	40
NL	Dubbele slijpmachineVertaling van de originele gebruikshandleiding	52
ES	Rectificador dobleTraducción del manual de instrucciones original	64
PT	Lixadeira duplaTradução do manual de operação original	76
CZ	Dvoukotoučová bruskaPřeklad originálního návodu k obsluze	88
SK	Dvojitá brúskaPreklad originálneho návodu na obsluhu	99
HU	Kettős köszörűEredeti használati utasítás fordítása	110
PL	Szlifierka podwójnaTłumaczenie oryginalnej instrukcji obsługi	122
HR	Dvostruka brusilicaPrijevod originalnog priručnika za uporabu	134
SI	Dvojni brusilnikPrevod originalnih navodil za uporabo	145

EE	TopeltkäiOriginaalkältusjuhendi tõlge	156
LT	Dvigubas šlifuoklisOriginalios naudojimo instrukcijos vertimas	167
LV	Divripu slipmašinaOriginalās lietošanas instrukcijas tulkojums	178
SE	DubbelslipÖversättning av original-bruksanvisning	189
FI	kaksoishiomakoneKäännös alkuperäisestä käyttöohjeesta	200
DK	DobbeltsliberOversættelse fra den oprindelige betjeningsvejledning	211
NO	DobbeltsliperOversettelse av den originale brukerveiledningen	222
BG	Двойна шлифовъчна машинаПревод на оригиналното ръководство за експлоатация	233
GR	Διπλός τροχός λείανσηςΜετάφραση του πρωτοτύπου των οδηγιών χρήσης	246
RO	Maşină de şlefuit dublăTraducere din manualul de exploatare original	259
RS	Dvostruka brusilicaPrevod originalnog uputstva za upotrebu	270
TR	Çift taşlayıcıOrijinal kullanım talimatı çevirisi	281

1 1 5 6 2 3 4 schoppach 1 2 6 3 8 4 7 9

Close-up of a black metal clip attached to a textured surface, with an arrow pointing to a hole (no text or symbols visible)

Two-step black-and-white photo showing a device with a curved cable and accessories, labeled 3 and 4 (no text or symbols on the devices themselves)

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Homepage: https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the device

	Warning - Read the operating manual to reduce the risk of injury.
	Wear hearing protection. Excessive noise can result in a loss of hearing.
	Wear a dust protection mask. When machining wood and other materials, harmful dust may be generated. Do not machine material containing asbestos!
	Wear safety goggles. Sparks created during work or fragments, chippings and dust ejected by the product can cause sight loss.
⚠ Attention!	We have marked points in these operating instructions that impact your safety with this symbol
	The product complies with the applicable European directives.
	The product complies with the applicable Serbian directives.

Table of contents: Page:

1. Introduction.... 19
2. Device description (Fig. 1).... 19
3. Scope of delivery 19
4. Proper use 19
5. General safety instructions.... 20
6. Technical data....23
7. Assembly 24
8. Before commissioning 24
9. Operation....24
10. Cleaning and maintenance....25
11. Electrical connection 25
12. Storage 26
13. Disposal and recycling....26
14. Troubleshooting....27
15. Declaration of conformity 293

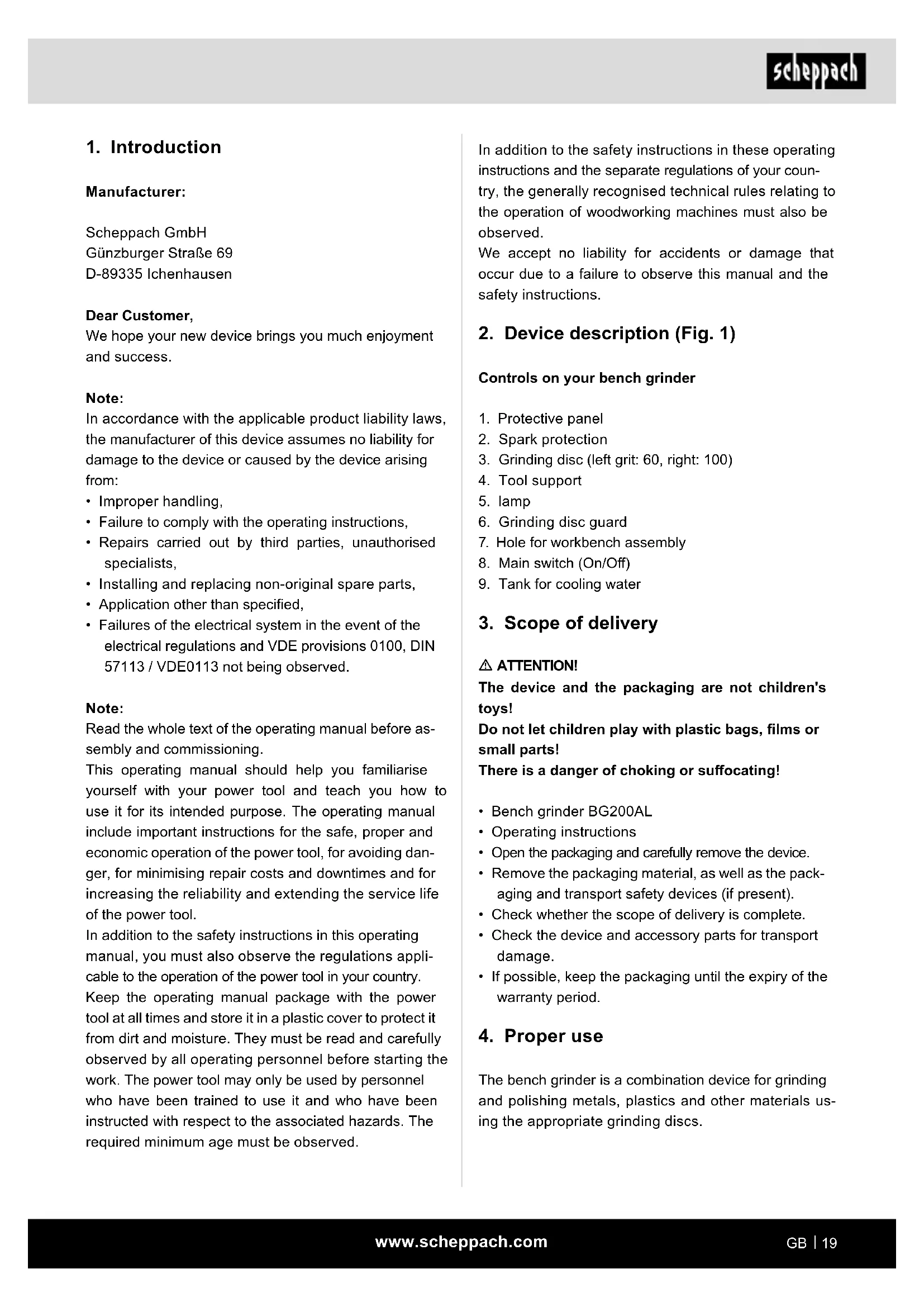

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new device brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling,
• Failure to comply with the operating instructions,
• Repairs carried out by third parties, unauthorised specialists,
  • Installing and replacing non-original spare parts,
  • Application other than specified,
• Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed.

Note:

Read the whole text of the operating manual before assembly and commissioning.

This operating manual should help you familiarise yourself with your power tool and teach you how to use it for its intended purpose. The operating manual include important instructions for the safe, proper and economic operation of the power tool, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the power tool.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the power tool in your country. Keep the operating manual package with the power tool at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work. The power tool may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.

In addition to the safety instructions in these operating instructions and the separate regulations of your country, the generally recognised technical rules relating to the operation of woodworking machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

2. Device description (Fig. 1)

Controls on your bench grinder

1. Protective panel
2. Spark protection
3. Grinding disc (left grit: 60, right: 100)
4. Tool support
5. lamp
6. Grinding disc guard
7. Hole for workbench assembly
8. Main switch (On/Off)
9. Tank for cooling water

3. Scope of delivery

ATTENTION!

The device and the packaging are not children's toys!

Do not let children play with plastic bags, films or small parts!

There is a danger of choking or suffocating!

• Bench grinder BG200AL
• Operating instructions
• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, keep the packaging until the expiry of the warranty period.

4. Proper use

The bench grinder is a combination device for grinding and polishing metals, plastics and other materials using the appropriate grinding discs.

The machine complies with the applicable EC machinery directive.

• The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.
• Relevant accident prevention regulations and other generally recognized safety and technical rules must also be observed.
• The machine may only be used, maintained or repaired by competent persons who are familiar with it and have been informed of the dangers. The manufacturer shall not be liable for damage resulting from unauthorised changes to the machine.
  • The machine may only be operated with original accessories and original tools from the manufacturer.
• The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

Please note that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work.

Residual risks

Despite use as intended, specific risk factors cannot be entirely eliminated. Due to the design and layout of the machine, the following risks remain:

• Contact with the grinding disc in the uncovered area.
• Ejection of parts from damaged grinding discs.
• Ejection of workpieces and workpiece parts.
  • Hearing damage when the necessary hearing protection is not used.

- Lung damage if suitable dust protection mask is not worn.

- Damage to health resulting from hand/arm vibration if the device is used over an extended period of time or if it is not properly operated and maintained.

- Hazard due to electrical power with the use of improper electrical connection cables.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.

- Residual risks can be minimised if the "Safety instructions" and the "Proper use" are observed along with the whole of the operating instructions.

5. General safety instructions

General power tool safety warnings

⚠ WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) The connection plug of the electric tool must fit into the socket. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Keep your electric tools away from rain and moisture. Water penetrating an electric device increases the risk of an electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, safety helmet or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or rechargeable battery, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting tools or spanners/keys before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Avoid abnormal postures. Make sure that you have secure footing and always maintain your balance. This enables better control of the power tool in unexpected situations.

f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Using a dust extraction unit can reduce hazards caused by dust.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain electric tools and accessories with care. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Always keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use electric tools, accessories and tool attachment, etc. according to these instructions. Take into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a) Only have your power tool repaired by qualified specialists and only with original spare parts. This ensures that safety of the electric tool is maintained.

⚠ WARNING! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

Safety instructions for table-top grinding machines

a) Never use damaged tool attachments. Check tool attachments such as grinding discs for chipping and cracks before each use. Once you have checked and used the tool attachment, ensure that you and all other persons in the vicinity remain outside the plane of the rotating tool attachment and allow the device to run for 1 min. at the maximum speed. Damaged tool attachments usually break during this test period.

b) The permissible rotational speed for tool attachments must be at least as high as the maximum speed cited on the electric tool. Accessories which rotate faster than the maximum permissible rate can break and throw pieces into the air.

c) Never grind on the side surfaces of the grinding disc. Grinding on the side surfaces can cause the grinding disc to break and fall apart.

△ Device-specific safety instructions for bench grinders

• Do not touch the mains cable if it is damaged or cut during operation. Immediately disconnect the mains plug and then have the device repaired exclusively by a specialist or the responsible service centre.
• Do not operate the device when it is damp or in a damp environment.
• When working outdoors, connect the device via a residual current device (RCD) with a maximum trigger current of 30 mA. Only use an extension cable approved for outdoor use.
• Pull the mains plug out of the socket immediately in the event of danger.
  • Always guide the mains cable backwards away from the device.
• Fire hazard due to flying sparks! Flying sparks occur when grinding metals. Therefore, make absolutely sure that no persons are endangered and that there are no flammable materials near the work area.

⚠ Warning! Toxic vapours!

Processing harmful/toxic dusts poses a health risk to the operator and anyone in the vicinity.

- Wear safety goggles, hearing protection, dust protection mask and protective gloves. Danger of burning!

The workpiece becomes hot during grinding. Never touch it to the area to be machined and let it cool down sufficiently. Particularly when sanding for a longer period of time, always interrupt the grinding process and allow the workpiece to cool down before you continue grinding. A continuous operation of 30 minutes should not be exceeded.

• The double grinding machine is designed for dry surface grinding of metal surfaces. The device may only be used for dry grinding.
• Do not machine material containing asbestos. Asbestos is considered carcinogenic. Do not use damaged grinding discs.
• Only use grinding discs whose data match the machine's type plate. The orbital velocity should be equal to or greater than the specified number.
• Periodically readjust the protective holders (spark deflectors) and protective panels so that the wear of the grinding discs is evened out. Keep the distance as low as possible.
• Avoid contact with the running grinding disc.
• Do not operate the device unattended.
• Never misuse the device.
  • Always make sure that the device is switched off before inserting the mains plug into the socket.
  • Always switch on the device first and then guide the workpiece against the grinding disc. After machining, lift the workpiece and then switch off the device.
  • Always hold the workpiece firmly with both hands.
  • Make sure that you have a secure footing.
• Allow the grinding disc(s) to come to a complete stop after working on metals.
  • Always disconnect the mains plug from the socket during breaks in work, before carrying out any work on the device and when it is not in use.
• Handle the device with care and attention. The device must always be clean, dry and free of oil or grease.
• Remain attentive at all times! Always pay attention to what you are doing and always use common sense. Never use the device when you are not concentrated or feel unwell.
• Grinding discs must be stored in such a way that they are not exposed to mechanical damage and damaging environmental influences.
• Do not use defective or deformed grinding discs.

• Check the setting of the spark protection frequently and adjust it according to the wear of the grinding disc. Keep the distance between the spark protection and the grinding disc as small as possible (not more than 2 mm).

• Check the setting of the tool support frequently and adjust it according to the wear of the grinding disc. Keep the distance between the spark protection and the grinding disc as small as possible (not more than 2 mm).

• Only use grinding discs whose hole fits exactly on the shaft of the bench grinder. Do not use grinding discs with too small a hole.
• Do not overtighten the washer nut.
• Do not grind with a cold grinding disc. Allow the grinding disc to idle for one minute before starting work.
• Do not grind on the side surfaces of the grinding disc. Grind only on the front side.
• Do not apply coolant directly on the grinding disc. Coolant can affect the bond strength of the grinding disc, causing it to fail.
• Sparks can be dangerous. Do not sand near flammable gases or liquids.
• Stand to the side of the grinding disc when switching on the device.
• Only true the grinding disc on the front side. Grinding on the side surfaces can make the grinding disc too thin for safe use.
• Grinding generates heat. Do not touch the workpiece until it has cooled down sufficiently.
• Only use grinding discs that are designed for safe use on the bench grinder. Do not use a grinding disc whose specified maximum rotational speed is lower than the speed specification of the device.

6. Technical data

Dimensions L x W x H 400 x 200 x 390 mm

ø disc left/right 200/200 mm
ø disc bore 15.88 mm
Disc width left/right	25/40 mm
Weight	16.5 kg
Motor	230 - 240 V~ / 50 Hz
Rated input	550 W
Speed	2980 rpm

Subject to technical changes!

Duty cycle:

The duty cycle S2 30 min (short-time duty) states that the engine may only be continuously loaded with the rated power (550W) for the time specified on the data plate (30 min). Otherwise, it would heat up impermissibly. During the pause, the motor cools down again to its initial temperature.

Noise

The noise levels have been determined in accordance with EN 62841.

Sound pressure level L_pA 79 dB

Uncertainty K_pA 3 dB

Sound power level L_WA 92 dB

Uncertainty K_WA 3 dB

Wear hearing protection.

Excessive noise can result in a loss of hearing.

⚠ Warning!

The vibration emission value specified has been measured in accordance with a standardised test procedure and may change depending on the type and manner in which the power tool is used and may be above the specified value in exceptional cases.

The specified vibration emission value can be used to compare one power tool with other.

The specified vibration emission value can also be used for an initial assessment of the impairment.

Keep the noise level and vibration to a minimum!

• Only use faultless devices.
• Maintain and clean the device at regular intervals.
• Adapt your working methods to the device.
• Do not overload the device.
• Have the device checked if necessary.
• Switch the device off if it is not in use.
• Some examples of means for reducing the vibration stress are wearing gloves while using the tool and limiting work time. In the process all parts of the operating cycle must be taken into account (such as times in which the power tool is switched off or time in which it is switched on, but is not running under a load).

7. Assembly

Before connecting, make certain that the data on the type plate matches with the mains power data.

Always pull out the mains plug before carrying out adjustments on the device.

Pull out the mains plug before all maintenance and assembly work.

• The machine must be stable, i.e. bolted down on a workbench or similar.
• Prior to commissioning, all covers and safety devices must be mounted correctly.
• The grinding disc must be able to run freely.
• Before connecting the machine, make certain that the data on the type plate matches with the mains power data.

⚠ Safety instructions! Do not connect the device until all assembly and adjustment work has been completed and the operating manual and safety instructions have been read and understood.

Assembly

Tool supports (Fig. 1/4)

Screw the tool support (4) to the grinding disc guard using 2 hexagon head screws and 2 washers. The distance between the grinding disc and the tool support must be set to max. 2 mm.

Spark guard (Fig. 2)

Screw the spark guard to the grinding disc guard using a Phillips head screw and washer. The distance to the grinding disc should be not more than 2 mm.

Protective panels (Fig. 3, Fig. 4)

1. Fit the protective glass to the clamping plate using 2 M4 Phillips screws, washers and hexagon nuts.
2. The retaining bracket is inserted into the clamping plate and clamped using the M6 mushroom-head screw with washer and nut.
3. Screw the complete unit to the grinding disc guard with U-bolt, M8 hex screw and washer.

The protection is individually adjustable so that the user's eyes are protected during the grinding process.

8. Before commissioning

Operating instructions

Observe the following points before commissioning the bench grinder:

• Actuate the main switch. Wait until the grinding disc reaches maximum speed. Only then should you start grinding.
• Hold the workpiece firmly on the tool support and move slowly and evenly towards the grinding disc.
• The grinding process can reduce the speed of the grinding disc. Then reduce the pressure slightly until the disc has reached its full speed again.

ATTENTION:

• Small workpieces should be held in place with pliers or a similar tool.
• Only grind on the face of the grinding disc, never on the sides.
• As most materials become hot during grinding, the workpiece must be handled with extreme care.

9. Operation

⚠ Attention!

Always make sure the product is fully assembled before commissioning!

Switching on/off

• To switch on, set the ON/OFF switch (8) to the ON position.
• To switch off, set the ON/OFF switch (8) to the OFF position.

Do not start grinding until the device has reached its maximum speed.

Working instructions

• Note that the best results are achieved with low pressure of the workpiece on the grinding disc, as then work is done at a constant speed. Excessive pressure on the workpiece brakes the grinding disc or it comes to a standstill, this overloads the engine and does not accelerate the work process.
• For your own safety, always secure small workpieces with a bench vice or screw clamp.

Sanding

- Place the workpiece on the workpiece support (4) and slowly move it towards the grinding disc (3) at the desired angle until it touches it.

• To obtain an optimum grinding result and to wear the grinding disc (3) evenly, the workpiece should be moved slightly back and forth on the grinding disc (3).

• Always allow the workpiece to cool down.

Attention!

If the disc/wheel should jam while working, please remove your workpiece and wait until the device has reached its maximum speed again.

Changing the grinding disc

ATTENTION: To prevent injuries caused by accidentally starting the bench grinder, always switch off the device (switch setting to "0") and disconnect the mains plug from the socket before changing the grinding disc.

• Loosen the spark protection and protective panel and pull them out as far as possible, but do not detach them.
• Loosen the tool support and pull it out as far as possible.
• Remove the screws and pull off the end plate.
• Remove the outer flange and the old grinding disc, put on the new grinding disc.

Note:

• Do not remove the cardboard discs attached to the sides of the new grinding disc, as these help to safeguard the flanges' grip against the grinding disc.
• Inspect the new grinding disc for cracks or other visible damage and discard if necessary.
• Replace the flange and nut.
• Do not overtighten the nut with a spanner, otherwise the grinding disc may break.
• Refit the end plate.
• Adjust the tool support, spark protection and protective panel again according to the assembly instructions.

Grinding wheel extractor

The grinding disc dresser is a tool used to level the grinding disc.

Press lightly against the grinding disc without creating sparks. Move the dresser sideways across the entire width of the grinding disc.

⚠ Attention! Always wear safety goggles.

10. Cleaning and maintenance

Disconnect the mains plug before carrying out any cleaning work.

Cleaning

• Keep protective devices, air vents and the motor housing free from dust and dirt. Rub the device clean with a clean cloth or blow it off with compressed air at low pressure.
• Clean the device directly after every use.
• Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior. Water penetrating an electric device increases the risk of an electric shock.

Maintenance

The device has no further internal parts that require maintenance.

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables. Wearing parts*: Abrasives, carbon brush, honing wheel, angle gauge, V-belt

* may not be included in the scope of delivery!

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

11. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations. Installation, repairs and maintenance work on the electrical equipment may only be carried out by electricians.

Important information

The electric motor is designed for operating mode S 1. In the event of an overloading the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
  • Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the designation H05VV-F.

The printing of the type designation on the connection cable is mandatory.

AC motor

• The mains voltage must be 230 - 240 V\~.
- Extension cables up to 25 m long must have a cross-section of 1.5 mm ^2 .

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate
• Motor data - type plate

Connection type Y

If the mains connection cable for the product is damaged then it must be replaced by the manufacturer or their customer services personnel or by a similarly qualified person, in order to avoid hazards.

12. Storage

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature is between 5 and 30 °C. Keep the power tool in its original packaging.

13. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act (ElektroG)

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:

- Public disposal or collection points (e.g. municipal works yards).

- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.

- These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

14. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Engine does not run. Engine, cable or connector defective, fuses burnt.		Have the machine checked by a specialist. Never repair the engine yourself. Attention! Check the fuses and replace them if necessary.
The engine starts slowly and does not reach the operating speed.	Voltage too low, coils damaged, capacitor burnt.	Have the power supply company check the voltage. Have the engine checked by a specialist. Have the capacitor replaced by a specialist.
Engine producing excessive noise.	Coils damaged, motor defective.	Have the engine checked by a specialist.
Engine does not reach full power.	Circuits in the network are overloaded (lamps, other motors, etc.).	Do not use any other devices or engines on the same circuit.
Motor overheats easily.	Overloading of the engine, insufficient cooling of the engine.	Avoid overloading the engine during grinding and remove dust from the engine to ensure optimum engine cooling.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

Günzburger Straße 69

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Kedves Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie,

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupci,

Günzburger Straße 69

D-89335 Ichenhausen

Spoštovani kupec,

želimo vam veliko veselja in uspeha pri delu z vašo novo napravo.

Napotek:

Negotovost K_pA 3 dB

Nivo moči zvoka L _WA 92 dB

Negotovost K_WA 3 dB

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

⚠️ Hoiatus! Mürgised aurud!

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Bästa kund!

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas,

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde,

Günzburger Straße 69

D-89335 Ichenhausen

Kjære kunde,

• Sørg for sikker stand.

Günzburger Straße 69

D-89335 Ichenhausen, Германия

Уважаеми клиенти,

Günzburger Straße 69

D-89335 Ichenhausen

Αξιότιμε πελάτη,

Günzburger Straße 69

D-89335 Ichenhausen

Stimate client,

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupci,

Günzburger Straße 69

D-89335 Ichenhausen

İthalatçı:

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for assembly or manufacturing purposes.

EU Declaration of Conformity

2000/14/EG_2005/88/EG
	Noise: measured LWA= xx dB; guaranteed LWA= xx dB
	Annex V
	Annex VI

X 2006/42/EG
	Annex IV Notified Body: Notified Body No.: Certificate No.:

	2016/1628/EU
	Emission. No:

Standard references:

EN 62841-1:2015+A11:2022; EN 62841-3-4:2016+A11:2017+A12:2020+A1:2020; EN IEC 55014-1:2021;

EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN IEC 55014-2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Dawid Hudzik

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

2000/14/EG_2005/88/EG
	Noise: measured LWA= xx dB; guaranteed LWA= xx dB
	Annex V
	Annex VI

X	2006/42/EG
		Annex IV Notified Body: Notified Body No.: Certificate No.:

2016/1628/EU Emission. No:

Standard references:

EN 62841-1:2015+A11:2022; EN 62841-3-4:2016+A11:2017+A12:2020+A1:2020; EN IEC 55014-1:2021;

EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN IEC 55014-2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Dawid Hudzik

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

Standard references:

EN 62841-1:2015+A11:2022; EN 62841-3-4:2016+A11:2017+A12:2020+A1:2020; EN IEC 55014-1:2021;

EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN IEC 55014-2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Dawid Hudzik

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

AB uygunluk beyanı

CE

Scheppach GmbH, Günzburger Str. 69, D-89335 Ichenhausen

DE	erklärt folgende Konformität gemäß EU-Richtlinien und Normen für den Artikel	RO	declară următoarea conformitate corespunzător directivelor și normelor UE pentru articolul
GB	hereby declares the following conformity under the EU Directive and standards for the following article	GR	đηλώνει την ακόλουθη συμμόρφωση σύμφωνα με την Οδηγία ΕΕ και τα πρότυπα για το προϊόν
BG	декларира съответното съответствие съгласно Дирек-тива на ЕС и норми за артикул	TR	Burada açıklanan ürünün geçerli yönetmeliklere ve standartlara uygun olduğunu tamamen kendi sorumluluğumuz altında beyan ediyoruz.
RS	potvrđuje sledeću usklađenost prema smernicama EZ i normama za artikal

2000/14/EG_2005/88/EG Noise: measured L_VIA = xx dB; guaranteed L_VIA = xx dB Annex V Annex VI

2016/1628/EU Emission. No:

Standard references:

EN 62841-1:2015+A11:2022; EN 62841-3-4:2016+A11:2017+A12:2020+A1:2020; EN IEC 55014-1:2021;

EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN IEC 55014-2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Dawid Hudzik Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer loses its rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Záruka CZ

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer is rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantii EE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

гаранция BG
