USER MANUAL HWW1400 SCHEPPACH

Domestic waterworksTranslation of original instruction manual

Explanation of the symbols on the equipment The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents. Read instruction manual and safety instructions before starting up and pay attention! Use hearing protection. The product complies with the applicable European directives. The product complies with the applicable Serbian directives. m Attention! In this operating manual, we have used this sign to mark all sections that concern your safety.www.scheppach.com

The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with. In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules for operating woodworking machines must also be observed. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

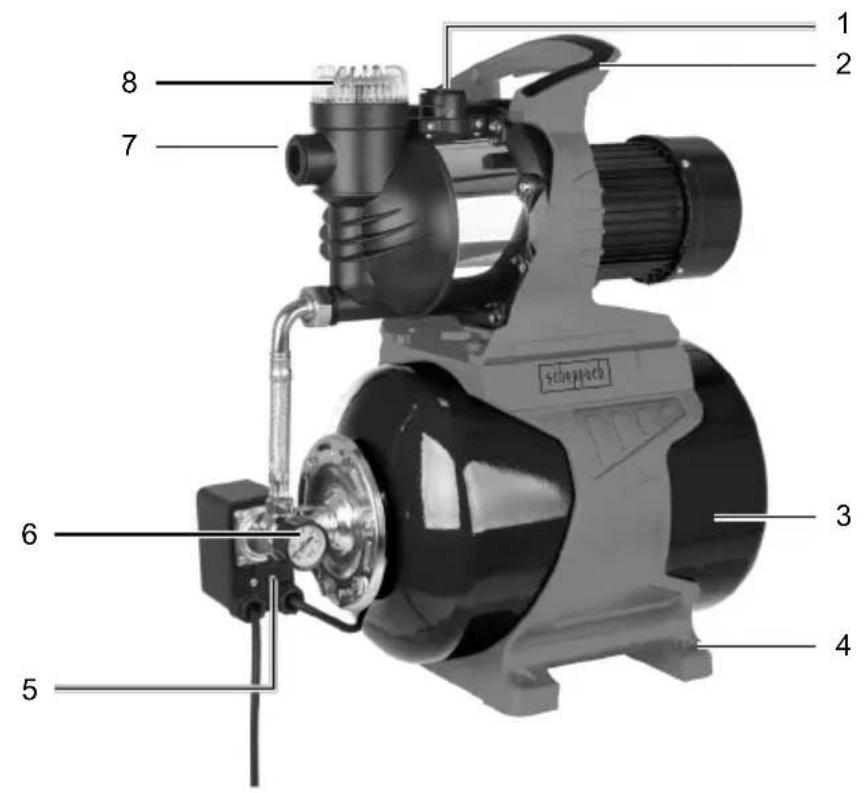

2. Device description

1. Pressure connection

4. Bracket for screws

7. Suction connection

3. Scope of delivery

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of mis- use. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. To use the equipment properly you must also observe the safety information, the assembly instructions and the operating instructions to be found in this manual. All persons who use and service the equipment have to be acquainted with this manual and must be informed about the equipment’s potential haz- ards. It is also imperative to observe the accident pre- vention regulations in force in your area. The same ap- plies for the general rules of health and safety at work. The manufacturer will not be liable for any changes made to the equipment nor for any damage resulting from such changes.

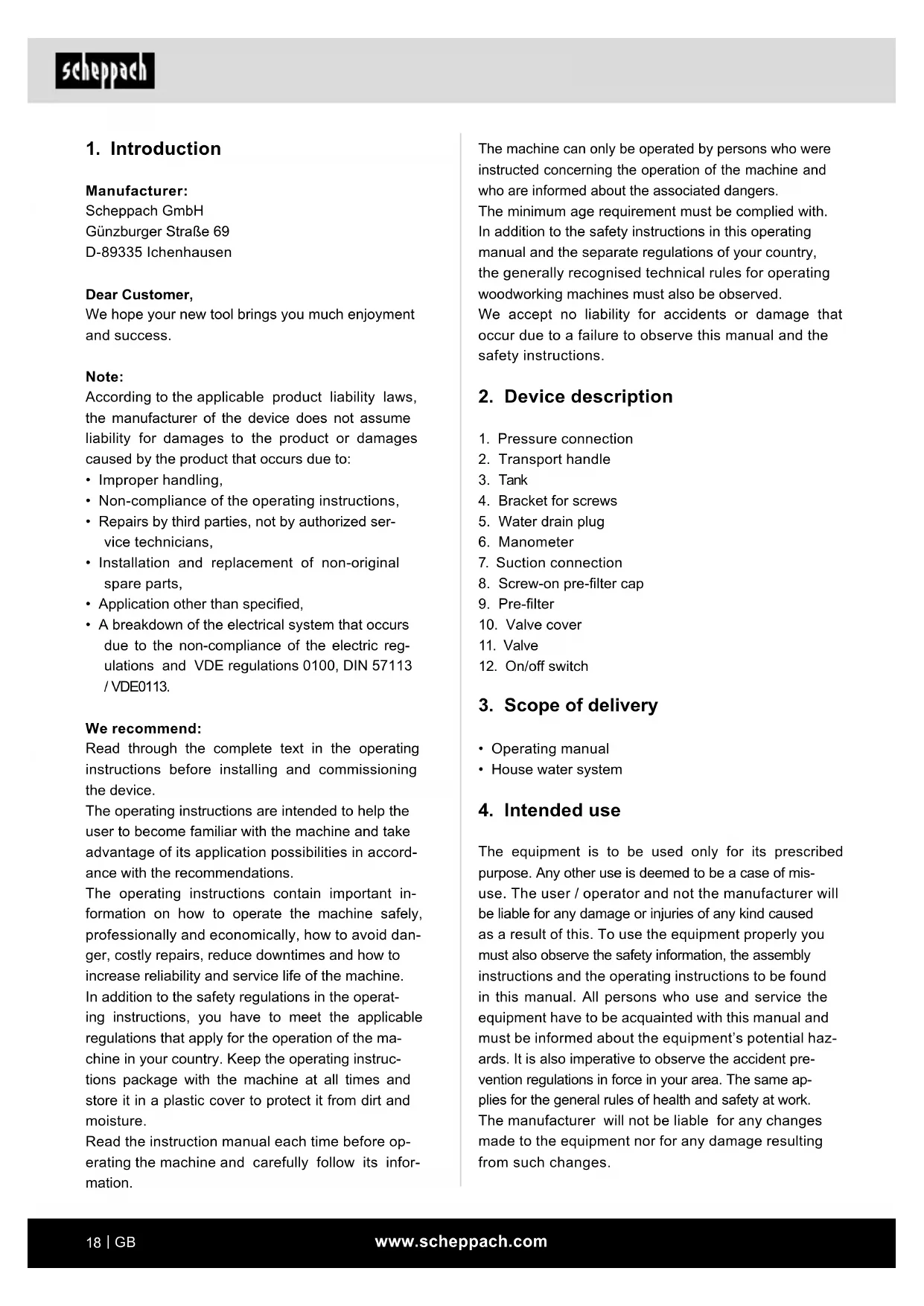

Manufacturer: Scheppach GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear Customer, We hope your new tool brings you much enjoyment and success. Note: According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Non-compliance of the operating instructions,

• Repairs by third parties, not by authorized ser- vice technicians,

• Installation and replacement of non-original spare parts,

• Application other than specied,

• A breakdown of the electrical system that occurs due to the non-compliance of the electric reg- ulations and VDE regulations 0100, DIN 57113 / VDE0113. We recommend: Read through the complete text in the operating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accord- ance with the recommendations. The operating instructions contain important in- formation on how to operate the machine safely, professionally and economically, how to avoid dan- ger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine. In addition to the safety regulations in the operat- ing instructions, you have to meet the applicable regulations that apply for the operation of the ma- chine in your country. Keep the operating instruc- tions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before op- erating the machine and carefully follow its infor- mation.www.scheppach.com

• The pump is not suitable for use in swimming pools, paddling pools of any kind and other waters where persons or animals may be present during operation.

• Operating the pump while humans or animals are in the danger zone is not permitted. Ask your electrician!

• Always carry out a visual inspection of the unit be- fore use. Do not use the unit if safety devices are damaged or worn out. Never disable safety devices.

• Only use the device for the purpose specied in these original operating instructions.

• You are responsible for safety in the work area.

• If the connection cable of this unit is damaged, it must be replaced by the manufacturer or their ser- vice department or a similar qualied person in or- der to avoid hazards. The voltage of 230 volts AC indicated on the type plate of the pump must corre- spond to the mains voltage present.

• Never lift, transport or fasten the pump by the mains cable.

• Make sure that the electrical plug connections are located in a ood-proof area or are protected against moisture.

• Before any work on the pump, pull out the mains plug.

• Ensure that the pump is not exposed to a direct wa- ter jet.

• The operator is responsible for compliance with lo- cal safety and installation regulations (ask a quali- ed electrician if necessary).

• The user must implement suitable measures (e.g. installation of an alarm system, reserve pump or similar) to prevent consequential damage caused by ooding of rooms in the event of pump faults.

• If the pump fails, repair work may only be carried out by a qualied electrician or by customer service.

• Only use original spare parts.

• The pump must never be allowed to run dry or be operated with a fully closed suction line. Damage to the pump caused by dry running will invalidate the manufacturer’s warranty.

• The pump must not be used for swimming pool op- eration.

• The pump must not be installed in the drinking wa- ter circuit. Remaining hazards The machine has been built using modern technology in accordance with recognized safety rules. Some re- maining hazards, however, may still exist.

• Injury through electric current if incorrect electric connection leads are used. This domestic water system is intended for private use in the house and garden. The device is intended for domestic water supplies and garden irrigation. It is designed exclusively for the supply of claried wa- ter and rain water up to a temperature of max. 35°C. Any other use that is not expressly permitted in this in- struction manual (e.g. supply of food, salt water, motor fuels, chemical products or water with abrasive sub- stances) may result in damage to the device and pose a serious hazard to the user. The domestic water system is not suitable for contin- uous operation. Continuous operation will shorten its service life and void the warranty. The machine may only be operated with original parts and original accessories from the manufacturer. Any other use is considered to be not intended. The manufacturer excludes any liability for resulting dam- ages, the risk is exclusively borne by the user. Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

• This device is not designed to be operated by per- sons (including children) with impaired physical, sensory or mental capabilities, or who have insuf- cient experience and/or insu󰀩cient knowledge un- less they are being supervised by a person who is responsible for their safety or they are receiving in- struction about how this device is to be used. Chil- dren should not be left unattended, to ensure they do not play with the device.

• Keep packaging lms out of the reach of babies and children. Risk of su󰀨ocation!

• The user is responsible for third parties in the work- ing area of the device.

• Prior to commissioning, it must be ensured by means of expert testing that the required electrical protective measures are in place.

• m Warning! The pump may only be used in and around stagnant water, garden and swimming ponds with a residual current circuit breaker with a rated residual triggering current of up to 30 mA (per VDE 0100 parts 702 and 738).www.scheppach.com

Operating mode* S1: Continuous operation at constant load Noise m Warning: Noise can have serious e󰀨ects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection. Noise data Sound power level L

85 dB Sound pressure level L

Open the packaging and remove the device carefully. Remove the packaging material as well as the pack- aging and transport bracing (if available). Check that the delivery is complete. Check the device and accessory parts for transport damage. In case of complaints the dealer must be in- formed immediately. Subsequent complaints will not be accepted. If possible, store the packaging until the warranty pe- riod has expired. Read the operating manual to make yourself familiar with the device prior to using it. Only use original parts for accessories as well as for wearing and spare parts. Spare parts are available from your specialized dealer. Specify our part numbers as well as the type and year of construction of the de- vice in your orders. m ATTENTION The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, lm and small parts! There is a risk of swal- lowing and su󰀨ocation!

8. Attachment / Before starting the

equipment Installation of a suction line

• Screw a suction hose (plastic hose min. 19 mm (3/4”) directly or with a threaded nipple, approx.

25.4 mm (1”), to the suction line connection on the

• Lay the suction line from the water pick-up point to the pump in a continuously rising slope. Ensure that the suction line is not laid above the pump height; air bubbles in the suction line delay and prevent the suction process.

• Even when all safety measures are taken, some re- maining hazards which are not yet evident may still be present.

• Remaining hazards can be minimized by following the safety instructions as well as the instructions in the chapter Authorized use and in the entire oper- ating manual.

• Health hazard due to electrical power, with the use of improper electrical connection cables.

• Release the handle button and switch o󰀨 the ma- chine prior to any operations.

• Avoid accidental starts of the machine: Do not press the start button while inserting the plug into the socket.

• Use the tools recommended in this manual to obtain the best results from your machine.

• Always keep hands away from the work area when the machine is running. Warning! This power tool generates an electromagnet- ic eld during operation. This eld can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

10. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the appli- cable VDE and DIN provisions. The customer’s mains power connection as well as the extension lead used must also comply with these regulations. Damaged electrical connection cable The insulation on electrical connection cables is often damaged. This may have the following causes:

• Passage points, where connection cables are passed through windows or doors.

• Kinks where the connection cable has been improp- erly fastened or routed.

• Places where the connection cables have been cut due to being driven over.

• Insulation damage due to being ripped out of the wall outlet.

• Cracks due to the insulation ageing. Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage. Check the electrical connection cables for damage regularly. Make sure that the connection cable does not hang on the power network during the inspection. Electrical connection cables must comply with the ap- plicable VDE and DIN provisions. Only use connection cables with the marking „H05RN-F“. The printing of the type designation on the connection cable is mandatory. Connection type Y If it is necessary to replace the mains connection ca- ble, this must be done by the manufacturer or their representative to avoid safety hazards. For single-phase AC motors, we recommend a fuse rating of 16A (C) or 16A (K) for machines with a high starting current (starting from 3000 watts)! AC motor 230 V~/ 50 Hz Mains voltage 230 V~ / 50 Hz. The mains connection and the extension cable have to be three-core cables = P + N + SL. - (1/N/PE).

• The suction and pressure lines must be installed in such a way that they do not exert any mechanical pressure on the pump.

• The suction valve should be located deep enough in the water to prevent the pump from running dry if the water level drops.

• A leaking suction line will prevent the water from be- ing sucked in due to air ingress.

• Avoid sucking in foreign bodies (sand etc.). Installation of a pressure line

• The pressure line (should be at least 19 mm (3/4”)) must be connected directly or via a threaded nipple approx. 25.4 mm (1”) to the pressure line connec- tion on the pump.

• During the suction process the shut-o󰀨 devices (spray nozzles, valves etc.) in the delivery line must be fully opened to allow the air in the suction line to escape freely.

9. Initial operation

m IMPORTANT! You must fully assemble the appliance before using it for the rst time!

• Install the equipment on a solid and level surface.

• Unscrew the coarse lter screw (8) and remove the coarse lter (9) as shown in Figure 3. Now you can ll the pump housing with water via the coarse l- ter screw (8). Filling the intake line accelerates the in take process.

• Assemble in reverse order.

• Switch on the equipment with the power switch (12) water can be suctioned in for up to 5 minutes (max mum suction height).

• After pressure drop due to water consumption switches the unit automatically on (switch-on pres- sure approx. 1.5 bar)

• The domestic waterworks can be used for do- mestic water supply in the inner area also be per- manently installed. To avoid vibrations and noise should be minimised. the pump with exible hose lines connected to the pipe network will be. Anti-vibration material is also recommended, z. e.g. a rubber layer, between pump and base to lay. En- sure a stable Fixing of the container by means of Screws that pass through the holes t in the stand.www.scheppach.com

Please provide the following information in the event of any enquiries:

• Type of current for the motor

• Machine data - type plate

• Machine data - type plate Service information Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Wear parts*: Seals, pre-lter

• Not necessarily included in the scope of delivery! Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

Use only the transport handle (2) for transporting the device.

Store the device and its accessories in a dark, dry and frost-proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30˚C. Cover the electrical tool in order to protect it from dust and moisture.Store the operating manual with the elec- trical tool.

14. Disposal and recycling

Notes for packaging The packaging materials are recycla- ble. Please dispose of packaging in an environmentally friendly manner. Notes on the electrical and electronic equipment act [ElektroG] Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.

• Owners or users of electrical and electronic devices are legally obliged to return them after use. Extension cables up tp 25m long must have a mini- mum cross-section of 1.5 mm². Mains fuse protection is 16 A maximum.

11. Cleaning and Maintenance

Attention! Only carry out maintenance, cleaning and adjustment work when the mains plug is pulled out. We recom- mend that you clean the device directly after every use. Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents - they could attack the plastic parts of the universal machine stand. Make sure that no water can penetrate the de- vice interior.

• The pump is largely maintenance-free. However, for a long service life, we recommend regular checking and care.

• Before extended periods of inactivity or through the winter, the pump should be thoroughly ushed through with water, emptied completely and then stored dry.

• To empty the pump housing, loosen the water drain screw (5) and tilt the pump slightly.

• If there is a risk of frost the pump must be completely emptied.

• After longer periods of storage check the pump by switching on/o󰀨 briey in order to check that the ro- tor turns normally.

• In the event of the pump being jammed connect the pressure line to the water supply line and remove the suction hose. Open the water supply line. Switch the pump on for ca. two seconds several times. This method recties blockages in most cases.

• To clean the pre-lter (9), unscrew the pre-lter cap (8) and remove the lter unit. Clean the pre-lter with warm water.

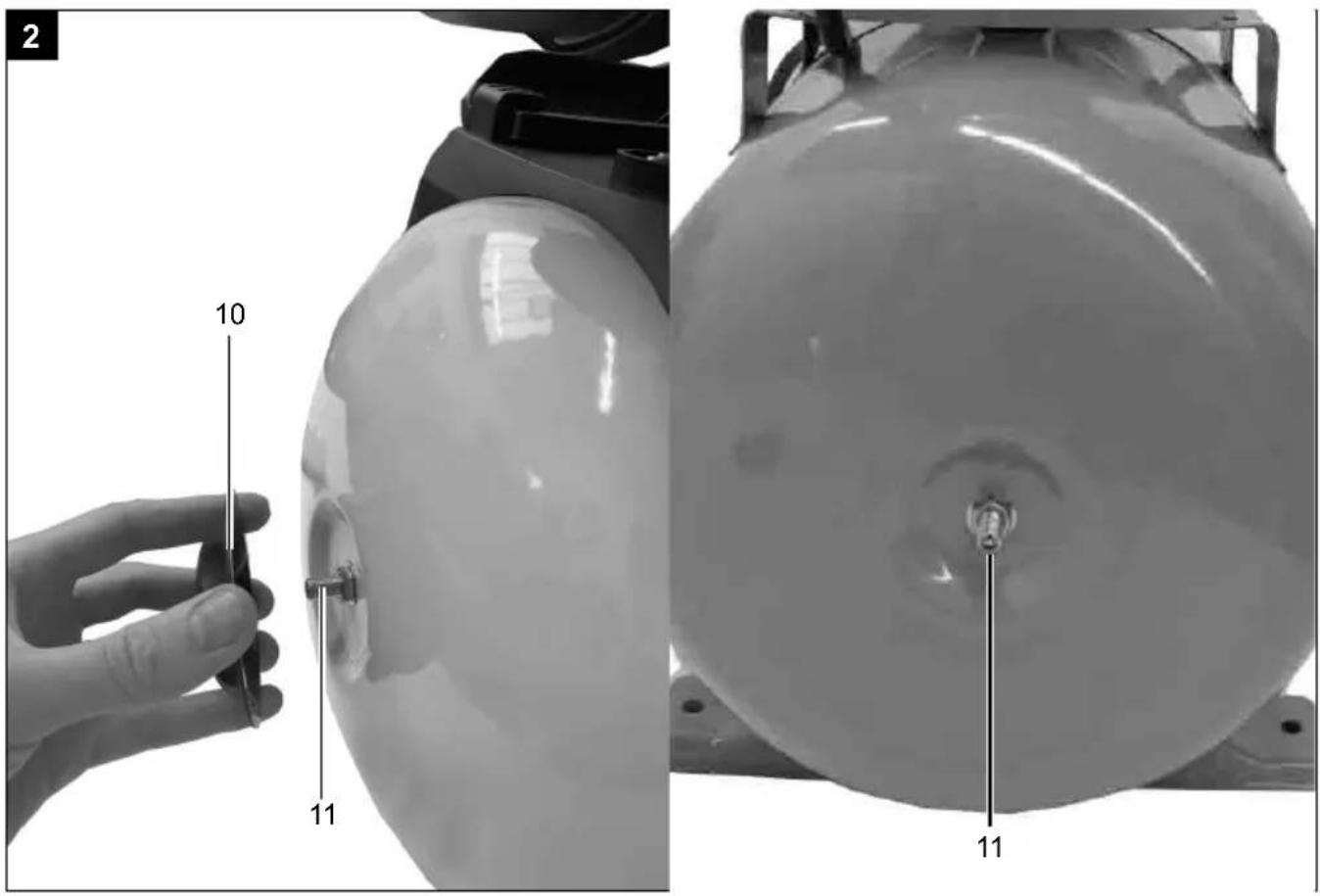

• The pressure in the pressure vessel should be ap- prox. 1.5 bar max. If the air pressure is too low, it should be increased again. To do this unscrew the valve cover (10) on the container and add the miss- ing pressure with a tyre inator gauge via the valve (11). Then screw the valve cover back on. Connections and repairs Connections and repairs of electrical equipment may only be carried out by an electrician.www.scheppach.com

- Further supplementary take-back conditions of the manufacturers and distributors can be ob- tained from the respective customer service.

• If the manufacturer delivers a new electrical appli- ance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer’s customer service for this.

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Un- ion, di󰀨erent regulations may apply to the disposal of waste electrical and electronic equipment.

• The end user is responsible for deleting their per- sonal data from the old device being disposed of!

• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places: - Public disposal or collection points (e.g. municipal works yards) - Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or o󰀨er to do so voluntarily. - Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

16. Declaration of conformity

2000/14/EG_2005/88/EG Noise: measured L

= xx dB; guaranteed L

hereby declares the following conformity under the EU Direc- tive and standards for the following article

2000/14/EG_2005/88/EG Noise: measured L

= xx dB; guaranteed L

hereby declares the following conformity under the EU Direc- tive and standards for the following article

2000/14/EG_2005/88/EG Noise: measured L

= xx dB; guaranteed L

tive and standards for the following article

Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment. www.scheppach.com 224www.scheppach.com
