USER MANUAL AD 8077 ADLER

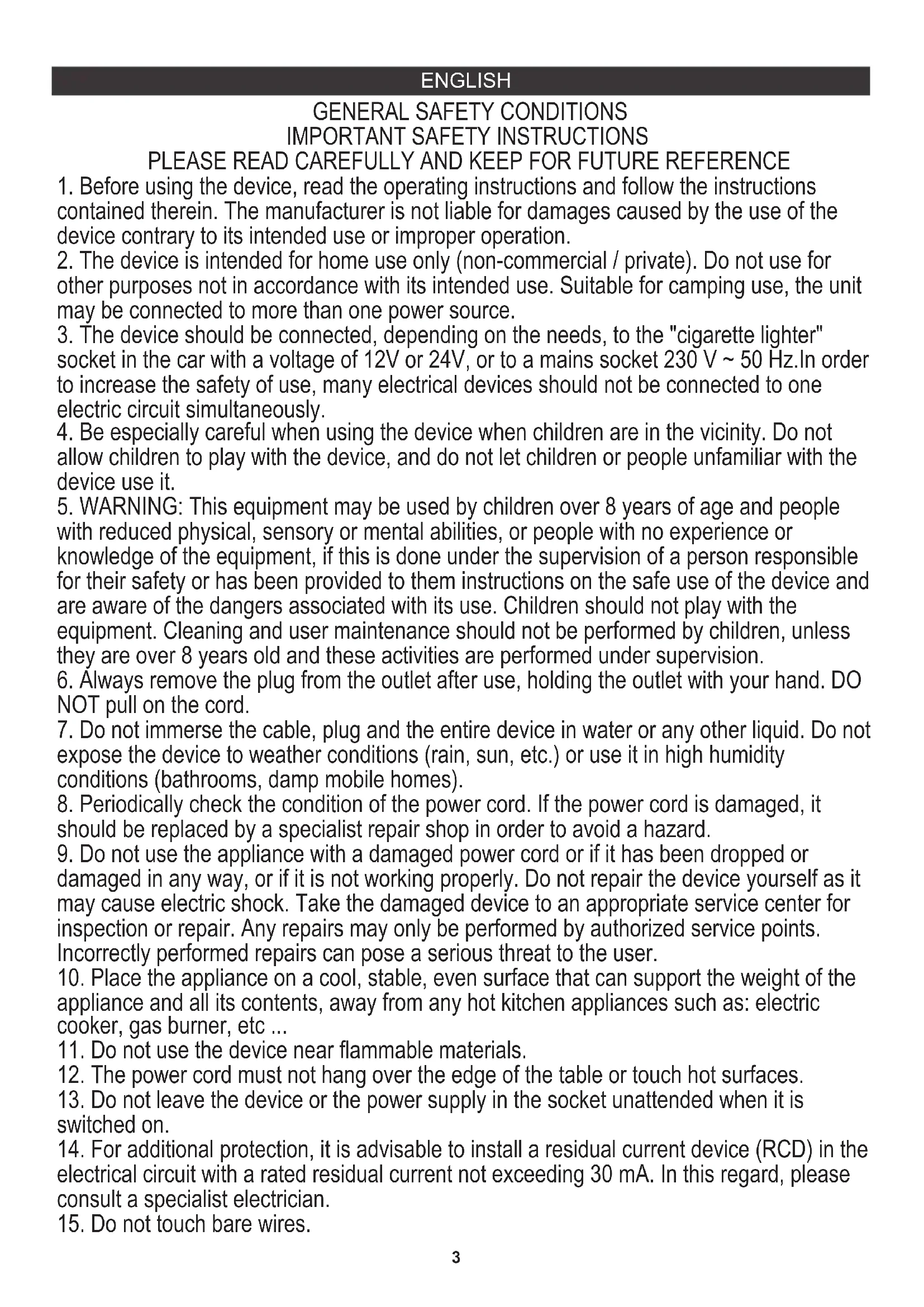

GENERAL SAFETY CONDITIONS

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the device, read the operating instructions and follow the instructions contained therein. The manufacturer is not liable for damages caused by the use of the device contrary to its intended use or improper operation.
2. The device is intended for home use only (non-commercial / private). Do not use for other purposes not in accordance with its intended use. Suitable for camping use, the unit may be connected to more than one power source.
3. The device should be connected, depending on the needs, to the "cigarette lighter" socket in the car with a voltage of 12V or 24V, or to a mains socket 230V 50Hz . In order to increase the safety of use, many electrical devices should not be connected to one electric circuit simultaneously.
4. Be especially careful when using the device when children are in the vicinity. Do not allow children to play with the device, and do not let children or people unfamiliar with the device use it.
5. WARNING: This equipment may be used by children over 8 years of age and people with reduced physical, sensory or mental abilities, or people with no experience or knowledge of the equipment, if this is done under the supervision of a person responsible for their safety or has been provided to them instructions on the safe use of the device and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and user maintenance should not be performed by children, unless they are over 8 years old and these activities are performed under supervision.
6. Always remove the plug from the outlet after use, holding the outlet with your hand. DO NOT pull on the cord.
7. Do not immerse the cable, plug and the entire device in water or any other liquid. Do not expose the device to weather conditions (rain, sun, etc.) or use it in high humidity conditions (bathrooms, damp mobile homes).
8. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialist repair shop in order to avoid a hazard.
9. Do not use the appliance with a damaged power cord or if it has been dropped or damaged in any way, or if it is not working properly. Do not repair the device yourself as it may cause electric shock. Take the damaged device to an appropriate service center for inspection or repair. Any repairs may only be performed by authorized service points. Incorrectly performed repairs can pose a serious threat to the user.
10. Place the appliance on a cool, stable, even surface that can support the weight of the appliance and all its contents, away from any hot kitchen appliances such as: electric cooker, gas burner, etc ...
11. Do not use the device near flammable materials.
12. The power cord must not hang over the edge of the table or touch hot surfaces.
13. Do not leave the device or the power supply in the socket unattended when it is switched on.
14. For additional protection, it is advisable to install a residual current device (RCD) in the electrical circuit with a rated residual current not exceeding 30mA . In this regard, please consult a specialist electrician.

15. Do not touch bare wires.

16. Do not use the device if the connection sockets are wet.

17. Do not put electrical appliances inside the refrigerator.
18. Do not block the device's ventilation openings.
19. Protect the device against heat sources and sunlight.
20. Put cold food into the device.
21. Place the equipment in a place with adequate ventilation. The distance from other objects should be at least 20 cm.
22. WARNING: Do not obstruct ventilation openings in the equipment enclosure or in the built-in structure
23. WARNING: In order to speed up the defrosting process, do not use any mechanical means other than those recommended by the manufacturer.
24. WARNING: Protect the refrigerant circuit from damage
25. WARNING: Do not use electrical equipment inside the foodstuff storage compartment of a type other than that recommended by the manufacturer.

Before first use: Proper location

1. 1.Before using for the first time, remove the packaging and leave a free space of at least 15cm around the device (5 cm on the side, 10 cm when tilting the device).
2. Position the refrigerator in a dry and well-ventilated place. Keep the refrigerator away from direct sunlight, heaters and corrosive gas. NOTE: Because this device is compressor operation based, ample space is required around the unit to allow it to exhaust properly. NOTE: It is not recommended to move the device if the floor is not smooth. Do not use if the refrigerator is tilted. If the refrigerator is drawn to a place for use, please leave it upright and wait for 10 minutes before use. When moving the refrigerator, always use both handles to the carry the unit as level as possible. This is in order to protect the compressor and the sealed system.

WARNING: Use two or more people to move and handle this unit. Failure to do so can result in back or other injury.

1. Keep the portable refrigerator away from heat and direct sunlight if possible
2. This portable refrigerator is suitable for car use and camping however, the appliance should not be exposed to rain or any other severe weather elements.
3. This portable refrigerator should not be placed in a built-in or recessed area. The device is designed to be freestanding.
4. The normal operation of the refrigerator depends on heat radiation from the condenser.
5. Clean the interior surface with a little bit of lukewarm water and a soft cloth.
   Note: When inserting the DC power-cord, make sure the input is a 12V~DC / 24V power source.

IMPORTANT: Do not remove any safety, warning, or product information labels from your portable car refrigerator.

DEVICE DESCRIPTION Portable car refrigerator - Picture A

1.Base 2.Plug socket
3. Handle 4. Frame
5. Cover 6. Control Panel
7. DC Power Cord- For use when traveling, plug directly into car lighter.

CONTROL PANEL - Picture B

A - Power button ON/OFF
C-Power indicator
E-LCD display
G-Button

B-SET button
D - Error indicator
F-Button“+”

OPERATION

• When attempting to plug your portable freezer into a standard 12 V socket, the unit will not work if socket has a voltage of less than 9.6 V. The unit will restart when the voltage is 12.2V or greater.
• When attempting to plug unit into a standard 24 V socket, the unit will not work if the socket has a voltage of less than 21.3 V. The unit will restart when the voltage is 25.2 V or greater.
• The device can also be connected to the 230V 50 / 60Hz mains supply after using an external power supply (not included). The recommended AC/DC adapter model is CR8076.1.

CONTROL PANEL (7) - Picture B

Your portable refrigerator uses a digital control system for adjusting the thermostat.

• Power button (A) - ON/OFF :

• Connect the refrigerator to the power supply, press the power button (A) once to switch on the device.

• Press the power button (A) again, the refrigerator will be off.

• SET button :

Long press SET button for 3 seconds and enter advanced modes:

IVOLTAGE PROTECTION MODE:

The device has three battery protection functions, which protect the normal operation of the refrigerator and protect the battery of the vehicle.

The three levels of battery protection are:

H3 - high level:

for voltage 12V: stops at 10.9V and starts operation at 12.2V

for voltage 24V: stops at 23.8V and starts operation at 25.2V

H2 - medium level:

for voltage 12V: stops at 9.7V and starts operation at 11.0V

for voltage 24V: stops at 21.5V and starts operation at 22.9V

H1 - low level:

for voltage 12V: stops at 9.6V and starts operation at 10.9V

for voltage 24V: stops at 21.3V and starts operation at 22.7V

Short press "+" or "-" button to choose the function. The function is set at "H2" medium level when the refrigerator is ready for first use.

NOTE:

It is recommended to set the battery protection at H2 (medium level) when the device is used in the car.

It is recommended to set the battery protection at H2 (medium) or H1 (low) if it is external battery or backup battery.

Because of the difference in voltage output from different vehicle power supply output, if there is voltage protection (LCD display shows

F1), the battery function could be reduced to a lower one (H3 is adjusted to H2 or H1).

• Button "+" (F) is used for increasing the temperature or other settings described above.

• Button “-” (G) is used for decreasing the temperature or other settings described above.

• Power indicator (C):

-- When the refrigerator is switch on, the light is red.

-- When the refrigerator is switched off, the light goes out.

• Error indicator (D):

• If there is a failure, the buzzer will ring continuously.

• At the screen will show the fault codes.

• The error indicator (D) will be on in blue.

• LED display (E): shows

• Display the temperature and other settings.

• At the screen can be shown the fault codes as below:

F1: Voltage failure

F2: Fan current failure

F3: Compressor starting failure

F4: Minimum speed failure of compressor

F5: Controller temperature fault

E0: Broken sensor circuit

E1: Sensor short circuit

The LCD display allows you to set the temperature from -20^ to +20^ . The temperature actually achieved inside the device depends

on the external conditions. For example, at an ambient temperature of +25^ , the lowest temperature reached inside the device is -20

^ C . The device does not have a heating function.

NOTE: If the system is abnormal, check first if the battery voltage is right. If the battery voltage is right, then wait 3 minutes before you switch on the refrigerator. If the system is still abnormal when you restart the device, then call the after service for help.

Common temperature settings for storage of:

• Wine (from +6 to +18°C)
  Vaccines, Insulin (from +2^ till -8^ )
• Fruit (from 4^ till - 6^ )
• Beverage (from 2^ till -5^ )
• Meat (-10°C)
• Ice cream (-15°C)

Please be careful if you want to store drugs in the refrigerator. Store food in containers / bags intended for this purpose before putting into the device.

CLEANING AND MAINTENANCE

Always unplug the device before you start cleaning.

Clean with soft, dry cloth. Do not use chemical solvents because they can cause permanent damage or deformation of the device.

TROUBLESHOOTING

Follow the troubleshooting guide below to resolve common issues.

Problem I: Unit is not functioning at all and shows no signs of power.

Possible Cause 1: Unit is not receiving power.

Solution for possible cause 1: Make sure the unit is plugged in.

Possible Cause 2: Insufficient power.

Solution for possible cause 2: Move the unit to another outlet. Check your circuit breaker. (Refer to the rating label on the back of the unit to determine the Amperage draw).

Possible Cause 4: DC power cord

Solution for possible cause 4: Test the unit with another power supply, e.g. another vehicle with a known working DC power outlet.

Possible Cause 5: Disconnected wires.

Solution for possible cause 5: Contact customer service.

Problem II: Unit is making strange noises.

Possible Cause 1: The unit is not level

Solution 1: Move the unit to a flat level surface.

Problem III: Unit is making a loud continuous metallic knocking or pinging sound.

Possible Cause 1: Unit may have been shipped on its side.

Solution 1: Shut off the unit. Let the unit sit on a level surface for at least 24 hours and restart.

Possible Cause 2: Damaged compressor

Solution 2: Contact customer service.

Solution: Contact an electrician if the unit works in a different room or circuit.

Problem V: The control panel lights blink randomly.

Possible Cause: Unit may have a faulty control panel.

Solution: Restart the unit, and if issue persists, contact customer service.

Problem VI: Unit has an HH error

Possible Cause: Ambient temperature has exceeded 40^ .

Solution: Restart the unit, and if issue persists, contact customer service.

Problem VII: Unit has an OC error.

Possible Cause: Thermostat error was detected.

Solution: Restart the unit, and if issue persists, contact customer service.

Problem VIII: Unit has a S.C. error

Possible Cause: A short circuit in thermostat detected.

Solution: Restart the unit, and if issue persists, contact customer service.

Problem IX: Unit has power, but the compressor does not run.

Possible Cause 1: Ambient temperature is too low.

Solution 1: Move the unit to a warmer location.

Possible Cause 2: Disconnected wire.

Solution 2: Contact customer service.

TECHNICAL DATA

Capacity: 40 liters

Power supply

DC 12V/24V-carlightersocket

• 230V ~50/60Hz - mains socket after using an external power supp cive ( not made) class I of insulation and has to be connected

Refrigerant: R600a / 40 g

Climate class: S / SN

Isolation:C5H10

Rated Power Consumption: 45W

Maximum Rated Current: 3,7A

pricnne maddeey class I of insulation and has to be connected

only to power outlet with ground circuit.

Device is compliant with EU directives:

Low voltage directive (LVD)

Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may effect the environment. Do not dispose this appliance in the common waste bin.
