USER MANUAL UniversalWallLevel BOSCH

YkpaHcbKa ..CtoiHa 333

Ka3ak... Ber 352

www.bosch-pt.com/serviceaddresses

Entsorgung

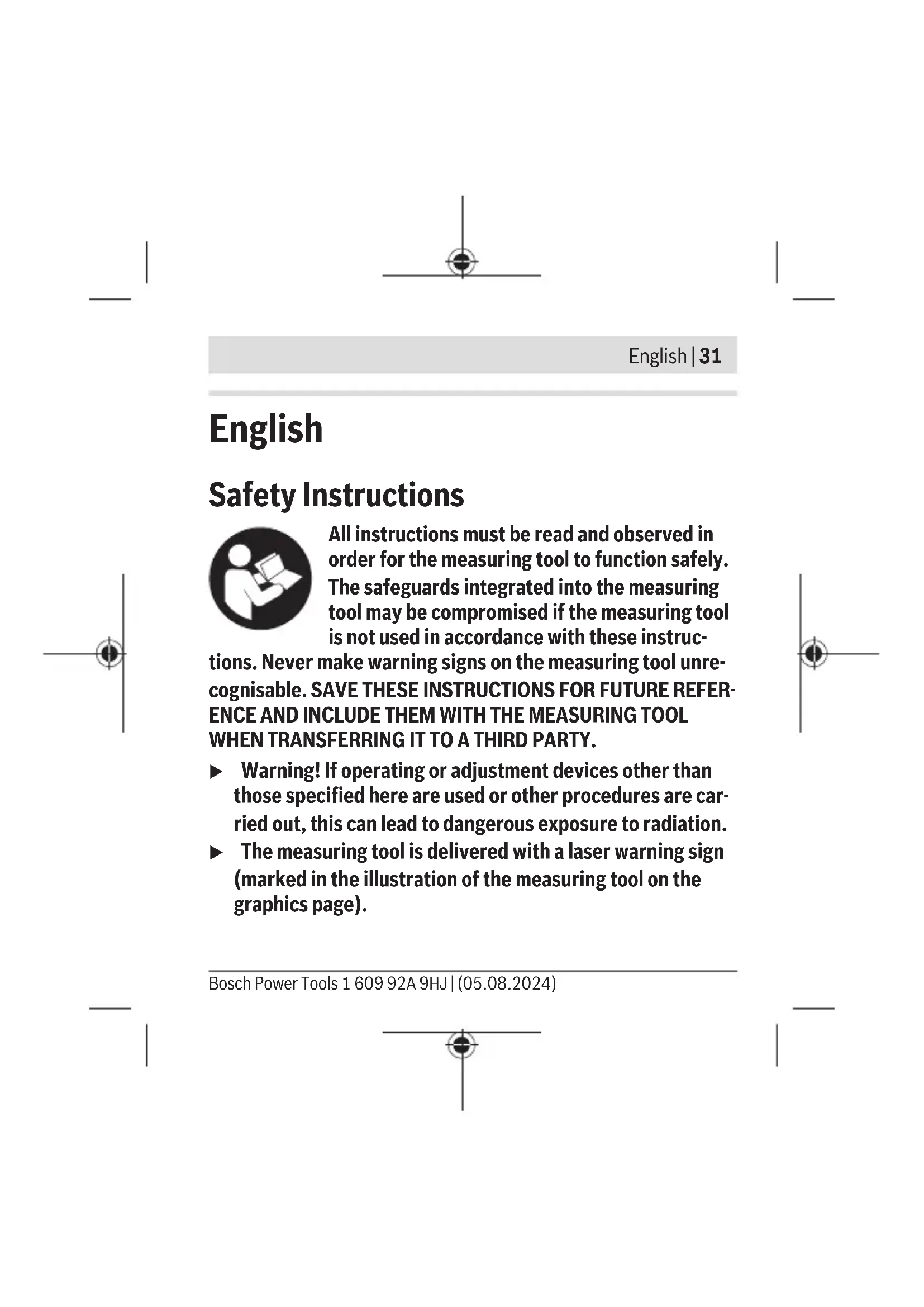

All instructions must be read and observed in order for the measuring tool to function safely. The safeguards integrated into the measuring tool may be compromised if the measuring tool is not used in accordance with these instruc

tions. Never make warning signs on the measuring tool unrecognisable. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE AND INCLUDE THEM WITH THE MEASURING TOOL WHEN TRANSFERRING IT TO A THIRD PARTY.

Warning! If operating or adjustment devices other than those specified here are used or other procedures are carried out, this can lead to dangerous exposure to radiation.
The measuring tool is delivered with a laser warning sign (marked in the illustration of the measuring tool on the graphics page).

32 | English

If the text of the laser warning label is not in your national language, stick the provided warning label in your national language over it before operating for the first time.

Do not direct the laser beam at persons or animals and do not stare into the direct or reflected laser beam yourself. You could blind somebody, cause accidents or damage your eyes.

If laser radiation hits your eye, you must close your eyes and immediately turn your head away from the beam.
Do not make any modifications to the laser equipment.
Do not use the laser goggles (accessory) as protective goggles. The laser goggles make the laser beam easier to see; they do not protect you against laser radiation.
Do not use the laser goggles (accessory) as sunglasses or while driving. The laser goggles do not provide full UV protection and impair your ability to see colours.
Have the measuring tool repaired only by a qualified specialist using only original replacement parts. This will ensure that the safety of the measuring tool is maintained.

English | 33

Do not let children use the laser measuring tool unsupervised. They could unintentionally blind themselves or other persons.
Do not use the measuring tool in explosive atmospheres which contain flammable liquids, gases or dust. Sparks may be produced inside the measuring tool, which can ignite dust or fumes.

Keep the magnet away from implants and other medical devices, e.g. pacemakers or insulin pumps. The magnet generates a field that can impair the function of implants and medical devices.

• Keep the measuring tool away from magnetic storage media and magnetically-sensitive devices. The effect of the magnets can lead to irreversible data loss.

Product Description and Specifications

Please observe the illustrations at the beginning of this operating manual.

Bosch Power Tools 1609 92A 9HJ| (05.08.2024)

34 | English

Intended Use

The measuring tool is intended for determining and checking horizontal and vertical lines.

The measuring tool is suitable for indoor use.

This product is a consumer laser product in accordance with EN 50689.

Product features

The numbering of the product features shown refers to the illustration of the measuring tool on the graphic page.

(1) Laser outlet aperture for line operation
(2) On/off switch with operating mode selector
(3) Position indicator
(4) Spirit level for horizontal alignment
(5) Spirit level for vertical alignment
(6) Laser outlet aperture for point operation
(7) Locking mechanism of the battery compartment cover
(8) Battery compartment cover

English | 35

(9) Magnet
(10) Laser warning label
(11) Serial number
(12) Supporting surface (aluminium)
(13) Holder
(14) Rotating disc of the holder
(15) Magnetic mount of the holder
(16) Tripod^a)
(17) 1 / 4'' tripod mount on holder
(18) Pin

a) This accessory is not part of the standard scope of delivery.

Technical data

Line laser UniversalWallLevel
Article number	3 603 F63 J..
Working range up to approx. A)
- Line operation (with holder (13))	5 m

Bosch Power Tools 1609 92A 9HJ | (05.08.2024)

36 | English

Line laser UniversalWallLevel
- Point mode 20 m
Levelling accuracy(B)C(D)	±0.5 mm/m
Operating temperature -10 °C to +40 °C
Storage temperature -20 °C to +70 °C
Max. altitude 2000 m
Relative air humidity max. 90 %
Pollution degree according to IEC 61010-1	2E)
Laser class 2
Laser line
- Laser type < 4 mW, 630-640 nm
- C64
- Divergence 6 mrad (full angle)
Laser point
- Laser type < 1 mW, 650-660 nm
- C61

1609 92A 9HJ| (05.08.2024) Bosch Power Tools

English | 37

Line laser UniversalWallLevel
- Divergence 1.5 mrad (full angle)
Non-rechargeable batteries (alkaline manganese)	2 × 1.5 V LR03 (AAA)
Rechargeable batteries (NiMH) 2 × 1.2 V HR03 (AAA)
Operating time, approx. c)	10 h
WeightF)	0.16 kg

38 | English

Line laser UniversalWallLevel

Dimensions (length × width × height, without holder (13))

$$ 1 5 9 \times 3 5 \times 2 4 \mathrm {m m} $$

A) The working range may be reduced by unfavourable environmental conditions (e.g. direct sunlight).
B) when the measuring tool is positioned correctly (see "Positioning the Measuring Tool (see figure A)", page 42).
C) At 20-25°C
D) The values stated presuppose normal to favourable environmental conditions (e.g. no vibration, no fog, no smoke, no direct sunlight). Extreme fluctuations in temperature can cause deviations in accuracy.
E) Only non-conductive deposits occur, whereby occasional temporary conductivity caused by condensation is expected.
F) Weight with wall mount and without non-rechargeable batteries/re-chargeable batteries

The serial number (11) on the type plate is used to clearly identify your measuring tool.

English | 39

Measuring Tool Power Supply

Inserting/Replacing Batteries

It is recommended that you use alkaline manganese or rechargeable batteries to operate the measuring tool.

To open the battery compartment cover (8), press on the locking mechanism (7) and remove the battery compartment cover. Insert the non-rechargeable batteries/rechargeable batteries.

When inserting the batteries, ensure that the polarity is correct according to the illustration on the inside of the battery compartment.

Always replace all the batteries at the same time. Only use batteries from the same manufacturer and which have the same capacity.

Take the batteries out of the measuring tool when you are not using it for a prolonged period of time. The batteries can corrode during prolonged storage in the measuring tool.

40 | English

Operation

Starting Operation

Protect the measuring tool from moisture and direct sunlight.
Do not expose the measuring tool to any extreme temperatures or variations in temperature. For example, do not leave it in a car for extended periods of time. In case of large variations in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into operation. The precision of the measuring tool may be compromised if exposed to extreme temperatures or variations in temperature.
- Avoid substantial knocks to the measuring tool and avoid dropping it. Damaging the measuring tool can cause accuracy to be compromised. If the laser line is subjected to a substantial knock or is dropped, check it by comparing it to a known horizontal or vertical reference line.
- Only the centre of the laser point or laser line must be used for marking. The size of the laser point/the width of the laser line changes depending on the distance.

1609 92A 9HJ| (05.08.2024) Bosch Power Tools

English | 41

Switching On/Off

To switch on the measuring tool in point operation, push the on/off switch (2) one setting in the direction of the laser outlet apertures (switch position).

To switch on in line operation, push the on/off switch (2) all the way in the direction of the laser outlet apertures (—switch position).

Immediately after being switched on, the measuring tool sends a laser beam out of the outlet aperture (6) (point operation) or (1) (line operation), depending on the operating mode selected.

• Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself (even from a distance).
  To switch off the measuring tool, push the on/off switch (2) all the way in the OFF direction.
• Never leave the measuring tool unattended when switched on, and ensure the measuring tool is switched off after use. Others may be blinded by the laser beam.

42 | English

Positioning the Measuring Tool (see figure A)

The stated levelling accuracy is only achieved when the measuring tool is positioned correctly:

• For horizontal alignment using the spirit level for horizontal alignment (4), the aluminium supporting surface (12) of the measuring tool must face downward.
• For vertical alignment using the spirit level for vertical alignment (5), the laser outlet apertures (6) and (1) must face upward and the aluminium supporting surface (12) of the measuring tool must face left.

Possible applications

Alignment with Laser Line (Line Operation)

In line operation, you can align objects on walls, for example:

• horizontally next to each other (measuring tool positioned horizontally),
• vertically on top of each other (measuring tool positioned vertically),
• at any angle (measuring tool aligned with the rotating disc (14) of the holder).

English | 43

Place the measuring tool with the magnet (9) directly on a vertical magnetic surface, or use the holder (13).

There are two options for attaching the holder (13) to the wall:

• Pinning (see figure B): Place the holder (13) on the wall. Insert the supplied pins (18) into the wall through the recesses of the holder (vertically or at an angle of 45^ depending on the nature of the wall).

• Hanging: Place the holder (13) on a screw or a nail slightly projecting out of a wall using the recess on its rear. The rear of the holder must be flush with the wall.

Make sure that the holder (13) is securely attached to the wall. Place the measuring tool with the magnet (9) on the magnetic mount (15) of the holder.

Note: Horizontal alignment using the laser line is only possible on the wall to which the measuring tool has been attached. Even if the laser line can be seen on adjacent walls, it does not necessarily run horizontally on these walls.

Aligning at any angle (see figure C): Align the measuring tool horizontally on the holder. Then, turn the rotating disc (14) of the holder so that the 0^ marking is under the position indicator (3) of

44 | English

the measuring tool. Now, turn the measuring tool so that the position indicator (3) shows the required angle on the rotating disc.

Projecting/Checking Heights using the Laser Point (Point Operation) (see figure D)

Place the holder (13) with the 1/4'' tripod mount (17) on the thread of the tripod (16) or a commercially available camera tripod. Tighten the holder using the locking screw of the tripod. Align the tripod head horizontally.

Place the measuring tool with the magnet (9) on the magnetic mount (15) of the holder and align it horizontally.

Using the laser point, you can for instance line up plug sockets on different walls or hooks on a coat rack to ensure they are all at the same height. To do so, turn the tripod head with the mounted holder. Once turned, check whether the spirit level for horizontal alignment (4) is still central. If this is not the case, correct the horizontal alignment of the tripod head or the measuring tool and repeat the rotation.

English | 45

Checking Horizontal/Vertical Lines with the Spirit Levels (see figure E)

The measuring tool can also be used as a carpenter's spirit level for checking vertical and horizontal lines, for example to align a washing machine or a refrigerator.

Position the measuring tool with the aluminium supporting surface (12) horizontally or vertically on the surface to be checked. Make sure that the measuring tool is positioned correctly.

Maintenance and Service

Maintenance and Cleaning

Keep the measuring tool clean at all times.

Never immerse the measuring tool in water or other liquids.

Wipe off any dirt using a damp, soft cloth. Do not use any detergents or solvents.

The areas around the outlet aperture of the laser in particular should be cleaned on a regular basis. Make sure to check for lint when doing this.

46 | English

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts.

You can find explosion drawings and information on spare parts

at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB95HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

1609 92A 9HJ | (05.08.2024) Bosch Power Tools

English | 47

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Disposal

Measuring tools, rechargeable/non-rechargeable batteries, accessories and packaging should be sorted for environmental-friendlyly recycling.

Do not dispose of the measuring tools or battery packs/ batteries with household waste.

Only for EU countries:

Measuring tools that are no longer suitable for use and defective or used rechargeable batteries/batteries must be disposed of separately. Use the designated collection systems.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Bat

Bosch Power Tools 1609 92A 9HJ| (05.08.2024)
