USER MANUAL Jet 60005 AL-KO

Technical line drawing of an Alko industrial pump with attached wiring (no text or symbols)

Inhaltsverzeichnis

Deutsch 6

English....14

Nederlands 22

Français....30

Español 39

Italiano 48

Slovenščina 56

Hrvatski....64

Polski....72

Česky 81

Slovenská 89

Magyar 98

Dansk 106

Svensk....114

Norsk 122

Suomi 130

Eesti 138

Lietuvių 146

Latviešu 154

български 162

Русский 172

Україна....182

Türkçe 192

Român 200

© 2024

AL-KO KOBER GROUP Kötz, Germany

This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without the express permission of the AL-KO KOBER GROUP.

A 10a 2 3 4 5 6 7 8 9 10 Alko Air purifier

B 11 15 16 13 14 17 注意

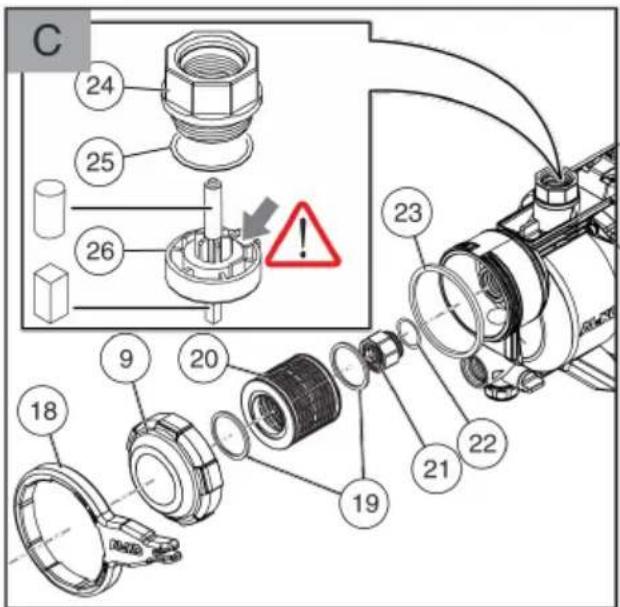

C 24 25 26 9 20 18 19 21 22 23 24

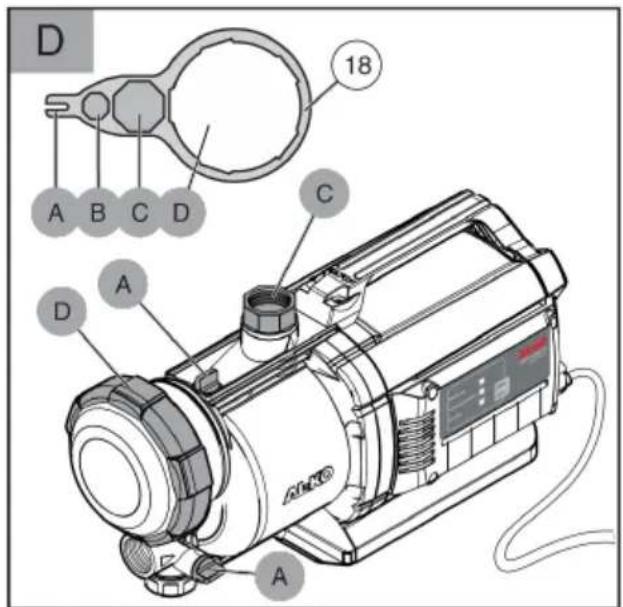

D 18 A B C D C A D A

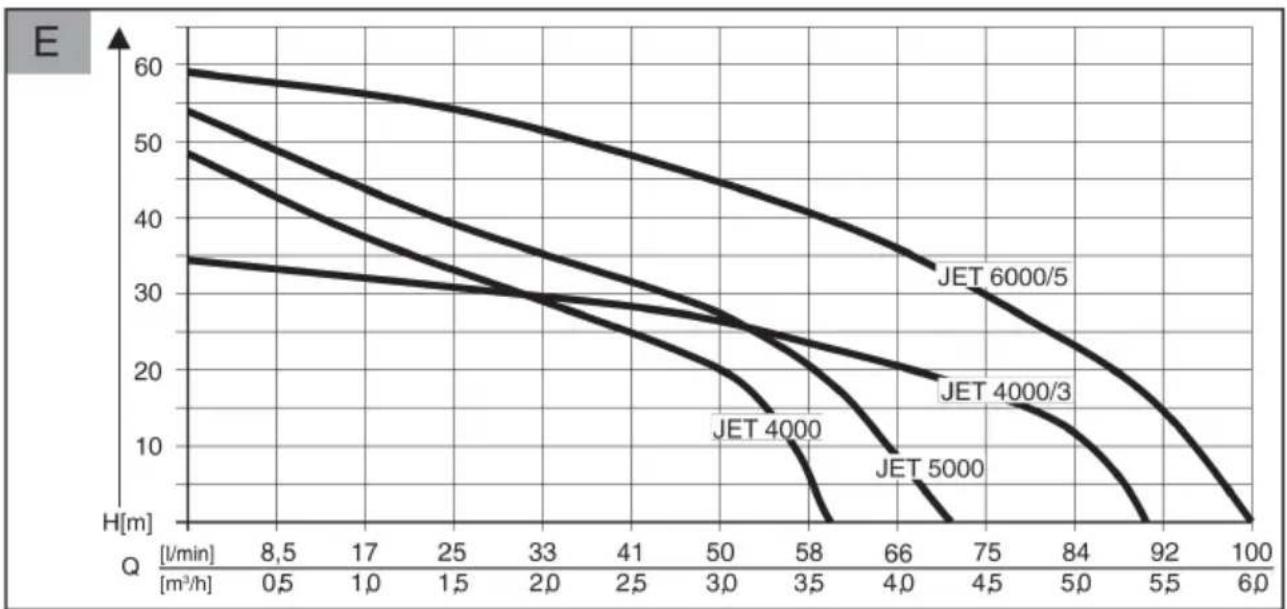

	JET 4000(Art. Nr. 112 841)JET 5000(Art. Nr. 112 842)	JET 4000/3(Art. Nr. 112 843)JET 6000/5(Art. Nr. 112 844)	JET 4600(Art. Nr. 113 511)
	JET 4000: 1000 WJET 5000: 1300 W	JET 4000/3: 900 WJET 6000/5: 1400 W	1210 W
	230 V AC/50 Hz 230 V AC/50 Hz 230 V AC/50 Hz
	X 4 X 4 X 4
	78 dB (A) 73 dB (A) 78 dB (A)
	8 m 8 m 8 m
	JET 4000: 45 m/4,5 barJET 5000: 50 m/5,0 bar	JET 4000/3: 35 m/3,5 barJET 6000/5: 60 m/6,0 bar	50 m / 5,0 bar
	JET 4000: 4000 l/hJET 5000: 4500 l/h	JET 4000/3: 5500 l/hJET 6000/5: 6000 l/h	4300 l/h
	35°C 35 °C 35 °C
	1" 1" 1"
	JET 4000: 10,8 kgJET 5000: 11 kg	JET 4000/3: 11,5 kgJET 6000/5: 13,9 kg	11 kg
	1 JET 4000/3: 3	JET 6000/5: 5	1

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Normalbetrieb

1 About these operating instructions...... 14

1.1 Symbols on the title page 14
1.2 Legends and signal words...... 14

2 Product description 15

2.1 Scope of supply 15
2.2 Product overview (Figures A - D)...... 15
2.3 Function.... 15
2.4 INOX (stainless steel).... 15
2.5 Safety and protective devices...... 15
2.6 Intended use.... 15
2.7 Possible misuse.... 15

3 Safety instructions.... 16

3.1 General safety warnings.... 16
3.2 Electrical safety.... 16

4 Installation.... 16

4.1 Install the pump 16
4.2 Connect the suction line ..... 17
4.3 Install pressure line.... 17

5 Start-up 17

5.1 Fill the pump 17

6 Operation 17

6.1 Switching the pump on 17
6.2 Switching the pump off 17

7 LED displays 18

7.1 normal operation.... 18
7.2 Special mode.... 18
7.3 Fault message 19

8 Maintenance and care.... 19

8.1 Clean the filter.... 19
8.2 Cleaning the check valve.... 19
8.3 Clean float.... 19
8.4 Flushing the pump 19
8.5 Remove blockages 19

9 Help in case of malfunction.... 20

10 Storage.... 21

11 Disposal.... 21
12 After-Sales/Service.... 21
13 Information on the Declaration of Confor- mity 21
14 Warranty 21

1 ABOUT THESE OPERATING INSTRUCTIONS

The German version is the original operating instructions. All additional language versions are translations of the original operating instructions.
- Keep these operating instructions in a safe place at all times so that they can be consulted if you need any information about the appliance.
■ Only pass on the appliance to other persons together with these operating instructions.
■ Comply with the safety and warning information in these operating instructions.

1.1 Symbols on the title page

Symbol Meaning

It is essential to read through these operating instructions carefully before start-up. This is essential for safe working and trouble-free handling.

Operating instructions

To avoid electric shock, do not damage or cut the power cable!

1.2 Legends and signal words

⚠️ DANGER! Denotes an imminently dangerous situation which will result in fatal or serious injury if not avoided.

WARNING! Denotes a potentially dangerous situation which can result in fatal or serious injury if not avoided.

CAUTION! Denotes a potentially dangerous situation which can result in minor or moderate injury if not avoided.

IMPORTANT! Denotes a situation which can result in material damage if not avoided.

NOTE Special instructions for ease of understanding and handling.

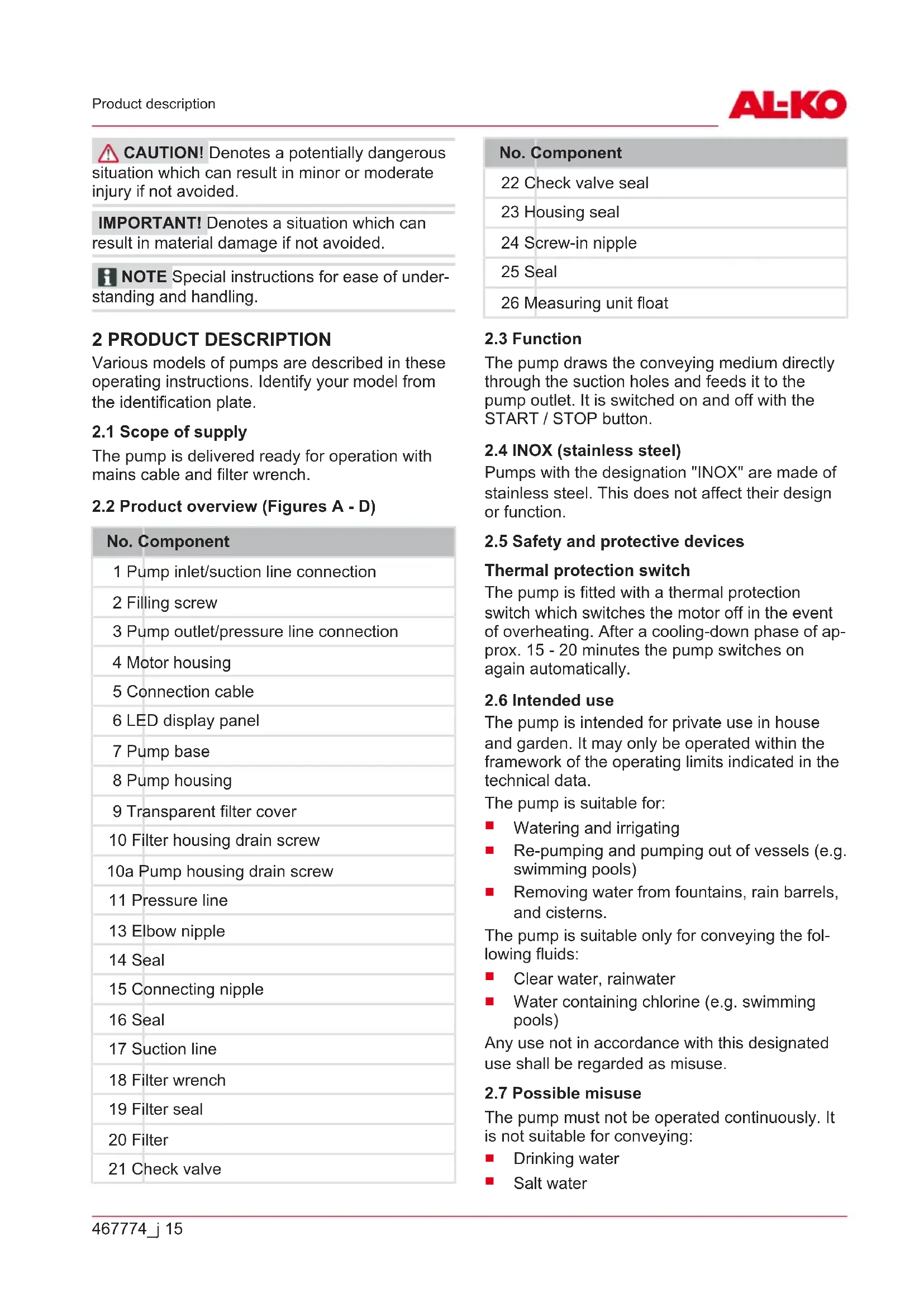

2 PRODUCT DESCRIPTION

Various models of pumps are described in these operating instructions. Identify your model from the identification plate.

2.1 Scope of supply

The pump is delivered ready for operation with mains cable and filter wrench.

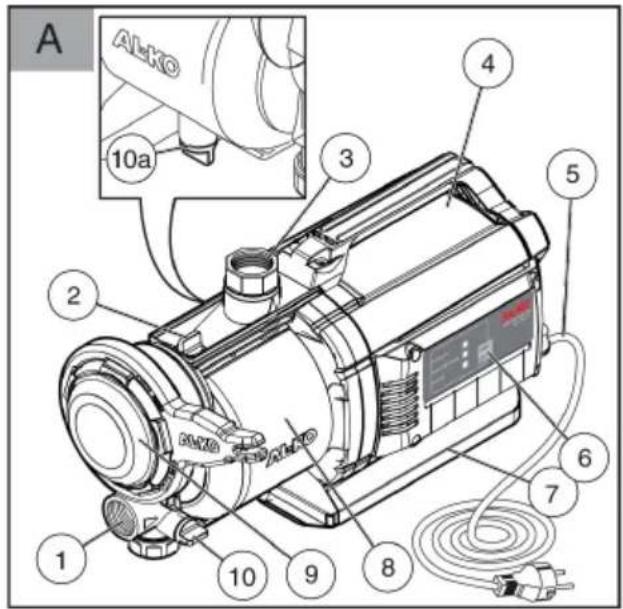

2.2 Product overview (Figures A - D)

No. Component

1 Pump inlet/suction line connection

2 Filling screw

3 Pump outlet/pressure line connection

4 Motor housing

5 Connection cable

6 LED display panel

7 Pump base

8 Pump housing

9 Transparent filter cover

10 Filter housing drain screw

10a Pump housing drain screw

11 Pressure line

13 Elbow nipple

14 Seal

15 Connecting nipple

16 Seal

17 Suction line

18 Filter wrench

19 Filter seal

20 Filter

21 Check valve

No. Component

22 Check valve seal

23 Housing seal

24 Screw-in nipple

25 Seal

26 Measuring unit float

2.3 Function

The pump draws the conveying medium directly through the suction holes and feeds it to the pump outlet. It is switched on and off with the START / STOP button.

2.4 INOX (stainless steel)

Pumps with the designation "INOX" are made of stainless steel. This does not affect their design or function.

2.5 Safety and protective devices

Thermal protection switch

The pump is fitted with a thermal protection switch which switches the motor off in the event of overheating. After a cooling-down phase of approx. 15 - 20 minutes the pump switches on again automatically.

2.6 Intended use

The pump is intended for private use in house and garden. It may only be operated within the framework of the operating limits indicated in the technical data.

The pump is suitable for:

■ Watering and irrigating
■ Re-pumping and pumping out of vessels (e.g. swimming pools)
■ Removing water from fountains, rain barrels, and cisterns.

The pump is suitable only for conveying the following fluids:

Clear water, rainwater
■ Water containing chlorine (e.g. swimming pools)

Any use not in accordance with this designated use shall be regarded as misuse.

2.7 Possible misuse

The pump must not be operated continuously. It is not suitable for conveying:

• Drinking water
  Salt water

Foodstuffs
Waste water
■ aggressive media, chemicals
■ corrosive, flammable, explosive or fuming fluids
■ fluids that are hotter than 35 °C

3 SAFETY INSTRUCTIONS

⚠️ DANGER! Danger from contact with live parts! A defect in the pump or the extension cable can result in serious injury!

■ Disconnect the connector plug from the mains immediately.
■ Connect the device via an earth leakage circuit breaker with a rated leakage current of < 30 mA.

⚠ WARNING! Risk of injury. Defective and disabled safety and protective devices can result in serious injury.

■ Have any defective safety and protective devices repaired.
■ Never disable safety and protective devices.

CAUTION! Risk of burns from hot water!

After extended use against the closed pressure side (> 10 min.), the water in the pump can become very hot and may escape uncontrolled!

■ Disconnect the pump from the mains supply and allow the pump and water to cool down.
- Check the water level on the suction side.
■ Check the leak-tightness of the lines.
- Check the installation of the suction and pressure lines.
- Put the pump into operation again only after all the faults have been remedied!

3.1 General safety warnings

■ Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.
■ People with very strong and complex restrictions may have needs that exceed the instructions described here.
■ Pumps without indication that they are protected against the effect of freezing shall not

be left outside during freezing weather conditions.

■ Never lift, transport or affix the pump by the mains cable. Do not pull the mains cable in order to pull the mains plug out of the socket.
■ Unauthorised modifications or conversions to the pump are prohibited. Repairs may only be carried out by our customer service.
■ Disconnect the mains plug before working on the device. Protect the mains plug against moisture.
■ Only use the pump and extension cable if they are in flawless technical condition. Damaged appliances must not be operated.
- Maintain a safe distance to persons or animals or switch off the pump if animals approach.

3.2 Electrical safety

■ The pump may not be operated while people are in the pool or pond.
The mains voltage at your location must comply with the information regarding mains voltage in the Technical Data. Do not use any other supply voltage.
The pump may only be operated on an electrical installation in accordance with DIN/VDE 0100, parts 737, 738 and 702. For fuse protection, a circuit breaker of 10 A and an earth leakage circuit breaker with a rated leakage current of 10/30 mA must be installed.
■ Only use extension leads approved for outdoor use with a minimum cross-section of 1.5 mm ^4 . Always fully unwind cable drums.
■ Damaged or fragile extension cables may not be used.
- Check the condition of your extension lead prior to every use.
If the connection cable must be extended, only a cable type H07RN-F and a moulded sleeve must be used. This work must only be carried out by an electrician.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4 INSTALLATION

4.1 Install the pump

1. Prepare a level and sturdy installation location.

2. Install the pump horizontally and where it will not be flooded.

■ The pump must be protected from rain and direct water jets.

4.2 Connect the suction line

i NOTE We recommend the installation of flexible lines at the pump inlet to prevent mechanical pressure or tension being exerted on the pump.

1. Select the length of the suction line such that the pump cannot run dry. The suction line must always be at least 30 cm under the water surface.
2. Connect the suction line. Ensure that the connection is tight, but take care not to damage the thread.
3. Always lay the suction line with an upward gradient.

NOTE If the suction head is more than 4 m, a suction hose with a diameter larger than 1" must be installed. We recommend the use of an AL-KO suction unit with suction hose, suction filter and flow-back stop. Ask your specialist dealer.

4.3 Install pressure line

1. Screw connecting nipple (15) with round seal ring (16) into pump outlet (3).
2. Screw elbow nipple (13) with seal (14) onto connecting nipple (15) and turn the elbow nipple in the required direction.
3. Connect pressure line (12) to elbow nipple (13).
4. Open all shut-off devices (valves, spray nozzles, water cock) in the pressure line.

5 START-UP

5.1 Fill the pump

IMPORTANT! Danger of damage to the pump! Dry running will destroy the pump!

The pump must be filled with water up to the overflow before each use so that it can draw water immediately.

NOTE Fill the suction hose with water before screwing in place to reduce the suction time.

1. Open the filling screw using the filter wrench.
2. Pour in water through the filling screw until the pump housing is full.
3. Screw in filling screw.

6 OPERATION

6.1 Switching the pump on

1. Open all shut-off devices (valve, spray nozzle, water cock) in the pressure line.
2. Insert the plug of the mains cable into the power socket.
3. Switch on the pump at the on / off switch.

IMPORTANT! Danger of damage to the pump! A closed pressure line can result in damage to the pump!

- Do not allow the pump to run against a closed pressure line.

6.2 Switching the pump off

1. Switch the pump off at the on / off switch after use.
2. Close all the shut-off devices in the pressure line.

CAUTION! Danger of injury from hot water After extended use against the closed pressure side (> 10 min.), the water in the pump can become very hot and may escape uncontrolled!

■ Disconnect the pump from the mains supply and allow the pump and water to cool down.
- Put the pump into operation again only after all the faults have been remedied!

The risk of injury from hot water can arise in the event of:

■ Incorrect installation,
■ Closed pressure side,
- Lack of water in the suction line, or
■ Defective pressure switch.

Procedure

1. Disconnect the pump from the mains supply and allow the pump and water to cool down.
2. Check the pump, installation and water level.
3. Put the pump into operation again only after all the faults have been remedied!

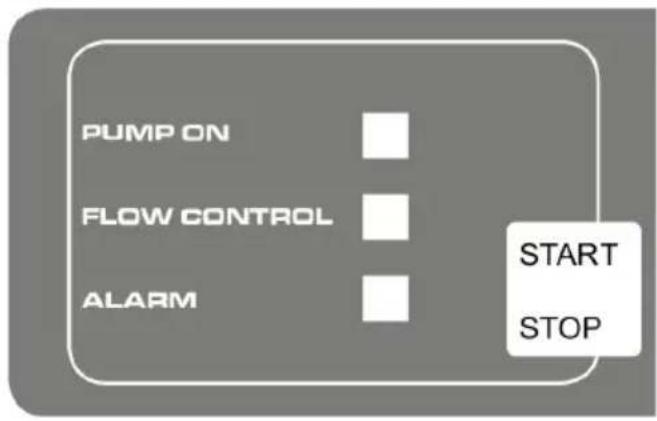

7 LED DISPLAYS

PUMP ON FLOW CONTROL ALARM START STOP

7.1 normal operation

Switching condition LED	display Function / action
Press the START /STOP button.Pump switches on and starts to draw water.	PUMP ON LED lights up. FLOW CONTROL LED flashes.	Commissioning: Suction and pressure side connected, pump filled with water, water present on suction side. Pump connected to mains.
Pump running. PUMP ON	LEDlights up.	Pump delivering water. Water is removed on the pressure side.
Press the START /STOP button.Pump switches off.	LEDs out. The pump is switched off.

7.2 Special mode

In order to use a Hydrocontrol or a remote control switch, the pump must start automatically, the special mode must be actuated for this.

Switching condition LED	display Function / action
Activating special mode: Hold the START/ STOP button depressed for 10 seconds while in- serting the mains plug.	All LEDs flash. Pump now starts immediately. Mode is retained, even when the mains voltage is disconnected. Spe- cial mode is active when the PUMP ON LED flashes during operation.
Deactivating special mode: Hold the START/ STOP button depressed for 10 seconds while in- serting the mains plug.	All LED displays Flash.	Pump switches off immediately. Start again by press- ing the START/STOP button

7.3 Fault message

Switching condition LED	display Function / action
Pump is switched off by the electronics (dry running protection). Reset the fault message by pressing the START/ STOP button.	ALARM LED lights up.	Check suction line, then back to initial commissioning until the pump delivers water.Dry running alarm: This message is displayed if no flow is measured for longer than 180 seconds.Reset the error message by pressing the START /STOP button.
During the first and second re-start after the fault message.	LED display ALARM is flashing.	Check pump and back to initial commissioning until the pump delivers water.
During the third re-start after the fault message.	LEDs FLOW CONTROL and ALARM flash alternately.	Allow the pump to cool down and check.

8 MAINTENANCE AND CARE

DANGER! Danger of electric shock!

There is a risk of electric shock when working on the pump.

■ Disconnect the mains plug before starting any fault remedying work.
■ Faults in the electrical system must be rectified by a qualified electrician.

8.1 Clean the filter

1. Unscrew filter chamber drain plug (10), drain the filter chamber and screw in the drain plug again.
2. Unscrew transparent filter cover (9) using filter wrench (18).
3. Remove filter (20) from the filter housing and clean under running water.
4. Clean filter housing and transparent filter cover.
5. Before installing the filter, check filter seals (19) and housing seal (23) for damage and replace, if necessary.
6. Install the filter, screw on the transparent filter cover and tighten finger-tight using the filter wrench.

8.2 Cleaning the check valve

1. Remove the filter (see Section "Cleaning the filter").

2. Unscrew check valve (21) and clean under running water.

3. Replace seal (25), if necessary.
4. Fit check valve.
5. Install filter.

8.3 Clean float

1. Unscrew pressure line (3) with elbow nipple (13) and connecting nipple (15).
2. Unscrew screw-in nipple (24) with seal (25). Note the installation position of float (26). Pull out the float body and clean it.
3. Replace the float - noting the installation position.

8.4 Flushing the pump

After conveying swimming pool water containing chlorine or fluids that leave residues, the pump must be flushed out with clear water.

1. Flush the pump with clear water.

8.5 Remove blockages

1. Disconnect the pump from the mains supply and secure to prevent restarting.
2. Disconnect suction line from pump inlet.
3. Connect pressure line to the water line.
4. Allow water to run through the pump housing until the blockage is removed.
5. Switch on the pump briefly to check whether it runs smoothly.
6. Put the pump into operation as described.

9 HELP IN CASE OF MALFUNCTION

! DANGER! Danger of electric shock!

There is a risk of electric shock when working on the pump.

■ Disconnect the mains plug before starting any fault remedying work.
■ Faults in the electrical system must be rectified by a qualified electrician.

NOTE In the event of faults that you cannot rectify, please contact our Customer Service department.

Malfunction Possible cause	Remedy
Motor does not run. Impeller blocked. Remove dirt from the suction area.
Pump running but does not feed.	Water level too low. Submerge the suction hose deeper.
	Air in pump housing. Fill the pump.
	Pump drawing in air. Check all connections and the cover on the filter for leaks.
	Blockage on the suction side. Caution!Risk of burns from hot water!Remove dirt from the suction area.
	Pressure line closed off. Caution!Risk of burns from hot water!Open the pressure lone.
	Pressure hose kinked. Extend the pressure hose.
	Dry running protection activated.	Check suction side.
Delivery rate too low. Pressure	hose kinked. Extend the pressure hose.
	Hose diameter too small. Use a hose with a bigger diameter.
	Blockage on the suction side. Remove dirt from the suction area.
	Feed head to high. Observe max. feed head, see technical data!
	Suction head too large.	Check suction head, observe max. suction head, see Technical Data.

10 STORAGE

1. Drain suction and pressure line.
2. Unscrew drain plug and allow the water to drain out of the pump.
3. Screw in the drain plug again and store pump and accessories in a frost-proof place.

i NOTE If there is the danger of frost, the system must be completely drained and the pump must be stored in a frost-proof place.

11 DISPOSAL

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.

Packaging, equipment and accessories are made from recyclable materials, and must be disposed of accordingly.

12 AFTER-SALES/SERVICE

In the event of questions of warranty, repair or spare parts, please contact your nearest AL-KO Service Centre. These can be found on the Internet at: www.alko-garden.com/service-contacts

Further information on spare parts can be found at: www.alko-garden.com/spareparts

13 INFORMATION ON THE DECLARATION OF CONFORMITY

We hereby declare, as the exclusively responsible party, that this product in its marketed form meets the requirements of the harmonised EU Directives, EU safety standards and the product-specific standards. The Declaration of Conformity forms part of the operating instructions and is included with the machine.

14 WARRANTY

We will remedy any material or manufacturing defects discovered in the device during the statutory period of limitation for claims for defects by repair or replacement at our discretion. The period of limitation is determined in each case by the law of the country in which the device was purchased.

Our warranty promise applies only if:

■ These operating instructions are observed
■ The device is handled correctly
■ Original spare parts have been used

The warranty becomes void in the case of:

■ Unauthorised repair attempts
■ Unauthorised technical modifications
■ Use for other than the intended purpose

The warranty does not include:

■ Paint damage attributable to normal wear
■ Wear parts that are marked with a box (x) on the spare parts card

The warranty period commences with the purchase by the first end user. The date on the proof of purchase is decisive. In the event of a warranty claim, please contact your dealer or the nearest authorised customer service centre with this declaration and the original proof of purchase. This declaration does not affect the purchaser's statutory claims for defects against the vendor.

VERTALING VAN DE ORIGINELE GEBRUIKERSHANDLEIDING

Inhoudsopgave

2 PRODUCTBESCHRIJVING

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Normaalbedrijf

PUMP ON FLOW CONTROL ALARM START STOP

Procédure

PUMP ON FLOW CONTROL ALARM START STOP

PUMP ON FLOW CONTROL ALARM START STOP

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Običajno delovanje

Status preklopa LED-indikator Funkcija/ukrep

12 SERVISNA SLUŽBA/SERVIS

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Normalan način rada

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Tryb normalny

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Normální provoz

PUMP ON FLOW CONTROL ALARM START STOP

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Normál üzemmód

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Normaldrift

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Normal drift

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Normal drift

Koblingsstatus LED-indikator Funksjon / Tiltak

8 VEDLIKEHOLD OG PLEIE

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Normaalikäyttö

4.3 Survetoru monteerimine

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Normaalkasutus

PUMP ON FLOW CONTROL ALARM START STOP

PUMP ON FLOW CONTROL ALARM START STOP

PUMP ON FLOW CONTROL ALARM START STOP

7.1 нормален режим

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Обычный режим

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Звичайний режим

PUMP ON FLOW CONTROL ALARM START STOP

7.1 Normal işletim

PUMP ON FLOW CONTROL ALARM START STOP

Modul normal de functionare

Imported by: AL-KO Gardentech UK Ltd, Murray way, Wincanton, Somerset, BA9 9RS / UK | [phone]

[e-mail] | www.alko-garden.uk

AL-KO Service: www.al-ko.com/service-contacts
