Product type Drainage water pump
Brand AL-KO
Model Drain 11004
Application Emptying basements, pools, tanks
Power supply 230 V ~ 50 Hz
Power consumption 1100 W
Maximum flow rate approx. 15000 l/h
Maximum discharge head approx. 10 m
Maximum immersion depth 7 m
Connection diameter 1 1/2" (38 mm) or 2" (50 mm)
Dimensions (L x W x H) 200 x 150 x 250 mm
Weight 4.5 kg
Protection class IP68
Safety device Integrated thermal protection
Power cable 10 m, H07RN-F
Liquid type Clear or slightly dirty water (particle size up to 5 mm)
Liquid temperature 3 °C to 35 °C
Maintenance Clean the strainer regularly, store in a frost-free place
Spare parts available Cable, float switch, seals, impeller
Warranty 2 years
Certifications CE, TÜV

Frequently Asked Questions - Drain 11004 AL-KO

How to install the AL-KO Drain 11004 pump?
Place the pump on a stable surface and immerse it completely in water. Connect the discharge hose to the outlet connection. Plug the pump into a power outlet protected by a residual current circuit breaker (30 mA).
The pump does not start, what to do?
Check the power supply, cable, and circuit breaker. Ensure the float switch is free to move. If the thermal protection has tripped, wait for it to cool down.
What is the maximum immersion depth?
The maximum immersion depth is 7 meters. Do not immerse beyond that.
Can you pump water containing sand or gravel?
No, this pump is designed for clear or slightly dirty water with particles up to 5 mm. Sand and gravel can damage the impeller.
How to clean the pump after use?
Disconnect the pump. Clean the strainer with a brush under clean water. Rinse the interior by running the pump with clean water for a few seconds. Store it in a frost-free place.
The float switch does not activate, what to do?
Check that the float switch can move freely. If necessary, adjust the position of the cable to avoid any blockage. The float must be in a vertical position.
What types of liquids can the pump handle?
Clear water, rainwater, pool water, greywater (slightly soapy) without corrosive products. Temperature between 3°C and 35°C.
How to prevent the pump from freezing in winter?
Empty the pump completely after use. Store it in a frost-free room or bury it below the frost line. Do not leave stagnant water in the pump.
What is the maximum discharge pressure?
The maximum discharge head is about 10 meters (pressure 1 bar). For higher heights, the flow rate decreases.
Where to find spare parts for the Drain 11004?
Spare parts are available from AL-KO after-sales service or authorized dealers. Refer to the manual for part numbers such as the cable, impeller, or float switch.

User questions about Drain 11004 AL-KO

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Water pump in PDF format for free! Find your manual Drain 11004 - AL-KO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Drain 11004 by AL-KO.

USER MANUAL Drain 11004 AL-KO

natural_image Three AL-KO water level pumps with red and black casing, shown from different angles (no text or symbols visible)
DGB
FI
NLE
DKS
FIN CZ
SKH
PLRUS
UASLO
HRTR
P

INFORMATION | MANUALS | SERVICE

SUB 8004 DRAIN 6004 DRAIN 11004

AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 1

AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 2

AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 3

AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 4

AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 5

AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 6

A 1 2 8 4 3 5 7 5 6

B START min. 450 mr STOP min. 450 x 450 mm

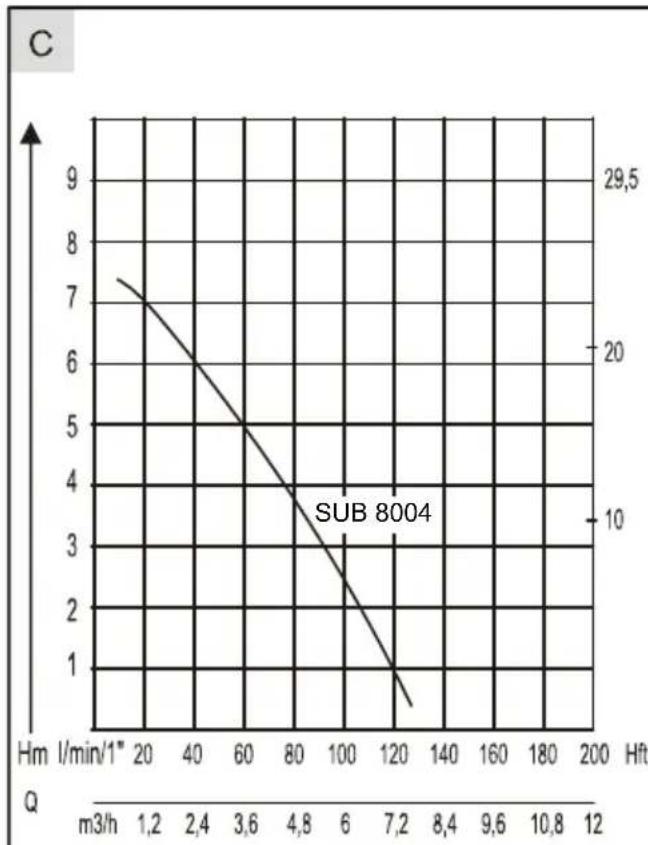

AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 9

line | Hm (l/min/1" ) | Q | | -------------- | ---- | | 20 | 7.0 | | 60 | 5.0 | | 100 | 3.0 | | 120 | 1.0 |

AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 10

line | Hm /l/min/1" | Drain 6004 Q | Drain 11004 Q | | ------------ | ------------ | ------------- | | 20 | 6.5 | 9.0 | | 120 | 1.0 | 7.0 |
AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 11iSubDrain
8004 6004 11004
Art. No113 113Art. No113 114Art. No113 115
AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 12350 W 450 W850 W
AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 13230-240 V, 50 Hz 230-240 V, 50 Hz 230-240 V, 50 Hz
AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 14IPX8 IPX8 IPX8
AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 157 m 5 m 9,5 m
AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 168000 l/h 7500 l/h12000 l/h
AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 175 m 5 m 5 m
AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 182-3 mm 30 mm30 mm
AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 1935 °C 35 °C 35 °C
AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 204,6 kg 4,8 kg 6,5 kg
AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 217 cm 13 cm 13 cm
AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 221 cm 4 cm 4 cm
AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 2344 cm12 cm47 cm13 cm47 cm13 cm
AL-KO Drain 11004 - SUB 8004 DRAIN 6004 DRAIN 11004 - 2410 m 10 m 10 m

Einleitung

Please read the operating instructions carefully before you use the submersible pump to prevent accidents and ensure the trouble-free operation of the pump.

Make sure you keep the instructions at hand for quick reference. If you resell your pump or give it to another user, please include these instructions in the sale or the gift.

The following symbols are used in the instructions:

AL-KO Drain 11004 - Einleitung - 1

DANGER

This symbol draws your attention to work processes or operating procedures that have to be carefully observed in order to prevent serious injury to the user or another person.

AL-KO Drain 11004 - DANGER - 1

CAUTION

This symbol draws your attention to information you need to ensure that your pump is not damaged due to improper or careless use.

AL-KO Drain 11004 - CAUTION - 1

PLEASE NOTE

The information symbol draws your attention to essential technical requirements.

For Your Safety

AL-KO Drain 11004 - For Your Safety - 1

The submersible pump may only be connected to an electrical device which is compliant with DIN/VDE 0100, Parts 737, 738 and 702 (swimming pools). Make sure that fuse protection in the form of a 10 A automatic cut-out and a fault current guard circuit with a nominal fault current of 10/30 mA is installed.

AL-KO Drain 11004 - For Your Safety - 2

The supply voltage and current specified on the type plate must be identical with the voltage and current of your electrical system.

AL-KO Drain 11004 - For Your Safety - 3

If you need to connect your pump to an extension cord, make sure that the cable is 3 x 1.5 mm 2 that it corresponds to type H07RN-F and is compliant with DIN 57282/57245. The connector must be splash-proof. Cable drums must be completely unwound.

AL-KO Drain 11004 - For Your Safety - 4

The submersible pump may not be operated by anyone

- who has not read or does not fully understand the operating manual or - is under the age of 16.

AL-KO Drain 11004 - For Your Safety - 5

The submersible pump may not be used for any other than its designated use. Before putting the pump into operation, make sure that

- the submersible pump, the electric cable and the plug are not worn or damaged and - Nobody is near, touching or in the liquid to be pumped.

AL-KO Drain 11004 - For Your Safety - 6

Do not operate the submersible pump if it is damaged. Necessary repairs must be carried out in a qualified AL-KO service centre.

AL-KO Drain 11004 - For Your Safety - 7

Never use the electric cable to lift, carry or attach the submersible pump to another object. Do not pull on the cable when unplugging the pump.

AL-KO Drain 11004 - For Your Safety - 8

Make sure that the pump is unplugged before beginning any maintenance, repair or cleaning work. In the event of a malfunction, immediately unplug the pump. Make sure that the plug does not get wet.

AL-KO Drain 11004 - For Your Safety - 9

Do not attempt to make any changes or modifications to the submersible pump by yourself. You may endanger your life or invalidate the warranty.

Use

Designated use

The submersible pump is designed for home use in your house or garden. Please observe the technical data given in the instructions before putting the pump into operation.

Your submersible pump has been designed for use in the following applications:

  • emptying your cellar or house after a flood,
  • emptying containers or pumping liquid from one container into another,
  • pumping water from wells,
  • aerating garden ponds or artificial brooks and streams,
  • emptying drains or cisterns (submersible pumps, types Drain only).

The submersible pump is designed to pump only the following liquids:

- clear water,

  • rain water,
    – chlorine water (pool water),
    – water for domestic use,
  • waste water with no more than 5% suspended matter and a grain size of max. 30 mm diameter (submersible pumps, types Drain only)

Prohibited use

Your submersible pump is not intended for permanent operation. The pump may not be used to pump the following liquids:

  • drinking water,
  • salt water,
    – beverages or liquid foods,
    – corrosives or chemicals
  • acids or combustible, explosive or gas-forming liquids,
    – liquids with a temperature above 35 °C
    – sandy water or water containing abrasives,
  • waste water containing textile or paper particles (applicable for submersible pumps, types Sub only).

Description of the Pump

Submersible pump (Fig. A)

1 Cable terminal
2 Handle
3 Pump housing
4 Multi-size nipple
5 Elbow connector
6 Suction slots
7 Float switch
8 Electric cable

Function of the pump

The submersible pump sucks the liquid to be pump-ed into the pump through the suction slots (6) and pumps it out at the outlet.

Thermal protection

Your submersible pump is equipped with a thermal protection switch which automatically switches off the pump in case of overheating. The pump will remain off until it has cooled down.

After about 15 - 20 minutes, the pump will automatically switch on.

Setting up and Operating the Pump

  1. Screw the elbow connector (5) into the pump outlet.
  2. Screw the multi-size nipple (4) into the elbow connector (5).
  3. Attach a hose to the multi-size nipple.

AL-KO Drain 11004 - Setting up and Operating the Pump - 1

You can cut off the tip of the multi-size nipple to fit the diameter of the hose you are using. Using a hose with the largest possible diameter will greatly improve the performance of the pump.

  1. Uncoil the electric cable completely.

AL-KO Drain 11004 - Setting up and Operating the Pump - 2

Make sure that any electrical connections are not exposed to water and do not lie within the outflow of the pump.

AL-KO Drain 11004 - Setting up and Operating the Pump - 3

When placing the pump in the liquid, make sure to let it down slowly. You may need to tilt the pump slightly so that air trapped in the body is released. Set the pump on the bottom so that it cannot fall over. If the bottom should be sandy or muddy or rocky and uneven, place the pump on a suitable hard, flat surface or suspend it from a rope attached to a secure object. Make sure to leave adequate room between the pump and the bottom so that it cannot suck up solid matter.

AL-KO Drain 11004 - Setting up and Operating the Pump - 4

Make sure that the pump does not suck in solid matter. Sand or other abrasive particles suspended in the liquid will lead to increased wear and tear and may impact the performance of your pump. Before lowering the pump into a well or a cistern, attach a rope to the handle. When placing the pump inside a cistern, make sure that the shaft is large enough for the pump to fit. For min. shaft dimensions, see Figure B.

AL-KO Drain 11004 - Setting up and Operating the Pump - 5

Place a cover over the cistern so that no one will fall in.

  1. Plug the pump into the socket. As soon as the pump has reached the cut-in (= START) level, the float switch will automatically switch the pump on. When the liquid has fallen below the cut-off (= STOP) level, the pump will automatically switch off, see technical data.

AL-KO Drain 11004 - Setting up and Operating the Pump - 6

Take suitable measures, e.g. installation of an alarm or a back-up pump, to ensure that flooding will not occur if the pump should malfunction.

AL-KO Drain 11004 - Setting up and Operating the Pump - 7

Make sure that the pump does not run on a blocked or closed pressure hose.

Pumping out any remaining liquid

Before you can pump out any remaining liquid below the cut-off (= STOP) level (see technical data), you will have to operate the float switch manually:

  1. Unplug the electric cable.
  2. Fix the float switch so that it remains in an upright position.
  3. Plug in the electric cable. The pump will automatically switch on and pump out any remaining liquid.

AL-KO Drain 11004 - Pumping out any remaining liquid - 1

While pumping out remaining liquid, make sure to keep the pump under observation and turn it off by pulling the plug when the liquid has been completely pumped out, so that the pump does not suck air, as this may damage your pump.

AL-KO Drain 11004 - Pumping out any remaining liquid - 2

If the level of the remaining water drops below 10/40 mm, the pump will suck in air. Before using the pump again to drain liquid, the air trapped in the pump will have to be let out (see Setting up and Operating the Pump).

Adjusting the cut-in and cut-off levels

The float switch cable is attached to the pump housing. You can adjust the cut-in = START and cut-off = STOP levels for operation by simply changing the height of the switch as desired. Recommended length of the float switch cable is approx. 120 mm.

Switching off the Pump

  1. To switch off the pump, just pull the plug of the electric cable from the socket.

Maintenance and Cleaning

AL-KO Drain 11004 - Maintenance and Cleaning - 1

Before beginning any maintenance or cleaning work, make sure that the pump has been unplugged and take precautions to ensure that it cannot be switched on during work!

Cleaning the pump

  • If you have used your pump to pump chlorine water (pool water) or liquids which leave a residue, flush your pump out with clear water after use.
    – Clean the suction slots located in the suction body with clear water as required.

Protect from frost

AL-KO Drain 11004 - Protect from frost - 1

Your pump is susceptible to low temperatures. Make sure to empty the pump of residual liquid and store it so that it is protected from frost.

Disposal

AL-KO Drain 11004 - Disposal - 1

Do not dispose of worn-out units through the household garbage!

The appliance, its packaging and accessories are all produced from recyclable materials and must be disposed of accordingly.

Malfunctions

AL-KO Drain 11004 - Malfunctions - 1

Before you attempt to remedy any malfunction of your pump, pull the plug to prevent injury or death due to electrocution!

What is wrong? What is the possible reason?How to remedy the malfunction:
Motor does not run. Impeller is blocked.Remove blockage in inlet area. Clean the impeller with a jet of water.
Thermal switch has switched off.Wait until the thermal switch has automatically turned the pump on again. Check water temperature. Have the pump checked.
NoHapower. qualified electrician check the power supply.
Float switch does not work even though liquid is above cut-in level.Send pump to your nearest AL-KO service centre.
Submersible pump runs but is not pumping out liquid.Air is trapped in the pump housing.Tilt the pump to let the trapped air out.
Suction slots are blocked.Remove blockage and clean suction slots.
Pressure line is blocked.Clear blockage in pressure line.
Pressure hose is bent. Straighten out pressure hose.
Submersible pump is only pumping out liquid very slowly or weakly.Hose diameter is too small.Attach a hose with a larger diameter.
Suction slots are blocked.Remove blockage and clean suction slots.
Pumping height is too great. Lower pumping height.

If you are unable to remedy a malfunction, please call the AL-KO service centre nearest you.

Introduction

Antonio De Filippo, Managing Director

Garantie

EC declaration of conformity

We hereby declare that this product, in the form in which it is marketed, meets the requirements of the harmonised EU guidelines, EU safety standards, and the product-specific standards.

Product

Submersible pump, electric

Serial number

G3023025

Model

Sub 8004 (8001)

Drain 6004 (6001) / 11004 (11001)

Manufacturer

AL-KO Geräte GmbH

Ichenhauser Str. 14

89359 KOETZ

DEUTSCHLAND

EU directives

2006/95/EG

2004/108/EG

Executive Officer

Anton Eberle

Ichenhauser Str. 14

89359 KOETZ

DEUTSCHLAND

Harmonised standards

EN 60335-1; VDE 0700-1:2007-02

EN 60335-2-41; VDE 0700-41:2004-12

EN 60335-2-41/A2; VDE 0700-41/A2:2009-02

EN 55014-1; VDE 0875-14-1:2007-06

EN 55014-1/A1; VDE 0875-14-1/A1:2008-12

EN 55014-2; VDE 0875-14-2:2009-06

EN 61000-3-2; VDE 0838-2:2006-10

EN 61000-3-2/A1; VDE 0838-2/A1:2007-05

EN 61000-3-2/A7; VDE0838-2/A7:2007-06

EN 61000-3-2/A4; VDE 0838-2/A4:2007-06

EN 61000-3-3; VDE 0838-3:2009-06

Kötz, 2013-07-26

AL-KO Drain 11004 - Harmonised standards - 1

Antonio De Filippo, Managing Director

Warranty

If any material or manufacturing defects are found during the statutory customer protection period, we will either repair or replace the equipment, whichever we consider the more appropriate. This statutory period may vary according to the legislation in force in the country where the equipment was purchased.

Our warranty is valid only if: The warranty is no longer valid if:

■ The equipment has been used properly

■ The operating instructions have been followed

■ Genuine replacement parts have been used

■ The equipment has been tampered with

■ Technical modifications have been made

■ The trimmer was not used for its intended purpose (for example, used for commercial or communal applications)

The following are not covered by warranty:

■ Paint damage due to normal wear

■ Wear parts identified by a border XXX XXX (X) on the spare parts list

- Combustion motors – these are covered by a separate warranty from the manufacturer concerned

To make a claim under warranty, please take this statement of warranty and proof of purchase to the nearest authorised customer service centre. This warranty does not affect the usual statutory rights of the customer relative to the seller.

Antonio De Filippo, Managing Director

Garantie

Antonio De Filippo, Managing Director

Garanzia

Antonio De Filippo, Managing Director

Garantía

Antonio De Filippo, Managing Director

Garantie

Antonio De Filippo, Managing Director

Garanti

Antonio De Filippo, Managing Director

Garanti

Antonio De Filippo, Managing Director

Takuu

Antonio De Filippo, Managing Director

Záruka

Antonio De Filippo, Managing Director

Záruka

Antonio De Filippo, Managing Director

Garancia

Antonio De Filippo, Managing Director

Gwarancja

Antonio De Filippo, Managing Director

Гарантия

Antonio De Filippo, Managing Director

Гарантія

Antonio De Filippo, Managing Director

Garancija

Antonio De Filippo, Managing Director

Jamstvo

Eventualne greške na materijalu ili greške pri proizvodnji koje se pojave na uređaju otklanjamo za vrijeme zakonskog jamstvenog roka za zahtjeve u slučaju nedostatak po našem izboru u vidu popravke ili zamjenske isporuke. Jamstveni rok određuje se prema zakonu zemlje u kojoj je uređaj kupljen.

Naše jamstvo vrijedi samo u slučaju: Pravo na jamstvo gubi se u slučaju:

■ propisnog rukovanja uređajem
■ poštivanja uputa za rukovanje
■ uporabe originalnih zamjenskih dijelova

Antonio De Filippo, Managing Director

Garanti

Antonio De Filippo, Managing Director

Garantia

Country Company Telephone Fax

AAL-KO Kober Ges.m.b.H.(+43) 3578/2515227(+43) 3578/251538
AUSAL-KO International PTY. LTD(+61) 3/9767-3700(+61) 3/9767-3799
B/LEurogarden NV(+32) 16/805427(+32) 16/805425
BGValerii S&M Group SJ(+359) 2 942 34 02(+359) 2 942 34 10
CHAL-KO Kober AG(+41) 56/4183150(+41) 56/4183160
CZAL-KO Kober Spol.sr.o.(+420) 382/210381(+420) 382/212782
DAL-KO Geräte GmbH(+49) 8221/203-0(+49) 8221/203-138
DKAL-KO Ginge A/S(+45) 98821000(+45) 98825454
EST/LT/LVAL-KO Kober SIA(+371) 67409330(+371) 67807018
FAL-KO S.A.S.(+33) 3/85-763540(+33) 3/85-763588
GBRochford Garden Machinery Ltd.(+44) 1963/828050(+44) 1963/828052
HAL-KO KFT(+36) 29/537050(+36) 29/537051
HRBrun.ko.-prom d.o.o.(+385) 1 3096 567(+385) 1 3096 567
IAL-KO Kober GmbH / SRL(+39) 039/9329311(+39) 039/9329390
INAGRO-COMMERCIAL(+91) 3322874206(+91) 3322874139
IQGulistan Com(+946) 750 450 80 64
IRLCyril Johnston & Co. Ltd.(+44) 2890813121(+44) 2890914220
LYASHOFAN FOR AGRICULT. ACC.(+218) 512660209(+218) 512660209
MABADRA Sarl(+212) 022447128(+212) 022447130
MKTechno Geneks(+389) 2 2551801(+389) 2 2520175
NAL-KO GINGE A/S(+47) 64862550(+47) 64862554
NLO.DE LEEUW GROENTECHNIEK(+31) 38/444 6160(+31) 38/444 6358
PLAL-KO Kober z.o.o.(+48) 61/816 1925(+48) 61/816 1980
ROOMNITECH Technology SRL(+4) 021 326 36 72(+4) 021 326 36 79
RUSOOO AL-KO Kober(+7) 499/168 8718(+7) 499/96600-00
RUSAL-KO St. Petersburg GmbH(+7) 812/4461075(+7) 812/4461075
SAL-KO Ginge Svenska AB(+46) (0) 31573580(+46) (0) 31575620
SKAL-KO Kober Slovakia Spol.s.r.o.(+421) 2/45994112(+421) 2/45648117
SLODARKO OPARA S.P.(+386) 17225858(+386) 17225851
SRBAgromarket doo(+381) 34/300765(+381) 34/354327
TRZIMAS A.S.(+90) 232 4580586(+90) 232 4572697
UATOV AL-KO Kober(+380) 44/4923396(+380) 44/4923397
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : AL-KO

Model : Drain 11004

Category : Water pump
