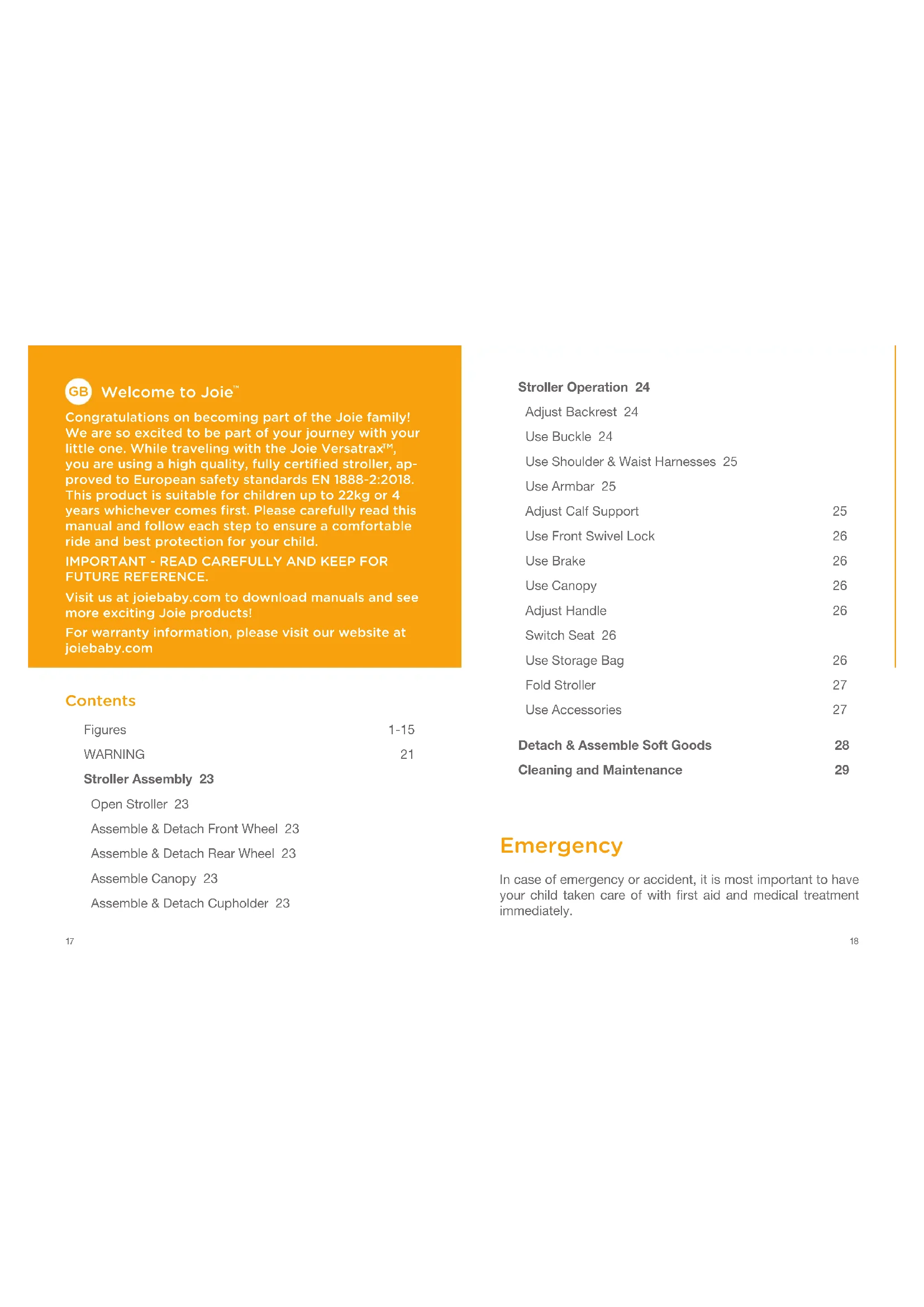

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Joie Versatrax™, you are using a high quality, fully certified stroller, approved to European safety standards EN 1888-2:2018. This product is suitable for children up to 22kg or 4 years whichever comes first. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Visit us at joiebaby.com to download manuals and see more exciting Joie products!

For warranty information, please visit our website at joiebaby.com

Contents

Figures 1-15

WARNING 21

Stroller Assembly 23

Open Stroller 23

Assemble & Detach Front Wheel 23

Assemble & Detach Rear Wheel 23

Assemble Canopy 23

Assemble & Detach Cupholder 23

Stroller Operation 24

Adjust Backrest 24

Use Buckle 24

Use Shoulder & Waist Harnesses 25

Use Armbar 25

Adjust Calf Support 25

Use Front Swivel Lock 26

Use Brake 26

Use Canopy 26

Adjust Handle 26

Switch Seat 26

Use Storage Bag 26

Fold Stroller 27

Use Accessories 27

Detach & Assemble Soft Goods 28

Cleaning and Maintenance 29

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model.

Product Versatrax Stroller

Suitable for This product is suitable for children up to

22kg or 4 years whichever comes first.

Materials Plastics, metal, fabrics

Patent No. Patents pending

Made in China

Brand Name Joie

Website www.joiebaby.com

Manufacturer Allison GmbH

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Stroller Frame
2 Canopy
3 Front Wheel
4 Rear Wheel
5 Cupholder
6 Seat Pad
7 Armbar
8 Calf Support
9 Footrest
10 Front Wheel
11 Swivel Lock

12 Storage Basket
13 Shoulder Harness
14 Cupholder
15 Handle
16 Canopy Window
17 Recline Handle
18 Storage Latch
19 Storage Bag A
20 Storage Bag B
21 Brake Lever
22 Rear Wheel

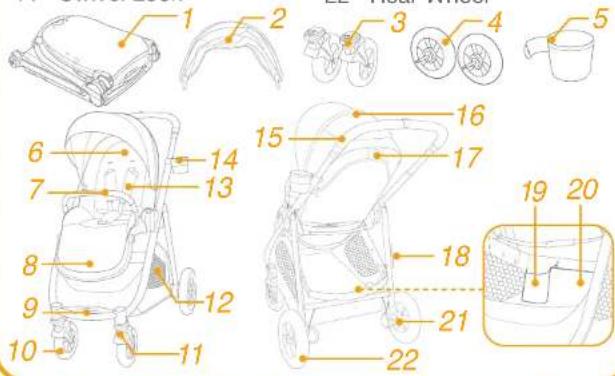

Technical diagram of a stroller with numbered parts and labeled parts, including front, rear, side, and interior views.

Accessories

(May not be included)

1 Adapter
2 Rain Cover

Accessories may be sold separately or may not be available depending on region.

WARNING

! WARNING Never leave the child unattended.
! WARNING Ensure that all the locking devices are engaged before use.
! WARNING To avoid injury ensure that the child is kept away when unfolding and folding this product.
! WARNING Do not let the child play with this product.
! WARNING Always use the restraint system.
! WARNING Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use..
! This product is not suitable for running or skating.
! Use the stroller with a child weighing less than 22kg. It will cause damage to the stroller with an unfitted child.
! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
! The parking device shall be engaged when placing and removing children.
! To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket.
! The maximum recommended weight in the cupholder is 1lbs (0.5kg).
! Use the stroller with only one child at a time.
! Do not attach items to the handle, seat back or sides of the stroller. Any additional load will affect the stability of the stroller and could cause the stroller to tip.
! Any load attached to the handle and/or on the back of the backrest and/or on the sides of the stroller will affect the stability of the stroller.
! Accessories which are not approved by the manufacturer shall not be used. Only replacement parts supplied or recommended by the manufacturer shall be used.
! For infant child restraints used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
! To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and pack-

aging materials should then be kept away from babies and children.
! The Carry cot shall not be used, as soon as the child is able to sit by himself, roll over and can push itself up on its hands and knees. Maximum weight of the child: 9 kg.
! No additional mattress shall be added unless recommended by the manufacturer.
! Adult assembly required.
! Please read all the instructions in the manual before using the product. Please save instruction manual for future use. Failure to follow these warnings and instructions may result in serious injury or death.
! To avoid serious injury from falling or sliding out, always use seat belt.
! Make sure your child's body is clear from the moving parts when adjusting the stroller.
! Never use stroller on stairs or escalators.
! Keep away from high temperature objects, liquids, and electronics.
! Never place the stroller on roads, slopes or dangerous areas.
! To avoid strangulation, DO NOT place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
! DO NOT use storage basket as a child carrier.
! To avoid finger entrapment, use care when folding and unfolding the stroller.
! To ensure your child's safety, please make sure all parts are assembled and fastened properly before using the stroller.
! To avoid strangulation, do make sure your child is clear from the canopy.
! Always engage the brakes when parking the stroller.
! Discontinue using stroller if it is damaged or broken.
! To avoid burns, never put hot liquids in your cupholder.
! This product is suitable for children up to 22kg or 4 years whichever comes first.

Stroller Assembly

(Please refer to figures on page 1-15)

Please read all the instructions in this manual before assembling and using this product.

Open Stroller

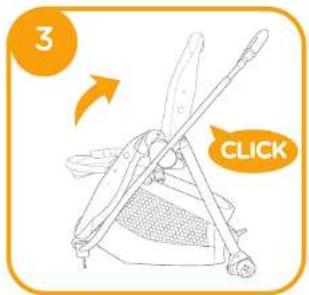

see images 1 - 3

! Check that the stroller is completely latched before continuing to use.

Assemble & Detach Front Wheel

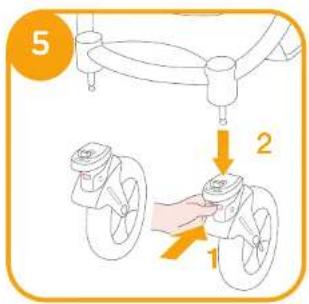

see images 4 - 5

Assemble & Detach Rear Wheel

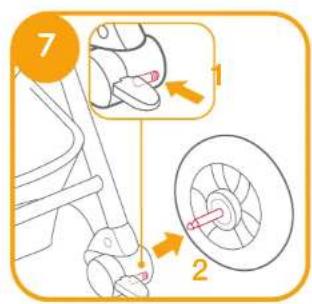

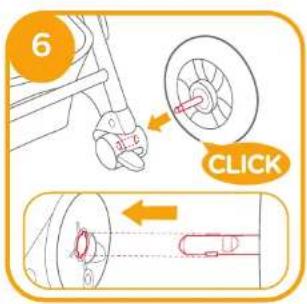

see images 6 - 7

Assemble Canopy

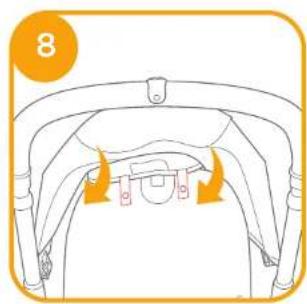

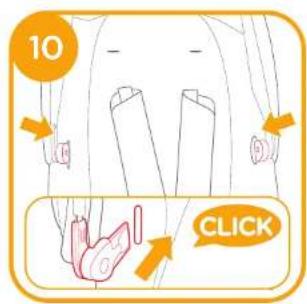

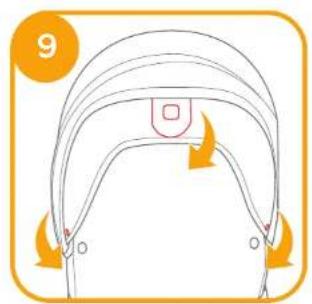

see images 8 - 10

Assemble & Detach Cupholder

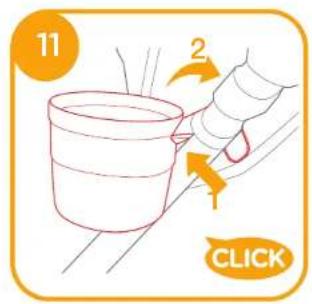

see images 11 - 12

The completely assembled stroller is shown as 13

Stroller Operation

Adjust Backrest

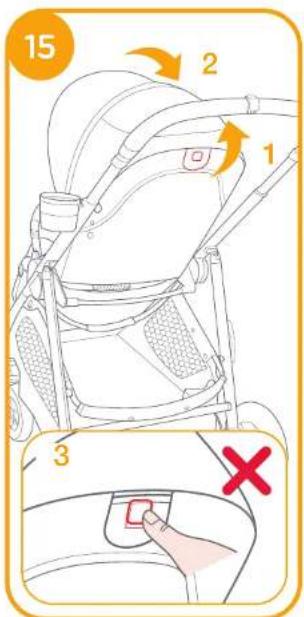

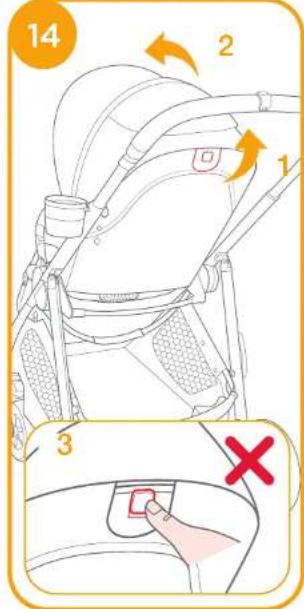

see images 14 - 15

There are 4 recline angles for the backrest.

Raise Backrest

To raise the backrest, rotate the recline handle on the back of the seat, pull up on the backrest. ^14

Recline Backrest

To recline the backrest, rotate the recline handle on the back of the seat, pull down on the backrest. 15

! Please do not press the releasing button 14 - 3&15 - 3 on the middle of the recline handle when adjusting the angle for the recline.

! Make sure the recline is set properly for use.

Use Buckle

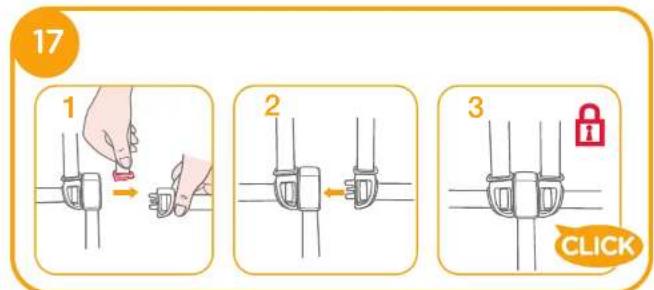

see images 16 - 17

Release Buckle

Press the center button to release the buckle. 16

Lock Buckle

Match the waist belt buckle with the shoulder buckle 17 - 1, and click into the center buckle. 17 - 2 A “click” sound means the buckle is locked completely. 17 - 3

! To avoid serious injury from falling or sliding out, always secure your child with harness.

! Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.

! Do not cross the shoulder belts. This will cause pressure on a child's neck.

Use Shoulder & Waist Harnesses

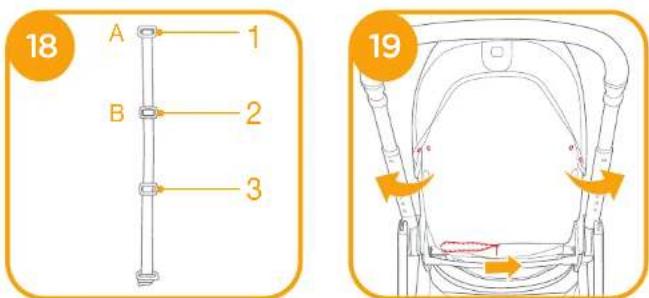

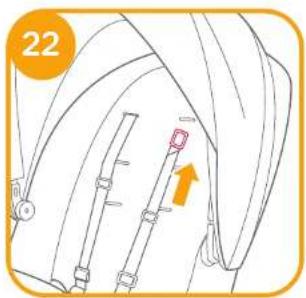

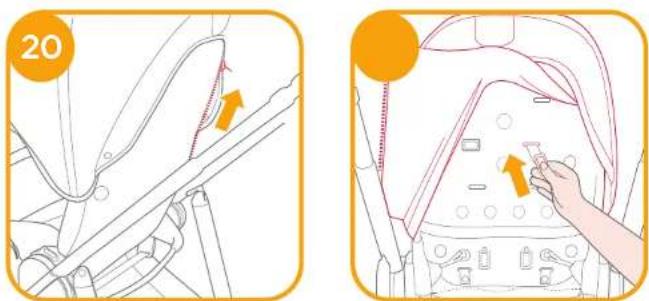

see images 18 - 23

! In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.

18 - 1 Shoulder harness anchor A
18 - 2 Shoulder harness anchor B
18 - 3 Slide adjuster

For larger child, use shoulder harness anchor A and the highest shoulder slots. For smaller child, use shoulder harness anchor B and the lowest shoulder slots.

To adjust the position of the shoulder harness anchor, turn the anchor to be level with the side facing forward. Thread it through the shoulder harness slot from back to front. 21 Rethread it through the slot that is closest to child's shoulder height. 22

Use slide adjuster to change the harness length. 23 - 1

Press the button Ⓜ - 2, while pulling the waist harness to proper length. Ⓜ - 3

Use Armbar

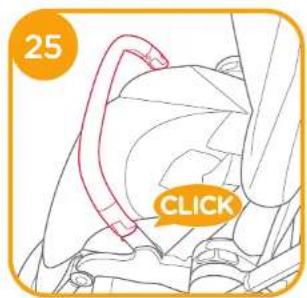

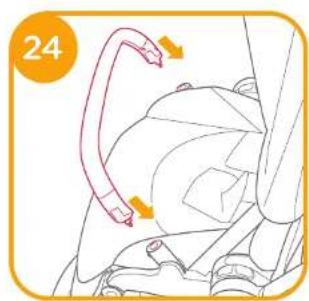

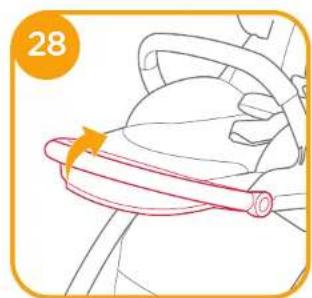

see images 24 - 26

Adjust Calf Support

see images 27 - 28

The calf support has 2 positions.

To lower calf support, press the adjustment buttons on both sides of the calf support ☑ - 1, and rotate the calf support downwards. ☑ - 2

To raise the calf support, push it upwards. A "click" sound means the calf is locked completely.

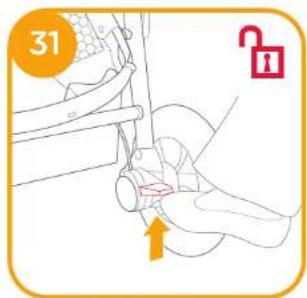

Use Front Swivel Lock

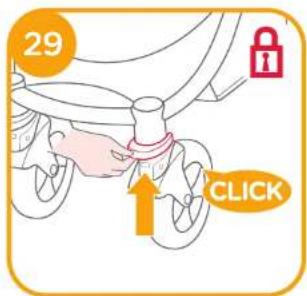

see image ©

Push up the front swivel locks to maintain the moving direction.

29

Tip It is recommended to use swivel locks on uneven surfaces.

Use Brake

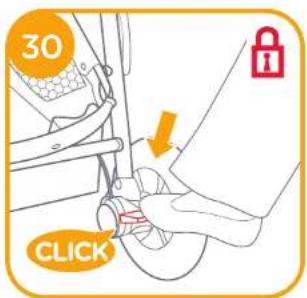

see images Ⓤ - Ⓤ

To lock wheels, step the brake lever downwards.

To release wheels, just lift the brake lever upwards. 31

Tip

Always set the parking brake when stroller is not moving.

Use Canopy

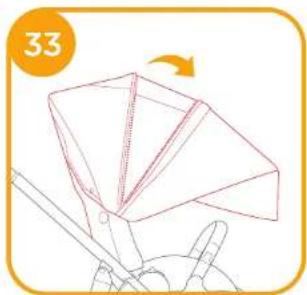

see images 32 - 34

The canopy can be opened completely to protect your child from the sun uttermostly, just unzip the zip ☺ , and then pull the canopy toward front.

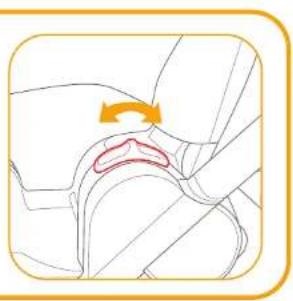

Adjust Handle

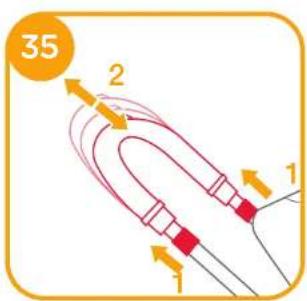

see image

Switch Seat

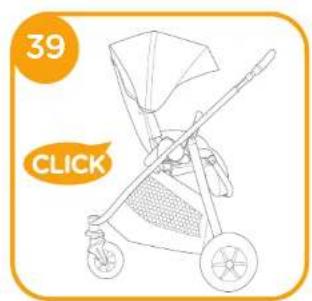

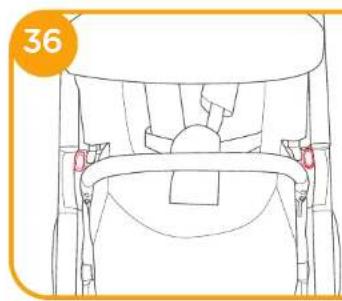

see images 36 - 39

Use Storage Bag

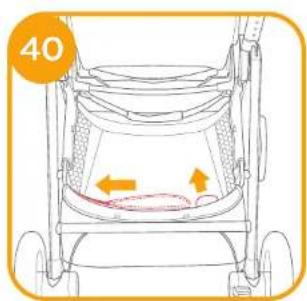

see image 40

The maximum load of Storage Bag A and B is 0.45kg.

Fold Stroller

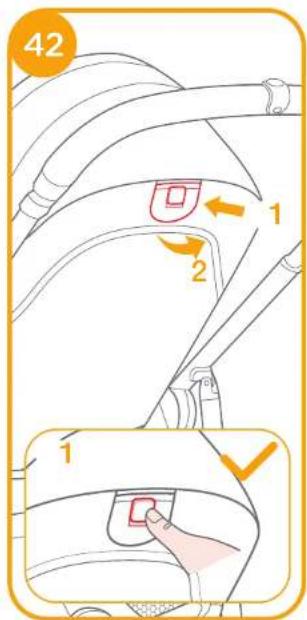

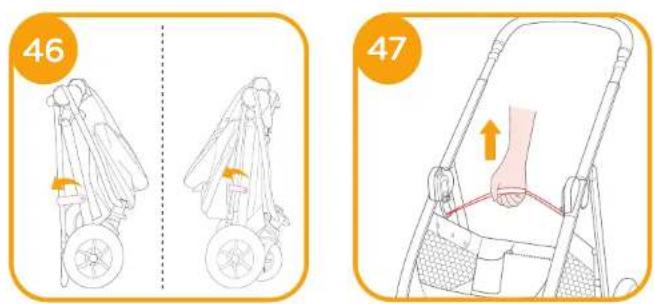

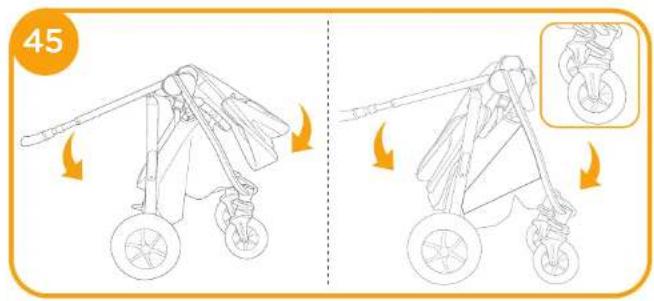

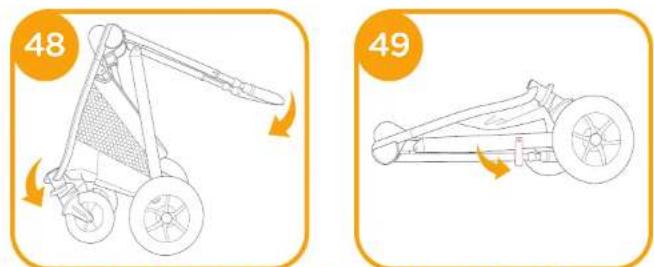

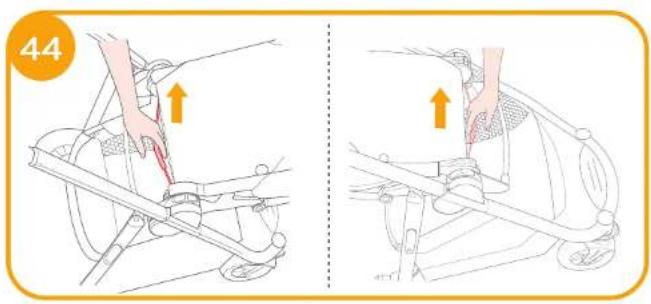

see images 41 - 49

! The button on the middle of the recline handle is used for folding the seat. 42 - 1
! The stroller can stand when the handle is in the highest position. 46
! The storage latch will automatically hook onto the storage mount, then the stroller is folded and locked completely. 46 49

Use Accessories

Accessories may be sold separately or may not be available depending on region.

Use with Infant Child Restraint

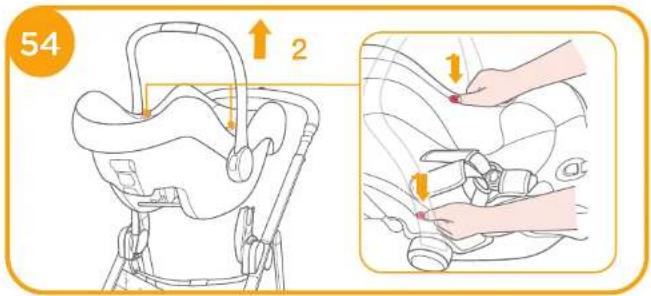

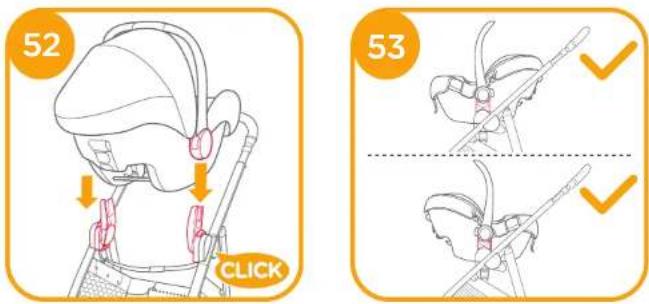

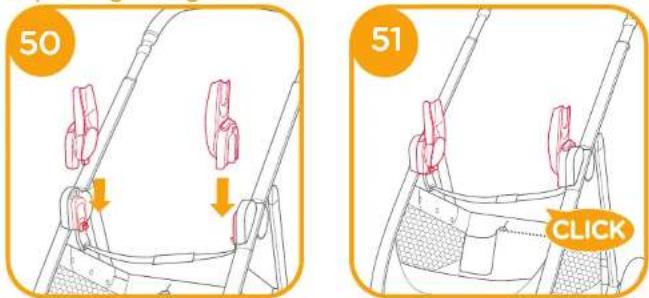

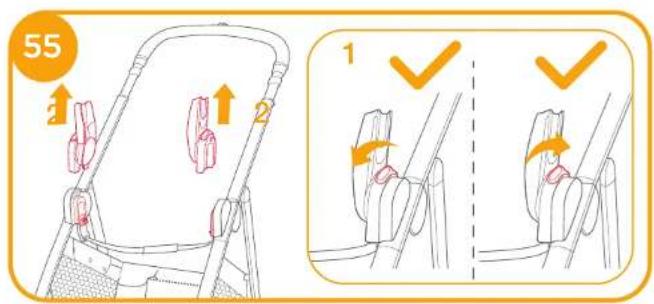

see images 50 - 55

When using with Joie infant child restraint iGemm 2 & iLevel & iSnug please refer to the following instructions.

! A "click" sound means the adapter is locked completely.
! If you have any problems about using the infant child restraint, please refer to their own instruction manuals.
! Please do not fold the stroller when the infant child restraint is still attached.

Use Carry Cot

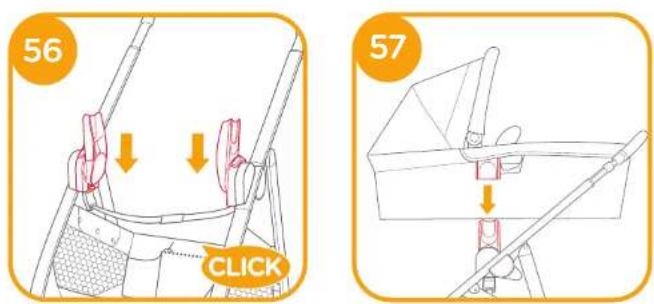

see images © - ©

When using with Joie ramble xl carry cot, please refer to the following instructions.

! A "click" sound means the adapter is locked completely.
! Always use the mattress when using the carry cot.
! If you have any problems about using the carry cot, please refer to their own instruction manuals.
! Please do not fold the stroller when the carry cot is still attached.

Use Rain Cover

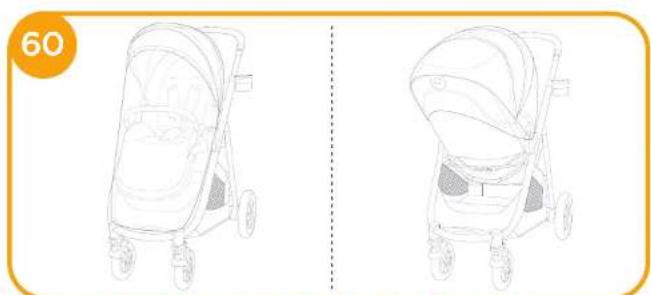

see image

To assemble the rain cover, place it over the seat.

When using the rain cover, please always check its ventilation.
! When not in use, please check that the rain cover has been cleaned and dried before folding.
! Do not fold the stroller after assembling the rain cover.
! Do not place your child into the stroller assembled with rain cover during hot weather.

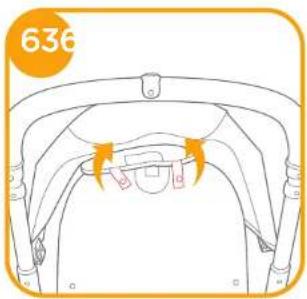

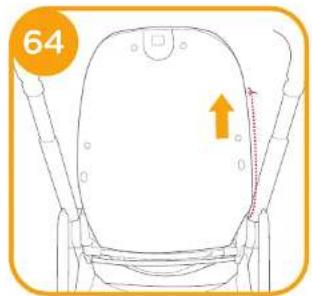

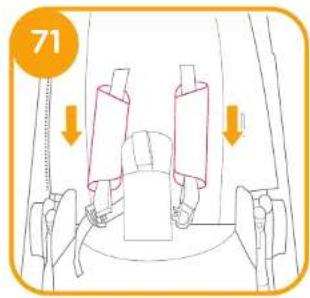

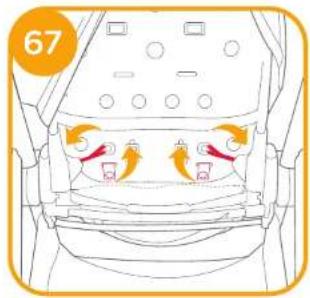

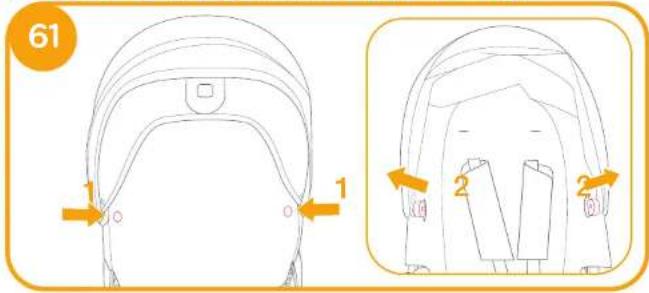

Detach & Assemble Soft Goods

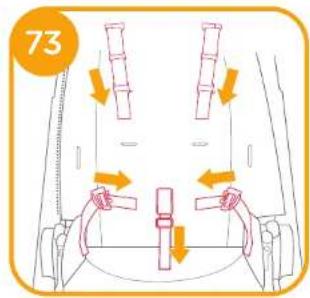

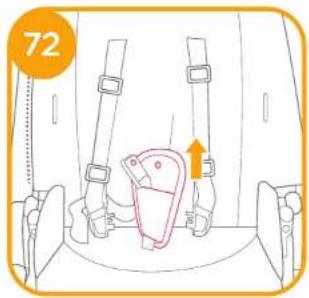

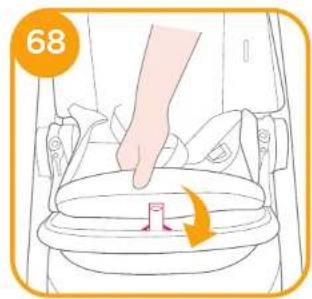

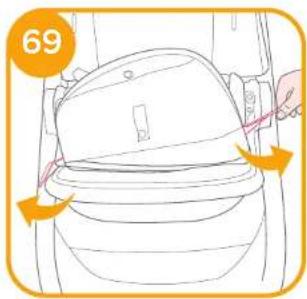

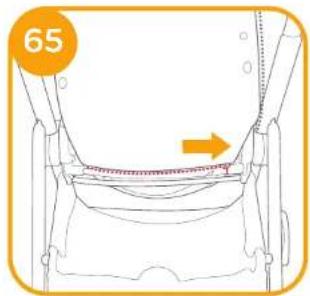

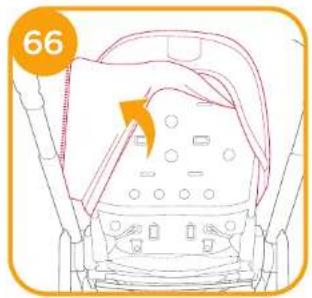

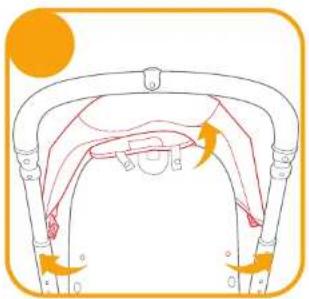

see images 61 - 75

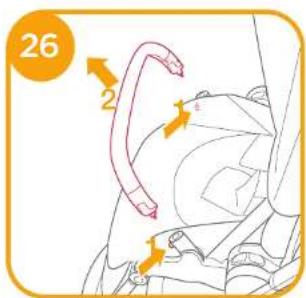

Remove armbar shown as 26

To re-assemble seat soft goods, follow the steps above in reverse 75 - 31

Cleaning and Maintenance

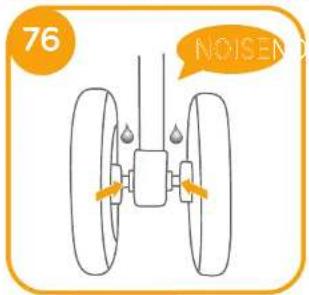

see image 76

! To clean stroller frame, use only household soap and warm water. No bleach or detergent. Please refer to the care label for instructions on cleaning the fabric parts of the stroller.
! Removable soft goods can be washed by machine. No bleach. Do not twist the seat cover and inner padding to dry with great force. It may leave the seat cover and inner padding with wrinkles.
! From time to time, check your stroller for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed. Periodically wipe clean plastic parts with a soft damp cloth. Always dry the metal parts to prevent the formation of rust if the stroller has come into contact with water.
! Excessive exposure to sun or heat could cause fading or warping of parts.
! If stroller becomes wet, open canopy and allow to dry thoroughly before storing.
! If wheels squeak, use a light oil (e.g., Silicon Spray, antirust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly. 76
! When using your stroller at the beach or other sandy/dusty environments, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies.

Diagram of a stroller with numbered parts for identification and assembly reference.

Accessoires

Diagram of a stroller with numbered parts for identification and assembly reference

Zubehör

1 Adapter
2 Regenverdeck

Diagram of a stroller with numbered parts for identification and assembly reference

Accesorios

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Acessórios

Diagram of a stroller with numbered parts for identification and assembly reference.

Akcesoria

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Accessori

Diagram of a stroller with numbered parts for identification and assembly reference.

Accessoires

Diagram of a stroller with numbered parts for identification and assembly reference

Εξαρτήματα

Diagram of a stroller with numbered parts for identification and assembly reference.

Tilbehør

Diagram of a stroller with numbered parts for identification and assembly reference

Tillbehör

Diagram of a stroller with numbered parts for identification and assembly reference.

Příslušenství

Diagram of a stroller with numbered parts and labeled parts, including front, rear, side, and interior views.

Príslušenstvo

Technical diagram of a stroller with numbered parts and labeled parts in Chinese

Diagram of a stroller with numbered parts and labeled parts, including front, rear, side, and interior views.

Принадлежности

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Tarvikud

Diagram of a stroller with numbered parts and labeled parts, including front view and interior views.

Lisävarusteet

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Priedai

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Piederumi

Diagram of a stroller with numbered parts for identification and assembly reference

Tartozékok
