USER MANUAL Signature Valora Joie

Line drawing of a baby stroller with no text or symbols

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Stroller Assembly

1 1 2

Line drawing of a mechanical device with no visible text or symbols

3 CLICK

4 2 1

5 CLICK

6 2 1

7 CLICK

8 2 1

9 CLICK

10

Line drawing of a stroller with a highlighted section showing a hand holding a bag (no text or symbols)

Stroller Operation

12 2 1 3 X

13

14

3 CLICK

Line drawing of a backpack with a highlighted arm and belt, no text or symbols present

18

20 3 2

Diagram of a vehicle seat with armrests and a highlighted seat area, no text or symbols present

Line drawing of a car seatbelt with a red arrow indicating clockwise motion (no text or symbols)

21

15 1 2

22 1 2 1

23 2 1

24 1 2 3

Medical diagram showing a hand performing a medical procedure on an infant's abdomen with labeled arrows and a sun symbol.

26

27

28

Diagram of a folded paper or metal sheet with an arrow indicating rotation (no text or symbols)

Illustration of a folded paper airplane with an arrow indicating rotation (no text or symbols)

Line drawing of a garment pattern piece with an arrow indicating rotation (no text or symbols)

32 1 2

33

39

40° 30°

41

Line drawing of a stroller with wheels, shown from front and side views (no text or symbols)

Line drawing of a lawn mower with two directional arrows indicating movement (no text or symbols)

44

Line drawing of a toy car with wheels and a puller, labeled '45' and 'CLICK' (no text or symbols on the diagram itself)

46

Illustration of a vintage cannon with wheels and a 'CLICK' button (no text or symbols on the diagram itself)

Accessories (May not be included in purchase) Accessories may be sold separately or may not be available depending on region.

48 R L

49 CLICK

50 CLICK

Line drawing of a person wearing a helmet and holding an object, with a checkmark indicating a location (no text or symbols)

52 2 1

53 ↑ 2

55 R L CLICK

Diagram of a mechanical assembly with a lever and handle, showing a downward force or adjustment (no text or symbols)

Line drawing of a hand holding a tool with a checkmark indicator (no text or symbols present)

58 ↑ 2 ↑ 1

59 R L CLICK

60

61 CLICK

Diagram illustrating hand positioning and movement of a device with numbered arrows indicating direction

Line drawing of a stroller with wheels and a seat cover (no text or symbols)

Care and Maintenance 64 NOISE

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Joie valora™, you are using a high quality, fully certified stroller, approved to European safety standards EN 1888-2:2018+A1:2022. This product is suitable for children up to 22kg or 4 years whichever comes first. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Visit us at joiebaby.com to download manuals and see more exciting Joie products!

For warranty information, please visit our website at joiebaby.com

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

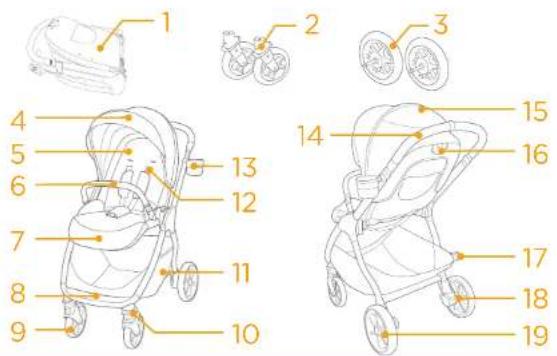

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Stroller Frame
2 Front Wheels
3 Rear Wheels
4 Canopy
5 Seat Pad
6 Armbar
7 Calf Support
8 Footrest
9 Front Wheel
11 Storage Basket
12 Shoulder Harness
13 Cupholder
14 Handle
15 Canopy Window
16 Recline Handle
17 Storage Latch
18 Brake Lever
19 Rear Wheel

10 Swivel Lock

Accessories

(May not be included)

1 Adapter
2 Cupholder
3 Rain Cover

Diagram showing three labeled parts of a mechanical device: a cylindrical component, a cup with two numbered parts, and a folded paper or plastic sheet.

Accessories may be sold separately or may not be available depening on region.

WARNING

! Always use the restraint system.
! Ensure that all the locking devices are engaged before use.
! Do not let the child play with this product.
! Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
! Adult assembly required.
! This product is suitable for children up to 22kg or 4 years whichever comes first.
! To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket.
! Never leave the child unattended.
! Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or canopy.
! Accessories which are not approved by the manufacturer shall not be used.
! Only replacement parts supplied or recommended by the manufacturer shall be used.
! To avoid injury ensure that the child is kept away when unfolding and folding this product.
! This product is not suitable for running or skating.
! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
! The parking device shall be engaged when placing and removing the children.
! For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
! Carry cot shall not be used, as soon as the child is able to sit by himself, roll over and can push itself up on its hands and knees. Maximum weight of the child: 9kg.

! No additional mattress shall be added unless recommended by the manufacturer.
! Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
! The maximum recommended weight in the cupholder is 0.45kg (1lb).
! The maximum load of storage pocket on the back of backrest is 0.45kg (1lb).

Stroller Assembly

(Please refer to figures on page 1-12)

Please read all the instructions in this manual before assembling and using this product.

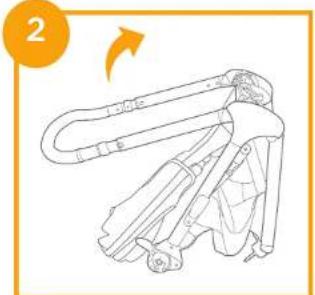

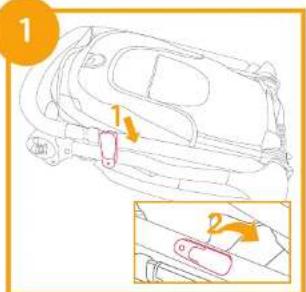

Open Stroller

see images

Separate storage latch from storage mount, and then lift the handle upwards, a click sound means the stroller is open completely.

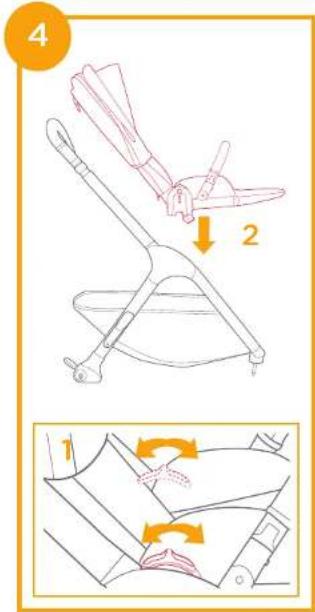

The seat is reversible.

Check that the stroller is completely latched before continuing to use.

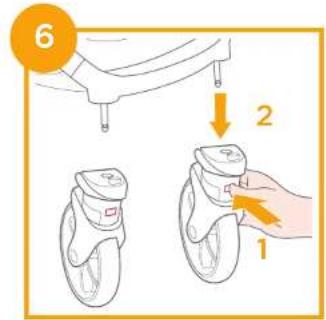

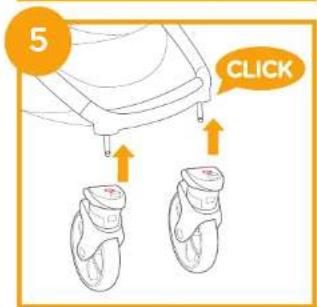

Assemble & Detach Front Wheels

see images

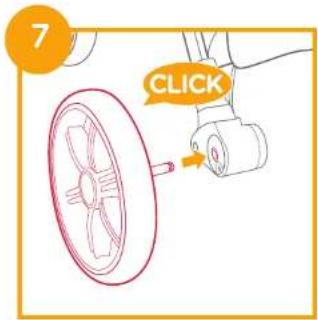

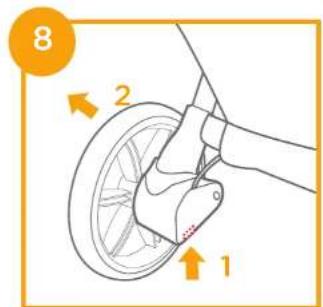

Assemble & Detach Rear Wheels

see images 7-9

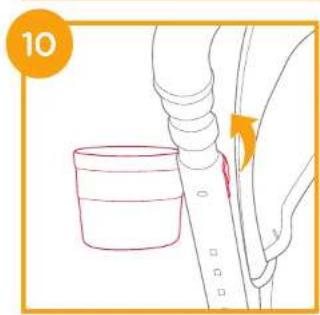

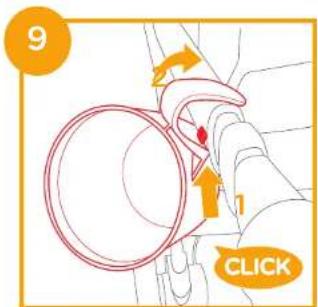

Assemble & Detach Cupholder

see images

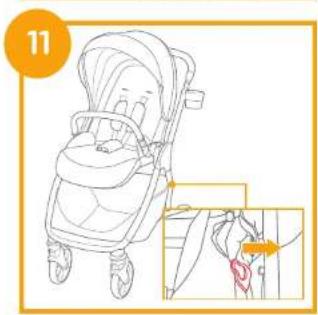

Hook the basket to the rear logs on the both sides. The completely assembled stroller is shown as

Stroller Operation

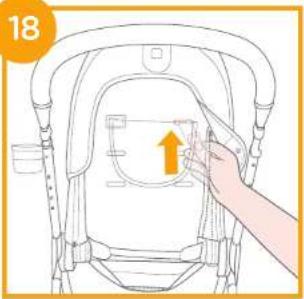

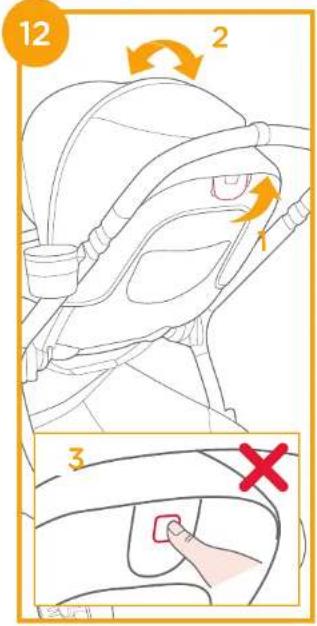

Adjust Backrest

see image

There are 3 recline angles for the backrest.

To raise or recline the backrest, rotate the recline handle on the back of the seat, pull down on the backrest.

Please do not press the releasing button 12 - 3 on the middle of the recline handle when adjusting the angle for the recline.

1. Make sure the recline is set properly for use.

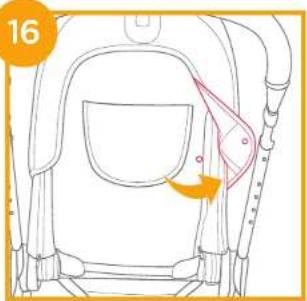

The maximum load of storage pocket on the back of backrest is 0.45kg.

Use Buckle

see images

Release Buckle

Press the button, the buckle will release automatically.

Lock Buckle

Match the waist belt buckle with the shoulder buckle -3, and align them with the center buckle, the buckle can lock automatically. -2 A "click" sound means the buckle is locked completely.

To avoid serious injury from falling or sliding out, always secure your child with harness.

Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.

Do not cross the shoulder belts. This will cause pressure on a child's neck.

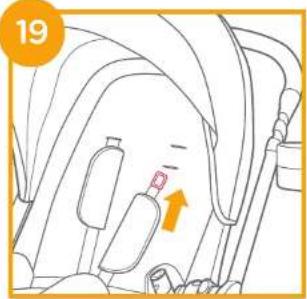

Use Shoulder & Waist Harnesses

see images

In order to protect your child from falling out, after your child is placed into the seat. check whether the shoulder and waist harnesses are at proper height and length.

F-1 Shoulder harness anchor

13 - 2 Slide adjuster

For larger child, use shoulder harness anchor and the highest shoulder slots. For smaller child, use shoulder harness anchor and the lowest shoulder slots.

To adjust the position of the shoulder harness anchor, turn the anchor to be level with the side facing forward. Thread it through the shoulder harness slot from back to front. Rethread it through the slot that is closest to child's shoulder height.

Use slide adjuster to change the harness length.

Press the button -2, while pulling the waist harness to proper length. -3

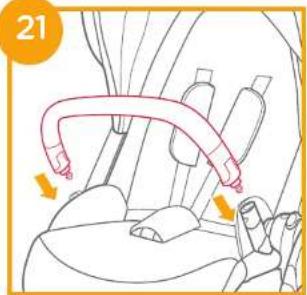

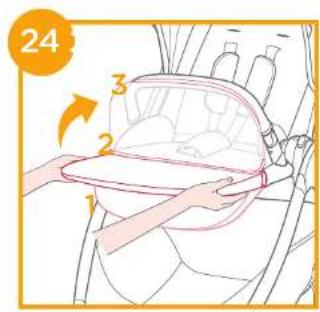

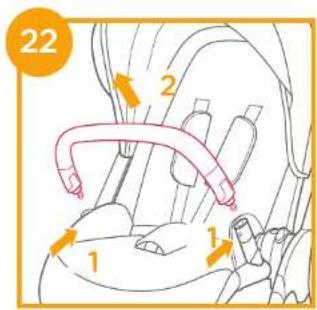

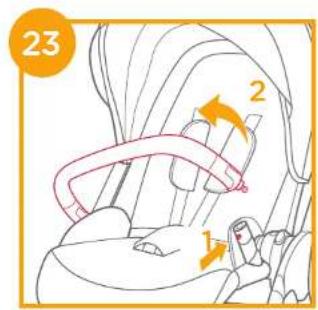

Use Armbar

see Images

Adjust Calf Support

see images

The calf support has 3 positions.

To lower calf support, press the adjustment buttons on both sides of the calf support - 1, and rotate the calf support downwards - 2

To raise the call support, push it upwards. A "click" sound means the call is locked completely.

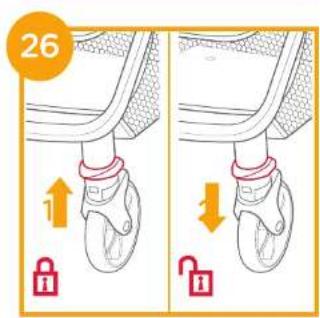

Use Front Swivel Lock

see image

Push up the front swivel locks to maintain the moving direction.

Push down the front swivel locks to release the moving direction. -2

Tip It is recommended to use swivel lock on uneven surfaces.

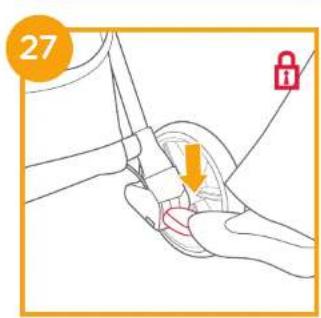

Use Brake

see images

To lock the rear wheels, step down on the brake lever?

To unlock the rear wheels, just lift the brake lever upwards.

Tip Always apply the brake when the stroller is stopped. Push the stroller slightly to ensure the brake is engaged.

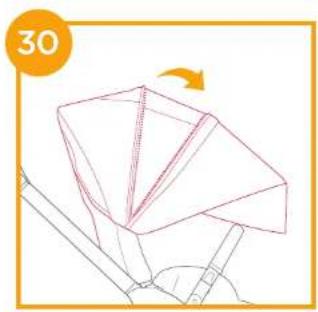

Use Canopy

see images

The canopy can be opened completely to protect your child from the sun uttermostly, just unzip the zip ☐ and then pull the canopy toward front.

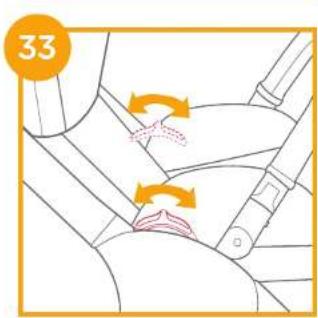

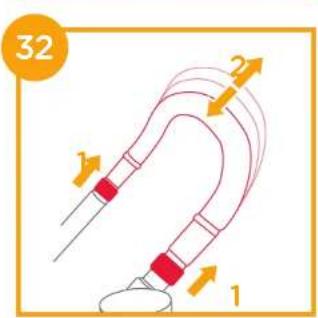

Adjust Handle

see image

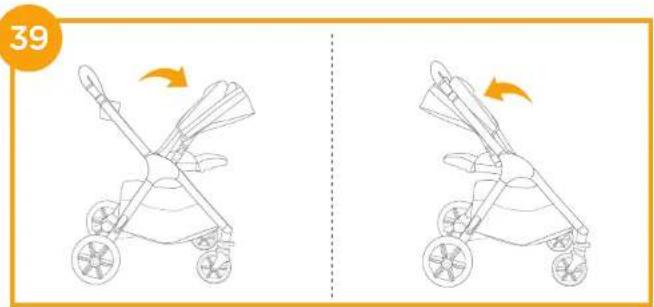

Switch Seat

see Images

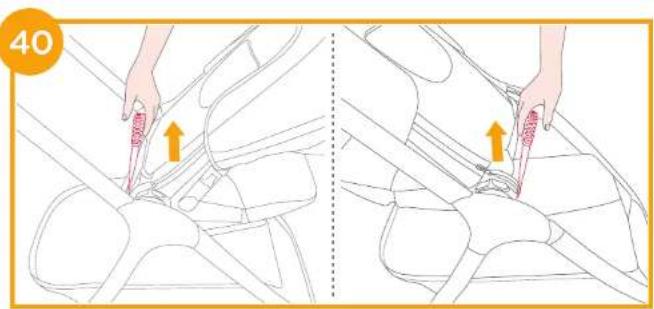

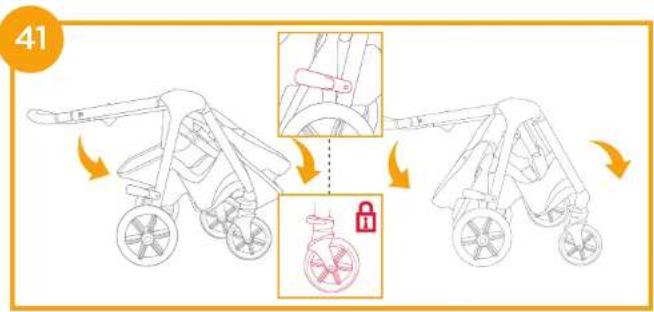

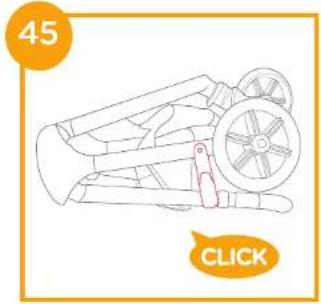

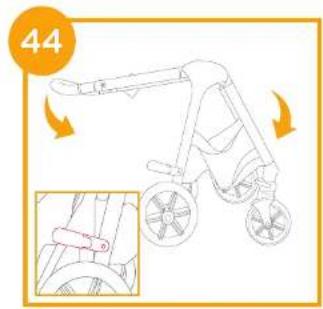

Fold Stroller

see images ① - ②

The button on the middle of the recline handle is used for folding the seat.

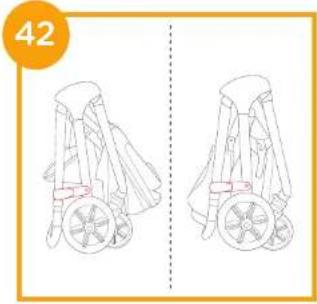

The folded stroller can stand when the handle is in the lowest position.
! The storage latch will automatically hook onto the storage mount, then the stroller is folded and locked completely.

Use Accessories

Accessories may be sold separately or may not be available depending on region.

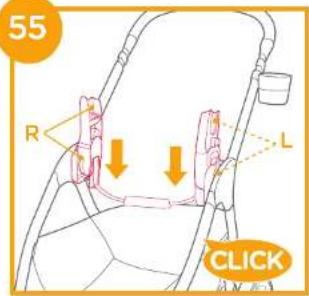

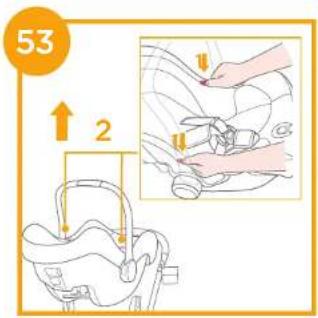

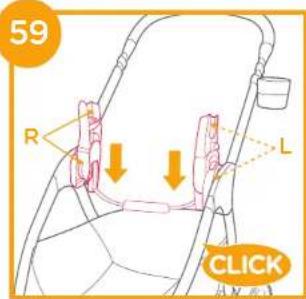

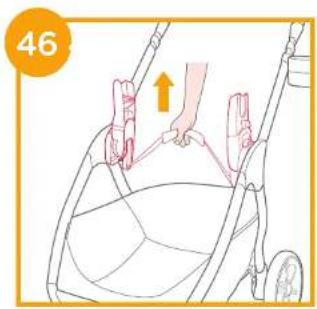

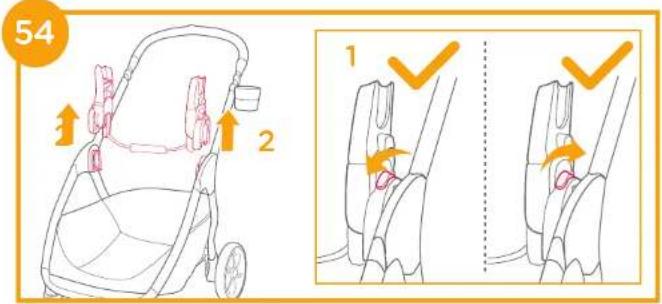

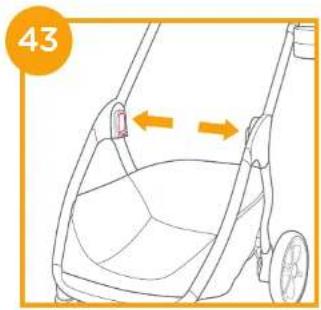

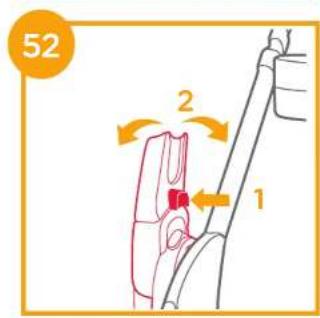

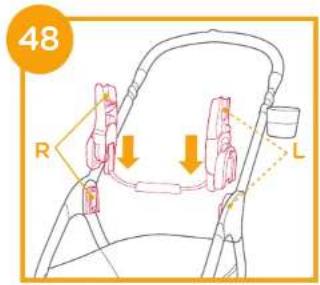

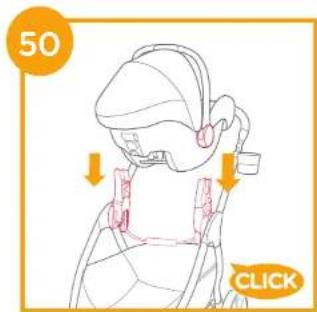

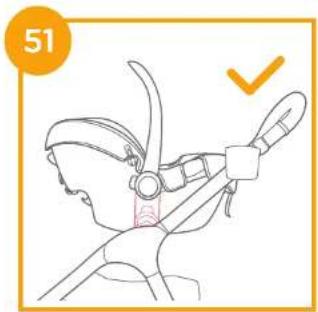

Use with Infant Child Restraint

see images

When using with Jole infant child restraint |Gemm 3 & |Level Pro & |Snug 2 & |Jemini & Sprint & Gemm please refer to the following instructions.

A "click" sound means the adapter is locked completely.
The adapter has 2 positions. The infant child restraint angle can be adjusted with our adjustable adaptors.
If you have any problems about using the infant child restraint, please refer to their own instruction manuals.
Please do not fold the stroller when the infant child restraint is still attached.

Use Ramble, Ramble XL Carry Cot

see images 香-香

When using with Joie ramble, ramble xl carry cot, please refer to the following instructions.

A "click" sound means the adapter is locked completely.
Always use the mattress when using the carry cot.
! If you have any problems about using the carry cot, please refer to their own instruction manuals.
Please do not fold the stroller when the carry cot is still attached.

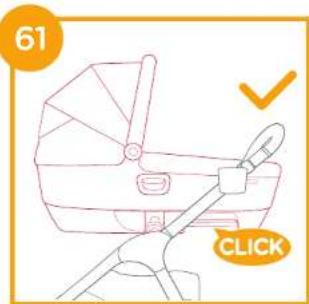

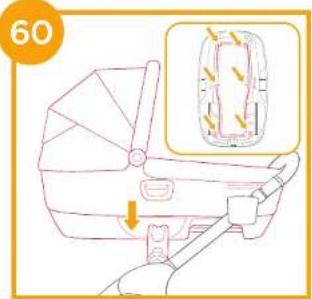

Use Calmi Carry Cot

see images

When using with Joie Calmi carry cot, please refer to the following instructions.

A "click" sound means the adapter is locked completely.
| Always use the mattress when using the carry cot.
Please check that the mesh at the bottom of the carry cot is properly fixed before installing carry cot.
If you have any problems about using the carry cot, please refer to their own instruction manuals.
Please do not fold the stroller when the carry cot is still attached.

Use Rain Cover

see image

To assemble the rain cover, place it over the seat.
When using the rain cover, please always check its ventilation.
When not in use, please check that the rain cover has been cleaned and dried before folding.
Do not fold the stroller after assembling the rain cover.
Do not place your child into the stroller assembled with rain cover during hot weather.

Cleaning and Maintenance

see image

To clean stroller frame, use only household soap and warm water. No bleach or detergent. Please refer to the care label for instructions on cleaning the fabric parts of the stroller.
All removable fabric parts may be washed in cold water and drip-dried. No bleach. Please refer to the care label for instructions on cleaning the fabric parts of the stroller.
Any fabric parts which are not removable should be spot-cleaned using a soft cloth and warm soapy water.
From time to time, check your stroller for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed. Periodically wipe clean plastic parts with a soft damp cloth. Always dry the metal parts to prevent the formation of rust if the stroller has come into contact with water.
Excessive exposure to sun or heat could cause fading or warping of parts.
If stroller becomes wet, open canopy and allow to dry thoroughly before storing.

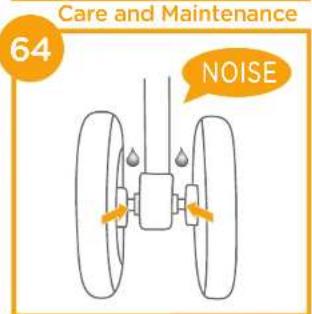

If wheels squeak, use a light oil (e.g., Silicon Spray, antirust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly.
When using your stroller at the beach or other sandy/dusty environments, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies.

Diagram showing three labeled parts of a mechanical or architectural component, including a handle, cup, and conical structure.

Diagram showing three labeled parts of a mechanical device, including a handle, cup, and conical part.

WARNUNG

Diagram showing three labeled parts of a mechanical device, including a cylindrical component, a cup, and a conical part.

Diagram showing three labeled parts of a mechanical device, including a handle, cup, and clamped part.

AVVERTENZA

Diagram showing three labeled parts of a mechanical device or component, with numbered annotations pointing to different parts.

ADVERTENCIA

Diagram showing three labeled parts of a mechanical device, including a handle, cup, and clamped component.

Diagram showing three labeled parts of a mechanical device with numbered annotations

OSTRZEŻENIE

Diagram showing three labeled parts of a mechanical device with numbered annotations

Diagram showing three labeled parts of a mechanical device, including a handle, cup, and clamped part.

Diagram showing three labeled parts of a mechanical device, including a cylindrical component, a cup, and a conical part.

Diagram showing three labeled parts of a mechanical device, including a handle, cup, and clamped part.

Diagram showing three labeled parts of a mechanical or architectural component, including a tool, cup, and conical structure.

Diagram showing three labeled parts of a mechanical device, including a handle, cup, and conical part with numbered annotations.

Diagram showing three labeled parts of a mechanical device, including a handle, cup, and conical part with numbered annotations.

Diagram showing three labeled parts of a mechanical device, including a handle, cup, and conical part with numbered annotations.

ΠΡΟΕΙΔΟΠΟΙΗΣΗ

Diagram showing three labeled parts of a mechanical device or component, with numbered annotations pointing to each part.

Diagram showing three labeled parts of a mechanical device, including a cylindrical component, a cup, and a conical part.

Diagram showing three labeled parts of a mechanical device, including a handle, cup, and conical part with numbered annotations.

UPOZORENJE

Diagram showing three labeled parts of a mechanical device, including a handle, cup, and conical part with numbered annotations.

WARNING

Diagram showing three labeled parts of a device or tool, with numbered annotations pointing to different components.

- 5. For several words, the full words of the words are also related to

Diagram showing three labeled parts of a mechanical device, including a handle, cup, and clamped part.
