USER MANUAL Versadrift Joie

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Stroller Assembly

Illustration of a hand pressing down on a car component with an arrow indicating motion (no text or symbols)

Line drawing of a stroller with wheels and an arrow indicating motion (no text or symbols)

3 CLICK

4 CLICK

5 1 2

6 CLICK

Top-down diagram of a helmet with directional arrows indicating movement or force (no text or symbols)

8

9 CLICK

Illustration of a hand holding a bucket with an arrow indicating direction (no text or symbols)

11

Line drawing of a baby stroller with wheels and seat (no text or symbols)

13 CLICK

14 2 1 1

18 1 2

19

15 2 1

16

20

21

17 1 2 3 CLICK

22 3 2

Illustration of a hand holding a curved object with an arrow indicating rotation (no text or symbols)

24 1 2 3 X

29 30

25 1 2

31 32

27 28

Medical illustration showing two steps of a medical device with labeled parts and directional arrows indicating movement.

35 1 2 2

39 40 CLICK

Line drawing of a curved mechanical component with an arrow pointing to a specific part (no text or symbols present)

Top-down line drawing of a car interior with seatbelt and dashboard (no text or symbols)

41 1 2

42 1

Line drawing of a baby stroller with a handle and seat, no text or symbols present

Illustration of a medical procedure with an arrow indicating a point of interest (no text or symbols present)

Illustration of a stroller with two side-by-side views showing motion direction (no text or symbols)

Diagram showing a hand holding a red object with a checkmark and number 3, likely indicating a step or procedure in a car interior.

44 forward-facing rear-facing

49 CLICK

45 forward-facing rear-facing

46

Accessories (May not be included in purchase) Accessories may be sold separately or may not be available depending on region.

51 R L CLICK

Line drawing of a two-wheeled stroller with wheels and a highlighted arrow indicating rotation (no text or symbols)

Line drawing of a children's stroller with wheels and a 'CLICK' speech bubble (no text or symbols on the diagram itself)

53 CLICK 54

55 2 1

56 1 2 1 1 Q

Simple line drawing of a boat being lifted by a rod, no text or symbols present

61 ↑ 2 ↑ 1

57

62 R L CLICK

63

58 R L CLICK 59

64 CLICK

Diagram illustrating hand positioning on a baby seat using a device, labeled with numbers 1 and 2.

Care and Maintenance

Line drawing of a baby stroller with wheels and seat (no text or symbols)

67 NOISE

GB

Welcome to Joie™

Congratulations on becoming part of the Jolie family! We are so excited to be part of your journey with your little one. While traveling with the Jolie versadrift, you are using a high quality, fully certified stroller, approved to European safety standards EN 1888-2:2018+A1:2022. This product is suitable for children up to 22kg or 4 years whichever comes first. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Visit us at joiebaby.com to download manuals and see more exciting Joie products!

For warranty information, please visit our website at jolebaby.com

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

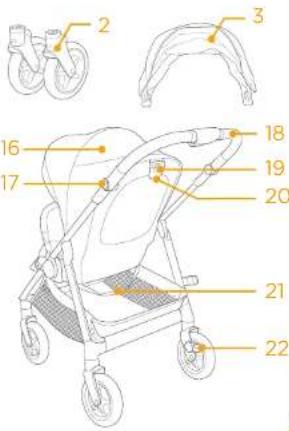

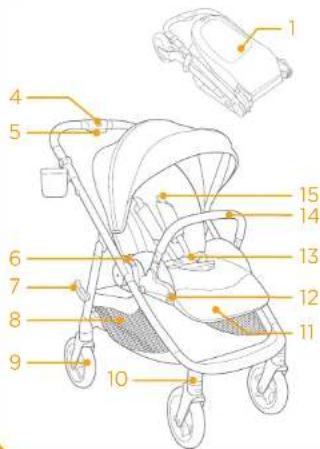

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Stroller Frame
2 Front Wheels
3 Canopy
4 Locking Button
5 Drift Button
6 Seat Release Button
7 Storage Latch
8 Storage Basket
9 Rear Wheel
10 Front Swivel Lock
11 Calf Support

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

12 Call Support Adjustment Button
13 Buckle
14 Armbar
15 Shoulder Harness
16 Canopy Window Cover
17. Handlebar Button
18. Handlebar
19 Seat Folding Button
20 Recline Lever
21 Stroller Folding Strap
22 Brake Lever

Technical diagram of a stroller with numbered parts for identification

Accessories

(May not be included)

1 Infant Car Seat Adaptor

2 Cup Holder
3 Insert
4 Rain Cover

Accessories may be sold separately or may not be available depending on region.

1 2 3 4 not be

WARNING

! Always use the restraint system.
! Ensure that all the locking devices are engaged before use.
! Do not let the child play with this product.
! Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
! Adult assembly required.
! This product is suitable for children up to 22kg or 4 years whichever comes first.
! To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket.
! Never leave the child unattended.
! Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or canopy.
! Accessories which are not approved by the manufacturer shall not be used.
! Only replacement parts supplied or recommended by the manufacturer shall be used.
! To avoid injury ensure that the child is kept away when unfolding and folding this product.
! This product is not suitable for running or skating.
! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
! The parking device shall be engaged when placing and removing the children.
! For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
! Carry cot shall not be used, as soon as the child is able to sit by himself, roll over and can push itself up on its hands and knees. Maximum weight of the child: 9kg.

! No additional mattress shall be added unless recommended by the manufacturer.
! Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
! The maximum recommended weight in the cup holder is 0.45kg (1lb).

Stroller Assembly

(Please refer to figures on page 1-13)

Please read all the instructions in this manual before assembling and using this product.

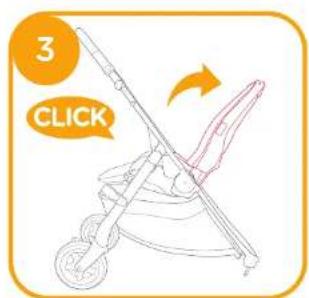

Open Stroller

see images 1 - 3

Separate storage latch from storage mount, and then lift the handle upwards. Pull back on the seat and rotate until the seat clicks into place.

A "click" sound means the stroller is open completely.

Check that the stroller is completely latched before continuing to use.

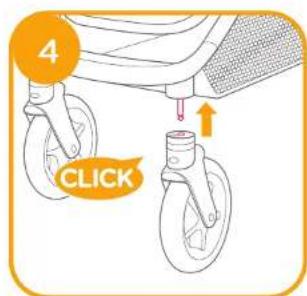

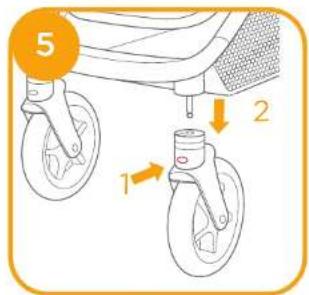

Assemble & Detach Front Wheels

see images ① - ②

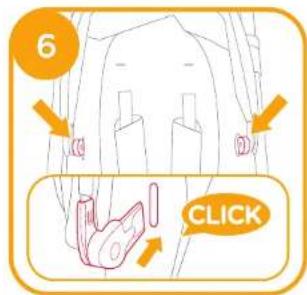

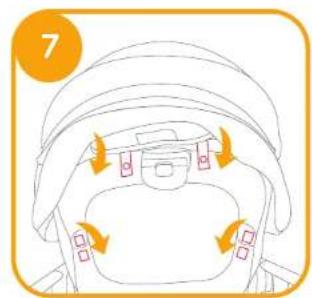

Assemble Canopy

see images 5 - 7

Assemble & Detach Cup Holder

see images © - 17

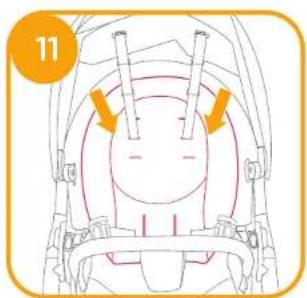

Assemble Insert

see image ①

The completely assembled stroller is shown as

Stroller Operation

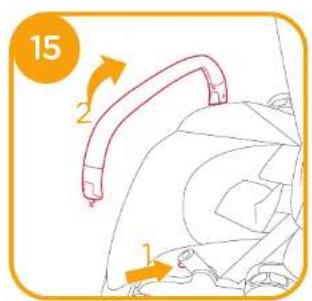

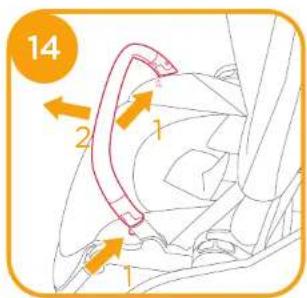

Use Armbar

see images 5 - 5

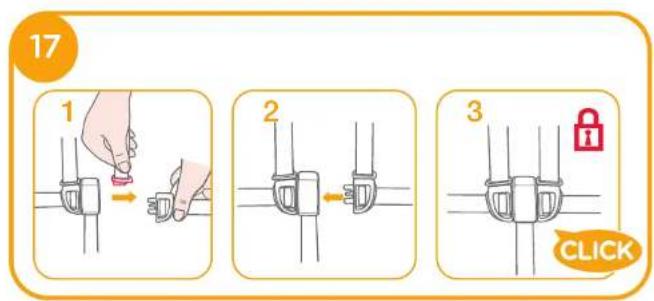

Use Buckle

see images ② - ⑦

Release Buckle

Press the button, the buckle will release automatically.

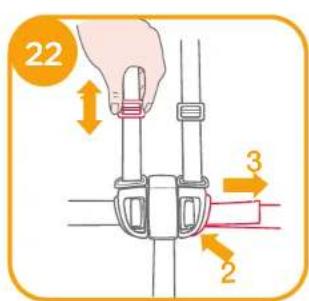

Lock Buckle

Match the waist belt buckle with the shoulder buckle - 1, and align them with the center buckle, the buckle can lock automatically. - 2 A "click" sound means the buckle is locked completely. - 3

To avoid serious injury from falling or sliding out, always secure your child with harness.

Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.

Do not cross the shoulder belts. This will cause pressure on a child's neck.

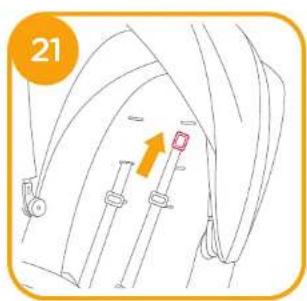

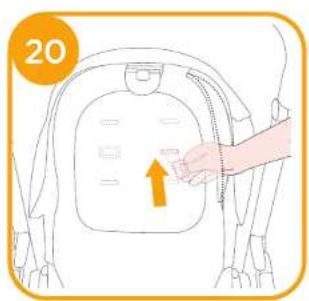

Use Shoulder & Waist Harnesses

see images ① - ②

In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.

-1 Shoulder harness anchor

-2 Slide adjuster

For larger child, use shoulder harness anchor and the highest shoulder slots. For smaller child, use shoulder harness anchor and the lowest shoulder slots.

To adjust the position of the shoulder harness anchor, turn the anchor to be level with the side facing forward. Thread it through the shoulder harness slot from back to front.

Rethread it through the slot that is closest to child's shoulder height.

Use slide adjuster to change the harness length.

Press the button 2 - 2, while pulling the waist harness to proper length. 3

Adjust Handle

see image

There are 3 handlebar positions:

To adjust the handlebar, press the left and right handlebar adjustment buttons at the same time and rotate the handlebar to a desirable position.

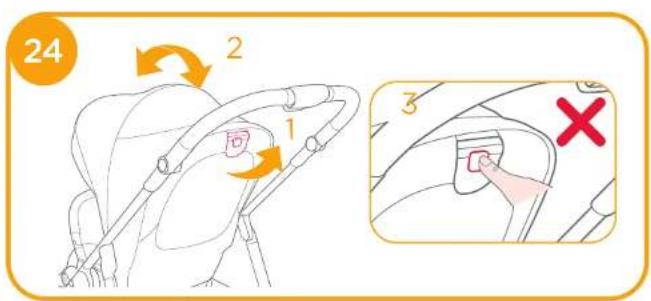

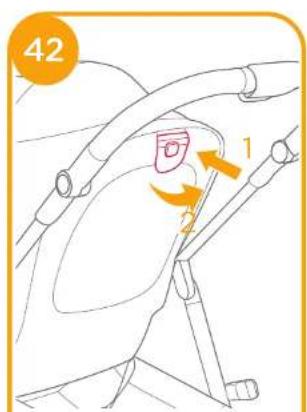

Adjust Backrest

see image

There are 3 recline angles for the backrest.

To raise or recline the backrest, rotate the recline handle on the back of the seat ⚙ - 1, pull down on the backrest ⚙ - 2

Please do not press the releasing button ☑ - 3 on the middle of the recline handle when adjusting the angle for the recline.

Make sure the recline is set properly for use.

The maximum load of storage pocket on the back of backrest is 0.45kg.

Adjust Calf Support

see images

The calf support has 2 positions.

To raise the calf support, push it upwards: A "click" sound means the calf is locked completely.

To lower calf support, press the adjustment buttons on both sides of the calf support ⚙ 1, and rotate the calf support downwards ⚙ 2

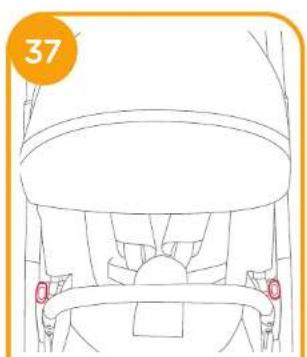

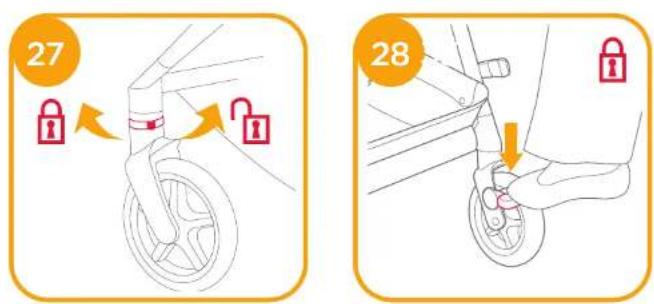

Use Front Swivel Lock

see image

Front wheel locked or unlocked status as

Tip It is recommended to use swivel locks on uneven surfaces

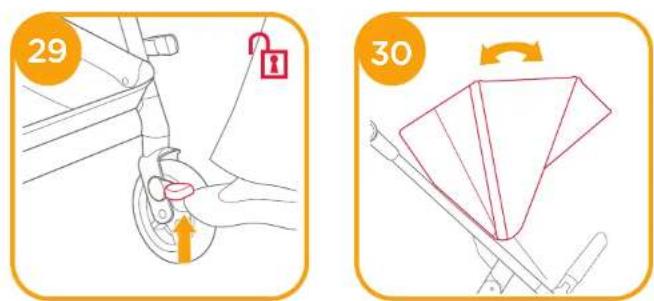

Use Brake

see images -

To lock the rear wheels, step down on the brake lever.

To release wheels, just lift the brake lever upwards.

Tip Always apply the brake when the stroller is stopped. Push the stroller slightly to ensure the brake is engaged.

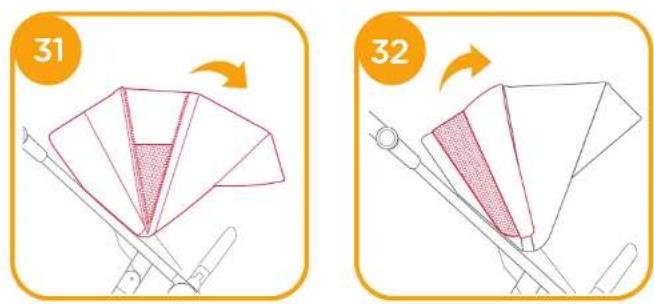

Use Canopy

see images

To open, pull the canopy forward toward the front of the seat. To close, push the canopy back

For extended canopy coverage, unzip the canopy zipper and pull the canopy fully forward.

For additional airflow, flip the canopy window cover up.

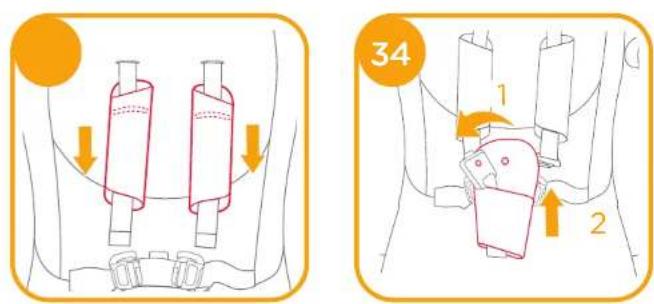

Use Shoulder Harness Cover and Crotch Harness Cover

see images

The shoulder harness cover or crotch harness cover can be removed from the webbing. To assemble shoulder harness cover and crotch harness cover in reverse steps.

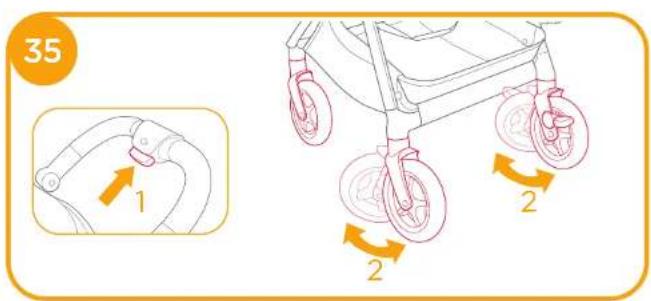

Using Drift

see images

Press the drift button ⚙ - 1, All wheels of the stroller can be rotated. ⚙ - 2

Please release front wheel orientation lock and rear wheel brake pedal before use drift. When use drift, all wheels are in free rotation status.

When stop to use drift, please press locking button and be sure to push the stroller forward for a distance to make rear wheels return to locked state, then stroller can be used normally.

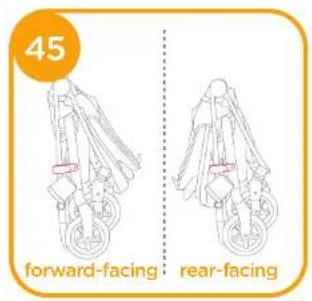

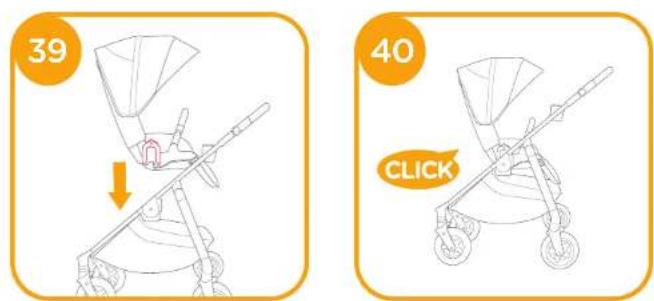

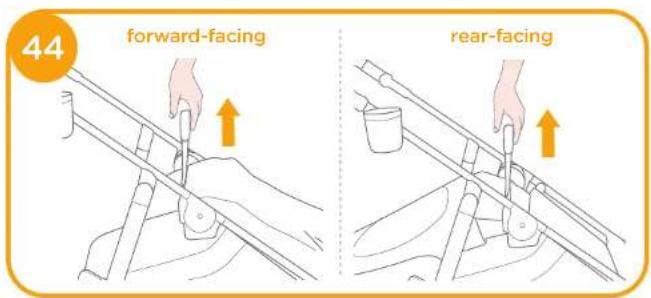

Switch Seat

see images

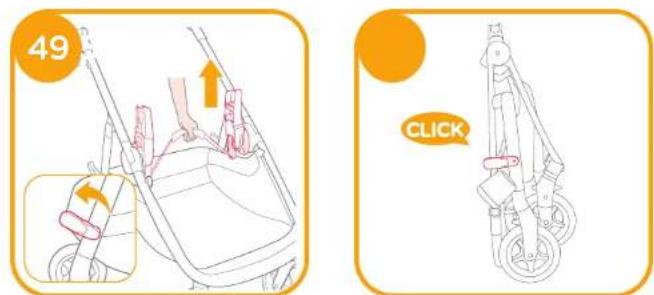

Fold Stroller

see images

Do not fold the stroller with the front swivel locks engaged.

The button on the middle of the recline lever is used for folding the seat.

The folded stroller can stand when the handle is in the middle position.

! The storage latch will automatically hook onto the storage mount, then the stroller is folded and locked completely.

Use Accessories

Accessories may be sold separately or may not be available depending on region.

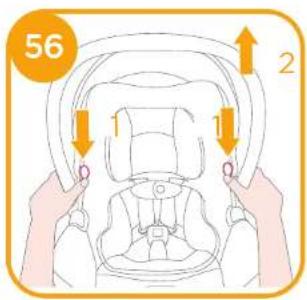

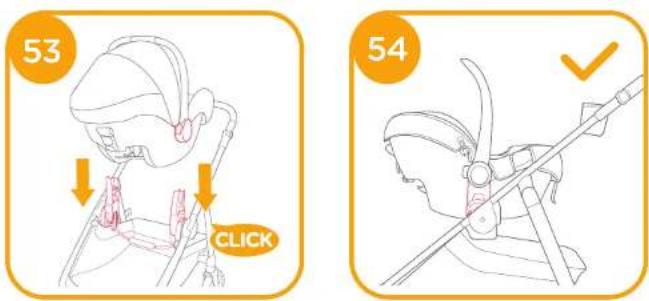

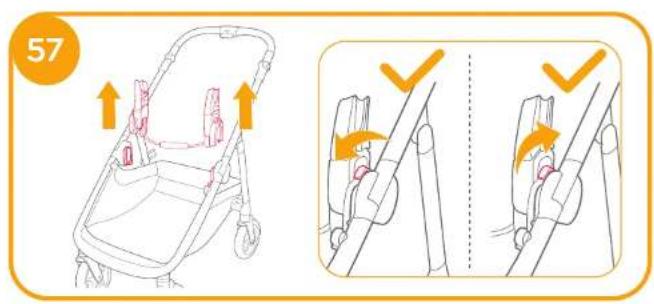

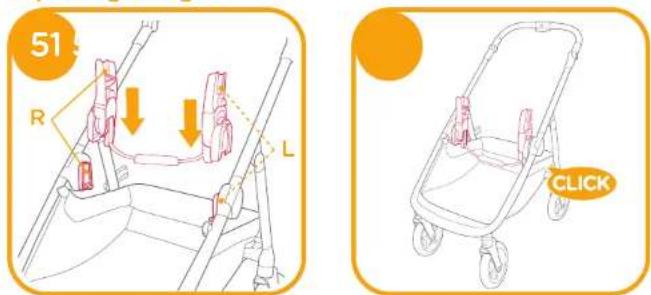

Use with Infant Child Restraint

see images

When using with Joie infant child restraint i-Gemm 3 & i-Level Pro & i-Snug 2 & i-Jemini & Sprint & Gemm please refer to the following instructions.

A "click" sound means the adapter is locked completely.

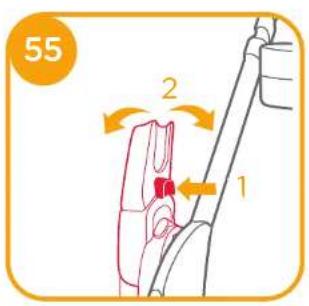

The adapter has 2 positions. The infant child restraint angle can be adjusted with our adjustable adaptors.

If you have any problems about using the infant child restraint, please refer to their own instruction manuals.

Please do not fold the stroller when the infant child restraint is still attached.

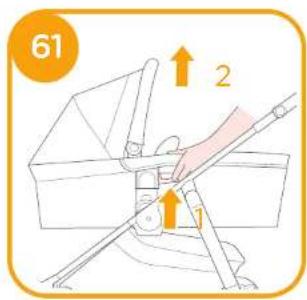

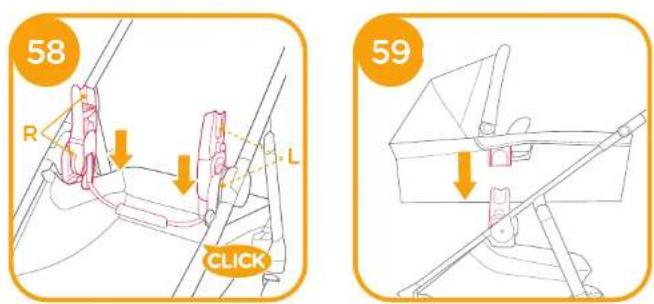

Use Ramble, Ramble XL Carry Cot

see images

When using with Joie ramblo, ramblo xl carry cot, please refer to the following instructions.

A, "click" sound means the adapter is locked completely.

| Always use the mattress when using the carry cot.

If you have any problems about using the carry cot, please refer to their own instruction manuals.

Please do not fold the stroller when the carry cot is still attached.

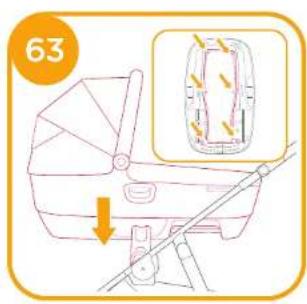

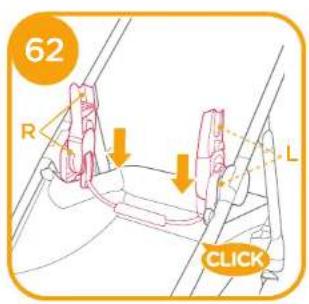

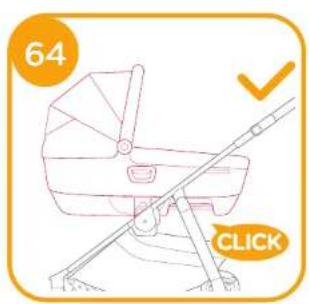

Use Calmi Carry Cot

see images

When using with Joe Calmi carry cot, please refer to the following instructions.

A "click" sound means the adapter is locked completely.

| Always use the mattress when using the carry cot.

Please check that the mesh at the bottom of the carry cot is properly fixed before installing carry cot.

If you have any problems about using the carry cot, please refer to their own instruction manuals.

Please do not fold the stroller when the carry cot is still attached.

Use Rain Cover

see image

To assemble the rain cover, place it over the seat.

When using the rain cover, please always check its ventilation.

When not in use, please check that the rain cover has been cleaned and dried before folding.

Do not fold the stroller after assembling the rain cover.

Do not place your child into the stroller assembled with rain cover during hot weather.

Care and Maintenance

see image

Removable seat pad may be washed in cold water and drip-dried. No bleach. Please refer to the care label for instructions on cleaning the fabric parts of the stroller.

To clean stroller frame, use only household soap and warm water. No bleach or detergent. Periodically wipe clean plastic parts with a soft damp cloth. Always dry the metal parts to prevent the formation of rust if the stroller has come into contact with water.

From time to time, check your stroller for loose screws, worn parts, tom material or stitching. Replace or repair the parts as needed.

Excessive exposure to sun or heat could cause fading or waning of parts.

If stroller becomes wet, open hood and allow to dry thoroughly before storing.

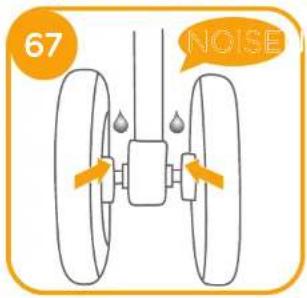

If wheels squeak, use a light oil (e.g., Silicon Spray, antitrust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly.

When using your stroller at the beach, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies.
