USER MANUAL Honour Joie

Line drawing of a baby stroller with four wheels and a canopy cover (no text or symbols)

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Stroller Assembly

1

Line drawing of a person assembling a chair or bench (no text or symbols)

3 CLICK

Illustration of a baby stroller with wheels and a hanging handle, no text or symbols present

5 CLICK

6 2 1

7

8 CLICK

9 2 1

10

Illustration of a person's head with hands placed on the shoulder, showing anatomical positioning (no text or symbols)

Line drawing of a device with a curved top and base, showing a red arrow indicating movement or force (no text or symbols)

Line drawing of a car seatbelt with two side straps and a belt, no text or symbols present

14 CLICK

19 1 2 3 CLICK

15 2 1 t

Line drawing of a stroller with four wheels and a seat (no text or symbols)

20 1 21

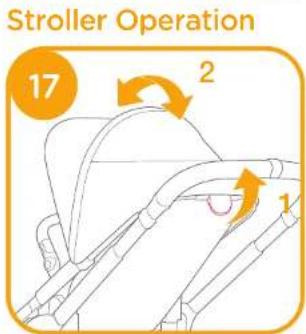

Stroller Operation 17 2 1

18

22 23

24 2 1

25

Line drawing of a curved mechanical component with an arrow indicating motion (no text or symbols)

31 1 2 1

26 CLICK

27

32

Line drawing of a mechanical device with an arrow indicating upward motion, no text or symbols present

Diagram of a folded paper or plastic sheet with an arrow indicating rotation (no text or symbols)

29

Illustration of a mechanical device with a lever and handle, no text or symbols present

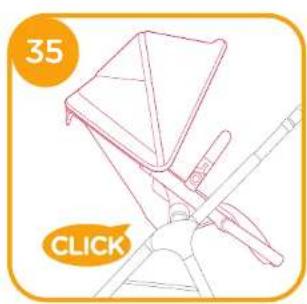

35 CLICK

36

Illustration of a mechanical device with an upward arrow, no text or symbols present

Diagram of a mechanical assembly with an arrow indicating motion, no text or symbols present

39 1

Line drawing of a mechanical device with a circular base and a circular component, labeled '40' and 'CLICK' (no text or symbols on the diagram itself)

Accessories (May not be included in purchase) Accessories may be sold separately or may not be available depending on region.

41 2 1

Line drawing of a baby stroller with wheels and a handle, no text or symbols present

43 CLICK

44

Illustration of a baby stroller with a hand holding a small object, no text or symbols present

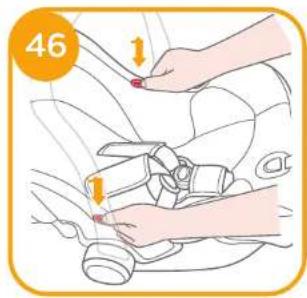

46 1

47 ↑ 2

48 2

53

Line drawing of a baby bottle with a checkmark indicating selection (no text or symbols)

49 CLICK

Line drawing of a mechanical device with a handle and frame, no text or symbols present

55 ↑ 2 ↑ 1

Line drawing of a baby stroller with wheels and seat (no text or symbols)

51 ↑ 2 ↑ 1

52 CLICK

Line drawing of a car seat assembly with a highlighted section (no text or symbols)

58

Line drawing of a baby stroller with a back panel and orange circular badge showing number 59 (no text or symbols on the diagram itself)

Simple line drawing of a door with two vertical slots, no text or symbols present

Detach & Assemble Soft Goods

61

Diagram of a dome-shaped container with an arrow indicating direction, no text or symbols present

Line drawing of a person's head with hands holding a white object, no text or symbols present

64

Illustration of a person inside a seat with orange circular badge showing number 65 (no text or symbols on diagram)

66 P R

Line drawing of a car interior showing the lid and side door, with an orange arrow indicating a movement or change (no text or symbols)

68

69

70

Line drawing of a car interior showing a lid and seat, with an arrow indicating the handle (no text or symbols)

Diagram of a vehicle seatbelt with arrows indicating movement or force (no text or symbols)

Care and Maintenance

77 NOISE

Line drawing of a baby car seat with arrows indicating upward motion (no text or symbols)

Line drawing of a shoe with a highlighted section and arrow indicating motion (no text or symbols)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Welcome to Joie ^TM

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Joie Honour™, you are using a high quality, fully certified stroller, approved to European safety standards EN 1888-2:2018+A1:2022. The stroller is intended for children up to 15kg with rearward facing mode and up to 22kg or 4 years whichever comes first with forward facing mode. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Visit us at joiebaby.com to download manuals and see more exciting Joie products!

For warranty information, please visit our website at joiebaby.com

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

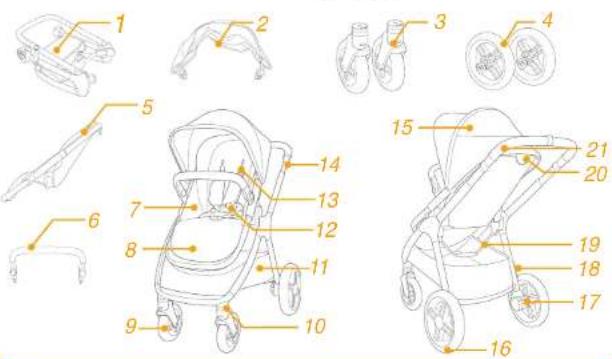

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Stroller Frame
2 Canopy
3 Front Wheel
4 Rear Wheel
5 Seat
6 Armbar
7 Seat Pad
8 Calf Support
9 Front Wheel
10 Swivel Lock

11 Storage Basket
12 Buckle
13 Shoulder Harness
14 Handle Adjustment Button
15 Canopy Window
16 Rear Wheel
17 Brake Lever
18 Storage Latch
19 Folding Webbing
20 Recline Adjustment Button
21 Handle

Accessories

(May not be included)

1 Adapter (on certain models)
2. Footmull (on certain models)
3 Rain Cover (on certain models)
4 Insert (on certain models)

Accessories may be sold separately or may not be available depending on region.

WARNING

! Always use the restraint system.
! Ensure that all the locking devices are engaged before use.
! Do not let the child play with this product.
! Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
! Adult assembly required.
! The stroller is intended for children up to 15kg with rearward facing mode and up to 22kg or 4 years whichever comes first with forward facing mode.
! This seat unit is not suitable for children under 6 months.
! To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket.
! Never leave the child unattended.
! Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or canopy.
! Accessories which are not approved by the manufacturer shall not be used.
! Only replacement parts supplied or recommended by the manufacturer shall be used.
! To avoid injury ensure that the child is kept away when unfolding and folding this product.
! This product is not suitable for running or skating.
! The parking device shall be engaged when placing and removing the children.
! For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.

! Carry cot shall not be used, as soon as the child is able to sit by himself, roll over and can push itself up on its hands and knees. Maximum weight of the child: 9kg.
! No additional mattress shall be added unless recommended by the manufacturer.
! Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.

Stroller Assembly

(Please refer to figures on page 1-14)

Please read all the instructions in this manual before assembling and using this product.

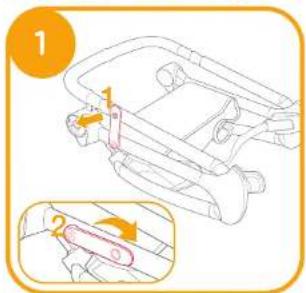

Open Stroller

see images ① ③

Separate storage latch from storage mount 🔍, and then lift the handle upwards 🔴, a click sound means the stroller is open completely.

Check that the stroller is completely latched before continuing to use.

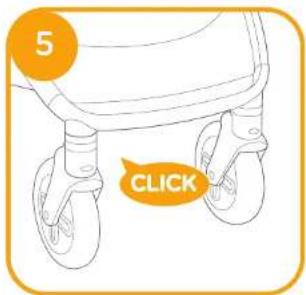

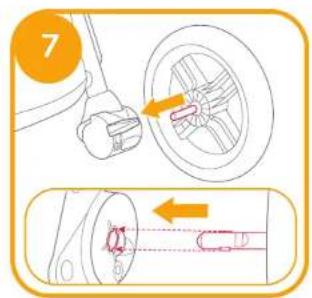

Assemble & Detach Front Wheel see images 4-6

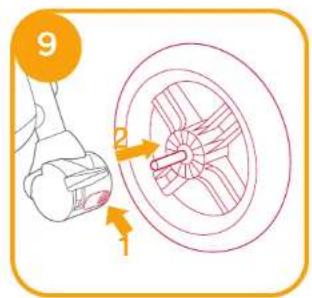

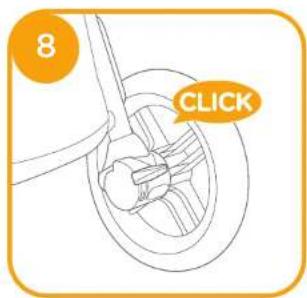

Assemble & Detach Rear Wheel see images

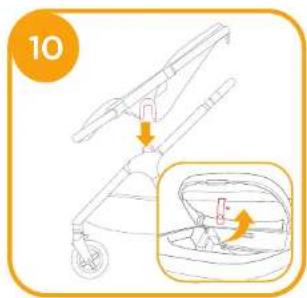

Assemble Seat see image

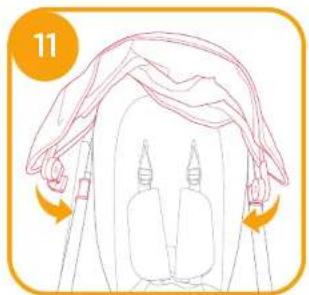

Assemble Canopy see images 1 6

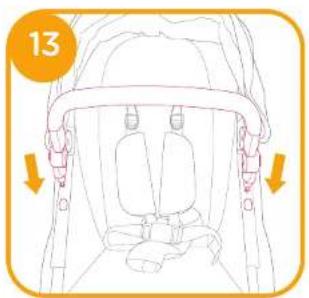

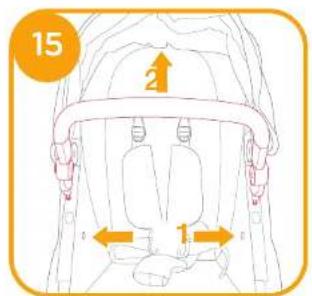

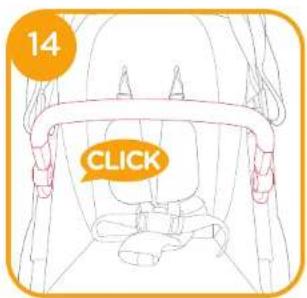

Assemble & Detach Armbar see images ☐ - ☐

The completely assembled stroller is shown as

Stroller Operation

Adjust Backrest

see image

There are 4 recline angles for the backrest.

To raise or lower the backrest, squeeze the recline adjustment button, and pull the seat up or down.

Use Buckle

see images 12 - 13

Release Buckle

Press the button, the buckle will release automatically.

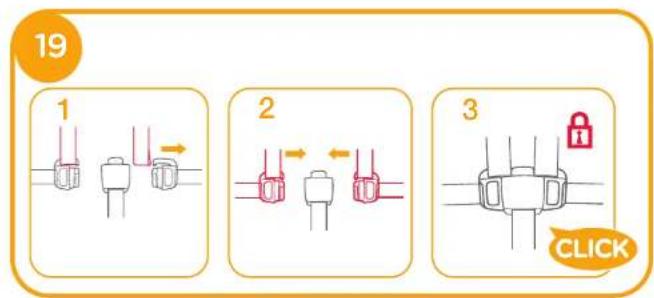

Lock Buckle

Match the waist belt buckle with the shoulder buckle 12 - 1, and align them with the center buckle, the buckle can lock automatically. 12 - 2 A "click" sound means the buckle is locked completely. 13 - 3

To avoid serious injury from falling or sliding out, always secure your child with harness.

Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.

Do not cross the shoulder belts. This will cause pressure on a child's neck.

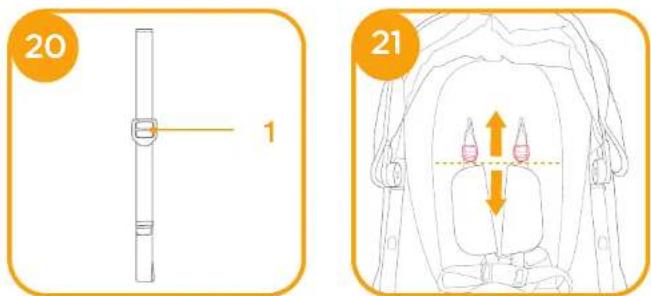

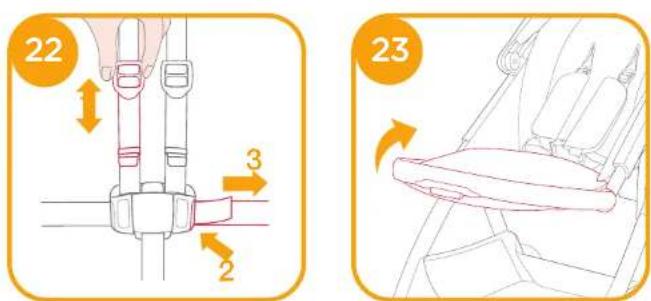

Use Shoulder & Waist Harnesses

see images

In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.

-1 Slide adjuster

The upper shoulder harness buckles can be moved up and down for added adjustment.

To avoid serious injury from falling or sliding out, always secure your child with the harness.

Make sure the harness is adjusted properly and your child is snugly secured. The space between the child and the shoulder harness should be about the thickness of one finger.

Press the button - 2, while pulling the waist harness to proper length. - 3

Adjust Calf Support

see Images

The calf support has 2 positions.

To raise the calf support, push it upwards. To lower the calf support, press the adjustment button in the middle of the calf support ⚙ - 1, and push down ⚙ - 2.

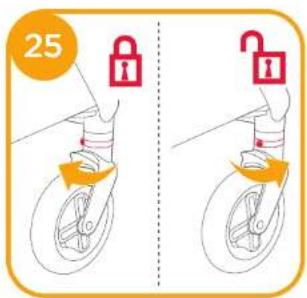

Use Front Swivel Lock

see Image

Rotate swivel lock left to orient. Rotate Swivel Lock right to release.

Tip It is recommended to use swivel lock on uneven surfaces.

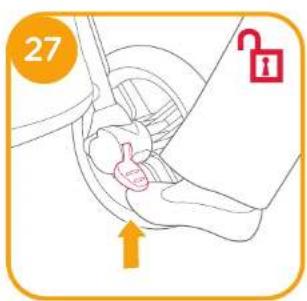

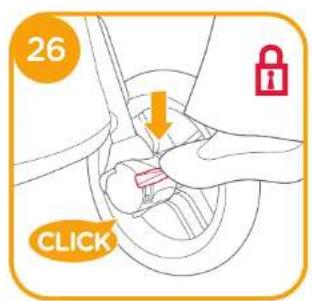

Use Brake

see images

To lock wheels, step the brake lever downwards.

To release wheels, just lift the brake lever upwards.

Tip Always set the parking brake when stroller is not moving.

Use Canopy

see images

The canopy can be opened completely to protect your child from the sun uttermostly, just unzip the zip, and then pull the canopy toward front.

Adjust Handle

see image

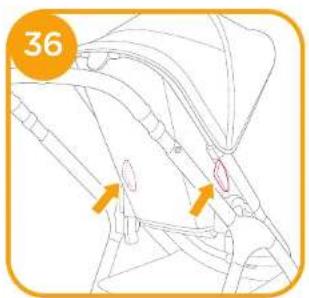

Switch Seat

see images

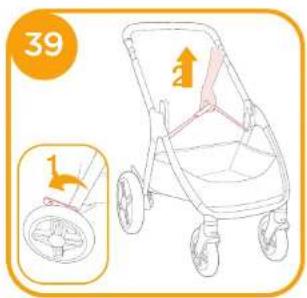

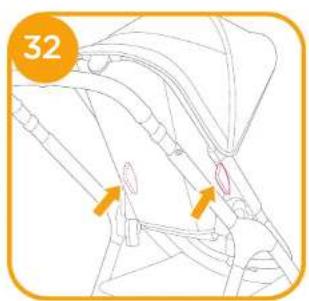

Fold Stroller

see images

For a more compact fold, press the armbar adjustment buttons and rotate the armbar down until it clicks into place. Only use the down/stored position for folding. NEVER use this position with child in stroller

The folded stroller can stand when the handle is in the lowest position.

The storage latch will automatically hook onto the storage mount, then the stroller is folded and locked completely.

Use Accessories

Accessories may be sold separately or may not be available depending on region.

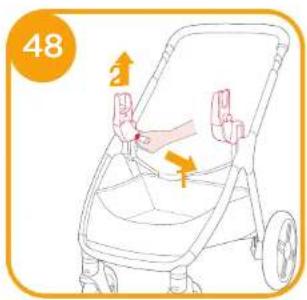

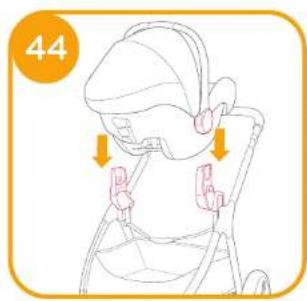

Use with Infant Child Restraint

see images 1.6

When using with Joie Infant child restraint |Gemm 3 & |Level Pro & |Snug 2 & Sprint & |Jemini, please refer to the following instructions.

The infant child restraint angle can be adjusted with our adjustable adaptors.

A "click" sound means the adapter is locked completely.

If you have any problems about using the infant child restraint, please refer to their own instruction manuals.

Please do not fold the stroller when the infant child restraint is still attached.

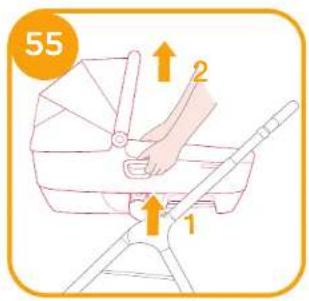

Use Honour Carry Cot

see images

When using with Joie Honour carry cot, please refer to the following instructions.

A "click" sound means the carry cot is locked completely.

| Always use the mattress when using the carry cot.

If you have any problems about using the carry cot, please refer to their own instruction manuals.

I Please do not fold the stroller when the carry cot is still attached.

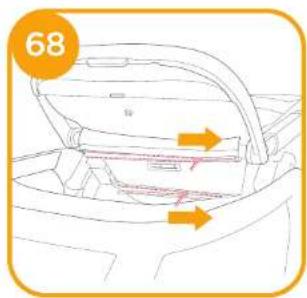

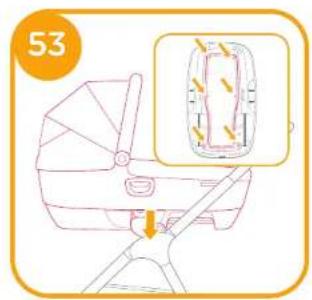

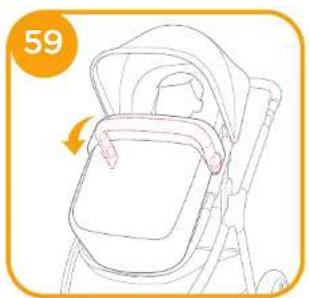

Use Calmi Carry Cot

see images

When using with Joie Calmi carry cot, please refer to the following instructions.

A "click" sound means the adapter is locked completely.

Always use the mattress when using the carry cot.

If you have any problems about using the carry cot, please refer to their own instruction manuals.

! Please do not fold the stroller when the carry cot is still attached.

Please check that the mesh at the bottom of the carry cot is properly fixed before installing carry cot.

Use Rain Cover

see image

To assemble the rain cover, place it over the seat.

! When using the rain cover, please always check its ventilation.

When not in use, please check that the rain cover has been cleaned and dried before folding.

! Do not fold the stroller after assembling the rain cover.

Do not place your child into the stroller assembled with rain cover during hot weather.

Use Footmuff

see images

Place baby into the footmuff, lock the safety buckle, and then rezip the footmuff.

Use Insert

see images

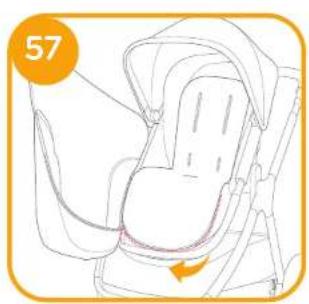

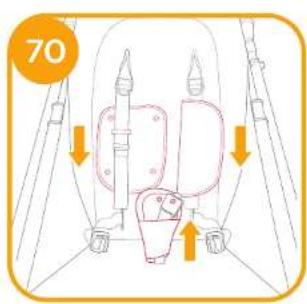

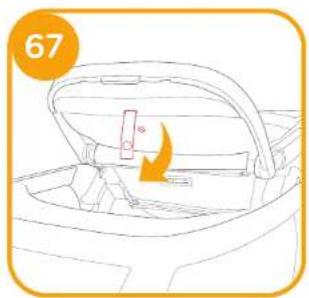

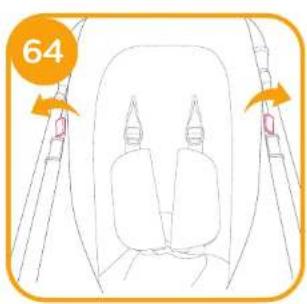

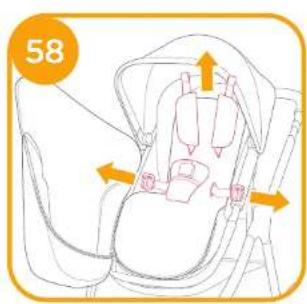

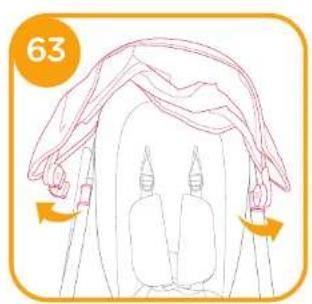

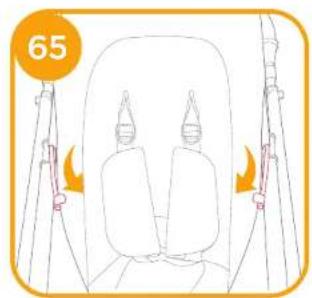

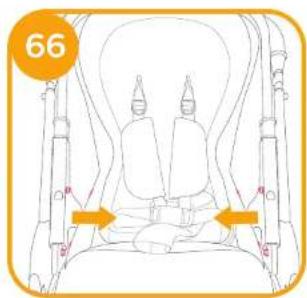

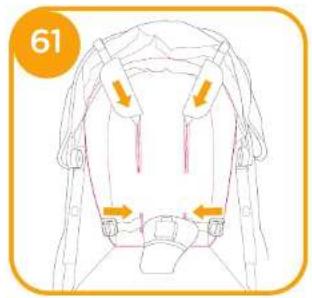

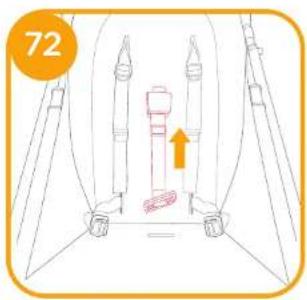

Detach & Assemble Soft Goods

see images

Remove armbar shown as

To re-assemble seat soft goods, follow the steps above in reverse

Cleaning and Maintenance

see image

To clean stroller frame, use only household soap and warm water. No bleach or detergent. Please refer to the care label for instructions on cleaning the fabric parts of the stroller.

Removable soft goods can be washed by machine. No bleach. Do not twist the seat cover and inner padding to dry with great force. It may leave the seat cover and inner padding with wrinkles.

From time to time, check your stroller for loose screws, worn parts, tom material or stitching. Replace or repair the parts as needed. Periodically wipe clean plastic parts with a soft damp cloth. Always dry the metal parts to prevent the formation of rust if the stroller has come into contact with water.

Excessive exposure to sun or heat could cause fading or warping of parts.

If stroller becomes wet, open canopy and allow to dry thoroughly before storing.

If wheels squeak, use a light oil (e.g., Silicon Spray, antirust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly.

When using your stroller at the beach or other sandy/dusty environments, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies.

PT

Bem-vindo à Joie™

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Accesorios

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Accessoires

Diagram showing four labeled parts of a device or component, with numbered annotations pointing to specific features.

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Accessoires

Technical diagram showing four labeled components of a mechanical part, likely a valve or connector assembly.

Diagram of a stroller with numbered parts for identification

15 21 20 19 18 17 16

Accessori

Technical diagram showing four labeled components of a device or component, with numbered annotations pointing to features.

AVVERTENZA

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Tartozékok

Technical diagram showing four labeled components of a device or component, with numbered annotations for identification.

Technical diagram showing four labeled components of a device or component, with numbered annotations for identification.

ΠΡΟΕΙΔΟΠΟΙΗΣΗ

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Akcesoria

-1 Posuvný regulator

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Technical diagram showing four labeled views of a mechanical component with numbered annotations

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Dodaci

(Možda nije uključeno)

1 Adapter (na pojedinim modelima)
2 Vreća za spavanje (na pojedinim modelima)
3 Pokrivač za kišu (na pojedinim modelima)
4. Umetak (na pojedinim modelima)

Technical diagram showing four labeled components of a device or component, with numbered annotations for identification.

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Lisatarvikud

(ei pruugi olla komplektis)

Technical diagram showing four labeled components of a device or component, with numbered annotations pointing to specific parts.

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Priedai

Technical diagram showing four labeled components of a mechanical part, likely a valve or connector assembly.

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Piederumi (Var nebüt iekļauti)

Technical diagram showing four labeled components of a device or component, with numbered annotations pointing to features.

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V. Van der Valk Boumanweg 178 C, 2352 JD Leiderdorp, The Netherlands
