USER MANUAL Mydrift Joie

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Stroller Assembly

Illustration of a hand holding a device with a yellow arrow pointing to it, no text or symbols present

Line drawing of a stroller with wheels and a handle, no text or symbols present

Line drawing of a baby stroller with wheels and a speech bubble labeled '3' (no text or symbols on the diagram itself)

4 CLICK

5 1 2

6 CLICK

Diagram of a person wearing a helmet with an arrow indicating direction (no text or symbols)

Diagram of a folding tool with an arrow indicating rotation (no text or symbols)

9 CLICK

10 2

11 1

Line drawing of a baby stroller with four wheels and a back cover (no text or symbols)

13

14 1 2 3 CLICK

18 1 2 3

19 2 1

15 1 2 3

3 CLICK

Illustration of a hand placing a small object on a curved surface, with no visible text or symbols

21 CLICK

16 450 450 450 1

17

22 1 2

23 CLICK

24

25

30

31 1 2 1

Diagram of a folding fan with arrows indicating rotation, no text or symbols present

27

32 1

Illustration of a baby stroller with wheels and directional arrows indicating motion (no text or symbols)

Diagram of a folding fan with a highlighted section and an arrow indicating rotation (no text or symbols)

29

Line drawing of a mechanical device with a highlighted orange arrow pointing to a component (no text or symbols)

34 1

35 CLICK

Line drawing of a person riding a scooter with a hand gesture (no text or symbols)

Accessories (May not be included in purchase) Accessories may be sold separately or may not be available depending on region.

37 1 2 3

38 11 2

Simple line drawing of a mechanical component with an arrow indicating motion (no text or symbols)

40 1 2

Care and Maintenance

Line drawing of a stroller with wheels and a seat cover, no text or symbols present

42 NOISE

GB

Welcome to Joie™

Congratulations on becoming part of the Jole family! We are so excited to be part of your journey with your little one. While traveling with the Jole mydrift, you are using a high quality, fully certified stroller, approved to European safety standards EN 1888-2:2018+A:2022. This product is suitable for children up to 22kg or 4 years whichever comes first. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Visit us at joiebaby.com to download manuals and see more exciting Joie products!

For warranty information, please visit our website at jolebaby.com

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

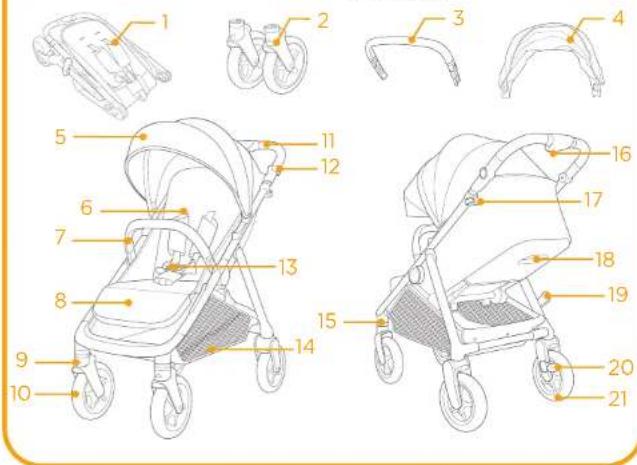

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Stroller Frame
2 Front Wheel
3 Arm bar
4 Canopy
5 Canopy
6 Shoulder Harness
7 Arm bar
8 Calf Support
9 Wheel Release Button
0 Front Wheel

11 Handlebar
12 Handlebar Button
13 Buckle
14 Storage Basket
15 Front Swivel Lock
16 Drift Button
17 Infant Carrier Lock
18. Recline Handle
19 Storage Latch
20 Brake
21 Rear Wheel

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Accessories

(May not be included)

1 Rain cover (on certain models)

Accessories may be sold separately or may not be available depending on region.

WARNING

! Always use the restraint system.
! Ensure that all the locking devices are engaged before use.
! Do not let the child play with this product.
! Check that the car seat attachment devices are correctly engaged before use.
! Adult assembly required.
! This product is suitable for children up to 22kg or 4 years whichever comes first.
! To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket.
! Never leave the child unattended.
! Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or canopy.
! Accessories which are not approved by the manufacturer shall not be used.
! Only replacement parts supplied or recommended by the manufacturer shall be used.
! To avoid injury ensure that the child is kept away when unfolding and folding this product.
! This product is not suitable for running or skating.
! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
! The parking device shall be engaged when placing and removing the children.
! For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
! Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.

Stroller Assembly

(Please refer to figures on page 1-8)

Please read all the instructions in this manual before assembling and using this product.

Open Stroller

see images 1 - 3

! Check that the stroller is completely latched before continuing to use.

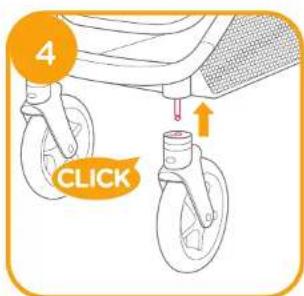

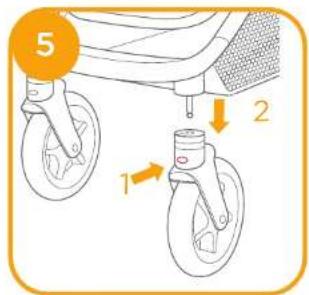

Assemble & Detach Front Wheel

see images 4 - 5

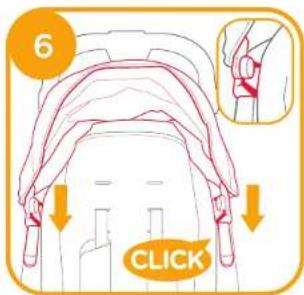

Assemble Canopy

see images B - B

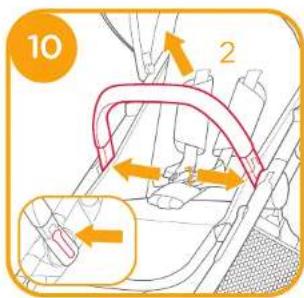

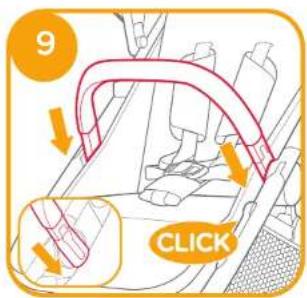

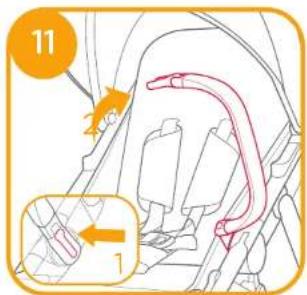

Assemble & Detach Arm bar

see images 5 - 1

Arm bar can be opened one side for easy seating and unseating of child.

! Always secure the child with the harness. The arm bar is not a restraint device.

The completely assembled stroller is shown as 12

Stroller Operation

Use Buckle

see images 13 -

Release Buckle

Press the center button to release the buckle.

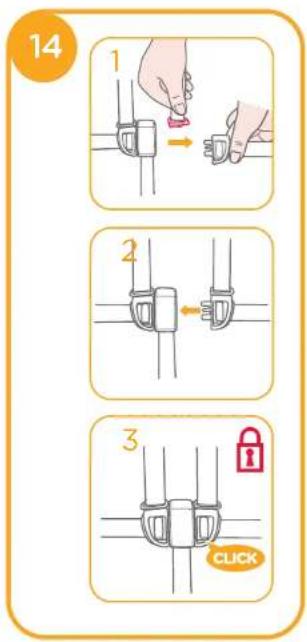

Lock Buckle

Match the waist belt buckle with the shoulder buckle - 1, and click into the center buckle. - 2

A "click" sound means the buckle is locked completely. 14 - 3

! Always secure the child with the harness. The arm bar is not a restraint device.

Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.

! Do not cross the shoulder belts. This will cause pressure on a child's neck.

Use Shoulder & Waist Harnesses

see images 15 -

! In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.

15 - 1 Shoulder harness anchor A

15 - 2 Shoulder harness anchor B

15 - 3 Slide adjuster

For larger child, use shoulder harness anchor A and the highest shoulder slots. For smaller child, use shoulder harness anchor B and the lowest shoulder slots.

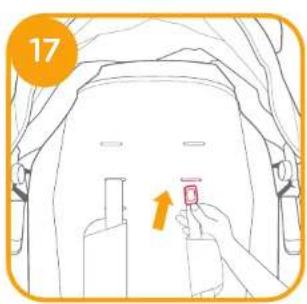

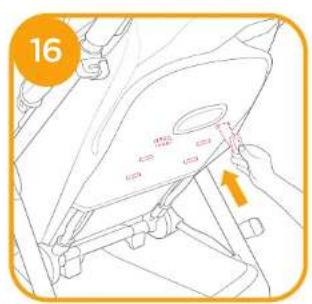

To adjust the position of the shoulder harness anchor, turn the anchor to be level with the side facing forward. Thread it through the shoulder harness slot from back to front.

Rethread it through the slot that is closest to child's shoulder height.

Use slide adjuster to change the harness length. ^14 - 1

Press the button 14 - 2, while pulling the waist harness to proper length. 14 - 3

Adjust Backrest

see images ② - ③

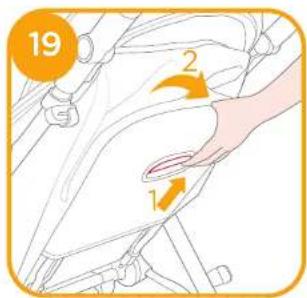

Recline Backrest

To recline the backrest, squeeze the recline handle on the back of the seat, pull down on the backrest.

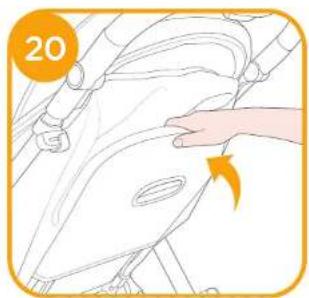

Raise Backrest

To raise the backrest, push up.

I Make sure the recline is set properly for use.

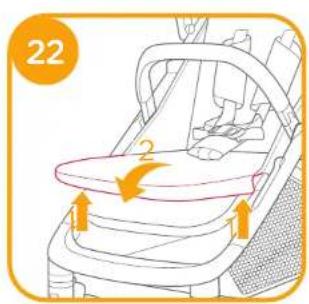

Adjust Calf Support

see images 21 - 3

The calf support has 2 positions.

To raise the calf support, push it upwards. A "click" sound means the calf is locked completely. To lower calf support, press the adjustment buttons on both sides of the calf support -1, and rotate the calf support downwards. -2

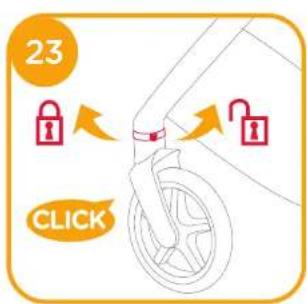

Use Front Swivel Lock

see image

Front wheel locked or unlocked status as 🧿️

Tip It is recommended to use swivel locks on uneven surfaces.

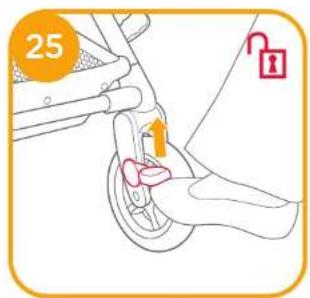

Use Brake

see images

To lock the rear wheels, step down on the brake lever.

To release wheels, just lift the brake lever upwards.

Tip Always apply the brake when the stroller is stopped. Push the stroller slightly to ensure the brake is engaged.

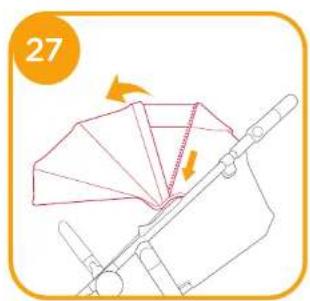

Use Canopy

see images

To open, pull the canopy forward toward the front of the seat. To close, push the canopy back For extended canopy coverage, unzip the canopy zipper and pull the canopy fully forward. For additional airflow, flip the canopy window cover up

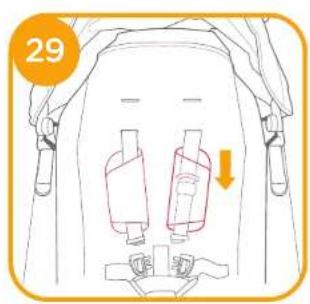

Use Shoulder Harness Cover and Crotch Harness Cover

see images

The shoulder harness cover or crotch harness cover can be removed from the webbing. To assemble shoulder harness cover and crotch harness cover in reverse steps.

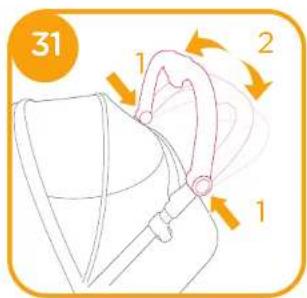

Adjusting Handlebar

see image

There are 3 handlebar positions:

To adjust the handlebar, press the left and right handlebar adjustment buttons at the same time 5 - 1, and rotate the handlebar to a desirable position 6 - 2.

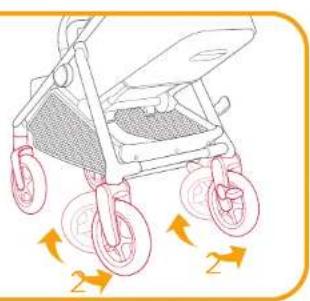

Using Drift

see images -

Press the drift button ⚫ 1, All wheels of the stroller can be rotated. ⚫ 2

Please release front wheel orientation lock and rear wheel brake pedal before use drift. When use drift, all wheels are in free rotation status.

When stop to use drift, please press locking button and be sure to push the stroller forward for a distance to make rear wheels return to locked state, then stroller can be used normally.

Fold Stroller

see images

Please fold the canopy before folding the stroller.

Pull the folding webbing upward, the frame will automatically fold backward.

The storage latch will automatically hook onto the storage mount, then the stroller is folded and locked completely.

After folding, the arm bar will automatically rotate to one side.

When the handle is in the middle position, the stroller can stand after folding.

Use Accessories

Accessories may be sold separately or may not be available depending on region.

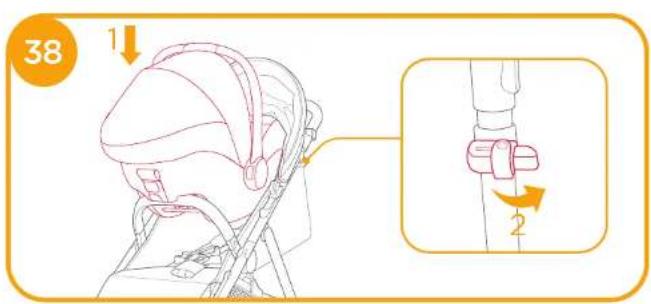

Use with Infant Child Restraint

see images

When using with Joie child restraint i-Snug 2, i-Gemm 3 and Gemm, please refer to the following instructions.

Always adjust the backrest to the lowest position and collapse the canopy before attaching the infant child restraint. ⚡ - 1&F - 2

Find the infant carrier lock located near the base of the stroller handle. ☑ - 3 Engage the infant carrier lock by sliding it towards inside of stroller.

Insert the infant child restraint onto the stroller frame, over the arm bar, but under the infant carrier lock. A "clicking" sound will indicate that the infant child restraint is properly locked in place.

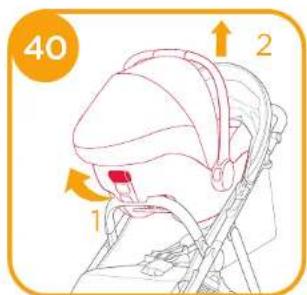

Release the infant carrier lock by sliding it towards outside of stroller. Locate the release handle on the infant child restraint and squeeze it.

If you have any problems about using the infant child restraint, please refer to their own instruction manuals.

DO NOT fold the stroller while the infant child restraint is attached.

Use Rain Cover

see Image

To assemble the rain cover, place it over the stroller, and then attach the hook and loop fasteners on the rain cover.

Before using the rain cover, please make sure the backrest has been adjusted to the lowest position and the infant child restraint has been fastened.

When using the rain cover, please always check its ventilation.

When not in use, please check that the rain cover has been cleaned and dried before folding.

Do not fold the stroller after assembling the rain cover.

Do not place your child into the stroller assembled with rain cover during hot weather.

Care and Maintenance

see image

! Removable seat pad may be washed in cold water and drip-dried. No bleach. Please refer to the care label for instructions on cleaning the fabric parts of the stroller.
! To clean stroller frame, use only household soap and warm water. No bleach or detergent. Periodically wipe clean plastic parts with a soft damp cloth. Always dry the metal parts to prevent the formation of rust if the stroller has come into contact with water.
! From time to time, check your stroller for loose screws, worn parts, tom material or stitching. Replace or repair the parts as needed.
! Excessive exposure to sun or heat could cause fading or warping of parts.
! If stroller becomes wet, open hood and allow to dry thoroughly before storing.

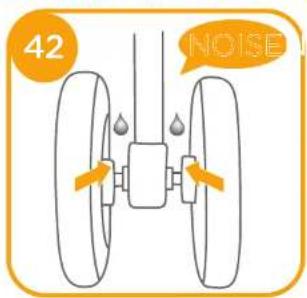

! If wheels squeak, use a light oil (e.g., Silicon Spray, antirust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly. ^18
When using your stroller at the beach, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies.

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Accessoires

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Zubehör

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Accessoires

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Accessori

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Accesorios

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Acessórios

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Příslušenství

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Príslušenstvo

(nemusi byt zahrnuté)

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Dodatna oprema

(Morda ni priložena)

1 Dežno pregrinjalo (pri določenih modelih)

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Принадлежности

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Tilbehør

IF - 3 Glidejustering

Technical diagram of a two-wheeled baby stroller with numbered parts for identification and assembly reference.

Tartozékok

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Accesorii

Technical diagram of a two-wheeled baby stroller with numbered parts for identification and assembly reference.

Εξαρτήματα

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Aksesuarlar

(Dâhil olmayabilir)

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Dodatna oprema

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Tillbehör

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Lisävarusteet
