USER MANUAL Zone Wireless LOGITECH

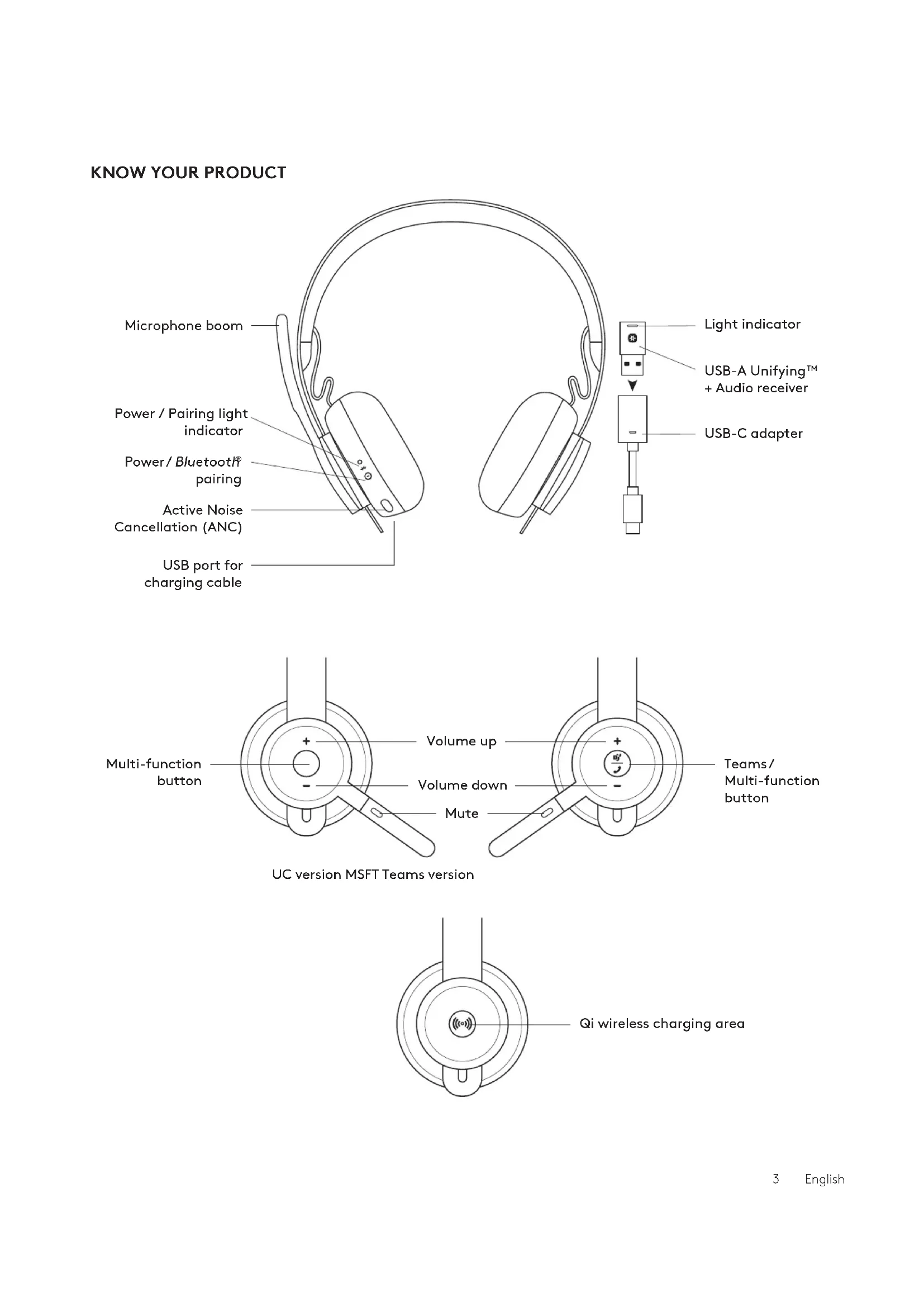

pairing USB port for charging cable USB-C adapter Light indicator USB-A Unifying™ +Audio receiver Volume up Volume down Mute Multi-function button Teams / Multi-function button Qi wireless charging area UC version MSFT Teams version 3 EnglishUSB-A USB-C ADAPTER USB-A | USB-C Zone Wireless 2 sec.

2. USB-A Unifying™ + audio receiver

3. USB-C to A adapter

4. USB-A to C charging cable

1. Press power button for 1 second.

2. Once powered on, light indicator turns white.

Ifnodevice is connected, it will ash white slowly.

1. Press power button for 2 seconds. Light indicator

willash white rapidly.

settings on your device.

3. Select Zone Wireless Plus in discoverable devices.

4. Once successfully paired, light indicator will turn

Unifying Software at www.logitech.com/support/unifying.

Insert the Zone Wireless Plus receiver into the computer USB-A port. USB-C Insert the USB-A receiver into the USB-C adapter. Then insert the adapter into the computer USB-C port.

3. Zone Wireless Plus headset is already paired to the receiver it ships with. Just power on the headset.

Oncesuccessfully paired, the light indicator on the receiver will remain solid white. Light indicator on theheadsetwill turn solid white.

4. To pair mice and keyboard,

a. Open the software and continue clicking “Next” on the bottom right corner. Ifyoualready have other unifyingreceivers (with logo), please unplug them. b. Locate the OFF-ON slider on your mice and keyboard. Turn each device o and back onto restart yourdevicesand nish pairing. - If paired, please follow the on-screen prompt and test it out to conrm successful pairing. - If pairing failed, please retry or refer to our support page www.logitech.com/support/zonewirelesspluspairing. NOTE: you can pair up to 6 Logitech Unifying peripherals. ADJUSTING HEADSET

1. Adjust headset by sliding earcups up and down

2. It may be easier to adjust the headset on your head.

Movethe earcups up and down the headband until theysit comfortably on your ears.

left or right side. Audio channel will switchautomatically, depending on the direction you are wearing themicrophone.

2. Flexible microphone boom — adjust boom location

tocapture voice better. OFF/ON www.logitech.com/ support/unifying Advanced NextUSB-AUSB-C 5 EnglishHEADSET CONTROLS TEAMS version Usage Button Action Call controls Answer / End call Multi-function Short press Reject call 2 second press Resume call Short press Transfer active call to other device Short press Teams activities Check connection to teams Short press Quick access to Teams Short press Respond to Teams notications Short press Trigger Teams voice skills (Cortana) 2 second press Media controls Play / Pause Multi-function Double press Track forward Multi-function and “+” Short press Track backward Multi-function and “–” Short press Volume Volume up

Short press Headset connection and battery status Check connectivity and battery life “+” and “–” Short press MSFT Teams version 6 English“ANC on” “ANC o” ACTIVE NOISE CANCELLATION (ANC) ANC blocks out the noise around you to help you concentrate on the task at hand.

1. Press the ANC button on the side of the earcup.

2. There will be voice notications when turning ANC on

ando. These can be turned o in the Logi Tune app. MUTE Mute Move mic boom uptomute Voice notications indicatewhen themicrophone is on/ omute “Mute on” “Mute o” Move mic boom downto unmute Note: - Teams activities are only functional when Teams is running on an unlocked computer. - Media control functionality depends on type of application. - Call activities are always the rst priority. When two devices are connected, the Bluetooth

connection will be prioritized over receiver. When two Bluetooth

devices are connected, the last active device will override the other. Tip: Button customizations and Music EQ controls available on Logi Tune app. UC version Usage Button Action Call controls Answer / End call Multi-function Short press Reject call 2 second press Voice assistant Multi-function 2 second press Media controls Play / Pause Multi-function Double press Track forward Multi-function and “+” Short press Track backward Multi-function and “–” Short press Volume Volume up

Short press Headset status Check connectivity and battery life “+” and “–” Short press UC version 7 EnglishPowered on or fully charged Battery charging Low battery Bluetooth

pairing mode whilelowbattery No paired device No paired device while lowbattery

HEADSET LIGHT INDICATOR

Light Status White Solid Powered on or fully charged Breathing Battery charging Fast pulsing Bluetooth

pairing mode while low battery Slow pulsing No paired device while lowbattery 8 EnglishRECEIVER INDICATOR LIGHT TEAMS version Light Status White Fast ashing Pairing mode Solid Paired Repeat ashing on and o Incoming call Purple Pulsing Connecting to Teams / Teams notications Flashing for 10 seconds and o Failed connection to Teams Flashing 3 times and o Not connected to Teams Solid Connected to Teams Red Solid Mute on Pairing mode Paired Failed connection toTeams Incoming call Mute on Not connected toTeams

10 sec. Connected to Teams UC version Light Status White Fast ashing Pairing mode Solid Paired Repeat ashing on and o Incoming call Red Solid Mute on Pairing mode Paired Incoming call Mute on Note: Receiver light indicates headset status only. Connecting to Teams / Teams notications 9 Englishwww.logitech.com/tune

orGooglePlay™ stores by searching for “Logi Tune“. Charging via Qi wireless charger

1. Fold headset with the wireless charging icon

ontheearcupto the outside.

2. Place earcup with wireless charging icon on top

ofanyQiwireless charging base.*

3. Indicator light will be a breathing, white light

4. Indicator light will be solid white when fully charged.

– 2hours of charging fully charges the battery.

• Qi wireless charging base is not included. Headset indicator light CHARGING Headset automatically powers o when left idle. Sleeptimer can be changed in the Logi Tune App. Headset indicator light will turn RED when battery is low. Charging via USB cable

1. Plug the USB-C cable end into the USB-C port onthe

bottom of the earcup.

2. Plug the USB-A end into the USB-A charging port

4. Indicator light will be solid white when fully charged.

– 2hours will fully charge the battery. – 5 minutes will give you 1 hour of talk time.

5. Headset can be used with receiver and Bluetooth

paired while charging. 10 EnglishADJUSTING SIDETONE Sidetone lets you hear your own voice during conversationsso you are aware of how loud you are talking. In the Logi Tune app, select the sidetone feature, andadjust the dial accordingly. - A higher number means you hear more external sound. - A lower number means you hear less external sound.

To reset your headset back to its original state, powerheadset on, press and hold the ANC button and volume ’–’ button for 5 seconds. The headset is successfully reset when it powers o and indicator light turns o.

It is recommended to update both your headset andreceiver. To do so, download the Logi Tune Desktop fromwww.logitech.com/tune HEADSET: Height x Width x Depth:

DIMENSIONS 11 English© 2021 Logitech, Logi and the Logitech Logo are trademarks or registered trademarks of Logitech Europe S.A. and/or its aliates in the U.S. and other countries. Logitech assumes noresponsibility for any errors that may appear in this manual. Information contained herein issubject to change without notice. Works with common calling applications across almost all platforms and operating systems. Works with Windows, Mac, or Chrome™ based computer viaUSB-C, USB-A, Bluetooth

enabled devices. Microphone Type: Omni-directional dual MEMS mic array Frequency response (Headset): 30~13kHz @ -10dB (music mode), 100~8kHz (talk mode) Frequency response (Microphone): 85~20kHz @-3dB Battery type: Built-in battery (Lithium ion) Battery life (talk time): 14 hrs (ANC on), 15 hrs (ANC o) Battery life (listening time): 14 hrs (ANC on), 16 hrs (ANC o) Bluetooth
