Product Type	TV wall mount
Brand	Sony
Model	SUWL840
Mount dimensions (W x H x D)	446 x 336 x 20 mm (for 75/65 inch models); 346 x 252 x 20 mm (for 55 inch model)
Mount weight	Approx. 2.7 kg (75/65 inch models); 2.3 kg (55 inch model)
Power supply	Not applicable (mechanical mount)
Main functions	Wall mounting for Sony TV; tilt and swivel angle adjustment
Care and cleaning	Clean with a soft dry cloth; do not use abrasive products; periodically check the mount
Safety	Installation by a certified professional required; use at least six 8 mm diameter screws; wall must support six times the TV weight; do not modify parts; do not install devices other than specified ones
Spare parts and repairability	Screws and parts included; wall mounting screws not included; spare parts available from Sony
General information	Brand: Sony; Model: SUWL840; Compatible with Sony TVs 55, 65, and 75 inches (references see guide)

Frequently Asked Questions - SUWL840 SONY

Which TVs are compatible with the SUWL840 wall mount?

The mount is designed for specific Sony TVs. Refer to your TV's Reference Guide to check compatibility. Models of 55, 65, and 75 inches are mentioned in the instructions.

What is the maximum load capacity of the mount?

The wall must support at least six times the TV weight. The mount itself weighs about 2.7 kg (for 75/65 inch models) or 2.3 kg (for 55 inch model). Check your TV's weight in its guide.

Do I need to call a professional for installation?

Yes, installation must be carried out exclusively by a certified professional installer. Improper mounting may cause the TV to fall and result in serious injury.

What tools are needed for installation?

The necessary tools are: a spirit level, a drill, a hammer, a screwdriver, and appropriate wall screws (not included).

How to attach the mount to the wall?

Follow the steps in the instructions: choose the location, align the WM1 mount on the wall, make six marks, drill pilot holes, attach the mount with at least six 8 mm diameter screws suitable for the wall, then check the level.

Can I tilt the TV after installation?

Yes, you can adjust the angle by screwing the left and right sides of the mount. The instructions also mention the possibility to gently swivel the TV.

Is the mount supplied with wall screws?

No, screws to attach the mount to the wall are not included. You must use screws suitable for the material and structure of your wall (8 mm diameter recommended).

What to do in case of missing screws?

Check the package contents. If screws are missing, contact your dealer or Sony after-sales service. Never use non-compliant screws.

How to clean the wall mount?

Use a soft dry cloth. Do not use abrasive products or solvents that could damage the finish.

Can I use this mount for a TV of another brand?

No, this mount is designed exclusively for specified Sony TVs. Installing another device may cause the TV to fall and cause damage.

USER MANUAL SUWL840 SONY

Thank you for purchasing this product.

To Customers

Installing the TV to the Wall

WARNING

PROFESSIONAL INSTALLATION REQUIRED

This product should only be installed by a professional installer who is trained to determine the strength of the wall for withstanding the TV's weight. If it is not properly secured during installation, the TV may fall and cause serious injury. Sony is not liable for any damage or injury caused by mishandling or improper installation, or installing any other than the specified product. Your Statutory Rights (if any) are not affected.

To Sony dealers

Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do the installation work safely. Sony is not liable for any damages or injury caused by mishandling or improper installation. Please give this manual to the customer after installation.

This instruction manual shows the correct handling of the product and important precautions necessary to prevent accidents. It is your responsibility to read, thoroughly understand, and follow all instructions in this instruction manual. Failure to do so may result in serious personal injury or property damage, and may void the warranty. Keep this manual available for future reference.

Products by Sony are designed with safety in mind. If the products are used incorrectly, however, it may result in a serious injury through fire, electric shock, the product toppling over, or the product dropping. Be sure to observe the precautions for safety to prevent such accidents.

CAUTION

Specified products

This Wall-Mount Bracket is designed for use with the products specified TVs. For TVs, refer to their "Reference Guide" to verify that the Wall-Mount Bracket can be used.

To Customers

WARNING

If the following precautions are not observed, serious injury or death through fire, electric shock, or the product dropping can result.

Be sure to subcontract the installation to licensed contractors and keep small children away during the installation.

If the Wall-Mount Bracket or the TV is not installed correctly, the following accidents may occur. Be sure licensed contractors carry out installation.

• The TV may fall and cause a serious injury such as a bruise or a fracture.
• If the wall on which the Wall-Mount Bracket is installed is unstable, uneven, or not perpendicular to the floor, the unit may fall and cause injury or property damage. The wall should be capable of supporting a weight of at least six times the TV weight. (Refer to your TV's "Reference Guide" for its weight.)
• If the installation of the Wall-Mount Bracket on the wall is not sufficiently sturdy, the unit may fall and cause injury or property damage.

Be sure to subcontract moving or dismounting of the TV to licensed contractors.

If persons other than licensed contractors transport or dismount the TV, it may fall and cause injury or property damage. Be sure that two or more persons carry or dismount the TV.

Do not remove screws, etc., after mounting the TV.

If you do so, the TV may fall and cause injury or property damage.

Do not make alterations to the parts of the Wall-Mount Bracket.

If you do so, the Wall-Mount Bracket may fall and cause injury or property damage.

Do not mount any equipment other than the specified product.

This Wall-Mount Bracket is designed for use with the specified product only. If you mount equipment other than specified, it may fall or break, and cause injury or property damage.

Do not apply any load other than the TV on the Wall-Mount Bracket. Do not shake the TV left/right, up/down.

If you do so, the TV may fall and cause injury or property damage.

Do not lean on or hang from the TV.

Do not lean on or hang from the TV as it may fall on you and cause serious injury.

CAUTION

If the following precautions are not observed, injury or property damage may occur.

• Be careful to not pinch your fingers while handling the Wall-Mount Bracket or swiveling the TV set.

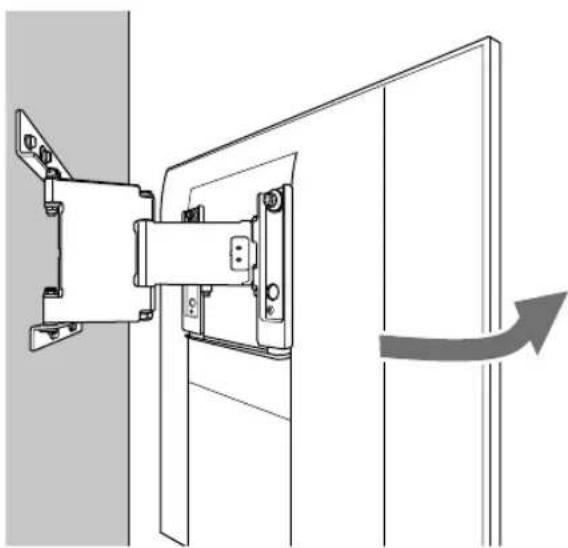

• While swiveling the TV set, handle it with caution and take care not to hit any people nearby.
• Be sure to store the unused parts in a safe place for future use. Keep them away from children.

Do not handle the product with excessive force during cleaning or maintenance.

Do not apply excessive force on the topside of the TV. If you do so, the TV may fall and cause injury or property damage.

Precautions

• If you use the TV installed on the Wall-Mount Bracket for a long time, the wall behind or above the TV may become discolored or the wallpaper may come unstuck, depending on the material of the wall.
• If the Wall-Mount Bracket is removed after installing it on the wall, the screw holes are left.
• Do not use the Wall-Mount Bracket in a place where it is subjected to mechanical vibrations.

Installing the Wall-Mount Bracket

To Sony Dealers

WARNING

The following instructions are for Sony dealers only. Be sure to read safety precautions described above and pay special attention to safety during the installation, maintenance and checking of this product.

Do not install the Wall-Mount Bracket on wall surfaces where the corners or the sides of the TV protrude away from the wall surface.

Do not install the Wall-Mount Bracket on wall surfaces such as a pillar, where the corners or the sides of the TV protrude away from the wall surface. If a person or object happens to hit the protruded corner or side of the TV, it may cause injury or property damage.

Do not install the TV over or under an air-conditioner.

If the TV is exposed to water leaks or air current from an air conditioner for a long time, it may cause a fire, an electric shock or a malfunction of the TV.

Be sure to install the Wall-Mount Bracket securely to the wall following the instructions in this instruction manual.

If any of the screws are loose or fall out, the Wall-Mount Bracket may fall and cause injury or property damage. Be sure to use the appropriate screws for the material of the wall and install the unit securely using six or more screws of 8 mm diameter (or equivalent).

Diagram of a battery pack with cooling fins and heat exchangers (no text or labels)

Be sure to use the supplied screws and attachment parts properly following the instructions given in this instruction manual. If you use substitute items, the TV may fall and cause bodily injury to someone or damage to the TV.

Be sure to assemble the bracket properly following the instructed procedure explained in this instruction manual.

If any of the screws are loose or fall out, the TV may fall and cause bodily injury to someone or damage to the TV.

Be sure to tighten the screws securely in the designated position.

If you fail to do so, the TV may fall and cause bodily injury to someone or damage to the TV.

Be careful not to subject the TV to shock during installation.

If the TV is exposed to shock, it may fall or break apart. This may cause injury.

Be sure to install the TV on a wall that is both perpendicular and flat.

If you fail to do so, the TV may fall and cause injury.

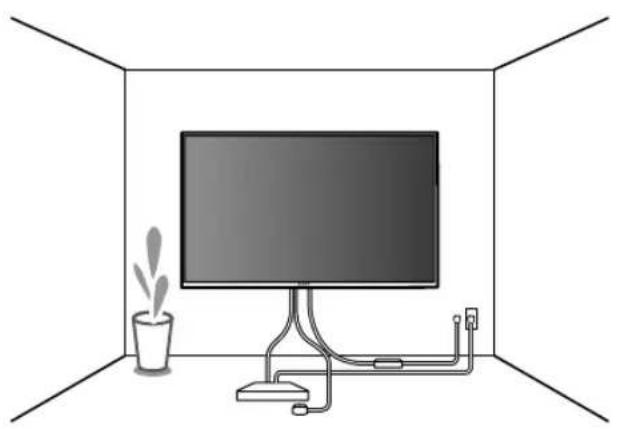

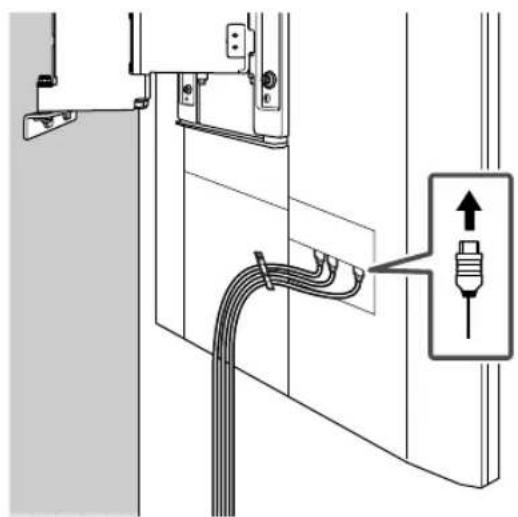

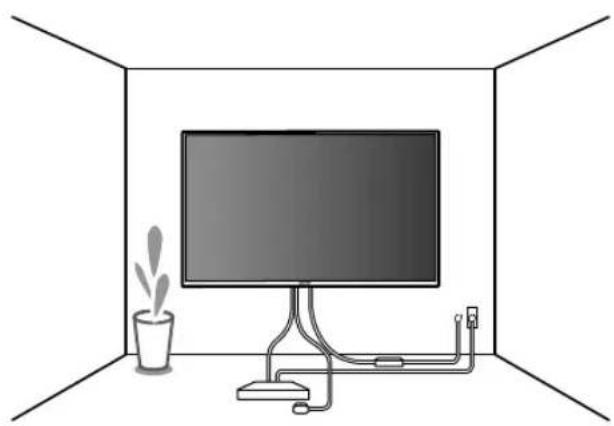

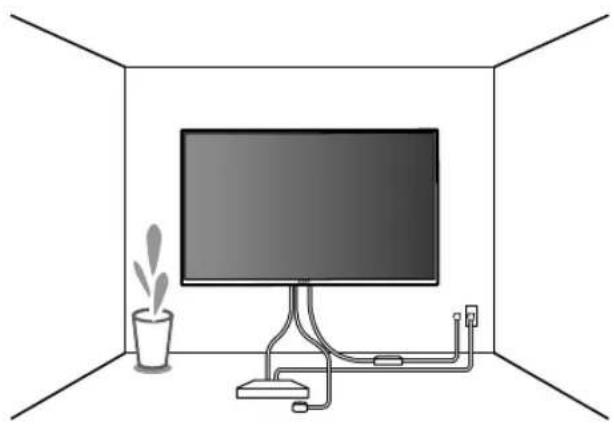

After proper installation of the TV, secure the cables properly.

If people or objects get tangled with cables, this may result in injury or damage to the TV.

Do not allow the AC power cord or the connecting cable to be pinched.

If the AC power cord or the connecting cable is pinched between the unit and the wall or is bent or twisted by force, the internal conductors may become exposed and cause a short circuit or an electrical break. This may cause a fire or an electric shock.

Simple line drawing of a hand holding a computer monitor connected to a cable (no text or symbols)

The screws needed to secure the Wall-Mount Bracket to the wall are not supplied.

Use the appropriate screws for the wall material and structure when mounting the Wall-Mount Bracket.

For customers in Europe

For instruction on installing the Wall-Mount Bracket to your TV please download the information at SONY website.

Table of Contents

Supplied items 4

Tools needed 4

Installing the Wall-Mount Bracket to the wall....5

Preparing for the installation of the TV....8

Installing the TV on the wall....9

Specifications....12

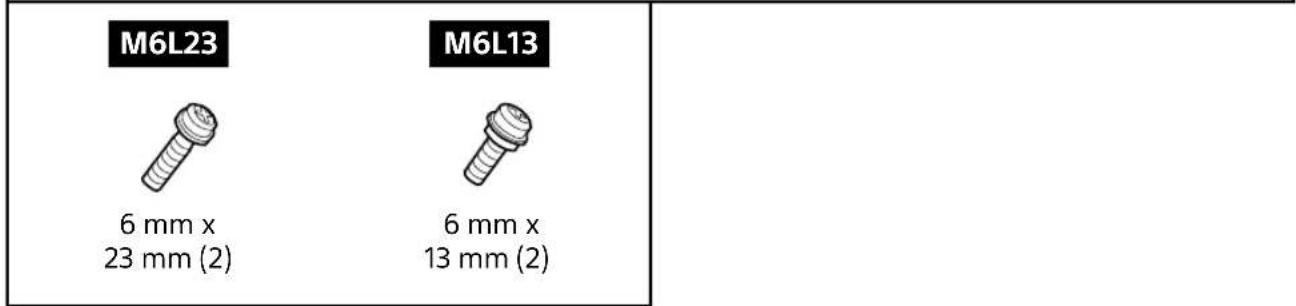

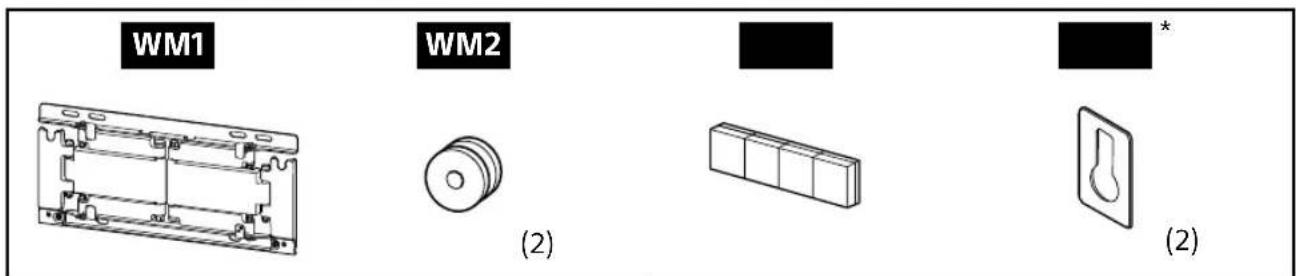

Supplied items

WM1 WM2 * (2) (2)

M6L23 6 mm x 23 mm (2) M6L13 6 mm x 13 mm (2)

* Only for 75 inch (189.3 cm) model

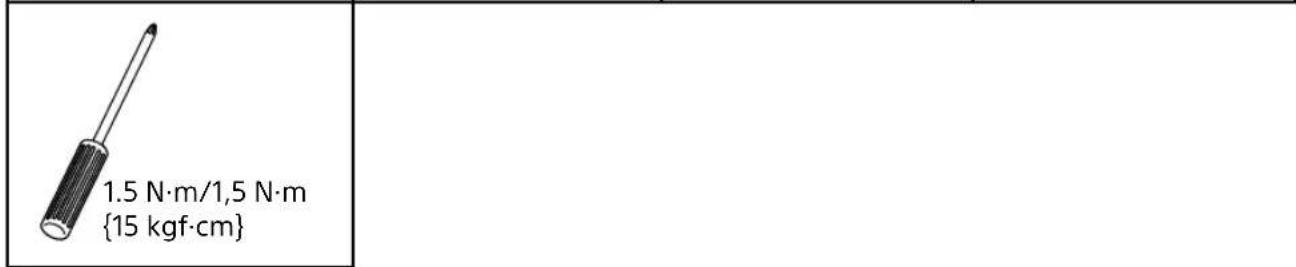

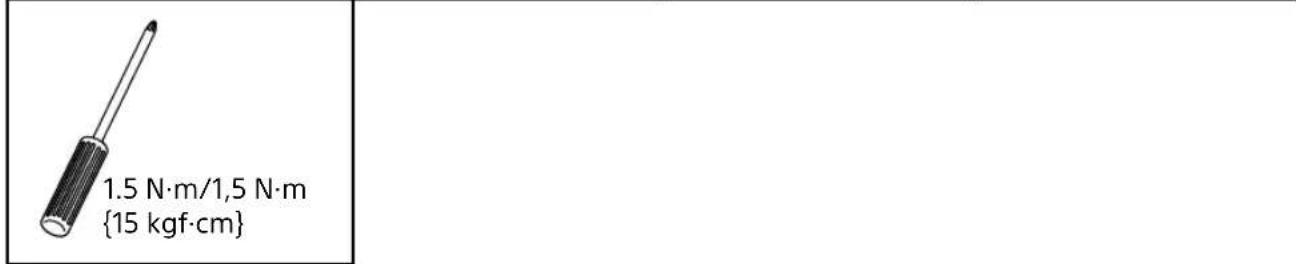

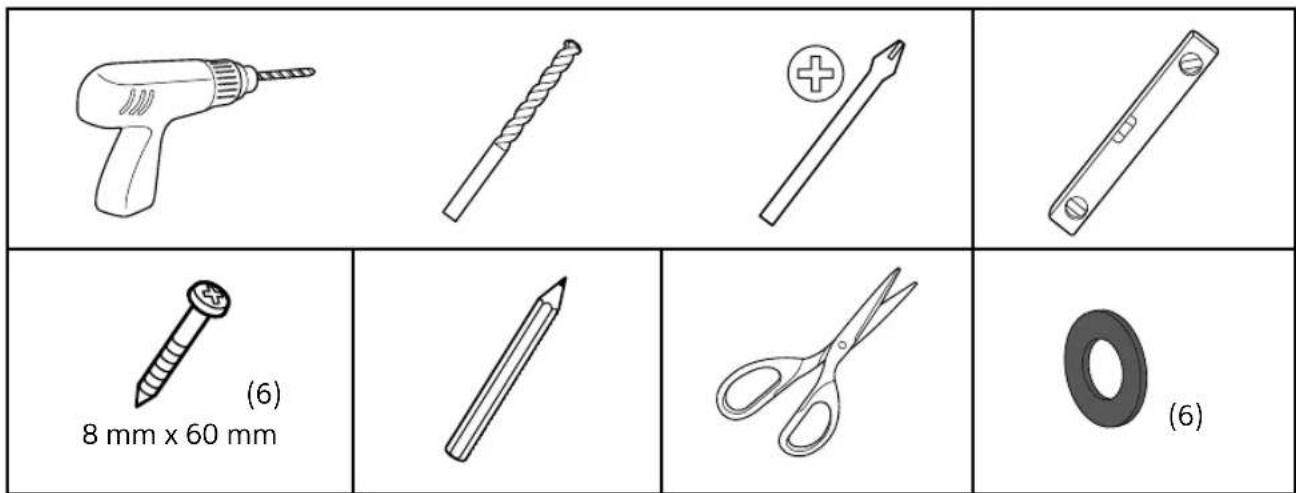

Tools needed

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

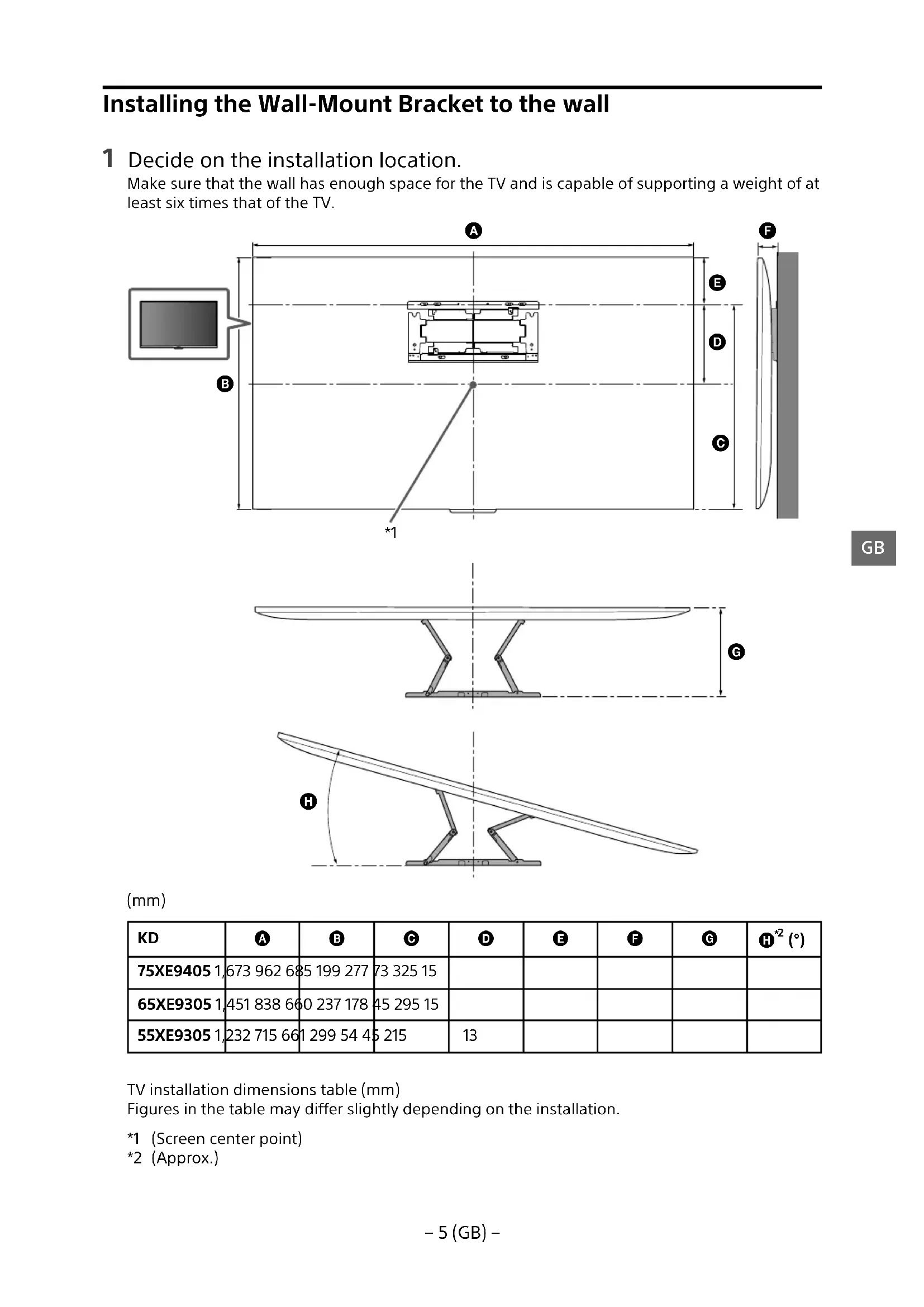

Installing the Wall-Mount Bracket to the wall

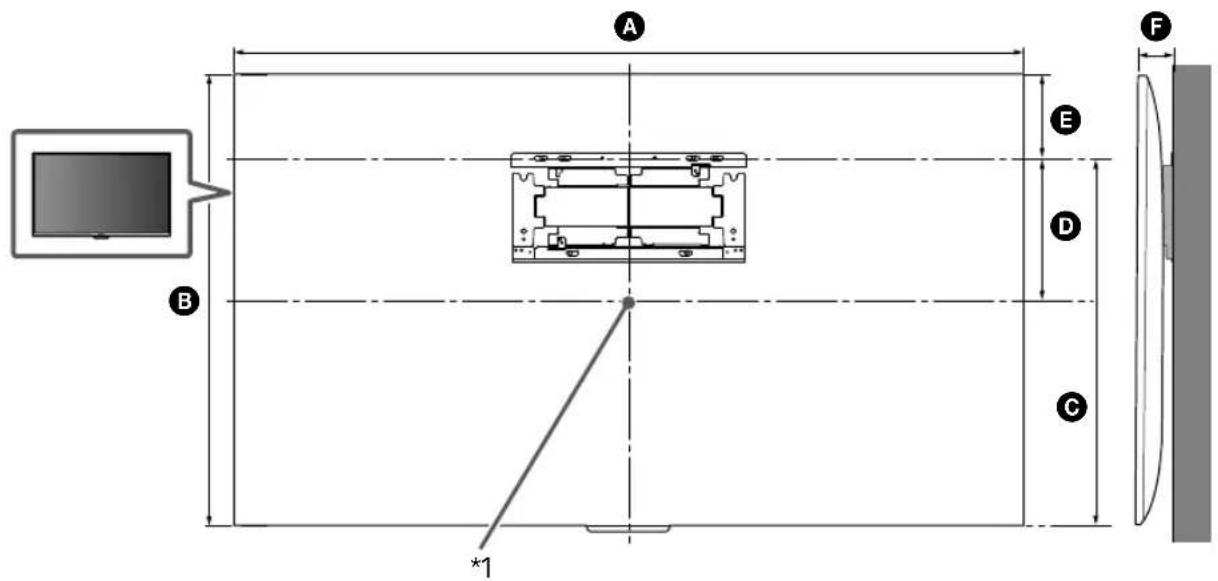

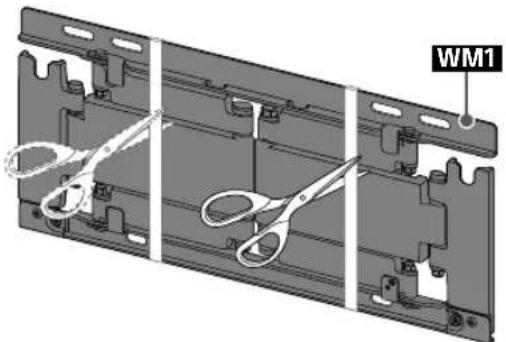

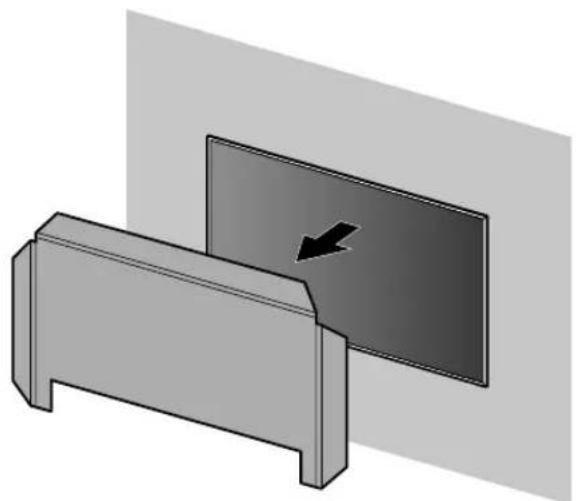

1 Decide on the installation location.

Make sure that the wall has enough space for the TV and is capable of supporting a weight of at least six times that of the TV.

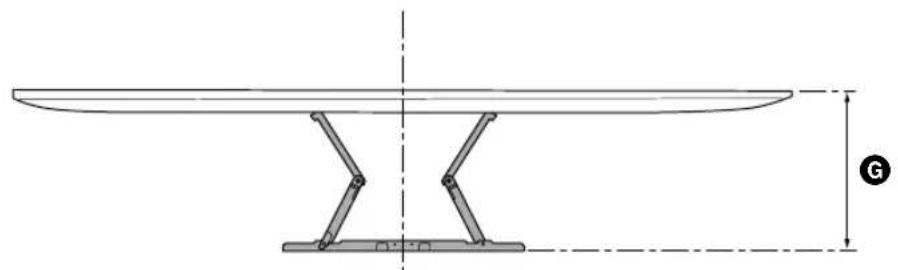

A B *1 E D C F

Technical line drawing of a table with support legs and a vertical dimension labeled 'G' (no text or symbols beyond the label)

Technical line drawing of a lever mechanism with no text or symbols

(mm)

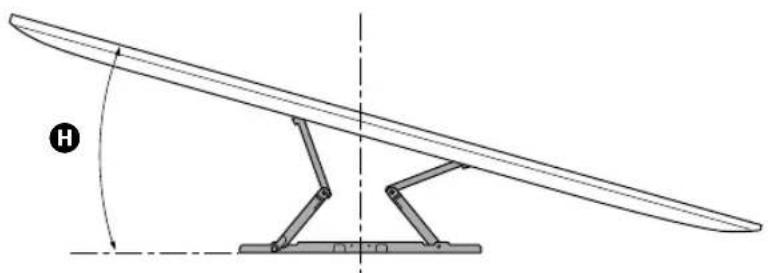

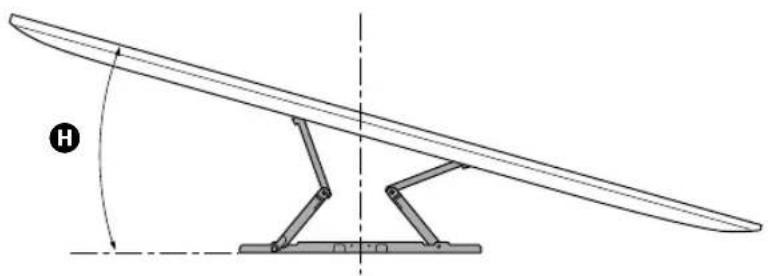

KD	A	B	C	D	E	F	G	H ^2 (°)
75XE9405 1,	673 962 68	5 199 277	73 325 15
65XE9305 1,	451 838 66	0 237 178	45 295 15
55XE9305 1,	232 715 66	1 299 54 45	215	13

TV installation dimensions table (mm)

Figures in the table may differ slightly depending on the installation.

*1 (Screen center point)

*2 (Approx.)

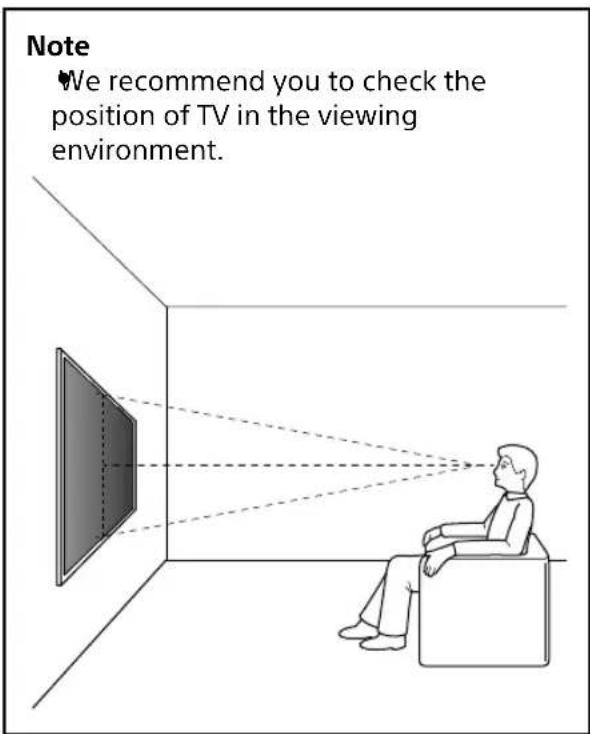

Note We recommend you to check the position of TV in the viewing environment.

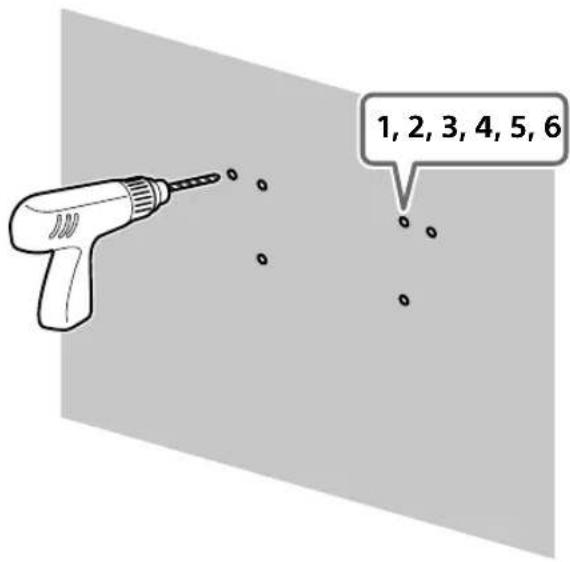

3 Drill pilot holes on the marks.

1, 2, 3, 4, 5, 6

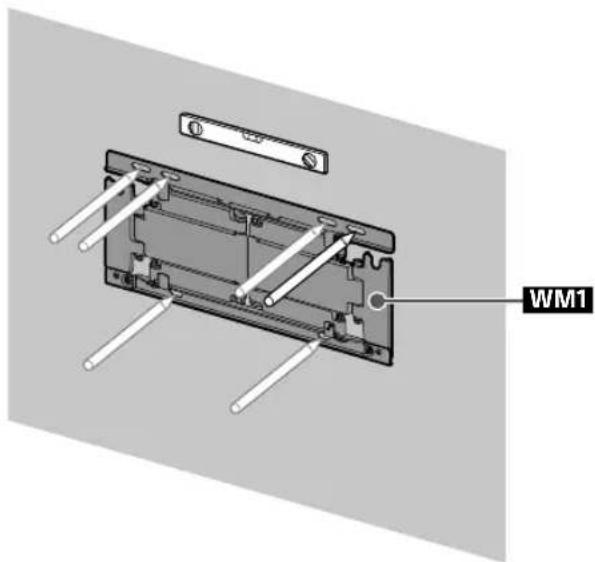

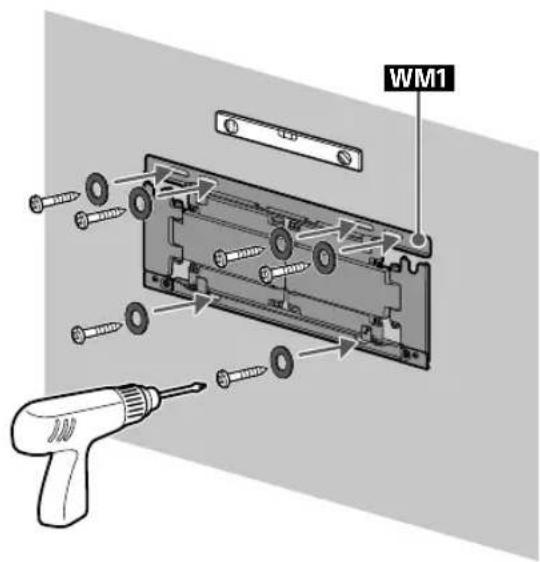

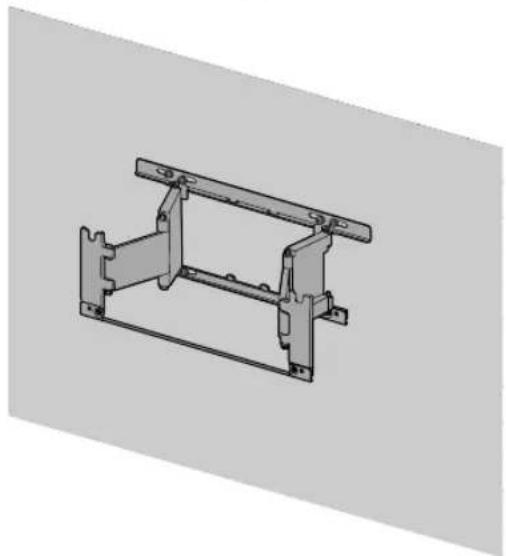

2 Align WM1 to the wall and make six marks.

WM1

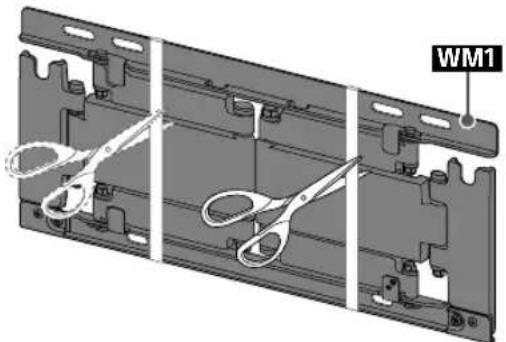

4

3D mechanical assembly diagram showing three views of a bracket with scissors, labeled WM1 (no text or symbols on components)

Note

Use a level to check whether WM1 is level.

5

Note

Use a level to check whether the Wall-Mount Bracket is level.

WM1

Precaution

Do not over-tighten the lag bolts. Improper tightening could reduce the holding power of the lag bolts.

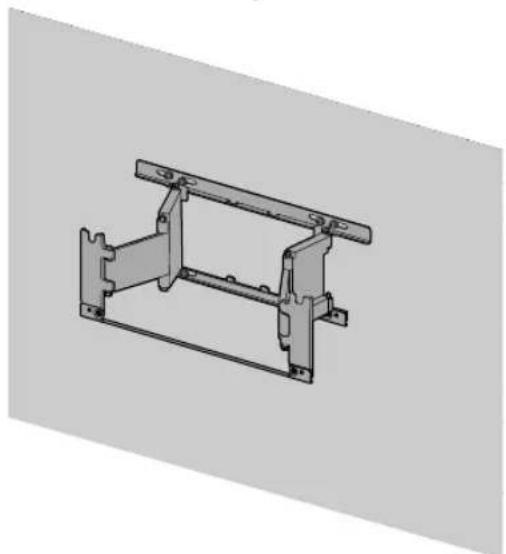

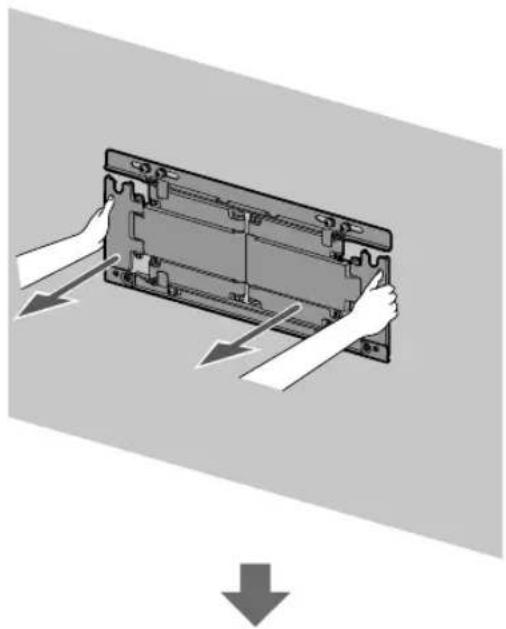

6 Pull out the arm of WM1 to the end.

Diagram showing hands installing or adjusting a device panel with arrows indicating direction (no text or symbols present)

Technical drawing of a mechanical frame assembly (no text or symbols)

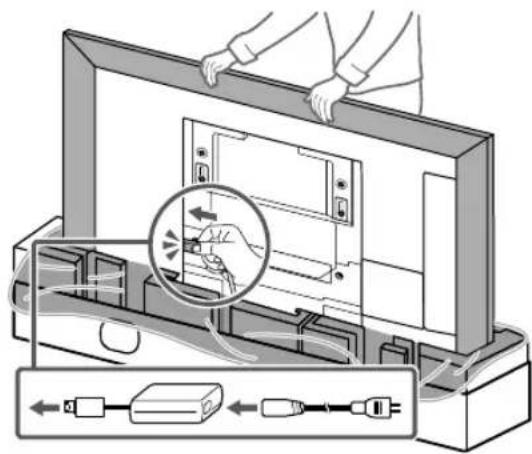

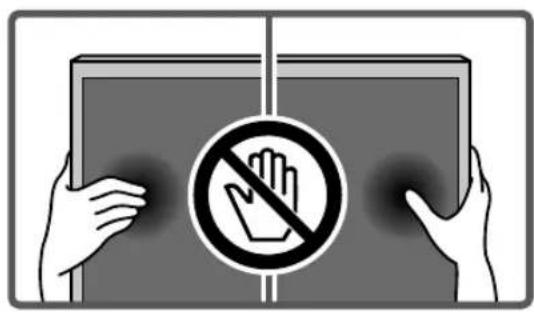

Preparing for the installation of the TV

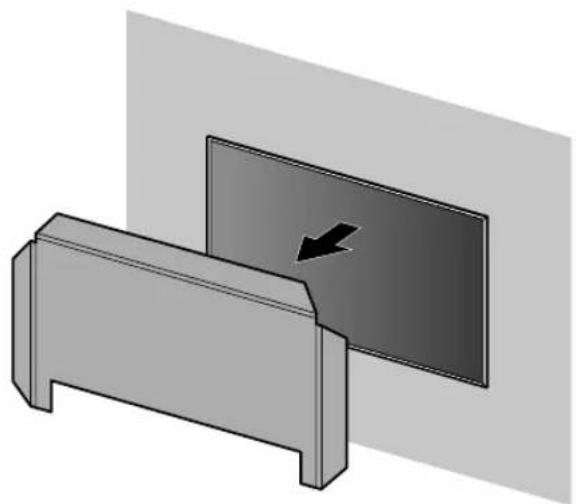

Diagram showing two hands holding a tablet with a prohibition symbol indicating no hand use or prohibition.

1

Diagram illustrating a door switch mechanism with labeled components and an upward arrow indicating motion or direction.

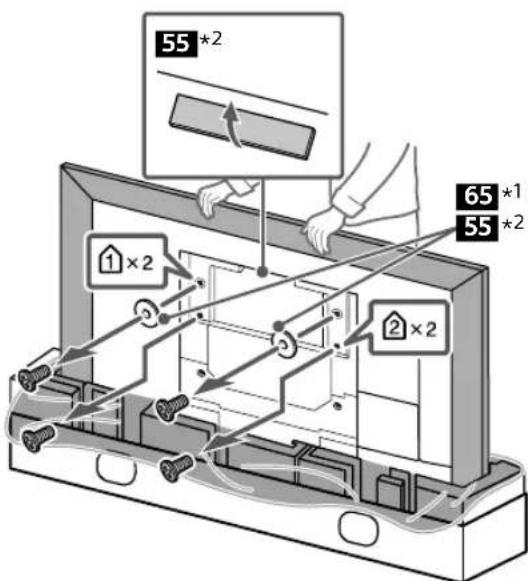

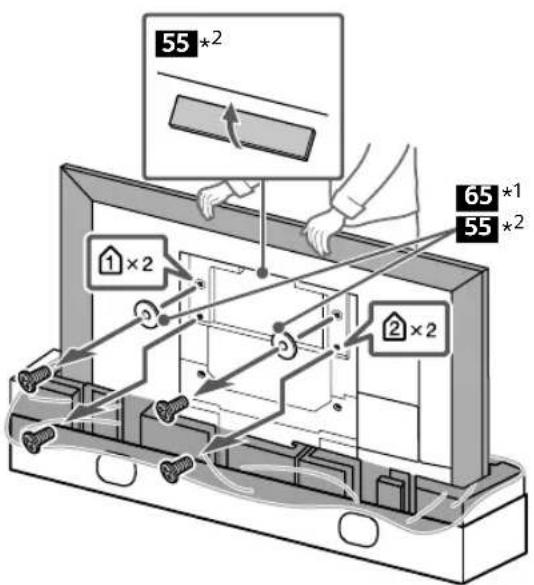

2 Remove the screws from the rear of the TV.

55 *2 1×2 2×2 65 *1 55 *2

1* 65 inch (163.9 cm) model only
2* 55 inch (138.8 cm) model only

Precaution

If the Table-Top Stand is already attached to the TV, be sure to attach the Wall-Mount Bracket parts to the TV before detaching the Table-Top Stand.

3

1×2 M WM2

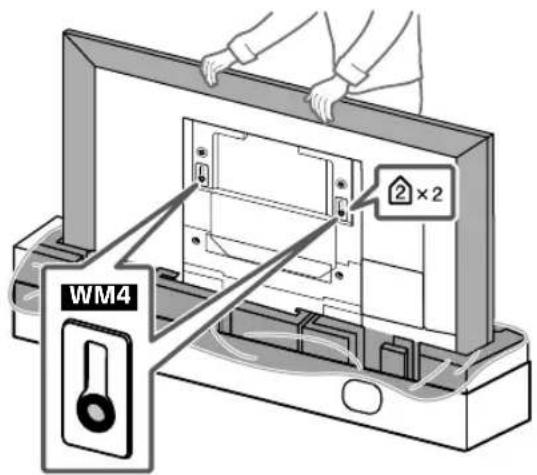

4 Attach the WM4 to the TV (75 inch (189.3 cm) model only).

WM4 2×2

5 55 inch (138.8 cm) model only.

Diagram illustrating a hand inserting a device into a computer monitor, with magnified view highlighting internal components.

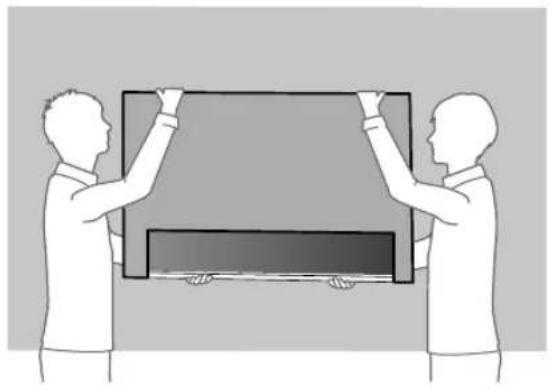

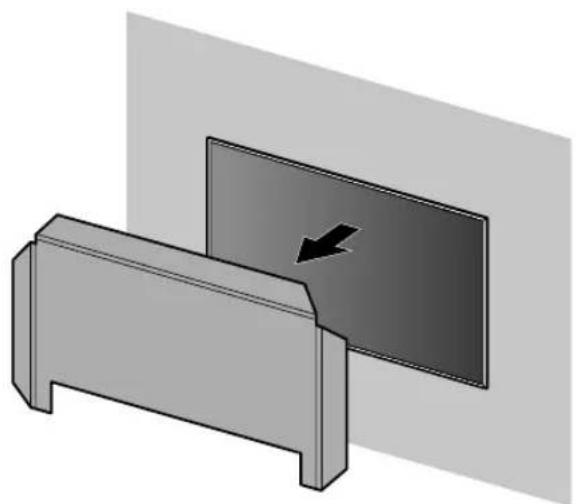

Installing the TV on the wall

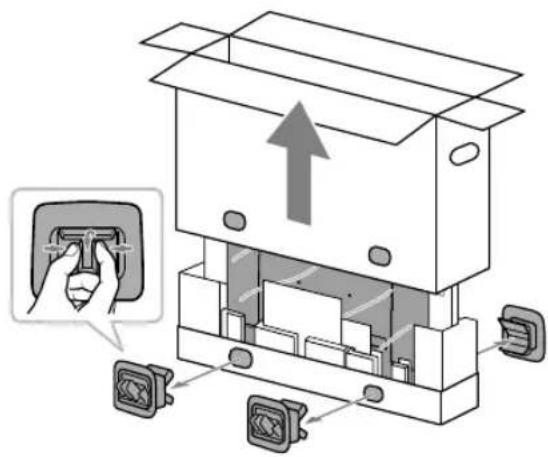

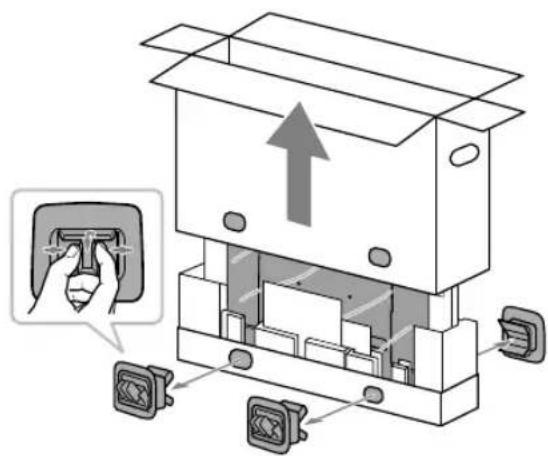

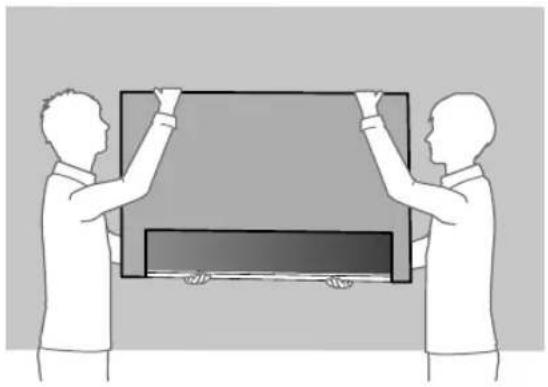

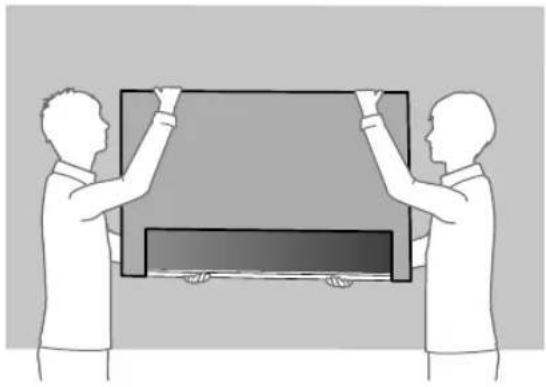

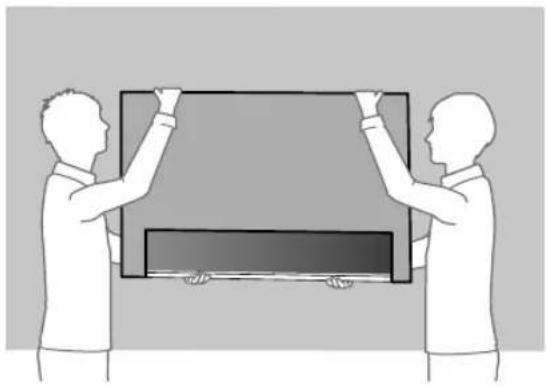

1

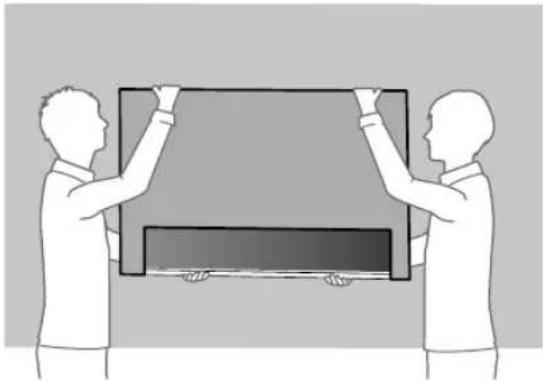

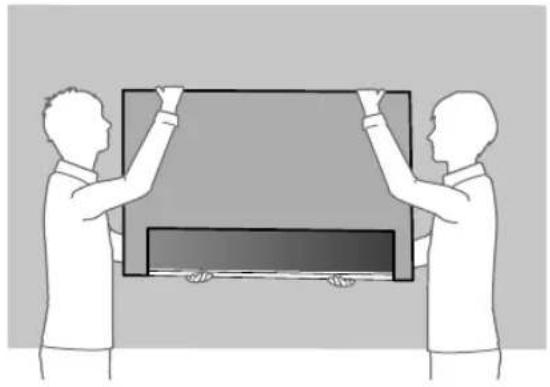

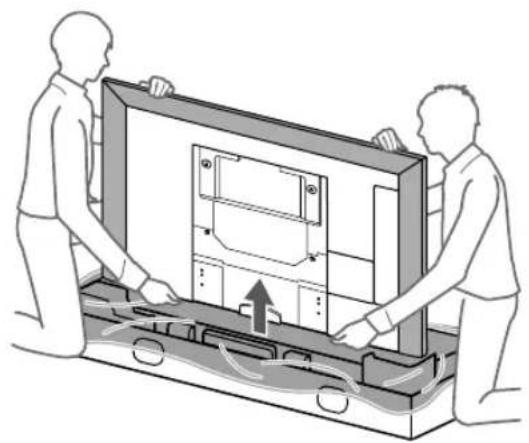

Illustration of two people assembling a large TV frame with a directional arrow indicating motion (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

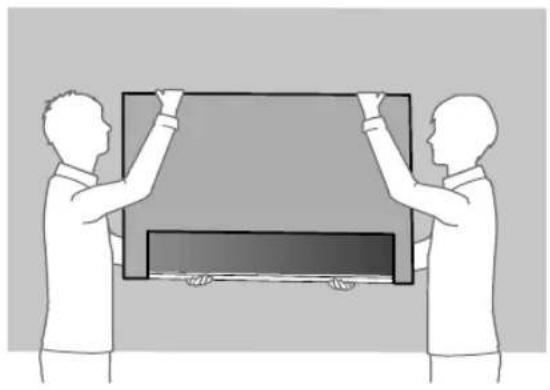

Two people holding a rectangular frame with a dark rectangular block inside, viewed from above (no text or symbols visible)

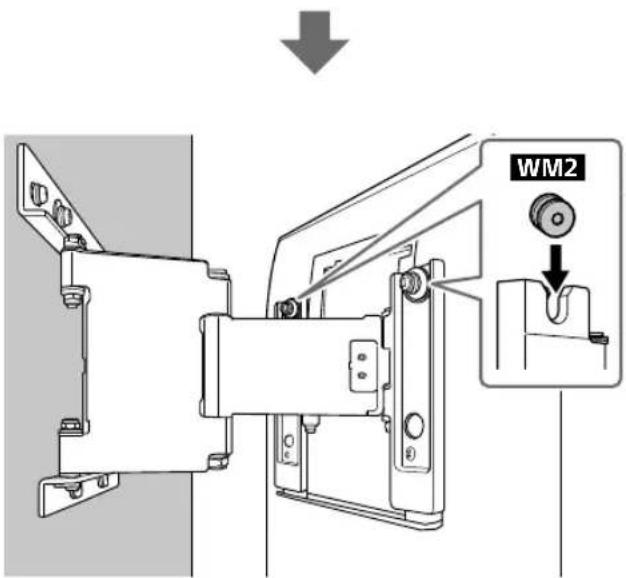

4

Technical line drawing of a door frame assembly with a directional arrow indicating motion (no text or symbols)

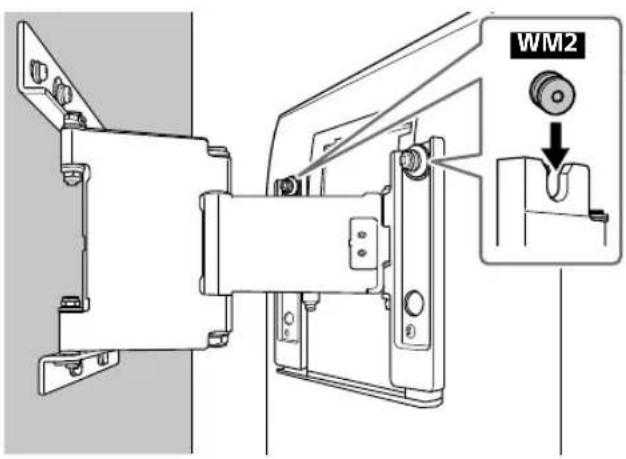

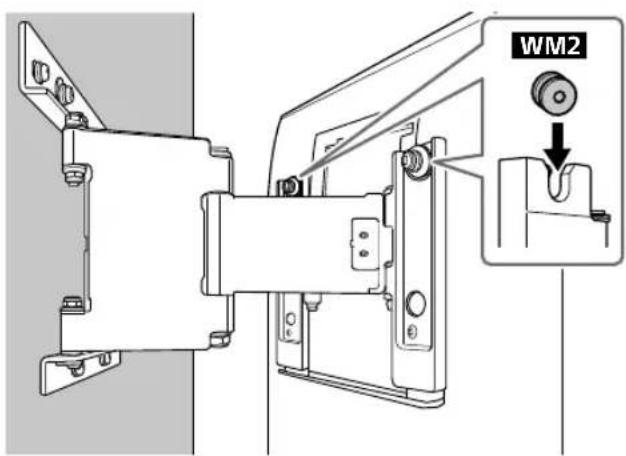

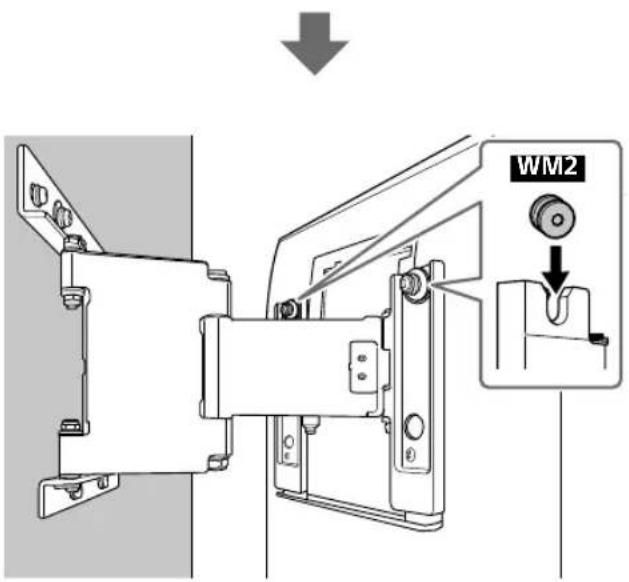

WM2

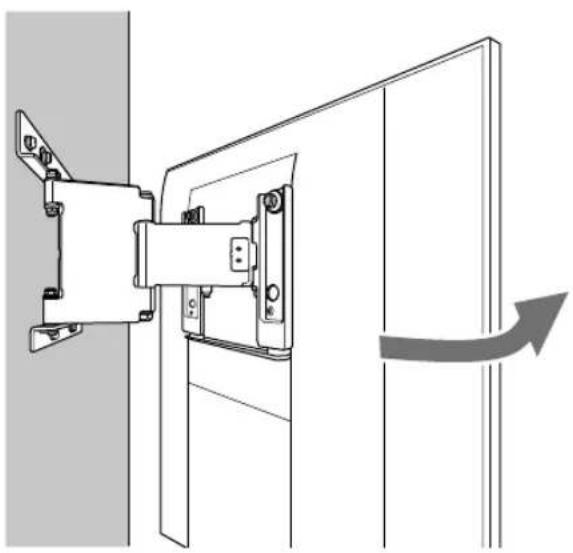

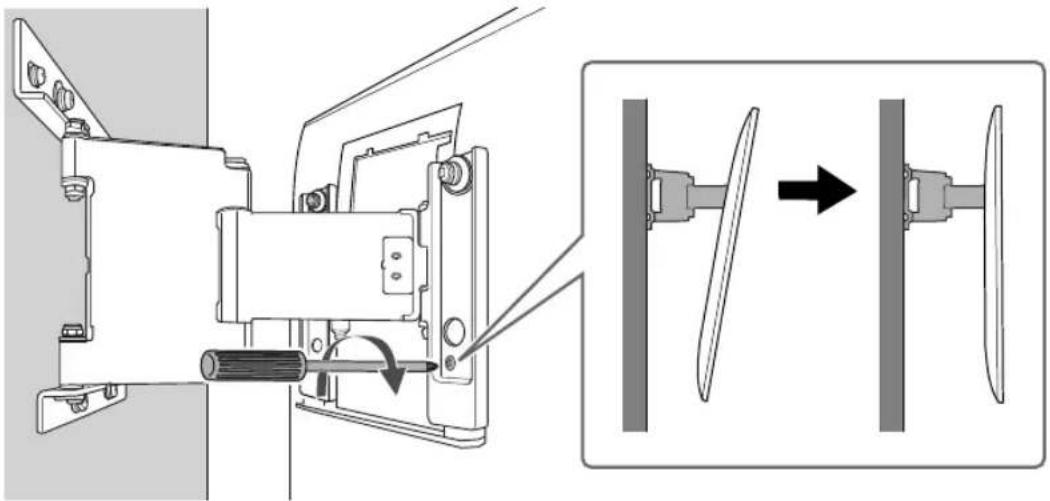

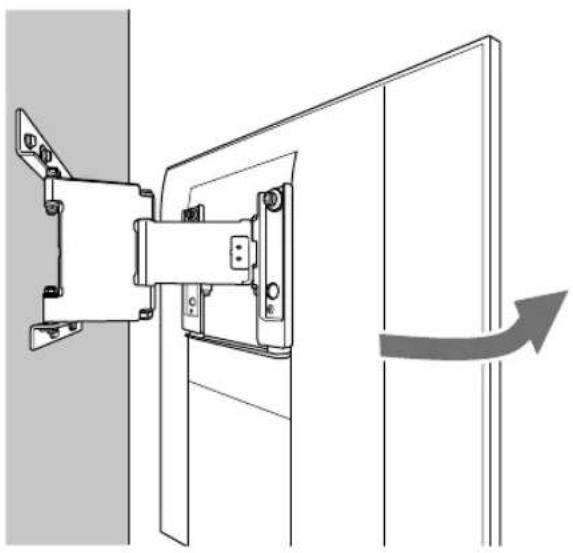

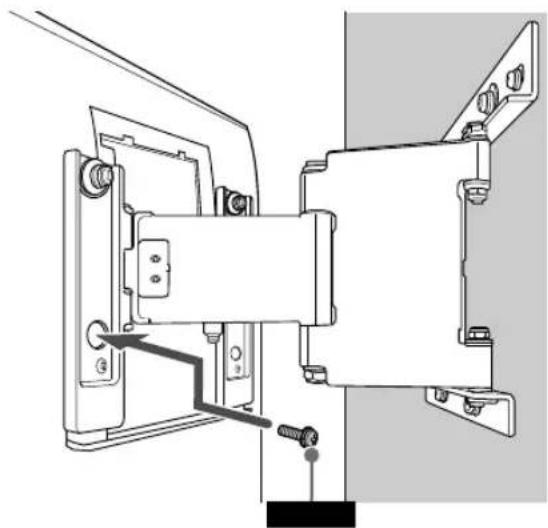

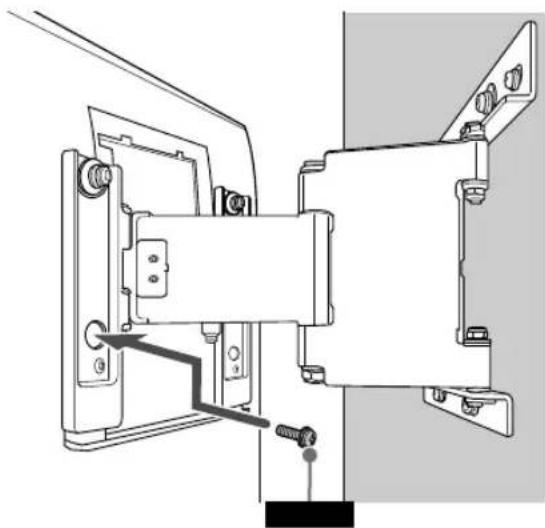

5 Screw the left and right side of the Wall-Mount Bracket to adjust the angle of the TV.

Mechanical assembly diagram showing a motor and fan assembly with directional arrow (no text or symbols)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with no visible text or symbols

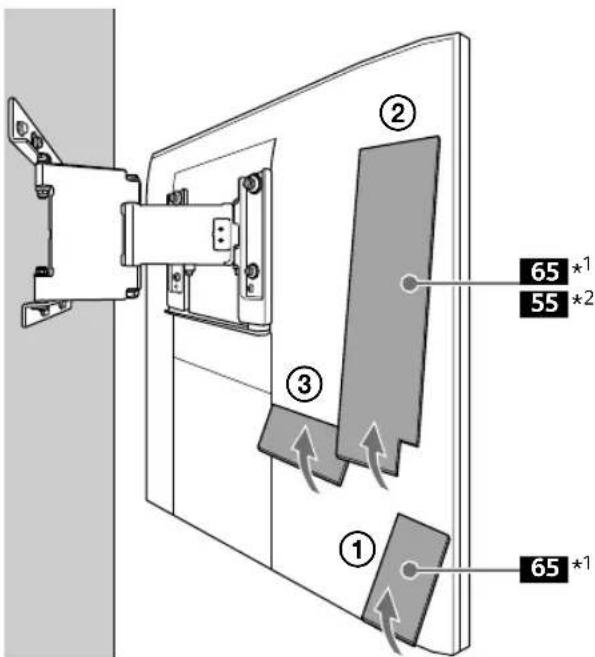

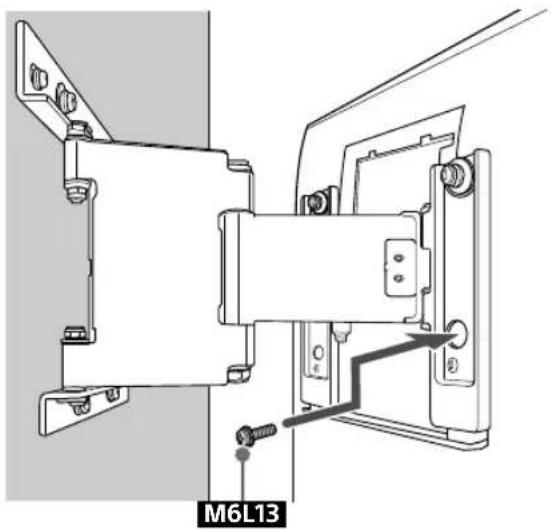

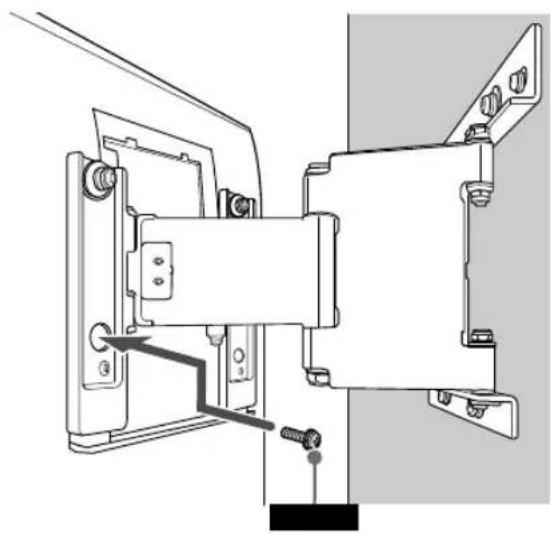

7

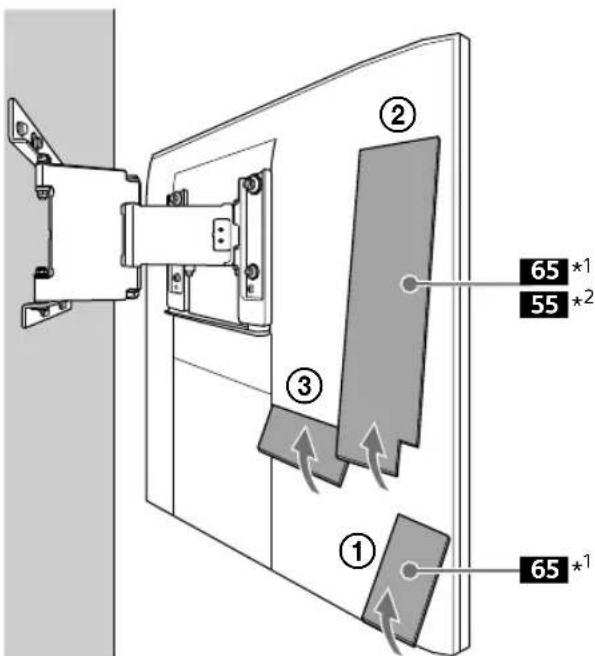

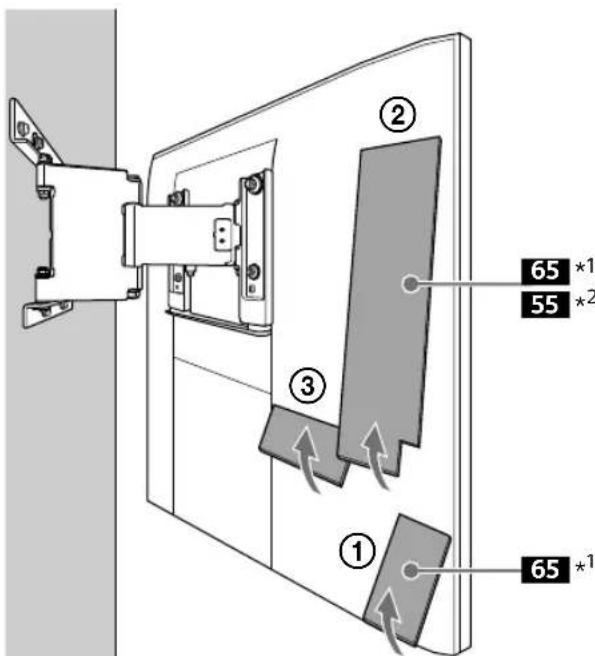

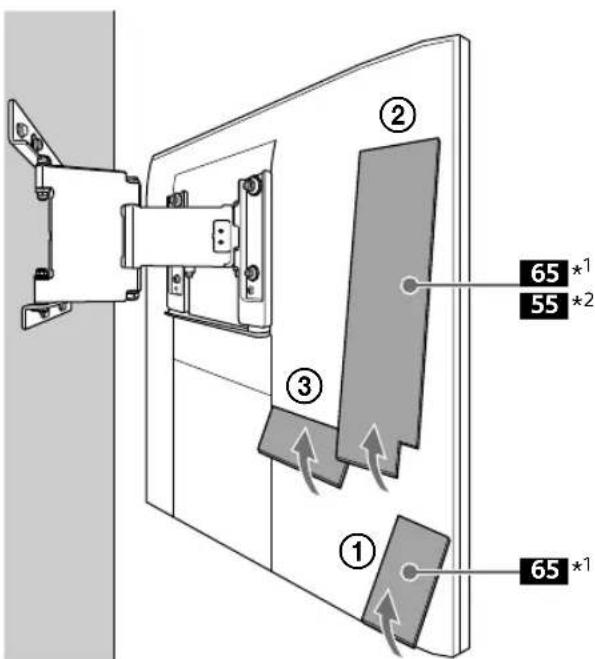

① ② ③ ④ 65 *1 55 *2 ① 65 *1

1* 65 inch (163.9 cm) model only
2* 55 inch (138.8 cm) model only

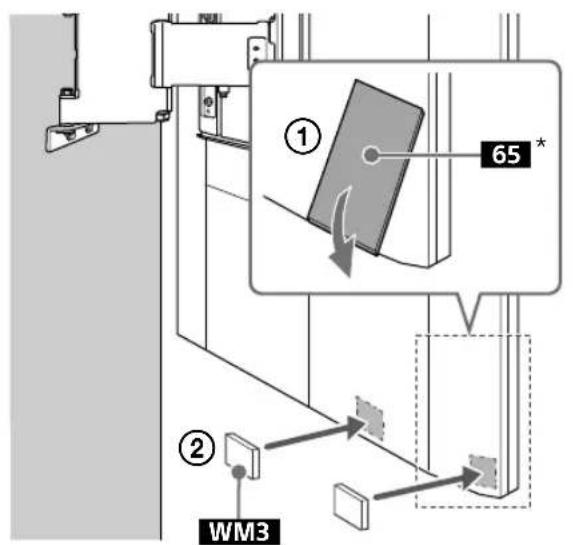

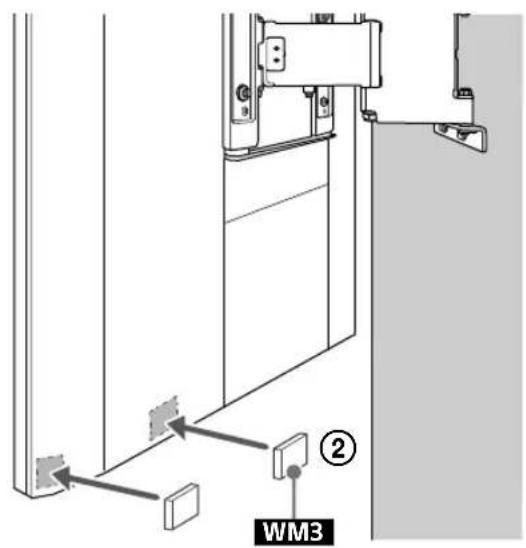

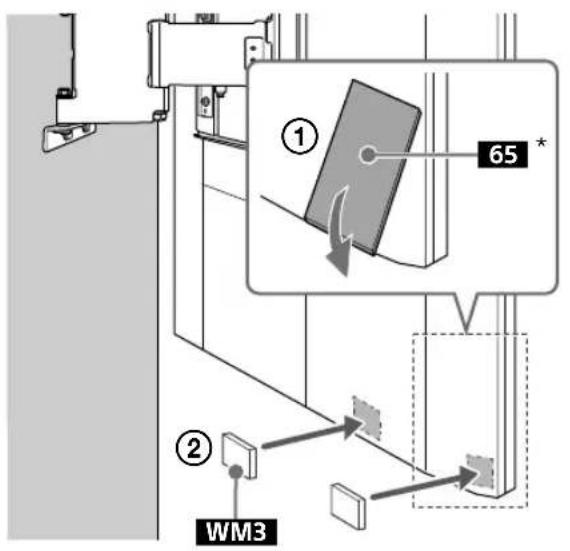

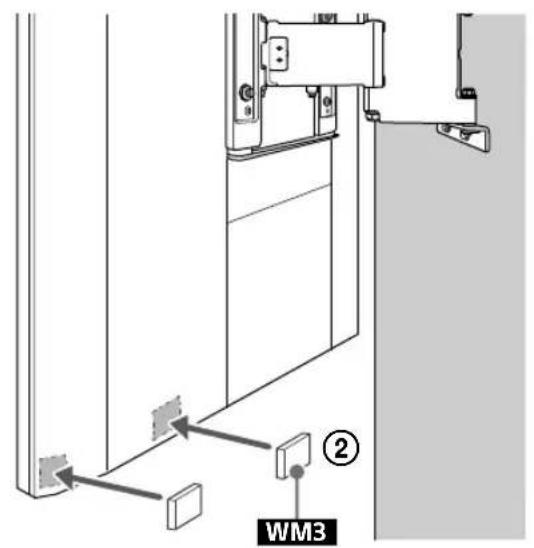

8 Attach WM3.

65* ① ② WM3

65 inch (163.9 cm) model only

WM3 ②

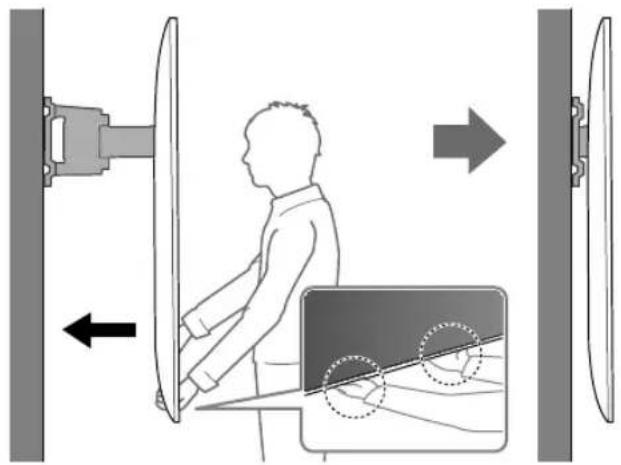

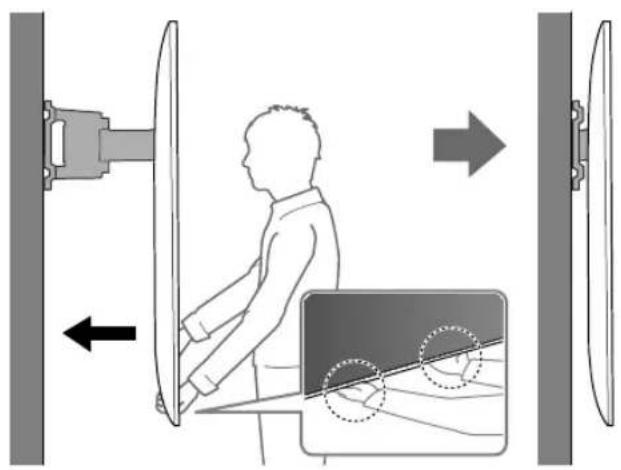

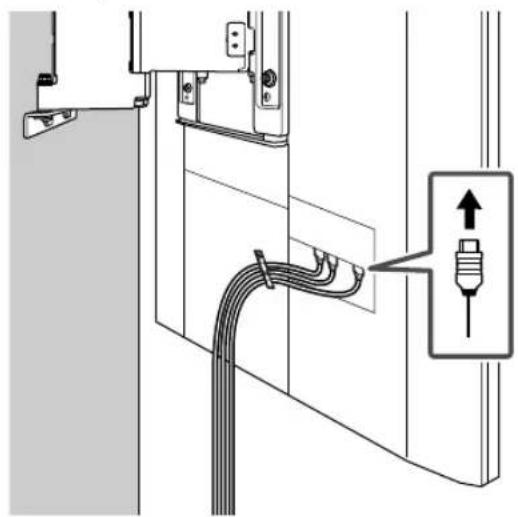

9 10 When moving the TV, hold it

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

firmly from the bottom.

Diagram illustrating a person using a mirror system to interact with a device, showing directional arrows and a close-up of the device's screen.

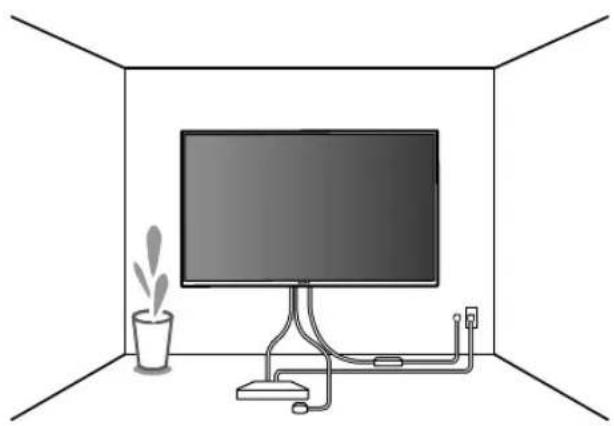

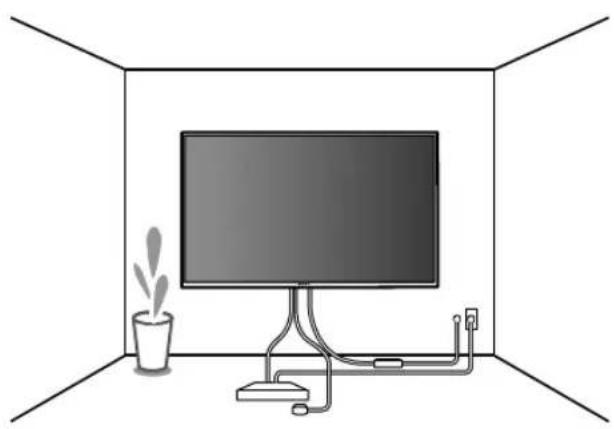

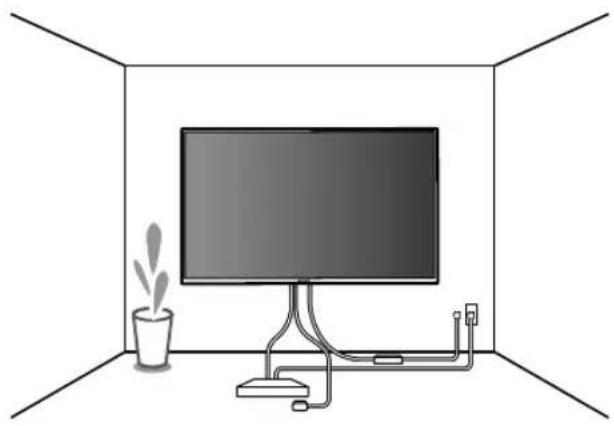

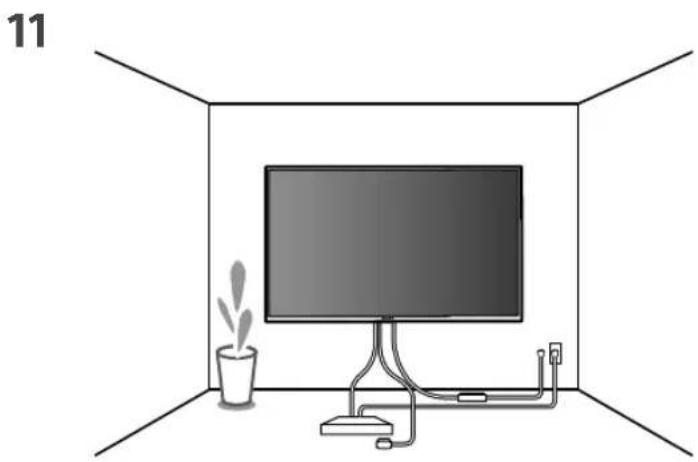

11

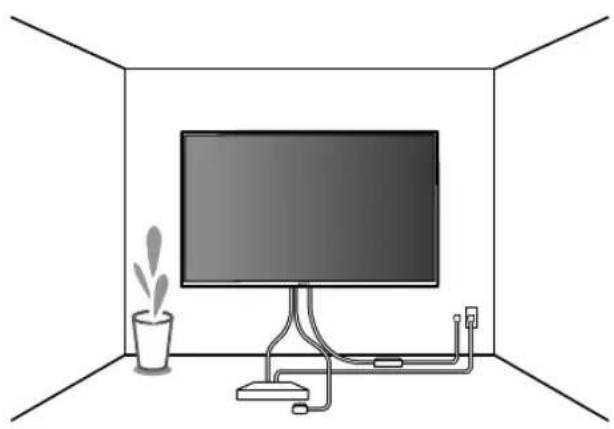

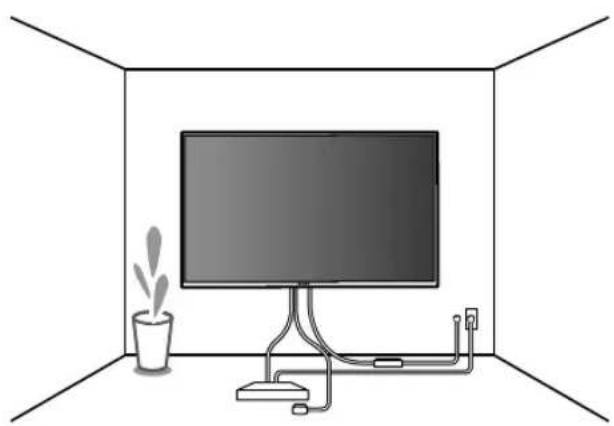

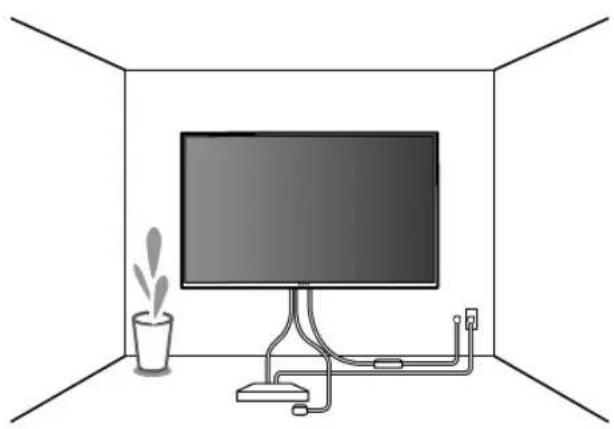

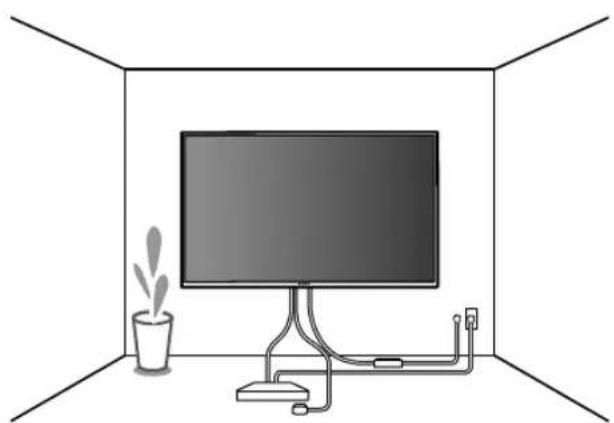

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

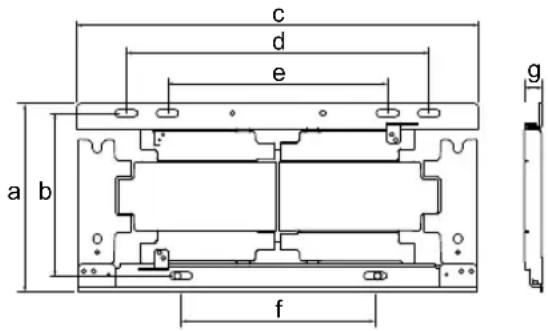

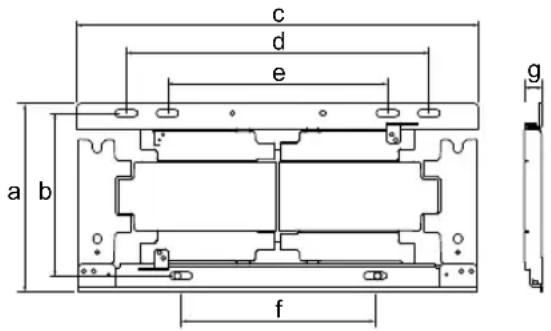

Specifications

WM1

c d e a b f g

Dimension: (Approx.) (mm)

75 \*1 / 65 \*2

a : 206 mm

b : 180 mm

c : 446 mm

d : 336 mm

e : 244 mm

f : 215 mm

g : 20 mm

55\*3

a : 206 mm

b : 180 mm

c : 346 mm

d : 252 mm

e : 160 mm

f : 130 mm

g : 20 mm

Mass (base only): (Approx.)

75 \*1 / 65 \*2

2.7 kg

55\*3

2.3 kg

* 1 75 inch (189.3 cm) model only

* 2 65 inch (163.9 cm) model only

* 3 55 inch (138.8 cm) model only

Design and specifications are subject to change without notice.

Support de fixation murale

Sécurité

Technical diagram of a battery pack with cooling fins and internal components (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

Technical line drawing of a table with a curved top and two vertical supports, no text or symbols present.

Technical line drawing of a lever mechanism with no text or symbols

(mm)

KD	A	B	C	D	E	F	G	H*2(°)
75XE9405 1	673 962 68	5 199 277	73 325 15
65XE9305 1	451 838 66	0 237 178	45 295 15
55XE9305 1	232 715 66	1 299 54	45 215	13

Illustration of hands installing or adjusting a mechanical component with arrows indicating assembly (no text or symbols)

Technical drawing of a mechanical bracket assembly (no text or symbols)

Safety warning sign showing no hand crossed over a tablet screen, indicating blocked access or no protection.

1

Diagram illustrating a door switch mechanism with labeled components and an upward arrow indicating motion or direction.

Illustration of a person installing or adjusting a device into a computer monitor, showing internal components and cable connections (no text or symbols)

Illustration of two people assembling a large TV or electronic device with a mechanical component (no text or symbols visible)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people holding a rectangular object with a dark interior, viewed from above (no text or symbols visible)

4

Technical line drawing of a door hinge assembly with an arrow indicating direction (no text or symbols)

WM2

FR

Technical diagram of a mechanical assembly with an inset showing a blade being inserted into a vertical panel (no text or symbols present)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with mounting brackets and a central component (no text or symbols)

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

Diagram of a cable or wire connection device with a labeled connector (no text or symbols present)

Diagram illustrating a person using a mirror system to interact with a device, showing directional change and magnified view of the device.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Spécifications

WM1

c d e a b f g

Cross-sectional diagram of a battery pack with cooling fins and heat exchangers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

Diagram showing hands installing or adjusting a mechanical component with arrows indicating direction (no text or symbols)

3D technical drawing of a mechanical frame assembly (no text or symbols)

Diagram showing two hands holding a tablet with a prohibition symbol indicating no hand use or prohibition.

1

Diagram illustrating a door switch mechanism with labeled components and an upward arrow indicating motion

Illustration of a hand inserting a cable into an open TV case, showing internal components and cable routing (no text or symbols)

Illustration of two people assembling a large TV frame with visible internal components and airflow (no text or symbols)

3

3D diagram of a mechanical component with a highlighted section and directional arrow (no text or symbols)

2

Two people installing a large rectangular panel or frame (no text or symbols visible)

4

Technical line drawing of a door hinge assembly with an arrow indicating direction (no text or symbols)

WM2

ES

Mechanical assembly diagram showing a motor and fan assembly with directional arrows (no text or labels)

6

Technical diagram of a mechanical assembly with labeled component M6L13 (no readable text or symbols beyond label)

Technical line drawing of a mechanical assembly with no visible text or symbols

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

Diagram of a cable installation with a plug and directional arrow indicating upward movement (no text or symbols present)

Diagram illustrating a person using a mirror system to interact with a device, showing directional arrows and a close-up of the screen.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Especificaciones

WM1

c d e a b f g

Dimensiones: (Aprox.) (mm)

75 *1 / 65 *2

a : 206 mm

b : 180 mm

c : 446 mm

d : 336 mm

e : 244 mm

f : 215 mm

g : 20 mm

55*3

a : 206 mm

b : 180 mm

c : 346 mm

d : 252 mm

e : 160 mm

f : 130 mm

g : 20 mm

Peso (solo la base): (Aprox.)

75 *1 / 65 *2

2,7 kg

55*3

2,3 kg

Diagram of a battery pack with cooling fins and heat exchangers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

3D mechanical assembly diagram showing three views of a bracket with scissors and mounting holes (no text or symbols)

DE

5

Anmerkung

Diagram showing two-step assembly of a mechanical component, with no visible text or symbols.

Diagram showing two hands holding a tablet with a prohibition symbol indicating no hand use or prohibition.

1

Diagram illustrating a door switch mechanism with labeled components and an upward arrow indicating motion

Diagram illustrating a device's internal structure and cable connection, showing hand positioning and cable routing.

Illustration of two people assembling a large TV or electronic device with visible internal components and airflow (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people installing a large rectangular frame with a small box, no text or symbols visible

4

Technical line drawing of a door hinge assembly with an arrow indicating direction (no text or symbols)

WM2

Mechanical assembly diagram showing a motor and fan assembly with directional arrow (no text or symbols)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with mounting brackets and a central component (no text or symbols)

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

Diagram illustrating a person using a device to interact with a mirror, showing directional arrows and a close-up of the screen.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Technische Daten

WM1

c d e a b f g

Cross-sectional diagram of a battery pack with cooling fins and heat exchangers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

Technical diagram of a solar panel assembly with labeled components and dimensional annotations

(mm)

KD	A	B	C	D	E	F	G	H*2(°)
75XE9405 1	673 962 68	5 199 277	73 325 15
65XE9305 1	451 838 66	0 237 178	45 295 15
55XE9305 1	232 715 66	1 299 54 45	215 13

Diagram showing two-step assembly of a mechanical component, with no visible text or symbols.

Diagram showing two hands holding a tablet with a prohibition symbol indicating no hand use or prohibition.

1

Diagram illustrating a door switch mechanism with labeled components and an upward arrow indicating motion

Illustration of a hand inserting a cable into an open TV case, showing internal components and cable routing (no text or symbols)

Illustration of two people assembling a large TV or electronic device with visible internal components and airflow (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people installing a large rectangular panel or frame (no text or symbols visible)

4

Technical line drawing of a door hinge assembly with mounting bracket and directional arrow (no text or symbols)

WM2

NL

Mechanical assembly diagram showing a motor and fan assembly with directional arrows (no text or symbols)

6

Technical diagram of a mechanical assembly with labeled component M6L13 (no readable text or symbols beyond label)

Technical line drawing of a mechanical assembly with no visible text or symbols

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

Diagram of a cable installation with a plug and connector, showing no text or symbols

Diagram illustrating a person using a device to interact with a mirror, showing directional change and magnified view of the screen.

NL

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Specifications

WM1

c d e a b f g

Afmeting: (Ong.) (mm)

75 *1 / 65 *2

a : 206 mm

b : 180 mm

c : 446 mm

d : 336 mm

e : 244 mm

f : 215 mm

g : 20 mm

55*3

a : 206 mm

b : 180 mm

c : 346 mm

d : 252 mm

e : 160 mm

f : 130 mm

g : 20 mm

Technical diagram of a battery pack with cooling fins and internal circuit breakers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions.

1.5 N·m/1,5 N·m {15 kgf·cm}

3D mechanical assembly diagram showing a frame with cutouts and a labeled component 'WM1' (no text or symbols beyond label)

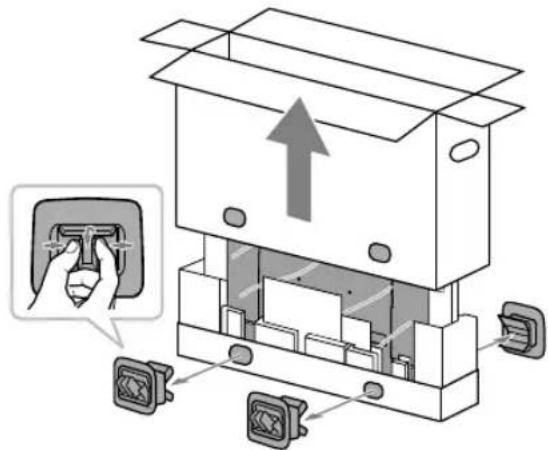

Nota

Diagram showing two-step assembly of a mechanical component, with no visible text or symbols.

Diagram showing two hands holding a tablet with a prohibition symbol in the center, indicating no restrictions on the device.

1

Diagram illustrating a door switch mechanism with labeled components and an upward arrow indicating motion or assembly.

Illustration of a computer monitor with hands installing or adjusting the screen, showing internal components and cable connections (no text or symbols)

Illustration of two people assembling a large TV or electronic device with visible internal components and airflow lines (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people holding a rectangular object with a dark rectangle inside, viewed from above (no text or symbols visible)

4

Technical line drawing of a door hinge assembly with an arrow indicating direction (no text or symbols)

WM2

Mechanical assembly diagram showing a motor and fan assembly with directional arrows (no text or labels)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with no visible text or symbols

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

Diagram illustrating a person using a mirror system to interact with a screen, showing directional change and magnified view of the screen.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Diagram of a battery cell with cooling fins and heat exchangers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

Diagram showing two-step assembly of a mechanical component, with no visible text or symbols.

Diagram showing two hands holding a tablet with a prohibition symbol in the center, indicating no restrictions on the device.

1

Diagram illustrating a door switch mechanism with labeled components and an upward arrow indicating motion or direction.

Diagram illustrating cable installation process with hands installing components into a TV case, showing cable routing and cable connection.

Illustration of two people assembling a large TV frame with visible circuit lines and components (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people holding a rectangular object with a dark border, viewed from above (no text or symbols visible)

WM2

4

Technical line drawing of a door frame assembly with an arrow indicating direction (no text or symbols)

SE

Mechanical assembly diagram showing a motor and fan assembly with directional arrows (no text or symbols)

6

Technical diagram of a mechanical assembly with labeled component M6L13 (no readable text or symbols beyond label)

Technical line drawing of a mechanical assembly with mounting brackets and a tool inserted (no text or symbols)

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

1* Endast 65-tums (163,9 cm) modell
2* Endast 55-tums (138,8 cm) modell

8 Sätt fast WM3.

① 65 * ② WM3

Endast 65-tums (163,9 cm) modell

WM3 ②

Diagram of a cable installation with a plug and directional arrow indicating upward movement (no text or symbols present)

Diagram illustrating a person using a device to interact with a mirror, showing directional change and screen capture.

SE

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Specifikationer

WM1

c d e a b f g

Mått: (Cirka) (mm)

75 \*1 / 65 \*2

a : 206 mm

b : 180 mm

c : 446 mm

d : 336 mm

e : 244 mm

f : 215 mm

g : 20 mm

55\*3

a : 206 mm

b : 180 mm

c : 346 mm

d : 252 mm

e : 160 mm

f : 130 mm

g : 20 mm

Technical diagram of a battery pack with cooling fins and internal components (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

Diagram showing two-step assembly of a mechanical component, with no visible text or symbols.

Diagram showing two hands holding a tablet with a prohibition symbol in the center, indicating no restrictions on the device.

1

Diagram illustrating a door switch mechanism with labeled components and an upward arrow indicating motion or direction.

Illustration of a computer monitor with hands installing or adjusting the screen, showing internal components and cable connections (no text or symbols)

Illustration of two people assembling a large TV frame with visible circuit lines and a central screen (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people holding a rectangular object with a dark rectangle inside, viewed from above (no text or symbols visible)

WM2

4

Technical line drawing of a door frame assembly with an arrow indicating direction (no text or symbols)

PL

Mechanical assembly diagram showing a motor and fan assembly with directional arrows (no text or symbols)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with no visible text or symbols

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

1* Tylko modele 65-calowe (163,9 cm)
2* Tylko modele 55-calowe (138,8 cm)

Diagram of a cable installation with a plug and directional arrow indicating upward movement (no text or symbols present)

Diagram illustrating a person using a device to interact with a mirror, showing directional change and screen capture.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Dane techniczne

WM1

c d e a b f g

Wymiary: (Ok.) (mm)

75 \*1 / 65 \*2

a : 206 mm

b : 180 mm

c : 446 mm

d : 336 mm

e : 244 mm

f : 215 mm

g : 20 mm

55\*3

a : 206 mm

b : 180 mm

c : 346 mm

d : 252 mm

e : 160 mm

f : 130 mm

g : 20 mm

Cross-sectional diagram of a battery pack with cooling fins and internal circuit breakers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

Instalar o Suporte de parede na parede

Diagram showing two-step assembly of a mechanical component, with arrows indicating direction (no text or symbols present)

Diagram showing two hands holding a tablet with a prohibition symbol in the center, indicating no restrictions on the device.

1

Diagram showing a door switch mechanism with labeled components and an upward arrow indicating motion or direction.

Illustration of a computer monitor with hands installing or adjusting the screen, showing internal components and cable connections (no text or symbols)

Instalar o Televisor na parede

1

Illustration of two people assembling a large TV frame with a directional arrow indicating motion (no text or symbols present)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people holding a rectangular object with a dark border, viewed from above (no text or symbols visible)

4

Technical line drawing of a door frame assembly with an arrow indicating direction (no text or symbols)

WM2

Mechanical assembly diagram showing a motor and fan assembly with directional arrows (no text or labels)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with mounting brackets and a tool inserted (no text or symbols)

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

1* Apenas para os modelos de 65 polegadas (163,9 cm)
2* Apenas para os modelos de 55 polegadas (138,8 cm)

8 Instale o WM3.

① 65 * ② WM3

Apenas para os modelos de 65 polegadas (163,9 cm)

WM3 ②

9 10 Quando deslocar o Televisor,

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

Diagram illustrating a person using a mirror system to interact with a device, showing directional arrows and a close-up of the screen.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Peso (apenas a base): (Aprox.)

75 *1 / 65 *2

2,7 kg

55*3

2,3 kg

* 1 Apenas para os modelos de 75 polegadas (189,3 cm)

* 2 Apenas para os modelos de 65 polegadas (163,9 cm)

* 3 Apenas para os modelos de 55 polegadas (138,8 cm)

Diagram of a battery cell with cooling fins and heat exchangers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

3D mechanical assembly diagram showing three views of a bracket with scissors, labeled WM1 (no text or symbols on the components themselves)

5

Bemærk

Diagram showing two-step assembly of a mechanical component, with arrows indicating direction (no text or symbols)

DK

Safety warning symbol showing no hand crossed over a tablet screen, indicating blocked access or no protection.

1

Diagram illustrating a door switch mechanism with labeled components and an upward arrow indicating motion or assembly.

Illustration of a person installing or adjusting a device into a TV case, showing internal components and cable connections (no text or symbols)

Illustration of two people assembling a large TV or electronic device with visible internal components and airflow (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people installing a large rectangular panel or frame (no text or symbols visible)

4

Technical line drawing of a mechanical assembly with a directional arrow indicating motion (no text or symbols)

WM2

DK

Mechanical assembly diagram showing a valve mechanism with directional arrows indicating motion (no text or symbols present)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with mounting brackets and a tool inserted (no text or symbols)

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

1* Kun 65" (163,9 cm)-model
2* Kun 55" (138,8 cm)-model

8 Fastgør WM3.

① 65 * ② WM3

*Kun 65" (163,9 cm)-model

WM3 ②

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

Diagram illustrating a person using a mirror system to interact with a device, showing directional arrows and a close-up of the device's screen.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

DK

Specifikationer

WM1

c d e a b f g

Mål: (Ca.) (mm)

75 \*1 / 65 \*2

a : 206 mm

b : 180 mm

c : 446 mm

d : 336 mm

e : 244 mm

f : 215 mm

g : 20 mm

55\*3

a : 206 mm

b : 180 mm

c : 346 mm

d : 252 mm

e : 160 mm

f : 130 mm

g : 20 mm

Vægt (kun fod): (Ca.)

75 \*1 / 65 \*2

2,7 kg

55\*3

2,3 kg

* 1 Kun 75" (189,3 cm)-model

* 2 Kun 65" (163,9 cm)-model

* 3 Kun 55" (138,8 cm)-model

Diagram of a battery cell with cooling fins and heat exchangers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

Diagram showing two-step assembly of a mechanical component, with arrows indicating direction (no text or symbols present)

Safety warning sign showing no hand crossed over a tablet screen, indicating blocked access or hazard

1

Diagram illustrating a door lock mechanism with labeled components and an upward arrow indicating motion

2 Irrota ruuvit television takaa.

55 *2 1 × 2 2 × 2 65 *1 55 *2

1* Vain 65 tuuman (163,9 cm) malli
2* Vain 55 tuuman (138,8 cm) malli

Varotoimet

Illustration of a computer monitor with hands installing or adjusting the screen, showing internal components and cable connections (no text or symbols)

Illustration of two people assembling a large electronic device with internal components and airflow lines (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people holding a rectangular object with a dark rectangle inside, viewed from above (no text or symbols visible)

4

Technical line drawing of a door frame assembly with an arrow indicating direction (no text or symbols present)

WM2

Mechanical assembly diagram showing a valve mechanism with directional arrows indicating motion (no text or symbols present)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with mounting brackets and a tool inserted (no text or symbols)

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

1* Vain 65 tuuman (163,9 cm) malli
2* Vain 55 tuuman (138,8 cm) malli

8 Kiinnitä WM3.

① 65 * ② WM3

*Vain 65 tuuman (163,9 cm) malli

WM3 ②

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

tukevasti pohjasta.

Diagram illustrating a person using a mirror system to interact with a device, showing directional change and close-up of the screen.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Tekniset tiedot

WM1

c d e a b f g

Mitat: (Noin) (mm)

75 \*1 / 65 \*2

a : 206 mm

b : 180 mm

c : 446 mm

d : 336 mm

e : 244 mm

f : 215 mm

g : 20 mm

55\*3

a : 206 mm

b : 180 mm

c : 346 mm

d : 252 mm

e : 160 mm

f : 130 mm

g : 20 mm

Technical diagram of a mechanical assembly with springs and housing (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

Installere veggmonteringsbraketten på veggen

Technical line drawing of a table with support legs and a vertical dimension labeled 'G' (no text or symbols beyond the label)

Technical line drawing of a lever mechanism with no text or symbols

(mm)

KD	A	B	C	D	E	F	G	H*2(°)
75XE9405	1673 962 68	5 199 277 7	3 325 15
65XE9305	1451 838 66	0 237 178 4	5 295 15
55XE9305	1232 715 66	299 54 45	215	13

Tabell over monteringsmålene for TV-en (mm)

3D mechanical assembly diagram showing three views of a bracket with scissors, labeled WM1 (no text or symbols on components)

5

Merknader

Diagram showing hands installing or adjusting a device panel with arrows indicating direction (no text or symbols)

3D technical drawing of a mechanical frame assembly (no text or symbols)

Diagram showing two hands holding a tablet with a prohibition symbol in the center, indicating no restrictions on the device.

1

Diagram illustrating a door switch mechanism with labeled components and an upward arrow indicating motion or direction.

Illustration of a computer monitor with hands installing or adjusting the screen, showing internal components and cable connections (no text or symbols)

Illustration of two people assembling a large TV frame with visible circuit lines and components (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people holding a rectangular object with a dark border, viewed from above (no text or symbols visible)

4

Technical line drawing of a door frame assembly with an arrow indicating direction (no text or symbols)

WM2

Mechanical assembly diagram showing a valve mechanism with directional arrows indicating motion (no text or symbols present)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with mounting brackets and a tool inserted (no text or symbols)

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

1* Kun 65-tommers (163,9 cm) modell
2* Kun 55-tommers (138,8 cm) modell

8 Fest WM3.

① 65 * ② WM3

*Kun 65-tommers (163,9 cm) modell

WM3 ②

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

du flytter den.

Diagram illustrating a person using a mirror system to interact with a device, showing directional arrows and a close-up of the device's screen.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Spesifikasjoner

WM1

c d e a b f g

Mål: (Ca.) (mm)

75 \*1 / 65 \*2

a : 206 mm

b : 180 mm

c : 446 mm

d : 336 mm

e : 244 mm

f : 215 mm

g : 20 mm

55\*3

a : 206 mm

b : 180 mm

c : 346 mm

d : 252 mm

e : 160 mm

f : 130 mm

g : 20 mm

Vekt (kun sokkel): (Ca.)

75 \*1 / 65 \*2

2,7 kg

55\*3

2,3 kg

* 1 Kun 75-tommers (189,3 cm) modell

* 2 Kun 65-tommers (163,9 cm) modell

* 3 Kun 55-tommers (138,8 cm) modell

Diagram of a battery pack with cooling fins and heat exchangers (no text or labels)

Technical diagram showing four different types of tools: a drill, a screw, a plunger, and a washer, with dimensional annotations.

1.5 N·m/1,5 N·m {15 kgf·cm}

Illustration of hands installing or adjusting a mechanical component with arrows indicating direction (no text or symbols)

3D mechanical bracket assembly diagram with mounting holes and mounting brackets (no text or symbols)

Diagram showing two hands holding a tablet with a prohibition symbol indicating no hand use or prohibition.

1

Diagram illustrating a door switch mechanism with labeled components and an upward arrow indicating motion or direction.

Diagram illustrating a hand inserting a device into a TV case, with labeled components and directional arrows indicating assembly or movement.

Illustration of two people assembling a large TV or electronic device with visible internal components and airflow (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people installing a large rectangular frame with a small box, no text or symbols visible

4

Technical line drawing of a door frame assembly with a directional arrow indicating motion (no text or symbols)

WM2

GR

Mechanical assembly diagram showing a motor and fan assembly with directional arrows (no text or labels)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with mounting brackets and bolts (no text or symbols)

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

Diagram illustrating a person using a mirror system to interact with a device, showing directional arrows and a close-up of the device's screen.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Diagram of a battery pack with cooling fins and heat exchangers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions.

1.5 N·m/1,5 N·m {15 kgf·cm}

Diagram showing two-step assembly process: one of a metal frame being folded, the other of a structural frame (no text or symbols)

Safety warning sign showing no hand crossed over a tablet screen, indicating blocked access or no protection.

1

Diagram illustrating a device's internal structure with an upward arrow and labeled components, including a hand holding a plug.

Diagram illustrating a hand inserting cable into a device, with magnified view highlighting internal components.

Illustration of two people assembling a large TV frame with an upward arrow indicating motion (no text or symbols present)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people installing a large rectangular frame with a small box, no text or symbols visible

4

Technical line drawing of a door hinge assembly with a directional arrow indicating motion (no text or symbols)

WM2

TR

Mechanical assembly diagram showing a motor and fan assembly with directional arrows (no text or symbols)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with no visible text or symbols

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

Diagram illustrating a person using a mirror system to interact with a device, showing directional movement and close-up of the screen.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Spesifikasyonlar

WM1

c d e a b f g

Diagram of a battery pack with cooling fins and heat exchangers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

Diagram showing two-step assembly of a mechanical component, with no visible text or symbols.

Diagram showing two hands holding a tablet with a prohibition symbol in the center, indicating no restrictions on the device.

1

Diagram illustrating a device's internal structure with an upward arrow and labeled components, including a hand holding a plug.

Illustration of a person installing or adjusting a device into a TV case, showing internal components and cable connections (no text or symbols)

Illustration of two people assembling a large electronic device with internal components and airflow lines (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people holding a rectangular object with a dark rectangle inside, viewed from above (no text or symbols visible)

4

Technical line drawing of a door frame assembly with an arrow indicating direction (no text or symbols)

WM2

HU

Mechanical assembly diagram showing a motor and fan assembly with directional arrows (no text or symbols)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with mounting brackets and a tool inserted (no text or symbols)

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

Diagram illustrating a person interacting with a mirror system, showing directional movement and magnified view of the device.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Műszaki adatok

WM1

c d e a b f g

Méretek: (Kb.) (mm)

75 *1 / 65 *2

a : 206 mm

b : 180 mm

c : 446 mm

d : 336 mm

e : 244 mm

f : 215 mm

g : 20 mm

55*3

a : 206 mm

b : 180 mm

c : 346 mm

d : 252 mm

e : 160 mm

f : 130 mm

g : 20 mm

Diagram of a battery pack with cooling fins and heat exchangers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

3D mechanical assembly diagram showing internal components with scissors and labeled WM1 (no text or symbols beyond label)

Poznámka

Diagram showing two-step assembly of a mechanical component, with arrows indicating direction (no text or symbols)

Safety warning sign with hand symbol and prohibition symbol on tablet screen

1

Diagram illustrating a door switch mechanism with labeled components and directional arrow indicating movement

Illustration of a computer monitor with hands installing or adjusting the screen, showing internal components and cable connections (no text or symbols)

Illustration of two people assembling a large TV or display case with a directional arrow indicating motion (no text or symbols present)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people holding a rectangular frame with a dark rectangular block inside, viewed from above (no text or symbols visible)

4

Technical line drawing of a door frame assembly with an arrow indicating direction (no text or symbols present)

WM2

Mechanical assembly diagram showing a motor and fan assembly with directional arrows (no text or symbols)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with no visible text or symbols

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

pevně za spodek.

Diagram illustrating a person using a mirror system to interact with a device, showing directional change and magnified view of the device.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Specifikace

WM1

c d e a b f g

Cross-sectional diagram of a battery pack with cooling fins and heat exchangers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

Illustration of a person sitting in a chair facing a screen with dashed lines indicating perspective projection (no text or symbols)

3 Do značiek vyvítajte otvory.

1, 2, 3, 4, 5, 6

2 Priložte WM1 na stenu a urobte šest značiek.

WM1

4

3D mechanical assembly diagram showing three views of a bracket with scissors, no text or symbols present

Poznámka

Diagram showing two-step assembly of a mechanical component, with arrows indicating direction (no text or symbols)

Diagram showing two hands holding a tablet with a prohibition symbol in the center, indicating no restrictions on the device.

1

Diagram illustrating a door switch mechanism with labeled components and an upward arrow indicating motion

Diagram illustrating a device's internal structure with labeled components and a magnified view of the component being inserted.

Illustration of two people assembling a large TV or electronic device with visible internal components and airflow (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people installing a large rectangular frame with a small box, no text or symbols visible

4

Technical line drawing of a door frame assembly with a directional arrow indicating motion (no text or symbols)

WM2

SK

Mechanical assembly diagram showing a valve mechanism with directional arrows indicating motion (no text or symbols present)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with mounting brackets and a tool inserted (no text or symbols)

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

Diagram illustrating a person using a mirror system to interact with a device, showing directional arrows and a close-up of the device's screen.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Technické parametre

WM1

c d e a b f g

Rozmer: (Približne) (mm)

75 *1 / 65 *2

a : 206 mm

b : 180 mm

c : 446 mm

d : 336 mm

e : 244 mm

f : 215 mm

g : 20 mm

55*3

a : 206 mm

b : 180 mm

c : 346 mm

d : 252 mm

e : 160 mm

f : 130 mm

g : 20 mm

Cross-sectional diagram of a battery pack with cooling fins and heat exchangers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

Technical diagram showing three views of a mechanical component with scissors, labeled WM1 (no text or symbols on the diagram itself)

5

Notă

Diagram showing two-step assembly of a mechanical component, with arrows indicating direction (no text or symbols)

Diagram showing two hands holding a tablet with a prohibition symbol in the center, indicating no restrictions on the device.

1

Diagram illustrating a door switch mechanism with labeled components and an upward arrow indicating motion or assembly.

WM4 2 × 2

5 Exclusiv modelul de 55 inch (138,8 cm).

Diagram illustrating a hand inserting cable into a device, with magnified view showing internal components and cable connections.

Illustration of two people assembling a large TV frame with an upward arrow indicating motion (no text or symbols present)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people holding a large rectangular frame with a dark rectangle inside, viewed from above (no text or symbols visible)

WM2

4

Technical line drawing of a door hinge assembly with an arrow indicating rotation (no text or symbols)

RO

Mechanical assembly diagram showing a motor and fan assembly with directional arrows (no text or labels)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with mounting brackets and a tool inserted (no text or symbols)

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

1* Exclusiv modelul de 65 inch (163,9 cm)
2* Exclusiv modelul de 55 inch (138,8 cm)

8 Fixați WM3.

① 65 * ② WM3

Exclusiv modelul de 65 inch (163,9 cm)

WM3 ②

9

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

Diagram illustrating a person using a mirror system to interact with a device, showing directional change and RO label

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Specificatii

WM1

c d e a b f g

Technical diagram of a battery pack with cooling fins and internal circuit breakers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding dimensions in millimeters.

1.5 N·m/1,5 N·m {15 kgf·cm}

Illustration of a person sitting in a chair facing a screen with dashed lines indicating perspective projection (no text or symbols)

3D mechanical assembly diagram showing three sequential views of a bracket with cutouts and a labeled component 'WM1' (no text or symbols beyond label)

Забележка

Diagram showing two-step assembly of a mechanical component, with no visible text or symbols.

Подготовка за монтажа на телевизора

Safety warning sign showing no hand crossed over a tablet screen, indicating blocked access or no protection.

1

Diagram illustrating a device's internal structure with labeled components and an upward arrow indicating motion or assembly.

Diagram illustrating a hand inserting a device into a TV, with magnified view highlighting the internal structure.

Illustration of two people assembling a large TV case with visible internal components and airflow (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people installing a large rectangular frame with a small box, no text or symbols visible

4

Technical line drawing of a mechanical assembly with a directional arrow indicating motion (no text or symbols present)

WM2

BG

Mechanical assembly diagram showing a motor and fan assembly with directional arrows (no text or labels)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with mounting brackets and a central component (no text or symbols)

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

Diagram illustrating a person using a device to interact with a mirror, showing directional arrows and a close-up of the screen.

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

BG

Спецификации

WM1

c d e a b f g

Technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding numerical values below each.

1.5 N·m/1,5 N·m {15 kgf·cm}

Diagram showing two-step assembly of a mechanical component, with arrows indicating direction (no text or symbols)

Safety warning sign showing no hand crossed over a tablet screen, indicating blocked access or no protection.

1

Diagram illustrating a door switch mechanism with labeled components and an upward arrow indicating motion or assembly.

Diagram illustrating a device's internal structure with labeled components and a magnified view of the component being inserted.

Illustration of two people assembling a large TV or electronic device with a highlighted panel (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people installing a large rectangular panel or frame (no text or symbols visible)

4

Technical line drawing of a door hinge assembly with an arrow indicating direction (no text or symbols)

WM2

Mechanical assembly diagram showing a motor and fan assembly with directional arrows (no text or symbols)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with no visible text or symbols

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

Diagram illustrating a person using a mirror system to interact with a device, showing directional arrows and a close-up of the device's screen.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)

Technical diagram of a battery pack with cooling fins and heat exchangers (no text or labels)

Diagram showing four types of tools: a drill, a screwdriver, a plunger, and a washer, with corresponding numerical values below each.

1.5 N·m/1,5 N·m {15 kgf·cm}

Diagram showing two-step assembly of a mechanical component, with no visible text or symbols.

Diagram showing two hands holding a tablet with a prohibition symbol in the center, indicating no restrictions on the device.

1

Diagram showing a device with an upward arrow and labeled components, including a hand holding a plug and switch.

Illustration of a person installing or adjusting a TV panel with an inset close-up showing internal components (no text or symbols)

Illustration of two people assembling a large TV case with visible internal components and airflow (no text or symbols)

3

3D diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

2

Two people installing a large rectangular frame with a small box, no text or symbols visible

4

Technical line drawing of a door hinge assembly with an arrow indicating direction (no text or symbols)

WM2

Mechanical assembly diagram showing a motor and fan assembly with directional arrows (no text or symbols)

6

Technical diagram of a mechanical assembly with mounting brackets and a labeled connection point (M6L13), no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with no visible text or symbols

7

① ② ③ ④ 65 *1 55 *2 ① 65 *1

Diagram of a cable installation with a connector and directional arrow (no text or symbols)

Diagram illustrating a person using a mirror system to interact with a device, showing directional change and close-up of the screen.

11

Interior view of a room with a monitor, cable, and a potted plant (no text or symbols)
