Product type	Line laser (laser level)
Brand	Laserliner
Model	LaserCube
Category	Hand tool
Dimensions (l x h x d)	38 x 38 x 38 mm
Weight (batteries included)	36 g
Power supply	3 alkaline batteries LR44 / AG13 / V13GA
Battery life	Approximately 4 hours
Accuracy	±1 mm/m
Laser wavelength	635 nm
Laser class	2 (< 1 mW) per EN 60825-1:2014/AC:2017
Main functions	Horizontal and vertical leveling, floor and wall use, built-in bubble level, attachment to surfaces with special pins
Applications	Adjustment work on floor and wall, leveling, alignment
Wall mounting	Special pins for thin plaster, wallpaper, wood, plywood
Operating conditions	0°C to 50°C, relative humidity max 80% RH, max altitude 4000 m
Storage conditions	-10°C to 70°C, relative humidity max 80% RH
Maintenance and cleaning	Clean with a dry, soft cloth. Do not use abrasive products.
Safety	Class 2 laser: do not look into the beam, avoid reflections, keep out of reach of children
Spare parts and repairability	Replaceable batteries; repair possible by the manufacturer
Package contents	Device, batteries, mounting pins
Manufacturer	Umarex GmbH & Co KG - Laserliner
Standards and certifications	Compliant with EU and UK directives, recycling according to WEEE

Frequently Asked Questions - LaserCube Laserliner

How to turn on the LaserCube?

Press the ON/OFF switch located on the side of the device.

Which batteries to use?

Use 3 alkaline batteries of type LR44, AG13 or V13GA.

How to replace the batteries?

Open the battery compartment at the bottom and insert the batteries following the indicated polarity.

Is the laser dangerous?

It is a class 2 laser (<1 mW). Do not look directly into the beam and avoid reflections from shiny surfaces.

How to attach the device to the wall?

Insert the special pins into the designated holes, then press the device against the wall.

What is the accuracy of the device?

The accuracy is ±1 mm per meter.

Can the device be used as a bubble level?

Yes, the device is equipped with horizontal and vertical bubbles for precise alignment, but only on support surfaces A.

What is the battery life?

Approximately 4 hours with new alkaline batteries.

What to do if the laser no longer works?

Check the battery charge level and replace if necessary. If the problem persists, contact customer service.

How to clean the device?

Clean it with a dry, soft cloth. Do not use chemical or abrasive products.

USER MANUAL LaserCube Laserliner

Exterior view of a Laserliner industrial sensor module (no text or symbols visible on body)

Laser 635 nm

Laserliner

DE	02
EN	04
NL	06
DA	08
FR	10
ES	12
IT	14
PL	16
FI	18
PT	20
SV	22
NO	24
TR	26
RU	28
UK	30
CS	32
ET	34
RO	36
BG	38
EL	40
SL	42
HU	44
SK	46
HR	48

Laserliner

!

Close-up of a mechanical component with labeled parts (no readable text or symbols)

Close-up of a white and black electronic component with a circular lens (no visible text or symbols)

Two 3D gray cubes labeled A and B, showing different interior shapes (no text or symbols on the cubes themselves)

!

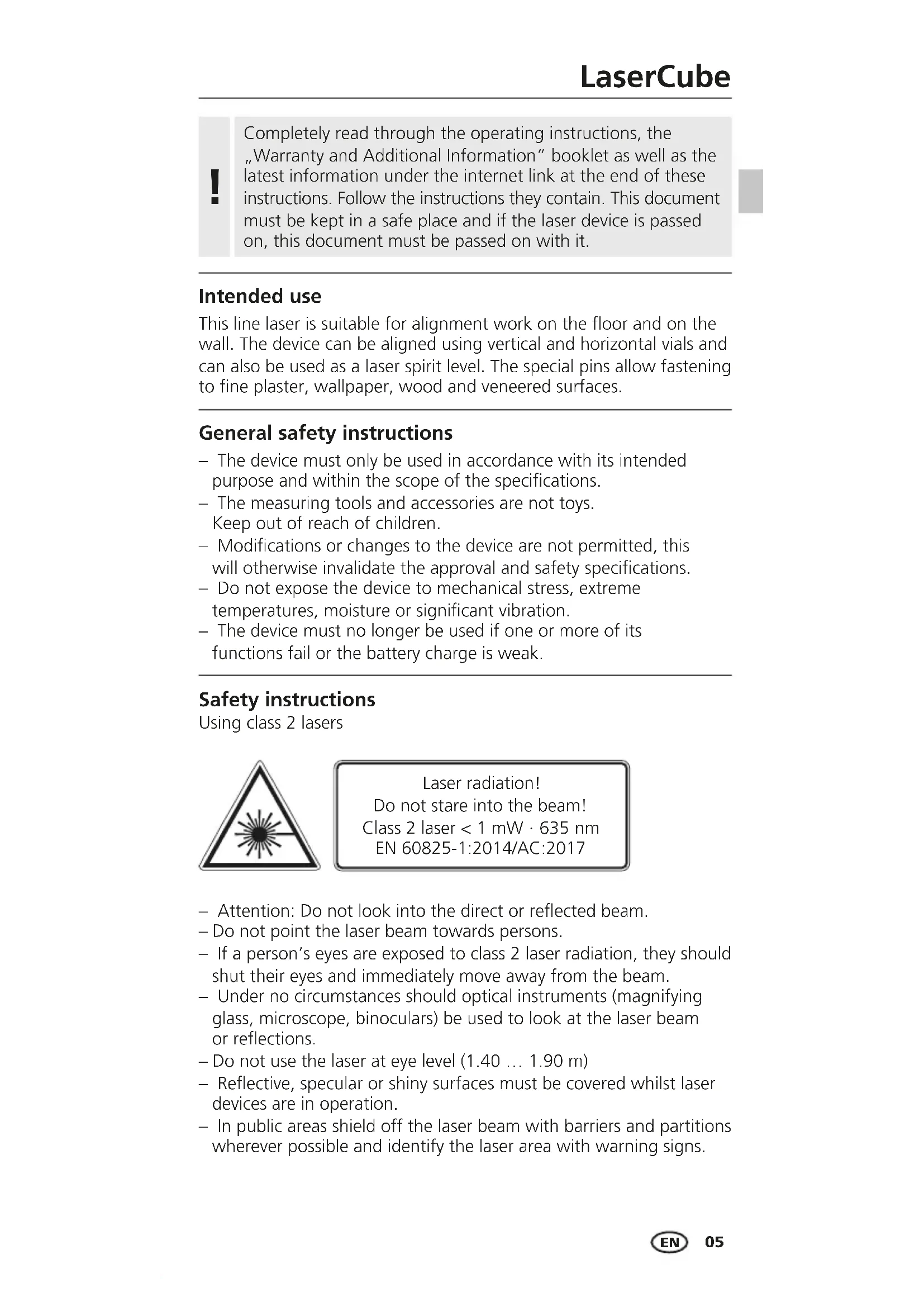

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Intended use

This line laser is suitable for alignment work on the floor and on the wall. The device can be aligned using vertical and horizontal vials and can also be used as a laser spirit level. The special pins allow fastening to fine plaster, wallpaper, wood and veneered surfaces.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.

Safety instructions

Using class 2 lasers

Laser radiation!

Do not stare into the beam!

Class 2 laser < 1 mW · 635 nm

EN 60825-1:2014/AC:2017

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.
• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
• Under no circumstances should optical instruments (magnifying glass, microscope, binoculars) be used to look at the laser beam or reflections.
• Do not use the laser at eye level (1.40 ... 1.90 m)
• Reflective, specular or shiny surfaces must be covered whilst laser devices are in operation.
• In public areas shield off the laser beam with barriers and partitions wherever possible and identify the laser area with warning signs.

Laserliner

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU which is covered by the Radio Equipment Directive 2014/53/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
• The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.

1 Inserting batteries

Open the battery compartment and insert batteries according to the symbols. Be sure to pay attention to polarity.

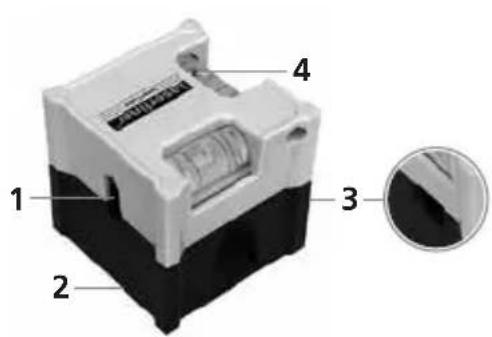

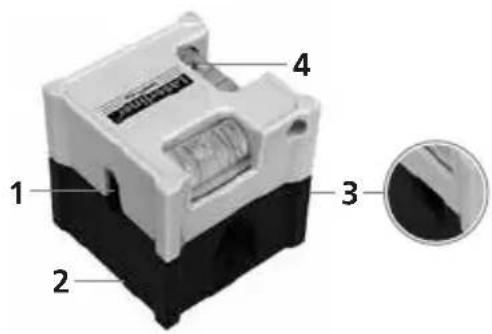

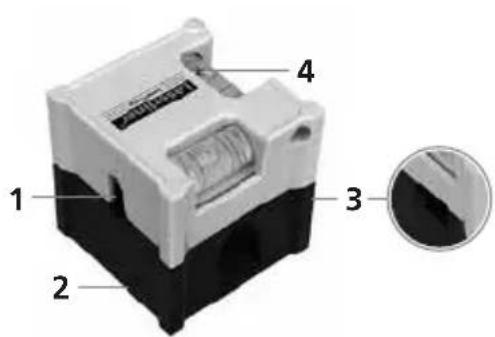

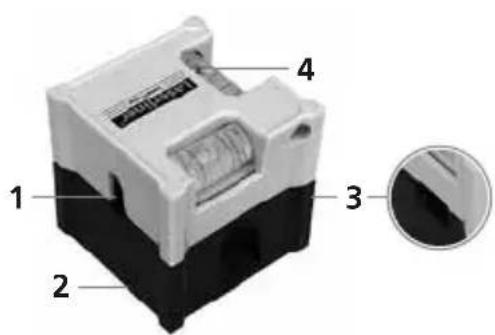

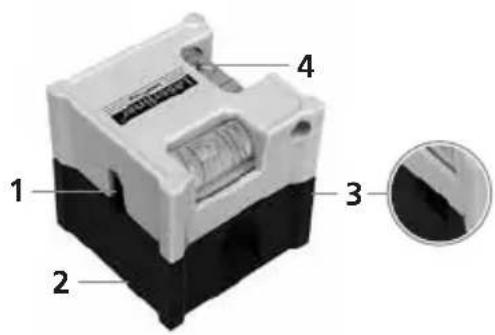

Close-up of a mechanical component with labeled parts (no readable text or symbols)

1 Laser output windows
2 Battery compartment (bottom)
3 ON / OFF switch
4 Vials

2 On-floor applications

Place the device on the floor and switch on.

Close-up of a white and black electronic component with a circular lens (no visible text or symbols)

!

The vials are only adjusted for the four A bearing surfaces (see image). When placed on the B surfaces, the device cannot be used as a spirit level.

3 Wall applications

Mount the device on the wall for horizontal and vertical levelling. Then align the device with the vials.

4 Mounting on the wall

1. Place device on the wall.
2. Push the special pins through the appropriate holes.

Technical data (Subject to technical changes without notice. 23W10)
Accuracy ± 1 mm / m
Laser wavelength 635 nm
Laser class 2 / < 1 mW (EN	60825-1:2014/AC:2017)
Power supply	3 x alkaline batteries (LR 44 / AG13 / V13GA)
Operating time 4 hours (alkaline batteries)
Operating conditions	0°C ... 40°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage conditions -10°C	... 70°C, max. humidity 80% rH
Dimensions (W x H x D)	38 x 38 x 38 mm
Weight 36 g (incl. batteries)

EU and UK directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU and the UK.

This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials.

Further safety and supplementary notices at:

https://packd.li/II/ACT/in

Laserliner

!

Laserstraling!

Mechanical assembly diagram showing components like gears and a housing (no text or labels visible)

Close-up of a white and black electronic component with a circular dial (no visible text or symbols)

Laserstråling!

Close-up of mechanical components with no visible text or symbols

1 Lasers udgangsrude
2 Batterirum (underside)
3 TIL/FRA-kontakten
4 Libeller

2 Anvendelse på gulv

Close-up of a white and black electronic component with a circular mark on top (no visible text or symbols)

Two 3D gray cubes labeled A and B, showing different interior shapes (no text or symbols on the cubes themselves)

!

Rayonnement laser!

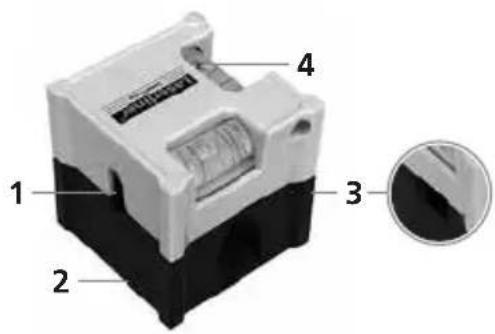

Close-up of a mechanical component with labeled parts (no readable text or symbols)

Close-up of a white and black electronic component with a circular mark on top (no visible text or symbols)

Two 3D gray cubes labeled A and B, showing different interior shapes (no text or symbols on the cubes themselves)

Warning symbol with a triangular triangle and central sunburst pattern (no text)

Rayo láser!

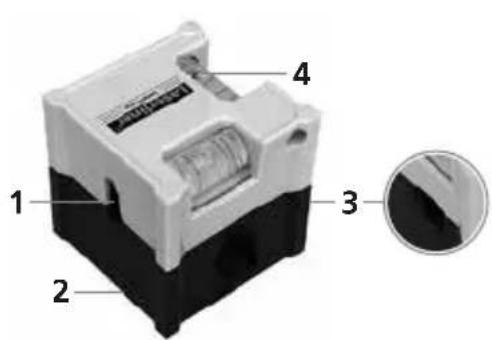

Close-up of a mechanical component with labeled parts (no readable text or symbols)

1 Ventana de salida láser
2 Compartimento de pilas (lado inferior)
3 Interruptor CON / DES
4 Niveles de burbuja

2 Usos en el suelo

Exterior view of a white and black electronic component (no visible text or symbols)

Two 3D gray cubes labeled A and B, showing different interior shapes (no text or symbols on the cubes themselves)

!

Mechanical assembly diagram showing components like gears and a housing (no text or labels visible)

Close-up of a white and black electronic component with a circular mark on top (no visible text or symbols)

Two 3D gray cubes labeled A and B, showing different interior cutouts (no text or symbols on the cubes themselves)

!

https://packd.li/ll/ACT/in

!

Close-up of mechanical components with no visible text or symbols

Exterior view of a white and black plastic electrical component (no visible text or symbols)

!

Mechanical assembly diagram showing components like gears and a housing (no text or labels visible)

Close-up of a white and black electronic component with a circular cutout (no visible text or symbols)

Two 3D gray cubes labeled A and B, showing different interior shapes (no text or symbols on the cubes themselves)

!

https://packd.li/ll/ACT/in

!

Radiação laser!

Close-up of a mechanical component with labeled parts (no readable text or symbols)

Exterior view of a white and black electronic device casing (no visible text or symbols)

!

Mechanical assembly diagram showing components like gears and a positive charge symbol (no text or labels)

1 Laseröppning
2 Batterifack (undersidan)
3 PÅ/AV-omkopplare
4 Libeller

Close-up of a white and black plastic electronic component with a circular cutout (no visible text or symbols)

Two 3D gray cubes labeled A and B, showing different interior shapes (no text or symbols on the cubes themselves)

!

Laserstråling!

Close-up of mechanical components with no visible text or symbols

1 Laserstrålehull
2 Batterirom (underside)
3 PÅ-/AV bryter
4 Libeller

2 Anvendelser på gulv

Close-up of a white and black electronic component with a circular mark on top (no visible text or symbols)

Two 3D gray cubes labeled A and B, showing different interior shapes (no text or symbols on the cubes themselves)

!

Close-up of a mechanical component with labeled parts (no readable text or symbols)

Close-up of a white and black electronic component with a circular cutout (no visible text or symbols)

Two 3D geometric cubes labeled A and B, showing different interior shapes (no text or symbols beyond labels)

!

Warning sign with a triangular shape containing a central starburst symbol (no text or numbers)

Close-up of mechanical components with no visible text or symbols

Close-up of a white and black electronic device casing (no visible text or symbols)

Mechanical assembly diagram showing components like gears and a valve (no text or labels)

Close-up of a small electronic component with black and white casing (no visible text or symbols)

Two 3D gray cubes labeled A and B, showing different interior shapes (no text or symbols on the cubes themselves)

Laserové záření!

Close-up of a mechanical component with labeled parts (no readable text or symbols)

Exterior view of a white and black electronic device casing (no visible text or symbols)

Two 3D gray cubes labeled A and B, showing different interior shapes (no text or symbols on the cubes themselves)

!

https://packd.li/ll/ACT/in

Laserliner

!

Warning symbol with a sunburst pattern inside a triangle (no text or numbers)

Laserkiirgus!

Raze laser!

Nu priviți în rază!

Laser clasa 2 < 1 mW · 635 nm

EN 60825-1:2014/AC:2017

Mechanical assembly diagram showing components like gears and a positive terminal (no text or labels)

Exterior view of a mechanical component with black and white casing (no visible text or symbols)

!

Mechanical assembly diagram showing components like gears and a valve (no text or labels)

Close-up of a small electronic component with black and white casing (no visible text or symbols)

!

Warning symbol with a triangular triangle and central sunburst pattern (no text)

Close-up of a mechanical component with labeled parts (no readable text or symbols)

Exterior view of a mechanical component with black and white casing (no visible text or symbols)

!

Lasersko sevanje!

Ne gledati v laserski žarek!

Laser razreda 2 < 1 mW · 635 nm

EN 60825-1:2014/AC:2017

Mechanical assembly diagram showing components like gears and a positive charge symbol (no text or labels)

Exterior view of a mechanical component with black and white casing (no visible text or symbols)

Two 3D cubes labeled A and B, showing different interior shapes (no text or symbols on the cubes themselves)

!

Warning sign with a sunburst symbol inside a triangle (no text)

Lézersugár!

Mechanical assembly diagram showing components like gears and a positive terminal (no text or labels)

Close-up of a white and black electronic component with a circular cutout (no visible text or symbols)

!

https://packd.li/ll/ACT/in

Laserliner

!

Laserové žiarenie!

Mechanical assembly diagram showing components like gears and a housing (no text or labels visible)

Exterior view of a mechanical component with black and white casing (no visible text or symbols)

Two 3D gray cubes labeled A and B, showing different interior shapes (no text or symbols on the cubes themselves)

!

Warning symbol with a triangular triangle and radiating lines, no text or numbers present

Lasersko zračenje! Ne gledati u lasersku zraku! Laser klase 2 · < 1 mW · 635 nm EN 60825-1:2014/AC:2017

Close-up of mechanical components with no visible text or symbols

1 Izlazni prozor za laser
2 Pretinac za bateriju (donja strana)
3 ON/OFF (uklj./isklj.) sklopka
4 Libele

Close-up of a white and black electronic component with a circular mark on top (no visible text or symbols)

!

Libele su fino namještene samo za četiri kontaktne površine A (pogledajte sliku). U slučaju postavljanja na površine B uređaj se više ne može koristiti kao libela.

3 Primjena za zidne pločice

Illustration of a storage cabinet with a magnified inset showing a printer (no text or symbols present)
