Product Type	Digital Caliper
Brand	Laserliner
Model	MetricMaster Plus
Category	Hand Tool
Measuring Range	0 … 150 mm / 0 … 6 inches
Resolution	0.01 mm / 0.0005 inch
Accuracy	± 0.03 mm / 0.0005 inch
Display	5-digit Liquid Crystal Display (LCD)
Measuring Functions	External, internal, depth, differential (zero setting), step measurement
Unit Switching	mm / inch via dedicated button
Power Supply	1 LR44 button cell battery
Auto-off	After approx. 5 minutes of inactivity
Dimensions (L x W x H)	246 x 77 x 17 mm
Weight (incl. battery)	175 g
Working Conditions	0 °C … 30 °C, max. 80 % relative humidity (non-condensing)
Storage Conditions	0 °C … 50 °C, max. 80 % relative humidity (non-condensing)
Maintenance and Cleaning	Clean with a slightly damp cloth; do not use aggressive cleaning agents or solvents. Remove the battery for prolonged storage.
Safety Instructions	Sharp measuring surfaces - handle with care. Do not subject the device to shocks or extreme temperatures. Use only for intended purpose.
Recommended Calibration	Check zero position before each use; annual calibration recommended
Compliance	CE (EMC directive 2014/30/EU), WEEE

Frequently Asked Questions - MetricMaster Plus Laserliner

How to install the battery of the MetricMaster Plus?

Open the battery compartment (mark 12) and insert an LR44 button cell battery observing the polarity symbols. Close the compartment.

How to switch between mm and inch units?

Briefly press the button 2 (Unit switching) to switch between millimeters and inches, even during a measurement.

What do flashing digits on the display mean?

Flashing digits indicate a low battery. Replace the battery with a new one.

How to calibrate the caliper?

Before each use, fully close the measuring jaws and check that the display shows 0. If necessary, press the zero setting button (mark 4). Annual calibration is recommended.

How to clean the device?

Clean with a slightly damp cloth. Do not use abrasive cleaning agents, solvents, or alcohol. Remove the battery before prolonged storage.

What to do if the display stays off?

Check the battery: replace it if it is depleted. If the problem persists, clean the battery contacts. If the display still stays off, remove the battery, wait 1 minute, and reinsert it.

How to use the depth measurement function?

Use the depth gauge (mark 7) located at the end of the device. Place the base of the instrument on the edge of the object and lower the gauge to the bottom.

How to freeze a measured value?

Tighten the locking screw (mark 10) to lock the displayed value. This allows you to keep the measurement after removing the instrument.

What is the accuracy of the instrument?

The accuracy is ± 0.03 mm (0.0005 inch) over the entire measuring range, within the specified working conditions.

Is the device waterproof or water-resistant?

No, the device is not waterproof. Avoid any contact with water and excessive humidity. Store it in a dry place.

USER MANUAL MetricMaster Plus Laserliner

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / application

Digital calliper gauge for precise measurement of lengths

• Functions: External measurement, internal measurement, depth measurement, differential measurement through zero position, level measurement
  Fixation of the determined measuring range by means of clamping screw
• 5-digit display
• Measurement range: 0 ... 150 mm

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The device and its accessories are not toys.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• Risk of damage! The measuring surfaces may scratch sensitive material.
• Risk of cuts! The measuring surfaces are sharp and pointed and may cause injuries - only hold them using the handles provided.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

1 Inserting battery

Open the battery compartment and insert battery (1x LR44 button cell) according to the symbols. Be sure to pay attention to polarity.

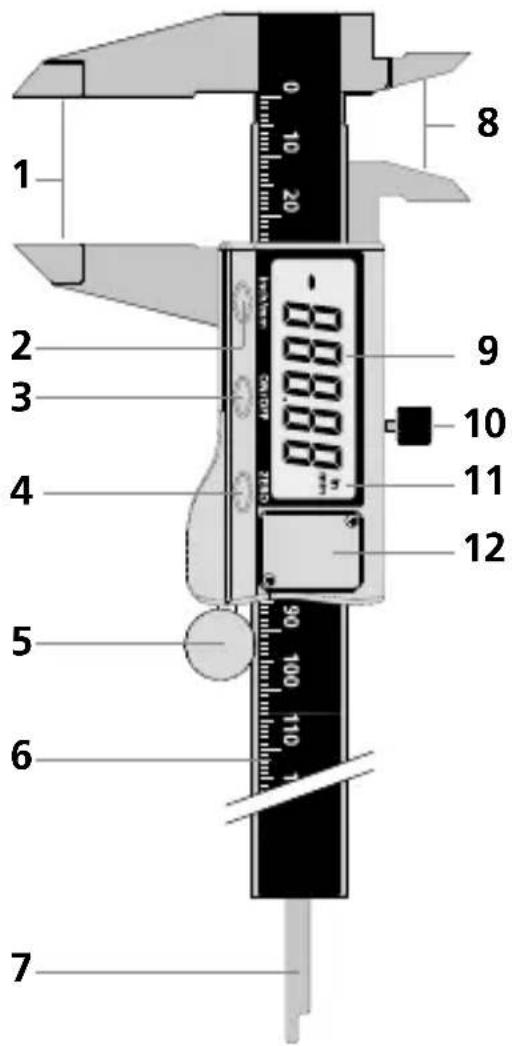

1 Measuring jaws for external measurement
2 Switch between in and mm
3 On/Off switch
4 Zeroing the digital display
5 Fine adjustment wheel
6 Scale 0 ... 150 mm
7 Depth gauge
8 Measuring jaws for internal measurement
9 LC display
10 Clamping screw for fixing the measured value
11 Measurement in in / mm
12 Battery compartment

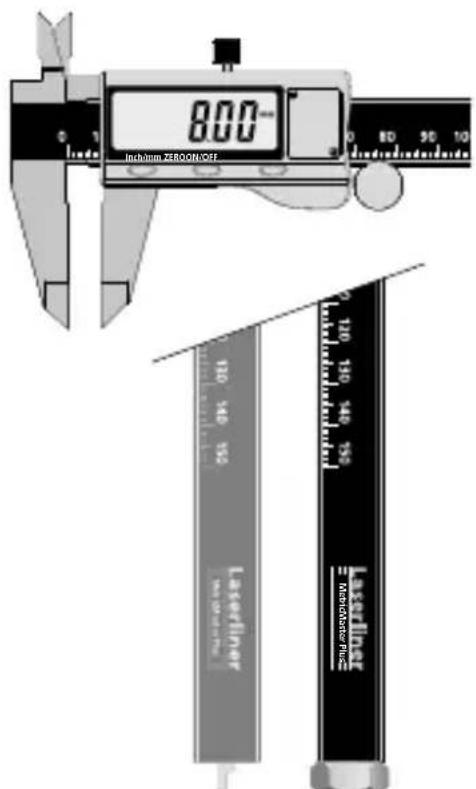

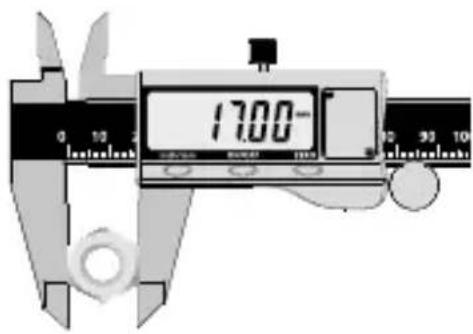

1 External measurement Dep. measurement

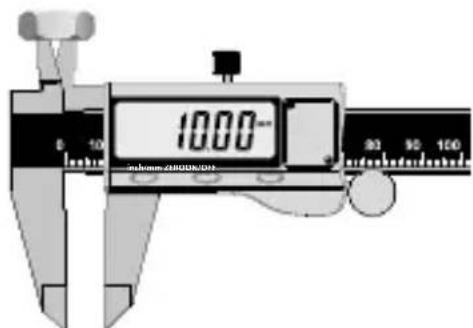

2 Internal measurement

Laserliner

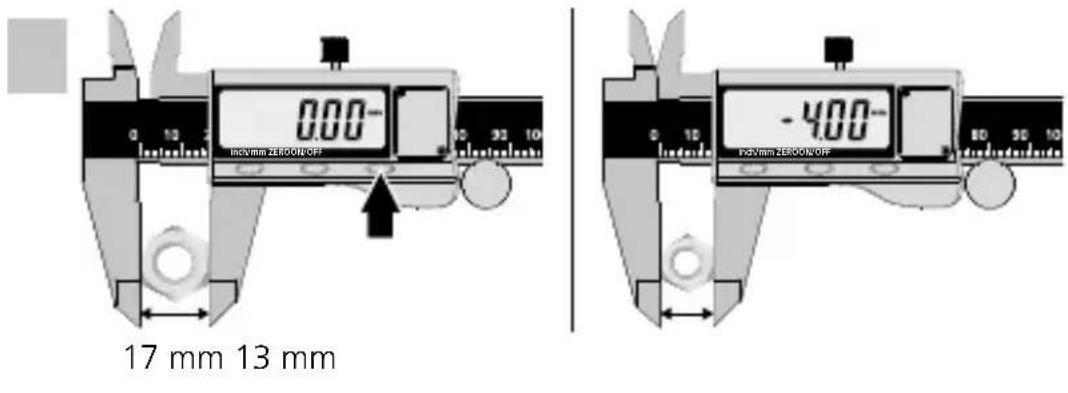

4 Differential measurement through zeroing

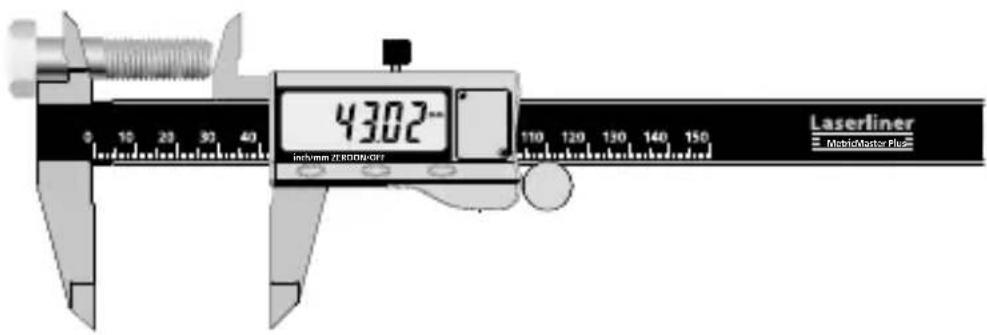

5 Level measurement

Switch units of measure

To switch between the measuring units mm and inches, press key 2 briefly. Switching can be carried out during an active measurement.

Automatic switch-off

The device switches off automatically if left idle for about 5 minutes.

Error recovery

Problem Possible cause	Use Solution
Flashing numbers Low voltage Replace the battery
No display Low voltage Replace the battery
No display Poor contact Clean the battery
Irregular or frozen display	Internal fault Remove	the battery, wait 1 minute, insert the battery

Calibration

The meter needs to be calibrated and tested on a regular basis to ensure it produces accurate measurement results. We recommend carrying out calibration once a year.

The zero setting must be checked prior to every use by sliding the measuring jaws together.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical data (Subject to technical changes without notice. 18W40)
Measurement range 0 ... 150	mm / 0 ... 6"
Resolution 0,01 mm / 0.0005"
Accuracy ± 0,03 mm / 0,0005"
Operating conditions	0°C...30°C, Max. humidity 80%rH, no condensation, Max. working altitude 4000 m above sea level
Storage conditions	0°C...50°C, Max. humidity 80%rH
Power supply 1x LR44 button	cell
Dimensions (W x H x D) 246 x	77 x 17 mm
Weight (incl. battery) 175 g

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: http://laserliner.com/info/?an=AGZ

Laserliner

！
