USER MANUAL SB 2E 1100 RV AEG

Original instructions

3D rendering of a yellow and black AEG drill put tool with handle and blade (no text or symbols visible)

Diagram showing a battery and its external casing with directional arrows indicating rotation (no text or symbols)

Pure mechanical diagram showing a shaft, housing, and valve without any text or symbols

Close-up of a hand holding a cylindrical tool with a metallic handle, no visible text or symbols

IX MAVS

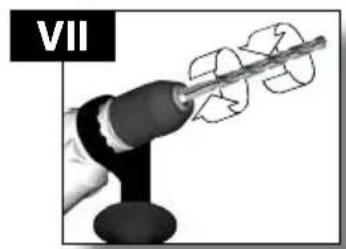

Close-up of a drill bit with motion arrows indicating movement (no text or symbols)

VIV START STOP

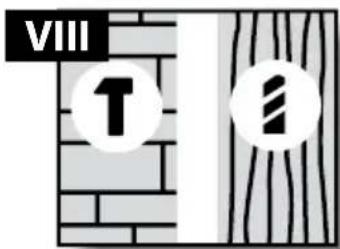

VIII 1 2

X ische Daten . Technical . Dat ctéristiques technics . De cnici . Datos tècnic. knik veri Características data . Technic Tekni Tekni Tehni Tehni dанныe • Technische • enki • evens

Close-up of a robotic arm with motion arrows indicating rotation (no text or symbols)

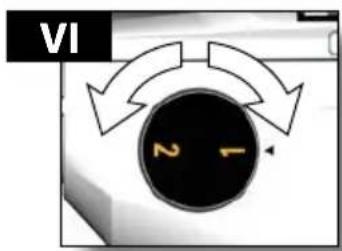

VI 2 1

Accessory Zubehör Accessoires Accessorio Accessorio • Acessório Toebehoren • Tilbehør Tilbehør • Tillbehör Lisälaite • Εξαρτήματα Aksesuar• Pīnslušenstvn Príslušenstv• Wyposażenie Azokat a tartozékokat Oprema • Piederumi Priedas • Tarvikud Дополнитель•Аксесоари Accesoriu• ополнителна опрема • Комплектуючі الملحق

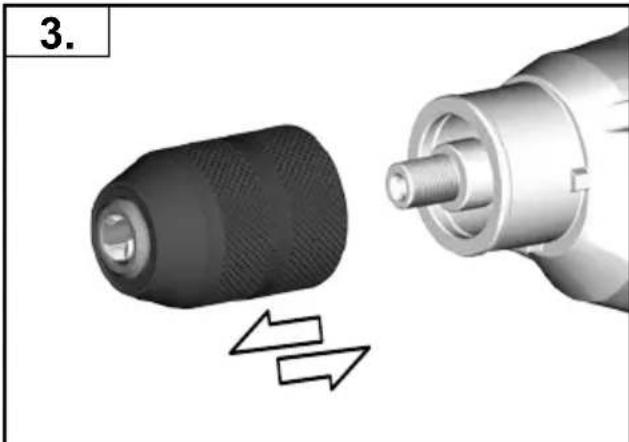

Illustration of a black cylindrical component and a metallic cylindrical component with directional arrows indicating motion (no text or symbols)

1. AEG

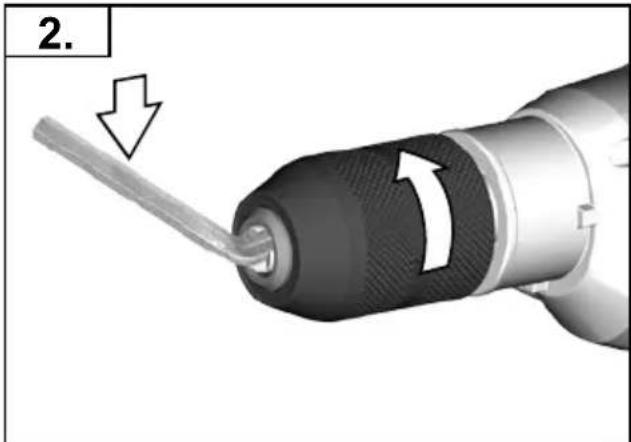

2.

Two mechanical components with arrows indicating motion, one showing a textured cylindrical part and the other a threaded end (no text or symbols)

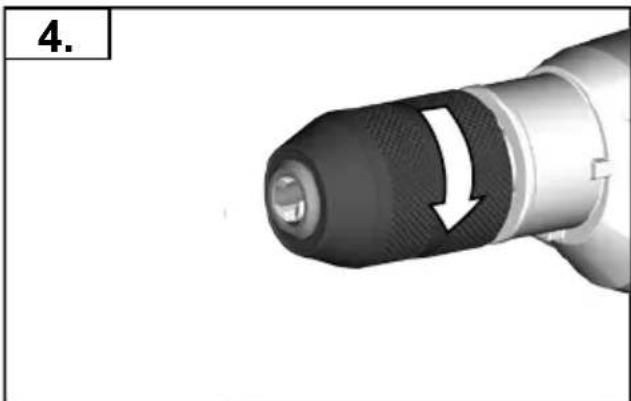

Close-up of a mechanical component with a curved arrow indicating rotation (no text or symbols)

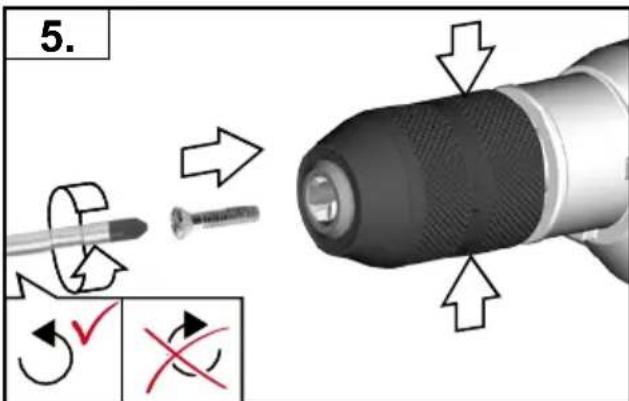

5.

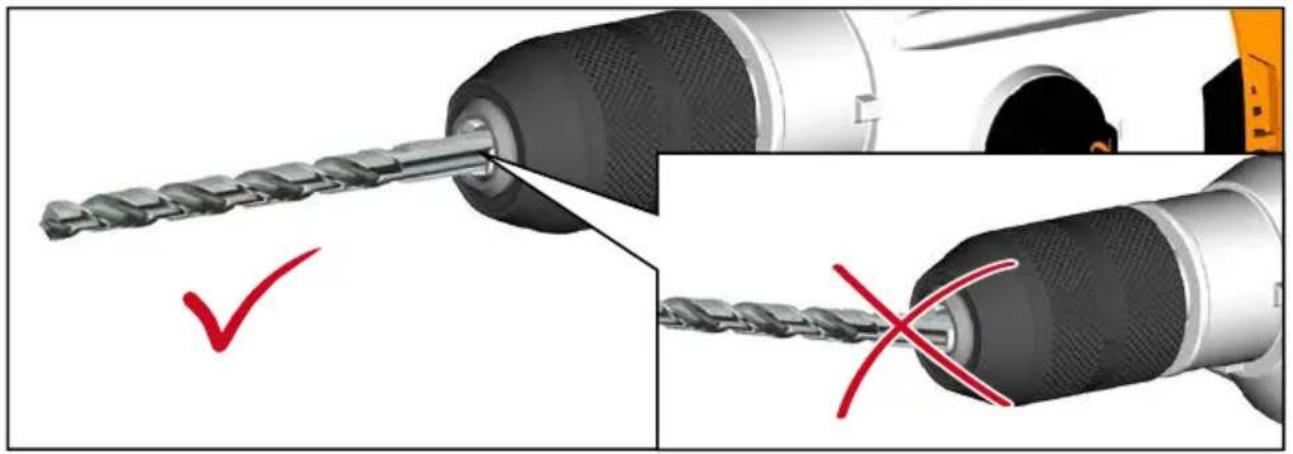

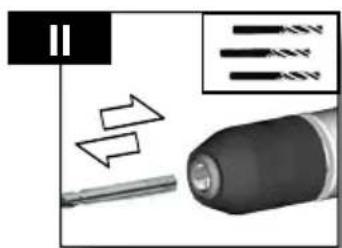

Close-up of a drill bit with a magnified inset showing three drill bit designs (no text or symbols)

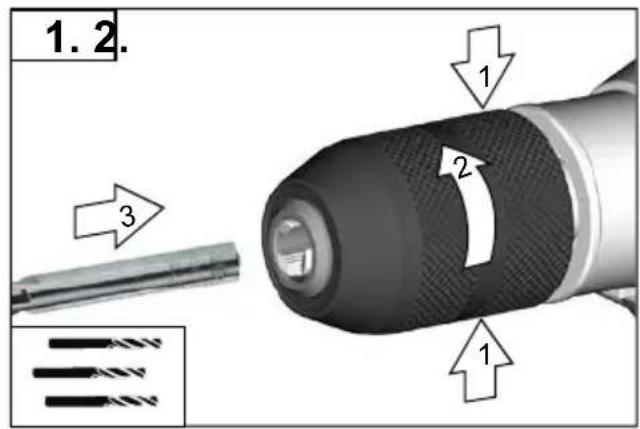

1. 2. 3 1 2 1

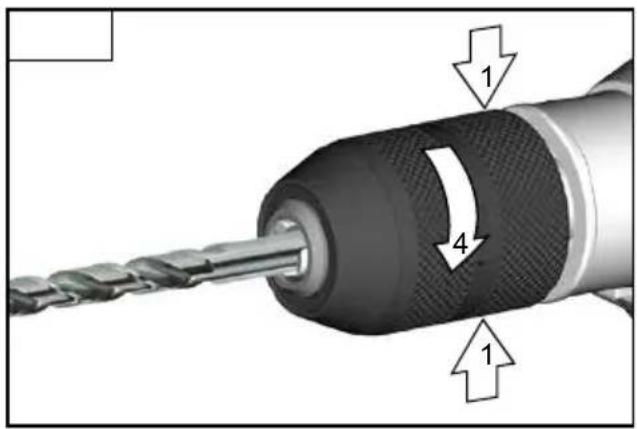

Technical diagram of a drill bit with labeled parts 1 and 4, showing thread and drill bit structure.

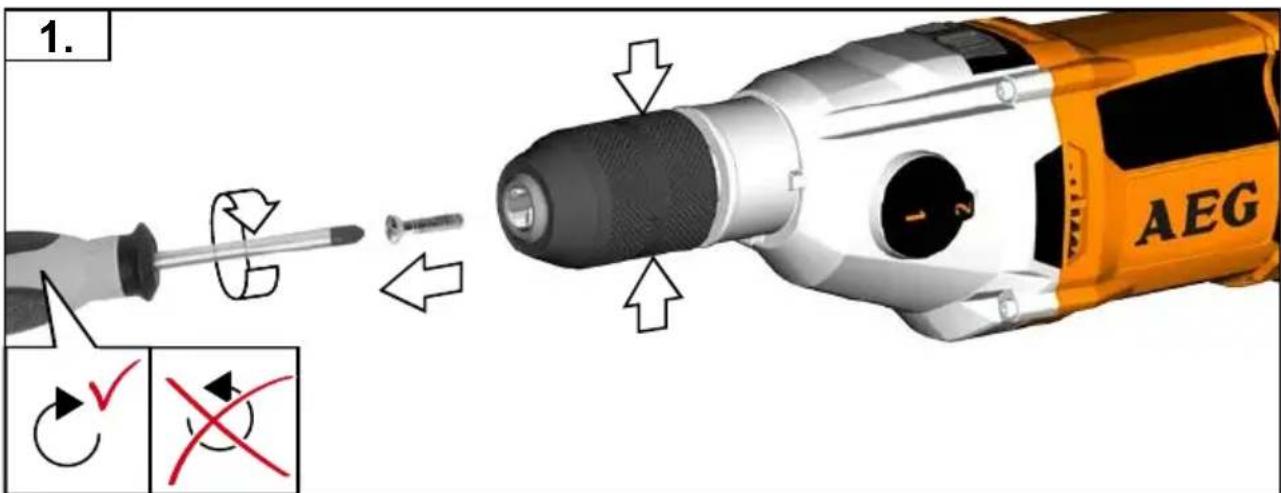

Close-up of a drill bit being probed with red checkmark and X mark (no text or symbols)

Close-up of a mechanical tool with directional arrows indicating motion (no text or symbols)

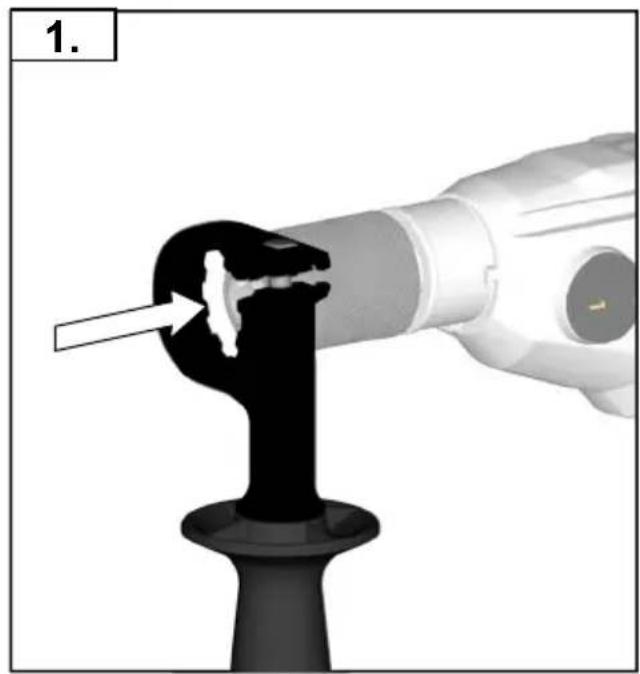

Close-up of a mechanical component being inserted into a cylindrical part, showing a black base and white tip (no text or symbols visible)

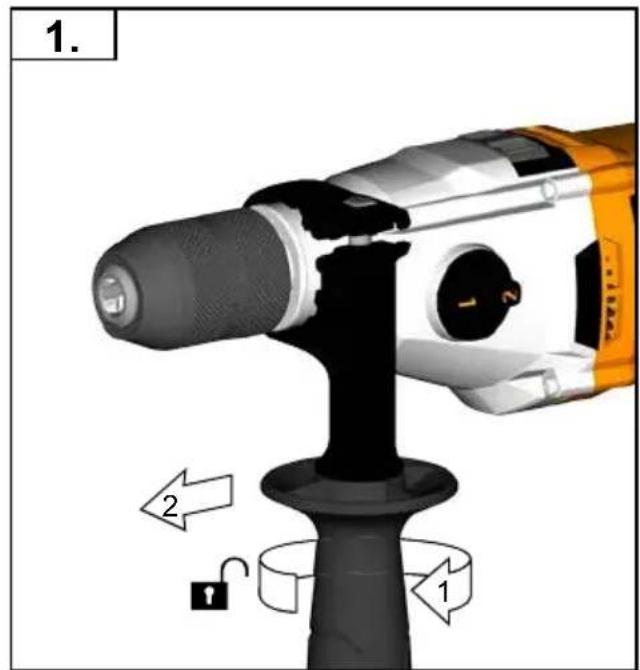

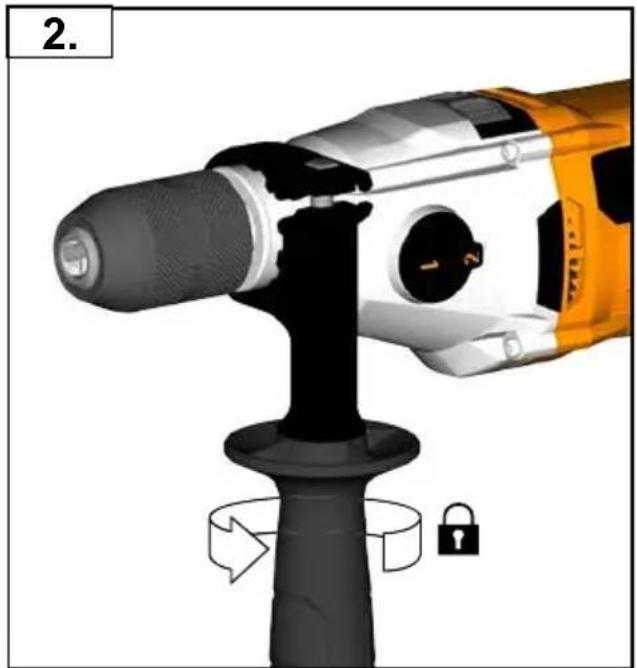

3D rendering of a power tool with a lock and rotating arm (no text or symbols)

1. 2 1

2. 3 2 1

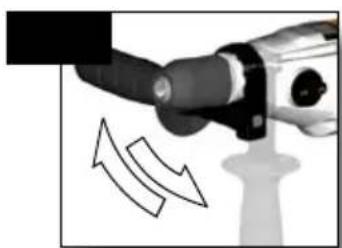

Pure mechanical diagram showing a lever and shaft assembly without any text, numbers, or symbols

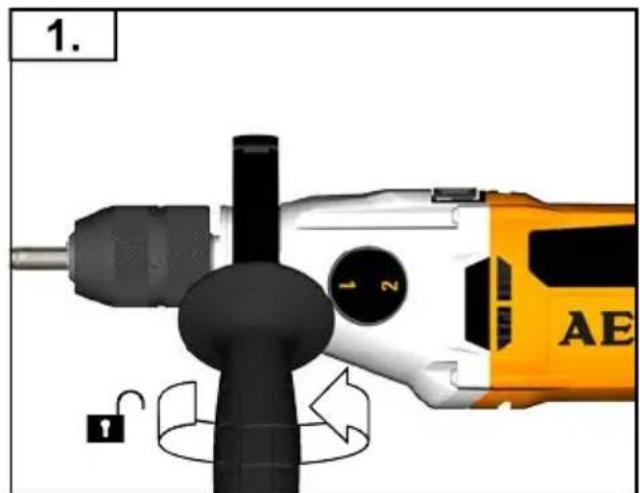

1. 1 2 AE

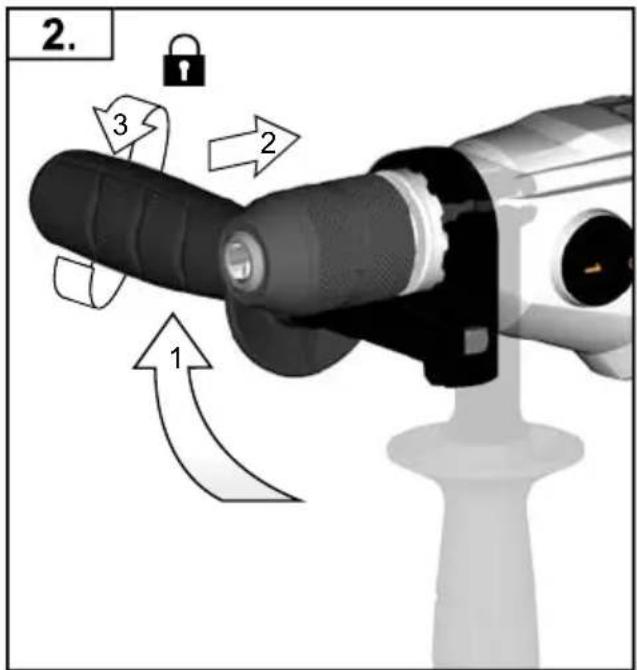

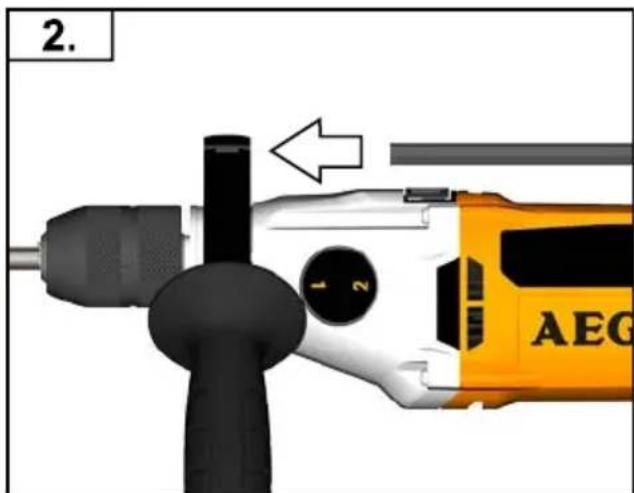

2. AEG

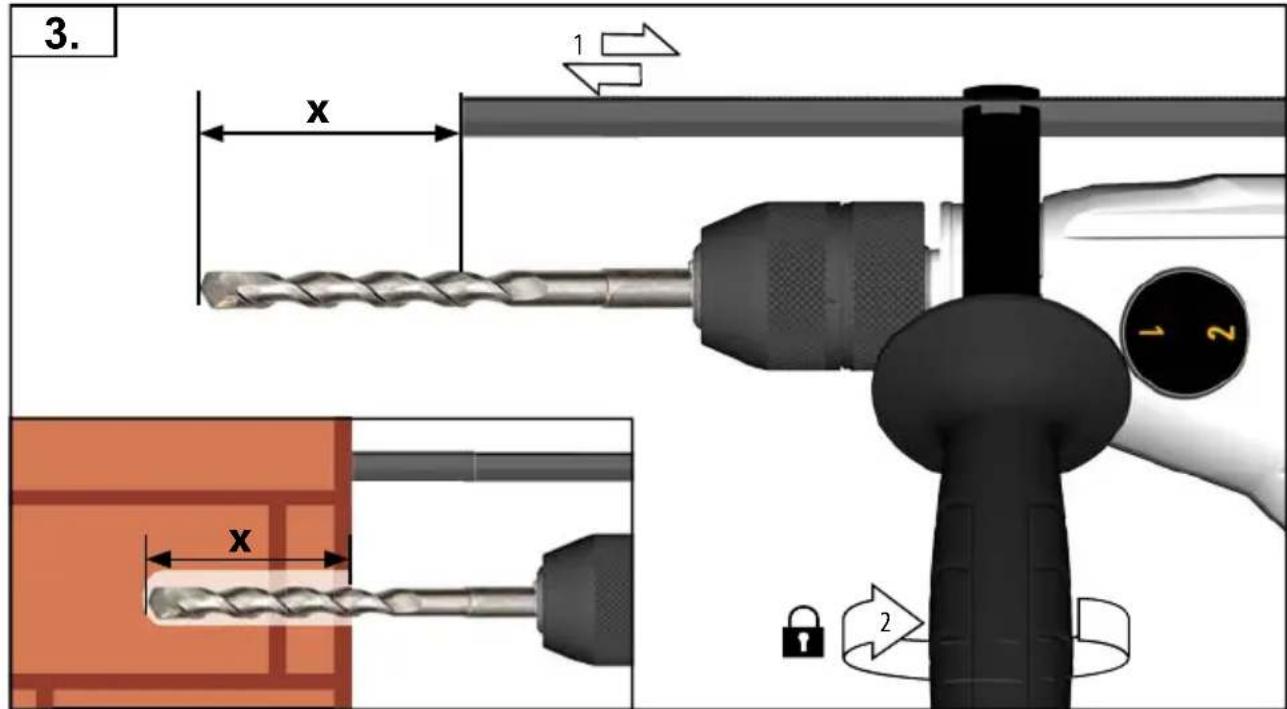

3. x 1 2 x 2

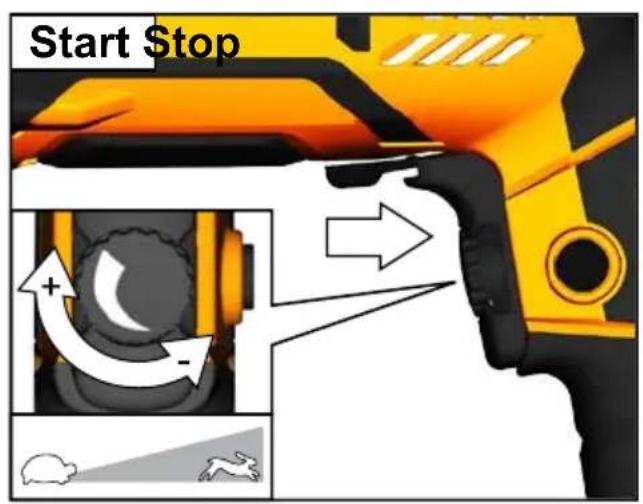

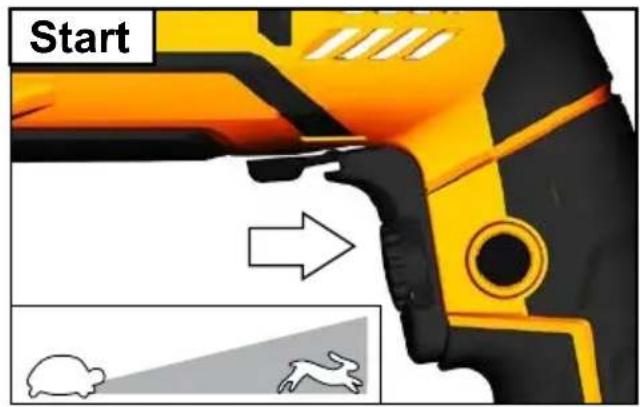

START STOP

SB2E 1100 RV

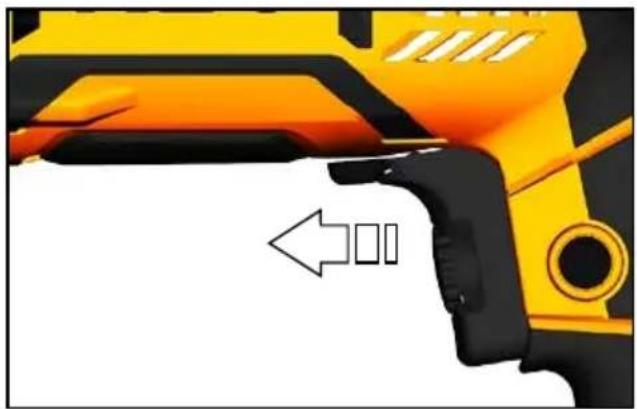

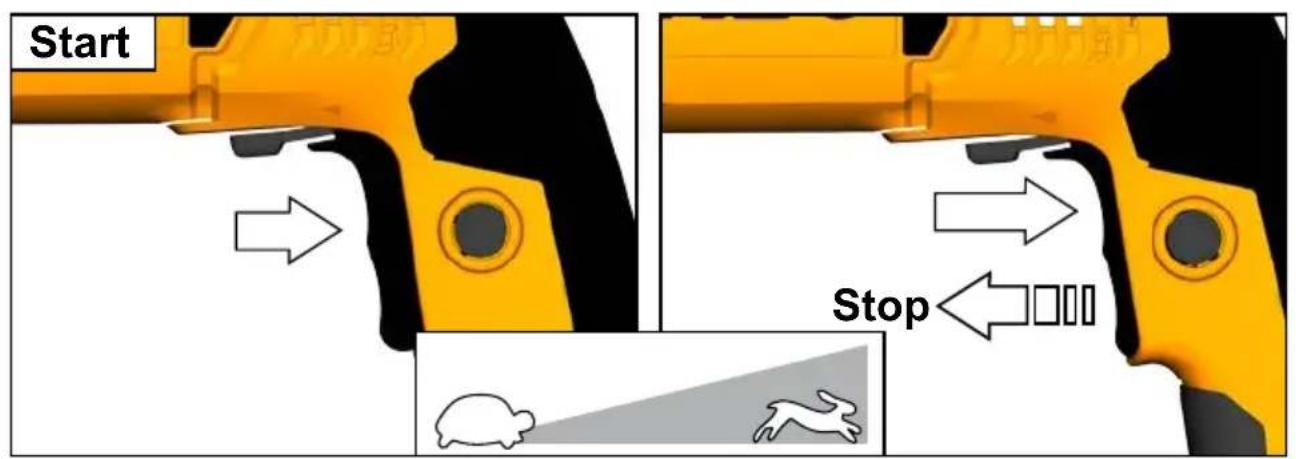

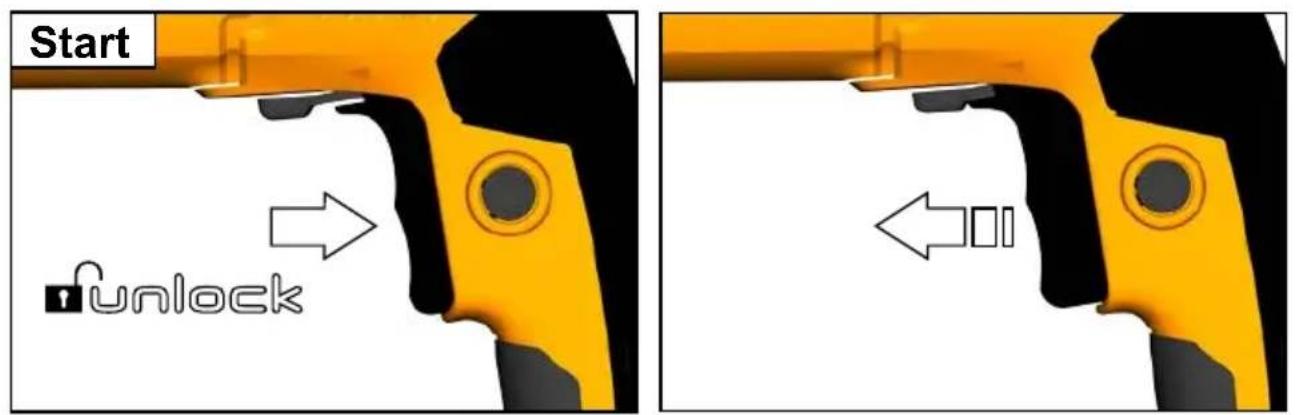

Start Stop

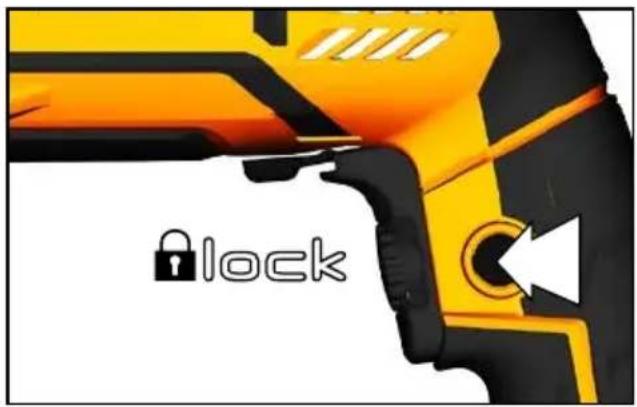

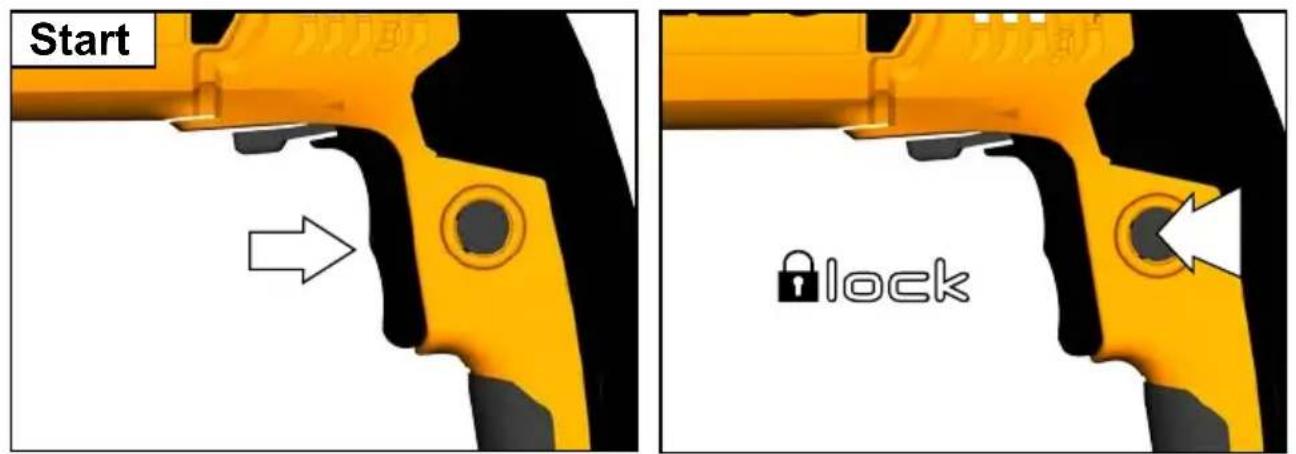

Start lock

Start Unlock

START STOP

SB2E 850 R

Start $stop

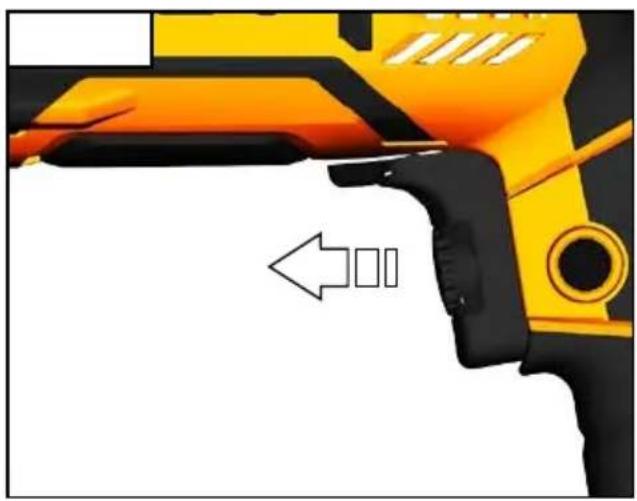

Close-up of a yellow and black mechanical component with directional arrows indicating movement or alignment (no text or symbols)

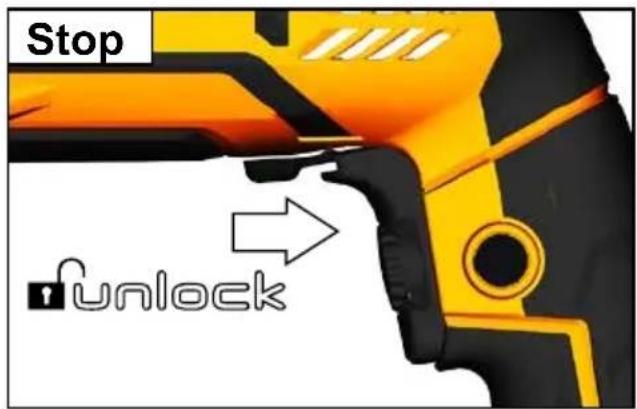

Start

lock

Stop Unlock

Close-up of a yellow and black mechanical component with a white arrow pointing left (no text or symbols visible)

2 1

1 2 AEG

2 1 2 AEG

2 1

AEG

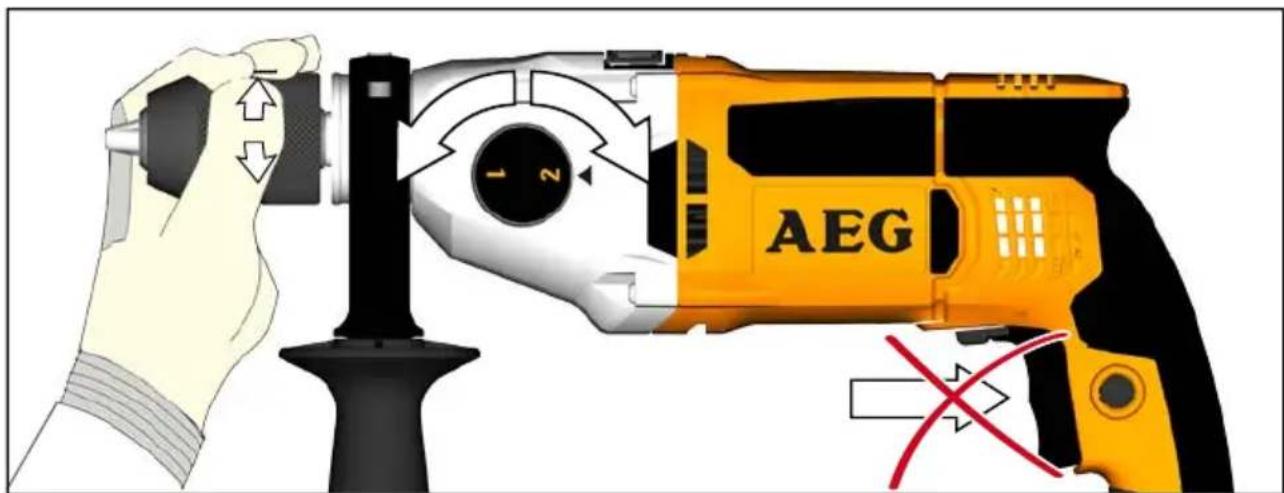

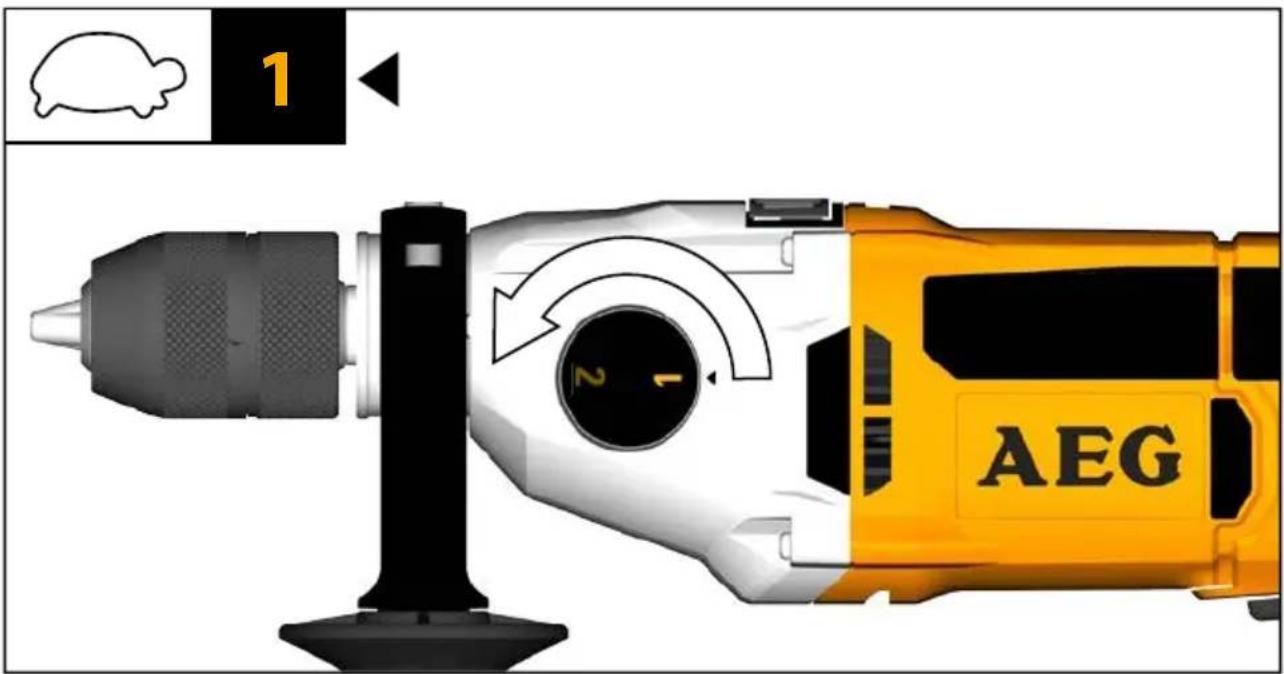

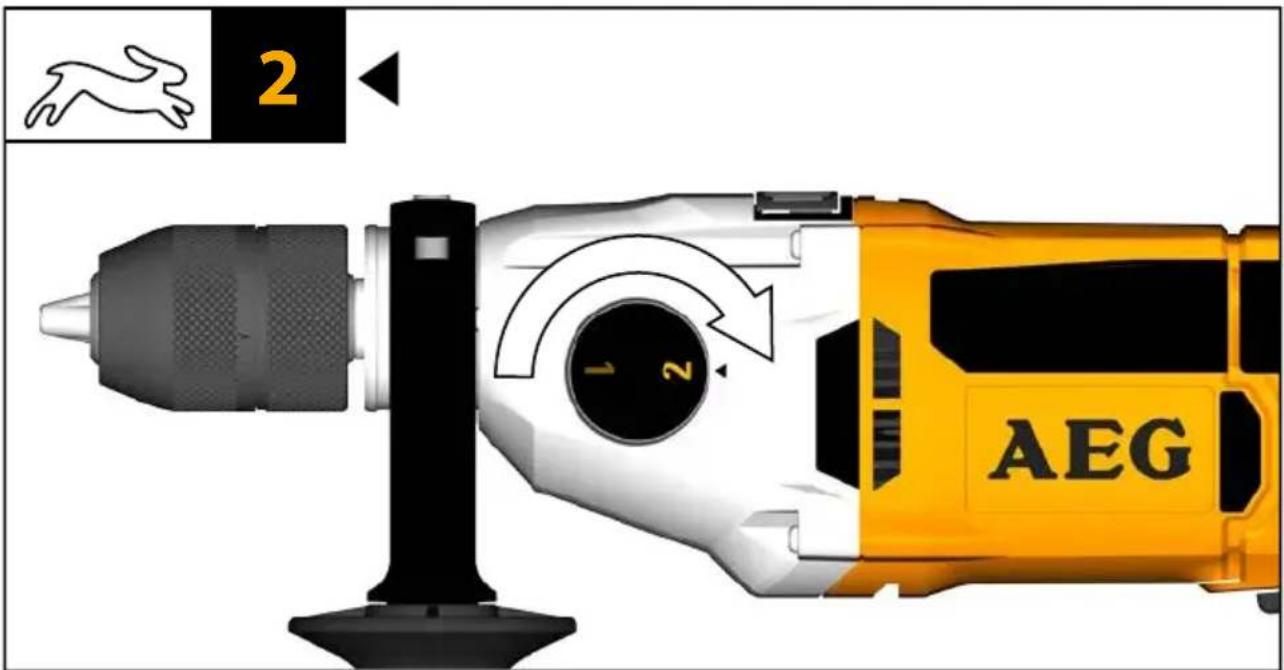

Never use the gear switch whilst the machine is operating. Only use the switch when the machine is at a standstill.

Close-up of a hand holding a screwdriver with visible mechanical components (no text or symbols)

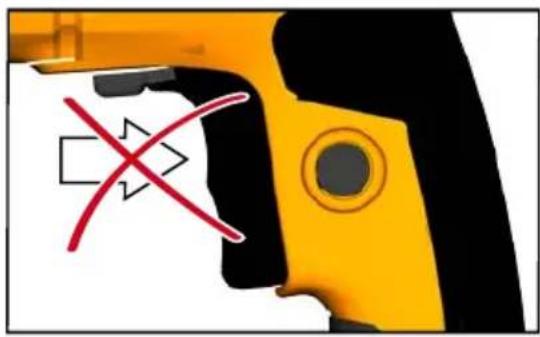

Diagram showing a yellow handgun with a red X mark and a black square, possibly indicating a warning or inspection point.

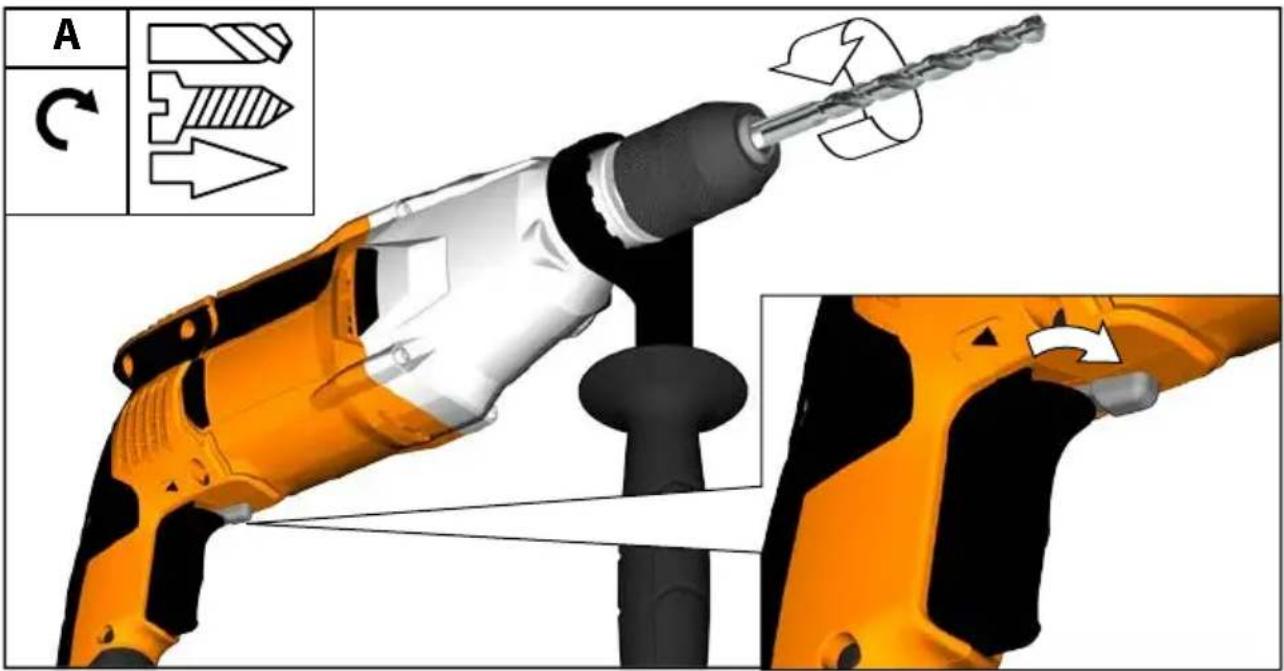

A B

B B

T i

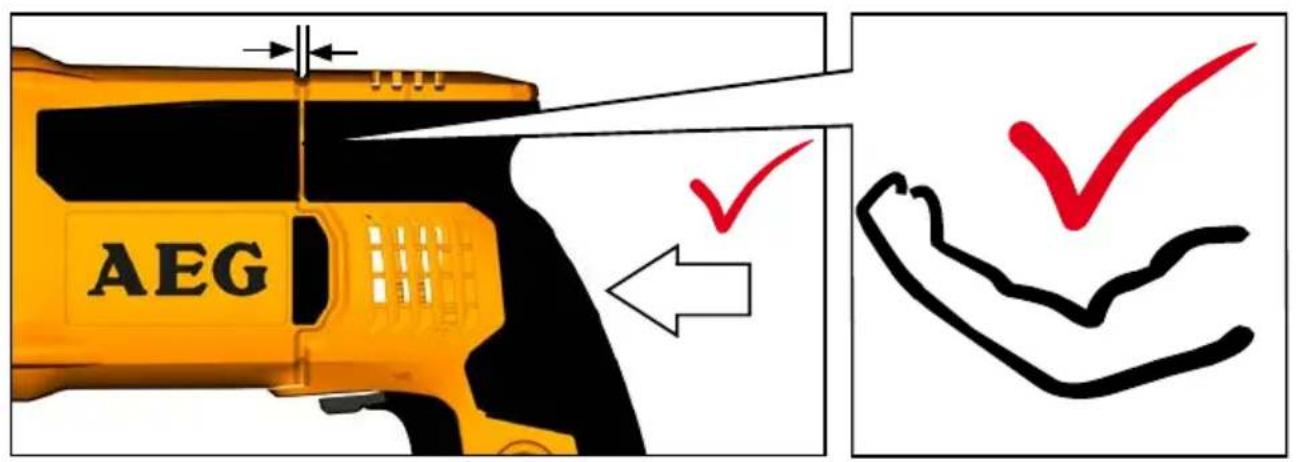

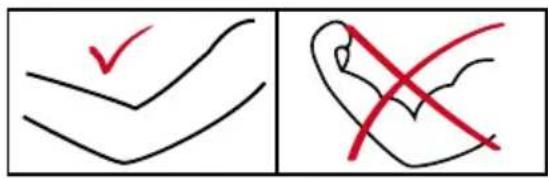

Hand-drawn checkmark and cross symbols on hand diagrams, likely indicating approval or rejection actions

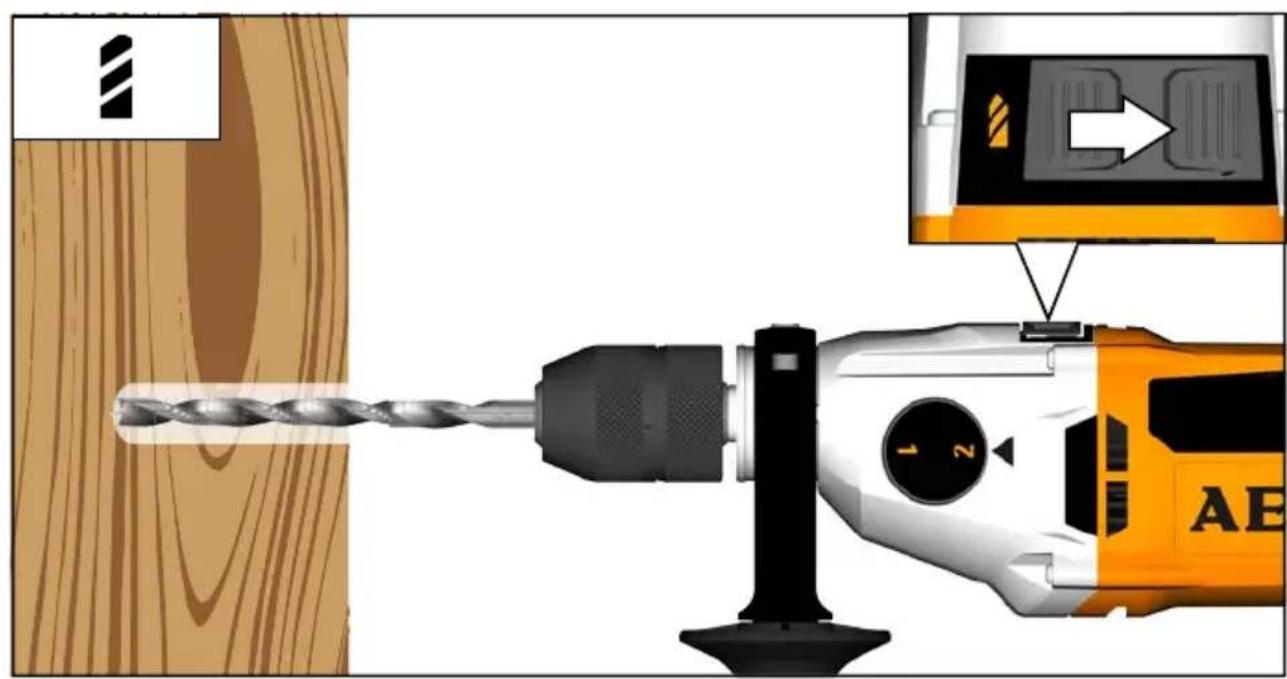

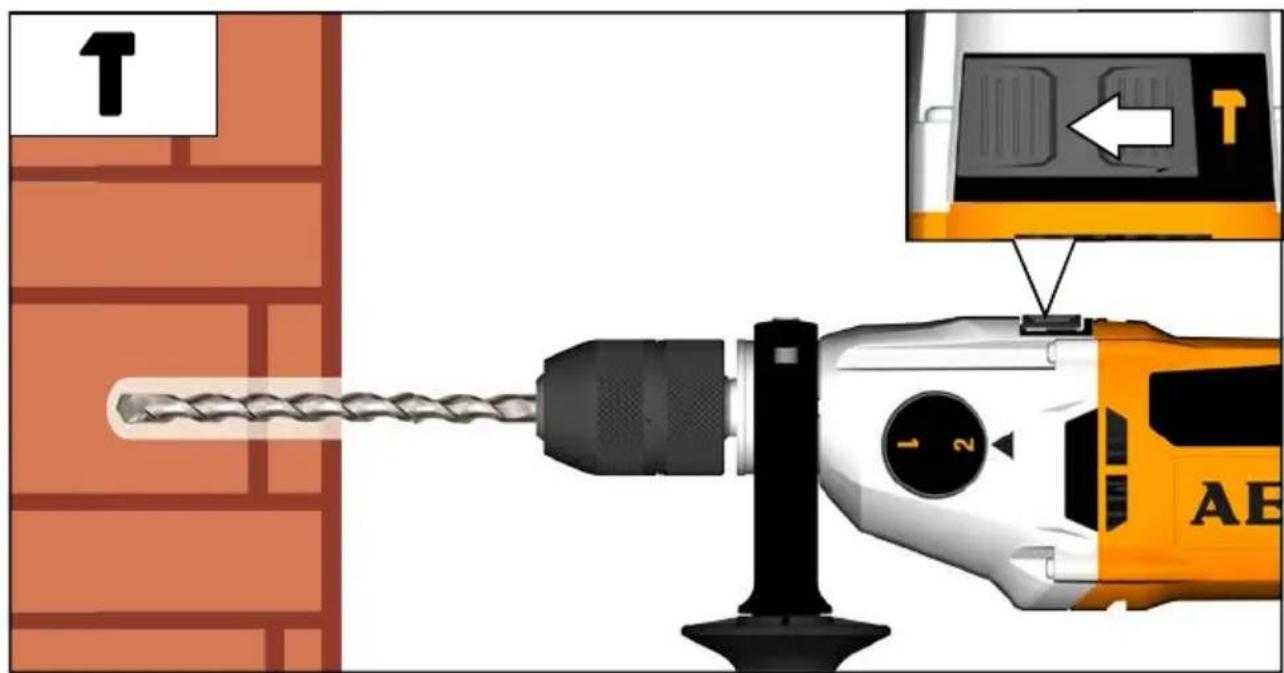

Illustration of a drill bit being inserted into a wooden block, with an inset showing the process (no text or symbols)

1 1 2 AB

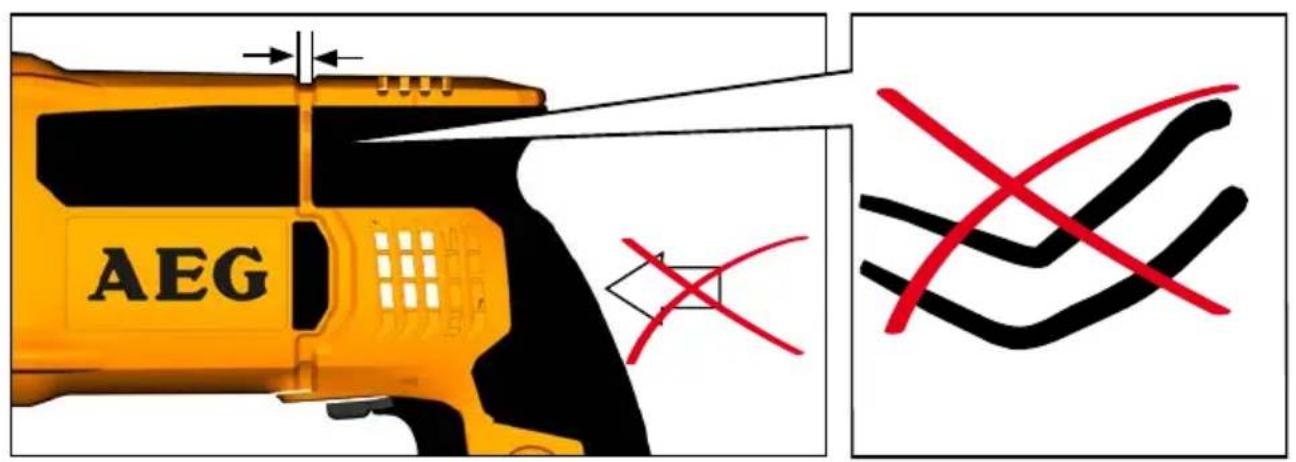

AEG

AEG ✓

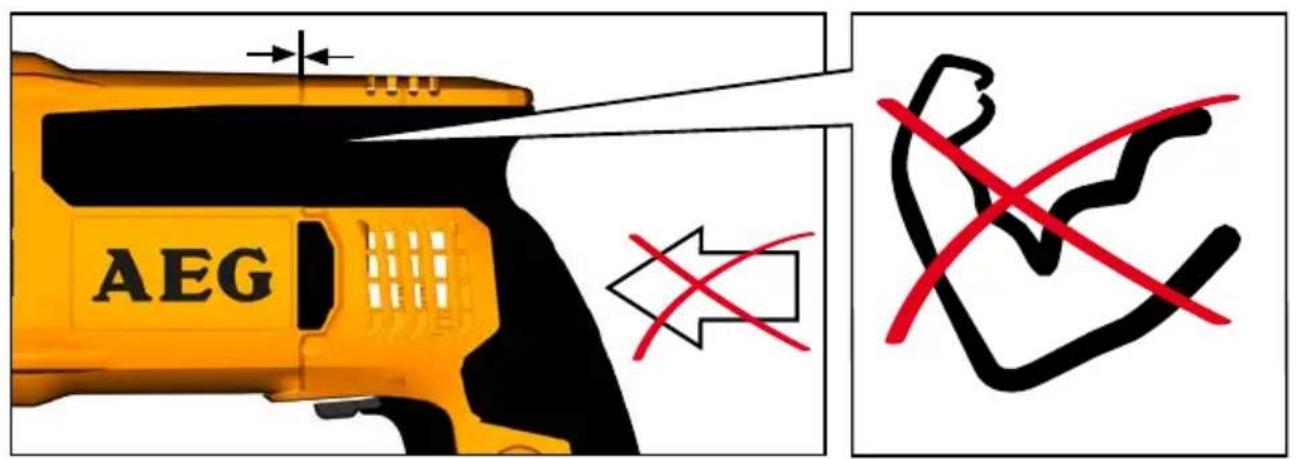

AEG

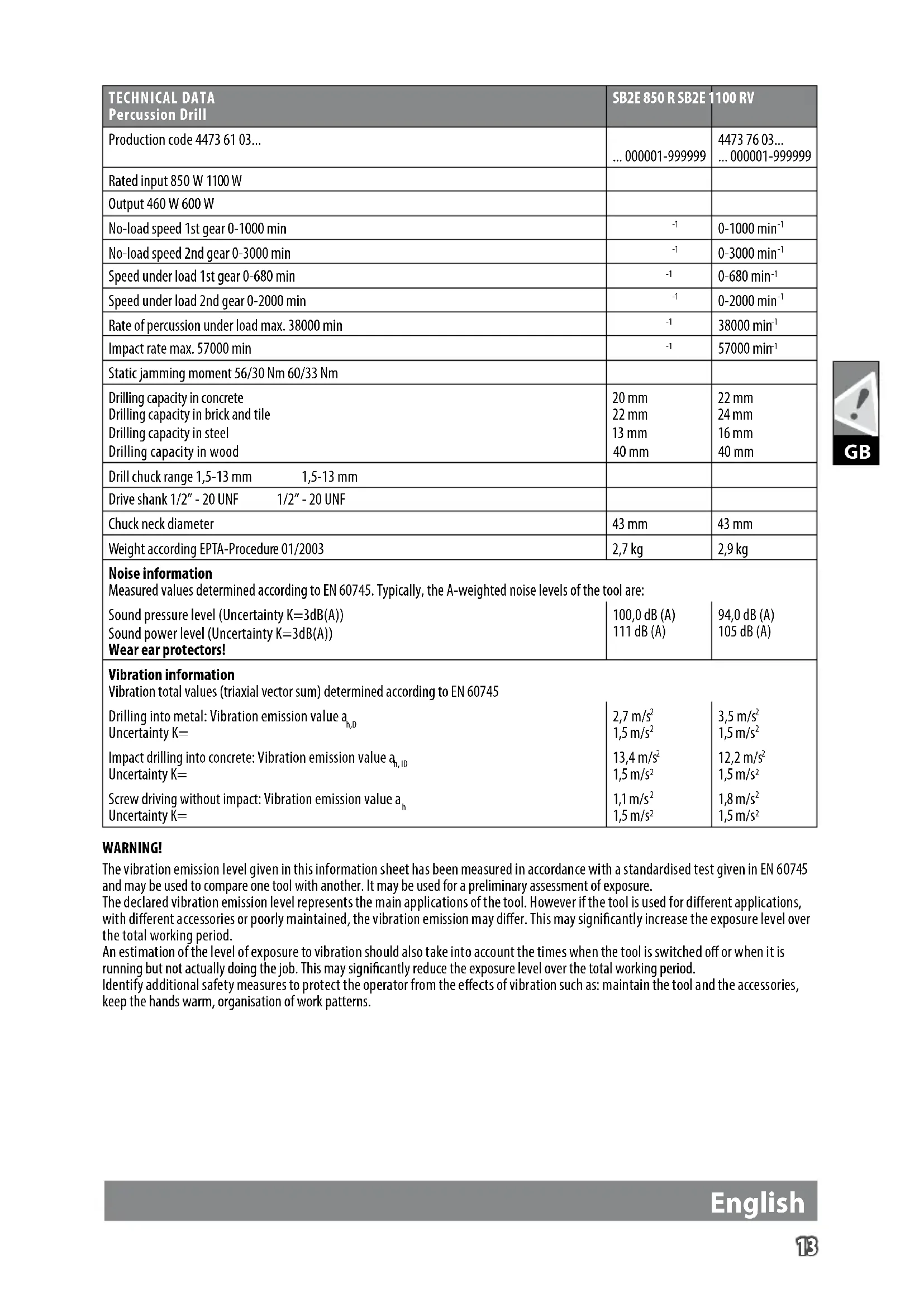

TECHNICAL DATAPercussion Drill	SB2E 850 R SB2E 1100 RV
Production code 4473 61 03...	... 000001-999999	4473 76 03... ... 000001-999999
Rated input 850 W 1100 W
Output 460 W 600 W
No-load speed 1st gear 0-1000 min	-1	0-1000 min^-1
No-load speed 2nd gear 0-3000 min	-1	0-3000 min^-1
Speed under load 1st gear 0-680 min	-1	0-680 min^-1
Speed under load 2nd gear 0-2000 min	-1	0-2000 min^-1
Rate of percussion under load max. 38000 min	-1	38000 min^-1
Impact rate max. 57000 min	-1	57000 min^-1
Static jamming moment 56/30 Nm 60/33 Nm
Drilling capacity in concrete	20 mm	22 mm
Drilling capacity in brick and tile	22 mm	24 mm
Drilling capacity in steel	13 mm	16 mm
Drilling capacity in wood	40 mm	40 mm
Drill chuck range 1,5-13 mm 1,5-13 mm
Drive shank 1/2" - 20 UNF 1/2" - 20 UNF
Chuck neck diameter	43 mm	43 mm
Weight according EPTA-Procedure 01/2003	2,7 kg	2,9 kg
Noise informationMeasured values determined according to EN 60745. Typically, the A-weighted noise levels of the tool are:
Sound pressure level (Uncertainty K=3dB(A))	100,0 dB (A)	94,0 dB (A)
Sound power level (Uncertainty K=3dB(A))	111 dB (A)	105 dB (A)
Wear ear protectors!
Vibration informationVibration total values (triaxial vector sum) determined according to EN 60745
Drilling into metal: Vibration emission value a_h,D	2,7 m/s^2	3,5 m/s^2
Uncertainty K=	1,5 m/s^2	1,5 m/s^2
Impact drilling into concrete: Vibration emission value a_h,ID	13,4 m/s^2	12,2 m/s^2
Uncertainty K=	1,5 m/s^2	1,5 m/s^2
Screw driving without impact: Vibration emission value a_h	1,1 m/s^2	1,8 m/s^2
Uncertainty K=	1,5 m/s^2	1,5 m/s^2

WARNING!

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

WARNING! Read all safety warnings and all instruc-

tions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

DRILL SAFETY WARNINGS

Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.

Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

SCREWDRIVER SAFETY WARNINGS

Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Additional Safety and Working Instructions

Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust mask, protective gloves, sturdy non-slip footwear, helmet and ear defenders.

Keep mains lead clear from working range of the machine. Always lead the cable away behind you.

Do not machine any materials that present a danger to health (e.g. asbestos).

When working in walls ceiling, or floor, take care to avoid electric cables and gas or waterpipes.

Clamp your workpiece with a clamping device. Unclamped workpieces can cause severe injury and damage.

Switch the device off immediately if the insertion tool stalls! Do not switch the device on again while the insertion tool is stalled, as doing so could trigger a sudden recoil with a high reactive force. Determine why the insertion tool stalled and rectify this, paying heed to the safety instructions.

Possible causes can be:

- it is tilted in the workpiece to be machined

- breakage of the material to be used

- the power tool is overloaded

Do not reach into the machine while it is running.

The insertion tool may become hot during use. WARNING! Danger of burns

- when changing tools

- when setting the device down

Chips and splinters must not be removed while the machine is running.

Always disconnect the plug from the socket before carrying out any work on the machine.

SPECIFIED CONDITIONS OF USE

The electronic percussion drill/screwdriver can be universally used for drilling, percussion drilling, screwdriving and cutting screw threads.

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product described under "Technical Data" fulfills all the relevant provisions of the directives:

2011/65/EU (RoHS)

2014/30/EU

2006/42/EC

and the following harmonized standards have been used.

EN 60745-1:2009 + A11:2010

EN 60745-2-1:2010

EN 60745-2-2:2010

EN 55014-1:2006 + A1:2009 + A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 50581:2012

Winnenden, 2017-09-25

Alexander Krug / Managing Director

Authorized to compile the technical file

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

MAINS CONNECTION

Appliances used at many different locations including wet room and open air must be connected via a residual current device (FI, RCD, PRCD) of 30mA or less.

Connect only to single-phase AC system voltage as indicated on the rating plate. It is also possible to connect to sockets without an earthing contact as the design conforms to safety class II.

Only plug-in when machine is switched off.

MAINTENANCE

The ventilation slots of the machine must be kept clear at all times. If the machine is mainly used for percussion drilling, regularly remove collected dust from the chuck. To remove the dust hold the machine with the chuck facing down vertically, and completely open and close the chuck. The collected dust will fall from the chuck. It is recommended to regularly use cleaner for the clamping jaws and the clamping jaw borings.

If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, to avoid hazardous situations.

Use only AEG accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our AEG service agents (see our list of guarantee/service addresses).

English

If needed, an exploded view of the tool can be ordered. Please state the Article No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364 Winnenden, Germany.

SYMBOLS

CAUTION! WARNING! DANGER!

Always disconnect the plug from the socket before carrying out any work on the machine.

Please read the instructions carefully before starting the machine.

Accessory - Not included in standard equipment, available as an accessory.

Do not dispose of electric tools together with household waste material. Electric tools and electronic equipment that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Check with your local authority or retailer for recycling advice and collection point.

Class II tool. Tool in which protection against electric shock does not rely on basic insulation only, but in which additional safety precautions, such as double insulation or reinforced insulation, are provided.

European Conformity Mark

UkrSEPRO Conformity Mark

EurAsian Conformity Mark

Winnenden, 2017-09-25

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany
