USER MANUAL PN 5000 E AEG

GB Instructions for use

Please read and save these instructions.

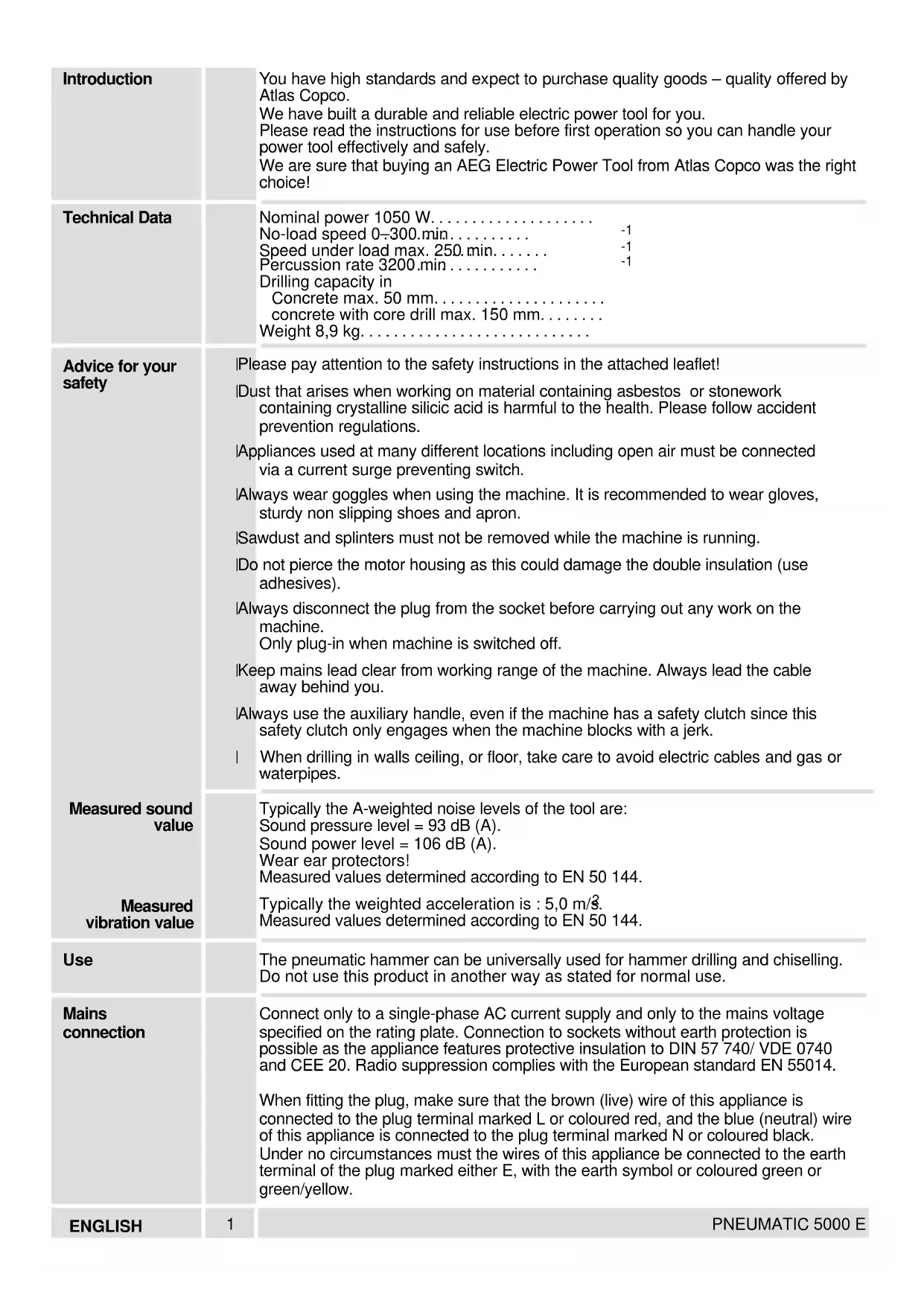

Introduction	You have high standards and expect to purchase quality goods - quality offered by Atlas Copco. We have built a durable and reliable electric power tool for you. Please read the instructions for use before first operation so you can handle your power tool effectively and safely. We are sure that buying an AEG Electric Power Tool from Atlas Copco was the right choice!
Technical Data	Nominal power 1050 W. No-load speed 0-300.min. -1 Speed under load max. 250.min. -1 Percussion rate 3200.min. -1 Drilling capacity in Concrete max. 50 mm. concrete with core drill max. 150 mm. Weight 8,9 kg.
Advice for your safety	Please pay attention to the safety instructions in the attached leaflet! Dust that arises when working on material containing asbestos or stonework containing crystalline silicic acid is harmful to the health. Please follow accident prevention regulations. Appliances used at many different locations including open air must be connected via a current surge preventing switch. Always wear goggles when using the machine. It is recommended to wear gloves, sturdy non slipping shoes and apron. Sawdust and splinters must not be removed while the machine is running. Do not pierce the motor housing as this could damage the double insulation (use adhesives). Always disconnect the plug from the socket before carrying out any work on the machine. Only plug-in when machine is switched off. Keep mains lead clear from working range of the machine. Always lead the cable away behind you. Always use the auxiliary handle, even if the machine has a safety clutch since this safety clutch only engages when the machine blocks with a jerk. When drilling in walls ceiling, or floor, take care to avoid electric cables and gas or waterpipes.
Measured sound value	Typically the A-weighted noise levels of the tool are: Sound pressure level = 93 dB (A). Sound power level = 106 dB (A). Wear ear protectors! Measured values determined according to EN 50 144.
Measured vibration value	Typically the weighted acceleration is : 5,0 m/8. Measured values determined according to EN 50 144.
Use	The pneumatic hammer can be universally used for hammer drilling and chiselling. Do not use this product in another way as stated for normal use.
Mains connection	Connect only to a single-phase AC current supply and only to the mains voltage specified on the rating plate. Connection to sockets without earth protection is possible as the appliance features protective insulation to DIN 57 740/VDE 0740 and CEE 20. Radio suppression complies with the European standard EN 55014. When fitting the plug, make sure that the brown (live) wire of this appliance is connected to the plug terminal marked L or coloured red, and the blue (neutral) wire of this appliance is connected to the plug terminal marked N or coloured black. Under no circumstances must the wires of this appliance be connected to the earth terminal of the plug marked either E, with the earth symbol or coloured green or green/yellow.
ENGLISH	1 PNEUMATIC 5000 E
Function of rotary pneumatic hammer	The impact needed for hammer drilling in stone is created by a pneumatic hammer striking mechanism. Similar to hitting a common chisel with a hammer, a plunger hits the axially moving chisel. The electric motor moves the plunger back and forth crank drive -> piston -> freely moving piston. There is a pneumatic cushion between piston and freely moving piston (pneumatic hammer mechanism). This results in a highly effective hammering action. Exerting greater power does not increase the machine's effectiveness.
Brief description	Anti Vibration System AVS The hammer mechanism and motor are independent of the handgrips, cushioning elements absorb vibrations on both handgrips when hammering and chiselling. Ergonomically designed housing with soft grip. Hammer drilling chuck for bits and accessories with SDS-max reception - tools are locked automatically after insertion. Selector lever for switching between hammer drilling and chiselling. Auxiliary handle, has an integral depth gauge and can be rotated in various positions. Built-in safety clutch helps prevent the machine from rotating if the drill bit jams.

Modifications: Text, diagrams and data are correct at the time of printing. In the interest of continuous improvement of our products, technical specifications are subject to alteration without prior notice.

Switching the machine on and off	Switching on: Press switch trigger Switching off: Release switch trigger The speed can be infinitely varied by slowly releasing/pressing the switch trigger.
ENGLISH	2	PNEUMATIC 5000 E
Inserting hammer drill bit or chisel	Always disconnect the plug from the socket before carrying out any work on the machine. The following tools can be inserted in the drill-hammer chuck using the SDS-max shank: -Hammer-drill for concrete and brickwork -Pointed chisel, flat chisel, hollow chisel, tile chisel Only use accessories with SDS-max shank!
Inserting tools	1. Clean and grease the shank of the bit. 2. Push bit into chuck turning it slightly, the chuck locks the bit automatically. 3. Check that the bit is properly locked into place. It must be possible to move it back and forth. 1. Pull back plastic ring in direction of arrow and remove bit.
Tool removal
Switching between hammer drilling, chiselling	Depending on the inserted tool the machine can be operated with additional rotation (SDS-max-drills) or without additional rotation (SDS-max-chisels). For additional rotation turn the lever accordingly. hammer drilling rotary stop (chiselling) free turning position spindle locking position
	In "free turning position" the chisel can be turned by hand to the required angle. Afterwards lock the spindle with the selector lever while turning the chisel slightly. To help the lever lock into position twist the inserted bit slightly while turning lever. Do not switch when the machine is running. During no-load operation the pneumatic hammer mechanism is not yet activated even if the hammer mechanism is switched on. To activate the pneumatic hammer mechanism all you have to do is to firmly push the running machine against the work material. This unlocks the snap die from the safety device, and drilling with light pressure is now possible.
ENGLISH	3	PNEUMATIC 5000 E
Positioning the auxiliary handle	In order to re-position the auxiliary handle loosen it as shown in illustration and move to the required position. Refasten handle.
Displacing the auxiliary handle	The auxiliary handle can also be attached to the side of the housing. This position may be preferred when drilling into the floor or into the ceiling, for example. Remove the auxiliary handle from the front position and screw it down at the side of the machine.
Setting the depth gauge	For drilling to specific depth, slide the depth gauge into the hole provided in the handle and fasten it at the required drilling depth.
Maintenance	The ventilation slots of the machine must be kept clear at all times. If the carbon brushes cut-out or the hammer capacity declines please contact your authorized AEG service station. This will ensure long service life as well as constant readiness for working of the machine. The location of your nearest service station is shown in our "Service addresses" leaflet attached to each product. Use only AEG accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our AEG service agents (see our list of guarantee/service addresses). If needed, an exploded view of the tool can be ordered. Please state the ten-digit No, as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Atlas Copco Electric Tools GmbH, Postfach 320, D-71361 Winnenden.
ENGLISH	4	PNEUMATIC 5000 E

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents. EN 50144, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, in accordance with the regulations 98/37/EC, 73/23/EEC, 89/336/EEC

DEUTSCH

Déclaration "CE" DE CONFORMITÉ

Manager Product Marketing and Development

Copyright 2001

Atlas Copco Electric Tools GmbH

P.O.Box 320

D-71361 Winnenden Germany

www.atlascopco.de
