USER MANUAL WS 700100 AEG

WS 700-100, WS 700-115, WS 700-125, WSE 700-115

Instruction for use

Please read and save these instruction

Gebrauchsanleitung

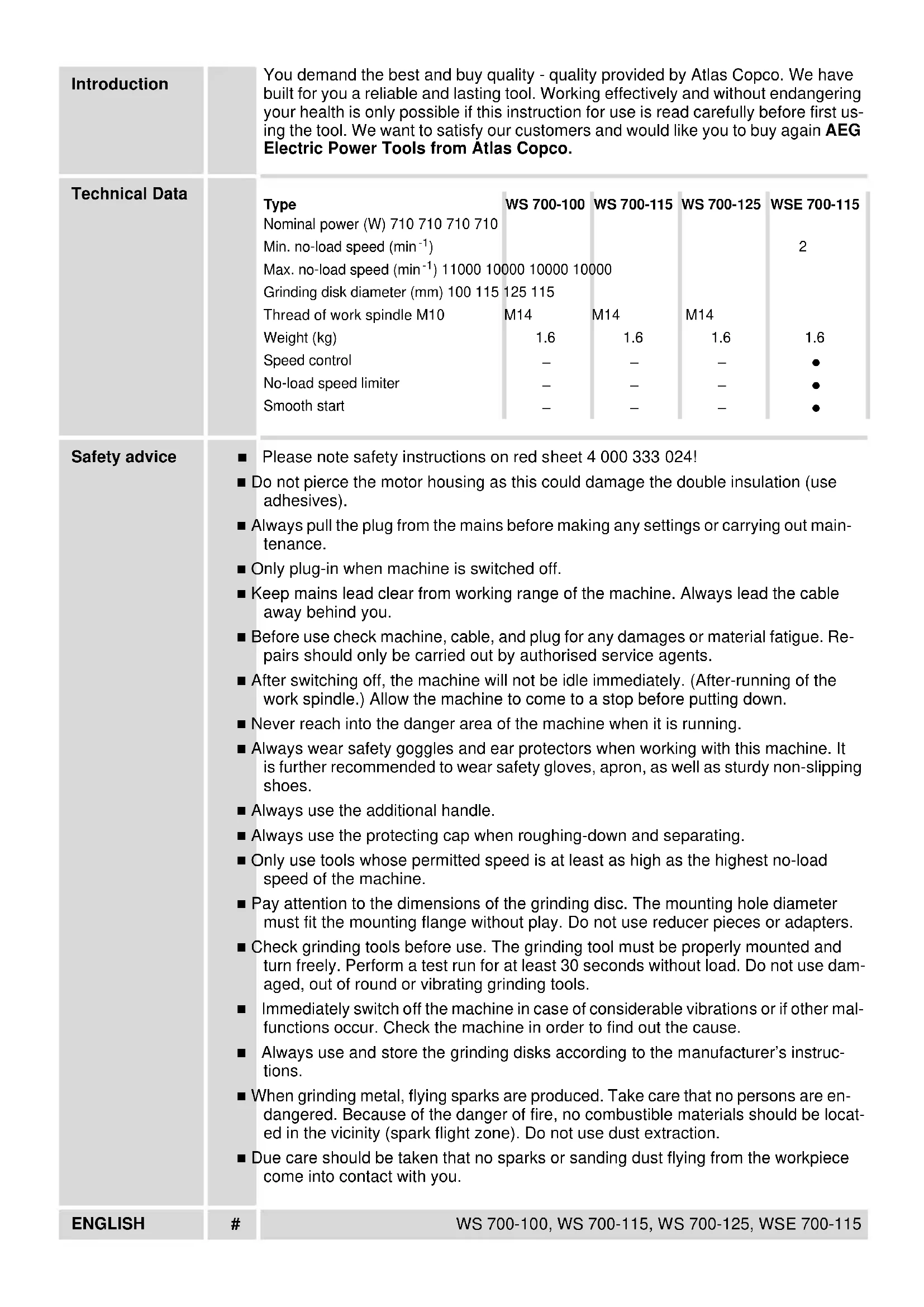

Introduction	You demand the best and buy quality - quality provided by Atlas Copco. We have built for you a reliable and lasting tool. Working effectively and without endangering your health is only possible if this instruction for use is read carefully before first using the tool. We want to satisfy our customers and would like you to buy again AEG Electric Power Tools from Atlas Copco.
Technical Data	Type	WS 700-100	WS 700-115	WS 700-125	WSE 700-115
	Nominal power (W) 710 710 710 710				2
	Min. no-load speed (min-1)
	Max. no-load speed (min-1) 11000 10000 10000 10000
	Grinding disk diameter (mm) 100 115	125 115
	Thread of work spindle M10	M14	M14	M14
	Weight (kg)	1.6	1.6	1.6	1.6
	Speed control	-	-	-	●
	No-load speed limiter	-	-	-	●
	Smooth start	-	-	-	●
Safety advice	■ Please note safety instructions on red sheet 4 000 333 024!
	■ Do not pierce the motor housing as this could damage the double insulation (use adhesives).
	■ Always pull the plug from the mains before making any settings or carrying out main-tenance.
	■ Only plug-in when machine is switched off.
	■ Keep mains lead clear from working range of the machine. Always lead the cable away behind you.
	■ Before use check machine, cable, and plug for any damages or material fatigue. Repairs should only be carried out by authorised service agents.
	■ After switching off, the machine will not be idle immediately. (After-running of the work spindle.) Allow the machine to come to a stop before putting down.
	■ Never reach into the danger area of the machine when it is running.
	■ Always wear safety goggles and ear protectors when working with this machine. It is further recommended to wear safety gloves, apron, as well as sturdy non-slipping shoes.
	■ Always use the additional handle.
	■ Always use the protecting cap when roughing-down and separating.
	■ Only use tools whose permitted speed is at least as high as the highest no-load speed of the machine.
	■ Pay attention to the dimensions of the grinding disc. The mounting hole diameter must fit the mounting flange without play. Do not use reducer pieces or adapters.
	■ Check grinding tools before use. The grinding tool must be properly mounted and turn freely. Perform a test run for at least 30 seconds without load. Do not use damaged, out of round or vibrating grinding tools.
	■ Immediately switch off the machine in case of considerable vibrations or if other mal-functions occur. Check the machine in order to find out the cause.
	■ Always use and store the grinding disks according to the manufacturer's instruc-tions.
	■ When grinding metal, flying sparks are produced. Take care that no persons are endangered. Because of the danger of fire, no combustible materials should be located in the vicinity (spark flight zone). Do not use dust extraction.
	■ Due care should be taken that no sparks or sanding dust flying from the workpiece come into contact with you.
ENGLISH	#	WS 700-100, WS 700-115, WS 700-125, WSE 700-115

Measured sound value Measured vibration value	Dust that arises when working in stones with crystalline silicic acid can damage your health. Do not work on any material containing asbestos. Please note the safety regu- lations, VBG, of the employer's liability insurance association. Never use a cutting disc for grinding. Do not subject cutting discs to side pressure. When separating stone the guide shoe must be used! The adjusting nut must be tightened before starting to work with the machine. The workpiece must be fixed if it is not heavy enough to be steady. Never lead the workpiece to the grinding disk with your hand. In case of extreme operating conditions (e.g. when smoothing metals with the sup- porting disk and vulcanised fibre disks) strong contamination can build up inside the angle grinder. In such cases it is recommended to shorten the cleaning cycles and/ or add a residual current operated device. Typically the A-weighted noise levels of the tool are: Sound pressure level = 85 dB (A). Sound power level = 98 dB (A). Wear ear protectors! Typically the weighted acceleration is 5 m/s2.

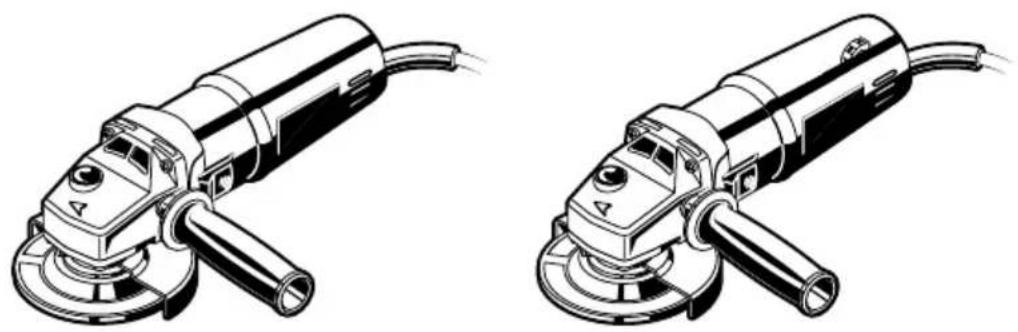

Usage	This angle grinder can be used for separating and grinding many different materials, e.g. metal or stone. In case of doubt please read the manufacturers' instruction. Do not use this product in any other way as stated for normal use.
Mains connection	Connect only to a single-phase AC current supply and only to the mains voltage specified on the rating plate. Connection to sockets without earth protection is pos- sible as the appliance features protective insulation to DIN 57 740/ VDE 0740 and CEE 20. Radio suppression complies with the European standard EN 55014. When fitting the plug, make sure that the brown (live) wire of this appliance is con- nected to the plug terminal marked L or coloured red, and the blue (neutral) wire of this appliance is connected to the plug terminal marked N or coloured black. Under no circumstances must the wires of this appliance be connected to the earth termi- nal of the plug marked either E, with the earth symbol, or coloured green or green/ yellow.
Smooth start (WSE 700-115)	The electronic smooth start will prolong the life of both the motor and the gears.
Switching on and off	Switching on: Push the sliding switch forward. To lock, depress the front part of the switch. Switching off: To unlock, depress the back part of the sliding switch. The switch will automatically move back to “O”.
ENGLISH	# WS 700-100, WS 700-115, WS 700-125, WSE 700-115

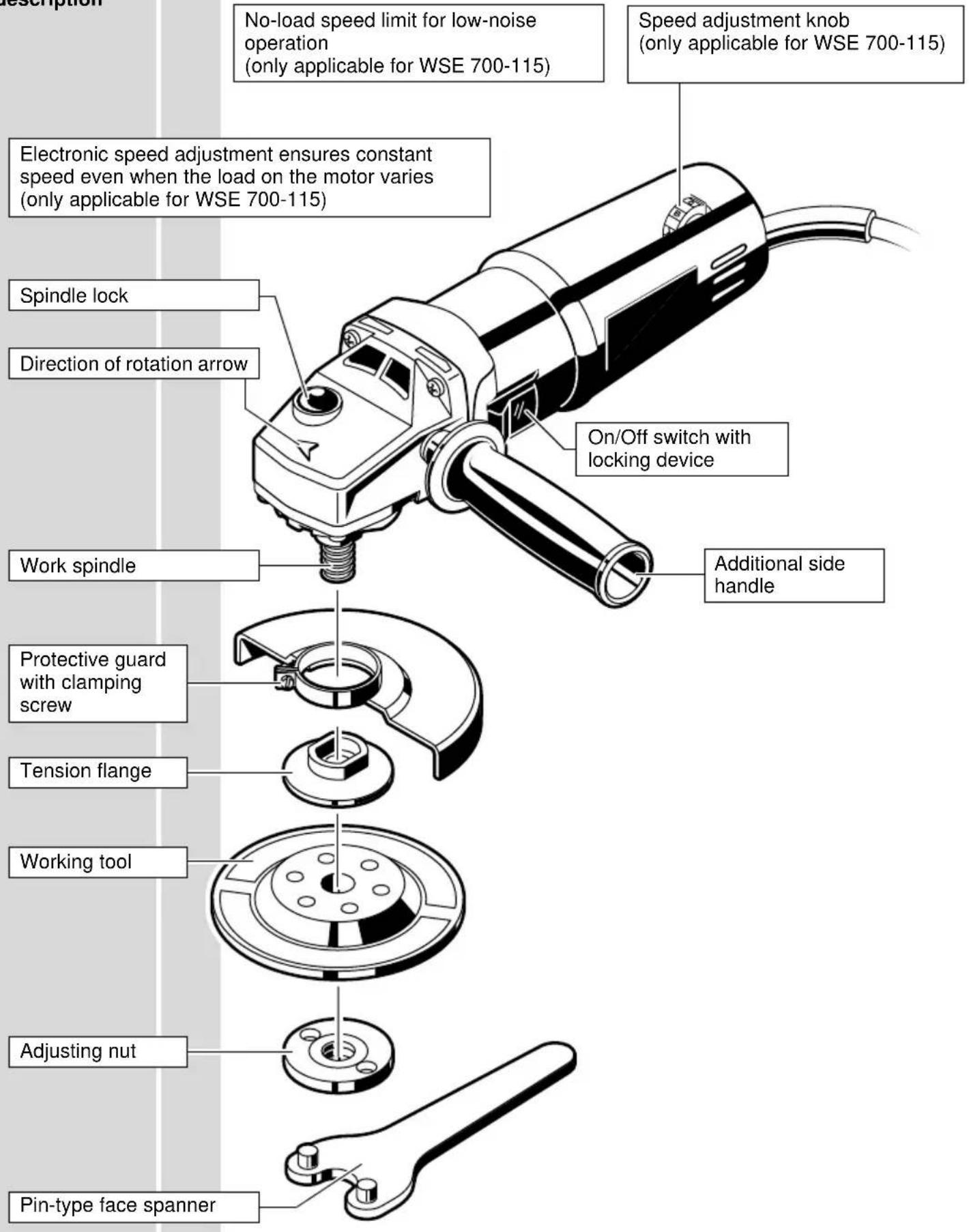

Brief description

Modifications: Text, diagrams and data are correct at the time of printing. In the interest of continuous improvement of our products, technical specifications are subject to alteration without prior notice.

Electronics Speed selection (WSE 700-115)		The speed of rotation is adjusted electronically when the load increases. Under the effect of extreme electromagnetic interferences from the outside, temporary variations in the speed of rotation could arise in particular cases.
		Speed pre-selection with the setting wheel: A = lowest speed G = highest speed
Mounting the protective cap		Slide the protective guard onto the clamping collar. If necessary, loosen the clamping screw some turns. Position the protective guard according to the requirements and tighten the clamping screw until the protective guard is firmly seated. With the clamping screw tightened, the protective guard should no longer be able to be moved. Take care that the grinding disk can be freely turned.
Fitting the working tool		Always disconnect the plug from the socket before carrying out any work on the machine. Lock the work spindle by depressing the spindle lock. Mount the tension flange, the working tool, and the adjusting nut as shown in illustration. Loosen respectively tighten the djusting nut with a pin-type face spanner.
ENGLISH	#	WS 700-100, WS 700-115, WS 700-125, WSE 700-115

Advises for operation Rough grinding	When grinding do not apply pressure on the tool but use it with gentle reciprocating movements. For best results when roughing-down keep the disk at an angle of at least 30° to the working surface. Overloading the machine when grinding will damage the angle grinder and results in faster wearing out of the disks. Grinding performance will suffer. Never use a cutting disc for grinding. Do not subject cutting discs to side pressure. Do not tilt the angle grinder when separating. The cutting disk must have a clean edge. When separating stone the guide shoe must be used!
Separating	When grinding use a plastic backing pad with an abrasive disk. For removing rust or old coats of paint it is recommended to use a steel brush (saucepan brush). The optimum speed of rotation also depends on the hardness of the material to be worked as well as the quality of the used working tool:
Surface grinding
Optimum speed of rotation (WSE 700-115)	Usage Electronics Sanding of plastics with backing pad and abrasive paper A-C Sanding wood and removal of paint with backing pad and abrasive paper Sanding of metal with backing pad and abrasive paper C-F Removal of rust from metal with steel-wire brushes D-F Grinding of steel, Cutting steel and stone G Polishing with backing pad and lambswool bonnet A-B	B-D
Service Keep the machine and the ventilation slots clean. Use only AEG accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our AEG service agents (see our list of guarantee/service addresses). If needed, an exploded view of the tool can be ordered. Please state the ten-digit No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Atlas Copco Electric Tools GmbH, Postfach 320, D-71361 Winnenden.
Accessories	The range of accessories and their part numbers are shown in our catalogue.
ENGLISH	#	WS 700-100, WS 700-115, WS 700-125, WSE 700-115

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 50 144, EN 55 104, EN 55 014, EN 60 555, HD 400 according to the provisions of the regulations 73/23/EEC, 89/336/EEC, 89/392/EEC.
