USER MANUAL ALT18B AEG

Original instructions

Important!

It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product.

Subject to technical modifications.

ALT18BS6

Mechanical device with articulated arm and labeled AEG, shown in 3D rendering (no text or symbols on main body)

ALT18B

Mechanical device with AEG sensor and two x1 document icons (no text or symbols on main body)

Close-up of a U-shaped metal clamp or clip component (no text or symbols visible)

x1x1x1

Gray plastic mechanical component with a curved edge and mounting holes (no text or symbols visible)

3D rendered mechanical component with no visible text or symbols

Exterior view of a gray industrial electrical device with ventilation slots and a handle (no text or symbols visible)

4

Pure geometric lines without any text, numbers, or symbols

Blank white image with no visible content, text, or symbols.

Close-up of a black AEG plug with a white arrow symbol on its tip, no text or labels visible.

3D diagram of a device with a white arrow pointing to a black component, no text or symbols present

Mechanical assembly diagram showing a clamp and lever mechanism (no text or symbols)

Close-up of a mechanical component with a white cylindrical shaft and black clamped parts, showing a directional arrow (no text or symbols)

Close-up of a hand holding a white cylindrical device with a black connector, no visible text or symbols

Close-up of a black and white plastic clip attached to a cylindrical pipe (no text or symbols visible)

Close-up of a black and white mechanical component with a curved arrow indicating rotation (no text or symbols)

3D illustration of a mechanical device with two components and directional arrows indicating movement (no text or symbols)

Close-up of a black AEG plug connector with a white arrow pointing to it, no text or symbols visible.

Close-up of a plug with internal components and directional arrows indicating flow or movement (no text or symbols)

Close-up of a mechanical component with a starburst annotation (no text or symbols visible)

5

Mechanical component with a lock icon and dashed lines indicating assembly or repair (no text or symbols)

Illustration of a robotic arm gripping a mechanical component with motion lines indicating motion (no text or symbols)

Illustration of a hand cleaning a robot with motion lines and warning symbols (no text or labels)

Top-down view of a mechanical component with a curved shaft and circular base (no visible text or symbols)

Mechanical component with a curved body and attached rod, shown in grayscale (no text or symbols visible)

Mechanical component with circular dial and directional arrows indicating motion (no text or symbols)

5

Mechanical component diagram showing a curved structure with two directional arrows indicating movement or force (no text or symbols present)

Close-up of a mechanical component labeled 'AEG' with a downward arrow indicator (no text or symbols on the component itself)

3D rendered mechanical component with a downward arrow indicating a feature (no text or symbols)

3D rendered mechanical component with a white arrow pointing to a feature (no text or symbols)

5

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

6

Mechanical assembly diagram showing a rotating component with motion lines and no visible text or symbols

7a

7b

Diagram of a mechanical component with circular motion arrows indicating rotational or feedback motion (no text or symbols)

Close-up of a hand holding a cylindrical device with a white arrow pointing to a component (no text or symbols visible)

5

Mechanical component diagram showing a cam or wheel assembly with a highlighted circular feature and an arrow indicating direction (no text or symbols present)

1

3D mechanical component diagram showing a cylindrical assembly with a base and housing (no text or symbols visible)

2

3D rendered mechanical component with a highlighted section and directional arrow (no text or symbols)

3

Mechanical component diagram showing a cylindrical part with a highlighted section and a lightning bolt symbol (no text or labels)

4

Diagram showing a lock icon interacting with a circular device, indicating security or refresh (no text or symbols present)

5

Close-up of a mechanical component with directional arrows indicating movement or force (no text or symbols visible)

6

Close-up of a hard hat with a lock icon and gear mechanism diagram (no text or symbols)

Illustration of a grassy field with a lever and motion lines, no text or symbols present

Close-up of a mechanical component labeled 'AEG' with an arrow pointing to it, no visible text or symbols beyond the label.

5

Mechanical assembly diagram showing a rotating component with motion lines and force indicators (no text or symbols)

Illustration of a hand holding a tool with motion lines, next to vertical blades and a cross symbol (no text or labels)

Illustration of a person using a tool with directional arrows and a checkmark (no text or symbols)

Diagram showing a person climbing a rope with directional arrows and a cross symbol (no text or labels)

Illustration of a hairbrush cleaning a hat with decorative sparkles (no text or symbols)

Illustration of a cleaning brush and washer on a curved surface, with sparkles indicating texture (no text or symbols)

Diagram of a mechanical device emitting a fan blade with a tool, showing no text or symbols on the main body (no readable text or symbols)

Mechanical assembly diagram showing a lever mechanism interacting with a cabinet (no text or symbols visible)

Close-up of a mechanical component with a white arrow indicating rotation, no visible text or symbols

Mechanical assembly diagram showing a pipe fitting with a directional arrow indicating motion (no text or symbols)

5

Close-up of a mechanical component with a white cylindrical shaft and black plastic connector, showing a directional arrow (no text or symbols)

6

Two 3D-rendered objects: a cylindrical object and a light bulb with a handle, connected by an arrow (no text or symbols)

7

8

TECHNICAL DATA

Cutting line diameter 2.4 mm

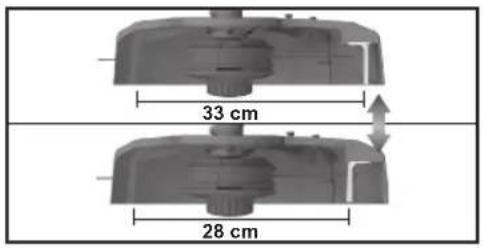

Cutting swath ..... 280/330 mm

Weight without battery pack and charger 3.7 kg

Vibration level (in accordance with AS/NZS 60335.2.91Annex BB)

Rear handle 4.4 m/s ^2

Front handle 6.6 m/s ^4

Uncertainty of measurement 1.5 m/s ^2

Noise emission level (in accordance with AS/NZS 60335.2.91 Annex CC

A-weighted sound pressure level at operator's position 85.9 dB

Uncertainty of measurement 2.5 dB

A-weighted sound power level 97.0 dB

Uncertainty of measurement 2.5 dB

Required torque to secure the trimming head 50-80 kgf-cm

BATTERY AND CHARGER

Model	ALT18BS6	ALT18B
Battery pack	L1860R	-
Charger	BL1218	-
Compatible battery packs	L1815R, L1820RL1825R, L1830R, L1840R, L1850R, L1860R
Compatible charger	BL1218, BLK1218, AL1218, BL18DP

SPARE PARTS

Model	ALT18BS6/ALT18B

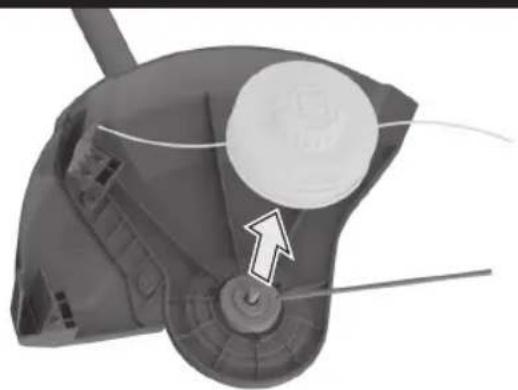

Trimmer head	312699001

INTENDED USE

The cordless line trimmer is intended to be used only by adults who have read and understood the instructions and warnings in this manual and can be considered responsible for their actions. The product is only intended for use outdoors in a well-ventilated area. For safety reasons, the product must be adequately controlled by using two-handed operation.

When fitted with the line trimmer head (and appropriate guard), the product is intended for cutting long grass, pulpy weeds, and similar vegetation at or about ground level.

The cutting plane should be approximately parallel to the ground surface. The product should not be used to cut or trim hedges, bushes, or other vegetation where the cutting plane is not parallel to the ground surface.

Do not use the product for any other purpose.

GENERAL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric

shock, fire, and/or serious injury.

⚠ WARNING! When using the product, the safety rules must be followed. For your own safety and that of bystanders, please read these instructions before operating the product. Please keep the instruction safe for later use.

WARNING! This product is not intended to be used by children or persons with reduced physical, mental, or sensory capabilities. Children should be adequately supervised to ensure they do not play with the product.

WARNING! Some regions have regulations that restrict the use of the product. Check with your local authority for advice.

TRAINING

■ Never allow children or people unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator.

- Read the instructions carefully. Be familiar with all controls and the proper use of the product.

- Keep bystanders, children, and pets 15m away from the area of operation. Stop the product if anyone enters the area.

■ Never use the product when you are tired, ill, or under the influence of alcohol, drugs or medicine.
- Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

PREPARATION

■ Wear full eye and hearing protection while operating the product. If working in an area where there is a risk of falling objects, head protection must be worn.
■ Hearing protection may restrict the operators ability to hear warning sounds, pay particular attention to potential hazards around and inside the working area.
■ Wear heavy long trousers, boots, and gloves. Do not wear loose fitting clothing, short trousers, jewellery of any kind, or use with bare feet.
- Secure long hair so it is above shoulder level to prevent entanglement in moving parts.
■ Before use and after any impact, check that there are no damaged parts. A defective switch or any part that is damaged or worn should be properly repaired or replaced by an authorised service facility.
■ Make sure the cutting attachment is properly installed and securely fastened.
■ Never operate the product unless all guards, deflectors, and handles are properly and securely attached.
- Consider the environment in which you are working. Keep the working area free from wires, sticks, stones, and debris which if struck by the cutter can become thrown objects.

BATTERY TOOL USE AND CARE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

LINE TRIMMER SAFETY WARNINGS

■ Never allow children, persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge or people unfamiliar with these instructions to use the product.
■ Use the product in daylight or good artificial light.
■ Avoid using on wet grass.
- Keep proper footing and balance at all times and be sure of proper footing on slopes.
■ Do not walk backwards when using the product.
■ Walk, never run.
- Keep the head attachment below waist level.
■ Never operate the product with damaged guards or without guards in place.
■ Never fit a metal replacement line.
- Keep hands and feet away from the cutting means at all times and especially when switching on the motor.
■ Beware, the cutting elements continue to rotate after the motor is switched off.

■ Beware of objects thrown by the cutting means. Clear debris like small stones, gravel and other foreign objects from the work area before starting operation. Wires or string may become entangled with the cutting means.

■ Switch off and remove battery pack before:

• servicing
  • leaving the product unattended
• cleaning your product
• changing accessories
• checking for any damage after hitting an object
• checking for any damage if the product starts to vibrate abnormally
  • performing maintenance

■ Wear full eye and hearing protection while operating the product. If working in an area where there is a risk of falling objects, head protection must be worn.

■ Hearing protection may restrict the operators ability to hear warning sounds, pay particular attention to potential hazards around and inside the working area.

■ Wear heavy long trousers, boots, and gloves. Do not wear loose fitting clothing, short trousers, jewellery of any kind, or use with bare feet.

- Secure long hair so it is above shoulder level to prevent entanglement in moving parts.

■ The small blade fitted to the lawn guard is designed to trim the new extended line to the correct length for safe and optimum performance. It is very sharp, do not touch it particularly when cleaning the tool.

■ Always ensure that ventilation openings are kept clear of debris.

■ Before use and after any impact, check that there are no damaged parts. A defective switch or any part that is damaged should be properly repaired or replaced by an authorized service facility.

■ Make sure the cutting head attachment is properly installed and securely fastened.

■ Make sure all guards, deflectors and handles are properly and securely attached.

■ Do not modify the product in any way, this may increase the risk of injury to yourself or others.

- Use only the manufacturer's replacement cutting line. Do not use any other cutting attachment.

- Immediately switch off and remove the battery pack in the event of accident or breakdown. Don't operate the product again until it has been fully checked by an authorised service centre.

- Do not dispose of used battery packs in the household refuse or by burning them. AEG Distributors offer to retrieve old batteries to protect our environment.

■ Do not store the battery pack together with metal objects (short circuit risk).

■ Battery acid may leak from damaged batteries under extreme load or extreme temperatures. In case of contact with battery acid wash it off immediately with soap and water. In case of eye contact rinse thoroughly for at least 10 minutes and immediately seek medical attention.

WARNING! Ensure that the line cut-off blade in guard is properly positioned and secured before each use.

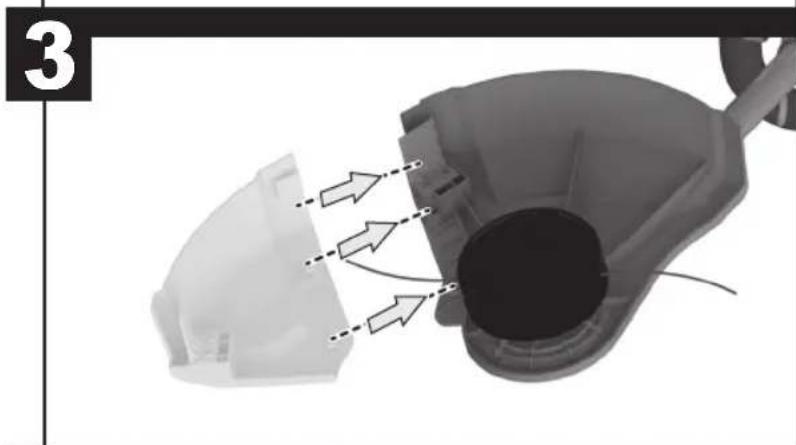

⚠ WARNING! Make sure to assemble two-piece guard correctly before use.

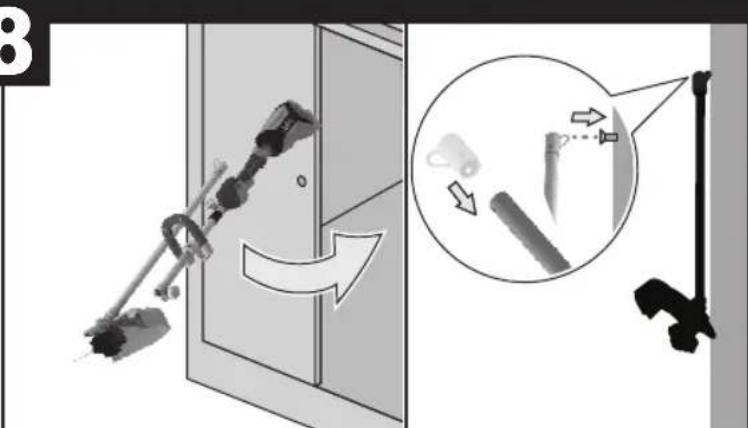

TRANSPORTATION AND STORAGE

■ Stop the product and allow it to cool before storing or transporting. Do not store or transport the product with batteries fitted, remove and secure separately

• Clean all foreign material from the product. Store it in a cool dry and well-ventilated place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and deicing salts. Do not store outdoors.
  ■ For transportation in vehicles, secure the product against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations. Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, nonconductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

⚠ WARNING! Use only original manufacturer's replacement parts, accessories and attachments. Failure to do so can cause possible injury, poor performance, and may void your warranty.
WARNING! Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service, bring the product to an authorised service centre. When servicing, use only original replacement parts.

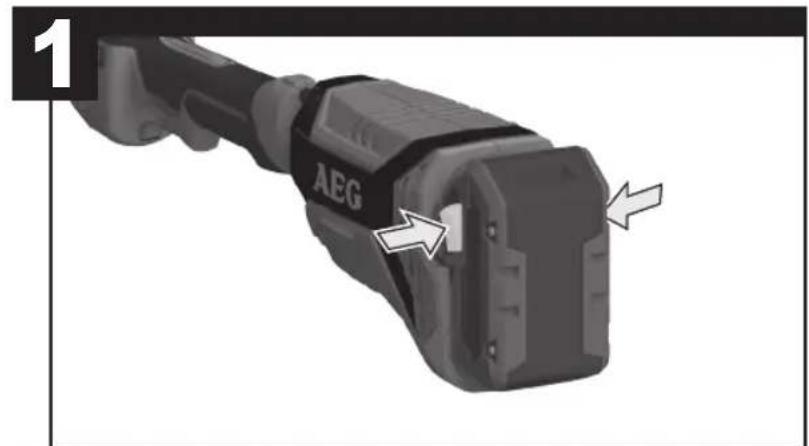

■ Switch off and remove battery pack before conducting any maintenance or cleaning work.

■ You may make adjustments and repairs described here. For other repairs, contact the authorized service agent.

■ Before any maintenance or adjustment, disable the product by removing the power source.

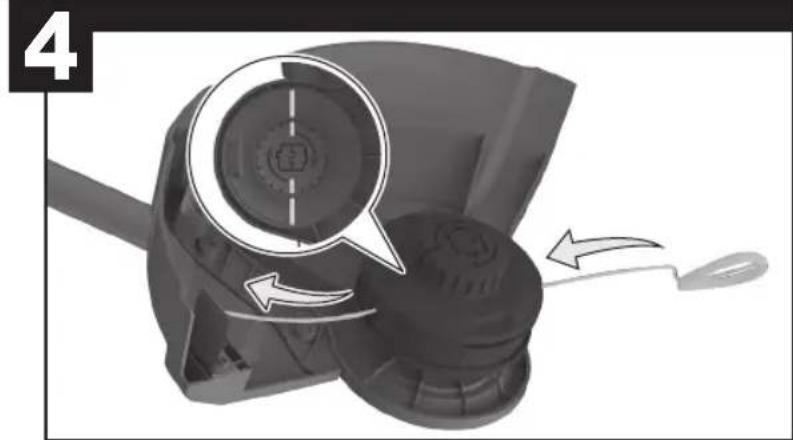

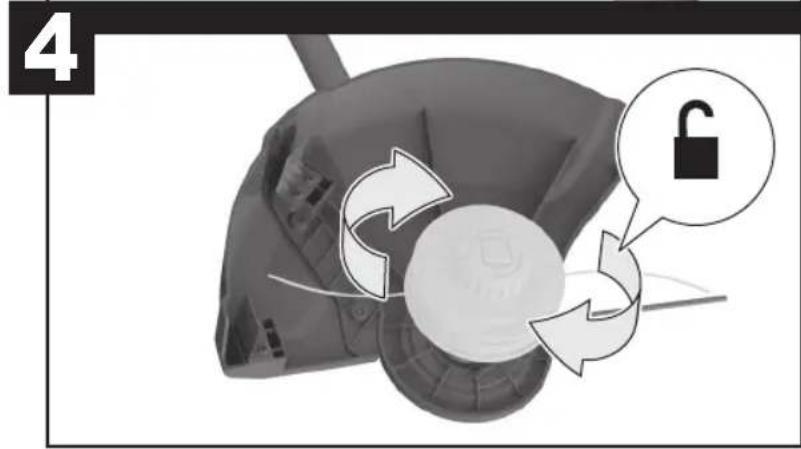

■ For replacement line use only nylon filament line of the diameter described in the specification table of this manual.
■ After extending new cutter line, always return the product to its normal operating position before starting.

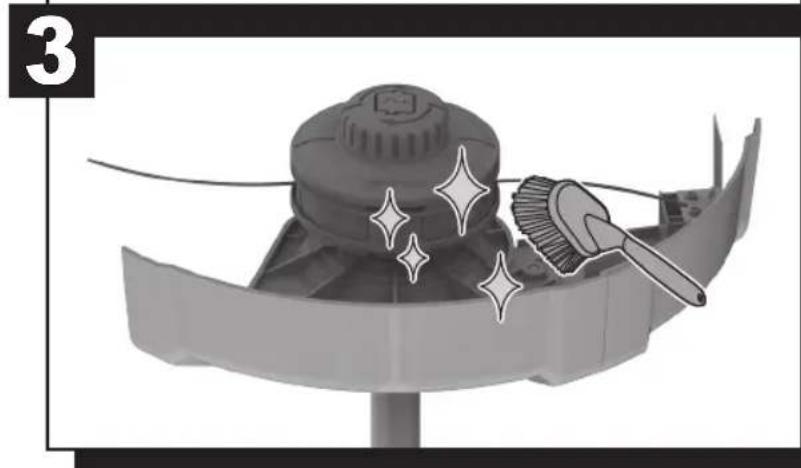

■ After each use, clean the product with a soft dry cloth. Any part that is damaged should be properly repaired or replaced by an authorized service centre.
■ Check all nuts, bolts and screws at frequent intervals for proper tightness to ensure the product is in safe working condition.
■ Bring the product to an authorised service centre to replace damaged or unreadable labels.

RESIDUAL RISKS

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise in use and the operator should pay special attention to avoid the following:

• Injury caused by vibration
• Hold the product by designated handles and restrict working time and exposure.
  ■ Injury caused by exposure to noise – Wear hearing protection and limit exposure.
  ■ Injury caused by flying debris.
• Wear eye protection at all times.

RISK REDUCTION

It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices

are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

• Keep your body warm in cold weather. When operating the product, wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Reynaud's Syndrome.
  ■ After each period of operation, exercise to increase blood circulation.
  ■ Take frequent work breaks. Limit the amount of exposure per day.

⚠ WARNING! Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

SYMBOLS

Read and understand all instructions before operating the product, follow all warnings and safety instructions.

Regulatory Compliance Mark (RCM). Product meets applicable regulatory requirements.

Wear ear protection

Wear eye protection

Wear non-slip safety footwear when using the product.

Do not expose to rain or damp condition.

Beware of thrown or flying objects.

Do not use metal blade(s) on the product.

Rotational direction and maximum speed of the shaft for the cutting attachment.

Keep hands away from cut-off blade

Remove the battery pack before starting any work on the product.

Do not burn battery packs

Never charge a damaged battery pack. Replace with a new one.

Do not dispose of electric tools together with household waste material! In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

The following signal words and meanings are intended to explain the levels of risk associated with this product.

DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

Without safety alert symbol

Indicates a situation that may result in property damage.

AEG

POWERTOOLS

www.aegpowertools.com.au www.aegpowertools.co.nz

Techtronic Industries GmbH

Max-Eyth-Straße 10

71364 Winnenden

Germany

960087162-01

Techtronic Industries (Australia) Pty. Ltd.

31 Gilby Road,

Mount Waverley VIC 3149,

Australia

Techtronic Industries New Zealand Ltd.

2 Landing Drive, Auckland Airport,

Mangere, New Zealand 2022
