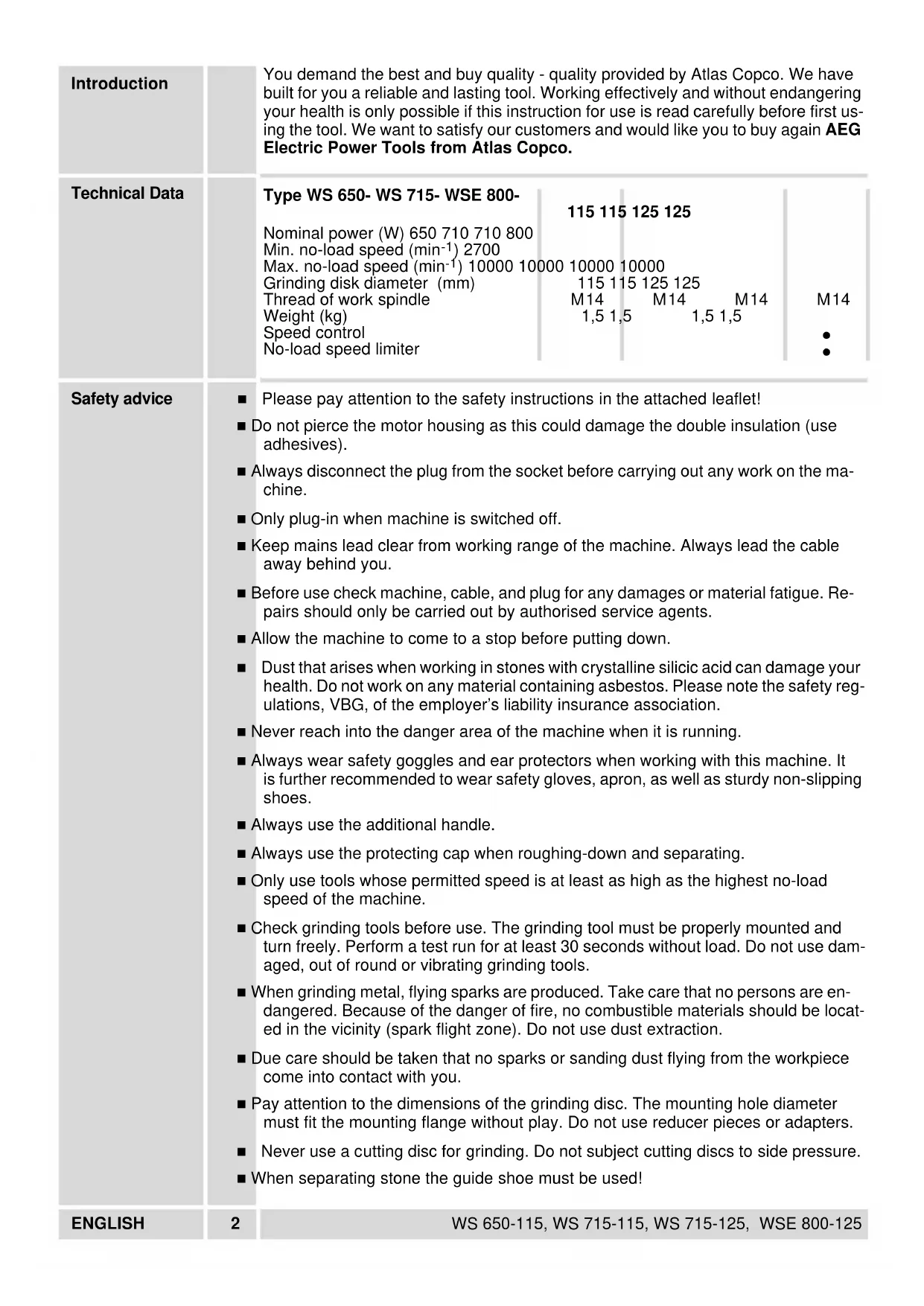

Introduction	You demand the best and buy quality - quality provided by Atlas Copco. We have built for you a reliable and lasting tool. Working effectively and without endangering your health is only possible if this instruction for use is read carefully before first using the tool. We want to satisfy our customers and would like you to buy again AEG Electric Power Tools from Atlas Copco.
Technical Data	Type WS 650- WS 715- WSE 800-	115 115	125 125
	Nominal power (W) 650 710 710 800 Min. no-load speed (min-1) 2700 Max. no-load speed (min-1) 10000 10000 Grinding disk diameter (mm) Thread of work spindle Weight (kg) Speed control No-load speed limiter	115 115	125 125
		M14	M14	M14 M14
		1,5	1,5	1,5
Safety advice	■ Please pay attention to the safety instructions in the attached leaflet!■ Do not pierce the motor housing as this could damage the double insulation (use adhesives).■ Always disconnect the plug from the socket before carrying out any work on the machine.■ Only plug-in when machine is switched off.■ Keep mains lead clear from working range of the machine. Always lead the cable away behind you.■ Before use check machine, cable, and plug for any damages or material fatigue. Repairs should only be carried out by authorised service agents.■ Allow the machine to come to a stop before putting down.■ Dust that arises when working in stones with crystalline silicic acid can damage your health. Do not work on any material containing asbestos. Please note the safety regulations, VBG, of the employer's liability insurance association.■ Never reach into the danger area of the machine when it is running.■ Always wear safety goggles and ear protectors when working with this machine. It is further recommended to wear safety gloves, apron, as well as sturdy non-slipping shoes.■ Always use the additional handle.■ Always use the protecting cap when roughing-down and separating.■ Only use tools whose permitted speed is at least as high as the highest no-load speed of the machine.■ Check grinding tools before use. The grinding tool must be properly mounted and turn freely. Perform a test run for at least 30 seconds without load. Do not use damaged, out of round or vibrating grinding tools.■ When grinding metal, flying sparks are produced. Take care that no persons are endangered. Because of the danger of fire, no combustible materials should be located in the vicinity (spark flight zone). Do not use dust extraction.■ Due care should be taken that no sparks or sanding dust flying from the workpiece come into contact with you.■ Pay attention to the dimensions of the grinding disc. The mounting hole diameter must fit the mounting flange without play. Do not use reducer pieces or adapters.■ Never use a cutting disc for grinding. Do not subject cutting discs to side pressure.■ When separating stone the guide shoe must be used!
ENGLISH	2	WS 650-115, WS 715-115, WS 715-125, WSE 800-125

Measured sound value	■ The adjusting nut must be tightened before starting to work with the machine. ■ Under extreme operating conditions (e.g. smoothing metals with the backing pad and vulcanised fibre-grinding disks) high contamination can build up inside the angle grinder. In such cases we recommend: the use of a stationary dust extraction device; cleaning the machine more regularly; and/or the use of an ELCB safety switch (earth leakage circuit breaker). Typically the A-weighted noise levels of the tool are: Sound pressure level = 85 dB (A). Sound power level = 98 dB (A). Wear ear protectors! Typically the weighted acceleration is 5 m/s2.
Measured vibration value
Usage	This angle grinder can be used for separating and grinding many different materials, e.g. metal or stone. In case of doubt please read the manufacturers' instruction. Do not use this product in any other way as stated for normal use.
Mains connection	Connect only to a single-phase AC current supply and only to the mains voltage specified on the rating plate. Connection to sockets without earth protection is possible as the appliance features protective insulation to DIN 57 740/ VDE 0740 and CEE 20. Radio suppression complies with the European standard EN 55014. When fitting the plug, make sure that the brown (live) wire of this appliance is connected to the plug terminal marked L or coloured red, and the blue (neutral) wire of this appliance is connected to the plug terminal marked N or coloured black. Under no circumstances must the wires of this appliance be connected to the earth termi-nal of the plug marked either E, with the earth symbol, or coloured green or green/yellow.
Switching on and off	Switching on and off: Slide back the On/Off switch. To lock, depress the front part of the sliding switch. Switching off: To unlock, depress the back part of the sliding switch. The switch will automatically move back to "O". Switching off: To unlock, depress the back part of the sliding switch. The switch will automatically move back to "O". The electronic smooth start will prolong the life of both the motor and the gears.
Smooth start
ENGLISH	3 WS 650-115, WS 715-115, WS 715-125, WSE 800-125

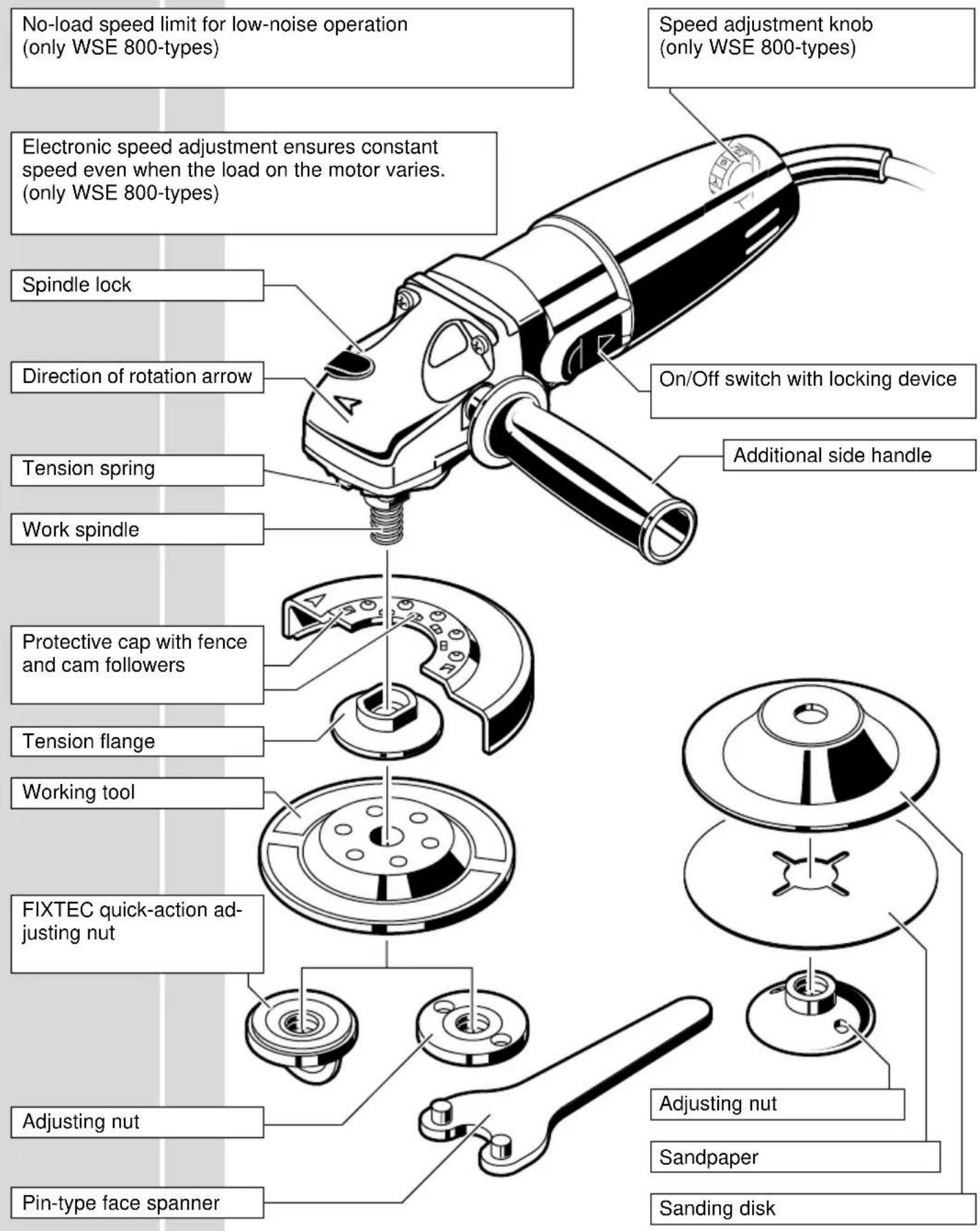

Brief description

Modifications: Text, diagrams and data are correct at the time of printing. In the interest of continuous improvement of our products, technical specifications are subject to alteration without prior notice.

Electronics Speed selection	The speed of rotation is adjusted electronically when the load increases. Under the effect of extreme electromagnetic interferences from the outside, temporary variations in the speed of rotation could arise in particular cases.
	pre-selection with the setting wheel: A= lowest speed G= highest speed	E D C
Mounting the protective cap	Push the protective cap over the spindle as shown in illustration.
	Turn the protective cap until the tension spring locks into place behind the fence. The protective cap can be rotated between the two fences. To remove the protective cap lift the tension spring slightly with aid of a screwdriver and completely turn it. Pull the protective cap off the spindle.
Fitting the working tool	Always disconnect the plug from the socket before carrying out any work on the machine. Lock the work spindle by depressing the spindle lock. Mount the tension flange, the working tool, and the adjusting nut as shown in illustration.
FIXTEC quick-action adjusting nut	Only tighten and loosen the FIXTEC quick-action adjusting nut by hand. Do not use any tools! Insure that the hoop of the FIXTEC quick-action adjusting nut is only placed in the upward position for tightening/loosening. Loosen respectively tighten the djusting nut with a pin-type face spanner.
Adjusting nut
ENGLISH	5	WS 650-115, WS 715-115, WS 715-125, WSE 800-125

Advices for operation Rough grinding Separating Surface grinding	When grinding do not apply pressure on the tool but use it with gentle reciprocating movements. For best results when roughing-down keep the disk at an angle of at least 30° to the working surface. Overloading the machine when grinding will damage the angle grinder and results in faster wearing out of the disks. Grinding performance will suffer. Never use a cutting disc for grinding. Do not subject cutting discs to side pressure. Do not tilt the angle grinder when separating. The cutting disk must have a clean edge. When separating stone the guide shoe must be used! surface grinding use a plastic backing pad with an abrasive disk. For removing rust or old coats of paint it is recommended to use a steel brush (saucepan brush).
Service Keep the machine and the ventilation slots clean.
Use only AEG accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our AEG service agents (see our list of guarantee/service addresses). If needed, an exploded view of the tool can be ordered. Please state the ten-digit No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Atlas Copco Electric Tools GmbH, Postfach 320, D-71361 Winnenden.
Accessories	Please refer to page 2-3 for range of accessories. Further accessories with part numbers are shown in our catalogues.
ENGLISH	6 WS 650-115, WS 715-115, WS 715-125, WSE 800-125

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 50 144, EN 55 014, EN 55 014-2, EN 60 555, HD 400 according to the provisions of the regulations 73/23/EEC, 89/336/EEC, 89/392/EEC.
