USER MANUAL GOP 18VEC Professional BOSCH

OBJ_BUCH-1808-002.book Page 2 Tuesday, April 7, 2015 4:33 PM3 | 1 609 92A 117 | (7.4.15) Bosch Power Tools

OBJ_BUCH-1808-002.book Page 4 Tuesday, April 7, 2015 4:33 PM5 | 1 609 92A 117 | (7.4.15) Bosch Power Tools

(triax vector sum) and uncertainty K determined according to EN 60745-2-4: Sanding: a

Sawing with plunge cut saw blade: a

Sawing with segment saw blade: a

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with anoth- er. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main ap- plications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. Cordless Multi-Cutter GOP 14,4/18 V-EC Article number 3 601 HB0 0.. Rated voltage V= 14.4/18 No-load speed n

8000–20000 Oscillation angle, left/right °1.4 Weight according to EPTA-Procedure 01/2003 kg 1.7/1.7* Permitted ambient temperature –during charging – during operation** and during storage

• depending on the battery pack being used** Limited performance at temperatures <0 °CTechnical data determined with battery from delivery scope. OBJ_BUCH-1808-002.book Page 15 Tuesday, April 7, 2015 4:33 PM16 | English 1 609 92A 117 | (7.4.15) Bosch Power Tools An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may signif- icantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work pat- terns. Declaration of Conformity We declare under our sole responsibility that the product de- scribed under “Technical Data” is in conformity with all rele- vant provisions of the directives 2011/65/EU, until 19 April 2016: 2004/108/EC, from 20 April 2016 on: 2014/30/EU, 2006/42/EC including their amendments and complies with the following standards: EN 60745-1, EN 60745-2-4. Technical file (2006/42/EC) at: Robert Bosch GmbH, PT/ETM9, 70764 Leinfelden-Echterdingen, GERMANY Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 19.02.2015 Assembly Battery Charging Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool. Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without re- ducing its service life. Interrupting the charging procedure does not damage the battery. Removing the battery The battery 5 is equipped with two locking levels that should prevent the battery from falling out when pushing the battery unlocking button 3 unintentionally. As long as the battery is inserted in the power tool, it is held in position by means of a spring. To remove the battery 5, press the battery unlocking button 3 and pull the battery out of the power tool toward the rear. Do not exert any force. Battery Charge-control Indication The three green LEDs of the battery charge-control indicator 6 indicate the charge condition of the battery 5. For safety reasons, it is only possible to check the status of the charge condition when the machine is at a standstill. Press button 7 to indicate the charge condition. This is also possible when the battery 5 is removed. When no LED lights up after pushing button 7, then the bat- tery is defective and must be replaced. Changing the Tool Before any work on the machine itself (e. g. mainte- nance, tool change, etc.) as well as during transport and storage, remove the battery from the power tool. There is danger of injury when unintentionally actuating the On/Off switch. Wear protective gloves when changing application tools/accessories. Contact with the application tool/ac- cessory can lead to injuries. Selecting the Application Tool/Accessory Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9 LED Capacity Continuous lighting 3 x green 2/3 Continuous lighting 2 x green 1/3 Continuous lighting 1 x green <1/3 Flashing light 1 x green Reserve Accessory Material HCS wood seg- ment saw blade* Wooden materials, plastic BIM segment saw blade* Wooden materials, plastic, non-ferrous metals HCS plunge cut saw blades, wood* Wooden materials, plastic, gypsum and other soft materials BIM plunge cut saw blades, metal* Metal (e. g. unhard- ened nails, screws, smaller profiles), non-ferrous metals BIM plunge cut saw blade, wood and metal* Wood, metal, non- ferrous metals HM-Riff segment saw blade* Grouting joints, soft wall tiles, glass-fibre reinforces plastic and other abrasive materials HM-Riff delta plate* Scraper, rigid* Carpets, coverings

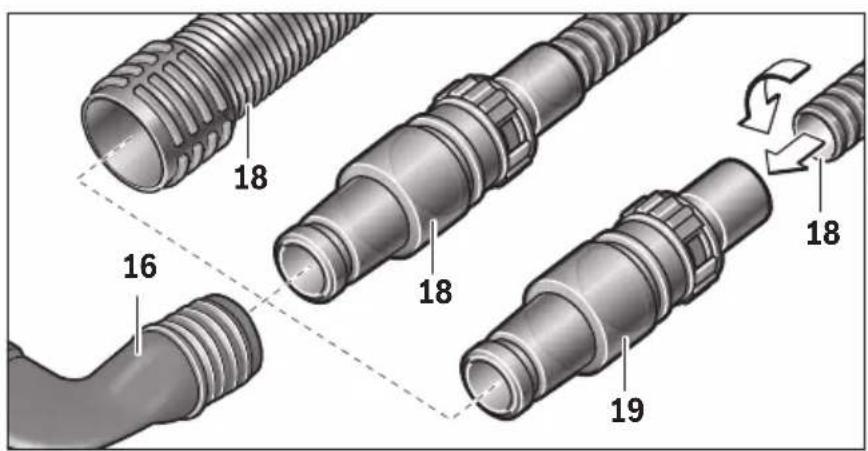

• Optional accessory; for the complete accessories please see Bosch ac- cessory programme. OBJ_BUCH-1808-002.book Page 16 Tuesday, April 7, 2015 4:33 PMEnglish | 17 Bosch Power Tools 1 609 92A 117 | (7.4.15) Mounting/Replacing the Application Tool/Accessory If required, remove an already mounted application tool/ac- cessory. For this, open the SDS lever 8 to the stop (not further) and re- move the application tool. Mount the requested application tool/accessory (e.g. plunge cut saw blade 11) in such a manner on the tool holder 9 that the offset faces downward (see illustration on the graphics page; marking on the application tool/accessory is readable from above). Turn the application tool/accessory to a position favourable for the respective job, and allow it to engage into the cams of the tool holder 9. 12 different positions are possible, each offset by 30°. Close SDS lever 8 so that it faces against the housing of the power tool. Check the tight seating of the application tool/accesso- ry. Incorrect or not securely fastened application tools/ accessories can come loose during operation and pose a hazard. Mounting/Replacing a Sanding Sheet on the Sanding Plate The sanding plate 12 is fitted with Velcro backing for quick and easy fastening of sanding sheets with Velcro adhesion. Before attaching the sanding sheet 13, free the Velcro back- ing of the sanding plate 12 from any debris by tapping against it in order to enable optimum adhesion. Position the sanding sheet 13 flush alongside one edge of the sanding plate 12, then lay the sanding sheet onto the sanding plate and press firmly. To ensure optimum dust extraction, pay attention that the punched holes in the sanding sheet match with the holes in the sanding plate. To remove the sanding sheet 13, grasp it at one of the tips and pull it off from the sanding plate 12. You can use all sanding sheets, fleece pads/polishing cloth pads of the Delta 93 mm series of Bosch accessory program. Sanding accessories, such as fleece pads/polishing cloth pads, are attached to the sanding plate in the same manner. Selecting the Sanding Sheet Depending on the material to be worked and the required rate of material removal, different sanding sheets are available: Scraper, flexible* Silicone and other elastic materials Base plate for sanding, series Delta 93 mm* Depends on sanding sheet Accessory Material

• Optional accessory; for the complete accessories please see Bosch ac- cessory programme. Sanding disc Material Application Grain size – All wooden materials (e. g., hardwood, soft- wood, chipboard, build- ing board) – Metal materials For coarse-sanding, e. g. of rough, unplaned beams and boards coarse 40

For face sanding and planing small irregularities medium 80

For finish and fine sanding of wood fine 180

–Paint –Varnish – Filling compound –Filler For sanding off paint coarse 40

For sanding primer (e. g., for removing brush dashes, drops of paint and paint run) medium 80

For final sanding of primers before coating fine 180
