Product Type	Electric Screwdriver
Brand	Fein
Model	ASse 636
Power Supply	Mains (power cable)
Rated Voltage	230 V ~ 50/60 Hz (typical)
Power Consumption	Approx. 600 W (estimated)
No-load Speed	0 – 2800 rpm (estimated)
Max. Torque	Approx. 6 Nm (estimated)
Tool Holder	Hexagon socket 1/4" (DIN 3126)
Weight	Approx. 1.5 kg (according to EPTA)
Double Insulation	Yes
Depth Stop	Yes, adjustable
Auxiliary Handle	Yes (optional depending on model)
Main Functions	Screwing and unscrewing, torque adjustment, reversible rotation direction
Maintenance	Clean ventilation slots with dry compressed air
Safety	Wear eye protection, disconnect before servicing
Spare Parts Available	Working tools, depth stop, auxiliary handle, power cable
Compliance	CE, reinforced double insulation
Recycling	Return to an approved recycling center

Frequently Asked Questions - ASse 636 Fein

How to adjust the torque on the Fein ASse 636?

Torque adjustment is done using the adjustment ring located near the chuck. Turn it to increase or decrease the torque. The default setting is suitable for small and medium screws. Refer to pages 6-7 of the manual for more details.

How to change the rotation direction?

The rotation direction switch is located above the trigger. Only operate it when the motor is completely stopped to avoid damaging the tool.

What type of bits can I use?

The tool is equipped with a 1/4 inch hexagon socket tool holder (DIN 3126). You can use standard screwdriver bits with this fitting.

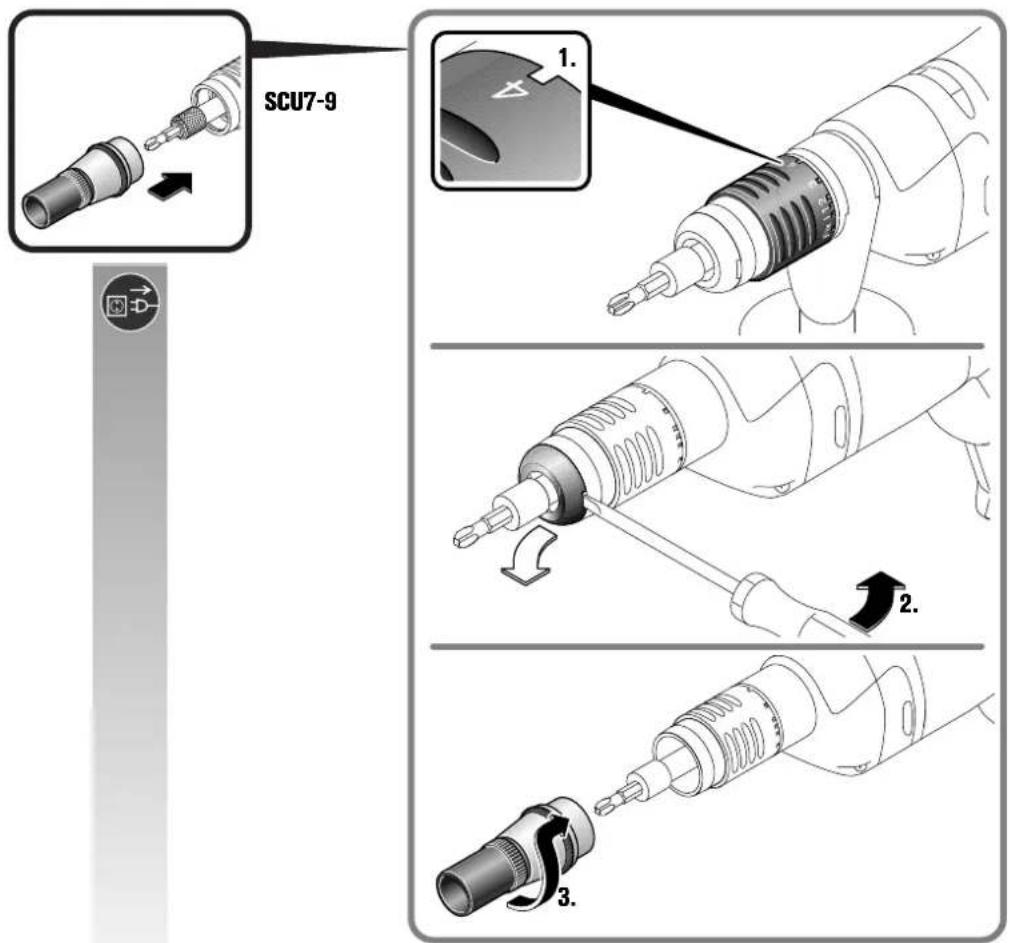

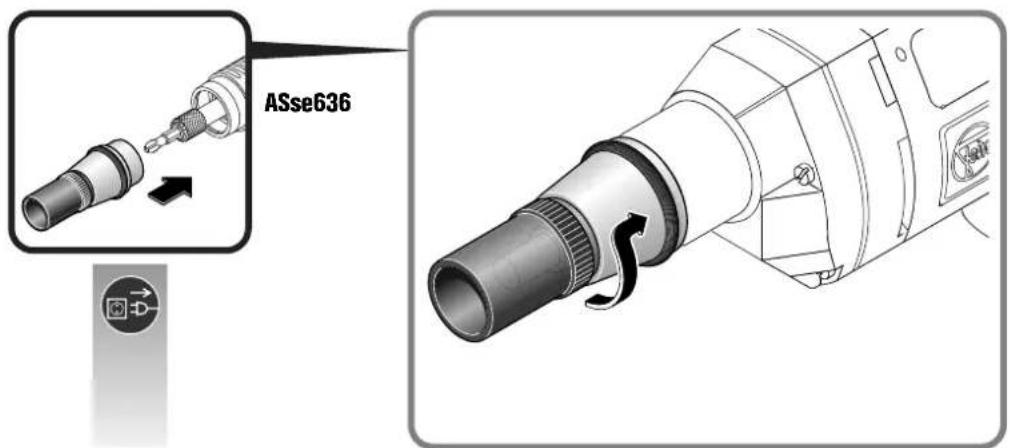

How to install the depth stop?

The depth stop slides onto the chuck and locks with a screw. It limits the screw depth for uniform results. For torques above 28 Nm, do not use the depth stop; work in 'Fix' position with the auxiliary handle.

How to maintain the screwdriver?

Regularly clean the ventilation slots with dry non-metallic compressed air to prevent build-up of conductive dust. For intensive use, blow out the interior of the tool and use a residual current device.

Can I use this screwdriver for drilling?

No, this tool is designed only for screwdriving. Use for drilling is not permitted and could damage the tool.

What is the warranty of the Fein ASse 636?

The warranty complies with the legal regulations in the country of purchase. Additionally, FEIN offers a manufacturer's warranty. Refer to the manual for exact terms.

How to replace the power cable?

If the cable is damaged, it must be replaced by a special cable available from the FEIN after-sales service. Do not attempt to repair it yourself.

What safety precautions should I take?

Hold the tool by insulated surfaces, wear eye protection, check for hidden cables, and always disconnect before any intervention. Use a 30 mA residual current device.

How to recycle the tool at end of life?

Do not dispose of the tool with household waste. Return it to an approved recycling center for electrical and electronic equipment.

USER MANUAL ASse 636 Fein

OTJ DOKU-000000616-001.lm Page + Tuesday, April 19, 2011 1:22 PM

▶ SCU7-9 7 210 94
▶ ASse636 7 210 71

CE

EN 60745, EN 50144, EN 61000-3-2, EN 61000-3-3 2006/42/EG, 2004/108/EG

07194

Chuich

Hammersdorf Quality Manager

Dr. Schreiber Manager of R&D department

FEIN Service

C. & E. FEIN GmbH

Hans-Fein-Straße 81

Illustration of two electric drill motors with visible screw heads and a base mount (no text or symbols)

2

SCU7-9 ASse636
	7 210 94 7 210 71
P1	W 400 230
P2	W 210 125
n0	/min 0 - 900 0 - 800
n1	/min 0 - 600 0 - 450
M1	Nm 18 12
M2	Nm 28 -
	kg 1,7 1,6
	inch ¼ -
	mm - 7
	mm 6 6
	mm 8 6
	mm 12 -
LpA	dB 78 78
KpA	dB 3 3
LwA	dB 89 89
KwA	dB 3 3
LpCpeak	dB 92 92
KpCpeak	dB 3 3
αh	m/s² 1,0 1,1
Ku	m/s² 1,5 1,5

de 12 pt 30 tr 48 sl 66 et 84 th 102 en 15 el 33 hu 51 sr 69 lt 87 ja 105 fr 18 da 36 cs 54 hr 72 lv 90 hi 108 it 21 no 39 sk 57 ru 75 zh(CM) 93 ar 113 nl 24 sv 42 pl 60 uk 78 zh(CK) 96 es 27 fi 45 ro 63 bg 81 ko 99

3

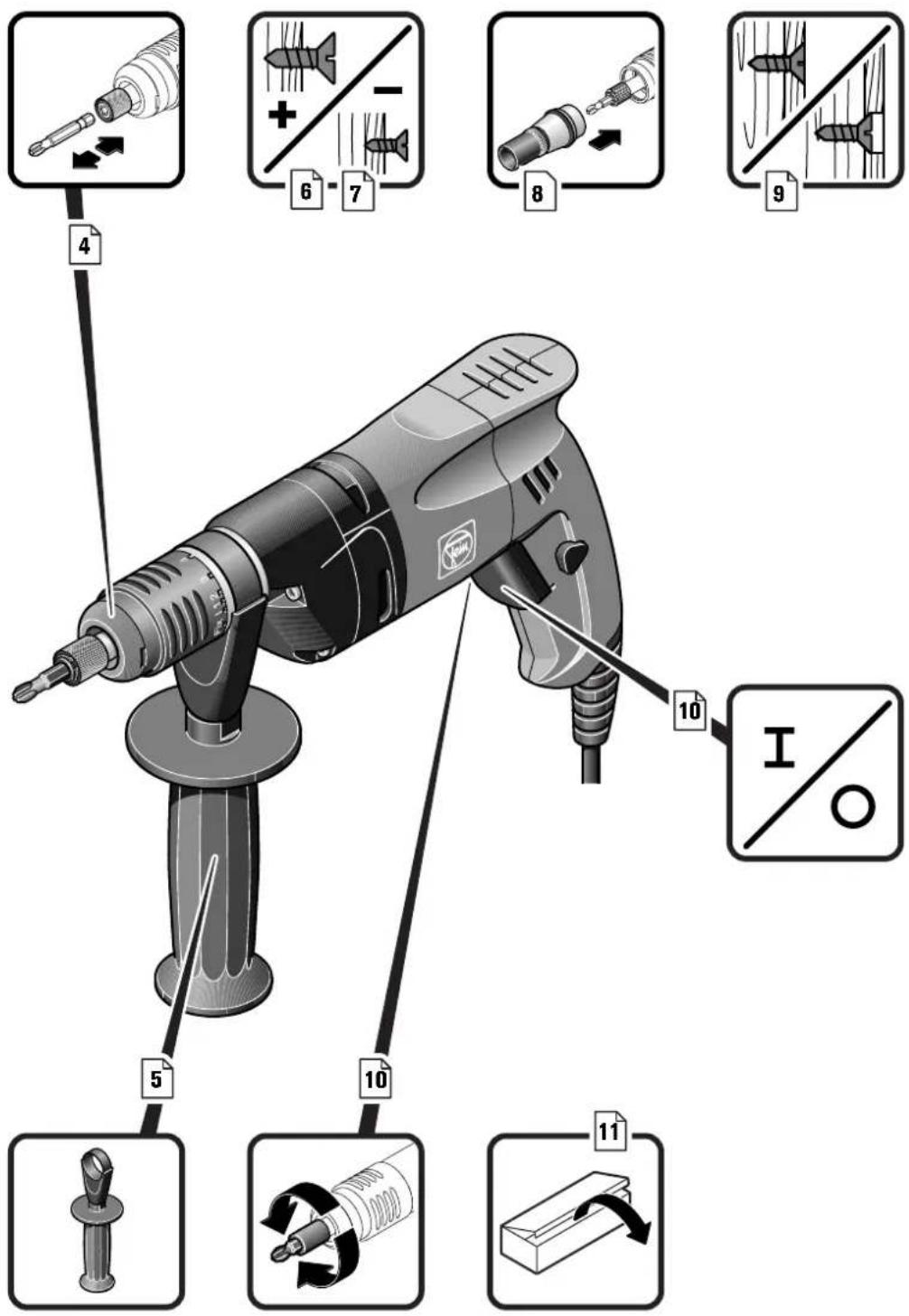

4 6 - 7 8 9 10 5 10 I O 11

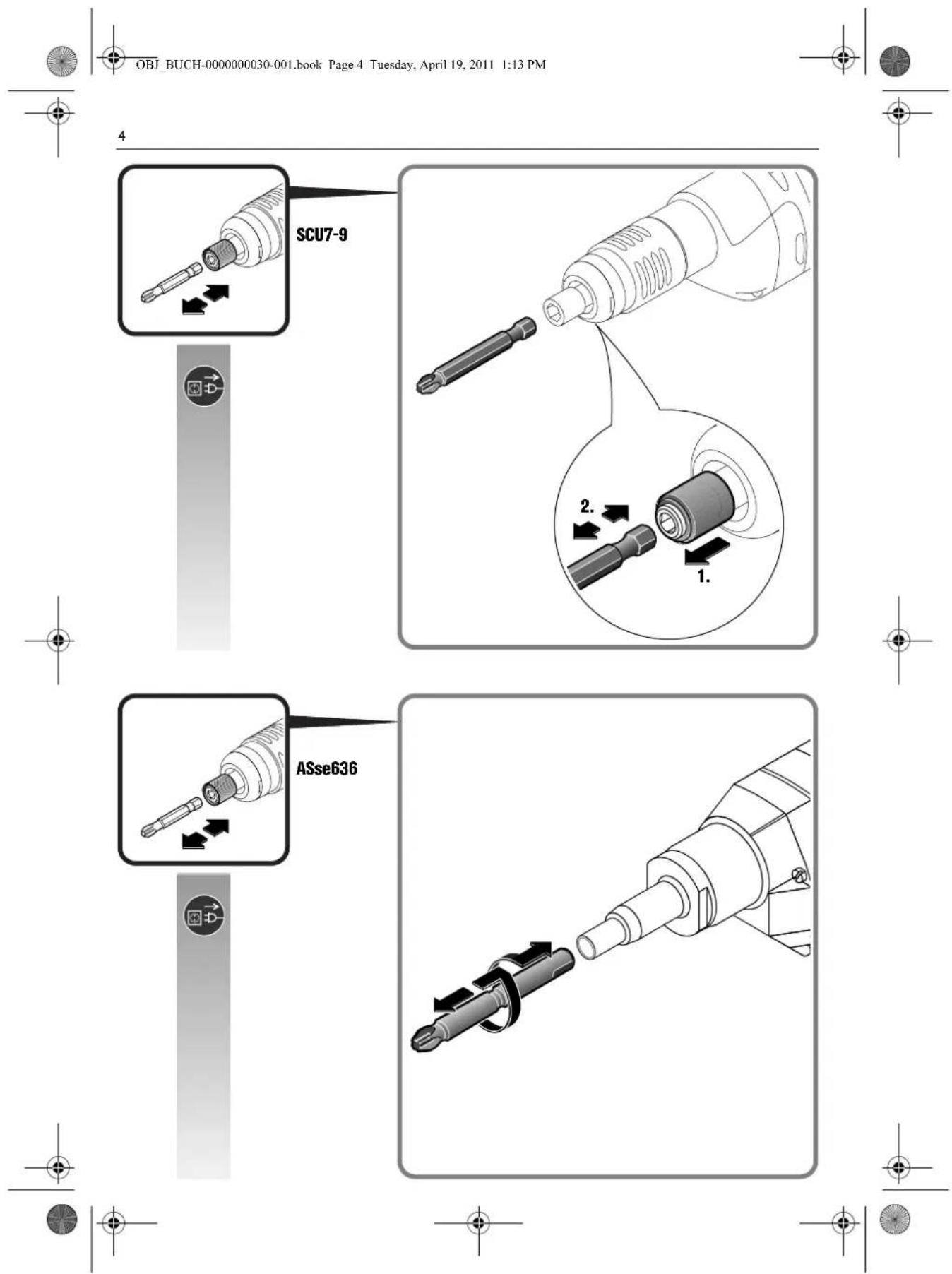

OBJ BUCH-0000000030-001.book Page 4 Tuesday, April 19, 2011 1:13 PM SCU7-9 2. 1. ASse636

OBJ BUCH-0000000030-001.book Page 5 Tuesday, April 19, 2011 1:13 PM

5

SCU7-9 1. 2. 3.

Technical diagram of a power tool with labeled parts and directional arrows indicating motion or operation.

OBJ BUCH-0000000030-001.book Page 6 Tuesday, April 19, 2011 1:13 PM

6

SCU7-9 1. FIX = >28 Nm

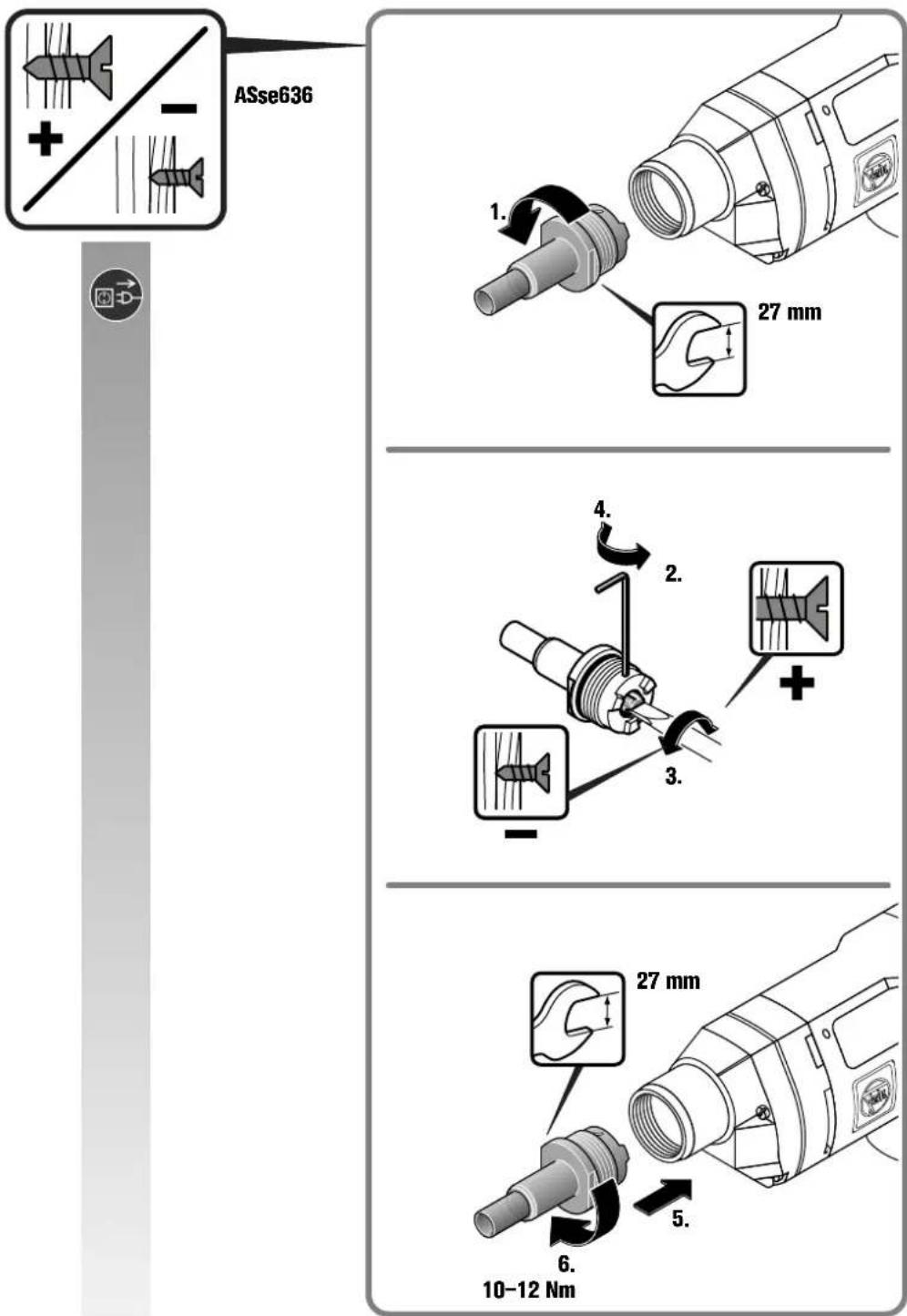

ASse636 1. 27 mm 4. 2. + 3. 27 mm 5. 6. 10-12 Nm

ASse636 1. 27 mm 4. 2. + 3. 27 mm 5. 6. 10-12 Nm

Vertical gradient bar transitioning from white to light gray (no text or symbols)

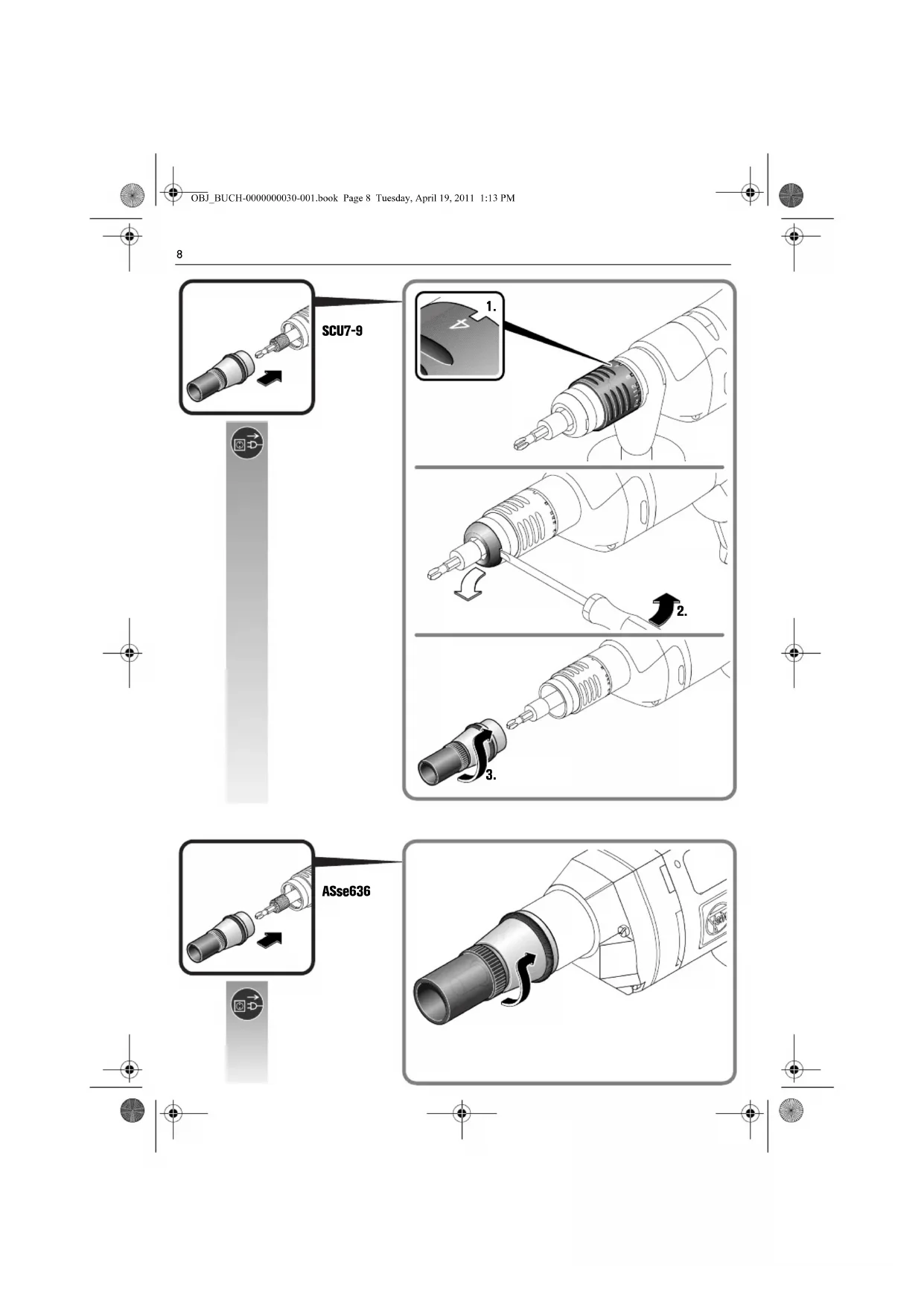

OBJ BUCH-0000000030-001.book Page 8 Tuesday, April 19, 2011 1:13 PM

8

SCU7-9 1. 2. 3.

ASse636

OBJ BUCH-0000000030-001.book Page 10 Tuesday, April 19, 2011 1:13 PM

10

Diagram showing a brush tool being inserted into a rubber can with directional arrows, illustrating the process.

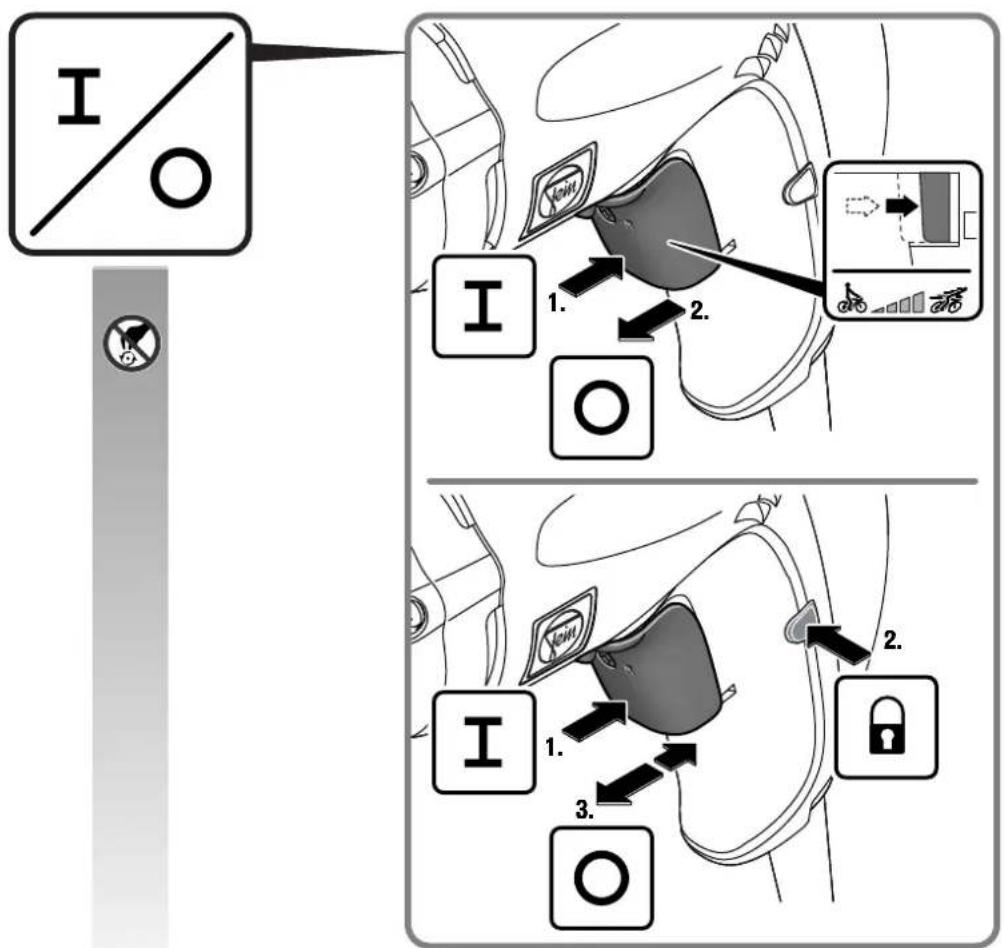

I O I 1. 2. O I 1. 3. O 2.

SCU7-9 SCU7-9 ASse636 ASse636

12

de

Original Instructions for Dry Wall Screw Gun.

Symbols, abbreviations and terms used.

Symbol, character Explanation
	Do not touch the rotating parts of the power tool.
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
[8W62]	Before commencing this working step, pull the mains plug out of the socket. Otherwise there will be danger of injury if the power tool should start unintentionally.
	Use eye protection during operation.
[DYT9]	Observe the information in the adjacent text!
	Confirms the conformity of the power tool with the directives of the European Community.
	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
[0Y62]	Worn out power tools and other electrotechnical and electrical products should be sorted separately for environment-friendly recycling.
	Product with double or reinforced insulation
	Low speed
	High speed
	Reduce torque
	Increase torque

Character Unit of measure, international		Unit of measure, national	Explanation
P_1	W	W	P	o	w
P_2	W	W	O	u	t
UV	V	R	a	t	e
f/Hz Hz Frequency
n_0	/min rpm No-load speed
n_1	/min rpm Speed, full load
M_1	Nm Nm Max. tightening torque for hard screwdriving application
M_2	Nm Nm Max. tightening torque for hard screwdriving application, rigid through-drive
○	inch inch Hexagon socket tool holder
○	mm mm Tool holder, external flat (DIN 3126-H7)
Fe	mm mm	Screw diameter, steel
Fe	mm mm	Screw diameter, wood
∅	mm mm	Dowel/anchor diameter
	kg	kg	Weight according to EPTA-Procedure 01/2003
L_pA	dB	dB	Sound pressure level
L_wA	dB	dB	Sound power level
L_pCpeak	dB	dB	Peak sound pressure level
K...			Uncertainty

e p

d

en

Character Unit of measure, international	Unit of measure, national	Explanation
a	m/s^2	Vibrational emission value according to EN 60745 (vector sum of three directions)
a_h	m/s^2	Vibrational emission value (screwdriving)
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s^2	Basic and derived units of measure from the International system of units SI.

For your safety.

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General

Safety Instructions" (document number 3 41 30 054 06 1). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the power tool:

Hand-held screwdriver for screwing in and unscrewing screws and nuts in weather-protected environments without water supply using the application tools and accessories recommended by FEIN.

Special safety instructions.

Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live"' and could give the operator an electric shock.

Beware of any concealed electric cables, gas or water conduits; check the working area with a metal detector, for example, before commencing work.

Secure the workpiece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand.

Hold the power tool firmly. High reaction torque can briefly occur.

Do not machine any material containing asbestos. Asbestos is cancerogenic.

Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended.

Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.

Clean the ventilation openings on the power tool at regular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accumulation of metallic dust can cause an electrical hazard.

Before putting into operation, check the mains connection and the mains plug for damage.

Recommendation: The tool should always be supplied with power via a residual current device (RCD) with a rated current of 30 mA or less.

Hand/arm vibrations

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Operating instructions.

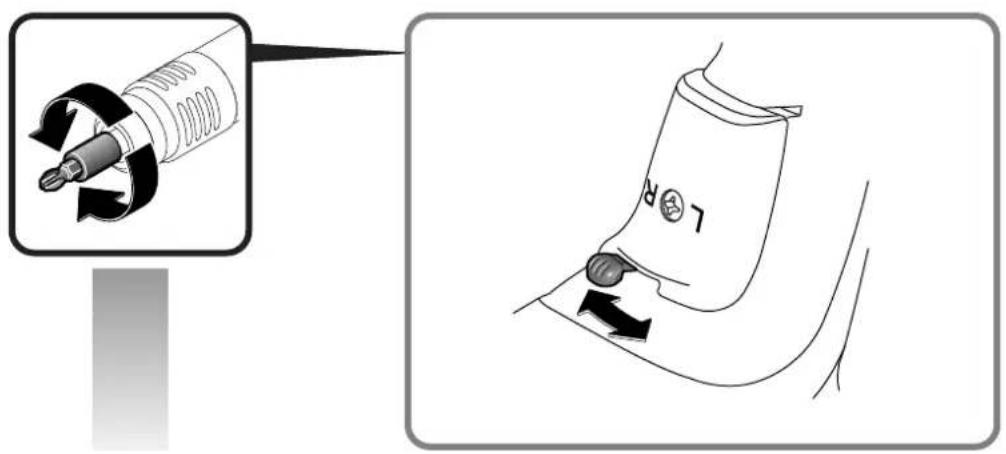

Adjust the Rotation selector switch only when the machine is at a complete stop.

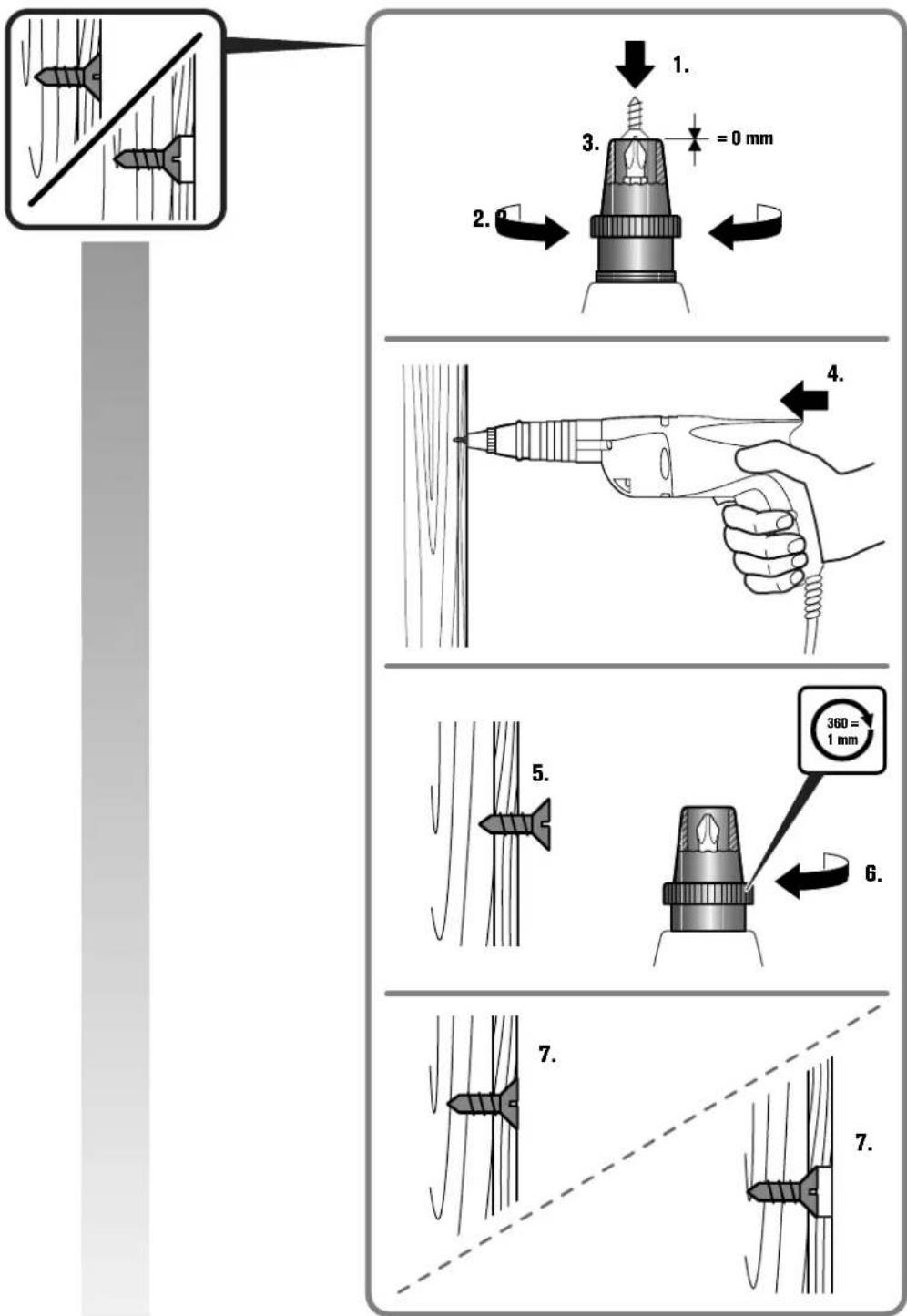

For reliable working results, always carry out screwdriving operations using the depth stop.

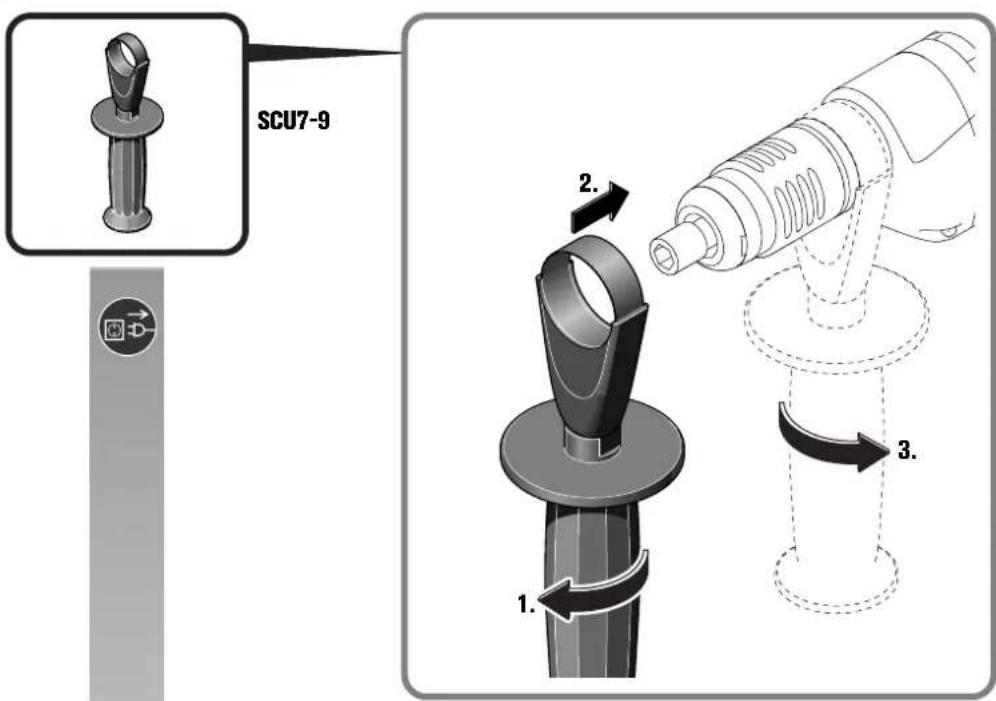

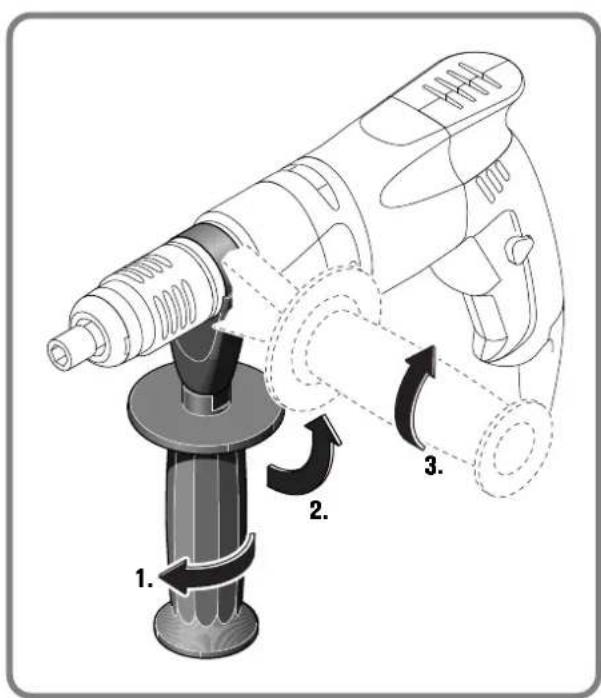

SCU7-9: Use the auxiliary handle when working with the torque level "Fix" (rigid through-drive), as torques in excess of 28 Nm can develop. Do not use the depth stop.

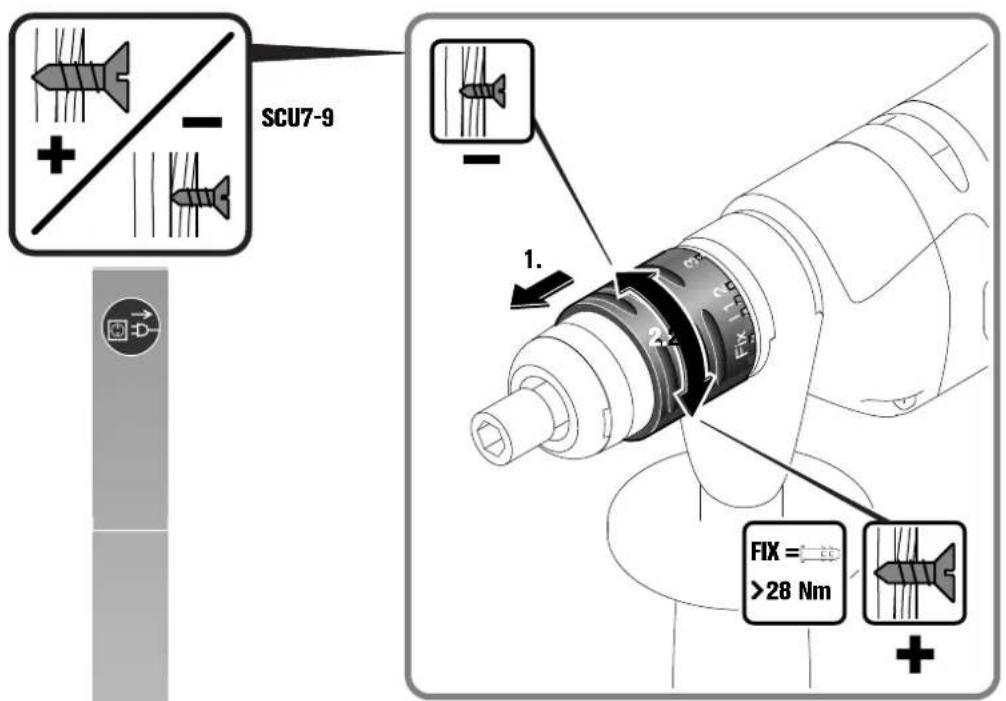

Setting the torque (see page 6 -7)

The factory setting is for the small to mid-size screw range.

The tightening torque also depends on the force with which the power tool is pressed against the screw.

Repair and customer service.

When working metal under extreme operating conditions, it is possible for conductive

dust to settle in the interior of the power tool.

The total insulation of the power tool can be impaired. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air, and connect a residual current device (RCD) on the line side.

If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available through the FEIN customer service centre.

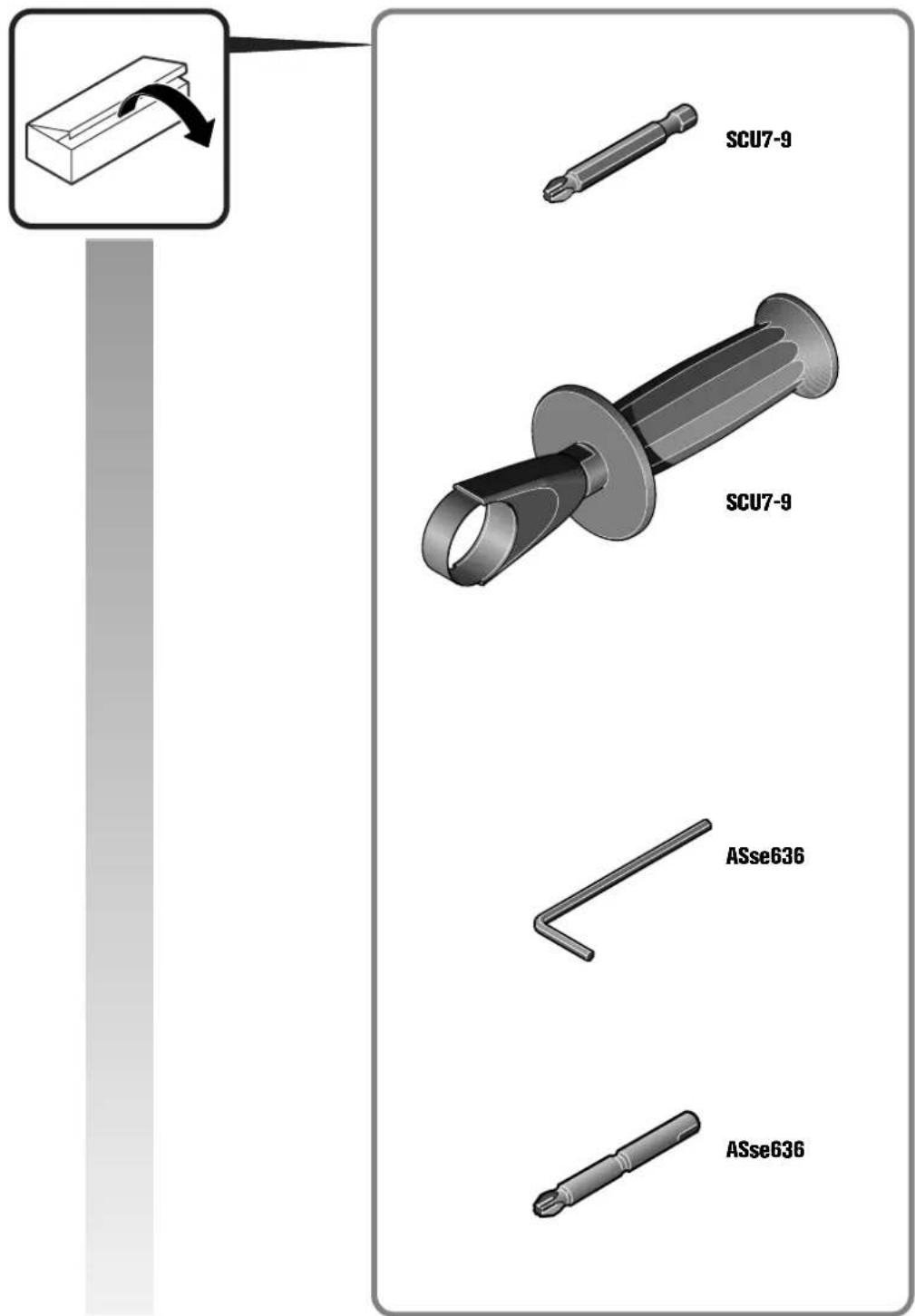

If required, you can change the following parts yourself: application tools, depth stop, auxiliary handle

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

The delivery scope of your power tool may include only a part of the accessories described or shown in this instruction manual.

Declaration of conformity.

FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.

Environmental protection, disposal.

Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling.
