| Product type | Cordless screwdriver |
| Brand | Fein |
| Model | ASCS 6.3 Select |
| Main use | Tightening and loosening screws, especially self-drilling and self-tapping screws |
| Power supply | Battery (Li-ion) |
| Battery charging temperature range | 5 °C – 45 °C |
| Charge status display | LED (1 to 4 green = charge %, red solid = low, red flashing = out of range) |
| Electronic torque stop | Yes, adjustable, with activatable/deactivatable acoustic signal |
| Direction of rotation | Reversible with middle locking position |
| Depth stop | Yes, for optimal screwing |
| Overheat protection | Operation by low-power pulses |
| Battery compatibility | Only original FEIN batteries |
| Sound level | Measured values (see manual) |
| Vibrations | Measured according to EN 62841 |
| Maintenance | Blow dry compressed air into the ventilation slots |
| User-replaceable parts | Work tools, depth stop, battery, hook |
| Safety | Read warnings, wear eye protection, remove battery before work |
| Environmental protection | Recycle according to directives, do not throw battery into fire |
| Warranty | In accordance with legal regulations + FEIN manufacturer declaration |
| Compliance | CE and UKCA marking according to market |
| Included accessories | Depth stop, hook |
| Tool type | Handheld |
| Outdoor use | Protected from weather |
Frequently Asked Questions - ASCS 6.3 Select Fein
User questions about ASCS 6.3 Select Fein
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Screwdriver in PDF format for free! Find your manual ASCS 6.3 Select - Fein and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ASCS 6.3 Select by Fein.
USER MANUAL ASCS 6.3 Select Fein


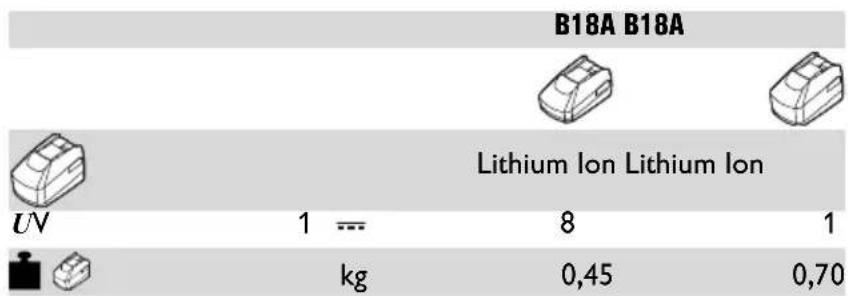

B18A B18A Lithium Ion Lithium Ion UV 1 --- 8 1 kg 0,45 0,708


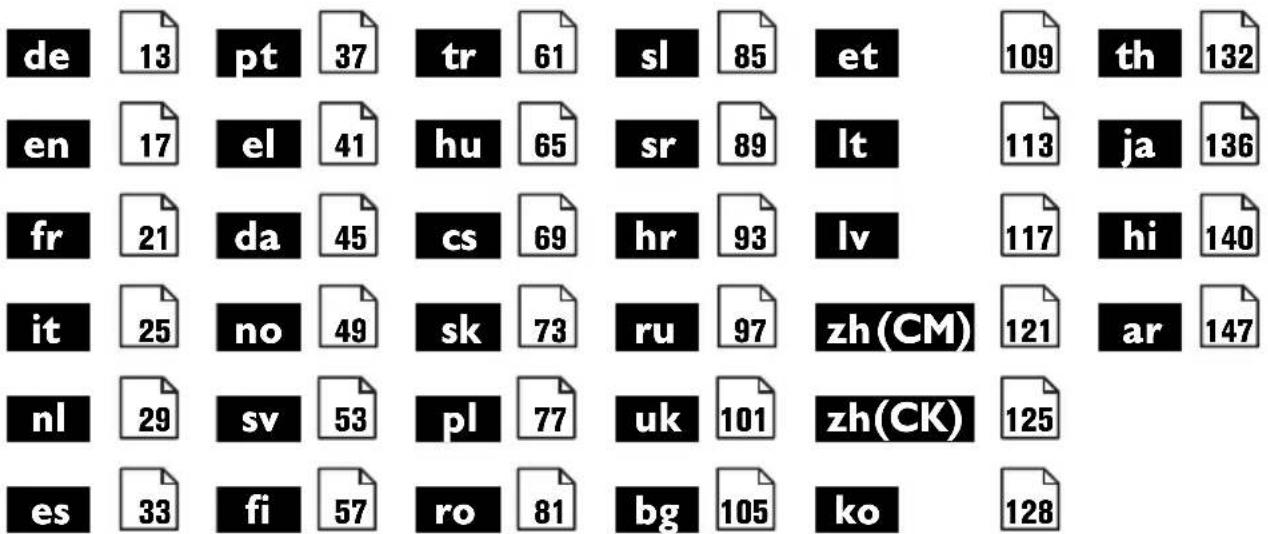

de 13 pt 37 tr 61 sl 85 et 109 th 132 en 17 el 41 hu 65 sr 89 lt 113 ja 136 fr 21 da 45 cs 69 hr 93 lv 117 hi 140 it 25 no 49 sk 73 ru 97 zh(CM) 121 ar 147 nl 29 sv 53 pl 77 uk 101 zh(CK) 125 es 33 fi 57 ro 81 bg 105 ko 128


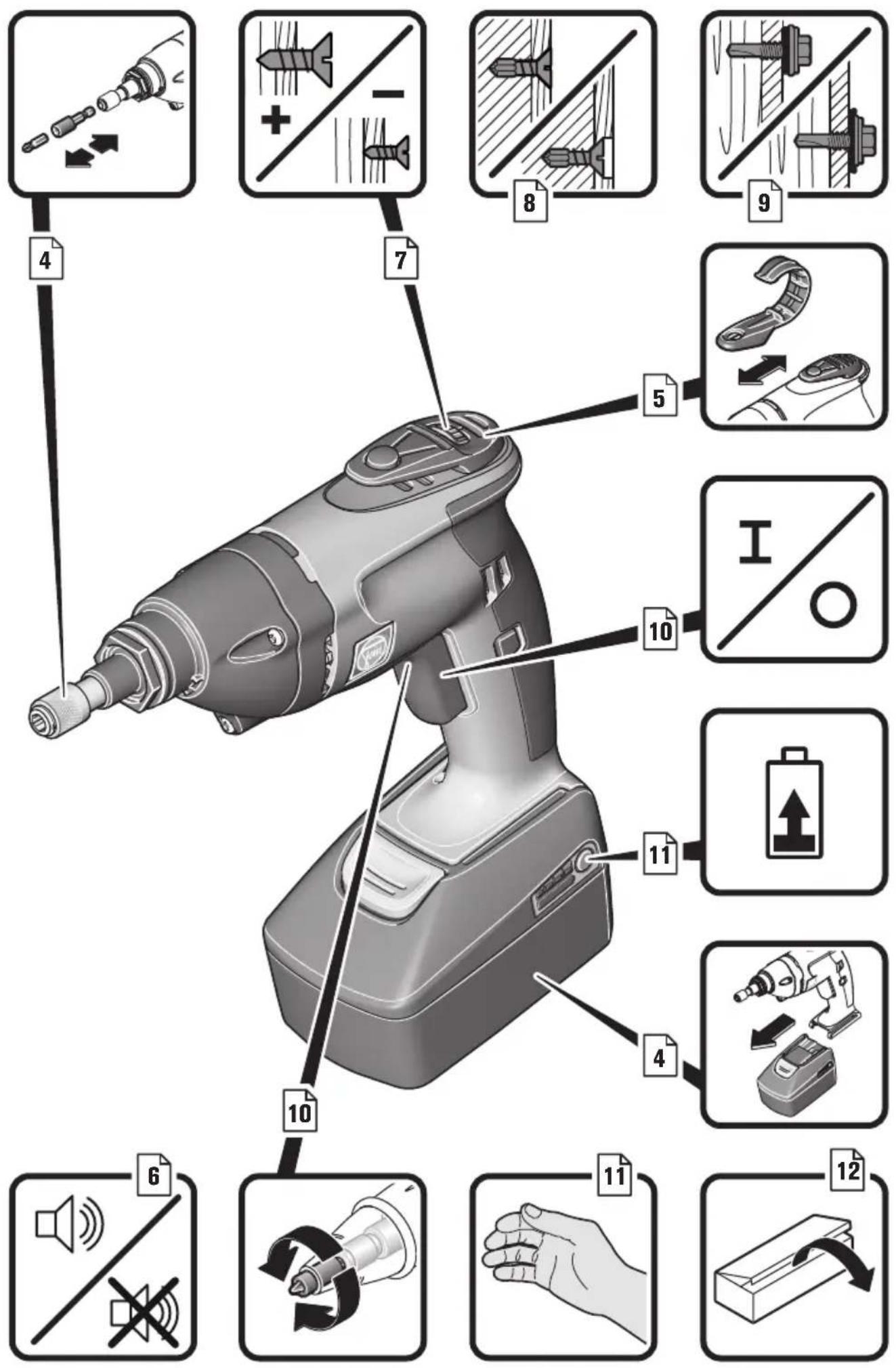

Diagram of a handheld electric drill with numbered instructions for cleaning and repair operations


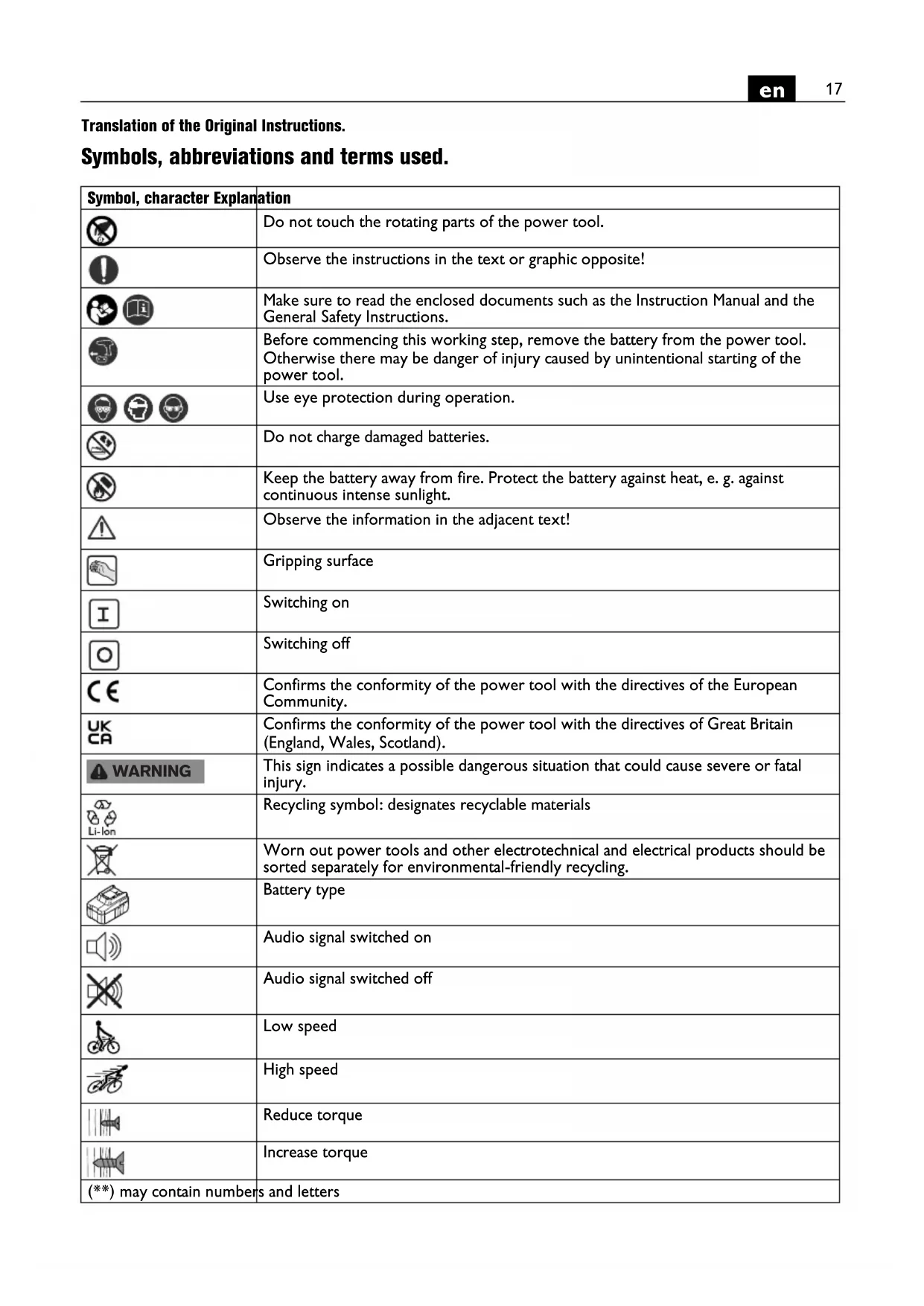

Symbols, abbreviations and terms used.
| Symbol, character Explanation | |
 | Do not touch the rotating parts of the power tool. |
 | Observe the instructions in the text or graphic opposite! |
 | Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions. |
 | Before commencing this working step, remove the battery from the power tool. Otherwise there may be danger of injury caused by unintentional starting of the power tool. |
 | Use eye protection during operation. |
 | Do not charge damaged batteries. |
| [Z4YS] | Keep the battery away from fire. Protect the battery against heat, e. g. against continuous intense sunlight. |
 | Observe the information in the adjacent text! |
 | Gripping surface |
 | Switching on |
 | Switching off |
 | Confirms the conformity of the power tool with the directives of the European Community. |
 | Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland). |
 | This sign indicates a possible dangerous situation that could cause severe or fatal injury. |
| [WKT] | Recycling symbol: designates recyclable materials |
 | Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling. |
 | Battery type |
 | Audio signal switched on |
 | Audio signal switched off |
 | Low speed |
 | High speed |
 | Reduce torque |
 | Increase torque |
| (**) may contain numbers and letters | |

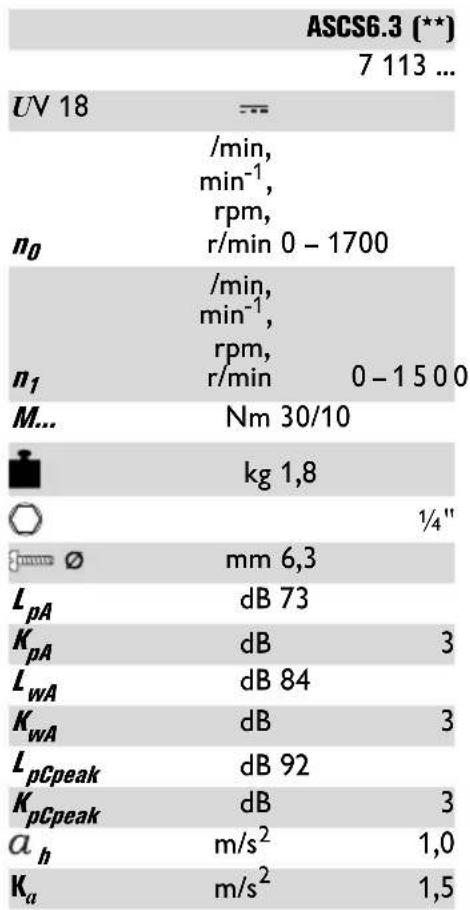

| Character Unit of measurement, international | Unit of measurement, national | Explanation | |
| UV | ¥= | ∅ | C v |
| n_0 | /min, min ^-1 , rpm, r/min | rpm No-load speed | |
| n_1 | /min, min ^-1 , rpm, r/min | rpm Speed, full load | |
| M... | Nm Nm Torque (hard/soft screwdriving application) | ||
 | inch inch Hexagon socket tool holder | ||
| [mm] ∅ | mm mm Screw diameter | ||
 | kg kg Weight according to EPTA-Procedure 01 | ||
| L_pA | dB dB Sound pressure level | ||
| [SA77] A | dB dB Sound power level | ||
| L_pCpeak | dB dB Peak sound pressure level | ||
 | Uncertainty | ||
| a | m/s ^2 | m/s ^2 | Vibrational emission value according to EN 62841 (vector sum of three directions) |
| a_h | m/s ^2 | m/s ^2 | Vibrational emission value (screwdriving) |
| m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2 | m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2 | Basic and derived units of measurement from the international system of units SI. | |
For your safety.
WARNING
Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General
Safety Instructions" (document number 3 41 30 465 06 0). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.
Please also observe the relevant national industrial safety regulations.
Intended use of the power tool:
Hand-guided screwdriver for screwing in and unscrewing screws, especially for self-drilling and self-cutting screws, in weather-protected environments using the application tools and accessories recommended by FEIN.
Special safety instructions.
Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
Beware of any concealed electric cables, gas or water conduits. Check the working area before commencing work, e. g. with a metal detector.
Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand.
Hold the power tool firmly. High reaction torque can briefly occur.
Do not work with materials containing magnesium. Danger of fire.
Do not work with CFRP (carbon-fiber-reinforced polymer) and materials containing asbestos. These materials are considered carcinogenic.
Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended.
Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.
Use and handling of the battery (battery pack).
To avoid hazardous situations such as burns, fire, explosion, skin injuries, and other injuries when handling the battery, observe the following instructions:
Batteries must not be disassembled, opened or reduced in size. Do not subject batteries to mechanical impact or shock. Hazardous vapours and fluid can escape in case of damage and improper use of the battery. The vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns.
When battery fluid from a damaged battery has come into contact with objects close by, check the respective components, clean them or replace them as required.
Keep the battery away from heat and fire. Do not store the battery in direct sunlight.
Do not remove the battery from its original packaging until it is going to be used.
Before any work on the machine itself, remove the battery from the power tool. If the power tool accidentally starts, there is danger of injury.
Remove the battery only when the power tool is switched off.
Keep the battery away from children.
Keep the battery clean and protect it against moisture and water. Clean contaminated battery terminals and power tool connections with a dry, clean cloth.
Use only intact original FEIN batteries that are intended for your power tool. When working with and charging incorrect, damaged, repaired or reconditioned batteries, imitations or other brands, there is danger of fire and/or explosion.
Follow the safety warnings in the operating instructions of the battery charger.
Hand/arm vibrations
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
Operating Instructions.

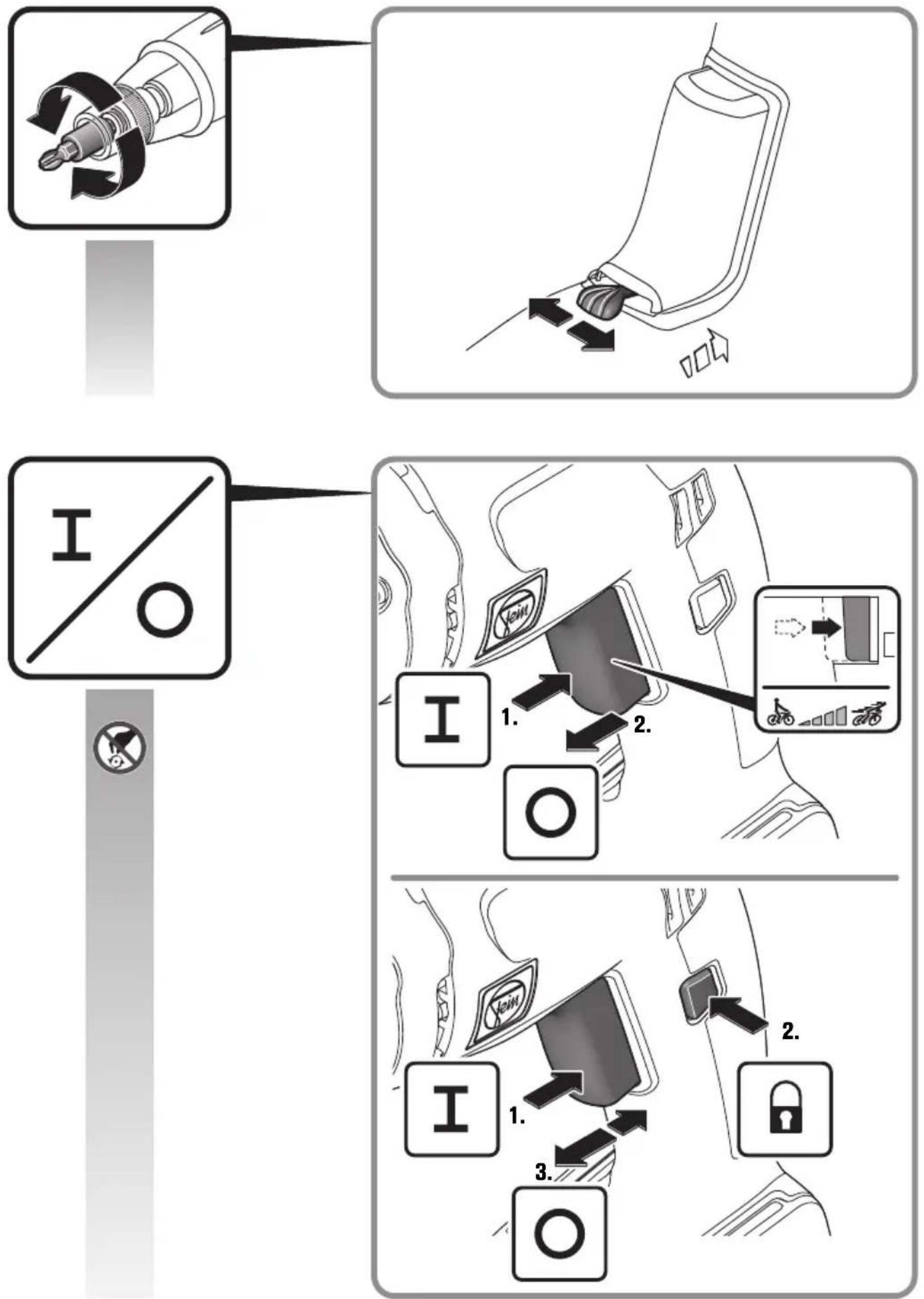

Adjust the rotation selector switch only when the machine is at a complete stop.
To avoid accidental starting, e. g., during transport, set the rotation selector switch to the centre position.
When overheated, the machine runs with short, low-power impulses. Allow the machine to cool down at no-load speed.

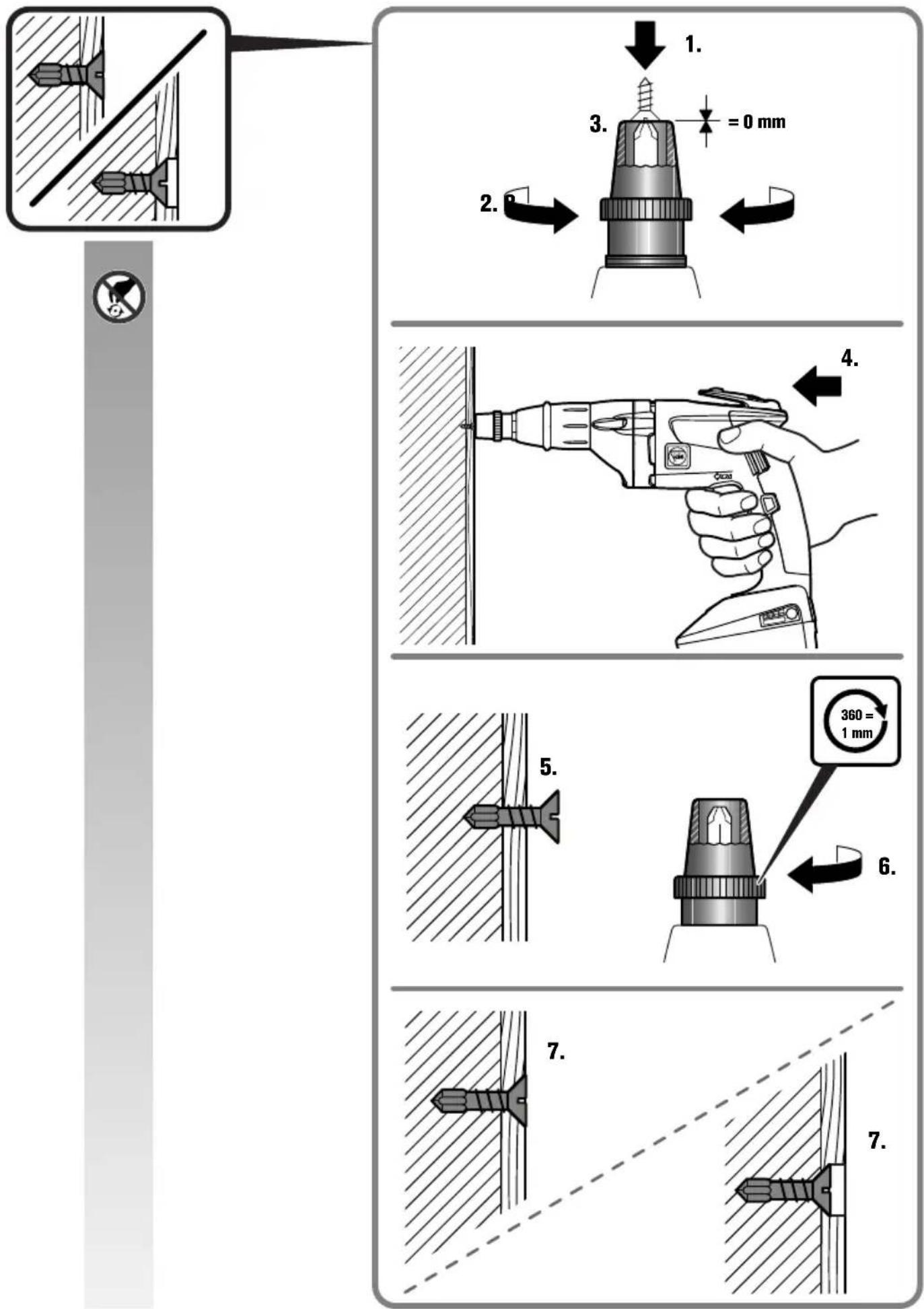

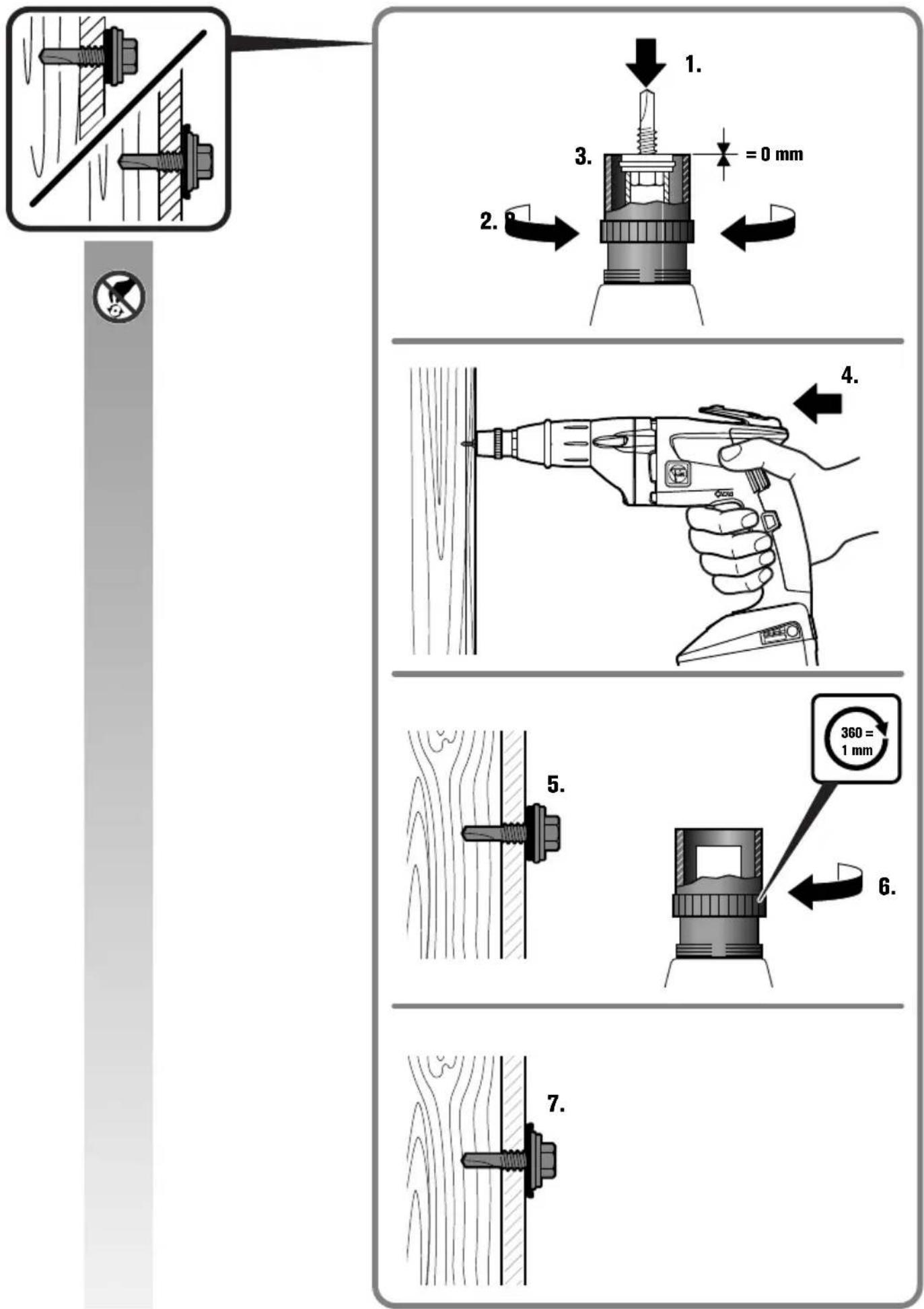

For reliable working results, always carry out screw-driving operations using the depth stop.

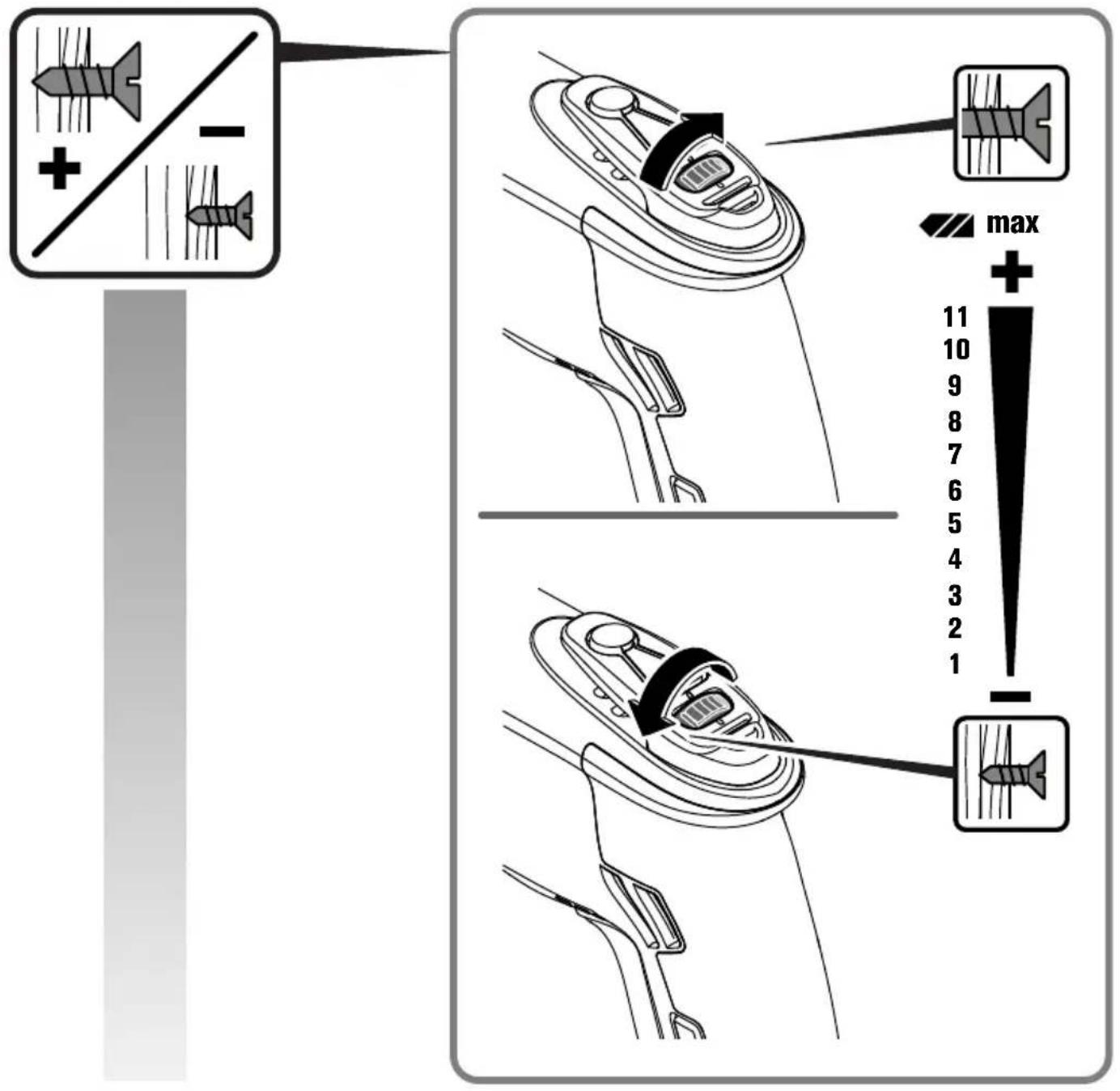

Electronic torque shut-off (see pages 6–7).
The electronic torque shut-off can be used when working without depth stop.
Adjust the torque only when the machine is at a complete stop.

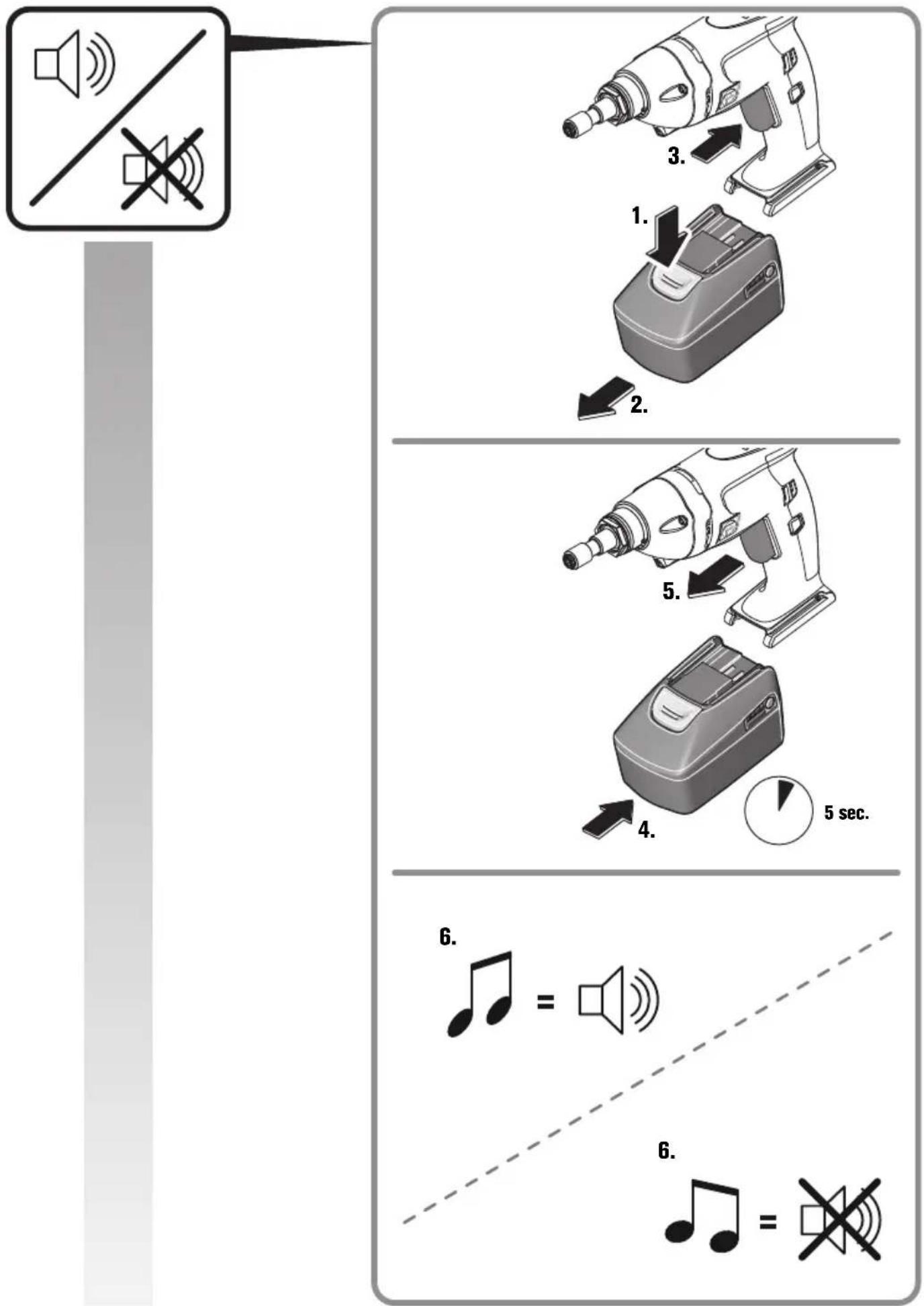

The motor switches off when reaching the set torque and an audio signal sounds. After the shut-off has taken place, release the on/off switch and press it again for the next screwdriving operation.
The audio signal can be switched on and off.
The electronic shut-off is deactivated when working in the “” torque level.
To achieve good working results, press the power tool with sufficient force against the screw.
Handling the battery.
Store, operate and charge the battery only using FEIN battery chargers within the battery operating-temperature range between 5 °C – 45 °C (41 °F – 113 °F). At the beginning of the charging procedure, the battery temperature must be within the battery operating-temperature range.
| LED indicator | Meaning Activity | |
| 1 – 4 green LED | Percentage of charge condition | Operation |
| Continuous red light | Battery is almost empty | Charge battery |
| Red flashing light | Battery is not ready for operation | Bring the battery into the battery operating-temperature range, then charge |
The real percentage of the battery charge condition is only indicated when the power tool motor is stopped. The electronics automatically switch off the motor prior to the battery being deep discharged.
Repair and customer service.
When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power
tool. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air.
Products that have come into contact with asbestos may not be sent in for repair. Dispose of products contaminated with asbestos according to the applicable country-specific regulations for such disposal.
The current spares parts list for this power tool can be found on our website at www.fein.com.

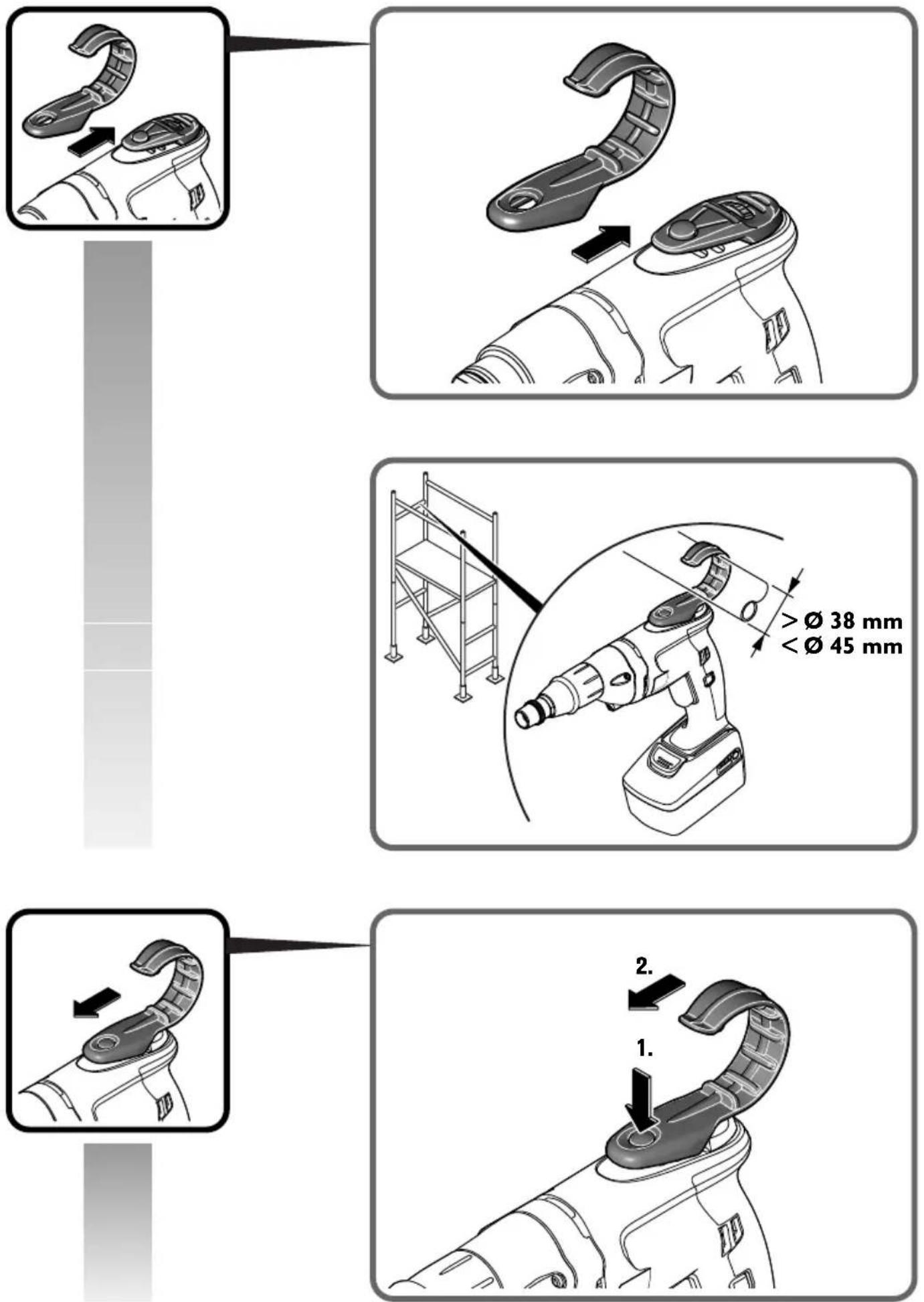

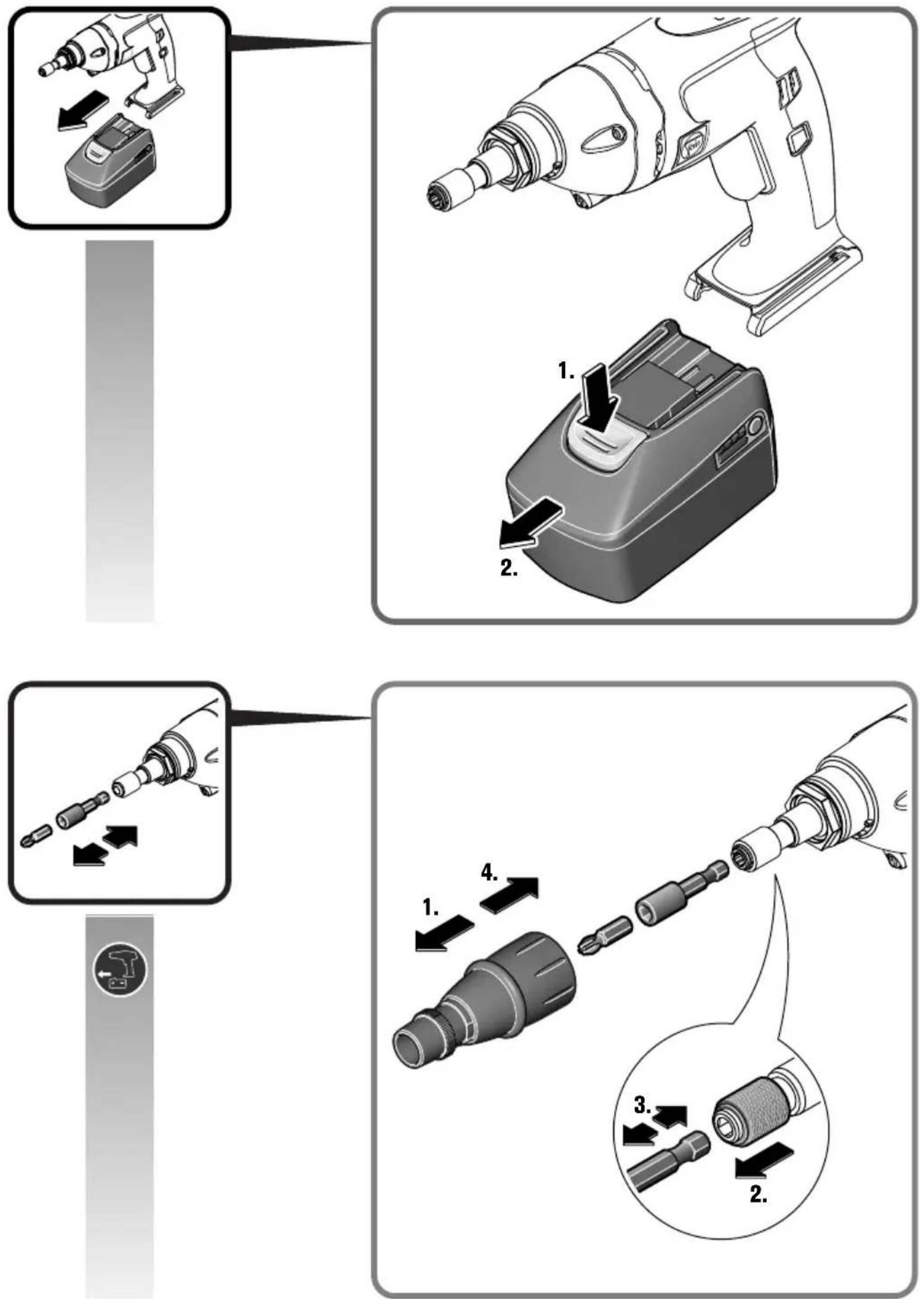

If required, you can change the following parts yourself: application tools, depth stop, battery, belt clip
Warranty and liability.
The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

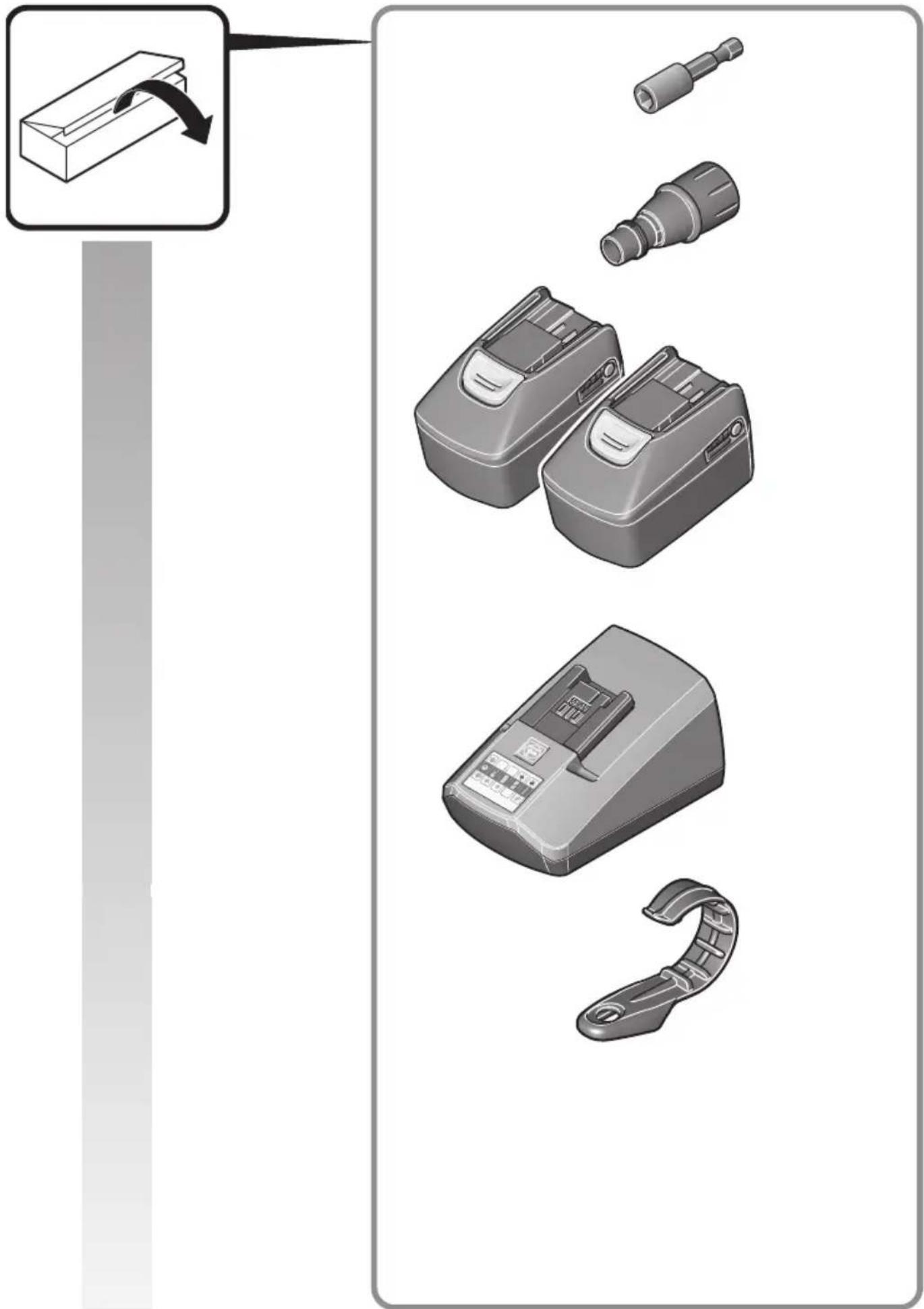

The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual.
Declaration of conformity.
This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU- or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.
The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.
FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.
Technical documents at: C. & E. Fein GmbH, D-73529 Schwäbisch Gmünd
Environmental protection, disposal.
Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling. Dispose of batteries only when discharged.
For batteries that are not completely discharged, insulate the terminals with tape as a protective measure against short-circuiting.
Miljøvern, deponering.
China RoHS Status Certificate
中国 RoHS 认证概况
Table of Toxic and Hazardous Substances/Elements and their Content
as required by China's Management Methods for Controlling Pollution by Electronic Information Products
有毒有害物质 / 成分及其含量表
Imm Without an un limitable non-urbanisation. Except from the minimum of the minimum, it is not possible to be a minimum of the minimum.
This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU- or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.
DIN EN 62841-1:2015 + AC2015
DIN EN 62841-2-2:2014 + AC:2015
DIN EN 55014-1:2017 + A11:2020
DIN EN 55014-2:2015
DIN EN 55014-2:1997+A1:2001+A2:2008+AC:1997
2006/42/EG, 2014/30/EU, 2011/65/EU
U. Hergosell
i. V. S. Böhm i. V. Dr. M. Hergesell
Director of Quality Director of Product Management Development
The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.
BS EN 62841-1:2015 + AC2015
BS EN 62841-2-2:2014 + AC:2015
BS EN 55014-1:2017 + A11:2020
BS EN 55014-2:2015
BS EN 55014-2:1997+A1:2001+A2:2008+AC:1997
Supply of Machinery Regulations 2008,
EMC Regulation 2006, The Restriction of the Use of Certain Hazardous Substances In Electrical and Electronic Equipment Regulations 2012
U. Hergosell
i. V. S. Böhm i. V. Dr. M. Hergesell
Director of Quality Director of Product Management Development
