0735 AA - Grass trimmer SKIL - Free user manual and instructions

Product type	Electric grass trimmer
Brand	Skil
Model	0735 AA
Power supply	Mains, voltage 230 V~ / 240 V~
Double insulation	Yes (no grounding required)
Sound pressure level	70 dB(A)
Guaranteed sound power level	93 dB(A)
Vibration (hand-arm)	< 2.5 m/s² (K = 1.5 m/s²)
Line feed system	Bump feed
Line cutting blade	Integrated in the guard
Pivoting cutting head	Yes, 180° rotation for edging work
Cutting guard	Supplied and mandatory
Storage	Wall hook and storage rail
Maintenance	Clean the ventilation slots, blade and guard after each use
Safety	Disconnect before any adjustment, do not use without guard
Spare parts	Spool system SKIL 2610Z01354
General information	Domestic use, non-professional

Frequently Asked Questions - 0735 AA SKIL

How to feed the cutting line?

Gently press the feed button F on a solid surface while the motor is running. Two lines will be released and automatically cut to the correct length by the integrated cutting blade.

What to do if the line does not come out during feeding?

Stop the tool and unplug it. Check that the spool is not empty or that the line is not tangled. If necessary, rewind the spool following the instructions in the manual.

How to replace the spool?

Unplug the tool. Remove the old spool system and install the new one (reference SKIL 2610Z01354). Turn the spool clockwise until it clicks. Perform an idle test for at least one minute.

How to trim edges?

Turn the cutting head 180° as shown in the manual. Then use the tool in a vertical position to cut edges.

What safety precautions should I take?

Wear safety glasses, long trousers and sturdy shoes. Keep hands and feet away from the cutting line. Never use the tool without the cutting guard. Always unplug before any maintenance.

How to clean the tool?

Unplug the tool. Use a damp cloth (no solvent). Regularly clean the ventilation slots with a brush or compressed air. Clean the cutting blade and guard after each use.

Why does the tool vibrate abnormally?

This may be due to grass that is too high. Cut in stages starting from the top. If the vibration persists, check that the line is not tangled or that the spool is not damaged.

What type of extension cord to use?

Use a good quality extension cord, fully unwound, with a capacity of 16 A, specially for outdoor use with waterproof plug and socket. In humid environments, use a 30 mA residual current device.

How to store the tool?

Store the tool indoors, in a dry and locked place, out of reach of children. Mount the storage rail on the wall with the provided screws to hang the tool.

Where to find spare parts?

Spare parts, including the spool system SKIL 2610Z01354, are available from authorized SKIL dealers or at www.skil.com.

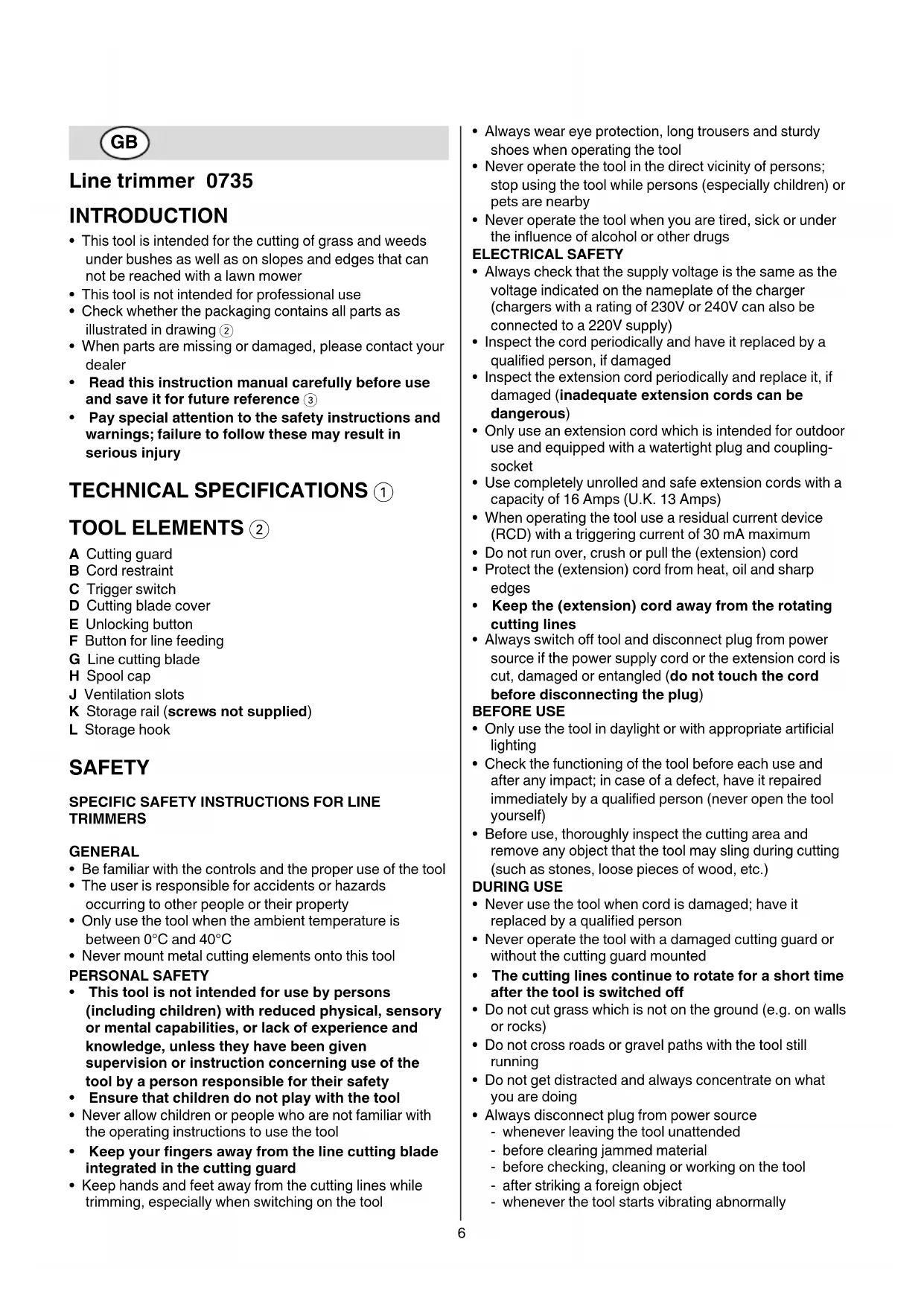

USER MANUAL 0735 AA SKIL

• This tool is intended for the cutting of grass and weeds under bushes as well as on slopes and edges that cannot be reached with a lawn mower
• This tool is not intended for professional use
• Check whether the packaging contains all parts as illustrated in drawing ②
• When parts are missing or damaged, please contact your dealer
• Read this instruction manual carefully before use and save it for future reference ③
• Pay special attention to the safety instructions and warnings; failure to follow these may result in serious injury

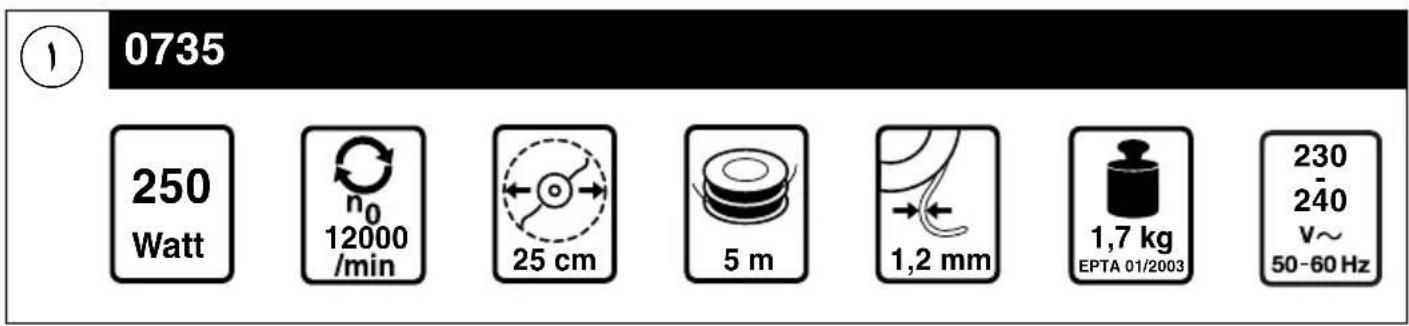

TECHNICAL SPECIFICATIONS ①

TOOLELEMENTS ②

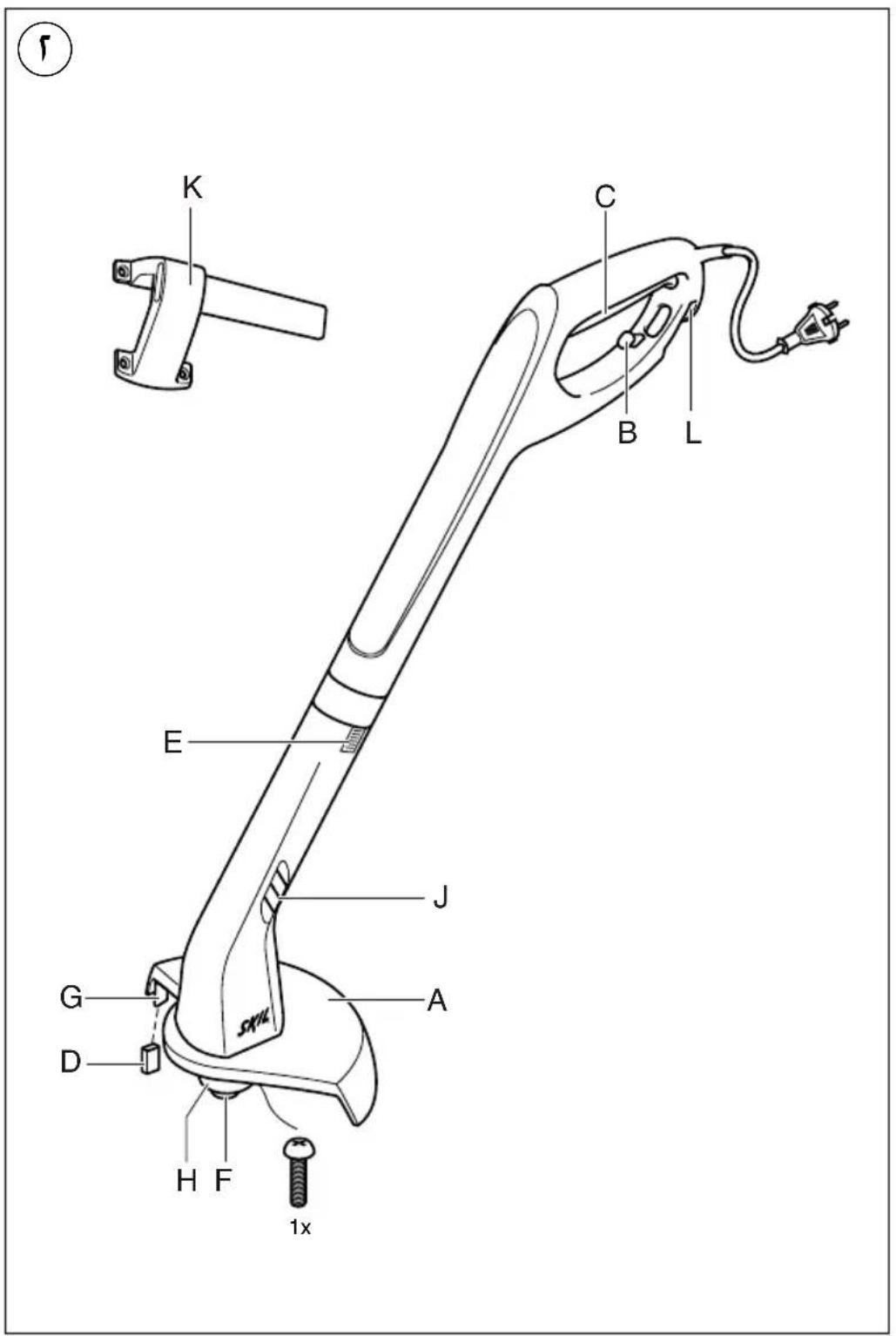

A Cutting guard
B Cord restraint
C Trigger switch
D Cutting blade cover

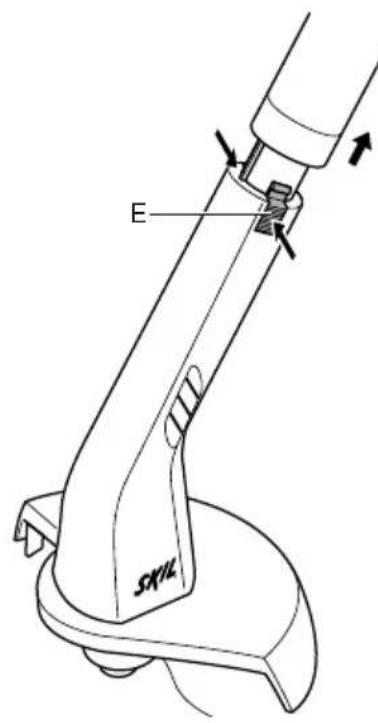

E Unlocking button
F Button for line feeding
G Line cutting blade
H Spool cap
J Ventilation slots
K Storage rail (screws not supplied)
L Storage hook

SAFETY

SPECIFIC SAFETY INSTRUCTIONS FOR LINE TRIMMERS

GENERAL

• Be familiar with the controls and the proper use of the tool
• The user is responsible for accidents or hazards occurring to other people or their property
  Only use the tool when the ambient temperature is between 0^ and 40^
• Never mount metal cutting elements onto this tool

PERSONAL SAFETY

• This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the tool by a person responsible for their safety.
• Ensure that children do not play with the tool
• Never allow children or people who are not familiar with the operating instructions to use the tool
• Keep your fingers away from the line cutting blade integrated in the cutting guard
• Keep hands and feet away from the cutting lines while trimming, especially when switching on the tool

Always wear eye protection, long trousers and sturdy shoes when operating the tool
- Never operate the tool in the direct vicinity of persons; stop using the tool while persons (especially children) or pets are nearby
- Never operate the tool when you are tired, sick or under the influence of alcohol or other drugs

ELECTRICAL SAFETY

• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the charger (chargers with a rating of 230V or 240V can also be connected to a 220V supply)
• Inspect the cord periodically and have it replaced by a qualified person, if damaged
• Inspect the extension cord periodically and replace it, if damaged (inadequate extension cords can be dangerous)
• Only use an extension cord which is intended for outdoor use and equipped with a watertight plug and coupling-socket
• Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)
• When operating the tool use a residual current device (RCD) with a triggering current of 30mA maximum
• Do not run over, crush or pull the (extension) cord
• Protect the (extension) cord from heat, oil and sharp edges
• Keep the (extension) cord away from the rotating cutting lines
• Always switch off tool and disconnect plug from power source if the power supply cord or the extension cord is cut, damaged or entangled (do not touch the cord before disconnecting the plug)

BEFORE USE

• Only use the tool in daylight or with appropriate artificial lighting
• Check the functioning of the tool before each use and after any impact; in case of a defect, have it repaired immediately by a qualified person (never open the tool yourself)
• Before use, thoroughly inspect the cutting area and remove any object that the tool may sling during cutting (such as stones, loose pieces of wood, etc.)

DURING USE

• Never use the tool when cord is damaged; have it replaced by a qualified person
• Never operate the tool with a damaged cutting guard or without the cutting guard mounted
• The cutting lines continue to rotate for a short time after the tool is switched off
• Do not cut grass which is not on the ground (e.g. on walls or rocks)
• Do not cross roads or gravel paths with the tool still running

• Do not get distracted and always concentrate on what you are doing
  Always disconnect plug from power source

• whenever leaving the tool unattended

• before clearing jammed material
• before checking, cleaning or working on the tool
• after striking a foreign object

• whenever the tool starts vibrating abnormally

• Always ensure that the ventilation openings are kept clear of debris

AFTER USE

• Always switch off tool and disconnect plug from power source before making adjustments, changing spools, cleaning or leaving the tool unattended for any period
• Store the tool indoors in a dry and locked-up place, out of reach of children

EXPLANATION OF SYMBOLS ON TOOL

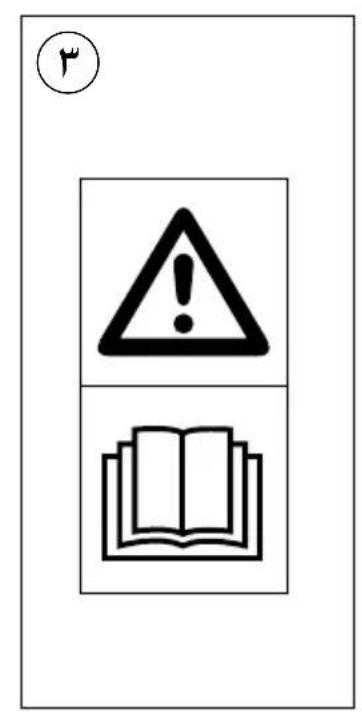

③ Warning! Read the instruction manual
④ Do not expose tool to rain
⑤ Wear protective glasses

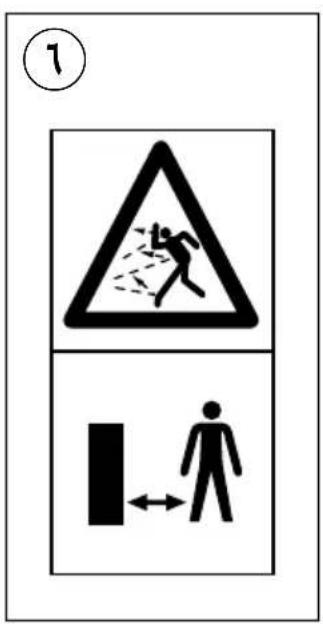

⑥ Pay attention to the risk of injury caused by flying debris (keep bystanders a safe distance away from work area)

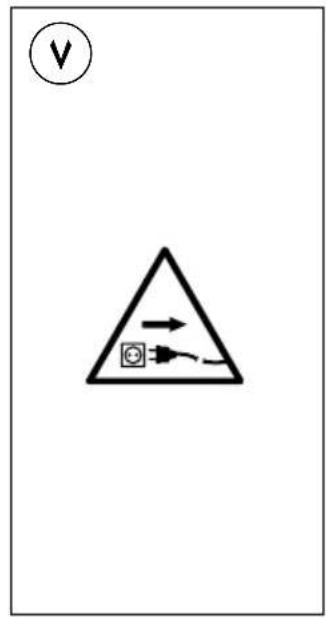

⑦ Immediately disconnect the plug if the (extension) cord is damaged or cut through while working
Double insulation (no earth wire required) WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
- If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended
- Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug

USE

Cutting guard 10

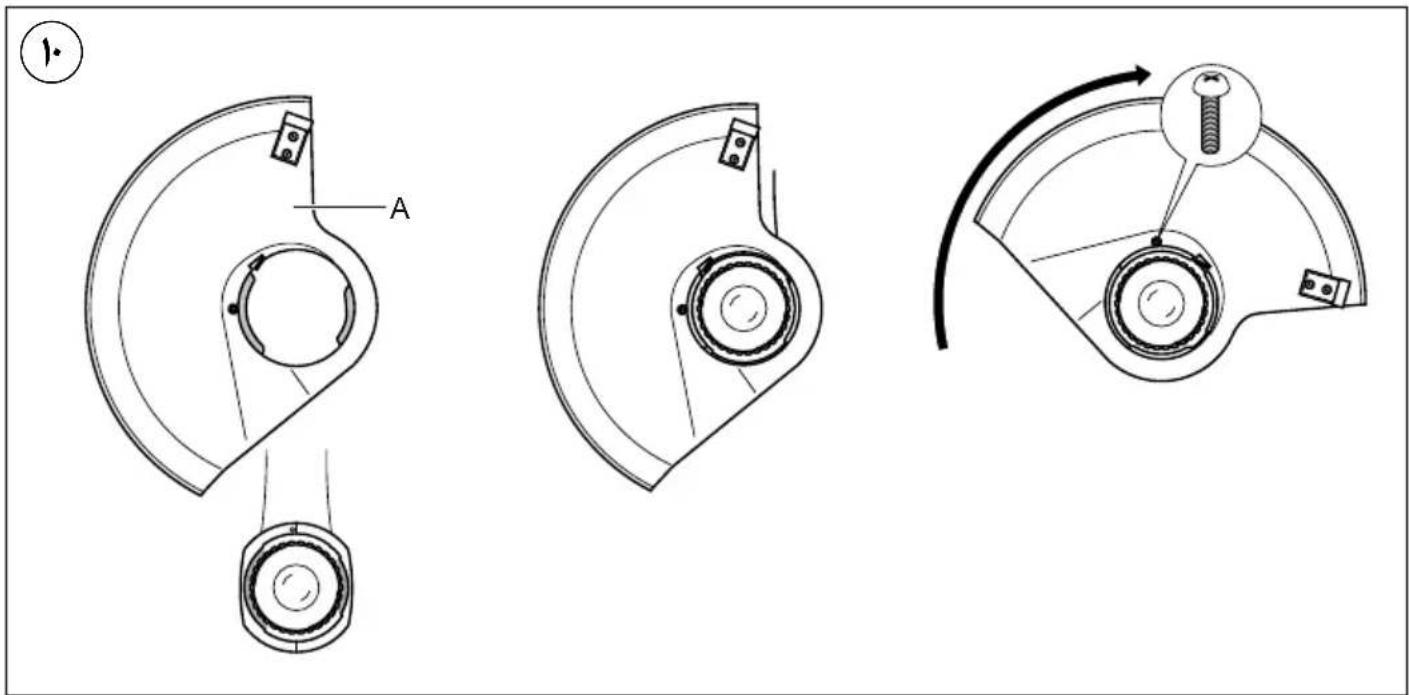

• mount cutting guard A as illustrated with round head screw supplied

! never use the tool without cutting guard A

• Cord restraint (1)

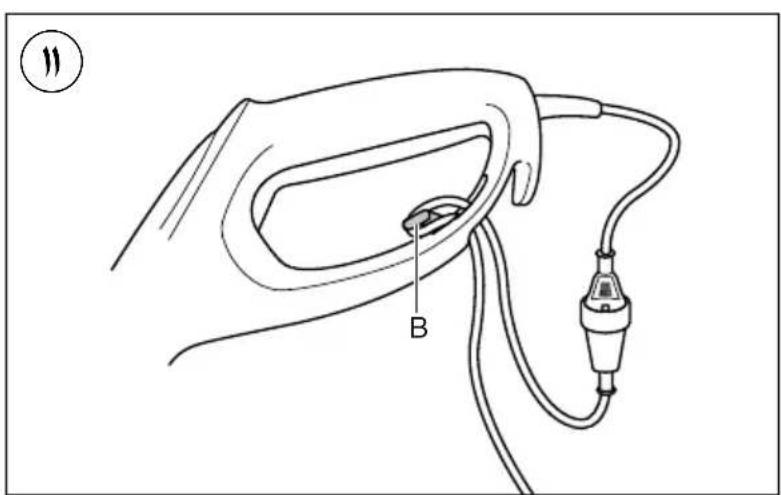

• hook the loop in the extension cord over restraint B as illustrated

• pull tight to secure the extension cord

On/off 12

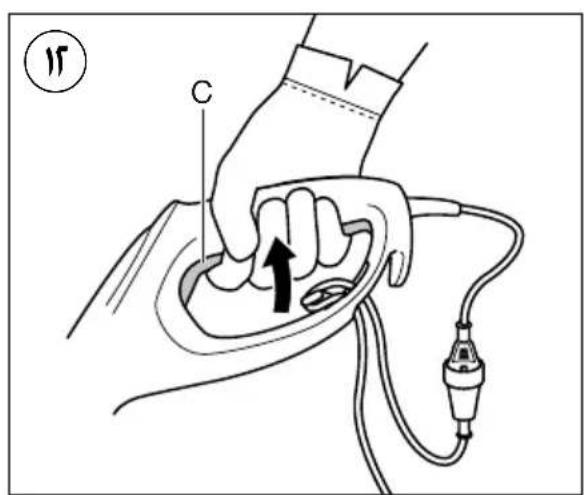

• switch on tool by pressing trigger switch C
• switch off tool by releasing trigger switch C

! after switching off the tool the cutting lines continue to rotate for a few seconds
- allow the cutting lines to stop rotating before switching on again

! do not rapidly switch on and off

• Trimming

! ensure that the red cover D ② is removed from the line cutting blade before using the tool
! ensure that the cutting area is free of stones, debris and other foreign objects

! start trimming only when tool runs at full speed
- start trimming near the mains socket and move away while working
- cut long grass in layers (always start from the top)
- only trim with the tip of the cutting line
- do not cut damp or wet grass
- prevent the cut grass from clogging the spool (do not make heavy cuts)
- do not overload the tool
- carefully cut around trees and bushes, so that they do not come into contact with the cutting lines
- keep the tool away from solid objects in order to protect the cutting lines against excessive wear
- be aware of the kickback forces that occur when solid objects are touched

• Holding and guiding the tool 13

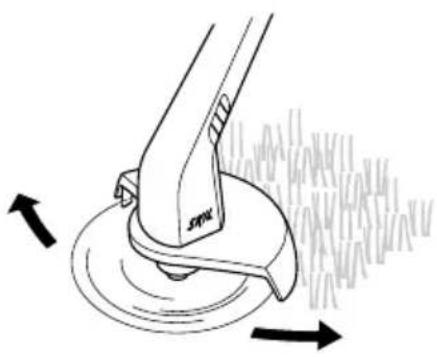

• for cutting long grass slowly swing the tool from right to left and vice versa

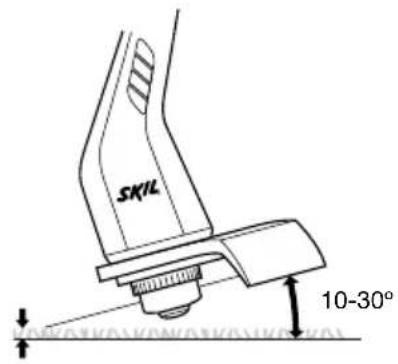

• for cutting shorter grass tilt the tool as illustrated

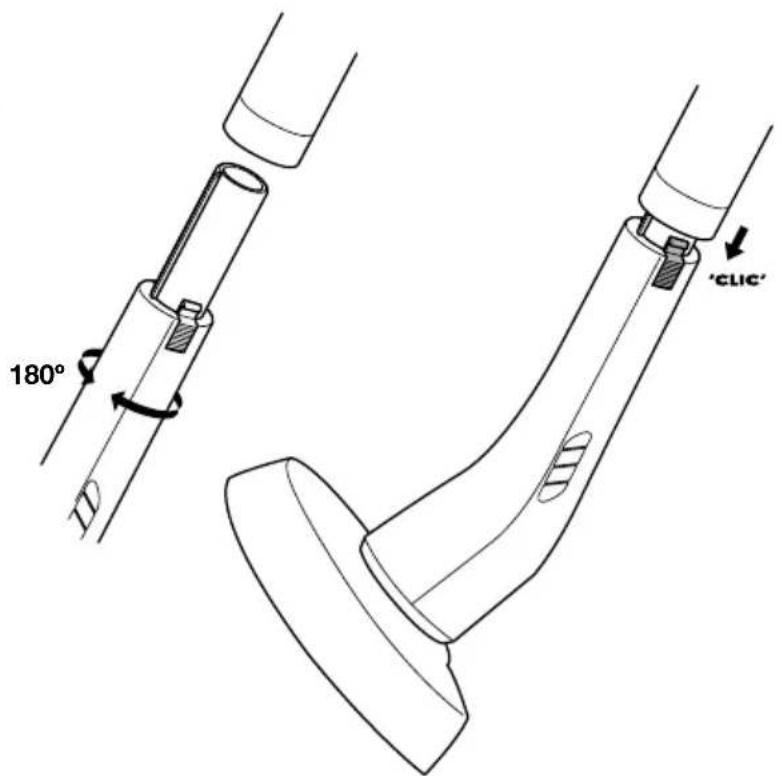

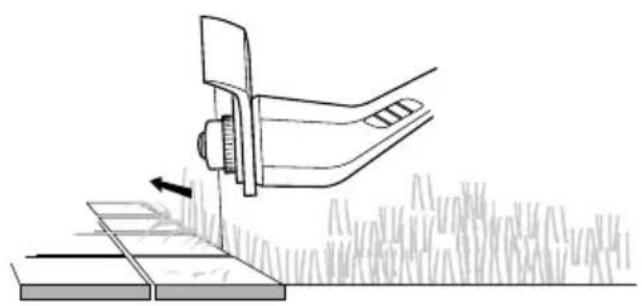

• for trimming edges turn the cutting head 180^ as illustrated
• hold tool firmly with both hands, so you will have full control of the tool at all times
• maintain a stable working position
• always hold the tool well away from your body

Line feeding 14

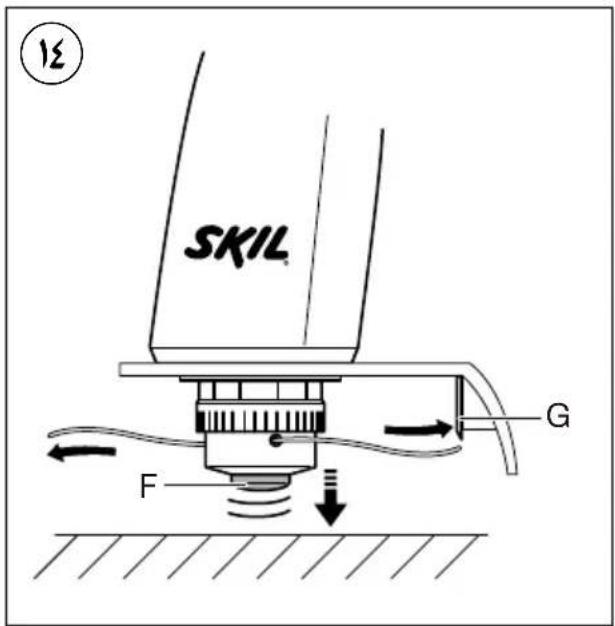

• tap button F lightly on the ground (preferably on a solid surface) while the motor is running
• two cutting lines will be released and cut off to the correct length by line cutting blade G

! ensure that the red cover D ② is removed from the line cutting blade before using the tool

! take care against injury from line cutting blade G
- after line feeding always return the tool to its normal operating position before switching on
- feed the lines regularly to maintain full cutting circle
- when the motor runs without load and no grass is cut, the cutting lines are worn or broken; rewind the spool or replace the spool system

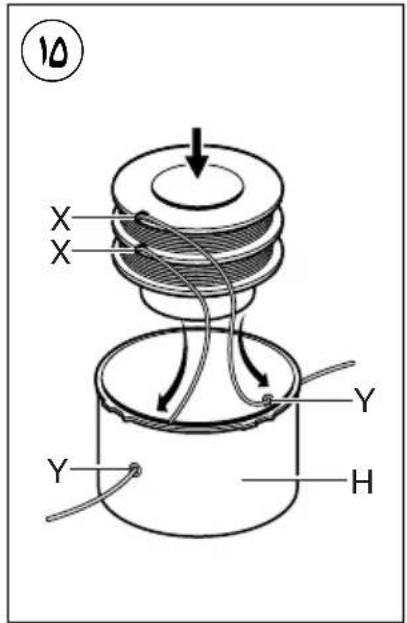

• Rewinding spool 15

In case the cutting lines fail to protrude from spool cap H

! switch off the tool and disconnect the plug
- remove spool system from tool and take out spool from spool cap H
- tightly rewind both cutting lines evenly in layers in arrow direction
- insert both lines into spool slots X and ensure that they are securely in place (leave sufficient length of line)
- thread both lines through spool holes Y before placing the rewound spool into spool cap H

! ensure that the spool is located securely in place, then release both lines from slots X by pulling them firmly

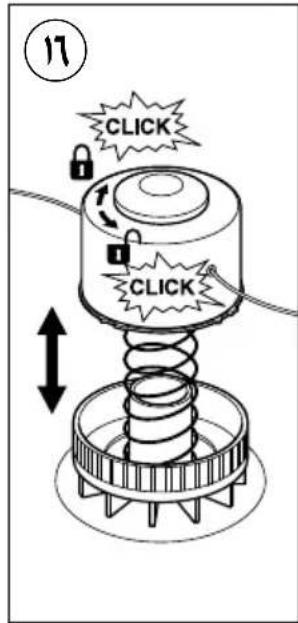

- mount spool system onto tool (turn spool clockwise until it clicks into place) 16

• Replacing spool system 16

! switch off the tool and disconnect the plug
- simply remove/mount old/new spool system as illustrated
- only use SKIL spool system 2610Z01354 with this tool (damage due to using other spool systems will be excluded from the warranty)
- after replacing the spool system test-run the tool for at least one minute without load to ensure that the tool is operating properly

! be sure tool is switched off when plugging in

MAINTENANCE / SERVICE

• This tool is not intended for professional use
• Always disconnect plug from power source before cleaning and/or maintenance

• Always keep tool and cord clean (especially the ventilation slots)

• clean the tool with a damp cloth (do not use cleaning agents or solvents)

• clean line cutting blade G ② and cutting guard A after each use

• clean ventilation slots J ② regularly with a brush or compressed air

• Regularly check the condition of the cutting head and the tightness of nuts, bolts and screws

• Regularly check for worn or damaged components and have them repaired/replaced when necessary

Storage

• store the tool indoors in a dry and locked-up place, out of reach of children

• securely mount storage rail K on the wall with 4 screws (not supplied) and horizontally leveled

• If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

• send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

TROUBLESHOOTING

• The following listing shows problem symptoms, possible causes and corrective actions (if these do not identify and correct the problem, contact your dealer or service station)

! switch off the tool and disconnect the plug before investigating the problem

Tool does not operate

• power supply socket faulty -> use another socket
• extension cord damaged -> replace extension cord

Tool operates intermittently

• internal wiring defective -> contact dealer/service station
• on/off switch defective -> contact dealer/service station

Tool vibrates abnormally
- grass too high -> cut in stages

Tool does not cut
- line too short/broken off -> feed the line manually

Line cannot be fed

• spool empty -> replace spool
• line entangled inside spool -> inspect spool; rewind if necessary

Line is not cut off to correct length -> remove cover from cutting blade
Line keeps breaking

• line entangled inside spool -> inspect spool; rewind if necessary
• trimmer incorrectly used -> only trim with the tip of the line; avoid stones, walles and other hard objects; feed the line regularly

ENVIRONMENT

• Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

• in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

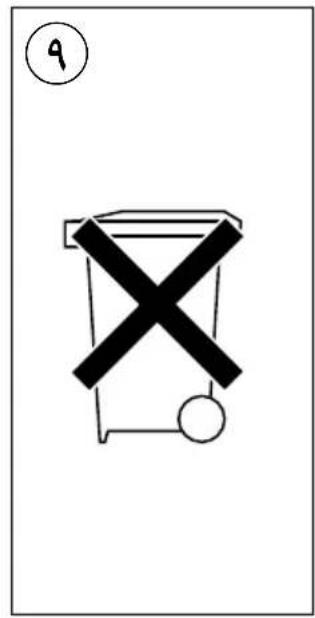

• symbol ⑨ will remind you of this when the need for disposing occurs

DECLARATION OF CONFORMITY

• We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents: EN 60335, EN 61000, EN 55014 in accordance with the provisions of the directives 2006/95/EC, 2004/108/EC, 2006/42/EC, 2000/14/EC, 2011/65/EU
• Technical file at: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

25.07.2012

C€11

NOISE/VIBRATION

• Measured in accordance with EN 60335 the sound pressure level of this tool is 70dB(A) and the sound power level 90dB(A) (standard deviation: 3dB ), and the vibration < 2.5m/s^2 (hand-arm method; uncertainty K = 1.5m/s^2 )
• Measured in accordance with 2000/14/EC (EN/ISO 3744) the guaranteed sound power level LWA is lower than 93 dB(A) (conformity assessment procedure according to Annex VI)
• Notified body: KEMA, Arnhem, NL
• Notified body identification number: 0344

• The vibration emission level has been measured in accordance with a standardised test given in EN 60335; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level
  ! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

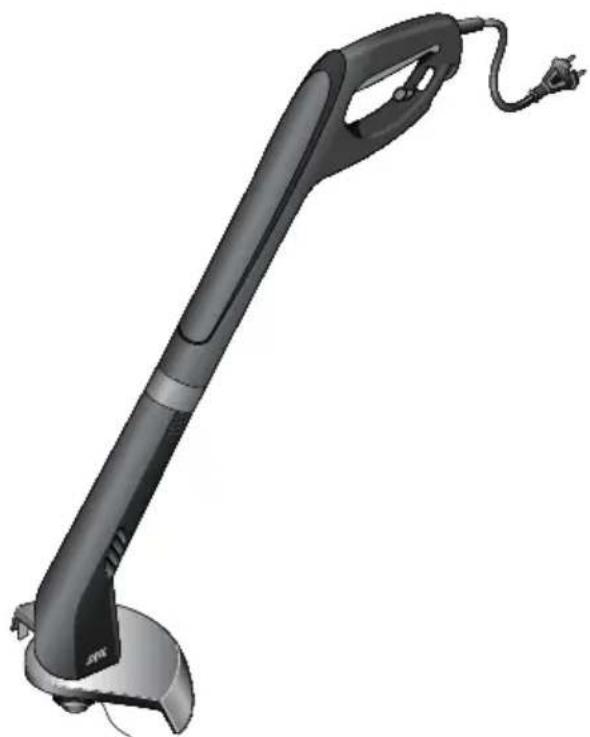

Coupe-bordures 0735

INTRODUCTION

DECLARATION DE CONFORMITE (C)

• gras is te lang -> maai in fasen

★ Machine maait nicht

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

25.07.2012

LJUD/VIBRATION

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

25.07.2012

STØJ/VIBRATION

VEDLIKEHOLD / SERVICE

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

25.07.2012

€11

STOY/VIBRASJON

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

25.07.2012

C€11

MELU/TARINA

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

25.07.2012

c€11

RUIDO/VIBRAÇÖES

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

25.07.2012

C€11

ZAJ/REZGÉS

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

25.07.2012

C€11

HLUCNOSTI/VIBRACI

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

25.07.2012

C€11

GÜRULTÜ/TITRESIM

• Olculen EN 60335 gore ses basinci bu makinanin seviyesi 70 dB(A) ve calisma sirasindaki gurultu 90 dB(A) (standart sapma: 3 dB), ve titresim < 2,5m / s^2 (el-kol metodu; tolerans K = 1,5m / s^2
  2000/14/EC (EN/ISO 3744) standardina gore olçulen givenceli ses gucu duzeyi LWA 93 dB(A) degerinden daha duşuktür (Ek VI' ya gore uygunluk degerlendirme prosedürü)

Onaylayan kurulus: KEMA, Arnhem, NL

Onaylayan kurulusun sicil numarasi: 0344

TEXHnueCHe DAHHbIE ①

DETAJIHCHTPYMEHTA ②

A OrpaHnUHTeJIb XoJa
BOrpaHnHTeJIb shHypa
C HypKOBbI IpeKeHIOUOaTeIb
D 3aunTHaKpbIkaIpeKyuJeroJe3Bn
E KhoNka de6NoHpoBn
F KhoNka dIa nope3aHn npi nOmoUJ leckn
G Pekyüee ne3Bne leckn
H Kollnauok KaTyuShn
J BeHTnJIaIIOHHbIe OTBepCTnIa
K POnBecka Iy XpaHeHnB (BNHTbI B HOMNJIeKT NOCTABHn HE BXOJrT)
LΦHKcnpyiouaa cko6a

B630NACHOCTb

HNCHTPYKUNI NO TEXHNKE 6E3OJACHOCTN IPIP PABOTE C PYHbIMN FA3OHOOCHNJHAMN C JIECHOI

OBUEE

O3HaKoMbTeCb COcpeCTBaMn ynpaBHeHn IoprHOM pa60TbI C INHCTpyMeHTOM
3a HechacThbIe cIyauI cIIOdbMn IIN NOBpeKdEHeNIX MyuEcTba, a TaKHe yrpo3y dIra Hx OTBeueaET OJIb3OBaTeIb
- IcnoIb3yIte HNCTpyMeHT TOJIbKO npn TeMpepaType BHeUHei Cpebl O 0do 40^
HnB Koem Cnyae He yctHaBnBaIte Ha daHHbI nHCTpyMeHT metaJIInueckne peKyuune 3JeMeHTbl

JIINHARBE3ONACHOCTb

3TOT INHCTpymENT He DoJIHeH HcNoJIb3OBAtbcra IInIaMn (BKNIOUaJdeTei) C OrpaHnueHHbIMN FIn3NueeCKHM, CeHCOPHbIMN HIn YmCTBeHHbIMN CNOCo6HOCTaMn, HIn IInIaMn, He HMeIOUzMM DOCTaTOUHORO ONbITa N 3HaHn, 3a NcHIOUoyehnem ClyuAeB, KOrda OHn pa60TaOT NOd HaD3OpOM HIn npOnHCTpyHTnpOBaHbIB BONPocax HcNOJIb3OBAHnH INHCTpymEtA JInIcOM, OTBeTCTBeHHbIM 3a Hx 6e3OnaCHOctb
- y6eHtEcB, yTo DeTn He HMeIOT BO3MOHHOCTN HrpaTbCn HHCTpyMentOM
- HNKoIgda He donyuchaiTe K pa6oTe C yctpoiCTBOM deTeNJIJIIODei, He O3HaKOMJIeHHbIX C INHCTpyKcnei NO 3KcPnlyaTaUIN
He npnhaTecb naIbcaAMN K peHcyemy Ie3BIO lecH, BCTaBLeHHOMy B ORpaHnHTeJb XOda
-ДеркнTe pyknи HOrn Ha 6e3oNaChOM paCCToHnO TpeKyuInx IecOK BO BpempaBoTbIC INHCTpyMeHTOM,OCo6eHHo BO BpemnepeKluOyHeHn INHCTpyMeHTa
BoBpempa60tbicHCTpymEHTOMNCIOb3yIte 3aunTHbIEOCHN，OeBaIteDINHHbIeTahbl，py6aKHy HaDNHHbI pyKaB INPOChyIO O6yBb
Hateropueeckn 3anpeeHO nCNoB3OBaTb HNCTpyMeHT B HENOCpeCDtBeHHo 6JIIN3OCTn OT JIODei (OCO6eHHo DeTei) INIBOTHBIX
- He pa6oTaIe c nHCTpyMeHTOM, ecIn yCTaII, IIOxo ce6y CyBCTByTe HnI npHHMaII aIKOROJIb I leKapCTBeHHbIe CpeIcTBA

3JIeHTPueECHAR 8E30NACHOCTb

• 063aTeIbHo y6eIITecb, qTo HapJxHeHne NHTAHncooTBeTCTBye THaPjaKeHIO, yKa3aHHOMy HaΦnpMeHHOM wTempeJe 3apJHO rYcTpoiCTBa(3apJHOble ycTPOiCtbl, paccHTaHHbIe Ha HapJxHeHne230B nII 240 B, moKHO noKnIOuATb K NHTAHIO 220 B)
• IepnoDnueckn OcmatpnaBaiTe uHyp n Heo6xOaHMo, YTO6bI KBAJIINΦuNtPOBaHbI CneuaJIACT 3aMeHIn CeTeBOI WHyP B Clyuae NOBpeKDeHn
• PernoDnueckn OcmatpnuBaTe ydInHnteBbHbI uHyp n 3ameHnTe erO B clyuae NOBpeKdEHH (NcNoJIb3OBaHne HecOoTBeTcTByUOnx ydInHnteBbHbIX uHypOB He6e3OnacHo)
  IcnoJb3yIte ToJIbKO ydInHHTeJIbHbIe UHypbl, npedHa3HaueHHbIe IaBHeUHX pa60T n Cha6KeHHbIe BOO3aUHTbIMN uTeNCelhBIMn PO3eTHaMn

IcnoJIb3yIte NOIHOCTbIO pa3MOtaHHbIe I6e3OnaChbIe ydINHHTeIN, pacCHNTaHHbIe Ha TOK He MeHee 16 A
- Pn pa6oTe BO BLnAHHbIX YCNOBnHX NcNoJIb3yIte yCTPOINCTBO 3aunTHO OTHIOueHnY (Y30) c MaKcMaJIbHbIM IyCKOBbIM TOKOM 30 mA
He hactynaHTe Ha (yDInHHTeIbHbI) uHyp, He HadaBnBaHTe Ha Hero n He TAHNTe erO
3aunuataTe (yDInHnTeIbHbI) UHypOT NCTOCHKOBTenla,MacnaNOCtpbIX KpaEB
He donyucnTe nonadHna(ydHnHntelbHoro) Hhypa noB bpaauounepejxue neckn
B clyuae pa3pe3aHn, noBpeJdeHn nn 3anyTbBaHn CnIOBOrO uN yDInHHTeJIbHO rHypa, BbIKIouHTe INCTpyMeNT u BbITAHnTE BnIHcy C p03eTKn (He KacaTeCb Whypa, nOKA BnHa BcTaBJeHa B po3eTKy)

He OTBLeKaITeCb n BCeRda cIeJTe 3a CBOe pa60Toi

Bcerda BbITIaBaIte BNky n3 ceTeBOPOsTKn, -ecnOCTaBJIeTe HNCTpyMeHT 6e3 npcMoTpa

• napeTem, KaYy6npaTb 3acTpBwne npedMeTbi
  -пегд TeM, Кан OсмаТрИВаТь, OчицаТь ИСтчмЕNT ИЛ ПЮВОДИТь с ИМ ДPyгVE onepaцIN
• B C Lyuae Ionoa DaHnHa NoCTOpOHnI PpeMet
  -ecnHnCTpyMeHT HaunHaet OueHb CnIbHO Bn6pnpoBaTb

He donyckaIte nonaHaHnO cOKIOKOB BBEHTNJLJIOHHbE OTBepCTN

IPOCJI NCIIOJIb3OBAHIN

Bcerda oTKIIOUaHTe HNCTpymENT N BbIHMaHTe BnIKy Cpo3eTHN nepeT Te, KaH NaCTpaNBaTb NIN YNCTNTb INCTpymENT N 3aMeHrTb KaTyuHN; HN B KOEM clyuae He OCTabJIaHTe HNCTpymENT 6e3 npncMOtpa
XpaHnTe HNCTpymeHT B NOMEueHHB CyxOM, 3aHpaemOM, He DoCTynHom DnI DeTeMecTe

IORCHEHNE K YCJIOBHBIM OBO3HAUEHNRAHAMAIINHE

BHHMaHHe!O3HaKOMbTEcBcHCTpyKuNeI NO 3KcNlnyatau
④ NCHIOHTe BO3MOHHOCTb IOnaHa HA INHCTpyMeHT DOHHJ
⑤ OeBaIte 3aIHTbIe OyKn
6 OcteperaTecb OTLeTaOuX OCHOKOB (OKpyHaIOUne DOJIHHbI HaxoINTcH Ha 6e30NaCHOM pacCTOAHNOT MeCTa y6OpH)
⑦Пи noBpeJdeHn nIpa pa3pe3aHn (yДnHHTeNbHorO) UHypa BO BpeMa pa60TbI HEmeDJIeHHO BbIHbTe BUNKy N3 po3eTKI
⑧ДВонаяИЗOLЯЦА（3a3eMЛAOUПИ npOBOD He Tpe6yeTcA)

ИСПОЛьЗОВАнE

OrpaHnHTeIbXoJa 10

-yCTaHOBHTe ORpaHnHTeJIb XOJa, KaK NOKa3aHo Ha pncyHKe, A npN NOMoU BnHTa C KpyrLoI rIoBkoI, KOtOpBi BXoIIT B KOMnJIeHT

！HKOrda He HcNoIb3yIte HNCTpyMeHT 6e3 orpaHnHTeJIxOJaA

OrpaHnUHTeJIb UHypa 11

• nepeKINbTe KoIbIy yIiHInTeJIbHOrO IHypa Yepe3 orpaHnHTeIb, KaK nokaHaHO Ha pncyHke B
• YTO6bI 3aΦnKcHPOBaTb UHyp, CINbHO NOTAHHTe

BbIIOueHHe/BbIKIOueHHe 12

• BKHIOUHTe HNCTpyMeHT HaKaB KypKOBbI BbIKHIOuTaJIb C
• BbIKIIOUHTe INHCTpyMeHT OTNcyCTNB KypKOBbl BbIKIIOUHaTeJIb C

！ nocIe BbIKIOUeHn HNCTpyMeHTa peHyuNe IeCHNIPOOJHaOT DBrAToB C TeueHH NHeCKoJIbKnX CeKHyD

• NpeTeM, KaK ChOBa BkIIOHaTb INHCTpyMeHT, NOOJNTe, NOKa OCTaHOBraTcpeHuIeJeCKN
  ！ He BHJIouaTe H He BbIHIOuaTe HcTpymeH 6bICTpo

-Подразане

I nepeTeM, KaH nCnoJIb3ObaTb HNCTpyMeHT, CHHMnte KpaChyIO KpbIshky D ② c peKyuJero Je3BnA JecHN
! y6epnte c rata0Ha KaMHN, o6IOMHN n dpyrne noctopOHnne npedMetbl
！HaunhaTe NOpe3aTb TOIbHO TOrda,Horda HnCTpyMeHT Ha6epET NoHHyO ChOpocTb
- NaHnHaIe NoOp3aHne BO3Je CeTeBOJ PO3EtHN, a NOTOM DnRgAInTEcB DaJIbWe
- cpeaTe BbICOkyo TpaBy CIOaMn (BcERdaHaunHaTe CBepxy)
- noJpe3aTe ToIbKO npn NOMOUs pEHyUeN KpOMKn leckn
-He cpeaIe BnaJHHyIO HIN MOKpyIO TpaBy
- cIeInte, YTO6bI Cpe3aHHa TpaBa He 3a6bIbAla KaTyUkY (He cpe3aTe MHOr 3a pa3)
- He neperpjuKaIte HnCTpyMeHT
-6yDbTeOCTOpOHHbI pRn IIOpe3aHm BOKpyr DepeBbeB HIN KcTob, YTO6bIK Hm He npHKacAINCb peKyuIeJIeKn

• BO IN36eJxHHe Ype3MepHOrO IN3HocapeKyuixNleCOK, He DOnyckaIte Hx KOHTaKTA C TBepDbIMNppeMetamn

• NOMHITe 06OTdaue B CJIyuae PnIKOCHOBENK TBepdbIM npedMeTaM

• YdepknBaHne n HappaJIeHne INHCTpyMeHTa 13

• cpe3aBbICOKyIO TpaBy, CJIerHa HauKIoHЯTe INHCTpyMeHT BnPaBO-BIeBO I B dpyROM HappaBHeHH
  -ДЯ NOДрзань 6Олee KopoTHOH TpaBbI HaKIOHHTe INHCTpyMeHT, KaK NOKa3aHo Hа рсунke

• npn nope3aHn no Kpaam nobepHnte peHyuTo roJOBky Ha 180^ ,kak noka3aHo ha pncyHke
  -DepHHTe HhctpyMeHT HaedEHHo DByMa pyKaMn, YTObI HmTeB NOCTOHHbI N NOHbIKOHtPoJIb
• npn pa6oTe 3aIMnte yCTOuHBOe NOIOXHeHne

• Bcerda DepeKHTe HhctpymeHrOT Ce68

• Poipe3aHne npn NOMOuJIeCOK 14

• npn pa6ooyem DBrIaTeJIe HecINbHO HaKMITE KhoNky F TO BpEm, KaH NcHTpyMeHT HaxOДNTca Ha 3eMJIe (KeIaTeJIbHO Ha TBepDoI NOBepxHOCTn)
  -6ydyT OTnyeHbI DBe peJyue ne IeCKn n OTe3aHbI npn NOMOupeJyuero Je3Bna Ha Tpe6yeMyo DInHy G
  I nepeTEm, KaH nCNoJIb3OBA Tb HNCTpyMeHT, CHMnTe KpaChyIO KpbIshky D ② c peKHyIeToJNe3BnJ NeCHN
  ! 6yIbTe BHNMaTeIbHbI, yTO6bl He TpaBMnPoBaTbcra OT peKyuero Je3Bna JeCkn G

• NOCNE OTpe3aHnI npn NOMOuJI leCKN IpeKJIIOHTe HNCTpyMeHT B O6bUHbI peKIM pa6oTbI IpeEi TEM, KaK BKNIOUaTb erO
• perylaepHO HamaTbBaIe IeCKN, YTO6bl OBeCneHTb NOHbI peKyuuiu

• npxOIOCTOM xOe DVBraTeIpeKyuIe JecnH3HaUNBaOTcN IIN IOMaOTc; NepemotaTe KaTyuKy HIN 3aMeHITe CNTeMy KaTyuKIn

• NepematbibaHne KaTyuKn 15

B clyuae, ecn peKyuIe IeCKn He BbIXoJr N3 KOJINaUka KAtyShN H

! BbIKJIIOHTe HNCTpyMeHNT NOTCOeHNHTe CeTeBOI shHyp

• BbIbTe CnCTeMy KaTyuHKn H3 NcHcTpymeHTa N BbITAHnTE KaTyuKu H3 KOJIpaUHa H
• paBHomepno NoclonHO n Tyro nepemToaTe DBepeKyuIe IeCKN B HappaBLeHn CtpeJIKN
• BCTaBbTe o6e IeCKn B npope3x X KaTyuHN 3aKpeNITe HX (ocTaBBTe IeCKy IOcTaTOUHOI dInHbI)
• pOToHHTe OBe JIeCHN CHB03b OTBepCTHn, NpePeTEm, KaK HamaTbIBaTB Nx B KOJINaYOK KaTyuHn H

！HaJeHHo 3aHpenHTe HaTyuHy, a 3aTeM BbInyCTHTe 06 Iecn n3 npope3eX, cnIbHo nx NOTAHyB
- yctahOBHTe cnCTeMy KaTyuHN Ha HNCTpyMeHT (NoBepHnTe KaTyuH No YacobOy CTpeJIHe, NOHa OHa CO UeIyHOM He BCTaHET Ha CBOE MecTo) 16

3aMeHa CnCTeMbI KaTyuHKn 16

! BBHJIIOHTe HNCTpyMeHT N OTCOeHNHTe CeTeBOH shHyp
- PnOCTO CHHmnte CTapyU CNTeMy U yCTaHOBnte HOByU, KaN NOKa3aHo Ha pncyHke
- INCNoB3yIe IaI DaHHO rHcTpymeHTa TOnbKo CnCTEmy KaTuHN SKIL 2610Z01354 (noBpeHdeHna

BCJeCTBHe NcNoJIb3OBAHnApyrNxCnCTEm KaTyweH He 6yDyT BnIIOueHbI B rapaHTnIO)

• NOCJIe 3aMeHbI CnCTeMbI KaTyuKIn Onpo6yIte HNCTpymEnT B TeueHnn MInHyTbI 6e3 HaPy3Kn, YTo6bl y6eHTC8r, YTO OH pa60TaET npabuNbHO
  ! y6eIHTecb B TOM, YTO HNCTpyMeH T BblIOueH nepeI NOkHIOUOHeHHem ero K PO3ETke

TEXO6CJYKINBAHNE/CEPBNC

JaHHbI INHCTpyMeHT He IIOxOaNT dIa IpnMbIJIeHHORIOcNOJb3OBAHnA
Ipeed ouhctho HnHn TexHnuechnM 06cnykHBaHHeM 06r3aTeJbHO BbIHMaTe BnIKy n3 ceTeBOi PO3eTHN
Bcerda coepKHTe HNCTpyMeH Iero WHyp B YnCTOTe (oco6eHHO BEHTINLAUHOHHbIe OTBepCTnI)

-ДЯ OУнСТКИ ПИБОРА NOЛьЗУТЕСВ BlaЖНОТTKaHbIO (He npIMeHЯTe paCTBOPHTeJI NII MOrOuIne cpeIcTBA)
- nocne KaKdoRo HcNoJb3OBAHnO OuNuaTe peKyuuee le3Bne IeCKn G ② n orpaHnUHTeJb xOJa A
- perylaepHO OuHaaTe BeHTnJIaIOHHbIe OTBepCTna J ② npn NOMOUs uETKN HIN CKaTOrO BO3dyxa

• Perylaepno npoBepaTe COCTOHNpeKyuEe roJIOBnI CTeneHb 3aTAAKNrAeK,60JTOB IN BHTOB
  PeyIaRHO npOBepaTe DeTaH Na npEaMeT n3HocA nnIOBpeKdEHHN IO TpeMOHTpyte/3aMeHnTe HX,ecnTpe6yeTcR

XpaHHeHne ⑦

• XpaHnTe HnctpyMeHT B NOMEueHHB CyXOM, 3aHnpaemOM, He DOCTyINHom DIAI DeTei MeCTe

• HadeKHO 3aKpeNITe NOdBccky K Ha cTHe npn NOMOUI 4 BnHTOB (HE BXOJrB HOMNJIeKT NOCTABH), BbIPaBHrB INx NO TROP3OHtAIN

• EcIN INHCTpyMeHT, HECMOTpHa TuaTeNbHbIe MeToDbI N3ROTOBJIeHNH I NCbITaHnR, BbIJeT n3 CTPOr, TO peMOHT CLeDyET pOnIHBOJITb CINaAMn aBTOpN3OBAHHoCepBnCHO MaCTepcKoI dJa 3JIeKTpOHCTpyMeHTOB FInpMbI SKIL

OTnpaBtHe Hepa3o6paHHbI INHCTpyMeHT CO CBnTeJIbCTBOM NOKyInBaWemy DnIepy nIN B 6nJaMHyIO CTaHcNIO O6CnyHNBaHnIΦnPMbl SKIL (adpeca n Cxema o6CnyHNBaHnI INHCTpyMeHTa npNBedeHb I Be6caIte www.skil.com)

YCTPAHEHNE HENCPABHOCTEIN

HnHe npBedeH nepeYeH HeNCnpaBHOCTe, HX BO3MOxHHbIX pRnH IN KOppeKTHpyUOxN DeIcTBNI (ecJI npH NOMOuH Ye ydaETcA NCpABHT npo6Lemy, 6bpaTITcB K DInlepy IIN B cepBCHbI cHTp)

！nepeqNONCHOM HEnCnpaBHOCTN BbIKHIOHTe HnHCTpyMeHT N OTCOeHNHTe BNkHy

★Интур金融机构 He pa6oTaE

• NOBpeKdEHNpeo3eTKN NHTaHnA->HCNoJIb3yIteDpyrIyO p03eTKy
• NOBpeKdEn ydInHNTeJIbHbI uHyp -> 3aMeHNTe ydInHNTeJIbHbI uHyp

★ INCHTpymeNT OTHIOUaTcpeNIOUueckn

• NOBpeKdHa BHyTpEHHa npoBoJHa -> o6paTntecb K DnIepy nII B cepBnCbI ueHtp
• NOBpeHdEN BbIbIIOuHaTeJIb NITaHnIy -> o6paTHTecb K DInJlepy INN B CepBnCHbI ueHTp

★ INHCTpyMeHT CINbHO Bn6pnpyET
- OyeHb BbICOKa TpaBa -> Cpe3aHTe N0TaIHO
★Интугемпт He peжет
- JIeCHA CIIHJOM KOpOTHa/06OpBaHa -> BBITAHNTeJIeCKy BpyHyIO
He ydaetcBbITaHytIecky
- KaTyuHa KaYcTa -> 3aMeHInTe KaTyuKy
- lecha 3anytaIacb B KaTyUHe-> OCMOTpnte KaTyUHy; npn nOtpe6HocTn nepemOtaiTe IecHy
★ JIeKa He OTepe3aETcHa Tpe6yEmyIO IINHy->CHIMITE KpbIuKy CpeKyuIero IeBnI
★ Jecka HEOdHOKpaTHO 06pbBaetcra
- JecKa 3anyTaNacB KaTyUWe->OCMOTpuTe KaTyUKy; PnI NOTpe6HocTu NepemOtAte Jiecky
- HenpaBnIbHoe HcNoJIb3ObaHne Ra3OHOKoNk -> NOpe3aTe TOJIbHO pRn NOMOupeKyuEe KpOMKn; n36eraTe KaMHei, CTEn IpyrTx TBepDbix npEdMeTOB; peryIraPHO HaMaTbIbAaTe Jecky

OXPAHA OKPYKAIOJIEN CPEbl

He BbHnDbBaIte 3JIeHTpOHcTpymENT, npHaJLeJHKHOCTN uYnaHOBky BmecTe C 6bITOBbIM mycopom (ToIbKO dIra cTpaH EC)

• BO hCNoIHeHHe eBpOeNcKoДnpeKTHBbI 2002/96/ EC o6 yTnIn3aun OTCnyHNBwero CBOi cpoK 3JIeKtpnueckoro n 3JIeKTPoHHOrO 6OpyIDOBAHn I B COOTBeTCTBnC DeIcTBYIOUIM 3aKOHOdaTeJIbCTBOM, yTnIN3aUra 3JIeKTPoHHCTpyMeHTOB pOnH3BOJNTCR OTdJIbHO OT dpynx OTxODOB Ha npEaIPnRAITRX, COOTBeTCTByIOuNX yCIOBnM 3KoJIoTNuecko 6e3OJaCHOCtN
  -3HaOH ⑨ HANOMHNT Bam 06 3TOM, KOrJa NORBNTcH Heo6xOaIMOCt b CdaTb 3JIeKTPoHnHCTpyMeHT Ha yTuJIN3aUIO

DEKJIAPAUJIO COOTBETCTBNI CTAHAPTAM C

MbICNOHONOTBETCTBEHHOCbIO3aABJREM，YTO30N3dJIHe COOTBETCTByET CLEyUOuIM CTaHApTAM NINCTaHdaPTn3OBaHHbIM DOKymeHTam:EN60335,EN61000,EN55014BCOOTBETCyBnC INHCTpyKunMn2006/95/EC,2004/108/EC,2006/42/EC,2000/14/EC,2011/65/EC
- TexHHueckn DOhymeHTaun y: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL

• BBIMKHiTb iHCTpyMeHT TpHreepHM KypKa- nepemnkaayem C
  BIMMKHiTb IHCTpyMeHT BiIDNyCTNBUN KypKa- nepemnkaa C

！nicraBIMnHaHHiHCTpyMeHTaPi3aIbHI HINHINpOoOBHyIOb pyXaTHc HiNbHa ceHyHd

• NpeT TMM, RAH 3HOBY BMNKaTH IHCTpyMeHT, NOeKaIte, DOKN 3yINHrTBcR pi3aJIbHi HNIK
  ！ He BMnKaIe Ta He BmHaIe IHcTpymeHT WbNDKO

PiDiPi3aHHa

I nepeTtM, H BnHOpNCTOByBaTH iHCTpyMeHT, 3HIMITb YepBOHy KpNshy D 2 3 piaaIbHoro Je3a HINJKN
！ npn6epitb 3 ra30Hy hameHi, yIamKn iHwi cTOpOHHi npedmetn
! nouHaTe nipi3aTH Tlbk ToDi, HoJI nHcTpymeHT Ha6epe nobHy wBnDhictb
- NOUHaIte Niip3aTu 6JIa MEpeKeBOi po3eKn, a NOTIM pyxainTeCb dani
- 3pi3yIe BnCOHy TpaBy IapamN (3aBKnIOuHaIte 3Bepxy)
- πiπpi3aTe TiIbKn 3a dOnomorOIO pi3aJIbHOI KpaIKHKNK
- He 3pi3yIte BOIogy a6o MOkpy TpaBy
- cTeKTe, 3p3aHa TpaBa He 3a6nBala HoTyuKy (He 3pi3yIte 6araTo 3a pa3)
-He napeBaHTaKyIe IInCTpyMeNT
-6ydbTe o6eepKHi, niipiaouH haBkoI depEa60 Kyuib, uo do Hnx He doTopkainc pi3aJIbHi Jnnkn
- yHnKHyTn HaMpHoro 3HOyBaHHpi3aIbHx HIOK, He OJnyckaIte IX KOHTaKTy 3 TBepdIMN npEeMetamn
- nam'raTne npo BiIaBaHHy pa3i TOpKaHHy TBepnX npedmetIB

• YtpmByaHH i pObTa iHCTpyMeHTOM 13

-3pi3yIOH BnCOHy TpaBy, 3JIeKa HaxIIaIte IHCTpyMeHT BnpaBO-BLIBO Ta B IINOMy HAnpMky
-ДЯпдірізанніКорOTwoIТрави HaxNiITb IHCTpyMeHT,ЯКПOKa3aHoHa pncyHky
-πiπi3aOuHn KpaH, NOBepHITb pi3aJIbHy rOIOBky Ha 180°, JHKoKa3aHOHa pncyHky
-ТримаиTe IHCTpyMeHTДВOMa pyKaMn, TaHIM YINHOM Bn 6yIeTe MaTn NOBnKoHTpoJIb HaNi IHCTpyMeHTOM BECb Yac
- πί ἀν ποβότη 3añmɪt b ctiŋke πολοχēnHa
-3aBKnTpMaIteiHCTpyMeHT BiD ce6e

Piipi3aHHa 3a DonomoroIO HINIOK 14

• npnpo6oohmy DbnuHHeNCuIbHo HaTncHiB KhoNky F, y Toi Yac, kIHCtpymeHT NoCTaBJeHO Ha 3emNo (6aHaHO Ha TBepdy NOBepxHIO)
  -6yde BiDnyeHo Dbi pi3aIbHi HnnHn i BiDpi3aHO 3a DonomoroIO p3aIbHOro Ie3a G Ha Notpi6Hy DOBHHy

I nepeTHM,HN BHKOpNCTOByBaTH IHCTpyMeHT, 3HIMITb YepBOHy KpUshy D ② 3 pi3aIbHoroJe3a HJKN

! 6ydbTe yBaHHi, uo6 He TpaBMByaTHcB iD pi3aIbHorO Je3a HnHn G
BIDpi3aBUN 3a DOJONOMOIO JINHIN,NEPEMKHItB IHCTpyMeHT y 3BNUaHNI peKIMpo6OTnpePeT TUM, RIKBKNIOUaTHNIO
- peryraHnHaMoTyHeJHKn, 063a6e3neHTN NOBHH piaIbHn cKJI
- npxOIOCTOMy xoDi DBNrhya piaIbHI KINIKN 3HOswIOTbcra a6o IamaIOTbcra; nepemotaTe KOtykky a6o 3amHITb KOtykOBv CNTEmy

• NepemOTyBaHHa KOTyUHN 15
  Y pa3i, kHIO p3aJIbHI HINIKH He BHXOJr b i3 KOBnaKaKOTyUKN H
  ! BMMHITb IHCTpyMeHT I BNTARHITb BNJHy 3 po3eTHN
• BnIMtB KOTyshKOBy CNTeMy 3 iHCTpyMeHTa N BnTARHITb KOTyshky 3 KObnaqka H
  -piBHomipHo noIupoBO My Tyro nepemotaTe Dbi pi3aJIbHi JnJIKy HnpanMky cTpiKu
• BCTaBTe 06nDbI HnnHn y npop3N X HoTyuHN, 3aKpinItb Ix (3aJIuTte HnnKy DoCTaTHboI DOBKnHn)
• npotrHiTb 6nDbI HnnKn Kpi3b OTbOpn Y nepe Tm, RkHAMOTyBaTn ix y KOBnaOH KOTyHn H
  ！HaHIO 3aHpinITb HOTyUHy, a NOTIM BnNyctITb HJNKN 3 npop3iB X, cnJIbHO ix NOTARHyBwH
  -yctahOBiTB KOTyshKOBy CnCTemy Ha IHCTpymeHT (noBepHtB KOTyshKOby CnCTemy 3a rOdnHHNHOBO CTpiJIHO,doKN BOHa i3 KlaaunHm He BcTaHe Ha CBOE Micce) 16

3aMIHOBaHHKOTyUkoBOI CNTEMI 16

! BMMHITb IHCTpyMeHT I BNTARHIb BNILHy 3 po3eTHN
- npocTo 3HIMITb CTapy CNCTemy yCTaHOBITb HOBy, RA KOHa3aHO Ha pncyHKy
- BHKOPNCTOByTe IJRA ΒbIOro IHCTpyMeHTa TIlbKN KOTyKOBy CnCTeMy SKIL 2610Z01354 (NoHKOJIeHHBhAcIIOk BHKOpNCTAHH CTOpOHIX KOTySHOBHX CnCTeM He 6yde BBaHaTncb rapaHTiHMM BnPaIkom)
-3aMHNBUNKOTUKNKOBYCNCTemy，BNPpOByTe iHCTpyMeHTnpOTAROMODHIEiXBUNHH6e3

HabaHTaKeHH, 06 nepeKoHaTnCra, 00 BiN npaioe npaBnIbHo

！nepekoHaTeCbB，TOMyIIOIHCTpyMeHTBMHHeHO, nepeaTNM RAH NIDKHOUHTN HOROdo po3ETH

OGRJIAD/O6CJyROBYAHHRA

LcEiHCTpymeHT He npHaTHn IJr npOMscIbOBOB BIKOPNCtAHH
Ipeed ouHnueHHm i/a6o texhuiHm 06cnyroByaHHM 06OB'ra3HOBO BnMaHTe BNHy 3 MepeKHOi po3eTHN
3aBKnTpImaTe iHcTpymeHT Ta NOro UHyp y UHCTOTi (ocO6JIbBO BEHTnlauiHi OTbOpN)

• ONUyTe IHCTpyMeHT BONORO ToKaHINHO (3aCTOCOByBaTH MmHi 3acO6n a6o po3HHNK 3a6OpOHeHo)

• nicra KOHHoro BHKOpNCTaHHaOne piaaTe piaalbHeJe3o HnIKNG ② N o6MeHyBaX xOy A
  -perynphO ouuYte BeHTnlauiHi OTbOpn J ② 3a donomoroo uTKn a6o CTncHeHOro nobitpr

• Perylaepno nepebipraTe cTah piaalbooi roIobn i ctynih 3aTarybaHHraNOK,6oTtIBirBnHTiB

• Perylaepno nepebipnTe deTani ha npedmet 3HOuBaHHa 6o noKdoKeHH i BiDpemOHrTe/ 3amHt bix y pa3i nOTpe6n
  36epirahnHa ⑦

-36epiratniHCTpymEnT y npmiueHHI B cyxomy, He DOCTynHOMy dIra diTei Micci
HaIiHo 3aKpinitb niBicHy K ha ctiHi 3a donomoroio 4 rHntiB (He BXoAHTb y HOMNJIeKT NOCTaUHHA), BnipHBw nix no ropnzOHtani

• RaKsO He3BaKaioH Na peTeIbHy TexHOlorIO BnroTOBHeHH i nepeBipKn IHCTpyMeHT BCE-TaKN Bnnde 3JaNy, Ioro pemOnT Do3BOJcTBcR BnKOHyBaTH JInue B abTopn3ObaHi cepBicHi MaNCTepHi dIeJeKtponpnaIaIB SKIL
• HadiiItb Hepo3i6paHn iHCTpyMeHT pa30m 3 doKa3om KynibI do BaWoro dInlepa a6o do Na6blNcHOrO ceHTpy o6cLyroByBaHHa SKIL (adpecn, a TaKoJ DiarpaMa o6cLyroByBaHHa npNCtpoU, noaIoTbcra Ha caTI www.skil.com)

UCYHEHHH HENOLADOK

HnKHe HabeEHO nepelik HecnpaBHOCTe,IX MOHNBx npuHH i KopeKTbHnx dIi (RkuO 3a ix DonOMoTOBnPiHTn npo6lemy He Bdaetbcra,3BepHiTbcra do DnIepa a6o y cepBicnH n eHTp)

！nepeTUMRAKUyKaTHHeCnpaBHiCTb，BMMHITb IHcTpymeHTIBTARHITb BNky

★IHCtpymeHT He npaioe

• NOKOJKeHH po3eTKN HINBHeHH -> BHKOpNCToByTe iHsy po3eTHy
• NOIHKoJKeHNO npOIOBkyBaY->3aMIHiTb npOIOBkyBaY

★ IHCtpymeHT nepioDnHOBUMNkaetbca

• NOIHKOJKeHOBHyTPIiHIO npoBODHy -> 3BepHiTbCra DO dInepa a60 y cepBicHHI cHTp
• NOUKOJHeO BUMHauK HINBJIeHHa->3BepHiTbCra DO dIJIepa a6o y cepBicnH ueHTp

★ IHCTpyMeHT CNJbHO Bi6pye

-Дужевибоча Трава->3pizyTe noetanHo

★ IHCTpyMeHT He pike
- JHJNka 3aKopoTka/obipBaHa -> BNTIHTb JHJNky BpyHy
★ He BdaetbCnBnTn HnNk
-KOTyUHa nopoHHa->3amHtB KOtyUHy
- Jnllka 3aanytaIacB KOTyu> OJHbTe KOTyKHy; y paizi notpe6n nepemotai Te HnIky
★ HnHa He BiDpi3aetbca Ha noTpi6Hy doBxHHy -> 3HimiTb KpnHky 3 pi3aIbHoro Ie3a
★ HnJIka HeoHopa3OBO 6pbuBaetbcra
- HnHka 3aIpyTalacB KOtyu> -OrIaHbTe KOtyuKy; y pa3i notpe6n nepemotaKe HnKy
- HenpaBnIbHe BnKOpNCTaHHra3oHOKocapKn-> niDpi3aIte TIlbKn 3a DOnOMOrO piaIbHOi KpaIKn; yHnKaITe KaIMHH, CTIH Ta IHNX TBepdIX npeMeTIB; peryIpaHNo HAMOTyIe KINKy

OXOPOHA HABKOLINHbOI CEPEdN

He BnHuaTe eIeHTpoIHcTpymeHT, npHaJLeJHocTi Ta ynaKOBHy pa30m 3i 3BnuaHNM cmITTM (TilbKn dJa KpaIH CC)

• BiDIOBIDNO Do EBPoneiCboI DnpeKTHBn 2002/96/EC Udo yTNIi3aui CTapnx eNEKTPnuHNX Ta eNEKTPoHHNX PnlaDiB, B 3aJIeKHOCTI 3MiueBIM 3aKHOJDACTBOM, eNEKTPoiHCTpyMeNT, kNIN Pepe6yBaB B EKCNlyaTaui NoBHeH 6yTN yTNIi3OBAHNI OKpeMo, 6e3neHm dIy HaBKOINHbOTo CEpeDOBNIa IxIaxOM
• MaJIHOHOK ⑨ HaraJaE Bam npo ue

DEKJIAPAUI INPO BIINOBIHICTb CTAHAPTAM C

Mn 3aBIAEMO,IO BiNObIHcTb daHOro npOdyHTy HAcTyNHm CtAndapTam i peryIIOUChm DOkymeHTam NobHicTIO haoIO BIDNOBiaJbHcTIO: EN 60335,EN 61000,EN 55014 BiNObiINO do IonoJeHb dIpeKTHB 2006/95/EG,2004/108/EG,2006/42/EG,2000/14/EG, 2011/65/EC
- Texhiyhi DohymeHTN B: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL

I 3axuatae ce6e BiD BnInBy Bi6paqii, nIDtpmmyoyn iHcTpyment I Noro donomixhi npncTOcyBaHHB CnpaBHOMy cTahi, nIDtpmmyoyn pyKn B TepNl, a TaKOH npabNbHO orpaHn3OByoyn Cbi pOboOn npoec

GR

XoptokoTikó μεσηνέçac 0735

EIZARQH

AutoTo EpyaAio npooipetai yia Tnv konn xoptou kai zciaviwv katw ano thauvouc, kaowc kal e npavn kai akpa ota onoia 8e unopei va paoeva tpoxnaato XlookoNTIKO
AutoToepyaaleioeEvnpoopiEetaiyiaeayveaatakn Xpno
Bεβaωθeite otn Σαοκεuaσia περιεχει σλa ta εξαρτήμata nou anεικoviζovται στο αχεδio ②
Otav kantoia eapntmuata aeinouv n exouv oopcs, napakaoue enikoovnote e tov avinpocwno os
AiaβaTe npoεkTikα TIC oδnyieC npiiv ano tn xpion kal pfuaEte TIG yla eλλovtikn avapopa ③
- Awotε iδiaitepn npoooxn otic odnyieac aαφaλeiaç kai otic npoeiδoioinoeic - n μη tnpon autwv twv odnyiw kai npoeiδoioinoeewv θa μnpooue va πpokaléoi oβapec ωμatikéc βλáβεc

TEXNIKA XAPAKTHPII TIKA ①

He n3no3BaIte HNCTpyMeHTa, KOrato e NOBpeDeH hHypbT; 3amHaTa My cIeDba Da ce N3BbPwO T KBaIIHΦuIpaHO liue
- Hnkora He pa6oTeTe c HnCTpyMeHTa, aKo 3aunTHnT KaNaKe nOBpeDeH NIn He e MOHTnpaH

• PeHexuTe HOpDn npoDbJIHaBaT da ce BbptrT n3BecTHO BpeMe cIeD n3HJIIOUbaHe Ha HHCTpyMeHTa

• He pehkeTe TpeBa, KOrTo He paCte O3eMaTAt (HaNP. KOrTO pAcTe No CTeHn NIn BbPxy CkaJIi)
  He npecuayte nBtuua aHn noKpntnc aKaBbI nbTeKn, DOKaTO TpImepbT He cnpe da pa60Tu
  He ce pa3ceBaiTe n BnHar n Ce KOHcEHTpnpaIte Bbpxy TOBa, KOeTO BbpWInTe
  BnHaHn 3KJIIOHBaIe TSeIeNcEJa OT KOHTaT

• KOrTaO OCTaBTe HnCTpyMeHTa 6eHaI3Op
  -прени д поочиТБаTe 3aceДанMaTeРнaI
  -прдд поверbaTe, понctBaTe Ил paBOTte пИСТPyMeHTa
  -cnEydpacuykdoTraIIO

• aHOnHCtpymeHTbT 3aNoUHe da Bn6pnpa HeHOpMaIHO

ПОДьржайтBEHTINJIauNIOHHITEOTBOPN NOCTOARHNOHUCTNOTOTNAIDbU

CJIeI PABOTA

BnHaHn n3KJIIOUBAIte HNCTpyMeHTa n 3BaJdaIte ⅢeNcEla OT 3axpaHbAaIg N3TOUHN K npedn 13BbPbVAhe Ha peryIINpOBKn, CMeHRe He ha poJIKNTe, NOuHCTBaHe IIn OCTaBAnHe Ha HHCTpyMeHTa 6e3 Ha6JIIODeHne 3a KaHbBTo I da e nepnoD
CbxpnaHbAaTe HnctpyMeHTa Ha 3aKnTO B cyxN nCnIpyHn NOMEeHn, HeIOCTbHn 3a Deca

OBACHEHNE HA CIMBOJNTE NO IHCTPYMEHTA

③ PnpdunpeHnne!PpOHTePbKOBOCTBOTO 3a EKcIIOaTua
He n3naTe HnCTpyMeHTa Ha DbKd
⑤ Hocete 3aunTHn Ounla
6 BnMaBaTe 3a onachocTta OT HapaHbAhe OT letraun OTnaBtu (dpbhte OKOHHTe Ha 6e3onacho pa3ctoHHe ot pa60Thata nlou)
⑦ BeHara n3KIOUeTe OT KOHTaTa, aKO Ka6eJIbT (yDbJIHKeIeJIrT) e NOBpeDeH IIN Cp3aH No BpeMe Ha pa6Ota
8 BoHnHa n3OJaun (He ce n3nCKBa Ka6eJ 3a 3a3eMBAHe)

YNOTPEBA

3aunTeHkanak 10

-MOHTnpaTe 3auNTHnA KaNk A, KaKTo e HIOCTpnpaHO, C IOCTaBeHnB BNT C NOlyKpbTla Tlaba
！HnKora He n3noJ3BaIte HNCTpyMeHa 6e3 3aunTeH Kanak A

OrpauHnHTeHa Ka6eNa ⑪

-3aHaYeTe N3BnBkAta Ha yDbJnxHtEeHa orpaHnUHTeB KaKTo e noka3aHo Ha fHypyata
-Дрьн electe 3dpaBO,зда 3aKpeNte ydblnHnteJIa

BkIIOUbaHe/IMKIOUbHaHe ⑫

• BHIOHOTe HHTpyMeHTa KaTO HaTNCHeTe CNYCboB BHOBAteJ C
• INHIOUHTe HCTpyMeHTa KATO OCBO6OJNTe CNYCbKOB BHIIOHBaTeJ C

！ cIeN 3KIIIOUBaHe Ha INHCTpyMeHTa peHexuNTe KOpDn IpoObJIbHaBaT da ce BbpTAT Oue HAnoHKeCekyHdN
-ИЗЧАКАТе рЕЖЕЦHTЕ KОРДЯ ССРАТ DA ce ВьрТТпрази OTOHOBDA BHLIOHHTe TpIMepa

! He BHKIOUBAIte N 3HIOUBAIte 6bIp3O TpIMepa
- Pǎ3aHe Ha TpeBa
! yBepeTe ce, ye YepBeHaTa KanaaKa D ② cBaJIeHa OT HOJa 3a Pja3aHe Ha KopdaTa npeIN da 3aNoCHeTe Da H3NOJ3BaTe HnCTpyMeHTa
! yBepete ce,Ye Ha yUacTbKa 3a pR3aHe HMa KaMbHN,OTnAdbuN npyRn UyKn TeLa
I 3anOuHHeTe pRzAHeTo Ha TpeBaT cAmo Horato HnHCTpyMeHTbT pa60Tu C nblHa ChOpocT
-3aONOHHeTe NOpPra3BaHTo 6IIN3o Do KOHTaKTa IN Ce OTdaJIeYabAte,doKaT0 pa6OTnTe
- peKeTe BnCoHaTa TpeBa Ha nlaCTObe (BnHaTn 3aNoyBaIte OT Ha-n-roPnna nlaCT)
- peXeTe TpeBaTa caMo C BbPxa Ha peXeUaTa KOpda
- HepeXeTe BlaXHa NIM MoKpa TpeBa
-HeDonycKaHTeOTPra3aHaTaTpeBaJa3aApbCTBa polkaTa（He npabeteIbIbOKnOTKocn）
- He npetobapBaIte HnHcTpymeHa
-BHIMaTeJIHOpeKeTe TpeBaTa OKOLODbPBeTa INxpaCTn,TaKaYe Te Da He BIn3aT B KOHTaKT CpeKeUITE KOpDIN
-ДрьжTe INHcTpMeHTa daleu OT TBbpdu npeMeTu, 3a da npedna3nte pekeuTe KOpDn ot ppeKoMePHO 3HOCBaHe
- He 3a6paBraIte 3a cnIInTe Ha oBpaTHnYdap, KOtO ce 3aDenCTBaT, KOrATo Ce DoKoCHaT TBbpDn TeLa

-ДырханHaHCoUBaHЯHaHcTpymeHTa 13

3a p3aHe Ha BnCOKa TpeBa 6abH OdBnKeTe HnCTpyMeHTa OTdCHO HAJIBO N o6paTHO
-3a p3aHe Ha No-HnCKa TpeBa HauHIOHeTe INHCTpyMeHTa, KaKTo e NJIIOCTpnpaHO
-3a p3aHe Ha TpeBa B rpaHnH MeCTa 3aBbPTepeKeIaTa rIaBa Ha 180^ ,KaKTo e NIOcTpnpaHO
-ДрьжTe eIeKHTponHCTpyMeNTa 3dpaBO C DBeTe pBuce, Taka Ye NO BcRAKO BpeMe Da IMaTe NbJIeH KOHTPOI Bbpxy Hero
- noDabpkaHcTcTabnHa pa6oTHa n03a
-BINHArn DpBHTe INHCTpyMeHTa DOCTaTbHNO daJeu OT TJIOTO CNI

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

25.07.2012

C€11

BUKA/VIBRACJE

• Mereno u skladu sa EN 60335 nivo pritiska zvuka ovog alata iznosi 70dB(A) a jacina zvuka 90 dB(A) (normalno odstupanje: 3 dB), a vibracija <2,5m/s^2 (mereno metodom na šaci-ruci; nesigurnost K = 1,5m/s^2
• Garantovani nivo jačine zvuka LWA, izmeren u skladu sa 2000/14/EC (EN/ISO 3744) niži je od 93 dB(A) (postupak za procenu usklaDENosti u skladu sa Aneksom VI) Obavešteno telo: KEMA, Arnhem, NL Identifikazioni broj obaveštenog tela: 0344

• Nivo emisije vibracija izmeren je u skladu sa standardizovanim testom datim u EN 60335; on se moze koristiti za uporedenje jegne atalke sa drugom, kao i za preliminarnu procenu izlozenosti vibracijama pri korisćenju ove atalke za pomenute namene

• korišćenje alatke u drugaćije svrhe ili sa drugaćijim ili slabo održavanim nastavcima moze značajnovovecati nivo izloženosti

• vreme kada je alatka iskljucena ili kada je ukljucena, ali se njome ne radi, besoin značajno smanjiti nivo izloženosti

! zašitite se od posledica vibracija održavanjem alatke i njenih nastavaka, održavajući Vase ruke toplim i organizovanjem Vasih radnih obrazaca

SLO

Obrezovalnik na nitko 0735

UVOD

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

25.07.2012

C€11

MURA/VIBRATSIOON

APKALPOŠANA / APKOPE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

03.07.2012

C€11

TRIUKŠMINGUMAS/VIBRACIJA

wLgagwL LgBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBn

1

j1 j1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1

1g 20

LolpLulgol

1

-

1A. 1

jLg 10

LolS

1 111111111111111111111111111

a 1

1

Lai jaoj gaj j 1 F aas, cui j Lj jggaas golie

1000000000000000000000000000

① Dj jyds aas Jaa JnJnJnJnJnJnJn

100 1

a 1 a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

L 5c

s

aagwagjgagwagaiolgsgagggljgagg

JLHOafoj0yfofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofo

y

45 1JLg Jg 20Xg

（a）gLg24（ypa）

1JyH 0

a≤2a≥3y5g≥1g≥

1

iXgLjLjL 1

gaaac 25-10

①

① 0jg jg jg

1jLwgsg0sJgol 1j

Jus Ls Jus Jus Jus Jus Jus Jus

Lgogj jil gagw gosgogol 1, jj

jLsog 5 jgjg jgag g g jlcog jLgLo Lj1j

j5g 50sLg g sLc

aie 1

a 1

sosolalwloo sclj ⑥

41 ①

(aaiuiaaiojLaoLaeoJgtaaboaloo

Lgagooaoyoayylo aoyyj（J）p00sJg0

（）

Os⏜l : w

中

15 10000000000000000000000000000000000000

a oaii i j! A

⑪ a-140

BgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg

①

a≤a，1j2jC0jL

10gol 1yjC yjLg Lg

g 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4

100

jglgaooJol 1 jJolgao

s

i j 1

j

D jaoaas Jaae Jaae Jaae Jaae Jaae Jaae

jL aigg g Jaii. j sJ Ls bss 4s iis

Jol8g24145 45 45 45 45 45 45 45 45 45 45 45 45

Ld aol1 Lg 5g

（g）sXj（a）solgSglg

15

H

J

（a10aaaiy1g）sJgK

S1 = aiS_i = 12

j 10

LgUJgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUg

gssjL 10000000000000000000000000000000000000000000000000

Ljai jj1 Lj1s jbo JgJgJgJgJgJgJgJgJg

i 1

15jLjLJLs2g 10oJL

glllgllllllglllllllllllllllllll

1. 7/901 _____ C1C2 , C3C4 , C5C6 , C7C8 , C9C10 , C10C11 , C11C12 , C12C13 ,

11/10/EU,f.7/12EC,f.7/17EC,5.7/1A/EC,EC

:SKIL Europe BV (PT-SEU/PJE),AFOBDBreda,NL

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

C€11

25.07.2012

j1j=81/6Lg-

vgo 1281 oio gao hao 5g ioo en 1-40o go gao jilu wai all sic

Lagaiagai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

JooJI Jolil jbiig yjldg lgl

FA

VRO

四

g j 10 g i oj j j g L aig j j g g g g g

Lgaiy

gaiy ①

y

1jglgysaeeLl,LaoljaofooloeoJylo

（）

g j g j g j g j

①

1

A

÷ = 12

C

D

00115jLdQsE

F

G

aolil

21 p#

aal g/g aaiiell e jj jlll l

（g）a

gai biaolgo pssui 2) a,b, wloa eao plasuwl olai -

L

plaii jL A g hailg ① G logil gao

loggglgbljyplalil ① Jagll

JolgallpG 100

：

11! lgJyWl/Lg> Lg y aag aJIg alSio ciig So y cIin pblil gia

1.5,5

W

jL281 jglio o1 1, glll p<0og 1g llo 103

1 2 3 4 5 6 7 8 9

1.25lg 20（2040）

j 1

glll aillll glll llo aodjSryaabwglglaXyLpall

SKIL

g 1 g 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

IgLjLio aodl Iabso Jf adylyu jyLilSKIL (2021)

www.skil.com)

LgS1oJSLiI iS1

a aaii i 1y g aia i y aai y jLil Jl l aie

abog gillj Jai Igolg aIe lge jieil ie lii

( a + b) ( a^2 - ab + b^2) = 0

15 11 jg g aai jll laljagb01j

i0521 j.

y

aillllJawjwI→aillllJalJL>

glaio Jau Joojol21

aaiiaio/1jaii→

Jaiil 1iic 10000000000000000000000000000

(aaaal jao (a)la a laa a a a a a a a a a

gall 3 gail 1y ball plsiuW 2! pai 2

a1b1g1al1lwlnc2g28

gacoc 2) a. gao gao all wu wu 2lc ooc

( 2,25)

:0321 Lc Jooa 1

gai jao 2

1511 10000000000000000000000000000000000000

aLall plw 1s aie 1y

① Lggsjg 1s21 JLw0！

jllg jlll jll jll jll jll jll jll jll

Lcillg Cogoo LoSolai JLoa aoeiieel

JcIg Ggagog gLoa a 1A aagjglgall joljol

a_b = 1

1 1

gall glllgl 100000000000000000000000000000

j 1 j 2 3 4 5 6 7 8

aagai LgLcLgSjclluiiuiuLo jaiy

ailll jao yu lal Jglc lao

a 1000000000000000000000000000

aJellalgljaiji

g1g2g1g2g1g2g1g2g1

：

120 15

olal 10 aaggll clll aell bale IaI 10

Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg

aaijaoi g8 aaiyoo ygai jgi hii jg

JlalbJIgIio jiee gellaoag aee

0181 1c0gjgjg j

i

LALJyj

aaglulbuae

aU 1

(aioa) aLuc Jocll abio jie

gall aaggl (aagll) dll aal gaaal laaagall

:J

（）

p1234567890

1

GgagLoS gJJI JIJI JIJI IJIJI A glalgl

1

gll gag A 121 plalw lgl j

H

gogogLoB LwUJ LcJdUJI Lw gagall

:J

L

1

:Coljllcdo jaojol 03j1 juiy

VRO 1

J 1

1 1

ybj21 p1auiuui 1ai21 oia aaii

1

aaiy

g 4

1

g jLx gj 1: aLwJU Jy 1 Loe Jy

y

①

① a > b < 1 Li g ≤ 0

A

11wJ 1wLo B

Jieiu liao C

ghai jia jiu jie D

JaiiE

log314a2e2j j F

loggcbio G

H

a_i Q b = 1

（a）

L

JLo

a aall oaii ciigai aiolll ciae

dolclog

paaa aagaae 808g 808gall aalilie

Jg jyj g Jg jg jg jg jg

1045151g 99

aagio a2g g y 2g 20

1021 1021

gj（Jalab）aegL）a1f 1abwglpfoaowuol oao

JLo aIg 1 gaiiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaia

121 pssuaiy aalei llaeily gagc

jGxJxLwjc JgJxu 26 abWlg?

1524L 2Jleb21

Jieiil CaiLei yIgIgIgIgIgIgIgIgIg

05281

1

i#21 Jusu ic aws, yalil Lj glaag c

121 J 123

151 0321 1 0g: yol 00 00 00 00 00

1512fJgAaIgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg

ggl g lglg 11 3 g I Lao yog I Lao yocg 0321 Jg jg j

1

gulgcll 10281

aai 1 aagj g Lg jLg wai jao

Jgjg jg jg jg jg jg jg jg

(1) 1,2,3 , 4,5,6

Jao jai jai jai w, aillj jai jai jai g jai Jai jai jai jai jai

A B C A D E

ACCESSORIES SKIL Nr.
	2610Z01354

1

JL

FA
