Product type	Cordless grass trimmer
Brand	Skil
Model	0755 AA
Power source	18 V lithium-ion battery
Cutting width	25 cm
Line diameter	1.2 mm
Runtime	Approx. 20 min (depending on use)
No-load speed	8000 min⁻¹
Dimensions (L x W x H)	105 x 25 x 15 cm
Weight (without battery)	2.3 kg
Sound level	82 dB(A)
Vibration	2.5 m/s²
Foldable	Yes
Motor protection	Electronic overload protection
Cutting system	Automatic nylon line feed
Main functions	Grass cutting, edging
Maintenance and cleaning	Clean after each use, check line regularly
Safety	Trigger lock, hand guard
Spare parts	Line, battery, charger (sold separately)
Warranty	2 years
Package contents	Grass trimmer, user guide

Frequently Asked Questions - 0755 AA SKIL

Which battery does the Skil 0755 AA use?

The Skil 0755 AA uses an 18 V lithium-ion battery from the Skil series (not included).

How do I change the cutting line?

Unscrew the spool cap, remove the old line, wind the new line in the indicated direction, then replace the cap. Refer to the diagram in the manual.

What is the cutting width?

The cutting width is 25 cm, ideal for small to medium surfaces.

Is the tool foldable?

Yes, the handle can be folded for compact storage.

How do I clean the grass trimmer?

Use a damp cloth to clean the housing. Avoid pressurized water. Clean the spool after each use to prevent grass buildup.

Is the battery included?

No, the battery and charger are usually sold separately.

What is the sound level?

The sound level is approximately 82 dB(A), wear hearing protection.

Can I use a different type of line?

Only use 1.2 mm diameter line recommended by Skil to avoid damaging the device.

How do I replace the battery?

Insert the battery onto the mount until it locks. To remove, press the release button and pull.

Is there a warranty?

Yes, the Skil 0755 AA comes with a 2-year warranty.

USER MANUAL 0755 AA SKIL

CORDLESS SHRUB/GRASS SHEAR 0755 (F0150755..)

Illustration of a hairless cleaning brush with a side clip and a small tool, no text or symbols present.

GB ORIGINAL INSTRUCTIONS 11
(F) NOTICE ORIGINALE 15
D ORIGINALBETRIEBSANLEITUNG 20
NL ORIGINELE GEBRUIKSAANWIJZING 25
(S) BRUKSANVISNING I ORIGINAL 30
(DK) ORIGINAL BRUGSANVISNING 34
(N) ORIGINAL BRUKSANVISNING 38
FIN ALKUPERÄISET OHJEET 42
(E) MANUAL ORIGINAL 47
(P) MANUAL ORIGINAL 52
(Ⅰ) ISTRUZIONI ORIGINALI 56
H EREDETI HASZNÁLATI UTASÍTÁS 61
CZ PÜVODNÍM NÁVODEM K POUŽÍVÁNÍ 66
(TR) ORIJINAL İŞLETME TALİMATI 70
PL INSTRUKCJA ORYGINALNA 75
UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 80

GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 85
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 91
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 95
SK PÔVODNÝ NÁVOD NA POUŽITIE 101
(HR) ORIGINALNE UPUTE ZA RAD 106
SRB ORIGINALNO UPUTSTVO ZA RAD 110
SLO IZVIRNA NAVODILA 114
EST ALGUPÄRANE KASUTUSJUHEND 118
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 123
LT ORIGINALI INSTRUKCIJA 128
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 132
AL UDHËZIMET ORIGJINALE 137
AR دليل الاستعمال 150
④ RAHENMAI AUSLI 147

GB	EU Declaration of conformityCordless shrub/grass shear Article number	We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.
F	Déclaration de conformité UECisailles à gazon/à arbuste sans fil Numéro d'article	Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.
D	EU-KonformitätserklärungAkku-Strauch- undRasenschere Sachnummer	Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.
NL	EU-conformiteitsverklaringDraadloze struik-/grasschaar Productnummer	Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen.
S	EU-konformitetsförklaringSladdlös busk-/grässax Produktnummer	Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.
DK	EU-overensstemmelseserklæringLedningsfri busk- og græssaks Typenummer	Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i fölgende direktiver og forordninger og opfylder fölgende standarder.
N	EU-samsvarserklæringTrådlös buskklipper Produktnummer	Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med fölgende standarder.
FIN	EU-vaatimustenmukaisuusvakuutusJohdottomat pensas-/ruohosakset Tuotenumero	Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.
E	Declaración de conformidad UECizalla inalámbrica parahierba y arbustos Número de artículo	Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las directivas y los reglamentos mencionados a continuación y están en conformidad con las siguientes normas.
P	Declaração de conformidade CEAparador de relva/arbustos sem fios Número do produto	Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.
I	Dichiarazione di conformità UETagliasiepi/tagliaerba senza filo Codice prodotto	Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle direttive e dei regolamenti elencati di seguito, nonché alle seguenti normative.
H	EU konformitási nyilatkozatVezeték nélküli bokornyíró/fúnyíró gép Cikkszám	Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.
CZ	EU prohlášení o shoděBezdrátové nůžky na keře/trávu Objednací číslo	Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených směrnic a nařízení a je v souladu s následujícími normami.
TR	AB Uygunluk beyaniKablosuz çali/çim bicme makinesi Ürün kodu	Tek sorumlu olarak, tanımlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bútün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.
PL	Deklaracja zgodności UEBezprzewodowe nożyce dożywopłotów i trawy Numer katalogowy	Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.
RU	Заявление о соответствии ЕСАнкумуляторные газонныеножницы/кусторез Товарный номер	Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.
UA	Заява про відповідність ЄСБездротова пила дляпідрізання кущів/трави Товарний номер	Мизаевляемо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положеням нищеозначених директив і розпоряджень, а також нижчеозначеним нормам.
GR	Ділшоці пістótєтає ЕЕОамвокоптєні мітатаріає Арібмос еуретпріод	Длішоціє мє апоклеистікії мәс еубін, óти та авафероємева проїєвта аντισοιχουν σε όλες тіс охетикєє бідатаєєих төні пію катів авафероємєвив обัญшів кай кавоніємішів кай таутіζονται мє та акόλουθа прóтупа.
RO	Declaratie de conformitate UEFoarfece fără fir pentruarbusti/iarbă Număr de identificare	Declarăm pe proprie răspundere că produsele mentionate corespund tuturor dispozițiilor relevante ale directivelor și reglementărilor enumerate în cele ce urmează și sunt în conformitate cu următoarele standarde.
BG	ЕС декларация за съответствие Акумулаторна ножица за храсти/трева Каталожен номер	С пълна отговорност ние декларираме, че посочените продукти отговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.
SK	EU vyhlásenie o zhode Akumulátorové nožnice nakríky/trávu Vecné číslo	Vyhlasujeme na výhradní zodpovednosť, že uvedený výrobok splňa všetky prislušné ustanovenia nižšie uvedených smernic a nariadení a je v súlade s nasledujúcimi normami.
HR	EU izjava o sukladnostiBežične škare za grmlje/travu Kataloški broj	Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.
SRB	EU-izjava o usaglašenostiAkumulatorske makaze zažbunje i travu Broj predmeta	Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.
SLO	Izjava o skladnosti ESBrezvrvične škarje za rezanje trave/grmičevja Stevilka artikla	Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.
EST	EL-vastavusdeklaratsioonJuhtmeta põõsa-/murulõikur Tootenumber	Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste kõikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.
LV	Deklarácija par atbilstību EK standartiemBezvadu krūmu/zāles dzirkles Izstrādājuma numurs	Mēs ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktivās un rīkojumos ietvertajām saistošajām nostādnēm, kā arī sekojošiem standartiem.
LT	ES atitikties deklaracijaBelaidės krūmu ir žolės pjūklelis Gaminio numeris	Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomus žemiau nurodytu direktyvu ir reglamentu reikalavimus ir šiuos standartus.
MK	EU-Изјава за сообразностНожици за грмушки/ трева без набел Број на артикл	Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.
AL	EU Deklarata e konformitetitKrasitėse bari/shkurresh me bateri Numri i nenit	Ne deklarojmė me përgjegjësinė tonė të vetme se produktet e paraqitura janė në përputhje me të gjitha dispozitat e zbatueshme të direktivave dhe rregulloreve të listuara mė poshtė dhe janė në përputhje me standardet si mė poshtė.
	0755 F0150755.. 2006/42/EC	2014/30/EU2011/65/EU2000/14/ECEN 60745-1:2009 + A11:2010EN 60745-2-15:2009 + A1:2010EN 60335-1:2012 + A11:2014EN 50636-2-94:2014EN 55014-1:2006 + A1:2009 + A2:2011EN 55014-2:2015EN 50581:2012

GB	2000/14/EC: Measured sound power level 76.0 dB(A), uncertainty K =3 dB, guaranteed sound power level 79.0 dB(A); conformity assessment procedure in accordance with annex VProduct category: 24/25Notified body : DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTechnical file at:*
F	2000/14/CE : Niveau de puissance acoustique mesuré 76,0 dB(A), incertitude K =3 dB, niveau de puissance acoustique garanti 79,0 dB(A) ; procédure d'évaluation de conformité selon l'annexe VCatégorie de produit: 24/25Centre de contrôle cité : DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLDossier technique auprès de:*
D	2000/14/EG: Gemessener Schalleistungspegel 76,0 dB(A), Unsicherheit K =3 dB, garantierter Schalleistungspegel 79,0 dB(A); Bewertungsverfahren der Konformität gemäß Anhang VProduktkategorie: 24/25Benannte Stelle: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTechnische Unterlagen bei:*
NL	2000/14/EG: Gemeten geluidsvermogensniveau 76,0 dB(A), onzekerheid K =3 dB, gegarandeerd geluidsvermogensniveau 79,0 dB(A); beoordelingsmethode van de overeenstemming volgens bijlage VProductcategorie: 24/25Aangewezen instantie: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTechnisch dossier bij:*
S	2000/14/EG: Uppmätt bullernivå 76,0 dB(A), osäkerhet K =3 dB, garanterad bullernivå 79,0 dB(A); konformitetens bedömningsmetod enligt bilaga VProduktkategor: 24/25Angivet provningsfälle: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTeknisk dokumentation:*
DK	2000/14/EG: Målt lydeffektniveau 76,0 dB(A), usikkerhed K =3 dB, garanteret lydeffektniveau 79,0 dB(A); overensstemmelsesvurderingsprocedure som omhandlet i bilag VProduktkategori: 24/25Bemyndiget organ: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTekniske bilag ved:*
N	2000/14/EF: Målt lydeffektnivå 76,0 dB(A), usikkerhet K =3 dB, garantert lydeffektnivå 79,0 dB(A); samsvarsvurderingsmetode i henhold til vedlegg VProduktkategori: 24/25Bemyndiget organ: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTeknisk dokumentasjon hos:*
FIN	2000/14/EY: Mitattu äänitehotaso 76,0 dB(A), epävarmuus K =3 dB, taattu äänitehotaso 79,0 dB(A); vaatimustenmukaisuuden arviointimenetelmä liitteen VI mukaisestiTuotekategoria: 24/25Ilmoitettu laitos: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTekniset asiakirjat saatavana:*
E	2000/14/CE: Nivel medido de la potencia acústica 76,0 dB(A), tolerancia K =3 dB, nivel garantizado de la potencia acústica 79,0 dB(A); método de evaluación de la conformidad según anexo VCategoría de producto: 24/25Lugar denominado: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLDocumentos técnicos de:*
P	2000/14/CE: Nivel de potência acústica medido 76,0 dB(A), insegurança K =3 dB, nivel de potência acústica garantido 79,0 dB(A); processo de avaliação da conformidade de acordo com o anexo VCategoría de produto: 24/25Organismo notificado: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLDocumentação técnica pertencente à:*
I	2000/14/CE: Livello di potenza sonora misurato 76,0 dB(A), incertezza K =3 dB, livello di potenza sonora garantito 79,0 dB(A); procedimento di valutazione della conformità secondo l'allegato VCategoría prodotto: 24/25Organismo notificato: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLDocumentazione tecnica presso:*
H	2000/14/EK: Mért hangteljesítmény-szint 76,0 dB(A), K szórás =3 dB, garantált hangteljesítmény-szint 79,0 dB(A); a konformitás kiértékelési eljárást lásd a VI függelékbenTermékkategória: 24/25Bejelentett szervezet: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLMüszaki dokumentumok megórzési pontja:*
CZ	2000/14/ES: Změřená hladina akustického výkonu 76,0 dB(A), nejistota K =3 dB, zaručená hladina akustického výkonu 79,0 dB(A); metoda posouzeni shody podle dodatku VKategorie výrobku: 24/25Ohlašovací orgán : DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTechnické podklady u:*
TR	2000/14/AT: Ölçülen ses gücü seviyesi 76,0 dB(A), tolerans K =3 dB, garanti edilen ses gücü seviyesi 79,0 dB(A); uygunluk değerlendirme yöntemi ek VI uyarincaÜrün kategorisi: 24/25Onaylayan kuruluş: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTeknik belgelerin bulunduğu yer:*
PL	2000/14/WE: Pomierzony poziom mocy akustycznej 76,0 dB(A), niepewność K =3 dB, gwarantowany poziom mocy akustycznej 79,0 dB(A); procedura oceny zgodności zgodnie z załącznikiem VKategoria produktów: 24/25Urząd zatwierdzający: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLDokumentacja techniczna:*
RU	2000/14/EC: Измеренный уровень звуковой мощности 76,0 дБ(А), погрешность K =3 дБ, гарантированный уровень звуковой мощности 79,0 дБ(А); процедура оценки соответствия согласно приложения VKатегория продукта: 24/25Уполномоченный орган: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLТехническая документация хранится у:*
UA	2000/14/EC: Виміряна звукова потужність 76,0 дБ(А), похибка =3 дБ, гарантована звукова потужність 79,0 дБ(А); процедура оцінки відповідності відповідно до додатку VКатегорія продукту: 24/25Уповноважений орган: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLТехнічна документація зберігається у.*
GR	2000/14/EK: Метрнієvnі стађімің пхніткіңс іохуос 76,0 dB(A), аваофáлеіа К =3 dB, егүүнієвні стађімің пхніткіңс іохуос 79,0 dB(A) - бідабікаціа аξιολόγησης тңс пістотттає сөлфшва ме то пара́ртніма VКатегорія проїо́втос: 24/25Армобіос фореас : DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLТехнікá ёγγραфа отті.:*
RO	2000/14/CE: Nivel măsurat al puterii sonore 76,0 dB(A), incertitudine К =3 dB, nivel garantat al puterii sonore 79,0 dB(A); procedură de evaluare a conformității potrivit anexei VCategorie produs: 24/25Organism notificat: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLDocumentație tehnică la:*
BG	2000/14/EO: Измерено ниво на звуковата мощност 76,0 dB(A), неопределеност К =3 dB, гарантирано ниво на мощността на звука 79,0 dB(A); метод за оценка на съответствието съгласно приложение VKатегория на продукта: 24/25Нотифициран орган : DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLТехническа документация при:*
SK	2000/14/ES: Odmeraná hladina akustického výkonu 76,0 dB(A), neistota К =3 dB, zaručená hladina akustického výkonu 79,0 dB(A); metóda posúdenia zhody podľa dodatku VKategória produktu: 24/25Oboznámený orgán: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTechnické podklady má spoločnost:*
HR	2000/14/EZ: Izmjerena razina učinka buke 76,0 dB(A), nesigurnost К =3 dB, zajamčena razina učinka buke 79,0 dB(A); postupak ocjenjivanja sukladnosti prema dodatku VKategorija proizvoda: 24/25Obaviješteno tijelo: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTehnička dokumentacija se može dobiti kod:*
SRB	2000/14/EG: Izmereni nivo ostvarene buke 76,0 dB(A), nepouzdanost К =3 dB, garantovani nivo ostvarene buke 79,0 dB(A); postupak ocenjivanja usaglašenosti prema prilogu VKategorija proizvoda: 24/25Obavešteno telo : DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTehnička dokumentacija kod:*
SLO	2000/14/ES: Izmerjena raven zvočne moči 76,0 dB(A), negotovost К =3 dB, zagotovljena raven zvočne moči 79,0 dB(A); postopek za presojo skladnosti v skladu s prilogo VKategorija izdelka: 24/25Priglašeni organ: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTehnična dokumentacija pri:*
EST	2000/14/EU: Möõdetud helivõimsustase 76,0 dB(A), möõtemääramatus K =3 dB, garanteeritud helivõimsustase 79,0 dB(A); vastavuse hindamise meetod vastavalt lisale VTootekategooria: 24/25Teavitatuď asutus: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTehnilised dokumendid saadaval:*
LV	2000/14/EK: Izměřitais troksňa jaudas līmenis ir 76,0 dB(A), izkliede K ir =3 dB, garantētais troksňa jaudas līmenis ir 79,0 dB(A); atbilstības novērtēšana ir veikta saskaņa ar pielikumu UIzstrādājuma kategorija: 24/25Pilnvarotā iestäde : DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTehniská dokumentacija no:*
LT	2000/14/EG: Išmatuotas garso galios lygis 76,0 dB(A), paklaida K =3 dB, garantuotas garso galios lygis 79,0 dB(A); atitikties vertinimas atliktas pagal priedą VProdukto kategorija: 24/25Notifikuota įstaiga: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLTechninė dokumentacija saugorna:*
MK	2000/14/EG: Измерено ниво на звучна јачина 76,0 dB(A), несигурност К =3 dB, загарантирано ниво на звучна јачина 79,0 dB(A); постапка за процена на сообразноста според прилог VKатегорија на производ: 24/25Назначено тело: DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLТехничка документација кaj:*
AL	2000/14/EC: Niveli i fuqisė sė zērit i matur 76,0 dB(A), pasiguria K =3 dB, niveli i fuqisė sė zērit i garantuar 79,0 dB(A); procedura e vlerësimit të konformitetit nė pêrputhje me shtojcên VKategori produkti: 24/25Organizmi i njoftuar : DEKRA Certification BV (0344), Meander 1051, 6825 MJ Arnhem, NLDosja teknike nė:*
	*Skil BVKonijnenberg 624825 BD BredaThe Netherlands
	Olaf DijkstraafApproval ManagerSkil BV, Konijnenberg 62, 4825 BD Breda, NL01.04.2017

Line drawing of a hairless cleaning brush with a spiral filter, labeled 'SKYL' (no text or symbols on the brush itself)

17

Illustration of two hair shters: one using a brush and the other holding a potted plant with dense brush (no text or symbols)

18

19

Technical line drawing of a mechanical component with screw holes and a cylindrical shaft, showing assembly steps (no text or symbols)

GB

Cordless shrub/grass shear 0755

INTRODUCTION

• This tool has been designed for trimming grass, shrubs and hedges, and is intended for domestic use only
  • This tool is not intended for professional use
• Read this instruction manual carefully before use and save it for future reference ③
• Pay special attention to the safety instructions and warnings; failure to follow these may result in serious injury
• Check whether the packaging contains all parts as illustrated in drawing ②
• When parts are missing or damaged, please contact your dealer

TECHNICAL DATA ①

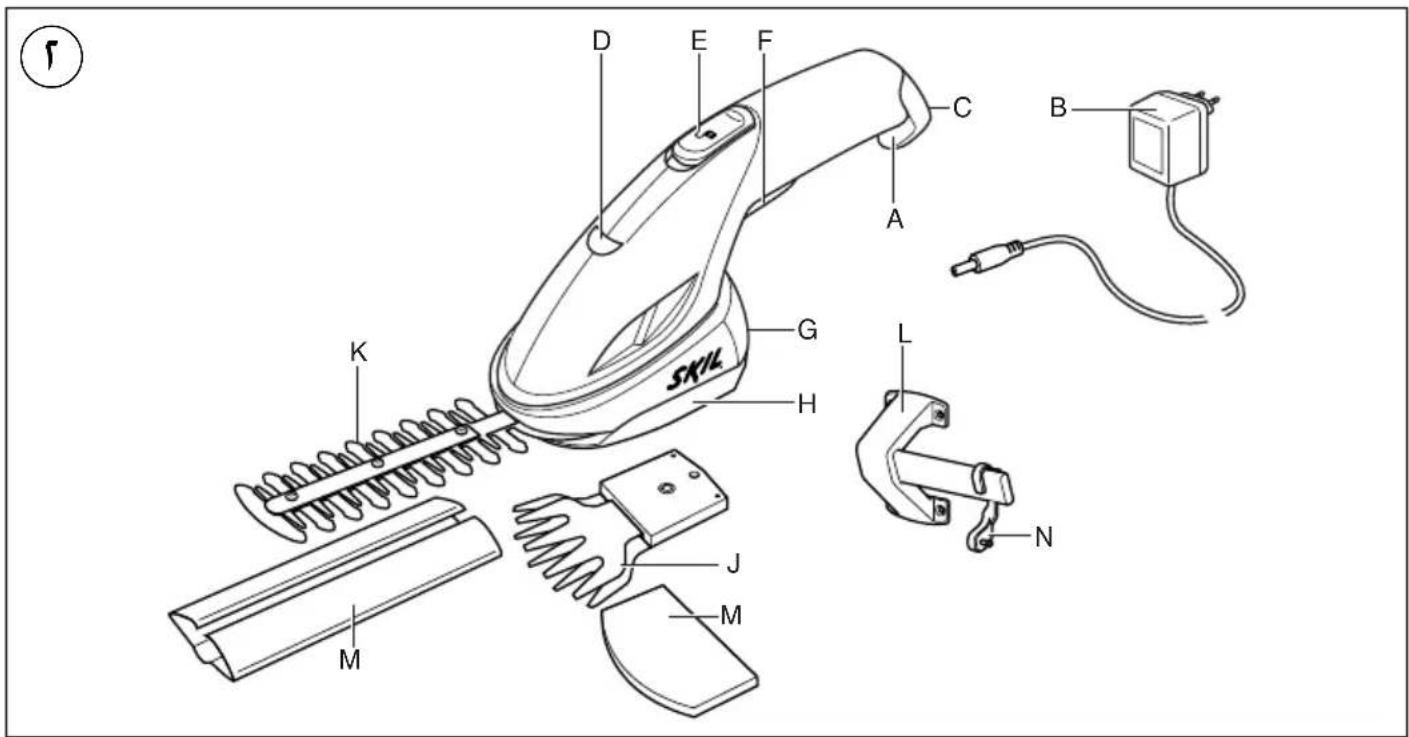

TOOL ELEMENTS ②

A Integrated battery
B Charger
C Charger contact
D Charging light
E Safety switch
F Trigger switch
G Cover release button
H Protective cover
J Grass shear blade
K Shrub shear blade
L Storage rail (screws not supplied)
M Blade guards (2)
N Blade storage hook

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter

2) ELECTRICAL SAFETY

plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

3) PERSONAL SAFETY

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SPECIFIC SAFETY INSTRUCTIONS FOR CORDLESS SHRUB/GRASS SHEARS

GENERAL

• Only use the tool in daylight or with appropriate artificial lighting
• Do not trim hedges when they are wet
• Keep hands and feet away from the cutting blade, especially when switching on the tool
• Never operate the tool in the direct vicinity of persons (especially children) and animals

• The user is responsible for accidents or hazards occurring to other people or their property
  • Always switch off tool and ensure that all moving parts have come to a complete standstill

• whenever leaving the tool unattended

• before clearing jammed material
• before checking, cleaning or working on the tool
• after striking a foreign object
• whenever the tool starts vibrating abnormally

BEFORE USE

• Before using the tool for the first time, it is recommended to receive practical information
• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the charger
• Check the functioning of the tool before each use and, in case of a defect, have it repaired immediately by a qualified person; never open the tool yourself
• Before use, thoroughly inspect the cutting area and remove all foreign objects that could be entangled in the cutting blades (such as stones, nails, wire fences, metal plant supports)

DURING USE

• Wear protective gloves, safety glasses, close-fitting clothes and hair protection (for long hair)
  • Always wear long trousers, long sleeves and sturdy shoes when operating the tool
  • Take a secure stance when working (do not overreach, especially when using steps or a ladder)
• Hold the power tool by the insulated gripping surfaces only, because the cutting blades may contact hidden wiring or its own cord (cutting blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock)
• Keep all parts of the body away from the cutting blades, do not remove cut material or hold material to be cut when blades are moving, and make sure the switch is off when clearing jammed material (a

moment of inattention while operating the tool may result in serious personal injury)

• Keep the (extension) cord away from the cutting area (during operation the cord may be hidden in shrubs and can be accidentally cut by the blades)
• Always ensure that the ventilation openings are kept clear of debris
• In case of electrical or mechanical malfunction, immediately switch off the tool or unplug charger from power source

AFTER USE

- Carry the tool by the handle with the cutting blades stopped and, when transporting or storing the tool, always mount the blade cover (proper handling of the tool will reduce possible personal injury from the cutting blades)

CHARGING/BATTERIES

• This charger can be used by children aged 8 and above and by persons who have physical, sensory or mental limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has instructed them in the safe operation of the charger and they understand the associated dangers (otherwise, there is a danger of operating errors and injuries)
• Supervise children (this will ensure that children do not play with the charger)
• Cleaning and user maintenance of the battery charger shall not be made by children without supervision
• Only use SKIL charger 2610Z01333 with this tool
• Charge battery only with the charger that is supplied with the tool
• Do not charge battery in damp or wet environments
• Do not expose tool/charger to rain
• Do not use charger when damaged; take it to one of the officially registered SKIL Service Stations for a safety check
• Do not use charger when cord or plug is damaged; cord or plug should be replaced immediately at one of the officially registered SKIL Service Stations
• Do not disassemble charger or tool

• Permitted ambient temperature (tool/charger/battery):

• when charging 0...+45°C

• during operation -20...+50°C
• during storage -20...+50°C

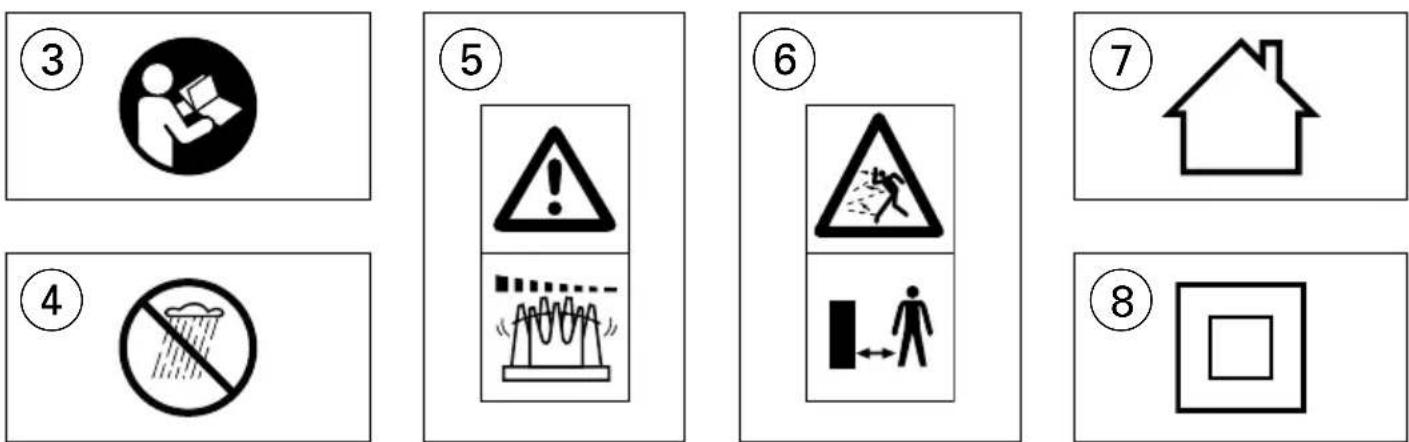

EXPLANATION OF SYMBOLS ON TOOL/CHARGER

③ Read the instruction manual before use
④ Do not expose tool/charger to rain
⑤ Warning! After switching off the tool the blade continues to move for a few seconds
⑥ Pay attention to the risk of injury caused by flying debris (keep bystanders a safe distance away from work area)
⑦ Only use the charger indoors
⑧ Double insulation (no earth wire required)
⑨ Automatic shut-off when charger gets too hot (thermic fuse blows and charger becomes useless)
⑩ Incorrect polarity of the charger connection could cause a hazard (only charge the battery with the charger supplied)
⑪ Do not dispose of electric tools and batteries together with household waste material

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• If for any reason the old plug is cut off the cord of the charger, it must be disposed of safely and not left unattended
• Do not connect the blue (= neutral) or brown (= live) wire in the cord of the charger to the earth terminal of the plug

USE

- Charging battery ⑫

- battery of new tools is not fully charged

! unplug the charger from the tool after charging period has ended thereby lengthening the service life of the battery

IMPORTANT:

• while charging, the charger and the battery may become warm to touch; this is normal and does not indicate a problem
  ! a lithium-ion battery that is new or has not been used for a longer period does not develop its full capacity until after approximately 3 charging/ discharging cycles
• connect charger B with both wall socket and contact C
• charging light D turns on indicating that the tool is being charged
• when the battery is fully charged, charging light D turns off (after 4-6 hours)
• the lithium-ion battery can be charged at any time (interrupting the charging procedure does not damage the battery)
• the lithium-ion battery does not have to be empty before charging (no "memory-effect" as with nickel-cadmium batteries)
• if you anticipate long periods of non-use for the tool, it is best to unplug the charger from its power source

- Battery protection

Switches off the tool automatically when

1) the battery temperature is not within the allowable operating temperature range of -10 to +60°C
2) the lithium-ion battery is nearly empty (to protect against deep discharge)

! do not continue to press the on/off switch after the tool is switched off automatically; battery may be damaged

- On/off safety switch ⑬

Prevents the tool from being switched on accidentally

- switch on tool by first pressing safety switch E ② and then pulling trigger switch F ②

- switch off tool by releasing trigger switch F

- move tool away from cutting area before switching off

! after switching off the tool the blade continues to rotate for a few seconds

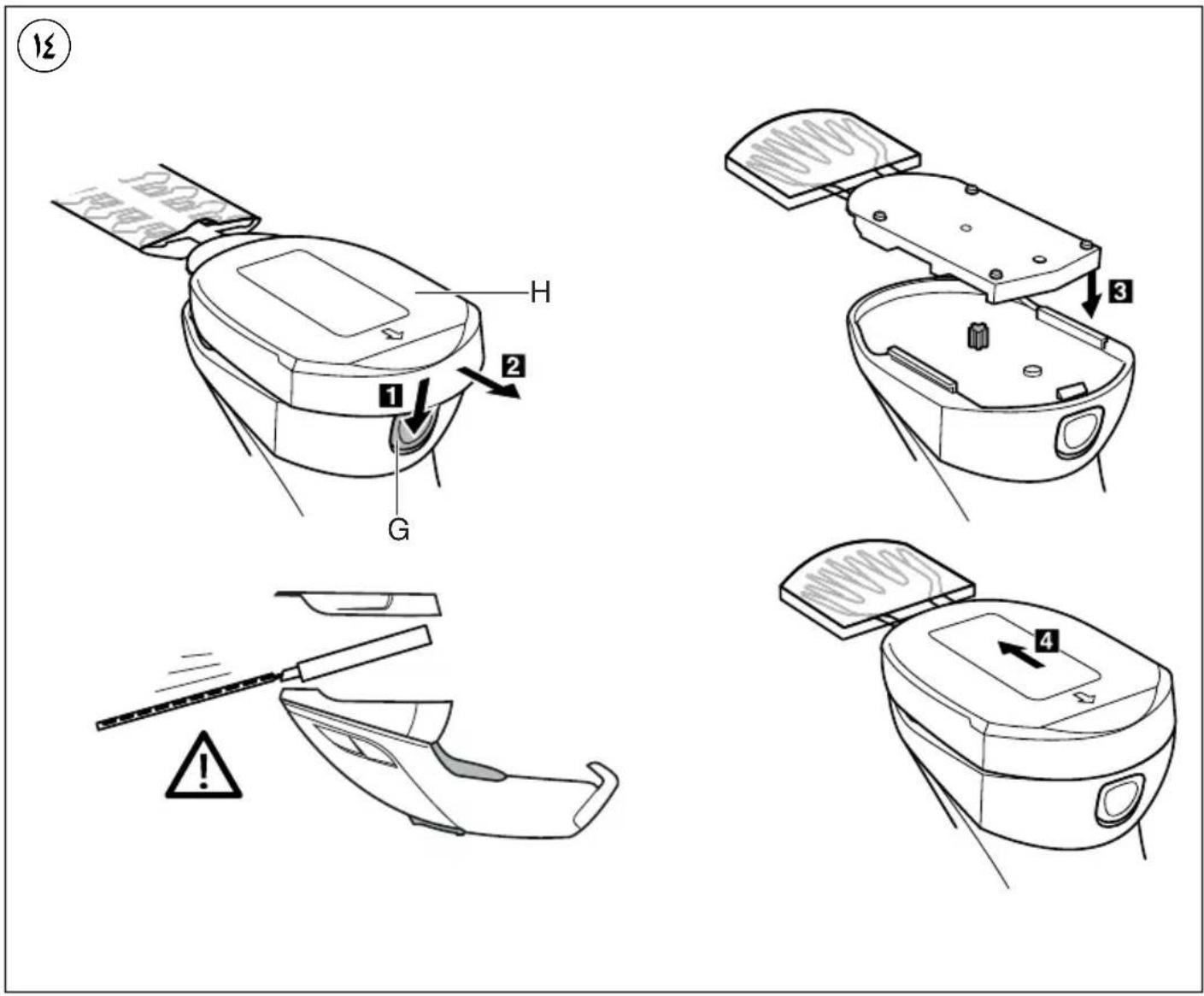

- Changing blades ⑭

! wear protective gloves

- turn tool upside down

- push release button G

- slide protective cover H in same direction as arrow printed on cover and lift it from the housing

! be careful when lifting the protective cover; the shrub shear blade in particular may fall down unexpectedly

- lift blade J or K out and mount required blade as illustrated

- position protective cover H back and slide it towards the blade until it snaplocks

- Holding and guiding the tool

! while working, always hold the tool at the grey-coloured grip area(s) ⑮

- maintain a stable working position

- keep your other hand away from the cutting blades

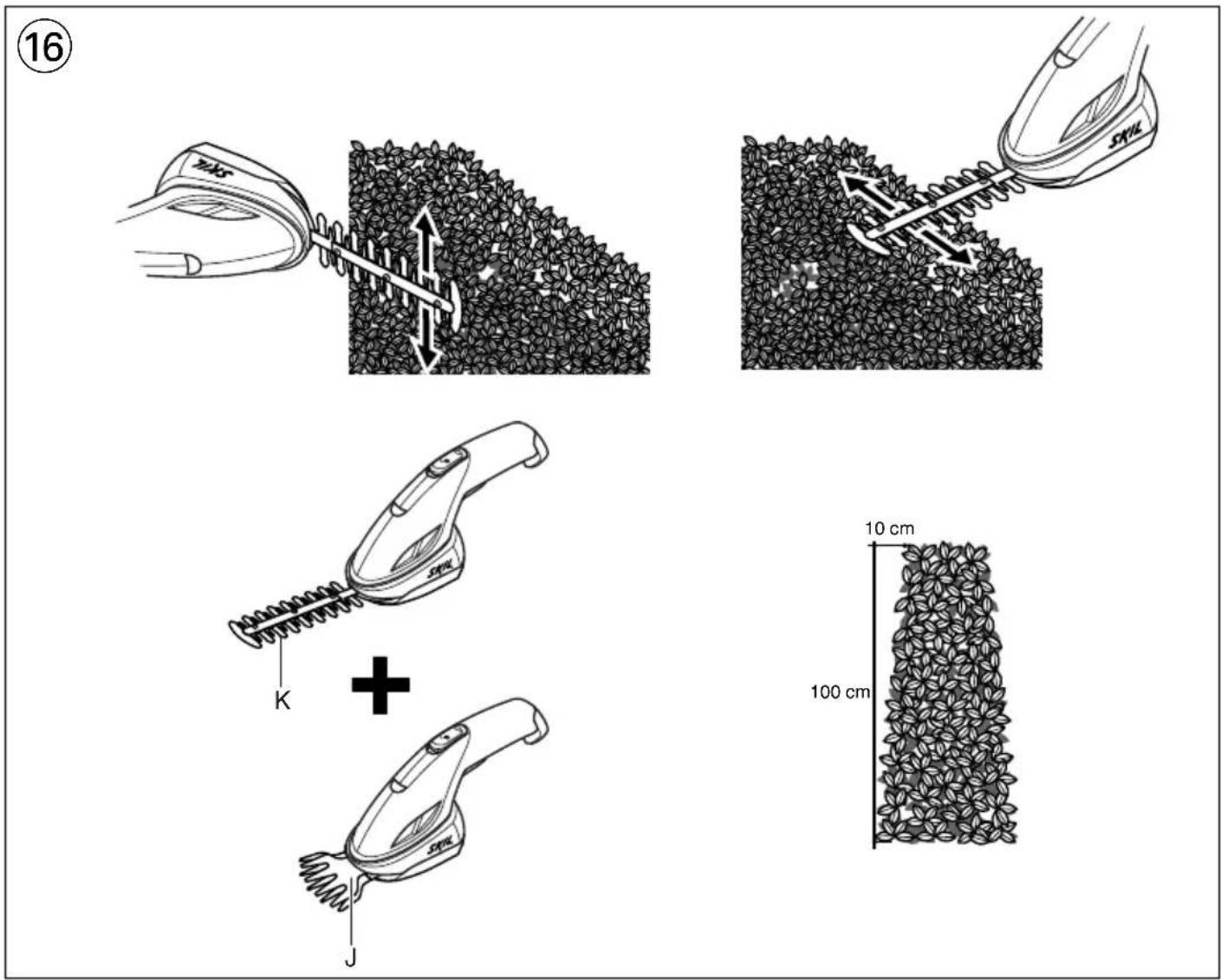

- Trimming hedges ⑯

- trim the sides of the hedge first (from the bottom upwards), then cut the top

- trim the side of a hedge in such a way that it will be slightly narrower at the top

- use a hand saw or pruning shears to cut thicker branches

- shrub shear blade K as well as grass shear blade J can be used for trimming hedges

- Trimming grass and shrubs ⑰

- when cutting long grass, work in stages from the top and take small cuts

- for optimal cutting results, only cut dry grass

- keep the tool away from solid objects in order to protect the cutting blades against excessive wear

- grass shear blade J can also be used for trimming shrubs

APPLICATION ADVICE

- For trimming a hedge at a uniform height level

- fasten a piece of string along the length of the hedge at the desired height

- trim the hedge just above this string

- Recommended cutting/trimming times (Western Europe)

- trim hedges with deciduous leaves in June and October

- trim evergreen hedges in April and August

- trim conifers and other fast-growing shrubs every 6 weeks from May until October

MAINTENANCE / SERVICE

• This tool is not intended for professional use

- Opening the housing shell can damage or destroy the tool

- Keep tool, charger and cutting blades clean

! unplug charger from power source before cleaning

- clean the tool with a damp cloth (do not use cleaning agents or solvents)

- after use, always carefully clean and lightly lubricate the cutting blades

! wear gloves when handling or cleaning the cutting blades

- Regularly check the condition of the cutting blades and the tightness of the blade bolts

- Regularly check for worn or damaged components and have them repaired/replaced when necessary

• Sharpening the cutting blades

- remove cutting blades from tool before sharpening

- sharpen the cutting blades with a small and smooth file, in case a solid object damaged them

- we advise you, however, to have the blades sharpened by a specialist

- lubricate the cutting blades after sharpening

- Storage ⑱

- store the tool indoors in a dry and locked-up place, out of reach of children

- securely mount storage rail L on the wall with 4 screws (not supplied) and horizontally leveled

- use blade guards M ② when storing the tool

- lubricate the cutting blades before storing the tool

- If the tool/charger should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool or charger undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

TROUBLESHOOTING

- The following listing shows problem symptoms, possible causes and corrective actions (if these do not identify and correct the problem, contact your dealer or service station)

★ Tool operates intermittently

- internal wiring defective -> contact dealer/service station

- on/off switch defective -> contact dealer/service station

★ Motor runs but blades remain stationary

- internal fault -> contact dealer/service station

★ Cutting blades hot

- cutting blades blunt -> have blades sharpened

- cutting blades have dents -> have blades inspected

- too much friction due to lack of lubricant -> lubricate blades

ENVIRONMENT

- Do not dispose of electric tools, batteries, accessories and packaging together with household waste material (only for EU countries)

- in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ⑪ will remind you of this when the need for disposing occurs

! remove the battery before disposal of the tool

- Removing/disposing of batteries ⑲

! only remove the batteries if they are completely empty
- protect battery terminals with heavy tape to prevent short-circuit
- dispose of the battery at an official collection point for batteries
! batteries may explode when disposed of in fire, so do not burn battery for any reason

NOISE / VIBRATION

• Measured in accordance with EN 60745 the sound pressure level of this tool is 56 dB(A) and the sound power level 76 dB(A) (standard deviation: 3 dB), and the vibration <2.5m/s^2 (triax vector sum; uncertainty K = 1.5m/s^2 )

• The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level
  ! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

WAARSCHUWING Lees alle

1) SIKKERHET PÅ ARBEIDSPLASSEN

a) Hold arbeidsområdet rent og ryddig. Rotete arbeidsområder eller arbeidsområder uten lys kan føre til ulykker.

VEDLIKEHOLD / SERVICE

APKALPOŠANA / APKOPE

TECHNINIAI DUOMENYS ①

PRIETAISO ELEMENTAI ②

- Ndërrimi i thikave ⑭

Illustration of a hair shower and a potted hair comb with a brush, showing different tool designs (no text or symbols)

Line drawing of a hairless cleaning brush with a spiral filter, no text or symbols present

Illustration of a Skil brand hair curling tool with a separate piece of hair attachment (no text or symbols)
