6 English

Introduction

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

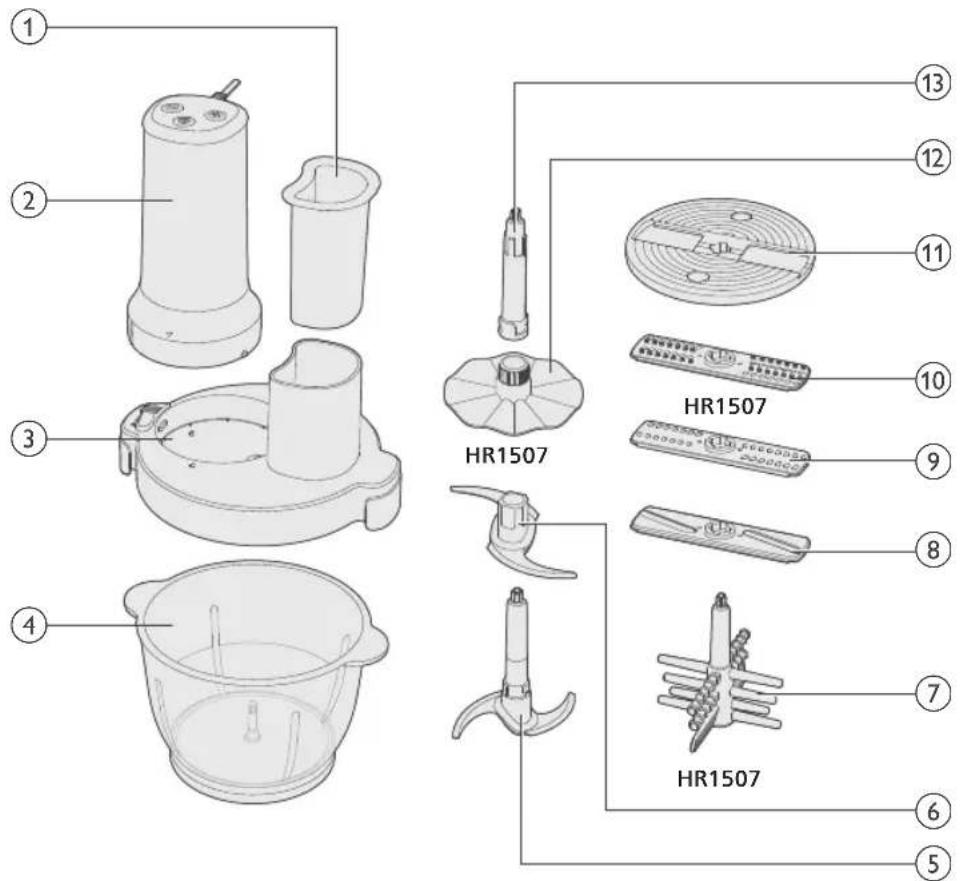

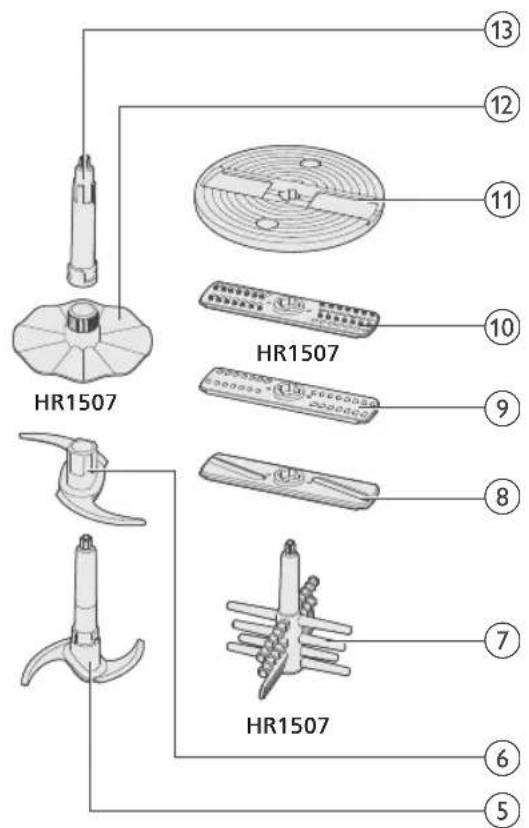

General description

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

1 Pusher
2 Motor unit
3 Chopper bowl lid
4 Chopper bowl
5 Main blade
6 Additional blade
7 Garlic peeler (HR1507 only)
8 Slicing insert
9 Shredding insert
10 Granulating insert (HR1507 only)
11 Insert holder
12 Whisking disc (HR1507 only)
13 Shaft

Important

• Keep hands and utensils out of the bowl connected to the power supply. If food needs to be pushed down use a suitable utensil such as a spatula.
• Never fit the blade assembly to the power unit without the bowl/lid fitted.

Danger

- Never immerse the motor unit in water or any other liquid, nor rinse it under the tap. Use only a moist cloth to clean the motor unit.

Warning

• Do not misuse the appliance to avoid potential injury.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use
• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Do not use the appliance if the plug, the mains cord or other parts are damaged or have visible cracks.
• If the supply cord is damaged, it must be replaced by Philips, its service agent or similarly qualified persons in order to avoid a hazard.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• This appliance shall not be used by children. Keep the appliance and its cord out of the reach of children.
• Children shall not play with the appliance.
• Be very careful when you handle a blade unit. Be especially careful when you remove it from the bowl, when you empty the bowl and when you clean it. Its cutting edges are very sharp.
• DO NOT touch the sharp blades. The blades are very sharp, handle with care. Always hold by the finger grip/disc hole at the top, away from the cutting edge, when handling the sharp cutting blades, emptying the bowl and during cleaning.
• If one of the blade units gets stuck, switch off the appliance before you remove the ingredients that block the blade unit.
• Be careful when you pour hot liquid into the beaker, as hot liquid and steam may cause scalding.
• The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
• Never use a chopper blade unit without a chopper bowl.

Caution

- Always disconnect the appliance from the supply if it is left unattended and before you assemble, disassemble, store or clean it.

8 English

• Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.
• Only use this appliance for its intended purpose as shown in the user manual.
• This appliance is intended for normal household use only. It is not intended for use in environments such as staff kitchens of shops, offices, farms or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments.
• Do not exceed the quantities and processing times indicated in the table.
• Do not exceed the quantities indicated in the Chopping Bowl.
• Cut large ingredients into pieces of approximately 2cm before you process them.
• DO NOT process hot ingredients.
• If ingredients stick to the wall of the bowl, remove the motor unit and the lid. Then loosen the ingredients with a spatula or add some liquid.
• Do not operate your appliance for longer than the times specified below without a rest period. Processing continuously for longer periods can damage your appliance.
• Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
• Thoroughly clean the parts that come into contact with food before you use the appliance for the first time. Refer to the instructions for cleaning given in the manual.
• Noise level: LC - 85 dB(A)

Electromagnetic fields (EMF)

This appliance complies with the applicable standards and regulations regarding exposure to electromagnetic fields.

Recycling

• This symbol means that electrical products shall not be disposed of with normal household waste.
• Follow your country's rules for the separate collection of electrical products.

Warranty and support

Versuni Netherlands B.V., registered at Claude Debussylaan 88, Amsterdam, NL, offers a two-year warranty on this product after the date of purchase (or the

date of delivery, if later). This warranty is not valid if a defect is due to incorrect use or poor maintenance. Our warranty does not affect your rights under law as a consumer. For more information, for spare parts, or for invoking the warranty, please visit our website home.id/support.

Before first use

Before the first use, wash the appliance and accessories with warm soapy water.

Rinse them thoroughly and dry them completely before assembling.

Place the chopper bowl on a stable and flat surface.

Avoid placing it near heat sources, water, or flammable materials.

Using the appliance

Using the chopper

This appliance is intended for chopping ingredients such as nuts, raw meat, onions, hard cheese, herbs, etc.

To use the chopper, follow the steps below:

1 Attach the additional blade to the main blade.

DO NOT touch the sharp blades.

Diagram showing a mechanical component with an arrow indicating downward motion, next to a cylindrical device (no text or symbols)

Illustration of two hands performing a candlestick technique on a cup, with arrows indicating downward motion (no text or symbols)

2 Insert the assembled chopper blades into the chopper bowl. - You can also use the main blade without the additional blade.

MAX 500g

3 Place the ingredients into the chopper bowl.

Do not exceed the max capacity of the chopper bowl.

Cut ingredients into small shapes and sizes (2 x 2 cm).

10 English

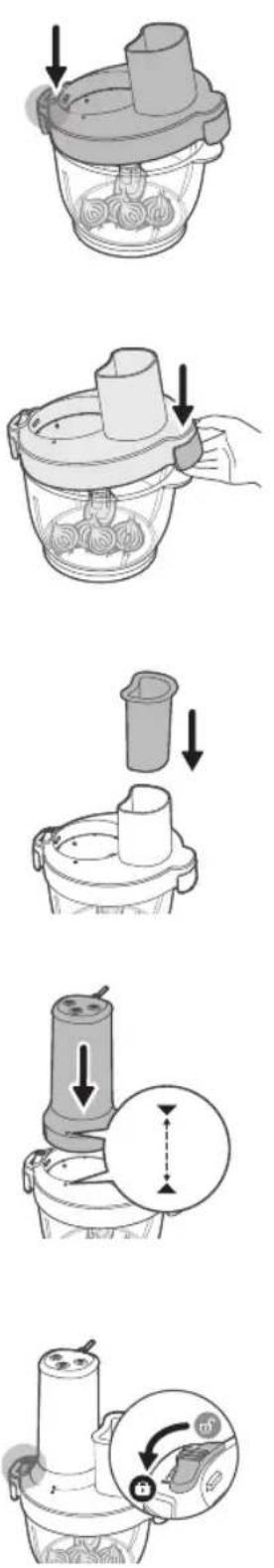

4 Close and lock the lid.

5 Put the pusher in the feeding tube.

6 Attach the motor unit to the lid.

- Make sure the mark on the motor unit aligns with the mark on the lid.

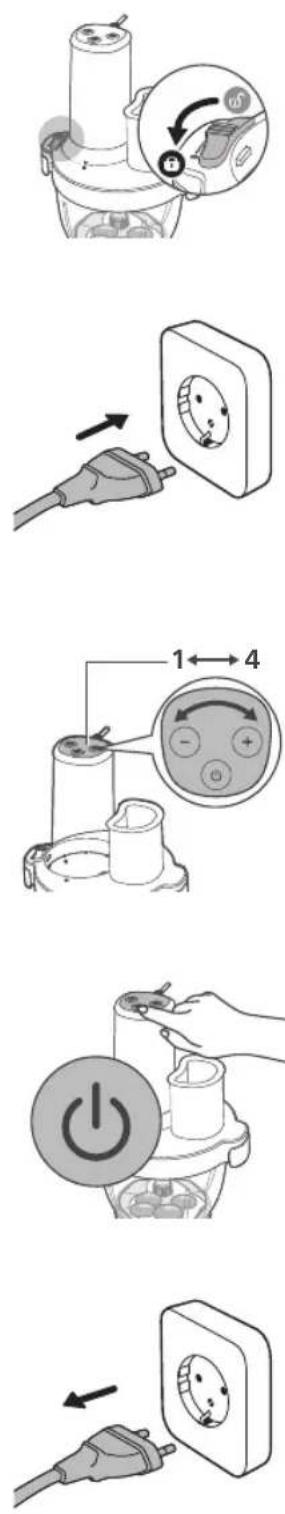

7 Slide the switch to the lock position to secure the motor unit to the lid.

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

8 Put the plug in the wall socket.

- The appliance is ready.

1←→4

9 Press + or - button to select a processing speed (1 to 4).

Speed 1: the appliance will work at the lowest speed.

Speed 4: the appliance will work at the highest speed.

Do not operate the appliance without ingredients.

Do not leave the motor running for more than 60 consecutive seconds; wait about 2 minutes before starting it up again.

Illustration of a hand using a power switch to press a cylindrical device (no text or symbols present)

10 Press the on/off button to start processing.

11 Press the on/off button again to stop.

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

12 Disconnect the plug from the socket.

Diagram of a mechanical component with an upward arrow, no text or symbols present

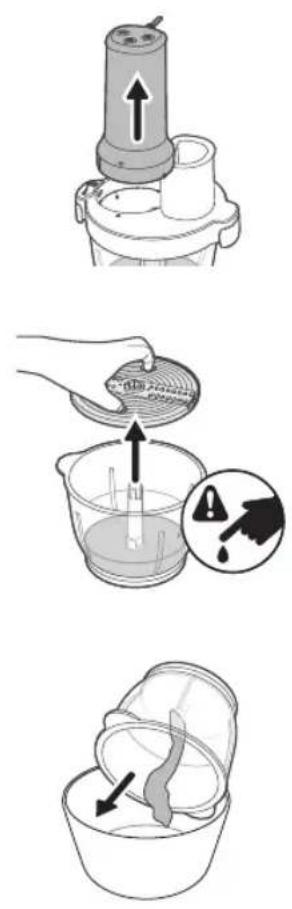

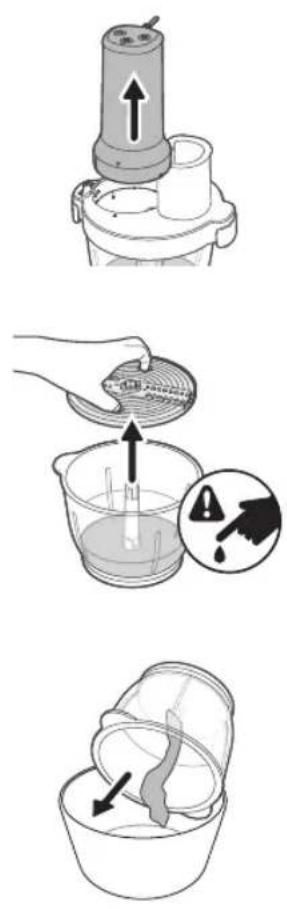

13 Slide the switch to the unlock position to release the motor unit.

14 Remove the motor unit from the lid.

12 English

Illustration of a hand pressing down on a kitchen grater with an upward arrow indicating motion (no text or symbols)

15 Remove the lid.

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols, indicating environmental hazard.

16 Remove the assembled blade from the bowl.

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

17 Empty the bowl

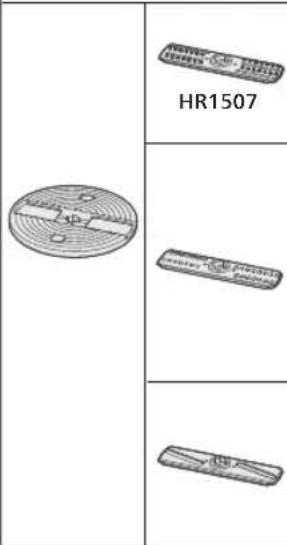

Using the slicing/shredding/granulating inserts

To use the slicing/shredding/granulating inserts, follow the steps below:

1 Attach the shaft to the chopper bowl.

Simple line drawing of a pipette inserted into a bowl with an arrow indicating direction (no text or symbols)

Diagram illustrating a hand holding a tool with warning symbols and an arrow indicating process flow

2 Attach the desired insert to the insert holder.

DO NOT touch the sharp blades.

Diagram illustrating a chemical process with labeled steps: adding liquid, dropping funnel, and using a test tube, accompanied by an icon of warning and detection.

3 Attach the assembled insert holder to the shaft in the chopper bowl.

Illustration of a kitchen mixer with a handle and lid, showing no text or symbols

4 Close and lock the lid.

Illustration of a hand using a kitchen mixer to handle a lid (no text or symbols)

5 Attach the motor unit to the lid.

- Make sure the mark on the motor unit aligns with the mark on the lid.

Diagram of a mechanical device with a cylindrical component and a circular component, showing directional arrows (no text or symbols)

6 Slide the switch to the lock position to secure the motor unit to the lid.

Illustration of a robotic arm with a magnified inset showing the motion of the arm (no text or symbols present)

14

English

MAX 500g

7 Add ingredients through the feeding tube and push them down with the pusher.

Do not exceed the maximum capacity of the chopper bowl (500 g).

8 Put the pusher in the feeding tube.

Illustration of a hand holding an electrical plug next to a square electrical socket with a dial (no text or symbols)

9 Put the plug in the wall socket.

- The appliance is ready.

1 ← 4 - + 0

10 Press + or - button to select a processing speed (1 to 4).

Speed 1: the appliance will work at the lowest speed.

Speed 4: the appliance will work at the highest speed.

Do not operate the appliance without ingredients.

Do not leave the motor running for more than 60 consecutive seconds; wait about 2 minutes before starting it up again.

Illustration of a hand using a power button to press a container with food items (no text or symbols)

11 Press the on/off button to start processing.

12 Press the on/off button again to stop.

Illustration of a plug connected to an electrical outlet with a magnified view (no text or symbols)

13 Disconnect the plug from the socket.

14 Slide the switch to the unlock position to release the motor unit from the lid.
15 Remove the motor unit from the lid.
16 Remove the lid.

17 Remove the assembled insert holder and shaft from the bowl.

18 Empty the bowl.

Using the whisking disc

Diagram illustrating two steps of a mechanical assembly or tooling process, labeled with numbered instructions.

To use the whisking disc, follow the steps below:

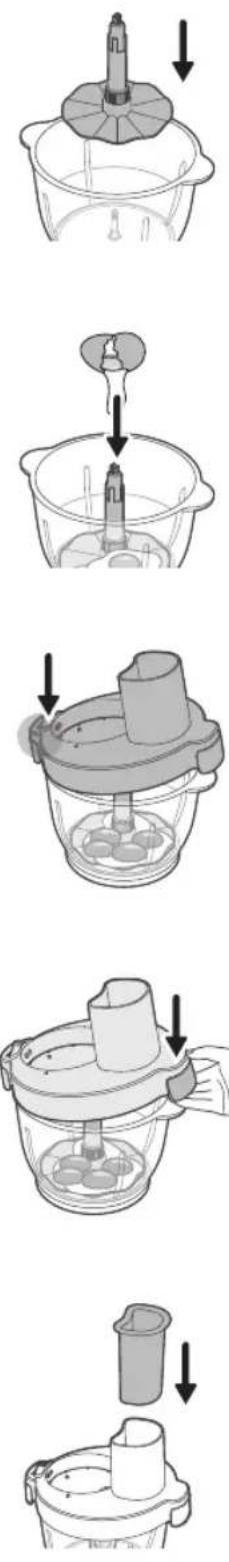

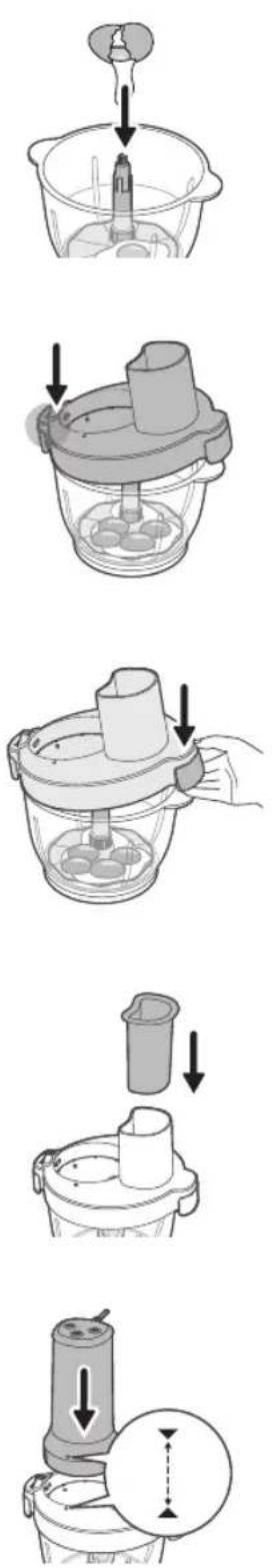

1 Attach the whisking disc to the shaft.
2 Turn the whisking disc counterclockwise to lock it in place.

3 Attach the assembled whisking disc to the chopper bowl.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

16

English

Simple line drawing of a container with a lid and an upward arrow, no text or symbols present.

4 Add ingredients to the chopper bowl.

Do not exceed the maximum level of the chopper bowl.

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

5 Close and lock the lid

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

6 Put the pusher in the feeding tube.

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

7 Attach the motor unit to the lid.

- Make sure the mark on the motor unit aligns with the mark on the lid.

8 Slide the switch to the lock position to secure the motor unit to the lid.

9 Put the plug in the wall socket.

- The appliance is ready to use.

10 Press + or - button to select a processing speed (1 to 4).

Speed 1: the appliance will work at the lowest speed.

Speed 4: the appliance will work at the highest speed.

Do not operate the appliance without ingredients.

Do not leave the motor running for more than 60 consecutive seconds; wait about 2 minutes before starting it up again.

11 Press the on/off button to start processing.
12 Press the on/off button again to stop.
13 Disconnect the plug from the socket.

18

English

Diagram of a mechanical device with a cylindrical component and a base, showing an upward arrow (no text or symbols present)

14 Slide the switch to the unlock position to remove the motor unit from the lid.
15 Remove the motor unit from the lid.

Illustration of a hand using a kitchen mixer to press or adjust a dish (no text or symbols visible)

16 Remove the lid.

17 Remove the assembled whisking disc from the bowl.

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

18 Empty the bowl.

Simple line drawing of a container with a lid and an arrow pointing to it (no text or symbols)

Using the garlic peeler

To use the garlic peeler, follow the steps below:

Use peeled garlic cloves only. Do not use whole garlic bulbs.

Simple visual icons showing a roll of garlic and a pumpkin with checkmark and cross symbols

Illustration of a mechanical component being lifted by a rod, with a downward arrow indicating force or direction (no text or symbols)

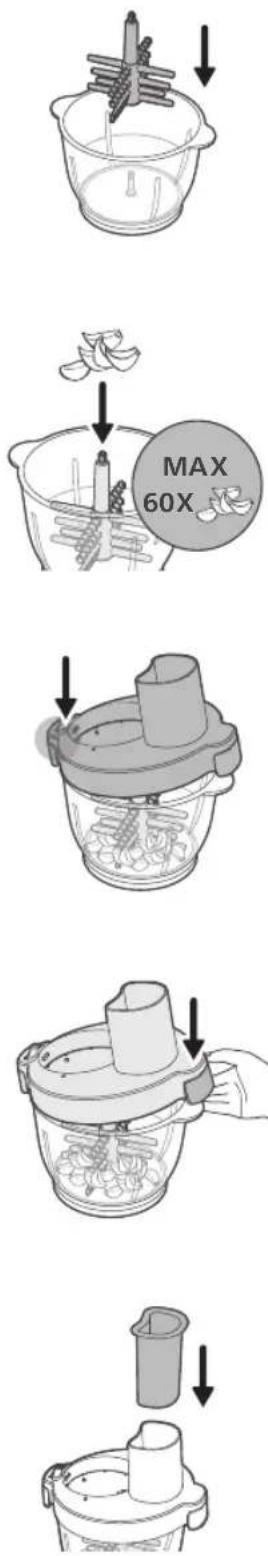

1 Attach the garlic peeler to the chopper bowl.

MAX 60X

2 Add up to 60 garlic cloves to the bowl.

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

3 Close and lock the lid

Illustration of a hand using a kitchen mixer to handle food items (no text or symbols)

4 Put the pusher in the feeding tube.

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

20

English

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

5 Attach the motor unit to the lid.

- Make sure the mark on the motor unit aligns with the mark on the lid.

Diagram showing a kitchen appliance with a close-up view of the interior and a hand holding a device, labeled with Chinese characters.

6 Slide the switch to the lock position to secure the motor unit to the lid.

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

7 Put the plug in the wall socket.

- The appliance is ready.

Diagram showing a hand inserting a button into a device with labeled components and directional arrows

8 Press + or - button to select speed 2.

Process for no more than 30 seconds.

If some cloves remain unpeeled, process again at Speed 2 for up to 30 seconds.

If the garlic appears too moist, it may have been over-processed. Reduce processing time in the next round.

Illustration of a hand using a power switch to press a cup into a container (no text or symbols)

9 Press the on/off button to start processing.

10 Press the on/off button again to stop.

Illustration of a plug being inserted into an electrical outlet (no text or symbols)

11 Disconnect the plug from the socket.

Diagram of a mechanical device with a cylindrical component and a base, showing an upward arrow (no text or symbols)

12 Slide the switch to the unlock position to release the motor unit.

13 Remove the motor unit from the lid.

Illustration of a hand pressing down on a kitchen mixer with a handle and tool (no text or symbols)

14 Remove the lid.

Illustration of a mechanical device with a lever and upward arrow, no text or symbols present

15 Remove the garlic peeler from the chopper bowl.

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

16 Dispose of the excess peel.

- The peeled garlic cloves are ready for use.

22 English

Processing quantities and processing time

Do not exceed the maximum quantities and processing times indicated.

				(Kg(MAX)	(MAX)
				400 g	10P 1
				400 g	10 sec.	4
				400 g	30 sec.	4
				400 g	60 sec.	4
				500 g+200 ml	60 sec.	1>4
R1507				250 ml 60 sec.		4
				4 x	90 sec.	4
	HR1507			500 g	20 sec.	1
			[240K]	250 g	30 sec.	1
				500 g	20 sec.	2
				1 piece	20 sec.	2
			[S204]	250 g	30 sec.	2
				200 g	20 sec.	1
				1 piece	20 sec.	1
HR1507			10 x [AAT8]	10 Cloves	15 sec.	2
			60 x [2x6Y]	60 Cloves	30-60 sec.	2

Recipes

Honey Mashed Potatoes

This recipe can be prepared with the regular blade unit.

450g honey

200g frozen butter

100g freshly cooked potatoes

1 Pour 450g of honey into a bowl and place it in the refrigerator at 0°C (prepare 3 bowls).

2 Cut 200g of frozen butter into 2-3 cm cubes, and 100g of freshly cooked potatoes into 3-4 cm pieces.

3 Put the bowls to the table, add the butter and freshly cooked potato pieces into the beaker, and operate at the highest setting for 5 seconds.

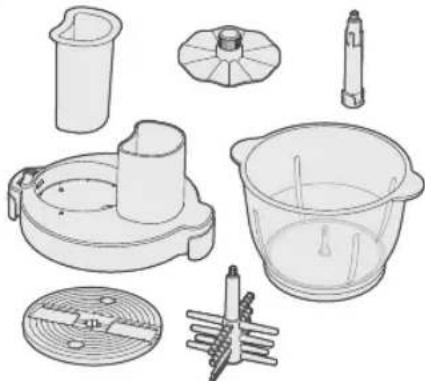

Cleaning and Maintenance

1 Always disconnect the appliance from the power source before cleaning.
2 Disassemble the appliance and carefully remove the blades and any other detachable parts.
3 Wipe the motor unit with a damp cloth only.
4 Clean the accessories with warm water and detergent.
5 Dry all the chopper parts with a clean towel.

	√	×

24 English

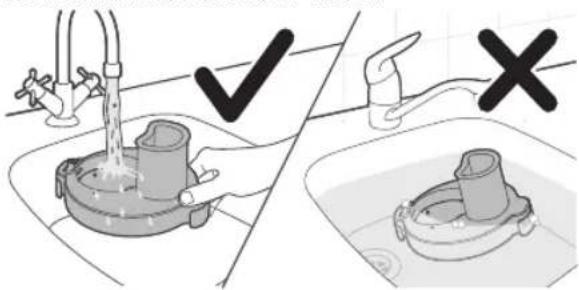

Clean and dry the lid

Rinse the lid under running water.

Do not immerse the lid in water.

Diagram illustrating a water treatment procedure with checkmark and cross symbols indicating water quality inspection

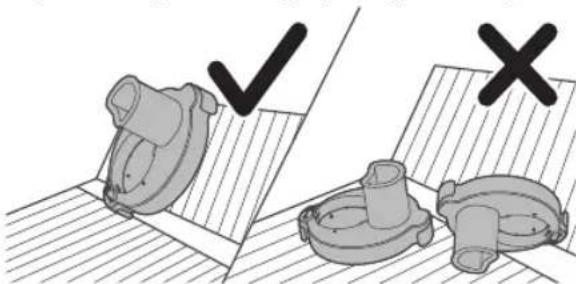

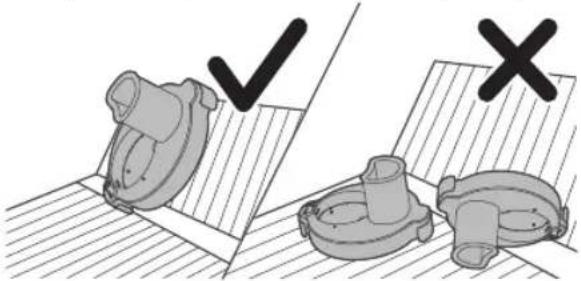

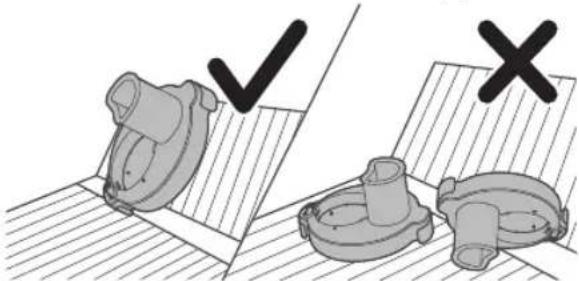

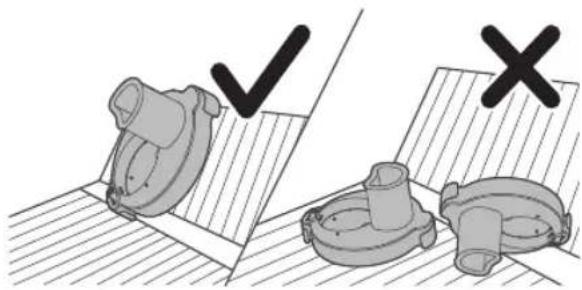

Dry the lid at an angle on the rack.

Do not dry the lid upside down or on a flat surface.

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Úvod

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram showing a mechanical component with an arrow indicating downward motion, and a separate schematic of a cylindrical device (no text or symbols present)

Illustration of two hands performing a candle flame operation in a container (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a circular diagram with dashed lines indicating alignment or measurement.

Diagram of a kitchen appliance with a magnified inset showing a circular component with an arrow and lock icon (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand pressing a button on a blender with a power symbol (no text or labels)

Illustration of a plug inserted into an electrical outlet socket (no text or symbols)

Diagram of a mechanical component with an upward arrow and a cylindrical base (no text or symbols)

Illustration of a hand pressing down on a food processor with an upward arrow indicating motion (no text or symbols)

15 Sejměte víko.

Diagram illustrating a hand pouring liquid into a container with an upward arrow and warning symbols, accompanied by a magnified view of the downward hand.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple line drawing of a pencil inside a bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand using a tool to mark a defect or hazard, with an icon showing a pointing hand and a warning symbol.

Diagram illustrating a cooking step with labeled steps: adding a lid, pouring liquid into a container, and triggering a drop.

Illustration of a kitchen mixer with a downward arrow indicating the component (no text or symbols present)

Illustration of a hand using a kitchen mixer to handle a lid, with an arrow indicating the handle (no text or symbols present)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram of a mechanical device with a magnified inset showing a rotating component (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a hand holding a plug next to an electrical outlet with a circular component (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly or turning process with numbered steps and directional arrows indicating motion.

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram of a pipette dispensing liquid into a container (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

36

Čeština

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with a downward arrow and a magnified circular section indicating measurement or alignment.

Diagram illustrating a mechanical device with a magnified inset showing a rotating component and directional arrow.

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a hand holding an electrical plug next to a square socket with a circular vent (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand using a blender to press or adjust a lid (no text or symbols present)

16 Sejměte víko.

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

Simple line drawing of a bucket with a handle and arrow indicating direction (no text or symbols)

Simple visual icons showing a roll of peezers and a pumpkin with checkmark and cross symbols

Illustration of a mechanical component being lifted by a rod, with an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

Diagram showing a container with a lid and an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical component with downward force arrow and a circular diagram with vertical arrows indicating alignment or measurement.

Illustration of a kitchen appliance with a magnified view showing a hand holding a small object (no text or symbols present)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

2 - 2 + +

Illustration of a hand pressing a button on a beverage with a power symbol (no text or labels)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a hand pressing down on a kitchen mixer with a handle and tool (no text or symbols)

14 Sejměte víko.

Illustration of a fish jumping from a bowl into a container with an upward arrow (no text or symbols)

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
			250 g	30 sec.	1
	[IMAGE]		500 g	20 sec.	2
			1 piece	20 sec.	2
			250 g	30 sec.	2
	[IMAGE]		200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x	60 Cloves	30-60 sec.	2

Recepty

Diagram illustrating a water treatment procedure with checkmark and cross symbols indicating inspection or rejection status.

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Indledning

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram showing a mechanical component with an arrow indicating downward motion, alongside a cylindrical device (no text or symbols)

Illustration of two hands performing a candle flame operation on a glass (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

Diagram of a kitchen appliance with a magnified inset showing a circular component (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand holding a power button next to a container filled with food items (no text or symbols)

10 Tryk på on/off-knappen for at starte apparatet. 11 Tryk på on/off-knappen igen for at stoppe.

Illustration of a hand holding a plug next to an electrical outlet socket (no text or symbols)

Diagram of a mechanical component with an upward arrow and a cylindrical base (no text or symbols)

Illustration of a hand pressing down on a food processor with an upward arrow indicating motion (no text or symbols)

15 Fjern låget.

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

17 Tøm skålen

Simple line drawing of a pen inserted into a bowl with an arrow indicating downward motion (no text or symbols)

52 Dansk

Diagram illustrating a hand using a measuring tool to measure a circular object, with warning symbols and an arrow indicating process flow.

Diagram illustrating a chemical process with labeled steps: adding liquid, drying in a container, and warning symbols.

Illustration of a kitchen mixer with a handle and lid, showing no text or symbols

Illustration of a hand using a kitchen mixer to handle a lid with an arrow indicating the handle (no text or symbols present)

Diagram showing a mechanical device with a downward arrow and a circle indicating alignment or positioning, likely illustrating a motion or positioning concept.

Diagram of a mechanical device with an inset showing a circular component and directional arrow (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a power switch to press a cylindrical device into a container (no text or symbols)

11 Tryk på on/off-knappen for at starte apparatet.

12 Tryk på on/off-knappen igen for at stoppe.

Dansk

Illustration of a hand holding a plug next to an electrical outlet socket (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base (no text or symbols)

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a container with a lid and an arrow pointing to it (no text or symbols)

18 Tøm skålen.

Brug af piskeskiven

Diagram illustrating a mechanical assembly with labeled steps: first step, second step, and lock mechanism.

Diagram of a mechanical component with a cylindrical shaft and flange, showing a downward arrow (no text or symbols)

Simple line drawing of a container with a bottle and a lid, no text or symbols present

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a pot, with an arrow indicating downward motion (no text or symbols present)

Dansk

Diagram of a mechanical device with downward force arrows and a magnified circular detail (no text or symbols)

Diagram showing a device with a lid and a magnified view of the component's rotation, including an arrow indicating rotational direction.

Illustration of a hand holding an electrical plug next to a square wall socket with a pointer (no text or symbols)

Illustration of a hand using a power button to press or press a container (no text or symbols present)

11 Tryk på on/off-knappen for at starte apparatet.

12 Tryk på on/off-knappen igen for at stoppe.

Illustration of a plug connected to an electrical outlet with a magnified view (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a base, showing an upward arrow (no text or symbols)

14 Skub kontakten til ulåst position for at fjerne motorenheden fra låget.

Illustration of a hand using a kitchen mixer to press or adjust a dish (no text or symbols visible)

16 Fjern låget.

Diagram of a mechanical component with an upward arrow, no text or symbols present

18 Tøm skålen.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple visual icons showing a roll of pepper and a pumpkin with checkmark and cross symbols

Illustration of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrow and a circular diagram with vertical and horizontal arrows indicating measurement or alignment.

Diagram of a kitchen appliance with a magnified view showing a button and handle (no text or symbols)

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

Diagram showing a hand inserting a device into a circular control panel with labeled buttons and arrows indicating direction.

Illustration of a hand pressing a power button on a container (no text or symbols)

9 Tryk på on/off-knappen for at starte apparatet.
10 Tryk på on/off-knappen igen for at stoppe.

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols)

14 Fjern låget.

Illustration of a bowl containing food with a fork and a stick above it, no text or symbols present

Simple line drawing of a bucket pouring liquid into a container with an arrow indicating direction (no text or symbols)

			(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
HR1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507	[6KT2]	500 g	20 sec.	1
			250 g	30 sec.	1
			500 g	20 sec.	2
			1 piece	20 sec.	2
		[SBW8]	250 g	30 sec.	2
		[45K3]	200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x [XHZT]	10 Cloves	15 sec.	2
		60 x [HBC2]	60 Cloves	30-60 sec.	2

62 Dansk

Opskrifter

Diagram illustrating a water tap and drain with checkmark and cross symbols indicating water quality status

Tør låget i en vinkel på et tørrestativ.

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Einführung

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with directional arrows and a magnified circular section highlighting measurement points.

Diagram showing a food processor with a magnified view of the process, highlighting a rotation arrow and control buttons.

Illustration of a plug inserted into an electrical outlet with a circular dial (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing down on a food processor with a handle (no text or symbols)

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols, indicating environmental hazard.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple line drawing of a pipette inserted into a glass bowl with an arrow indicating direction (no text or symbols)

Diagram illustrating a hand holding a tool with warning symbols and an arrow indicating process flow

Diagram illustrating a cooking step with labeled steps and warning icons

Illustration of a hand holding a plug next to an electrical outlet with a compass (no text or symbols)

Illustration of a hand using a power switch to press a cylindrical device into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Diagram illustrating a cooking step with labeled steps and warning icons for safety alerts.

Diagram illustrating two steps of a mechanical assembly or tooling process, labeled with numbered instructions.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram of a laboratory setup with a funnel and test tube in a beaker (no text or labels)

Illustration of a hand inserting a plug into a wall socket (no text or symbols)

Illustration of a hand using a power button to press or press a device (no text or symbols present)

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a hand using a lathe mixer to press or adjust a liquid mixture (no text or symbols present)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

Simple visual icons showing a roll of garlic and a pumpkin with checkmark and cross symbols

Deutsch

Illustration of a mechanical component being lifted into a container with an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to handle food items (no text or symbols)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram illustrating a food preparation step with labeled components and an arrow indicating rotation or movement.

Illustration of a plug being inserted into an electrical socket (no text or symbols)

Illustration of a hand using a power switch to press a cup into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base (no text or symbols)

Illustration of a hand pressing down on a kitchen mixer with a handle and tool (no text or symbols)

Illustration of a bowl containing food with a fork and chopsticks, no text or symbols present

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
		###	250 g	30 sec.	1
	###		500 g	20 sec.	2
			1 piece	20 sec.	2
		###	250 g	30 sec.	2
	###	###	200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x ###	10 Cloves	15 sec.	2
		60 x ###	60 Cloves	30-60 sec.	2

Rezepte

Diagram illustrating a water purifier with checkmark and cross symbols indicating water flow or inspection

Diagram showing three mechanical components with check and cross symbols, no readable text or labels

Tutvustus

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram showing a mechanical component with an arrow indicating downward motion, and a cylindrical device below (no text or symbols)

Illustration of two hands performing a candle flame operation in a container (no text or symbols)

2 Sisestage kokkupandud hakkimisterad hakkimiskaussi.

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

4 Sulgege kaas.

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

Diagram of a kitchen appliance with a magnified view showing internal components (no text or symbols)

7 Lükake lüliti lukustusasendisse, et mootoriüksus kaanele kinnitada.

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand holding a power button next to a container filled with food items (no text or symbols)

Illustration of a hand holding an electrical plug next to a square socket with a circular vent (no text or symbols)

12 Eemaldage pistik pistikupesast.

Diagram of a mechanical component with an upward arrow and a cylindrical base (no text or symbols)

Illustration of a hand pressing down on a food processor with an upward arrow indicating motion (no text or symbols)

15 Eemaldage kaas.

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols, indicating environmental hazard.

16 Eemaldage kausist kokkupandud tera.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

17 Tühjendage kauss

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram of a mechanical device with a magnified inset showing a rotating component (no text or symbols)

6 Lükake lüliti lukustusasendisse, et mootoriüksus kaanele kinnitada.

MAX 500g

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand holding a plug next to an electrical outlet with a circular component (no text or symbols)

13 Eemaldage pistik pistikupesast.

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly or tool operation with labeled steps 1 and 2, showing a pen-like component and a base with a lock mechanism.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

4 Lisage toiduained hakkimiskaussi.

Diagram of a pipette dispensing liquid into a container (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with directional arrows and a magnified circular section highlighting measurement points.

Diagram illustrating a mechanical device with a magnified inset showing a rotating component and its rotation arrow.

8 Lükake lüliti lukustusasendisse, et mootoriüksus kaanele kinnitada.

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

Illustration of a hand pressing a button on a blender with a power symbol (no text or labels)

Illustration of a hand holding an electrical plug next to a square electrical socket with a circular vent (no text or symbols)

13 Eemaldage pistik pistikupesast.

Diagram of a mechanical device with an upward arrow and internal components (no text or symbols)

Illustration of a hand using a mixer to press or adjust a container (no text or symbols visible)

16 Eemaldage kaas.

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

17 Eemaldage kokkupandud vispliketas kausist.

100 Eesti

Simple line drawing of a bucket with a handle and arrow indicating direction (no text or symbols)

Simple visual icons showing a roll of peezers and a pumpkin with checkmark and cross symbols

Illustration of a mechanical component being lifted by a rod, with an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical component with downward force arrow and a circular diagram with vertical arrows indicating alignment or measurement.

Illustration of a kitchen utensil with a magnified view showing a hand holding a small object (no text or symbols present)

6 Lükake lüliti lukustusasendisse, et mootoriüksus kaanele kinnitada.

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Illustration of a hand using a power switch to press a coffee cup (no text or symbols present)

Illustration of a plug being inserted into an electrical outlet (no text or symbols)

11 Eemaldage pistik pistikupesast.

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand pressing down on a kitchen mixer with an arrow indicating the process (no text or symbols present)

14 Eemaldage kaas.

Illustration of a bowl containing food with a fork and an upward arrow, no text or symbols present

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
		[ADOT]	250 g	30 sec.	1
	[IMAGE]		500 g	20 sec.	2
			1 piece	20 sec.	2
		[SWBS]	250 g	30 sec.	2
	[IMAGE]		200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x [BBCS]	60 Cloves	30-60 sec.	2

Retseptid

Kartulipuder meega

Diagram illustrating a water drain system with checkmark and cross symbols indicating water quality status

Kuivatage kaant restil nurga all.

Ärge kuivatage kaant tagurpidi ega tasasel pinnal.

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Introducción

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

Diagram of a kitchen appliance with a magnified view showing internal components (no text or symbols)

Illustration of a plug being inserted into an electrical outlet (no text or symbols)

Illustration of a hand pressing a button on a container with a power symbol (no text or labels)

Illustration of a hand holding an electrical plug next to a wall socket with a circular vent (no text or symbols)

Diagram of a mechanical component with an upward arrow and a cylindrical base (no text or symbols)

Illustration of a hand pressing down on a food processor with an upward arrow indicating motion (no text or symbols)

15 Quite la tapa.

Diagram illustrating a hand pouring liquid into a container with an upward arrow and warning symbols, accompanied by a magnified view of the downward hand.

16 Retire la cuchilla montada del recipiente.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram of a mechanical device with a magnified inset showing a rotating component (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a compass showing the dial (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a hand holding a plug next to an electrical outlet with a circular component (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present.

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly or tool operation with labeled steps 1 and 2, showing a pen-like component and a base with a lock mechanism.

Diagram of a mechanical component with a cylindrical shaft and flange, showing a downward arrow (no text or symbols)

Simple line drawing of a funnel pouring liquid into a container (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with directional arrows and a magnified circular section highlighting measurement points.

Diagram illustrating a mechanical device with a magnified inset showing a rotating component and its rotation arrow.

Illustration of a plug inserted into an electrical outlet with a compass (no text or symbols)

Illustration of a hand pressing a button on a blender with a power symbol (no text or labels)

Illustration of a hand holding an electrical plug next to a square electrical socket with a circular vent (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand using a mixer to lift a liquid mixture in a kitchen (no text or symbols)

16 Quite la tapa.

Diagram of a mechanical component with a cylindrical shaft and upward arrow, no text or symbols present

Simple line drawing of a bucket with a handle and arrow indicating direction (no text or symbols)

Simple line drawings of peep pods and a pumpkin with checkmark and cross symbols

Illustration of a container with a rod inserted into a bowl, showing liquid and a downward arrow (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical component with downward force arrow and a circular diagram with vertical arrows indicating alignment or measurement.

Illustration of a kitchen utensil with a magnified view showing a hand holding a small object (no text or symbols present)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a power button next to a cup of milk (no text or symbols)

Illustration of a plug being inserted into an electrical outlet (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand pressing down on a kitchen mixer with an arrow indicating the process (no text or symbols present)

14 Quite la tapa.

Illustration of a mechanical device interacting with a bowl containing granular material, with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a bucket pouring liquid into a container with an arrow indicating direction (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
			250 g	30 sec.	1
	[IMAGE]		500 g	20 sec.	2
			1 piece	20 sec.	2
		[HOOH]	250 g	30 sec.	2
	[IMAGE]		200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x [B2SH]	10 Cloves	15 sec.	2
		60 x [OZ-4V]	60 Cloves	30-60 sec.	2

Recetas

Diagram illustrating water treatment process with checkmark and cross symbols indicating water quality inspection

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Introduction

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram of a mechanical device with a downward arrow and a circular component, no text or symbols present

Diagram showing a food item being processed with a magnified view highlighting the step of processing.

Illustration of a plug connected to an electrical outlet with a meter (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a hand holding an electrical plug next to a wall socket with a circular vent (no text or symbols)

Diagram of a mechanical device with an upward arrow and internal components (no text or symbols)

Illustration of a hand pressing down on a food processor with a handle (no text or symbols)

15 Retirez le couvercle.

Diagram illustrating a hand pouring liquid into a container with an upward arrow and a warning symbol pointing to it.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

17 Videz le bol.

Simple line drawing of a pipette inside a bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a medical procedure with labeled arrows and warning symbol, including a magnified view of the tool.

Diagram illustrating a cooking step with labeled steps and warning symbols

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press or adjust the lid (no text or symbols visible)

Diagram showing a mechanical device with a downward arrow and a circular component, likely illustrating a motion or positioning concept.

Illustration of a kitchen appliance with a hand inserting a button to a button (no text or symbols)

MAX 500g

Illustration of a plug plugged into an electrical outlet socket (no text or symbols)

Illustration of a hand using a power button to press a container with coins (no text or symbols)

Illustration of a plug being inserted into an electrical outlet (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

16 Retirez le couvercle.

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

18 Videz le bol.

Diagram illustrating two steps of a mechanical assembly with labeled components and directional arrows

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Diagram of a medical procedure showing a needle inserted into a cup with liquid, no text or symbols present

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram of a robotic arm with a close-up inset showing a hand interacting with the arm (no text or symbols present)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

1←4

Illustration of a hand using a power button to press or install a container (no text or symbols present)

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Illustration of a hand using a kitchen mixer to lift a lid (no text or symbols)

16 Retirez le couvercle.

140

Français

Illustration of a mechanical component with an upward arrow, no text or symbols present

18 Videz le bol.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple visual icons showing a roll of spinach and a garlic bulb with checkmark and cross symbols

Illustration of a mechanical component being lifted by a rod, with an arrow indicating downward motion (no text or symbols)

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

Diagram showing a hand inserting a button into a device with labeled parts and polarity indicators

Illustration of a hand pressing a power button on a cup (no text or symbols)

Illustration of a plug inserted into an electrical socket (no text or symbols)

Diagram of a mechanical device with an upward arrow, no text or symbols present

Illustration of a hand pressing down on a kitchen mixer with an upward arrow indicating motion (no text or symbols)

14 Retirez le couvercle.

Illustration of a mechanical device with a lever and rotating components inside a glass bowl (no text or symbols)

Simple line drawing of a bucket pouring liquid into a container with an arrow indicating direction (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
		[38WS]	250 g	30 sec.	1
	[IMAGE]		500 g	20 sec.	2
			1 piece	20 sec.	2
		[KDBA]	250 g	30 sec.	2
	[IMAGE]		200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x [67-4]	10 Cloves	15 sec.	2
		60 x [67-8]	60 Cloves	30-60 sec.	2

Recettes

Diagram illustrating a water drain system with checkmark and cross symbols indicating water quality status

Diagram showing two mechanical components with check and cross symbols, no readable text or labels

Uvod

① ② ③ ④ HR1507 HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

1 Potiskivač
2 Jedinica motora
3 Poklopac zdjele sjeckalice
4 Zdjela sjeckalice
5 Glavni rezač
6 Dodatni rezač
7 Nastavak za guljenje češnjaka (samo HR1507)
8 Umetak za rezanje
9 Umetak za usitnjavanje
10 Umetak za granuliranje (samo HR1507)
11 Držač umetka
12 Disk za tučenje (samo HR1507)
13 Osovina

Važno

Diagram showing a mechanical component with a downward arrow and a cylindrical base (no text or symbols)

Illustration of two hands performing a candle flame in a container, with arrows indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

5 Stavite potiskivač u otvor za umetanje.

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

6 Pričvrstite jedinicu motora na poklopac.

- Provjerite je li oznaka na jedinici motora poravnata s oznakom na poklopcu.

152 Hrvatski

Diagram of a kitchen appliance with a magnified view showing internal components (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand pressing a button on a cylindrical device with a power symbol (no text or labels)

Illustration of a hand holding a plug next to an electrical outlet socket (no text or symbols)

Diagram of a cylindrical device with an upward arrow and a base, no text or symbols present

13 Pomaknite prekidač u položaj za otključavanje kako biste otpustili jedinicu motora.
14 Uklonite jedinicu motora iz poklopca.

Illustration of a hand pressing down on a food processor with an upward arrow indicating motion (no text or symbols)

15 Skinite poklopac.

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols

16 Uklonite sastavljeni rezač iz zdjele.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple line drawing of a pencil inside a bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand holding a tool with a warning symbol and an arrow indicating force application or damage.

Diagram illustrating a chemical process with labeled steps: adding liquid, adding granular material, and using a test tube, accompanied by an instructional icon.

Illustration of a kitchen mixer with a downward arrow indicating the component (no text or symbols present)

Illustration of a hand using a kitchen mixer to handle a lid (no text or symbols)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

5 Pričvrstite jedinicu motora na poklopac.

- Provjerite je li oznaka na jedinici motora poravnata s oznakom na poklopcu.

Diagram of a mechanical device with a magnified inset showing a rotating component (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand holding a plug next to an electrical outlet with a circular component (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

14 Pomaknite prekidač u položaj za otključavanje kako biste otpustili jedinicu motora iz poklopca.
15 Uklonite jedinicu motora iz poklopca.
16 Skinite poklopac.

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly with labeled steps 1 and 2, showing a pen-like component before and after rotation.

Diagram of a mechanical component with a cylindrical shaft and flange, showing a downward arrow (no text or symbols)

Simple line drawing of a funnel pouring liquid into a container (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

6 Stavite potiskivač u otvor za umetanje.

Diagram showing a mechanical device with directional arrows and a magnified circular section highlighting measurement points.

7 Pričvrstite jedinicu motora na poklopac.

- Provjerite je li oznaka na jedinici motora poravnata s oznakom na poklopcu.

Diagram illustrating a mechanical device with a magnified inset showing a rotating component and its rotation arrow.

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

Illustration of a hand using a power button to press or press a container (no text or symbols present)

Illustration of a hand holding an electrical plug next to a square electrical socket with a circular vent (no text or symbols)

Diagram of a mechanical device with an upward arrow and internal components (no text or symbols)

14 Pomaknite prekidač u položaj za otključavanje kako biste uklonili jedinicu motora iz poklopca.
15 Uklonite jedinicu motora iz poklopca.

Illustration of a hand using a blender to press or adjust a lid (no text or symbols present)

16 Skinite poklopac.

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple visual icons showing a bunch of peaches and a pumpkin with checkmark and cross symbols

Illustration of a container with a rod and a downward arrow, no text or symbols present

Illustration of a kitchen mixer with a handle and lid, showing internal components (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

4 Stavite potiskivač u otvor za umetanje.

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

5 Pričvrstite jedinicu motora na poklopac.

- Provjerite je li oznaka na jedinici motora poravnata s oznakom na poklopcu.

Diagram showing a mechanical component with downward force arrow and a circular diagram with vertical arrows indicating alignment or measurement.

Illustration of a kitchen utensil with a magnified view showing a hand holding a small object (no text or symbols present)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

162 Hrvatski

2 - 2 + +

8 Pritisnite gumb + ili gumb - kako biste odabrali brzinu 2.

Illustration of a hand holding a power button next to a cup of milk (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified circular component (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present

12 Pomaknite prekidač u položaj za otključavanje kako biste otpustili jedinicu motora.

13 Uklonite jedinicu motora iz poklopca.

Illustration of a hand pressing down on a kitchen mixer with an arrow indicating the process (no text or symbols present)

14 Skinite poklopac.

Illustration of a hand holding a stick above a glass bowl containing food, with an upward arrow indicating direction (no text or symbols)

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

16 Uklonite i odbacite višak ljuski.

			(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
	R1507		250 ml 60 sec.		4
			4 x	90 sec.	4
			500 g	20 sec.	1
		[0W04]	250 g	30 sec.	1
			500 g	20 sec.	2
			1 piece	20 sec.	2
		[S226]	250 g	30 sec.	2
			200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x [WZ8V]	10 Cloves	15 sec.	2
		60 x	60 Cloves	30-60 sec.	2

Recepti

Pire krumpir s medom

Ovaj recept može se pripremiti uz pomoć standardne jedinice s rezačima.

450 g meda

200 g zamrznutog maslaca

100 g svježe kuhanog krumpira

1 Ulijte 450 g meda u posudu i stavite je u hladnjak pri 0 °C (pripremite 3 zdjele).

2 Narežite 200 g zamrznutog maslaca na kockice od 2 – 3 cm, a 100 g svježe kuhanog krumpira na komade od 3 – 4 cm.

Diagram illustrating a water drain system with checkmark and cross symbols indicating water flow or inspection

Kako biste ga osušili, poklopac postavite na stalak u nagnutom položaju. Poklopac nemojte sušiti u naopakom položaju ili na ravnoj površini.

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Introduzione

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrow and a magnified circular section indicating measurement or alignment.

Diagram showing a food processor with a magnified view of the process, highlighting a rotation arrow and control buttons.

Illustration of a plug inserted into an electrical outlet with a compass (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a hand holding an electrical plug next to a wall socket with a circular vent (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand pressing down on a food processor with a handle (no text or symbols)

Diagram illustrating a hand pouring liquid into a container with an upward arrow and a warning icon pointing to a drop.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple line drawing of a pipette inserted into a glass bowl with an arrow indicating direction (no text or symbols)

Diagram illustrating a hand holding a tool with warning symbols and an arrow indicating process flow

Diagram illustrating a cooking step with labeled steps and warning symbols

Illustration of a hand inserting a plug into a wall socket (no text or symbols)

Illustration of a hand using a power switch to press a device into a container (no text or symbols)

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Diagram illustrating a chemical experiment with a container, beaker, and warning symbol indicating inspection or detection.

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

Diagram illustrating two steps of a mechanical assembly or tooling process, labeled with numbered instructions.

Diagram of a mechanical component with a cylindrical shaft and flange, showing a downward arrow (no text or symbols)

Illustration of a pipette being poured into a container with liquid (no text or symbols)

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

Illustration of a hand using a power button to press or install a mechanical component (no text or symbols present)

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a hand using a lathe mixer to press or adjust a dish (no text or symbols visible)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Simple line drawing of a bucket with a handle and arrow indicating direction (no text or symbols)

Simple line drawings of peaches and a garlic bulb with checkmark and cross symbols

Illustration of a hand holding a cylindrical object above a glass bowl, with an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to handle food (no text or symbols)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating vertical alignment.

Diagram showing a food processor with a magnified view of its internal components, labeled with arrows and symbols.

Illustration of a hand holding an electrical plug next to a square electrical socket with a pointer (no text or symbols)

Illustration of a hand using a power button to press or press a cup (no text or symbols present)

Illustration of a hand holding an electrical plug next to a square socket with a circular vent (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base (no text or symbols)

Illustration of a hand pressing down on a kitchen mixer with a handle and tool (no text or symbols)

Illustration of a container with food and a stick above it, no text or symbols present

Simple line drawing of a bucket with a lid and arrow indicating liquid level (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
[BYTX]	HR1507		500 g	20 sec.	1
			250 g	30 sec.	1
	[IMAGE]		500 g	20 sec.	2
			1 piece	20 sec.	2
		[Y048]	250 g	30 sec.	2
	[IMAGE]		200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x	60 Cloves	30-60 sec.	2

Ricette

Diagram illustrating a water drain system with checkmark and cross symbols indicating water flow or inspection

Diagram showing two mechanical components with check and cross symbols, no readable text or labels

levads

Apsveicam ar pirkumu un laipni lüdzam Philips!

① ② ③ ④ HR1507 HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram illustrating a hairpin tool application process with downward arrows indicating action steps

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a circular diagram with dashed lines indicating alignment or measurement.

Diagram of a kitchen appliance with a magnified view showing internal components (no text or symbols)

Illustration of a plug connected to a wall-mounted electrical outlet (no text or symbols)

8 lespraudiet kontaktdakšu kontaktligzdā.

- lerice ir gatava darbam.

1←→4 - + +

Illustration of a hand holding a power button next to a container filled with food items (no text or symbols)

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

12 Izvelciet kontaktdakšu no kontaktligzdas.

Diagram of a cylindrical device with an upward arrow and a base, no text or symbols present

Illustration of a hand pressing down on a food processor with an upward arrow indicating motion (no text or symbols)

15 Nonemiet vāku.

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols

16 Iznemiet salikto asmeni no trauka.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple line drawing of a pen inserted into a bowl with an arrow indicating downward motion (no text or symbols)

Diagram of a mechanical device with an inset showing a circular component and directional arrow (no text or symbols)

Illustration of a hand holding an electrical plug next to an open electrical socket (no text or symbols)

9 lespraudiet kontaktdakšu kontaktligzdā.

- lerice ir gatava darbam.

1 ←→ 4

Illustration of a hand using a power switch to press a cylindrical device into a container (no text or symbols)

Illustration of a hand holding an electrical plug next to a square socket with a pointer (no text or symbols)

13 Izvelciet kontaktdakšu no kontaktligzdas.

Diagram of a cylindrical device with an upward arrow, mounted on a base (no text or symbols)

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a container with a lid and an arrow pointing to it (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

Diagram of a mechanical component with a cylindrical shaft and flange, showing a downward arrow (no text or symbols)

Simple line drawing of a container with a bottle and a lid, no text or symbols present

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a pot, with an arrow indicating downward motion (no text or symbols present)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram of a kitchen appliance with a magnified view showing a button and handle (no text or symbols)

9 lespraudiet kontaktdakšu kontaktligzdā.

Illustration of a plug connected to an electrical outlet with a magnified view (no text or symbols)

1←→4 - + +

Illustration of a hand pressing a button on a food item, with a power symbol icon (no text or labels)

Illustration of a plug connected to an electrical outlet with a magnified view (no text or symbols)

13 Izvelciet kontaktdakšu no kontaktligzdas.

Diagram of a mechanical device with a cylindrical component and a base, showing an upward arrow (no text or symbols)

Illustration of a hand using a kitchen mixer to press or adjust a dish (no text or symbols visible)

16 Nonemiet vāku.

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple visual icons showing a roll of pepper and a pumpkin with checkmark and cross symbols

Illustration of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

Diagram showing a container with a lid and an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with a downward arrow and a circular component with dashed lines indicating measurement or alignment.

Illustration of a food processor with a hand inserting a button to a container (no text or symbols)

Illustration of a plug connected to an electrical outlet with a meter (no text or symbols)

7 lespraudiet kontaktdakšu kontaktligzdā.

Diagram showing a hand holding a circular device with labeled buttons and a pointer, likely illustrating a control or operation step.

Illustration of a hand using a power switch to press a coffee cup (no text or symbols present)

Illustration of a hand holding a plug next to a square electrical socket with a circular dial (no text or symbols)

11 Izvelciet kontaktdakšu no kontaktligzdas.

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a kitchen mixer with a hand pressing a handle and an arrow indicating motion (no text or symbols)

14 Nonemiet vāku.

Illustration of a plant seedling in a container with an upward arrow indicating growth (no text or symbols)

Simple line drawing of a bucket pouring liquid into a container with an arrow indicating direction (no text or symbols)

16 Izmetiet mizas.

				(MAX)	(MAX)
				400 g	10P 1
				400 g	10 sec.	4
				400 g	30 sec.	4
				400 g	60 sec.	4
				500 g+200 ml	60 sec.	1>4
R1507			[TZW]	250 ml 60 sec.		4
				4 x	90 sec.	4
	HR1507		[2ZW]	500 g	20 sec.	1
				250 g	30 sec.	1
	[IMAGE]			500 g	20 sec.	2
				1 piece	20 sec.	2
			[4WGZ]	250 g	30 sec.	2
	[GWAX]			200 g	20 sec.	1
			[3HBX]	1 piece	20 sec.	1
HR1507			10 x,[BHBA]	10 Cloves	15 sec.	2
			60 x,[BKBK]	60 Cloves	30-60 sec.	2

Receptes

Diagram showing a hand washing a water pump with checkmark and cross symbols indicating cancellation or rejection.

Diagram showing two mechanical components with check and cross symbols, no readable text or labels present

Ivadas

① ② ③ ④ HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ HR1507

Diagram showing a mechanical component with an arrow indicating downward motion, alongside a cylindrical device (no text or symbols)

Illustration of two hands performing a manual levering operation in a container (no text or symbols)

Illustration of a hand holding an electrical plug next to a square socket with a pointer (no text or symbols)

Illustration of a hand using a power switch to press a device into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified circular component (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Illustration of a hand pressing down on a kitchen grater with an upward arrow indicating motion (no text or symbols)

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

Simple line drawing of a pipette inside a bowl with an arrow indicating downward motion (no text or symbols)

214 Lietuviškai

Diagram illustrating a medical procedure with labeled components and warning symbols

Diagram illustrating a chemical process with labeled components and warning symbols

3 Pritvirtinkite surinkta jdëklo laikiklj prie kapoklio dubens veleno.

3D rendering of a kitchen mixer with a handle and lid, showing no text or symbols

Illustration of a hand using a kitchen mixer to handle a lid (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular detail, likely illustrating a motion or force measurement concept.

Diagram of a mechanical device with an inset showing a circular component and directional arrow (no text or symbols)

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

Illustration of a hand using a power switch to press a cylindrical device (no text or symbols present)

Illustration of a hand holding a plug next to an electrical outlet socket (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base (no text or symbols)

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing mechanical assembly with downward force arrow and circular annotation indicating measurement or alignment

Diagram of a kitchen appliance with a magnified inset showing a close-up of the interior (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a compass showing the dial (no text or symbols present)

Illustration of a hand pressing a button on a food item, with no visible text or symbols.

Illustration of a plug connected to an electrical outlet with a magnified view (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a base, showing an upward arrow (no text or symbols)

Illustration of a hand using a kitchen mixer to press or adjust a dish (no text or symbols visible)

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple visual icons showing a roll of pepper and a pumpkin with checkmark and cross symbols

Illustration of a mechanical component with a downward arrow indicating motion (no text or symbols)

1 Pritvirtinkite česnako lupiklj prie kapoklio dubens.

MAX 60X

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrow and a circular diagram with vertical and horizontal arrows indicating movement or alignment.

Diagram showing a kitchen tool with a magnified view of the component's rotation, labeled with an arrow and circular icon.

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram showing a hand inserting a device into a circular control panel with labeled buttons and arrows indicating direction.

Illustration of a hand using a power switch to press a coffee cup (no text or symbols present)

Illustration of a hand holding a plug next to a square electrical socket with a circular dial (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Illustration of a kitchen mixer with a hand pressing a handle and an arrow indicating motion (no text or symbols)

Illustration of a plant or seedling in a container with an upward arrow indicating growth (no text or symbols)

Simple line drawing of a bucket pouring liquid into a bowl (no text or symbols)

			(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
			250 g	30 sec.	1
	WHARSHIN		500 g	20 sec.	2
			1 piece	20 sec.	2
			250 g	30 sec.	2
			200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x	60 Cloves	30-60 sec.	2

224 Lietuviškai

Receptai

Diagram illustrating a water drain system with checkmark and cross symbols indicating water flow or inspection

Diagram showing three mechanical components with check and cross symbols, no readable text or labels

Bevezetés

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram illustrating a hairpin tool application process with downward arrows indicating removal or disassembly steps.

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

Diagram of a kitchen appliance with a magnified view showing internal components (no text or symbols)

Illustration of a plug connected to a wall-mounted electrical outlet (no text or symbols)

Illustration of a hand holding a power button next to a container filled with food items (no text or symbols)

Illustration of a hand holding an electrical plug next to a wall socket (no text or symbols)

Diagram of a cylindrical device with an upward arrow and a base, no text or symbols present

Illustration of a hand pressing down on a food processor with an upward arrow indicating motion (no text or symbols)

Diagram illustrating a hand pouring liquid into a container with an upward arrow and warning symbols, likely illustrating a chemical or biological process.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple line drawing of a pencil inside a bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand holding a tool with a warning symbol and an arrow indicating force application or damage.

Diagram illustrating a chemical process with labeled steps: adding liquid, adding granular material, and using a test tube, accompanied by an instructional icon.

Illustration of a kitchen mixer with a handle and lid, showing no text or symbols

Illustration of a hand using a kitchen mixer to handle a lid (no text or symbols)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram of a mechanical device with a magnified inset showing a rotating component (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a hand holding a plug next to an electrical outlet with a circular component (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly with labeled steps 1 and 2, showing a pen-like component before and after rotation.

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram of a pipette dispensing liquid into a container (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with a downward arrow and a magnified circular section indicating measurement or alignment.

Diagram illustrating a mechanical device with a magnified inset showing a rotating component and its rotation arrow.

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

Illustration of a hand using a power button to press or press a container (no text or symbols present)

Illustration of a plug connected to an electrical outlet with a meter (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a hand using a stand mixer to lift a container (no text or symbols)

16 Vegye le a fedelet.

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Illustration of a mechanical component being lifted by a rod, with an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical component with downward force arrows and a circular diagram indicating dimension or alignment.

Illustration of a food processor with a magnified view showing the internal components (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a power switch next to a circular button labeled 'Power Supply', with no text or symbols present.

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand pressing down on a kitchen mixer with an arrow indicating the process (no text or symbols present)

14 Vegye le a fedelet.

Illustration of a mechanical device interacting with a bowl containing granular material, with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

16 Dobja ki a héjakat.

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
			250 g	30 sec.	1
	HR1507		500 g	20 sec.	2
			1 piece	20 sec.	2
		[KCT]	250 g	30 sec.	2
	HR1507		200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x [EZSW]	10 Cloves	15 sec.	2
		60 x [WBW6]	60 Cloves	30-60 sec.	2

Receptek

Mézes burgonyapüré

Diagram illustrating a water drain system with checkmark and cross symbols indicating water quality inspection

Diagram showing two mechanical components with check and cross symbols, no readable text or labels

Introductie

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with directional arrows and a magnified circular detail, likely illustrating a motion or force system.

Diagram showing a food processor with a magnified view of the process, highlighting a rotation arrow and control buttons.

Illustration of a plug inserted into an electrical outlet with a circular dial (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating force or direction (no text or symbols present)

Illustration of a hand pressing down on a food processor with a handle (no text or symbols)

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols, indicating environmental hazard.

Simple line drawing of a container with an arrow indicating direction (no text or symbols)

17 Leeg de kom

Simple line drawing of a pipette inserted into a glass bowl with an arrow indicating direction (no text or symbols)

Diagram illustrating a hand holding a tool with warning symbols and an arrow indicating process flow

Diagram illustrating a chemical reaction step with labeled components and warning symbols

Illustration of a hand holding an electrical plug next to a square socket with a pointer (no text or symbols)

Illustration of a hand using a power switch to press a cylindrical device into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Diagram illustrating a chemical experiment with a container, beaker, and warning symbol indicating detection of liquid.

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

18 Leeg de kom.

Diagram illustrating two steps of a mechanical assembly or tooling process, labeled with numbered instructions.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Diagram of a laboratory setup with a funnel and test tube in a beaker (no text or labels)

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

Illustration of a hand pressing a button on a food processor with a power symbol (no text or labels)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a hand using a mortar to press or brush into a container (no text or symbols visible)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

18 Leeg de kom.

Simple line drawings of peaches and a garlic with checkmark and cross symbols

Illustration of a hand holding a cylindrical object above a glass bowl, with an arrow indicating downward motion (no text or symbols)

MAX 60X

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to handle food (no text or symbols)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating vertical alignment.

Diagram showing a food processor with a magnified view of its internal components, labeled with arrows and symbols.

Illustration of a hand holding an electrical plug next to a square electrical socket with a pointer (no text or symbols)

Illustration of a hand using a power switch to press a coffee cup (no text or symbols present)

Illustration of a hand holding an electrical plug next to a square socket with a circular vent (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base (no text or symbols)

Illustration of a hand pressing down on a kitchen mixer with a handle and tool (no text or symbols)

Illustration of a container with food and a fork, no text or symbols present

Simple line drawing of a bucket pouring liquid into a container with an arrow indicating direction (no text or symbols)

16 Gooi de overtollige schil weg.

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
			250 g	30 sec.	1
	[IMAGE]		500 g	20 sec.	2
			1 piece	20 sec.	2
			250 g	30 sec.	2
	[IMAGE]		200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x [TK53]	10 Cloves	15 sec.	2
		60 x	60 Cloves	30-60 sec.	2

Recepten

Diagram illustrating a water drain system with checkmark and cross symbols indicating water flow or inspection

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Innledning

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram showing a mechanical component with an arrow indicating downward motion, alongside a cylindrical device (no text or symbols)

Illustration of two hands performing a manual levering operation on a bucket, with arrows indicating downward motion (no text or symbols)

2 Sett de monterte kutterknivene i hakkerbollen.

Illustration of a hand holding an electrical plug next to a square electrical socket with a pointer (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand pressing down on a kitchen grater with an upward arrow indicating motion (no text or symbols)

15 Fjern lokket.

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbol, accompanied by a pointing hand.

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

17 Tøm bollen

Bruk skjære-/rive-/-maleinnsatsen

Simple line drawing of a pipette above a bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand using a tool to mark a defect or hazard, with an instructional icon showing a pointing hand and a warning symbol.

Diagram illustrating a step in a container with a lid, showing an injection and warning symbol.

Illustration of a kitchen mixer with a handle and lid, showing no text or symbols

4 Lukk lokket.

Illustration of a hand using a kitchen mixer to handle a lid (no text or symbols)

Diagram showing a mechanical device with downward force arrow and a circular annotation indicating measurement or alignment.

Diagram of a robotic arm with a magnified inset showing the hand and wrist (no text or symbols)

MAX 500g

Illustration of a hand holding an electrical plug next to a square electrical socket with a pointer (no text or symbols)

Illustration of a hand using a power button to press a container with food items (no text or symbols)

Illustration of a plug connected to an electrical outlet with a magnified view (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a base, showing an upward arrow (no text or symbols present)

Diagram illustrating a hand pouring liquid into a container with an upward arrow and warning symbol

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

18 Tøm bollen.

Bruke vispeskiven

Diagram illustrating two steps of a mechanical assembly or tool, labeled ① and ②, with directional arrows indicating movement.

Diagram of a mechanical component with a cylindrical shaft and flange, showing a downward arrow (no text or symbols)

3 Fest den monterte vispeskiven til hakkerbollen.

4 Ha ingredienser i hakkerbollen.

Diagram of a robotic arm with a magnified inset showing a circular motion path (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand using a power button to press or install a mechanical component (no text or symbols present)

Illustration of a hand holding an electrical plug next to a wall socket (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base with a smaller cup (no text or symbols)

Illustration of a hand using a kitchen mixer to press or adjust a dish (no text or symbols visible)

16 Fjern lokket.

Diagram of a mechanical component with an upward arrow, no text or symbols present

18 Tøm bollen.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple line drawings of three items: a peeled potato, a pumpkin, and a checkmark with an 'X' symbol.

280 Norsk

Illustration of a mechanical component being lifted into a container with an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

3 Lukk lokket.

Illustration of a hand using a kitchen mixer to handle food items (no text or symbols)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram of a kitchen appliance with a magnified view showing internal components (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a power cord (no text or symbols)

Diagram showing a hand inserting a button into a device with labeled components and directional arrows

Illustration of a hand using a power switch to press a cup into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base (no text or symbols)

Illustration of a hand using a kitchen mixer to handle food items (no text or symbols)

14 Fjern lokket.

Illustration of a bowl containing food with a fork and chopsticks, no text or symbols present

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

16 Kast overflödig skall.

				(Kg(MAX)	(MAX)
				400 g	10P 1
				400 g	10 sec.	4
				400 g	30 sec.	4
				400 g	60 sec.	4
				500 g+200 ml	60 sec.	1>4
R1507				250 ml 60 sec.		4
				4 x	90 sec.	4
	HR1507			500 g	20 sec.	1
				250 g	30 sec.	1
	HR1507			500 g	20 sec.	2
				1 piece	20 sec.	2
			[D830]	250 g	30 sec.	2
	HR1507			200 g	20 sec.	1
				1 piece	20 sec.	1
HR1507			10 x [137X]	10 Cloves	15 sec.	2
			60 x	60 Cloves	30-60 sec.	2

Oppskrifter

Potetmos med honning

Denne oppskriften kan tilberedes med den vanlige knivenheten.

450 g honning

284 Norsk

200 g fryst smør

100 g nykokte poteter

1 Hell 450 g med honning i en skål og sett den i kjøleskapet ved 0 °C (tilbered 3 skåler).

2 Skjær opp 200 g med fryst smør i 2–3 cm store kuber, og 100 g med nykokte poteter i 3–4 cm biter.

Diagram illustrating water treatment procedure with checkmark and cross symbols indicating water flow or inspection

Tørk lokket i en vinkel på stativet.

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Wstep

① ② ③ ④ HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ HR1507

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with directional arrows and a magnified circular detail, likely illustrating a motion or force system.

Diagram showing a food processor with a magnified view of the internal structure, labeled with icons and text.

Illustration of a plug connected to an electrical outlet with a magnified dial (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Illustration of a hand pressing down on a food processor with a handle (no text or symbols)

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols, indicating environmental hazard.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple line drawing of a pen inserted into a bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand holding a tool with warning symbols and an arrow indicating process flow

Diagram illustrating a cooking step with labeled steps: adding liquid, adding gel, and removing oil drop.

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

Illustration of a hand using a power switch to press a cylindrical device (no text or symbols present)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

Diagram illustrating two steps of a mechanical assembly or installation, labeled with numbered instructions and directional arrows.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Diagram of a laboratory setup with a funnel and test tube in a beaker (no text or labels)

Illustration of a hand holding an electrical plug next to a square socket with a pointer (no text or symbols)

Illustration of a hand pressing a button on a food processor with a power symbol (no text or labels)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Illustration of a hand using a stand mixer to press or adjust a container (no text or symbols visible)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

Simple line drawings of peaches and a garlic with checkmark and cross symbols

Illustration of a hand holding a cylindrical object above a glass bowl, with an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to handle food items (no text or symbols)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular detail, likely illustrating a motion or force measurement concept.

Diagram of a kitchen appliance with a magnified view showing a button and arrow (no text or symbols)

Illustration of a hand holding an electrical plug next to a square electrical socket with a pointer (no text or symbols)

Illustration of a hand using a power switch to press a coffee cup (no text or symbols present)

Illustration of a hand holding an electrical plug next to a square socket with a pointer (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base (no text or symbols)

Illustration of a hand pressing down on a kitchen mixer with a handle and tool (no text or symbols)

Illustration of a container with food items and a fork, no text or symbols present

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
			500 g	20 sec.	1
		[025T]	250 g	30 sec.	1
			500 g	20 sec.	2
			1 piece	20 sec.	2
		[7ABT]	250 g	30 sec.	2
			200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x [C572]	60 Cloves	30-60 sec.	2

Przepisy

Diagram illustrating a water drain system with checkmark and cross symbols indicating water flow or inspection

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Introdução

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram illustrating a hairpin tool application process with downward arrows indicating removal or disassembly steps.

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

4 Feche e fixe a tampa.

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

Diagram of a mechanical device with a cylindrical component and an upward arrow, no visible text or symbols

Illustration of a hand pressing down on a food processor with a lid and granular base (no text or symbols)

15 Retire a tampa.

Illustration showing a hand pouring liquid into a container with an upward arrow and warning symbols, indicating environmental hazard.

Simple line drawing of a container with a lid and an arrow pointing to it (no text or symbols)

17 Esvazie a taça

Simple line drawing of a pen inserted into a bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand using a tool to adjust a circular object with warning symbols and an arrow indicating process flow.

Diagram illustrating a chemical process with labeled steps: adding liquid, drying in a container, and warning symbols.

3D rendering of a kitchen mixer with a handle and lid, showing no text or symbols

4 Feche e fixe a tampa.

Illustration of a hand using a kitchen mixer to handle a lid with an arrow indicating the handle (no text or symbols present)

Diagram showing a mechanical device with a downward arrow and a circle indicating alignment or positioning, likely illustrating a motion or force analysis concept.

Diagram of a device with a magnified inset showing a circular component with an arrow and a small icon (no text or symbols)

Illustration of a hand inserting a plug into an electrical socket (no text or symbols)

Illustration of a hand using a power switch to press a cylindrical device into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

13 Desligue a ficha da tomada.

Diagram of a cylindrical device with an upward arrow, mounted on a base with a smaller cup (no text or symbols)

Diagram illustrating a chemical experiment with labeled components and warning symbols

18 Evvazie a taça.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram of a kitchen appliance with a magnified view showing a button and handle (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a compass showing the dial (no text or symbols)

Illustration of a hand pressing a button on a food item, with no visible text or symbols.

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

13 Desligue a ficha da tomada.

Diagram of a cylindrical device with an upward arrow, mounted on a base with a smaller cylindrical component (no text or symbols)

Illustration of a hand using a kitchen mixer to lift a liquid mixture (no text or symbols)

16 Retire a tampa.

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

18 Evvazie a taça.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple line drawings of a roll of garlic and a pumpkin with checkmark and cross symbols

Illustration of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols present)

3 Feche e fixe a tampa

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

320 Português

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrow and a circular diagram with vertical and horizontal arrows indicating measurement or alignment.

Diagram showing a kitchen tool with a magnified view of the component's rotation, labeled with an arrow and circular icon.

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

Diagram showing a hand inserting a device into a circular control panel with labeled buttons and a plus button.

Illustration of a hand pressing a power button on a cylindrical container (no text or symbols)

Illustration of a hand holding an electrical plug next to a square electrical socket with a pointer (no text or symbols)

11 Desligue a ficha da tomada.

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a kitchen mixer with a hand pressing a handle (no text or symbols)

14 Retire a tampa.

Illustration of a bowl containing food with a fork and a stick above it, no text or symbols present.

Simple line drawing of a bucket with liquid being poured into it (no text or symbols)

				(MAX)	(MAX)
				400 g	10P 1
				400 g	10 sec.	4
				400 g	30 sec.	4
				400 g	60 sec.	4
			[XYZT]	500 g+200 ml	60 sec.	1>4
		R1507		250 ml 60 sec.		4
				4 x	90 sec.	4
	HR1507			500 g	20 sec.	1
				250 g	30 sec.	1
	[IMAGE]			500 g	20 sec.	2
				1 piece	20 sec.	2
			[0283]	250 g	30 sec.	2
				200 g	20 sec.	1
				1 piece	20 sec.	1
HR1507			10 x	10 Cloves	15 sec.	2
			60 x	60 Cloves	30-60 sec.	2

Receitas

Puré de batata com mel

Diagram illustrating a water tap and a drain with checkmark and cross symbols indicating water quality status.

Diagram showing two mechanical components with check and cross symbols, no readable text or labels present

Introducere

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram illustrating a step-by-step procedure for using a tool to prevent oil lamp heating, with arrows indicating downward motion.

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

Diagram showing a device with a magnified view of the internal structure, labeled with icons and arrows indicating motion or operation.

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand holding a power button next to a container filled with coins (no text or symbols)

Illustration of a hand holding a plug next to an electrical outlet with a circular component (no text or symbols)

Diagram of a mechanical device with a cylindrical component and an upward arrow, no text or symbols present

Illustration of a hand pressing down on a food processor with a lid and granular base (no text or symbols)

Illustration showing a hand pouring liquid into a container with an upward arrow and warning symbols, indicating environmental hazard.

Simple line drawing of a container with an arrow pointing to it, no text or symbols present.

17 Goleşte bolul

Utilizarea accesoriiilor de feliere/radere/granulare

Simple line drawing of a pen inserted into a bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand using a tool to adjust a circular object with warning symbols and an arrow indicating process flow.

Diagram illustrating a chemical process with labeled steps: adding liquid, dropping funnel, and using a container with a test tube.

3D rendering of a kitchen mixer with a handle and outlet (no text or symbols visible)

Illustration of a hand using a kitchen mixer to handle a lid (no text or symbols)

Diagram showing a mechanical device with a downward arrow and a circle indicating alignment or positioning, likely illustrating a motion or force analysis concept.

Diagram of a mechanical device with an inset showing a circular component and directional arrow (no text or symbols)

Illustration of a hand inserting a plug into an electrical socket (no text or symbols)

Illustration of a hand using a power switch to press a cylindrical device into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base with a smaller cup (no text or symbols)

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

18 Goleşte bolul.

Utilizarea telului

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram of a kitchen appliance with a magnified inset showing the internal components (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a compass (no text or symbols)

Illustration of a hand pressing a button on a food item, with a power symbol icon (no text or labels)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base with a cup (no text or symbols)

Illustration of a hand using a kitchen mixer to lift a liquid mixture (no text or symbols)

Diagram of a mechanical component with a cylindrical shaft and flange, mounted on a container (no text or symbols)

18 Goleşte bolul.

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

Simple line drawings of a roll of garlic and a pumpkin with checkmark and cross symbols

Illustration of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

340 Română

Diagram showing a container with a lid and an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with a downward arrow and a circular component with dashed lines indicating measurement or alignment.

Illustration of a food processor with a magnified view showing the process (no text or symbols)

Illustration of a plug connected to an electrical outlet with a meter (no text or symbols)

Diagram showing a hand holding a circular device with labeled buttons and a pointer, likely illustrating a control or operation step.

Illustration of a hand pressing a power button on a steamer (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a kitchen mixer with a hand pressing a button to form a bowl (no text or symbols)

Illustration of a bowl containing food with a fork and a stick above it, no text or symbols present

Simple line drawing of a bucket pouring liquid into a container with an arrow indicating direction (no text or symbols)

			(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
HR1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
			250 g	30 sec.	1
			500 g	20 sec.	2
			1 piece	20 sec.	2
			250 g	30 sec.	2
			200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x	60 Cloves	30-60 sec.	2

Retete

Piure de cartofi cu miere

Diagram illustrating a water tap and drain with checkmark and cross symbols indicating water quality status

Diagram showing two mechanical components with check and cross symbols, no readable text or labels present

Hyrje

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram illustrating a hairdryer tool application process with downward arrows indicating removal or disassembly steps.

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

Diagram showing a device with a magnified view of the internal structure, labeled with icons and arrows indicating motion or operation.

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand pressing a button on a cylindrical device with a power symbol (no text or labels)

Illustration of a hand holding a plug next to an electrical outlet with a magnified view (no text or symbols)

Diagram of a mechanical device with a cylindrical component and an upward arrow, no visible text or symbols

Illustration of a hand pressing down on a food processor with a lid and granular base (no text or symbols)

15 Hiqni kapakun.

Illustration showing a hand pouring liquid into a container with an upward arrow and warning symbols

Simple line drawing of a container with a lid and arrow indicating direction (no text or symbols)

17 Zbrazni tasin

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram of a mechanical device with a magnified inset showing a rotating component (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a hand holding a plug next to an electrical outlet with a circular component (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present.

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

18 Zbrazni tasin.

Diagram illustrating a mechanical assembly or turning process with numbered steps and directional arrows indicating motion.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram of a pipette dispensing liquid into a container (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with directional arrows and a magnified circular section highlighting measurement points.

Diagram illustrating a mechanical device with a magnified inset showing a rotating component and its rotation arrow.

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand holding an electrical plug next to a square electrical socket with a circular vent (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand using a blender to press or adjust a lid (no text or symbols present)

16 Hiqni kapakun.

Diagram of a mechanical component with a cylindrical shaft and upward arrow, no text or symbols present

Simple line drawing of a bucket with a handle and arrow indicating direction (no text or symbols)

18 Zbrazni tasin.

Simple visual icons showing a roll of peaches and a pumpkin with checkmark and cross symbols

Illustration of a mechanical component being lifted by a rod, with an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical component with downward force arrows and a circular diagram indicating dimension or alignment.

Illustration of a kitchen utensil with a magnified view showing a hand pressing down on the surface (no text or symbols present)

Illustration of a plug connected to an electrical outlet with a circular dial (no text or symbols)

Diagram showing a hand inserting a button into a device with labeled components and directional arrows

Illustration of a hand holding a power switch next to a circular button labeled 'Power Supply', with no text or symbols present.

Illustration of a plug being inserted into an electrical outlet (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand pressing down on a kitchen mixer with an arrow indicating the process (no text or symbols present)

14 Hiqni kapakun.

362 Shqip

Illustration of a bowl containing food with chopsticks and an upward arrow, no text or symbols present.

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
			500 g	20 sec.	1
		[SOXS]	250 g	30 sec.	1
			500 g	20 sec.	2
			1 piece	20 sec.	2
		[SOXY]	250 g	30 sec.	2
			200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x [AWHO]	10 Cloves	15 sec.	2
		60 x	60 Cloves	30-60 sec.	2

Recetat

Diagram illustrating a water treatment procedure with checkmark and cross symbols indicating correct and incorrect states.

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Uvod

Čestitamo vam za nakup in dobrodošli pri Philipsu!

Da bi izkoristili vse prednosti Philipsove podpore, izdelek registrirajte na www.philips.com/welcome.

Splošni opis

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

1 Potiskalo
2 Motorna enota
3 Pokrov posode sekljalnika
4 Posoda sekljalnika
5 Glavno rezilo
6 Dodatno rezilo
7 Lupilnik za česen (samo HR1507)
8 Nastavek za rezanje
9 Nastavek za strganje
10 Granulacijski nastavek (samo HR1507)
11 Nosilec nastavka
12 Plošča za stepanje (samo HR1507)
13 Gred

Pomembno

Diagram showing a mechanical component with an arrow indicating downward motion, alongside a schematic of a cylindrical device (no text or symbols present)

Illustration of two hands performing a manual oil lamping operation, showing liquid levels and arrows indicating process direction (no text or symbols)

2 Sestavljeno rezilo namestite v posodo sekljalnika.

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

Illustration of a hand using a power switch to press a cylindrical device (no text or symbols present)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base with a smaller cylindrical component (no text or symbols)

13 Stikalo potisnite v odklenjeni položaj, da se motorna enota odklopi.

Illustration of a hand pressing down on a kitchen grater with an upward arrow indicating motion (no text or symbols)

15 Odstranite pokrov.

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols, indicating environmental hazard.

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

17 Izpraznite posodo.

Uporaba nastavkov za rezanje, strganje in granuliranje

Simple line drawing of a pipette inside a bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand using a tool to adjust a circular object with warning symbols and an arrow indicating process flow.

Diagram illustrating a chemical process with labeled steps: adding liquid, drying in a container, and warning symbols for inspection.

3 Sestavljeni nosilec z nastavkom namestite na pogonsko os v posodi sekljalnika.

3D rendering of a kitchen mixer with a handle and lid, showing no text or symbols

4 Zaprite in zaskočite pokrov.

Illustration of a hand using a kitchen mixer to handle a lid (no text or symbols)

Diagram showing a mechanical device with a downward arrow and a circle indicating alignment or positioning, likely illustrating a motion or force analysis concept.

5 Namestite motorno enoto na pokrov.

Diagram of a mechanical device with an inset showing a circular component and directional arrow (no text or symbols)

6 Potisnite stikalo v zaklenjeni položaj za pritrditev motorne enote na pokrov.

MAX 500g

Illustration of a hand holding an electrical plug next to an open electrical socket (no text or symbols)

Illustration of a hand using a power switch to press a cylindrical device into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base with a smaller cup (no text or symbols)

14 Potisnite stikalo v odklenjeni položaj za odklop motorne enote s pokrova.
15 Odstranite motorno enoto s pokrova.
16 Odstranite pokrov.

Diagram illustrating a chemical experiment with labeled components and warning symbols

17 Odstranite sestavljeni nosilec z nastavkom in pogonsko os iz posode.

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

18 Izpraznite posodo.

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

7 Namestite motorno enoto na pokrov.

Diagram of a kitchen appliance with a magnified inset showing a button and handle mechanism (no text or symbols)

8 Potisnite stikalo v zaklenjeni položaj za pritrditev motorne enote na pokrov.

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

Illustration of a hand pressing a button on a food item, with a power symbol icon (no text or labels)

Illustration of a hand holding an electrical plug next to a square socket with a pointer (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base with a cup (no text or symbols)

14 Potisnite stikalo v odklenjeni položaj za odstranitev motorne enote s pokrova.

Illustration of a hand using a kitchen mixer to lift a liquid mixture (no text or symbols)

16 Odstranite pokrov.

17 Odstranite sestavljeno ploščico za stepanje iz posode.

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

18 Izpraznite posodo.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple visual icons showing a roll of pepper and a pumpkin with checkmark and cross symbols

Illustration of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

3 Zaprite in zaskočite pokrov.

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

380 Slovenščina

Diagram showing a container with a lid and an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with a downward arrow and a circular component with dashed measurement lines.

5 Namestite motorno enoto na pokrov.

Illustration of a food processor with a hand inserting a button to a container (no text or symbols)

6 Potisnite stikalo v zaklenjeni položaj za pritrditev motorne enote na pokrov.

Illustration of a plug connected to an electrical outlet with a meter (no text or symbols)

Diagram showing a hand holding a circular device with labeled buttons and a pointer, likely illustrating a control or operation step.

Illustration of a hand pressing a power button on a cylindrical container (no text or symbols)

Illustration of a hand holding a plug next to a square electrical socket with a circular dial (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

12 Stikalo potisnite v odklenjeni položaj, da se motorna enota odklopi.
13 Odstranite motorno enoto s pokrova.

Illustration of a kitchen mixer with a hand pressing a handle and an arrow indicating motion (no text or symbols)

14 Odstranite pokrov.

Illustration of a plant seedling in a container with an upward arrow indicating growth (no text or symbols)

Simple line drawing of a bucket pouring liquid into a container with an arrow indicating direction (no text or symbols)

16 Olupke zavrzite.

- Olupljeni stroki česna so pripravljeni na uporabo.

			(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
HR1507		[6KB7]	250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
			250 g	30 sec.	1
			500 g	20 sec.	2
			1 piece	20 sec.	2
			250 g	30 sec.	2
			200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x	60 Cloves	30-60 sec.	2

Recepti

Krompirjev pire z medom

Diagram illustrating a water tap and drain with checkmark and cross symbols indicating water quality status

Pokrov posušite pod kotom na stojalu. Pokrova na sušite obrnjenega na glavo ali na ravni površini.

Slovenščina 385

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Úvod

① ② ③ ④ HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ HR1507

1 Piest
2 Pohonná jednotka
3 Veko nádoby na sekanie
4 Nádoba na sekanie
5 Hlavná čepel'
6 Dodatočná čepel'
7 Nadstavec na cesnak (len model HR1507)
8 Nadstavec na krájanie
9 Nadstavec na strúhanie
10 Nadstavec na granulovanie (len model HR1507)
11 Držiak nadstavca
12 Disk na šlahanie (len model HR1507)
13 Hriadel

Dôležité

Diagram showing a mechanical component with an arrow indicating downward motion, alongside a cylindrical device (no text or symbols)

Illustration of two hands performing a candle flame operation in a glass bowl (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

4 Zatvorte a uzamknite veko.

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

5 Vložte piest do dávkovacej trubice.

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

6 Pripevnite jednotku motora k veku.

Diagram showing a device with a magnified view of the internal structure, labeled with icons and arrows indicating rotation or adjustment.

7 Posuňte prepínač do polohy uzamknutia, aby ste jednotku motora zaistili na veku.

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand holding a power button next to a container filled with food items (no text or symbols)

10 Stlačením tlačidla zapnutia/vypnutia spustite spracovanie.

Illustration of a hand holding an electrical plug next to a square socket with a circular vent (no text or symbols)

Diagram of a mechanical component with an upward arrow, no visible text or symbols

13 Jednotku motora uvolníte posunutím prepínača do polohy odomknutia.
14 Odstráňte jednotku motora z veka.

Illustration of a hand pressing down on a food processor with a lid and granular base (no text or symbols)

15 Odstráňte veko.

Illustration showing a hand pouring liquid into a container with an upward arrow and warning symbols, indicating environmental hazard.

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

5 Pripevnite jednotku motora k veku.

Diagram of a mechanical device with an inset showing a rotating component (no text or symbols)

6 Posuňte prepínač do polohy uzamknutia, aby ste jednotku motora zaistili na veku.

MAX 500g

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified circular component (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present.

14 Jednotku motora z veka uvolníte posunutím prepínača do polohy odomknutia.
15 Odstráňte jednotku motora z veka.
16 Odstráňte veko.

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly or turning process with numbered steps and directional arrows indicating movement.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram of a pipette dispensing liquid into a container (no text or symbols)

5 Zatvorte a uzamknite veko.

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

6 Vložte piest do dávkovacej trubice.

Diagram showing a mechanical device with directional arrows and a magnified circular section highlighting measurement points.

7 Pripevnite jednotku motora k veku.

Diagram illustrating a mechanical device with a magnified inset showing a rotating component and its rotation arrow.

8 Posuňte prepínač do polohy uzamknutia, aby ste jednotku motora zaistili na veku.

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

Illustration of a hand using a power button to press or press a container (no text or symbols present)

Illustration of a plug connected to an electrical outlet with a meter (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

14 Posuňte prepínač do polohy odomknutia, aby ste jednotku motora odstránili z veka.
15 Odstráňte jednotku motora z veka.

Illustration of a hand using a stand mixer to lift a container (no text or symbols)

16 Odstráňte veko.

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

Simple line drawing of a container with an arrow pointing to it, no text or symbols present.

Simple visual icons showing a bunch of peas and a pumpkin with checkmark and cross symbols

1 Pripevnite nadstavec na cesnak k nádobe na sekanie.

Illustration of a mechanical component being lifted by a rod, with an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

400 Slovensky

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

4 Vložte piest do dávkovacej trubice.

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

5 Pripevnite jednotku motora k veku.

Diagram showing a mechanical component with downward force arrows and a circular diagram indicating dimension or alignment.

Illustration of a kitchen utensil with a magnified view showing a hand holding a small object (no text or symbols present)

6 Posuňte prepínač do polohy uzamknutia, aby ste jednotku motora zaistili na veku.

Illustration of a plug plugged into an electrical outlet with a magnified circular component (no text or symbols)

Diagram showing a hand inserting a component into a device with labeled parts and directional arrows

Illustration of a hand holding a power switch next to a circular button labeled 'Power Supply', with no text or symbols present.

9 Stlačením tlačidla zapnutia/vypnutia spustite spracovanie.

Illustration of a plug inserted into an electrical outlet with a magnified circular component (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand pressing down on a kitchen mixer with an arrow indicating the process (no text or symbols present)

14 Odstráňte veko.

402 Slovensky

Illustration of a bowl containing food with a fork and an upward arrow, no text or symbols present

Simple line drawing of a bucket pouring liquid into a container with an arrow indicating direction (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
		[HY76]	250 g	30 sec.	1
	[8A0Z]		500 g	20 sec.	2
			1 piece	20 sec.	2
		[6CHS]	250 g	30 sec.	2
		[7800]	200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x [GZY]	10 Cloves	15 sec.	2
		60 x [KBWC]	60 Cloves	30-60 sec.	2

Recepty

Diagram illustrating a water drain system with checkmark and cross symbols indicating water quality inspection

Veko sušte naklonené na stojane.

Nesušte veko hore dnom ani na rovnej ploche.

Diagram showing two mechanical components with check and cross symbols, no readable text or labels

Uvod

Čestitamo na kupovini i dobro došli u Philips!

Da biste najbolje iskoristili podršku koju nudi kompanija Philips, registrujte svoj proizvod na: www.philips.com/welcome.

Opšti opis

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

1 Potiskivač
2 Jedinica motora
3 Poklopac posude za seckanje
4 Posuda za seckanje
5 Glavno sečivo
6 Dodatno sečivo
7 Ljuštilica za beli luk (samo HR1507)
8 Umetak za sečenje
9 Umetak za rendanje
10 Umetak za granuliranje (samo HR1507)
11 Držač umetaka
12 Disk za mućenje (samo HR1507)
13 Osovina

Važno

• Držite ruke i pribor van posude dok je uređaj priključen na napajanje. Ako je potrebno potisnuti hranu nadole, koristite odgovarajući pribor, kao što je lopatica.
• Nikada nemojte postavljati sklop sa sečivima na pogonsku jedinicu ako posuda/poklopac nije postavljen.

Opasnost

Diagram showing a mechanical component with an arrow indicating downward motion, and a separate schematic of a cylindrical device (no text or symbols present)

Illustration of two hands performing a manual levering operation in a bucket, with arrows indicating downward motion (no text or symbols)

2 Umetnite sklopljena sečiva seckalice u posudu seckalice.

Illustration of a hand holding a plug next to a square electrical socket with a screw (no text or symbols)

Illustration of a hand using a power switch to press a cylindrical device into a container (no text or symbols)

Illustration of a plug inserted into an electrical socket with a circular component, showing an arrow indicating direction (no text or symbols present)

12 Izvucite utikač iz utičnice.

Diagram of a mechanical component with an upward arrow, no text or symbols present

13 Pomerite prekidač u položaj za otključavanje da biste oslobodili jedinicu motora.

14 Uklonite jedinicu motora sa poklopca.

Srpski

Illustration of a hand pressing down on a kitchen grater with an upward arrow indicating motion (no text or symbols)

15 Skinite poklopac.

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols

16 Uklonite sklopljeno sečivo iz posude.

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

17 Ispraznite posudu

Korišćenje umetaka za sečenje na kriške/rendanje/granuliranje

Da biste koristili umetke za sečenje na kriške/rendanje/granuliranje, sledite korake u nastavku:

1 Postavite osovinu u posudu seckalice.

Simple line drawing of a pipette inside a bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand using a tool to interact with a device, accompanied by an warning symbol and a magnified view.

Diagram illustrating a cleaning or inspection process with labeled steps and visual icons for fabric, paint, and safety.

3 Postavite sklopljeni držač umetka na osovinu u posudi seckalice.

Illustration of a kitchen mixer with a handle and lid, showing no text or symbols

Illustration of a hand using a kitchen mixer to press or adjust the lid (no text or symbols present)

Diagram showing a mechanical device with a downward arrow and a circle indicating alignment or positioning, likely illustrating a motion or force analysis concept.

5 Postavite jedinicu motora na poklopac.

- Uverite se da se oznaka na jedinici motora poklapa sa oznakom na poklopcu.

Diagram of a kitchen appliance with a magnified view showing internal components (no text or symbols)

6 Pomerite prekidač u položaj za zaključavanje da biste pričvrstili jedinicu motora za poklopac.

MAX 500g

7 Dodajte sastojke kroz otvor za punjenje i gurnite ih nadole potiskivačem. Nemojte prekoračiti maksimalni kapacitet posude seckalice (500 g).

8 Postavite potiskivač u otvor za punjenje.

Illustration of a hand holding an electrical plug next to a wall socket with a circular component (no text or symbols)

Illustration of a hand using a power switch to press a cylindrical device into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

13 Izvucite utikač iz utičnice.

Diagram of a cylindrical device with an upward arrow, mounted on a base with a smaller cup (no text or symbols)

14 Pomerite prekidač u položaj za otključavanje da biste oslobodili jedinicu motora sa poklopca.

15 Uklonite jedinicu motora sa poklopca.

16 Skinite poklopac.

Diagram illustrating a chemical experiment with labeled components and warning symbols

17 Uklonite sklopljeni držač umetka i osovinu iz posude.

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

Da biste koristili disk za mućenje, sledite korake u nastavku:

1 Postavite disk za mućenje na osovinu.

2 Okrenite disk za mućenje u smeru suprotnom od kazaljke na satu da biste ga fiksirali.

Srpski

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

7 Postavite jedinicu motora na poklopac.

- Uverite se da se oznaka na jedinici motora poklapa sa oznakom na poklopcu.

Diagram of a kitchen appliance with a magnified inset showing a close-up of the interior (no text or symbols)

8 Pomerite prekidač u položaj za zaključavanje da biste pričvrstili jedinicu motora za poklopac.

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

Illustration of a hand pressing a button on a food item, with a power symbol icon (no text or labels)

Illustration of a hand holding an electrical plug next to a square socket with a bulb (no text or symbols)

13 Izvucite utikač iz utičnice.

Diagram of a cylindrical device with an upward arrow, mounted on a base with a smaller cylindrical component (no text or symbols)

14 Pomerite prekidač u položaj za otključavanje da biste uklonili jedinicu motora sa poklopca.

15 Uklonite jedinicu motora sa poklopca.

Illustration of a hand using a kitchen mixer to press or adjust a dish (no text or symbols visible)

16 Skinite poklopac.

Diagram of a mechanical component with a cylindrical shaft and flange, mounted on a container (no text or symbols)

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple line drawings of a roll of garlic and a pumpkin with checkmark and cross symbols

Koristite samo oljuštene čenove belog luka. Ne koristite cele glavice belog luka.

Illustration of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

1 Postavite ljuštilicu za beli luk u posudu seckalice.

MAX 60X

2 Dodajte do 60 čenova belog luka u posudu.

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols present)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

420 Srpski

Diagram showing a container with a lid and an arrow indicating downward motion (no text or symbols)

4 Postavite potiskivač u otvor za punjenje.

Diagram showing a mechanical device with a downward arrow and a circular component, likely illustrating a motion or positioning concept.

5 Postavite jedinicu motora na poklopac.

- Uverite se da se oznaka na jedinici motora poklapa sa oznakom na poklopcu.

Illustration of a food processor with a hand inserting a button to a container (no text or symbols)

6 Pomerite prekidač u položaj za zaključavanje da biste pričvrstili jedinicu motora za poklopac.

Illustration of a plug connected to an electrical outlet with a meter (no text or symbols)

Diagram showing a hand holding a circular device with labeled buttons and a pointer, likely illustrating a control or operation step.

8 Pritisnite dugme + ili - da biste izabrali brzinu 2.

Obradujte ne duže od 30 sekundi.

Ako neki čenovi ostanu neoljušteni, obradite ponovo na brzini 2 do 30 sekundi.

Illustration of a hand pressing a power button on a steamer (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

11 Izvucite utikač iz utičnice.

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

12 Pomerite prekidač u položaj za otključavanje da biste oslobodili jedinicu motora.
13 Uklonite jedinicu motora sa poklopca.

Illustration of a hand pressing down on a kitchen mixer with a handle and spatula (no text or symbols)

14 Skinite poklopac.

Illustration of a plant seedling in a glass bowl with an upward arrow indicating growth (no text or symbols)

15 Uklonite ljuštilicu za beli luk iz posude seckalice.

422 Srpski

Simple line drawing of a bucket pouring liquid into a container with an arrow indicating direction (no text or symbols)

16 Bacite višak ljuske.

- Oljušteni čenovi belog luka su spremni za upotrebu.

Količine za obradu i vreme obrade

			(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
		[WZH2]	400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507		[X340]	250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
		[277D]	250 g	30 sec.	1
	[IMAGE]		500 g	20 sec.	2
		[574S]	1 piece	20 sec.	2
		[702Y]	250 g	30 sec.	2
			200 g	20 sec.	1
		[636S]	1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x	60 Cloves	30-60 sec.	2

Recepti

Pire krompir sa medom

Ovaj recept je moguće pripremiti pomoću standardne jedinice sa sečivima.

450 g meda

200 g smrznutog maslaca

100 g sveže skuvanog krompira

1 Sipajte 450 g meda u posudu i stavite je u frižider na 0 °C (pripremite 3 posude).
2 Isecite 200 g smrznutog putera na kocke veličine 2–3 cm, a 100 g sveže skuvanog krompira na komade veličine 3–4 cm.
3 Stavite posude na sto, dodajte puter i komade sveže skuvanog krompira u posudu blendera i uključite na najveću brzinu na 5 sekundi.

Diagram illustrating a water tap and drain with checkmark and cross symbols indicating water quality inspection

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Johdanto

www.Philips.com/welcome.

Yleiskuvaus

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram illustrating a step-by-step process of a tool application, showing step-by-step steps with arrows indicating direction.

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

Diagram showing a device with a magnified view of the internal structure, labeled with icons and arrows indicating rotation or adjustment.

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand pressing a button on a cylindrical device with a power symbol (no text or labels)

Illustration of a hand holding an electrical plug next to a square socket with a circular vent (no text or symbols)

12 Irrota pistoke pistorasiasta.

432 Suomi

Diagram of a mechanical component with an upward arrow and a cylindrical base (no text or symbols)

Illustration of a hand pressing down on a food processor with an upward arrow indicating motion (no text or symbols)

15 Irrota kansi.

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

17 Tyhjennä kulho.

Simple line drawing of a pen inserted into a bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand using a tool to interact with a device, accompanied by an warning symbol and a magnified view.

Diagram illustrating a cleaning or inspection process with labeled steps and visual icons for inspection, warning, and damage.

Illustration of a kitchen mixer with a handle and arrow indicating the outlet (no text or symbols)

Illustration of a hand pressing down on a kitchen pot with a handle (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

Diagram showing a device with a magnified view of internal components, labeled with arrows and symbols.

Illustration of a hand holding an electrical plug next to a wall socket with a circular component (no text or symbols)

Illustration of a hand using a power switch to press a cylindrical device into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

13 Irrota pistoke pistorasiasta.

Diagram of a cylindrical device with an upward arrow, mounted on a base with a smaller cup (no text or symbols)

Diagram illustrating a chemical experiment with labeled components and warning symbols

18 Tyhjennä kulho.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram showing a kitchen appliance with a close-up view of the interior and a directional arrow indicating rotation or movement.

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

Illustration of a hand pressing a button on a food item, with a power symbol icon (no text or labels)

Illustration of a hand holding an electrical plug next to a square socket with a bulb (no text or symbols)

13 Irrota pistoke pistorasiasta.

Diagram of a cylindrical device with an upward arrow, mounted on a base with a smaller cylindrical component (no text or symbols)

Illustration of a hand using a kitchen mixer to press or adjust a dish (no text or symbols visible)

16 Irrota kansi.

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

18 Tyhjennä kulho.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple visual icons showing a roll of pepper and a pumpkin with checkmark and cross symbols

Illustration of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrow and a circular diagram with vertical and horizontal arrows indicating movement or alignment.

Diagram of a kitchen appliance with a magnified view showing a button and handle mechanism (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram showing a hand inserting a device into a circular control panel with labeled buttons and arrows indicating direction.

Illustration of a hand pressing a power button on a steamer (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

11 Irrota pistoke pistorasiasta.

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a hand pressing down on a kitchen mixer with a handle and spatula (no text or symbols)

14 Irrota kansi.

Illustration of a bowl containing food with a fork and a stick above it, no text or symbols present

Simple line drawing of a bucket pouring liquid into a container with an arrow indicating direction (no text or symbols)

			(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
HR1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
			250 g	30 sec.	1
			500 g	20 sec.	2
			1 piece	20 sec.	2
			250 g	30 sec.	2
			200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x	60 Cloves	30-60 sec.	2

Reseptejä

Hunajainen perunasose

Diagram illustrating a water drain system with checkmark and cross symbols indicating water flow or inspection

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Introduktion

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram showing a mechanical component with an arrow indicating downward motion, alongside a cylindrical device (no text or symbols)

Illustration of two hands performing a candle flame test with downward arrows indicating pressure or direction (no text or symbols)

2 Placera knivarna i hackarskålen.

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

Diagram of a kitchen appliance with a magnified inset showing a circular component (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand holding a can with a power button, next to a container filled with coins (no text or symbols)

Illustration of a hand holding an electrical plug next to a square socket with a circular vent (no text or symbols)

Diagram of a mechanical component with an upward arrow, no visible text or symbols

Illustration of a hand pressing down on a food processor with an upward arrow indicating motion (no text or symbols)

15 Ta bort locket.

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols, indicating environmental hazard.

Simple line drawing of a container with an arrow pointing to it, no text or symbols present.

17 Töm skålen.

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram of a mechanical device with an inset showing a rotating component (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a hand holding a plug next to an electrical outlet with a circular component (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

18 Töm skålen.

Använda vispskivan

Diagram illustrating a mechanical assembly or tool operation with labeled steps 1 and 2, showing a pen-like component and a base with a lock mechanism.

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Simple line drawing of a funnel pouring liquid into a container (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with directional arrows and a magnified circular section highlighting measurement points.

Diagram illustrating a mechanical device with a magnified inset showing a rotating component and its rotation arrow.

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

Illustration of a hand using a power button to press or press a device into a container (no text or symbols)

Illustration of a hand holding an electrical plug next to a square electrical socket with a circular vent (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand using a blender to press or adjust a lid (no text or symbols present)

16 Ta bort locket.

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

Simple line drawing of a container with a handle and arrow indicating direction (no text or symbols)

18 Töm skålen.

Simple line drawings of peaches and a pumpkin with checkmark and cross symbols indicating selection or rejection.

Illustration of a container with a rod inserted into a bowl, showing liquid and a downward arrow (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical component with downward force arrows and a circular diagram indicating dimension or alignment.

Illustration of a kitchen utensil with a magnified view showing a hand holding a small object (no text or symbols present)

Illustration of a plug plugged into an electrical outlet with a magnified circular component (no text or symbols)

Diagram showing a hand inserting a component into a device with labeled parts and a plus button

Illustration of a hand holding a power switch next to a circular button labeled 'Power Supply', with no text or symbols present.

Illustration of a plug being inserted into an electrical outlet (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand pressing down on a kitchen mixer with an arrow indicating the process (no text or symbols present)

14 Ta bort locket.

462 Svenska

Illustration of a bowl containing food with a fork and a stand, no text or symbols present

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
			500 g	20 sec.	1
		[###]	250 g	30 sec.	1
			500 g	20 sec.	2
			1 piece	20 sec.	2
		###	250 g	30 sec.	2
			200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x ###	10 Cloves	15 sec.	2
		60 x ###	60 Cloves	30-60 sec.	2

Recept

Diagram illustrating a water treatment procedure with checkmark and cross symbols indicating inspection or rejection status.

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Giriş

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram showing a mechanical component with an arrow indicating downward motion, alongside a cylindrical device (no text or symbols)

Illustration of two hands performing a candle flame test with downward arrows indicating pressure or direction (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

Diagram of a kitchen appliance with a magnified inset showing a circular component (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

8 Fişi prize takın.

- Cihaz hazırlır.

1←→4 - + +

Illustration of a hand holding a power button next to a container filled with food items (no text or symbols)

Illustration of a hand holding a plug next to an electrical outlet socket (no text or symbols)

Diagram of a mechanical component with an upward arrow, no visible text or symbols

Illustration of a hand pressing down on a food processor with a lid and granular base (no text or symbols)

15 Kapağı çıkarın.

Illustration of a hand pouring liquid into a container with an upward arrow and warning symbol (no text or labels)

Simple line drawing of a container with a lid and an arrow pointing to it (no text or symbols)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram of a mechanical device with an inset showing a rotating component (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a compass showing the dial (no text or symbols)

9 Fişi prize takın.

- Cihaz hazırlır.

1 ← 4 - + +

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a hand holding a plug next to an electrical outlet with a circular component (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present.

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly with labeled steps 1 and 2, showing a pen-like component before and after rotation.

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Simple line drawing of a funnel pouring liquid into a container (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with directional arrows and a magnified circular section highlighting measurement points.

Diagram illustrating a mechanical device with a magnified inset showing a rotating component and its rotation arrow.

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

9 Fişi prize takın.

Illustration of a hand pressing a button on a device with a power symbol (no text or labels)

Illustration of a hand holding an electrical plug next to a square socket with a circular vent (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand using a blender to press or adjust a lid (no text or symbols present)

16 Kapağı çıkarın.

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

Simple line drawing of a container with a handle and arrow indicating direction (no text or symbols)

Simple visual icons showing a bunch of spinach and a pumpkin with checkmark and cross symbols

Illustration of a container with a rod and a downward arrow, no text or symbols present

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical component with downward force arrows and a circular diagram indicating dimension or alignment.

Illustration of a food processor with a magnified view showing the internal components (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a power button next to a cup of milk (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand pressing down on a kitchen mixer with an arrow indicating the process (no text or symbols present)

14 Kapağı çıkarın.

482 Türkçe

Illustration of a bowl containing food with a fork and a stand, no text or symbols present

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
			500 g	20 sec.	1
		[KZ70]	250 g	30 sec.	1
			500 g	20 sec.	2
			1 piece	20 sec.	2
		[464W]	250 g	30 sec.	2
			200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x [X3Y2]	10 Cloves	15 sec.	2
		60 x [467S]	60 Cloves	30-60 sec.	2

Tarifler

Diagram illustrating a water treatment procedure with checkmark and cross symbols indicating inspection or rejection status.

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Εισαγωγή

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with directional arrows and a magnified circular section highlighting measurement points.

Diagram showing a kitchen appliance with a magnified view of the interior and a directional arrow indicating rotation or movement.

Illustration of a plug connected to an electrical outlet with a magnified dial (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified dial (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Illustration of a hand pressing down on a food processor with a handle (no text or symbols)

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbol, accompanied by a magnified view of the downward hand.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

17 Αδειάστε το μπολ

Simple line drawing of a pipette inserted into a glass bowl with an arrow indicating direction (no text or symbols)

Diagram illustrating a hand holding a tool with warning symbols and an arrow indicating process flow

Diagram illustrating a cooking step with labeled steps and warning symbols

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

Illustration of a hand using a power button to press or press a device into a container (no text or symbols present)

Illustration of a plug inserted into an electrical socket (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Diagram illustrating two steps of a mechanical assembly or tooling process, labeled with numbered instructions.

Diagram of a mechanical component with a cylindrical shaft and flange, showing a downward arrow (no text or symbols)

Diagram of a mechanical component with an upward arrow, no visible text or symbols

Illustration of a hand pressing down on a kitchen grater with an arrow indicating the process (no text or symbols present)

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

Simple line drawing of a container with an arrow pointing to it, no text or symbols present.

Simple visual icons showing a roll of pepper and a pumpkin with checkmark and cross symbols

Illustration of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols present)

Illustration of a hand using a kitchen mixer to press food into a bowl (no text or symbols visible)

Diagram showing a container with a lid and an arrow indicating downward motion (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a magnified circular view showing measurement or alignment (no text or symbols)

Illustration of a food processor with a hand inserting a button to a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Illustration of a hand pressing a power button on a steamer (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a base, showing an upward arrow (no text or symbols)

Illustration of a hand pressing down on a kitchen mixer with a handle and spatula (no text or symbols)

Illustration of a mechanical device interacting with a bowl containing plant material, with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a bucket pouring liquid into a bowl (no text or symbols)

			(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
	R1507		250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
		[X7Y8]	250 g	30 sec.	1
	[IMAGE]		500 g	20 sec.	2
			1 piece	20 sec.	2
		[Z36S]	250 g	30 sec.	2
			200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x	60 Cloves	30-60 sec.	2

Συνταγές

Diagram illustrating a water tap and drain with checkmark and cross symbols indicating water quality inspection

Diagram showing three mechanical components with check and cross symbols, no readable text or labels present

Въведение

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

5 Сложете буталото в улея за подаване.

Diagram showing a mechanical device with directional arrows and a magnified circular section highlighting measurement points.

Diagram showing a kitchen appliance with a magnified view of the interior and a directional arrow indicating rotation or movement.

Illustration of a plug inserted into an electrical outlet with a circular dial (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a hand holding an electrical plug next to a wall socket (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand pressing down on a food processor with an upward arrow indicating motion (no text or symbols)

15 Отворете капака.

Diagram illustrating a hand pouring liquid into a container with an upward arrow and a warning symbol pointing to it.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple line drawing of a pen inserted into a glass bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand using a ruler to measure a circular object, with warning symbols and an arrow indicating process flow.

Diagram illustrating a cooking step with labeled steps: adding liquid, adding sauce, and removing oil drop.

Illustration of a kitchen mixer with a handle and lid, showing no text or symbols

Illustration of a hand using a kitchen mixer to press or adjust the lid (no text or symbols visible)

Diagram showing a mechanical device with a downward arrow and a circular annotation indicating measurement or alignment.

Diagram showing a device with a brush and a magnified view of the process, labeled in Chinese.

Illustration of a hand holding an electrical plug next to a wall socket with a pointer (no text or symbols)

Illustration of a hand using a power button to press or press a device into a container (no text or symbols present)

Illustration of a plug inserted into an electrical outlet with a magnified circular component (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

Diagram illustrating two steps of a mechanical assembly or tooling process, labeled with numbered instructions.

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram of a laboratory setup with a funnel and test tube in a beaker (no text or labels)

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

Illustration of a hand pressing a button on a food item, with a power symbol overlay (no text or symbols present)

Illustration of a plug inserted into an electrical outlet socket (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base (no text or symbols)

Illustration of a hand using a mortar to press or brush into a container (no text or symbols visible)

16 Отворете капака.

Diagram of a mechanical component with an upward arrow, no text or symbols present

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

Simple line drawings of peaches and a garlic with checkmark and cross symbols

Illustration of a hand holding a cylindrical object above a glass bowl, with an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to handle food (no text or symbols)

4 Сложете буталото в улея за подаване.

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating vertical alignment.

Diagram showing a food processor with a magnified view of its internal components, labeled with arrows and symbols.

Illustration of a hand holding an electrical plug next to a square electrical socket with a pointer (no text or symbols)

Illustration of a hand using a power switch to press a coffee cup (no text or symbols present)

Illustration of a hand holding an electrical plug next to a square socket with a circular vent (no text or symbols)

Diagram of a mechanical device with an upward arrow and a base component (no text or symbols)

Illustration of a hand pressing down on a kitchen mixer with a handle and spatula (no text or symbols)

14 Отворете капака.

Illustration of a plant seedling in a container with an upward arrow indicating growth (no text or symbols)

Simple line drawing of a bucket pouring liquid into a container with an arrow indicating direction (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
[KSDT]	HR1507		500 g	20 sec.	1
		[3048]	250 g	30 sec.	1
	[IMAGE]		500 g	20 sec.	2
			1 piece	20 sec.	2
			250 g	30 sec.	2
	[IMAGE]		200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x [XGBZ]	60 Cloves	30-60 sec.	2

Рецепти

Diagram illustrating a water treatment procedure with checkmark and cross symbols indicating water quality status

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Вовед

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with directional arrows and a magnified circular section highlighting measurement points.

Diagram showing a kitchen appliance with a magnified view of the interior and a directional arrow indicating rotation or movement.

Illustration of a plug connected to an electrical outlet with a magnified dial (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a hand holding an electrical plug next to a wall socket (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Illustration of a hand pressing down on a food processor with an upward arrow indicating motion (no text or symbols)

Diagram illustrating a hand pouring liquid into a container with an upward arrow and a warning icon pointing to it.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

Simple line drawing of a pipette inserted into a glass bowl with an arrow indicating direction (no text or symbols)

Diagram illustrating a hand holding a tool with warning symbols and an arrow indicating process flow

Diagram illustrating a cooking step with labeled steps and warning symbols

Illustration of a hand holding an electrical plug next to a square socket with a pointer (no text or symbols)

Illustration of a hand using a power switch to press a cylindrical device into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified view showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

Diagram illustrating two steps of a mechanical assembly or tooling process, labeled with numbered instructions.

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols present)

Simple line drawing of a funnel pouring liquid into a container with a submerged object (no text or symbols)

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

Illustration of a hand using a power button to press or press a device (no text or symbols present)

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Illustration of a hand using a lathe mixer to press or adjust a dish (no text or symbols visible)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

Simple line drawings of peaches and a garlic bulb with checkmark and cross symbols

Illustration of a hand holding a cylindrical object above a glass bowl, with an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to handle food (no text or symbols)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing mechanical assembly with downward force arrows and a magnified circular detail indicating measurement or alignment.

Diagram showing a food processor with a magnified view of its internal components, labeled with arrows and symbols.

Illustration of a hand holding an electrical plug next to a square electrical socket with a pointer (no text or symbols)

Illustration of a hand using a power switch to press a coffee cup (no text or symbols present)

Illustration of a hand holding an electrical plug next to a square socket with a circular vent (no text or symbols)

Diagram of a mechanical device with an upward arrow and a base component (no text or symbols)

Illustration of a hand pressing down on a kitchen mixer with a handle and spatula (no text or symbols)

Illustration of a plant seedling in a container with an upward arrow indicating growth (no text or symbols)

Simple line drawing of a bucket pouring liquid into a container with an arrow indicating direction (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
		[XSTT]	250 g	30 sec.	1
	[IMAGE]		500 g	20 sec.	2
			1 piece	20 sec.	2
		[64TT]	250 g	30 sec.	2
	[IMAGE]		200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x	60 Cloves	30-60 sec.	2

Рецепти

Diagram illustrating a water drain system with checkmark and cross symbols indicating water flow or inspection

Diagram showing two mechanical components with check and cross symbols, no readable text or labels

Введение

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram of a mechanical device with a downward arrow and a circular component, no text or symbols present

Diagram showing a food item being processed with a magnified view highlighting the process, including a circular arrow indicating rotation.

Illustration of a plug connected to an electrical outlet with a magnified dial (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified dial (no text or symbols)

12 Извлеките вилку из розетки электросети.

Diagram of a mechanical device with a cylindrical component and a base, showing an upward arrow (no text or symbols present)

Illustration of a hand pressing down on a food processor with a handle (no text or symbols)

15 Снимите крышку.

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols, indicating environmental hazard.

Simple line drawing of a container with an arrow indicating direction (no text or symbols)

17 Опустошите чашу

Simple line drawing of a pen inserted into a bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand holding a tool with warning symbols and an arrow indicating process flow

Diagram illustrating a cooking step with labeled steps: adding liquid, adding gel, and removing oil drop.

Illustration of a hand holding an electrical plug next to a square socket with a pointer (no text or symbols)

Illustration of a hand using a power button to press a cylindrical device (no text or symbols present)

Illustration of a plug connected to an electrical outlet with a magnified view showing internal components (no text or symbols)

13 Извлеките вилку из розетки электросети.

Diagram of a cylindrical device with an upward arrow, mounted on a base with a smaller cylindrical component (no text or symbols)

Diagram illustrating a chemical experiment with a container, beaker, and warning symbol indicating inspection or damage.

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

18 Опустошите чашу.

Diagram illustrating two steps of a mechanical assembly or tooling process, labeled with numbered instructions.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Diagram of a laboratory setup with a funnel and test tube in a beaker (no text or labels)

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

Illustration of a hand pressing a button on a food item, with a power symbol overlay (no text or symbols present)

Illustration of a plug inserted into an electrical outlet socket (no text or symbols)

13 Извлеките вилку из розетки электросети.

Diagram of a cylindrical device with an upward arrow, mounted on a base (no text or symbols)

Illustration of a hand using a lathe mixer to press or adjust a liquid mixture (no text or symbols present)

16 Снимите крышку.

Diagram of a mechanical component with an upward arrow, no text or symbols present

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

18 Опустошите чашу.

Simple visual icons showing a roll of garlic and a pumpkin with checkmark and cross symbols

Illustration of a mechanical component being lifted into a container with an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to handle food items (no text or symbols)

Diagram showing a container being inserted into a pot, with an arrow indicating the process (no text or symbols present)

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

Diagram showing a kitchen appliance with a magnified view of the interior and a hand holding a device, labeled with Chinese characters.

Illustration of a hand holding an electrical plug next to a square socket with a pointer (no text or symbols)

Diagram showing a hand holding a circular control panel with labeled buttons and a plus button, alongside a cylindrical device.

Illustration of a hand using a power switch to press a cup into a container (no text or symbols)

Illustration of a plug being inserted into an electrical outlet (no text or symbols)

11 Извлеките вилку из розетки электросети.

Diagram of a cylindrical device with an upward arrow, mounted on a base (no text or symbols)

Illustration of a hand pressing down on a kitchen mixer with a handle and tool (no text or symbols)

14 Снимите крышку.

Illustration of a mechanical device with a lever and upward arrow, no text or symbols present

Simple line drawing of a bucket with a container and an arrow pointing to the liquid (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
			250 g	30 sec.	1
	HR1507		500 g	20 sec.	2
			1 piece	20 sec.	2
			250 g	30 sec.	2
	HR1507		200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x [KBHT]	60 Cloves	30-60 sec.	2

Рецепты

Diagram illustrating a water tap and a water tank with checkmark and cross symbols indicating inspection or testing conditions.

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Вступ

① ② ③ ④ HR1507 HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrow and a magnified circular section indicating measurement or alignment.

Diagram showing a food processor with a magnified view of the processing step, labeled with icons and arrows indicating rotation.

Illustration of a plug connected to an electrical outlet with a meter, showing an arrow indicating direction (no text or symbols)

Illustration of a hand using a power switch to press a cylindrical device into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified dial (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a hand pressing down on a food processor with a handle (no text or symbols)

15 Зніміть кришку.

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols, indicating environmental hazard.

Diagram of a container with a lid and an arrow indicating direction (no text or symbols)

17 Спорожніть чашу.

Simple line drawing of a pen inserted into a bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand using a ruler to measure a circular object, with warning symbols and an arrow indicating process flow.

Diagram illustrating a cooking step with labeled steps and visual icons for handling food, coating, and cleaning.

Illustration of a plug inserted into an electrical outlet with a compass (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

18 Спорожніть чашу.

Diagram illustrating two steps of a mechanical assembly or tooling process, labeled with numbered instructions.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Diagram of a laboratory setup with a pipette and a container (no text or labels)

Illustration of a hand holding an electrical plug next to a square socket with a pointer (no text or symbols)

Illustration of a hand pressing a button on a food processor with a power symbol (no text or labels)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a hand using a kitchen mixer to press or adjust a dish (no text or symbols visible)

16 Зніміть кришку.

Diagram of a mechanical component with an upward arrow, no text or symbols present

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

18 Спорожніть чашу.

Simple visual icons showing a roll of garlic and a pumpkin with checkmark and cross symbols

Illustration of a mechanical component being lifted by a rod, with an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to handle food items (no text or symbols)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing mechanical assembly with downward force arrow and circular motion indicator

Diagram of a kitchen appliance with a magnified view showing internal components (no text or symbols)

Illustration of a plug connected to an electrical outlet with a magnified view showing internal components (no text or symbols)

Diagram showing a hand inserting a button into a circular device with labeled components and directional arrows

Illustration of a hand using a power switch to press a cup into a container (no text or symbols)

Illustration of a hand holding a plug next to an electrical outlet socket (no text or symbols)

Diagram of a cylindrical device with an upward arrow, mounted on a base (no text or symbols)

Illustration of a hand pressing down on a kitchen mixer with an upward arrow indicating motion (no text or symbols)

14 Зніміть кришку.

Illustration of a bowl containing food with a fork and a stick above it, no text or symbols present

Simple line drawing of a bucket with a container pouring liquid into a bowl (no text or symbols)

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
		[weed]	250 g	30 sec.	1
	HR1507		500 g	20 sec.	2
			1 piece	20 sec.	2
		[weed]	250 g	30 sec.	2
	HR1507	[weed]	200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x	60 Cloves	30-60 sec.	2

Рецепти

Diagram illustrating a water drain system with checkmark and cross symbols indicating water flow or inspection

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Kipicne

① ② ③ ④ HR1507 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ HR1507

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrow and a magnified circular section with dashed lines indicating measurement or alignment.

Diagram showing a food processor with a magnified view of the process, highlighting a rotation arrow and control buttons.

Illustration of a plug inserted into an electrical outlet with a circular dial (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a hand holding an electrical plug next to a wall socket (no text or symbols)

12 Штепсельдік үшты розеткадан суырыңыз.

Diagram of a mechanical device with a cylindrical component and a base, showing an upward arrow (no text or symbols)

Illustration of a hand pressing down on a food processor with a handle (no text or symbols)

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols, indicating environmental hazard.

Simple line drawing of a bucket with an arrow indicating direction (no text or symbols)

17 ыдысты босату

Simple line drawing of a pen inserted into a bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand using a ruler to measure a circular object, with warning symbols and an arrow indicating process flow.

Diagram illustrating a cooking step with labeled steps and visual icons for handling food, coating, and cleaning.

Illustration of a hand holding an electrical plug next to a square socket with a pointer (no text or symbols)

Illustration of a hand using a power switch to press a button into a container (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

13 Штепсельдік үшты розеткадан суырыңыз.

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Diagram illustrating a chemical experiment with labeled components and warning symbols

Simple line drawing of a bucket with an arrow pointing to the interior (no text or symbols)

18 відысты босатыңыз.

Diagram illustrating two steps of a mechanical assembly or tooling process, labeled with numbered instructions.

Diagram of a mechanical component with a cylindrical shaft and flange, showing a downward arrow (no text or symbols)

Simple line drawing of a funnel pouring liquid into a container (no text or symbols)

Illustration of a hand holding an electrical plug next to a wall-mounted socket (no text or symbols)

Illustration of a hand pressing a button on a food processor with a power symbol (no text or labels)

Illustration of a plug inserted into an electrical socket (no text or symbols)

13 Штепсельдік үшты розеткадан суырыңыз.

Diagram of a mechanical component with an upward arrow, no text or symbols present

Illustration of a hand using a mortar to press or brush into a container (no text or symbols visible)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

18 ыдысты босатыңыз.

Simple line drawings of peaches and a garlic with checkmark and cross symbols

Illustration of a hand holding a cylindrical object above a glass bowl, with an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a kitchen mixer to handle food (no text or symbols)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing mechanical assembly with downward force arrows and a magnified circular detail with dashed lines indicating measurement or alignment.

Diagram showing a food processor with a magnified view of its internal components, labeled with arrows and symbols.

Illustration of a hand holding an electrical plug next to a square electrical socket with a pointer (no text or symbols)

Illustration of a hand using a power switch to press a coffee cup (no text or symbols present)

Illustration of a hand holding an electrical plug next to a square socket with a circular vent (no text or symbols)

11 Штепсельдік үшты розеткадан суырыңыз.

Diagram of a cylindrical device with an upward arrow, mounted on a base (no text or symbols)

Illustration of a hand pressing down on a kitchen mixer with a handle and tool (no text or symbols)

Illustration of a container with food and a fork, no text or symbols present

Simple line drawing of a bucket with a container pouring liquid into it, no text or symbols present.

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
		[OKTS]	250 g	30 sec.	1
	HR1507		500 g	20 sec.	2
			1 piece	20 sec.	2
		[WEGA]	250 g	30 sec.	2
	HR1507		200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x	10 Cloves	15 sec.	2
		60 x [300C]	60 Cloves	30-60 sec.	2

Рецепттер

Diagram illustrating a water drain system with checkmark and cross symbols indicating water quality inspection

Diagram showing two mechanical components with check and cross symbols, no readable text or labels

אַלְרָה

Diagram of a kitchen appliance with numbered parts for identification

HR1507 HR1507 HR1507 HR1507

.הכלה,הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

,הכלה,הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

.II70 IX DI0NX

Illustration of a kitchen mixer with a lid and screw base (no text or symbols)

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical device with downward force arrow and a circular diagram with dashed lines indicating measurement or alignment.

Diagram showing a kitchen appliance with a magnified view of the interior and a close-up of the lid, labeled with Chinese characters.

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

1. וְרָה אַעֹבִי

בְרָה בְרָה בְרָה

1 ← 4

9.(4 TV 1) TV

Illustration of a hand using a power button to press or install a device (no text or symbols present)

Illustration of a plug inserted into an electrical outlet socket (no text or symbols)

1. מַרְשָׁת אַרְשָׁת

Diagram of a mechanical component with an upward arrow, no text or symbols present

Illustration of a hand pressing a component into a kitchen pot with a lid and handle (no text or symbols)

Illustration showing a hand pouring liquid into a bucket with an upward arrow and warning symbols, indicating environmental hazard.

Simple line drawing of a container with an arrow pointing to one side (no text or symbols)

1. מַרִיָה בְּבָם

17הַרְהָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָה

הכלה/הכלה/הכלה

Simple line drawing of a pen inserted into a glass bowl with an arrow indicating downward motion (no text or symbols)

Diagram illustrating a hand holding a tool with warning symbols and an arrow indicating process flow

1. מְרַעָה אַתְקֹן

Diagram illustrating a chemical process with labeled steps: adding liquid, cleaning, and using a droplet.

3D rendering of a kitchen mixer with a handle and outlet (no text or symbols visible)

Illustration of a hand using a kitchen mixer to press or adjust the lid (no text or symbols visible)

Diagram showing a mechanical device with downward force arrows and a magnified view of a circular component with dashed lines.

Diagram showing a device with a magnified view of the internal structure, labeled with Chinese characters and an arrow indicating rotation.

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

1. וְרַעֹר אַלְרָה

. וְרָה בַרִי לְשׁ

1 ← 4

10.(4 7y 1) 712

Illustration of a hand using a power button to press a device into a container (no text or symbols)

Illustration of a hand holding an electrical plug next to a wall-mounted meter (no text or symbols)

13.שַׁרָה אַרְבָר

Diagram illustrating two steps of a pen tip installation, labeled with numbered instructions and directional arrows.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Diagram of a laboratory setup with a funnel and test tube in a beaker (no text or labels)

Illustration of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

5

Illustration of a hand using a kitchen mixer to press food into a container (no text or symbols visible)

1. מַרְשָׁת אַרְשָׁת

Diagram showing a container being inserted into a bucket with an arrow indicating downward motion (no text or symbols)

Diagram showing a device with a downward arrow and a magnified circular section with dashed lines, likely illustrating a mechanical or electrical process.

Diagram of a robotic arm with a magnified inset showing a hand interacting with a device (no text or symbols present)

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

1 ← 4 - + + +

Illustration of a hand using a power button to press or install a device (no text or symbols present)

Illustration of a hand holding an electrical plug next to a wall-mounted meter (no text or symbols)

1. כְרַעָה

9. מַרְשׁ בִרְשׁ

10.(4 TV 1) TV

Diagram of a cylindrical device with an upward arrow, mounted on a base (no text or symbols)

14.תְשָׁרִיּה

15.תְשָׁרַעֹרִי:

Illustration of a hand using a kitchen mixer to press or adjust a dish (no text or symbols visible)

16.תְשָׁרַעֹן

Diagram of a mechanical component with a cylindrical shaft and flange, showing an upward arrow (no text or symbols)

1. מַרְׁת בָּה

Simple line drawing of a bucket with an arrow pointing to one side (no text or symbols)

18.הכלה

בְרַעֹרָה לִיּוֹרָה

Simple visual icons showing a roll of bananas and a garlic with checkmark and cross symbols

622

Diagram showing a mechanical device with downward force arrows and a magnified circular section indicating measurement or alignment.

Diagram showing a food processor with a magnified view of the internal structure, labeled with icons and text.

1. מְקַרִי הַל

Illustration of a plug inserted into an electrical socket with a power outlet (no text or symbols)

1. וְרָה אַלְבּוֹת

. מְקַרִי לְקַרִי

Diagram showing a hand inserting a component into a cylindrical device with labeled parts and a plus button.

8.2 הַרְהָר

Illustration of a hand pouring liquid into a container with a power button icon (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a magnified inset showing internal components (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a hand pressing down on a kitchen mixer with a handle and spatula (no text or symbols)

Illustration of a bowl containing plant material with a central rod and upward arrow (no text or symbols)

Simple line drawing of a bucket with liquid and a straw inside, no text or symbols present

11.שְׁרָה בִּרָה

12.ΥΙΟΝΑ ΙΑΓΙΝ

13.תְשָׁרִיּם

14.הכלה

1. אַרְשָׁה בְּרִי

16.תְרָה בְּרָה

			(Kg(MAX)	(MAX)
			400 g	10P 1
			400 g	10 sec.	4
			400 g	30 sec.	4
			400 g	60 sec.	4
			500 g+200 ml	60 sec.	1>4
R1507			250 ml 60 sec.		4
			4 x	90 sec.	4
	HR1507		500 g	20 sec.	1
		[000N]	250 g	30 sec.	1
	HR1507		500 g	20 sec.	2
			1 piece	20 sec.	2
		[HZ2Z]	250 g	30 sec.	2
	HR1507		200 g	20 sec.	1
			1 piece	20 sec.	1
HR1507		10 x [HTZ4]	10 Cloves	15 sec.	2
		60 x [CZ7]	60 Cloves	30-60 sec.	2

תְּרָה

Diagram illustrating a water treatment procedure with checkmark and cross symbols indicating water quality inspection

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

-1

1_

-1

1

-1

1_

-1

1

2026 © Versuni Holding B.V.

PHILIPS and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.

This product has been manufactured by and is sold under the responsibility of Versuni Holding B.V., and Versuni Holding B.V. is the warrantor in relation to this product.
