USER MANUAL PLL 360-1G BOSCH

natural_image Exterior view of a Bosch industrial sensor device (no visible text or symbols beyond brand name)
text_image (3) (4) (5) (2) (1) (6) (7) (9) (8) (10) (5) (11) TT 120 0 603 691 200 Laser Radiation. Do not stare into beam. Class 2 Consumer Laser Product EN 50689:2021 IEC 60825-1:2014, <10mW, 500-540nm

Bosch Power Tools 1 609 92A A8T | (02.04.2025)

BOSCH PLL 360-1G - 1
1 609 92A A8T | (02.04.2025) Bosch Power Tools

BOSCH PLL 360-1G - 2

text_image (12) (13) (1) (15) 1 600 A01 L6H (14) 1 619 PS1 251 (2)

Bosch Power Tools 1 609 92A A8T | (02.04.2025)

Deutsch

Sicherheitshinweise

BOSCH PLL 360-1G - Sicherheitshinweise - 1

All instructions must be read and observed in order for the measuring tool to function safely. The safeguards integrated into the measuring tool may be compromised if the measuring tool is not used in accordance with these instructions. Never make warning signs on the measuring tool unrecognisable. SAVE THESE IN-

STRUCTIONS FOR FUTURE REFERENCE AND INCLUDE THEM WITH THE MEASURING TOOL WHEN TRANSFERRING IT TO A THIRD PARTY.

▶ Warning! If operating or adjustment devices other than those specified here are used or other procedures are carried out, this can lead to dangerous exposure to radiation.
The measuring tool is delivered with a laser warning sign (marked in the illustration of the measuring tool on the graphics page).
If the text of the laser warning label is not in your national language, stick the provided warning label in your national language over it before operating for the first time.

BOSCH PLL 360-1G - Sicherheitshinweise - 2

Do not direct the laser beam at persons or animals and do not stare into the direct or reflected laser beam yourself. You could blind somebody, cause accidents or damage your eyes.

▶ If laser radiation hits your eye, you must close your eyes and immediately turn your head away from the beam.

▶ Do not make any modifications to the laser equipment.

▶ Do not use the laser goggles (accessory) as protective goggles. The laser goggles make the laser beam easier to see; they do not protect you against laser radiation.
▶ Do not use the laser goggles (accessory) as sunglasses or while driving. The laser goggles do not provide full UV protection and impair your ability to see colours.
▶ Have the measuring tool repaired only by a qualified specialist using only original replacement parts. This will ensure that the safety of the measuring tool is maintained.
▶ Do not let children use the laser measuring tool unsupervised. They could unintentionally blind themselves or other persons.
▶ Do not use the measuring tool in explosive atmospheres which contain flammable liquids, gases or dust. Sparks may be produced inside the measuring tool, which can ignite dust or fumes.
▶ Do not modify or open the battery. There is a risk of short-circuiting.
In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
If used incorrectly or if the battery is damaged, flammable liquid may be ejected from the battery. Contact with this liquid should be avoided. If contact accidentally occurs, rinse off with water. If the liquid comes into contact with your eyes, seek additional medical attention. Liquid ejected from the battery may cause irritation or burns.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.

BOSCH PLL 360-1G - Sicherheitshinweise - 3

Protect the measuring tool against heat, e.g. including prolonged sun exposure, fire, water, and moisture. Danger of explosion.

▶ Only use and charge the battery with compatible products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.

BOSCH PLL 360-1G - Sicherheitshinweise - 4

Keep the magnet away from implants and other medical devices, e.g. pacemakers or insulin pumps. The magnet generates a field that can impair the function of implants and medical devices.

- Keep the measuring tool away from magnetic storage media and magnetically-sensitive devices. The effect of the magnets can lead to irreversible data loss.

18 | English

Product Description and Specifications

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The measuring tool is intended for establishing and checking horizontal lines.

The measuring tool is suitable for indoor use.

This product is a consumer laser product in accordance with EN 50689.

Product Features

The numbering of the product features shown refers to the illustration of the measuring tool on the graphic page.

(1) Battery compartment cover
(2) Battery compartment cover screw
(3) 1/4" tripod mount
(4) Serial number
(5) Laser warning label
(6) USB Type-C ^® port ^a)
(7) Battery charge indicator
(8) Laser beam outlet aperture
(9) Incline function button

(10) On/off switch

(11) Tripod ^b)

(12) Connection socket for battery

(13) Battery connector plug

(14) Rechargeable battery

a) USB Type-C® and USB-C® are trademarks of USB Implementers Forum.

b) This accessory is not part of the standard scope of delivery.

Technical data

360° line laser PLL 360-1G

Article number

3 603 F63 M..

English | 19

360° line laser PLL 360-1G

Working range (diameter) up to approx. A)30 m
Levelling accuracy B)(C)D)±0.4 mm/m
Self-levelling range ±4°
Levelling time < 4 s
Recommended ambient temperature during charging 0 °C to +40 °C
Operating temperature -5 °C to +40 °C
Storage temperature -20 °C to +50 °C
Max. altitude 2000 m
Relative air humidity max. 90 %
Pollution degree according to IEC 61010-1 2E)
Laser class 2
Laser type < 10 mW, 500-540 nm
C6 10
Divergence 50 × 10 mrad (full angle)
Tripod mount 1/4"
Operating time, approx. B)>5 h
Weight 0.45 kg
Dimensions (length × width × height) 110 × 61 × 124 mm

Lithium-ion battery

Charging connectionUSB Type-C®
Recommended USB Type-C® cable1 600 A01 L6H
Rated voltage 3.6 V
Capacity2 Ah
Max. battery charging time (with measuring tool switched off)4 h
Power supply (accessory)
Output voltage5.0 V —
Minimum output current1.0 A
Recommended power supplyF)

20 | English

360° line laser PLL 360-1G

- EU2 609 120 713
- UK2 609 120 718
- AU2 609 120 717

A) The working range may be reduced by unfavourable environmental conditions (e.g. direct sunlight).
B) At 20-25°C
C) An additional deviation of ±0.2 mm/m must be taken into account when at maximum self-leveling range.
D) The values stated presuppose normal to favourable environmental conditions (e.g. no vibration, no fog, no smoke, no direct sunlight). Extreme fluctuations in temperature can cause deviations in accuracy.
E) Only non-conductive deposits occur, whereby occasional temporary conductivity caused by condensation is expected.
F) Additional technical data can be found at: http://www.bosch-do-it.com/ecodesign The serial number (4) on the type plate is used to clearly identify your measuring tool.

Measuring Tool Power Supply

Battery Charging

For charging, use the recommended USB power supply unit or a USB power supply unit whose output voltage and minimum output current comply with the requirements in the "Technical data" section. Observe the operating manual of the USB power supply unit. Recommended power supply unit: See "Technical data".
▶ Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the type plate of the power supply.
▶ Only charge the battery via the USB port at ambient temperatures between 0 °C and +40 °C . Charging outside the temperature range can damage the battery or increase the risk of fire.

Note: Lithium-ion rechargeable batteries are supplied partially charged according to international transport regulations. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time.

The battery charge indicator (7) shows the state of charge of the battery during operation:

LED Capacity

Continuous green light 70–100 %

English | 21

LED Capacity

Continuous yellow light 30–70%

Continuous red light 10–30 %

Flashing red light 0–10 %

If the battery charge indicator (7) flashes red, the laser beams are switched off.

Charge the battery. To do this, connect the USB Type-C® port (6) to a USB power supply unit using a suitable USB cable (15). Connect the USB power supply unit to the mains supply. The measuring tool can continue to be operated during charging.

During the charging process, the battery charge indicator (7) shows the charging progress or errors:

LED Meaning

Flashing green light Battery is being charged

Continuous green light Battery fully charged

Flashing red light Battery temperature outside the recommended temperature range; charging voltage or charging current is unsuitable

Continuous red light Battery defective or no battery inserted

Remove the USB cable (15) after completing the charging process. Protect the USB Type-C® port (6) from dust and splashes.

Note: If required, you can also operate the measuring tool without the battery inserted, using only a connected USB power supply unit. Unplug the measuring tool from the mains after operation.

Tips for optimum use of the battery in the measuring tool

Only store the measuring tool within the permissible temperature range as specified in the "Technical data" section. As an example, do not leave the measuring tool in a vehicle during the summer.

A significantly reduced operating time after charging indicates that the battery has deteriorated and must be replaced.

Follow the instructions on correct disposal.

Operation

Starting Operation

▶ Protect the measuring tool from moisture and direct sunlight.

22 | English

▶ Do not expose the measuring tool to any extreme temperatures or variations in temperature. For example, do not leave it in a car for extended periods of time. In case of large variations in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into operation. The precision of the measuring tool may be compromised if exposed to extreme temperatures or variations in temperature.
- Avoid substantial knocks to the measuring tool and avoid dropping it. Damaging the measuring tool can cause accuracy to be compromised. If the measuring tool is subjected to a substantial knock or is dropped, check the laser line by comparing it to a known horizontal reference line.
▶ Switch the measuring tool off when transporting it. The pendulum unit is locked when the tool is switched off, as it can otherwise be damaged by big movements.

Switching On/Off

To switch on the measuring tool, slide the on/off switch (10) to the ON position. Immediately after switching on, the measuring tool sends the circumferential laser line out of the outlet aperture (8).

▶ Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself (even from a distance).

To switch off the measuring tool, slide the on/off switch (10) to the OFF position. The pendulum unit is locked when the tool is switched off.

▶ Never leave the measuring tool unattended when switched on, and ensure the measuring tool is switched off after use. Others may be blinded by the laser beam.

Automatic Levelling

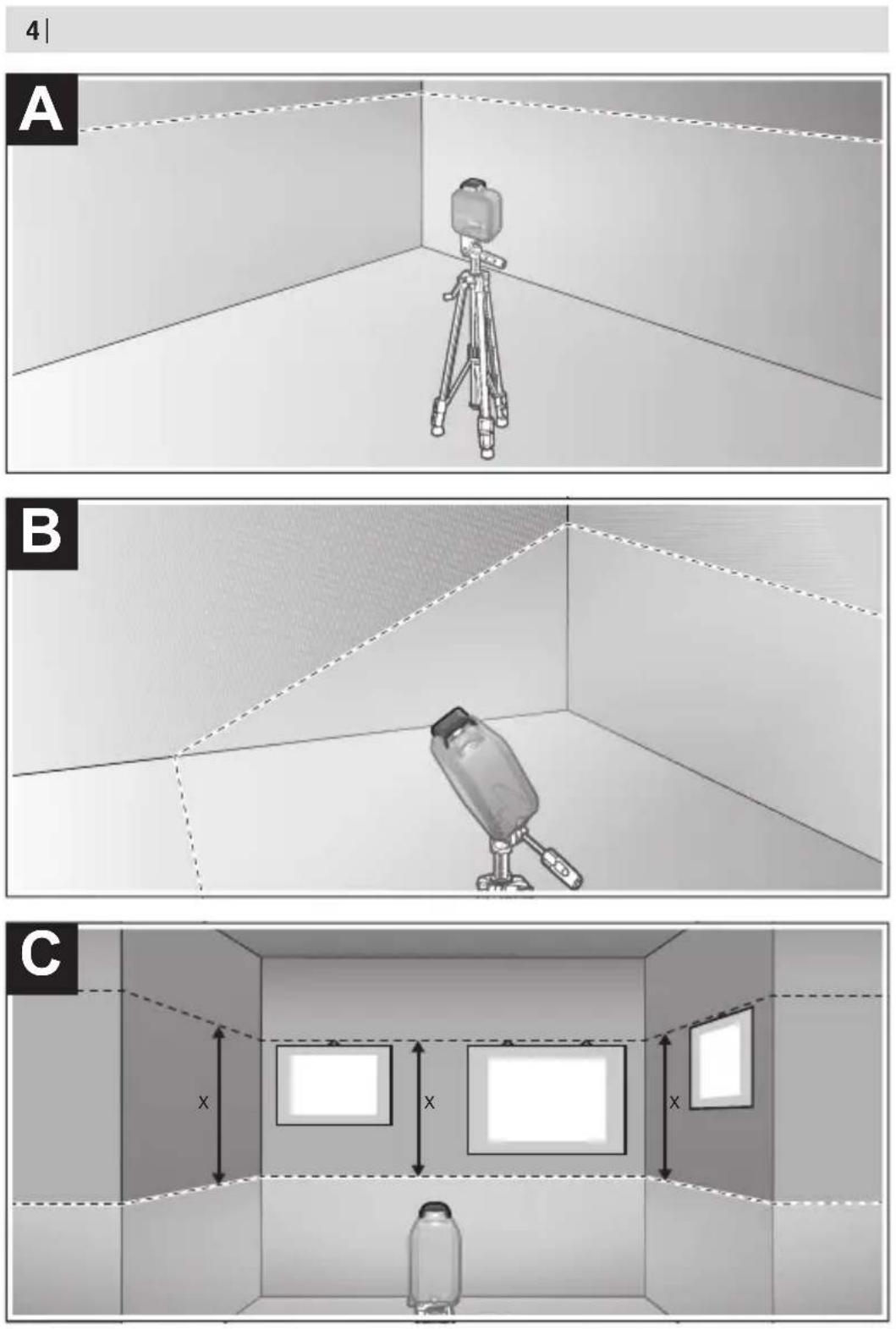

Working with Automatic Levelling (see figure A)

When working with automatic levelling, the incline function button (9) must not light up. If necessary, switch automatic levelling on again by pressing the incline function button (9) so that the button goes out.

Position the measuring tool on a level, firm support or attach it to a tripod (11).

The automatic levelling function automatically compensates irregularities within the self-levelling range of ±4^ . The levelling is finished as soon as the laser line stops moving.

If automatic levelling is not possible, e.g. because the surface on which the measuring tool stands deviates by more than 4^ from the horizontal plane, the laser line will begin to flash.

If this is the case, set up the measuring tool in a level position and wait for the self-leveling to take place. As soon as the measuring tool is within the self-leveling range of ±4^ , the laser line will light up continuously.

It is not possible to work with automatic levelling outside the self-levelling range of ±4^ , as the levelling accuracy of the laser line cannot be guaranteed.

In case of ground vibrations or position changes during operation, the measuring tool is automatically levelled again. Upon re-levelling, check the position of the laser line with regard to the reference points to avoid errors arising from a change in the measuring tool's position.

Working with the Incline Function (see figure B)

To work with the incline function, press the incline function button (9) so that it lights up. For work with the incline function, automatic levelling is switched off. You can hold the measuring tool freely in your hand or place it on a sloping surface. The laser line is no longer levelled.

Working Advice

▶ Only the centre of the laser line must be used for marking. The width of the laser line changes depending on the distance.

Working with the Tripod

A tripod offers a stable, height-adjustable support surface for measuring. Place the measuring tool with the 1/4" tripod mount (3) on the thread of the tripod (11) or a conventional camera tripod. Tighten the measuring tool using the locking screw of the tripod.

Roughly align the tripod before switching on the measuring tool.

Maintenance and Service

Maintenance and Cleaning

Keep the measuring tool clean at all times.

Never immerse the measuring tool in water or other liquids.

Wipe off any dirt using a damp, soft cloth. Do not use any detergents or solvents.

The areas around the outlet aperture of the laser in particular should be cleaned on a regular basis. Make sure to check for lint when doing this.

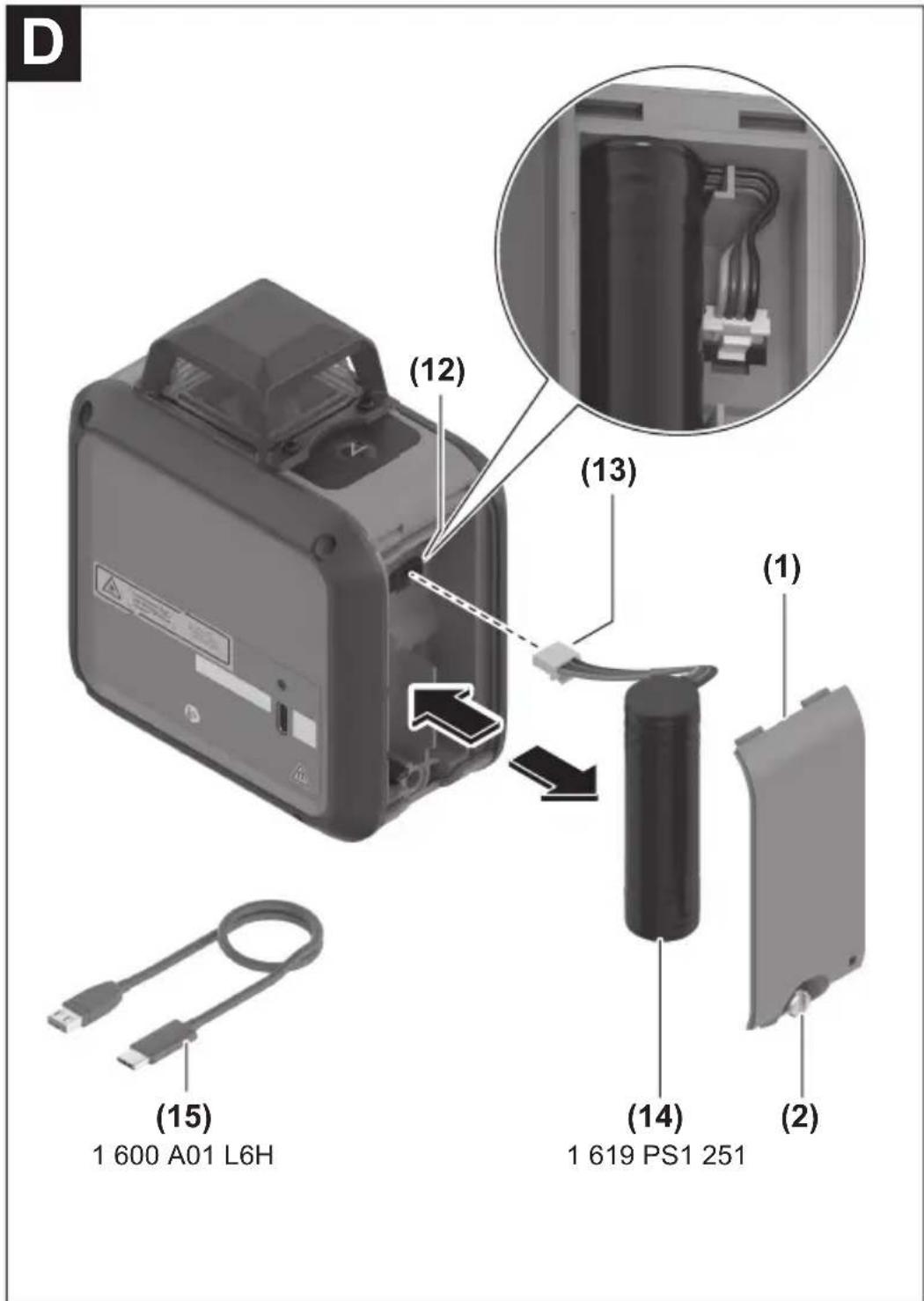

Replacing the Battery (see figure D)

When the battery has been removed in order to replace it, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another. A short circuit between the battery terminals may cause burns or a fire.

24 | English

Replace the battery if the operating time is significantly reduced after charging. Loosen the screw (2) with a suitable tool and remove the battery compartment cover (1).

Press in the tab on the battery's connector plug (13) and pull the connector plug out of the connection socket (12). Remove the battery (14) from the battery compartment.

Insert a new battery (14) into the battery compartment. Only use a Bosch lithium-ion battery (order number 1 619 PS1 251) intended for this measuring tool.

Carefully push the connector plug (13) into the connection socket (12) without applying force until the tab on the plug clicks into place.

Insert the battery compartment cover (1) and tighten the screw (2).

After-Sales Service and Application Service

Great Britain

Tel. Service: (0344) 7360109

BOSCH PLL 360-1G - Great Britain - 1

You can find our service addresses and links to the repair service and spare parts ordering at www.bosch-pt.com/serviceaddresses

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Disposal

BOSCH PLL 360-1G - Disposal - 1

Measuring tools, rechargeable/non-rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

BOSCH PLL 360-1G - Disposal - 2

Do not dispose of the measuring tools or battery packs/batteries with household waste.

Only for EU countries and United Kingdom:

Electrical and electronic equipment or used batteries that are no longer suitable for use must be collected separately and disposed of in an environmentally friendly manner. Use the designated collection systems. Incorrect disposal may cause harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Battery packs/batteries:

The integrated rechargeable battery must be disposed of separately from the measuring tool. Leave the measuring tool switched on until the battery is completely discharged. Remove the battery from the measuring tool as described in the section on replacing the

battery. Dispose of the removed battery in accordance with the applicable laws and regulations.

Français

Tlf. Service Center: 44898855

BOSCH PLL 360-1G - Français - 1

Du kan finde vores serviceadresser og links til reparationsservice og bestilling af reservedele på: www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

BOSCH PLL 360-1G - Français - 2

Apache License 2.0

CMSIS Version 5, v5.9.0

Licensed under the Apache License, Version 2.0 (the License); you may not use this file except in compliance with the License.

You may obtain a copy of the License at

www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an AS IS BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

License Text

Apache License

Version 2.0, January 2004

http://www.apache.org/licenses/

TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

1. Definitions.

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document.

"Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License.

"Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity. For the purposes of this definition, "control" means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity.

"You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License.

"Source" form shall mean the preferred form for making modifications, including but not limited to software source code, documentation source, and configuration files.

"Object" form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to other media types.

"Work" shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below).

"Derivative Works" shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original work of authorship. For the purposes of this License, Derivative Works shall not include works that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof.

"Contribution" shall mean any work of authorship, including the original version of the Work and any modifications or additions to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but excluding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as "Not a Contribution".

"Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work.

  1. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Object form.
  2. Grant of Patent License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent claims licensable by such Contributor that are necessarily infringed by their Contribution(s) alone or by combination of their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed.
  3. Redistribution. You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with or without modifications, and in Source or Object form, provided that You meet the following conditions:

(a) You must give any other recipients of the Work or Derivative Works a copy of this License; and
(b) You must cause any modified files to carry prominent notices stating that You changed the files; and
(c) You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and
(d) If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or, within a display generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NOTICE file are for informational purposes only and do not modify the License.

You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License. You may add Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provided Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License.

  1. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions.
  2. Trademarks. This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file.
  3. Disclaimer of Warranty. Unless required by applicable law or agreed to in writing, Licensor provides the Work (and each Contributor provides its Contributions) on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions under this License.
  4. Limitation of Liability. In no event and under no legal theory, whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages.
  5. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability.

END OF TERMS AND CONDITIONS

BSD-3-Clause

GD32E23x Firmware Library, V2.3.0

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

  1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
  2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
  3. Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. GD32E23x Firmware Library / CMSIS Cortex-M23 Device Peripheral Access Layer Source File for GD32E23x Device Series

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

  • Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
    – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
  • Neither the name of ARM nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL COPYRIGHT HOLDERS AND CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Warranty Disclaimer

This product contains Open Source Software components which underly Open Source Software Licenses. Please note that Open Source Licenses contain disclaimer clauses. The text of the Open Source Licenses that apply are included in this manual under "Legal Information and Licenses".

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : BOSCH

Model : PLL 360-1G

Category : Measuring equipment
