OP-AA04 - Pump MSW - Free user manual and instructions

USER MANUAL OP-AA04 MSW

Technical line drawing of a mechanical clamp or connector assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with internal components (no text or symbols)

Notfallteig

Technical line drawing of a mechanical device with a battery and lever assembly (no text or symbols)

Technical line drawing of a mechanical device with attached electrical outlet and wiring (no text or symbols)

Technical line drawing of a mechanical device with a probe, cable, and lever (no text or symbols)

Diagram showing two mechanical or fluidic device configurations with no visible text or symbols

Abstract dotted line drawing with a curved arrow, no text or symbols present

Diagram of a medical or laboratory setup with tubing and a device, no visible text or symbols

Technical illustration of a mechanical clamp or connector assembly with threaded parts and a digital display (no text or symbols)

Düse in den Auslass

DE

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical device with numbered components, likely an electrical or mechanical assembly.

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical Data

Parameter description Parameter value	Parameter value
Product name Fuel pump
Model	MSW-OP-AA03	MSW-OP-AA04
Power [V/V, W] 3/12, 9
Battery 4 x AA, 1.5V DC or 12V DC
Fuel delivery [LPM] Max. 12
Dimensions [width * length * height; mm] 655*1500*75 660*1500*70
Weight [kg] 0.42

Operating Instructions

How to Open the Battery Cover

Technical line drawing of a mechanical clamp or clamp device (no text or symbols)

Open battery cover

How to Place the Batteries

• Insert 4 AA batteries according to the + and - signs as indicated in the picture below.
• Replace all 4 batteries at the same time.
• Use the same brand/type of batteries.

Technical line drawing of a mechanical device with no visible text or symbols

Replace battery

EN

Emergency Case when All (4) Batteries are not Available

It is recommended to use all 4 AA batteries when you are able, but it is possible to operate with 2 AA batteries during emergencies. - Can pump out approximately 50 x 6-gallon fuel cans using 4 batteries and with 2 batteries can pump out approximately 25 x 3-gallon fuel cans.

Technical line drawing of a mechanical device with internal components (no text or symbols)

Emergency batter

When to Replace the Batteries

• Motor does not operate, even after pressing ON switch or transfer rate becomes slower than normal operation.
• Batteries can begin to discharge if they are stored for a long period of time. Check the expiration dates of batteries.

How to Use the 12V Battery Power Supply

1. Insert one end of the terminal of the DC power cable into the female terminal of the product as shown in the image below.
2. Clamp the battery in red and battery + pole connection black and battery - pole connection (Note: +/- pole shall not be connected inversely, otherwise the product cannot work).

Technical line drawing of a mechanical device with a battery, lever, and probe (no text or symbols)

12V power supply

CAUTION: Before liquid is completely gone, unplug the product. DO NOT RUN PRODUCT DRY!

How to Use AC 12V Power Supply

1. Insert one end of the terminal of the AC to DC adapter power cord into the female terminal of the product as shown below.
2. Insert the adapter plug into the power plug as shown below.

EN

Technical line drawing of a mechanical device with attached electrical outlet and power plug (no text or symbols)

12V AC power supply

How to Use Car Cigarette Lighter Power Supply

1. Insert one end of the terminal of the Car Cigarette lighter adapter power cord into the female terminal of the product as shown below.
2. Insert the Car Cigarette lighter adapter plug into the Car Cigarette lighter Output terminal as shown below.

Technical line drawing of a mechanical device with attached probe and cable (no text or symbols)

Car cigarette lighter

WARNING!

• Do not use any non-standard DC power cord or AC to DC adapter that is not provided by the company.
• Do not connect the terminal plug without permission, otherwise it will damage the product and cause danger

Operation

1. Insert the Suction Tube first into the liquid to be transferred.
2. Place the delivery hose into a container (not included) to pump the liquid. Do not place the receiving container higher than the Battery Housing.
3. Turn the ON/OFF Switch to ON. Make sure the battery compartment remains sealed during operation.

NOTICE!

- Do not run the product dry. Make sure the Suction Tube is fully submerged in liquid before turning it on. When the transfer is complete, turn the Switch OFF. After use, do not turn the product upside down.

EN

- Clean the product with a piece of cotton cloth and wipe it dry. Remove batteries and store them in a clean, dry location out of reach of children.

Note

1. When the LED lights are on, it indicates that the product is working properly.
2. If the LED is not on, check if the battery has enough power or if the power supply is correct.

How To Use

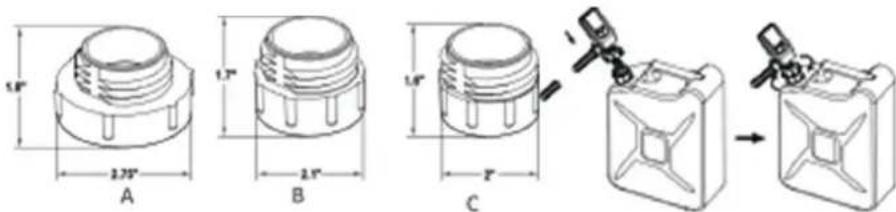

1. Find the adaptor that is the best fit and make sure it is fastened tightly to your supply tank.

A B C

1. Insert the intake hose through the adapter and fasten the product's joint nut tightly.

- Do not lift up or push down the product while it is attached to the fuel tank.

Diagram showing two mechanical or hydraulic device configurations with directional arrows indicating movement or force direction.

No lift or push

1. Attach the discharge hose to your receiving tank using the clip. Make sure the discharge nozzle is in a vertical position.

- For tanks that do not fit with the clip, make sure the discharge nozzle is in a vertical position.

1. Start the flow of fuel by pressing the ON button.

○ Automatically stop when the fuel reaches the stop line.

Simple line drawing of a mechanical component or tool (no text or symbols)

Start by pressing on

1. After automatically stopping, bring the discharge hose up above the tank to drain the excess fuel or liquid back into the supply tank.

EN

Diagram of a medical or laboratory procedure showing a tubing being inserted into a device (no text or labels visible)

Drain excess fuel

1. Put the discharge nozzle in the discharge compartment and lock it into place with the clip.

Place the discharge nozzle into the discharge nozzle compartment properly after fueling. In the event the fuel tank falls over, and the discharge hose is not in its storage hole, the liquid can leak out.

Technical illustration of a mechanical clamp or connector assembly with threaded parts and a digital display (no text or symbols)

Nozzle into discharge

Technical line drawing of a mechanical device with no visible text or symbols

Nozzle into discharge 2

EN

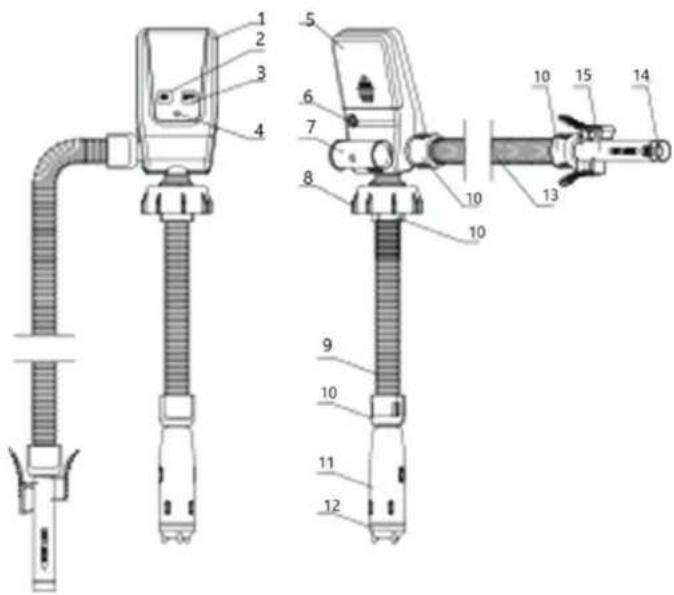

Parts List

Technical diagram of a mechanical device with numbered components, likely a valve or connector assembly.

1. Control Box
2. ON Button
3. OFF Button

4. LED Light

5. Battery Case Cover

6. Female Terminal

7. Discharge Nozzle Compartment

8. Joint Nut

9. Intake Hose

10. Nut

11. Liquid Intake

12. Motor Inside
13. Discharge Hose
14. Sensor Inlet
15. Clip

How to Store

- When the product is not being used for long periods of time, take the product out of the tank, make sure no remaining fuel is in the hose, and wipe it down with a cloth before storing it. Make sure to take the batteries out before storing the product.

- Do not store the product in an enclosed airtight container.

Maintenance

Troubleshooting

Faults Possible causes	Solutions
The product does not operate even after pressing ON	A: Batteries may be incorrectly placed	A: Ensure the batteries are placed in the product correctly
	B: Batteries are depleted B: Replace the batteries
	C: The power supply is insufficient	C: Check whether the power supply is correct
	D: The battery clamp is not connected properly	D: Cables are correctly connected
	E: The AC power supply fails	E: Check whether the AC power supply works properly
The product's performance is low	A: Batteries are depleted A: Replace the batteries
	B: The elevation of the receiving tank is higher than the supplying tank	B: Make sure that the receiving tank is not elevated above the supplying tank
	C: 12V power supply is insufficient	C: Replace the battery and connect the 12V power supply again
The product starts after pressing the ON button but then stops unexpectedly	A: The filter of the receiving tank may be blocked with foreign material	A: Clean foreign material from the filter
The product immediately stops after pressing the ON button	A: Batteries are depleted A: Replace the batteries
The motor stops before the receptacle tank is full	A: Batteries are depleted A: Replace the batteries
	B: The sensor is too low	B: Adjust the discharge nozzle up so that the sensor is closer to the top of the supply tank

PL

Technical line drawing of a mechanical clamp or connector assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Wymienić baterię

PL

Technical line drawing of a mechanical device with internal components (no text or symbols)

Pałkarz awaryjny

Technical line drawing of a mechanical device with a battery and lever assembly (no text or symbols)

Zasilanie 12V

Technical line drawing of a mechanical device with attached electrical outlet and wiring (no text or symbols)

Technical line drawing of a mechanical device with a probe and cable (no text or symbols)

Diagram showing two mechanical or hydraulic device configurations with directional arrows indicating movement or force direction.

Brak windy i pchania

Abstract dotted line drawing with curved arrow, no text or symbols present

Diagram of a mechanical device with a hose and lever, no visible text or symbols

Technical illustration of a mechanical clamp or connector assembly with threaded parts and a digital display (no text or symbols)

Dysza do wylotu

PL

Technical line drawing of a mechanical device with no visible text or symbols

Dysza do wylotu 2

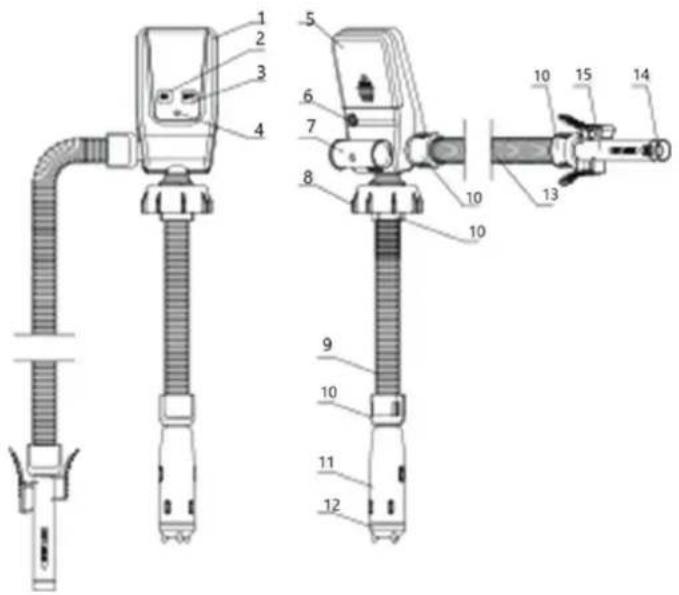

Lista części
