USER MANUAL EDGE-L1AG MSW

PORTABLE EDGE BANDING MACHINE

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.

Industrial machine with orange and teal components, no visible text or symbols

Tätigkeit

Person operating a blue foam block on a machine, with an orange cylindrical component nearby (no visible text or symbols)

Labeled diagram of a mechanical device with numbered components for identification

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference.

Technical data

Parameter description	Parameter value
Product name	Portable edge banding machine
Model	MSW-EDGE-L1AG
Input voltage [V] / Frequency [Hz]	230~ / 50
Power [W]	1000
Dimensions [width x length x height; cm]	40 x 35.5 x 45
Weight [kg]	13.7

Purpose

The portable edge banding machine is used to apply hot melt glue evenly on the banding tape, and this product is easy to operate on both straight and curved edges of wooden furniture boards. It works effectively with a variety of bendable tapes, including ABS, melamine, veneer, and PVC.

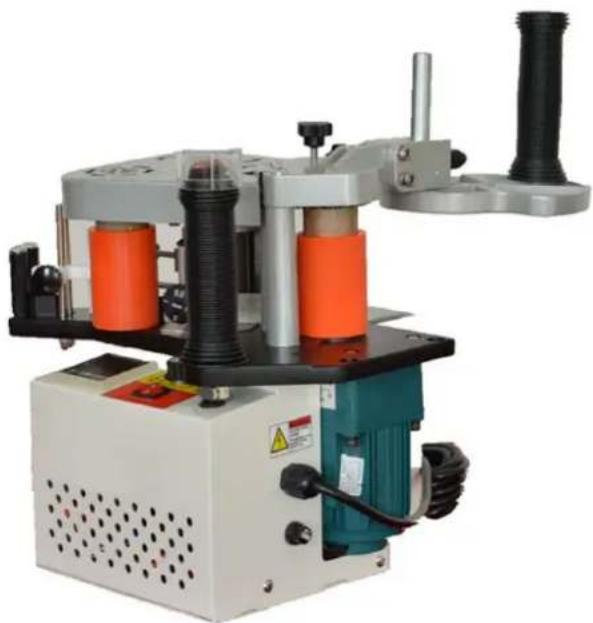

Product Overview

Industrial machine with orange and teal components, no visible text or symbols

Operation

1. When the machine is powered on, the red light turns on, and the Glue-melting Tank begins heating the hot melt glue inside.

2. Set the heating temperature between 120-150°C based on the melting point of the hot melt glue. Once the glue reaches its melting point, the Glue-melting Tank automatically switches to heat-preservation mode, and the moving engine starts running, indicating the machine is ready to apply the tape. The heating element is controlled by a thermostat. Even when the moving engine stops, the Glue-melting Tank continues heating or maintaining the set temperature.

3. If you need to stop the machine, press the EMERGENCY STOP button on top of the handle to stop the moving engine, while the heating element remains on. Alternatively, press the main switch to turn off the entire machine.

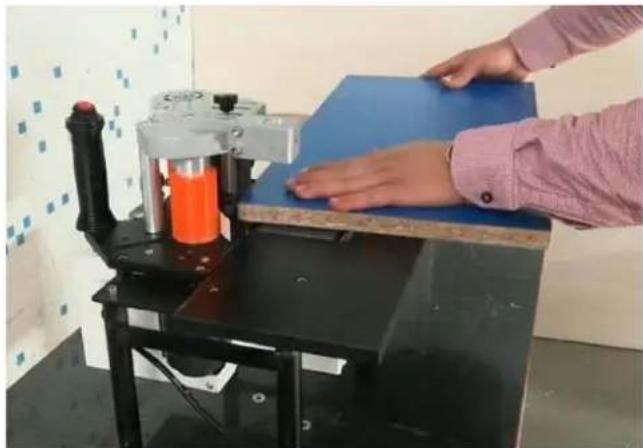

4. When banding small wood pieces, secure the machine to the working table using the provided fixing blanket. Push the wood piece at the machine's running speed. (As shown in the picture.)

Person operating a blue workbench with orange spray bottle and mechanical device (no visible text or symbols)

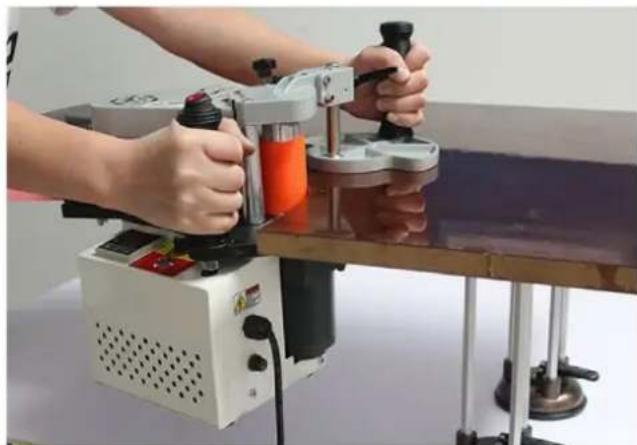

1. When banding large wood pieces, secure the wood piece on the working table using the provided absorber. Hold the machine by hand to apply the banding. (As shown in the picture.)

Person using a power tool on a wooden cutting board (no visible text or symbols)

NOTICE

- Before operation, ensure the wood piece's edge is even, clean, and free of dirt or dust. Check that the tape is smooth and flexible.

- Before using the machine to band with a new tape, adjust the glue thickness by turning the knob according to the tape's thickness after the moving engine starts.

- Adjust the High Limiter to match the tape width, ensuring smooth application without

the tape shifting up or down.

Maintenance

• Keep the machine body clean. Use gasoline or a specialized cleaner for hot melt glue to clean the blanket, press tape wheel, tape-sending wheel, and High Limiter.
• Clean out residual hot melt glue from the Glue-melting Tank every 50 working hours before adding new glue. To clean: power on the machine, heat the Glue-melting Tank, and turn off the engine. Once the glue has softened, use a wooden spoon to remove the remaining glue from the tank. (Ensure you wear heat-resistant gloves to avoid burns.)

Troubleshooting

If any issues arise with the machine, they should be addressed as follows:

1. If the indicating light is not on after switching on the machine:

2. Check the power supply and ensure the power cable is firmly connected.

3. Check if the fuse needs to be replaced.

4. If glue on the tape is too thin, insufficient, or uneven:

• If the banding tape is too hard or unbendable, it may not press closely to the gluing wheel.
- Adjust the pressure on the tape using the Press Tape Wheel.
- Ensure the glue in the Glue-melting Tank is fully melted and at least 1/3 full.
- Check for glue buildup between the Glue-melting Tank and the gluing wheel surface.
- Verify that the hot melt glue and banding tape meet the specifications and replace them if necessary.

1. If the machine cannot heat up or the temperature displays incorrectly:

• Power off the machine and open it.
- Inspect whether the heating pipe, temperature control meters, or probe need replacement.

1. If the engine does not run:

2. Check if the hot melt glue temperature has reached the preset level.

3. Ensure the temperature display is functioning properly.
4. Verify if the Engine Starting Button is working properly or if it is loose.
5. Have a Licensed Engineer inspect whether the engine or other electrical parts need repair or replacement.

Disposing of Used Devices

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

Parts

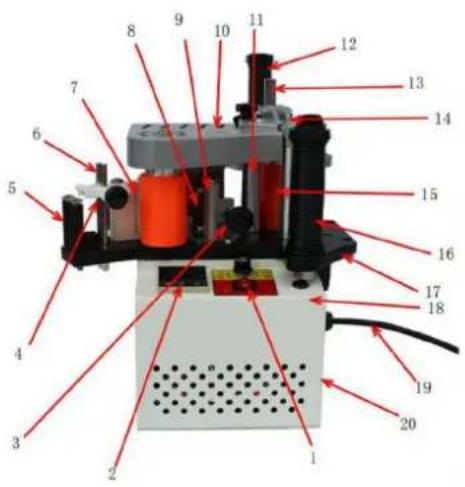

Labeled diagram of a mechanical device with numbered components and red annotations indicating parts of each part.

1- Main Switch
3- Glue Adjustment
4- High Limiter Knob
5- Tape Receiving Guide
6- High Limiter Guide
7- Press Tape Wheel
8- Press Tape Bar
9- Press Tape Wheel Base
10- Head Cover
11- Standing Bar
12- Bracing Handle
13- Bracing Bar
14- Bracing Board
15- Motor Wheel
16- Handle (with Switch)
17- Basic Board
18- Moving Engine
19- Power Line
20- Fuse

2- Temperature Controller & Displayer

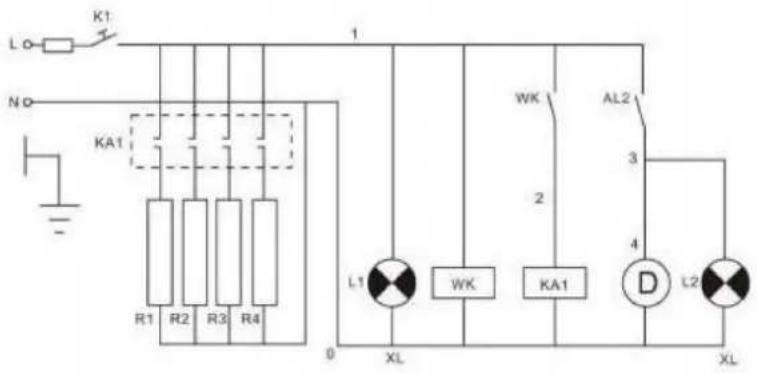

K1 L0 NO KA1 R1 R2 R3 R4 1 WK AL2 2 3 4 L1 WL WK KA1 D L2 XL 0 XL

S.N.	Code	Name	Specification	Qty
1	K1	On/Off	AC220V/110V 10A	1
2	R1	Heating Tube	AC220V/110V 150W	1
	R2	Heating Tube	AC220V/110V 150W	2
	R3	Heating Tube	AC220V/110V 150W	1
3	WK	Temperature Control Meter	AC220V/110V	1
4	Ka1	Relay	AC220V/110V	1
5	A12	Motor Switch	AC220V/110V 10A	1
6	D	Motor	AC220V/110V 50/60Hz	1
7	L1	Power Indicator Light	AC220V/110V, Red	1
8	L2	Motor Working Indicator Light	AC220V/110V, Green	1

Industrial machine with orange and teal components, no visible text or symbols
