USER MANUAL LaserCube Green Laserliner

Laserliner LaserCube Green Anti-Green LASER ?

1000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

12345688888888888888888888888888888888888888888888888888888888888888888

Laser

515 nm

Laserliner

DE	02
EN	07
NL	12
DA	17
FR	22
ES	27
IT	32
PL	37
FI	42
PT	47
SV	52
NO	57
TR	62
RU	67
UK	72
CS	77
ET	82
RO	87
BG	92
EL	97
SL	102
HU	107
SK	112
HR	117

Laserliner

!

Close-up of a mechanical component with a pointed tip inserted into a rectangular block (no visible text or symbols)

Ausbau des Akkus

Diagram of a mechanical component with two rotating arms and labeled point 1 (no text or symbols beyond labels)

2

Close-up of a circuit board with a cable and connector, no visible text or symbols

Battery with a cable, recycling symbol, and battery icon (no text or labels)

https://packd.li/ll/aot/in

!

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. These documents must be kept in a safe place and passed on together with the product.

Intended use

This line laser is suitable for alignment work on the floor and on the wall. The device can be aligned using vertical and horizontal vials and can also be used as a laser spirit level. The special pins allow fastening to fine plaster, wallpaper, wood and veneered surfaces.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys.
  Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.

Safety instructions

Using class 2 lasers

$$ \lambda = 5 1 5 \mathrm{nm} \quad P _ {\max} = < 1 \mathrm{mW} $$

EN 60825-1:2014/A11:2021

CONSUMER LASER PRODUCT

EN 50689:2021

Consumer laser product, Class 2

- Complies with EN 60825-1:2014/A11:2021 and EN 50689:2021; For projecting horizontal/vertical alignment lines by adult users.

Laserliner

= Warning: Caution – Laser radiation!

LASER

= Class 2 Laser radiation as per

2

EN 60825-1:2014/A11:2021

= Warning: Do not look into the beam!

λ

= Laser wavelength

Pmax

= Laser max. output power

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.
• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
• Under no circumstances should optical instruments (magnifying glass, microscope, binoculars) be used to look at the laser beam or reflections.
• Do not use the laser at eye level (1.40 ... 1.90 m)
• Reflective, specular or shiny surfaces must be covered whilst laser devices are in operation.
• In public areas shield off the laser beam with barriers and partitions wherever possible and identify the laser area with warning signs.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

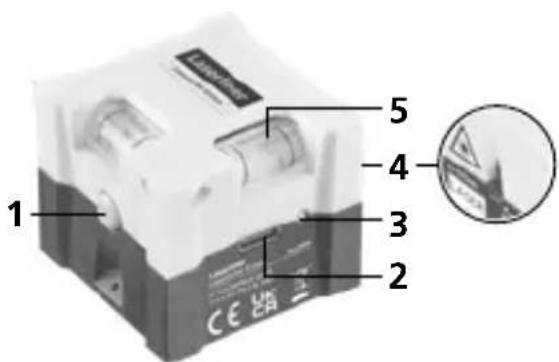

1 2 3 4 5

1 ON / OFF switch
2 Charging port USB-C
3 Charge status indicator
4 Laser output windows
5 Vials

1 Use of lithium-ion rechargeable battery

• The battery may be charged only with the enclosed USB charging cable on a standard commercial USB power supply unit (5V/>= 1000mA). Using any other power pack/charger will invalidate the warranty.
• Use the power supply/charger unit only in closed rooms; do not expose to moisture or rain otherwise risk of electric shock.
• Charge the device's battery completely prior to use.
• Connect the power pack/charger to the mains power supply and the socket on the device's battery pack.
• The LED lights up red while the device is charging. The LED changes to green when charging is complete.
• When the battery charge level is very low, the laser line will flash for 30 seconds before the device switches itself off.

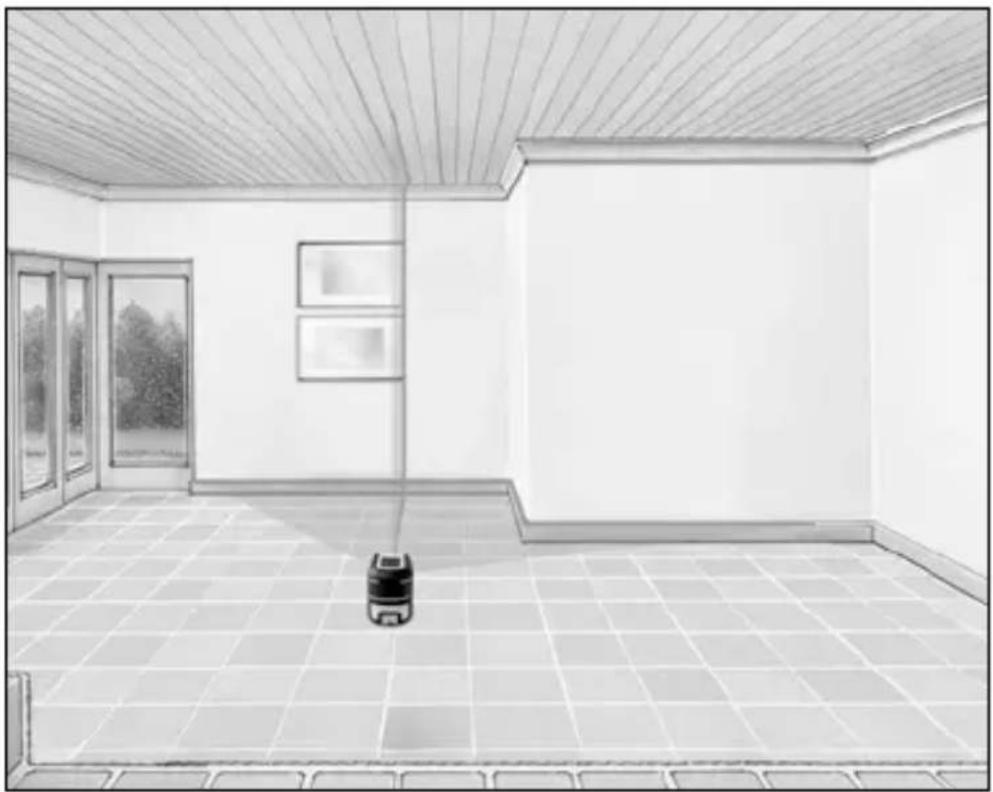

2 Place the device on the floor and switch on.

Place the device on the floor and switch on.

White and black plastic electronic device with a circular button (no visible text or symbols)

!

The vials are only adjusted for the four A bearing surfaces (see image). When placed on the B surfaces, the device cannot be used as a spirit level.

Laserliner

3 Wall applications

Mount the device on the wall for horizontal and vertical levelling. Then align the device with the vials.

4 Mounting on the wall

1. Place device on the wall.
2. Push the special pins through the appropriate holes.

Close-up of a mechanical component with a pointed tip and textured surface (no visible text or symbols)

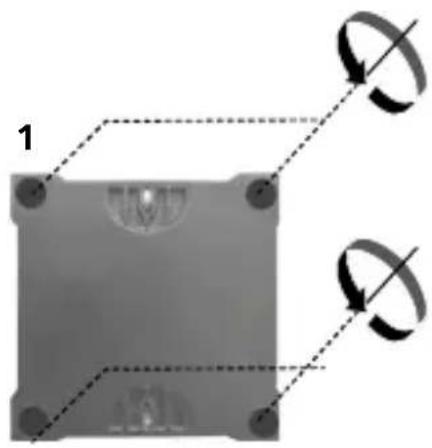

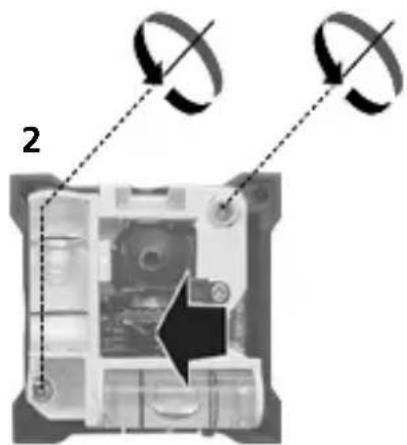

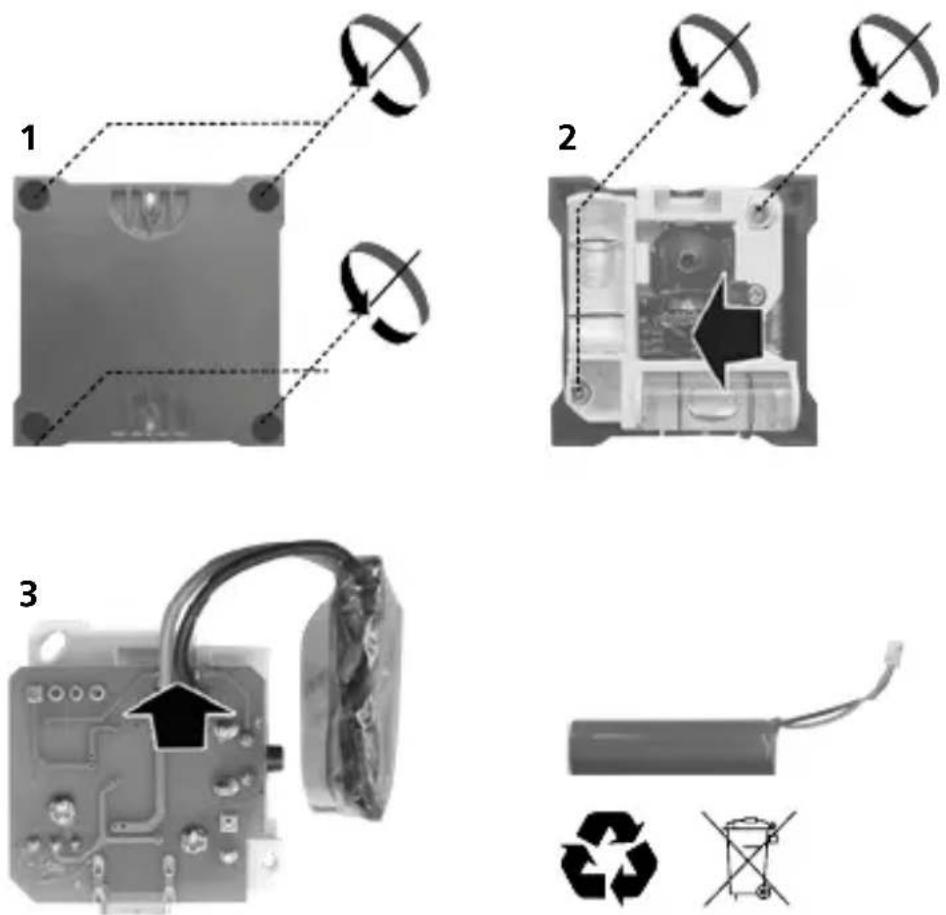

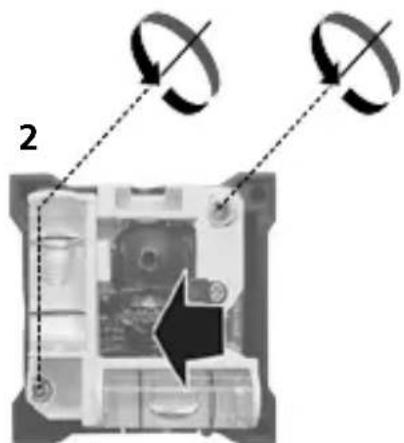

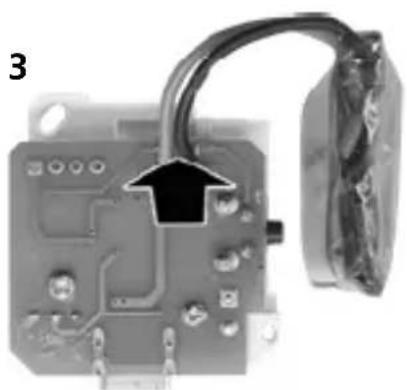

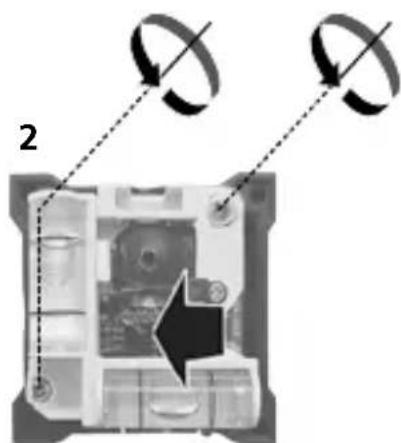

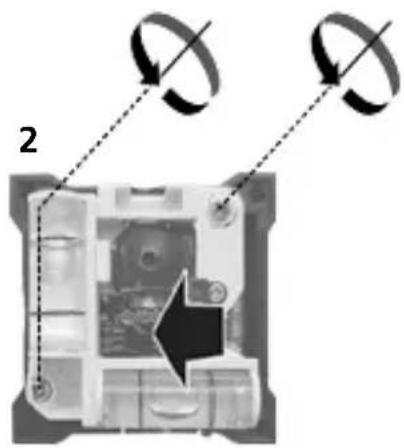

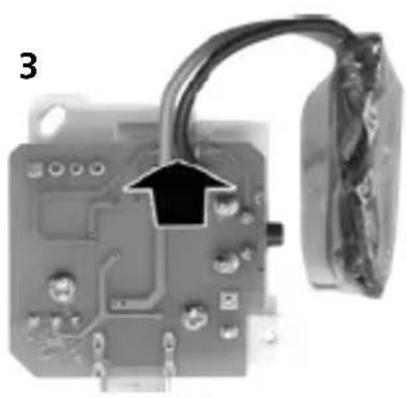

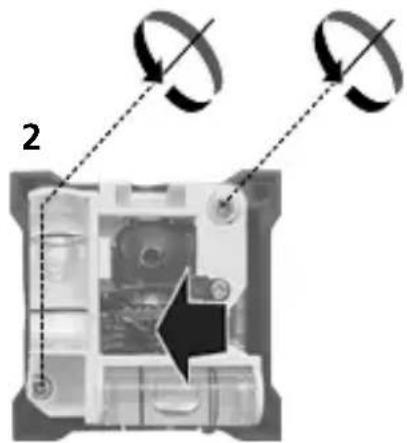

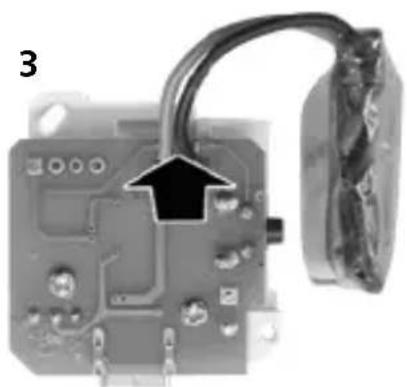

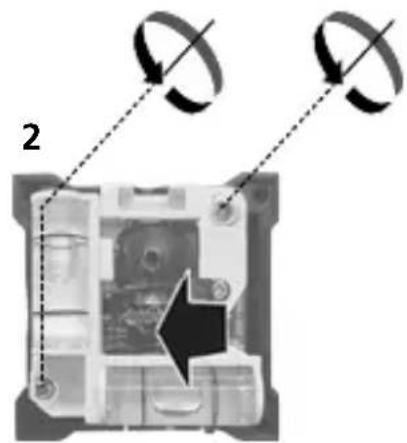

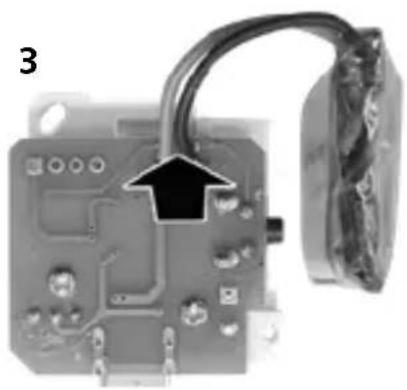

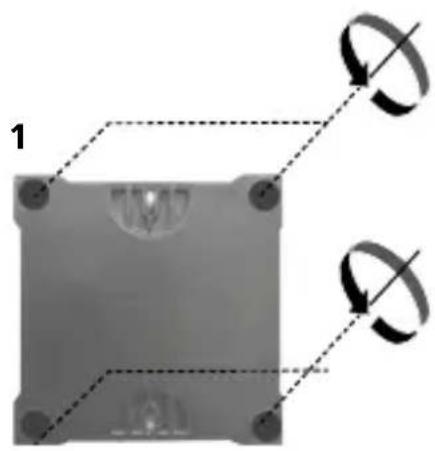

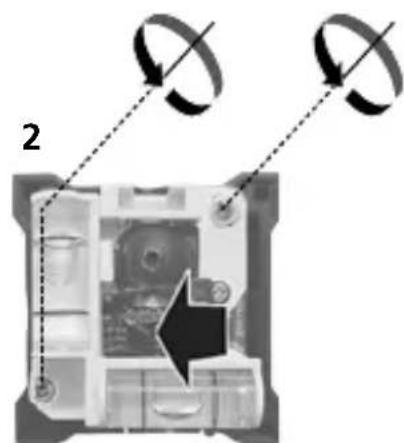

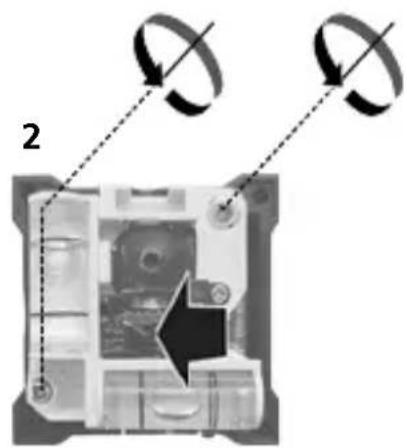

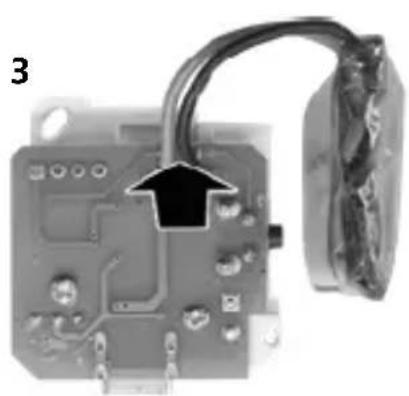

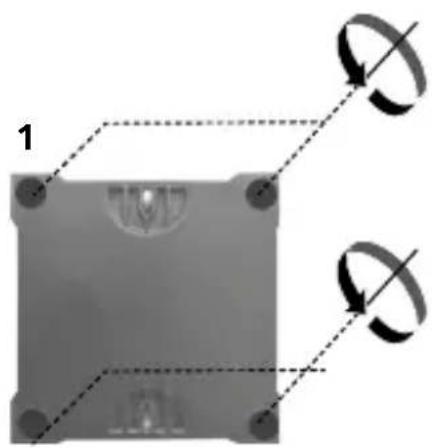

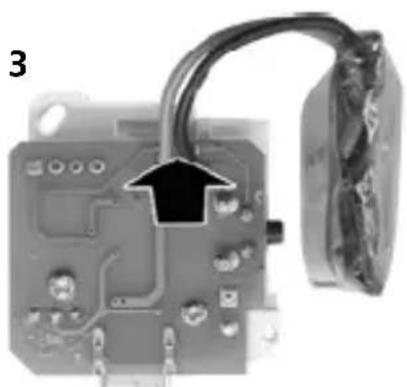

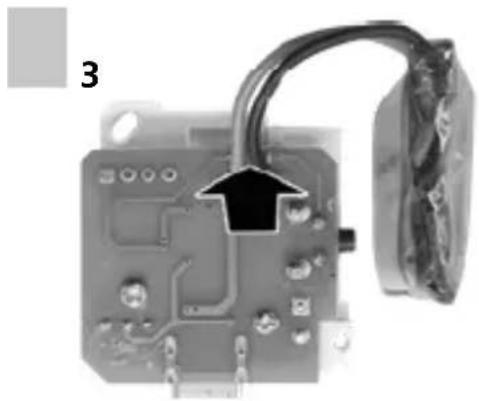

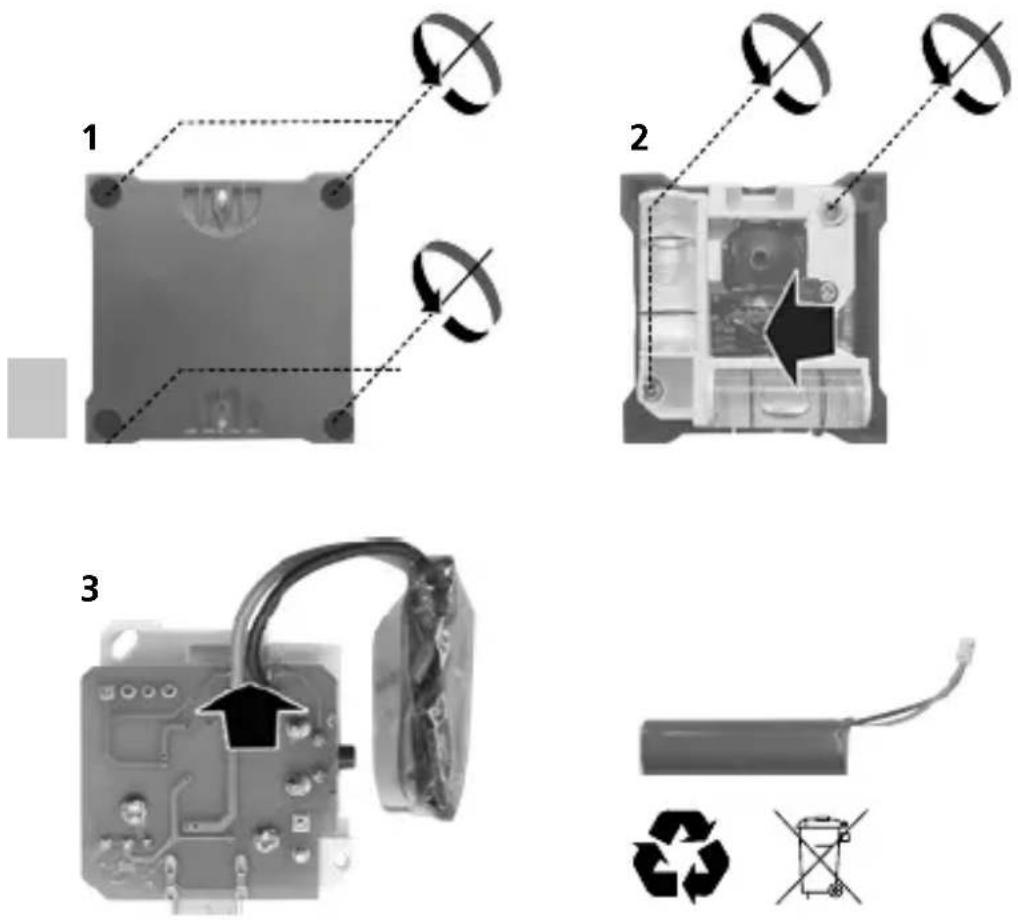

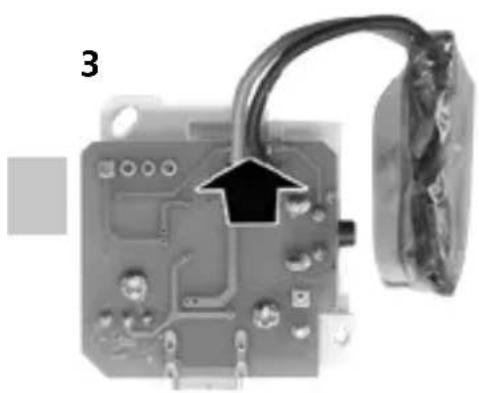

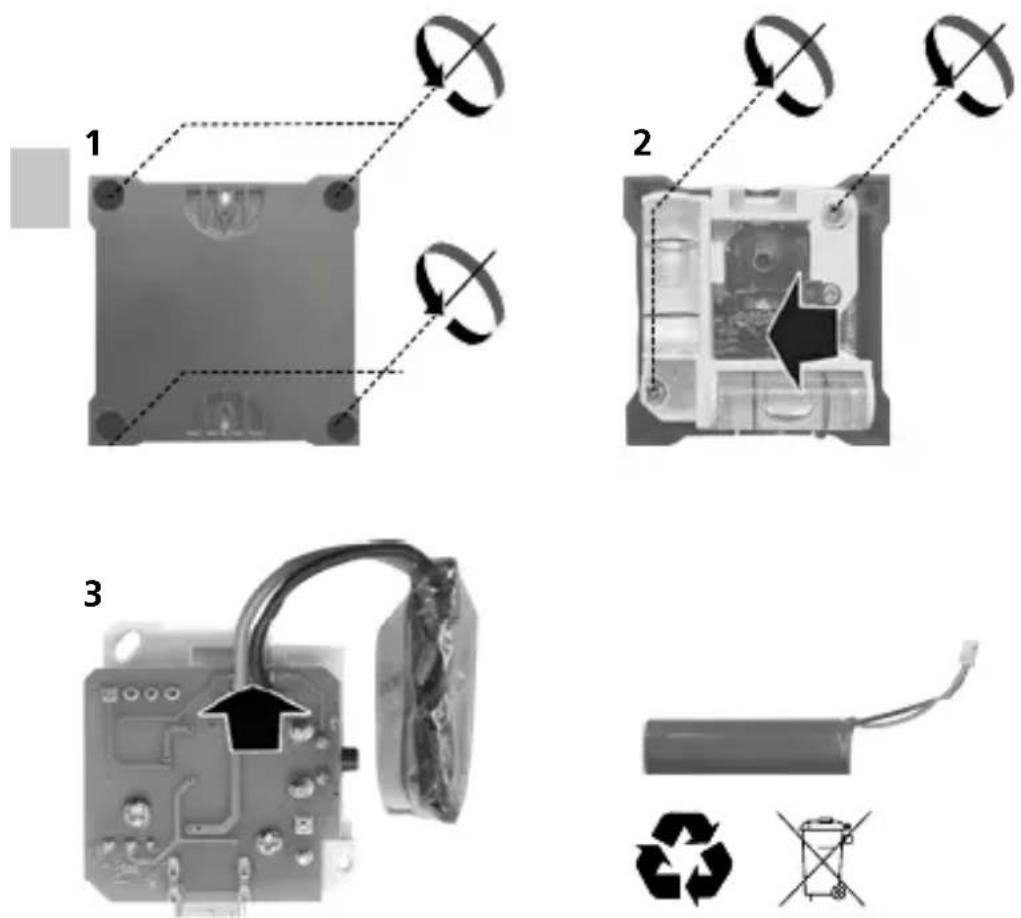

Removal of the battery

Diagram of a mechanical component with two rotating arms and labeled point 1 (no text or symbols beyond labels)

2

Close-up of a circuit board with a black arrow pointing to a cable or connector (no text or symbols visible)

Battery with recycling symbol and no-drawn waste symbol (no text or labels)

Technical data Subject to technical alterations. 25W39

Accuracy ± 1 mm / m
Visibility (typical)* 10 m
Laser wavelength 515 nm
Laser class	2 / < 1 mW (EN 60825-1:2014/A11:2021, EN 50689:2021)
Connections USB type C
Power supply Li-Ion battery pack 3.7V / 0.7Ah
Operating time approx. 7 hours
Operating conditions	0°C ... 40°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage conditions -10°C ..	70°C, max. humidity 85% rH
Dimensions (W x H x D) 44 x 37.5 x 44 mm
Weight 54 g (incl. batteries)

* at max. 300 lux

EU and UK directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU and the UK.

This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials.

Electrical devices, batteries and packaging do not belong in household waste. Users are obliged by law to surrender used batteries or battery packs to a public collection point, to sales outlets, or to technical customer services, free of charge.

Remove the battery pack from the device without damaging it using standard tools and a separate collection arranged before returning the device for disposal. Please do not hesitate to contact the UMAREX-LASERLINER service department if you have any queries regarding removing the battery. Look for information on local disposal facilities and note the relevant disposal and safety information at the collection points.

Further safety and supplementary notices at:

https://packd.li/ll/aot/in
