Product type	Digital laser level with electronic bubble
Brand	Laserliner
Model	MasterLevel Compact Plus
Dimensions (L x H x D)	152 x 60 x 33 mm
Weight (incl. battery)	290 g
Power supply	2 AAA/LR03 batteries (1.5 V each)
Electronic measuring accuracy	±0.05° at 0° and 90° ; ±0.1° from 1° to 89°
Display	LCD digital with tilt angle, measurement units, Hold function, and reference
Measurement units	Degrees, percentage, mm/m (adjustable)
Reference function	Angle transfer with value memory
HOLD function	Retains displayed value
Calibration	Self-calibration by rotating 180° on a flat surface
Wireless interface	Bluetooth LE 4.x (ISM 2.4 GHz band, max range 10 m)
Mobile app	Compatible with Laserliner app (available on stores)
Auto power off	After 5 minutes of inactivity
Operating conditions	0 to 50°C, 85% RH max, max altitude 2000 m
Storage conditions	-20 to 70°C, 85% RH max
Magnetic surface	Yes, for attachment to metal surfaces
Maintenance and cleaning	Clean with a slightly damp cloth, no solvents ; remove batteries for prolonged storage
Safety	Complies with EMC and RED standards ; strong magnetic field: keep 20 cm away from implants
EU regulations	WEEE directive ; electrical device must be collected separately
Help site	http://laserliner.com/info?an=malecopl

Frequently Asked Questions - MasterLevel Compact Plus Laserliner

How to turn on the MasterLevel Compact Plus?

Press the on/off button (3) to turn on the device. The tilt angle will then be displayed on the screen.

What to do if the screen displays '----'?

This error code means that the vertical axis alignment is out of tolerance range. Check that the device is placed on a stable surface and recalibrate if necessary.

How to use the HOLD function?

Press the HOLD button (1) to freeze the current angle value on the screen. This allows you to transfer an angle without the value changing.

How to perform calibration?

Place the device on a flat surface and mark its position. Press buttons 1 and 3 simultaneously to enter calibration mode. Follow the on-screen instructions: rotate the device 180° and place it on the same mark, then press the on/off button (3).

Does the device turn off automatically?

Yes, the instrument automatically turns off after 5 minutes of inactivity to save the battery.

How to transmit measurements via Bluetooth?

Make sure Bluetooth on your mobile device is enabled. Download the Laserliner app from the store. Open the app, it will detect the device. Connect and measurements will be transmitted.

What batteries to use and how to replace them?

Use two AAA/LR03 batteries (1.5 V). Open the battery compartment on the back of the device, insert the batteries respecting the polarity indicated.

Can the device be attached to a metal surface?

Yes, the device is equipped with a magnetic measuring surface (4) that allows attachment to metal surfaces.

How to clean the MasterLevel Compact Plus?

Clean all components with a slightly damp cloth. Do not use cleaning products, scouring agents, or solvents.

What to do in case of prolonged storage?

Remove batteries before prolonged storage. Store the device in a dry, clean place at a temperature between -20°C and 70°C.

USER MANUAL MasterLevel Compact Plus Laserliner

Bluetooth

magnetic

Laserliner

!

Interior view of a modern TV or audio workstation with no visible text or symbols on the screen or surroundings.

2. REF aus

3. REF an

Download on the App Store

ANDROID APP ON Google play

!

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / application

This digital electronic spirit level features a 360° angle display and a reference function to transfer angles. Measured data transfer via Bluetooth® interface.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU which is covered by the Radio Equipment Directive 2014/53/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
• The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.

Safety instructions

Dealing with RF radiation

• The measuring device is equipped with a wireless interface.
• The measuring device complies with electromagnetic compatibility and wireless radiation regulations and limits in accordance with the RED 2014/53/EU.
• Umarex GmbH & Co. KG hereby declares that the MasterLevel Compact Plus radio equipment complies with the essential requirements and other provisions of the European Radio Equipment Directive 2014/53/EU (RED). The EU Declaration of Conformity can be found in its entirety at the following address: http://laserliner.com/info?an=malecopl

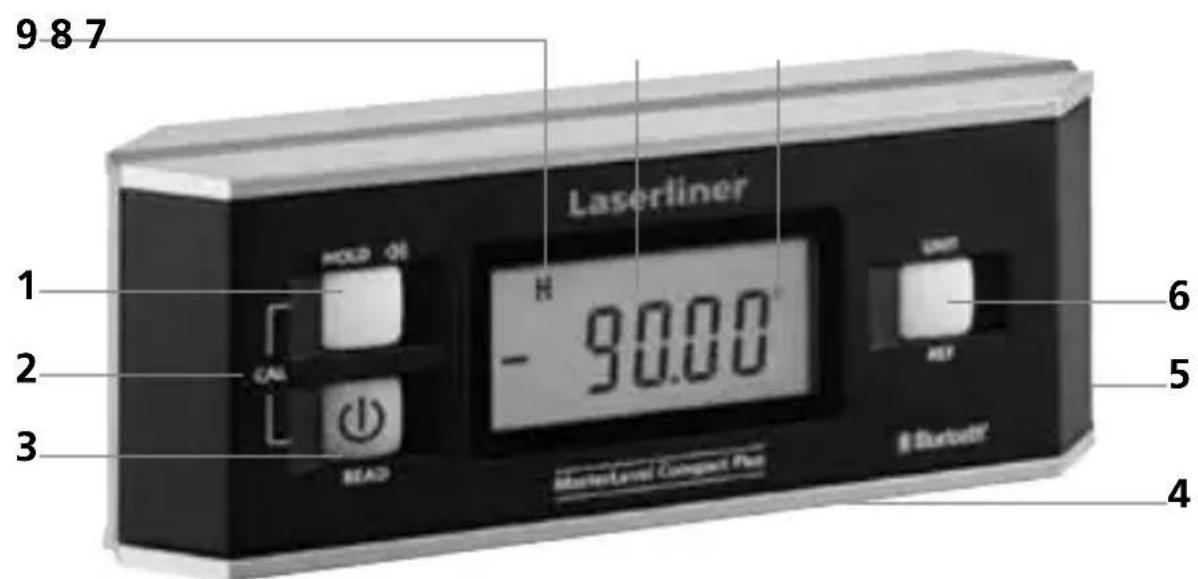

1 Hold function on/off acoustic signal generator on / off
2 Calibration
3 On/off button / READ: Transfer measured data via Bluetooth® interface
4 Magnetic measuring edge

5 Battery compartment (Rear)
6 Change units of measure / angle reference value setting
7 Units of measure
8 Slope angle
9 Hold function active

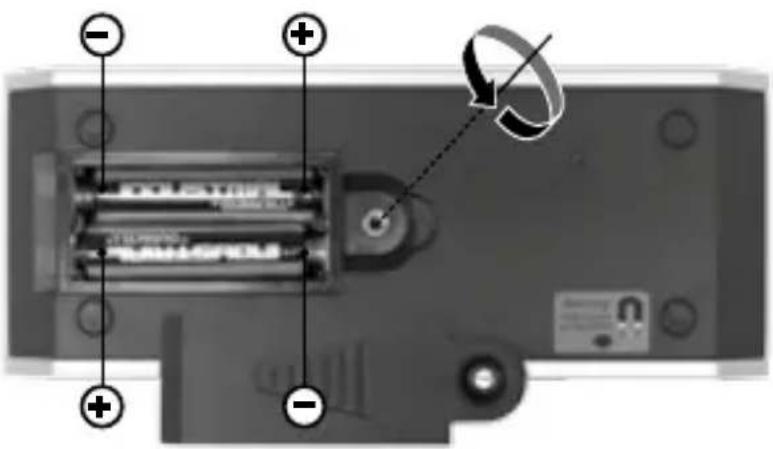

1 Inserting battery

Open the battery compartment and insert battery according to the symbols. Be sure to pay attention to polarity.

Back view of a battery pack with internal components and polarity indicators (no text or symbols)

2 Switching on and measuring

Make sure that the reference function is deactivated before measuring (no REF in the display).

• Switch the DigiLevel Plus on using the on/off switch (3).
• The slope angle (8) is shown in the display. If slopes are measured overhead, the direction of display adjusts automatically.

3 Calibration

1. Place the measuring face (4) on an even surface with position mark. Switch on device (3).

To access calibration mode simultaneously press buttons 1 and 3. -1- appears on the display.

1. Press the ON/OFF button (3) again.

-1- flashes. The display then changes to -2-.

1. Turn the spirit level by 180^ and place it exactly on the marked surface. Now press the ON/OFF button (3). -2- flashes. Calibration is concluded when the measured value appears on the display.

Diagram of a monitor front view showing screen layout and control panel (no text or symbols)

4 Reference function to transfer angles

1. REF off 1. REF off

1. REF on

1. REF on

1. REF off

5 HOLD

Press the HOLD button (1) to hold the current measured value on the display.

Auto Off function

In order to preserve the battery, the measuring device switches off automatically if it is left idle for 5 minutes.

Error code

- - - - Alignment of the vertical axis is outside the tolerance range

Calibration

The meter needs to be calibrated and tested on a regular basis to ensure it produces accurate measurement results. We recommend carrying out calibration once a year.

Data transfer

The device features a Bluetooth®* function that enables wireless data transfer to mobile devices with a Bluetooth®* interface (such as a smartphone or tablet).

The system prerequisites for a Bluetooth®* connection are specified at http://laserliner.com/info?an=ble

The device can set up a Bluetooth®* connection with Bluetooth 4.0 compatible devices.

The range is set to a maximum distance of 10 m from the terminal device and greatly depends on the ambient conditions such as the thickness and composition of walls, sources of interference as well as the transmit / receive properties of the terminal device.

Once it has been activated, Bluetooth ^® * remains switched on indefinitely as the radio system is designed with exceptionally low power consumption.

A mobile device can link up to the active measuring device via an app.

* The Bluetooth® word mark and the logo are registered trademarks of Bluetooth SIG Inc.

Application (app)

An app is required to use the Bluetooth®* function. You can download the app from the corresponding stores for the specific type of terminal device:

Make sure that the Bluetooth®* interface of the mobile device is activated.

After starting the app and activating the Bluetooth®* function, a connection can be set up between a mobile device and the measuring device. If the app detects several active measuring devices, select the matching device.

This measuring device can be connected automatically the next time it is switched on.

* The Bluetooth® word mark and the logo are registered trademarks of Bluetooth SIG Inc.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Danger - powerful magnetic fields

Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).

With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields“ (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.

To avoid interference/disruption, always keep the implant or device a safe distance of at least 20 cm away from the magnet.

Technical data Subject to technical change without notice. 18W11
Electronic measuring precision	±0,05° at 0° and 90° ±0,1° at 1°...89°
Display accuracy	2 decimal places
Operating conditions	0...50°C, 85%rH, no condensation, max. altitude 2000 m
Storage conditions	-20...70°C, 85%rH, no condensation
Radio module operating data	Bluetooth LE 4.x interface; frequency band: ISM band 2400–2483.5 MHz, 40 channels; transmission power: max. 10 mW; bandwidth: 2 MHz; Bit rate: 1 Mbit/s; modulation: GFSK/FHSS
Power supply	2 x 1.5V (type AAA/LR03)
Dimensions (W x H x D)	152 x 60 x 33 mm
Weight (incl. battery)	290 g

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=malecopl

!
