| Product Type | Digital electronic spirit level with 360° angle display |
| Brand | Laserliner |
| Model | MasterLevel Box Pro |
| Dimensions (L x H x D) | 59 x 59 x 28 mm |
| Weight (with battery) | 86 g |
| Power Supply | 1 x 1.5 V battery type AAA/LR03 |
| Electronic measurement accuracy | ±0.05° at 0° and 90°; ±0.1° from 1° to 89° |
| Display accuracy | 2 decimal places |
| Measuring range | 0° to 360° (inclination) |
| Main functions | ABS mode, relative mode, HOLD function, reference function for angle transfer, calibration, Bluetooth® LE 4.x transmission |
| Bluetooth® range | Up to 10 m (depending on ambient conditions) |
| Mobile app | Available on App Store and Google Play for wireless connection |
| Auto power off | After 5 minutes of inactivity |
| Magnetic measuring surface | Yes, for attachment to metal surfaces |
| Inclination direction display | Yes, with directional symbol |
| Working conditions | 0 °C to 50 °C, max. 85 % RH (non-condensing) |
| Storage conditions | -20 °C to 70 °C, max. 85 % RH |
| Compliance | CE, RED directive 2014/53/EU |
| Maintenance and cleaning | Clean with a slightly damp cloth; avoid solvents and abrasive products |
| Recommended calibration | Annual (procedure described in the manual) |
| Safety | Do not use if malfunctioning; keep out of reach of children; maintain safety distances from strong magnetic fields (≥ 30 cm from implants) |
| General information | Subject to technical modifications; declaration of conformity available at laserliner.com/info?an=ADJ |
Frequently Asked Questions - MasterLevel Box Pro Laserliner
User questions about MasterLevel Box Pro Laserliner
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Laser level in PDF format for free! Find your manual MasterLevel Box Pro - Laserliner and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MasterLevel Box Pro by Laserliner.
USER MANUAL MasterLevel Box Pro Laserliner
Bluetooth
magnetic
Laserliner
| DE 02 |
| EN 08 |
| NL 14 |
| DA 20 |
| FR 26 |
| ES 32 |
| IT 38 |
| PL 44 |
| FI 50 |
| PT |
| SV |
| NO |
| TR |
| RU |
| UK |
| CS |
| ET |
| LV |
| LT |
| RO |
| BG |
| EL |
| SL |
| HU |
| SK |
Function / application
This digital electronic spirit level features a 360° angle display and a reference function to transfer angles. Measured data transfer via Bluetooth® interface.
General safety instructions
- The device must only be used in accordance with its intended purpose and within the scope of the specifications.
- The measuring tools and accessories are not toys. Keep out of reach of children.
- Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
- Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
- The device must no longer be used if one or more of its functions fail or the battery charge is weak.
Safety instructions
Dealing with electromagnetic radiation
- The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU which is covered by the Radio Equipment Directive 2014/53/EU.
- Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
- The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.
Safety instructions
Dealing with RF radiation
- The measuring device is equipped with a wireless interface.
- The measuring device complies with electromagnetic compatibility and wireless radiation regulations and limits in accordance with the RED 2014/53/EU.
- Umarex GmbH & Co. KG hereby declares that the MasterLevel Box Pro radio equipment complies with the essential requirements and other provisions of the European Radio Equipment Directive 2014/53/EU (RED). The EU Declaration of Conformity can be found in its entirety at the following address:
http://laserliner.com/info?an=ADJ

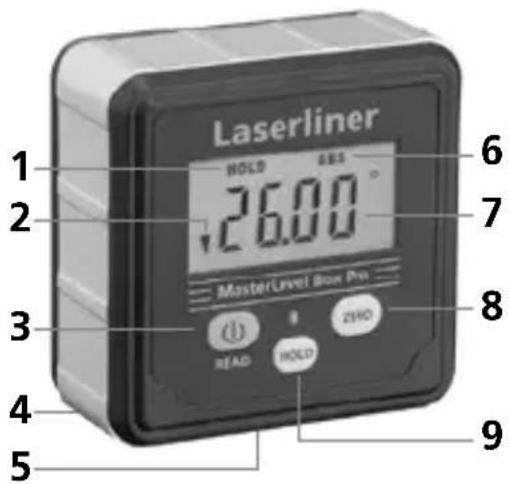

1 Hold function active
2 Slope direction 0.00°
3 ON/OFF button / READ: Transfer measured data via Bluetooth® interface
4 Magnetic measuring edge
5 Battery compartment (Rear)
6 ABS mode active
7 Slope angle
8 ABS mode/relative measuring mode selection
9 Hold function on/off
1 Inserting battery
Open the battery compartment and insert battery according to the symbols. Be sure to pay attention to polarity.
Make sure that the reference function is deactivated before measuring ABS ON.

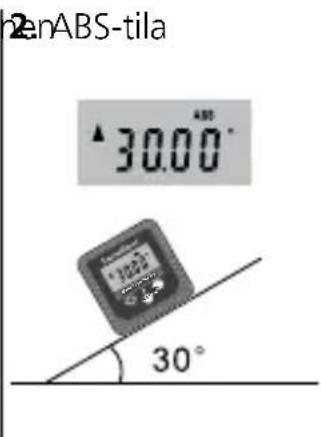

- Switch the DigiLevel Plus on using the on/off switch (3).
- The slope angle (7) is shown in the display. If slopes are measured overhead, the direction of display adjusts automatically.
- The current slope direction is also shown by the symbol (2).
3 Calibration
- Place the measuring face (17) on an even surface with position mark. Switch on device (3). To access calibration mode simultaneously press buttons 3 and 8. -1- appears on the display.
-
Press the ON/OFF button (3) again. -1- flashes. The display then changes to -2-.
-
Turn the spirit level by 180^ and place it exactly on the marked surface. Now press the ON/OFF button (3). -2- flashes. Calibration is concluded when the measured value appears on the display.

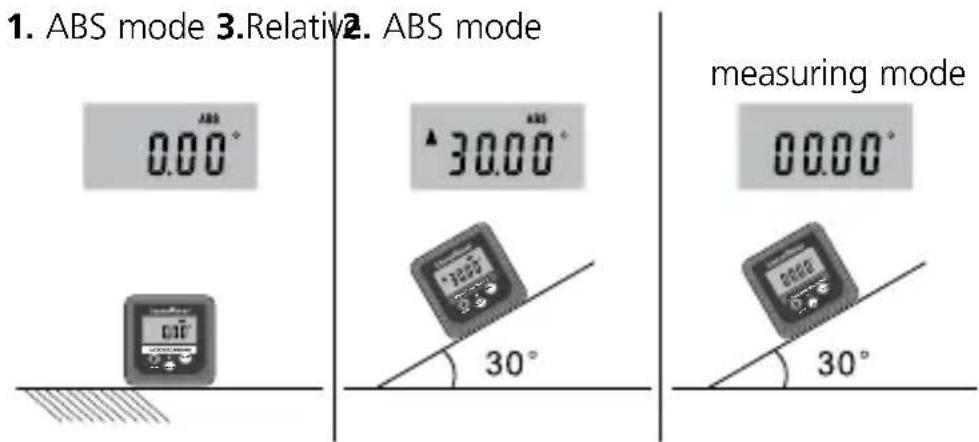

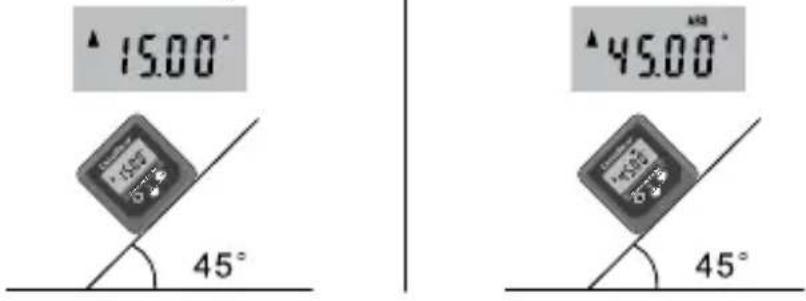

4 Reference function to transfer angles
- ABS mode 3. Relatively. ABS mode
- Relative measuring mode 5. ABS mode
5 HOLD
Press the HOLD button (9) to hold the current measured value on the display.
Auto Off function
In order to preserve the battery, the measuring device switches off automatically if it is left idle for 5 minutes.
Data transfer
The device features a Bluetooth®* function that enables wireless data transfer to mobile devices with a Bluetooth®* interface (such as a smartphone or tablet).
The system prerequisites for a Bluetooth ^® connection are specified at http://laserliner.com/info?an=ble
The device can set up a Bluetooth ^®* connection with Bluetooth 4.0 compatible devices.
The range is set to a maximum distance of 10 m from the terminal device and greatly depends on the ambient conditions such as the thickness and composition of walls, sources of interference as well as the transmit / receive properties of the terminal device.
Once it has been activated, Bluetooth ^®* remains switched on indefinitely as the radio system is designed with exceptionally low power consumption.
A mobile device can link up to the active measuring device via an app.
* The Bluetooth® word mark and the logo are registered trademarks of Bluetooth SIG Inc.
Laserliner
Application (app)
An app is required to use the Bluetooth®* function. You can download the app from the corresponding stores for the specific type of terminal device:
Download on the
App Store
GET IT ON
Google Play
Make sure that the Bluetooth ^®* interface of the mobile device is activated.
After starting the app and activating the Bluetooth®* function, a connection can be set up between a mobile device and the measuring device. If the app detects several active measuring devices, select the matching device.
This measuring device can be connected automatically the next time it is switched on.
* The Bluetooth® word mark and the logo are registered trademarks of Bluetooth SIG Inc.
Error code
---- Alignment of the vertical axis is outside the tolerance range
Information on maintenance and care
Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.
Calibration
The meter needs to be calibrated and tested on a regular basis to ensure it produces accurate measurement results. We recommend carrying out calibration once a year.
Danger - powerful magnetic fields
Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electro-mechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).
With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations
must be complied with such as BGV B11 §14 „electromagnetic fields“ (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.
To avoid interference/disruption, always keep the implant or device a safedistance of at least 30 cm away from the magnet.
Technical data
| Electronic measuring precision | ± 0,05° at 0° and 90° ± 0,1° at 1° ... 89° |
| Display accuracy | 2 decimal places |
| Operating conditions | 0 ... 50°C, max. humidity 85% rH, no condensation, max. working altitude 2000 m above sea level |
| Storage conditions | -20 ... 70°C, max. humidity 85% rH |
| Radio module operating data | Bluetooth LE 4.x interface; Frequency band: ISM band 2400–2483.5 MHz, 40 channels; Transmission power: max. 10 mW; Bandwidth: 2 MHz; Bit rate: 1 Mbit/s; Modulation: GFSK/FHSS |
| Power supply 1 x 1.5V (type AAA/LR03) | |
| Dimensions (W x H x D) | 59 x 59 x 28 mm |
| Weight (incl. battery) | 86 g |
Subject to technical change without notice. 18W44
EU directives and disposal
This device complies with all necessary standards for the free movement of goods within the EU.
This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.
Further safety and supplementary notices at:
http://laserliner.com/info?an=ADJ
