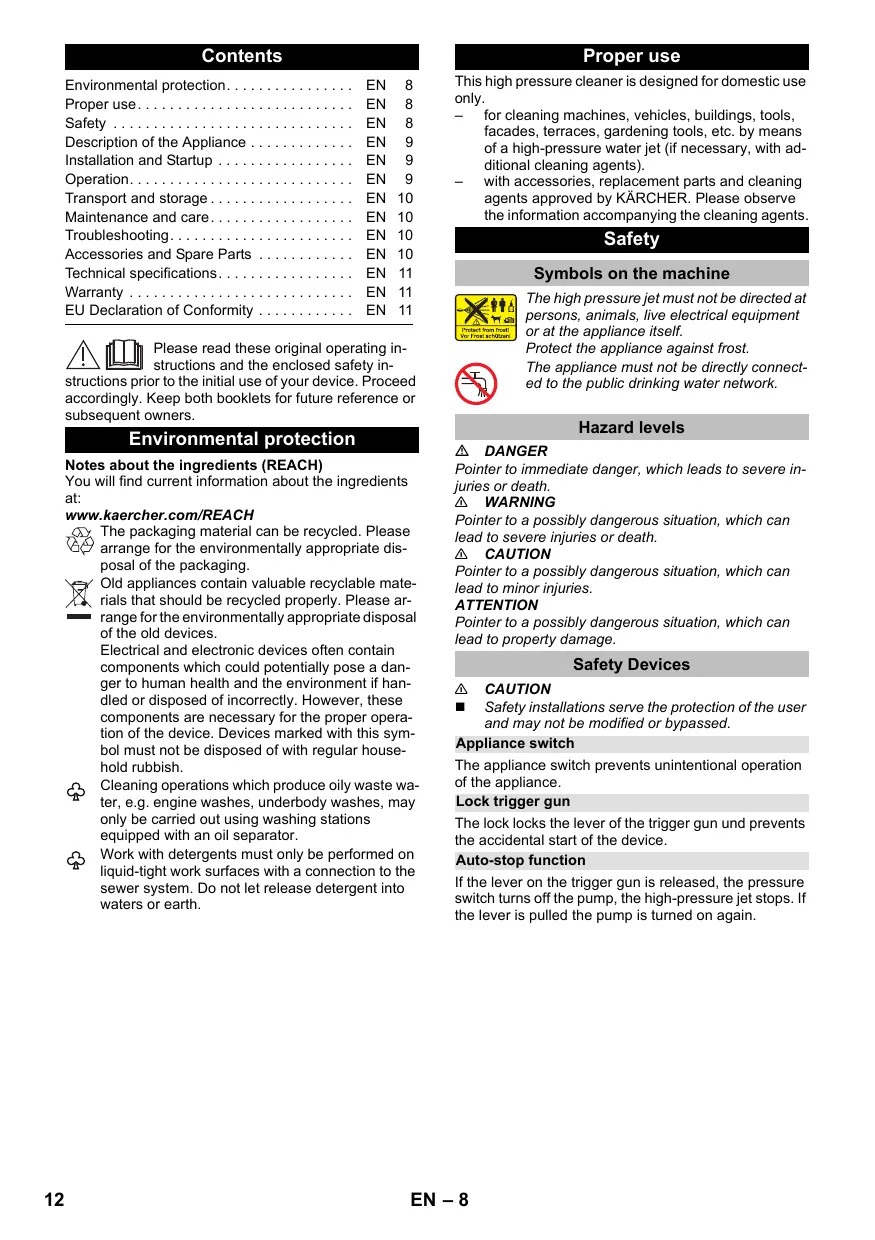

K 2 Premium Head of Approbation This high pressure cleaner is designed for domestic use only. – for cleaning machines, vehicles, buildings, tools, facades, terraces, gardening tools, etc. by means of a high-pressure water jet (if necessary, with additional cleaning agents). – with accessories, replacement parts and cleaning agents approved by KÄRCHER. Please observe the information accompanying the cleaning agents. Safety Symbols on the machine The high pressure jet must not be directed at persons, animals, live electrical equipment or at the appliance itself. Protect the appliance against frost. The appliance must not be directly connected to the public drinking water network. Please read these original operating instructions and the enclosed safety instructions prior to the initial use of your device. Proceed accordingly. Keep both booklets for future reference or subsequent owners. Environmental protection Notes about the ingredients (REACH) You will find current information about the ingredients at: www.kaercher.com/REACH The packaging material can be recycled. Please arrange for the environmentally appropriate disposal of the packaging. Old appliances contain valuable recyclable materials that should be recycled properly. Please arrange for the environmentally appropriate disposal of the old devices. Electrical and electronic devices often contain components which could potentially pose a danger to human health and the environment if handled or disposed of incorrectly. However, these components are necessary for the proper operation of the device. Devices marked with this symbol must not be disposed of with regular household rubbish. Cleaning operations which produce oily waste water, e.g. engine washes, underbody washes, may only be carried out using washing stations equipped with an oil separator. Work with detergents must only be performed on liquid-tight work surfaces with a connection to the sewer system. Do not let release detergent into waters or earth.

Hazard levels DANGER Pointer to immediate danger, which leads to severe injuries or death. 몇 WARNING Pointer to a possibly dangerous situation, which can lead to severe injuries or death. 몇 CAUTION Pointer to a possibly dangerous situation, which can lead to minor injuries. ATTENTION Pointer to a possibly dangerous situation, which can lead to property damage. Safety Devices

CAUTION Safety installations serve the protection of the user and may not be modified or bypassed. Appliance switch The appliance switch prevents unintentional operation of the appliance. Lock trigger gun The lock locks the lever of the trigger gun und prevents the accidental start of the device. Auto-stop function If the lever on the trigger gun is released, the pressure switch turns off the pump, the high-pressure jet stops. If the lever is pulled the pump is turned on again. EN – 8 Description of the Appliance Operation The scope of delivery of the device (depending on the model) is illustrated on the packaging. These operating instructions describe all possible options. Illustrations on the inside of the picture page 1 High pressure connection 2 Appliance switch „0/OFF“ / „I/ON“ 3 Storage hook 4 Carrying handle 5 Transport handle 6 Water connection with integrated sieve 7 Detergent suction hose (with sieve) 8 Detergent tank lid 9 Detergent Tank 10 Coupling element for water connection 11 Storage for spray lance 12 Storage for trigger gun 13 Mains cable with mains plug 14 Bearing wheel 15 Trigger gun 16 Lock trigger gun 17 Clamp for high pressure hose 18 High pressure hose 몇 CAUTION Dry running of more than 2 minutes leads to damage of the high-pressure pump. If the appliance does not build up pressure within 2 minutes, switch the appliance off and proceed in accordance with the instructions in Chapter "Troubleshooting".

• Optional accessories 19 Spray lance with high pressure nozzle For normal cleaning tasks. 20 Spray lance with Dirtblaster For strong contaminations 21 Spray lance with pressure regulation (Vario Power) Carrying out the most common cleaning tasks The working pressure is steplessly adjustable. In order to adjust the working pressure, release the lever of the hand spray gun and turn the spray lance to the desired position. You can add detergent when "Mix" is selected. 22 Washing brush 23 Rotating washing brush (e.g. for cleaning cars) 24 Foam nozzle with detergent container For effective detergent foam. Additionally required 25** Fabric-reinforced water hose with commercially available coupling. – Minimum diameter, 1/2 inches (13 mm). – Minimum length 7.5 m. High pressure operation 몇 CAUTION Keep a distance of at least 30 cm when using the jet for cleaning painted surfaces to avoid damage. ATTENTION Car tyres, paint or sensitive surfaces such as wood should not be cleaned with the dirt blaster, as there is a risk of damage. Illustrations

Operation with washing brush ATTENTION Risk of damage to the paintwork When working with the washing brush, it must be free of dirt or other particles. Note: If required, the washing brushes can be used to work with detergent. Operation with detergent Note: Detergent can only be added when the device is operated in low pressure mode. Illustrations Optional Illustration Recommended cleaning method Spray the detergent sparingly on the dry surface and allow it to react, but not to dry. Spray off loosened dirt with the high pressure jet. After operation with detergent After operation with detergent: Run the machine for approximately 1 minute for a clear rinse. Interrupting operation Illustration Release the lever of the trigger gun and lock it. During longer breaks (more than 5 minutes), also turn the appliance off using the "0/OFF" switch. Installation and Startup Illustrations on the inside of the picture page Illustrations Mount loose parts delivered with appliance prior to start-up. Park the appliance on an even surface. Illustrations Pull out the clamp from the trigger gun and plug the high-pressure hose into the trigger gun. Push the clamp in until it locks. Check the secure connection by pulling on the high-pressure hose. Illustrations ATTENTION Impurities in the water can damage the high-pressure pump and the accessories. For protection, the use of the KÄRCHER water filter (optional accessory, order no. 4.730-059) is recommended. Finish operation 몇 CAUTION Only separate the high-pressure hose from the trigger gun or the device when there is no pressure in the system. Release the lever of the trigger gun. Turn off the appliance "0/OFF". Disconnect the mains plug from the socket. Turn off tap. Press the lever on the trigger gun to release any remaining pressure in the system. Lock the lever of the trigger gun. Detach the appliance from the water supply. EN – 9

Transport and storage Troubleshooting 몇 CAUTION Risk of personal injury or damage! Mind the weight and storage of the appliance during transport. DANGER Risk of electric shock. Prior to all work on the appliance, switch off the appliance and pull the power plug. When transporting by hand Appliance is not running Lift appliance by the carrying handle and carry it. Pull the appliance by its transport handle. Push the lever of the trigger gun, the device will switch on. Check whether the voltage indicated on the type plate corresponds to the voltage of the mains supply. Check the mains connection cable for damages. When transporting in vehicles Secure the appliance against shifting and tipping over. Storing the Appliance Pressure does not build up in the appliance Park the machine on an even surface. Stow away the accessories on the appliance according to the device. Prior to extended storage periods, as during the winter, also observe the instructions in the Care section. Completely open the water tap. Appliance ventilation: Switch the appliance on with the high-pressure hose detached and operate (max. 2 minutes) until the water exits the high-pressure connection without bubbles. Switch off appliance and reconnect high-pressure hose. Pull out the sieve in the water connection using flatnose pliers and clean under running water. Frost protection ATTENTION Appliances and accessories that are not completely drained can be destroyed by frost. Completely drain appliance and accessories and protect them against frost. To avoid damage: Completely drain all water from the appliance: Switch the appliance on with detached high pressure hose and detached water supply (max. 1 minute) and wait, until no more water exits at the high pressure connection. Turn off the appliance. Store the appliance and the entire accessories in a frost free room. Strong pressure fluctuations Clean high-pressure nozzle: Remove dirt and debris from the nozzle bore, using a needle and rinse through with water from the front. Check water flow quantity. Appliance is leaking Slight leakage from the appliance pump is normal. If the leakage increases contact the authorized customer service. Maintenance and care The appliance is maintenance free. Care DANGER Risk of electric shock. Prior to all work on the appliance, switch off the appliance and pull the power plug. Clean the sieve in the water connection Clean the sieve in the water connection regularly. ATTENTION The sieve must not be damaged. Remove coupling from the water connection. Illustration Pull the sieve out (e.g. using flat pliers), clean under running water and then reinsert it.

Remove the spray pipe from the trigger gun and work with the trigger gun only or use the spray pipe with pressure regulation and turn to "Mix". Remove filter from suction hose for detergent and clean under running water. Check the detergent suction hose for kinks. Accessories and Spare Parts Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaercher.com. EN – 10 Warranty The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. Addresses can be found under: www.kaercher.com/dealersearch K 2 Premium

K 2 Compact K 2 Basic Technical specifications Electrical connection Voltage 220-240 1~50-60

Power consumption Protection class EU Declaration of Conformity IP X5 Protective class

Mains fuse (slow-blow)

Water connection Max. feed pressure

MPa Max. feed temperature

l/min Performance data Working pressure

l/min Max. flow rate

l/min Detergent flow rate

l/min Recoil force of the trigger gun

Values determined as per EN 60335-2-79 Hand-arm vibration value Uncertainty K <2.5

m/s2 m/s2 Sound pressure level LpA Uncertainty KpA

dB(A) dB(A) Sound power level LWA + Uncertainty KWA

dB(A) Dimensions and weights Length

Weight, ready to operate with accessories

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. Product: High pressure cleaner Type: 1.673-xxx Relevant EU Directives 2000/14/EC 2014/30/EU 2006/42/EC (+2009/127/EC) 2011/65/EU Applied harmonized standards EN 50581 EN 55014–1: 2006+A1: 2009+A2: 2011 EN 55014–2: 1997+A1: 2001+A2: 2008 EN 60335–1 EN 60335–2–79 EN 61000–3–2: 2014 EN 61000–3–3: 2013 EN 62233: 2008 Applied conformity evaluation method 2000/14/EC: Appendix V Sound power level dB(A) Measured: Guaranteed: The undersigned act on behalf and under the power of attorney of the company management.

5.6 5.8 kg

Subject to technical changes. CEO Head of Approbation Authorised Documentation Representative S. Reiser Alfred Kärcher GmbH Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Phone: +49 7195 14-0 Fax: +49 7195 14-2212 Winnenden, 2016/01/01 EN – 11
