USER MANUAL VC 6 L MC Flex

Exploded view diagram of a robotic device with numbered parts for identification and assembly reference.

Technical diagram showing three labeled mechanical components: a motor, a gear, and a bucket with a handle.

Diagram illustrating vehicle wheel and gear assembly with labeled components and directional arrows indicating motion or movement.

Diagram showing a 3D mechanical part being cut into a flanged housing, with an arrow indicating the process (no text or symbols present)

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Diagram of a mechanical component with directional arrows indicating motion or force, no text or symbols present

① ③ ② G

Diagram showing a device being lifted or loaded, with no visible text or symbols

Three human silhouettes with check and cross symbols indicating status or performance indicators

Technical line drawing of a mechanical component with no visible text or symbols

Three-step diagram showing a mechanical assembly process: disassembly, assembly, and final assembly (no text or symbols present)

① ON ② 3x

① ② M

N ① ②

			VC 6 L MC
K (EN 60335-2-69) L
U V	2	3	0
f Hz 50/60
P W 1200
Max. p_U		Pa 23000
Max. V		l/min 2280
		☐	II
m kg 4,7
A, B, C			mm
V I	6
L_pA		dB(A) 71,1
L_WA		dB(A) 82,1
a_hV		m/s2< 2,5

Verwendete Symbole

WARNUNG!

Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation. Non-observance of this warning may result in slight injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the device

The device is suitable for the following applications:

A device of dust category L is suitable for the collection of dry, non-flammable dust, wood chips and hazardous dust with an exposure level of >1 mg/m^3 . The device must be fitted with a suitable filter that equates to the hazard category of the dusts to be collected.
■ Only remove hazardous substances according to IEC/EN 60335-2-69 (category L) using a suitable vacuum cleaner. Using the device to collect other hazardous substances is not permissible.

For your safety

Read instructions!

WARNING!

Before using the vacuum cleaner, please read and follow: — these operating instructions,

• the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet-no.: 315.915),
  — the currently valid site rules and the regulations for the prevention of accidents.

This vacuum cleaner is state-of-the-art and has been constructed in accordance with the acknowledged safety regulations. Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged. The polisher may be used only

- as intended,

— in perfect working order.

Faults which impair safety must be repaired immediately.

Intended use

A series of extensive tests was carried out to ensure that this vacuum cleaner works efficiently and safely provided it is correctly maintained and used in accordance with the instructions.

The product described here is a vacuum cleaner for commercial use, e.g. in hotels, schools, factories, businesses, offices and also in the construction industry and for the renovation of buildings. It is suitable for dry use only.

The device is suitable for the following applications:

■ Collection of dry, non-flammable dust, wood chips and hazardous dust with exposure level > 1 mg/m ^3 (dust category L).

Blower function designed

■ for commercial use in industry and trade. Possible applications are cleaning large surfaces of wood chips and other large particles by means of compressed air.

Not permitted are

■ Air sweeping hot, combustible or explosive materials.

Air sweeping dust containing hazardous substances (e.g. hardwood flour or quartz in concrete dust) or classified as hazardous material.

Safety instructions

WARNING!

Warning notice! Read all safety notices and general instructions. Failure to observe the safety notices and other instructions can result in electric shock, fire and/or serious injury.

Keep all safety information and general instructions for later reference.

For the recirculation of extracted air into the room, ensure that there is sufficient ventilation output L in the room. To adhere to the required thresholds, the recirculated flow rate must be maximum 50% of the air supply (volume of room VR x ventilation output LW). Unless a specific ventilation system is provided, the following applies: LW = 1h-1.
■ The device may only be used by persons who have been trained in operation of the device and handling of the substances for which the device is to be used, which includes induction training in disposal of the extracted material.
This device contains harmful dust. Emptying and maintenance work, including disposal of the dust collection container, may only be carried out by specialists who are wearing the relevant personal protective equipment.
■ The device must not be operated without the complete filter system.
■ The safety regulations for the materials to be extracted must be observed.
■ Ensure that no persons in the vicinity are injured by foreign particles that are swept up into the air.
■ Do not air sweep substances that are hazardous to health, such as beechwood dust or oak dust, stone dust, asbestos. These substances have been found to be carcinogenic.
■ Do not air sweep liquids. Any ingress of liquid increases the risk of electric shock.
■ Ensure that the workplace is well ventilated.
■ Wear additional personal protective equipment such as safety goggles and respirator (or breathing protection). Wearing suitable protective equipment for the conditions reduces any exposure to hazardous substances.

Electrical safety

■ Avoid physical contact with earthed or earth-connected surfaces such as pipes, radiators, cooking equipment, ovens and refrigerators. There is an increased risk of electric shock if a human body is earthed.
■ Never expose the vacuum cleaner to rain or wet conditions. Water ingress in the vacuum cleaner increases the risk of electric shock.

Warning notice for VC 6 L MC

Mains cable

■ The voltage given on the data plate must equate to the mains voltage.
■ The mains cable specified by the manufacturer must be used. The same applies if cables need replacing.
■ Before using the mains cable and mains connector/plug, check for damage. If the mains cable is damaged, it must be replaced immediately by an authorised customer service agent/electrician in order to prevent possible danger.

■ The device may only be connected to a mains network installed by an electrician in accordance with IEC 60364.
■ Never touch the mains cable and the mains connector/plug with wet hands.
■ Make sure that the mains cable or extension lead are not damaged; signs of damage may be evident from them being driven over, severely bent or kinked, exposed to pulling loads or similar. Protect the mains cable from heat, oil and sharp edges.
■ The mains cable must be inspected at regular intervals for damage, such as cracks or signs of ageing. In the event of damage, the cable must be replaced before any further use.
■ When replacing couplings of the mains cable or an extension lead, ensure protection against splashes and mechanical leak-tightness.
■ Do not clean the device with a water hose or high pressure jet (danger of short circuit or other damage).

Application

■ Devices with accessories, particularly the mains cable and extension lead, must be inspected before use to ensure that they function correctly and safely. If defects are found, pull out the mains connector/plug immediately. The device must then not be used.
■ Do not extract burning or glowing objects.
■ This device must not be used for vacuum cleaning people and animals.
■ The devices may not be used outside at low temperatures.
If the device is used in hazardous locations (e.g. filling stations), the relevant safety regulations must be observed.
■ Use of the device in explosive areas is not permissible.
■ Certain materials can generate explosive vapours or mixtures through the intake of air.
■ Caution: This device may only be stored in enclosed spaces.
■ Caution: This device is designed to be used only in enclosed spaces.
■ The following materials must never be extracted:
— Explosive or flammable gases, liquids and dust particles (reactive dust particles)
- Reactive metallic dust particles (e.g. aluminium, magnesium, zinc) in combination with strong alkaline or acidic cleaning agents
— Undiluted, strong acids and lye
— Organic solvents (e.g. benzine, thinners, acetone, heating oil)
■ Furthermore, the substances listed may result in materials of the device becoming corroded.

Operation

The operator must use the device in the intended manner. He/she must take account of the local conditions and be mindful of third parties, particularly children, when working with the device.
■ Do not leave the equipment unsupervised while it is in operation and if the mains cable has not been removed.
■ Always wear suitable gloves when working on the device
The device may only be used by persons who have received induction training on how to use the device or are in possession of verified qualification and specialist knowledge on how to use the device or have been expressly tasked with using the device.
This device is not to be used by persons (including children) with physical or mental disabilities or persons who lack the experience and knowledge to do so.
■ Children must be supervised in order to ensure that the device is not used incorrectly.

This device is designed for dry use only and may not be used or stored in wet conditions outside unless expressly marked otherwise.

CAUTION!

— The device is not suitable for extracting harmful dust.
— The mains cable must not come into contact with the rotating brushes.

Transport

WARNING!

The motor must be brought to a standstill before transport and the device must be secured in the correct manner during transport.

Overview (Figure A)

1 ON/OFF switch
2 Head section
3 Storage location for crevice nozzle
4 Inlet opening
5 D u s t b a g
6 Wheel frame (optional)
7 Lock
8 Filter cleaning button
9 Mains cable
10 Blower opening
11 Storage location for nozzle pipe
12 Handle
13 Filter holder
14 Filter
15 Nozzle pipe
16 Air flow regulator
17 Hose
18 Connector
19 Upholstery nozzle
20 Brush nozzle
21 Dust bag
22 Crevice nozzle
23 Shoulder strap

Instructions for use

Before initial operation

■ Carefully read the safety instructions in this manual before bringing the device into operation for the first time.
■ Unpack the power tool and accessories and check that no parts are missing or damaged.

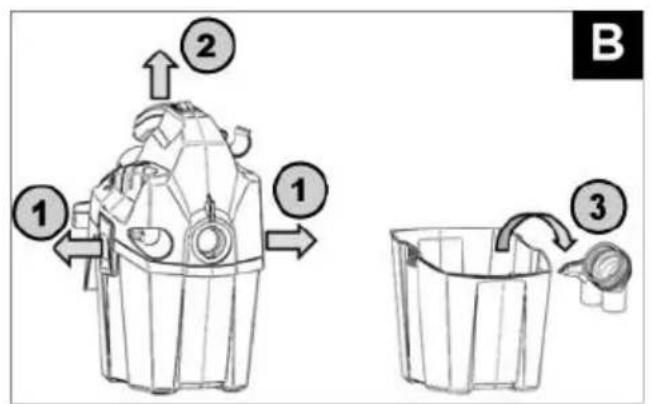

Accessories (Figure B)

The nozzles and accessories for the device are located in the dust container for transport. To open the dust container, release the fasteners (1) and remove the head section (2). Remove the parts (3) and fit the head section again. Secure the head section with the fasteners.

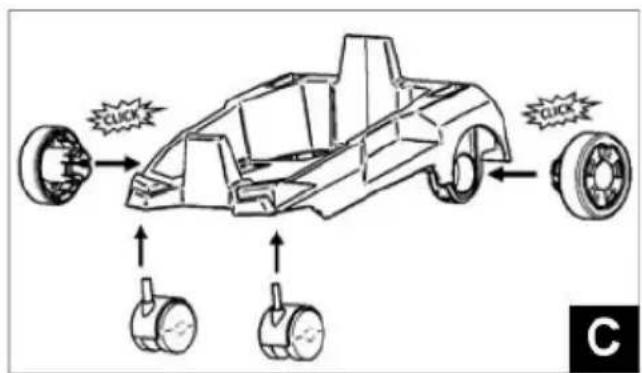

Transport trolley (Figure C)

The wheels of the transport trolley must be mounted as shown before initial use. Insert the castor wheels and the rear wheels.

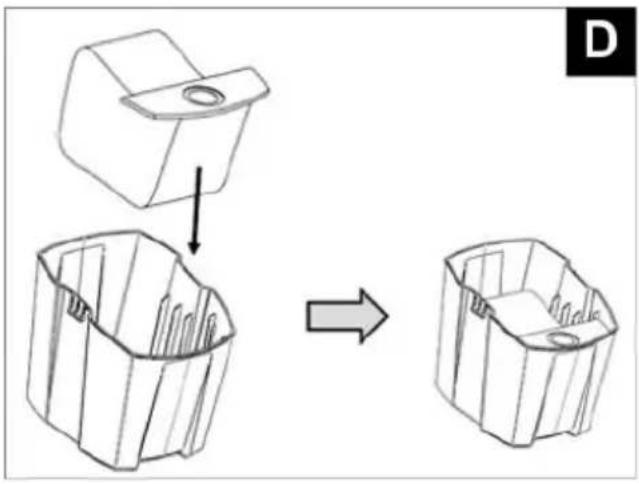

Using the dust bag (Figure D)

To remove the dirt/dust from the dust container without any dust escaping, a disposal bag can be used.

■ Insert the bag in the dust container. Secure the box at the front of the dust container in the ribs.

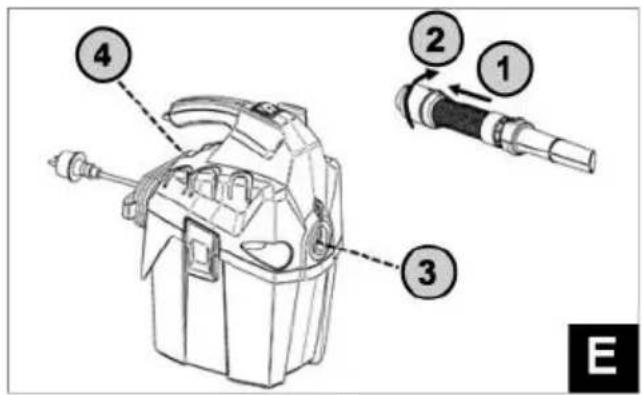

Inserting the hose (Figure E)

■ Insert the connector in the suction opening (3) for vacuum cleaning operation. Use the blower opening (4) for blower operation.
■ Insert the hose in the connection (1) and twist to lock (2).

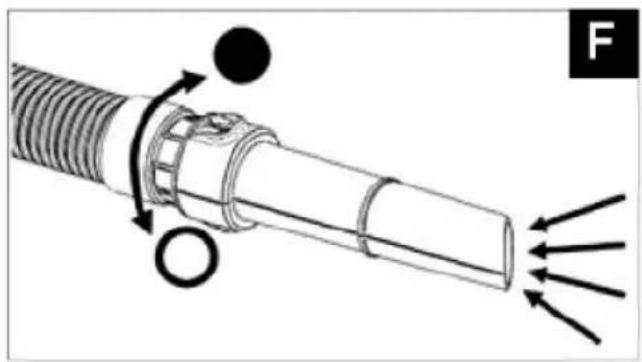

Air flow regulator (Figure F)

The air flow can be controlled at the end of the hose by turning the air flow regulator.

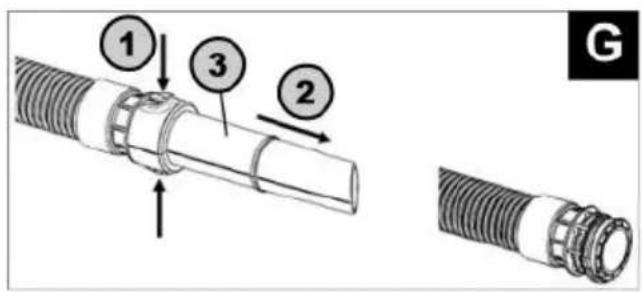

Using a suitable nozzle (Figure G)

All of the nozzles shown can be inserted in the nozzle pipe (1). The nozzle pipe (3) can be removed for vacuum cleaning by pressing the clips (1) and pulling out the nozzle (2).

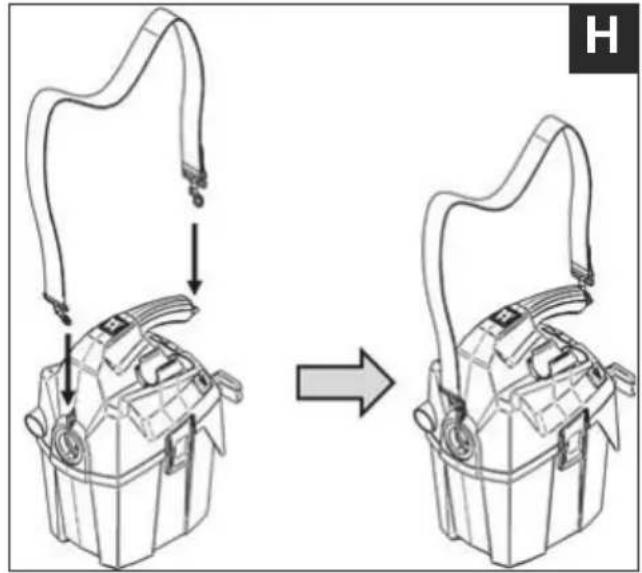

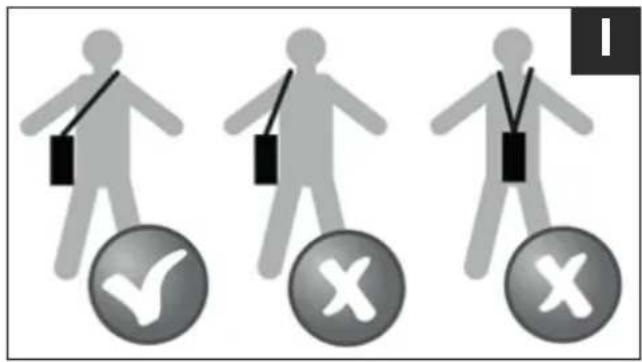

Using the shoulder strap (Figure H)

■ To use the shoulder strap, insert the clasps in the fasteners. Carry the vacuum cleaner as shown in figure I.

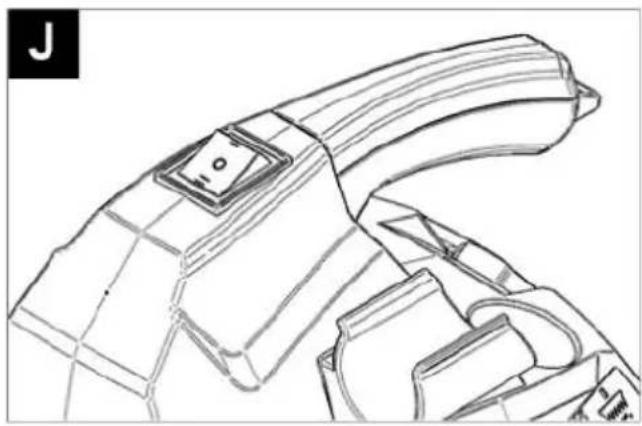

Switching on and off (Figure J)

The main switch of the device has two positions (ON/OFF). The device is switched on and off by pressing the main switch.

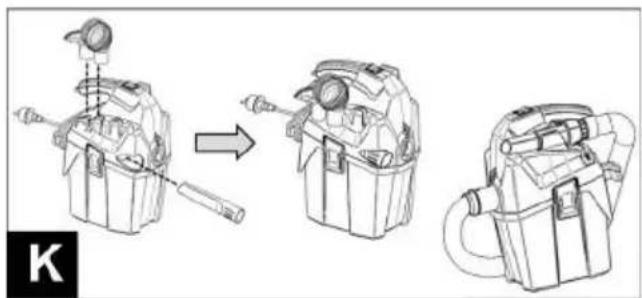

Accessory container (Figure K)

All accessory parts can be stored conveniently on the device.

Troubleshooting

Motor stops:

A thermal overload protector will shut off the motor if the motor temperature is too high. If this occurs, turn the switch off. Wait 15-30 minutes for the motor to cool. Turn switch on and resume operation.

Suction power is reduced:

■ The tank may be full and needs to be emptied.
■ The hose and nozzle may be clogged and need to be cleaned.
■ Any of the above may be damaged and need to be replaced.
■ The filter may be clogged. Use the Filter Cleaning System to clean the filter.
■ Replace the filter or make sure the filter is installed properly.
■ The hose connection is loose and need to be tightened.

Static shocks:

■ If the environment is too dry, add moisture to air. If possible, use a humidifier.
In case the relative humidity of air is low, please note that this situation will not have any effect on use of the vacuum cleaner.

Maintenance and care

NOTE

This vacuum cleaner has an integrated thermal overload protection feature to protect the motor against high temperatures. This can occur under strenuous operating conditions. If the motor switches off during operation, switch off the device using the main switch and allow the motor to cool down for 15-30 minutes. The device can then be switched back on again.

WARNING!

— Before cleaning and performing maintenance work, switch off the device and remove the mains cable if the device is connected to a power supply.
— Switch off the device before changing to a different function.
— Maintenance work may only be carried out on this device by authorised customer service centres or specialists who are familiar with the relevant safety regulations.
— Observe the local safety regulations for portable, commercially used equipment.
— The manufacturer or an appointed person shall carry out a technical inspection at least once per year. The filter is inspected for damage, for example, and the air-tightness of the device as well as correct operation of the controls are checked.
- When performing maintenance or repair work, all contaminated items that cannot be cleaned sufficiently must be disposed of. Use non-transparent sacks in accordance with the applicable regulations to dispose of this waste.
— The outside of the device must be thoroughly cleaned and freed of any hazardous substances. Alternatively, a sealed coating can be applied before the device is removed from the hazardous area.
— During transport or maintenance of the device, the intake opening must be sealed using the plug.
— Danger of harmful dust. Always wear disposable clothing and masks (P2 or higher) during maintenance work (e.g. filter replacement).

Cleaning

NOTE

Do not use cleaning agents containing silicone for cleaning.

— No external assistance is required for the execution of basic maintenance and cleaning.
— The outside of the device and the inside of the container must be cleaned at regular intervals with a damp cloth.

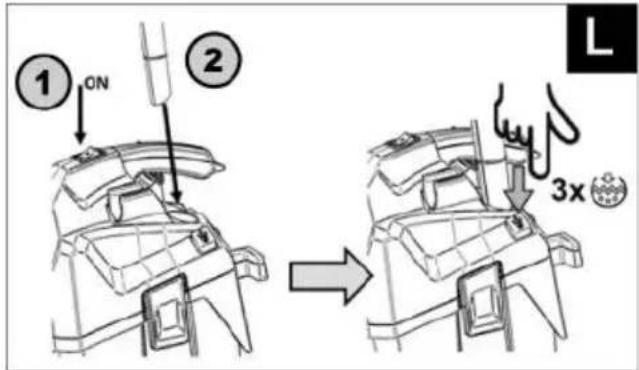

Filter cleaning system (Figure L)

The device is equipped with a semi-automatic filter cleaning system. It cleans the filter and restores the suction power.

■ Switch on the device (1) to use the filter cleaning system.
■ Insert the nozzle pipe in the opening of the device (2) to close it for air flow and to generate the maximum vacuum in the dust container.

Press the filter cleaning button three times to clean the filter.

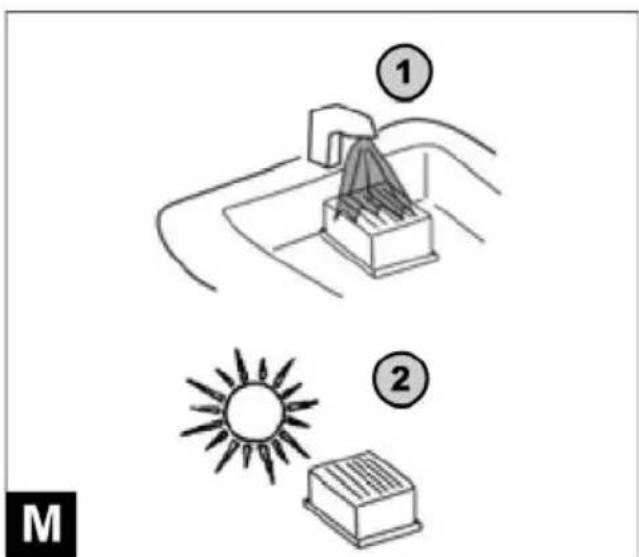

Manual filter cleaning (Figure M)

If the filter is soiled, rinse it in cold water (1) and allow it to dry (2). Install the filter again once it has dried.

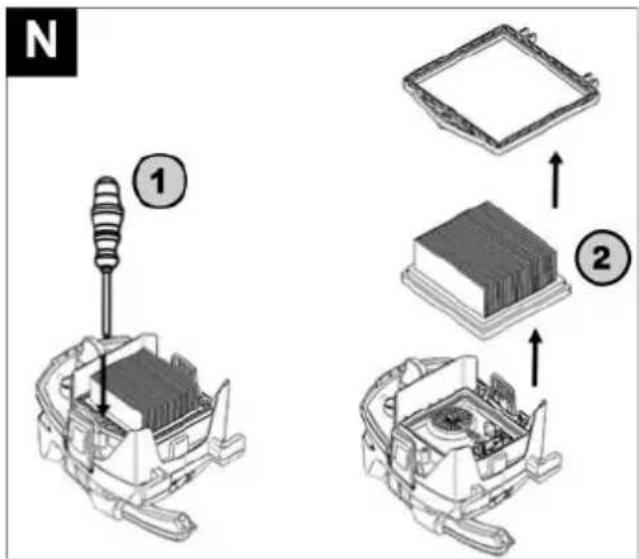

Changing the filter (Figure N)

After an extended period of use, the filter must be replaced by a new one. If the filter is heavily soiled or clogged, manually cleaning must be carried out as semi-automatic filter cleaning will not be sufficient to clean the filter.

■ To remove the filter, loosen the screw (1) and remove the parts (2).
■ Install the filter in the reverse order of removal. Make sure that the screws are not overtightened.

Repairs

Have repairs carried out by an authorised customer service centre only.

Spare parts and accessories

Other accessories can be found in the manufacturer's catalogues.

Exploded drawings and sparepart lists can be found on our homepage: www.flex-tools.com

Disposal information

WARNING!

Render redundant power tools unusable by removing the power cord.

EU countries only

Do not throw electric power tools into the household waste!

In accordance with the European Directive 2012/19/EU

on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

NOTE

Please ask your dealer about disposal options!

CE Declaration of Conformity

We hereby declare that the product described on page 6 corresponds with the following standards or normative documents: EN 60335-1, EN 60335-2-69, EN 55014-1, EN 55014-2, EN 62233, EN 61000-3-2, EN 61000-3-3 in accordance with the provisions of the directives 2014/30/EU, 2006/42/EC, 2011/65/EU.

Responsible for technical documents:

Bolts Q -

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

04.11.2019

Declaration of Conformity

We as the manufacturer: FLEX Elektrowerkzeuge GmbH, Business address: Bahnhofstr. 15,

71711 Steinheim, Germany

declare under our sole responsibility, that the product(s) described under „Technical specifications“ fulfills all the relevant provisions of The Supply of Machinery (Safety)

Regulations S.I. 2008/1597 and also fulfills all the relevant provisions of the following UK Regulations:

Electromagnetic Compatibility Regulations S.I. 2016/1091, The Restriction of the Use of Certain Hazardous

Substances in Electrical and Electronic Equipment

Regulations S.I. 2012/3032 and are manufactured in accordance with the following designated Standards:

BS EN 60335-1+A13:2012, BS EN 60335-2-69:2013,

BS EN 55014-1:2017, BS EN 55014-2:2015,

BS EN 61000-3-2:2014, BS EN 61000-3-3:2013

Place of declaration: Steinheim, Germany.

Responsible person: Peter Lameli, Technical

Contact details for Great Britain:

FLEX Power Tools Limited,

Unit 8 Anglo Office Park, Lincoln Road,

HP 12, 3RH Buckinghamshire,

United Kingdom.

Peter Lameli

Technical Head

B O -1

Klaus Peter Weinper

Head of Quality

Department (QD)

19.05.2021

Symboles utilisés

AVERTISSEMENT!

Klaus Peter Weinper Head of Quality Department (QD)

Advarsel for VC 6 L MC

Strømkabel

Klaus Peter Weinper Head of Quality Department (QD)

Transportkärra (Figur C)

Byta filter (Figur N)

Manager Research & Development (R & D)

04.11.2019

Manager Research & Development (R & D)

04.11.2019

Head of Quality Department (QD)

Použité symboly

VAROVANIE!

Klaus Peter Weinper Head of Quality Department (QD)
