USER MANUAL VCE 22 L MC 2x18 Flex

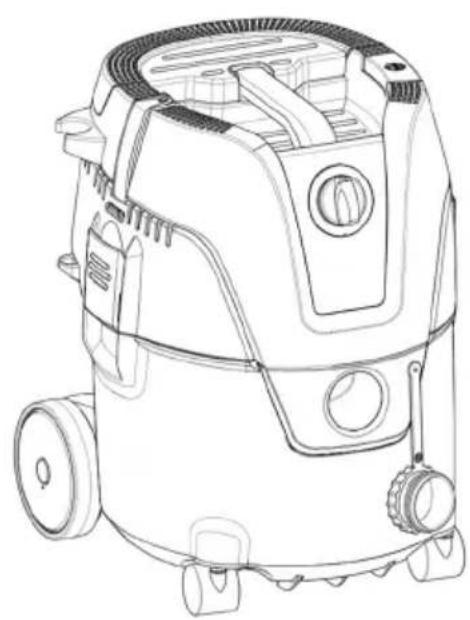

Line drawing of a vacuum cleaner device with visible ports and mounting brackets (no text or symbols)

Line drawing of a vacuum cleaner with visible wheels and control panel (no text or symbols)

de Originalbetriebsanleitung 10
en Original operating instructions 20
fr Notice d'instructions d'origine 29
it Istruzioni per l'uso originali 37
es Instrucciones de funcionamiento originales 46
pt Instruções de serviço originais 55
nl Originele gebruiksaanwijzing 64
da Originale driftsvejledning 73
no Originale driftsanvisningen 82
sv Originalbruksanvisning 91
fi Alkuperäinen käyttöohjekirja 100
el Auθεντικές οδηγίες χειρισμού 108
tr Orijinal işletme kılavuzu 116
pI Instrukcja oryginalna 125
hu Eredeti üzemeltetési útmutató 135
cs Originální návod k obsluze 144
sk Originálny návod na obsluhu 153
hr Originalna uputa za rad 162
sl Izvirno navodilo za obratovanje 171
ro Instructiuni de functionare originale 180
bg Оригинално упътване за експлоатация 189
ru Оригинальная инструкция по эксплуатации ..... 199
et Originaalkasutusjuhend 209
It Originali naudojimo instrukcija 218
Iv Lietošanas pamācības oriģināls 227
ar 244 ترجمة لإرشادات الأتشغير الأصلية

Technical diagram of a vacuum cleaner with numbered parts for identification

A

1A 1. 2. 1.

3.

1A 4. 5. 5. 5.

2A VCE 22 L MC 2x18 VCE 22 M MC 2x18

2A 1. 1. 2.

3.

A

6A

Line drawing of a vacuum cleaner with attached hose and control panel (no text or symbols)

7A FLEX

7A FLEX

Line drawing of a vacuum cleaner with internal components and mounting features (no text or symbols)

B

1B

< 20 m/s

1B

Diagram illustrating ear, earbell, and ear device with sound waves and a smiling face inside a container

2B

Diagram illustrating the process of particle scattering or particle dispersion, showing two stages with a sad face on top and a smiling face on the bottom.

2B

0 II I ECO 1. CE 22 L MC 18 1. VCE 22 M MC 2x18

2B 2. 3. 3x

2B

Manual Clean

C

1C VCE 22 L MC 2x18 1. VCE 22 M MC 2x18

1C 2. 2. 3.

1C 4. 5.

1C 2. 2. 3.

C

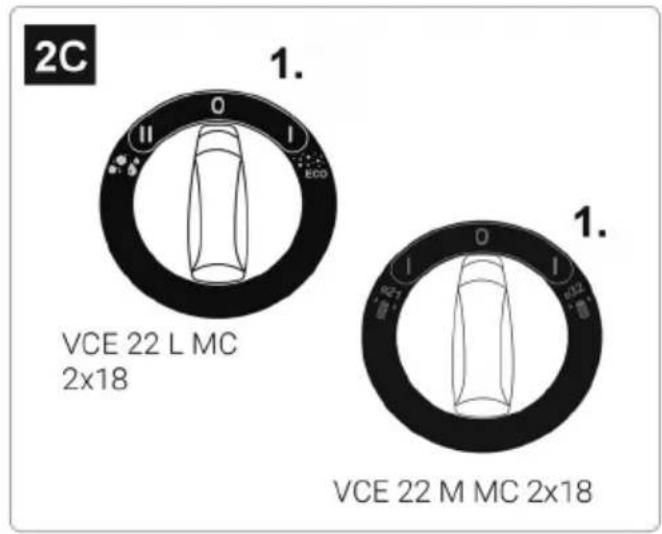

2C 1. VCE 22 L MC 2x18 1. VCE 22 M MC 2x18

2C 3. 2. 2.

2C 5. 4. 6. 7.

2C 8. 9. 9.

Kurzanleitung

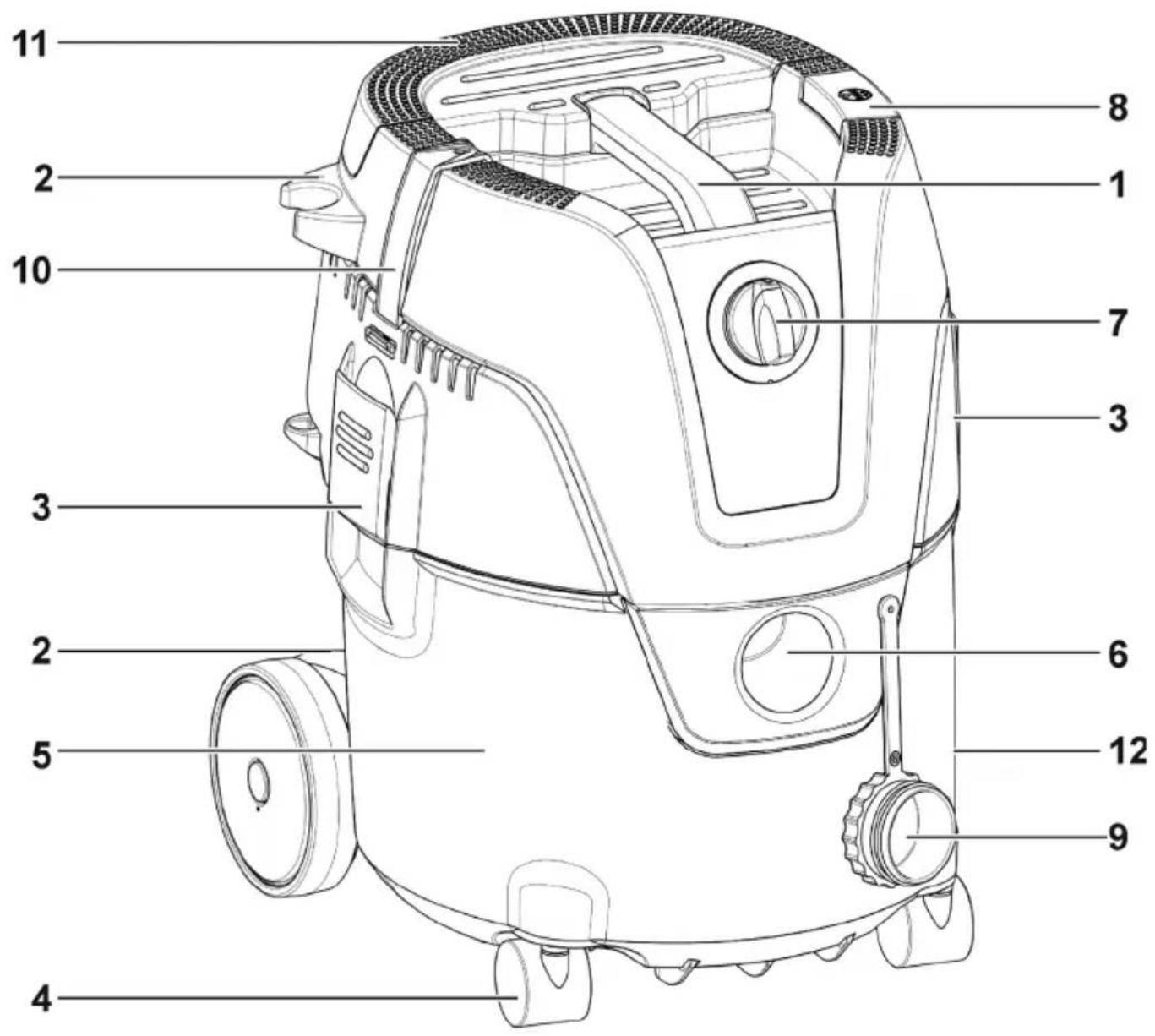

Teile des Geräts:

1 Handle
2 Accessory positions
3 Latch
4 Castor
5 Container
6 Intake manifold
7 Switch
8 Filter cleaning button Manual Clean
9 Sealing cap (M)
10 Cord/hose storage
11 Battery compartment
12 Tilt protection

The pictorial quick reference guide

The pictorial quick reference guide is designed for helping you when starting up, operating and storing the unit. The guide are subdivided into 3 sections, which are represented by symbols:

A

Before starting

DO READ OPERATING INSTRUCTIONS BEFORE USE!

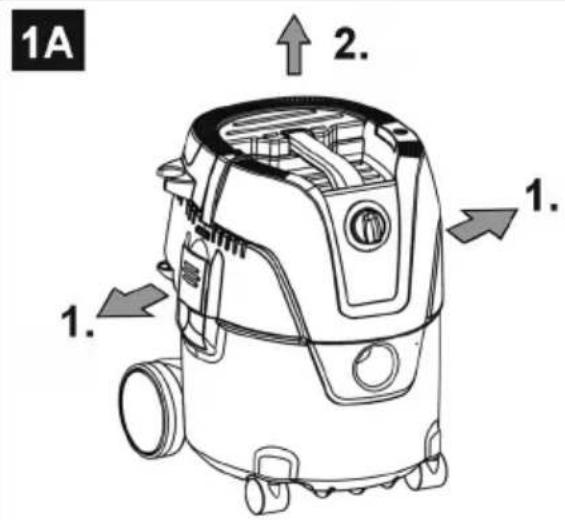

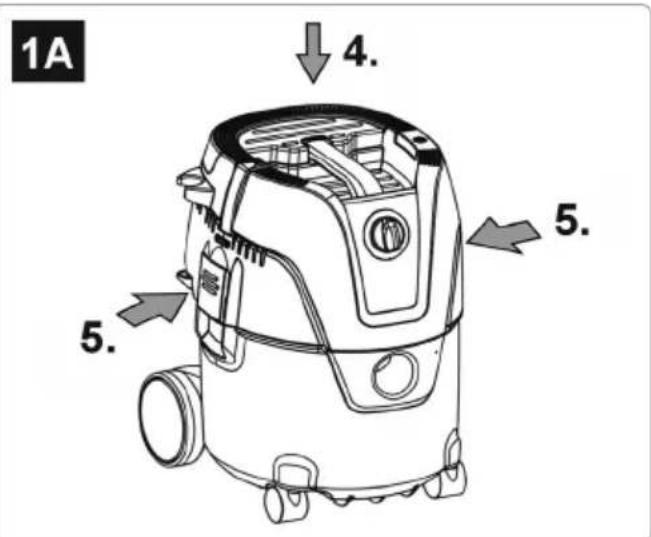

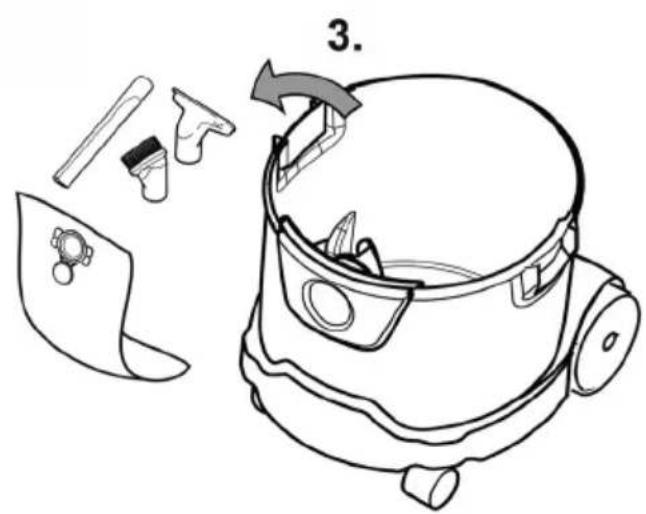

1A - Unpack accessories

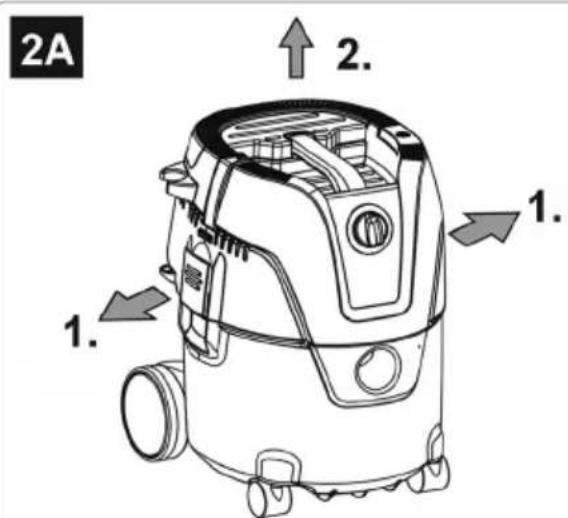

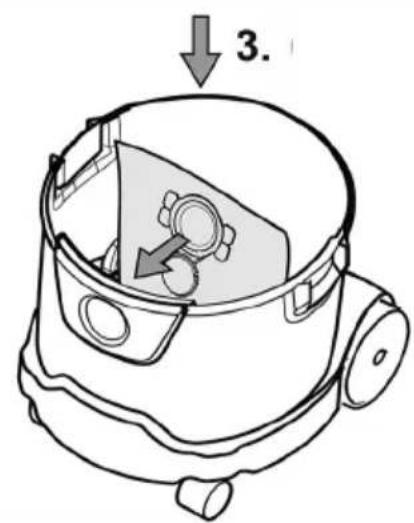

2A - Filter bag installation
3A - Hose insert & operations
4A - Tube fixed
5A - Tilt protection

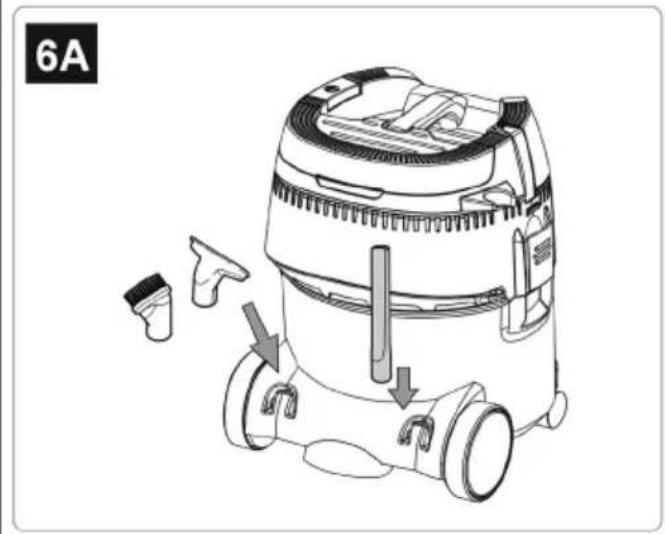

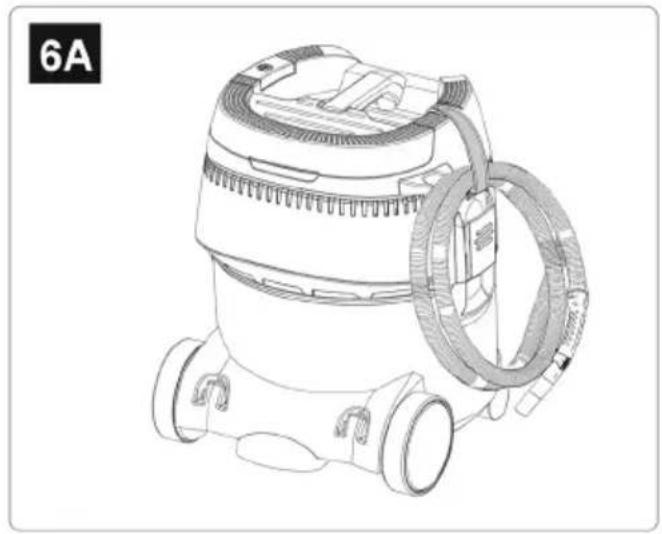

6A - Accessories placement

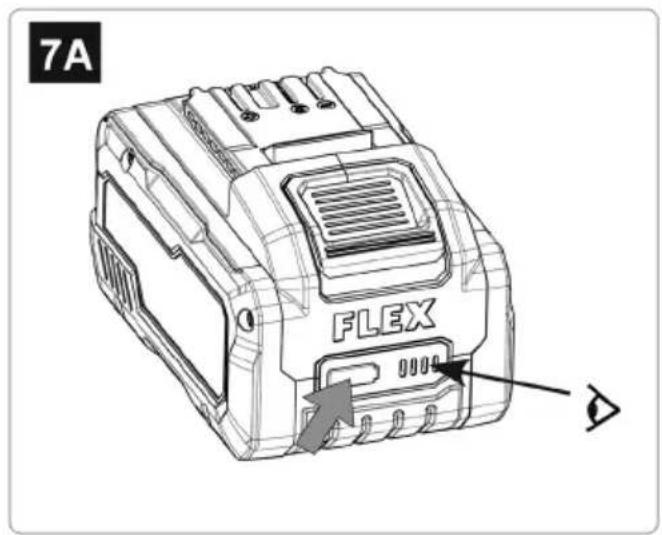

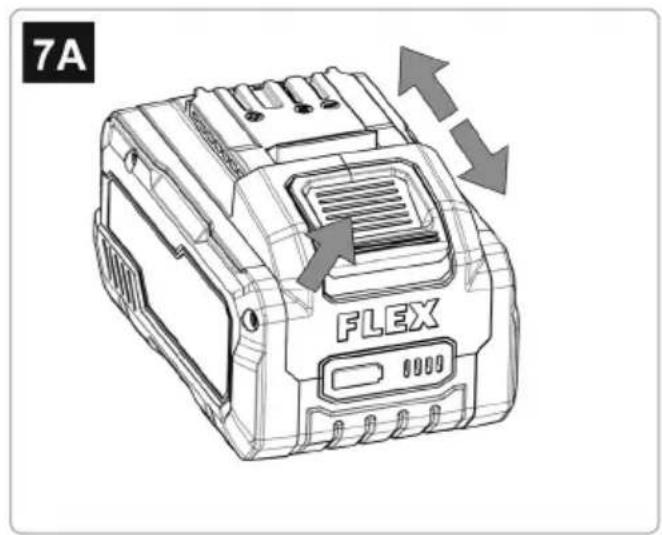

7A - Batteries

B

Control/Operation

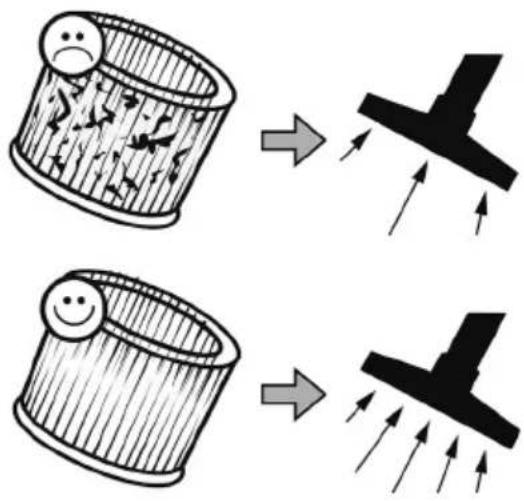

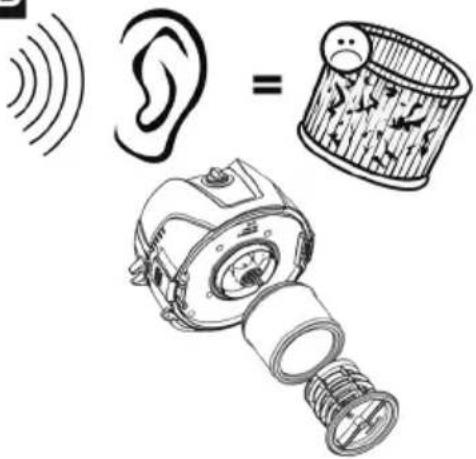

1B - Flow rate and filter warning

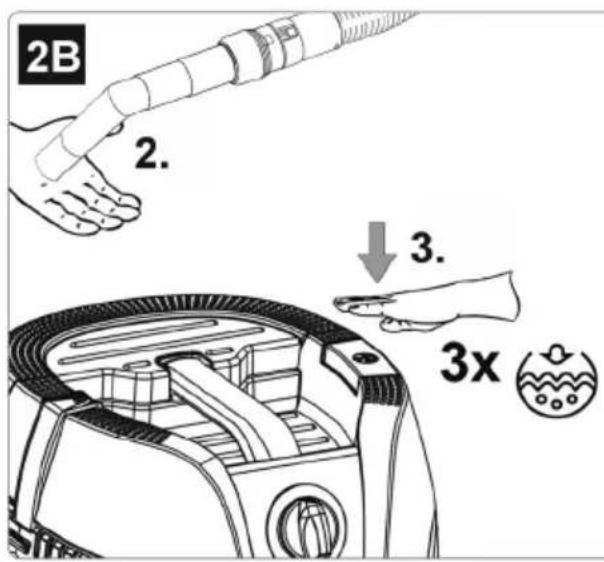

2B - Manual Clean filter cleaning system

C

Connecting electrical appliances

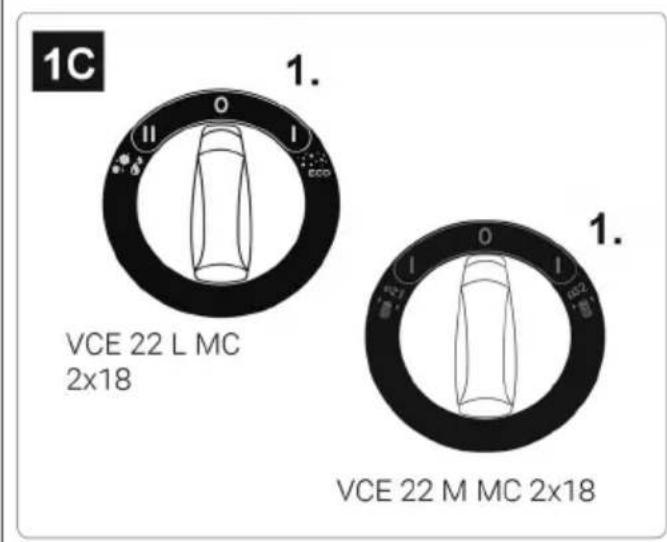

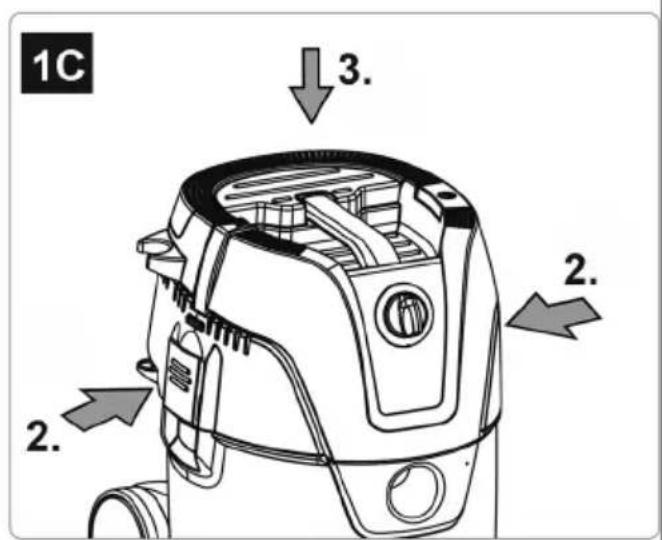

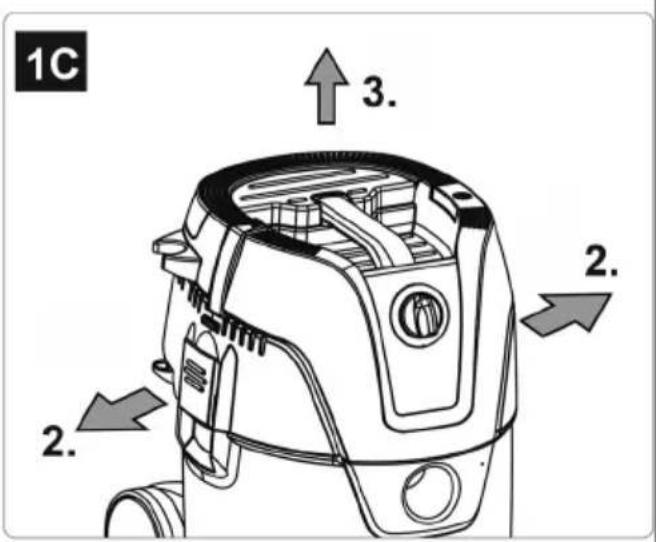

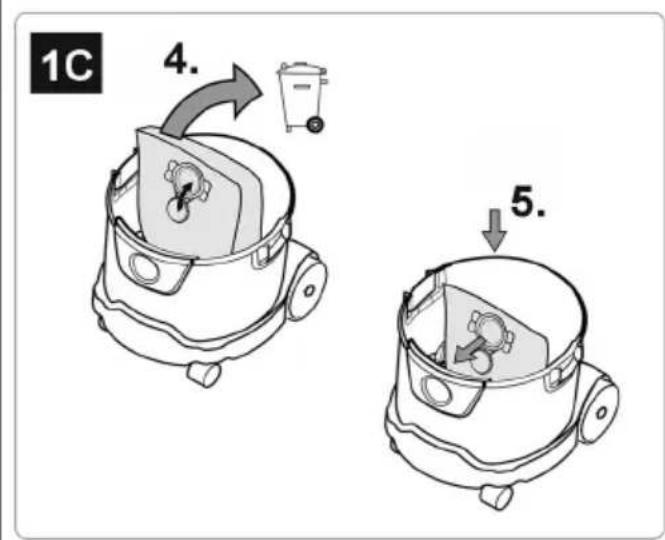

1C - Filter bag replacement

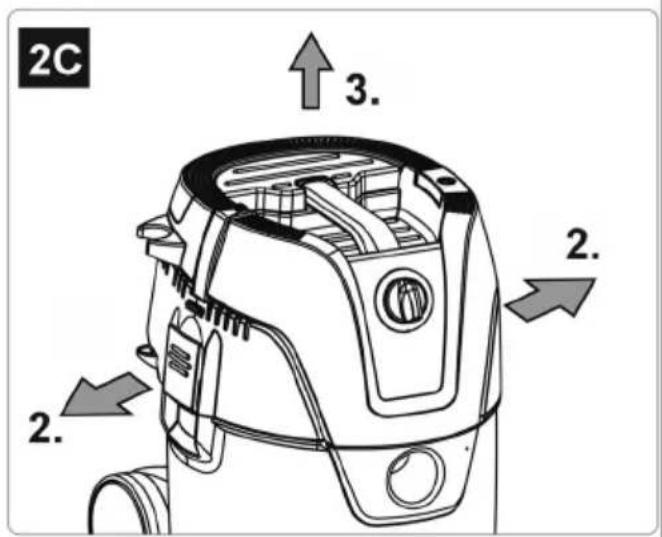

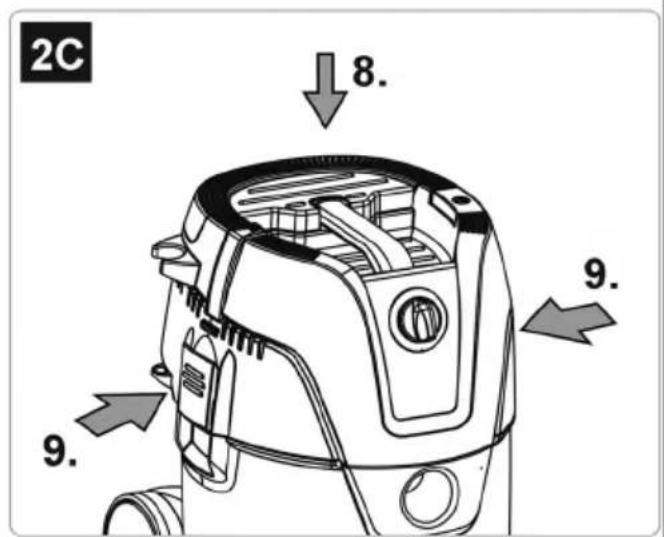

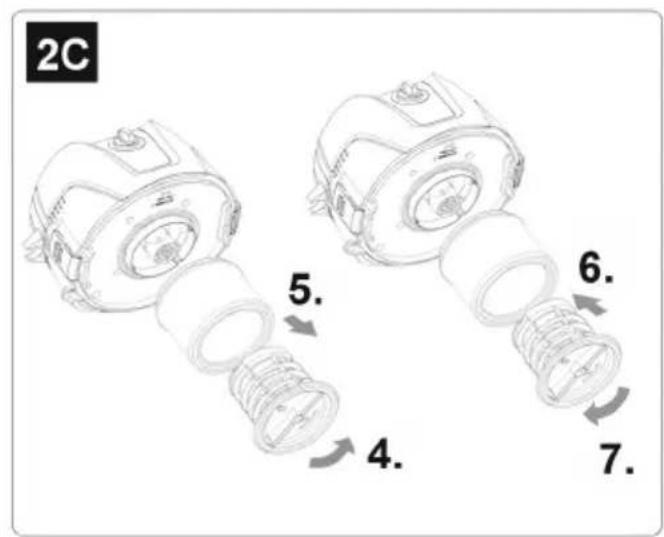

2C - Filter replacement

1 Safety instructions

This document contains the safety information relevant for the appliance along with a quick reference guide. Before starting up your machine for the first time, this instruction manual must be read through carefully. Save the instructions for later use.

Further support

Further information on the appliance can be found on our web site at www.flex-tools.com.

For further queries, please contact the FLEX service representative responsible for your country.

See reverse of this document.

1.1 Symbols used to mark instructions

DANGER

Danger that leads directly to serious or irreversible injuries, or even death.

WARNING

Danger that can lead to serious injuries or even death.

CAUTION

Danger that can lead to minor injuries and damage.

1.2 Instructions for use

The appliance must:

• only be used by persons, who have been instructed in its correct usage and explicitly commissioned with the task of operating it
• only be operated under supervision
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
• Children shall be supervised to make sure that they do not play with the appliance.
• Do not use any unsafe work techniques.
• Never use the appliance without a filter.
• Switch off the appliance and remove the batteries in the following situations:
  • Prior to cleaning and servicing
  • Prior to replacing components
  • Prior to changing over the appliance
  • If foam develops or liquid emerges

Besides the operating instructions and the binding accident prevention regulations valid in the country of use, observe recognised regulations for safety and proper use.

Before starting work, the operating staff must be informed on and trained within:

• use of the machine
• risks associated with the material to be picked up
• safe disposal of the picked up material

1.3 Purpose and intended use

This mobile dust extractor is designed, developed and rigorously tested to function efficiently and safely when properly maintained and used in accordance with the following instructions.

This machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices and rental businesses.

This machine is also suitable for industrial use, such as e.g. plants, construction sites and workshops.

Accidents due to misuse can only be prevented by those using the machine.

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

Any other use is considered as improper use. The manufacturer accepts no liability for any damage resulting from such use. The risk for such use is borne solely by the user. Proper use also includes proper operation, servicing and repairs as specified by the manufacturer.

For Dust Class L machines (with typedesignation L) following applies: The appliance is suitable for

picking up dry, non-flammable dust and liquids, hazardous dusts with OEL1) value > 1mg/m³. Dust Class L (IEC 60335-2-69).

The dusts which belong to this class have OEL1) values > 1mg/m ^3 . For machines intended for the Dust Class L, the filter material is tested. The maximum degree of permeability is 1% and there is no special requirement for disposal.

For dust extractors, ensure adequate air change rate L, when the exhaust air is returned to the room. Observe national regulations before use.

For Dust Class M machines (with type designation M) following applies:

The appliance is suitable for picking up dry, non-flammable dust, non flammable liquids, sawdust and hazardous dusts with OEL1) values > 0.1 mg/m ^3 .

Dust Class M (IEC 60335-2-69). The dusts which belong to this class are: dusts with OEL values ^1)

≥ 0.1 mg/m^3 as well as saw dust. The machine is tested in its entirety by vacuums for this dust class. The maximum degree of permeability is 0.1% and the disposal must be low dust.

The air flow in Safety Vacuum systems has to be strictly controlled to achieve a minimum air velocity of Vmin = 20 m/s in the suction hose.

For dust extractors, ensure adequate air change rate M, when the exhaust air is returned to the room. Observe national regulations before use.

1.4 Battery installation

These machines are using Lithium-ion batteries. Always read user instructions for batteries and chargers. If the machine is to be stored unused for a longer period, the batteries must be removed. When battery packs are not in use, keep them away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.

Exhausted or damaged batteries must be removed from the machine and disposed in a safe manner according to local rules and guidance.

The battery must be removed from the machine before the machine is scrapped.

Only use following Flex battery types: AP 18.0/5.0 or AP 18.0/8.0.

Only use Flex charger type: CA10.8/18.0.

Always charge new batteries before mounting. Always check that both batteries are undamaged and that the connectors are free of dirt and other objects.

2 batteries are always needed. It is recommended to use similar battery types. Check that the batteries are sufficient charged before use. To achieve an optimum runtime, you must ensure that both batteries are fully charged or have approximately the same charge level. Open lid to battery compartment. Before mounting batteries in the machine, check that the battery connectors in the battery compartment are undamaged and that they are free of dirt and other objects. Mount or exchange the 2 batteries. Close the lid to the battery compartment.

1.5 Guarantee

Our general conditions of business are applicable with regard to the guarantee.

Unauthorised modifications to the appliance, the use of incorrect brushes in addition to using the appliance in a way other than for the intended purpose exempt the manufacturer from any liability for the resulting damage.

1.6 Important warnings

WARNING

- To reduce the risk of fire, electric shock, or injury, please read and follow all safety instructions and caution markings before use. This machine is designed to be safe when used for cleaning functions as

specified. Should damage occur to electrical or mechanical parts, the machine and / or accessory should be repaired by a competent service center or the manufacturer before use in order to avoid further damage to the machine or physical injury to the user.

• Outdoor use of the appliance shall be limited to occasional use.
• Do not use with damaged batteries. Turn off machine before unplugging batteries.
• Keep hair, loose clothing, fingers and all parts of the body away from ope nings and moving parts. Do not put any objects into openings or use with opening blocked. Keep openings free of dust, lint, hair, and anything else that could re- du ce the flow of air.
• Do not use in outside areas at low temperature.
• Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be pre sent.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

• Use extra care when cleaning on stairs.

• Do not use unless filters are fitted.

• If the machine is not working properly or has been dropped, da m-a ged, left out doors, or dropped into water, re-turn it to a service center or dealer.
• If foam or liquid escapes from the machine, switch off immediately.
• The machine may not be used as a water pump. The machine is intended for vacuuming air and water mixtures.
• Provide for good ventilation at the working place.
• Do not use the machine as a ladder or step ladder. The machine can tip over and become damaged. Danger of injury.
• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, ex-plosion or risk of injury. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the

machine by a person responsible for the safety. Children should be supervised to ensure that they do not play with the machine. Turn off the machine and remove the batteries when doing maintenance, cleaning, service or repair of the machine. Battery temperature ranges: Charging: 0 - 40°C Use: 0 - 40°C Storage: 0 - 50°C

- Under abusive conditions, liquid may be ejected from the battery; avoid contact. - If contact with any fluids form the battery accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

- Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C/266°F may cause explosion. A short-circuit of the battery terminals can lead to burns, fire, and serious injury.

- Only use following battery type(s): FLEX AP 18.0/5.0 or

FLEX AP 18.0/8.0.

- Different types of batteries or new and used batteries are not to be mixed.

- If a battery is leaking return it to a FLEX Service Center.

- Do not open, modify, or attempt to repair the battery pack.

- Do not cover the charger.

- Do not recharge with other chargers than that one provided with the machine or original replacement or accessories.

- Keep the battery charger cord away from heated surfaces.

- Do not use the charger in explosive environment.

- Do not carry the charger by holding the main cord.

- Before using the battery charger, ensure that frequency and voltage values, indicated on its rating plate, match the electrical mains voltage.

- Protect the charger against moisture and store it in a dry place.

- Do not use the charger if it is wet. Do not use the charger if the cord on the charger is wet.

- Only charge batteries with following charger: Flex CA 10.8/18.0.

- Before every use check for any sign of damage.

Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.

- Do not charge the battery if the battery charger cord or the plug are damaged or wet.

2 Risks

2.1 Electrical components

DANGER

The upper section of the machine contains live components.

Contact with live components leads to serious or even fatal injuries.

Never spray water on to the upper section of the machine.

2.2 Hazardous dust

WARNING

Hazardous materials.

Vacuuming up hazardous materials can lead to serious or even fatal injuries. The following materials must not be picked up by the machine:

• hot materials (burning cigarettes, hot ash, etc.)
- flammable, explosive, aggressive liquids (e.g. petrol, solvents, acids,

alkalis, etc.)

- flammable, explosive dust (e.g. magnesium or aluminium dust, etc.)

CAUTION

Materials picked up can present a hazard to the environment.

- Dispose the dirt in accordance with legal regulations.

2.3 Spare parts and accessories

CAUTION

Spare parts and accessories.

The use of non-genuine spare parts, brushes and accessories can impair the safety and or function of the appliance.

Only use original spare parts and accessories from FLEX. Spare parts that can affect health and safety of the operator and or function of the appliance, are specified below:

Description Order No.
Filter element FE VC/E 21-26 - PET LM 38508	5
Fleece filter bag FS-F VC/E 21-26 L (VE 5) 50	2235
Disposal bag ES PP VC/E 21-26 L (VE 5) 385	107
Suction hose ∅ 27 445045
Suction hose ∅ 32 406708

2.4 In explosive or inflammable atmosphere

CAUTION

This machine is not suitable for use in explosive or inflammable atmospheres or where such atmospheres are likely to be produced by the presence of volatile liquid or inflammable gas or vapour.

3 Control / Operation

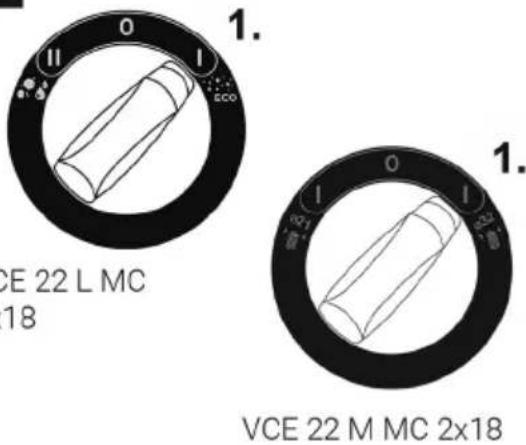

3.1 Starting and operating of the machine

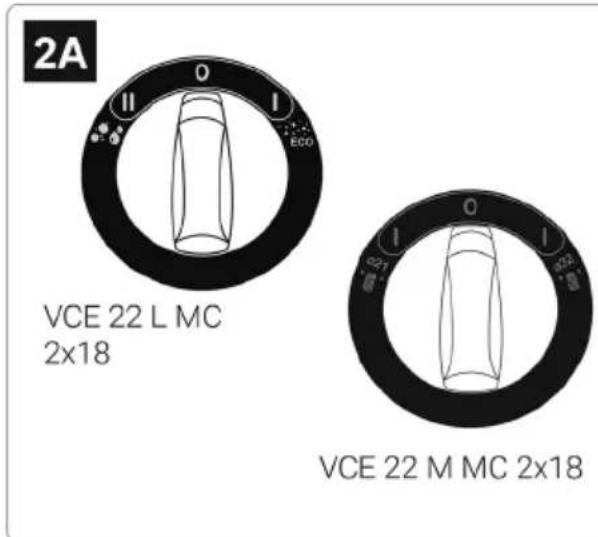

Check that the electrical switch is switched off (in position 0). Check that suitable filter are installed in the machine. Then connect the suction hose into the suction inlet at the machine by pushing the hose connection forward until it fits firmly in place in the inlet. Then connect the tubes with the hose handle, twist the tubes in order to ensure that they are properly fitted. Attach suitable nozzle to the tube. Choose nozzle depending on what type of material that is to be picked-up. If used for dust extraction in connection with dust producing tool then connect end of suction hose with appropriate adapter. Ensure that 2 batteries are mounted. For optimal runtime check that both batteries are fully charged or are having approx. same charging level.

VCE 22 L MC 2x18:

Turn clockwise to I to start the machine at reduced power.

Turn 0: Stop the machine.

Turn counterclockwise to II to start the machine at full power.

Turn 0: Stop the machine.

VCE 22 M MC 2x18:

Hose ∅32,

Turn clockwise to I to start the machine.

Turn 0: Stop the machine.

Hose ∅21,

Turn counterclockwise to start the machine.

Turn 0: Stop the machine.

The setting for suction hose diameter must be the same or larger than the suction hose diameter.

21 21
32 32

3.2 Manual Clean

The machine is equipped with a semi automatic filter cleaning system, Manual Clean. The filter cleaning system must be actuated latest when the suction performance is no longer sufficient. Regular use of the filter cleaning feature maintains suction performance and increases the lifetime of the filter. For instruction see quick reference guide.

3.3 Air velocity warning system

CAUTION

The machine VCE 22 M MC 2x18 is equipped with a system to monitor air velocity, and warn if air velocity is below critical limit.

Before picking up dust with occupational exposure limit values, check the air velocity monitor.

Check that the filter is present and properly fitted. Turn on the machine and hold the suction hose shut to reduce the air velocity.

Acoustic warning sound must occur after some seconds.

Set the diameter setting to the actual hose size. When the acoustic sound starts, air velocity is below 20 m/s.

• Check if container or filter bag is full.
• Check if air flow is reduced in suction hose, tube/nozzle.
• Check filter.

3.4 Wet pick-up

CAUTION

The machine is equipped with a float system that shuts off the airflow through the machine when the maximum liquid level is reached.

You will hear a noticeable change of the sound from the motor and notice that the suction power decreases. When this occurs, switch the machine off. Never pick up liquid without the float body in place.

• If foam appears, stop work immediately and emty the tank.
• Clean the water level limiting device regularly and examine it for signs of damage.

Before emptying the container, loosen the two lokking tabs and remove the suction head and close the suction connection with the plug.

Empty the container by tilting it backwards or to the side. Pour the liquid into a floor drain or similar.

Place the suction head back on the container and close the locking tabs.

It is recommended to use a class M PET filter or a filter screen for wet vacuuming.

3.5 Dry pick-up

CAUTION

Picking up environmentally hazardous materials.

Materials picked up can present a hazard to the environment.

- Dispose of the dirt in accordance with legal regulations.

CAUTION\*)

Dust Class L/M machines are equipped with an upstream Dust Class L/M filter fitted on bottom side of motor top.

3.6 Emptying after dry pick-up

Check the filters and dust bag regularly. Release the lock by pulling it outwards so that the suction head is released.

Remove the suction head from the container.

Cleaning of filters: PET M-Class: Use Manual Clean, manually shake, brush or wash the filter.

Dustbag: check bag to ensure the fill factor. Replace dust bag if necessary. Remove the old bag. The new bag is fitted by passing the PP collar with the rubber membrane through the vacuum inlet. Make sure that the rubber membrane is passing past the heightening at the vacuum inlet.

After emptying: Place the suction head back on the container and secure it with the latches. Never pick up dry material without cartridge filter and additionally a dustbag fitted in the machine. The suction efficiency of the vacuum cleaner depends on the size and quality of the filter and dust bag. Therefore - use only Original filter and dust bags.

4 After using the machine

4.1 After use

After collecting hazardous dust, close the inlet with the sealing cap and clean the outer surfaces of the appliance. Remove the batteries when the appliance is not in use.

4.2 Transport

• Before transporting the machine, remove batteries from machine, close all the latches.
• Close the inlet with the sealing cap.
• Do not tilt the machine if there are liquids in the dirt tank.
• Do not use a crane hook to lift the machine.

4.3 Storage

CAUTION

Store the appliance in a dry place, protected from rain and frost. The machine shall be stored indoors only. Wet filters and the interior part of the liquid container shall be dried before storage.

Before storage always remove the batteries.

4.4 Recycling the machine

Make the old machine unusable.

1. Remove the batteries.
2. Do not discard of electrical appliances with household waste.

Equipment marked with the crossed-out wheeled bin symbol indicates that used electrical and electronic equipment should not be discarded together with unseparated household waste. To avoid negative effects on human health and the environment the equipment must be collected separately at the designated collection points.

Users of electrical and electronic household equipment must use the municipal collection schemes. Please note that commercially used electrical and electronic equipment, shall not be disposed of via municipal collection schemes. We will be pleased to inform you about suitable disposal options.

5 Maintenance

5.1 Regular servicing and inspection

Regular servicing and inspection of your machine must be carried out by suitably qualified personnel in accordance with relevant legislation and regulations. In the event of any defect, the machine MUST be with-drawn from service, completely checked and repaired by an authorized service technician.

At least once a year, a FLEX technician or an instructed person must perform a technical inspection including filters, air tightness and control mechanisms.

5.2 Maintenance

Remove the batteries from the socket before performing maintenance.

The machine is designed for continuous heavy work. Depending on the number of running hours – the dust filter should be renewed. Keep the machine clean with a dry cloth, and a small amount of spray polish.

During maintenance and cleaning, handle the machine in such a manner that there is no danger for maintenance staff or other persons.

In the maintenance area

• Use filtered compulsory ventilation
• Wear protective clothing
• Clean the maintenance area so that no harmful substances get into the surroundings.

CAUTION

Before removing the machine from the area contaminated with harmful substances:

Clean the outside of the machine, wipe it clean or pack the machine in well sealed packaging and avoid spreading deposited harmful dust.

During maintenance and repair work all contaminated parts that could not be cleaned satisfactorily must be:

• Packed in well sealed bags
• Disposed of in a manner that complies with valid regulations for such waste removal.

For details of after sales service contact your dealer or FLEX service representative responsible for your country. See reverse of this document.

6 Further information

6.1 EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: Wet and dry vacuum cleaner

Type: VCE 22 L MC 2x18/VCE 22 M MC 2x18

Relevant EU Directives:

2006/42/EC, 2014/30/EU, 2011/65/EU

Applied harmonized standards:

EN 60335-1:A15:2021

EN 60335-2-69:2012

EN 62233:2008

EN 55014-1:2017, 2021

EN 55014-2:2015, 2021

Authorised Documentation Representative:

6.2 UKCA Declaration of Conformity

We as the manufacturer: FLEX Elektrowerkzeuge GmbH,

Business address: Bahnhofstr. 15,

71711 Steinheim, Germany

declare under our sole responsibility, that the product(s) described under „Technical specifications“ fulfills all the relevant provisions of The Supply of Machinery (Safety) Regulations S.I. 2008/1597

and also fulfills all the relevant provisions of the following UK Regulations: Electromagnetic Compatibility Regulations S.I. 2016/1091, The Restriction

of the Use of Certain Hazardous Substances in

Electrical and Electronic Equipment Regulations S.I.

2012/3032 and are manufactured in accordance with the following designated Standards:

BS EN 60335-1+A15:2021,

BS EN 60335-2-69:2012,

BS EN 62233:2008.

BS EN 55014-1: 2021

BS EN 55014-2: 2021

Place of declaration: Steinheim, Germany.

Responsible person: Peter Lameli, Technical Director - FLEX-Elektrowerkzeuge GmbH

Contact details for Great Britain: FLEX Power Tools Limited, Unit 8 Anglo Office Park,

Lincoln Road, HP 12, 3RH Buckinghamshire, United Kingdom.

Peter Lameli

Technical Head

18.04.2024

6.3 Specifications

		VCE 22 L MC2x18	VCE 22 M MC2x18
Battery voltage V 36V (2 x18V)
Power P_IEC	W 500
Protection grade (moist, dust) IPX4
Protection class (electrical) III
Max. Airflow* l/min 3660
Max. Vacuum Pa 14650 14400
Sound pressure level L_PA (IEC 60335-2-69)	dB(A) 67
Working sound level dB(A) 68
Vibration ISO 5349 a_h	m/s ^2	≤ 2.5
Weight with 2x AP18/5 kg	8.5	8.6
Weight with 2x AP18/8 kg	9.3	9.4
Weight without battery	kg	7.1	7.2
Run time with AP18/5	min	17.5
Run time with AP18/8	min	32
Max allowed working temperature	°C	40
Container volume	l	20
Dust class		L M

* Measured at turbine

Peter Lameli
Technical Head

18.04.2024

Peter Lameli Technical Head

Peter Lameli
Technical Head

18.04.2024

Peter Lameli Technical Head

18.04.2024

Peter Lameli Technical Head

Peter Lameli Technical Head

18.04.2024

Directive EG respectate:

2006/42/EC, 2014/30/EU, 2011/65/EU

Norme armonizate utilize:

EN 60335-1:A15:2021

EN 60335-2-69:2012

EN 62233:2008

EN 55014-1:2021

EN 55014-2:2021

Peter Lameli
Technical Head

18.04.2024

Peter Lameli Technical Head

Peter Lameli Technical Head
