USER MANUAL Go Beyond Lite BESAFE

Line drawing of a baby stroller with a seatbelt, no text or symbols present

USER MANUAL

Rear facing

Stature height: 40 - 87 cm

Max. weight: 13 kg

Age approx.: 0 - 18 months

UN regulation no. R129 i-Size

Navigation page

3

25

47

69

91

113

135

157

179

201

223

245

267

289

311

333

355

378

400

422

444

466

488

510

532

554

576

598

618

640

662

683

705

Thank you for choosing BeSafe Go Beyond

We're so excited to accompany you and your little one on your travels and keep them safe!

In this manual we'll explain to you all there is to know about your seat.

It is important that you read this user manual BEFORE installing your seat. Incorrect installation could endanger your child.

Vital information

Installation & usage

• The child seat MUST NOT be installed in a front seat WITH AN ACTIVATED FRONTAL AIRBAG.
• When using in Spain: Article 117 of the General Regulation of Traffic in Spain prohibits driving with children of stature

height equal to or less than 135 centimeters located in the front seats of the vehicle, unless the vehicle does not have rear seats, all rear seats are already occupied by children below 135 cm or if it is not possible the install the child seat in the rear seat.

• This seat can be installed on the BeSafe Beyond Base or with a 3-point car belt, approved according to UN/ECE Regulation No.16 or other equivalent standards.
• Note: the installation of this seat in an aircraft differs from the installation on a vehicle seat. Only in an aircraft is the installation with a 2-point lap belt allowed.
• This seat is approved rear facing for children with a stature height from 40 to 87 cm and a maximum weight up to 13 kg.
• When driving with a child sitting in the seat, the seat must always be locked in the driving position. Never drive with the seat rotated to the side when a child is sitting in the seat.
• The harness straps must always be locked when the child is in the seat.
• The harness straps must be tightened without slack and not twisted.

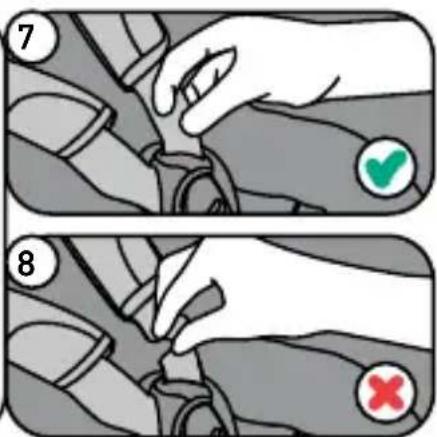

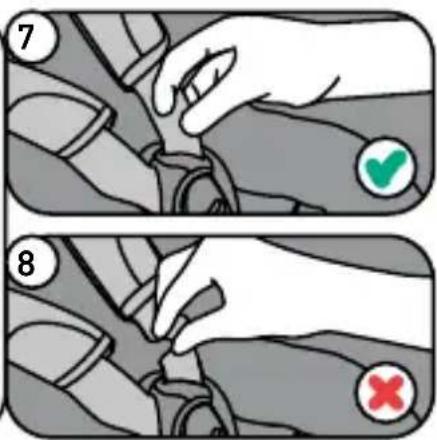

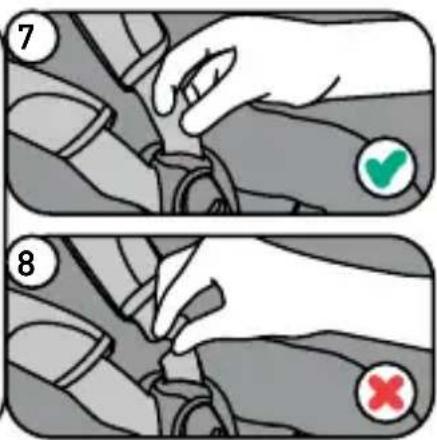

• Make sure to tighten the harness extremely well, so that you can no longer make a horizontal fold in the belts. When you tighten the harness, make sure that the child is positioned well against the backrest.
• The shoulder pads contain magnets. Magnets can influence electronic equipment such as pacemakers or other medical devices.
• Protect any part of the child's body which is exposed to the sun.
  • Always dress your child in a thin layer of clothes to avoid direct contact

Prohibition sign showing a red circle with a diagonal line and a pictogram of a person sitting on the seat.

between harness belts and skin. Avoid puffy clothes since this prevents being able to tighten the belts fully.

• Remove the baby cushion when the child is taller than 60 cm or older than 6 months.
• You must stop using this seat and change to the next suitable seat when ONE of these conditions is met: 1) The child is taller than 87 cm; 2) or the child incl. clothes weighs more than 13 kg, 3) The shoulder belts sit more than 2 cm higher than the openings slots of the headrest in its highest position.
• Never leave your child unattended in the seat.
• Make sure all passengers are informed about how to release your child in case of emergency.

Handling & maintenance

- Replace the product if it has been in a collision where the speed was 10 km/h and above or if there is a suspicion that the seat has been damaged for whatever reason. Although it may look undamaged, if you were to have another accident, the seat may not be able to protect your child to the level to which it was designed.

- Prevent the product from becoming trapped or weighed down by luggage, seats and/or slamming doors.

- Make sure luggage or other objects are properly secured. Unsecured luggage may cause severe injuries to children and adults in case of accidents.

- DO NOT attempt to dismantle, modify or add any part to the product. Warranty will be void if non-original parts or accessories are used.

- Never use the seat without the cover. The cover is a safety feature and may only be replaced by an original BeSafe cover.

- Do not use any aggressive cleaning products; these may harm the construction material of the product.

- When washing the seat cover, make sure to follow the wash label on the inside of the cover.

- BeSafe advises that child seats should not be bought or sold second-hand.

- DO NOT use the product for longer than 15 years. Due to ageing, the quality of the material may change.

- When the product is mounted in the car, check all the areas where the child seat might touch the interior. We recommend using a (BeSafe) protection cover in these places to avoid cuts, marks or discolouration to

the interior of the vehicle, especially in vehicles with leather or wooden interiors.

- If in doubt, consult either the car seat manufacturer or the retailer.

!Warnings (EN 12790-2023) using the seat as a reclined cradle

! IMPORTANT! KEEP FOR FUTURE REFERENCE.

• Never leave the child unattended.
• Stop using the product when the child starts trying to sit up.
• Never use this product on an elevated surface (e.g. a table).
  • Always use the restraint system.
• Never let the child sleep in this product. This product does not replace a cot or a crib. Should the child fall asleep, then it should be placed in a suitable cot or crib.
• Do not use the product if any components are broken or missing.
• Do not use accessories or replacement parts other than those approved by the manufacturer.
• If in doubt, consult either the car seat manufacturer or the retailer.

Components

a Carry handle button
b Carry handle
c Headrest handle
d Headrest
e Shoulder pads (2x)
f Shoulder belts (2x)
g Hip belts (2x)
h Harness buckle
i Crotch strap pad
j Crotch strap
k Central adjuster button
l Lay flat strap
m Central adjuster strap
n Inner part
o Outer part
p Lap belt guiders (2x)

q Shoulder belt guider
r Sun canopy
s SIP+ attachment point
t SIP+
u Stroller adapter housing
v Rotation handle
w Baby cushion

a b c d e f g h i j k l m n o p

q r s t u v w

Attaching the SIP+

1. The seat is delivered with removable SIP+ (side impact protection+). This extra side impact protection should be used on the door side of the vehicle. It can be connected by placing it onto the SIP+ attachment point and then rotating it clockwise until you feel it click into place. The seat already offers high level integrated side impact protection. This extra side impact protection improves the protection in the side impact even further. (1, 2, 3, 4)
2. Do not use the SIP+ on the seat when the space between seat and door of the vehicle is too small, which might lead to a situation where the seat is not positioned correctly on the vehicle seat.
3. In case the SIP+ sits at the height of the door window and your car is equipped with side curtain airbags, then do not use the SIP+ if there is less than 10 cm distance between the SIP+ and the window.

1234 1234

Installing the seat with the vehicle belt

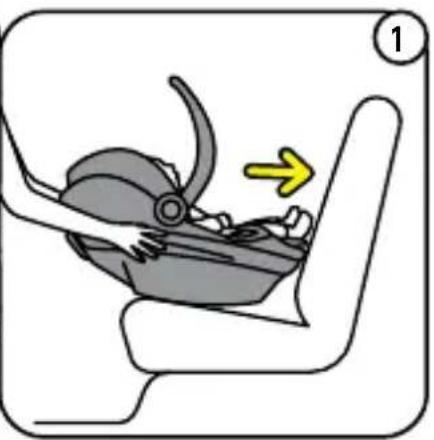

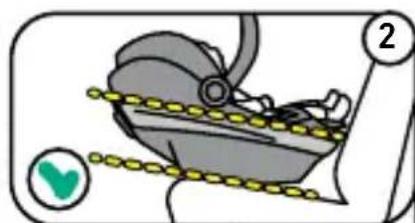

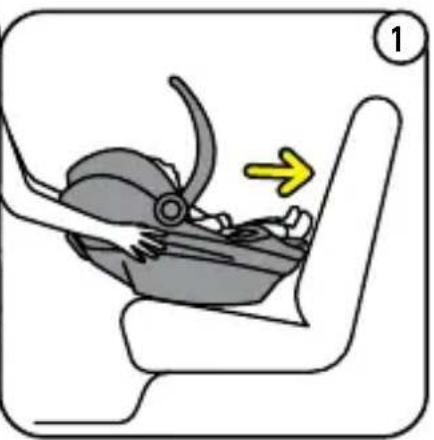

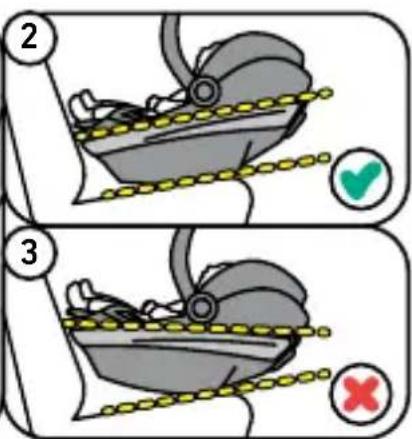

1. Position the seat on the vehicle seat. Make sure the inner part is in the upright position (NOT lay flat position) and the carry handle is up in the carrying position. (1, 2, 3)

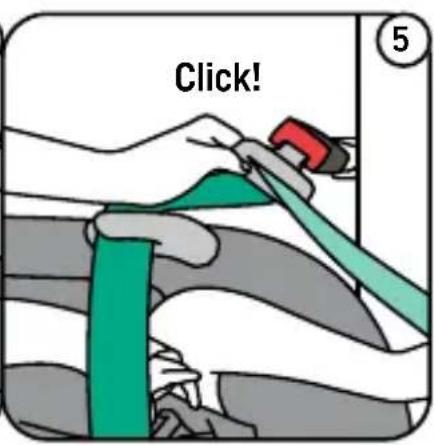

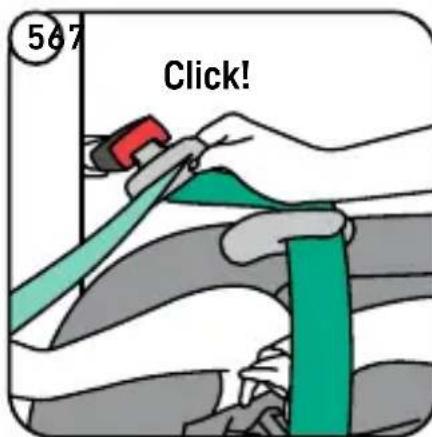

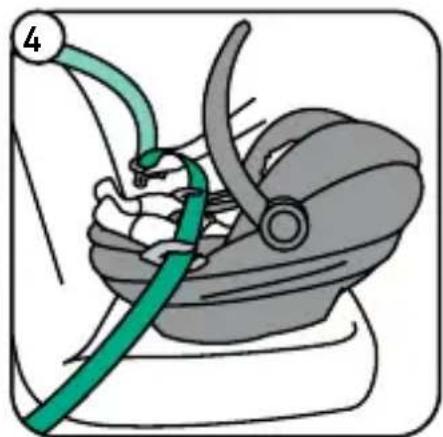

2. Take the hip belt part of the vehicle's 3-point belt and guide it under the 2 hip belt guiders. Then fasten the seat belt buckle with a "click". (4, 5, 6)

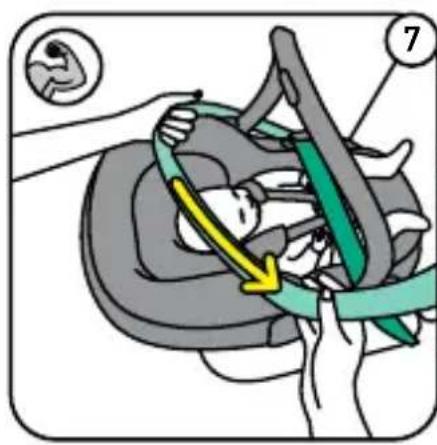

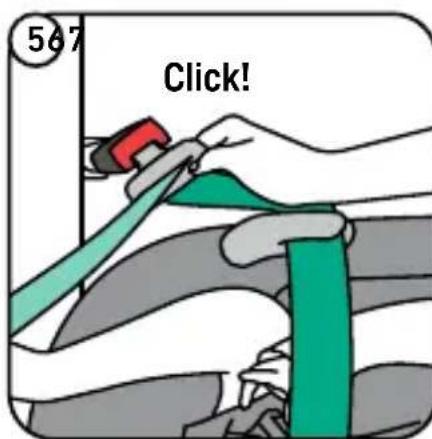

3. Tighten the hip belt part by pulling on the shoulder belt part. (7)

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating two steps of a mechanical or electrical component disassembly, labeled 2 and 3 with directional arrows and checkmarks.

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram showing a green curved structure with dashed lines and a checkmark icon, no readable text or symbols present.

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and anatomical structures.

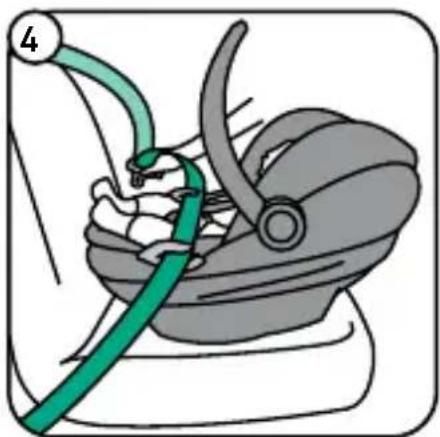

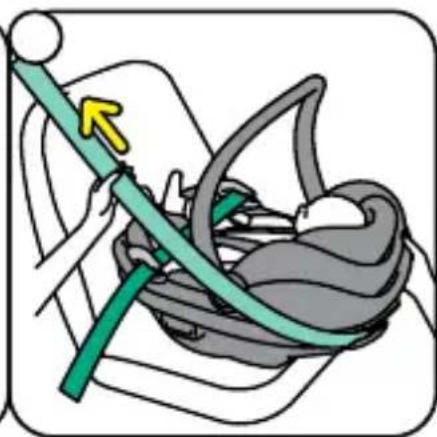

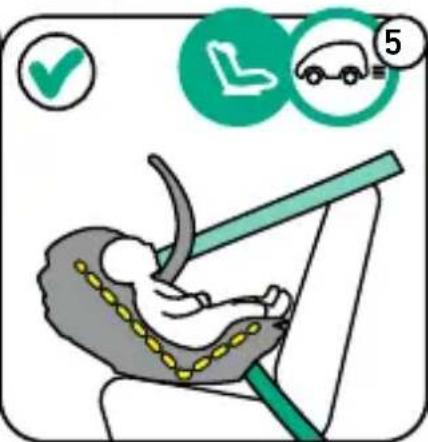

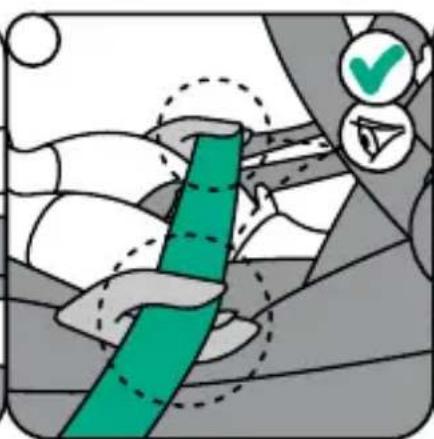

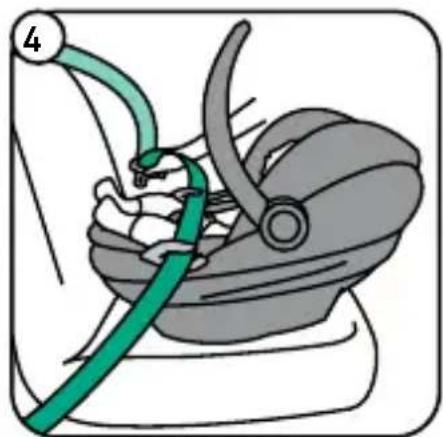

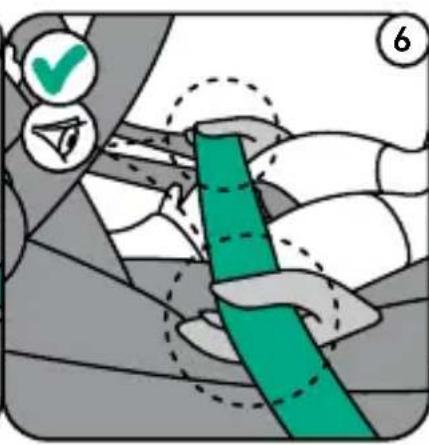

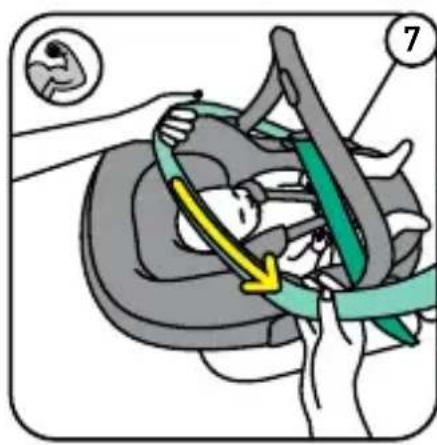

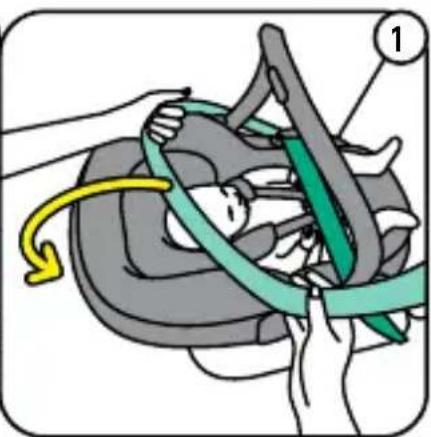

1. Take the shoulder belt part of the 3-point belt and guide it around the back of the seat and into the shoulder belt guider. Make sure it sits fully inside the shoulder belt guider. (1, 2)

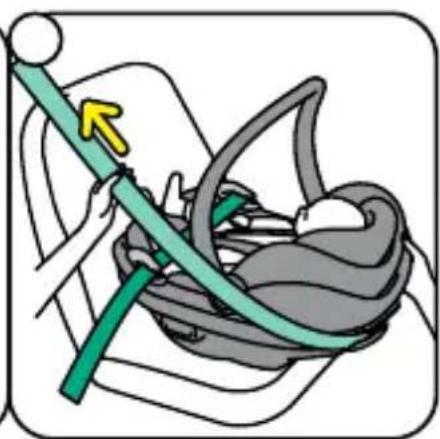

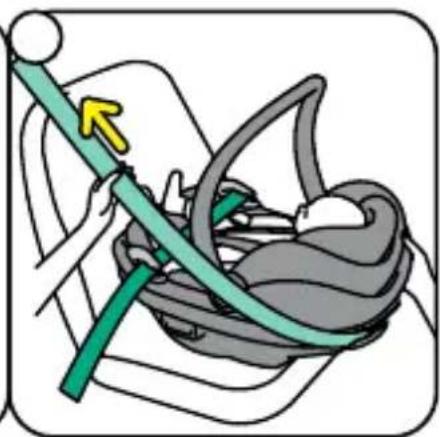

2. Tighten the shoulder belt part by pulling on it. With your other hand, keep the child seat in place. (3)

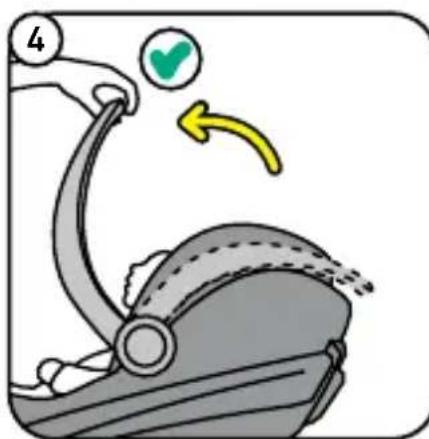

3. Leave the carry handle up in upright position and the inner part of the seat in upright position (NOT lay flat position). (4, 5, 6)

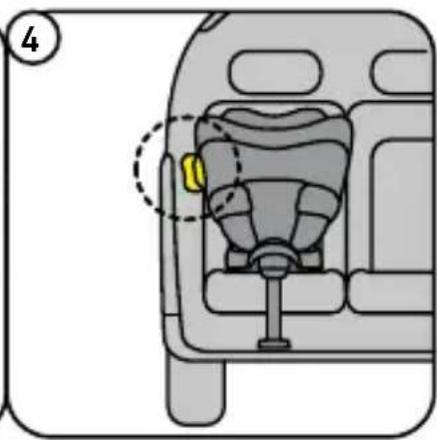

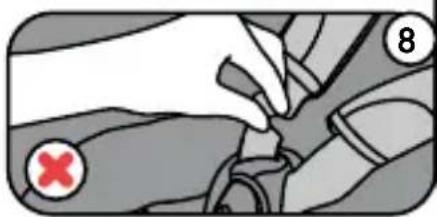

4. If you have installed the child seat on the back seat: Move the front vehicle seat backwards, so that it is in light contact with the child seat. If this is not possible, then move the front seat forward to create as much distance as possible between the child seat and front seat, preferably at least 25 cm.

123

Illustration of a car seatbelt with a green band and checkmark symbols (no text or labels)

Illustration of a person using a green cable to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 No z ×

Installing the seat onto the Beyond Base

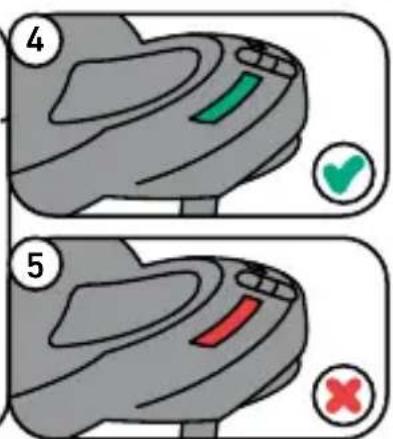

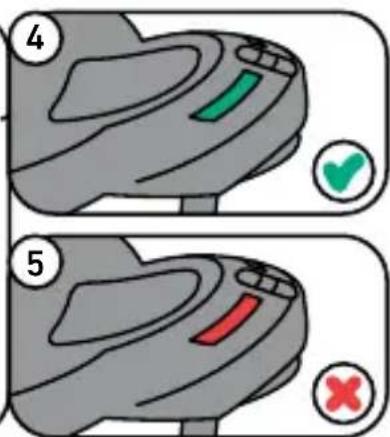

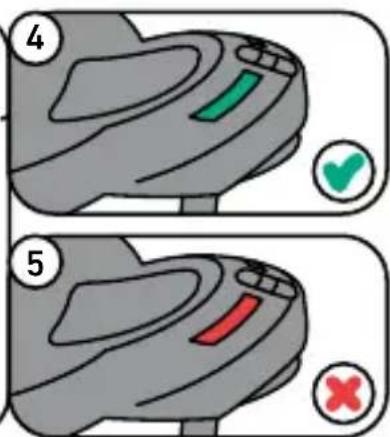

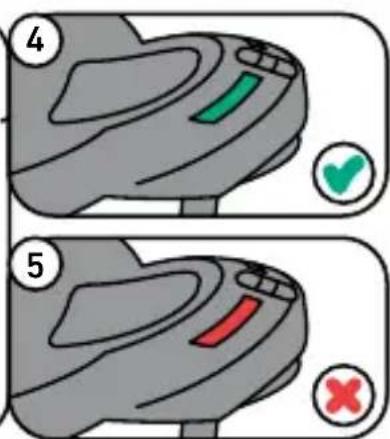

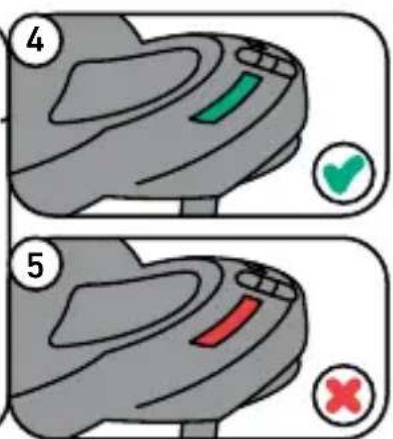

1. Check if the ISOfix and floor support indicators on the base are green.

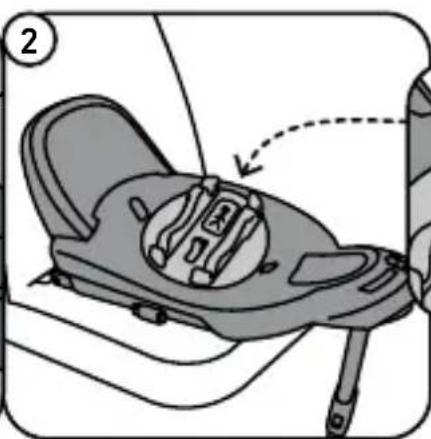

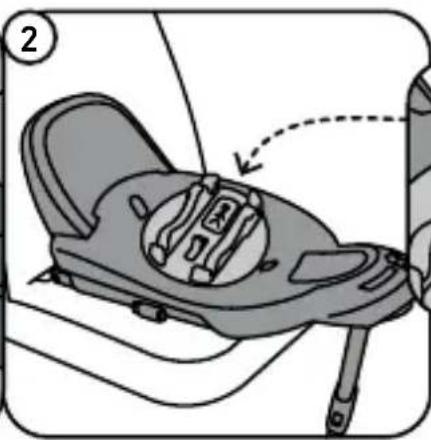

2. Make sure that the base's front brace is in the most upright (compact) position.
3. You find the detailed explanation on how to install the base into the car in the base's user manual.
4. If you want to install the seat rotated towards you onto the base, you can turn the rotation disc, so that the child on the sticker is facing towards you. (1, 2)

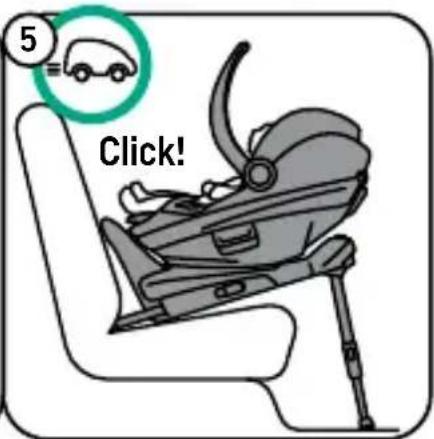

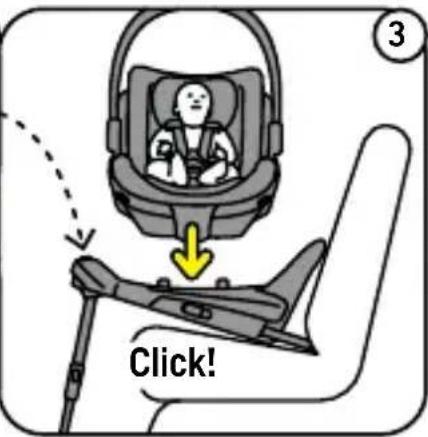

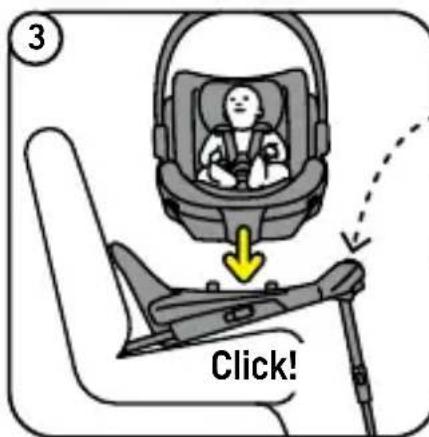

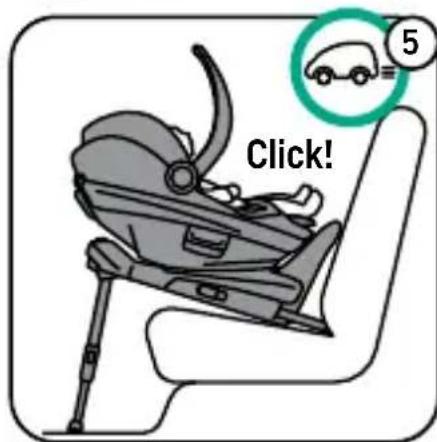

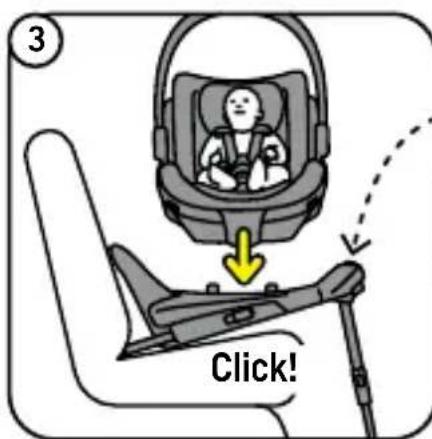

5. Position the seat in the correct position on the base until it clicks with the base and the seat connection indicator at the front shows green. (3, 4, 5)

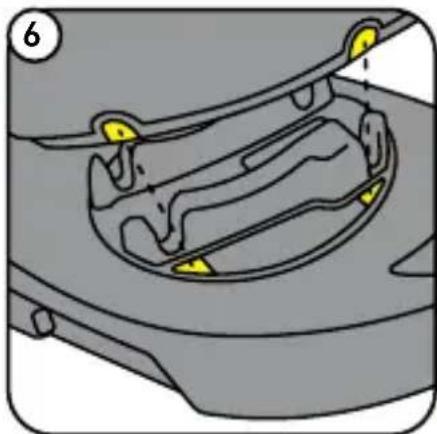

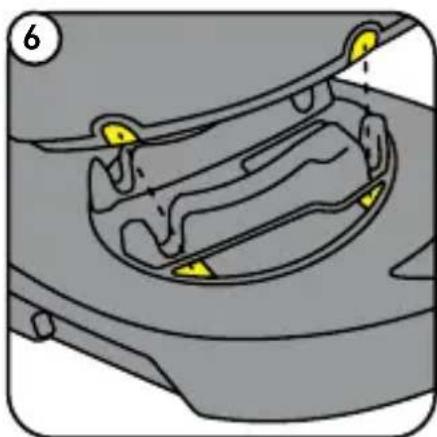

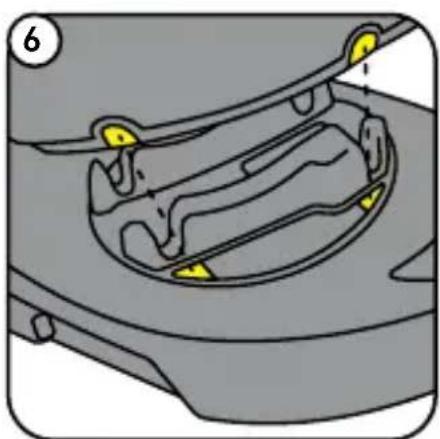

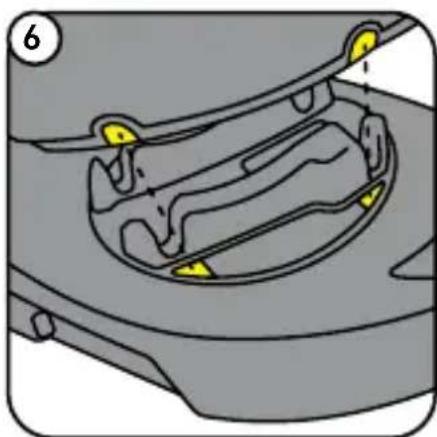

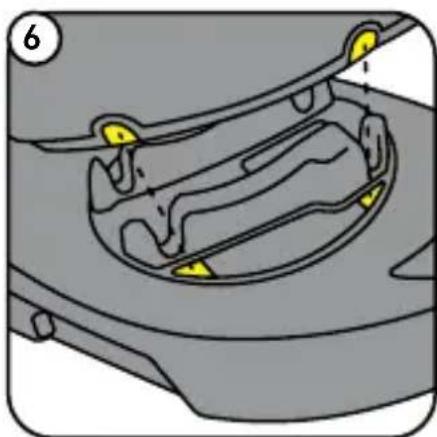

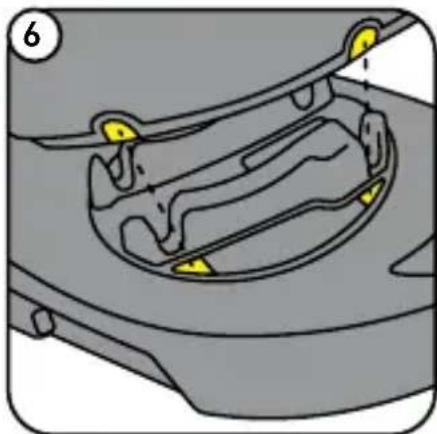

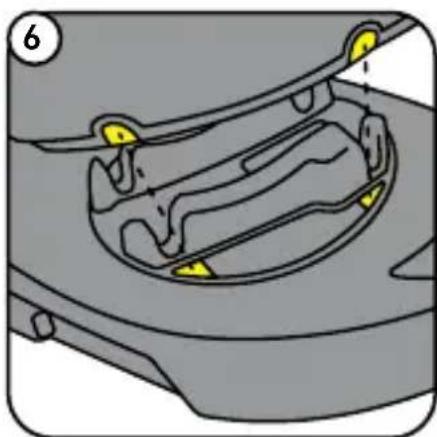

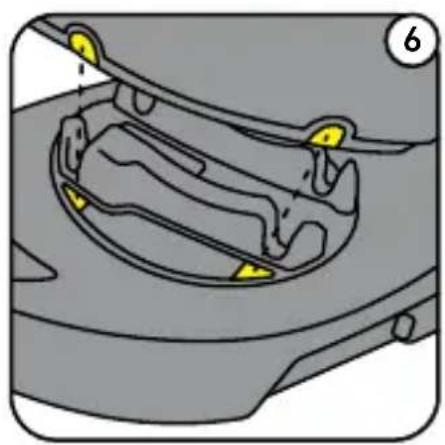

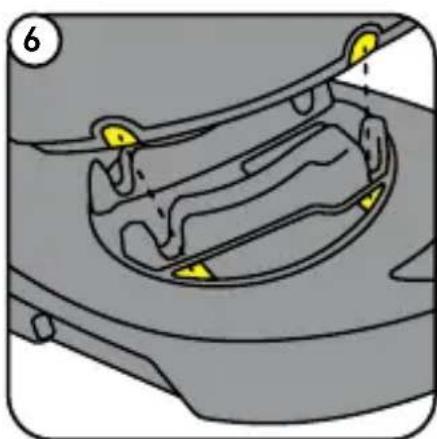

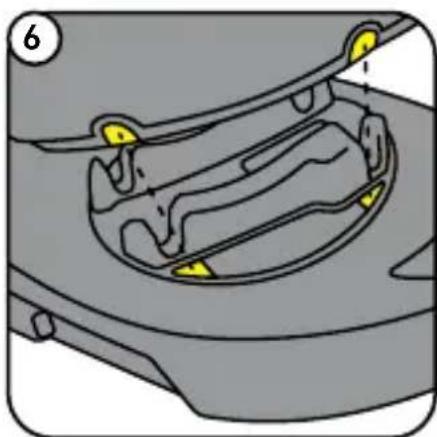

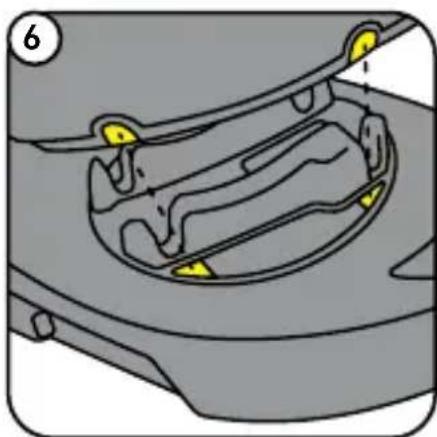

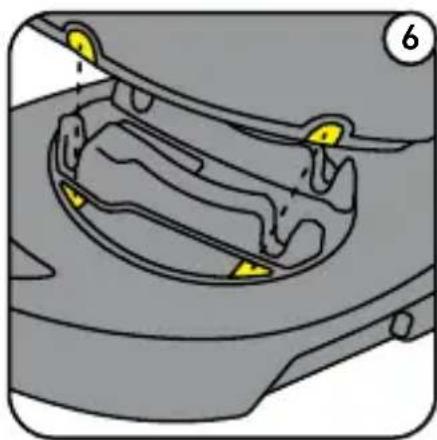

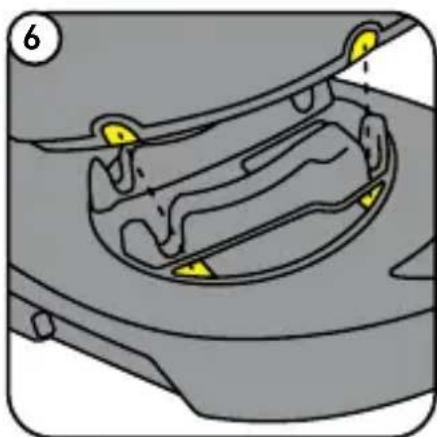

6. To help you find the position, you can use the yellow markings on the bottom of the seat and on the base disc. Align the yellow markings with each other. (6)

Diagram showing a hand pressing down a mechanical component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with a hand pointing to the seat area, showing no text or symbols.

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two steps of a shoe with color-coded zones and checkmark indicators

Mechanical component diagram showing internal structure with yellow markers, no visible text or symbols

1. When having the child seat installed rear facing in the back, it is recommended to position the front vehicle seat in a way that it is close to touching the child seat. Make sure that the child seat can still rotate freely.

2. Leave the carry handle up in the carrying position. (1, 2)

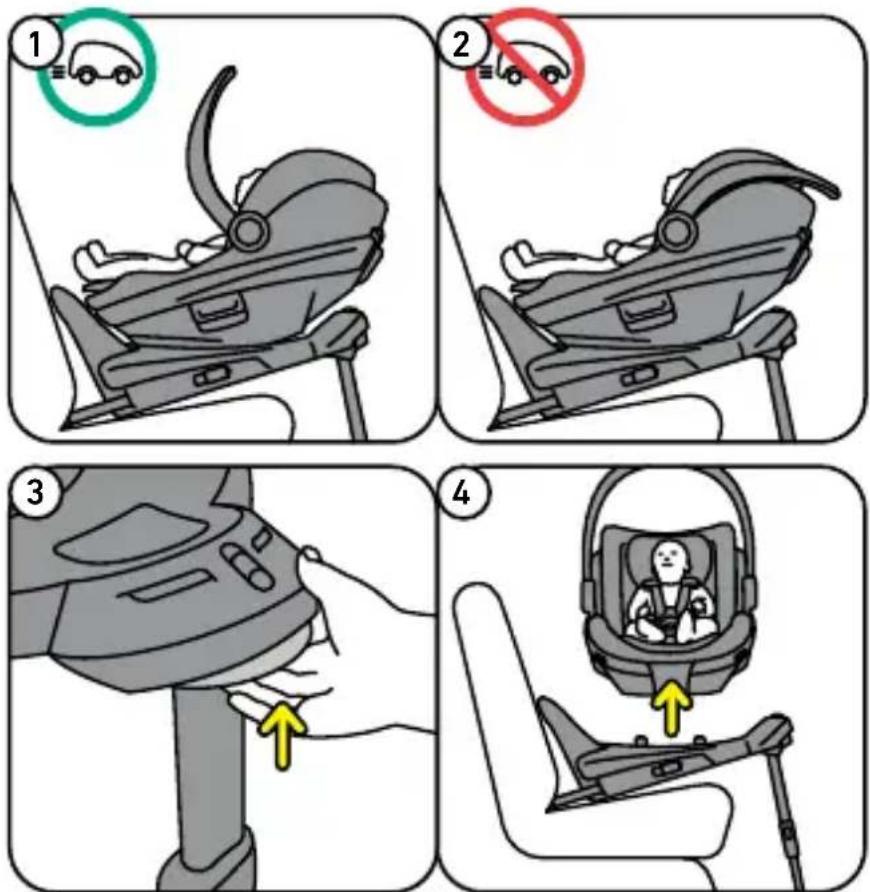

Removing the seat from the base

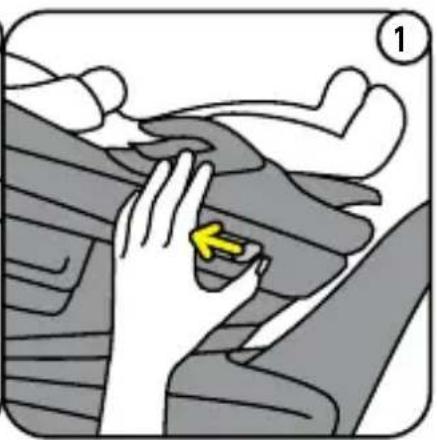

- The seat can be taken off by pulling the seat release handle at the front of the base. (3, 4)

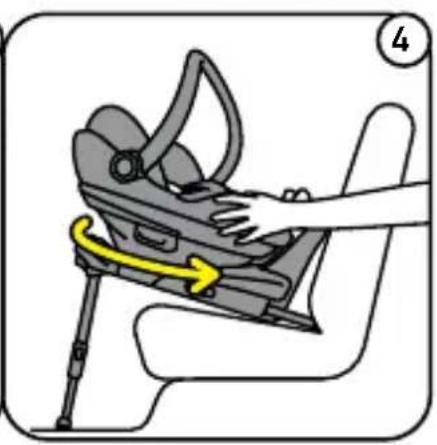

Rotating the seat

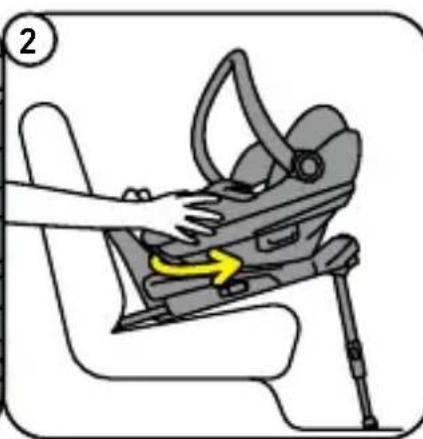

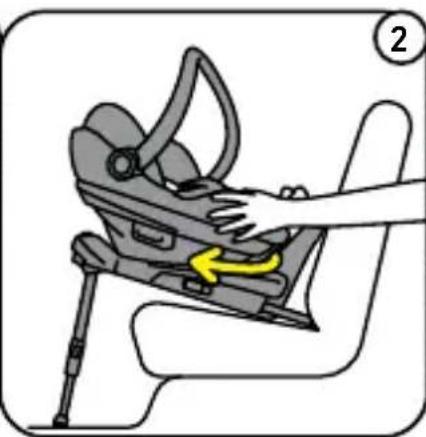

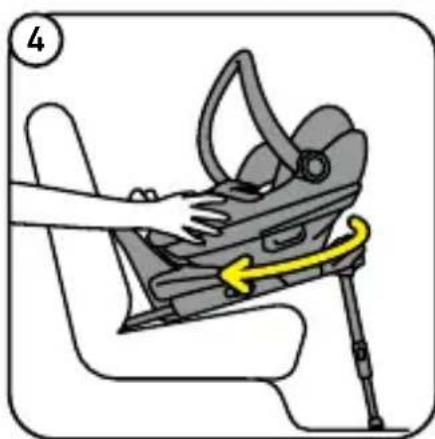

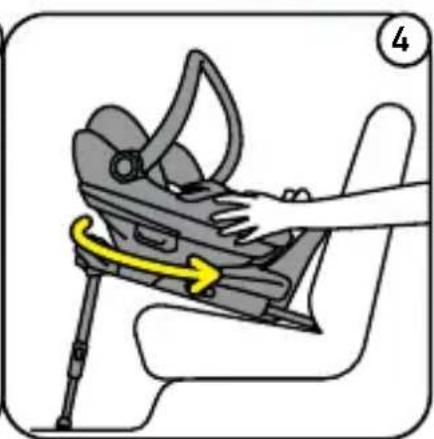

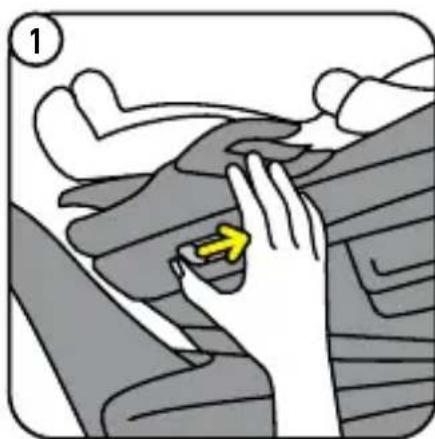

1. To make getting your child in and out of the seat easier, you can rotate the seat towards the door.

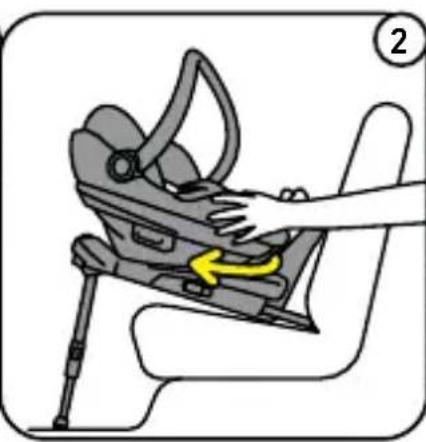

2. To rotate the seat, pull the rotation handle on the side of the seat. You can use the handle on either side of the seat, but you only need to use one. (1, 2, 3)

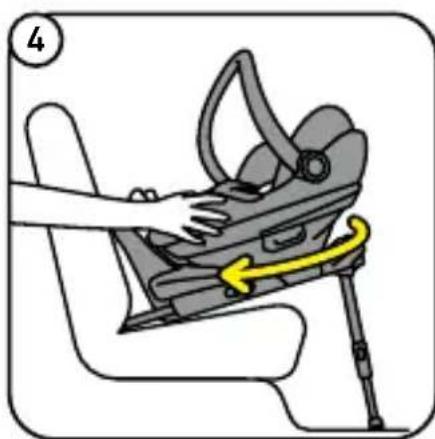

3. To bring the seat back into driving position, rotate it into rear facing position until you hear a click and the seat is locked. (4, 5)
4. The seat can maximum rotate approx. 110^ away from the rear facing position, then it is blocked.

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the action (no text or symbols present)

Illustration of a car seatbelt with a hand adjusting the seat area and a yellow arrow indicating rotation (no text or symbols)

③ ≡

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

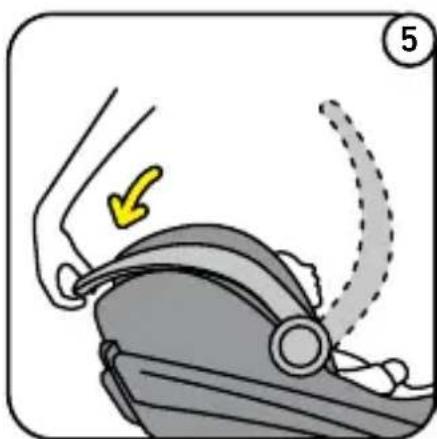

Using the carry handle

1. To take your baby more easily in and out of the seat, you can fold away the carry handle to the back.
2. Before driving, the carry handle must always be put back into the upright carrying position. Never drive with the carry handle folded to the back. (1, 2)

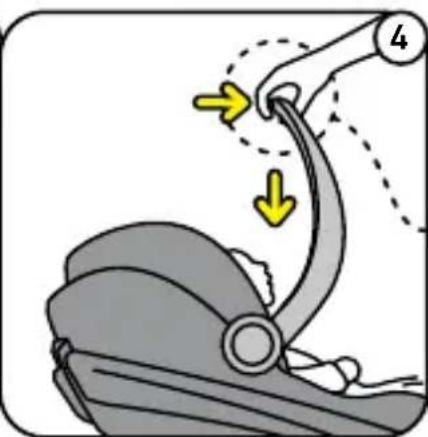

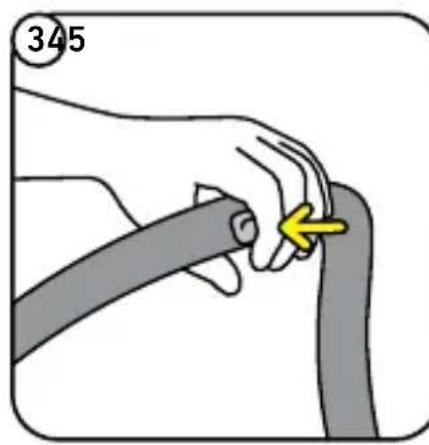

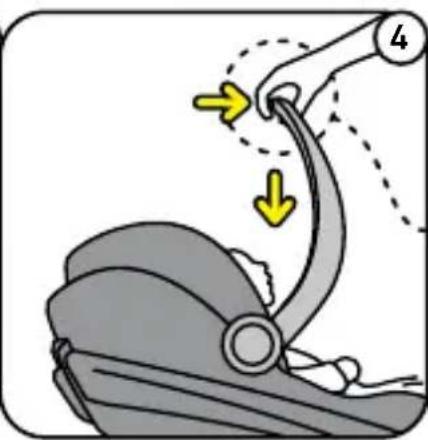

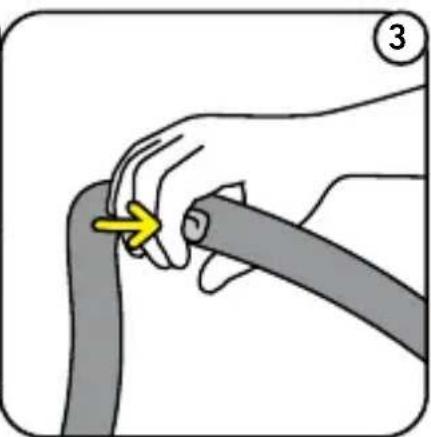

3. In order to fold the carry handle to the back, press the button on the backside of the carry handle and at the same time push the handle vertically downwards into the seat. This unlocks the mechanism and you can then move the handle away to the back. (3, 4, 5)

① ②

② #

345

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Placing the child into the seat

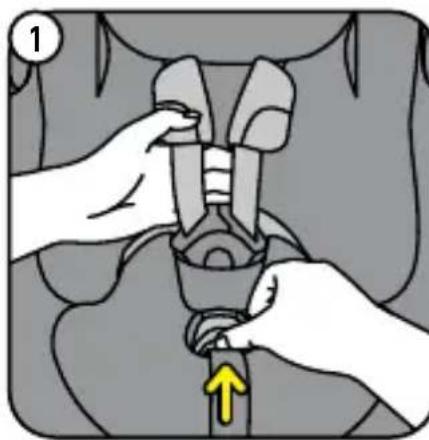

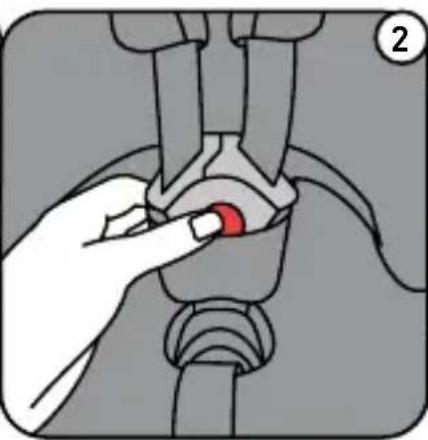

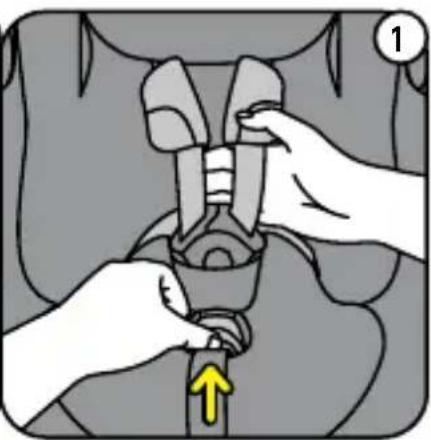

1. While pressing the button of the central adjuster, pull the shoulder belts away from the seat with a flat hand. Make sure to pull the belts evenly so that they stay at the same length. Do not pull on the shoulder pads, as they are fixed and cannot move. (1)

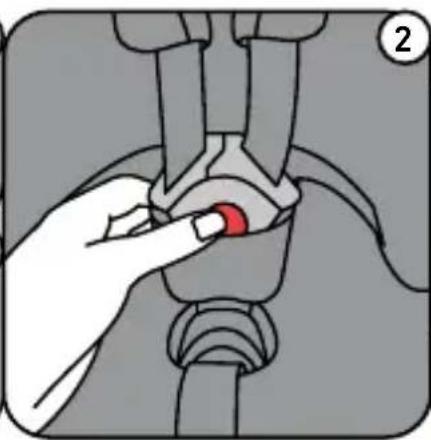

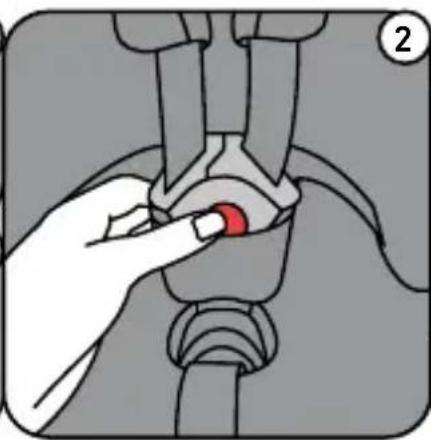

2. Open the harness buckle. (2)

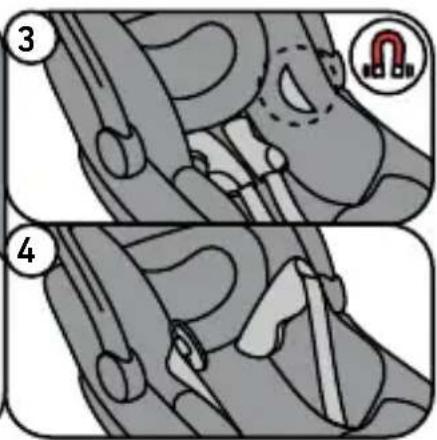

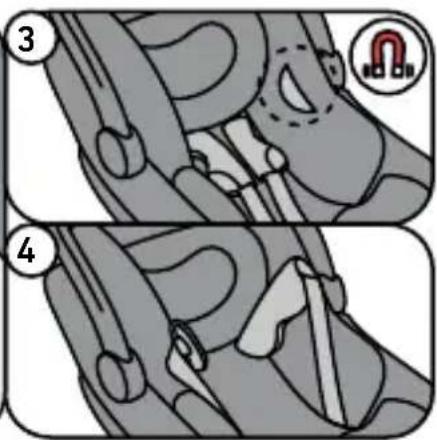

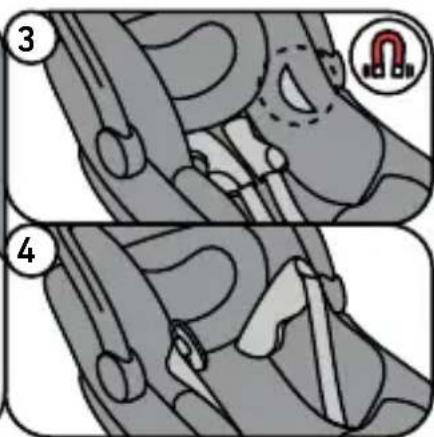

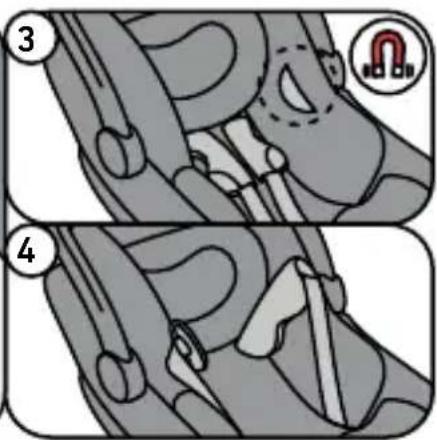

3. To keep the shoulder straps out of the way, place the shoulder pads onto the magnets on each side of the seat shell. (3, 4)

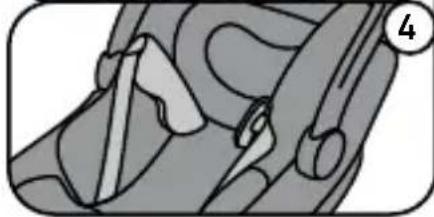

4. Place your child into the seat and adjust the position of the shoulder belts and headrest if needed - see section "Adjusting to the growing child".

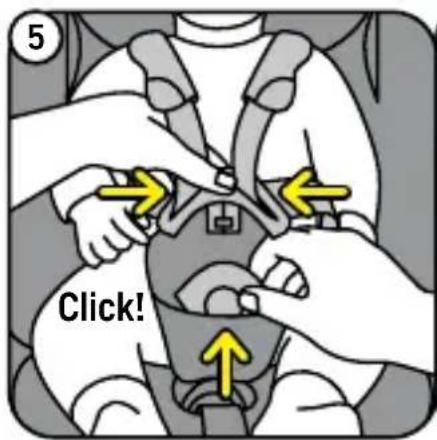

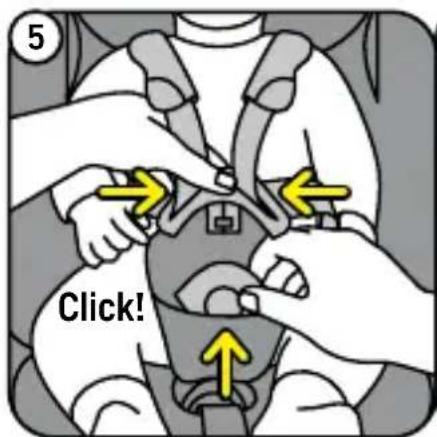

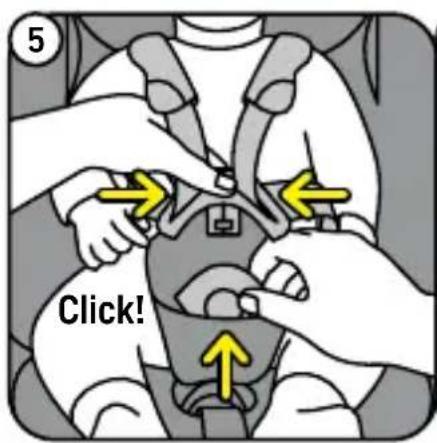

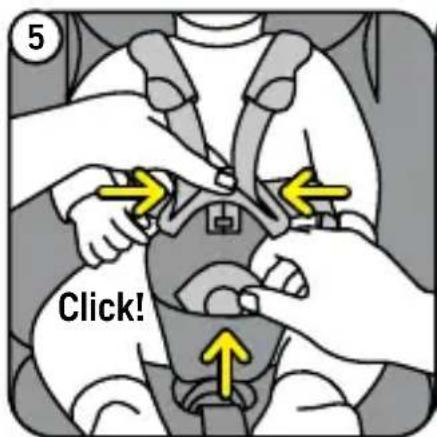

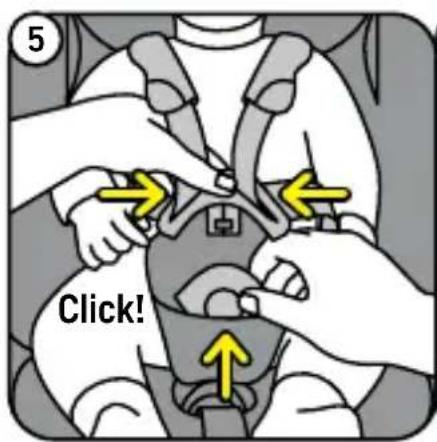

5. Place the shoulder belts over the child's shoulders and close the buckle: CLICK! (5)

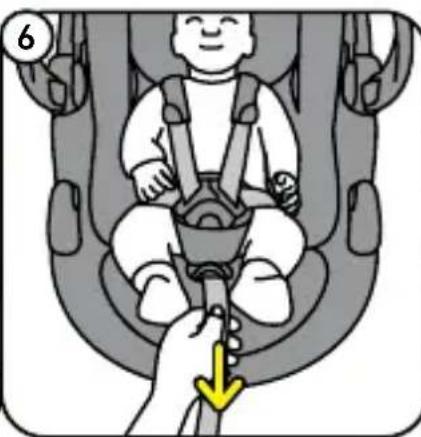

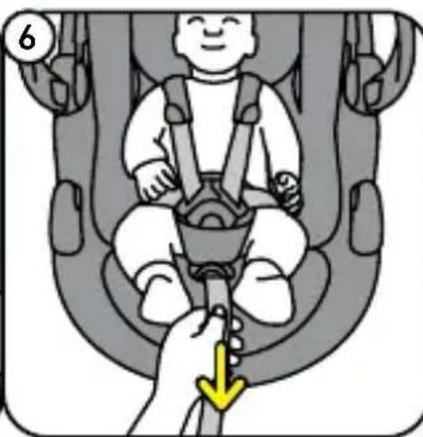

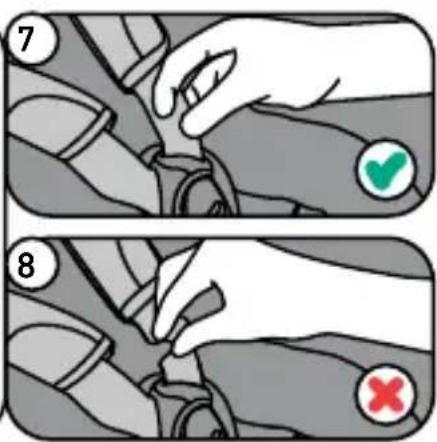

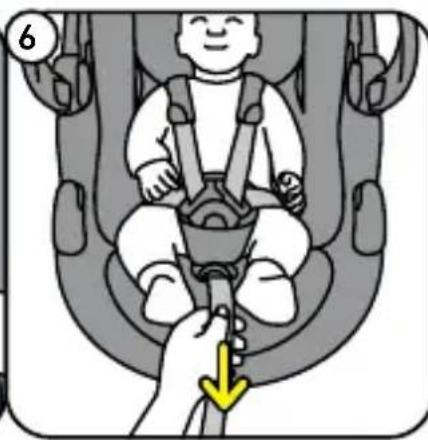

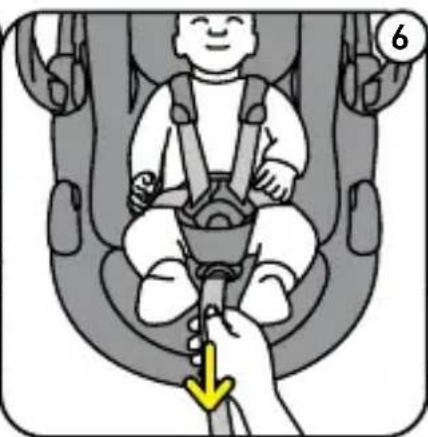

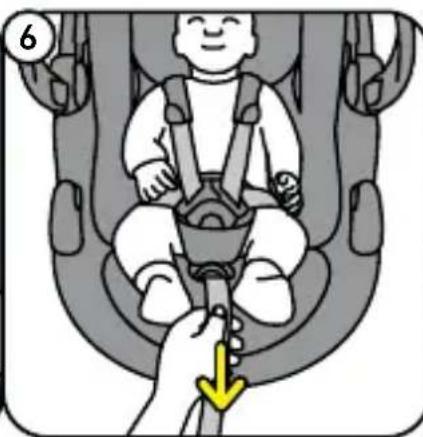

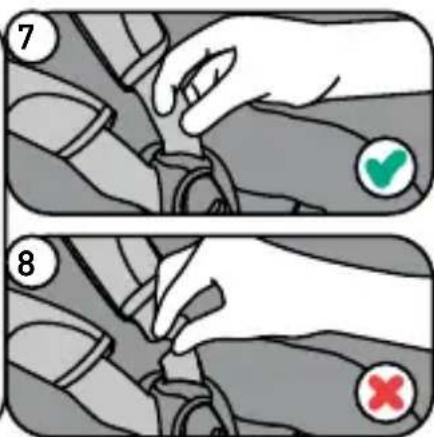

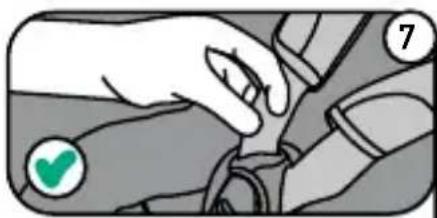

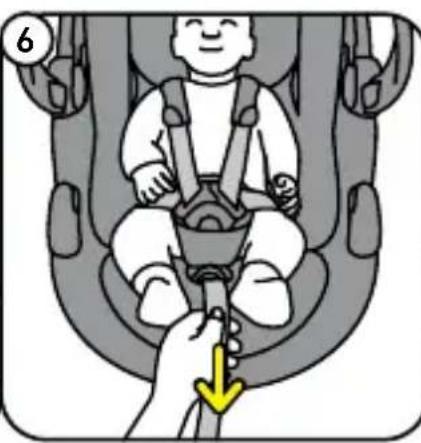

6. Pull the central adjuster strap straight away from the seat to tighten the harness. Make sure to tighten the harness extremely well, so that you can no longer make a horizontal fold in the belts. When you tighten the harness, make sure that the child is positioned well against the backrest. (6, 7, 8)

Illustration of hands performing a medical procedure on pelvic anatomy, showing a highlighted anatomical region with an arrow (no text or symbols present)

Illustration of a hand placing a red circular object into a mechanical component (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat with a hand adjusting the seat, showing no text or symbols.

Diagram showing two steps of car seatbelting, with numbered instructions and icons for check and dislocation.

Comfort for the baby

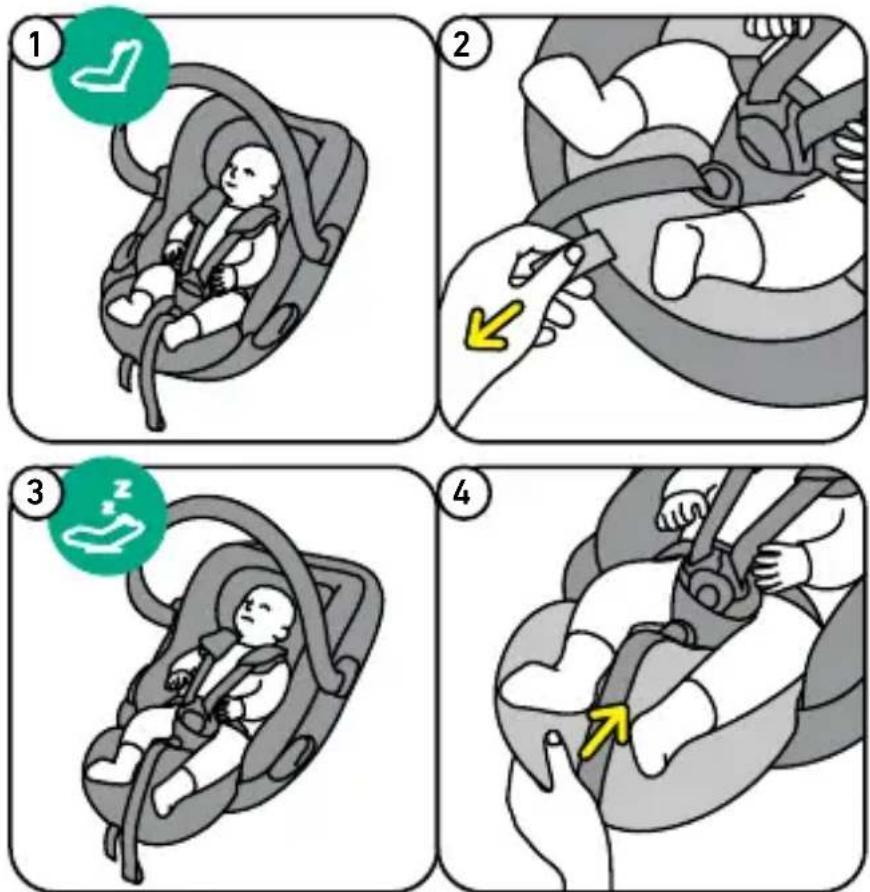

Using the lay flat position

1. To increase your baby's comfort, especially when they're small, the seat is equipped with a lay flat position, in which the inner part of the seat moves into a more flat position, while the outer part remains in place.

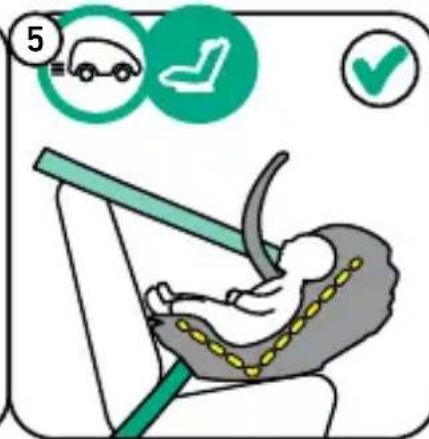

2. You can use the lay flat position on a stroller or in the car when the seat is installed with the ISOfix base.

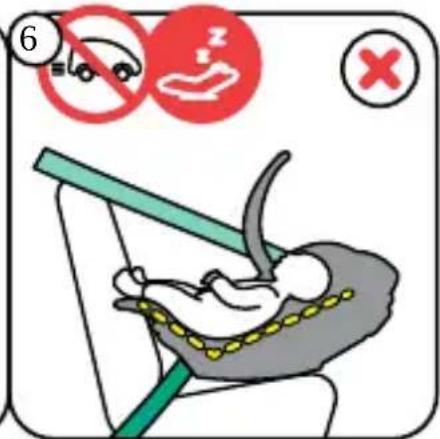

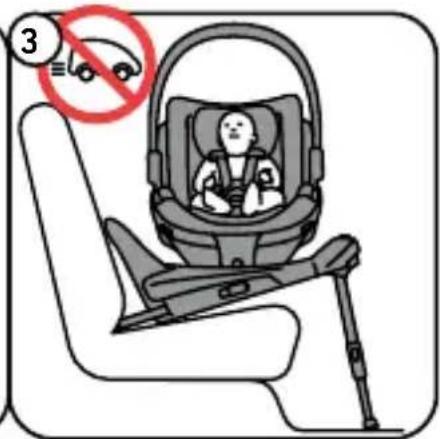

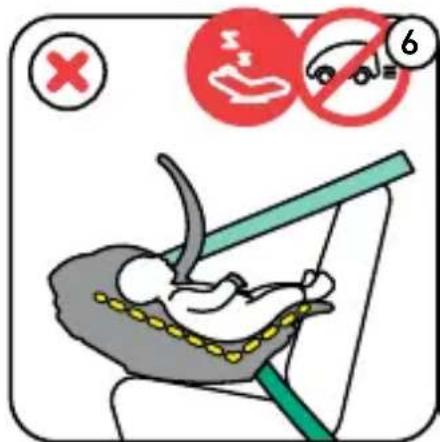

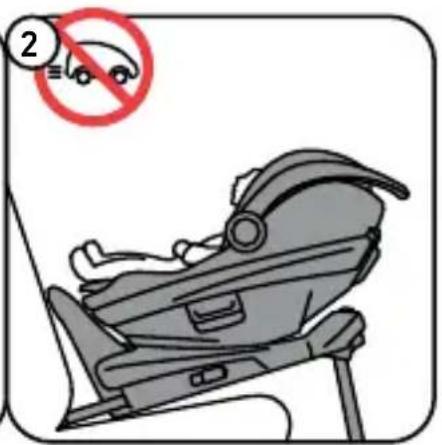

3. It is not allowed to use the lay flat position in the car when the seat is installed with the 3-point vehicle belt. You will notice that the seat is constructed to block going into lay flat position when installed with the 3-point belt.

4. To put the seat into lay flat position, pull the lay flat strap or anywhere at the foot end of the seat's inner part downwards/towards you. You will notice a small resistance at first, this is normal. (1, 2, 3)

5. To put the seat into upright position, push the seat's inner part by its foot end upwards/away from you. You will notice a small resistance at first, this is normal. (4)

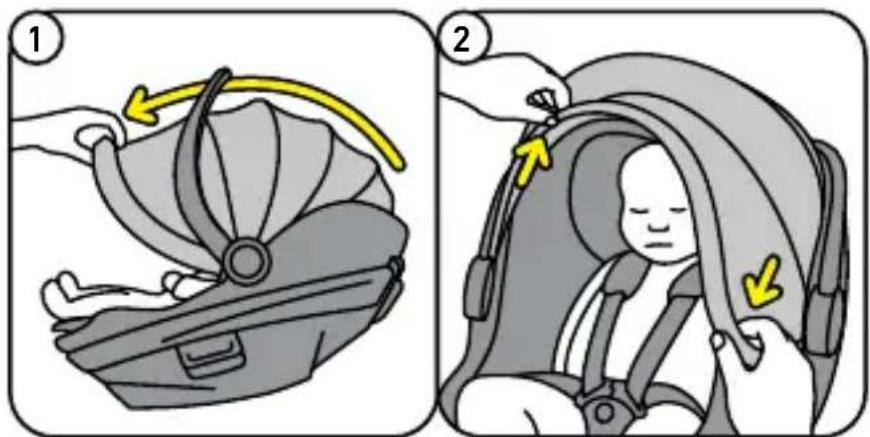

Sun canopy

1. To protect your baby from sun and wind, the seat is equipped with a large sun canopy with an extended ventilation strip on its backside. (1)
2. You can use the sun canopy on the stroller and in the car, but take extra care in the car to check for good airflow and avoid heat build-up.
3. To enable you to see your baby at the same time, the sun canopy has a function where you can adjust the left and right side of it individually. Hold one side in place while with the other hand move the other side up or down. (2)

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and shading changes.

Adjusting the seat to the growing child

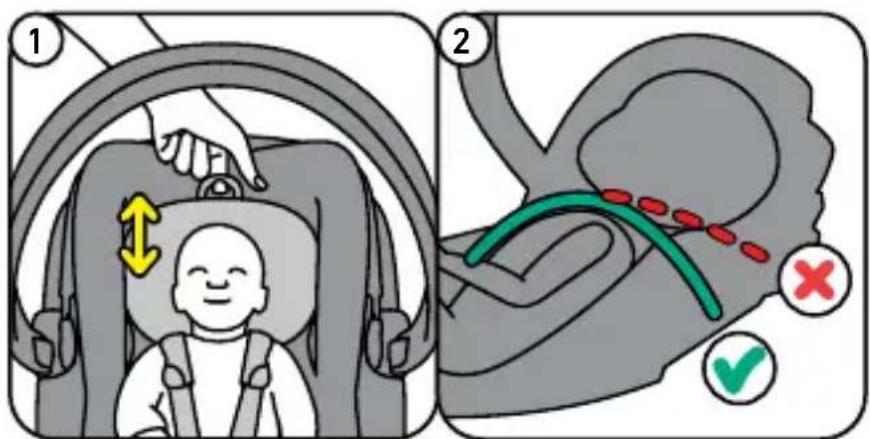

Shoulder belt/headrest height

1. The height of the shoulder belts and the headrest can be adjusted by pulling the headrest handle upwards at the back of the headrest and moving the headrest up or down. To be able to do so, the harness buckle has to be opened and the straps have to be pulled out. (1)
2. To find the right height for your child, move the headrest all the way up, place your child into the seat, and then move the headrest downwards until it sits directly on your child's shoulders. (2)
3. For children above 75 cm stature height it is allowed to have the shoulder belts max. 2 cm. higher than the openings (slots) of the headrest.

Cushion inserts

- Remove the baby cushion when the child is taller than 60 cm or older than 6 months.

Illustration showing car seat positioning and ear anatomy with directional arrows and safety symbols

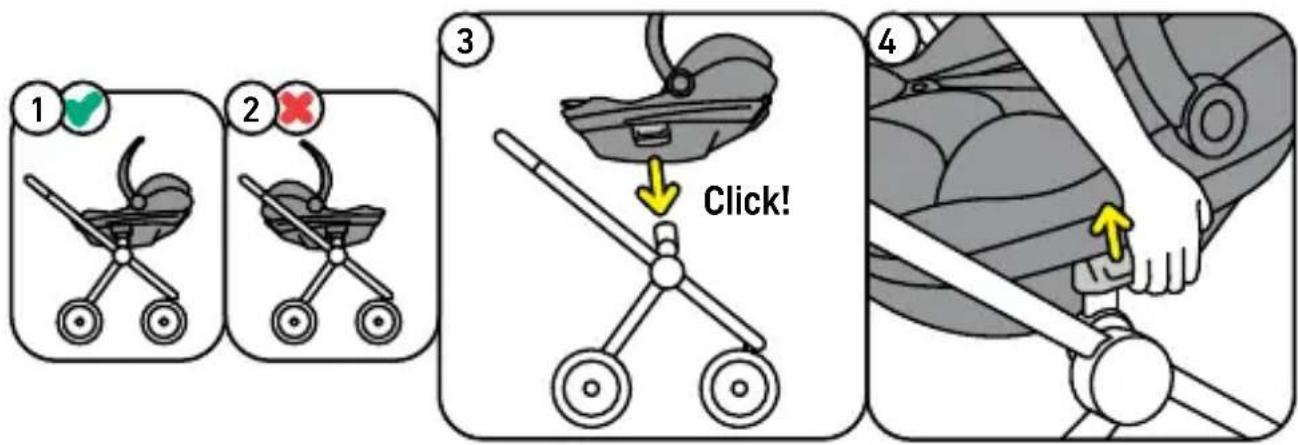

Attaching onto a stroller

1. The seat can be used in combination with strollers that offer matching car seat adapters. Check the BeSafe strollerlist.

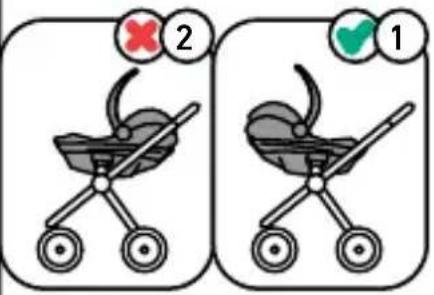

2. Make sure to position the seat rear/parent facing onto the stroller, NOT to the front/world facing. (1, 2)

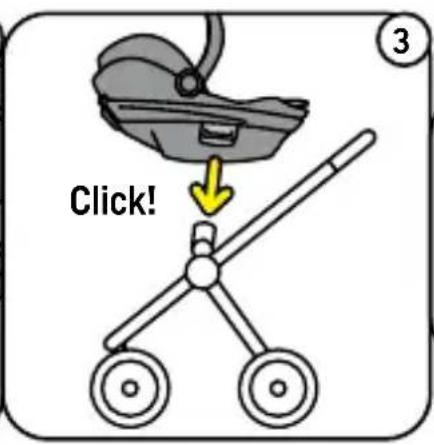

3. Align the stroller adapter housings above the adapters of the stroller and push straight down, click! (2x) (3)

Removing from a stroller

1. Move the carry handle into carrying position.
2. Pull the stroller adapter housing outwards on both sides while lifting the seat upwards. (4)
3. You can also release one side at a time, but pay attention that the first side remains unattached while releasing the second side.

1 2 3 Click! 4

Use in an aircraft

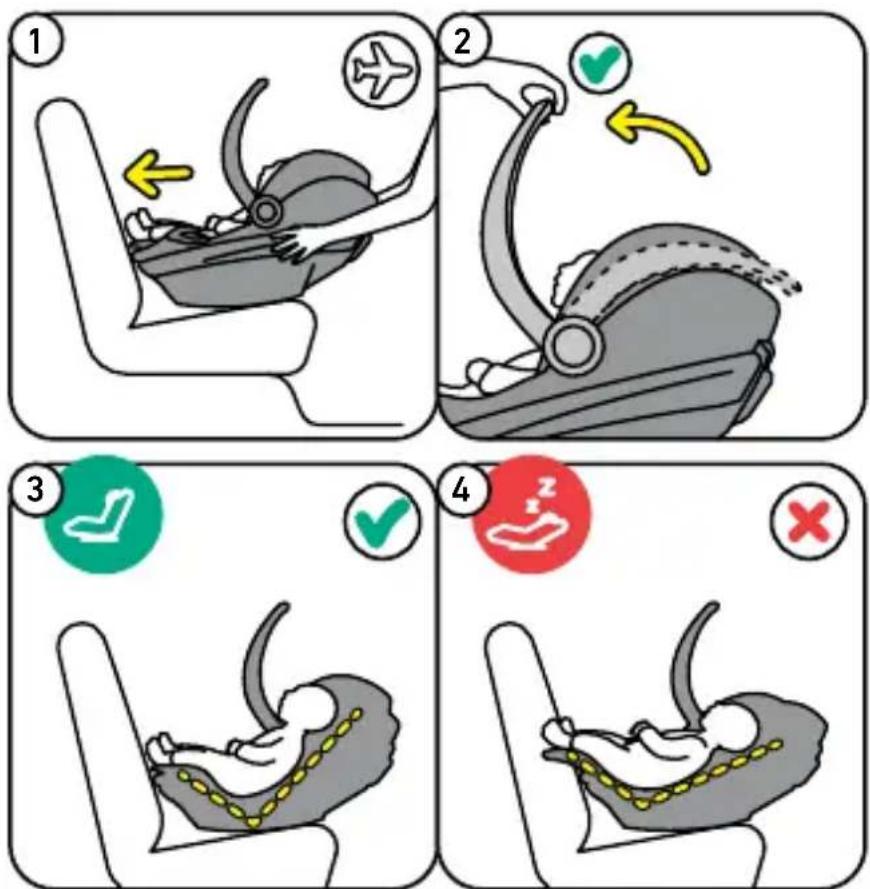

Installation in an aircraft

1. Always follow the airline's safety instructions.
2. Only install the seat on aircraft passenger seats that are approved for this purpose by the airline, that are facing in the direction of flight and where there is no area of airbag deployment.
3. Place the seat on the aircraft seat rear facing/against the direction of travel. (1)

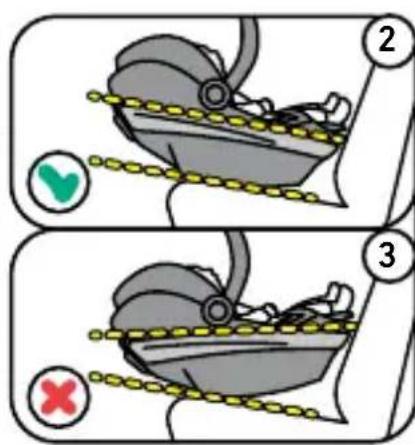

4. Position the seat on the aircraft seat. Make sure the inner part is in the upright position (NOT lay flat position) and the carry handle is up in the carrying position. (2, 3, 4)

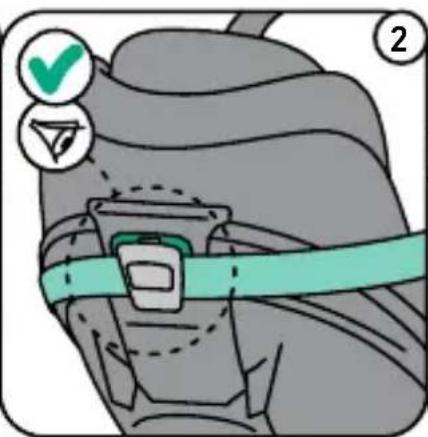

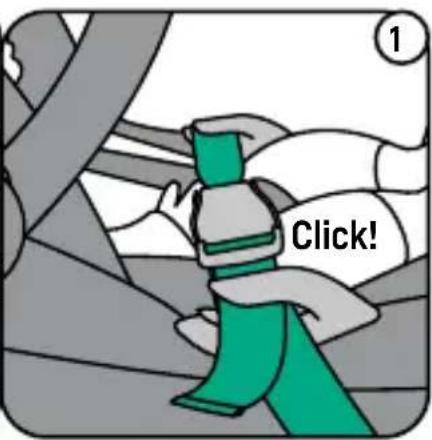

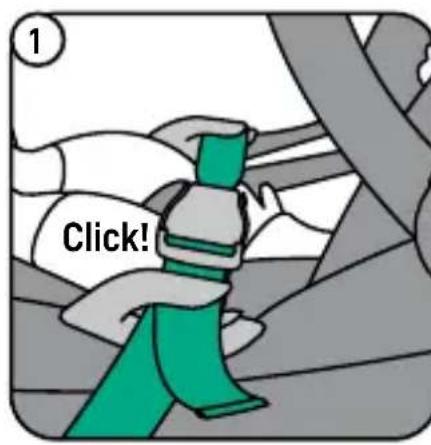

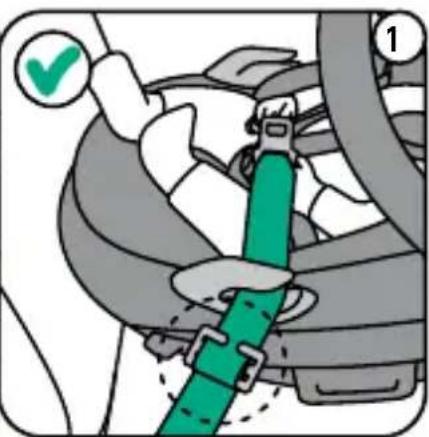

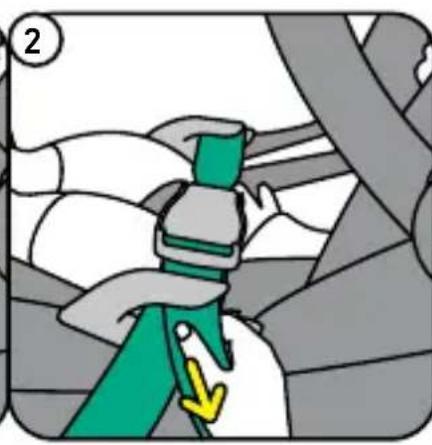

1. Place the aircraft seat belt through both green hip belt guiders and close the aircraft seat belt buckle. (1)

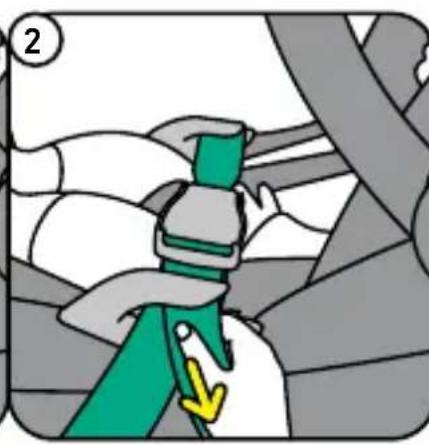

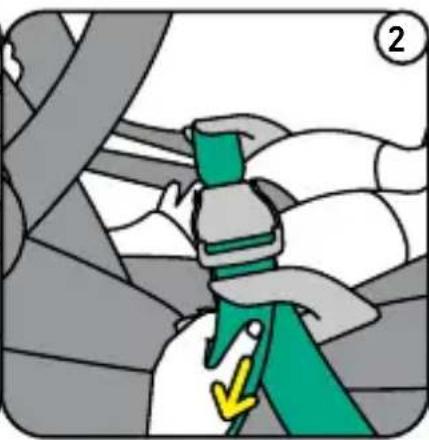

2. Pull the strap end of the aircraft seat belt to tighten it fully. (2)

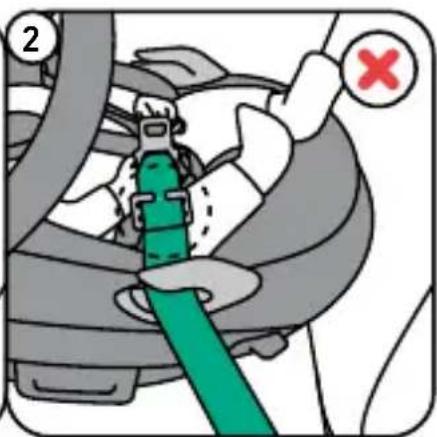

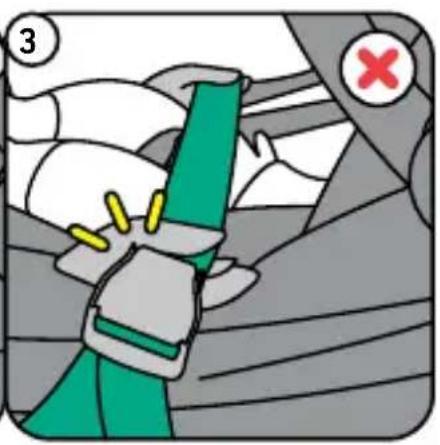

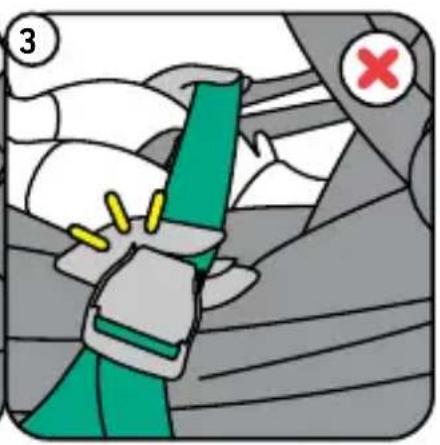

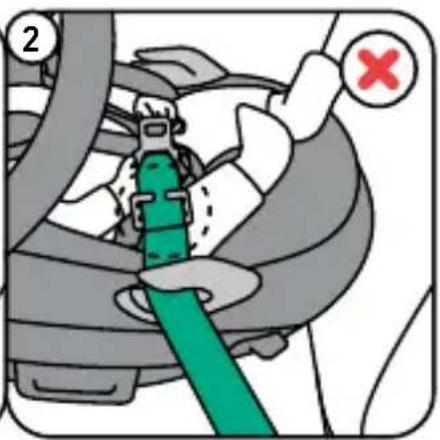

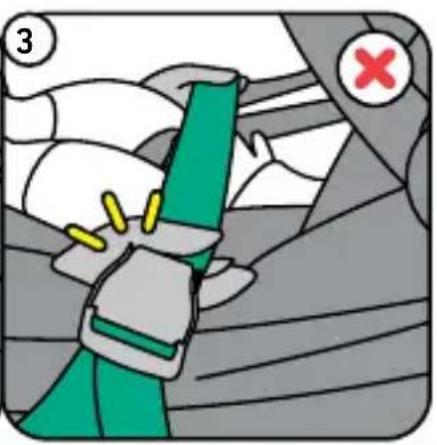

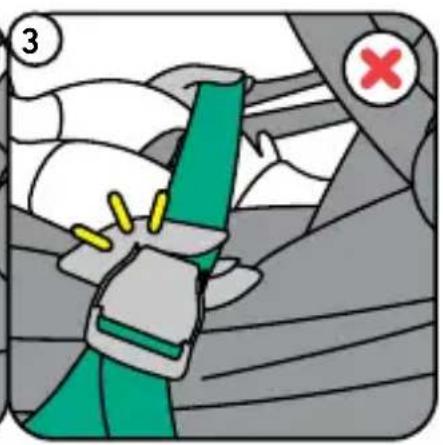

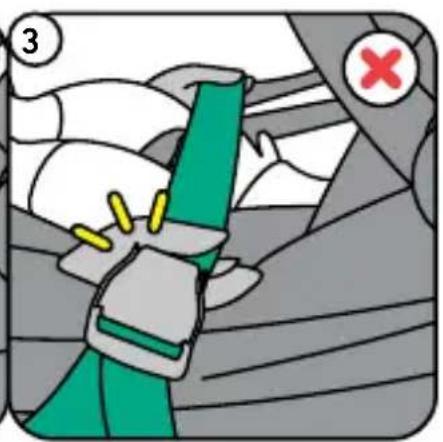

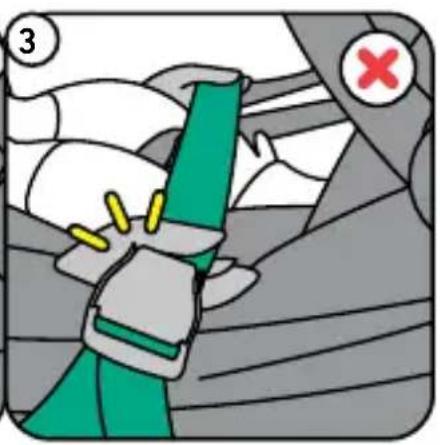

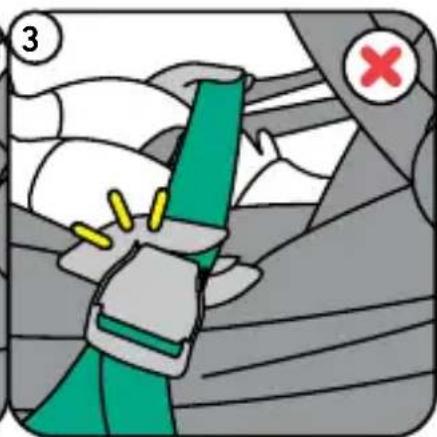

3. Take care that the aircraft seat belt buckle is not in or against one of the green hip belt hooks. (3)

4. If this problem occurs, you can use a belt shortener to shorten the belt as described below, so that the buckle placement is no longer conflicting with the lap belt guider. Note that a belt shortener is not included with the seat but is available as a service part. Please contact BeSafe to request one.

5. Note that the shoulder belt guider on the backside of the seat stays unused when installing the seat on an aircraft seat.

1 Click!

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green bands and a yellow arrow (no text or symbols)

Cartoon character in green hat and white shirt standing near a vehicle with a red X mark (no text or symbols)

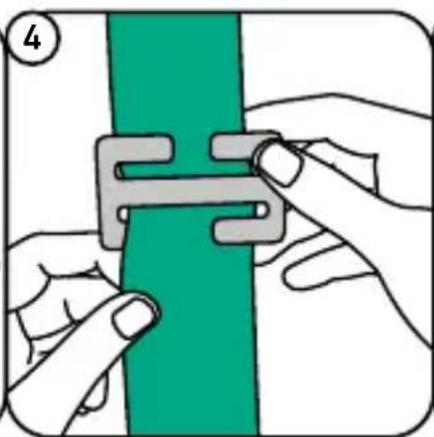

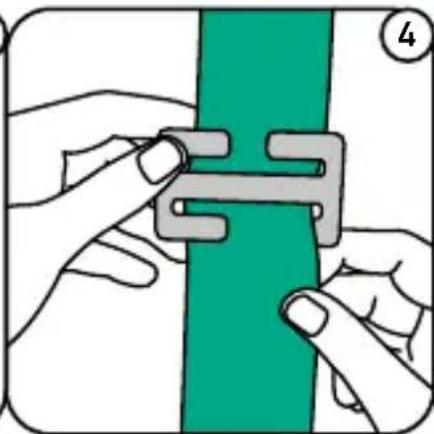

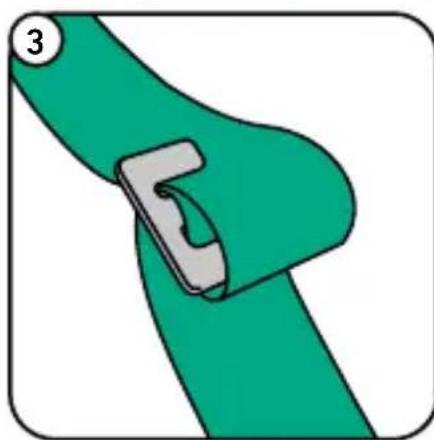

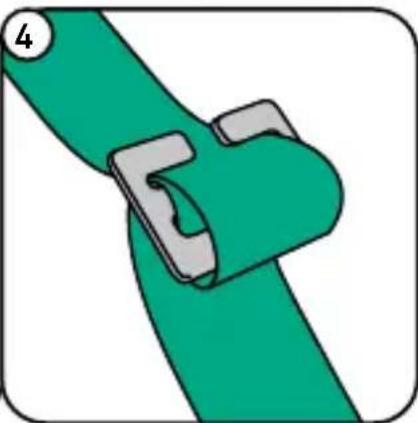

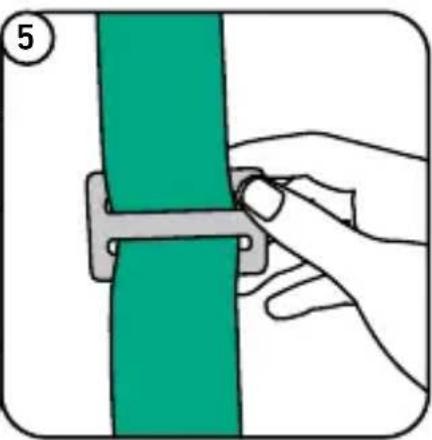

Using a belt shortener

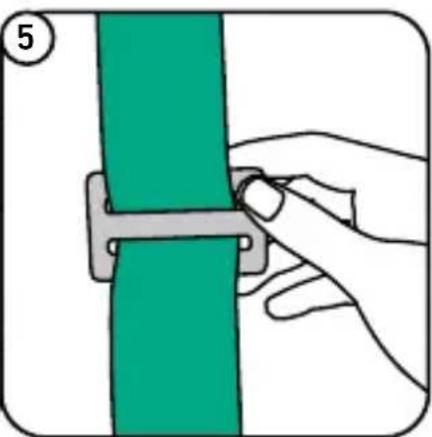

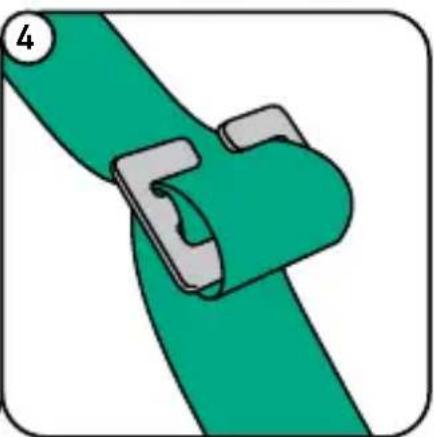

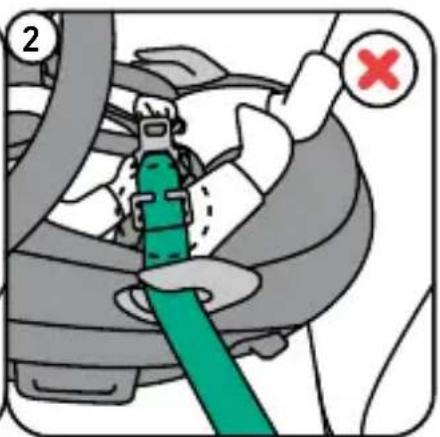

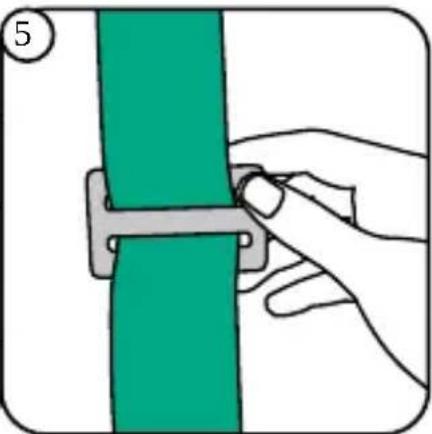

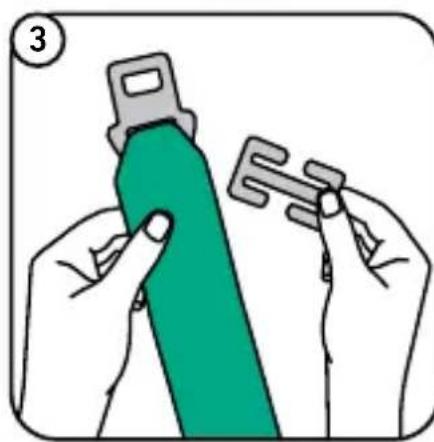

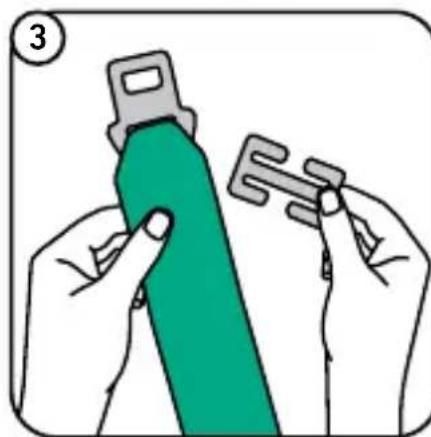

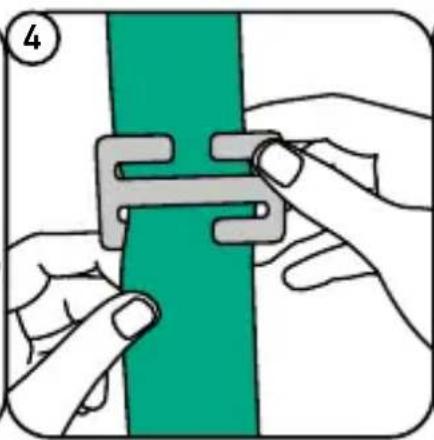

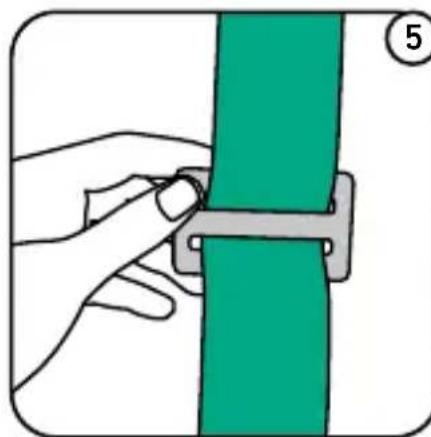

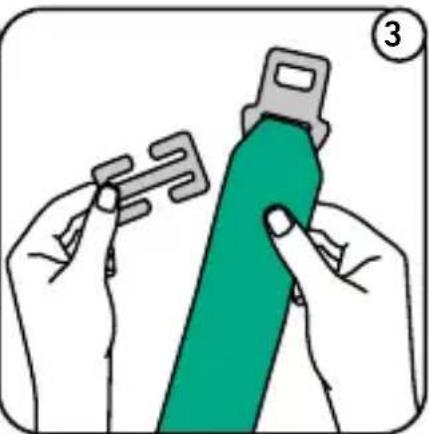

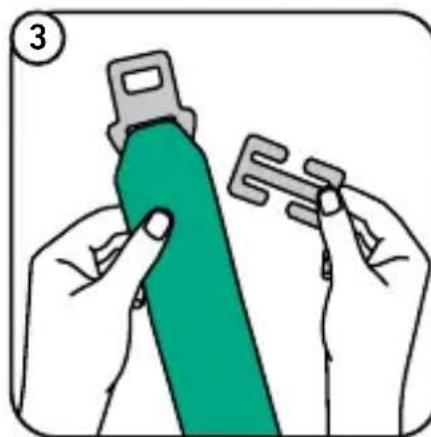

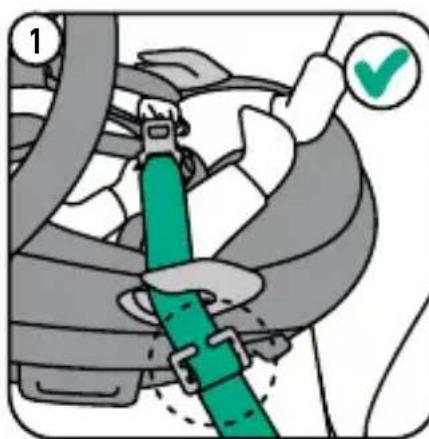

1. Attach the belt shortener onto the side of the aircraft belt which has the buckle tongue. Take care to position the belt shortener so that it sits on the side of the car seat, not inside the hip belt guider. (1, 2)

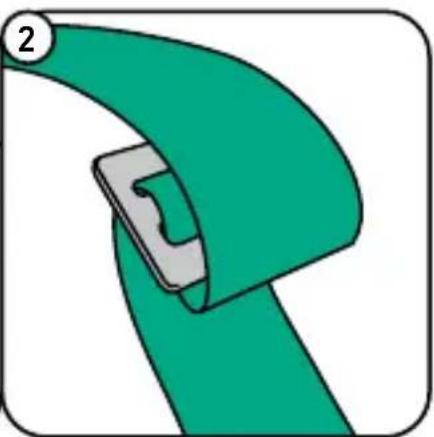

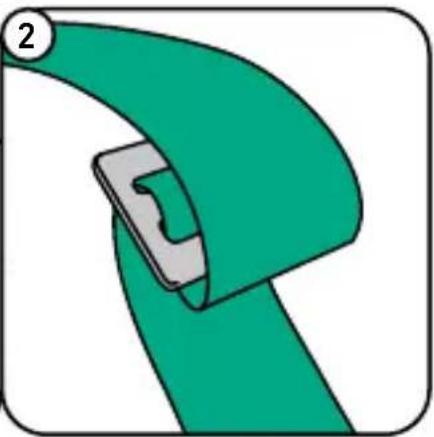

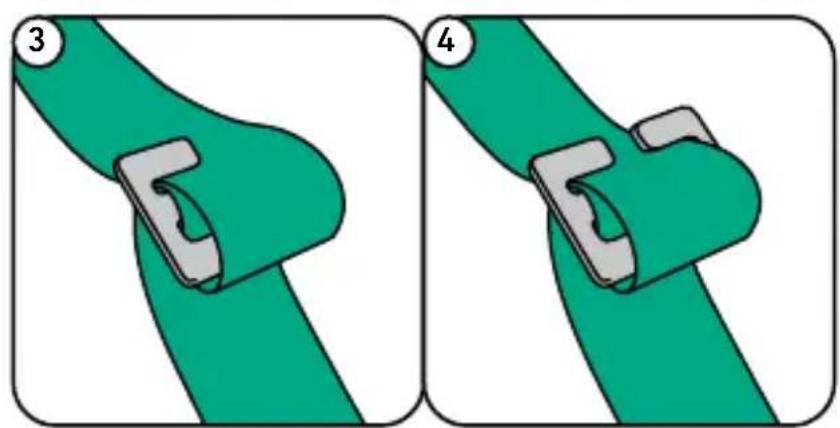

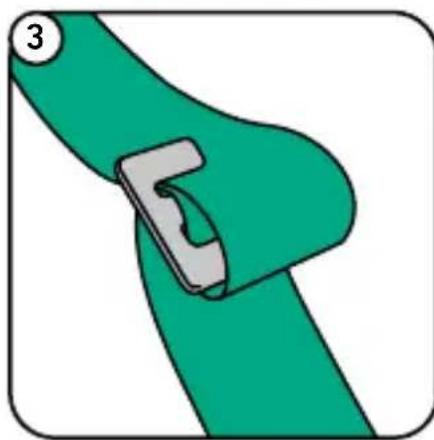

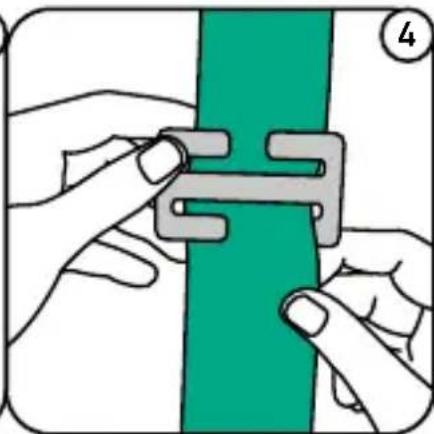

2. Guide the aircraft seat belt through both sides of the belt shortener, so that the center bar of the shortener is still visible. (3, 4, 5)

Diagram showing car seatbelt adjustment with green belt and checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a tool, no text or symbols present

Illustration of hands installing a green mechanical component (no text or symbols visible)

Illustration of a hand holding a metal clamp over a green vertical strip, no text or symbols present

1. Shorten the belt by rotating the belt shortener half a turn, then slot the aircraft seat belt into the open slot of the belt shortener. (1, 2, 3, 4)
2. Repeat rotating and slotting until the aircraft belt buckle is no longer in the car seat's belt guider.

During the flight

1. Buckle up your baby securely whenever they are in the seat - see section "Placing the child into the seat"
2. Take the baby out of the seat as often as possible to avoid having your baby in the same position for too long.
3. Make sure that the seat is always properly installed, also when your baby is not in the seat.
4. Buckle up your baby in the seat whenever the seat belt sign lights up and in case of turbulences.

Illustration of a hand using a tool to cut a green mechanical component (no text or symbols visible)

Green ribbon cable with a gray clip, shown in a stylized view (no text or symbols)

Green mechanical component with a metallic clip, shown in close-up (no text or symbols)

Green mechanical clamp or bracket component with a gray handle, no visible text or symbols

In case of an emergency evacuation

1. Remove the baby from the seat.
2. Follow the instructions of the cabin crew.
3. Note: when not complying with the instructions from this manual, the safety of the child cannot be guaranteed.

Removing and refitting the cover

• Please take care when you remove the cover, as re-fitting the cover is done in reverse
• The cover of the headrest and the inner part can be taken off separately.
• The sun canopy can be carefully removed and its fabric slid off the frame to wash it as well.
• For further instructions, please visit www.besafe.com
• Before washing make sure to close all velcro and zippers.
• When washing the seat cover, make sure to follow the wash label on the inside of the cover.

! Warning: potential misuse

• The child seat MUST NOT be installed in a front passenger seat WITH AN ACTIVATED AIRBAG.
• The floor support must always be used. Make sure that the floor support is fully pushed down and that the seat is positioned horizontal with the spirit level in the green area.

- Never drive with a child in the seat if the seat is rotated to the side.

- Make sure all indicators are green before you drive.

Prohibition sign showing a chair seat and child silhouette without any text or symbols

Guarantee

• Should this product prove faulty within 24 months of purchase due to materials or manufacturing fault, except covers and harness straps, please return it to the original place of purchase.
• The guarantee is only valid when you use your seat appropriately and with care. Please contact your retailer, they will decide if the seat will be returned to the manufacturer for repair. Replacement or return cannot be claimed. The guarantee is not extended through repair.
• The guarantee expires: when there is no receipt, when defects are caused by incorrect and improper use, when defects are caused by abuse, misuse or negligence.

Disassembly & disposal of the product

• This product can be dissassembled in different materials for waste handling; please visit www.besafe.com for detailed instructions.
• Please hand in the product at a designated collection point for handling non-general household waste.

Disposal of the packaging

- The packaging of this product contains several components like cardboard, please separate these materials and hand them in the designated collection points in your area.

Takk for at du valgte BeSafe Go Beyond

Prohibition sign showing a chair and person inside a circle, indicating no use or absence of use.

hindre beltene i å strammes korrekt.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating a mechanical or safety procedure with numbered steps and directional indicators

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram showing a green curved structure with dashed lines and a checkmark icon (no readable text or symbols)

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a small inset image of a fetus.

Illustration of a car seatbelt with a green band and checkmark indicators (no text or symbols)

Illustration of a car seatbelt with a green belt and yellow arrow indicating direction (no text or symbols)

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 ⑥ ⑦ ⑧

Diagram showing a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt mechanism showing the wheel and seat assembly (no text or symbols)

Simple line drawing of a person inside a vehicle compartment (no text or symbols)

③ Click!

Diagram showing two steps of a shoe with color-coded zones and checkmark indicators

Mechanical component diagram showing a cam and gear assembly (no text or labels)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the motion (no text or symbols present)

Illustration of a car seatbelt with a yellow arrow indicating the grip (no text or symbols present)

③ ≡

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Diagram showing car seat with car icon and numbered label, likely illustrating vehicle safety or commuting instructions

② #

345

Diagram of a car seatbelt with arrows indicating motion or movement (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Illustration of a hand placing a component into a seated pelvic area, with a yellow arrow indicating the location (no text or symbols present)

Illustration of a hand adjusting a small red circular component on a mechanical or anatomical structure (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat with a hand adjusting the seatbelt, showing no text or symbols.

Diagram showing two steps of car seatbelt adjustment, labeled 7 and 8 with checkmark and cross icons.

Komfort for babyen

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and shading.

Medical illustration showing a child in a car seat and ear with a green catheter, indicating left eye movement and ear condition check.

Montering på barnevogn

1 2 3 Click! 4

Bruk om bord på fly

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green bands and yellow directional arrow (no text or symbols)

Cartoon character in green outfit with yellow eyes and a red X mark, standing near a window (no text or symbols)

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and red cross symbol indicating absence or error

Illustration of hands holding a green safety clip and a gray clip (no text or symbols)

Illustration of hands installing a mechanical component on a green surface (no text or symbols)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Prohibition sign showing no smoking or reduction in seat height, with pictograms of sitting and using a circle for visual inspection.

Garanti

Prohibition sign showing a chair seat and child silhouette without any text or symbols

Illustration of a car seatbelt with a yellow arrow indicating the left side (no text or symbols present)

Diagram illustrating a mechanical or safety procedure with numbered steps and directional indicators (green checkmark, red X)

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a road intersection with green lane and directional arrows, no readable text or symbols

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a magnified inset of the anatomical structure.

Illustration of a car seatbelt with a green bandage and checkmark indicators (no text or symbols)

Illustration of a person using a green cable to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 No z ×

Illustration of a hand pressing down on a car interior with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two steps of a shoe with color-coded zones and checkmark indicators

Mechanical component diagram showing internal structure with yellow connectors (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the handle (no text or symbols present)

Illustration of a car seatbelt with a yellow arrow indicating the motion direction (no text or symbols)

③ ≡ 6

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Diagram showing car seat with car icon and numbered label, likely for safety or vehicle inspection

② #

345

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Placera barnet i bilbarnstolen

Illustration of hands performing a medical procedure on pelvic anatomy, showing a highlighted step with an arrow (no text or symbols present)

Illustration of a hand adjusting a small red circular component on a mechanical component (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat with a hand adjusting the seat, showing no text or symbols.

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

Illustration showing two steps of a baby car seat replacement, with arrows indicating the direction and timing.

Medical illustration showing a child inside a car seat and ear with instructions for ear injury prevention.

1 2 3 Click! 4

Illustration of a car seatbelt being adjusted for steering (no text or symbols)

Cartoon character in green outfit with yellow eyes and a red X mark, standing near a window (no text or symbols)

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green cable and a red X mark indicating no usage or absence.

Illustration of hands holding a green safety belt and a small mechanical component (no text or symbols)

Illustration of hands installing a green mechanical component with a blue stripe (no text or symbols)

Illustration of a hand holding a metal clamp over a green vertical strip, no text or symbols present

Prohibition sign showing a chair seat and child silhouette without any text or symbols

Garanti

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

a Kantokahvan painike

b Kantokahva

c Niskatuen irrotuskahva

d Päänsuoja

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating a mechanical or safety procedure with numbered steps and checkmark indicators

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram showing a green pipeline with dashed lines and circular markers, no readable text or symbols present.

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a circled anatomical device.

Illustration of a car seatbelt with a green band and checkmark symbols (no text or labels)

Illustration of a person using a green cable to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, and checkmark

6 No z ×

Istuimen asentaminen Beyond Base -jalustalle

Diagram showing a hand pressing down a mechanical component with yellow arrows indicating motion (no text or symbols)

Illustration of a car seatbelt with a dashed arrow indicating a movement or change (no text or symbols present)

Simple line drawing of a person inside a vehicle seat (no text or symbols)

③ Click!

Diagram showing two scenarios of a device with colored buttons and labels, including check and cross icons.

Mechanical component diagram showing a gear or cam mechanism with yellow components and a numbered label (6), no readable text or symbols present.

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the handle (no text or symbols present)

Illustration of a car seatbelt with a hand adjusting the seat area, showing a yellow arrow indicating rotation (no text or symbols present)

③ ≡ #

Illustration of a baby car seat with a yellow arrow indicating the motion direction (no text or symbols)

5 Click!

Kantokahvan käyttö

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Illustration of a hand placing a component into a seated body, with a yellow arrow indicating the location (no text or symbols present)

Illustration of a hand adjusting a mechanical component with a red circular mark (no text or symbols)

Diagram illustrating mechanical assembly steps with numbered labels and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat with a hand adjusting the seat, showing no text or symbols.

Diagram showing two steps of car seatbelt usage, with numbered instructions and check/cancel icons

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and timing.

Kasvava lapsi

Medical illustration showing a child in a car seat and ear with instructions for ear manipulation and safety check.

1 2 3 Click! 4

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green bands and a yellow arrow (no text or symbols)

Cartoon character in green outfit standing near a vehicle with a red X mark (no text or symbols)

Diagram showing car seatbelt adjustment with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a tool, no text or symbols present

Illustration of hands installing a green mechanical component with a blue stripe (no text or symbols)

Illustration of a hand holding a metal clamp over a green vertical strip, no text or symbols present

Illustration of a hand using a tool to cut a green mechanical component (no text or symbols visible)

Green ribbon diagram with a gray clip, no text or symbols present

Green cable clamp with a metallic clip, no text or symbols visible

Green mechanical clamp or bracket assembly with a numbered label (4) and no visible text or symbols

Prohibition sign showing a red circle with a no-dominant symbol and a seated person inside

Takuu

Prohibition sign showing a person sitting on a chair and another person lying down, both crossed out by a red circle.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating a mechanical or safety procedure with numbered steps and directional indicators

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a road intersection with green lane and directional arrows, no readable text or symbols

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a circled anatomical device.

Illustration of a car seatbelt with a green band and checkmark symbols (no text or labels)

Illustration of a car seatbelt with a green diagonal stripe and yellow arrow indicating direction (no text or symbols)

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, and checkmark

6 #0 #z ×

Illustration of a hand pressing down on a car interior with yellow arrows indicating motion (no text or symbols)

Illustration of a car seatbelt with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two scenarios of a shoe with color-coded zones and selection symbols (green checkmark, red X)

Mechanical component diagram showing internal structure with yellow markers, no visible text or symbols

Illustration of a hand placing a yellow arrow on a car interior (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating the motion direction (no text or symbols)

③ ≡ 6

Illustration of a car seatbelt with a yellow arrow indicating the motion direction (no text or symbols)

5 Click!

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Illustration of hands performing a medical procedure on pelvic anatomy, showing a highlighted anatomical region with an arrow (no text or symbols present)

Illustration of a hand adjusting a small red circular component on a mechanical or anatomical structure (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat with a hand adjusting the seat, showing no text or symbols.

Diagram showing two steps of car seatbelt adjustment, with numbered instructions and check/cancel icons

Komfort des Babys

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and shading.

Medical illustration showing a child in a car seat and ear with instructions for ear manipulation and safety check.

1 2 3 Click! 4

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green belt and yellow arrow (no text or symbols)

Cartoon character in green hat and white shirt standing near a vehicle with a red X mark (no text or symbols)

Diagram showing car seatbelt buckle adjustment with green belt and checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety belt clip and a gray clamp clip (no text or symbols)

Illustration of hands installing a green mechanical component (no text or symbols)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Prohibition sign showing a person sitting on a chair facing the sun, with no text beyond the red circle.

Garantie

Prohibition sign showing a chair seat and child silhouette crossed out, indicating no use or absence of use.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating a mechanical device with labeled parts and directional indicators, including checkmark and cross symbols.

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a road intersection with green lane and directional arrows, no readable text or symbols

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a magnified inset of the anatomical structure.

Illustration of a car seatbelt with a green band and checkmark symbols (no text or labels)

Illustration of a car seatbelt with a green diagonal band and yellow arrow indicating direction (no text or symbols)

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

5 ⑤

6 No z ×

Illustration of a hand pressing down on a car interior with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt device with a dashed arrow indicating rotation or movement (no text or symbols present)

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two steps of a shoe handle with color-coded zones and selection indicators

Mechanical component diagram showing a housing with yellow components and a handle (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the motion direction (no text or symbols)

Diagram of a car seatbelt with a yellow arrow indicating the wheel or wheel (no text or symbols present)

③ ≡ 6

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Illustration of a car safety seat with a car icon and numbered label (1) pointing to it.

② #

345

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Illustration of hands adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand adjusting a small red circular component on a mechanical assembly (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat being lifted by a hand, showing the seat and seatbelt (no text or symbols)

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

Illustration showing two steps of baby car seat replacement: one with yellow arrows indicating clockwise motion, the other with yellow arrows indicating backward movement.

Medical illustration showing a child inside a car seat and ear with a green catheter, accompanied by instructional symbols.

1 2 3 Click! 4

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green bands and a yellow arrow (no text or symbols)

Cartoon character in green outfit with yellow eyes and a red X symbol, standing near a window (no text or symbols)

Diagram showing car seatbelt buckle adjustment with green belt and checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety belt clip and a tool, no text or symbols present

Illustration of hands installing a green mechanical component (no text or symbols visible)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Illustration of a hand using a tool to adjust or install a green mechanical component (no text or symbols visible)

Green ribbon cable with a gray clip, shown in a stylized view (no text or symbols)

Green fabric clip with a metallic clip attached, no text or symbols visible

Green mechanical clamp or bracket component with a gray handle, no visible text or symbols

Prohibition sign showing a person sitting on a chair facing another person, with no text or symbols beyond the red circle.

Prohibition sign showing a chair seat and child sitting, indicating no use or absence of use.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating two steps of a mechanical device with labeled parts and directional indicators

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a pipeline with green flow and decision markers (no text or symbols)

Medical illustration showing a hand holding a medical device with a yellow arrow indicating force or movement, accompanied by a small inset image of a fetus.

Illustration of a car seatbelt with a green band and checkmark symbols (no text or labels)

Illustration of a person using a green cable to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 No z ×

Diagram showing a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seat assembly with a dashed arrow indicating motion (no text or symbols present)

Simple line drawing of a person inside a vehicle (no text or symbols)

③ Click!

Diagram showing two steps of a shoe handle with color-coded zones and checkmark indicators

Mechanical component diagram showing internal structure with yellow connectors (no text or symbols)

Illustration of a hand placing a yellow arrow on a car interior (no text or symbols)

Illustration of a car seatbelt with a hand adjusting the seatbelt, showing a yellow arrow indicating rotation (no text or symbols present)

③ ≡ 6

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Diagram showing car seat with car icon and numbered label, likely for safety or vehicle inspection

② #

345

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt being adjusted for a hand, showing the seatbelt and handle (no text or symbols)

Illustration of hands adjusting a pelvic component with a yellow arrow indicating direction (no text or symbols)

Illustration of a hand adjusting a small red circular component on a mechanical or anatomical structure (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat being lifted, with a hand adjusting the seat and a yellow arrow indicating force (no text or symbols)

Diagram showing car seatbelt adjustment steps with numbered instructions and check symbols

Confort pour bébé

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and timing.

Medical illustration showing a child inside a car seat and ear with instructions for ear manipulation and safety check.

1 2 3 Click! 4

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green belt and yellow arrow (no text or symbols)

Cartoon character in green hat and white shirt standing near a window with a red X mark (no text or symbols)

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety belt and a tool, no text or symbols present

Illustration of hands installing a mechanical component on a green surface (no text or symbols)

Illustration of a hand holding a metal clamp attached to a green vertical bar (no text or symbols)

Prohibition sign showing a person sitting on a chair facing the sun, enclosed in a red circle.

Garantie

Prohibition sign showing a chair seat and child silhouette crossed out, indicating no use or absence of use.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating two steps of a car seatbelting technique, labeled with numbered instructions and check/cancel icons.

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram showing a green curved structure with dashed lines and circular markers, no readable text or symbols present.

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a magnified inset of the anatomical structure.

Illustration of a car seatbelt with a green band and checkmark indicators (no text or symbols)

Illustration of a car seatbelt with a green diagonal stripe and yellow arrow indicating direction (no text or symbols)

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, and checkmark

6 No z ×

Illustration of a hand turning a car interior with yellow arrows indicating rotational motion (no text or symbols)

Diagram of a car seatbelt device with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two scenarios of a shoe with color-coded zones and selection symbols (green checkmark, red X)

Mechanical component diagram showing internal structure with yellow markers, no visible text or symbols

Illustration of a hand placing a yellow arrow on a car interior (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating the wheel or wheel (no text or symbols present)

③ ≡

Illustration of a car seatbelt with a yellow arrow indicating the motion direction (no text or symbols)

5 Click!

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Illustration of hands adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand placing a red circular object into a mechanical component (no text or symbols)

Diagram illustrating mechanical assembly steps with numbered labels and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat being lifted, with a hand pointing to the seat and a yellow arrow indicating force (no text or symbols)

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and shading.

Medical illustration showing a child inside a car seat and ear with a green catheter, accompanied by instructional symbols.

1 2 3 Click! 4

Uso en un avión

Illustration of a car seatbelt being adjusted for steering wheel (no text or symbols)

Cartoon illustration of a character in green hat and white shirt standing near a vehicle with a red X mark (no text or symbols)

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a tool, no text or symbols present

Illustration of hands installing a green mechanical component (no text or symbols visible)

Illustration of a hand holding a metal clamp over a green vertical strip, no text or symbols present

Prohibition sign showing a red circle with a diagonal line and a pictogram of a person sitting on the seat.

Illustration of a car seatbelt with a yellow arrow indicating the left side (no text or symbols present)

Diagram illustrating two steps of a car seatbelting technique with labeled parts and directional indicators

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a road intersection with green lane and directional arrows, no readable text or symbols

Medical illustration showing a hand holding a cable with a yellow arrow indicating direction, accompanied by a small inset image of a fetus.

Illustration of a car seatbelt with a green band and checkmark symbols (no text or labels)

Illustration of a person using a green cable to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, and checkmark

6 ⑥ #0 #z #×

Diagram showing a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with a hand pointing to the seat area, showing no text or symbols.

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two steps of a shoe with color-coded zones and checkmark indicators

Mechanical component diagram showing internal structure with yellow connectors (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating the wheel or wheel (no text or symbols present)

③ ≡ 6

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Illustration of a car seatbelt device with a car icon and a numbered label (1), no text or symbols present.

② #

345

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Illustration of hands adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand adjusting a small red object on a mechanical component (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat with a hand adjusting the seat, showing no text or symbols.

Diagram showing car seatbelt adjustment steps with numbered instructions and check/cancel icons

Illustration showing two steps of baby car seat replacement: one with yellow arrows indicating clockwise motion, the other with yellow arrows indicating backward movement.

Medical illustration showing a child inside a car seat and ear with a green catheter, accompanied by instructional symbols.

1 2 3 Click! 4

Utilizzo in aereo

Illustration of a car seatbelt being adjusted for a seatbelt, showing green belt and yellow arrow (no text or symbols)

Cartoon character in green hat standing near a vehicle with a red X mark (no text or symbols)

Diagram showing car seatbelt buckle adjustment with green belt and checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a tool, no text or symbols present

Illustration of hands installing a mechanical component on a green surface (no text or symbols)

Illustration of a hand holding a green cable with a metal clamp, no text or symbols present

Prohibition sign showing a chair seat and child with a circle, indicating no use or absence of use.

Illustration of a car seatbelt with a yellow arrow indicating the left side (no text or symbols present)

Diagram illustrating two steps of a car seatbelting technique, labeled 2 and 3 with checkmark and cross symbols.

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a pipeline with green flow and decision markers (no text or symbols)

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a small inset image of a fetus.

Illustration of a car seatbelt with a green band and checkmark symbols (no text or labels)

Illustration of a person using a green cable to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 #o z ×

Illustration of a hand pressing down on a car interior with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with a hand pointing to the seat area, showing no text or symbols.

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two steps of a shoe handle with color-coded zones and selection indicators

Mechanical component diagram showing internal structure with yellow connectors (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the handle (no text or symbols present)

Illustration of a car seatbelt with a yellow arrow indicating the shift or change (no text or symbols present)

③ ≡ 6

Illustration of a car seatbelt with a hand adjusting the seat (no text or symbols)

5 Click!

Illustration of a car safety seat with a car icon and numbered label (1) pointing to it.

② #

345

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion direction (no text or symbols)

Illustration of hands adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand adjusting a red circular component on a mechanical or anatomical structure (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat with a hand adjusting the seat, showing no text or symbols.

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and timing.

Medical illustration showing a child inside a car seat and ear with a green catheter, accompanied by instructional symbols.

Encaixe num carrinho

1 2 3 Click! 4

Uso num avião

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing no text or symbols.

Cartoon character in green hat and white shirt standing near a vehicle with a red X mark (no text or symbols)

Diagram showing car seatbelt usage with a green belt and checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety belt clip and a tool, no text or symbols present

Illustration of hands installing a green mechanical component (no text or symbols visible)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Prohibition sign showing a person sitting on a chair facing the sun, enclosed in a red circle.

Garantia

Prohibition sign showing a car seat and child silhouette crossed out, indicating no use or absence of use.

Illustration of a car seatbelt with a yellow arrow indicating left motion (no text or symbols)

Diagram illustrating a mechanical or safety procedure with numbered steps and labeled symbols (green checkmark, red X)

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a road intersection with green lane and directional arrows, no readable text or symbols

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a circled anatomical device.

Illustration of a car seatbelt with a green bandage and checkmark symbols (no text or labels)

Illustration of a person's seatbelt being lifted by a green cable, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 No z ×

Diagram showing a hand pressing down a mechanical component with yellow arrows indicating motion (no text or symbols)

Illustration of a car seatbelt with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

③ Click!

Diagram showing two scenarios of a shoe's color adjustment, labeled with green checkmark and red X mark.

Mechanical component diagram showing a gear-like structure with yellow mounting points (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the handle (no text or symbols present)

Illustration of a car seatbelt with a yellow arrow indicating the wheel (no text or symbols present)

③ ≡ 6

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion direction (no text or symbols)

Illustration of hands adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand adjusting a small red circular component on a mechanical component (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat being adjusted for down, with a hand pointing to the seat (no text or symbols present)

Diagram showing two steps of car seatbelt usage, with numbered instructions and check/cancel icons

'Ανεση για το μωρό

Illustration showing two steps of a baby car seat replacement, with arrows indicating the direction and timing.

Medical illustration showing a child inside a car seat and ear with a green catheter, accompanied by instructional symbols.

Illustration of a hand adjusting a car seatbelt with a yellow arrow indicating the angle (no text or symbols present)

Χρήση σε αεροσκάφος

Illustration of a car seatbelt being adjusted for a vehicle (no text or symbols)

Cartoon character in green outfit with yellow eyes and a red X symbol, standing near a window (no text or symbols)

Diagram showing car seatbelt buckle adjustment with green belt and checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a gray clip, no text or symbols present

Illustration of hands installing a green mechanical component (no text or symbols visible)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Prohibition sign showing a red circle with a diagonal line and a pictogram of a person sitting on the seat.

Εγγύηση

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating two steps of a car seatbelting technique with labeled parts and directional indicators

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a pipeline with green flow direction and checkmark indicators (no text or symbols)

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a circled anatomical device.

Illustration of a car seatbelt with a green bandage and checkmark symbols (no text or labels)

Illustration of a car seatbelt with a green diagonal stripe and yellow arrow indicating direction (no text or symbols)

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car and checkmark

6 No z ×

Diagram showing a hand pressing down on a mechanical component with yellow arrows indicating motion or flow (no text or symbols)

Diagram of a car seatbelt with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two scenarios of a device with labeled parts and checkmark indicators

Mechanical component diagram showing a cam and jaw assembly (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating the wheel or wheel (no text or symbols present)

③ No Eye

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Diagram showing car seat with car icon and numbered label, likely for safety or vehicle inspection

② #

345

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Illustration of hands performing a medical procedure on pelvic anatomy, showing a highlighted anatomical region with an arrow (no text or symbols present)

Illustration of a hand placing a red circular object into a mechanical component (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat with a hand adjusting the seat, showing no text or symbols.

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and timing.

Medical illustration showing a child inside a car seat and ear with a green catheter, accompanied by instructional symbols.

1 2 3 Click! 4

Uçakta Kullanım

Uçağa Kurulumu

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green and gray bands (no text or symbols)

Cartoon character in green outfit with yellow accents, standing near a vehicle (no text or symbols)

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelting with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a tool, no text or symbols present

Illustration of hands installing a green mechanical component (no text or symbols visible)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Prohibition sign showing a person sitting on a chair facing another person, with no text or symbols beyond the red circle.

Garanti

Prohibition sign showing a person sitting on a chair and another person lying down, both crossed out by a red circle.

Illustration of a car seatbelt with a yellow arrow indicating the left side (no text or symbols present)

Diagram illustrating two steps of a mechanical or electrical component disassembly, labeled 2 and 3 with directional arrows and checkmark indicators.

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a road intersection with green lane and directional arrows, no readable text or symbols

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and anatomical structures.

Illustration of a car seatbelt with a green band and checkmark symbols (no text or labels)

Illustration of a person using a green cable to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 #0 #z ×

Diagram showing a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with a dashed arrow indicating motion or movement (no text or symbols present)

Simple line drawing of a person inside a vehicle (no text or symbols)

③ Click!

Diagram showing two scenarios of a shoe's interior with color-coded zones and selection indicators (green checkmark, red X)

Mechanical component diagram showing internal structure with yellow connectors (no text or symbols)

Illustration of a hand placing a yellow arrow on a car interior (no text or symbols)

Illustration of a car seatbelt with a hand adjusting the seat area and a yellow arrow indicating rotation (no text or symbols)

③ ③

Illustration of a car seatbelt with a yellow arrow indicating the motion direction (no text or symbols)

5 Click!

Illustration of a car seatbelt with a numbered label indicating car fuel efficiency

② ②

345

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a hand adjusting the seatbelt and a yellow arrow indicating motion (no text or symbols)

Illustration of hands adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand adjusting a red circular component on a mechanical assembly (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat being adjusted for down, with a hand pointing to the seat (no text or symbols present)

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

Kényelem a babának

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and shading changes.

Medical illustration showing a child inside a car seat and ear with a green catheter, accompanied by instructional symbols.

1 2 3 Click! 4

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green bands and a yellow arrow (no text or symbols)

Cartoon character in green outfit with yellow eyes and a red X mark, standing near a window (no text or symbols)

Diagram showing car seatbelt buckle adjustment with green belt and checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety belt clip and a small bracket, no text or symbols present

Illustration of hands installing a green mechanical component (no text or symbols visible)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Illustration of a hand using a tool to adjust or install a green mechanical component (no text or symbols visible)

Green ribbon cable with a gray clip, shown in a simple diagram view (no text or symbols)

Green mechanical clip with a metallic clip attached, no text or symbols visible

Green mechanical clamp or bracket assembly with a numbered label (4) in the top-left corner, no text or symbols present.

Prohibition sign showing a person sitting on a chair facing the wheel, with no text beyond the prohibition symbol.

Garancia

Prohibition sign showing a person sitting on a chair facing the wheel, with no text beyond the prohibition symbol.

Illustration of a car seatbelt with a yellow arrow indicating the left side (no text or symbols present)

Diagram illustrating two steps of a car seatbelting technique, labeled with numbered instructions and check/cancel icons.

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a road intersection with green lane and directional arrows, no readable text or symbols

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a circled anatomical symbol.

Illustration of a car seatbelt with a green band and checkmark indicators (no text or symbols)

Illustration of a person using a green cable to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 No eye z ×

Instalace sedačky na Beyond Base

Diagram showing a hand pressing down a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with a hand pointing to the seat area, showing no text or symbols.

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two steps of a shoe handle with color-coded zones and checkmark indicators

Mechanical component diagram showing internal structure with yellow highlighted parts (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the action (no text or symbols present)

Illustration of a car seatbelt with a yellow arrow indicating the shift or motion (no text or symbols present)

③ ≡ 0

Illustration of a baby car seat with a hand adjusting the seat, showing a yellow curved arrow indicating rotation (no text or symbols present)

5 Click!

Použití rukojeti

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt being adjusted for a hand, showing the seatbelt and handle (no text or symbols)

Illustration of hands adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand adjusting a small red circular component on a mechanical component (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat with a hand adjusting the seat, showing no text or symbols.

Diagram showing two steps of car seatbelt usage, with numbered instructions and check/cancel icons

Pohodlí pro miminko

Illustration showing two steps of a baby car seat replacement, labeled ① and ② with yellow arrows indicating direction.

Medical illustration showing a child inside a car seat and ear with instructions for ear manipulation and safety symbols.

Uchycení na kočárek

1 2 3 Click! 4

Použití v letadle

Instalace v letadle

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green bands and a yellow arrow (no text or symbols)

Cartoon character in green outfit with yellow eyes and a red X symbol, standing near a window (no text or symbols)

Diagram showing car seatbelt buckle adjustment with green belt and checkmark indicating selection

Diagram showing car seatbelt usage with a green cable and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a tool, no text or symbols present

Illustration of hands installing a green mechanical component (no text or symbols visible)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Illustration of a hand using a tool to adjust or install a green mechanical component (no text or symbols visible)

Green ribbon cable with a gray clip, shown in a corner view (no text or symbols)

Green fabric clip with a metallic clip attached, no text or symbols visible

Green mechanical clamp or bracket assembly with a numbered label (4) in the top-left corner, no text or symbols present.

Prohibition sign showing a chair seat and child silhouette without any text or symbols

Záruka

Prohibition sign showing a person sitting on a chair facing another person, both crossed out by a red circle

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating a mechanical or safety procedure with numbered steps and checkmark indicators

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a road intersection with green lane and directional arrows, no readable text or symbols

Medical illustration showing a hand holding a cable with a yellow arrow indicating direction, accompanied by a small inset image of a fetus.

Illustration of a car seatbelt with a green bandage and checkmark symbols (no text or labels)

Illustration of a person using a green cable to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 No z ×

Illustration of a hand turning a car interior with yellow arrows indicating rotational motion (no text or symbols)

Diagram of a car seatbelt with a hand pointing to the seat area, showing no text or symbols.

Simple line drawing of a person inside a vehicle (no text or symbols)

③ Click!

Diagram showing two scenarios of a shoe with color-coded zones and selection symbols (green checkmark, red X)

Mechanical component diagram showing internal structure with yellow mounting points (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating the wheel (no text or symbols present)

③ ③

Illustration of a baby seat with a yellow arrow indicating the motion direction (no text or symbols)

5 Click!

Illustration of a car seatbelt with a numbered label indicating car type and safety symbol

② #

345

Illustration of a car seatbelt with arrows indicating motion or movement (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion direction (no text or symbols)

Illustration of a hand placing a component into a seated body, with a yellow arrow indicating the location (no text or symbols present)

Illustration of a hand adjusting a small red circular component on a mechanical component (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby in a car seat being adjusted for down, with a hand pointing to the seat (no text or symbols present)

Diagram showing two steps of car seatbelting, with numbered instructions and check symbols indicating correct and incorrect states.

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and shading changes.

Medical illustration showing a child inside a car seat and ear with instructions for ear removal and safety check.

1 2 3 Click! 4

Illustration of a car seatbelt buckle being adjusted for a person's seatbelt (no text or symbols present)

Cartoon character in green hat standing near a vehicle with a red X mark (no text or symbols)

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a tool, no text or symbols present

Illustration of hands installing a green mechanical component (no text or symbols visible)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Illustration showing two steps of a green mechanical component being adjusted, with numbered labels ① and ②.

Two-step illustration showing a green mechanical clamp being held, labeled 3 and 4 (no text or symbols on the clamp itself)

Prohibition sign showing a red circle with a diagonal line and a pictogram of a person sitting on the seat.

Prohibition sign showing a person sitting on a chair facing the wheel, with no text beyond the red circle.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating two steps of a car seatbelting technique with labeled parts and directional indicators

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a pipeline with green flow direction and checkmark indicators (no text or symbols)

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a small inset image of a fetus.

Illustration of a car seatbelt with a green bandage and checkmark symbols (no text or labels)

Illustration of a person's seatbelt with a green diagonal stripe, no text or symbols present

Diagram illustrating car seatbelt usage with a green checkmark and yellow arrow indicating direction

5 ✓

6 No z ×

Illustration of a hand pressing down on a car interior with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with a dashed arrow indicating motion or movement (no text or symbols present)

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two scenarios of a shoe's interior with color-coded zones and selection indicators (green checkmark, red X)

Mechanical component diagram showing a gear or cam mechanism with yellow fasteners, no text or symbols present

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the pressure point (no text or symbols present)

Illustration of a car seatbelt with a hand adjusting the seat area and a yellow arrow indicating rotation (no text or symbols)

③ ≡

Illustration of a car seatbelt with a yellow arrow indicating the motion direction (no text or symbols)

5 Click!

Illustration of a car seatbelt device with a car icon and a numbered label (1), no text or symbols present.

② #

345

Illustration of a car seatbelt with arrows indicating motion or movement (no text or symbols)

Illustration of a car seatbelt with a hand adjusting the seatbelt and a yellow arrow indicating motion (no text or symbols)

Illustration of hands adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand adjusting a small red circular component on a mechanical component (no text or symbols)

Diagram illustrating mechanical assembly steps with numbered labels and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat being adjusted for down, with a hand pointing to the seat (no text or symbols present)

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

Komfort dla dziecka

Illustration showing two steps of a baby car seat replacement, with arrows indicating the direction and timing.

Medical illustration showing a child inside a car seat and ear with a green catheter, accompanied by instructional symbols.

Mocowanie do wózka

1 2 3 Click! 4

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green bands and yellow directional arrow (no text or symbols)

Cartoon character in green outfit with yellow eyes and a red X symbol, standing near a window (no readable text or symbols)

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a tool, no text or symbols present

Illustration of hands installing a green mechanical component (no text or symbols visible)

Illustration of a hand adjusting a green cable or wire component (no text or symbols present)

Illustration of a hand using a tool to cut a green mechanical component (no text or symbols visible)

Green ribbon cable with a gray clip, shown in a stylized view (no text or symbols)

Green cable clamp with a metallic clip, no text or symbols visible

Green mechanical clamp or bracket component with a gray handle, no visible text or symbols

Prohibition sign showing a chair seat and car, indicating no use or absence of use.

Gwarancja

Prohibition sign showing a chair seat and child silhouette without any text or symbols

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating two steps of a car seatbelting technique, labeled with numbered instructions and checkmark indicators.

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a road intersection with green lane and directional arrows, no readable text or symbols

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a magnified inset of the anatomical structure.

Illustration of a car seatbelt with a green band and checkmark symbols (no text or labels)

Illustration of a person using a green belt to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car and using a dog icon

6 No eye z ×

Illustration of a hand pressing down on a car wheel with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt mechanism with a dashed arrow indicating motion (no text or symbols present)

Simple line drawing of a person inside a vehicle (no text or symbols)

③ Click!

Diagram showing two scenarios of a shoe's interior with color-coded zones and checkmark indicators

Mechanical component diagram showing a gear or cam mechanism with yellow components and a numbered label (6), no readable text or symbols present.

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the handle (no text or symbols present)

Illustration of a car seatbelt with a yellow arrow indicating the wheel or wheel (no text or symbols present)

③ ≡

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Illustration of a car safety seat with a car icon and numbered label (1) in Chinese

② #

345

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Illustration of a hand placing a component into a seated body, with a yellow arrow indicating direction (no text or symbols present)

Illustration of a hand adjusting a red circular component on a mechanical component (no text or symbols)

Diagram illustrating mechanical assembly steps with numbered labels and a U-shaped magnet symbol

5 Click!

Illustration of a baby in a car seat being adjusted for down, with a hand pointing to the seat (no text or symbols present)

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

Комфорт для ребенка

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and shading.

Medical illustration showing a child in a car seat and ear with instructions for medical or safety interventions.

1 2 3 Click! 4

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green bands and yellow directional arrow (no text or symbols)

Cartoon character in green outfit with yellow teeth, standing near a window (no text or symbols)

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety belt clip and a gray clamp, no text or symbols present

Illustration of hands installing a green mechanical component with a blue stripe (no text or symbols)

Illustration of a hand holding a metal clamp attached to a green vertical bar (no text or symbols)

Prohibition sign showing a car seat and child silhouette crossed out, indicating no use or absence of use.

Гарантия

Prohibition sign showing a red circle with a diagonal line and a pictogram of a person sitting on the seat.

Illustration of a car seatbelt with a yellow arrow indicating the left side (no text or symbols present)

Diagram illustrating a mechanical or safety procedure with numbered steps and directional indicators (green checkmark, red X)

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram showing a green pipeline with dashed lines and circular markers, no readable text or symbols present.

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a circled anatomical device.

Illustration of a car seatbelt with a green bandage and checkmark symbols (no text or labels)

Illustration of a person using a green cable to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered parts and directional arrow indicating movement

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 no z ns ×

Diagram showing a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt mechanism showing the wheel and seat, with no text or symbols present.

Simple line drawing of a person inside a vehicle compartment (no text or symbols)

③ Click!

Diagram showing two scenarios of a device with colored buttons and labels, including check and cross icons.

Mechanical component diagram showing a gear and cam mechanism (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a hand adjusting the seat area and a yellow arrow indicating rotation (no text or symbols)

③ ≡

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Diagram showing car seat with car icon and numbered label, likely illustrating vehicle safety or usage instructions

② ②

345

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a hand adjusting the seatbelt and a yellow arrow indicating motion (no text or symbols)

Illustration of hands adjusting a pelvic component with a yellow arrow indicating direction (no text or symbols)

Illustration of a hand adjusting a small red circular component on a mechanical component (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered labels and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat being adjusted for down, with a hand pointing to the seat (no text or symbols present)

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

Ērtības mazulim

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and shading.

Medical illustration showing a child in a car seat and ear with instructions for ear manipulation and safety check.

1 2 3 Click! 4

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green bands and a yellow arrow (no text or symbols)

Cartoon character in green outfit with yellow eyes and a red X symbol, standing near a window (no text or symbols)

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green cable and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a tool, no text or symbols present

Illustration of hands installing a green mechanical component (no text or symbols)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Illustration of a hand using a tool to cut a green fabric or tape (no text or symbols visible)

Green ribbon cable with a metallic clip, shown in a corner view (no text or symbols)

Green mechanical clamp or clip assembly with a metallic clip, no visible text or symbols

Green mechanical clamp or bracket assembly with a numbered circle (4) and no visible text or symbols

Prohibition sign showing a chair and person inside, indicating no use or absence of exercise

Garantija

Prohibition sign showing no smoking or alcohol consumption in a vehicle, with a red circle and no text.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating two steps of a mechanical device with labeled parts and directional indicators

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram showing a green pipeline with dashed lines and circular markers, no readable text or symbols present.

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a magnified inset of the anatomical structure.

Illustration of a car seatbelt with a green band and checkmark symbols (no text or labels)

Illustration of a car seatbelt with a green diagonal stripe and yellow arrow indicating direction (no text or symbols)

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 #0 #z ×

Illustration of a hand pressing down on a car interior with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt device with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two steps of a shoe with color-coded zones and selection indicators (green checkmark, red X)

Mechanical component diagram showing internal structure with yellow highlighted parts (no text or symbols)

Illustration of a hand placing a yellow arrow on a car interior (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating the wheel or wheel (no text or symbols present)

③ ≡

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt being adjusted, showing a yellow arrow indicating the motion (no text or symbols present)

Illustration of hands performing a medical procedure on pelvic anatomy, showing a highlighted anatomical region with an arrow (no text or symbols present)

Illustration of a hand adjusting a red circular component on a mechanical component (no text or symbols)

Diagram illustrating mechanical assembly steps with numbered labels and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat being adjusted for down, with a hand pointing to the seat (no text or symbols present)

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

Udobje za otroka

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and shading.

Illustration showing car seat positioning and ear care instructions with numbered steps and safety symbols

1 2 3 Click! 4

Uporaba na letalu

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green bands and a yellow arrow (no text or symbols)

Cartoon character in green outfit with yellow eyes and a red X symbol, standing near a window (no readable text or symbols)

Diagram showing car seatbelt adjustment with green belt and checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a tool, no text or symbols present

Illustration of hands installing a green mechanical component (no text or symbols visible)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Prohibition sign showing a chair and person inside, indicating no use or absence of exercise

Garancija

Prohibition sign showing a chair seat and child silhouette crossed out, indicating no use or absence of a vehicle.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating a mechanical or safety procedure with numbered steps and directional indicators (green checkmark, red X)

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram showing a green pipeline with dashed lines indicating flow or movement, surrounded by abstract geometric shapes and no readable text or symbols.

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a circled anatomical device.

Illustration of a car seatbelt with a green bandage and checkmark symbols (no text or labels)

Illustration of a person's seatbelt with a green diagonal band and yellow arrow indicating direction (no text or symbols)

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

5 ⑤

6 #o #z ×

Istme paigaldamine Beyond Alusele

Illustration of a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt device with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two scenarios of a shoe's interior, labeled with numbered steps and checkmark/cancel icons.

Mechanical component diagram showing a housing with yellow components and a shaft (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the motion (no text or symbols present)

Illustration of a car seatbelt with a yellow arrow indicating the motion direction (no text or symbols)

③ ≡ 6

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Kandesanga kasutamine

Illustration of a car seatbelt with a car icon and numbered label (1) pointing to it.

② ②

345

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion direction (no text or symbols)

Lapse istmele asetamine

Illustration of a hand holding a medical device with a yellow arrow indicating a point of interest (no text or symbols present)

Illustration of a hand adjusting a small red object on a mechanical component (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat being adjusted for down, with a hand pointing to the seat (no text or symbols present)

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

Mugavus beebile

Lamamisasendi kasutamine

Illustration showing two steps of baby car seat replacement: one with yellow arrows indicating clockwise motion, the other with yellow arrows indicating backward movement.

Istme kohandamine kasvavale lapsele

Medical illustration showing a child inside a car seat and ear with a green catheter, accompanied by instructional symbols.

Vankrile kinnitamine

1 2 3 Click! 4

Kasutamine lennukis

Paigaldamine lennukisse

Illustration of a green safety belt securing a car, with a yellow arrow indicating the down-right motion (no text or symbols)

Cartoon character in green outfit with yellow eyes and a red X symbol, standing near a vehicle (no text or symbols)

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety belt clip and a gray clamp, no text or symbols present

Illustration of hands installing a green mechanical component with a blue stripe (no text or symbols)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Illustration of a hand using a tool to cut a green mechanical component (no text or symbols visible)

Green ribbon with a gray clip, no text or symbols visible

Green mechanical clamp or clip assembly with a metallic clip, no text or symbols visible

Green mechanical clamp or bracket component with a gray handle, no visible text or symbols

Prohibition sign showing a red circle with a diagonal line and a pictogram of a person sitting on the seat.

Garantii

Prohibition sign showing a person sitting on a chair facing the wheel, with no text beyond the red circle.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating a mechanical or safety procedure with numbered steps and directional indicators

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a road intersection with green lane and directional arrows, no readable text or symbols

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and anatomical structures.

Illustration of a car seatbelt with a green bandage and checkmark symbols (no text or labels)

Illustration of a person's seatbelt being lifted by a green cable, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 #o #z ×

Postavljanje sjedalice na Beyond bazu

Illustration of a hand pressing down on a car interior with yellow arrows indicating motion (no text or symbols)

Diagram of a car seat assembly with a dashed arrow indicating motion (no text or symbols present)

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two steps of a shoe handle with color-coded zones and checkmark indicators

Mechanical component diagram showing internal structure with yellow connectors (no text or symbols)

Illustration of a hand cleaning a car interior with a yellow arrow indicating the handle (no text or symbols present)

Illustration of a car seatbelt with a yellow arrow indicating the motion direction (no text or symbols)

③ ≡

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Diagram showing car seat with car icon and numbered label, likely illustrating vehicle safety or safety instructions.

② #

345

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt being adjusted for a hand, with a yellow arrow indicating the motion direction (no text or symbols present)

Illustration of hands performing a medical procedure on pelvic anatomy, showing a yellow arrow indicating direction (no text or symbols present)

Illustration of a hand adjusting a red circular component on a mechanical component (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat with a hand adjusting the seatbelt, showing no text or symbols.

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

Udobnost za bebu

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and timing.

Medical illustration showing a child inside a car seat and ear with a green catheter and red cross mark indicating a medical procedure.

1 2 3 Click! 4

Illustration of a car seatbelt buckle being adjusted for a person's seatbelt (no text or symbols present)

Cartoon character in green hat looking through window with a red X mark, no text or symbols present

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety belt clip and a gray clamp, no text or symbols present

Illustration of hands installing a green mechanical component (no text or symbols visible)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

1. Skratite pojas rotiranjem skraćivača pojasa za pola okreta, zatim provucite zrakoplovni pojas u otvoreni utor skraćivača pojasa. (1, 2, 3, 4)

2. Ponovite rotiranje i provlačenje dok kopča zrakoplovnog pojasa više ne bude u vodilici pojasa autosjedalice.

Tijekom leta

Prohibition sign showing a red circle with a no-dominant red circle and a pictogram of a person sitting on the seat.

Jamstvo

Prohibition sign showing a chair and child inside a circle, indicating no use or absence of weight gain.

atsirėmęs į atlošą.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating a mechanical or safety procedure with numbered steps and checkmark indicators

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a pipeline with green flow direction indicators and checkmark symbols (no readable text or labels)

Medical illustration showing a hand holding a cable with a yellow arrow indicating direction, accompanied by a magnified inset of a human head.

Illustration of a car seatbelt with a green band and checkmark symbols (no text or labels)

Illustration of a person using a green cable to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 #0 #z ×

Diagram showing a hand pressing down on a car interior with yellow arrows indicating motion or flow (no text or symbols)

Diagram of a car seatbelt with a hand pointing to the seat area, showing no text or symbols.

Simple line drawing of a person inside a vehicle (no text or symbols)

③ Click!

Diagram showing two steps of a shoe with color-coded zones and checkmark indicators

Mechanical component diagram showing internal structure with yellow connectors and a numbered label (6), no readable text or symbols present.

Illustration of a hand placing a yellow arrow on a car interior (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating the wheel (no text or symbols present)

③ ≡ 6

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Illustration of hands performing a medical procedure on pelvic anatomy, showing a highlighted section with an arrow (no text or symbols present)

Illustration of a hand adjusting a small red circular component on a mechanical or anatomical structure (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered labels and a U-shaped magnet symbol

5 Click!

Illustration of a baby in a car seat being adjusted for down, with a yellow arrow indicating the motion (no text or symbols present)

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

Komfortas küdikiui

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and timing.

Medical illustration showing a child inside a car seat and ear with a green catheter, accompanied by instructional symbols.

1 2 3 Click! 4

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green bands and a yellow arrow (no text or symbols)

Cartoon character in green hat and white shirt standing near a vehicle with a red X mark (no text or symbols)

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and red cross symbol indicating absence or error

Illustration of hands holding a green safety belt clip and a gray clamp clip (no text or symbols)

Illustration of hands installing a mechanical component on a green surface (no text or symbols)

Illustration of a hand holding a metal clamp over a green vertical strip, no text or symbols present

Illustration of a hand using a tool to cut a green mechanical component (no text or symbols visible)

Green ribbon diagram with a metallic clip, no text or symbols present

Green ribbon with a metallic clip holding a small object, no text or symbols visible

Green mechanical clamp or bracket component with gray clamps, no visible text or symbols

Prohibition sign showing a person sitting on a chair facing the sun, enclosed in a red circle.

Garantija

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating a mechanical or safety procedure with numbered steps and directional indicators (green checkmark, red X)

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a road intersection with green lane and directional arrows, no readable text or symbols

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a circled anatomical device.

Illustration of a car seatbelt with a green bandage and checkmark symbols (no text or labels)

Illustration of a car seatbelt with a green diagonal stripe and yellow arrow indicating direction (no text or symbols)

4

Illustration showing car safety instructions with icons for driving, using a car, and checkmark

6 No Eye Z X

Illustration of a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seat assembly with a dashed arrow indicating motion (no text or symbols present)

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two scenarios of a shoe's sole, with numbered steps and colored buttons indicating selection or cancellation.

Mechanical component diagram showing internal structure with yellow connectors (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a hand adjusting the seat area and a yellow arrow indicating rotation (no text or symbols)

③ #

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Illustration of a car seatbelt device with a car icon and numbered label (1), no text or symbols present.

② #

345

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a person using a seatbelt device to lift a seatbelt, with a yellow arrow indicating the motion direction (no text or symbols present)

Illustration of hands adjusting a pelvic device with a yellow arrow indicating the location (no text or symbols present)

Illustration of a hand placing a red circular object into a mechanical component (no text or symbols)

Diagram illustrating a mechanical or electrical component with numbered parts and a U-shaped magnet symbol, likely illustrating a motor or switch mechanism.

5 Click!

Illustration of a baby in a car seat being lifted, with a hand adjusting the seat (no text or symbols)

Diagram showing two steps of car seatbelt adjustment, labeled 7 and 8 with icons for green checkmark and red cross.

Комфорт за бебето

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and timing.

Medical illustration showing a child inside a car seat and ear with instructions for ear manipulation and safety check.

1 2 3 Click! 4

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green bands and a yellow arrow (no text or symbols)

Cartoon character in green outfit with yellow eyes and a red X symbol, standing near a vehicle (no text or symbols)

Diagram showing car seatbelt buckle adjustment with green belt and checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a gray clip (no text or symbols)

Illustration of hands installing a mechanical component on a green surface (no text or symbols)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Illustration of a hand using a tool to adjust or install a green mechanical component (no text or symbols visible)

Green cable buckle with a gray clip, shown in a simple diagram view (no text or symbols)

Green ribbon with a metallic clip attached, no text or symbols visible

Green mechanical clamp or bracket assembly with a numbered label (4) in the top-left corner, no text or symbols present.

Prohibition sign showing a person sitting in a chair and using a circle to symbolize rest or care.

Prohibition sign showing a person sitting in a chair and giving a thumbs-up, enclosed in a red circle.

Illustration of a car seatbelt with a yellow arrow indicating the left side (no text or symbols present)

Diagram illustrating a mechanical device with labeled parts and directional indicators, including checkmark and cross symbols.

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram showing a green pipeline with dashed lines and circular markers, no readable text or symbols present.

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a magnified inset of the anatomical structure.

Illustration of a car seatbelt with a green bandage and checkmark symbols (no text or labels)

Illustration of a person using a green cable to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 No eye z ×

Diagram showing a hand turning a car interior with yellow arrows indicating rotational motion (no text or symbols)

Diagram of a car seatbelt with a hand pointing to the seat area, showing no text or symbols.

Simple line drawing of a person inside a vehicle (no text or symbols)

③ Click!

Diagram showing two scenarios of a shoe's interior with color-coded zones and selection indicators (green checkmark, red X)

Mechanical component diagram showing internal structure with yellow connectors and a central cavity (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the handle (no text or symbols present)

Illustration of a car seatbelt with a hand adjusting the seat area and a yellow arrow indicating rotation (no text or symbols)

③ ≡

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt being adjusted for a hand, showing the seatbelt and handle (no text or symbols)

Umiestnenie diet'a'a do autosedačky

Illustration of hands adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand adjusting a mechanical component with a red circular mark (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat with a hand adjusting the seat, showing no text or symbols.

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

Pohodlie pre bábätko

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and shading.

Nastavenie autosedačky pre rastúce diet'a

Medical illustration showing a child in a car seat and ear with instructions for ear manipulation and safety check.

1 2 3 Click! 4

Použitie v lietadle

Illustration of a car seatbelt being adjusted for steering wheel (no text or symbols)

Cartoon character in green outfit with yellow teeth, standing near a window (no text or symbols)

Diagram showing car seatbelt adjustment with green belt and checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and red cross symbol indicating absence or error

Illustration of hands holding a green safety clip and a tool, no text or symbols present

Illustration of hands installing a green mechanical component (no text or symbols visible)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Illustration of a hand using a tool to cut a green mechanical component (no text or symbols visible)

Green cable or clamp component being inserted into a clip, shown in a simple diagram with no text or symbols.

Green ribbon with a metallic clip attached, no text or symbols visible

Green mechanical clamp or bracket assembly with no visible text or symbols

Odobratie a nasadenie pot'ahu

Prohibition sign showing a red circle with a diagonal line and a pictogram of a person sitting on the seat.

Záruka

Prohibition sign showing a person sitting on a chair facing another person, with no text or symbols beyond the red circle.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating two steps of a car seatbelting technique, labeled with numbered instructions and check/cancel icons.

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a pipeline with green flow direction indicators and checkmark symbols (no readable text or labels)

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a magnified inset of the anatomical structure.

Illustration of a car seatbelt with a green bandage and checkmark symbols (no text or labels)

Illustration of a person using a green belt to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

5 ⑤

6 #0 #z ×

Bílstóllinn settur upp á Beyond Base

Diagram showing a hand pressing down a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with a dashed arrow indicating motion or movement (no text or symbols present)

Simple line drawing of a person inside a vehicle (no text or symbols)

③ Click!

Diagram showing two steps of a shoe with color-coded zones and checkmark indicators

Mechanical component diagram showing a housing with yellow components and a highlighted part (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating the motion direction (no text or symbols)

③ ≡ 6

Illustration of a baby car seat with a yellow arrow indicating the motion direction (no text or symbols)

5 Click!

Diagram showing car seat with car icon and numbered label, likely for safety or vehicle inspection

② #

345

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt being adjusted for a hand, showing the seatbelt and handle (no text or symbols)

Illustration of hands adjusting a pelvic component with an arrow indicating direction (no text or symbols)

Illustration of a hand placing a red circular object into a mechanical component (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered labels and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat being lifted by a hand, showing the seat and seatbelt (no text or symbols)

Diagram showing two steps of car seatbelt usage, with numbered instructions and check/cancel icons

Illustration showing two steps of a baby car seat replacement, with arrows indicating the motion and direction of change.

Stillingar eftir vexti barnsins

Medical illustration showing a child inside a car seat and ear with instructions for ear manipulation and safety symbols.

1 2 3 Click! 4

Notkun í flugvél

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green bands and a yellow arrow (no text or symbols)

Cartoon character in green outfit with yellow eyes and a red X symbol, standing near a window (no readable text or symbols)

Nota beltisstyttingu

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a gray clip (no text or symbols)

Illustration of hands installing a green mechanical component with a blue stripe (no text or symbols)

Illustration of a hand holding a metal clamp over a green vertical strip, no text or symbols present

Illustration of a hand using a tool to cut a green mechanical component, no text or symbols present

Green cable buckle with a gray handle, shown in a corner view (no text or symbols)

Green ribbon with a metallic clip attached, no text or symbols visible

Green mechanical clamp or bracket component with a gray handle, no visible text or symbols

Skipt um áklæði

Prohibition sign showing a chair seat and child silhouette crossed out, indicating no use or absence of use.

Ábyrgő

Prohibition sign showing a chair seat and child silhouette crossed out, indicating no use or absence of use.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating two steps of a car seatbelting technique, labeled with numbered instructions and check/cancel icons.

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram showing a green curved structure with dashed lines and circular markers, no readable text or symbols present.

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a magnified inset of the anatomical structure.

Illustration of a car seatbelt with a green band and checkmark indicators (no text or symbols)

Illustration of a car seatbelt with a green diagonal stripe and yellow arrow indicating direction (no text or symbols)

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

5 ⑤

6 No No No X

Diagram showing a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seat assembly with a dashed arrow indicating motion (no text or symbols present)

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two steps of a shoe handle with color-coded zones and selection indicators (green checkmark, red X)

Mechanical component diagram showing a housing with yellow connectors and a central cavity (no text or symbols)

Illustration of a hand cleaning a car interior with a yellow arrow indicating the handle (no text or symbols present)

Illustration of a car seatbelt with a yellow arrow indicating the wheel (no text or symbols present)

③ ≡ 6

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

이동 손잡이 이용하기

Illustration of a car seat with a car icon and a numbered label (1) in the top-left corner, no text or symbols on the diagram itself.

② #

345

Illustration of a car seatbelt with arrows indicating motion or movement (no text or symbols)

Illustration of a car seatbelt being adjusted for a hand, showing the seatbelt and handle (no text or symbols)

카시트에 아이 앉히기

Illustration of a hand adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand adjusting a small red circular component on a mechanical component (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat being lifted, with a hand adjusting the seat and a yellow arrow indicating force (no text or symbols present)

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

아기를 위한 편안함

Lay flat 위치 사용하기

Illustration showing two steps of baby car seat replacement: one with yellow arrows indicating clockwise motion, the other with yellow arrows indicating backward motion.

성장하는 아이에 맞게 시트 조절하기

어깨벨트/헤드레스트 높이

Illustration showing a baby in a car seat and its ear with a green medical device, accompanied by instructional symbols.

유모차에 부착하기

1 2 3 Click! 4

항공기에서 사용하기

항공기에 설치하기

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing green bands and a yellow arrow (no text or symbols)

Cartoon character in green outfit with yellow eyes and a red X symbol, standing near a window (no text or symbols)

벨트 쇼트너 사용 방법

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a metallic clip (no text or symbols)

Illustration of hands installing a green mechanical component (no text or symbols visible)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Illustration of a hand using a tool to cut a green mechanical component (no text or symbols visible)

Green ribbon buckle with a gray clip, shown in a stylized graphic (no text or symbols)

Green mechanical component with a metallic clip, shown in close-up (no text or symbols)

Green mechanical clamp or bracket component with a gray handle, no visible text or symbols

시트커버 분리 및 재장착

Prohibition sign showing a car seat and child silhouette crossed out, indicating no use or absence of use.

품질 보증

Abstract diagram of layered curved shapes with a central circular element, no text or symbols present

Illustration of a hand holding a curved object with a yellow arrow indicating motion (no text or symbols)

Diagram of a biological structure with layered components and a labeled section (3), no text or symbols present.

Diagram of a car seat assembly showing the seat, seatbelt, and seatbelt (no text or labels)

車両ベルトを使用したシートの取り付け

Illustration of a car seatbelt with a yellow arrow indicating the left side (no text or symbols present)

Diagram illustrating two steps of a mechanical or electrical component with labeled parts and directional indicators.

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Abstract diagram with green and gray curved lines, no readable text or symbols

Medical illustration showing a surgical procedure with labeled steps and directional arrows indicating movement or force.

Illustration of a car seatbelt with a green bandage and checkmark symbols (no text or labels)

Illustration of a person using a green cable to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car driving behavior with icons for car, bike, and checkmark indicating inspection or approval.

6 No smoking Z X

Beyondベースへのシートの取り付け

Illustration of a hand turning a car interior with yellow arrows indicating rotational motion (no text or symbols)

Illustration of a car seatbelt with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

③ Click!

Diagram showing two scenarios of a device's interior with color-coded zones and selection indicators (green checkmark, red X)

Mechanical component diagram showing internal structure with yellow connectors (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating the wheel or wheel (no text or symbols present)

③ ≡

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

キャリーハンドルの使用

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

お子 様をシートに座らせる

Illustration of hands adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand adjusting a red circular component on a mechanical component (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby in a car seat being adjusted for down, with a yellow arrow indicating the motion (no text or symbols present)

Diagram showing two steps of car seatbelting, with numbered instructions and a checkmark indicating selection.

赤ちゃんの快適さ

フラットポジションの使用

Illustration showing two steps of a baby car seat replacement, with arrows indicating the direction and timing.

成長するお子様に合わせたシート調整

ショルダーベルト/ヘッドレストの高さ

Medical illustration showing a child inside a car seat and its ear with a green catheter, accompanied by instructional symbols.

ベビーカーへの取り付け

1 2 3 Click! 4

航空機での使用

航空機への取り付け

Illustration of a car seatbelt buckle being adjusted for a seatbelt, showing green belt and yellow arrow (no text or symbols)

Cartoon character in green hat looking through window with a red X mark (no text or symbols)

ベルトショートナーの使用

Diagram showing car seatbelt buckle adjustment with green belt and checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a small object, no text or symbols present

Illustration of hands installing a green mechanical component with a blue stripe (no text or symbols)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Illustration of a hand using a tool to cut a green mechanical component (no text or symbols visible)

Green ribbon cable with a gray clip, shown in a simple diagram view (no text or symbols)

Green mechanical component with a metallic clip, shown in close-up (no text or symbols)

Green mechanical clamp or bracket assembly with a numbered label (4) in the top-left corner, no text or symbols present.

カバーの取り外しと取り付け

Prohibition sign showing a red circle with a diagonal line and a seated person silhouette, indicating no smoking or reduction.

处理和维修

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating a mechanical or safety procedure with numbered steps and checkmark indicators

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a road intersection with green lane and directional arrows, no readable text or symbols

Medical illustration showing a surgical procedure with labeled steps and color-coded instructions

Illustration of a car seatbelt with a green bandage and checkmark symbols (no text or labels)

Illustration of a person using a green belt to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 No z ×

将安全座椅安装在Beyond基座上

Illustration of a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt device with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

③ Click!

Diagram showing two steps of a shoe with color-coded zones and checkmark indicators

Mechanical component diagram showing a housing with yellow components and a shaft (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating the motion direction (no text or symbols)

③ ≡ 6

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

使用提手

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

将孩子放入安全座椅

Illustration of hands adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand placing a red circular object into a mechanical component (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat being adjusted for down, with a hand pointing to the seat (no text or symbols present)

Diagram showing car seatbelt adjustment steps with numbered labels and check/cancel icons

给宝宝带来舒适性

使用平躺位置

Illustration showing two steps of a baby car seat replacement, with arrows indicating the motion and direction of change.

随着孩子成长而调节安全座椅

肩带/头枕高度

Medical illustration showing a child in a car seat with directional arrows and a corresponding ear anatomy diagram with checkmark and cross symbols.

在手推车上安装

1 2 3 Click! 4

在飞机上使用

在飞机上安装

Illustration of a car seatbelt with a green belt and yellow arrow indicating a specific seatbelt (no text or symbols present)

Cartoon illustration of a character in green holding a device, with a red X symbol and number 3 (no readable text or symbols)

使用安全带缩短器

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and red X mark indicating absence or error

Illustration of hands holding a green safety belt clip and a gray clamp clip (no text or symbols)

Illustration of hands installing a green mechanical component with a blue stripe (no text or symbols)

Illustration of a hand adjusting a green cable or wire component (no text or symbols)

Illustration of a hand using a tool to cut a green mechanical component (no text or symbols visible)

Green ribbon diagram with a gray clip and arrow, no text or symbols present

Green mechanical clamp or bracket component with a gray handle, no visible text or symbols

Green mechanical clamp or bracket assembly with a numbered label (4) and no visible text or symbols

移除和重新套上椅套

Prohibition sign showing a seatbelt and child silhouette crossed out, indicating no use or absence of use.

担保

Prohibition sign showing a chair seat and child sleeping, indicating no smoking or nutrition allowed

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating two steps of a car seatbelting technique with labeled parts and directional indicators

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a pipeline with green flow direction and checkmark indicators (no text or symbols)

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a magnified inset of the anatomical structure.

Illustration of a car seatbelt with a green bandage and checkmark symbols (no text or labels)

Illustration of a person's seatbelt with a green diagonal band and yellow arrow indicating direction (no text or symbols)

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, and checkmark

6 No z ×

Diagram showing a hand pressing down on a mechanical component with yellow arrows indicating motion or flow (no text or symbols)

Diagram of a car seatbelt with a hand pointing to the seat area, showing no text or symbols.

Simple line drawing of a person inside a vehicle (no text or symbols)

③ Click!

Diagram showing two scenarios of a shoe's interior with color-coded zones and selection indicators (green checkmark, red X)

Mechanical component diagram showing internal structure with yellow connectors and a central cavity (no text or symbols)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the action (no text or symbols present)

Illustration of a car seatbelt with a yellow arrow indicating the wheel (no text or symbols present)

③ ≡ 6

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a hand adjusting a seatbelt with a yellow arrow indicating motion (no text or symbols)

Illustration of hands performing a medical procedure on pelvic anatomy, with a yellow arrow indicating direction (no text or symbols present)

Illustration of a hand placing a red circular object into a mechanical component (no text or symbols)

Diagram illustrating mechanical assembly steps with numbered labels and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat with a hand adjusting the seat, showing no text or symbols.

Diagram showing two steps of car seatbelt adjustment, labeled 7 and 8 with icons for check and dislocation.

Комфорт для малюка

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and timing.

Medical illustration showing a child inside a car seat and ear with a green catheter, accompanied by instructional symbols.

1 2 3 Click! 4

Illustration of a car seatbelt buckle being adjusted for down (no text or symbols)

Cartoon character in green hat and white shirt standing near a vehicle with a red X mark (no text or symbols)

Diagram showing car seatbelt usage with a green checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a gray clip (no text or symbols)

Illustration of hands installing a mechanical component on a green surface (no text or symbols)

Illustration of a hand holding a metal clamp attached to a green vertical bar (no text or symbols)

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Гарантія

Prohibition sign showing a person sitting on a chair facing the wheel, with no text beyond the red circle.

Illustration of a car seatbelt with a yellow arrow indicating left side (no text or symbols)

Diagram illustrating a mechanical or safety procedure with numbered steps and directional indicators (green checkmark, red X)

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

567 Click!

Diagram of a pipeline with green flow direction and checkmark indicators (no text or symbols)

Medical illustration showing a hand performing a neck massage technique with labeled motion arrows and a circled anatomical device.

1. Uzmite rameni deo pojasa i provucite ga oko zadnjeg dela auto sedišta kroz dvije vodilice pojasa za ramena. Uverite se da u potpunosti leži unutar vodilice ramenog pojasa. (1, 2)
2. Zategnite rameni deo pojasa povlačenjem. Drugom rukom držite auto sedište na mestu. (3)
3. Ostavite ručku za nošenje gore u uspravnom položaju, a unutrašnji deo sedišta u uspravnom položaju (NE u polegnutom položaju). (4, 5, 6)
4. Ako ste auto sedište postavili na zadnje sedište: Pomerite prednje sedište vozila unazad tako da bude u blagom dodiru sa auto sedištem. Ako to nije moguće, pomerite prednje sedište napred kako biste stvorili što je moguće veću udaljenost između auto sedišta i prednjeg sedišta, poželjno najmanje 25 cm.

123

Illustration of a car seatbelt with a green band and checkmark symbols (no text or labels)

Illustration of a person using a green cable to lift a car seatbelt, with no text or symbols present.

Diagram illustrating car seatbelt usage with numbered instructions and a green checkmark indicating a specific point.

Illustration showing car safety instructions with icons for driving, using a car, walking, and checkmark

6 No eye z ×

Illustration of a hand turning a car wheel with yellow motion arrows indicating rotational flow (no text or symbols)

Illustration of a car seatbelt with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

3 Click!

Diagram showing two steps of a shoe handle with color-coded zones and checkmark indicators

Mechanical component diagram showing internal structure with yellow highlighted parts (no text or symbols)

1. Kada je auto sedište postavljeno u smer suprotan od smera vožnje, preporučuje se postavljanje prednjeg sedišta vozila na način da dodiruje auto sedište. Uverite se da auto sedište može i dalje slobodno da se okreće.

2. Ostavite ručicu za nošenje gore u položaju za nošenje. (1, 2)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating the wheel (no text or symbols present)

③ ≡

Illustration of a car seatbelt with a yellow arrow indicating rotation (no text or symbols)

5 Click!

Diagram of a car seatbelt mechanism with arrows indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Postavljanje deteta u auto sedište

1. Pritiskom dugmeta centralnog regulatora, ispruženom rukom povucite pojaseve od auto sedišta. Pojaseve povlačite ravnomjerno kako bi ostali jednako dugački. Nemojte vući jastučiće za ramena jer su fiksn i ne mogu se pomicati. (1)
2. Otvorite kopču sigurnosnih pojaseva. (2)
3. Da vam trake za ramena ne bi smetale, postavite jastučiće za ramena na magnete sa svake strane školjke auto sedišta. (3, 4)
4. Stavite dete u auto sedište i po potrebi podesite položaj pojaseva i naslona za glavu - pogledajte odeljak „Prilagođavanje detetu kroz rast“.
5. Stavite naramenice preko detetovih ramena i zatvorite kopču: KLIK! (5)
6. Povucite traku centralnog regulatora ravno sa auto sedišta da biste stegli pojaseve. Obavezno dobro zategnite pojas kako više ne biste mogli horizontalno savijati pojaseve (tako da ne možete napraviti preklop na pojasevima). Prilikom zatezanja pojasa, uverite se da je dete sigurno naslonjeno na naslon sedišta. (6, 7, 8)

Illustration of hands performing a medical procedure on pelvic anatomy, with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand adjusting a small red circular component on a mechanical assembly (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations and a U-shaped magnet symbol

5 Click!

Illustration of a baby car seat with a hand adjusting the seat, showing no text or symbols.

Diagram showing two steps of car seatbelting, with numbered instructions and check/cancel icons

Udobnost za bebu

Illustration showing two steps of a baby car seat replacement, with arrows indicating direction and timing.

Medical illustration showing a child in a car seat and ear with instructions for ear removal and safety check.

1 2 3 Click! 4

Upotreba u avionu

Instalacija u avionu

1. Uvek pratite bezbednosna uputstva avio-kompanije
2. Postavite auto sedište samo na putnička sedišta u avionu koja su za ovu svrhu odobrena od strane avio-kompanije, koja su okrenuta u smeru leta i gde nema mesta za aktiviranje vazdušnih jastuka.
3. Postavite auto sedište na sedište za putnike, okrenuto u smer suprotan od smera kretanja aviona. (1)
4. Postavite auto sedište na sedalo aviona. Proverite da je unutarnji deo u uspravnom položaju (NE u ravnom položaju) i da je ručka za nošenje podignuta u položaju za nošenje. (2, 3, 4)

1. Postavite sigurnosni pojas u avionu kroz obe zelene vodilice pojasa i zatvorite kopču sigurnosnog pojasa u avionu. (1)

2. Povucite kraj trake sigurnosnog pojasa u avionu da biste ga potpuno zategli. (2)

3. Vodite računa da kopča sigurnosnog pojasa u avionu nije u jednoj od zelenih kuka za pojas. (3)

4. Ako se ovaj problem pojavi, možete koristiti skraćivač pojasa da skratite pojas kako je opisano u nastavku, tako da položaj kopče više ne bude u sukobu sa vodičem za pojas. Napomena da skraćivač pojasa nije uključen u sadržaj pakovanja, ali je dostupan kao servisni deo. Molimo kontaktirajte BeSafe da zatražite jedan.

5. Napomena da vodilica za rameni dio pojasa na zadnjoj strani auto sedišta ostaje neiskorišćena kada se auto sedište postavlja na sedište aviona.

1 Click!

Illustration of a car seatbelt being adjusted for a vehicle (no text or symbols)

Cartoon illustration of a character in green hat and white shirt standing near a window with a red X mark (no text or symbols)

Diagram showing car seatbelt adjustment with green belt and checkmark indicating selection

Diagram showing car seatbelt usage with a green belt and a red X mark indicating absence or error.

Illustration of hands holding a green safety clip and a tool, no text or symbols present

Illustration of hands installing a green mechanical component with a handle (no text or symbols)

Illustration of a hand holding a metal clamp over a green vertical bar, no text or symbols present

1. Skraćujte pojas rotiranjem skraćivača pojasa za pola okreta, zatim provucite pojas aviona u otvoreni prorez skraćivača pojasa. (1, 2, 3, 4)

2. Ponovite rotiranje i provlačenje dok kopča pojasa aviona više ne bude u vodiču za pojas auto sedišta.

Tokom leta

Illustration of a hand using a tool to cut a green mechanical component (no text or symbols visible)

Green ribbon cable with a gray clip, shown in a stylized view (no text or symbols)

Green mechanical clip with a metallic clip attached, no text or symbols visible

Green mechanical clamp or bracket component with a gray handle, no visible text or symbols

Uklanjanje i ponovno postavljanje presvlake

• Obratite pažnju prilikom uklanjanja presvlake jer se postavljanje presvlake vrši obrnutim redosledom.
• Navlaka naslona za glavu i unutrašnjeg dela se mogu zasebno skinuti.
• Zaštita za sunce se može pažljivo ukloniti i tkanina skliznuti sa rama da bi se i ona oprala.
  • Za dalja uputstva posetite www.besafe.com
• Pre pranja obavezno zatvorite sve čičak trake i rajsferšluse.
• Kada perete presvlake sedišta, pratite oznaku za pranje sa unutrašnje strane navlake.

Prohibition sign showing a person sitting in a chair facing another person, both crossed out by a red circle.

Garancija

Prohibition sign showing a red circle with a diagonal line and a pictogram of a person sitting on the seat.

אַרְשָׁה

• אַרְאָה

.תַרְשָׁ

•

הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהֹהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהsf	q
הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּשִׁעַתְבּוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהו'	r
SIP+ x-7 כְפַעַתְבּוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָאֶתְבּוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוֱלְתְבּוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוֲלְתְבּוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָאֶלְתְבּוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָיְתְבּוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהֹתְתְבּוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהsf	s
(הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּר'	t
(הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּר'	u
(הכלההוּרָהוּרָהוּר'	v
(הכלההוּרָהוּר'	w

הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה�ּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוֱרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּר

q r s t u v w

a b c d e f g h i j k l m n o p

+SIP-ת הַרְשָׁ

Diagram illustrating car seat replacement steps with numbered instructions and a highlighted section showing seat positioning.

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

Illustration of a car seatbelt with a numbered label (2) and a green circular icon below, no readable text or symbols present.

Illustration of a car seatbelt with a yellow arrow indicating direction (no text or symbols)

Medical illustration showing a hand holding a car seatbelt with a yellow arrow indicating force or direction, labeled with number 7.

Diagram illustrating car seatbelt usage with checkmark and triangle symbols indicating selection or positioning

Click! ⑤

Diagram showing a car steering wheel with a green belt and directional arrow, labeled with number 3

Diagram of a car seatbelt with checkmark and triangle symbols indicating selection or status

Diagram illustrating a person's seatbelt usage with labeled parts and directional arrows indicating movement or force.

Safety warning illustration showing a person using a tool to avoid eye pain, with red circles indicating no smoking and a 'X' symbol.

Illustration showing a person using a car to drive a seatbelt, with checkmarks and icons for vehicle selection.

Diagram showing a car seatbelt with a checkmark and number 4, indicating a directional change or adjustment.

Beyond Base o'or hy nis'or hy nis'or

Diagram illustrating car gear shift and wheel meshing process, showing step 1 with highlighted cycle

Diagram of a mechanical component with yellow highlighted parts, no visible text or symbols

Diagram showing two scenarios of a car's seatbelt with color-coded buttons and checkmark indicators

Click!

Safety warning illustration showing a baby car seat with a no-dominant car symbol and number 3

Illustration of a baby car seat with a hand adjusting the seat area, showing a yellow curved arrow indicating motion (no text or symbols present)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the pressure point (no text or symbols)

Click!

Illustration of a car seatbelt with hand and yellow motion arrow indicating rotation (no text or symbols)

Illustration of a baby car seat with a no-smoking symbol and numbered label 2

Illustration of a car cab seat with a car icon and number 1 (no text or symbols on the diagram itself)

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Diagram illustrating a car seatbelt usage technique with labeled parts and directional arrows indicating movement.

Illustration of a hand holding a cable with a yellow arrow pointing to the cable end (no text or symbols)

תְרָה בַרִי הַלְרָה

Medical illustration showing anatomical structures with a numbered label (3) and a small inset of a U-shaped tube (no text or symbols present)

Mechanical component diagram showing a gear and shaft assembly (no text or labels)

Illustration of a hand pressing a red circular object on a mechanical component (no text or symbols)

Illustration of hands adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand adjusting a car seatbelt with a green checkmark icon (no text or symbols)

Diagram of a car gear shift lever with a red X mark and number 8, no text or symbols present

Illustration of a baby in a car seat being adjusted for down, with a hand pointing to the seat (no text or symbols present)

5 Click!

תְקּבָרִי בְּרִי

תְרָה בַרִי אַלְבָם

Illustration showing two steps of baby car seat replacement: one with bandages and arrows indicating movement, the other with a canopy cover.

Medical illustration showing a child in a car seat with a green arc and directional arrows, accompanied by a crosshair indicating failure or error.

תָרִיְבָה בַעּוֹ

1.

Illustration of a hand adjusting a seatbelt with a yellow arrow indicating the angle (no text or symbols present)

Click!

2 1

אַלְרָה

בְרָה בַרִי

Cartoon illustration of a green helmet with yellow teeth and a red X mark, against a background with abstract lines and shapes (no text or symbols)

Illustration of a car seatbelt being lifted, showing green belt and yellow safety belt (no text or symbols)

1 Click!

תְרָה בַלְרָה אַעֹב

Diagram showing car seatbelt usage with a green belt and red X mark, labeled with number 2

Diagram showing a green belt drive mechanism with checkmark and number 1 label

Illustration of a hand adjusting a green tab with a metal clamp (no text or symbols)

Illustration of hands adjusting a green mechanical component (no text or symbols)

Illustration of hands holding a green tool with a handle, no text or symbols present

Prohibition sign showing a chair seat and child silhouette without any text or symbols

Prohibition sign showing a red circle with a diagonal line and a seated figure, indicating no change in safety or mobility.

الثنيت والاستخدام

Illustration showing a car seatbelt adjustment step with numbered instructions and a hand holding a padlock.

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

Diagram illustrating a mechanical or electrical setup with labeled components and directional indicators

Illustration of a car seat with a yellow arrow indicating direction (no text or symbols)

Medical illustration showing a hand holding a green bandage with yellow arrow indicating direction, labeled with number 7

Diagram illustrating vehicle seatbelting with checkmark and triangle symbols, showing safety instructions

Click! ⑤

Diagram showing a car steering wheel with a numbered component and directional arrow indicating motion

Diagram of a car seatbelt with checkmark and triangle symbols indicating selection or status

Diagram illustrating a person's seatbelt usage with labeled parts and directional arrows indicating movement or force.

Safety warning illustration showing a cartoon character using a tool to avoid a bad eye, with no text labels and symbols.

Illustration showing a person driving a car, with checkmark and car icon indicating inspection or testing status.

Diagram showing a car seatbelt with a checkmark and number 4, indicating a directional change or adjustment.

Diagram illustrating car seatbelt usage and wheelway mechanism, showing step 2 with highlighted components and directional arrows.

Diagram of a mechanical component with yellow arrows indicating force or movement, no visible text or symbols

Diagram showing two scenarios of a car's seatbelt with color-coded buttons and labels 4 and 5, including checkmark and cross icons.

Click!

Safety warning illustration showing a car seat with a child inside and a no-smoking symbol

Illustration of a baby car seat with a hand adjusting the seat area, showing a yellow curved arrow indicating motion (no text or symbols present)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the pressure point (no text or symbols)

Click! 5

Illustration of a car seatbelt with a hand adjusting the seat, showing a yellow curved arrow indicating rotation (no text or symbols present)

استخدام مقبض العمل

Illustration showing car seat safety rules with numbered annotations and a cartoon car inside the seat.

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Diagram illustrating car seatbelt usage with labeled parts and directional arrows indicating movement

Illustration of a hand holding a cable with a yellow arrow pointing to the cable end (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Mechanical component diagram showing a gear and cam mechanism (no text or symbols)

Illustration of a hand adjusting a mechanical component with a red circular mark (no text or symbols)

Illustration of a hand adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand adjusting a car seatbelt with a green checkmark icon (no text or symbols)

Close-up of a car seatbelt mechanism with a red X mark and number 8, no visible text or symbols beyond the number.

Illustration of a baby in a car seat being adjusted for down, with a yellow arrow indicating the motion (no text or symbols present)

5 Click!

رامة الطفل

Illustration showing two steps of baby car seat replacement: one with bandages and arrows indicating movement, the other with a banana-shaped seat.

Medical illustration showing a child in a car seat with a green arc and directional arrows, accompanied by a cross and checkmark indicators.

Illustration of a hand adjusting a car seatbelt with a yellow arrow indicating the adjustment (no text or symbols present)

Click!

2 1

③ ② ① Click!

استخدام مقصر الحزم

Diagram showing car seatbelt usage with a green belt and red X mark, labeled with number 2

Diagram showing a green belt drive mechanism with checkmark and number 1 label

Illustration of a hand adjusting a green tab with a metal clamp (no text or symbols)

Illustration of hands adjusting a green mechanical component (no text or symbols)

Illustration of hands holding a green tool with a handle, no text or symbols present

Prohibition sign showing a person sitting on a chair facing the wheel, with no text beyond the prohibition symbol.

Prohibition sign showing a seatbelt and child sleeping, indicating no difference between seatbelt and other modes.

جلو است، نصب گرد.

• فمال

• عبور

Diagram illustrating car seat replacement steps with numbered instructions and a hand placing a yellow arrow on the seat.

Illustration of a car seatbelt with a green cable and numbered label (4), no text or symbols present.

Illustration showing two steps of a robotic arm manipulation process, labeled with numbered instructions and symbols.

Illustration of a car seat with a yellow arrow indicating direction (no text or symbols)

Medical illustration showing a hand holding a green bandage with a yellow arrow indicating direction, labeled with number 7.

Diagram illustrating car seatbelting with checkmark and triangular symbols, showing green belt and dashed lines indicating safety or repair zones.

Click! ⑤

Diagram showing a car seatbelt with a green belt and directional arrow, labeled with number 3

Diagram showing car seatbelt buckle with checkmark and triangle symbols indicating selection or status

Diagram illustrating a person's seatbelt usage with labeled parts and directional arrows indicating movement or force.

Safety warning illustration showing a cartoon character using a tool to avoid overuse, with red circles indicating 'no eye' and a red X mark.

Illustration showing a person in a car inside a vehicle seat, with checkmark and car icon indicating inspection or verification.

Diagram showing a car seatbelt with a green checkmark and number 4, indicating a directional change or adjustment.

Diagram illustrating car seatbelting and wheelway repair steps, showing step 1 with hand placement and circular motion arrows.

Diagram of a mechanical component with yellow highlighted parts, no visible text or symbols

Diagram showing two scenarios of a car's seatbelt with color-coded buttons and labels 4 and 5, including checkmark and cross icons.

Click!

Safety warning illustration showing a car seat with a child inside and a no-smoking symbol

Illustration of a baby car seat with a hand adjusting the seat area, showing a yellow curved arrow indicating motion (no text or symbols present)

Illustration of a hand pressing down on a car interior with a yellow arrow indicating the motion direction (no text or symbols)

Click!

Illustration of a baby car seat with hand placement and yellow motion arrow (no text or symbols)

استفاده از دسته حمل

Illustration showing car seat safety rules with numbered annotations and a no-smoking symbol

Illustration of a car seatbelt with a yellow arrow indicating motion (no text or symbols)

Diagram illustrating car seatbelt usage with labeled parts and directional arrows indicating movement

Illustration of a hand holding a cable with a yellow arrow pointing to the cable (no text or symbols)

Medical illustration of a pelvic region with a numbered marker (3) and a magnified inset showing a red bar magnet (no text or symbols present)

Mechanical component diagram showing a gear and lever mechanism (no text or symbols)

Illustration of a hand pressing a red circular button on a mechanical component (no text or symbols)

Illustration of a hand adjusting a pelvic bone structure with a yellow arrow indicating a specific point (no text or symbols present)

Illustration of a hand adjusting a car seatbelt with a green checkmark icon (no text or symbols)

Diagram of a car seatbelt mechanism with a red X mark and number 8, no text or symbols present

Illustration of a baby car seat with a hand adjusting the seat, showing no text or symbols.

5 Click!

آسایش کودک

استفاده از وضعت صاف

Illustration showing two steps of baby car seat replacement: one with bandages and arrows indicating movement, the other with a canopy cover.

Medical illustration showing a child in a car seat with a green arc and directional arrows, accompanied by a crosshair indicating failure or error.

متصل کردن به کالسکه

Close-up of a hand adjusting a car seatbelt with a yellow arrow indicating the angle (no text or symbols present)

Click!

2 1

Cartoon illustration of a green helmet with yellow accents, showing a person reacting to a shock or shock near a vehicle (no text or symbols)

Illustration of a car seatbelt being lifted, showing green belt and yellow safety symbol (no text or labels)

1 Click!

Diagram showing car seatbelt usage with a green belt and red X mark, labeled with number 2

Diagram showing a green belt drive mechanism with checkmark and number 1 label

Illustration of a hand adjusting a green cable or clamp (no text or symbols present)

Illustration of hands assembling a green mechanical component (no text or symbols)

Illustration of hands holding a green safety clip with a handle, no text or symbols present

Prohibition sign showing a red circle with a diagonal line and a pictogram of a person sitting on the seat.

f facebook.com/BeSafe

@besafeinternational
