USER MANUAL EK7S AENO

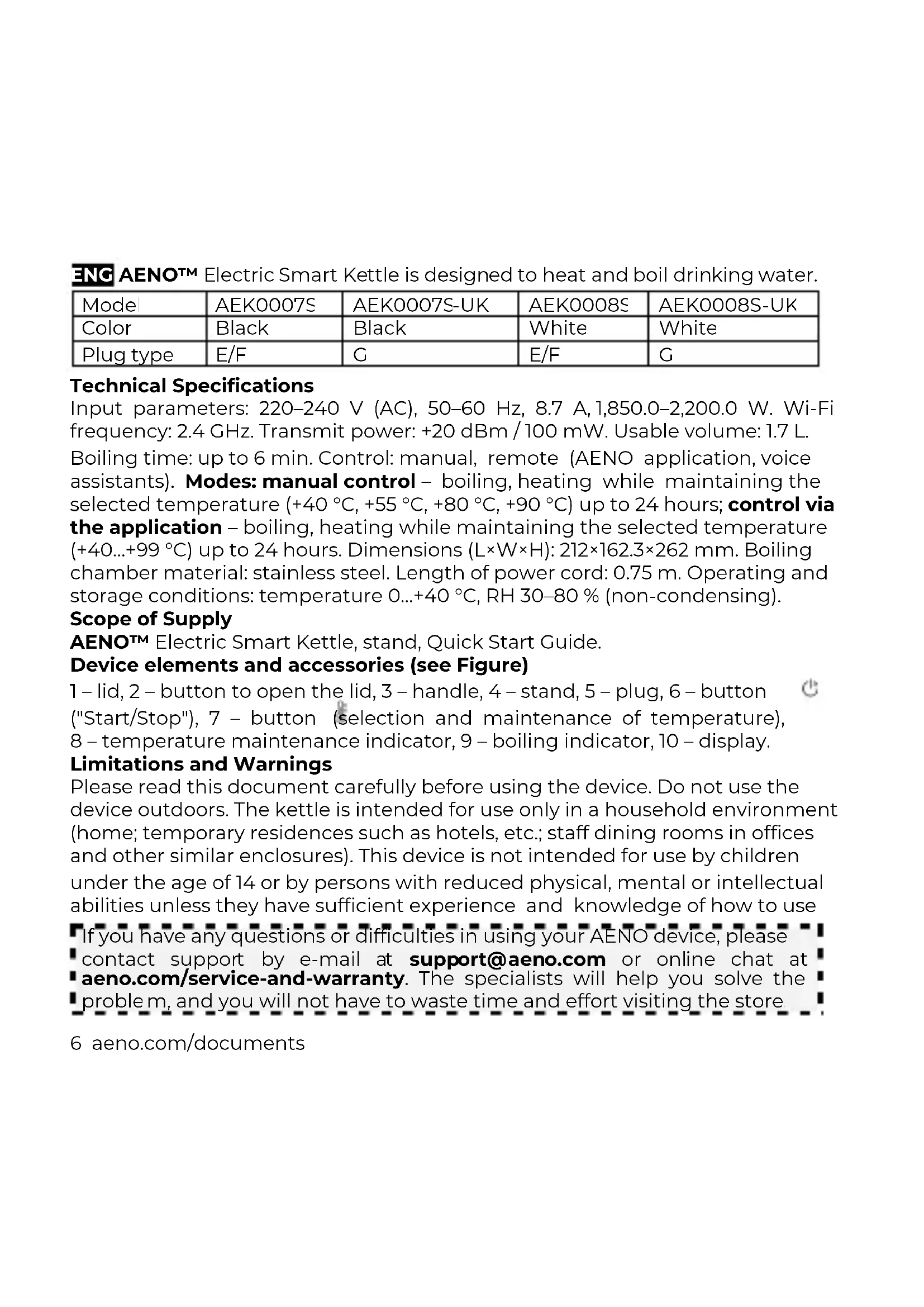

180aeno.com/documents 56 aeno.com/documents ENG AENO™ Electric Smart Kettle is designed to heat and boil drinking water. Model

Technical Specifications Input parameters: 220–240 V (AC), 50–60 Hz, 8.7 A, 1,850.0–2,200.0 W. Wi-Fi frequency: 2.4 GHz. Transmit power: +20 dBm / 100 mW. Usable volume: 1.7 L. Boiling time: up to 6 min. Control: manual, remote (AENO application, voice assistants). Modes: manual control – boiling, heating while maintaining the selected temperature (+40 °C, +55 °C, +80 °C, +90 °C) up to 24 hours; control via the application – boiling, heating while maintaining the selected temperature (+40…+99 °C) up to 24 hours. Dimensions (L×W×H): 212×162.3×262 mm. Boiling chamber material: stainless steel. Length of power cord: 0.75 m. Operating and storage conditions: temperature 0…+40 °C, RH 30–80 % (non-condensing). Scope of Supply AENO™ Electric Smart Kettle, stand, Quick Start Guide. Device elements and accessories (see Figure) 1 – lid, 2 – button to open the lid, 3 – handle, 4 – stand, 5 – plug, 6 – button ("Start/Stop"), 7 – button (selection and maintenance of temperature), 8 – temperature maintenance indicator, 9 – boiling indicator, 10 – display. Limitations and Warnings Please read this document carefully before using the device. Do not use the device outdoors. The kettle is intended for use only in a household environment (home; temporary residences such as hotels, etc.; staff dining rooms in offices and other similar enclosures). This device is not intended for use by children under the age of 14 or by persons with reduced physical, mental or intellectual abilities unless they have sufficient experience and knowledge of how to use If you have any questions or difficulties in using your AENO device, please contact support by e-mail at [e-mail] or online chat at aeno.com/service-and-warranty. The specialists will help you solve the proble m, and you will not have to waste time and effort visiting the store.aeno.com/documents 7 the device and are supervised by a person responsible for their safety. Before use, make sure that the rated voltage and frequency specified in the Technical Specifications correspond to the mains supply. Do not use a damaged device. The device must be repaired by a qualified technician at an authorized service center. Do not allow the power cord to come into contact with sharp objects or hot surfaces. Do not immerse the plug, power cord, kettle and/or stand in water or other liquids. To replace a damaged cable, contact the manufacturer, an authorized service center, or a suitably qualified professional to avoid hazardous situations. Install the device away from external heat sources or other electrical appliances. Do not turn on an empty kettle. Do not open the lid of the kettle while the water is boiling and for two minutes after boiling. Be careful when pouring hot water, do not tilt the kettle with water too sharply. Make sure the lid is tightly closed before lifting the kettle. Lift the kettle by the handle only. Do not pour water below the "MIN" mark and above the "MAX" mark on the inside of the housing. If the kettle is overfilled, water may spill out of the kettle when boiling. Use the device only with the supplied stand. The kettle is designed to heat and boil water only. Use purified water to reduce scale formation. Unplug the kettle when not in use and before cleaning. Do not use chemical and aggressive detergents, abrasive pastes, products containing acids and solvents or metal sponges for cleaning. Do not allow children to use and/or play with the device. Detailed information can be found in the complete operating manual, available for download at aeno.com/documents. LED indication Indicator

Off Boiling water or pairing is completed/interrupted or the device is turned off

On (white) Temperature maintenance mode is activated8 aeno.com/documents Indicator

Flashing white Activating smartphone pairing mode. The water temperature in the kettle is higher than the set temperature

Off Temperature maintenance or pairing is completed/interrupted or the device is turned off Functions of buttons Button

Press once Starts boiling water; interrupts boiling, heating or maintaining the temperature Tap and hold

Temperature selection and maintenance button

Press once Selection of water heating temperature Preparing for the First Use Before using the device for the first time, clean it by doing the following:

1. Open the packaging and remove the device. Remove any packaging

2. Place the stand on a flat, stable surface.

3. Open the lid of the kettle and fill with water up to the "MAX" mark.

4. Close the lid tightly and place the kettle on the stand.

5. Insert the plug into the socket.

6. Tap button: after a beep, the water starts heating.

7. Wait until the water boils and three beeps sound.

8. Remove the kettle from the stand and carefully drain the water.

ATTENTION! Do not drink water obtained after the first two boilings.

9. Allow the device to cool down and repeat steps 3–8.aeno.com/documents 9

10. After the device has cooled down completely, wipe the exterior and interior

surfaces with a dry cloth. Operation of the Device

1. Open the lid and pour the desired amount of water into the kettle.

Note. Do not pour water below the "MIN" mark and above the "MAX" mark on the inside of the housing.

2. Close the lid tightly and place the kettle on the stand.

Boiling. Follow steps 6–7 in the "Preparing for the First Use" section. Boiling while maintaining the selected temperature. Tap button and then use button to select the required temperature: the kettle heats water up to 100 °C and enters the temperature maintenance mode for 24 hours. Heating while maintaining the selected temperature. Tap button to select the required temperature: the kettle will heat water to the selected temperature and maintain it for 24 hours. Note. This mode does not involve boiling water. Note. Tap button again to interrupt boiling or heating with maintenance. Boiling or heating will also immediately and automatically turn off when the kettle is removed from the stand, temperature maintenance will turn off 3 minutes after the kettle is removed from the stand. Remote control Note. It is recommended to stay as close as possible to the kettle and, if possible, to the Wi-Fi router while the device is connected to the application.

1. Pour the right amount of water into the kettle. Close the lid tightly and place

the kettle on the stand. Insert the plug into the socket.

2. Connect your smartphone to a Wi-Fi network (2.4 GHz).

3. Download the AENO mobile application from Google Play or App Store and

register a new account or log in to your user account.

4. On the main screen of the application, tap "Add Device". If you have devices

already connected to the application, tap the "+" in the upper right corner and select "Add Device".10 aeno.com/documents Note. If you receive system prompts to turn on assistive features on your smartphone, follow the prompts.

5. In the window that opens, select the "Kettle" category.

6. Enter your Wi-Fi network name and password if they are not filled in

automatically and click "Next".

7. Tap and hold button until both indicators start flashing and the device

8. In the application, on the "Connection Instructions" screen, check the

"Indicator blinks" box and tap "Next".

9. Wait until the "Auto Search" screen appears and the message "Successfully

added devices: 1" appears. Tap "Done".

10. Make sure that both indicators are off.

Note. If the connection fails, make sure the device is plugged in and turned on, check the Wi-Fi router settings at aeno.com/router-help. Remove the kettle from the stand, place it on the stand again and repeat the connection. Note. The device can also be controlled via voice assistants. Detailed information is available in the complete User Manual on the aeno.com/documents web page. Cleaning and Maintenance ATTENTION! Before cleaning, unplug the kettle and allow it to cool down. Wipe the outside of the kettle with a soft cloth soaked in warm water or a mild soap solution. Then wipe with a soft cloth dampened with clean water and wipe dry. Descaling Frequency (when using the kettle 3–5 times a day): hard and very hard water – once a month; medium hard or soft water – once every 2–3 months. Anti-scale products and cleaning methods Table vinegar

or 9 %) into the kettle, leave for 1 hour without boiling. Pour out the Boil 0.5

L of water. Add 25 g of citric acid and leave for 15 minutes. Pour out the contents, wash Follow the manufacturer's instructions onaeno.com/documents 11 Table vinegar

contents, wash the kettle by pouring and draining the water 5

the kettle by pouring and draining the water 5–

the product package Troubleshooting The kettle won't turn on. Possible causes: socket malfunction; the kettle is not placed on the stand. Solution: check the socket by plugging in another device; place the kettle on a stand. The kettle switches off a few seconds after it is switched on. Possible cause: no water or little water. Solution: unplug the kettle from the mains. Wait until it has cooled down and repeat the instructions under "Operation of the Device". Cannot connect the kettle to the application. Possible cause: the smartphone is too far away from the kettle. Solution: place your smartphone no more than 5 meters away from the kettle. ATTENTION! If none of the suggested methods have solved the problem, contact your supplier or an authorized service center. Do not disassemble the device or attempt to repair it yourself.

ASBISC reserves the right to modify the device and to make revisions and changes to this document without prior notice to users. This device complies with applicable safety requirements. The warranty period and service life is 2 years from the date of purchase of the product. Manufacturer's information: ASBISC Enterprises PLC, Iapetou, 1, Agios Athanasios, 4101, Limassol, Cyprus. Tel.: [phone], e-mail: [e-mail], asbis.com. Made in China. For date of manufacture see package. Up-to-date information and a detailed description of the device, as well as connection instructions, certificates, information about companies that accept quality claims and warranties, are available for download at aeno.com/documents. All trademarks and trade names mentioned are the property of their respective owners. SIMPLIFIED DECLARATION OF CONFORMITY. ASBISC hereby declares that the device complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following web address: aeno.com/userfiles/files/Certificates/CE/EK7S-EK8S.pdf.12 aeno.com/documents ARA ﺔﯿﻛذ ﺔﯿﺋﺎﺑﺮﮭﻛ ﺔﯾﻼﻏ ﻢﯿﻤﺼﺗ ﻢﺗ™AENO .بﺮﺸﻟا هﺎﯿﻣ ﻲﻠﻏو ﻦﯿﺨﺴﺘﻟ UK-AEK0008S
