Product type	Video inspection camera
Brand	Laserliner
Model	VideoFlex HD Micro
Dimensions (W x H x D)	310 x 210 x 140 mm (stand included)
Weight	956 g (with battery)
Power supply	Li-ion battery 3.7 V / 2.6 Ah + mains adapter 9 V DC / 2 A
Battery life	Approx. 5 hours
Charging time	Approx. 3 hours
Display	5 inch color TFT, resolution 1280 x 720 pixels
Photo/video resolution	1280 x 720 pixels
File format	JPEG (photo), MPEG-4 (video)
Storage media	micro SD card up to 32 GB (not included)
Protection rating	IP54 (camera head only)
Connectivity	USB Type-C (charging and data transfer)
Main functions	Photo/video recording, digital zoom x1-x2, 180° rotation, reflection, adjustable LED light, webcam function, auto power-off
Maintenance	Clean with a slightly damp cloth; do not use solvents or abrasive products; remove battery for prolonged storage
Safety instructions	Do not use near hazardous voltages; do not immerse the display; do not use for medical examinations; avoid contact with chemicals or moving parts
Spare parts and repairability	Replaceable battery (contact customer service); removable micro SD card; prioritize repair or donation
Menu languages	DE, EN, ES, FR, IT, JA, NL, PT
Manufacturer	Umarex GmbH & Co. KG - Laserliner, Germany

Frequently Asked Questions - VideoFlex HD Micro Laserliner

How to recharge the battery of the VideoFlex HD Micro?

The battery can be recharged either via the supplied 9 V mains adapter plugged into the device, or via the battery's external USB-C port with a standard USB-C adapter. During charging, the LED is red; it turns green when charging is complete (or turns off depending on the model).

How to insert a micro SD card?

Open the rubber cover on the device, then insert the micro SD card into the designated slot (up to 32 GB). Make sure the device is turned off before removing the card. No recording is possible without a card.

How to record a video?

In recording mode, press the i button to switch between photo and video (movie icon). Aim the camera head, then briefly press the OK button to start recording. Press OK again to stop recording and save it to the SD card.

How to rotate the displayed image?

Use the c button (180° rotation/reflection) in recording mode. Each press rotates the image by 180° or applies a mirror effect in the cycle: original image -> vertical reflection -> 180° rotation -> horizontal reflection -> back to original.

How to delete photos or videos?

Access the media gallery via the d button. In full screen mode, press b (delete) to delete the file. You can also format the SD card in the System Settings menu, which irreversibly erases all data.

Can the camera be used underwater?

The camera head is IP54 rated, meaning it is resistant to water splashes but should not be immersed. The display and base unit must not come into contact with liquids. Do not submerge the LCD screen in water.

What is the battery life?

Battery life is approximately 5 hours under normal use (depending on LED lighting and conditions). Full charging time is approximately 3 hours.

How to set the date and time?

In setting mode, select Date/Time. Use the arrow keys to adjust the date and time, and choose whether the timestamp should appear on photos.

How to update the firmware?

In the System Settings menu, select System Update. Follow the on-screen instructions. Typically, you need to place the update file on the SD card and start the procedure from the device.

Is the camera compatible with a computer?

Yes, via the USB-C port. It can be used as a webcam or as a USB mass storage device to transfer files to a PC or Mac. No specific driver is required for storage mode.

USER MANUAL VideoFlex HD Micro Laserliner

Black and white photo of a laser ear device with a screen displaying a medical scan (no visible text or symbols on the device body)

Laserliner

!

Diagram of a connector with numbered parts and directional arrows indicating assembly or movement.

2 ON/OFF 1 sec

Diagram of a device's front panel and internal components, showing ports and control buttons (no text or symbols)

a 01:00:2022 00:00:05 01:00:2022 00:05 eb dc f g c h d

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

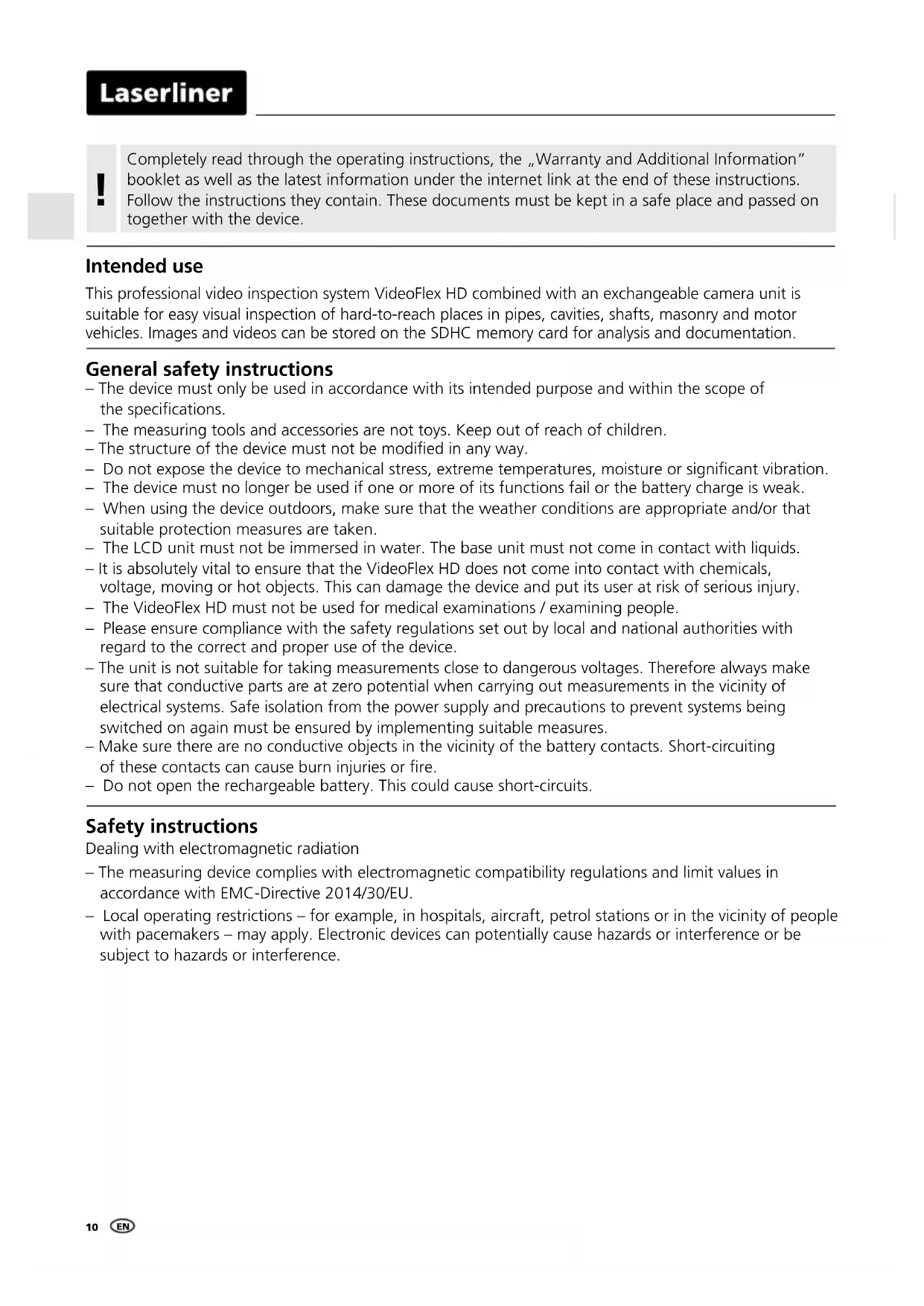

Completely read through the operating instructions, the „Warranty and Additional Information” booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. These documents must be kept in a safe place and passed on together with the device.

Intended use

This professional video inspection system VideoFlex HD combined with an exchangeable camera unit is suitable for easy visual inspection of hard-to-reach places in pipes, cavities, shafts, masonry and motor vehicles. Images and videos can be stored on the SDHC memory card for analysis and documentation.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
  – The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• When using the device outdoors, make sure that the weather conditions are appropriate and/or that suitable protection measures are taken.
• The LCD unit must not be immersed in water. The base unit must not come in contact with liquids.
• It is absolutely vital to ensure that the VideoFlex HD does not come into contact with chemicals, voltage, moving or hot objects. This can damage the device and put its user at risk of serious injury.
• The VideoFlex HD must not be used for medical examinations / examining people.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.
• The unit is not suitable for taking measurements close to dangerous voltages. Therefore always make sure that conductive parts are at zero potential when carrying out measurements in the vicinity of electrical systems. Safe isolation from the power supply and precautions to prevent systems being switched on again must be ensured by implementing suitable measures.
• Make sure there are no conductive objects in the vicinity of the battery contacts. Short-circuiting of these contacts can cause burn injuries or fire.
• Do not open the rechargeable battery. This could cause short-circuits.

Safety instructions

Dealing with electromagnetic radiation

– The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
- Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

1 2 3

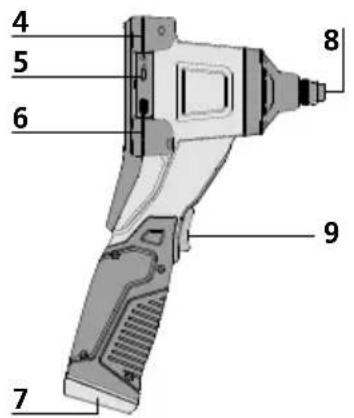

1 LCD
2 ON/OFF
3 Hot keys
4 Charging port
5 Type C USB interface
6 Micro SD card slot
7 Battery compartment
8 Camera unit connection
9 Front button

4 5 6 7 8 9

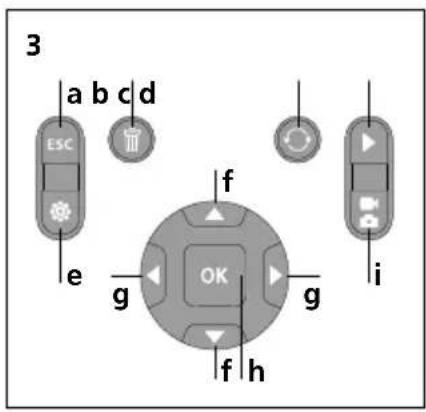

a Cancel
b Delete recording
c Rotation 180° / Mirroring
d Media gallery
e Settings mode
f Zoom + / -
g LED lighting + / -

3 ESC a b c d e f g OK g i f h

h Trigger / Record / Confirm
i Image / video selection

First use

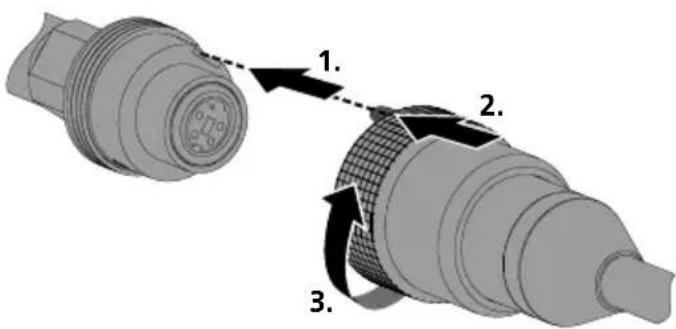

1 Connection for flex cable

Diagram showing three labeled parts of a connector with arrows indicating direction of movement or assembly.

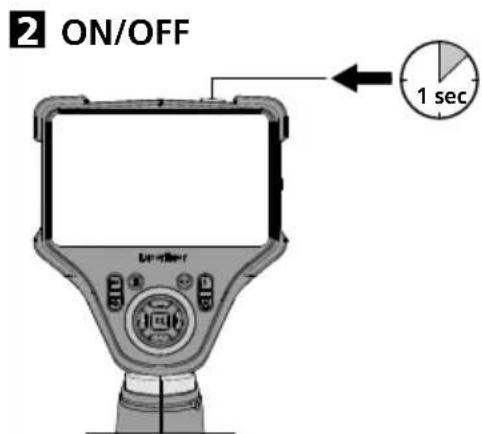

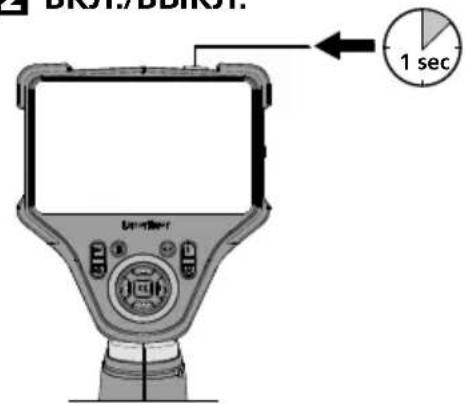

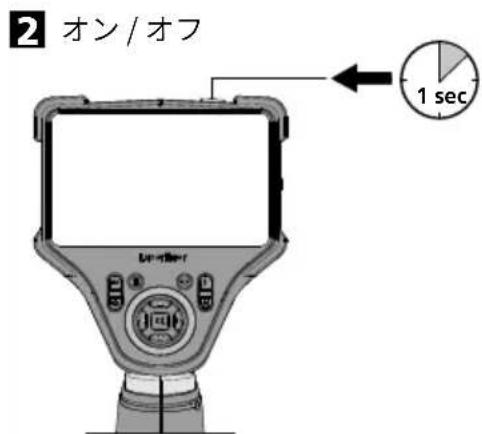

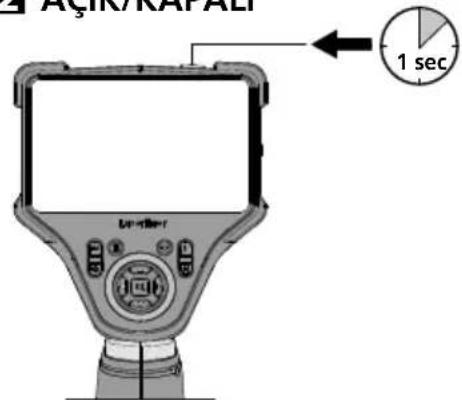

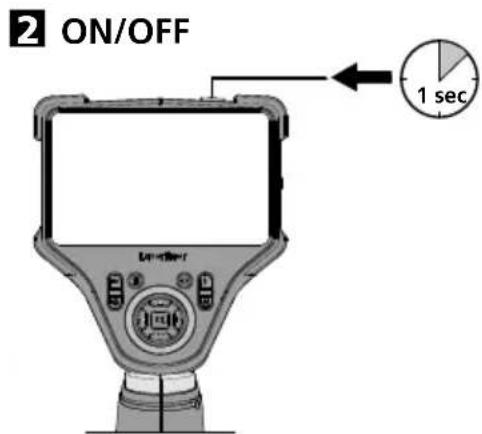

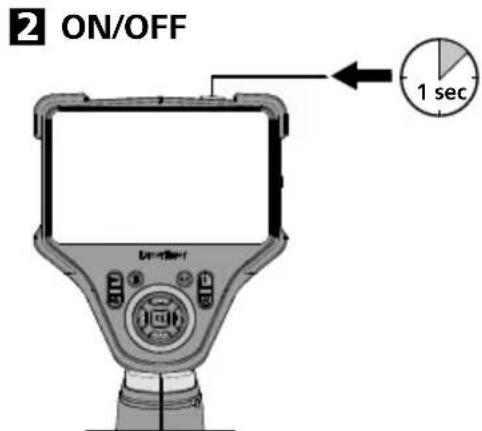

2 ON/OFF 1 sec

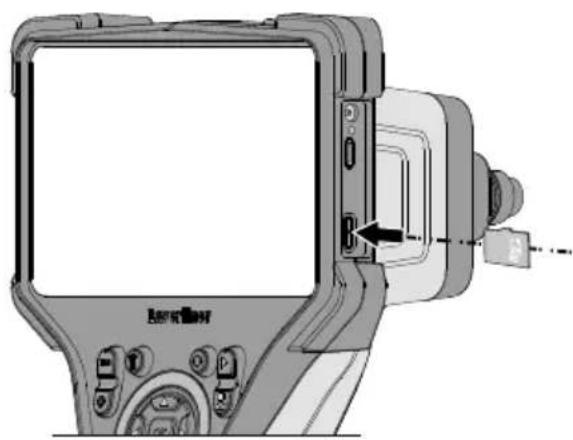

3 Inserting micro-SD card

To insert a micro-SD card, first open the rubber cover and then insert the memory card as illustrated. You cannot record anything without a storage medium.

The device must be switched off before removing the micro-SD.

Diagram of a device's front panel showing internal components and a close-up view of the screen (no text or symbols present)

Laserliner

4 Using the power supply / lithium-ion rechargeable battery

- The rechargeable battery can be charged using the 9V power supply provided or externally using the battery's integral USB-C socket and a standard USB-C power supply.

- Use the power supply/charger unit only in closed rooms; do not expose to moisture or rain otherwise risk of electric shock.

- Charge the device's battery completely prior to use.

- Connect the power pack/charger to the mains power supply and the socket in the battery pack. Please only use the power pack/charger supplied. Using any other power pack/charger will invalidate the warranty.

- The LED lights up red while the device is charging.

The LED changes to green when charging is complete.

- The LED lights up red while the rechargeable battery is charging.

The LED turns off when charging is complete.

USB-C ON-BATTERY PACK

The device has a replaceable battery. Contact your distributor or the UMAREX-LASERLINER service department.

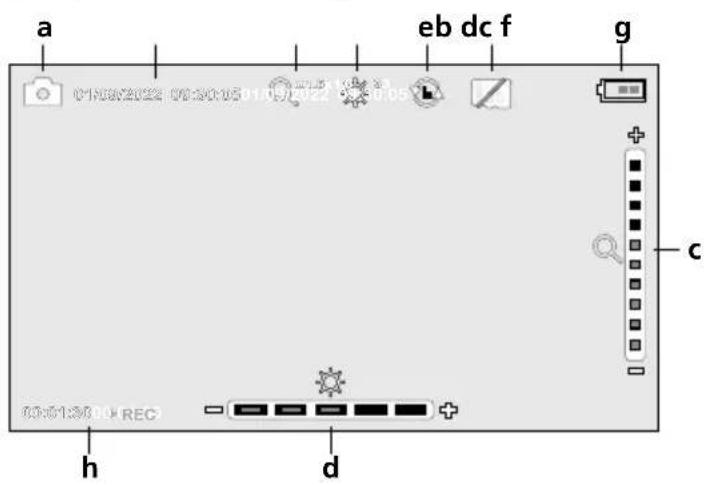

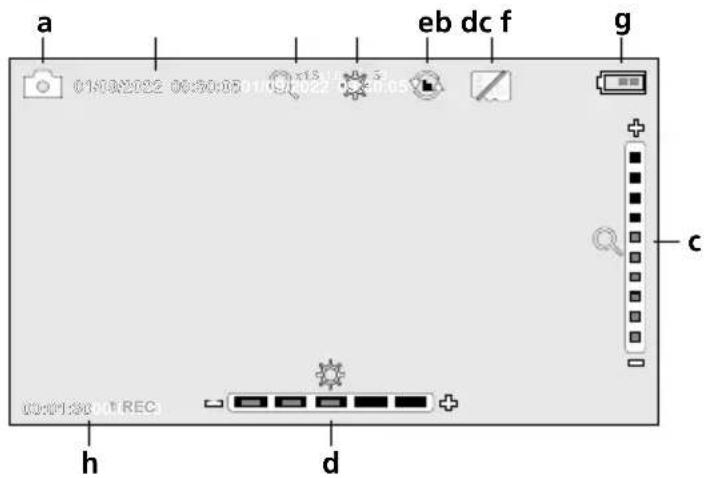

5.0 Record mode

a 01/08/2022 00:50:05 01/09/2022 00:05 eb dc f g c h d

a Image / video recording

b Current date / time

c Zoom

d LED lighting

e Rotation 180° / mirroring

f Insert SD card

g Battery status

h REC: Recording

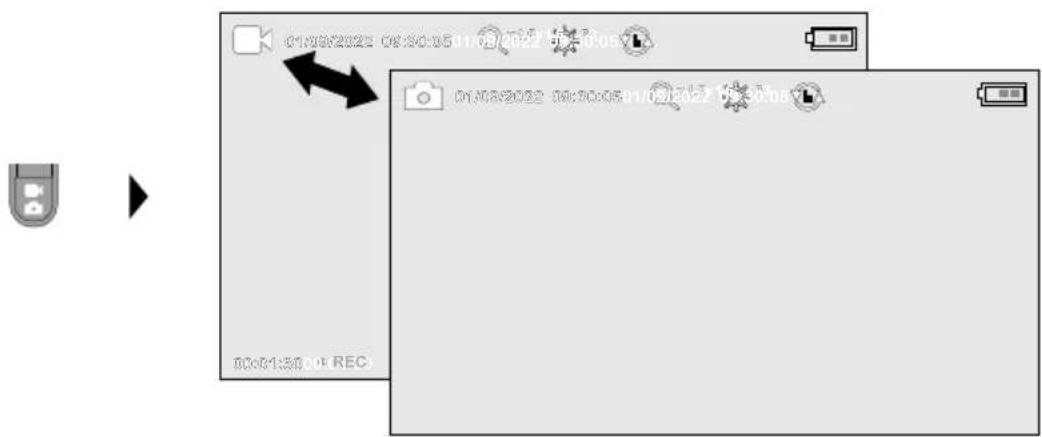

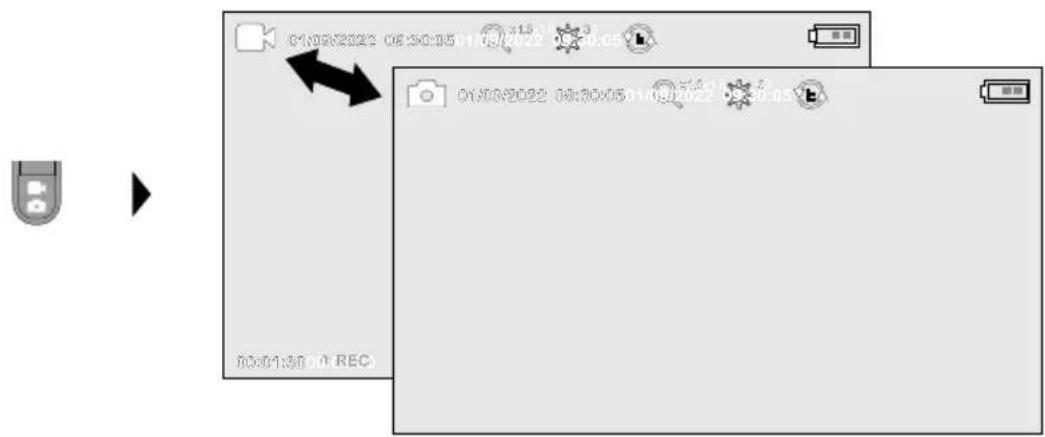

5.1 Record mode: Image / video selection

01/03/2022 06:50:05 01/03/2022 06:05 01/03/2022 06:50:05 01/03/2022 06:05 06:50:138 (A REC)

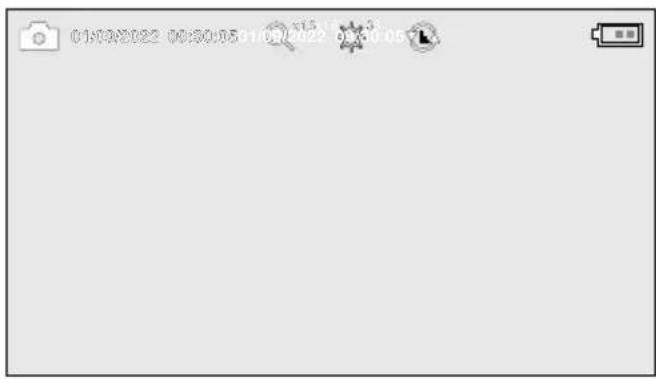

5.2 Record mode: Image / video recording

01/04/2022 00:50:05 11:07:2022 01:30:05

Line up the camera head on the flex cable and move it to the required position. If lighting conditions are poor, switch on the LED lighting. Zoom in on distant or small objects. The manual image rotation function enables the image to be rotated by 180^ on the monitor. Briefly press the OK button to take a still image or make a video recording and save it to the SD card. Press the button again to stop recording.

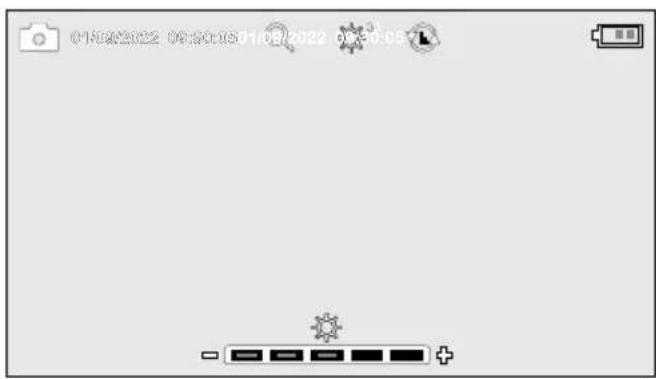

5.3 Record mode: LED lighting

01/08/2022 09:30:05 11:00/2022 09:30:05 +

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

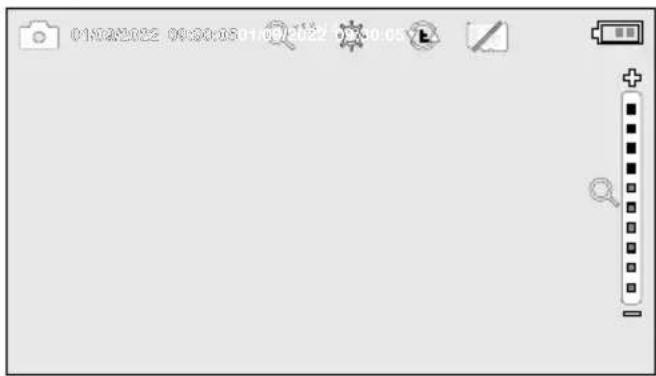

5.4 Record mode: Zoom

01/02/2022 09:30:05 11:00:2022 07:30:05 +

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

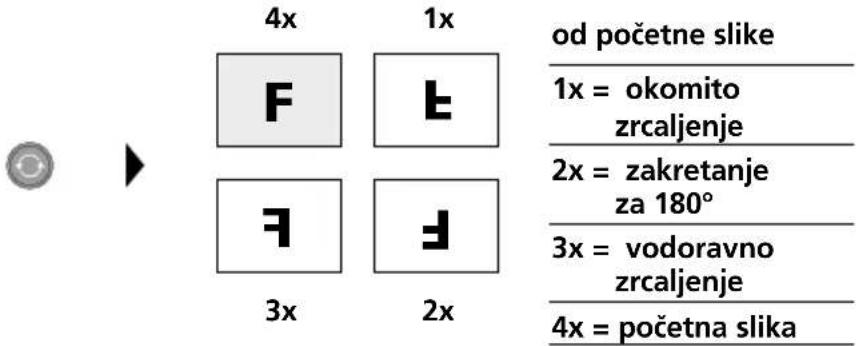

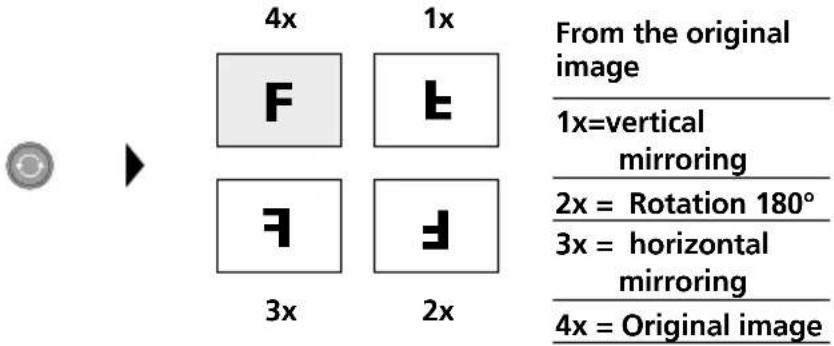

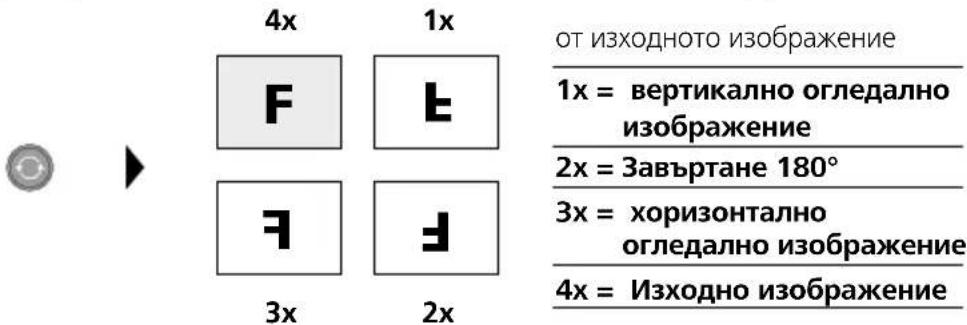

5.5 Record mode: Image rotation / Mirroring

4x 1x From the original image 1x=vertical mirroring 2x = Rotation 180° 3x = horizontal mirroring 4x = Original image

Laserliner

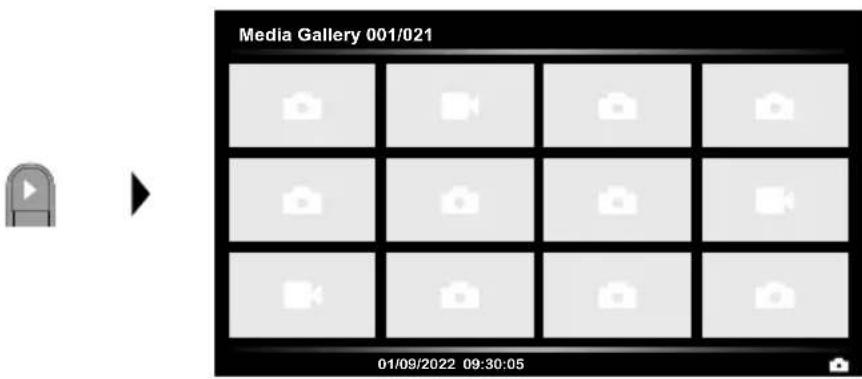

6.0 Playback mode: Playback image / video recordings

Media Gallery 001/021 01/09/2022 09:30:05

Press the „d“ button to call up the media gallery. Confirm with „OK“ to show the selected image or video in full screen mode. Use the arrow keys to navigate in the media gallery and full screen mode. Press the „a“ button to exit playback mode.

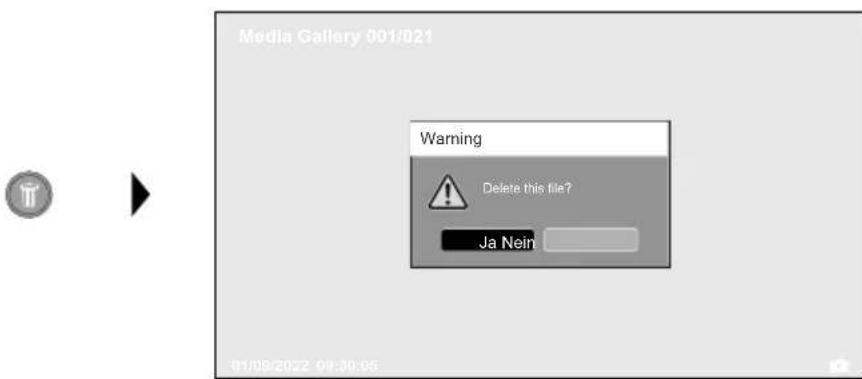

6.1 Playback mode: Delete recording

Media Gallery 001/021 Warning Delete this file? Ja Nein 01/08/2022 09:30:05

Images can be deleted from the image itself and in the gallery. Deleting cannot be undone. All files and folders can be deleted by reformatting the data medium. Refer to „7.4 System settings“.

6.2 Playback mode: Playback

OK 00:00:35 00:05:30

Press the „ESC“ button to stop playback.

7.0 Settings mode

Menu a——Display / Key b——Date / Time c——Language d——System Settings e——System Information

a Adjust screen brightness / configure front button
b Set date/time
c Select language (EN, DE, JP, FR, IT, PT, ES, NL)
d System settings
e Firmware/hardware version

! To return to recording mode, press the ESC button several times.

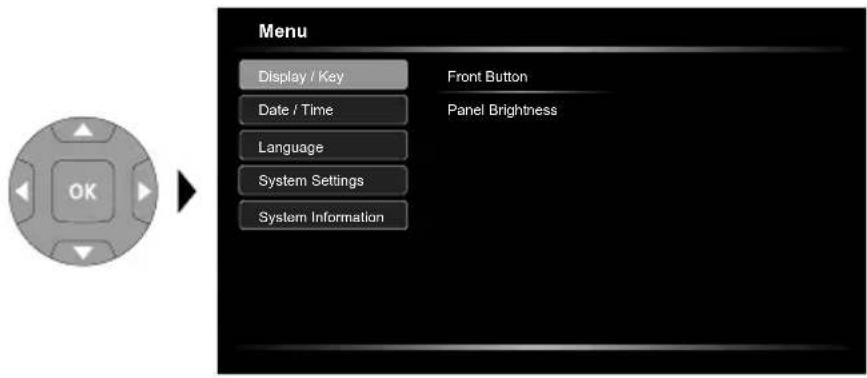

7.1 Settings mode: Display / Key

Menu Display / Key Front Button Date / Time Panel Brightness Language System Settings System Information

The following functions can be selected for the front button: Photo / video, image rotation, lighting and zoom. Default is photo / video There are three settings for the screen brightness.

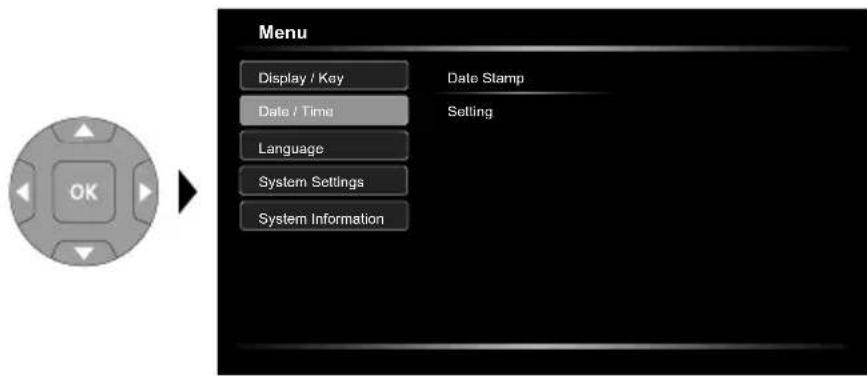

7.2 Settings mode: Set date/time

Menu Display / Key Date Stamp Date / Time Setting Language System Settings System Information

Select from here whether to include date/time information in the photo. The time and date can be adjusted using the arrow buttons.

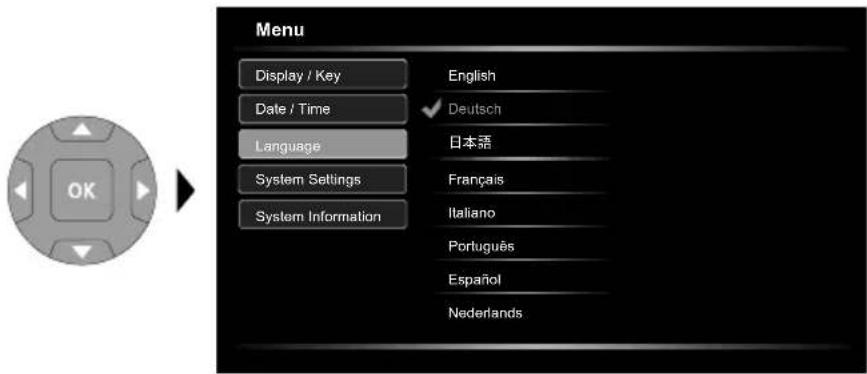

7.3 Settings mode: Select language (EN, DE, JP, FR, IT, PT, ES, NL)

Menu Display / Key English Date / Time ✓ Deutsch Language 日本語 System Settings Français System Information Italiano Português Español Nederlands

The preferred language can be set in this menu.

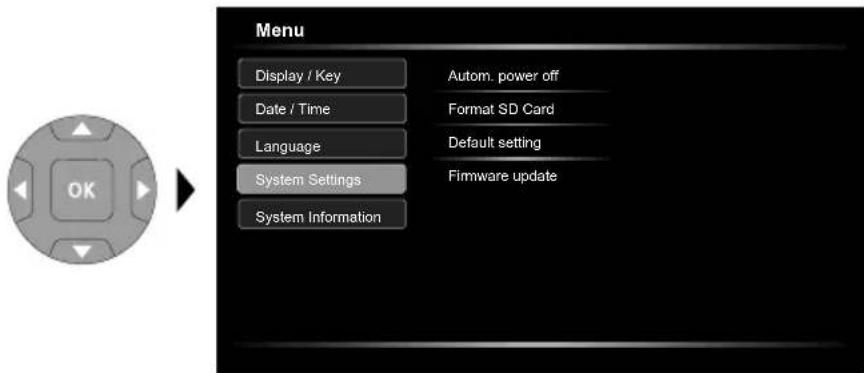

7.4 Settings mode: System Settings

Menu Display / Key Autom. power off Date / Time Format SD Card Language Default setting System Settings Firmware update System Information

All data on the SD card will be deleted. This procedure cannot be undone. There is no further prompt to confirm deletion.

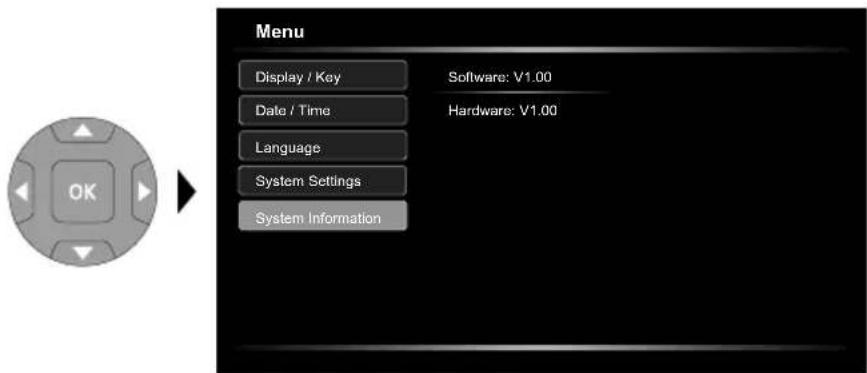

7.5 Settings mode: System Information

Menu Display / Key Date / Time Language System Settings System Information Software: V1.00 Hardware: V1.00

This menu provides information on the product.

USB data transfer

Data saved on the SD card can be transferred to PC either with a suitable card reader or directly via the USB port. Please refer to the manual supplied with your card reader for information about connecting your card adapter or card reader to a PC.

Webcam function

The camera can be used as a webcam with a computer via the USB-C interface.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical Data Technical revisions reserved. 24W36
Screen type 5" Colour TFT
Display resolution 1280 x 720 pixels
Image/Video resolution 1280 x 720 pixels
Image/Video format JPEG, MPEG-4
Memory Micro-SD memory card up to 32 GB
Protection class IP 54
Connections USB type C
Menu language DE, EN, ES, FR, IT, JA, NL, PT
Functions	Automatic shut off, 180° image rotation, Image mirroring, Image recording, Digital zoom 1-2x, Real-time clock, USB Mass Storage, Video recording
Mains operation yes
Power supply	Li-ion battery pack 3.7V / 2.6Ah / 19,24WhPower adapter 9V/DC / 2A
Operating time approx. 5 hours
Charging time approx. 3 hours
Operating conditions	-10°C ... 50°C, max. humidity 80% rH, no condensation,max. working altitude 2000 m above sea level
Storage conditions -10°C ... 70°C, max. humidity 80% rH, no condensation
Dimensions (W x H x D)	310 x 210 x 140 mm (incl. holder)
Weight	956 g (incl. battery pack)

EU and UK directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU and the UK.

This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials.

Further safety and supplementary notices at:

https://packd.li/ll/ajz/in

!

Diagram of a connector with numbered parts and directional arrows indicating assembly or movement.

2 ON/OFF 1 sec

Diagram of a device's front panel and internal components, showing ports and control buttons (no text or symbols)

Laserliner

a 01:00:2022 00:50:05 01:00:22 00:50:05 eb dc f g c 00:01:50 REC h d

1x = 20% 2x = 40% 3x = 60% 4x = 80% 5x = 100%

5.4 Opnamemodus: Zoom

01/02/2022 09:30:05 11:00:2022 07:30:05 +

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

Diagram of a connector with numbered parts and directional arrows indicating assembly or movement.

2 ON/OFF 1 sec

Diagram of a camera module with labeled ports and control panel (no readable text or symbols)

a 01/02/2022 00:30:05 01:09:2022 00:30:05 eb dc f g c h d

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

5.4 Optagelsesmodus: Zoom

01/02/2022 09:30:05 11:00:2022 07:30:05 +

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

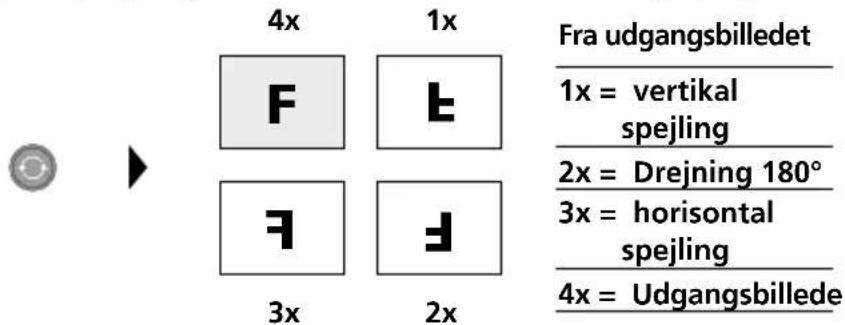

5.5 Optagelsesmodus: Billedrotation / Spejling

OK 00:00:35 00:05:30

Når man trykker på knappen „a“, stoppes gengivelsen.

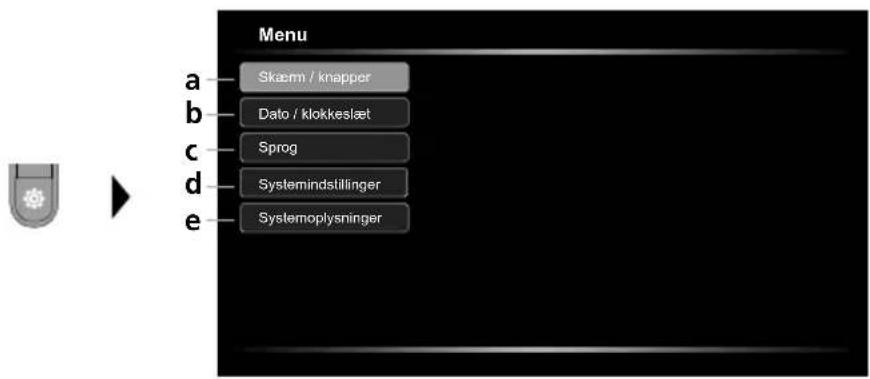

7.0 Indstillingsmodus

Menu a——Skaerm / knapper b——Dato / klokkeslæt c——Sprog d——Systemindstillinger e——Systemoplysninger

https://packd.li/ll/ajz/in

!

Diagram of a connector with numbered parts and directional arrows indicating assembly or movement.

2 ON/OFF 1 sec

Diagram of a camera module with an open grip and control panel, showing no text or symbols.

a 01:08:2022 00:50:05 01:09:2022 00:05 eb dc f g c 00:01:36 REC h d

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

Diagram of a connector with numbered parts and directional arrows indicating assembly or movement.

2 ON/OFF 1 sec

Diagram of a camera module with an open panel and control buttons, showing no text or symbols.

Laserliner

a 01/01/2022 00:30:05 01:09:2022 00:30:05 eb dc f g c h d

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

Diagram of a connector with numbered parts and directional arrows indicating assembly or movement.

2 ON/OFF 1 sec

Diagram of a device with an open panel and control buttons, showing a close-up of the internal components (no text or symbols present)

a 01:28:2022 00:5/0:50/01/09/2022 00:30:05 eb dc f g c 00:01:30 REC h d

OK 00:00:35 00:05:30

Premendo il tasto „a“ si interrompe la riproduzione.

https://packd.li/ll/ajz/in

!

Diagram of a connector with numbered parts and directional arrows indicating assembly or movement.

2 ON/OFF 1 sec

Diagram of a camera module with an open grip and control panel, showing no text or symbols.

Laserliner

a 01:00:2022 00:00:05 01:00:2022 00:05 eb dc f g c h d

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

Diagram showing three labeled parts of a connector with arrows indicating direction of movement or assembly.

2 ON/OFF 1 sec

Diagram of a device's front panel and internal ports, showing no text or symbols

Laserliner

a 01:00:2022 00:00:05 01:00:2022 00:05 eb dc f g c h d

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

Diagram of a connector with numbered parts and directional arrows indicating assembly or movement.

2 ON/OFF 1 sec

3 Inserir o cartão Micro SD

Diagram of a device's front panel and internal components, showing ports and control buttons (no text or symbols)

a 01/06/2022 00:00:05 01:06:05 02:05:05 eb dc f g c 00:01:30 REC h d

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

Diagram of a connector with numbered parts and directional arrows indicating assembly or movement.

2 ON/OFF 1 sec

Diagram of a device's front panel and internal components, showing ports and control buttons (no text or symbols)

Laserliner

a 01:00:2022 00:00:05/01/00:2022 00:05 eb dc f g c h d

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

Diagram of a connector with numbered parts and directional arrows indicating assembly or movement.

2 ON/OFF 1 sec

Diagram of a device with labeled ports and control panel (no readable text or symbols)

Laserliner

a 01/08/2022 06:50:05 01:07:2022 06:05 eb dc f g c 03:01:30 ( REC ) h d

a Opptak bilde / video
b Aktuell dato / klokkeslett
c Zoom
d LED-belysning
e Rotasjon 180°/ Speiling
f Legge inn SD-kort
g Batteriestatus
h REC: Opptak pågår

5.1 Opptaksmodus: Omkopling opptak bilde / video

01:00:2022 08:30:51/08/2022 08:30:05 01:00:2022 08:30:51/08/2022 08:30:05 00:01:30 (IE REC)

5.2 Opptaksmodus: Foto-/videoopptak

01/04/2022 00:50:05 11:07:31 01:31:05

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

Diagram of a connector with numbered parts and directional arrows indicating assembly or movement

2 AÇIK/KAPALI

AÇIK/RAF ALI 1 sec

Diagram of a device with an open panel and control buttons, showing internal components and a directional arrow (no text or symbols)

Laserliner

a 01:00:2022 00:00:05 01:00:2022 00:05 eb dc f g c h d

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

5.4 Kayıt modu: Zoom

01/02/2022 09:30:05 11:00:3022 07:30:05 +

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

Diagram of a connector with numbered parts and directional arrows indicating assembly or movement.

2 ВКЛ./ВЫКЛ.

BIG1/BBIG1 1 sec

Diagram of a device with a control panel and connector, showing no text or symbols

a 01/04/2022 09:30:05 01/07/2022 06:05 eb dc f g c 00:01:30 REC h d

01:08:2022 08:50:05/01/09/2022 7:30:05 01:08:2022 08:50:05/01/19/2022 7:30:05 08:01:30 T REC

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

Diagram showing three numbered components of a connector, likely an electrical or mechanical assembly, with arrows indicating direction.

2 ON/OFF 1 sec

Diagram of a device with a close-up view showing internal components and a directional arrow (no text or symbols)

a 01N202022 00:50:05/10/12/2022 eb dc f g c 00:01:58 REC h d

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

Diagram showing three numbered components of a connector, likely a valve or connector assembly, with arrows indicating direction.

2 ON/OFF 1 sec

Diagram of a device's front panel and internal ports, showing no text or symbols

a 01:00:2022 00:50:05 01:00:22 00:50:05 eb dc f g c 00:01:50 REC h d

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

Diagram showing three numbered components of a connector, likely a valve or connector assembly, with arrows indicating direction.

2 ON/OFF 1 sec

3 Micro-SD-kaardi sisestamine

Diagram of a device with a rectangular panel and control buttons, showing internal components and an arrow indicating a specific location (no text or symbols present)

Laserliner

a 01:00:2022 00:00:05 01:00:2022 00:05 eb dc f g c h d

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

Diagram showing three numbered components of a connector with directional arrows indicating movement or assembly.

2 ON/OFF 1 sec

3 Inserare card MicroSD

Pentru a insera cardul MicroSD, deschideti capacul de cauciuc si inserati cardul dupa cum este ilustrat. Nu puteti efectua inregistrari fara un mediu de stocare.

Diagram of a device's front panel showing internal components and a close-up view of the screen (no text or symbols present)

Laserliner

a 01:00:2022 00:00:05 01:00:2022 00:05 eb dc f g c h d

f Introducere Card SD

g Stare baterie

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

Diagram of a connector with labeled parts and directional arrows indicating assembly or movement.

2 ON/OFF 1 sec

Diagram of a device with a screen and control panel, showing a close-up of the screen and a mouse (no text or symbols visible)

a 0:10:00:02:02 0:05:00:05 01:00:00:22 00:05 eb dc f g c 00:01:30 - REC h d

01:00:00:22 00:00:05:01/09/2022 00:30:05 01:00:00:22 00:00:05:01/19/2022 00:30:05 00:01:30:0 REC

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

5.5 Режим заснемане: Ротация / Огледална функция

OK 00:00:35 00:05:30

Diagram showing three numbered components of a connector, likely an electrical connector or terminal, with arrows indicating direction.

2 ON/OFF 1 sec

Diagram of a device with a control panel and an arrow pointing to a component (no text or symbols present)

a 0:10:00:02:02 0:05:00:05 01:00:00:22 00:05 eb dc f g c 00:01:30 - REC h d

01/04/2022 00:00:05 11/09/2022 00:00:05 01/04/2022 00:00:05 01/09/2022 00:00:05 00:01:30:00 REC

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

OK 00:00:35 00:05:30

https://packd.li/ll/ajz/in

!

U potpunosti pročitajte Upute za uporabu, priloženu knjižicu „Jamstvene i dodatne upute” kao i aktualne informacije i napomene na internetskoj poveznici na kraju ovih Uputa. Slijedite upute navedene u njima. Ovu dokumentaciju potrebno je sačuvati i u slučaju prosljeđivanja uređaja proslijediti je zajedno s njime.

Diagram showing three numbered components of a connector with directional arrows indicating movement or assembly.

2 UKLJ./ISKLJ.

OKB.ASRES. ← 1 sec

3 Umetanje Micro SD kartice

Za umetanje Micro SD kartice najprije otvorite gumeni pokrov i nakon toga umetnite memorijsku karticu prema slici. Bez medija za pohranu nisu moguća snimanja.

Diagram of a device's front panel showing internal components and a close-up view of the screen (no text or symbols present)

4 Rukovanje mrežnim adapterom / litij-ionskom punjivom baterijom

• Punjiva baterija može se puniti u uređaju putem priloženog mrežnog adaptera od 9 V ili eksterno preko USB-C utičnice integrirane u punjivoj bateriji pomoću standardnog USB-C mrežnog adaptera.
• Mrežni adapter koristite samo unutar zatvorenih prostorija i ne izlažite ga vlazi niti kiši jer inače prijeti opasnost od električnog strujnog udara.
• Prije uporabe uređaja u potpunosti napunite punjivu bateriju.
• Spojite mrežni adapter/punjač na strujnu mrežu i na priključnu utičnicu punjive baterije uređaja. Koristite samo priloženi mrežni adapter. U slučaju uporabe pogrešnog mrežnog uređaja prestaje važiti garancija.
• Tijekom punjenja uređaja LED svijetli crveno. Postupak punjenja je završen kad LED svijetli zeleno.
  – Tijekom punjenja punjive baterije LED svijetli crveno.
  Postupak punjenja je završen kad se LED isključi.

USB-C ON-BATTERY PACK

Uređaj raspolaže zamjenjivom punjivom baterijom. Kontaktirati ovlaštenog zastupnika ili servis UMAREX- LASERLINER.

5.0 Modus snimanja

a 01:08:2022 00:30:05 01:09:22 00:05 eb dc f g c 00:01:36 REC h d

a Snimanje slike- / video
b Aktualni datum / Aktualno vrijeme
c Zumiranje
d LED rasvjeta
e Zakretanje 180° / Zrcaljenje
f Umetanje SD kartice
g Status baterije
h REC: Snimanje u tijeku

5.1 Modus snimanja: Prebacivanje snimanja Slika / Video

01/08/2022 08:30:05 01/08/2022 08:30:05 01/08/2022 08:30:05 01/08/2022 08:30:05 00:01:30.7 REC

5.2 Modus snimanja: Snimanje slika/video

01/04/2022 00:50:05 11:07:31 01:31:05

Usmjerite glavu kamere na fleksibilnom crijevu i dovedite je u željeni položaj. U slučaju loših svjetlosnih uvjeta uključite LED rasvjetu. Zumiranjem približite udaljene ili male objekte. Ručno zakretanje slike omogućava prikaz slike na monitoru zakrenute za 180°. Kratkim pritiskom na tipku U redu slike i video se snimaju te spremaju se na SD kartici. Snimanje se završava ponovnim pritiskom na tipku.

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

5.4 Modus snimanja: Zumiranje

01/02/2022 09:30:05 11:00:3022 07:00:05 +

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

5.5 Modus snimanja: Zakretanje slike / Zrcaljenje

OK 00:00:35 00:05:30

Reprodukcija se zaustavlja pritiskom na tipku „a“

https://packd.li/ll/ajz/in

!

はじめに

Diagram of a connector with numbered parts and directional arrows indicating assembly or movement

Diagram of a device with a screen and control panel, showing a close-up of the screen and a mouse (no text or symbols visible)

4 充電

a 01/08/2022 00:50:85 01:09/2022 REC eb dc f g c h d

	1x = 20%
	2x = 40%
	3x = 60%
	4x = 80%
	5x = 100%

5.4 摄影モード: ズーム

01/02/2022 04:30:05 01/02/2022 05:30:05 +

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

OK 00:00:35 00:05:30

Menu Display / Key Front Button Date / Time Panel Brightness Language System Settings System Information
